Model Maytag JGD3536BW00 GAS COOK-TOP – Common Parts & Diagrams

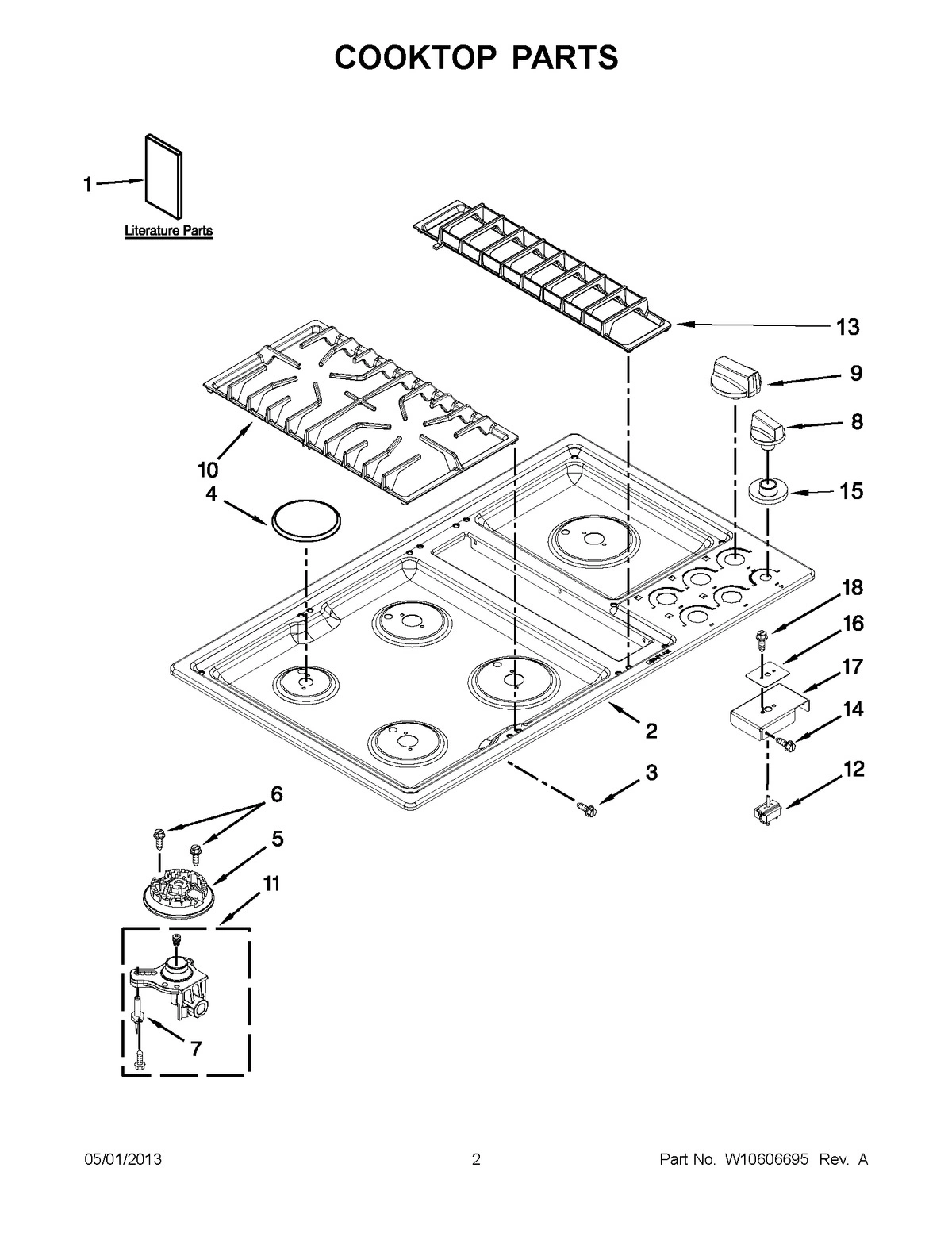

01 - COOKTOP PARTS

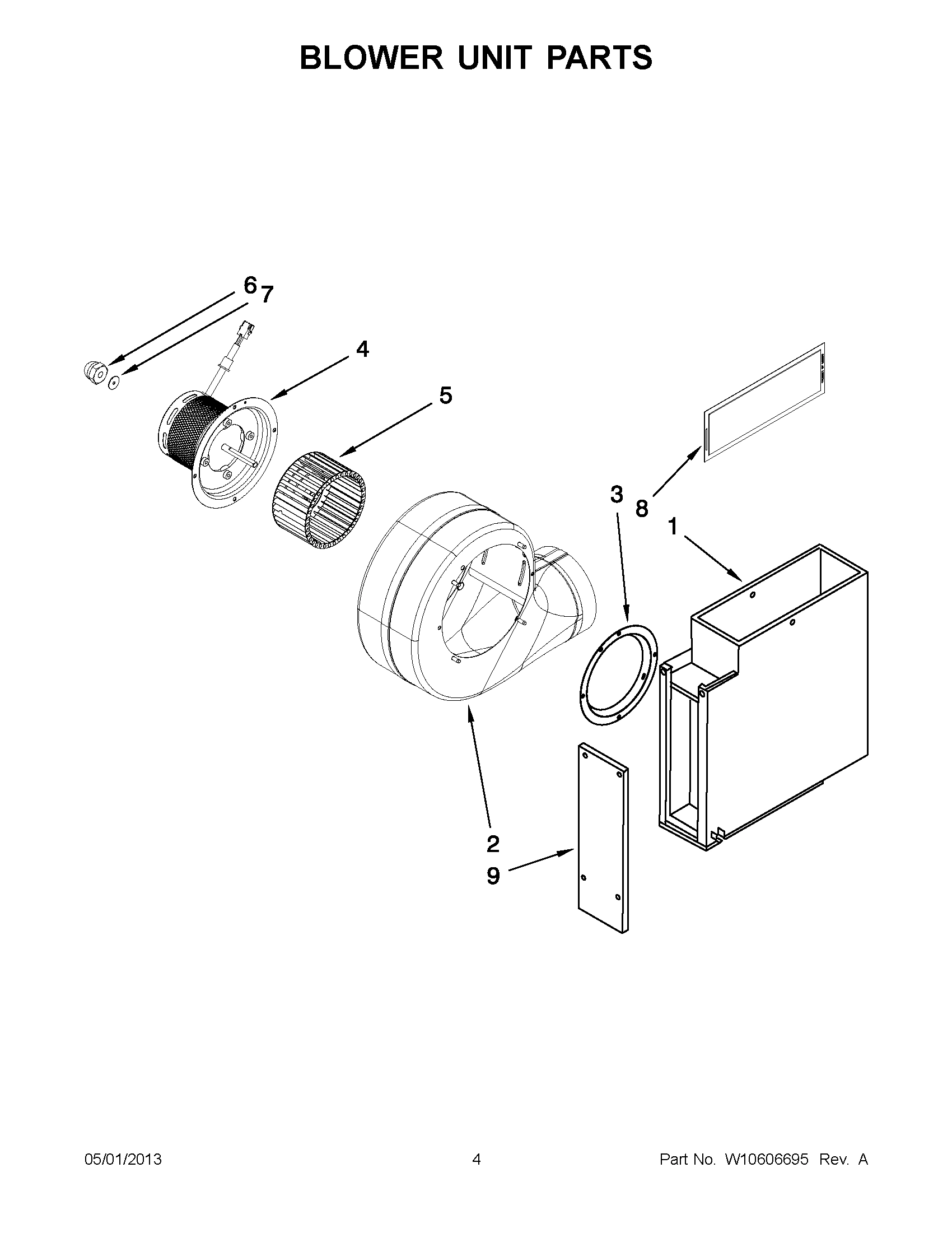

02 - BLOWER UNIT PARTS

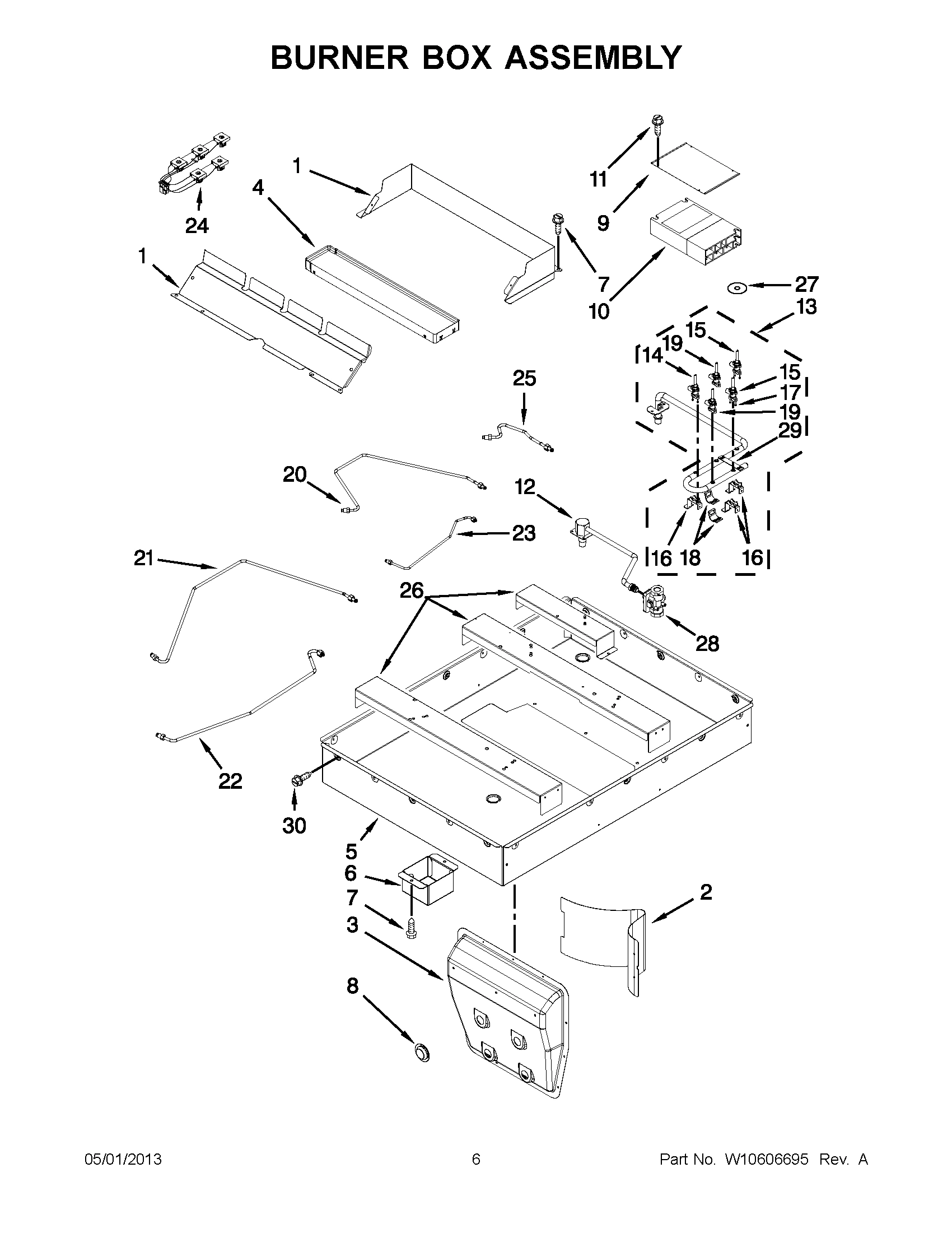

03 - BURNER BOX ASSEMBLY
04 - OPTIONAL PARTS
Common parts from model Maytag JGD3536BW00 GAS COOK-TOP
1
MAY 8106P068-60 MAY 8106P068-60 Contact Us For Availability
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10222823 MAY W10222823 Contact Us For Availability
1
MAY W10222824 MAY W10222824 Contact Us For Availability
1
MAY W10240007 MAY W10240007 Contact Us For Availability
1
MAY W10555863 MAY W10555863 Contact Us For Availability
1
MAY W10574732 MAY W10574732 Contact Us For Availability
1
MAY W10184122 MAY W10184122 Contact Us For Availability
1
BRACKET, SUPPORT (RIGHT HAND) MAY W10269705 Contact Us For Availability
1
BRACKET, SUPPORT (LEFT HAND) MAY W10269712 Contact Us For Availability
2
MAY W10555856 MAY W10555856 Contact Us For Availability
2
MAY W10555857 MAY W10555857 Contact Us For Availability
2
MAY W10555858 MAY W10555858 Contact Us For Availability
2
ASSEMBLY, SCROLL MAY 2822W001-80 Contact Us For Availability
2
MAY W10184137 MAY W10184137 Contact Us For Availability
3
MAY 4026F008-51 MAY 4026F008-51 Contact Us For Availability
3
MAY W10184125 MAY W10184125 Contact Us For Availability
4
CAP, BURNER WETSTONE (LEFT REAR) MAY 7504P294-60 Contact Us For Availability
4
CAP, BURNER WETSTONE (LEFT FRONT & CENTER REA MAY 7504P295-60 Contact Us For Availability
4
CAP, BURNER WETSTONE (RIGHT REAR & CENTER FRO MAY 7504P296-60 Contact Us For Availability
4
CAP, BURNER (BLACK (LEFT REAR)) MAY 7504P298-60 Contact Us For Availability
4
CAP, BURNER (BLACK (LEFT FRONT & CENTER REAR) MAY 7504P299-60 Contact Us For Availability
4
CAP, BURNER (BLACK (RIGHT REAR & CENTER FRONT MAY 7504P300-60 Contact Us For Availability
4
MAY W10247586 MAY W10247586 Contact Us For Availability
4
MAY W10235990 MAY W10235990 Contact Us For Availability
5
ASSEMBLY, BURNER (5K) (LEFT REAR) MAY 7505P304-60 Contact Us For Availability
5
ASSEMBLY, BURNER (12.5K) (LEFT FRONT & CENTER MAY 7505P305-60 Contact Us For Availability
5
ASSEMBLY, BURNER (15K) (RIGHT REAR & CENTER F MAY 7505P306-60 Contact Us For Availability
5
MAY 7114P005-60 MAY 7114P005-60 Contact Us For Availability
5
MAY W10498374 MAY W10498374 Contact Us For Availability
6
NUT, LOCK MAY 7103P162-60 Contact Us For Availability
6
MAY W10258697 MAY W10258697 Contact Us For Availability
7
MAY 7432P121-60 MAY 7432P121-60 Contact Us For Availability
7
MAY 7109P086-60 MAY 7109P086-60 Contact Us For Availability
8

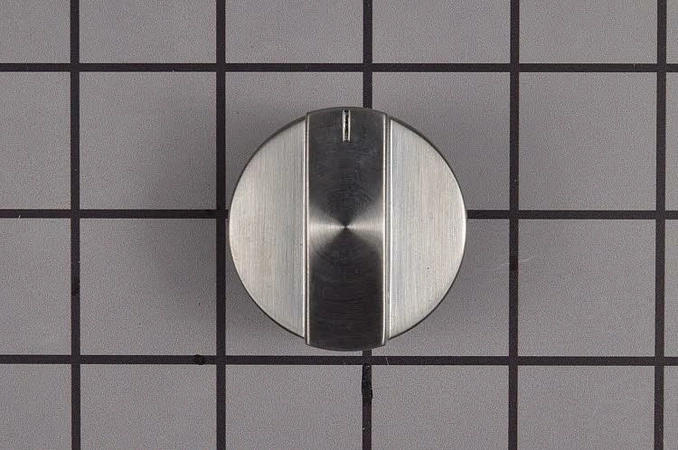

MAY W10549673 MAY W10549673 Contact Us For Availability
8

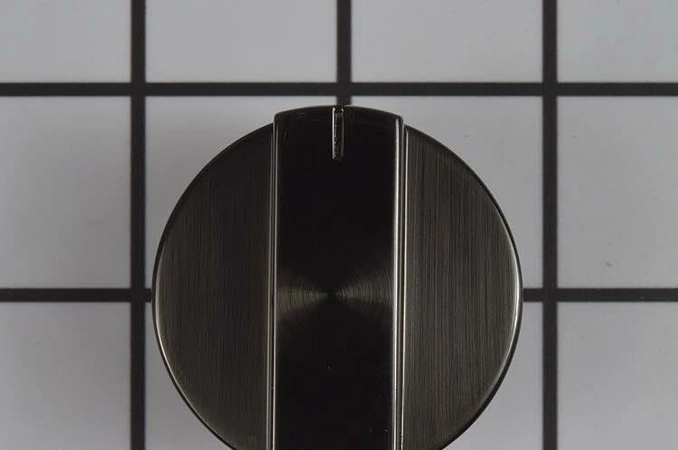

MAY W10551840 MAY W10551840 Contact Us For Availability
8
MAY W10551841 MAY W10551841 Contact Us For Availability
8
MAY W10240990 MAY W10240990 Contact Us For Availability
8
PLUG, HOLE MAY 7718P023-60 Contact Us For Availability
9
MAY W10559475 MAY W10559475 Contact Us For Availability
9
MAY W10559476 MAY W10559476 Contact Us For Availability
9
MAY W10559477 MAY W10559477 Contact Us For Availability
9
MAY 8312P151-60 MAY 8312P151-60 Contact Us For Availability
9
MAY W10253448 MAY W10253448 Contact Us For Availability
10
MAY W10203091 MAY W10203091 Contact Us For Availability
10
MAY W10203092 MAY W10203092 Contact Us For Availability
10
MAY W10203094 MAY W10203094 Contact Us For Availability
10
MAY W10204545 MAY W10204545 Contact Us For Availability
10
MAY W10204546 MAY W10204546 Contact Us For Availability
10
MAY W10204548 MAY W10204548 Contact Us For Availability
10
MAY W10475150 MAY W10475150 Contact Us For Availability
11
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
11
HOLDER, ORIFICE (9.2K) (LEFT REAR) MAY 7527P002-60 Contact Us For Availability
11
HOLDER, ORIFICE (12.5K) (CENTER REAR) MAY 7527P003-60 Contact Us For Availability
11
HOLDER, ORIFICE (RIGHT REAR) MAY 7527P004-60 Contact Us For Availability
11
MAY 7527P031-60 MAY 7527P031-60 Contact Us For Availability
11
HOLDER, ORIFICE (5K) (CENTER FRONT) MAY 7527P042-60 Contact Us For Availability
12
SWITCH, BLOWER MAY 4456836 Contact Us For Availability
12
MAY W10361756 MAY W10361756 Contact Us For Availability
13
MAY W10203093 MAY W10203093 Contact Us For Availability
13
MAY W10204547 MAY W10204547 Contact Us For Availability
13
MAY W10184143 MAY W10184143 Contact Us For Availability
14
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
14
MAY W10237981 MAY W10237981 Contact Us For Availability
15
MAY W10559485 MAY W10559485 Contact Us For Availability
15
MAY W10559486 MAY W10559486 Contact Us For Availability
15
MAY W10559494 MAY W10559494 Contact Us For Availability
15
MAY W10237983 MAY W10237983 Contact Us For Availability
16
GASKET, INFINITE SWITCH MAY 7201P077-60 Contact Us For Availability
16
MAY W10221532 MAY W10221532 Contact Us For Availability
17
MAY W10235926 MAY W10235926 Contact Us For Availability
17
MAY W10246216 MAY W10246216 Contact Us For Availability
18
BRACKET, SADDLE VALVE MAY W10246217 Contact Us For Availability
19
VALVE, GAS TOP (9.2/12.5K) MAY W10259053 Contact Us For Availability
20
MAY W10188368 MAY W10188368 Contact Us For Availability
21
MAY W10188366 MAY W10188366 Contact Us For Availability
22
MAY W10188365 MAY W10188365 Contact Us For Availability
23
MAY W10188367 MAY W10188367 Contact Us For Availability
24
MAY W10239017 MAY W10239017 Contact Us For Availability
25
MAY W10188369 MAY W10188369 Contact Us For Availability
26
MAY W10205612 MAY W10205612 Contact Us For Availability
26
MAY W10205613 MAY W10205613 Contact Us For Availability
26
MAY W10205615 MAY W10205615 Contact Us For Availability
27
SEAL, SHAFT MAY 3191387 Contact Us For Availability
28
REGULATOR,PRESSURE MAY W10132345 Contact Us For Availability
29
MAY W10185534 MAY W10185534 Contact Us For Availability
30
SCREW MAY 3368921 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN & GRID MAY 4396923 Contact Us For Availability
NI
WIRING HARNESS PARTS, CORD, POWER MAY 7402P087-60 Contact Us For Availability
NI
MAY 8019P017-60 MAY 8019P017-60 Contact Us For Availability
NI
ACCESSORIES, PREMIUM BROILER PAN & ROASTING R MAY W10123240 Contact Us For Availability
NI
MAY W10207825 MAY W10207825 Contact Us For Availability
NI
MAY W10207826 MAY W10207826 Contact Us For Availability
NI
WIRING HARNESS PARTS, ORIFICE, KIT LP MAY W10239523 Contact Us For Availability
NI
WIRING HARNESS PARTS, RIVET, NYLON MAY W10249271 Contact Us For Availability
NI
MAY W10253222 MAY W10253222 Contact Us For Availability
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER MAY W10355016 Contact Us For Availability
× ![]()
