Model Maytag JFI2089WES10 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts & Diagrams

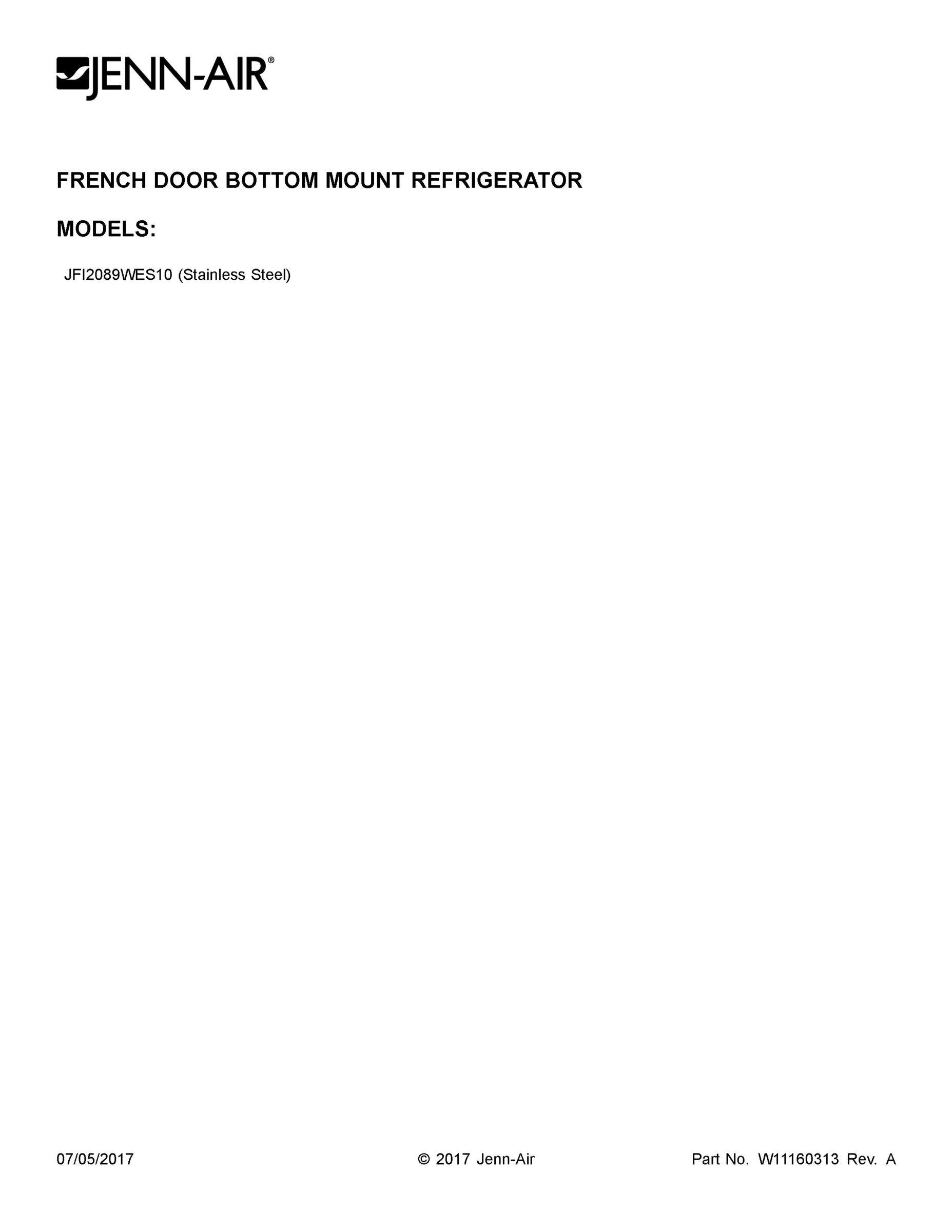

01 - COVER SHEET

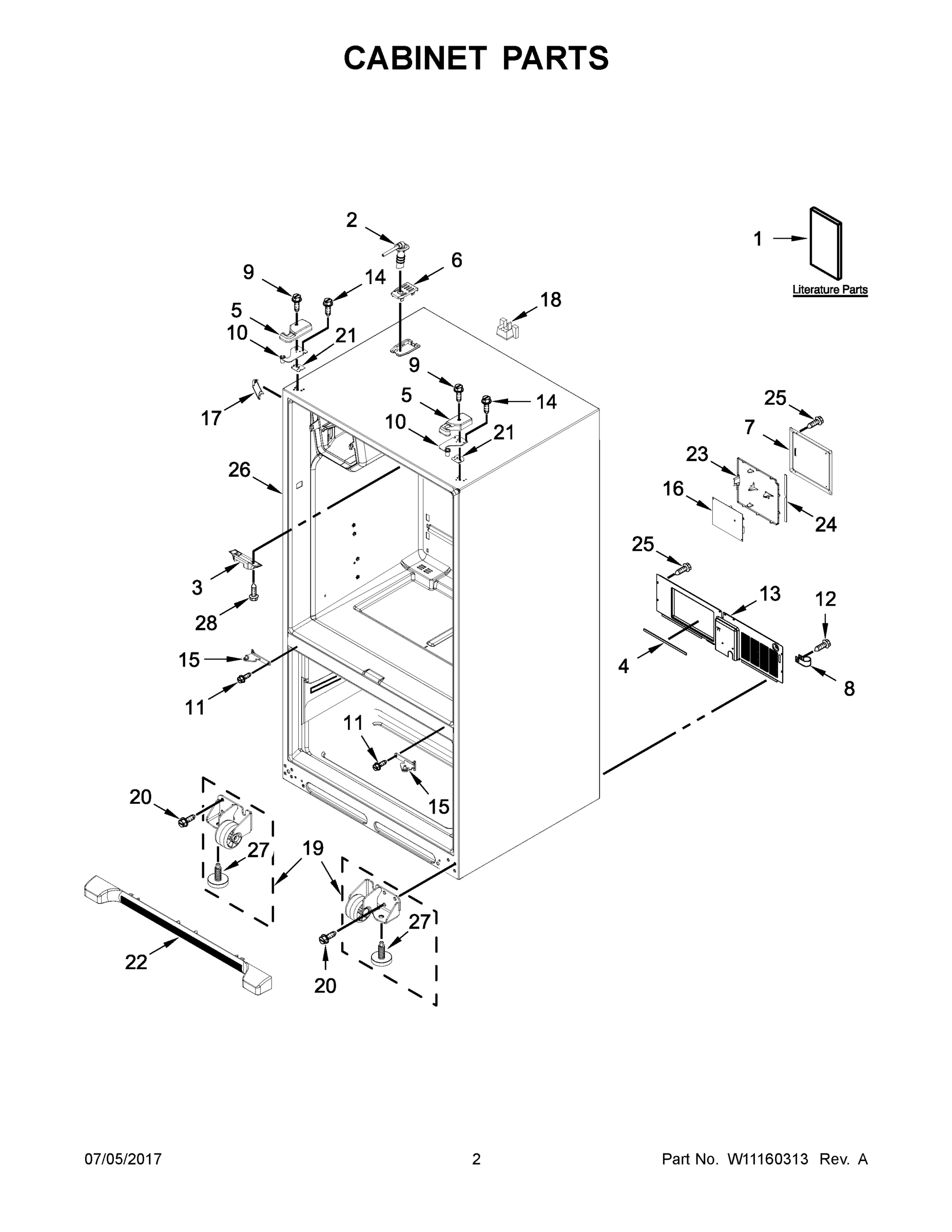

02 - CABINET PARTS
03 - REFRIGERATOR LINER PARTS
04 - FREEZER LINER PARTS
05 - REFRIGERATOR DOOR PARTS
06 - FREEZER DOOR PARTS
07 - UNIT PARTS
08 - SHELF PARTS
09 - DISPENSER FRONT PARTS
10 - ICEMAKER AND ICE CONTAINER PARTS
11 - OPTIONAL PARTS
Common parts from model Maytag JFI2089WES10 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT
1
HOUSING, DISPENSER (NOT SERVICED) MAY N/P Contact Us For Availability
1
DOOR, REFRIGERATOR LEFT HAND (STAINLESS) MAY 13107876S Contact Us For Availability
1
DOOR, FREEZER (STAINLESS) MAY 12977874S Contact Us For Availability
1
SCREW MAY 12992301 Contact Us For Availability
1
MAY W10893771 MAY W10893771 Contact Us For Availability
1
ASSEMBLY, ICE BIN MAY W10324088 Contact Us For Availability
1A
DOOR, REFRIGERATOR RIGHT HAND (STAINLESS) MAY 13107870S Contact Us For Availability
1B
MAY W11112939 MAY W11112939 Contact Us For Availability
2
TUBE, WATER MAY 12961401 Contact Us For Availability
2
MODULE, LIGHT MAY W10464777 Contact Us For Availability
2
ASSEMBLY, DRAIN FUNNEL MAY W10662407 Contact Us For Availability
2
BUCKET, DOOR UPPER MAY 12977401 Contact Us For Availability
2
HANDLE, DOOR (STAINLESS) MAY W10298179 Contact Us For Availability
2
BLADE, FAN MAY 12825803 Contact Us For Availability
2
TRIM, CRISPER MAY W10231478 Contact Us For Availability
2
FACADE, DISPENSER (STAINLESS) MAY W10314407 Contact Us For Availability
2
INLET, BLOWER MAY W10121282 Contact Us For Availability
3
PLATE, PIVOT MAY 12698403 Contact Us For Availability
3
FOIL, LIGHT MAY 12691605 Contact Us For Availability
3
DOOR, DAIRY MAY 12804701SP Contact Us For Availability
3
GLIDE, DRAWER MAY W10235368 Contact Us For Availability
3
BASEPAN MAY W10480111 Contact Us For Availability
3
HANDLE, CRISPER PAN MAY 12727402SP Contact Us For Availability
3
MAY W10708780 MAY W10708780 Contact Us For Availability
3
SCROLL, BLOWER MAY W10121281 Contact Us For Availability
4
GASKET MAY B5759655 Contact Us For Availability
4
COVER, LIGHT MAY 12921801 Contact Us For Availability
4
THERMISTOR MAY 12791405SP Contact Us For Availability
4
TRAY, DAIRY MAY 12369502SP Contact Us For Availability
4
GASKET, DOOR (BLACK) MAY W10436253 Contact Us For Availability
4
SUPPORT, GLASS MAY W10528935 Contact Us For Availability
4
SUMP, DISPENSER (BLACK) MAY 13050701B Contact Us For Availability
4
MOTOR, FAN MAY W10162697 Contact Us For Availability
5
COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (B MAY W10337647 Contact Us For Availability
5
ASSEMBLY, AIR GRILLE MAY W10555984 Contact Us For Availability
5
SHAFT, RACK MAY W10802332 Contact Us For Availability
5
BUCKET, CHILLER TOP MAY 12945801SP Contact Us For Availability
5
SCREW MAY W10460893 Contact Us For Availability
5
CAPACITOR MAY W10350564 Contact Us For Availability
5
BRACE, PANTRY MAY 12227305WH Contact Us For Availability
5
CHUTE, EXT/YOKE (INCLUDES SWITCH) (BLACK) MAY 13005702B Contact Us For Availability
5
WHEEL, BLOWER MAY W10123444 Contact Us For Availability
5A
COVER, TOP HINGE RIGHT HAND (INCLUDES FOIL) ( MAY 12962302B Contact Us For Availability
6
COVER, FILL TUBE (BLACK) MAY 12981401B Contact Us For Availability
6
SWITCH, ROCKER MAY 12466103 Contact Us For Availability
6
SCREW MAY 12990204 Contact Us For Availability
6
BIN, LOWER MAY 13002801SP Contact Us For Availability
6
TUBE, DISCHARGE MAY W10795418 Contact Us For Availability
6
TRACK, DELI DRAWER MAY 12531901 Contact Us For Availability
6
SCREW MAY 12990513 Contact Us For Availability
6
CLIP, FAN MOTOR MAY 12956603SP Contact Us For Availability
7
COVER, CONTROL BOX MAY 12961602 Contact Us For Availability
7
COVER, LIGHT MAY 12905902 Contact Us For Availability
7
GASKET, FOAM MAY A3189392 Contact Us For Availability
7
ADAPTER, OUTER BIN MAY 13002603SP Contact Us For Availability
7
GASKET, FOAM MAY A3189397 Contact Us For Availability
7
GASKET, PANTRY MAY 12656901 Contact Us For Availability
7
RING, TARGET MAY 12958301 Contact Us For Availability
7
GROMMET, FAN MOTOR MAY W10151687 Contact Us For Availability
8
CLAMP, TUBE MAY M0108107 Contact Us For Availability
8
HOUSING, LIGHT MAY W10443023 Contact Us For Availability
8
GASKET, DOOR (BLACK) MAY W10830065 Contact Us For Availability
8
BIN, UPPER MAY 13002402 Contact Us For Availability
8
PAN, DRAIN MAY W10655368 Contact Us For Availability
8
HOUSING, CONTROL MAY 12656202 Contact Us For Availability
8
DIVIDER, ICE BOX MAY W10356558 Contact Us For Availability
9
SCREW MAY 12992602 Contact Us For Availability
9
BULB, LIGHT MAY 2311792 Contact Us For Availability
9
HANDLE, DOOR (STAINLESS) MAY W10298244 Contact Us For Availability
9
RETAINER, GLIDE (LEFT HAND) MAY W10826790 Contact Us For Availability
9
SCREW MAY W10622701 Contact Us For Availability
9
SHELF, GLIDE MAY 12463912 Contact Us For Availability
9
GASKET, DAMPER MAY 12920001SP Contact Us For Availability
9A
RETAINER, GLIDE (RIGHT HAND) MAY W10826791 Contact Us For Availability
10
HINGE, TOP (LEFT HAND) MAY 12963204ED Contact Us For Availability
10
FOIL, HOUSING MAY W10277466 Contact Us For Availability
10
LATCH, DOOR CLOSER LEFT HAND (BLACK) MAY W10725268 Contact Us For Availability
10
ADAPTER, CENTER BIN MAY 13002604SP Contact Us For Availability
10
HEATER, DEFROST MAY 12729123 Contact Us For Availability
10
SLIDE, TEMPERATURE CONTROL MAY 12655402 Contact Us For Availability
10
MOTOR, AUGER MAY W10372218 Contact Us For Availability
10A
HINGE, TOP (RIGHT HAND) MAY 12963205ED Contact Us For Availability
10A
LATCH, DOOR CLOSER RIGHT HAND (BLACK) MAY W10725267 Contact Us For Availability
11
SCREW (STAINLESS) MAY W10673840 Contact Us For Availability
11
COVER, UPPER WATER TANK MAY 12960101 Contact Us For Availability
11
COVER, EVAPORATOR MAY W10308421 Contact Us For Availability
11
TUBE, WATER MAY W10275942 Contact Us For Availability
11
ASSEMBLY, UPPER GLIDE MAY W10235358 Contact Us For Availability
11
STRAP, BALE MAY W10216075 Contact Us For Availability
11
GLIDE, PANTRY MAY W10235370 Contact Us For Availability
11
DAMPER, CONTROL MAY W10127427 Contact Us For Availability
12
COVER, FILTER MAY 12960301 Contact Us For Availability
12
BUCKET, GALLON MAY 12840004 Contact Us For Availability
12
DEVICE, START MAY W10798748 Contact Us For Availability
12
HARNESS, ICEMAKER MAY W10312698 Contact Us For Availability
13
COVER, UNIT MAY W10270394 Contact Us For Availability
13
COVER, LOWER WATER TANK MAY 12960001 Contact Us For Availability
13
BRACKET, DOOR SLIDE (LEFT HAND) MAY W10330994 Contact Us For Availability
13
SEAL, ICE CHUTE MAY W10287601 Contact Us For Availability
13
GROMMET, CONDENSER MAY W10137529 Contact Us For Availability
13
ENDCAP, PANTRY (LEFT HAND) MAY 12656105 Contact Us For Availability
13
LINER, DIVIDER MAY W10118612 Contact Us For Availability
13A
BRACKET, DOOR SLIDE (RIGHT HAND) MAY W10330995 Contact Us For Availability
13A
ENDCAP, PANTRY (RIGHT HAND) MAY 12656018 Contact Us For Availability
14
SCREW MAY 12990511 Contact Us For Availability
14
SCREW MAY 12992403 Contact Us For Availability
14
FILTER, WATER MAY W10735404 Contact Us For Availability
14
MODULE, LIGHT MAY W10315248 Contact Us For Availability
14
MULLION, DOOR (BLACK) MAY 12722813B Contact Us For Availability
14
THERMOSTAT MAY 12639311SP Contact Us For Availability
14
PAN, CRISPER MAY 12531105SP Contact Us For Availability
15
HINGE, CENTER LEFT HAND (BLACK) MAY W10740149 Contact Us For Availability
15
BRACKET, FILTER BASE MAY 12955901 Contact Us For Availability
15
CLIP, FAN MOTOR MAY 12956601 Contact Us For Availability
15
FRAME, CHILLER (REAR) MAY 12945601SP Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
15
SHELF, MINI MAY 12982901 Contact Us For Availability
15
EXTENSION, SHUTOFF ARM MAY W10351019 Contact Us For Availability
15A
HINGE, CENTER RIGHT HAND (BLACK) MAY W10740145 Contact Us For Availability
16
BOARD, HV CONTROL MAY W10312695 Contact Us For Availability
16
WATERLINE, CABINET (W/NUT) MAY W10444032 Contact Us For Availability
16
SWITCH, LIGHT MAY 12466111SP Contact Us For Availability
16
CLOSURE, DOOR (BLACK) MAY 12028505B Contact Us For Availability
16
SCREW MAY 12992101 Contact Us For Availability
16
LADDER, SIDE (LEFT HAND) MAY W10251966 Contact Us For Availability
16
WASHER MAY W10465946 Contact Us For Availability
16A
LADDER, SIDE (RIGHT HAND) MAY W10251967 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
BRACKET, WATER TANK AND VALVE MAY W10334463 Contact Us For Availability
17
STOP, DOOR (BLACK) MAY 12968202B Contact Us For Availability
17
GROMMET, COMPRESSOR MAY W10806346 Contact Us For Availability
17
FRAME, CRISPER MAY 12531202SP Contact Us For Availability
17
YOKE, ICE DISPENSER MAY 63052A001 Contact Us For Availability
18
BLOCK, FILL TUBE MAY W10658542 Contact Us For Availability
18
ASSEMBLY, WATER TANK AND HEAD (INCLUDES BYPAS MAY W10657242 Contact Us For Availability
18
SCREW MAY 12990501 Contact Us For Availability
18
FRAME, CHILLER (FRONT) MAY 12945501SP Contact Us For Availability
18
CONDENSER MAY W10346415 Contact Us For Availability
18
GLASS, CRISPER MAY 12204821 Contact Us For Availability
18
ASSEMBLY, ICEMAKER (COMPLETE) MAY W10300024 Contact Us For Availability
19
ASSEMBLY, ROLLER (LEFT HAND) MAY W10515763 Contact Us For Availability
19
CARTRIDGE, BYPASS MAY 12664501SP Contact Us For Availability
19
SLIDE, DRAWER MAY 13055901 Contact Us For Availability
19
CLIP, BUSHING MAY 12996601 Contact Us For Availability
19
CLIP, DRIER MAY W10281329 Contact Us For Availability
19
LADDER, CENTER MAY W10273464 Contact Us For Availability
19
ASSEMBLY, IMPINGER MAY W10312691 Contact Us For Availability
19A
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10515762 Contact Us For Availability
20
SCREW MAY W10709365 Contact Us For Availability
20
VALVE, WATER INLET MAY W10312696 Contact Us For Availability
20
SCREW MAY 12990504 Contact Us For Availability
20
GASKET MAY A3189396 Contact Us For Availability
20
DOOR, CHILLER MAY 12945701SP Contact Us For Availability
20
TRAY, DRIP MAY W10292803 Contact Us For Availability
20
COVER, ICE MAKER MAY W10121444 Contact Us For Availability
21
SHIM, TOP HINGE (LEFT HAND) MAY 12999501 Contact Us For Availability
21
COVER, ICE BOX HARNESS MAY 13033601 Contact Us For Availability
21
SCREW MAY 12990521 Contact Us For Availability
21
ADAPTER (LEFT HAND) MAY W10544957 Contact Us For Availability
21
SCREW MAY 12990701 Contact Us For Availability
21
ARM, SHUTOFF MAY W10175514 Contact Us For Availability
21A
SHIM, TOP HINGE (RIGHT HAND) MAY 12999502 Contact Us For Availability
21A
ADAPTER (RIGHT HAND) MAY W10544958 Contact Us For Availability
22
GRILLE, TOE (BLACK) MAY W10534153 Contact Us For Availability
22
LID, ENCLOSURE MAY W10118194 Contact Us For Availability
22
GRILLE, AIR MAY 12959901 Contact Us For Availability
22
NAMEPLATE (STAINLESS) MAY W10214168 Contact Us For Availability
22
EVAPORATOR MAY W10313899 Contact Us For Availability
22
BRACE, CRISPER COVER MAY W10832723 Contact Us For Availability
23
LID, HV CONTROL MAY W10296536 Contact Us For Availability
23
COVER, CHILLER VENT MAY 12987301 Contact Us For Availability
23
SHROUD, EVAPORATOR MAY 12951401 Contact Us For Availability
23
BUCKET, DOOR LOWER MAY 12977501 Contact Us For Availability
23
CLIP, CONDENSER MAY W10815863 Contact Us For Availability
23
SCREW MAY 12990512 Contact Us For Availability
24
GASKET, CONTROL BOX MAY 12957801 Contact Us For Availability
24
ENCLOSURE, WATER VALVE CONNECTOR MAY W10118193 Contact Us For Availability
24
BLADE, FAN MAY 12986101 Contact Us For Availability
24
MOTOR, CONDENSER FAN MAY W10909377 Contact Us For Availability
24
SLIDE, HUMIDITY CONTROL MAY 12530805SP Contact Us For Availability
25
SCREW MAY 12990702 Contact Us For Availability
25
GROMMET, FAN MOTOR MAY 12951101 Contact Us For Availability
25
BAR, TEMPERATURE CONTROL MAY 12655303 Contact Us For Availability
26
MOTOR, EVAPORATOR (INCLUDES WIRE HARNESS AND MAY W10257096 Contact Us For Availability
26
HARNESS, UNIT (INCLUDES POWER CORD) MAY W10679214 Contact Us For Availability
26
DRAWER, PANTRY MAY 12655702 Contact Us For Availability
27
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
27
COVER, THERMISTOR MAY 12815301 Contact Us For Availability
27
DRIER MAY W10177049 Contact Us For Availability
27
KNOB, TEMPERATURE CONTROL MAY 12655204 Contact Us For Availability
28
SCREW MAY 12990302 Contact Us For Availability
28
SEAL MAY M0500703 Contact Us For Availability
28
COMPRESSOR MAY W10775170 Contact Us For Availability
28
LID, PANTRY MAY 12656813 Contact Us For Availability
29
GASKET, DRAIN MAY B8381501 Contact Us For Availability
29
CLIP, EVAPORATOR MAY 10623002 Contact Us For Availability
29
RACK, BOTTLE MAY W10367642 Contact Us For Availability
30
AXLE, ROLLER MAY 12477202 Contact Us For Availability
30
DIVIDER, PANTRY MAY 12709301 Contact Us For Availability
31
SHROUD, CONDENSER FAN MAY W10189184 Contact Us For Availability
32
STRAP, COMPRESSOR MAY W10236396 Contact Us For Availability
33
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
34
EXTENSION, DRAIN TUBE MAY W10622099 Contact Us For Availability
35
SEALER, INSULATION MAY 2169104 Contact Us For Availability
36
CONNECTOR, WATER TUBE MAY W10334458 Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
MISCELLANEOUS MAY F2WC9I1 Contact Us For Availability
× ![]()
