Model Maytag JFI2089AEP12 REFRIGERATOR – Common Parts & Diagrams

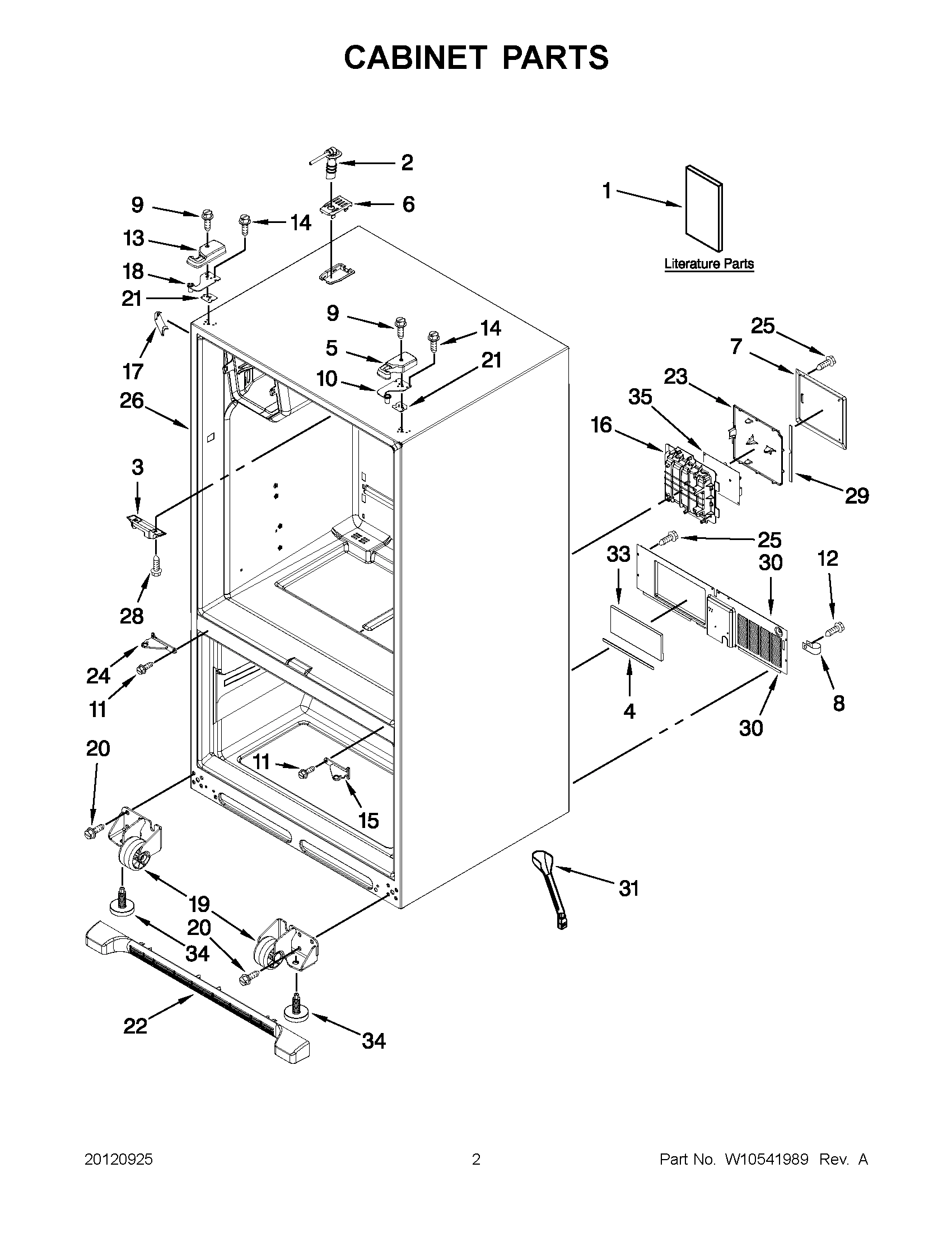

01 - CABINET PARTS

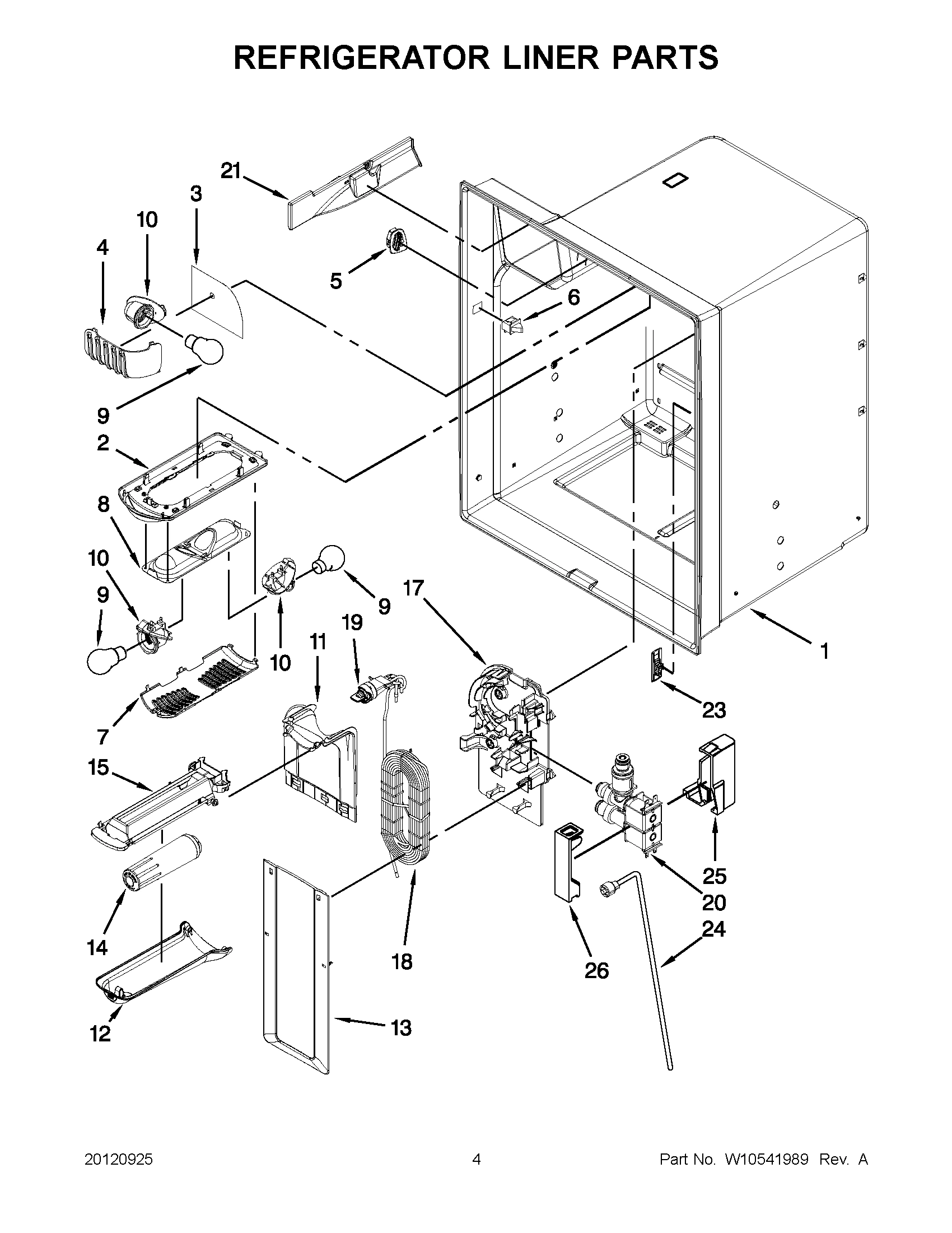

02 - REFRIGERATOR LINER PARTS
03 - SHELF PARTS
04 - MOTOR AND ICE CONTAINER PARTS
05 - ICEMAKER PARTS
06 - FREEZER LINER PARTS
07 - REFRIGERATOR DOOR PARTS
08 - FREEZER DOOR PARTS
09 - DISPENSER FRONT PARTS
10 - UNIT PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JFI2089AEP12 REFRIGERATOR
1
MAY 12204829 MAY 12204829 Contact Us For Availability
1
ICE BIN ASSEMBLY MAY W10324088 Contact Us For Availability
1
ASSEMBLY, MOLD & HEATER MAY W10300025 Contact Us For Availability
1
MAY 13107866S MAY 13107866S Contact Us For Availability
1
MAY 12977874S MAY 12977874S Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
2
MAY 12961401 MAY 12961401 Contact Us For Availability
2
MAY W10464777 MAY W10464777 Contact Us For Availability
2
MAY W10231478 MAY W10231478 Contact Us For Availability
2
MAY W10121282 MAY W10121282 Contact Us For Availability
2
MAY W10175514 MAY W10175514 Contact Us For Availability
2
BUCKET, DOOR UPPER MAY 12977401 Contact Us For Availability
2
MAY W10314407 MAY W10314407 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
3
MAY 12698403 MAY 12698403 Contact Us For Availability
3
MAY 12691605 MAY 12691605 Contact Us For Availability
3
MAY 12982901 MAY 12982901 Contact Us For Availability
3
MAY W10121281 MAY W10121281 Contact Us For Availability
3
MAY W10327050 MAY W10327050 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10446527 MAY W10446527 Contact Us For Availability
3
MAY W10259995 MAY W10259995 Contact Us For Availability
3
MAY W10480111 MAY W10480111 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12921801 MAY 12921801 Contact Us For Availability
4
TRIM, PANTRY GLASS MAY 12655902SP Contact Us For Availability
4
MAY W10162697 MAY W10162697 Contact Us For Availability
4
EJECTOR, ARM MAY W10318914 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10436253 MAY W10436253 Contact Us For Availability
4
MAY 13050701B MAY 13050701B Contact Us For Availability
5
MAY 12962302B MAY 12962302B Contact Us For Availability
5
MAY 12227305WH MAY 12227305WH Contact Us For Availability
5
MAY W10123444 MAY W10123444 Contact Us For Availability
5
STRIPPER, ICE MAY W10122563 Contact Us For Availability
5
MAY 12812903WD MAY 12812903WD Contact Us For Availability
5
BUCKET, SHELF MAY 12945801SP Contact Us For Availability
5
MAY W10160454 MAY W10160454 Contact Us For Availability
5
MAY 13005702B MAY 13005702B Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
6
MAY 12981401B MAY 12981401B Contact Us For Availability
6
SWITCH, ROCKER MAY 12466103 Contact Us For Availability
6
MAY 12531901 MAY 12531901 Contact Us For Availability
6
MAY 12990513 MAY 12990513 Contact Us For Availability
6
MAY 12956603SP MAY 12956603SP Contact Us For Availability
6
MAY W10290336 MAY W10290336 Contact Us For Availability
6
MAY 12990204 MAY 12990204 Contact Us For Availability
6
MAY 13002801SP MAY 13002801SP Contact Us For Availability
6
MAY W10233569 MAY W10233569 Contact Us For Availability
7
MAY 12961602 MAY 12961602 Contact Us For Availability
7
MAY 12905902 MAY 12905902 Contact Us For Availability
7
MAY 12656901 MAY 12656901 Contact Us For Availability
7
MAY W10151687 MAY W10151687 Contact Us For Availability
7
MAY W10351019 MAY W10351019 Contact Us For Availability
7
MAY A3189392 MAY A3189392 Contact Us For Availability
7
ADAPTER, OUTER BIN MAY 13002603SP Contact Us For Availability
7
MAY 12958301 MAY 12958301 Contact Us For Availability
7
HARNESS, EVAPORATOR & HEATER MAY W10257095 Contact Us For Availability
8
MAY M0108107 MAY M0108107 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
CONTROL, HOUSING MAY 12656202 Contact Us For Availability
8
MAY W10356558 MAY W10356558 Contact Us For Availability
8
MAY W10121444 MAY W10121444 Contact Us For Availability
8
MAY W10435969 MAY W10435969 Contact Us For Availability
8
MAY 13002402 MAY 13002402 Contact Us For Availability
8
MAY M0108106 MAY M0108106 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
BULB, LIGHT MAY W10311505 Contact Us For Availability
9
SHELF, GLIDE MAY 12463912 Contact Us For Availability
9
MAY 12920001SP MAY 12920001SP Contact Us For Availability
9
SWITCH, ROCKER MAY 2313326 Contact Us For Availability
9
BULB, LIGHT MAY W10311527 Contact Us For Availability
9
MAY 13001201 MAY 13001201 Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
10
HINGE, TOP RIGHT HAND MAY 12963205ED Contact Us For Availability
10
MAY 12655402 MAY 12655402 Contact Us For Availability
10
MAY W10372218 MAY W10372218 Contact Us For Availability
10
MAY W10312691 MAY W10312691 Contact Us For Availability
10
HOUSING, FOIL MAY W10277466 Contact Us For Availability
10
HANDLE, DOOR MAY W10446526N Contact Us For Availability
10
ADAPTER, CENTER BIN MAY 13002604SP Contact Us For Availability
10
MAY 12729123 MAY 12729123 Contact Us For Availability
11
MAY W10339086 MAY W10339086 Contact Us For Availability
11
MAY 12960101 MAY 12960101 Contact Us For Availability
11
GLIDE, DRAWER MAY W10235370 Contact Us For Availability
11
MAY W10127427 MAY W10127427 Contact Us For Availability
11
MAY W10312698 MAY W10312698 Contact Us For Availability
11
MAY W10308421 MAY W10308421 Contact Us For Availability
11
BRACKET/GLIDE (ASSEMBLY) MAY W10235358 Contact Us For Availability
11
MAY W10174384 MAY W10174384 Contact Us For Availability
12
MAY 12960301 MAY 12960301 Contact Us For Availability
12
Bin, Shelf (Gallon) MAY 12840004 Contact Us For Availability
12
MAY W10235368 MAY W10235368 Contact Us For Availability
12
DEVICE, START MAY W10448874 Contact Us For Availability
13
MAY W10337647 MAY W10337647 Contact Us For Availability
13
MAY 12960001 MAY 12960001 Contact Us For Availability
13
MAY 12656018 MAY 12656018 Contact Us For Availability
13
MAY 12656105 MAY 12656105 Contact Us For Availability
13
MAY W10118612 MAY W10118612 Contact Us For Availability
13
ASSEMBLY, MODULE MAY 626691 Contact Us For Availability
13
MAY W10287601 MAY W10287601 Contact Us For Availability
13
RETAINER, GLIDE (LEFT HAND) MAY 13002701SP Contact Us For Availability
13
RETAINER, GLIDE (RIGHT HAND) MAY 13002702SP Contact Us For Availability
13
MAY W10137529 MAY W10137529 Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY UKF8001 MAY UKF8001 Contact Us For Availability
14
MAY 12531105SP MAY 12531105SP Contact Us For Availability
14
MAY W10068250 MAY W10068250 Contact Us For Availability
14
BRACKET, DOOR SLIDE (LEFT HAND) MAY W10330994 Contact Us For Availability
14
BRACKET, DOOR SLIDE (RIGHT HAND) MAY W10330995 Contact Us For Availability
14
MAY W10315248 MAY W10315248 Contact Us For Availability
14
MULLION, DOOR INCLUDES (BLACK) MAY 12732503B Contact Us For Availability
14
THERMOSTAT MAY 12639311SP Contact Us For Availability
15
HINGE, CENTER (RT) (BLACK) MAY 13000008ED Contact Us For Availability
15
MAY 12955901 MAY 12955901 Contact Us For Availability
15
MAY 12956601 MAY 12956601 Contact Us For Availability
15
MAY 12945601SP MAY 12945601SP Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
16
MAY 12957601 MAY 12957601 Contact Us For Availability
16
RIGHT HAND MAY W10251967 Contact Us For Availability
16
MAY W10465946 MAY W10465946 Contact Us For Availability
16
SWITCH, LIGHT MAY 12466111SP Contact Us For Availability
16
MAY 12028505B MAY 12028505B Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
MAY W10334463 MAY W10334463 Contact Us For Availability
17
FRAME, CRISPER (ALSO ORDER GASKET W10177506 Q MAY 12531202SP Contact Us For Availability
17
MAY 12990504 MAY 12990504 Contact Us For Availability
17
YOKE, ICE (DISPENSER) MAY 63052A001 Contact Us For Availability
17
MAY 12968202B MAY 12968202B Contact Us For Availability
17
MAY 10835903SP MAY 10835903SP Contact Us For Availability
18
HINGE, TOP LEFT HAND MAY 12963204ED Contact Us For Availability
18
MAY W10463663 MAY W10463663 Contact Us For Availability
18
MAY 12204821 MAY 12204821 Contact Us For Availability
18
MAY 12945501SP MAY 12945501SP Contact Us For Availability
18
MAY W10135026 MAY W10135026 Contact Us For Availability
19
ROLLER ASSY. (FRONT) (RIGHT HAND) MAY W10515762 Contact Us For Availability
19
ROLLER ASSY. (FRONT) (LEFT HAND) MAY W10515763 Contact Us For Availability
19
MAY 12664501SP MAY 12664501SP Contact Us For Availability
19
MAY W10273464 MAY W10273464 Contact Us For Availability
19
MAY W10488001 MAY W10488001 Contact Us For Availability
19
CLIP, BUSHING MAY 12996601 Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
MAY W10312696 MAY W10312696 Contact Us For Availability
20
LEFT HAND MAY W10251966 Contact Us For Availability
20
MAY A3189397 MAY A3189397 Contact Us For Availability
20
MAY 12945701SP MAY 12945701SP Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
21
SHIM, TOP HINGE (LEFT HAND) MAY 12999501 Contact Us For Availability
21
SHIM, TOP HINGE (RIGHT HAND) MAY 12999502 Contact Us For Availability
21
MAY 13033601 MAY 13033601 Contact Us For Availability
21
MAY 12990521 MAY 12990521 Contact Us For Availability
21
ADAPTER (LEFT HAND) MAY W10284688 Contact Us For Availability
21
ADAPTER (RIGHT HAND) MAY W10284689 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
22
MAY W10244561 MAY W10244561 Contact Us For Availability
22
Screw MAY 12990515 Contact Us For Availability
22
MAY 12959901 MAY 12959901 Contact Us For Availability
22
MAY W10313899 MAY W10313899 Contact Us For Availability
23
MAY W10296536 MAY W10296536 Contact Us For Availability
23
MAY 12987301 MAY 12987301 Contact Us For Availability
23
MAY 12990512 MAY 12990512 Contact Us For Availability
23
MAY 12951401 MAY 12951401 Contact Us For Availability
23
MAY 13107870S MAY 13107870S Contact Us For Availability
23
MAY 12963002SP MAY 12963002SP Contact Us For Availability
23
MAY 12963102SP MAY 12963102SP Contact Us For Availability
24
HINGE, CENTER (LT) (BLACK) MAY 13000007ED Contact Us For Availability
24
MAY W10444032 MAY W10444032 Contact Us For Availability
24
MAY 12530805SP MAY 12530805SP Contact Us For Availability
24
MAY 12986101 MAY 12986101 Contact Us For Availability
24
BUCKET, DOOR LOWER MAY 12977501 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
25
MAY 12990702 MAY 12990702 Contact Us For Availability
25
MAY W10118193 MAY W10118193 Contact Us For Availability
25
BAR, CONTROL MAY 12655303 Contact Us For Availability
25
MAY 12951101 MAY 12951101 Contact Us For Availability
25
TUBE, WATER MAY W10275942 Contact Us For Availability
26
MAY W10118194 MAY W10118194 Contact Us For Availability
26
MAY 12655702 MAY 12655702 Contact Us For Availability
26
MAY W10162809 MAY W10162809 Contact Us For Availability
26
HARNESS, UNIT (INCLUDES POWER CORD) MAY W10234027 Contact Us For Availability
27
MAY 12655204 MAY 12655204 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
MAY 12990302 MAY 12990302 Contact Us For Availability
28
MAY 12656813 MAY 12656813 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
MAY W10445423 MAY W10445423 Contact Us For Availability
29
MAY 12957801 MAY 12957801 Contact Us For Availability
29
MAY W10367642 MAY W10367642 Contact Us For Availability
29
MAY B8381501 MAY B8381501 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
30
COVER, UNIT MAY W10270394 Contact Us For Availability
30
MAY 12709301 MAY 12709301 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
TUBE-DRAIN MAY W10344402 Contact Us For Availability
31
MAY 12227304WD MAY 12227304WD Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
33
MAY 12820505 MAY 12820505 Contact Us For Availability
34
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
34
MAY W10236396 MAY W10236396 Contact Us For Availability
35
MAY W10312695 MAY W10312695 Contact Us For Availability
36
MAY W10334458 MAY W10334458 Contact Us For Availability
100
ICEMAKER ASSEMBLY (COMPLETE) MAY W10300024 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM MAY 212643 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, BLACK) MAY 350939 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, ADHESIVE MAY 542639 Contact Us For Availability
NI
MISCELLANEOUS, BAG MAY 606755 Contact Us For Availability
NI
MISCELLANEOUS, ICE CONTAINER (COMPLETE) MAY 67007112 Contact Us For Availability
NI
REFINISHING MATERIAL (BLACK) MAY 72032 Contact Us For Availability
NI
MISCELLANEOUS, TERMINAL MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FOAM MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION MAY 978941 Contact Us For Availability
× ![]()
