Model Maytag JFFCC72EFS04 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

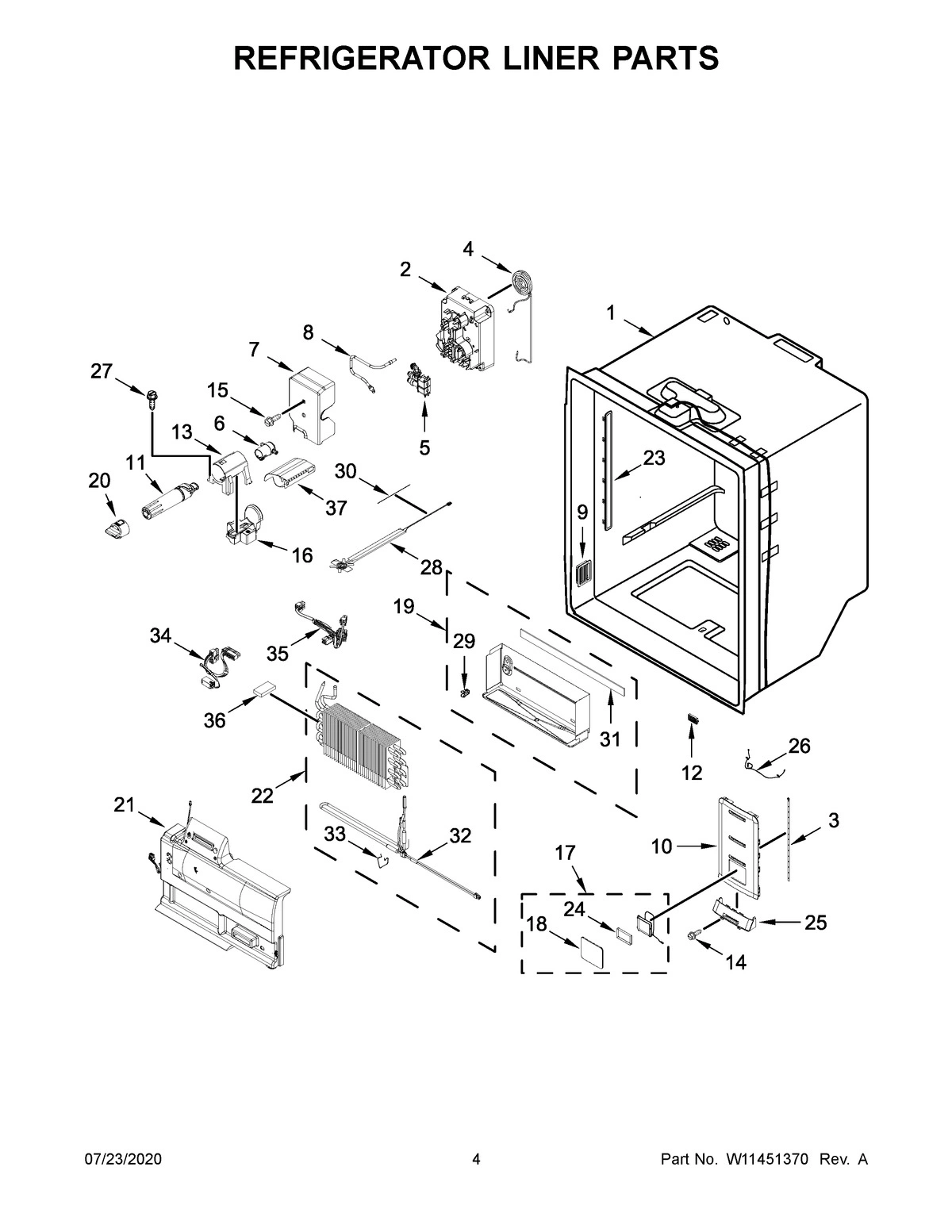

03 - REFRIGERATOR LINER PARTS

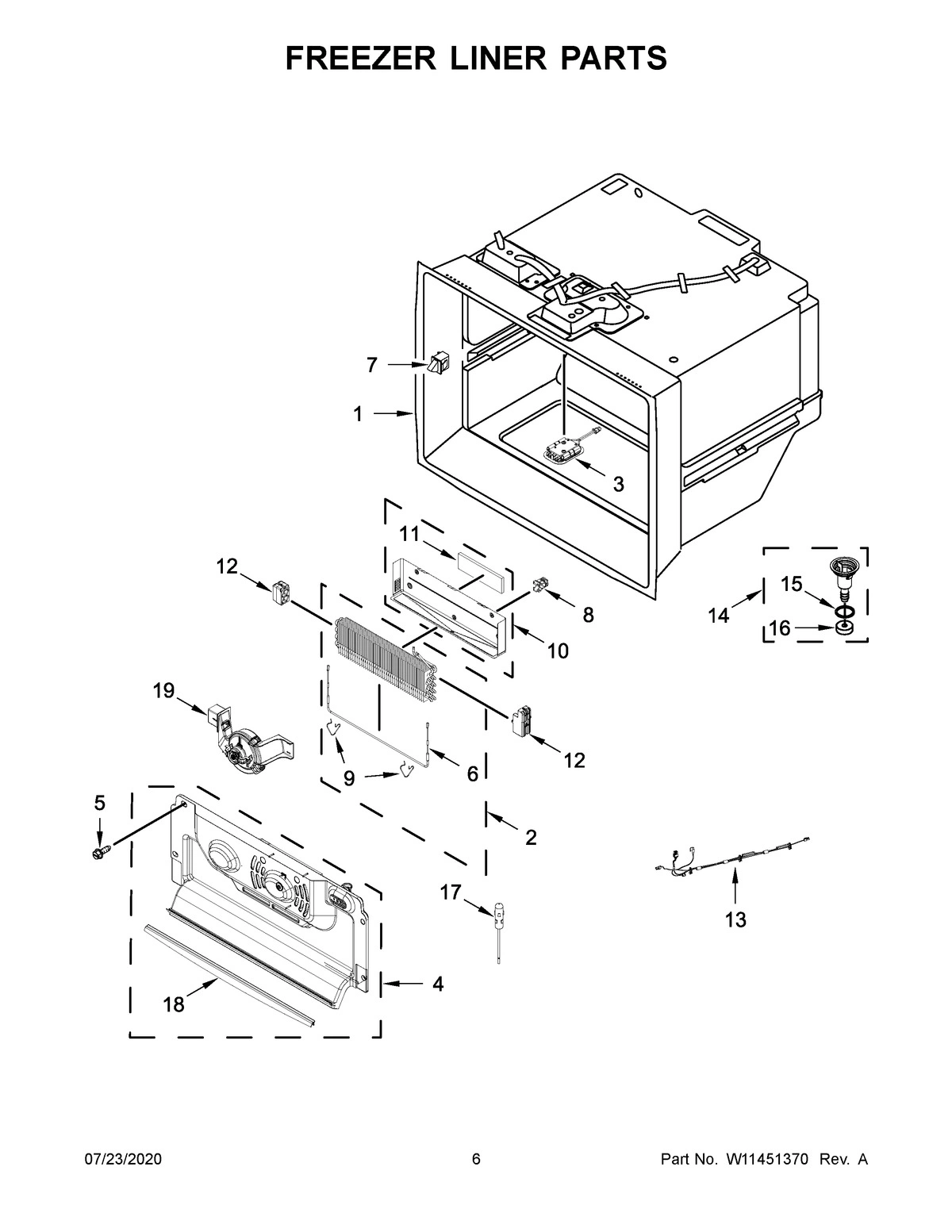

04 - FREEZER LINER PARTS

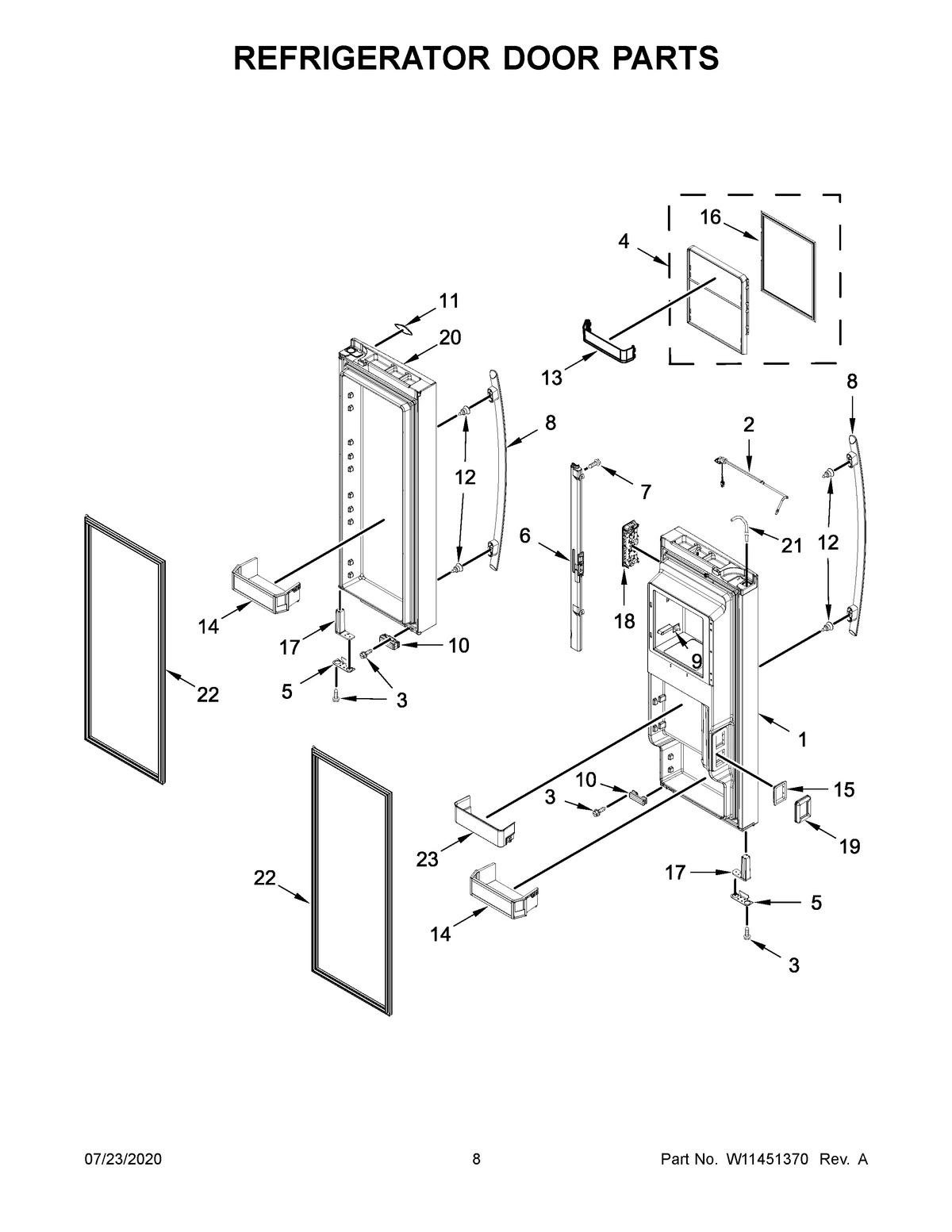

05 - REFRIGERATOR DOOR PARTS

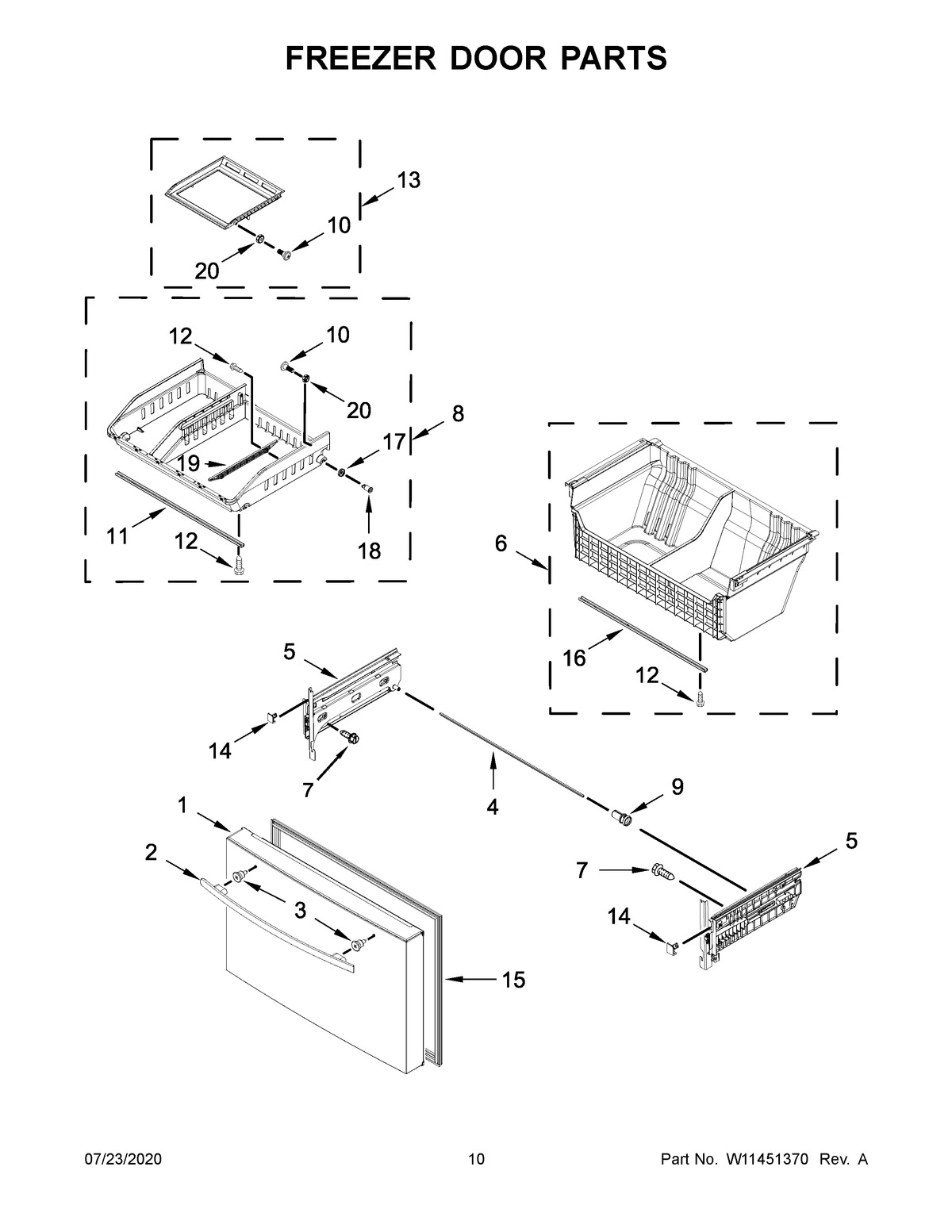

06 - FREEZER DOOR PARTS

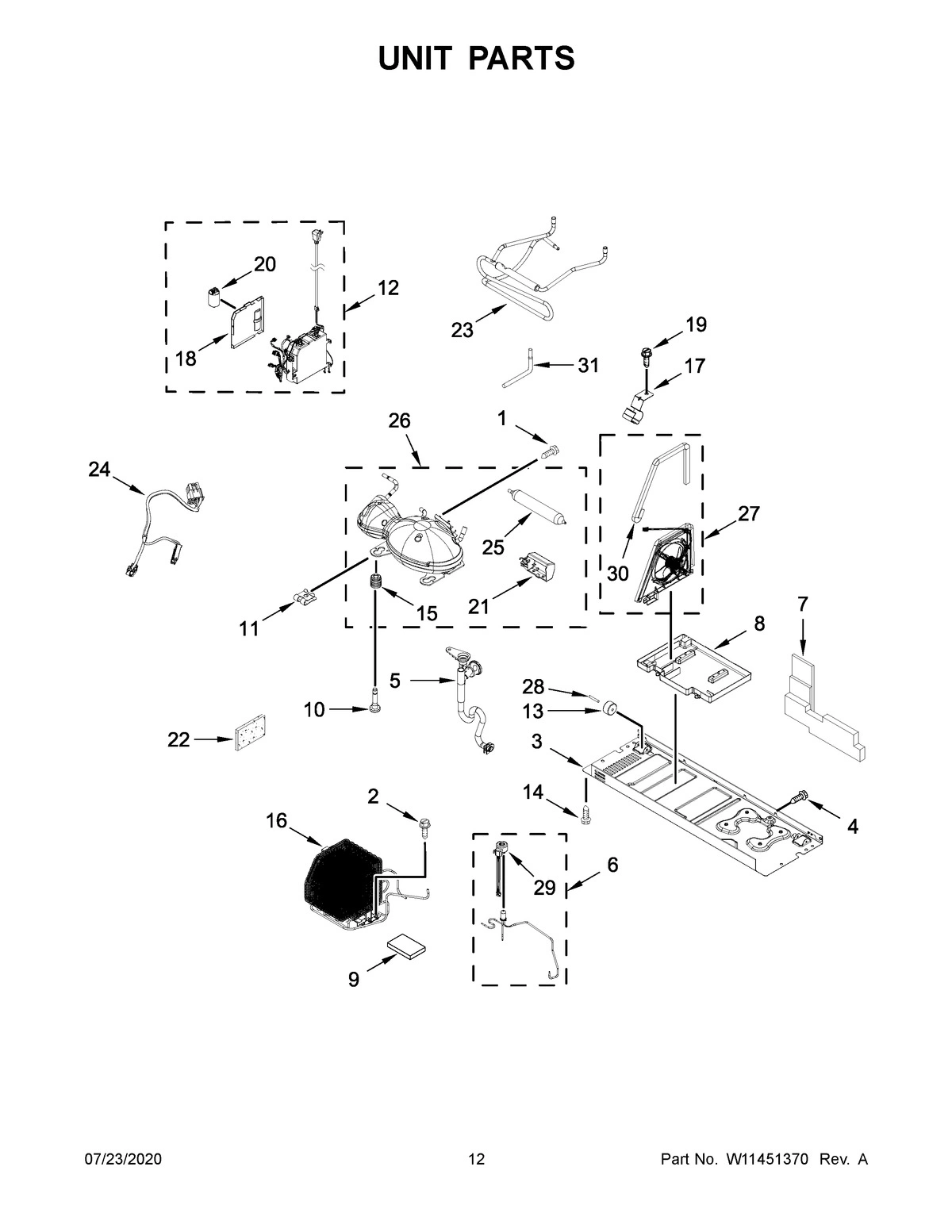

07 - UNIT PARTS

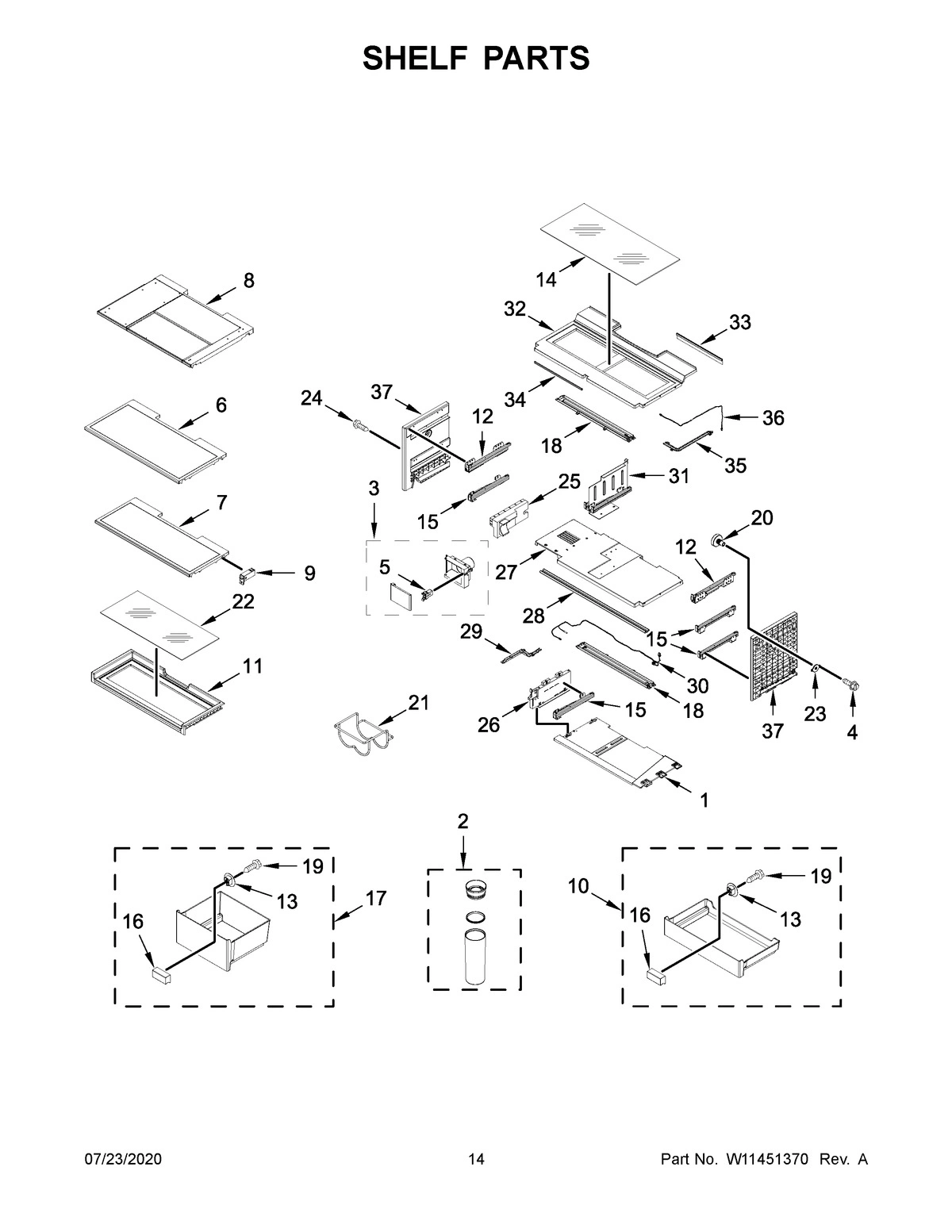

08 - SHELF PARTS

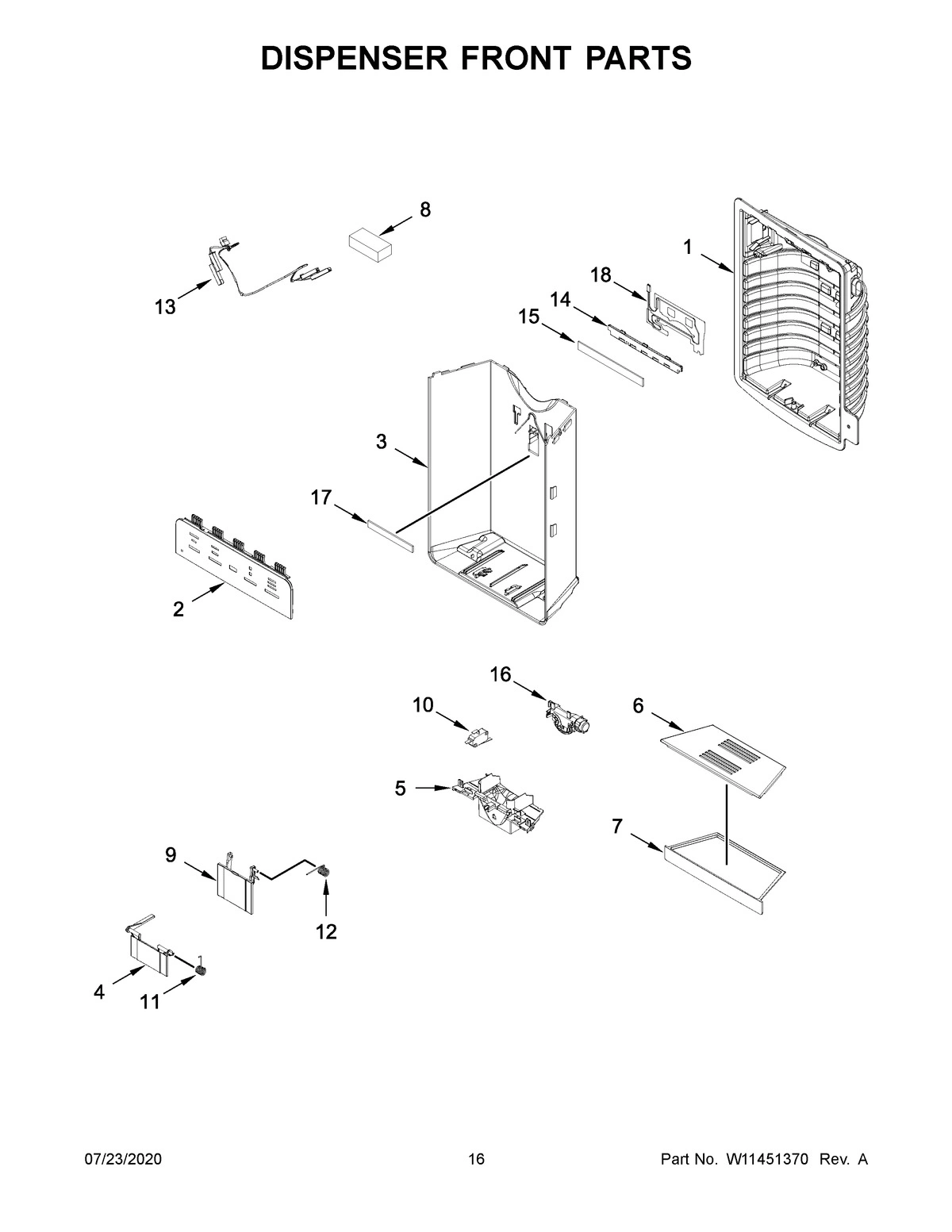

09 - DISPENSER FRONT PARTS

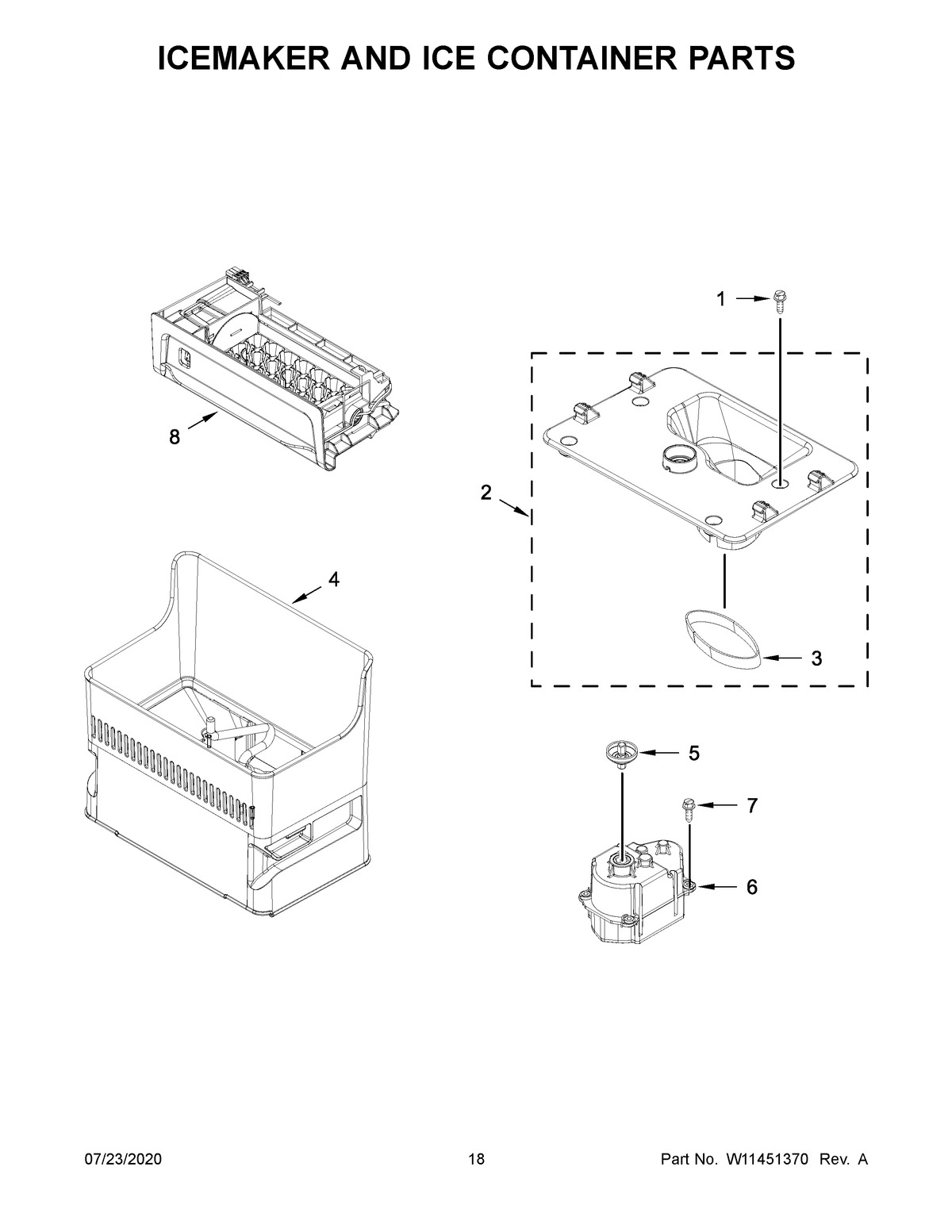

10 - ICEMAKER AND ICE CONTAINER PARTS
11 - OPTIONAL PARTS
Common parts from model Maytag JFFCC72EFS04 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT
1
TECH SHEET (ENGLISH) MAY W11190777 Contact Us For Availability
1
HOUSING, DISPENSER (NOT SERVICED) MAY N/P Contact Us For Availability
1
DOOR, REFRIGERATOR LEFT HAND (STAINLESS (ALSO MAY W11401422 Contact Us For Availability
1
DOOR, FREEZER (INCLUDES DOOR GASKET) (STAINLE MAY W10832266 Contact Us For Availability
1
SCREW MAY W10141625 Contact Us For Availability
1
BASE, PANTRY MAY W10794327 Contact Us For Availability
1
SCREW MAY W10272364 Contact Us For Availability
1A
TECH SHEET (FRENCH) MAY W11190778 Contact Us For Availability
1B
USE AND CARE GUIDE MAY W11307643 Contact Us For Availability
1C
ENERGY GUIDE MAY W11309660 Contact Us For Availability
2
SCREW MAY 12990302 Contact Us For Availability
2
HOUSING, WATER TANK MAY W10708473 Contact Us For Availability
2
ASSEMBLY, EVAPORATOR MAY W11032200 Contact Us For Availability
2
ASSEMBLY, FILL TUBE (ICEMAKER) MAY W11401679 Contact Us For Availability
2
HANDLE, DOOR (STAINLESS) MAY W10798671 Contact Us For Availability
2
SCREW MAY W10820084 Contact Us For Availability
2
ASSEMBLY, HERB STORAGE (INCLUDES LID AND GASK MAY W10795580 Contact Us For Availability
2
ASSEMBLY, USER INTERFACE MAY W11365808 Contact Us For Availability
2
PLATE, ICE CHUTE MAY W10793258 Contact Us For Availability
3
BLOCK, PIVOT MAY W10840311 Contact Us For Availability
3
STRIP, LED MAY W10881217 Contact Us For Availability
3
ASSEMBLY, LED LIGHT MODULE MAY W10843353 Contact Us For Availability
3
SCREW MAY W10238319 Contact Us For Availability
3
SCREW MAY W11328753 Contact Us For Availability
3
BASEPLATE MAY W10658357 Contact Us For Availability
3
ASSEMBLY, FILTER DOOR MAY W11347068 Contact Us For Availability
3
WALL, DISPENSER FALSE (GREY) MAY W10792144 Contact Us For Availability
3
GASKET MAY W10291905 Contact Us For Availability
4
PAD, SOUND MAY W10838044 Contact Us For Availability
4
SCREW MAY 12990511 Contact Us For Availability
4
RESERVOIR, WATER (INCLUDES FILTER HEATER, WIR MAY W11451365 Contact Us For Availability
4
ASSEMBLY, EVAPORATOR COVER (INCLUDES FAN MOTO MAY W11209447 Contact Us For Availability
4
ASSEMBLY, ICE DOOR MAY W10798123 Contact Us For Availability
4
SHAFT, RACK MAY W10851956 Contact Us For Availability
4
SCREW (GREY) MAY W10834284 Contact Us For Availability
4
PADDLE, WATER DISPENSER (CHROME) MAY W10792148 Contact Us For Availability
4
ASSEMBLY, ICE CONTAINER MAY W10903435 Contact Us For Availability
5
CONTROL, ELECTRONIC MAY W11369712 Contact Us For Availability
5
VALVE, DUAL WATER MAY W10908836 Contact Us For Availability
5
BRACKET, DOOR STOP MAY W10763415 Contact Us For Availability
5
ASSEMBLY, BRACKET (LEFT HAND) MAY W10795844 Contact Us For Availability
5
ASSEMBLY, DRAIN EXTENSION MAY W10860180 Contact Us For Availability
5
LATCH, PUSH MAY 2223877 Contact Us For Availability
5
SEPERATOR (GREY) MAY W11048097 Contact Us For Availability
5
SHAFT-MOTOR MAY W11363574 Contact Us For Availability
5A
ASSEMBLY, BRACKET (RIGHT HAND) MAY W10795848 Contact Us For Availability
6
GASKET, HV BOX MAY W10415341 Contact Us For Availability
6
HOUSING, WATER FILTER (INCLUDES FILTER HEATER MAY W11451366 Contact Us For Availability
6
HEATER, DEFROST MAY W10668195 Contact Us For Availability
6
MULLION, DOOR (GREY) MAY W11034034 Contact Us For Availability
6
ASSEMBLY, BOTTOM PAN MAY W10795852 Contact Us For Availability
6
ASSEMBLY, 3 WAY VALVE MAY W11084143 Contact Us For Availability
6
ASSEMBLY, 15" FULL SHELF MAY W10836819 Contact Us For Availability
6
GRATE, DRIP MAY W10848267 Contact Us For Availability
6
MOTOR, DISPENSER MAY W11185741 Contact Us For Availability
7
ASSEMBLY, ROLLER (LEFT HAND) MAY W11084045 Contact Us For Availability
7
COVER, WATER VALVE MAY W10900012 Contact Us For Availability
7
SCREW MAY 12990518 Contact Us For Availability
7
SWITCH, LIGHT MAY W11044241 Contact Us For Availability
7
SCREW MAY 12990204 Contact Us For Availability
7
PAD, SOUND MAY W10838081 Contact Us For Availability
7
ASSEMBLY, 12" FULL SHELF MAY W11116725 Contact Us For Availability
7
TRAY, DRIP (GREY) MAY W10905360 Contact Us For Availability
7
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
7A
ASSEMBLY, ROLLER (RIGHT HAND) MAY W11084046 Contact Us For Availability
8
BRAKE, ROLLER MAY W10846099 Contact Us For Availability
8
TUBE, WATER FILTER MAY W11330625 Contact Us For Availability
8
CLIP, EVAPORATOR MAY 10623002 Contact Us For Availability
8
HANDLE, DOOR (STAINLESS) MAY W10298244 Contact Us For Availability
8
ASSEMBLY, TOP PAN MAY W11124053 Contact Us For Availability
8
TRAY, EVAPORATOR MAY W10877573 Contact Us For Availability
8
ASSEMBLY, TUCK SHELF MAY W10837200 Contact Us For Availability
8
GASKET, FOAM MAY W10882291 Contact Us For Availability
8
ASSEMBLY, ICEMAKER MAY W11091220 Contact Us For Availability
9
SCREW MAY 12990521 Contact Us For Availability
9
COVER, COOLING DUCT MAY W10815961 Contact Us For Availability
9
CLIP, DEFROST HEATER MAY W10683507 Contact Us For Availability
9
SWITCH, ROCKER ARM MAY W11202750 Contact Us For Availability
9
COLLAR, GEAR MAY W10277361 Contact Us For Availability
9
GROMMET, CONDENSER MAY W10884826 Contact Us For Availability
9
ASSEMBLY, BLOCK (FRONT LEFT/BACK RIGHT) MAY W10817923 Contact Us For Availability
9
PADDLE, ICE DISPENSER (CHROME) MAY W10792149 Contact Us For Availability
9A
ASSEMBLY, BLOCK (FRONT RIGHT/BACK LEFT) MAY W10817924 Contact Us For Availability
10
HINGE, TOP (LEFT HAND) MAY W11032616 Contact Us For Availability
10
COVER, AIR TOWER MAY W11259419 Contact Us For Availability
10
SHIELD, HEAT MAY W10668191 Contact Us For Availability
10
BUMPER, DOOR (GREY) MAY W10798308 Contact Us For Availability
10
SCREW MAY 12991401 Contact Us For Availability
10
BOLT MAY W10697007 Contact Us For Availability
10
PAN, PANTRY MAY W10794366 Contact Us For Availability
10
SWITCH, LIMIT MAY W10403752 Contact Us For Availability
10A
HINGE, TOP (RIGHT HAND) MAY W11032620 Contact Us For Availability
11
SCREW (STAINLESS) MAY W10673840 Contact Us For Availability
11
FILTER, WATER MAY W10680605 Contact Us For Availability
11
GASKET, DRIP TRAY REAR MAY W10683540 Contact Us For Availability
11
NAMEPLATE (STAINLESS) MAY W10214168 Contact Us For Availability
11
SUPPORT, PAN MAY W10469177 Contact Us For Availability
11
CLIP, RETAINING MAY W10697017 Contact Us For Availability
11
ASSEMBLY, PLATTER SHELF MAY W11135594 Contact Us For Availability
11
SPRING, TORSION MAY W10672578 Contact Us For Availability
12
COVER, HINGE LEFT HAND (INCLUDES FOIL) (GREY) MAY W10831820 Contact Us For Availability
12
FILTER, AIR MAY W10315189 Contact Us For Availability
12
DAM, AIR (LEFT HAND) MAY W10668201 Contact Us For Availability
12
SCREW (STAINLESS) MAY 489443 Contact Us For Availability
12
ASSEMBLY, ORION BOX (INCLUDE WIRING HARNESS F MAY W11317283 Contact Us For Availability
12
GLIDE, PLATTER (LEFT HAND) MAY W10816004 Contact Us For Availability
12
SPRING, TORSION MAY W10663682 Contact Us For Availability
12A
DAM, AIR (RIGHT HAND) MAY W10668198 Contact Us For Availability
12A
GLIDE, PLATTER (RIGHT HAND) MAY W10814864 Contact Us For Availability
13
BUSHING MAY W10831587 Contact Us For Availability
13
BRACKET, FILTER MAY W10708474 Contact Us For Availability
13
ASSEMBLY, EVAPORATOR HEATER WIRE (INCLUDES TH MAY W10858452 Contact Us For Availability
13
TRIVET, ICE COMPARTMENT DOOR MAY W10795606 Contact Us For Availability
13
ASSEMBLY, UPPER HALF PAN MAY W10795836 Contact Us For Availability
13
ROLLER MAY W10774846 Contact Us For Availability
13
SPACER, HANDLE MAY W10663641 Contact Us For Availability
13
ASSEMBLY, PADDLE JUMPER WIRE MAY W10704135 Contact Us For Availability
14
SCREW MAY W10731474 Contact Us For Availability
14
SCREW MAY W10119266 Contact Us For Availability
14
ASSEMBLY, DRAIN FUNNEL MAY W10503218 Contact Us For Availability
14
BIN, DOOR (GALLON) MAY W10793381 Contact Us For Availability
14
STOP, PAN (LEFT HAND) MAY W10795821 Contact Us For Availability
14
SCREW MAY 12992101 Contact Us For Availability
14
GLASS, CRISPER COVER MAY W10804533 Contact Us For Availability
14
BRACKET, USER INTERFACE ADAPTER MAY W10757499 Contact Us For Availability
14A
STOP, PAN (RIGHT HAND) MAY W10795823 Contact Us For Availability
15
HINGE, CENTER LEFT HAND (GREY) MAY W10816322 Contact Us For Availability
15
SEAL MAY M0500703 Contact Us For Availability
15
RETAINER, DOOR DUCT MAY W10834283 Contact Us For Availability
15
GASKET, DOOR (GREY) MAY W10868406 Contact Us For Availability
15
GROMMET, COMPRESSOR MAY W10836504 Contact Us For Availability
15
GLIDE, CRISPER (LEFT HAND) MAY W10816002 Contact Us For Availability
15
GASKET, USER INTERFACE ADAPTER MAY W10696713 Contact Us For Availability
15A
GLIDE, CRISPER (RIGHT HAND) MAY W10814859 Contact Us For Availability
16
SCREW MAY 12990702 Contact Us For Availability
16
INSULATION, UNDER FILTER MAY W11348541 Contact Us For Availability
16
GASKET, DRAIN MAY B8381501 Contact Us For Availability
16
GASKET, ICE DOOR MAY W10853440 Contact Us For Availability
16
BAR, SUPPORT MAY W10697812 Contact Us For Availability
16
CONDENSER MAY W11378992 Contact Us For Availability
16
HANDLE MAY W10794362 Contact Us For Availability
16
ASSEMBLY, ICE DOOR MOTOR BRACKET MAY W10696704 Contact Us For Availability
17
COVER, CORNER (GREY) MAY W10868482 Contact Us For Availability
17
LIGHT ASSY, AIR FILTER MAY W11302423 Contact Us For Availability
17
THERMISTOR MAY W10797088 Contact Us For Availability
17
CLOSER, DOOR (LEFT HAND) MAY W10872968 Contact Us For Availability
17
ROLLER MAY W10874023 Contact Us For Availability
17
BRACKET, VALVE MAY W10391376 Contact Us For Availability
17
ASSEMBLY, CRISPER PAN MAY W10794361 Contact Us For Availability
17
PAD, SOUND MAY W10663699 Contact Us For Availability
17A
CLOSER, DOOR (RIGHT HAND) MAY W10872969 Contact Us For Availability
18
VALVE, WATER MAY W11095287 Contact Us For Availability
18
COVER, AIR FILTER MAY W11306609 Contact Us For Availability
18
SEAL, CRISP FRONT MAY W10770923 Contact Us For Availability
18
ASSEMBLY, USER INTERFACE MAY W11227909 Contact Us For Availability
18
AXLE, ROLLER MAY W10839805 Contact Us For Availability
18
COVER, HOUSING MAY W11198954 Contact Us For Availability
18
ASSEMBLY, LIGHT MAY W10921807 Contact Us For Availability
18
HEATER, DISPENSER MAY W10752689 Contact Us For Availability
19
SWITCH, REED MAY W11105994 Contact Us For Availability
19
SCREW MAY W10141645 Contact Us For Availability
19
ASSEMBLY, HEAT SHIELD MAY W11090564 Contact Us For Availability
19
ASSEMBLY, ICEBOX FAN MAY W11206828 Contact Us For Availability
19
GASKET, COOLING DUCT MAY W10828417 Contact Us For Availability
19
RAIL, GUARD MAY W10830660 Contact Us For Availability
19
SCREW MAY W10903879 Contact Us For Availability
20
SCREW MAY W10709365 Contact Us For Availability
20
CAP, WATER FILTER (GREY) MAY W10813884 Contact Us For Availability
20
DOOR, REFRIGERATOR RIGHT HAND (STAINLESS) MAY W10798253 Contact Us For Availability
20
ROLLER MAY W10795813 Contact Us For Availability
20
FILTER, EMI MAY W10792503 Contact Us For Availability
20
KNOB, SIDE SUPPORT MAY W10840921 Contact Us For Availability
21
DIVIDER, AIR (REAR) MAY W10878918 Contact Us For Availability
21
ASSEMBLY, EVAPORATOR COVER (INCLUDES FAN MOTO MAY W11327988 Contact Us For Availability
21
TUBE, WATER MAY W11391308 Contact Us For Availability
21
COVER, TERMINAL MAY W10701009 Contact Us For Availability
21
RACK, WINE MAY W10837214 Contact Us For Availability
21A
DIVIDER, AIR (BOTTOM) MAY W10878920 Contact Us For Availability
22
GRILLE, TOE (GREY) MAY W10821309 Contact Us For Availability
22
ASSEMBLY, EVAPORATOR MAY W11130330 Contact Us For Availability
22
GASKET, DOOR (GREY) MAY W10917313 Contact Us For Availability
22
INSULATION, SOUND DEADENING MAY 2169104 Contact Us For Availability
22
GLASS, PLATTER MAY W10794577 Contact Us For Availability
23
SCREW MAY 12992601 Contact Us For Availability
23
STRIP, LED MAY W11381924 Contact Us For Availability
23
BIN, DOOR (MEDIUM) MAY W10816355 Contact Us For Availability
23
ASSEMBLY, SUCTION TUBE MAY W11199420 Contact Us For Availability
23
FLANGE, SIDE SUPPORT MAY W10840918 Contact Us For Availability
24
WIFI MODULE MAY W10916847 Contact Us For Availability
24
INSULATOR, FOAM MAY W10831305 Contact Us For Availability
24
HARNESS, UNIT (CONDENSER FAN) MAY W10858511 Contact Us For Availability
24
SCREW MAY W10847999 Contact Us For Availability
25
BASE, TOWER COVER MAY W10913535 Contact Us For Availability
25
DRIER (SERVICE DRIER WITHOUT DYE) MAY W10805035 Contact Us For Availability
25
INSULATION, FILTER HOUSING MAY W10792132 Contact Us For Availability
26
HARNESS, AIR TOWER JUMPER MAY W10848895 Contact Us For Availability
26
COMPRESSOR MAY W11393142 Contact Us For Availability
26
SUPPORT, PANTRY MAY W10794329 Contact Us For Availability
27
ASSEMBLY, JUMPER WIRE MAY W11025034 Contact Us For Availability
27
SCREW MAY 12990501 Contact Us For Availability
27
ASSEMBLY, CONDENSER FAN MAY W10883082 Contact Us For Availability
27
COVER, PANTRY MAY W10794323 Contact Us For Availability
28
COVER, CONTROL BOX MAY W10754144 Contact Us For Availability
28
HEATER, FILTER MAY W10877761 Contact Us For Availability
28
AXLE, ROLLER MAY 12477202 Contact Us For Availability
28
BAR, SUPPORT MAY W10814884 Contact Us For Availability
29
COIL, 3 WAY VALVE MAY W10709318 Contact Us For Availability
29
COVER, WIRING HARNESS MAY W10834719 Contact Us For Availability
30
COVER, UNIT MAY W10669259 Contact Us For Availability
30
GASKET, SEALING MAY W10901792 Contact Us For Availability
30
GASKET, CONDENSER FAN MAY W10683708 Contact Us For Availability
30
ASSEMBLY, PANTRY WIRE (INCLUDES THERMISTOR) MAY W10779301 Contact Us For Availability
31
CLAMP, TUBE MAY M0108107 Contact Us For Availability
31
GASKET, HEAT SHIELD MAY W10921470 Contact Us For Availability
31
TUBE, PROCESS MAY W10735062 Contact Us For Availability
31
ASSEMBLY, CENTER SUPPORT MAY W10794337 Contact Us For Availability
32
TUBE, ICEMAKER WATER (INCLUDES SEAL) MAY W11391302 Contact Us For Availability
32
HEATER, DEFROST MAY W11127384 Contact Us For Availability
32
FRAME, CRISPER COVER MAY W10794334 Contact Us For Availability
32A
TUBE, DISPENSER WATER (INCLUDES SEAL) MAY W11391304 Contact Us For Availability
33
LID, HV MAY W10768379 Contact Us For Availability
33
CLIP, EVAPORATOR HEATER MAY W10909562 Contact Us For Availability
33
GASKET, CRISPER COVER (REAR) MAY W10794336 Contact Us For Availability
34
RETAINER, DOOR MAY W10705239 Contact Us For Availability
34
ASSEMBLY, EVAPORATOR JUMPER WIRE MAY W10911358 Contact Us For Availability
34
GASKET, CRISPER COVER (FRONT) MAY W10794242 Contact Us For Availability
35
ASSEMBLY, MANIFOLD JUMPER WIRE MAY W10906507 Contact Us For Availability
35
COVER, WIRING HARNESS MAY W10854845 Contact Us For Availability
36
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
36
GASKET, EVAPORATOR AIR DAM MAY W10818463 Contact Us For Availability
36
JUMPER, CRISPER LED MAY W10835866 Contact Us For Availability
37
ASSEMBLY, INNER AIR TUNNEL (INCLUDES GASKET) MAY W10838745 Contact Us For Availability
37
COVER, FILTER MAY W11307147 Contact Us For Availability
37
SUPPORT, SIDE (LEFT HAND) MAY W10794317 Contact Us For Availability
37A
SUPPORT, SIDE (RIGHT HAND) MAY W10794320 Contact Us For Availability
38
ASSEMBLY, OUTER AIR TUNNEL (INCLUDES GASKET) MAY W10838744 Contact Us For Availability
39
COVER, VALVE MAY W10208592 Contact Us For Availability
40
COVER, HINGE RIGHT HAND (GREY) MAY W11035311 Contact Us For Availability
41
HINGE, CENTER RIGHT HAND (GREY) MAY W10816323 Contact Us For Availability
42
GASKET MAY W11243631 Contact Us For Availability
NI
ASSEMBLY, VALVE WIRE MAY W10871610 Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
PAINT, TOUCH- MAY W10134625 Contact Us For Availability
NI
MAY W10917540 MAY W10917540 Contact Us For Availability
× ![]()
