Model Maytag JFC2290VEP3 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

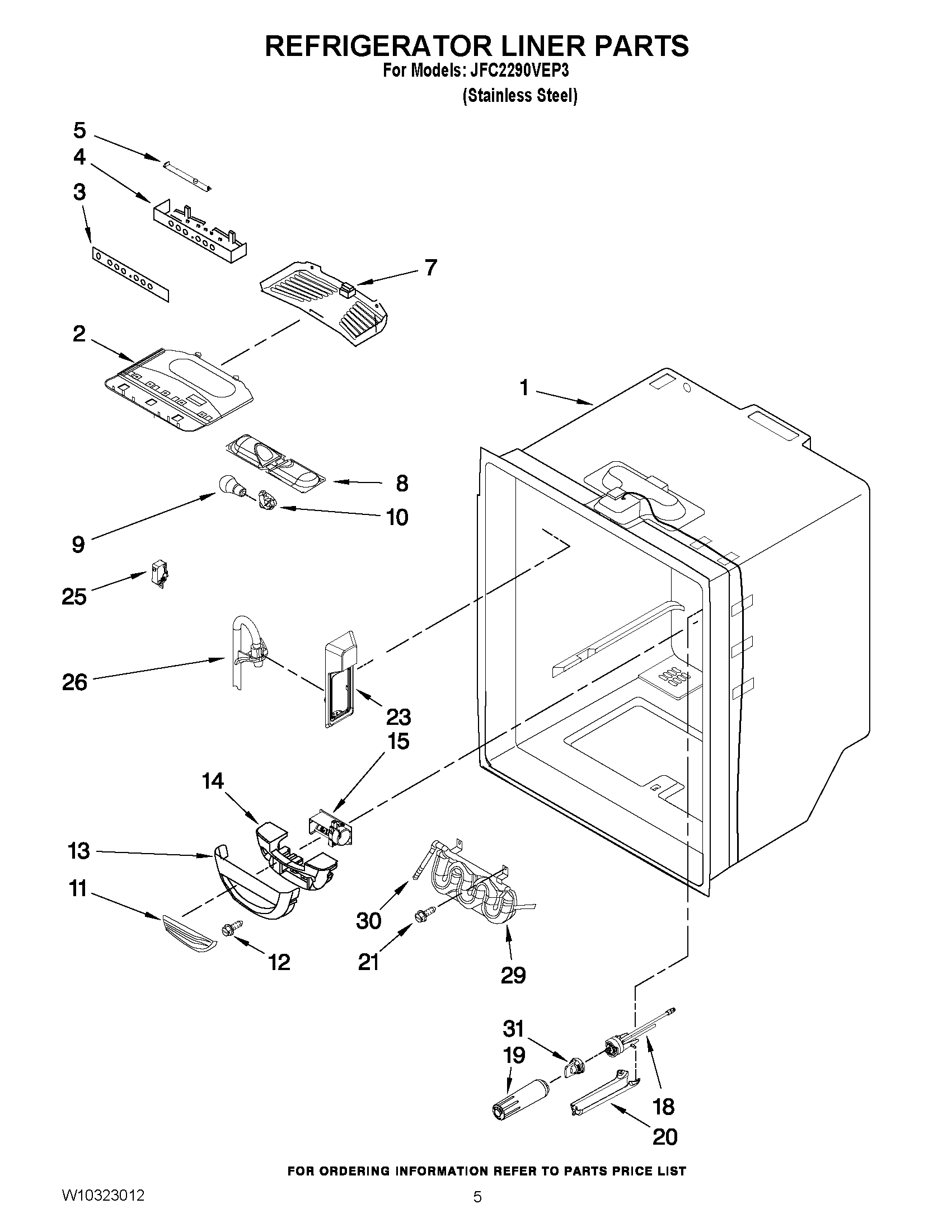

03 - REFRIGERATOR LINER PARTS

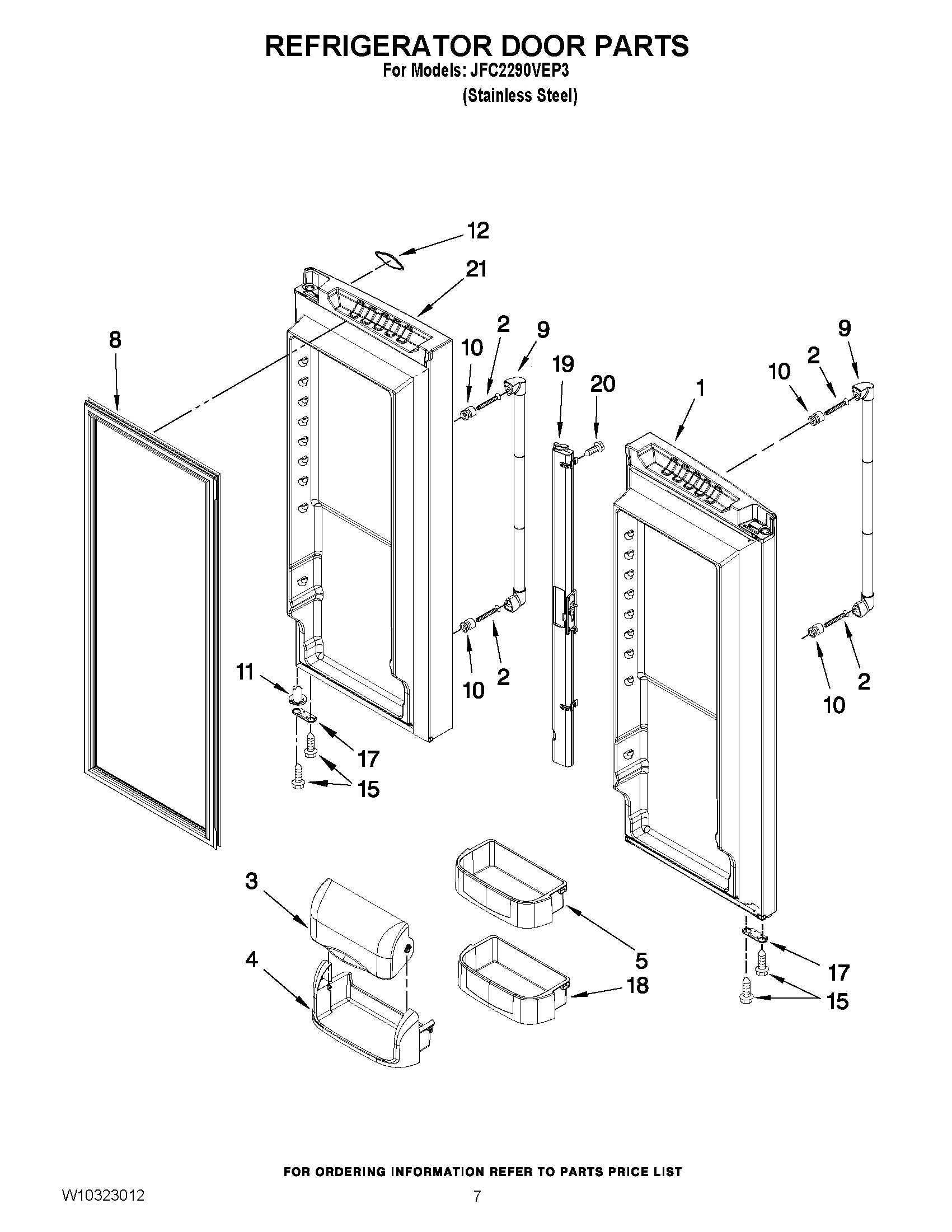

04 - REFRIGERATOR DOOR PARTS

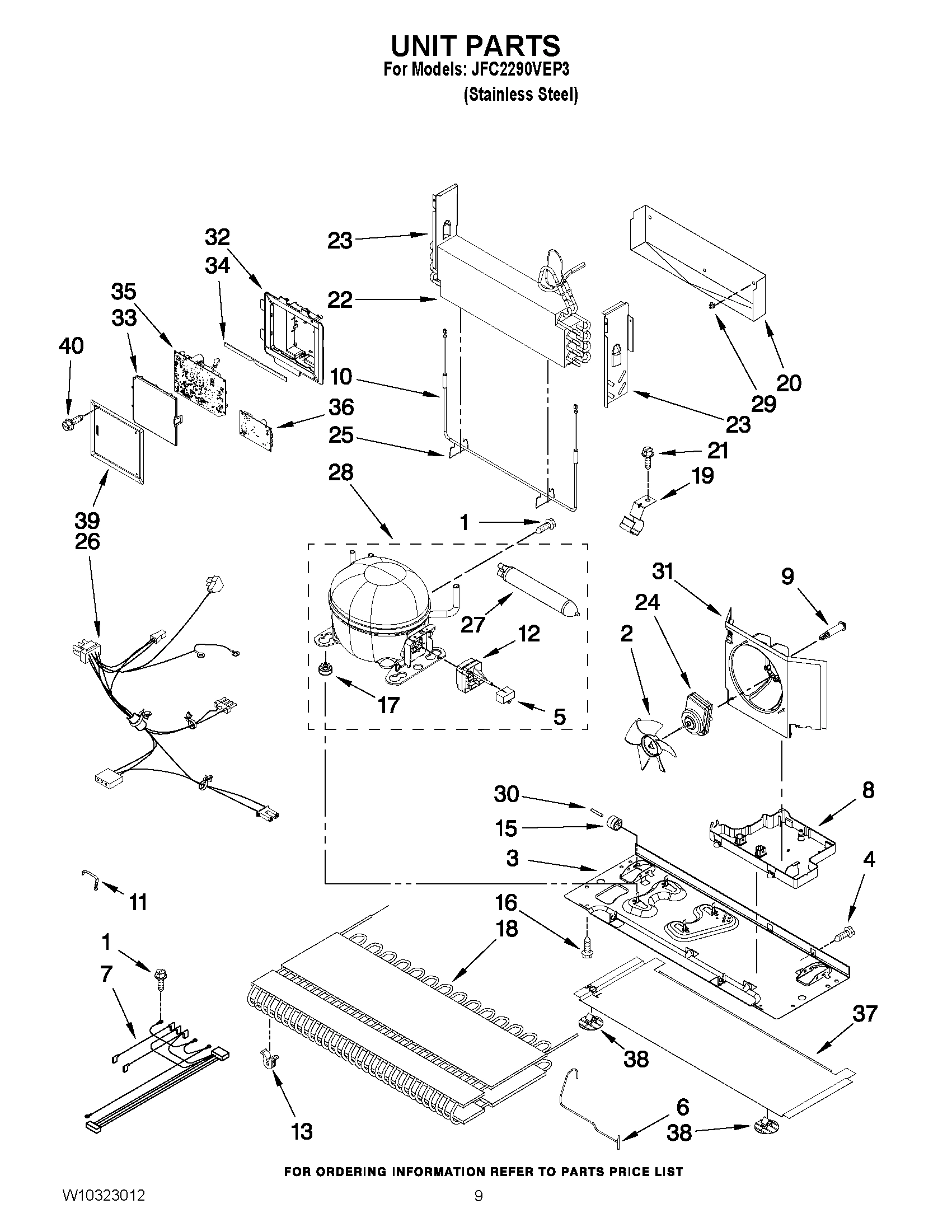

05 - UNIT PARTS

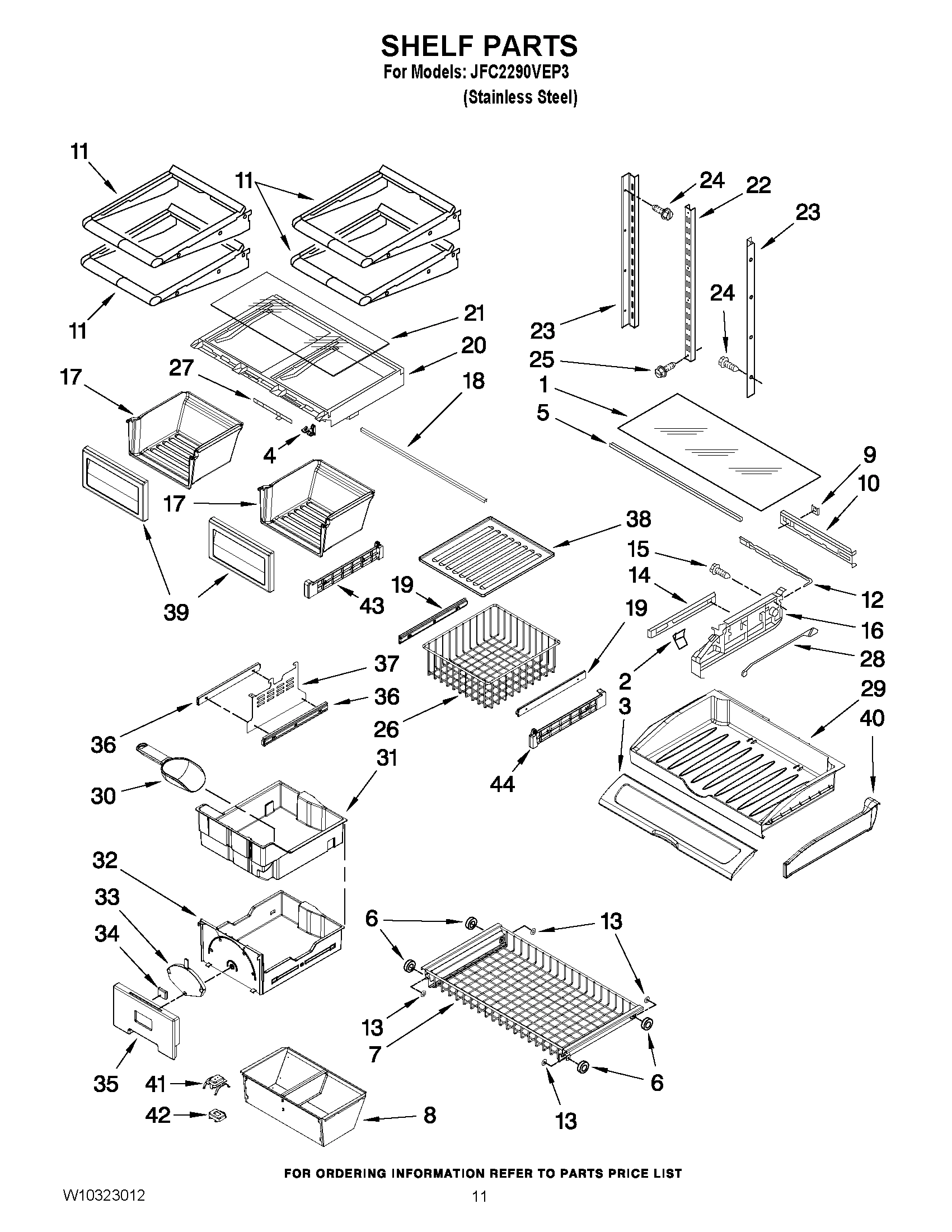

06 - SHELF PARTS

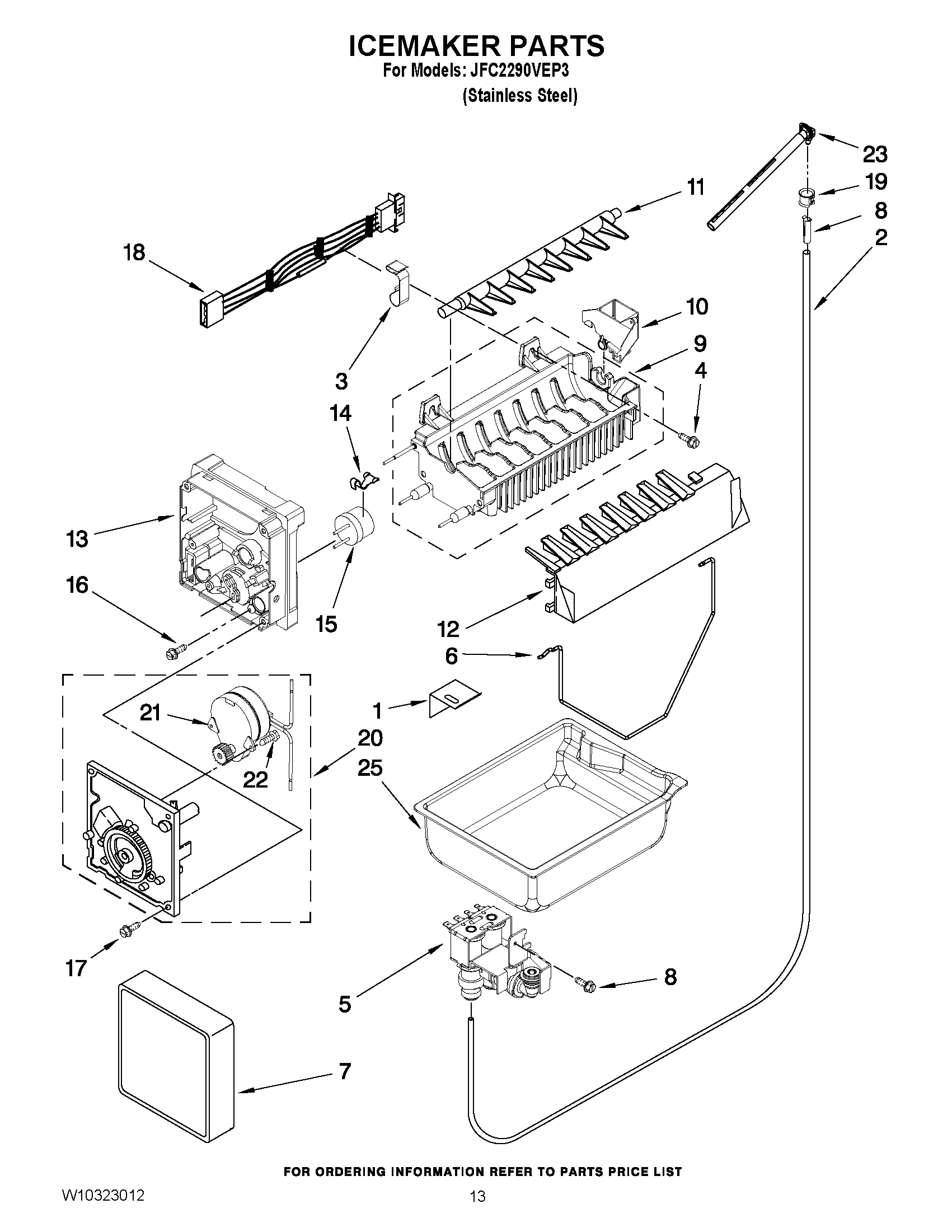

07 - ICEMAKER PARTS

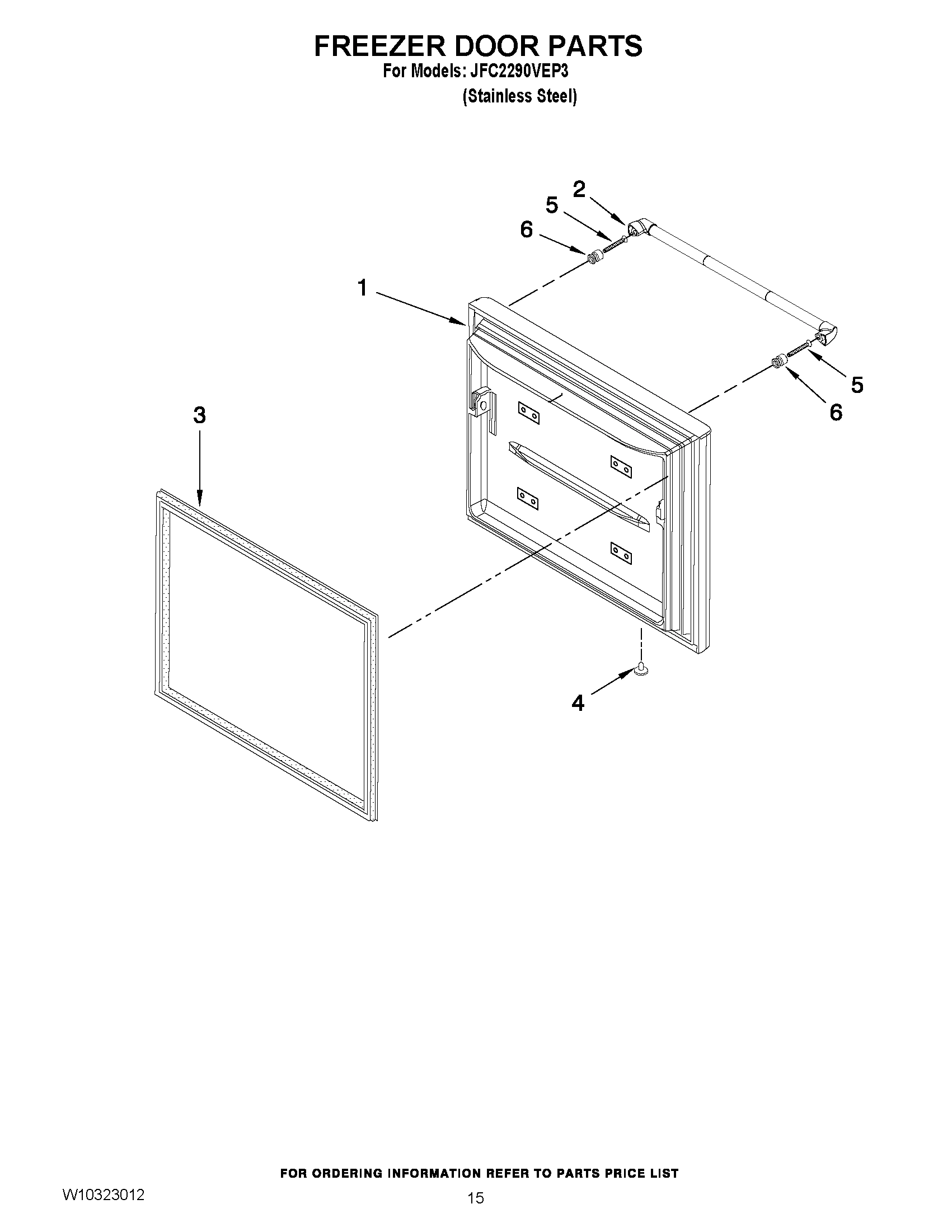

08 - FREEZER DOOR PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JFC2290VEP3 REFRIGERATOR
1
DOOR, REFRIGERATOR (STAINLESS, LH) MAY 13094725SQ Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12204815N MAY 12204815N Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
1
MAY 13094911SQ MAY 13094911SQ Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY 12806303 MAY 12806303 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
KNOB, TEMP CONTROL MAY 12655204V Contact Us For Availability
2
MAY B5705333SP MAY B5705333SP Contact Us For Availability
2
MAY W10210625N MAY W10210625N Contact Us For Availability
3
MAY W10316413 MAY W10316413 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
3
MAY 12656822 MAY 12656822 Contact Us For Availability
3
MAY 10526702 MAY 10526702 Contact Us For Availability
3
GASKET, DOOR (APOLLO GREY) MAY W10164042N Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12476401SP MAY 12476401SP Contact Us For Availability
4
MAY 12806405 MAY 12806405 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10119222 MAY W10119222 Contact Us For Availability
4
MAY 489276 MAY 489276 Contact Us For Availability
5
SHAFT MAY 12812903WD Contact Us For Availability
5
MAY W10116216 MAY W10116216 Contact Us For Availability
5
SCREW MAY W10290759 Contact Us For Availability
5
MAY W10119841 MAY W10119841 Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
5
MAY 12227305WD MAY 12227305WD Contact Us For Availability
5
MAY 12544124 MAY 12544124 Contact Us For Availability
6
MAY 12570701SP MAY 12570701SP Contact Us For Availability
6
MAY 13001201 MAY 13001201 Contact Us For Availability
6
MAY W10233569 MAY W10233569 Contact Us For Availability
6
Roller, Basket MAY 2204542 Contact Us For Availability
6
ARM-SHUT OFF MAY W10202524 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY W10292241 MAY W10292241 Contact Us For Availability
7
MAY W10119854 MAY W10119854 Contact Us For Availability
7
MAY W10153710 MAY W10153710 Contact Us For Availability
8
Screw (8) MAY 12990521 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
Gasket, Door (Apollo Grey) MAY W10163997 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
8
MAY W10144706 MAY W10144706 Contact Us For Availability
8
MAY A3223101SP MAY A3223101SP Contact Us For Availability
9
MAY 12992603 MAY 12992603 Contact Us For Availability
9
MAY 2255743N MAY 2255743N Contact Us For Availability
9
BULB, LIGHT (2) MAY 2255743 Contact Us For Availability
9
MAY W10210624N MAY W10210624N Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
MAY 12656901 MAY 12656901 Contact Us For Availability
9
Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability
10
HINGE, TOP RIGHT MAY W10210891 Contact Us For Availability
10
MODULE, LIGHT MAY W10119832 Contact Us For Availability
10
MAY 12570701V MAY 12570701V Contact Us For Availability
10
MAY 12729129 MAY 12729129 Contact Us For Availability
10
MAY 12656202 MAY 12656202 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
SCREW (6) MAY 12992201 Contact Us For Availability
11
MAY W10308420 MAY W10308420 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
Closure, Door (Apollo Grey) MAY 12028505AP Contact Us For Availability
11
MAY W10174384 MAY W10174384 Contact Us For Availability
11
MAY W10156631 MAY W10156631 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
COVER, RIGHT HINGE (APOLLO GREY) MAY W10120103 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
Start Device MAY W10194431 Contact Us For Availability
12
SLIDE, TEMPERATURE MAY 12655402 Contact Us For Availability
12
MAY 2182124 MAY 2182124 Contact Us For Availability
13
COVER, LEFT HINGE (APOLLO GREY) MAY W10120102 Contact Us For Availability
13
MAY W10119064 MAY W10119064 Contact Us For Availability
13
MAY W10119295 MAY W10119295 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
13
Nut, Basket Roller MAY 2207415 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
SCREW (6) MAY 12992403 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY W10132652 MAY W10132652 Contact Us For Availability
14
MAY W10132653 MAY W10132653 Contact Us For Availability
14
Retainer MAY 2315522 Contact Us For Availability
15
MAY 12990504 MAY 12990504 Contact Us For Availability
15
MAY W10135097 MAY W10135097 Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
MAY W10207517 MAY W10207517 Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
15
THERMOSTAT ORDER 542369 CEMENT ALUMILASTIC MAY 628397 Contact Us For Availability
16
MAY 12777701 MAY 12777701 Contact Us For Availability
16
MAY 12466105SP MAY 12466105SP Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
MAY W10121977 MAY W10121977 Contact Us For Availability
16
MAY W10122078 MAY W10122078 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
Cover, Corner (2) (Apollo Grey) MAY 12587703AP Contact Us For Availability
17
Stop, Door (Apollo Grey) MAY W10120097 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
MAY W10119219 MAY W10119219 Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
HINGE, TOP LEFT MAY W10210890 Contact Us For Availability
18
MAY W10119848 MAY W10119848 Contact Us For Availability
18
MAY W10119849 MAY W10119849 Contact Us For Availability
18
MAY 12590621 MAY 12590621 Contact Us For Availability
18
MAY W10119846 MAY W10119846 Contact Us For Availability
18
MAY W10135026 MAY W10135026 Contact Us For Availability
18
Brace, Crisper MAY W10119258 Contact Us For Availability
18
MAY D7813011 MAY D7813011 Contact Us For Availability
19
ROLLER ASSY. (FRONT) (RIGHT) MAY W10275849 Contact Us For Availability
19
ROLLER ASSY. (FRONT) (LEFT) MAY W10275850 Contact Us For Availability
19
Slide, Drawer (2) MAY 13055901 Contact Us For Availability
19
MAY UKF8001 MAY UKF8001 Contact Us For Availability
19
Mullion, Door (Apollo Grey) MAY 12732508AP Contact Us For Availability
19
MAY 10547003 MAY 10547003 Contact Us For Availability
19
MAY W10170836 MAY W10170836 Contact Us For Availability
19
MAY M0114003SP MAY M0114003SP Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
Gasket, Bottom MAY A3189397 Contact Us For Availability
20
MAY 12990204 MAY 12990204 Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
20
MAY W10119215 MAY W10119215 Contact Us For Availability
20
MODULE ASSEMBLY (INCLUDES ITEMS 21& 22) MAY W10223929 Contact Us For Availability
21
SHIM, HINGE (LEFT) MAY 12999501 Contact Us For Availability
21
SHIM, HINGE (RIGHT) MAY 12999502 Contact Us For Availability
21
MOTOR (NOT AVAILABLE, ORDER No.20) MAY N/P Contact Us For Availability
21
ADAPTER, SLIDE (LEFT) MAY W10284686 Contact Us For Availability
21
ADAPTER, SLIDE (RIGHT) MAY W10284687 Contact Us For Availability
21
MAY 13094726SQ MAY 13094726SQ Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY 12204827 MAY 12204827 Contact Us For Availability
22
GRILLE, TOE (BLACK) MAY W10244558N Contact Us For Availability
22
Grille, Fz Air MAY 13024803 Contact Us For Availability
22
MAY 12726403 MAY 12726403 Contact Us For Availability
22
MAY W10273463 MAY W10273463 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
FACADE, DISPENSER ASSEMBLY MAY W10204292 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
LADDER, L/R SIDE MAY W10251970 Contact Us For Availability
23
MAY 10463203SP MAY 10463203SP Contact Us For Availability
24
MAY W10135096 MAY W10135096 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
24
MAY 12990513 MAY 12990513 Contact Us For Availability
25
MAY W10121318 MAY W10121318 Contact Us For Availability
25
MAY 12575502 MAY 12575502 Contact Us For Availability
25
Screw MAY 12990515 Contact Us For Availability
25
MAY W10120005 MAY W10120005 Contact Us For Availability
26
MAY 12726003 MAY 12726003 Contact Us For Availability
26
MAY W10128551 MAY W10128551 Contact Us For Availability
26
MAY W10117324 MAY W10117324 Contact Us For Availability
26
MAY W10256742 MAY W10256742 Contact Us For Availability
26
MAY W10120003 MAY W10120003 Contact Us For Availability
27
GUARD, WATER VALVE (DUAL) MAY W10208593 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
MAY W10119217 MAY W10119217 Contact Us For Availability
28
SCREW (2) MAY 12990302 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 11,12,17,27) MAY W10164016 Contact Us For Availability
28
MAY 12655303 MAY 12655303 Contact Us For Availability
29
MAY 12831101 MAY 12831101 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY 12706109 MAY 12706109 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 12655703 MAY 12655703 Contact Us For Availability
30
MAY W10211855 MAY W10211855 Contact Us For Availability
30
Guide, Fill Tube MAY W10201550 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
30
MAY W10182881 MAY W10182881 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
PLUG, BYPASS MAY 12664501SP Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
Screw (6) MAY 12990501 Contact Us For Availability
32
MAY W10119790 MAY W10119790 Contact Us For Availability
32
MAY W10120008 MAY W10120008 Contact Us For Availability
33
Insulation, Sound MAY 12820505 Contact Us For Availability
33
LID, HV BOX MAY 12957702 Contact Us For Availability
33
MAY W10184030 MAY W10184030 Contact Us For Availability
34
Brake, Foot MAY W10141622 Contact Us For Availability
34
GASKET-HV BOX MAY 12957801 Contact Us For Availability
34
MAY W10131252 MAY W10131252 Contact Us For Availability
35
MAY W10210988 MAY W10210988 Contact Us For Availability
35
MAY W10157765 MAY W10157765 Contact Us For Availability
35
BOARD, CONTROL MAY W10120827 Contact Us For Availability
35
MAY W10174720 MAY W10174720 Contact Us For Availability
36
BOARD, POWER MAY W10120821 Contact Us For Availability
36
MAY W10170835 MAY W10170835 Contact Us For Availability
37
EXTENSION, BASEPAN MAY W10206338 Contact Us For Availability
37
MAY W10120014 MAY W10120014 Contact Us For Availability
38
MAY W10206339 MAY W10206339 Contact Us For Availability
38
MAY W10184358 MAY W10184358 Contact Us For Availability
39
MAY 12961602 MAY 12961602 Contact Us For Availability
39
MAY W10212414 MAY W10212414 Contact Us For Availability
40
SCREW SUPPLY MAY 12990702 Contact Us For Availability
40
MAY 12709301N MAY 12709301N Contact Us For Availability
41
MAY W10121002 MAY W10121002 Contact Us For Availability
42
MAY W10121004 MAY W10121004 Contact Us For Availability
43
ADAPTER-BSKT-LH MAY W10163087 Contact Us For Availability
44
ADAPTER-BSKT-RH MAY W10163084 Contact Us For Availability
100
MAY W10190978 MAY W10190978 Contact Us For Availability
NI
HARNESS, FZ MODULE (INCLUDES THERMISTOR) MAY W10196195 Contact Us For Availability
NI
HARNESS, CONTROL (REFRIGERATOR) (INCLUDES THE MAY W10119821 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
