Model Maytag JFC2290RTB02 REFRIGERATOR, FRENCH DOOR, COUNTER DEPTH, 72 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS
03 - REFRIGERATOR LINER PARTS

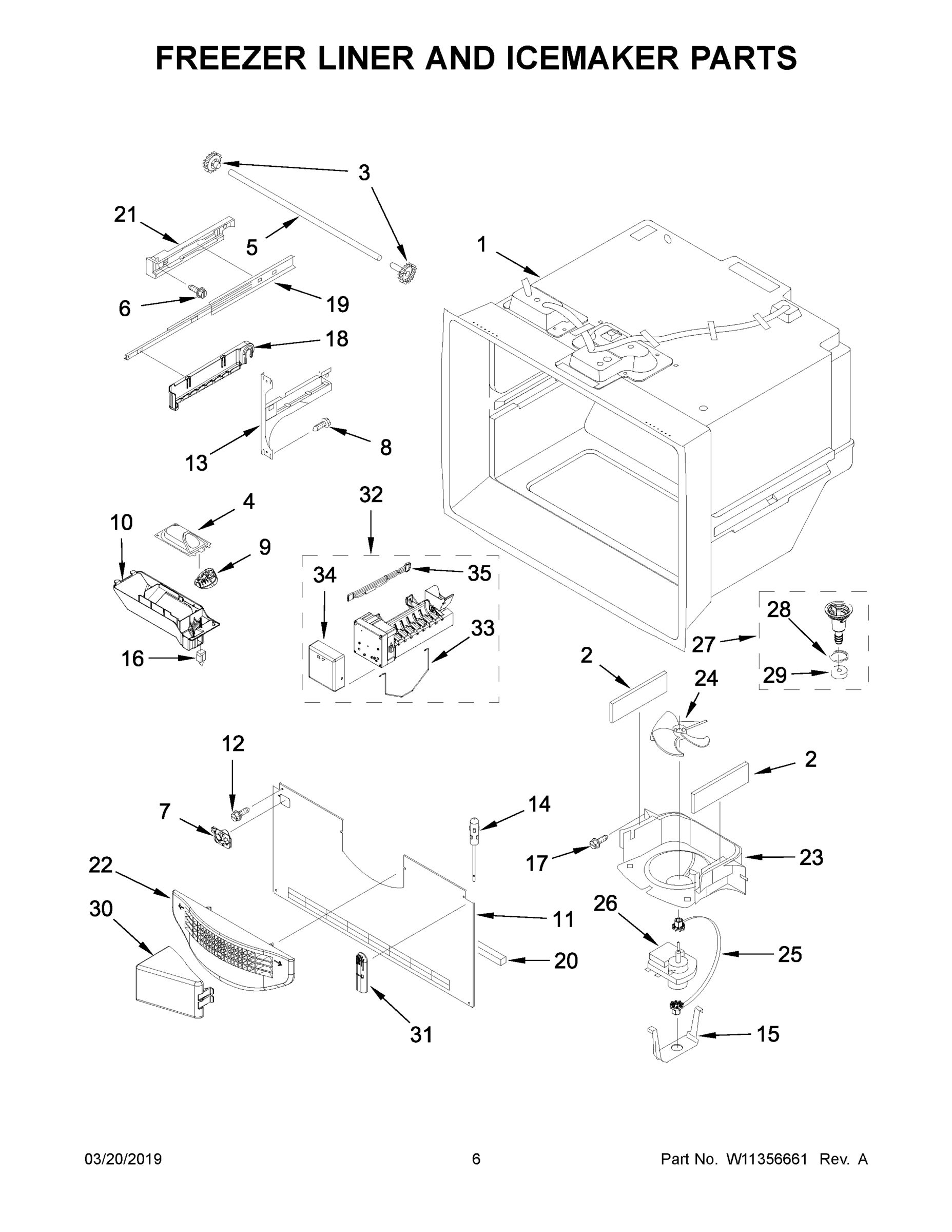

04 - FREEZER LINER AND ICEMAKER PARTS

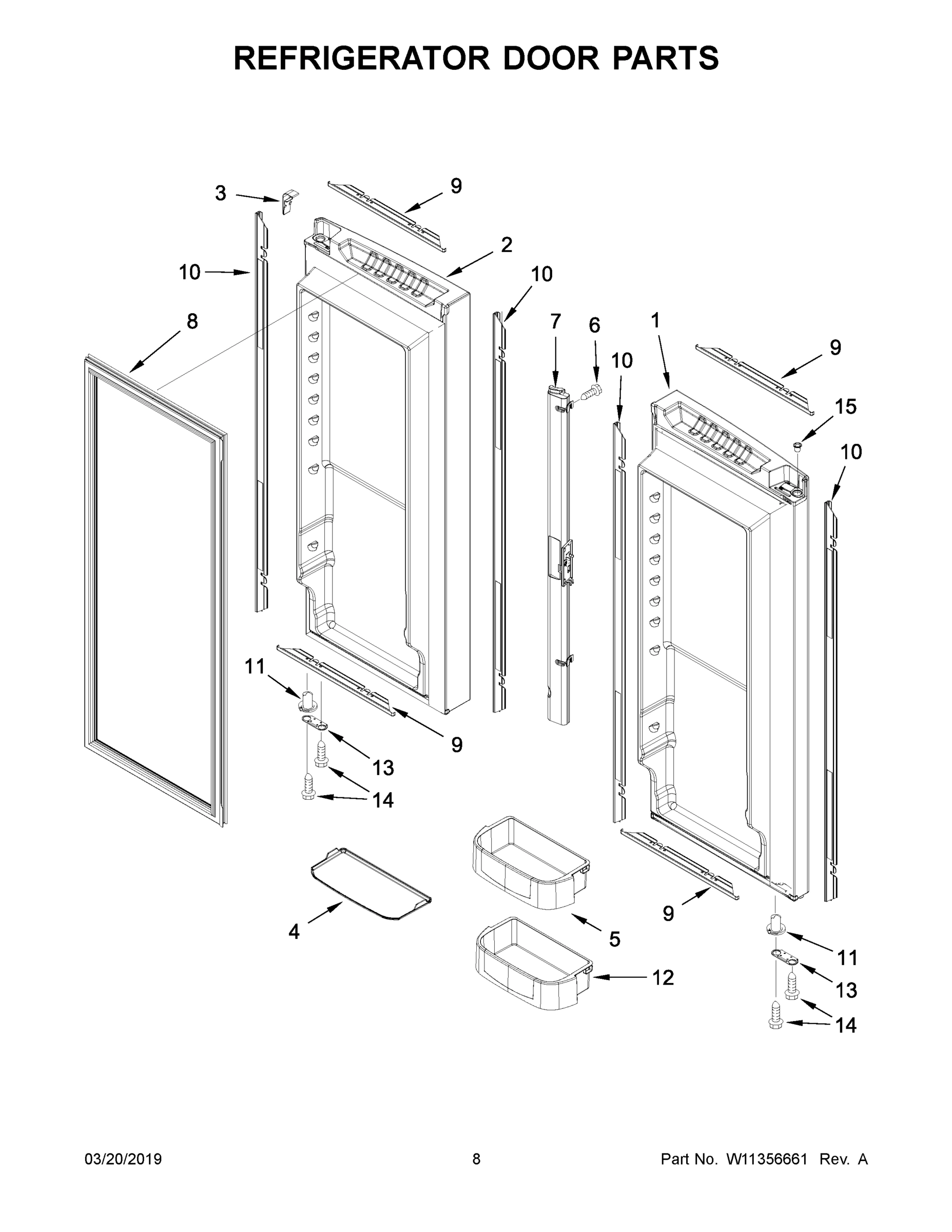

05 - REFRIGERATOR DOOR PARTS

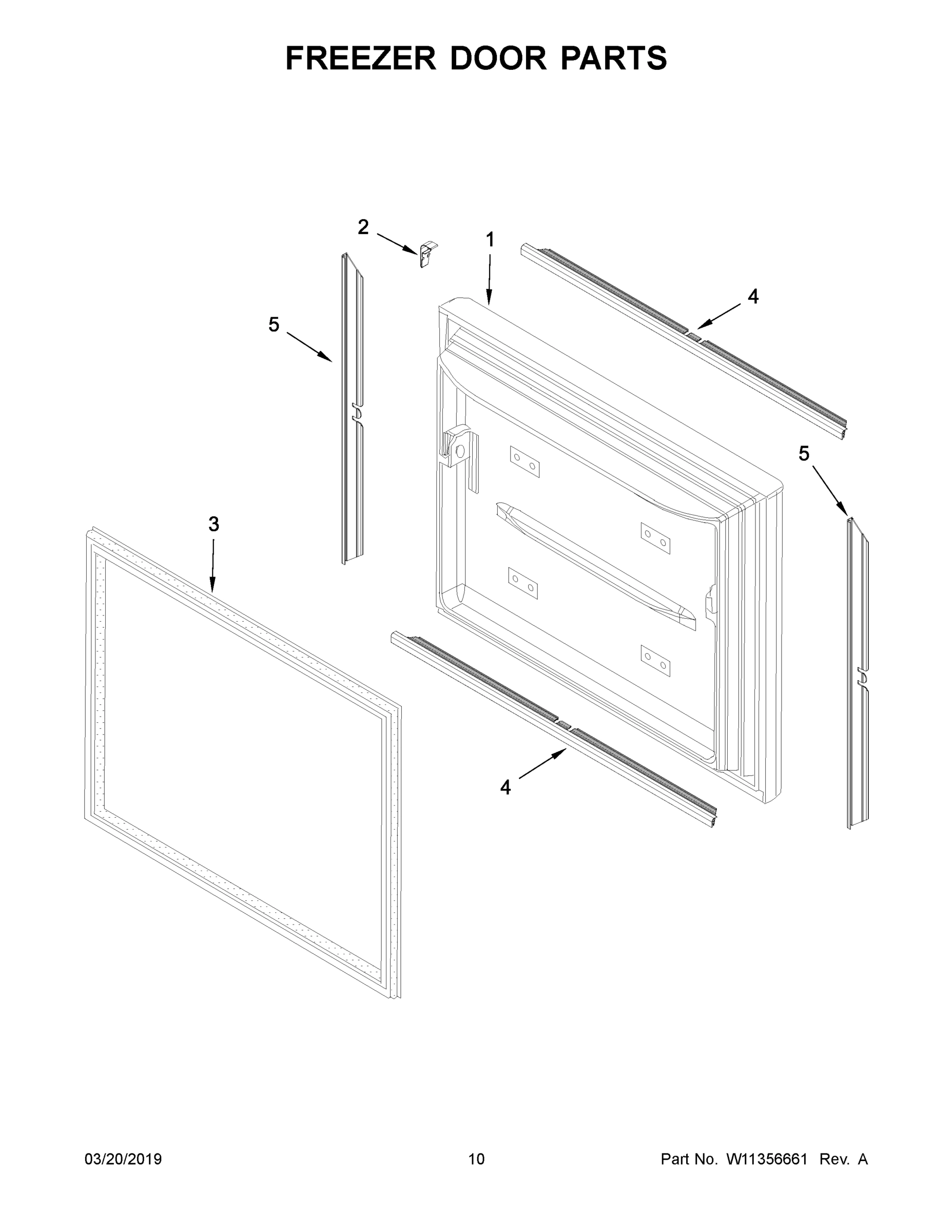

06 - FREEZER DOOR PARTS
07 - UNIT PARTS

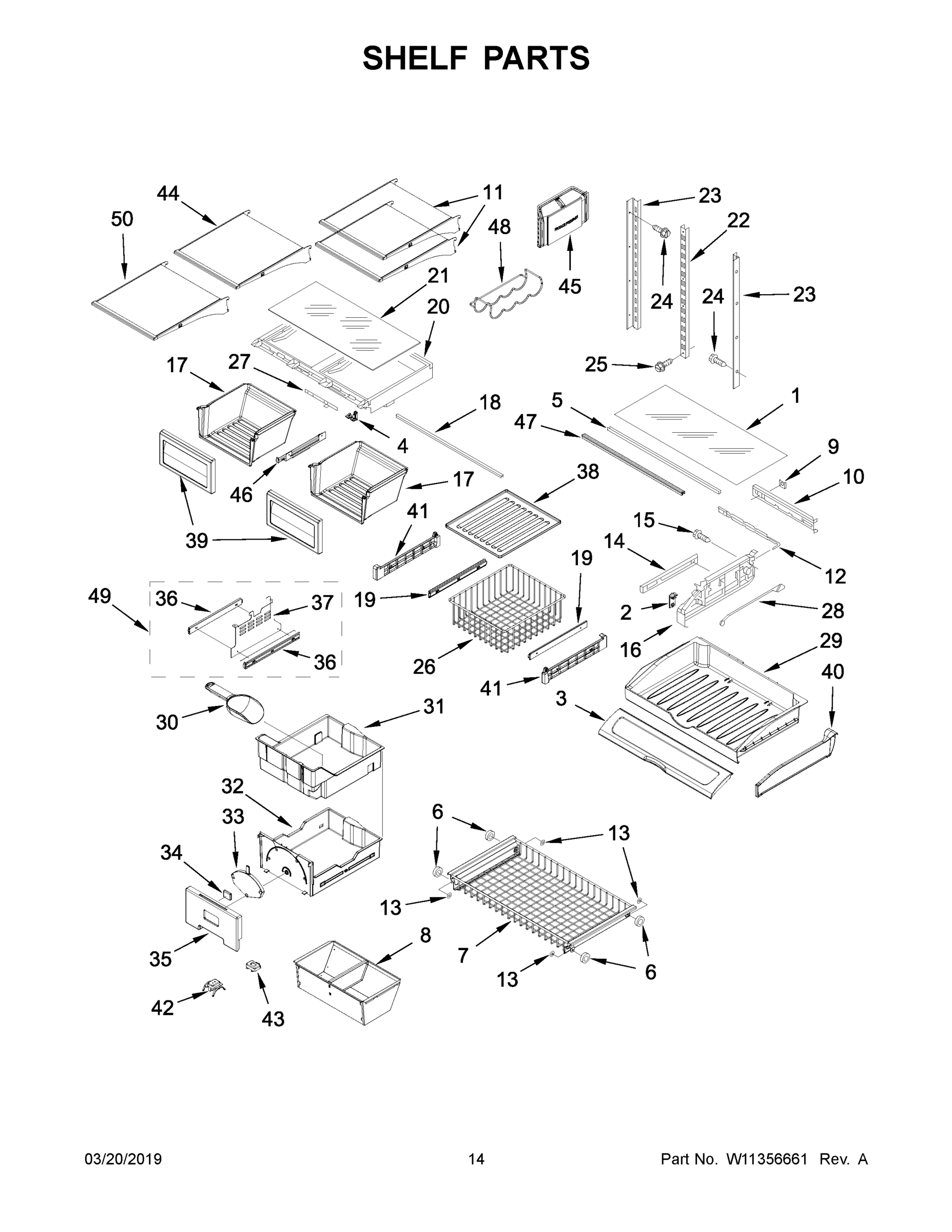

08 - SHELF PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag JFC2290RTB02 REFRIGERATOR, FRENCH DOOR, COUNTER DEPTH, 72 INCH
1
DOOR, LEFT (BLACK) MAY 13094746B Contact Us For Availability
1
DOOR, FREEZER (BLACK) MAY 13094914B Contact Us For Availability
1
SCREW MAY 12992301 Contact Us For Availability
1
GLASS, PANTRY MAY 12204815 Contact Us For Availability
2
MODULE, LIGHT MAY W10464766 Contact Us For Availability
2
GASKET, FOAM MAY A3189392 Contact Us For Availability
2
DOOR, RIGHT (BLACK) MAY 13094741B Contact Us For Availability
2
CLIP, TRIM MAY W10150034 Contact Us For Availability
2
BLADE, FAN MAY 12825803 Contact Us For Availability
2
KNOB, TEMPERATURE CONTROL MAY 12655204 Contact Us For Availability
3
BLOCK, PIVOT MAY W10120087 Contact Us For Availability
3
OVERLAY MAY W10808269 Contact Us For Availability
3
GASKET, DOOR (BLACK) MAY W10436252 Contact Us For Availability
3
BASEPAN MAY W10480111 Contact Us For Availability
3
LID, PANTRY DRAWER MAY 12656822 Contact Us For Availability
4
GASKET MAY B5759655 Contact Us For Availability
4
SCREW MAY 12990511 Contact Us For Availability
4
MODULE, CONTROL MAY W10464767 Contact Us For Availability
4
HOUSING, FREEZER LIGHT MAY 12476401V Contact Us For Availability
4
GRIPPER, GALLON MAY W10450019 Contact Us For Availability
4
TRIM, TOP AND BOTTOM MAY W10130133 Contact Us For Availability
4
KNOB, HUMIDITY CONTROL MAY W10119222 Contact Us For Availability
4A
GRIPPER, MEDIUM MAY W10450018 Contact Us For Availability
5
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
5
BOARD, CONTROL MAY W10631452 Contact Us For Availability
5
SHAFT, RACK MAY W10802332 Contact Us For Availability
5
BUCKET, MEDIUM MAY W10119841 Contact Us For Availability
5
TRIM, SIDE MAY W10130137 Contact Us For Availability
5
CAPACITOR MAY W10350564 Contact Us For Availability
5
BRACE, PANTRY MAY 12227305WH Contact Us For Availability
6
ASSEMBLY, FILL TUBE (INCLUDES TUBING, FILL TU MAY W11046934 Contact Us For Availability
6
COVER, WATERLINE MAY W10116529 Contact Us For Availability
6
SCREW MAY 12990501 Contact Us For Availability
6
SCREW MAY 12990204 Contact Us For Availability
6
TUBE, DISCHARGE MAY W10233569 Contact Us For Availability
6
ROLLER, BASKET MAY 2204542 Contact Us For Availability
7
COVER, LIGHT MAY W11132917 Contact Us For Availability
7
MAY W11261606 MAY W11261606 Contact Us For Availability
7
MULLION, DOOR (BLACK) MAY W10153146 Contact Us For Availability
7
MAY W11174746 MAY W11174746 Contact Us For Availability
7
BASKET, MIDDLE MAY W10119854 Contact Us For Availability
8
HOUSING, LIGHT MAY W10443023 Contact Us For Availability
8
SCREW MAY 12990521 Contact Us For Availability
8
GASKET, DOOR (BLACK) MAY W10830047 Contact Us For Availability
8
PAN, DRAIN MAY W10655368 Contact Us For Availability
8
ASSEMBLY, BIN MAY W10144706 Contact Us For Availability
9
SCREW MAY 12992603 Contact Us For Availability
9
MAY W11251749 MAY W11251749 Contact Us For Availability
9
TRIM, TOP AND BOTTOM MAY W10130132 Contact Us For Availability
9
SCREW MAY W10622701 Contact Us For Availability
9
GASKET, PANTRY MAY 12656901 Contact Us For Availability
10
MAY W10892768 MAY W10892768 Contact Us For Availability
10
MAY W11117106 MAY W11117106 Contact Us For Availability
10
MODULE, FREEZER LIGHT MAY W10119832 Contact Us For Availability
10
TRIM, SIDE MAY W10130136 Contact Us For Availability
10
HEATER, DEFROST MAY 12729123 Contact Us For Availability
10
HOUSING, CONTROL MAY 12656202 Contact Us For Availability
10A
HINGE, TOP (RIGHT HAND) MAY W10210891 Contact Us For Availability
11
SCREW (STAINLESS) MAY W10673840 Contact Us For Availability
11
INSERT, DAMPER COVER MAY 12806801 Contact Us For Availability
11
COVER, EVAPORATOR MAY W10308420 Contact Us For Availability
11
CLOSURE, DOOR (BLACK) MAY 12028505B Contact Us For Availability
11
STRAP, BALE MAY W10216075 Contact Us For Availability
11
ASSEMBLY, SHELF MAY W10905889 Contact Us For Availability
12
MAY W10892762 MAY W10892762 Contact Us For Availability
12
SCREW MAY 12990604 Contact Us For Availability
12
BUCKET, GALLON MAY W10119846 Contact Us For Availability
12
DEVICE, START MAY W10796752 Contact Us For Availability
12
SLIDE, TEMPERATURE CONTROL MAY 12655402 Contact Us For Availability
13
COVER, HINGE RIGHT HAND (BLACK) MAY W10153131 Contact Us For Availability
13
COVER, DAMPER MAY 12806701 Contact Us For Availability
13
BRACKET, DOOR (LEFT HAND) MAY W10330994 Contact Us For Availability
13
STOP, DOOR (BLACK) MAY W10153126 Contact Us For Availability
13
GROMMET, CONDENSER MAY W10137529 Contact Us For Availability
13
NUT, HEX MAY 2207415 Contact Us For Availability
13A
BRACKET, DOOR (RIGHT HAND) MAY W10330995 Contact Us For Availability
14
SCREW MAY 12992403 Contact Us For Availability
14
INSULATION, DAMPER MAY 13012402 Contact Us For Availability
14
THERMISTOR MAY 12791417SP Contact Us For Availability
14
SCREW MAY 12990519 Contact Us For Availability
14
STRAP, COMPRESSOR MAY W10236396 Contact Us For Availability
14
GLIDE, DRAWER (LEFT HAND) MAY W10132653 Contact Us For Availability
14A
GLIDE, DRAWER (RIGHT HAND) MAY W10132652 Contact Us For Availability
15
SCREW MAY 12990504 Contact Us For Availability
15
HINGE, CENTER LEFT HAND (BLACK) MAY W10210882 Contact Us For Availability
15
CONTROL, DAMPER MAY W10594329 Contact Us For Availability
15
CLIP, EVAPORATOR MOTOR MAY 13058002 Contact Us For Availability
15
CLIP, BUSHING MAY 12996601 Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
16
HINGE, CENTER RIGHT HAND (BLACK) MAY W10210883 Contact Us For Availability
16
BRACKET, FILTER BASE MAY 12955901 Contact Us For Availability
16
SWITCH, LIGHT MAY W10847849 Contact Us For Availability
16
SCREW MAY 12992101 Contact Us For Availability
16
ENDCAP, PANTRY (LEFT HAND) MAY W10122078 Contact Us For Availability
16A
ENDCAP, PANTRY (RIGHT HAND) MAY W10121977 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
CARTRIDGE, BYPASS MAY 12664501SP Contact Us For Availability
17
GROMMET MAY 10835903 Contact Us For Availability
17
PAN, CRISPER MAY W10119219 Contact Us For Availability
18
CLAMP, TUBE MAY M0108107 Contact Us For Availability
18
MAY W11308018 MAY W11308018 Contact Us For Availability
18
CRADLE, BASKET (LEFT HAND) MAY W10119848 Contact Us For Availability
18
CONDENSER MAY W10346415 Contact Us For Availability
18
BRACE, CRISPER FRAME MAY W10490807 Contact Us For Availability
18A
CRADLE, BASKET (RIGHT HAND) MAY W10119849 Contact Us For Availability
19
ASSEMBLY, ROLLER (LEFT HAND) MAY W10515763 Contact Us For Availability
19
MAY W11256384 MAY W11256384 Contact Us For Availability
19
SLIDE, DRAWER MAY 13055901 Contact Us For Availability
19
CLIP, DRIER MAY W10281329 Contact Us For Availability
19
GLIDE, UPPER BASKET MAY W10170836 Contact Us For Availability
19A
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10515762 Contact Us For Availability
20
SCREW MAY W10709365 Contact Us For Availability
20
COVER, FILTER MAY 12960301 Contact Us For Availability
20
GASKET MAY A3189396 Contact Us For Availability
20
TRAY, DRIP MAY W10292803 Contact Us For Availability
20
FRAME, CRISPER MAY W10119215 Contact Us For Availability
21
SHIM, HINGE (LEFT HAND) MAY 12999501 Contact Us For Availability
21
ADAPTER, SIDE (LEFT HAND) MAY W10544403 Contact Us For Availability
21
SCREW MAY 12990701 Contact Us For Availability
21
GLASS, CRISPER COVER MAY 12204827 Contact Us For Availability
21A
SHIM, HINGE (RIGHT HAND) MAY 12999502 Contact Us For Availability
21A
ADAPTER, SIDE (RIGHT HAND) MAY W10544404 Contact Us For Availability
22
GRILLE, TOE (BLACK) MAY W10534153 Contact Us For Availability
22
GRILLE, FREEZER AIR MAY 13024803 Contact Us For Availability
22
EVAPORATOR MAY W10669255 Contact Us For Availability
22
LADDER, CENTER MAY W10273463 Contact Us For Availability
23
FACADE, DISPENSER MAY W10204292 Contact Us For Availability
23
SHROUD, EVAPORATOR FAN MAY 13057901 Contact Us For Availability
23
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
23
LADDER, SIDE MAY W10569182 Contact Us For Availability
23A
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
24
SWEEP, DUAL TUBE MAY W10528513 Contact Us For Availability
24
SWITCH, PLUNGER MAY W10204289 Contact Us For Availability
24
BLADE, FAN MAY 2169142 Contact Us For Availability
24
MOTOR, CONDENSER FAN MAY W10909377 Contact Us For Availability
24
SCREW MAY W10215666 Contact Us For Availability
25
SWITCH, LIMIT MAY 12575502 Contact Us For Availability
25
GROMMET MAY W10121318 Contact Us For Availability
25
SCREW MAY 12990513 Contact Us For Availability
26
COVER, WATER LINE MAY 12726003 Contact Us For Availability
26
WATERLINE, DISPENSER MAY W10117324 Contact Us For Availability
26
MOTOR, EVAPORATOR MAY W10128551 Contact Us For Availability
26
MAY W11239562 MAY W11239562 Contact Us For Availability
26
BASKET, UPPER FREEZER MAY W10120003 Contact Us For Availability
27
GUARD, DUAL WATER VALVE MAY W10208593 Contact Us For Availability
27
ASSEMBLY, DRAIN FUNNEL MAY W10662407 Contact Us For Availability
27
DRIER MAY W10177049 Contact Us For Availability
27
SLIDE, HUMIDITY CONTROL MAY W10119217 Contact Us For Availability
28
SCREW MAY 688983 Contact Us For Availability
28
SEAL MAY M0500703 Contact Us For Availability
28
COMPRESSOR MAY W10879296 Contact Us For Availability
28
BAR, TEMPERATURE CONTROL MAY 12655303 Contact Us For Availability
29
VALVE, WATER INLET MAY W10420083 Contact Us For Availability
29
GASKET, DRAIN MAY B8381501 Contact Us For Availability
29
CLIP, EVAPORATOR MAY 10623002 Contact Us For Availability
29
DRAWER, PANTRY MAY 12655703 Contact Us For Availability
30
LID, HV CONTROL BOX MAY W10296541 Contact Us For Availability
30
DIVERTER, AIR MAY W10157765 Contact Us For Availability
30
AXLE, ROLLER MAY 12477202 Contact Us For Availability
30
SCOOP, ICE PAN MAY W10182881 Contact Us For Availability
31
GASKET, CONTROL BOX MAY 12957801 Contact Us For Availability
31
COVER, THERMISTOR MAY 12815301 Contact Us For Availability
31
SHROUD, CONDENSER FAN MAY W10189184 Contact Us For Availability
31
PAN, ICE MAY W10120005 Contact Us For Availability
32
CONTROL, ELECTRONIC MAY W10120827 Contact Us For Availability
32
ASSEMBLY, ICEMAKER (COMPLETE) MAY W10795988 Contact Us For Availability
32
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
32
CARRIER, ICE PAN MAY W10120008 Contact Us For Availability
33
SCREW MAY 12990702 Contact Us For Availability
33
ARM, SHUT OFF MAY W11260635 Contact Us For Availability
33
EXTENSION, DRAIN TUBE MAY W10622099 Contact Us For Availability
33
LEVER, ICE PAN MAY W10184030 Contact Us For Availability
34
CONTROL, POWER SUPPLY ELECTRONIC MAY W10120821 Contact Us For Availability
34
COVER, FRONT MAY W10153710 Contact Us For Availability
34
INSULATION, SOUND DEADENING MAY 2169104 Contact Us For Availability
34
MAGNET, LATCH MAY W10720771 Contact Us For Availability
35
COVER, CONTROL BOX MAY 12961602 Contact Us For Availability
35
HARNESS, ICEMAKER WIRE MAY W10793621 Contact Us For Availability
35
CLIP, CONDENSER MAY W10815863 Contact Us For Availability
35
FRONT, ICE PAN MAY W10174720 Contact Us For Availability
36
BOX, HV CONTROL MAY W10119790 Contact Us For Availability
36
GLIDE, ICE PAN MAY W10170835 Contact Us For Availability
37
BLOCK, FILL TUBE MAY W10658542 Contact Us For Availability
37
SUPPORT, FREEZER DOOR MAY W10120014 Contact Us For Availability
38
COVER, UNIT MAY W10211855 Contact Us For Availability
38
MAT, UPPER BASKET MAY W10451455 Contact Us For Availability
39
FRONT, CRISPER MAY W10212414 Contact Us For Availability
40
DIVIDER, PANTRY MAY 12709301 Contact Us For Availability
41
ADAPTER, BASKET (LEFT HAND) MAY W10163084 Contact Us For Availability
41A
ADAPTER, BASKET (RIGHT HAND) MAY W10163087 Contact Us For Availability
42
HOUSING, COUPLER MAY W10121004 Contact Us For Availability
43
LATCH, COUPLER MAY W10121002 Contact Us For Availability
44
ASSEMBLY, SHELF MAY W10878955 Contact Us For Availability
45
ASSEMBLY, PRODUCE PRESERVER MAY W10826105 Contact Us For Availability
46
SLIDE, CRISPER (LEFT HAND) MAY 2302952 Contact Us For Availability
46A
SLIDE, CRISPER (RIGHT HAND) MAY 2302953 Contact Us For Availability
47
SUPPORT, GLASS MAY W10528935 Contact Us For Availability
48
RACK, WINE MAY W10742811 Contact Us For Availability
49
MAY W10170987 MAY W10170987 Contact Us For Availability
50
ASSEMBLY, SHELF MAY W10878945 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, CONTROL (REFRIGERATOR) MAY W10391289 Contact Us For Availability
NI
HARNESS, LIGHTS (FREEZER) MAY W10196195 Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
PAINT, TOUCH-UP (1 MAY W10917540 Contact Us For Availability
× ![]()
