Model Maytag JFC2089WEM6 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

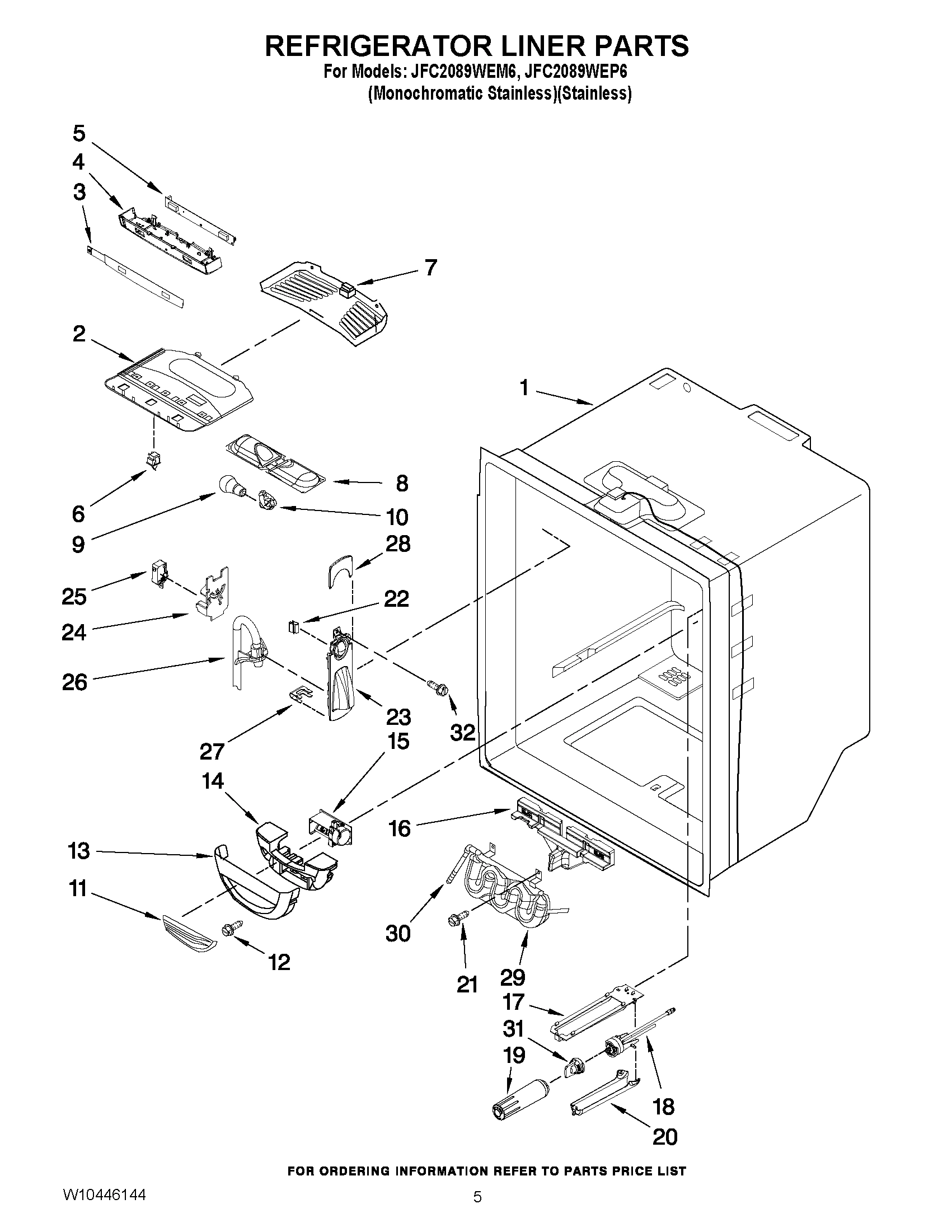

03 - REFRIGERATOR LINER PARTS

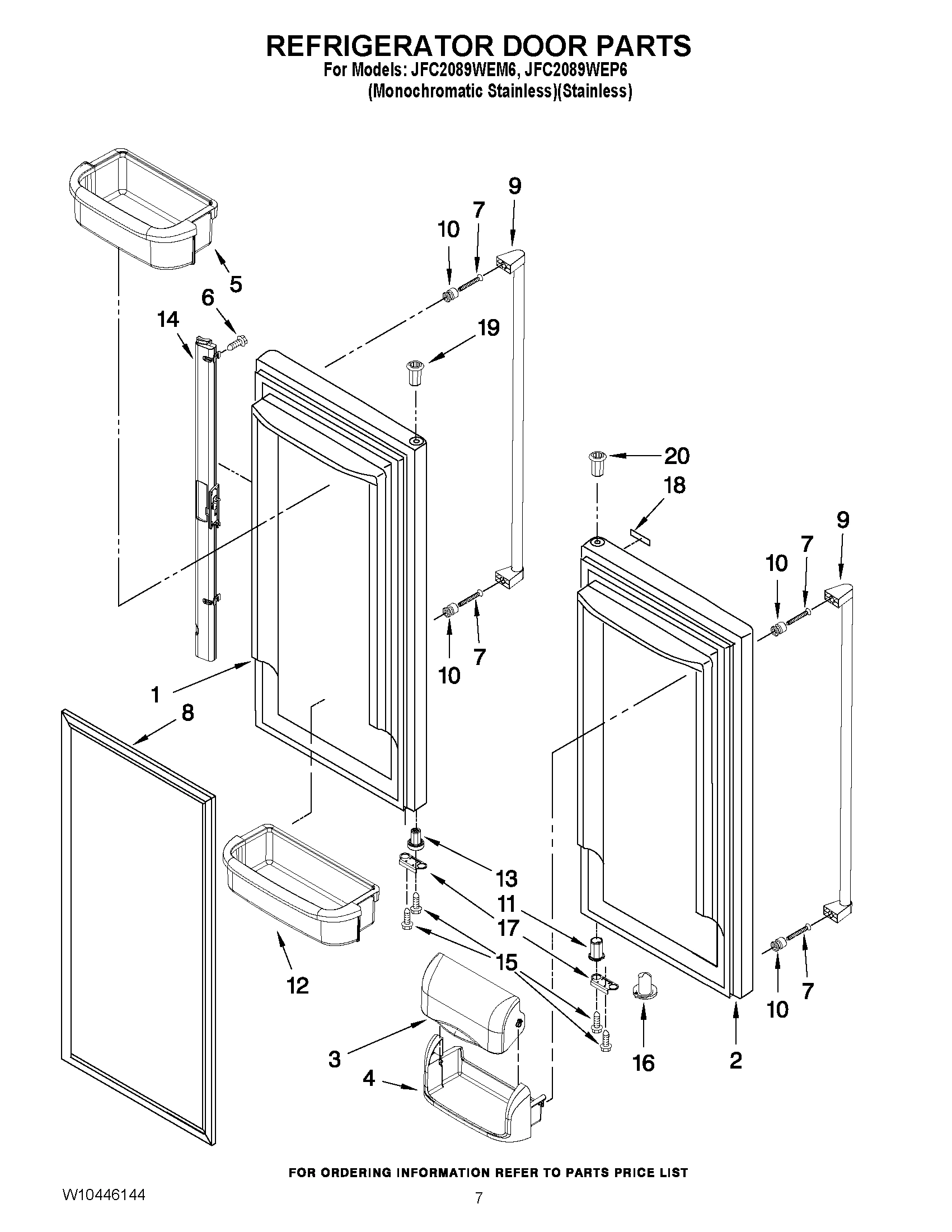

04 - REFRIGERATOR DOOR PARTS

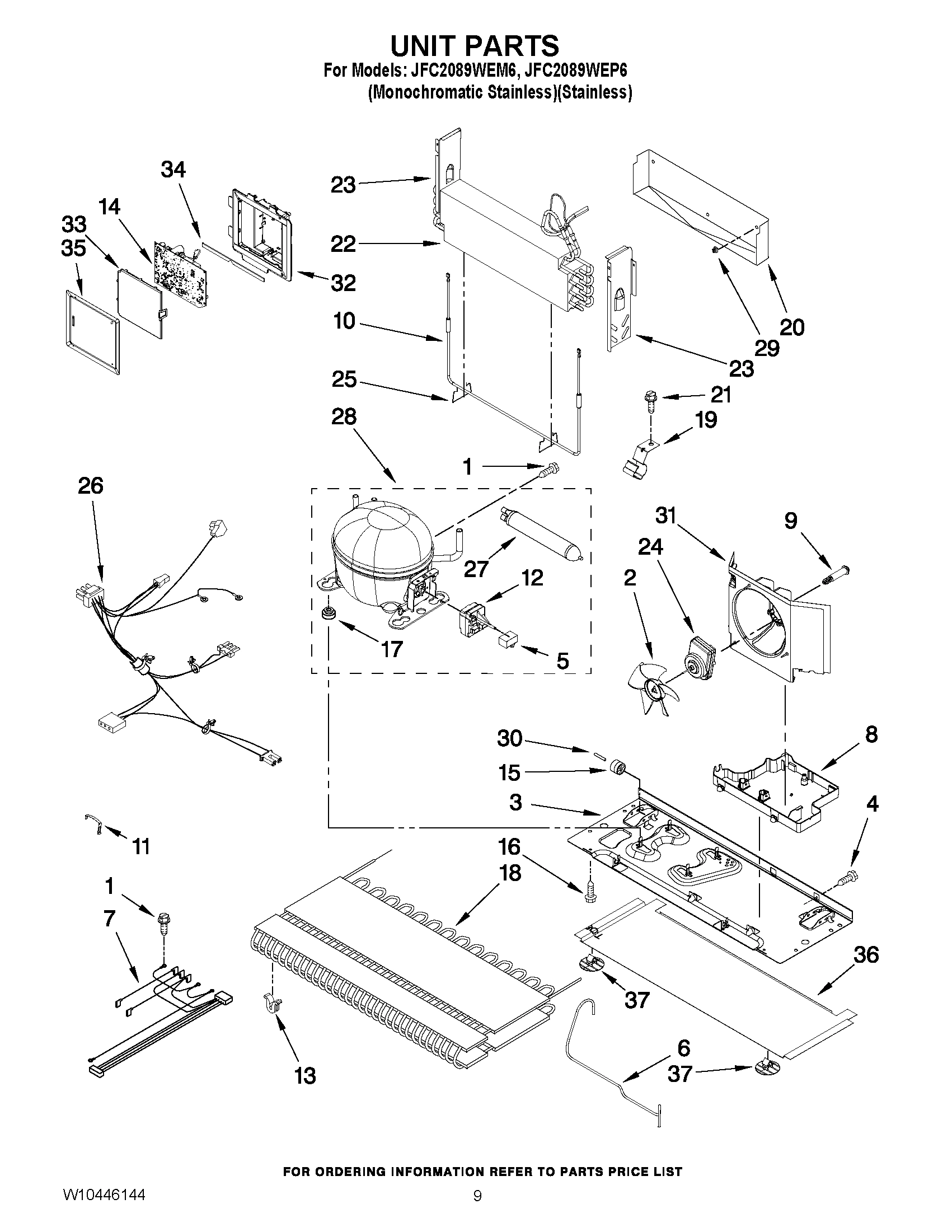

05 - UNIT PARTS

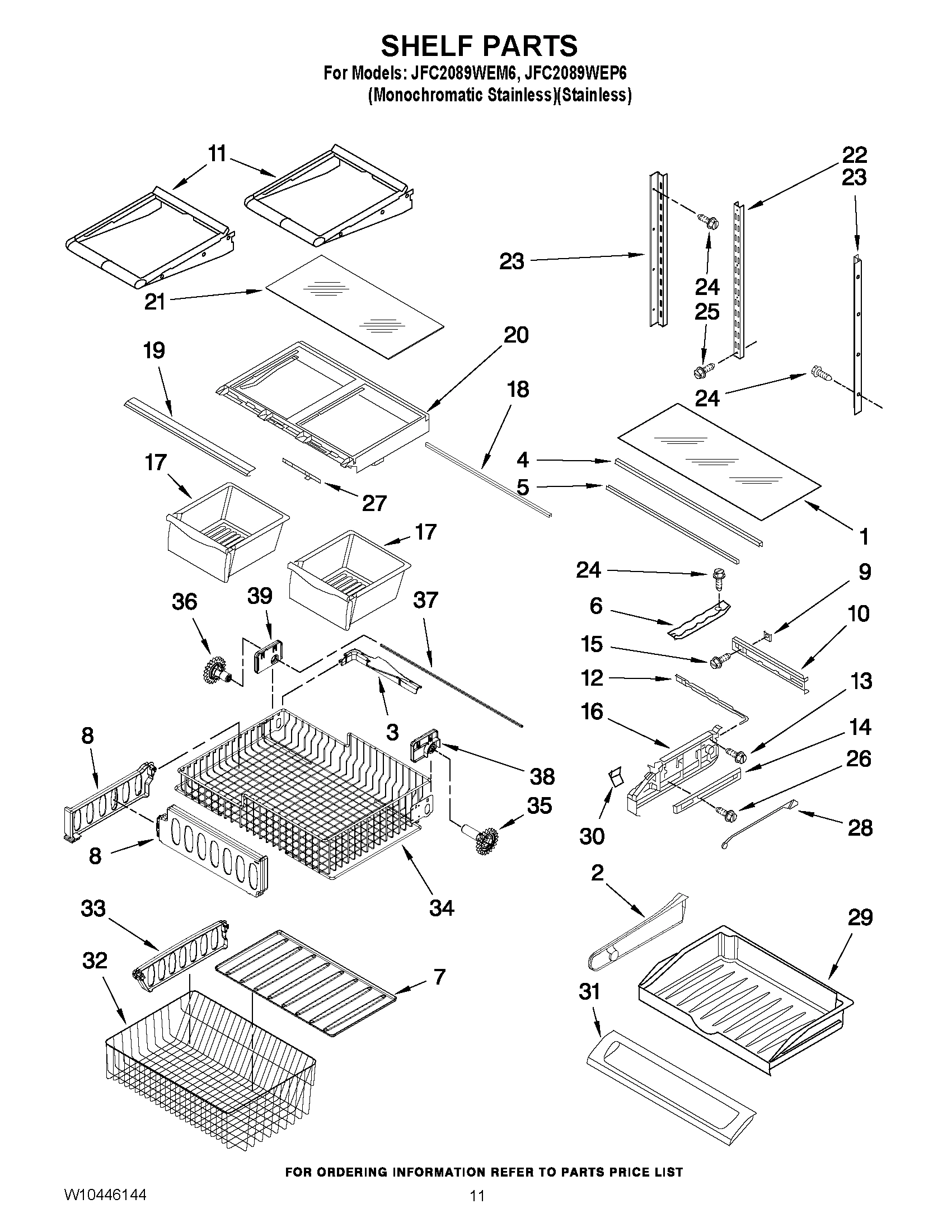

06 - SHELF PARTS

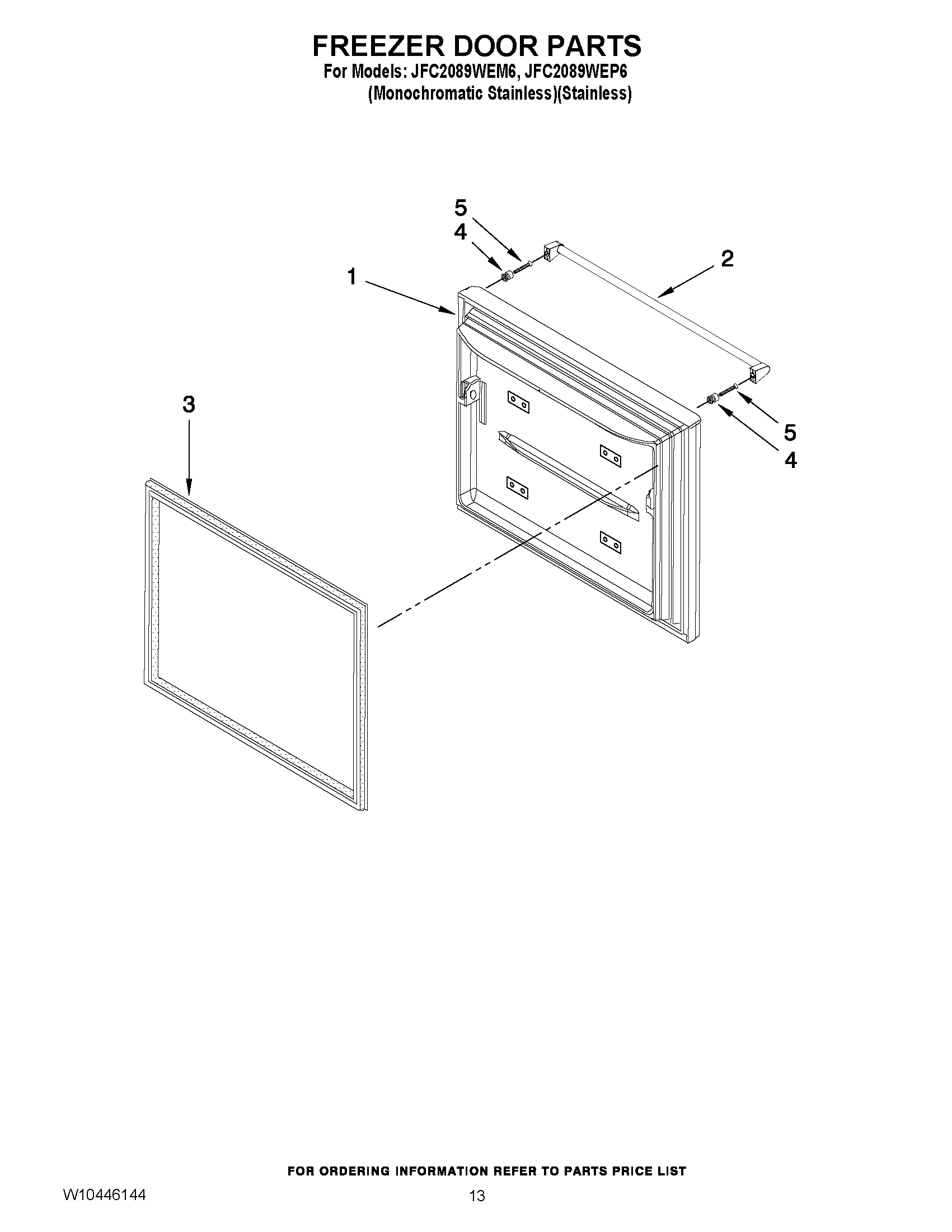

07 - FREEZER DOOR PARTS

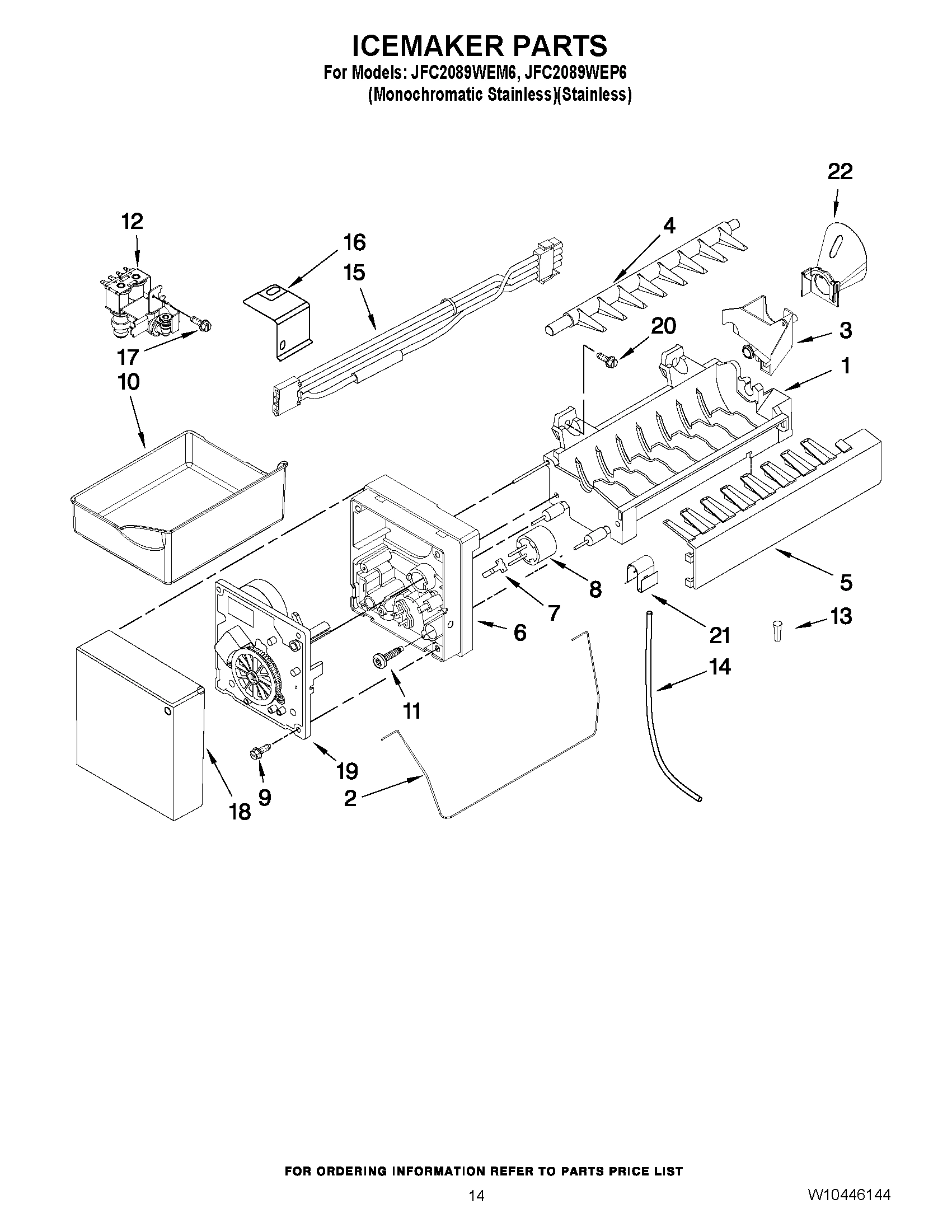

08 - ICEMAKER PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JFC2089WEM6 REFRIGERATOR
1
MAY 13107742S MAY 13107742S Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12204829 MAY 12204829 Contact Us For Availability
1
MAY 13092283S MAY 13092283S Contact Us For Availability
1
MOLD & HEATER ASSEMBLY (ALSO ORDER 542638 GRE MAY W10122527 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MODULE, LIGHT MAY 12806302 Contact Us For Availability
2
MAY 13107741S MAY 13107741S Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
DIVIDER, PANTRY DRAWER MAY 12709301 Contact Us For Availability
2
HANDLE, DOOR ((JFC2089WEP2)) MAY W10210625 Contact Us For Availability
2
HANDLE, DOOR ((JFC2089WEM2)) MAY W10298179 Contact Us For Availability
2
ARM-SHUT OFF MAY W10202524 Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY W10316408 MAY W10316408 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
3
MAY W10149389 MAY W10149389 Contact Us For Availability
3
Gasket, Door (Apollo Grey) MAY W10164042 Contact Us For Availability
3
Cup, Fill MAY 628515 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
RACK, SIDE-FREEZER (LEFT) MAY W10284696 Contact Us For Availability
4
RACK, SIDE-FREEZER (RIGHT) MAY W10284697 Contact Us For Availability
4
MODULE, CONTROL MAY 12806405 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY 13001201 MAY 13001201 Contact Us For Availability
4
EXTR,GLASS SUPPORT MAY 12655902SP Contact Us For Availability
4
MAY 627843 MAY 627843 Contact Us For Availability
5
MAY W10128551 MAY W10128551 Contact Us For Availability
5
MAY W10319823 MAY W10319823 Contact Us For Availability
5
BIN, SHELF MAY 12801904 Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
5
MAY 12227305WH MAY 12227305WH Contact Us For Availability
5
SCREW, MOUNT MAY W10201588 Contact Us For Availability
5
MAY 2182124 MAY 2182124 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
MAY 12990204 MAY 12990204 Contact Us For Availability
6
MAY W10233569 MAY W10233569 Contact Us For Availability
6
TRACK, PANTRY MAY 12531901 Contact Us For Availability
6
MAY 2194712 MAY 2194712 Contact Us For Availability
7
MAY W10157765 MAY W10157765 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
SCREW, MOUNT MAY W10290759 Contact Us For Availability
7
HARNESS, EVAP. (HEATER) MAY W10292242 Contact Us For Availability
7
MAY 12727304 MAY 12727304 Contact Us For Availability
7
MAY 2315522 MAY 2315522 Contact Us For Availability
8
MAY 12815301 MAY 12815301 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
GASKET, DOOR (APOLLO GREY) MAY W10179332 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
8
Divider, Upper Basket MAY W10241046 Contact Us For Availability
8
Thermostat (Also Order 542369 Cement) MAY 628397 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY 2255743N MAY 2255743N Contact Us For Availability
9
HANDLE-DOOR ((JFC2089WEP2)) MAY W10210624 Contact Us For Availability
9
HANDLE-DOOR ((JFC2089WEM2)) MAY W10298244 Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
MAY 12656901 MAY 12656901 Contact Us For Availability
9
MAY 489464 MAY 489464 Contact Us For Availability
10
Hinge, Top Right MAY 12626910ED Contact Us For Availability
10
Socket, Light MAY 12570701V Contact Us For Availability
10
MAY W10277466 MAY W10277466 Contact Us For Availability
10
MAY 12729129 MAY 12729129 Contact Us For Availability
10
MAY 12656202 MAY 12656202 Contact Us For Availability
10
MAY W10171529 MAY W10171529 Contact Us For Availability
11
MAY 12992201 MAY 12992201 Contact Us For Availability
11
MAY W10308416 MAY W10308416 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
BUSHING, DOOR (BOTTOM RIGHT) MAY 12028601AP Contact Us For Availability
11
MAY W10174384 MAY W10174384 Contact Us For Availability
11
SHELF, GLIDE MAY 12463911 Contact Us For Availability
11
MAY 8533917 MAY 8533917 Contact Us For Availability
12
CLIP MAY M0114003SP Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
BIN, SHELF MAY 12840002 Contact Us For Availability
12
Start Device MAY W10194431 Contact Us For Availability
12
SLIDE, TEMPERATURE MAY 12655402 Contact Us For Availability
12
VALVE, WATER INLET MAY 12544124 Contact Us For Availability
13
COVER, LEFT HINGE (BLACK) MAY W10217487 Contact Us For Availability
13
MAY W10121318 MAY W10121318 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY 12990512 MAY 12990512 Contact Us For Availability
13
BUSHING, DOOR (BOTTOM LEFT) MAY 12699301AP Contact Us For Availability
13
GROMMET, COND MAY W10137529 Contact Us For Availability
13
MAY A3223101SP MAY A3223101SP Contact Us For Availability
14
TUBING, PLASTIC MAY B5705333SP Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY 12732501AP MAY 12732501AP Contact Us For Availability
14
MAY W10317076 MAY W10317076 Contact Us For Availability
14
GLIDE, DRAWER MAY W10235370 Contact Us For Availability
15
HINGE, CENTER MAY 12655102AP Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
MAY W10207517 MAY W10207517 Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
15
MAY D7813011 MAY D7813011 Contact Us For Availability
16
MAY 12777701 MAY 12777701 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
Insulation, Water Tank MAY W10163893 Contact Us For Availability
16
Closure, Door (Apollo Grey) MAY 12028505AP Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
ENDCAP, PANTRY (RIGHT) MAY 12656018 Contact Us For Availability
16
Endcap, Pantry (Left) MAY 12656105 Contact Us For Availability
16
MAY 2256086 MAY 2256086 Contact Us For Availability
17
Cover, Corner (Apollo Grey) MAY 12587703AP Contact Us For Availability
17
PLATE MAY 12704801 Contact Us For Availability
17
STOP, DOOR (APOLLO GREY) MAY 10447114 Contact Us For Availability
17
GROMMET MAY 10835903SP Contact Us For Availability
17
MAY 12531105SP MAY 12531105SP Contact Us For Availability
17
MAY 12991604 MAY 12991604 Contact Us For Availability
18
Hinge, Top Left MAY 12626911ED Contact Us For Availability
18
MAY D7753903 MAY D7753903 Contact Us For Availability
18
MAY 12590620 MAY 12590620 Contact Us For Availability
18
NAMEPLATE ((JFC2089WEM2)) MAY W10214168 Contact Us For Availability
18
MAY W10346415 MAY W10346415 Contact Us For Availability
18
Brace, Crisper MAY 12227304WD Contact Us For Availability
18
Cover MAY 12582501 Contact Us For Availability
19
ROLLER ASSY. (FRONT) (RIGHT) MAY W10275849 Contact Us For Availability
19
ROLLER ASSY. (FRONT) (LEFT) MAY W10275850 Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
MAY UKF8001 MAY UKF8001 Contact Us For Availability
19
BUSHING, DOOR (UPPER LEFT) (BLACK) MAY 12395501AP Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
19
MAY W10231478 MAY W10231478 Contact Us For Availability
19
MAY W10223929 MAY W10223929 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
GASKET, BOTTOM MAY A3189396 Contact Us For Availability
20
BUSHING, DOOR (UPPER RIGHT) (APOLLO GREY) MAY 10961006AP Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
20
MAY 12531202SP MAY 12531202SP Contact Us For Availability
20
MAY 489276 MAY 489276 Contact Us For Availability
21
MAY 12579702 MAY 12579702 Contact Us For Availability
21
Gasket MAY B8381501 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
Glass, Crisper Cover MAY 12204821 Contact Us For Availability
21
Clip MAY 628379 Contact Us For Availability
22
GRILLE, TOE (APOLLO GREY) MAY W10244558 Contact Us For Availability
22
Grille, Fz Air MAY 13024803 Contact Us For Availability
22
MAY B8390302 MAY B8390302 Contact Us For Availability
22
MAY W10317014 MAY W10317014 Contact Us For Availability
22
MAY W10273463 MAY W10273463 Contact Us For Availability
22
MAY 12918001 MAY 12918001 Contact Us For Availability
23
MAY M0108107 MAY M0108107 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
MAY 12706909 MAY 12706909 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
MAY W10251971 MAY W10251971 Contact Us For Availability
24
MAY W10210988 MAY W10210988 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY 12707303 MAY 12707303 Contact Us For Availability
24
MAY 12990513 MAY 12990513 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
25
MAY W10119064 MAY W10119064 Contact Us For Availability
25
MAY W10119295 MAY W10119295 Contact Us For Availability
25
MAY W10215666 MAY W10215666 Contact Us For Availability
26
MAY 12990504 MAY 12990504 Contact Us For Availability
26
MAY 12726003 MAY 12726003 Contact Us For Availability
26
MAY 12990521 MAY 12990521 Contact Us For Availability
26
MAY 12707206 MAY 12707206 Contact Us For Availability
26
HARNESS, UNIT WITH POWER CORD & THERMISTOR MAY W10234025 Contact Us For Availability
27
GUARD-WATER VALVE MAY W10208593 Contact Us For Availability
27
CRADLE, BASKET (LEFT) MAY W10281115 Contact Us For Availability
27
CRADLE, BASKET (RIGHT) MAY W10281116 Contact Us For Availability
27
CLIP, WATERLINE MAY 12251001 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
MAY 12530805SP MAY 12530805SP Contact Us For Availability
28
MAY 12990303 MAY 12990303 Contact Us For Availability
28
MAY 13055901 MAY 13055901 Contact Us For Availability
28
FACADE, DISP (TOP) MAY 12707005 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 11,12,17,27) MAY W10187125 Contact Us For Availability
28
ROD, TEMPERATURE CONTROL MAY 12655303 Contact Us For Availability
29
MAY 12831101 MAY 12831101 Contact Us For Availability
29
ADAPTER, SLIDE (LEFT) MAY W10284692 Contact Us For Availability
29
ADAPTER, SLIDE (RIGHT) MAY W10284693 Contact Us For Availability
29
MAY 12706112 MAY 12706112 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 12655702 MAY 12655702 Contact Us For Availability
30
MAY W10211855 MAY W10211855 Contact Us For Availability
30
MAY 12990501 MAY 12990501 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
30
MAY 12655204V MAY 12655204V Contact Us For Availability
31
SHAFT MAY 12812903WD Contact Us For Availability
31
PLUG, BYPASS MAY 12664501SP Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
DOOR, PANTRY DRAWER MAY 12656813 Contact Us For Availability
32
Insulation, Sound MAY 12820505 Contact Us For Availability
32
MAY W10257665 MAY W10257665 Contact Us For Availability
32
MAY W10150040 MAY W10150040 Contact Us For Availability
33
Brake, Foot MAY W10141622 Contact Us For Availability
33
LID, HV BOX MAY W10296541 Contact Us For Availability
33
DIVIDER, LOWER BASKET MAY W10150061 Contact Us For Availability
34
GASKET-HV BOX MAY 12957801 Contact Us For Availability
34
MAY W10348245 MAY W10348245 Contact Us For Availability
35
MAY 12961602 MAY 12961602 Contact Us For Availability
35
Gear MAY W10146446 Contact Us For Availability
36
EXTENSION, BASEPAN MAY W10206338 Contact Us For Availability
36
Gear MAY W10158749 Contact Us For Availability
37
MAY W10206339 MAY W10206339 Contact Us For Availability
37
SHAFT MAY 12812904WD Contact Us For Availability
38
MOUNT, RIGHT MAY W10348260 Contact Us For Availability
39
MOUNT, LEFT MAY W10348259 Contact Us For Availability
100
ICEMAKER ASSEMBLY MAY W10190978 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY W10224292 MAY W10224292 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 10244904 MAY 10244904 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CLEANER, 10 OZ. STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Biscuit) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
