Model Maytag JES9800CAR01 ELECTRIC RANGE – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

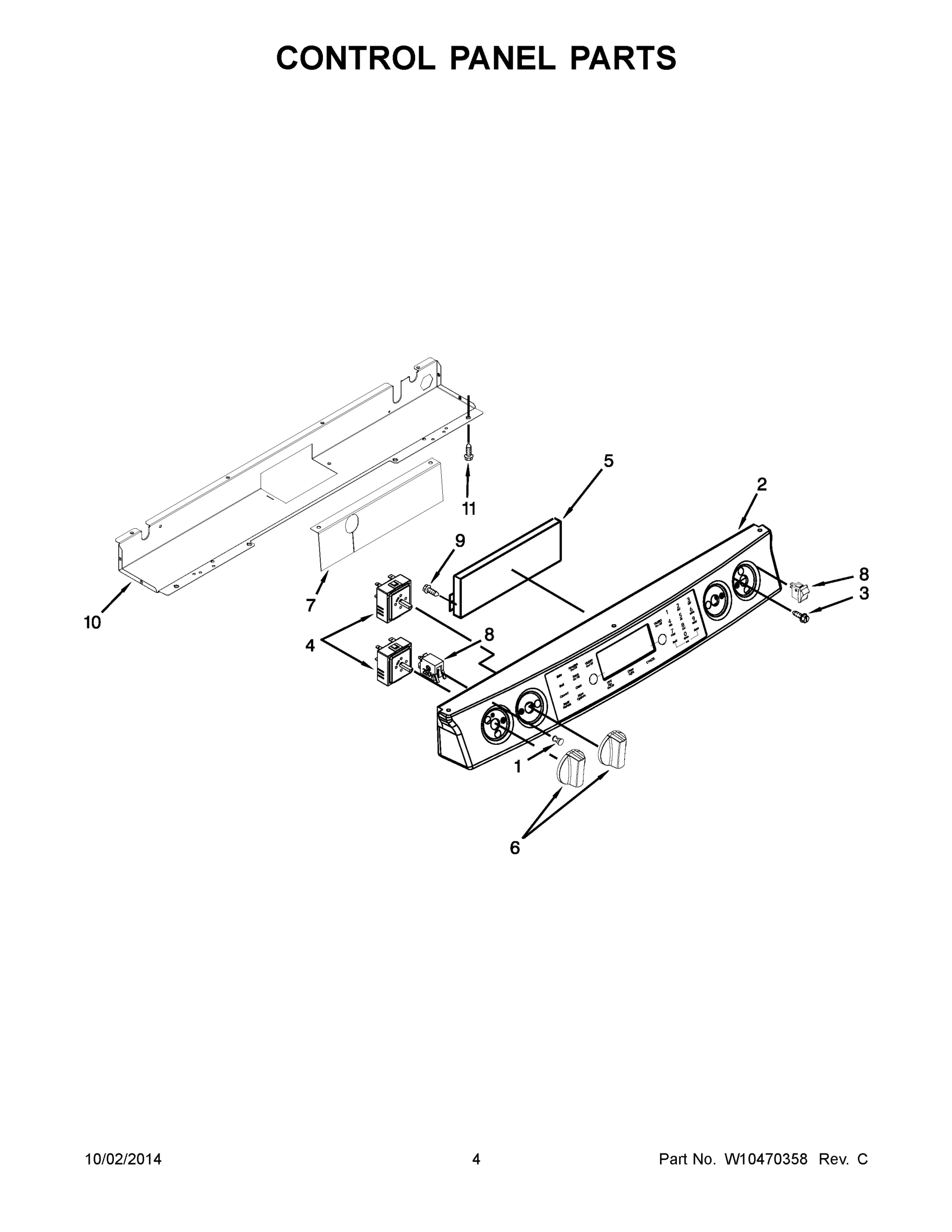

03 - CONTROL PANEL PARTS

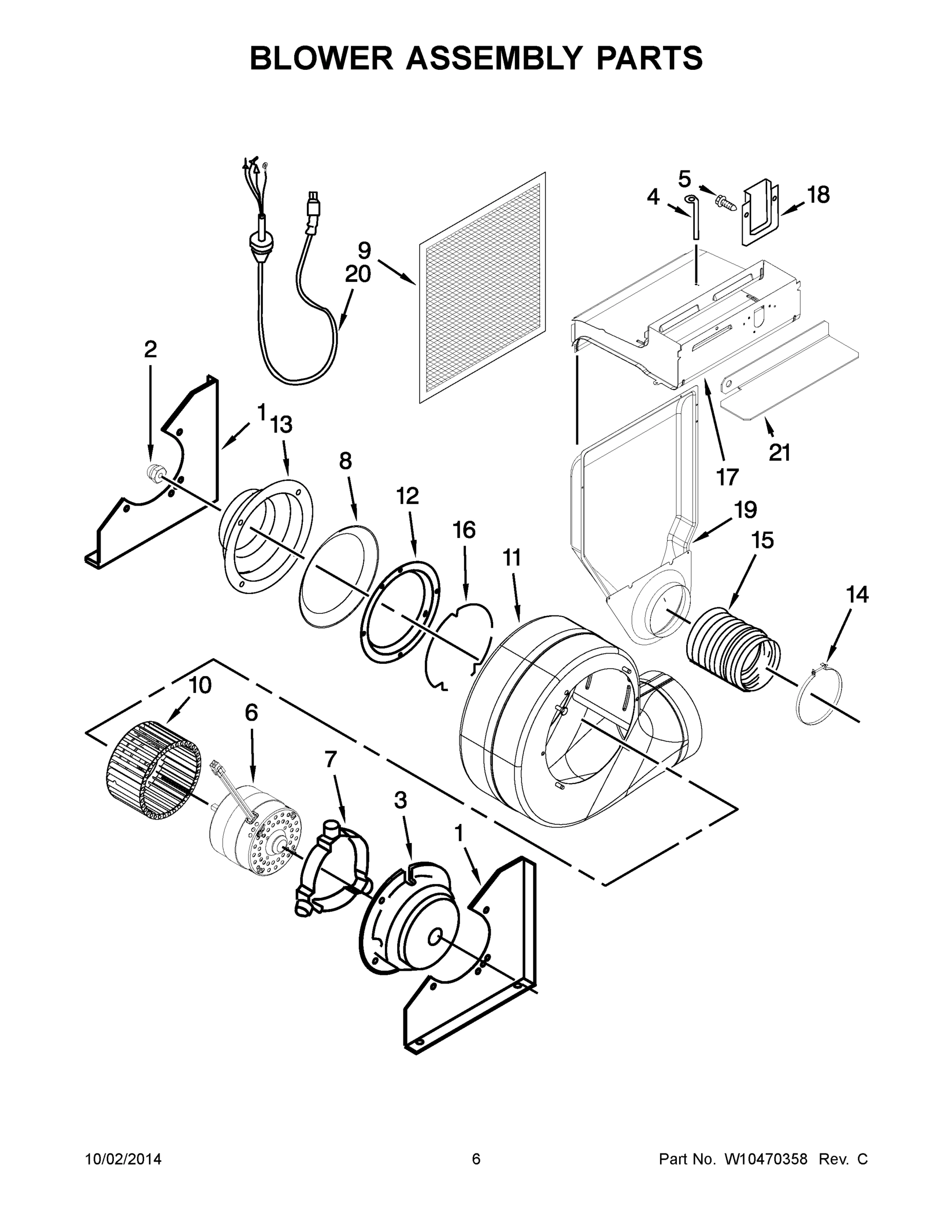

04 - BLOWER ASSEMBLY PARTS

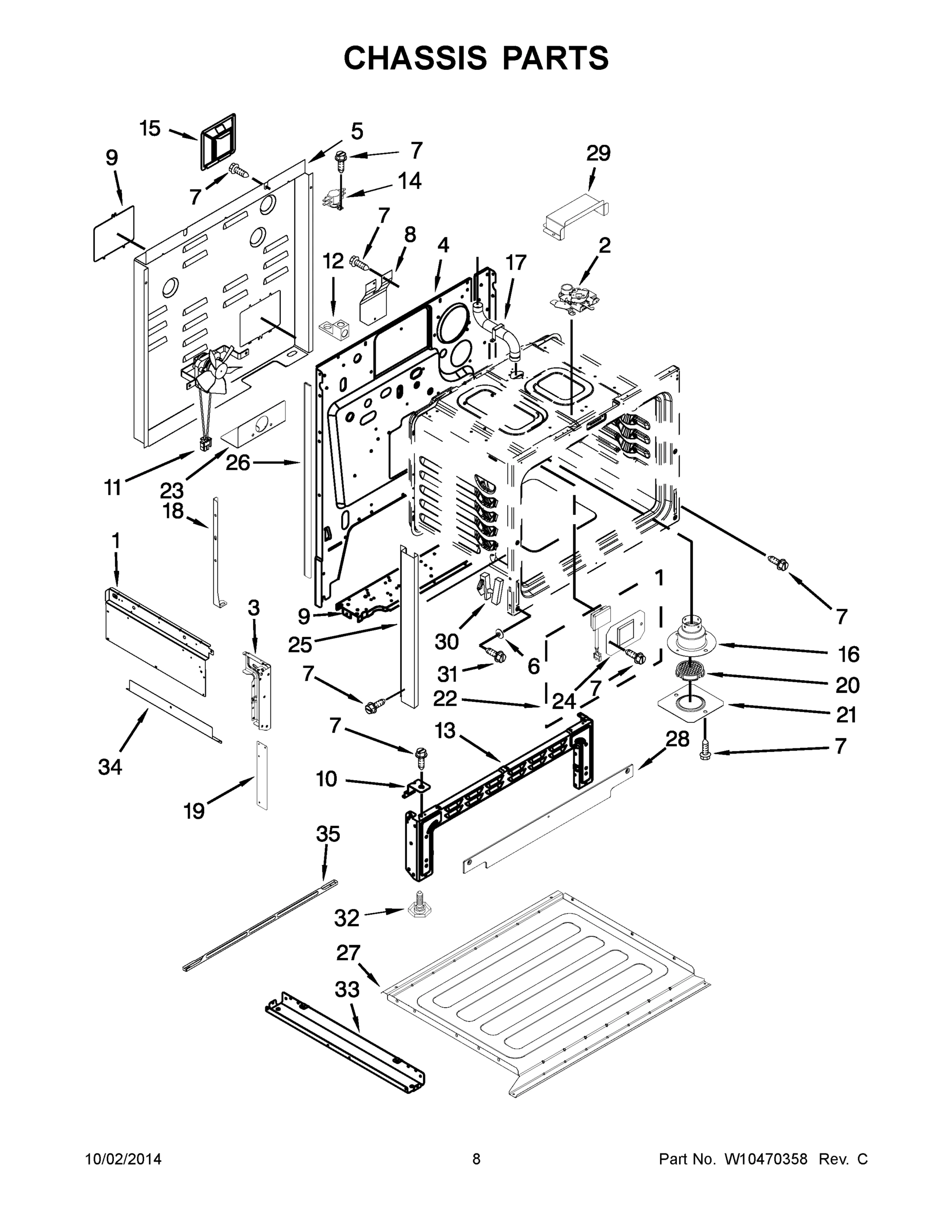

05 - CHASSIS PARTS

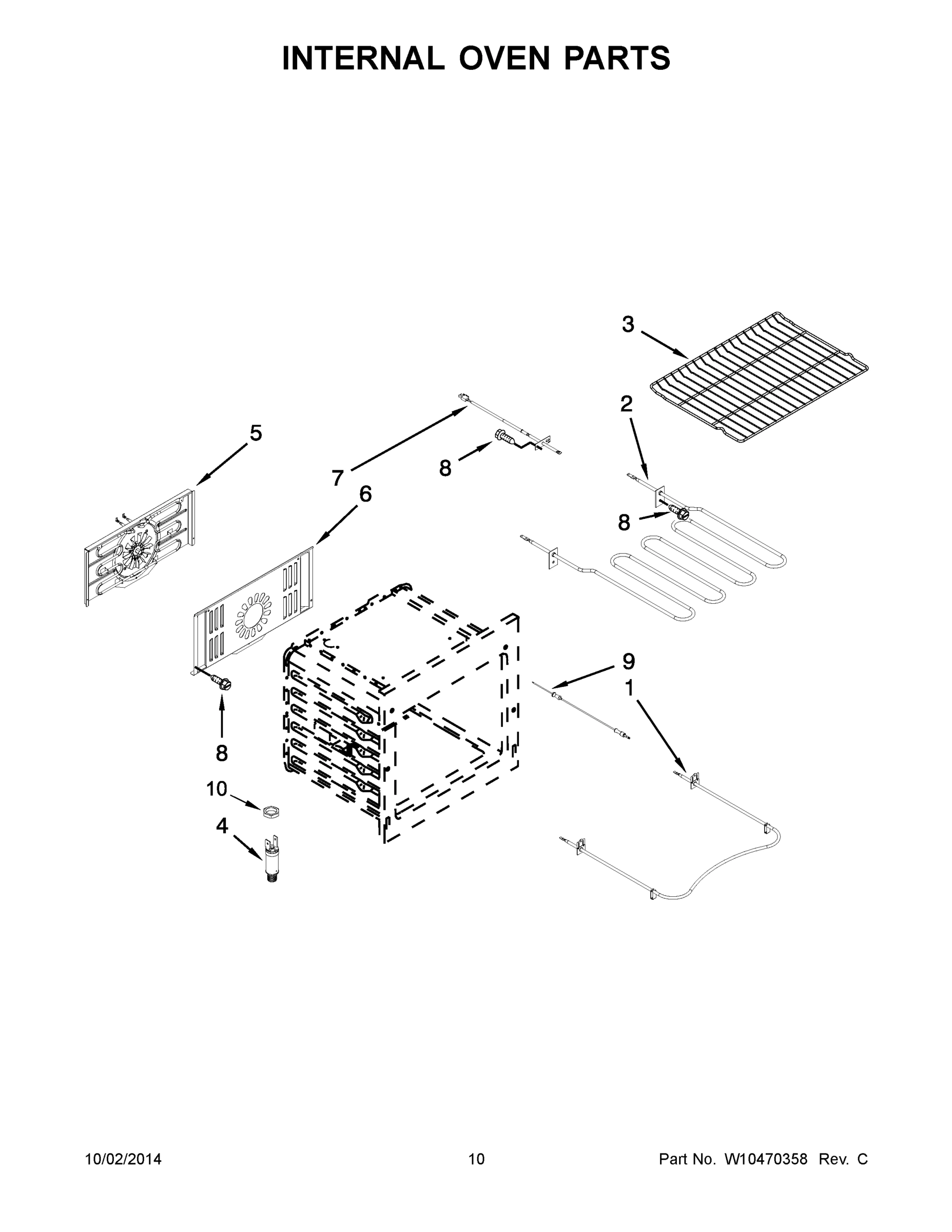

06 - INTERNAL OVEN PARTS

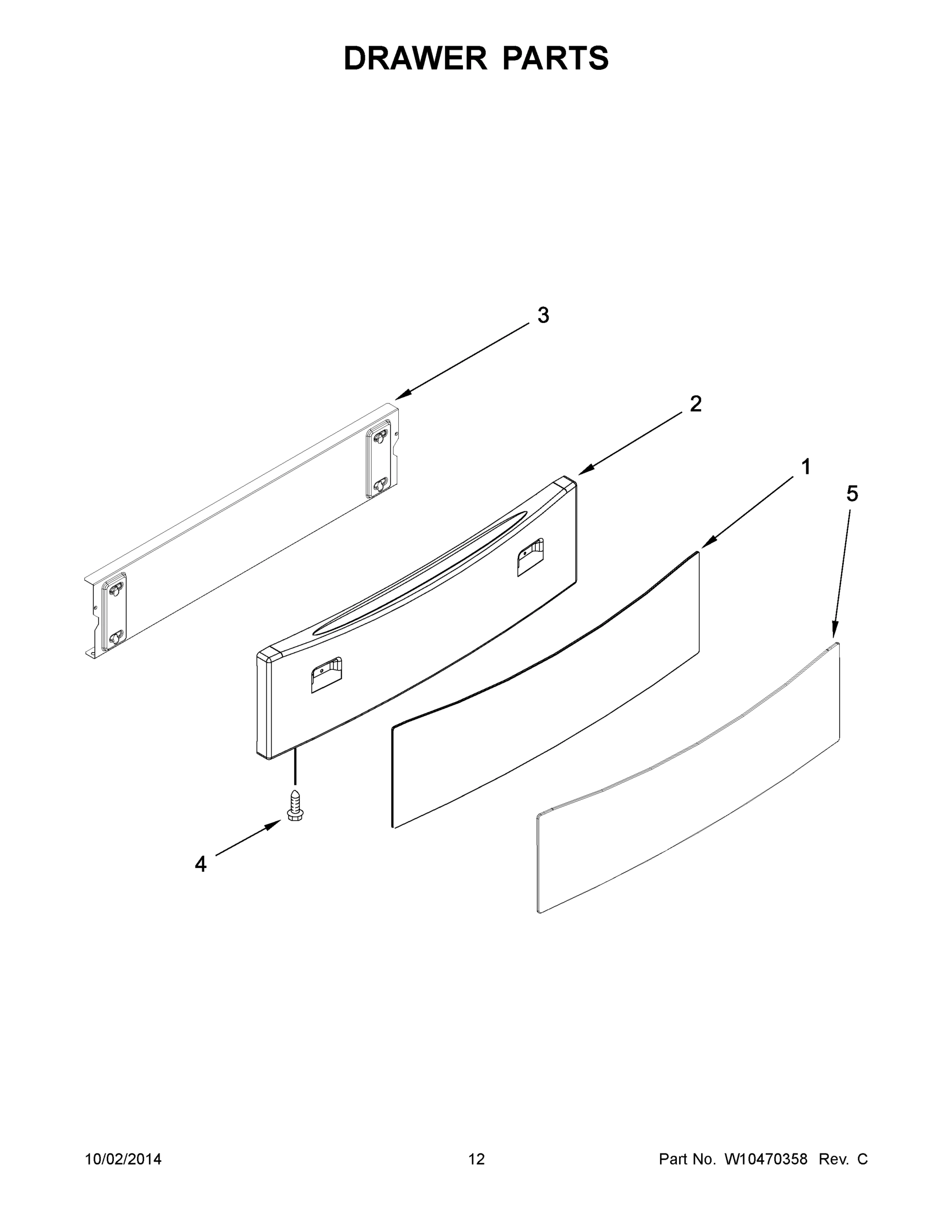

07 - DRAWER PARTS

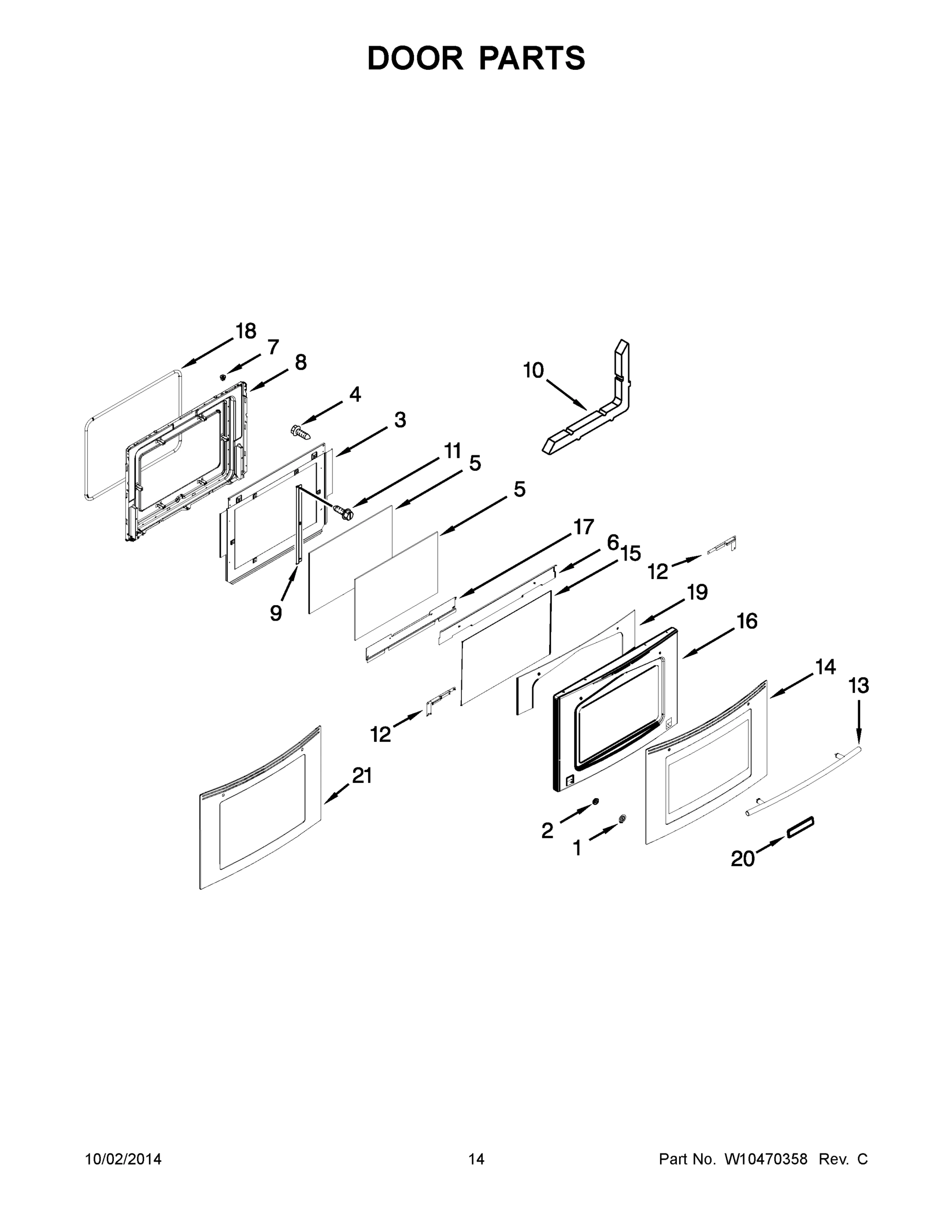

08 - DOOR PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag JES9800CAR01 ELECTRIC RANGE
1
MAY W10430955 MAY W10430955 Contact Us For Availability
1
MAY 7730P031-60 MAY 7730P031-60 Contact Us For Availability
1
MAY 3801F631-51 MAY 3801F631-51 Contact Us For Availability
1
MAY 2618F202-51 MAY 2618F202-51 Contact Us For Availability
1
MAY W10310274 MAY W10310274 Contact Us For Availability
1
GLASS, DRAWER (BLACK) MAY 7922P057-60 Contact Us For Availability
1
MAY 7109P082-60 MAY 7109P082-60 Contact Us For Availability
1A
MAY W10430926 MAY W10430926 Contact Us For Availability
1A
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
1A
MAY 7922P058-60 MAY 7922P058-60 Contact Us For Availability
1B
MAY 9762761 MAY 9762761 Contact Us For Availability
1C
MAY W10394693 MAY W10394693 Contact Us For Availability
2
MAY W10239357 MAY W10239357 Contact Us For Availability
2
MAY W10239347 MAY W10239347 Contact Us For Availability
2
NUT, LOCK MAY 7103P162-60 Contact Us For Availability
2
MAY W10274035 MAY W10274035 Contact Us For Availability
2
MAY 7406P430-60 MAY 7406P430-60 Contact Us For Availability
2
PANEL, DRAWER (BLACK) MAY 2416F086-70 Contact Us For Availability
2
MAY 7103P176-60 MAY 7103P176-60 Contact Us For Availability
2A
COOKTOP (FROSTED WHITE) MAY W10239360 Contact Us For Availability
2A
MAY W10239348 MAY W10239348 Contact Us For Availability
2A
MAY 2416F086-71 MAY 2416F086-71 Contact Us For Availability
3
ELEMENT (1200W) (LEFT FRONT & RIGHT REAR) MAY 8273994 Contact Us For Availability
3
MAY 7101P676-60 MAY 7101P676-60 Contact Us For Availability
3
MAY 4005F537-80 MAY 4005F537-80 Contact Us For Availability
3
MAY 4020F033-80 MAY 4020F033-80 Contact Us For Availability
3
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
3
HANGER, ACCESS PANEL MAY 3806F011-80 Contact Us For Availability
3
BAFFLE, OVEN DOOR WINDOW MAY 3601F373-51 Contact Us For Availability
3A
MAY 4020F032-80 MAY 4020F032-80 Contact Us For Availability
4
MAY 7101P498-60 MAY 7101P498-60 Contact Us For Availability
4
SWITCH, INFINITE (LEFT REAR & RIGHT FRONT) MAY 7450P011-60 Contact Us For Availability
4
MAY 7809P030-60 MAY 7809P030-60 Contact Us For Availability
4
BACK, MAIN MAY 3804F313-51 Contact Us For Availability
4
RECEPTACLE, MEAT PROBE MAY 7408P086-60 Contact Us For Availability
4
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
4A
SWITCH, INFINITE (LEFT FRONT & RIGHT REAR) MAY 7403P877-60 Contact Us For Availability
5
SPACER, RUBBER MAY 8010P152-60 Contact Us For Availability
5
MAY W10473900 MAY W10473900 Contact Us For Availability
5
COVER, BOTTOM WIRE MAY 4005F810-51 Contact Us For Availability
5
KIT, UNITY CONVECTION MAY W10213813 Contact Us For Availability
5
MAY W10234012 MAY W10234012 Contact Us For Availability
5
GLASS, INNER MAY 7902P436-60 Contact Us For Availability
6
ELEMENT (2500/1200W) (LEFT REAR & RIGHT FRONT MAY W10275049 Contact Us For Availability
6
KNOB (BLACK) MAY W10207697 Contact Us For Availability
6
MOTOR, BLOWER MAY W10201322 Contact Us For Availability
6
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
6
COVER, CONVECT MAY W10312218 Contact Us For Availability
6
SHIELD MAY 3604F418-51 Contact Us For Availability
6A
KNOB (WHITE) MAY W10213942 Contact Us For Availability
7
SUPPORT, ELEMENT MAY 8004P093-60 Contact Us For Availability
7
MAY 7003P150-60 MAY 7003P150-60 Contact Us For Availability
7
ASSEMBLY, MOTOR BAND MAY 5700D526-60 Contact Us For Availability
7
SENSOR, OVEN MAY 7430P042-60 Contact Us For Availability
7
MAY 7103P141-60 MAY 7103P141-60 Contact Us For Availability
8
GRILL, AIR (BLACK) MAY 7772P050-60 Contact Us For Availability
8
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
8
RING, RESTRICTOR MAY 4026F009-51 Contact Us For Availability
8
MAY 7003P101-60 MAY 7003P101-60 Contact Us For Availability
8
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
8
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
8A
MAY 7772P040-60 MAY 7772P040-60 Contact Us For Availability
9
MAY 8255P412-60 MAY 8255P412-60 Contact Us For Availability
9
MAY 8310P006-60 MAY 8310P006-60 Contact Us For Availability
9
PANEL, ACCESS MAY 4005F612-51 Contact Us For Availability
9
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
9
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
10
INSULATOR, DUAL ELEMENT BRIDGE MAY W10270588 Contact Us For Availability
10
MAY 3807F731-51 MAY 3807F731-51 Contact Us For Availability
10
MAY 7114P005-60 MAY 7114P005-60 Contact Us For Availability
10
MAY 3807F615-51 MAY 3807F615-51 Contact Us For Availability
10
NUT MAY 7103P177-60 Contact Us For Availability
10
INSULATION, OVEN DOOR MAY 7002P246-60 Contact Us For Availability
11
MAY 7407P193-60 MAY 7407P193-60 Contact Us For Availability
11
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
11
ASSEMBLY, SCROLL MAY 2822W001-80 Contact Us For Availability
11
MAY W10586440 MAY W10586440 Contact Us For Availability
12
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
12
MAY 4026F008-51 MAY 4026F008-51 Contact Us For Availability
12
BLOCK, BARE WIRE ADAPTER MAY 7401P157-60 Contact Us For Availability
12
MAY 3804F308-51 MAY 3804F308-51 Contact Us For Availability
12A
MAY 3804F307-51 MAY 3804F307-51 Contact Us For Availability
13
MAY 7101P485-60 MAY 7101P485-60 Contact Us For Availability
13
MAY 2818F001-80 MAY 2818F001-80 Contact Us For Availability
13
MAY W10271711 MAY W10271711 Contact Us For Availability
13
MAY W10223163 MAY W10223163 Contact Us For Availability
13A
MAY W10223164 MAY W10223164 Contact Us For Availability
13B
MAY W10223165 MAY W10223165 Contact Us For Availability
14
MAY 7111P047-60 MAY 7111P047-60 Contact Us For Availability
14
THERMOSTAT, HI-LIMIT MAY 7403P856-60 Contact Us For Availability
14
MAY W10272332 MAY W10272332 Contact Us For Availability
14A
MAY W10272330 MAY W10272330 Contact Us For Availability
14B
MAY W10235391 MAY W10235391 Contact Us For Availability
15
MAY 8032P003-60 MAY 8032P003-60 Contact Us For Availability
15
RETAINER, INSULATION MAY 3804F300-51 Contact Us For Availability
15
MAY 7902P768-60 MAY 7902P768-60 Contact Us For Availability
16
MAY 8038P003-60 MAY 8038P003-60 Contact Us For Availability
16
MAY 8026P096-60 MAY 8026P096-60 Contact Us For Availability
16
MAY 3603F075-70 MAY 3603F075-70 Contact Us For Availability
16A
MAY 3603F075-71 MAY 3603F075-71 Contact Us For Availability
17
ASSEMBLY, PLENUM MAY 2801W035-80 Contact Us For Availability
17
MAY 8026P094-60 MAY 8026P094-60 Contact Us For Availability
17
RETAINER, GLASS MAY 3804F317-80 Contact Us For Availability
18
MAY 4005F779-80 MAY 4005F779-80 Contact Us For Availability
18
SUPPORT, OVEN REAR MAY 3807F732-51 Contact Us For Availability
18
MAY W10162384 MAY W10162384 Contact Us For Availability
19
ASSEMBLY, PLENUM SIDE MAY 2801L037-80 Contact Us For Availability
19
BRACKET, SIDE PANEL MAY 3801F929-51 Contact Us For Availability
19
INSULATION, DOOR MAY 7002P465-60 Contact Us For Availability
20
MAY 7402P104-60 MAY 7402P104-60 Contact Us For Availability
20
SCREEN, SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
20
BADGE (BLACK) MAY W10190724 Contact Us For Availability
20A
BADGE (WHITE) MAY W10190723 Contact Us For Availability
20B
BADGE (OILED BRONZE) MAY W10214169 Contact Us For Availability
21
MAY 8404P011-60 MAY 8404P011-60 Contact Us For Availability
21
PLATE, SMOKE ELIMINATOR MAY 3605F344-45 Contact Us For Availability
21
MAY W10234011 MAY W10234011 Contact Us For Availability
22
ASSEMBLY, LIGHT MAY 7407P180-60 Contact Us For Availability
23
MAY 3801F911-51 MAY 3801F911-51 Contact Us For Availability
24
MAY 4005F684-51 MAY 4005F684-51 Contact Us For Availability
25
MAY 3608F138-70 MAY 3608F138-70 Contact Us For Availability
25A
MAY 3608F138-71 MAY 3608F138-71 Contact Us For Availability
26
MAY W10183566 MAY W10183566 Contact Us For Availability
27
RETAINER, INSULATION MAY 3804F312-51 Contact Us For Availability
28
TRIM, FRAME MAY 7713P054-60 Contact Us For Availability
29
MAY 4005F750-51 MAY 4005F750-51 Contact Us For Availability
30
HINGE, DOOR MAY 7106P143-60 Contact Us For Availability
31
MAY 7101P604-60 MAY 7101P604-60 Contact Us For Availability
32
LEG, LEVELING MAY 7101P660-60 Contact Us For Availability
33
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
34
EXTENSION, HEAT SHIELD MAY 3826F064-51 Contact Us For Availability
35
SUPPORT, ELEMENT MAY 3807F754-45 Contact Us For Availability
NI
MAY 7002P466-60 MAY 7002P466-60 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM MAY 7002P467-60 Contact Us For Availability
NI
MAY 7002P468-60 MAY 7002P468-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. PRIMER (WHIT MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, GLASS CLEANER MAY 3191048 Contact Us For Availability
NI
ACCESSORY PARTS, GRILL, BROILER (OPTIONAL) MAY 3195996 Contact Us For Availability
NI
ACCESSORY PARTS, PAN, BROILER (OPTIONAL) MAY 3196076 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SWITCH (RIGHT) MAY 5171P550-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SWITCH (LEFT) MAY 5171P557-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND MAY 7101P027-60 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
MAY W10298901 MAY W10298901 Contact Us For Availability
NI
MAY W10394667 MAY W10394667 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY W10394791 Contact Us For Availability
× ![]()
