Model Whirlpool JES8850CAS01 ELECTRIC RANGE – Common Parts & Diagrams

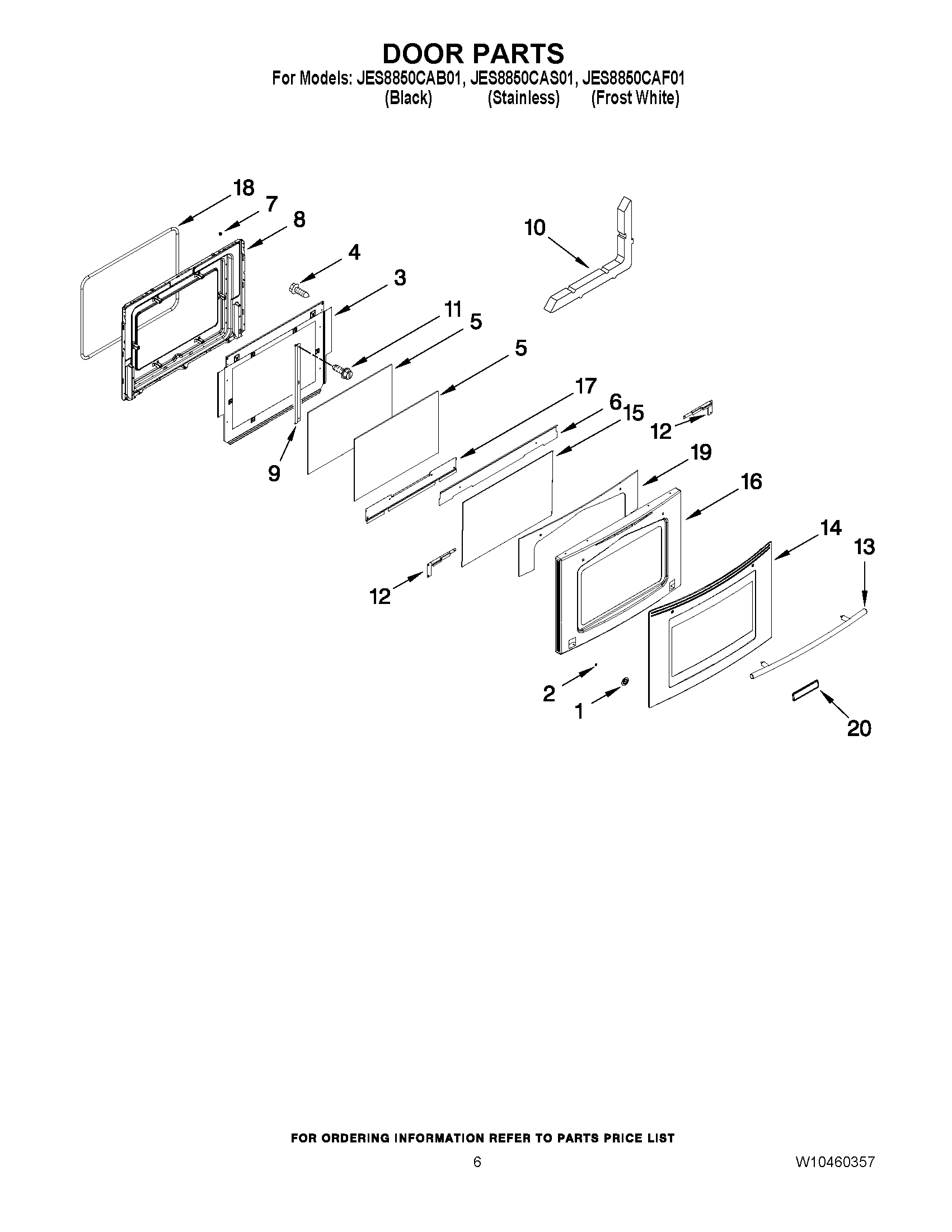

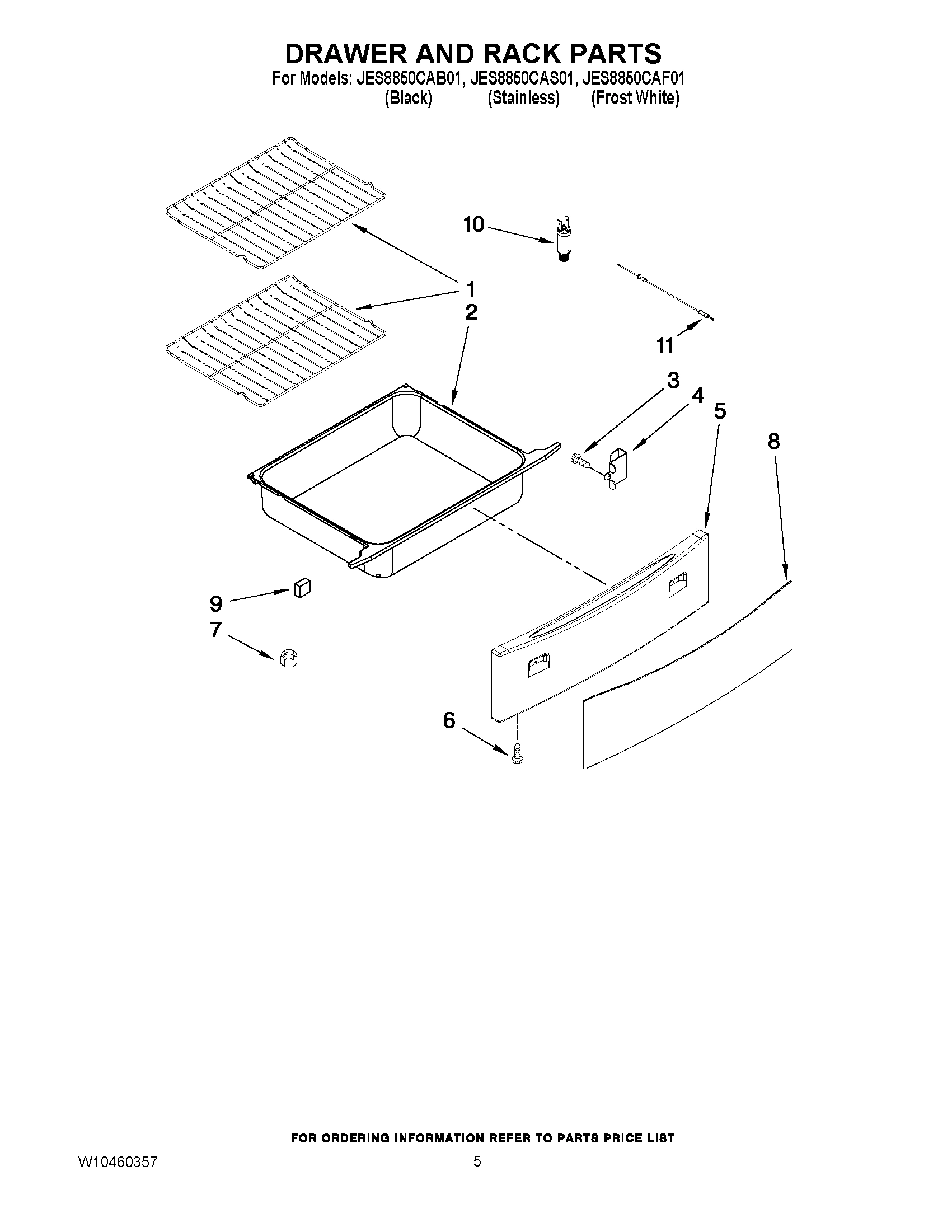

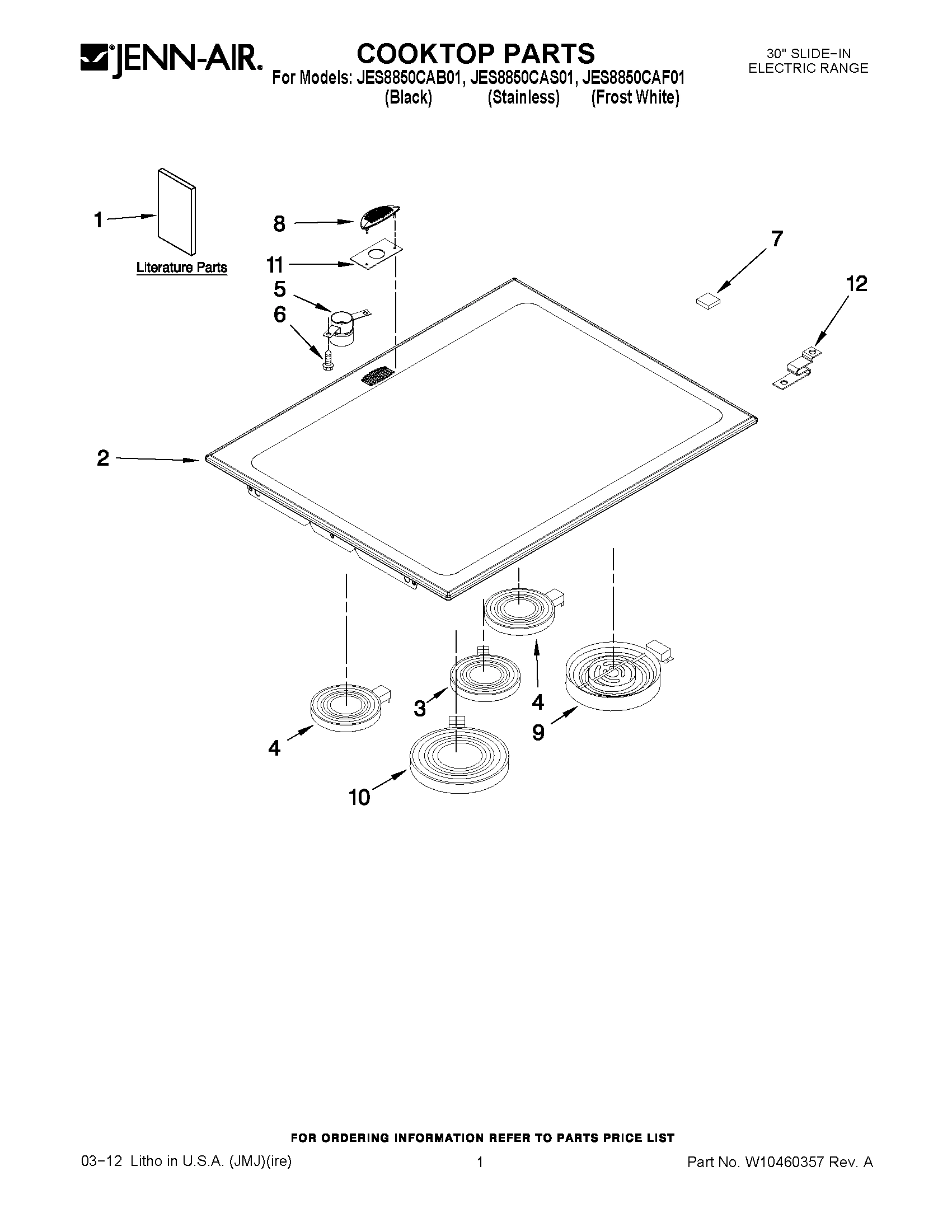

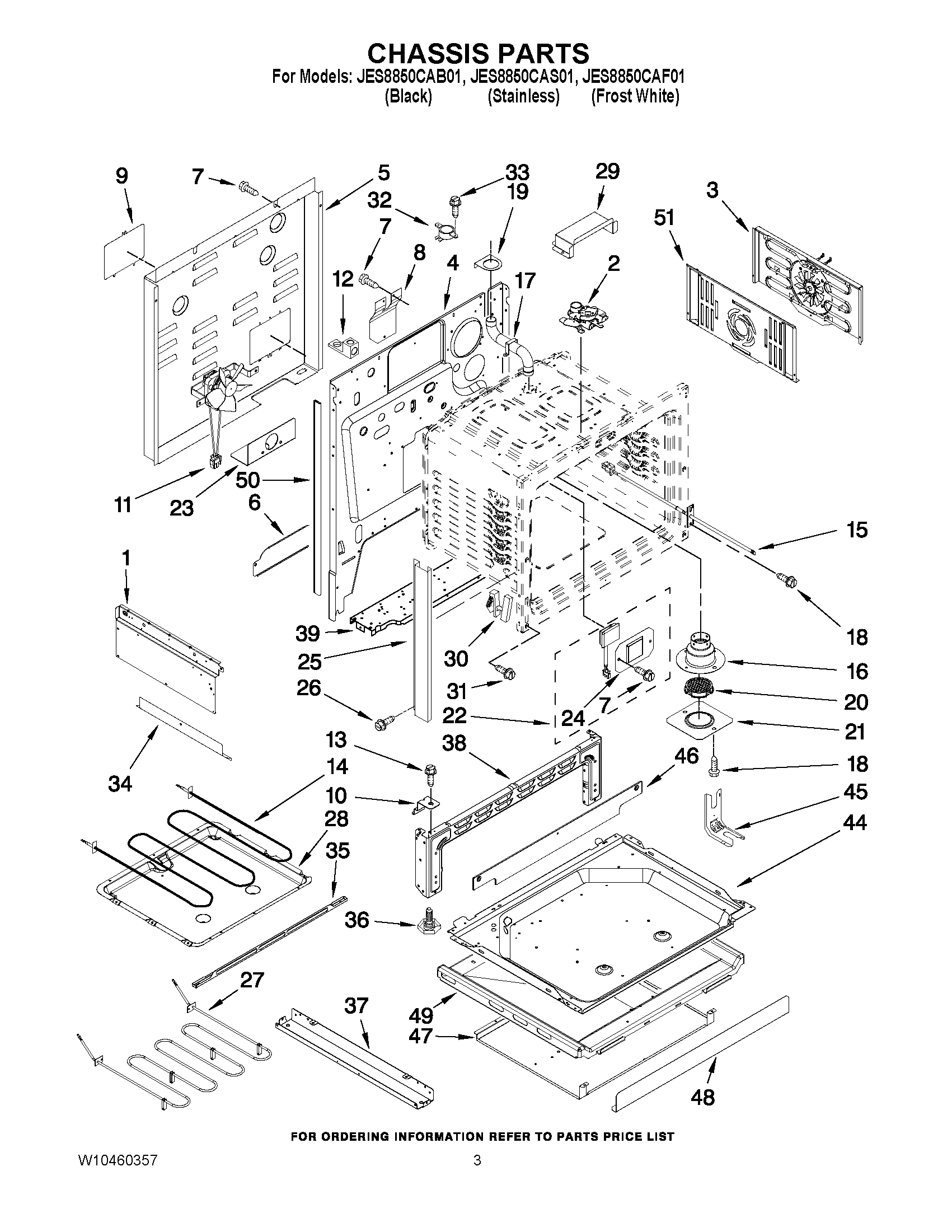

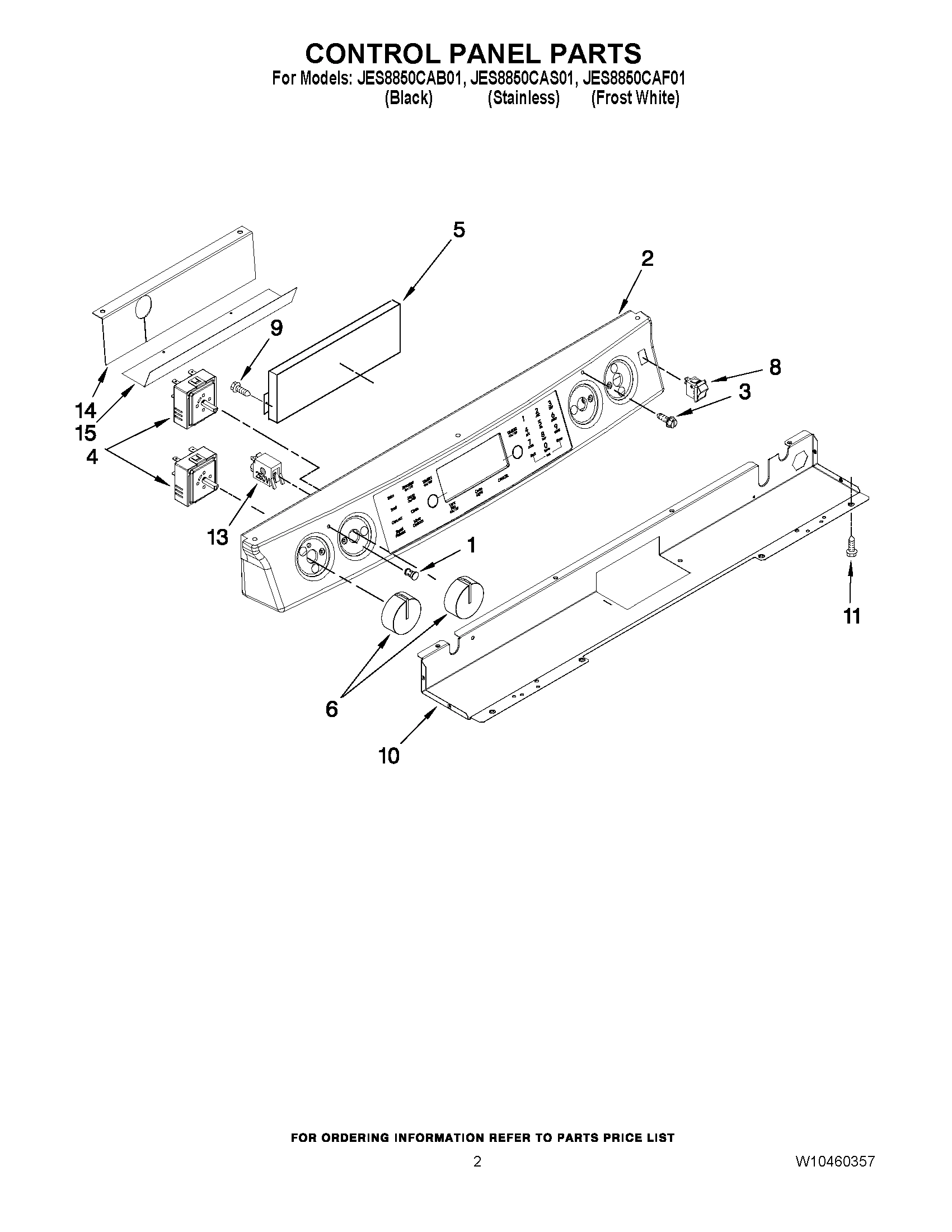

1
LENS
LENS WPL 7730P03160 Contact Us For Availability
View on Model
1
PANEL, SHIELD (LEFT)
PANEL, SHIELD (LEFT) WPL 2618F20151 Contact Us For Availability
View on Model
1
PANEL, SHIELD (RIGHT)
PANEL, SHIELD (RIGHT) WPL 2618F20651 Contact Us For Availability
View on Model
2
COOKTOP (BLACK)
COOKTOP (BLACK) WPL W10235816 Contact Us For Availability
View on Model
2
PANEL, CONTROL STAINLESS
PANEL, CONTROL STAINLESS WPL W10314415 Contact Us For Availability
View on Model
2
PANEL, CONTROL (BLACK)
PANEL, CONTROL (BLACK) WPL W10239181 Contact Us For Availability
View on Model
2
PANEL, CONTROL (WHITE)
PANEL, CONTROL (WHITE) WPL W10239182 Contact Us For Availability
View on Model
2
COOKTOP (WHITE)
COOKTOP (WHITE) WPL W10199498 Contact Us For Availability
View on Model
3
FAN, CONVECTION
FAN, CONVECTION WPL W10213813 Contact Us For Availability
View on Model
3
SCREW (10-24)
SCREW (10-24) WPL 7101P07260 Contact Us For Availability
View on Model
3
SCREW, SWITCH
SCREW, SWITCH WPL 7101P67660 Contact Us For Availability
View on Model
4
BRACKET, DRAWER
BRACKET, DRAWER WPL 3801F88751 Contact Us For Availability
View on Model
4
SWITCH, INFINITE (6`` (LR/RR))
SWITCH, INFINITE (6`` (LR/RR)) WPL 7403P37360 Contact Us For Availability
View on Model
4
SWITCH, INFINITE (DUAL (RF/LF))
SWITCH, INFINITE (DUAL (RF/LF)) WPL 7450P01160 Contact Us For Availability
View on Model
4
BACK, MAIN
BACK, MAIN WPL 3804F31351 Contact Us For Availability
View on Model
5
PANEL, DRAWER (BLACK)
PANEL, DRAWER (BLACK) WPL 2416F08670 Contact Us For Availability
View on Model
5
PANEL, DRAWER (WHITE)
PANEL, DRAWER (WHITE) WPL 2416F08671 Contact Us For Availability
View on Model
5
CONTROL
CONTROL WPL 8507P22660 Contact Us For Availability
View on Model
5
COVER, WIRE REAR
COVER, WIRE REAR WPL 4005F81051 Contact Us For Availability
View on Model
6
KNOB, (4) (WHITE)
KNOB, (4) (WHITE) WPL W10213942 Contact Us For Availability
View on Model
6
SCREW, PANEL
SCREW, PANEL WPL 7101P37660 Contact Us For Availability
View on Model
6
EXTENSION, BACK
EXTENSION, BACK WPL 3826F06651 Contact Us For Availability
View on Model
7
NUT, LOCK (10-24)
NUT, LOCK (10-24) WPL 7103P13960 Contact Us For Availability
View on Model
8
GLASS, DRAWER (BLACK)
GLASS, DRAWER (BLACK) WPL 7922P05760 Contact Us For Availability
View on Model
8
GLASS, DRAWER (WHITE)
GLASS, DRAWER (WHITE) WPL 7922P05860 Contact Us For Availability
View on Model
8
SWITCH, ROCKER (BLACK)
SWITCH, ROCKER (BLACK) WPL 7403P79860 Contact Us For Availability
View on Model
8
SWITCH, ROCKER (WHITE)
SWITCH, ROCKER (WHITE) WPL 7403P79960 Contact Us For Availability
View on Model
8
INSULATOR, CORD
INSULATOR, CORD WPL 7003P10160 Contact Us For Availability
View on Model
9
SPACER, RUBBER
SPACER, RUBBER WPL 8010P15260 Contact Us For Availability
View on Model
9
SCREW, CONTROL
SCREW, CONTROL WPL 7101P07760 Contact Us For Availability
View on Model
9
PANEL, ACCESS
PANEL, ACCESS WPL 4005F61251 Contact Us For Availability
View on Model
10
RECEPTACLE, PROBE
RECEPTACLE, PROBE WPL 7408P08660 Contact Us For Availability
View on Model
10
SUPPORT, CONTROL PANEL
SUPPORT, CONTROL PANEL WPL 3807F73151 Contact Us For Availability
View on Model
10
SUPPORT, OVEN (BOTTOM)
SUPPORT, OVEN (BOTTOM) WPL 3807F72745 Contact Us For Availability
View on Model
11
PROBE, MEAT
PROBE, MEAT WPL 7430P03860 Contact Us For Availability
View on Model
12
BLOCK, BARE WIRE
BLOCK, BARE WIRE WPL 7401P15760 Contact Us For Availability
View on Model
13
HANDLE, DOOR (STAINLESS)
HANDLE, DOOR (STAINLESS) WPL W10223152 Contact Us For Availability
View on Model
13
Light, Indicator
Light, Indicator WPL 7407P13660 Contact Us For Availability
View on Model
14
GLASS, DOOR (WHITE)
GLASS, DOOR (WHITE) WPL W10272330 Contact Us For Availability
View on Model
14
SHIELD, INSULATOR
SHIELD, INSULATOR WPL 7003P15060 Contact Us For Availability
View on Model
15
SHIELD, CONTROL
SHIELD, CONTROL WPL 7003P15260 Contact Us For Availability
View on Model
15
Sensor, Oven
Sensor, Oven WPL 7430P04260 Contact Us For Availability
View on Model
16
TUBE, VENT LOWER
TUBE, VENT LOWER WPL 8026P09660 Contact Us For Availability
View on Model
17
TUBE, VENT UPPER
TUBE, VENT UPPER WPL 8026P08460 Contact Us For Availability
View on Model
19
HOLDER, VENT TUBE
HOLDER, VENT TUBE WPL 3605F34551 Contact Us For Availability
View on Model
20
SMOKE ELIMINATOR
SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
View on Model
21
PLATE, SMOKE ELM.
PLATE, SMOKE ELM. WPL 3605F35445 Contact Us For Availability
View on Model
22
LIGHT ASSY HALOGEN
LIGHT ASSY HALOGEN WPL 7407P18060 Contact Us For Availability
View on Model
23
BRACKET, POWER SUPPLY
BRACKET, POWER SUPPLY WPL 3801F91151 Contact Us For Availability
View on Model
24
COVER, LIGHT
COVER, LIGHT WPL 4005F68451 Contact Us For Availability
View on Model
25
TRIM, SIDE (BLACK)
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
View on Model
26
Screw
Screw WPL 7101P50060 Contact Us For Availability
View on Model
29
COVER, DOOR LATCH
COVER, DOOR LATCH WPL 4005F75051 Contact Us For Availability
View on Model
30
HINGE
HINGE WPL 7106P14360 Contact Us For Availability
View on Model
31
SCREW, HINGE
SCREW, HINGE WPL 7101P28260 Contact Us For Availability
View on Model
32
SWITCH, HI-LIMIT
SWITCH, HI-LIMIT WPL 7403P64760 Contact Us For Availability
View on Model
33
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
34
EXTENSION, SHIELD
EXTENSION, SHIELD WPL 3826F06451 Contact Us For Availability
View on Model
35
SUPPORT, ELEMENT
SUPPORT, ELEMENT WPL 3807F75445 Contact Us For Availability
View on Model
36
LEG, LEVELING
LEG, LEVELING WPL 7101P66060 Contact Us For Availability
View on Model
37
PEDESTAL, BOTTOM
PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability
View on Model
38
BASE, PEDESTAL
BASE, PEDESTAL WPL W10271711 Contact Us For Availability
View on Model
39
SUPPORT, VALVE/REG
SUPPORT, VALVE/REG WPL 3807F64051 Contact Us For Availability
View on Model
44
RETAINER, INSUL (BOTTOM)
RETAINER, INSUL (BOTTOM) WPL 3804F23151 Contact Us For Availability
View on Model
45
BRACKET, ANTI-TIP
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
View on Model
46
TRIM, FRONT FRAME
TRIM, FRONT FRAME WPL 7713P05460 Contact Us For Availability
View on Model
47
SHIELD,WARMING DWR
SHIELD,WARMING DWR WPL 3604F32645 Contact Us For Availability
View on Model
48
COVER, FRONT
COVER, FRONT WPL 4005F74945 Contact Us For Availability
View on Model
49
BOTTOM, OVEN
BOTTOM, OVEN WPL 2205F06019 Contact Us For Availability
View on Model
50
GUARD, EDGE
GUARD, EDGE WPL W10183566 Contact Us For Availability
View on Model
51
COVER, CONVECTION
COVER, CONVECTION WPL W10312218 Contact Us For Availability
View on Model
NI
FOIL, ALUMINUM OVEN (18`` X 25 )
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
View on Model
NI
PAINT, BULK (1 QT.) (WHITE UNCUT)
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
View on Model
NI
REFINISHING MATERIAL (GREASE)
REFINISHING MATERIAL (GREASE) WPL 261582 Contact Us For Availability
View on Model
NI
HARNESS,SWITCH(LT)
HARNESS,SWITCH(LT) WPL 5171P55960 Contact Us For Availability
View on Model
NI
Screw, Ground
Screw, Ground WPL 7101P02760 Contact Us For Availability
View on Model
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( WPL 799832 Contact Us For Availability
View on Model
NI
INSULATION, OVEN BOTTOM
INSULATION, OVEN BOTTOM WPL 7002P44360 Contact Us For Availability
View on Model
NI
INSULATION, BACK
INSULATION, BACK WPL 7002P44560 Contact Us For Availability
View on Model
NI
INSULATION, WRAP
INSULATION, WRAP WPL 7002P47160 Contact Us For Availability
View on Model
