Model Maytag JES8850CAF01 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

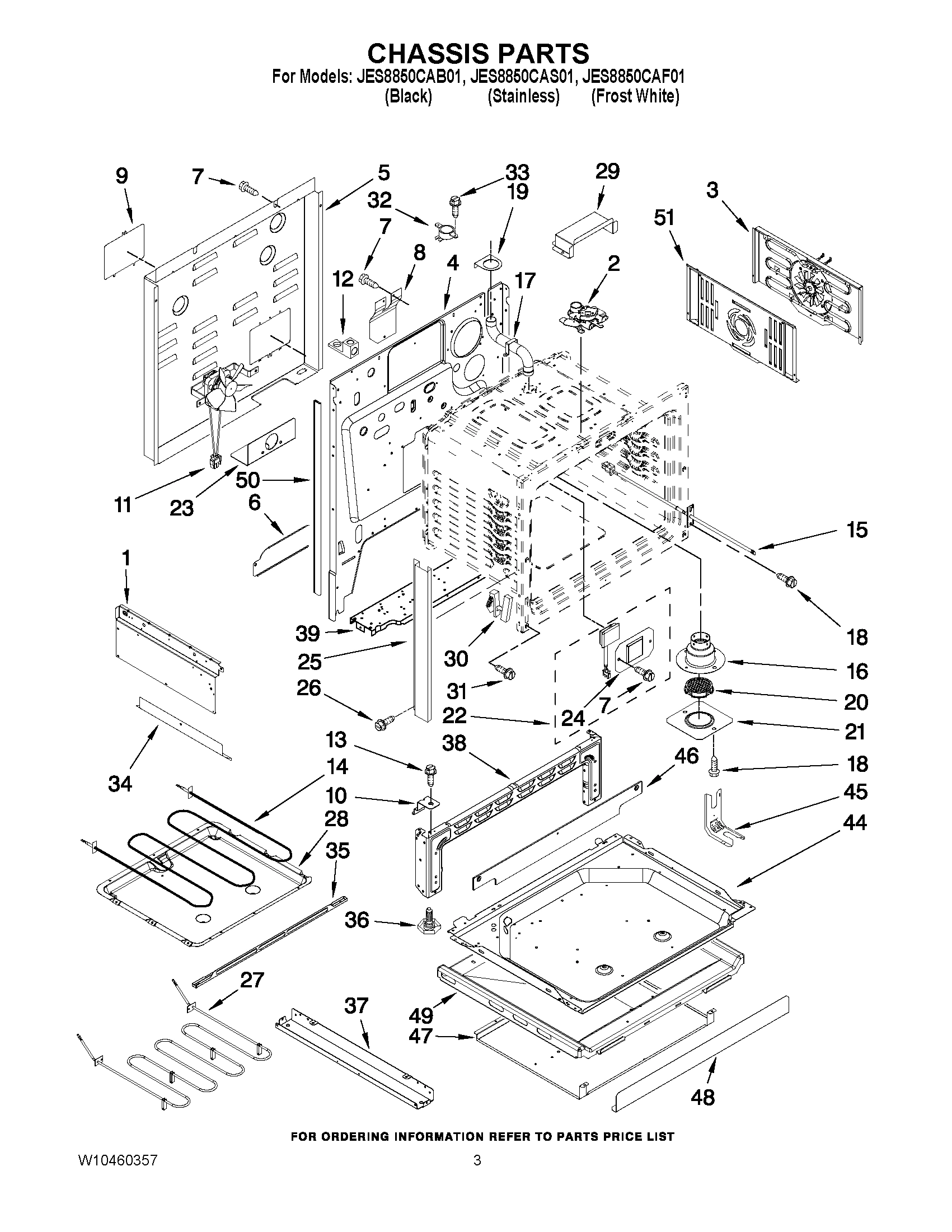

03 - CHASSIS PARTS

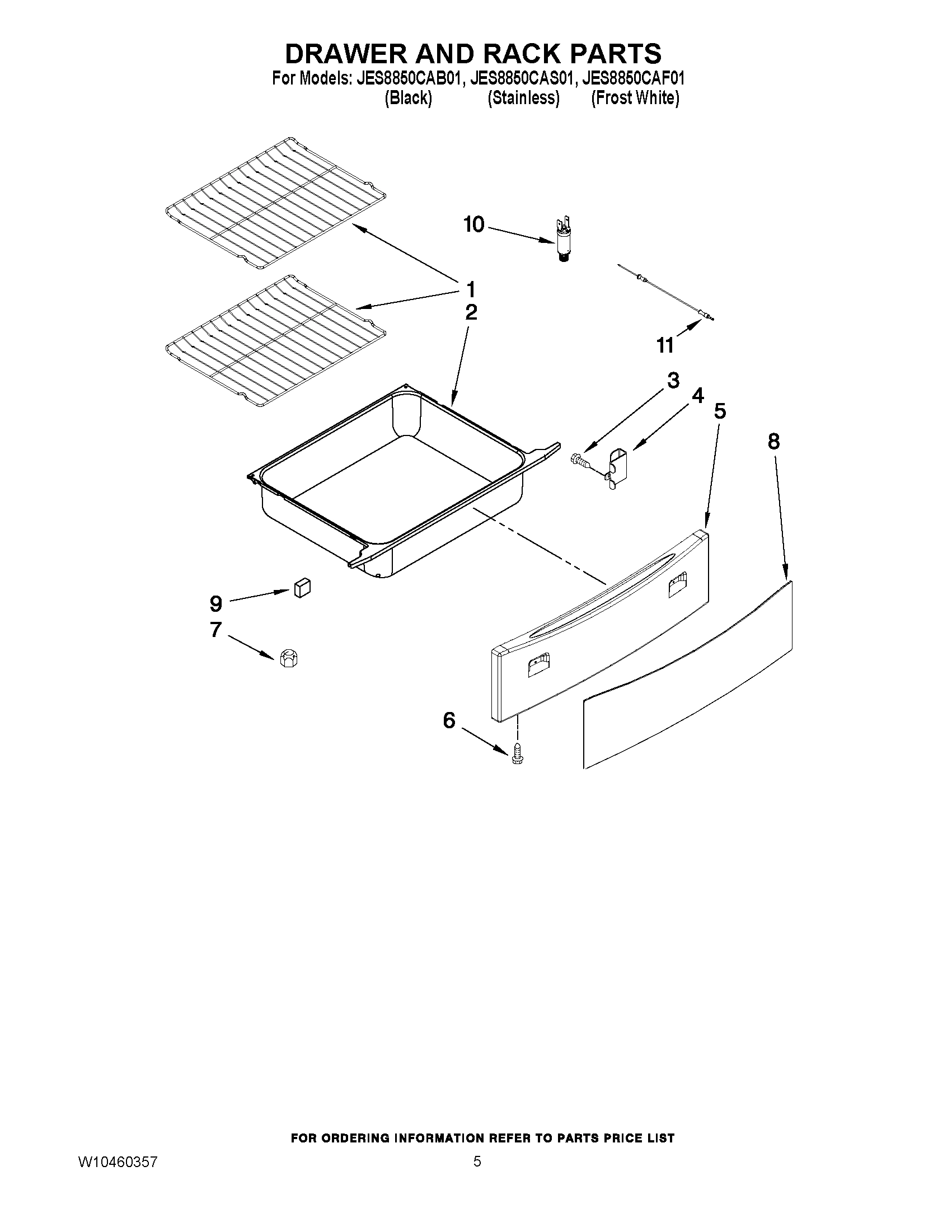

04 - DRAWER AND RACK PARTS

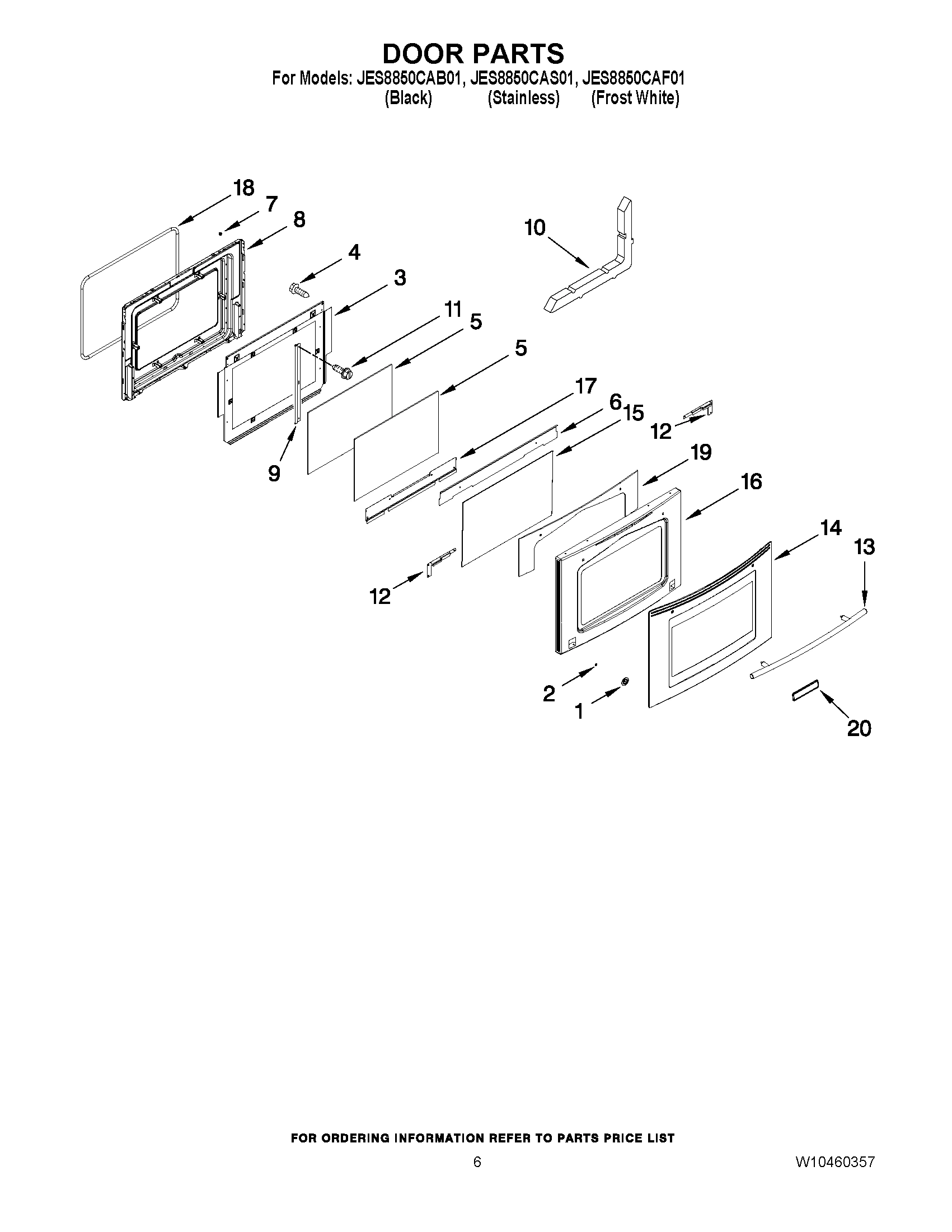

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JES8850CAF01 ELECTRIC RANGE
1
MAY W10235523 MAY W10235523 Contact Us For Availability
1
MAY W10253461 MAY W10253461 Contact Us For Availability
1
MAY W10394613 MAY W10394613 Contact Us For Availability
1
MAY 7730P031-60 MAY 7730P031-60 Contact Us For Availability
1
MAY 2618F201-51 MAY 2618F201-51 Contact Us For Availability
1
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
1
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
1
MAY 7109P082-60 MAY 7109P082-60 Contact Us For Availability
2
MAY W10199498 MAY W10199498 Contact Us For Availability
2
MAY W10235816 MAY W10235816 Contact Us For Availability
2
MAY W10239181 MAY W10239181 Contact Us For Availability
2
MAY W10239182 MAY W10239182 Contact Us For Availability
2
MAY W10314415 MAY W10314415 Contact Us For Availability
2
LATCH ASSEMBLY MAY W10274035 Contact Us For Availability
2
MAY 3405W043-19 MAY 3405W043-19 Contact Us For Availability
2
NUT (10-32) MAY 7103P176-60 Contact Us For Availability
3
ELMNT, WARM (CTR) MAY 9762851 Contact Us For Availability
3
SCREW, SWITCH MAY 7101P676-60 Contact Us For Availability
3
FAN, CONVECTION MAY W10213813 Contact Us For Availability
3
BAFFLE, OVEN DOOR MAY 3601F373-51 Contact Us For Availability
4
ELEMENT (LR & RR) MAY 8273994 Contact Us For Availability
4
SWITCH, INFINITE (6`` (LR/RR)) MAY 7403P373-60 Contact Us For Availability
4
SWITCH, INFINITE (DUAL (RF/LF)) MAY 7450P011-60 Contact Us For Availability
4
BACK, MAIN MAY 3804F313-51 Contact Us For Availability
4
MAY 3801F887-51 MAY 3801F887-51 Contact Us For Availability
4
SCREW, 8AB X 1/2 MAY 7101P376-60 Contact Us For Availability
5
MAY W10233479 MAY W10233479 Contact Us For Availability
5
CONTROL MAY 8507P226-60 Contact Us For Availability
5
COVER, WIRE REAR MAY 4005F810-51 Contact Us For Availability
5
PANEL, DRAWER (BLACK) MAY 2416F086-70 Contact Us For Availability
5
MAY 2416F086-71 MAY 2416F086-71 Contact Us For Availability
5
Glass, Inner MAY 7902P436-60 Contact Us For Availability
6
MAY 7101P498-60 MAY 7101P498-60 Contact Us For Availability
6
MAY W10207697 MAY W10207697 Contact Us For Availability
6
MAY W10213942 MAY W10213942 Contact Us For Availability
6
MAY W10213943 MAY W10213943 Contact Us For Availability
6
MAY 3826F066-51 MAY 3826F066-51 Contact Us For Availability
6
SHIELD MAY 3604F418-51 Contact Us For Availability
7
NUT, SNAP MAY 7103P141-60 Contact Us For Availability
8
TRIM, VENT (BLACK) MAY 7744P464-60 Contact Us For Availability
8
SWITCH, ROCKER (BLACK) MAY 7403P798-60 Contact Us For Availability
8
MAY 7403P799-60 MAY 7403P799-60 Contact Us For Availability
8
MAY 7003P101-60 MAY 7003P101-60 Contact Us For Availability
8
GLASS, DRAWER (BLACK) MAY 7922P057-60 Contact Us For Availability
8
MAY 7922P058-60 MAY 7922P058-60 Contact Us For Availability
8
GLASS, DRAWER (STAINLESS) MAY W10184467 Contact Us For Availability
8
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
9
SPACER, RUBBER MAY 8010P152-60 Contact Us For Availability
9
ELEMENT,TRIPLE-RF MAY W10259005 Contact Us For Availability
9
PANEL, ACCESS MAY 4005F612-51 Contact Us For Availability
9
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
10
ELEMENT,DUAL-LF MAY W10275049 Contact Us For Availability
10
MAY 3807F731-51 MAY 3807F731-51 Contact Us For Availability
10
SUPPORT, OVEN (BOTTOM) MAY 3807F727-45 Contact Us For Availability
10
RECEPTACLE, PROBE MAY 7408P086-60 Contact Us For Availability
10
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
11
MAY 7201P076-60 MAY 7201P076-60 Contact Us For Availability
11
SCREW, 8-18 X 3/8 MAY 7101P426-60 Contact Us For Availability
11
MAY W10317679 MAY W10317679 Contact Us For Availability
11
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
12
SUPPORT, ELEMENT MAY 8004P093-60 Contact Us For Availability
12
BLOCK, BARE WIRE MAY 7401P157-60 Contact Us For Availability
12
MAY 3804F307-51 MAY 3804F307-51 Contact Us For Availability
12
MAY 3804F308-51 MAY 3804F308-51 Contact Us For Availability
13
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
13
MAY W10223152 MAY W10223152 Contact Us For Availability
13
MAY W10223163 MAY W10223163 Contact Us For Availability
13
MAY W10223164 MAY W10223164 Contact Us For Availability
14
MAY 7003P150-60 MAY 7003P150-60 Contact Us For Availability
14
MAY W10314704 MAY W10314704 Contact Us For Availability
14
MAY W10235390 MAY W10235390 Contact Us For Availability
14
MAY W10272330 MAY W10272330 Contact Us For Availability
14
MAY W10272332 MAY W10272332 Contact Us For Availability
15
MAY 7003P152-60 MAY 7003P152-60 Contact Us For Availability
15
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
15
GLASS, COATED MAY 7902P768-60 Contact Us For Availability
16
MAY 8026P096-60 MAY 8026P096-60 Contact Us For Availability
16
MAY 3603F075-70 MAY 3603F075-70 Contact Us For Availability
16
MAY 3603F075-71 MAY 3603F075-71 Contact Us For Availability
17
MAY 8026P084-60 MAY 8026P084-60 Contact Us For Availability
17
RETAINER,GLASS BTM MAY 3804F317-80 Contact Us For Availability
18
SEAL, DOOR MAY W10162384 Contact Us For Availability
19
MAY 3605F345-51 MAY 3605F345-51 Contact Us For Availability
19
MAY 7002P465-60 MAY 7002P465-60 Contact Us For Availability
20
SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
20
NAMEPLATE (WHITE) MAY W10190723 Contact Us For Availability
20
NAMEPLATE (BLACK) MAY W10190724 Contact Us For Availability
20
MAY W10214168 MAY W10214168 Contact Us For Availability
21
MAY 3605F354-45 MAY 3605F354-45 Contact Us For Availability
22
MAY 7407P180-60 MAY 7407P180-60 Contact Us For Availability
23
MAY 3801F911-51 MAY 3801F911-51 Contact Us For Availability
24
MAY 4005F684-51 MAY 4005F684-51 Contact Us For Availability
25
MAY 3608F138-70 MAY 3608F138-70 Contact Us For Availability
26
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
27
MAY W10314699 MAY W10314699 Contact Us For Availability
28
MAY 3401F092-45 MAY 3401F092-45 Contact Us For Availability
29
COVER, DOOR LATCH MAY 4005F750-51 Contact Us For Availability
30
MAY 7106P143-60 MAY 7106P143-60 Contact Us For Availability
31
SCREW, HINGE MAY 7101P282-60 Contact Us For Availability
32
SWITCH, HI-LIMIT MAY 7403P647-60 Contact Us For Availability
34
EXTENSION, SHIELD MAY 3826F064-51 Contact Us For Availability
35
SUPPORT, ELEMENT MAY 3807F754-45 Contact Us For Availability
36
LEG, LEVELING MAY 7101P660-60 Contact Us For Availability
37
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
38
BASE, PEDESTAL MAY W10271711 Contact Us For Availability
39
MAY 3807F640-51 MAY 3807F640-51 Contact Us For Availability
44
RETAINER, INSUL (BOTTOM) MAY 3804F231-51 Contact Us For Availability
45
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
46
TRIM, FRONT FRAME MAY 7713P054-60 Contact Us For Availability
47
SHIELD,WARMING DWR MAY 3604F326-45 Contact Us For Availability
48
MAY 4005F749-45 MAY 4005F749-45 Contact Us For Availability
49
MAY 2205F060-19 MAY 2205F060-19 Contact Us For Availability
50
MAY W10183566 MAY W10183566 Contact Us For Availability
51
COVER, CONVECTION MAY W10312218 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM MAY 7002P443-60 Contact Us For Availability
NI
MAY 7002P445-60 MAY 7002P445-60 Contact Us For Availability
NI
MAY 7002P471-60 MAY 7002P471-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3191048 MAY 3191048 Contact Us For Availability
NI
MAY 3195996 MAY 3195996 Contact Us For Availability
NI
MAY 3196076 MAY 3196076 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P559-60 MAY 5171P559-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( MAY 799832 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
MAY W10250369 MAY W10250369 Contact Us For Availability
NI
MAY W10298903 MAY W10298903 Contact Us For Availability
NI
MAY W10394661 MAY W10394661 Contact Us For Availability
NI
MAY W10394791 MAY W10394791 Contact Us For Availability
× ![]()
