Model Maytag JES1750ES1 RANGE/OVEN, ELECTRIC, SLIDE-IN, DOWNDRAFT – Common Parts & Diagrams

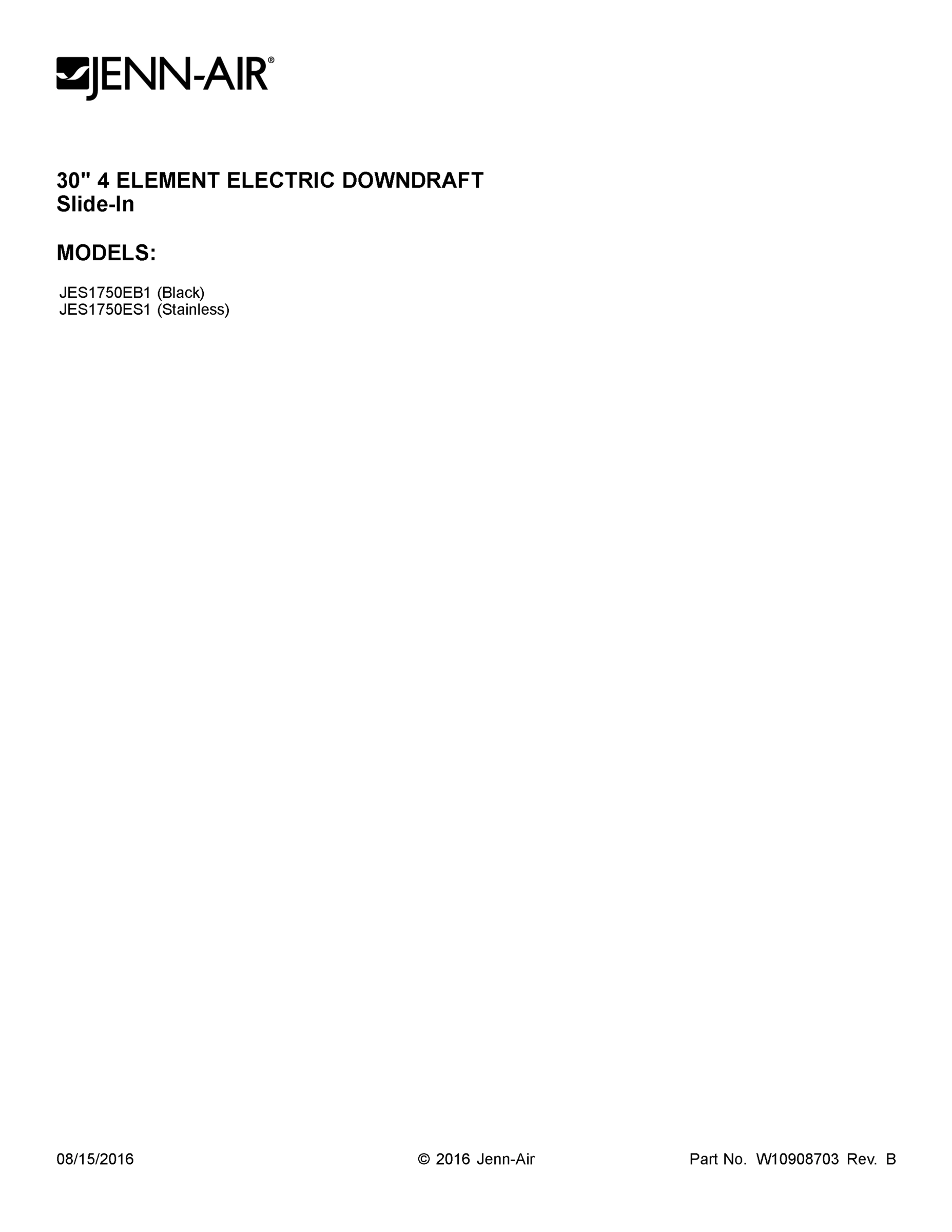

01 - COVER SHEET
02 - COOKTOP PARTS

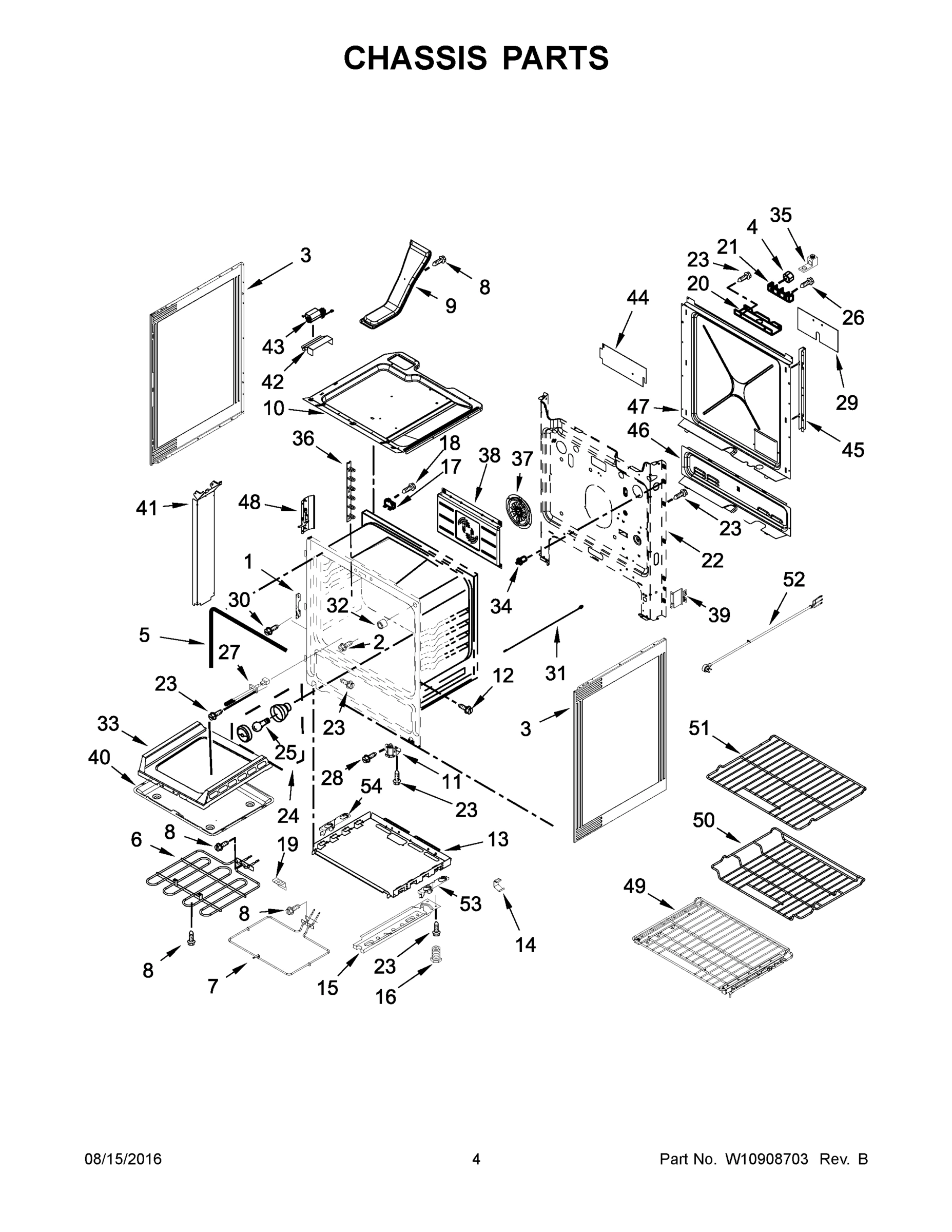

03 - CHASSIS PARTS

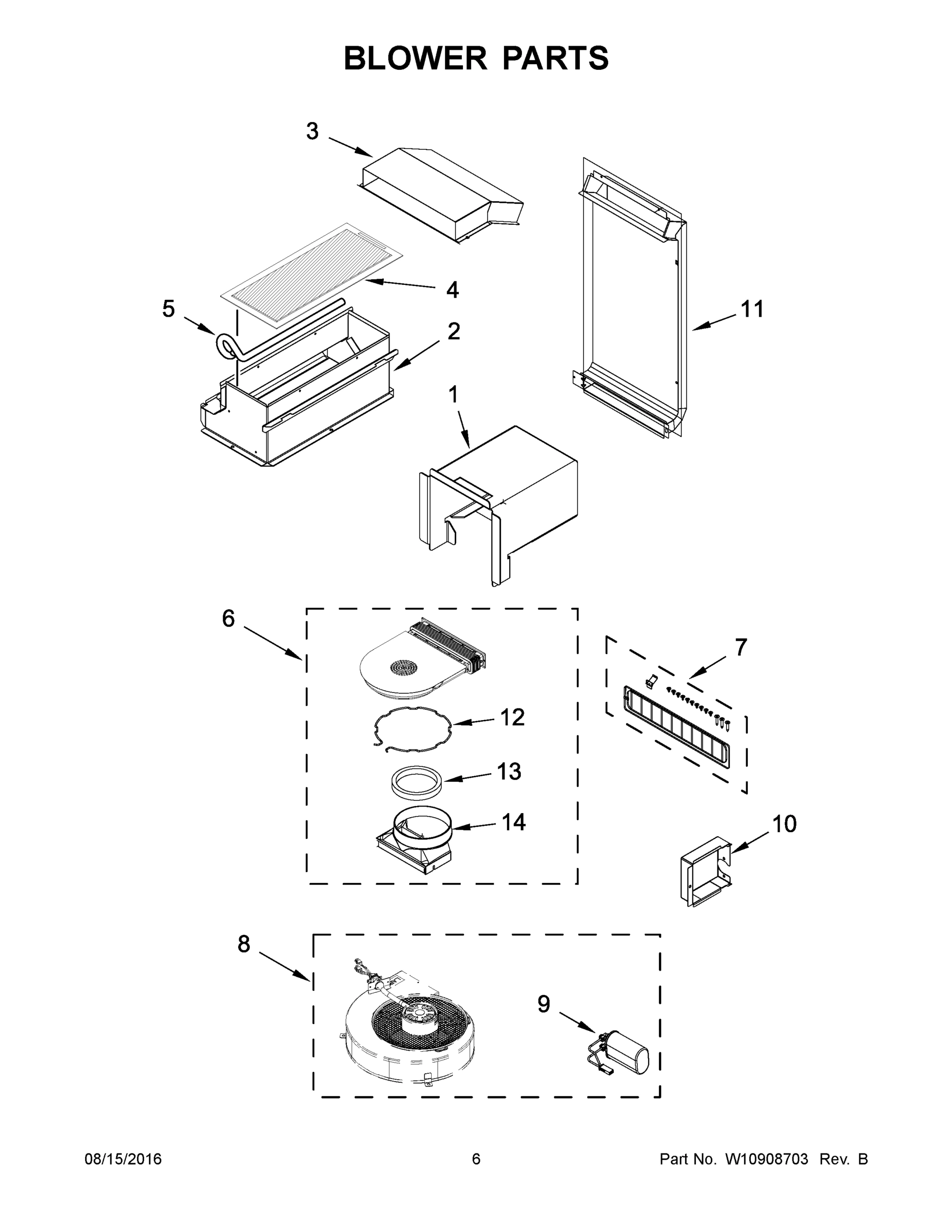

04 - BLOWER PARTS

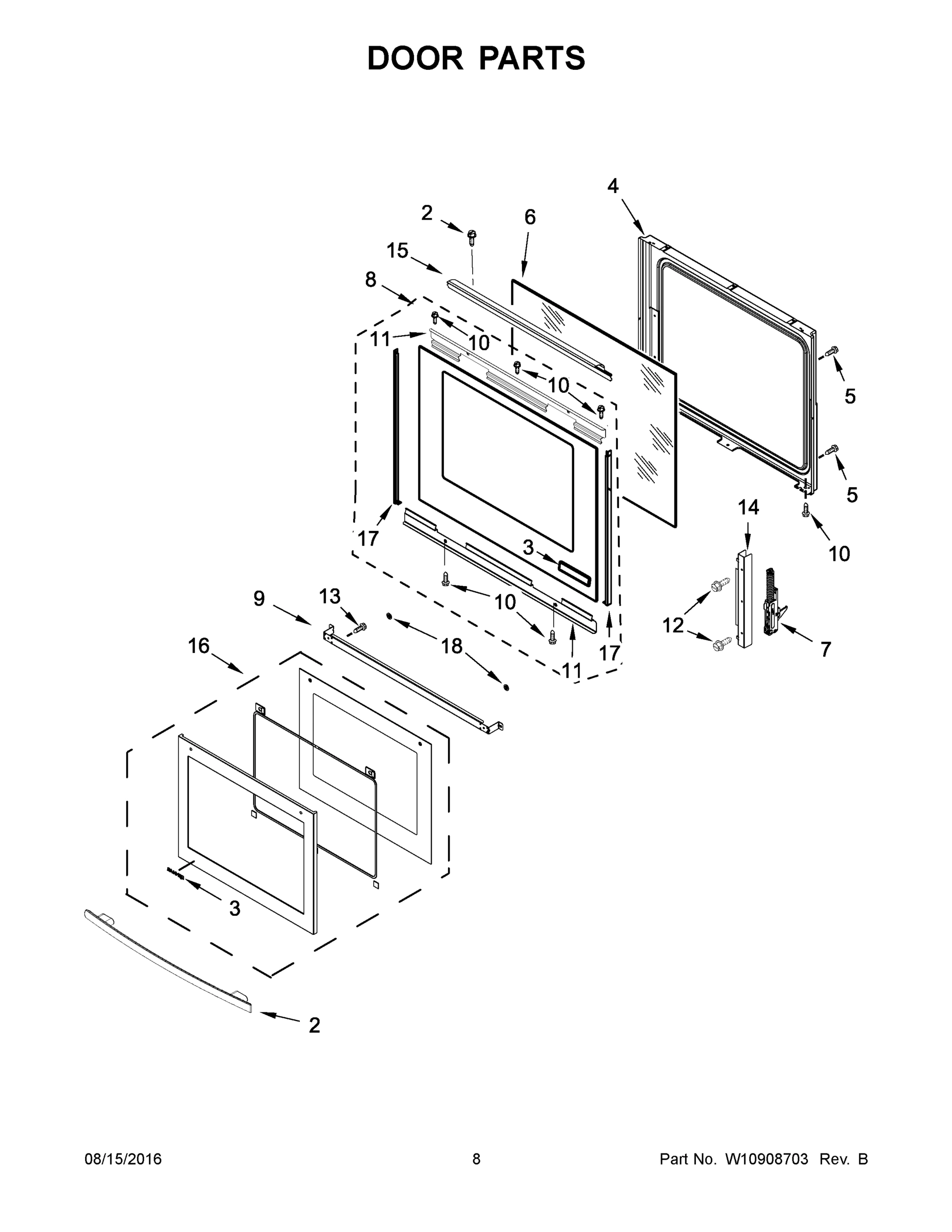

05 - DOOR PARTS

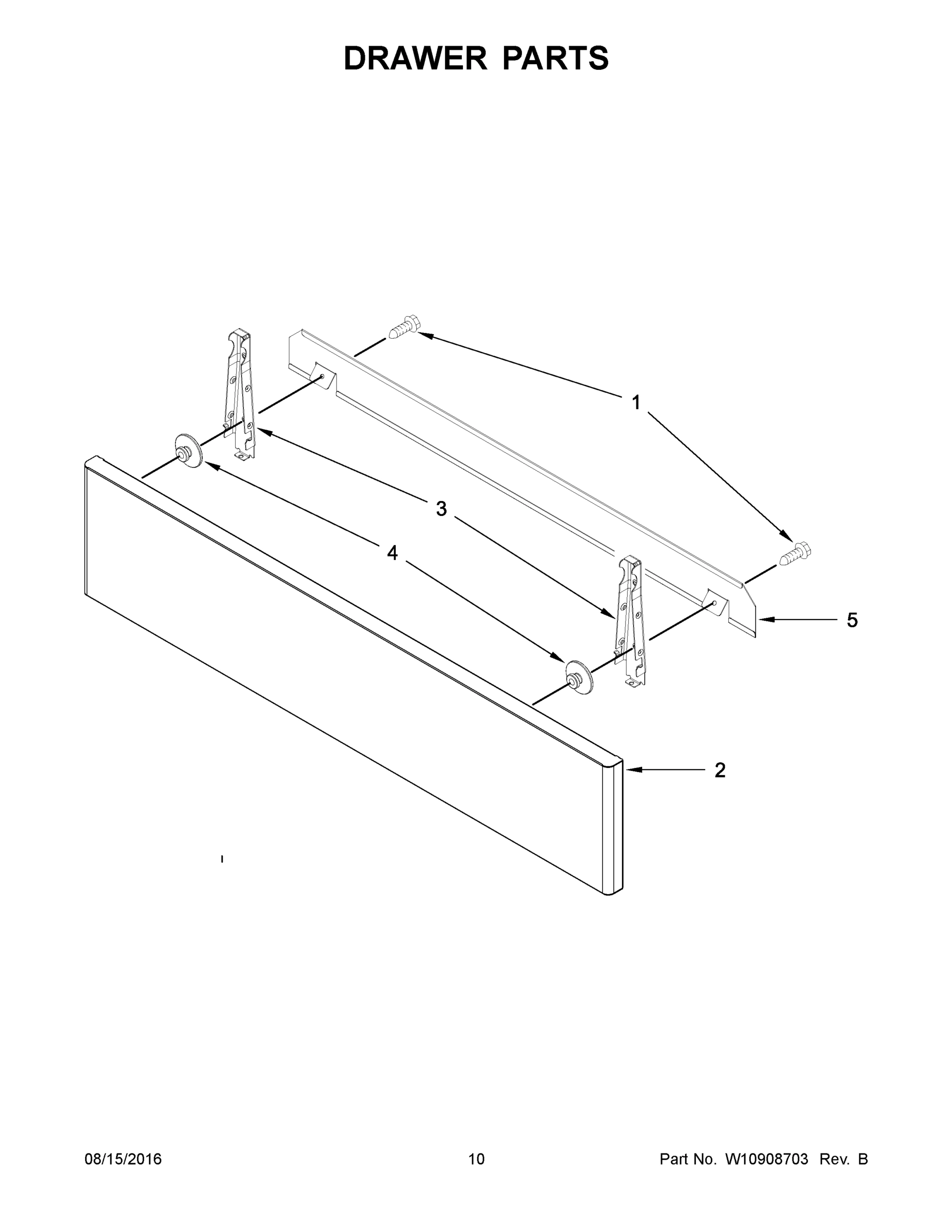

06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JES1750ES1 RANGE/OVEN, ELECTRIC, SLIDE-IN, DOWNDRAFT
1
MAY W10634238 MAY W10634238 Contact Us For Availability
1
MAY 3196169 MAY 3196169 Contact Us For Availability
1
MAY W10661156 MAY W10661156 Contact Us For Availability
1
ASSEMBLY, DOOR HANDLE (BLACK) MAY W10550998 Contact Us For Availability
1A
MAY W10750371 MAY W10750371 Contact Us For Availability
1A
MAY W10551013 MAY W10551013 Contact Us For Availability
1B
SHEET, TECH MAY W10665227 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1E
MAY W10400064 MAY W10400064 Contact Us For Availability
1F
MAY W10400065 MAY W10400065 Contact Us For Availability
1G
MAY W10750124 MAY W10750124 Contact Us For Availability
1H
MAY W10817089 MAY W10817089 Contact Us For Availability
2
MAY W10225448 MAY W10225448 Contact Us For Availability
2
MAY 3196560 MAY 3196560 Contact Us For Availability
2
MAY W10572224 MAY W10572224 Contact Us For Availability
2
SCREW MAY 9780274 Contact Us For Availability
2
MAY W10602485 MAY W10602485 Contact Us For Availability
2A
MAY W10602484 MAY W10602484 Contact Us For Availability
3
MAY W10162245 MAY W10162245 Contact Us For Availability
3
MAY W10572145 MAY W10572145 Contact Us For Availability
3
BADGE (BLACK) MAY W10190724 Contact Us For Availability
3
MAY W10318026 MAY W10318026 Contact Us For Availability
3A
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
4
MAY W10536330 MAY W10536330 Contact Us For Availability
4
MAY W10575379 MAY W10575379 Contact Us For Availability
4
MAY W10826568 MAY W10826568 Contact Us For Availability
4
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
4A
MAY W10536331 MAY W10536331 Contact Us For Availability
5
ELEMENT (3000W/1400W DUAL) (LEFT FRONT) MAY W10275048 Contact Us For Availability
5
MAY W10162385 MAY W10162385 Contact Us For Availability
5
MAY W10575393 MAY W10575393 Contact Us For Availability
5
MAY W10031790 MAY W10031790 Contact Us For Availability
5
BAFFLE, DRAWER PANEL MAY W10798390 Contact Us For Availability
6
ELEMENT (1200W) (RIGHT REAR) MAY 8273994 Contact Us For Availability
6
MAY W10544952 MAY W10544952 Contact Us For Availability
6
MAY W10789431 MAY W10789431 Contact Us For Availability
6
MAY W10813616 MAY W10813616 Contact Us For Availability
7
ELEMENT (3200W) (RIGHT FRONT) MAY W10251108 Contact Us For Availability
7
MAY W10774342 MAY W10774342 Contact Us For Availability
7
MAY W10789391 MAY W10789391 Contact Us For Availability
7
MAY W10885516 MAY W10885516 Contact Us For Availability
8
ELEMENT (1300W DUAL) (LEFT REAR) MAY W10342780 Contact Us For Availability
8
MAY W10362924 MAY W10362924 Contact Us For Availability
8
MAY W10810492 MAY W10810492 Contact Us For Availability
8
PANEL, DOOR (BLACK) MAY W10541892 Contact Us For Availability
9
MAY W10575593 MAY W10575593 Contact Us For Availability
9
ASSEMBLY, FLUE MAY W10613792 Contact Us For Availability
9
MAY W10788527 MAY W10788527 Contact Us For Availability
9
MAY W10541911 MAY W10541911 Contact Us For Availability
10
MAY W10613286 MAY W10613286 Contact Us For Availability
10
BOX, BURNER SI MAY W10289168 Contact Us For Availability
10
MAY W10787917 MAY W10787917 Contact Us For Availability
10
MAY W10327235 MAY W10327235 Contact Us For Availability
11
MAY W10561812 MAY W10561812 Contact Us For Availability
11
MAY W10341186 MAY W10341186 Contact Us For Availability
11
MAY W10661835 MAY W10661835 Contact Us For Availability
11
SUPPORT, GLASS MAY W10813140 Contact Us For Availability
12
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
12
MAY W10067840 MAY W10067840 Contact Us For Availability
12
MAY W10031780 MAY W10031780 Contact Us For Availability
12
MAY W10702071 MAY W10702071 Contact Us For Availability
12A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
13
SUPPORT, COOKTOP (RIGHT) MAY W10289169 Contact Us For Availability
13
SHIELD, BAKE MAY W10541959 Contact Us For Availability
13
MAY W10759311 MAY W10759311 Contact Us For Availability
13
MAY 8533988 MAY 8533988 Contact Us For Availability
13A
SUPPORT, COOKTOP (LEFT) MAY W10289170 Contact Us For Availability
14
SCREW MAY 3196173 Contact Us For Availability
14
MAY W10137382 MAY W10137382 Contact Us For Availability
14
MAY W10642096 MAY W10642096 Contact Us For Availability
14
HINGE, SUPPORT RAIL MAY W10813139 Contact Us For Availability
15
MAY W10557750 MAY W10557750 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
SCOOP, DOOR (BLACK) MAY W10613791 Contact Us For Availability
15A
ENDCAP (STAINLESS LEFT) MAY W10557751 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15A
MAY W10551024 MAY W10551024 Contact Us For Availability
15B
MAY W10557753 MAY W10557753 Contact Us For Availability
15C
ENDCAP (STAINLESS RIGHT) MAY W10557754 Contact Us For Availability
16
MAY W10901074 MAY W10901074 Contact Us For Availability
16
MAY W10058460 MAY W10058460 Contact Us For Availability
16
DOOR, COMPLETE (STAINLESS) MAY W10634268 Contact Us For Availability
16A
MAY W10901073 MAY W10901073 Contact Us For Availability
17
SWITCH, INFINITE (RIGHT REAR) MAY W10578768 Contact Us For Availability
17
MAY 3196548 MAY 3196548 Contact Us For Availability
17
MAY W10634236 MAY W10634236 Contact Us For Availability
18
SHIELD, KEYPAD MAY W10752321 Contact Us For Availability
18
MAY 3196172 MAY 3196172 Contact Us For Availability
18
MAY W10319024 MAY W10319024 Contact Us For Availability
19
KNOB (BLACK) MAY W10505762 Contact Us For Availability
19
MAY W10035900 MAY W10035900 Contact Us For Availability
19A
KNOB (STAINLESS) MAY W10505763 Contact Us For Availability
20
BRACKET, CONSOLE (CENTER) MAY W10598048 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10453974 MAY W10453974 Contact Us For Availability
21
MAY W10246624 MAY W10246624 Contact Us For Availability
22
MAY W10645947 MAY W10645947 Contact Us For Availability
22
MAIN, BACK DOWNDRAFT (NOT SERVICED) MAY N/P Contact Us For Availability
23
MAY 3196178 MAY 3196178 Contact Us For Availability
23
MAY W10636528 MAY W10636528 Contact Us For Availability
23A
VENT, TRIM TOP (STAINLESS) MAY W10636529 Contact Us For Availability
24
MAY 3196068 MAY 3196068 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
25
MAY W10557780 MAY W10557780 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
26
MAY 3400016 MAY 3400016 Contact Us For Availability
27
BRACKET, ANTI-TIP MAY W10606241 Contact Us For Availability
27
MAY W10586204 MAY W10586204 Contact Us For Availability
28
MAY W10664705 MAY W10664705 Contact Us For Availability
29
MAY W10603097 MAY W10603097 Contact Us For Availability
29
MAY W10655441 MAY W10655441 Contact Us For Availability
30
GASKET, INFINITE SWITCH MAY 7201P077-60 Contact Us For Availability
31
MAY W10743280 MAY W10743280 Contact Us For Availability
31
MAY W10273192 MAY W10273192 Contact Us For Availability
31A
MAY W10743281 MAY W10743281 Contact Us For Availability
32
MAY W10663811 MAY W10663811 Contact Us For Availability
32
SPACER, DOOR MAY 9758701 Contact Us For Availability
32A
MAY W10663810 MAY W10663810 Contact Us For Availability
33
MAY W10558372 MAY W10558372 Contact Us For Availability
33
MAY W10774446 MAY W10774446 Contact Us For Availability
34
SWITCH, INFINITE (DUAL) (LEFT FRONT) MAY W10437092 Contact Us For Availability
34
MAY W10627802 MAY W10627802 Contact Us For Availability
35
SWITCH, INFINITE (RIGHT FRONT AND LEFT REAR) MAY W10437094 Contact Us For Availability
35
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
36
MAY W10882900 MAY W10882900 Contact Us For Availability
36
MAY W10603482 MAY W10603482 Contact Us For Availability
37
MAY W10563084 MAY W10563084 Contact Us For Availability
38
MAY W10554262 MAY W10554262 Contact Us For Availability
39
MAY W10273002 MAY W10273002 Contact Us For Availability
40
MAY W10346147 MAY W10346147 Contact Us For Availability
41
MAY W10162255 MAY W10162255 Contact Us For Availability
42
MAY W10162254 MAY W10162254 Contact Us For Availability
43
MAY W10780482 MAY W10780482 Contact Us For Availability
44
MAY W10813366 MAY W10813366 Contact Us For Availability
45
MAY W10162241 MAY W10162241 Contact Us For Availability
46
MAY W10162248 MAY W10162248 Contact Us For Availability
47
MAY W10289172 MAY W10289172 Contact Us For Availability
48
MAY W10605411 MAY W10605411 Contact Us For Availability
49
MAY W10554008 MAY W10554008 Contact Us For Availability
50
MAY W10554006 MAY W10554006 Contact Us For Availability
51
MAY W10554005 MAY W10554005 Contact Us For Availability
52
MAY W10624592 MAY W10624592 Contact Us For Availability
53
MAY W10828882 MAY W10828882 Contact Us For Availability
54
MAY W10828883 MAY W10828883 Contact Us For Availability
NI
MAY W10575120 MAY W10575120 Contact Us For Availability
NI
MAY W10580253 MAY W10580253 Contact Us For Availability
NI
MAY W10580264 MAY W10580264 Contact Us For Availability
NI
MAY W10598170 MAY W10598170 Contact Us For Availability
NI
MAY W10664316 MAY W10664316 Contact Us For Availability
NI
MAY W10812964 MAY W10812964 Contact Us For Availability
NI
MAY W10813885 MAY W10813885 Contact Us For Availability
NI
MAY 4820F015-59 MAY 4820F015-59 Contact Us For Availability
NI
MAY 7111P017-60 MAY 7111P017-60 Contact Us For Availability
NI
MAY W10162240 MAY W10162240 Contact Us For Availability
NI
MAY W10289173 MAY W10289173 Contact Us For Availability
NI
MAY W10575374 MAY W10575374 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS KIT, CANNING U MAY 242905 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES PROTECTANT MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES KIT, COOKT MAY 31605 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES CLEANER, G MAY 31617A Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS BROILER PAN AN MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS RACK, BROILER MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES CLEANER, G MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES CLEANER, K MAY W10355010 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES CLEANER, S MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES WIPES, STA MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES CLEANER, C MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES PAD, COOKT MAY W10391473 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES ALT CLEANI MAY W10432019 Contact Us For Availability
NI
MAY W10432539 MAY W10432539 Contact Us For Availability
NI
MAY W10432545 MAY W10432545 Contact Us For Availability
NI
MAY W10655448 MAY W10655448 Contact Us For Availability
NI
MAY W10655449 MAY W10655449 Contact Us For Availability
NI
MAY W10655450 MAY W10655450 Contact Us For Availability
NI
MAY W10675026 MAY W10675026 Contact Us For Availability
NI
MAY W10675027 MAY W10675027 Contact Us For Availability
NI
MAY W10675028 MAY W10675028 Contact Us For Availability
NI
MAY WA906B MAY WA906B Contact Us For Availability
× ![]()
