Model Maytag JES1450DB0 RANGE/OVEN, ELECTRIC, SLIDE-IN, 30 INCH – Common Parts & Diagrams

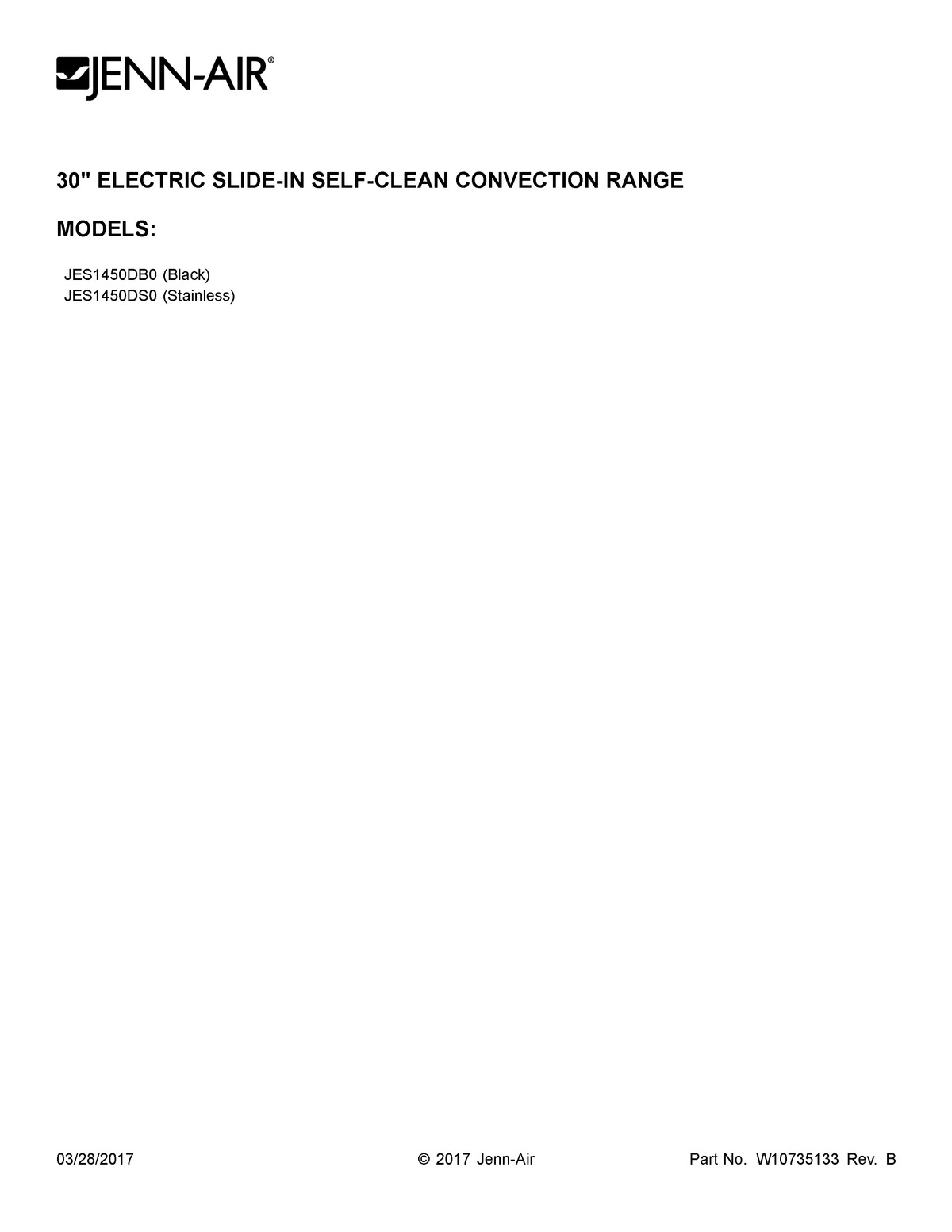

01 - COVER SHEET

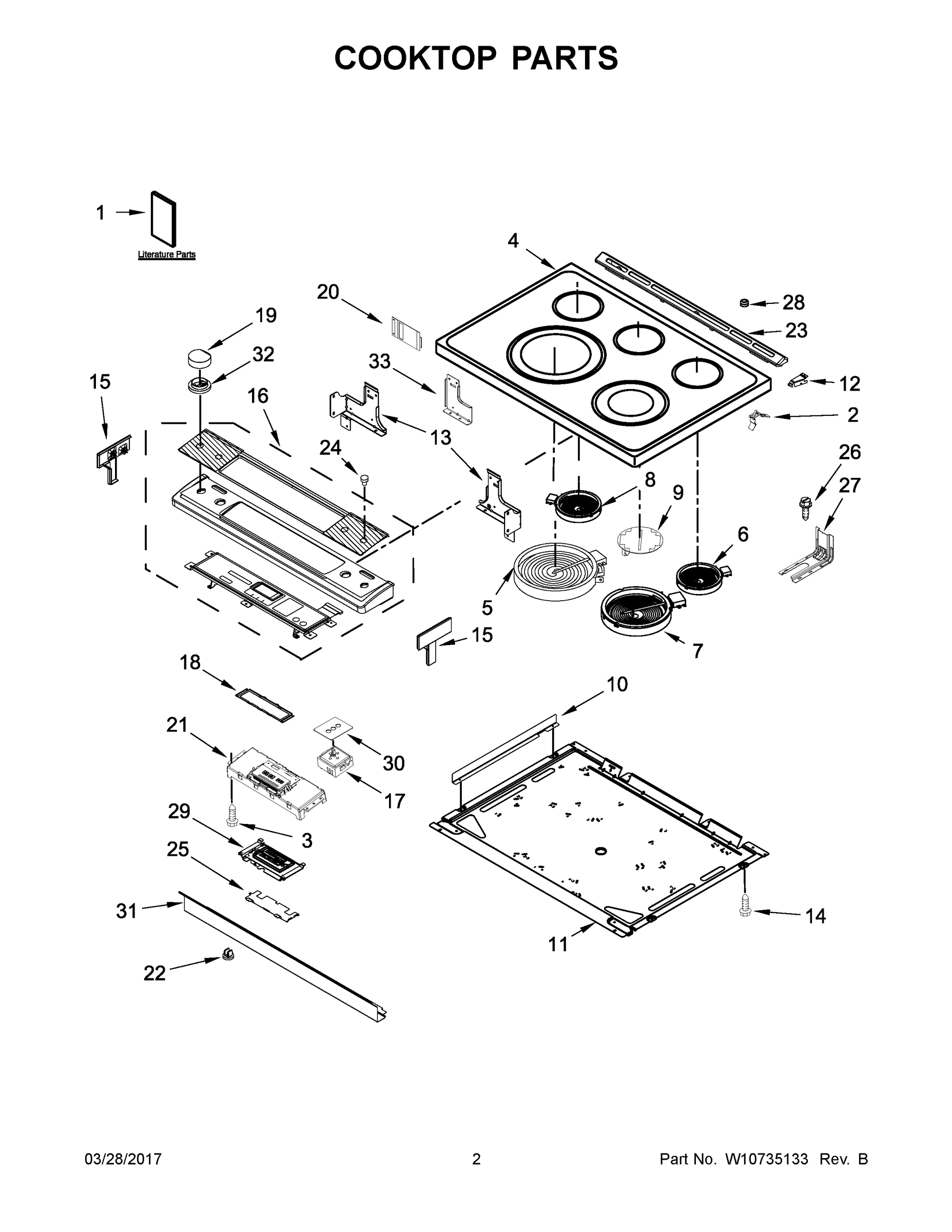

02 - COOKTOP PARTS

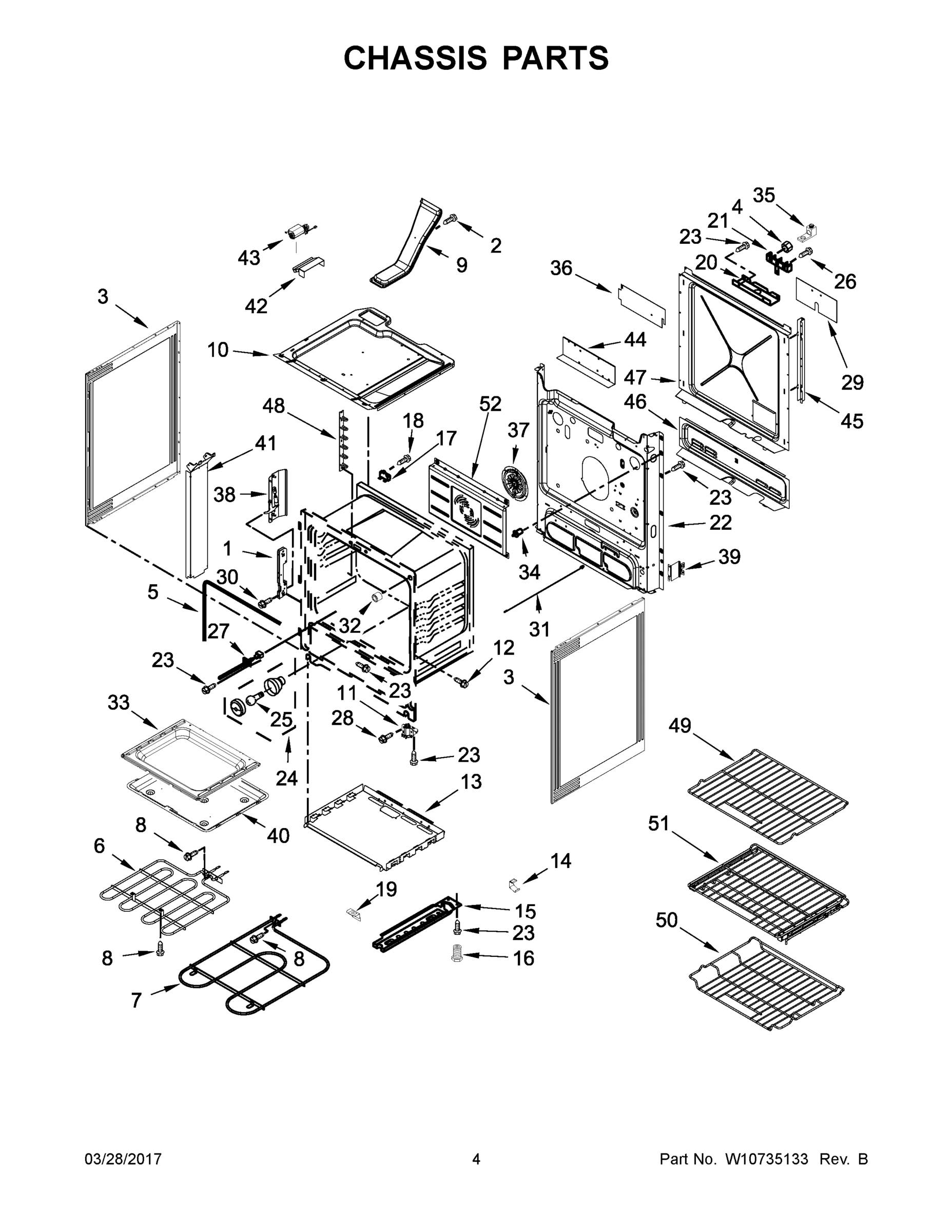

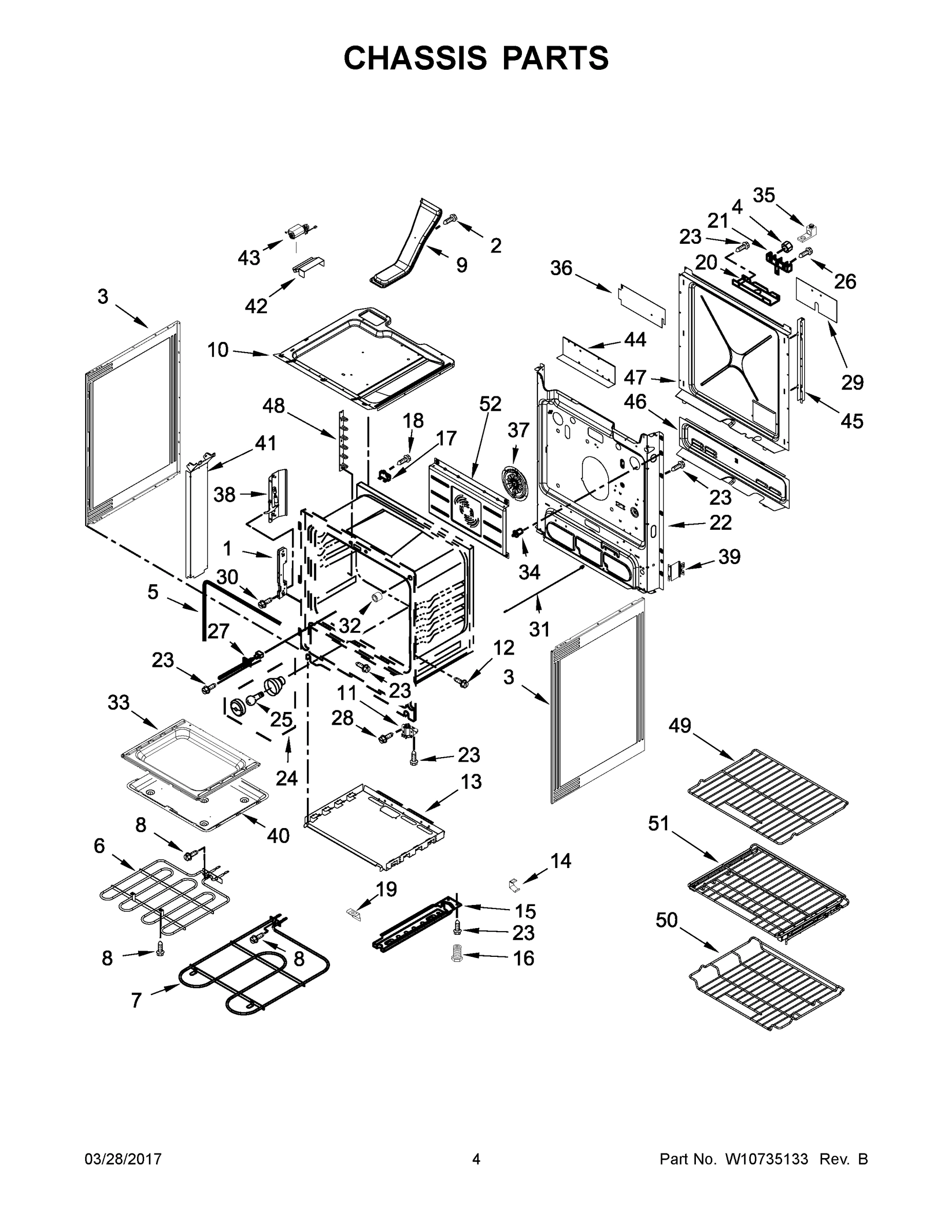

03 - CHASSIS PARTS

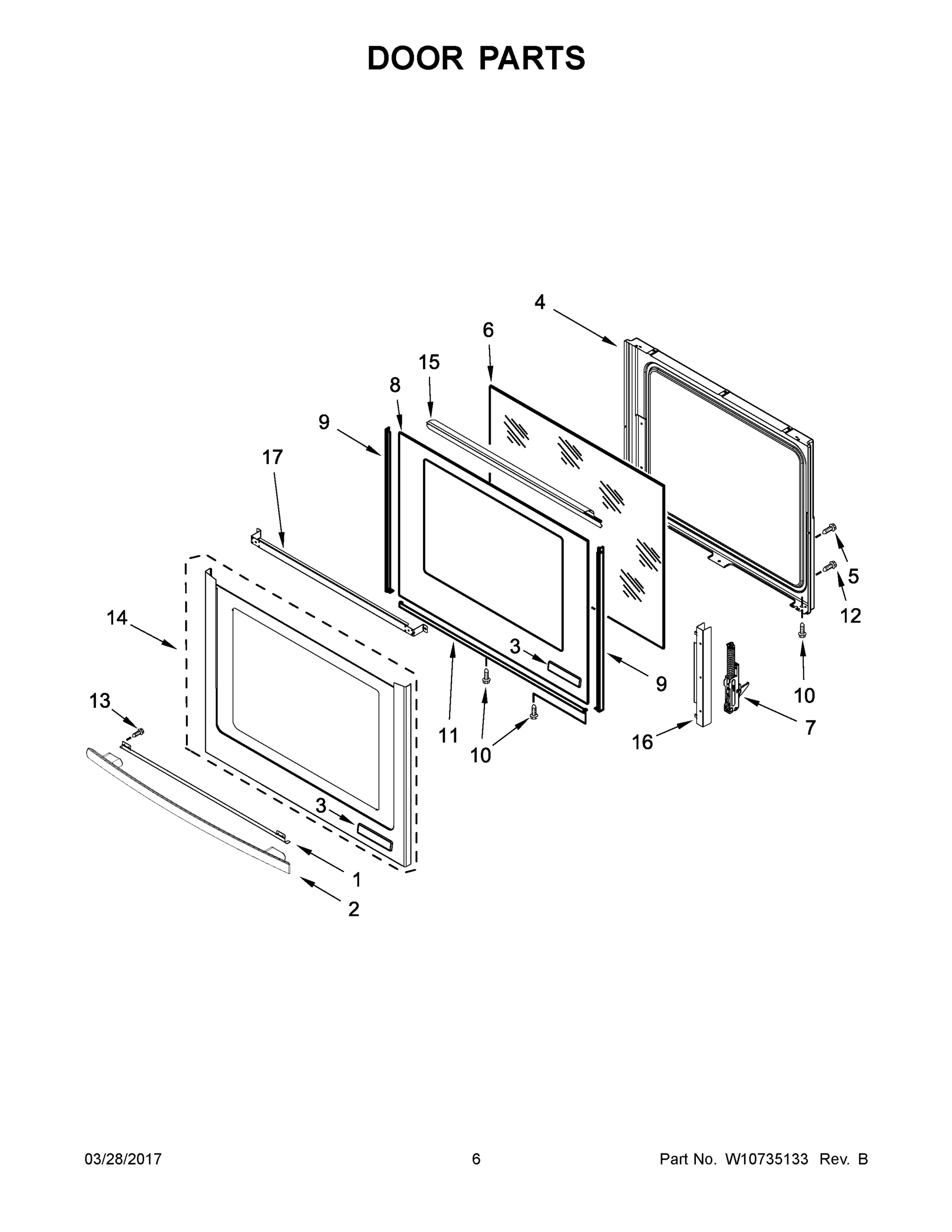

04 - DOOR PARTS

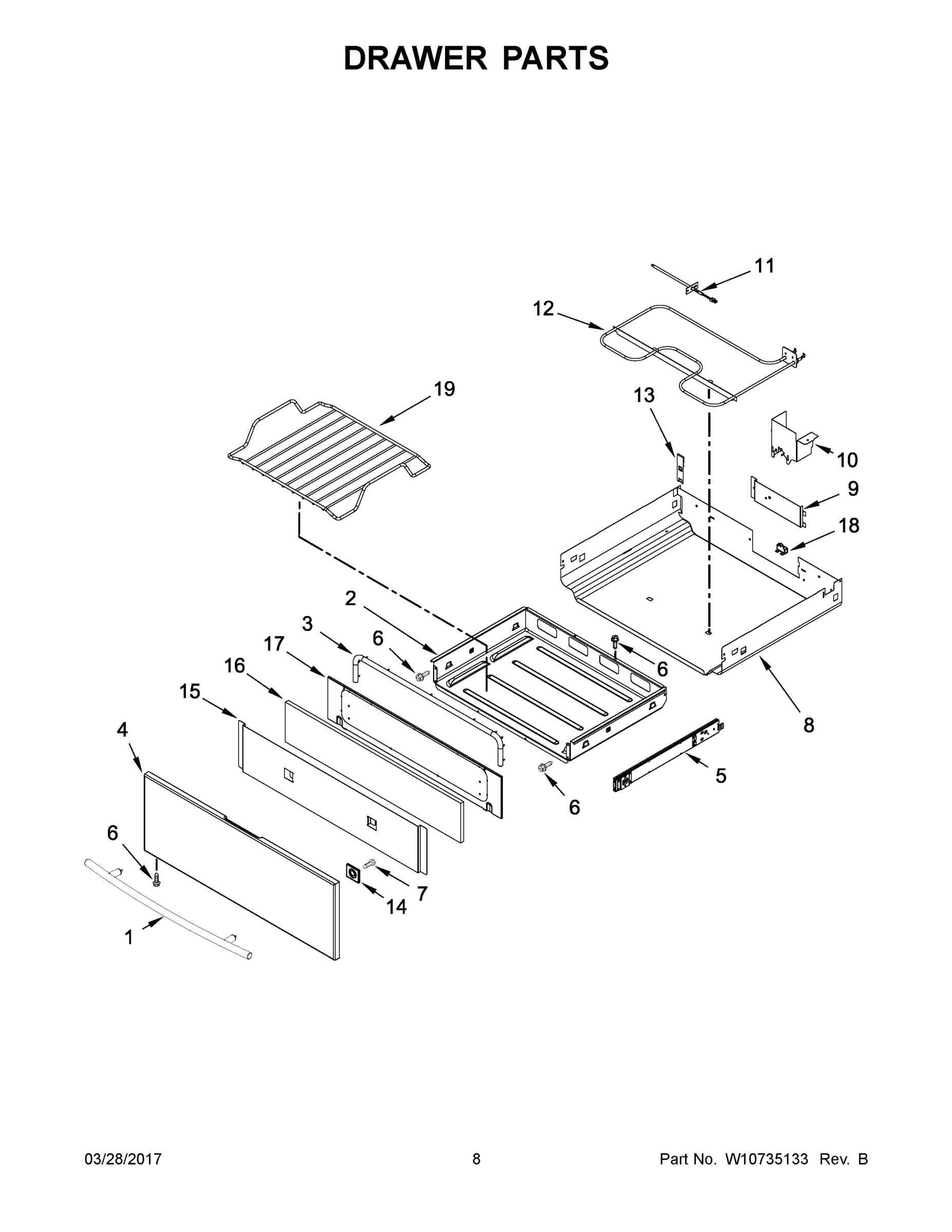

05 - DRAWER PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JES1450DB0 RANGE/OVEN, ELECTRIC, SLIDE-IN, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10665255 Contact Us For Availability
1
HINGE, RECEIVER MAY W10634238 Contact Us For Availability
1
DOOR, TRIM TOP MAY W10634234 Contact Us For Availability
1
HANDLE, DRAWER (BLACK) MAY W10550998 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10665264 Contact Us For Availability
1A
HANDLE, DRAWER (STAINLESS) MAY W10551013 Contact Us For Availability
1B
SHEET, TECH MAY W10665227 Contact Us For Availability
1C
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1E
GUIDE, QUICK START (ENGLISH) MAY W10400064 Contact Us For Availability
1F
GUIDE, QUICK START (FRENCH) MAY W10400065 Contact Us For Availability
1G
WIRING DIAGRAM (ENGLISH/FRENCH) MAY W10665234 Contact Us For Availability
2
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
2
DRAWER, BAKE MAY W10757442 Contact Us For Availability
3
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
3
BADGE (BLACK) MAY W10190724 Contact Us For Availability
3
SEAL, DRAWER MAY W10550987 Contact Us For Availability
3B
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
4
COOKTOP (BLACK) MAY W10536298 Contact Us For Availability
4
NUT MAY 3400029 Contact Us For Availability
4
LINER, DOOR MAY W10541882 Contact Us For Availability
4
PANEL, DRAWER FRONT (BLACK) MAY W10541957 Contact Us For Availability
4A
COOKTOP (STAINLESS) MAY W10536299 Contact Us For Availability
4A
PANEL, DRAWER FRONT (STAINLESS) MAY W10541958 Contact Us For Availability
5
ELEMENT (3000W) (LEFT FRONT) MAY W10187839 Contact Us For Availability
5
GASKET, DOOR MAY W10162385 Contact Us For Availability
5
SCREW MAY W10031790 Contact Us For Availability
5
SLIDE, DRAWER (LEFT) MAY W10921904 Contact Us For Availability
5A
SLIDE, DRAWER (RIGHT) MAY W10921905 Contact Us For Availability
6
ELEMENT (1200W) (RIGHT REAR) MAY 8273994 Contact Us For Availability
6
ELEMENT, BROIL MAY W10544952 Contact Us For Availability
6
SCREW MAY 3196169 Contact Us For Availability
6
GLASS, INNER MAY W10541888 Contact Us For Availability
7
ELEMENT (3200W) (RIGHT FRONT) MAY W10251108 Contact Us For Availability
7
ELEMENT, BAKE MAY W10774342 Contact Us For Availability
7
HINGE, SLOW CLOSE (BLACK MODELS) MAY W10541887 Contact Us For Availability
7
SCREW MAY 8533988 Contact Us For Availability
7A
HINGE, SLOW CLOSE (STAINLESS MODELS) MAY W10541886 Contact Us For Availability
8
ELEMENT (1300W) (LEFT REAR) MAY W10342780 Contact Us For Availability
8
SCREW MAY W10362924 Contact Us For Availability
8
ASSEMBLY, OUTER DOOR (BLACK) MAY W10541892 Contact Us For Availability
8
ENCLOSURE, WARMING MAY W10634260 Contact Us For Availability
9
ELEMENT, WARM ZONE (CENTER REAR) MAY W10799048 Contact Us For Availability
9
ASSEMBLY, FLUE MAY W10613792 Contact Us For Availability
9
TRIM, DOOR SIDE (BLACK) MAY W10634236 Contact Us For Availability
9
COVER, GAS VALVE MAY W10727084 Contact Us For Availability
10
BRACKET, RADIANT MAY W10613286 Contact Us For Availability
10
BOX, BURNER SI MAY W10289168 Contact Us For Availability
10
SCREW MAY 9780274 Contact Us For Availability
10
COVER, WIRE MAY W10634259 Contact Us For Availability
11
PAN, RADIANT MAY W10536275 Contact Us For Availability
11
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
11
SUPPORT, GLASS MAY W10541885 Contact Us For Availability
11
SENSOR MAY W10720530 Contact Us For Availability
12
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
12
SCREW MAY W10067840 Contact Us For Availability
12
SCREW MAY W10031780 Contact Us For Availability
12
ELEMENT, BAKE MAY W10541944 Contact Us For Availability
12A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
13
SUPPORT, COOKTOP (RIGHT) MAY W10289169 Contact Us For Availability
13
SHIELD, BAKE MAY W10541959 Contact Us For Availability
13
COVER, SIDE MAY W10551019 Contact Us For Availability
13A
SUPPORT, COOKTOP (LEFT) MAY W10289170 Contact Us For Availability
14
SCREW MAY 3196173 Contact Us For Availability
14
CLIP, PANEL MAY W10137382 Contact Us For Availability
14
ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10634268 Contact Us For Availability
14
SPACER, HANDLE MAY 3823F017-45 Contact Us For Availability
15
ENDCAP (BLACK (LEFT)) MAY W10557750 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
SCOOP, DOOR (BLACK) MAY W10613791 Contact Us For Availability
15
INSULATION, DRAWER FRONT MAY W10551018 Contact Us For Availability
15A
ENDCAP (STAINLESS (LEFT)) MAY W10557751 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15A
SCOOP, DOOR (STAINLESS) MAY W10551024 Contact Us For Availability
15B
ENDCAP (BLACK (RIGHT)) MAY W10557753 Contact Us For Availability
15C
ENDCAP (STAINLESS (RIGHT)) MAY W10557754 Contact Us For Availability
16
CONSOLE (BLACK) MAY W10676648 Contact Us For Availability
16
FOOT, LEVELING MAY W10058460 Contact Us For Availability
16
HINGE, SUPPORT RAIL MAY W10541883 Contact Us For Availability
16
INSULATION, DRAWER MAY W10550982 Contact Us For Availability
16A
CONSOLE (STAINLESS) MAY W10676649 Contact Us For Availability
17
SWITCH, INFINITE (LEFT FRONT) MAY W10437097 Contact Us For Availability
17
FUSE, THERMAL MAY 3196548 Contact Us For Availability
17
BRACKET, GLASS UPPER HANDLE MAY W10541911 Contact Us For Availability
17
PANEL, FRONT INNER MAY W10541947 Contact Us For Availability
17A
SWITCH, INFINITE (RIGHT REAR) MAY W10578768 Contact Us For Availability
17B
SWITCH, INFINITE (RIGHT FRONT AND LEFT REAR) MAY W10437094 Contact Us For Availability
18
BRACKET, CONTROL MAY W10557780 Contact Us For Availability
18
SCREW MAY 3196172 Contact Us For Availability
18
FUSE, THERMAL MAY W10729897 Contact Us For Availability
19
KNOB (BLACK) MAY W10505762 Contact Us For Availability
19
SUPPORT, OVEN BOTTOM MAY W10035900 Contact Us For Availability
19
RACK, BAKE DRAWER MAY W10602493 Contact Us For Availability
19A
KNOB (STAINLESS) MAY W10505763 Contact Us For Availability
20
SHIELD, KEYPAD MAY W10752321 Contact Us For Availability
20
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
21
CONTROL MRC2 MAY W10759270 Contact Us For Availability
21
BLOCK, TERMINAL MAY W10245259 Contact Us For Availability
22
GROMMET MAY W10645947 Contact Us For Availability
22
BACK, MAIN MAY W10289166 Contact Us For Availability
23
SCREW MAY 3196178 Contact Us For Availability
23
VENT, TRIM TOP (BLACK) MAY W10636528 Contact Us For Availability
23A
VENT, TRIM TOP (STAINLESS) MAY W10636529 Contact Us For Availability
24
LENS, INDICATOR MAY 3196068 Contact Us For Availability
24
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
25
BRACKET, CONTROL MAY W10558372 Contact Us For Availability
25
BULB, OVEN LIGHT MAY 311255 Contact Us For Availability
26
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
26
SCREW MAY 3400016 Contact Us For Availability
27
BRACKET, ANTI-TIP MAY W10606241 Contact Us For Availability
27
SENSOR MAY W10586204 Contact Us For Availability
28
BUMPER MAY W10664705 Contact Us For Availability
29
ASSEMBLY, DISPLAY MAY W10603095 Contact Us For Availability
29
SHIELD, POWER CORD MAY W10655441 Contact Us For Availability
30
GASKET, INFINITE MAY 7201P077-60 Contact Us For Availability
31
MAY W10565660 MAY W10565660 Contact Us For Availability
31
ROD, DOOR SWITCH MAY W10273192 Contact Us For Availability
31A
MAY W10565662 MAY W10565662 Contact Us For Availability
32
MAY W10663811 MAY W10663811 Contact Us For Availability
32
SPACER, DOOR MAY 9758701 Contact Us For Availability
32A
MAY W10663810 MAY W10663810 Contact Us For Availability
33
MAY W10598048 MAY W10598048 Contact Us For Availability
33
BOTTOM, OVEN MAY W10774446 Contact Us For Availability
34
SWITCH, DOOR MAY W10627802 Contact Us For Availability
35
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
36
SHIELD, WIRE MAY W10813366 Contact Us For Availability
37
MAY W10874472 MAY W10874472 Contact Us For Availability
38
RECEIVER, SLOW CLOSE HINGE MAY W10605411 Contact Us For Availability
39
BRACKET, OVEN SUPPORT MAY W10273002 Contact Us For Availability
40
PAN, BAKE MAY W10346147 Contact Us For Availability
41
DUCT, COVER MAY W10162255 Contact Us For Availability
42
DUCT, COOLING MAY W10162254 Contact Us For Availability
43
ASSEMBLY, COOLING FAN MAY W10780482 Contact Us For Availability
44
SHIELD, HEAT MAY W10162260 Contact Us For Availability
45
CHANNEL, REAR MAY W10162241 Contact Us For Availability
46
COVER, WIRE MAY W10162248 Contact Us For Availability
47
COVER, BACK MAY W10289172 Contact Us For Availability
48
RACK, LADDER MAY W10603482 Contact Us For Availability
49
RACK, HEAVY DUTY MAY W10554005 Contact Us For Availability
50
RACK, MAXIMUM CAPACITY MAY W10554006 Contact Us For Availability
51
RACK, SLIDING MAY W10554008 Contact Us For Availability
52
BAFFLE, FULL CONVECTION MAY W10554262 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10575120 MAY W10575120 Contact Us For Availability
NI
MAY W10580249 MAY W10580249 Contact Us For Availability
NI
MAY W10580303 MAY W10580303 Contact Us For Availability
NI
MAY W10580306 MAY W10580306 Contact Us For Availability
NI
MAY W10580316 MAY W10580316 Contact Us For Availability
NI
MAY W10598170 MAY W10598170 Contact Us For Availability
NI
MAY W10664316 MAY W10664316 Contact Us For Availability
NI
INSULATION, STRAP MAY 4820F015-59 Contact Us For Availability
NI
CLAMP, WIRE MAY 7111P017-60 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10575374 Contact Us For Availability
NI
INSULATION, HEAT SHIELD MAY W10655442 Contact Us For Availability
NI
INSULATION, WRAPPER MAY W10655489 Contact Us For Availability
NI
INSULATION, MAIN BACK MAY W10655490 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS KIT, CANNING U MAY 242905 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES PROTECTANT MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES KIT, COOKT MAY 31605 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES CLEANER, G MAY 31617A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS GRID, BROILER MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS RACK, BROILER MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES CLEANER, G MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES CLEANER, K MAY W10355010 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES CLEANER, S MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES WIPES, STA MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEAN MAY W10355051 Contact Us For Availability
NI
MAY W10391473 MAY W10391473 Contact Us For Availability
NI
MAY W10432019 MAY W10432019 Contact Us For Availability
NI
MAY W10432539 MAY W10432539 Contact Us For Availability
NI
MAY W10432545 MAY W10432545 Contact Us For Availability
NI
MAY W10655448 MAY W10655448 Contact Us For Availability
NI
MAY W10655449 MAY W10655449 Contact Us For Availability
NI
MAY W10655450 MAY W10655450 Contact Us For Availability
NI
MAY W10675026 MAY W10675026 Contact Us For Availability
NI
MAY W10675027 MAY W10675027 Contact Us For Availability
NI
MAY W10675028 MAY W10675028 Contact Us For Availability
NI
MAY WA906B MAY WA906B Contact Us For Availability
× ![]()
