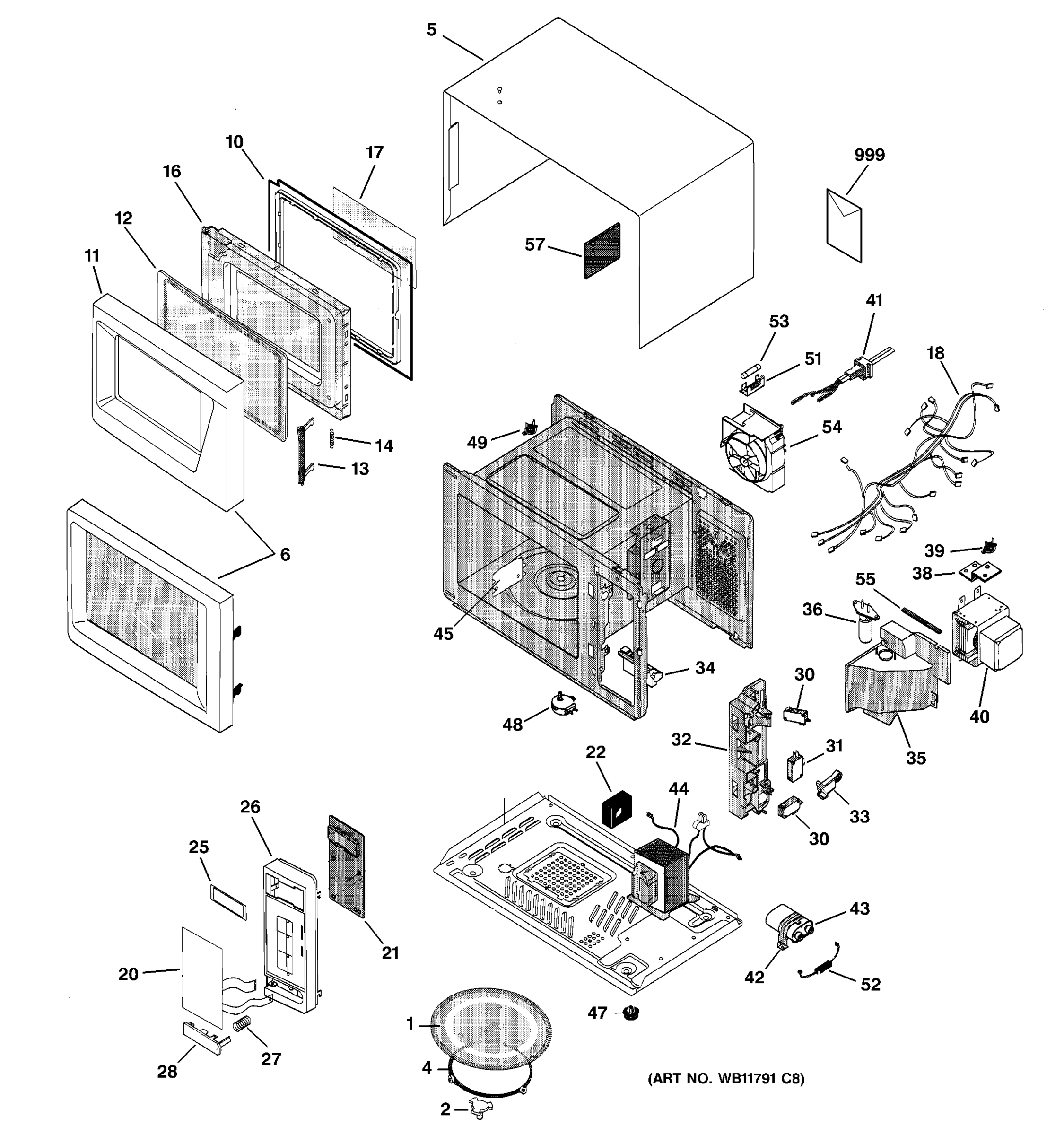

Model GE JES1231WD001 – Common Parts & Diagrams
MICROWAVE
Common parts from model GE JES1231WD001
4
GUIDE ROLLER - ASS'Y GEN WB06X10001 Contact Us For Availability
17
GEN WB06X10227 GEN WB06X10227 Contact Us For Availability
18
ASSY WIRE HARNESS-A GEN WB18X10084 Contact Us For Availability
20
GEN WB27X10366 GEN WB27X10366 Contact Us For Availability
21
GEN WB27X10367 GEN WB27X10367 Contact Us For Availability
22
GEN WB35X10002 GEN WB35X10002 Contact Us For Availability
25
GEN WB36X10153 GEN WB36X10153 Contact Us For Availability
26
GEN WB07X10359 GEN WB07X10359 Contact Us For Availability
27
SPRING - PUSH BUTTON GEN WB09X0308 Contact Us For Availability
28
GEN WB03X10093 GEN WB03X10093 Contact Us For Availability
31
SWITCH GEN WB24X10039 Contact Us For Availability
32
LATCH - BODY GEN WB06X10184 Contact Us For Availability
33
SWITCH - LEVER GEN WB06X10185 Contact Us For Availability
35
GEN WB38X10035 GEN WB38X10035 Contact Us For Availability
36
LAMP 130V GEN WB36X10057 Contact Us For Availability
38
TCO - BRACKET GEN WB02X10517 Contact Us For Availability
41
POWER CORD GEN WB18X10025 Contact Us For Availability
42
CAPACITOR BRACKET GEN WB06X10009 Contact Us For Availability
43
CAPACITOR 0.95 UF GEN WB27X10365 Contact Us For Availability
44
GEN WB27X10287 GEN WB27X10287 Contact Us For Availability
45
MAGNETRON COVER GEN WB06X10193 Contact Us For Availability
49
TCO CAVITY (FLAME SNSR) GEN WB24X0828 Contact Us For Availability
51
FUSE HOLDER GEN WB06X10050 Contact Us For Availability
54
FAN MOTOR ASS'Y GEN WB26X10054 Contact Us For Availability
55
CUSHION SPONGE GEN NCN Contact Us For Availability
57
CUSHION RUBBER GEN WB06X10049 Contact Us For Availability
999
GEN 31-20929 GEN 31-20929 Contact Us For Availability
999
GEN 49-40049 GEN 49-40049 Contact Us For Availability
× ![]()
