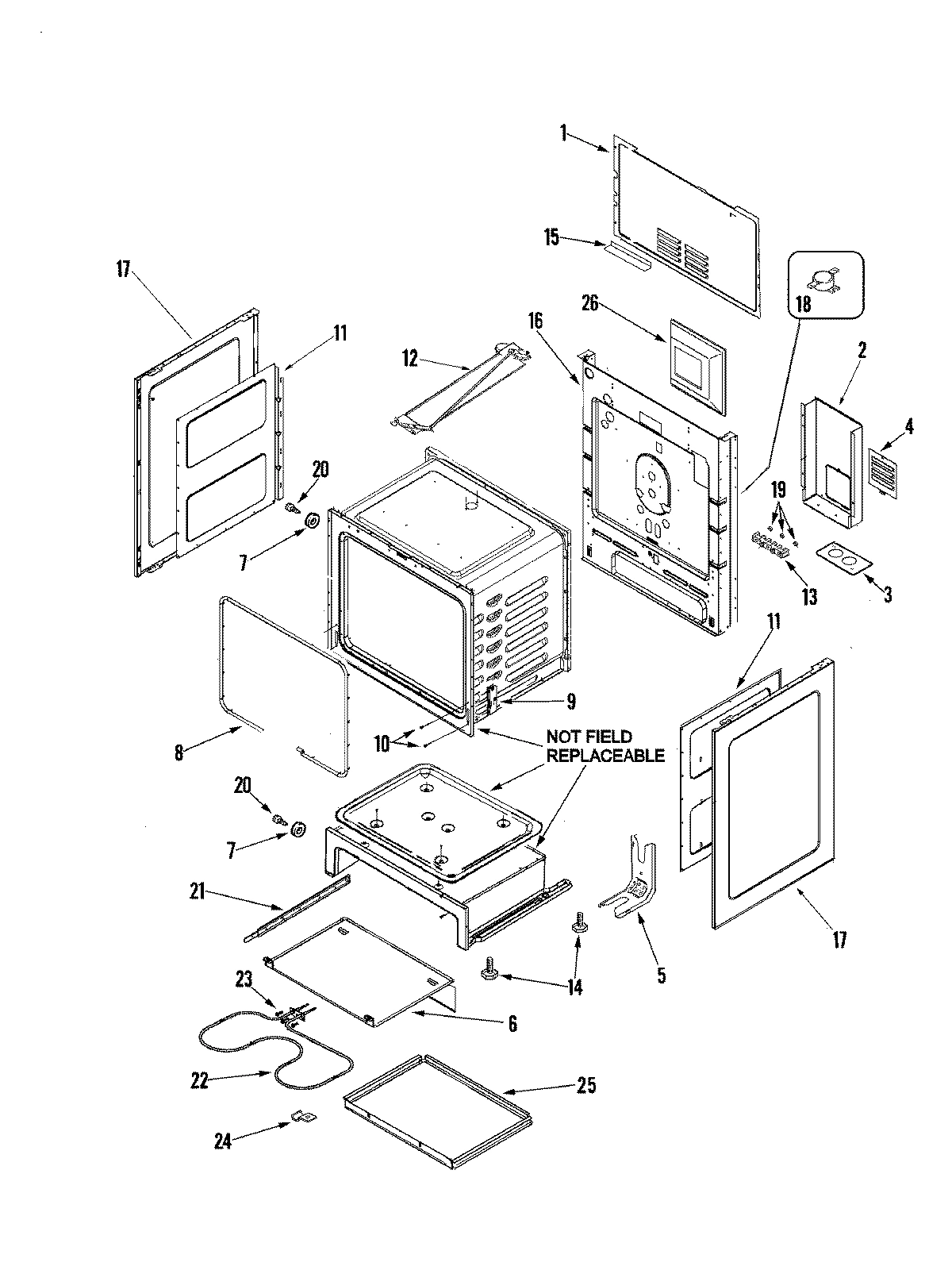

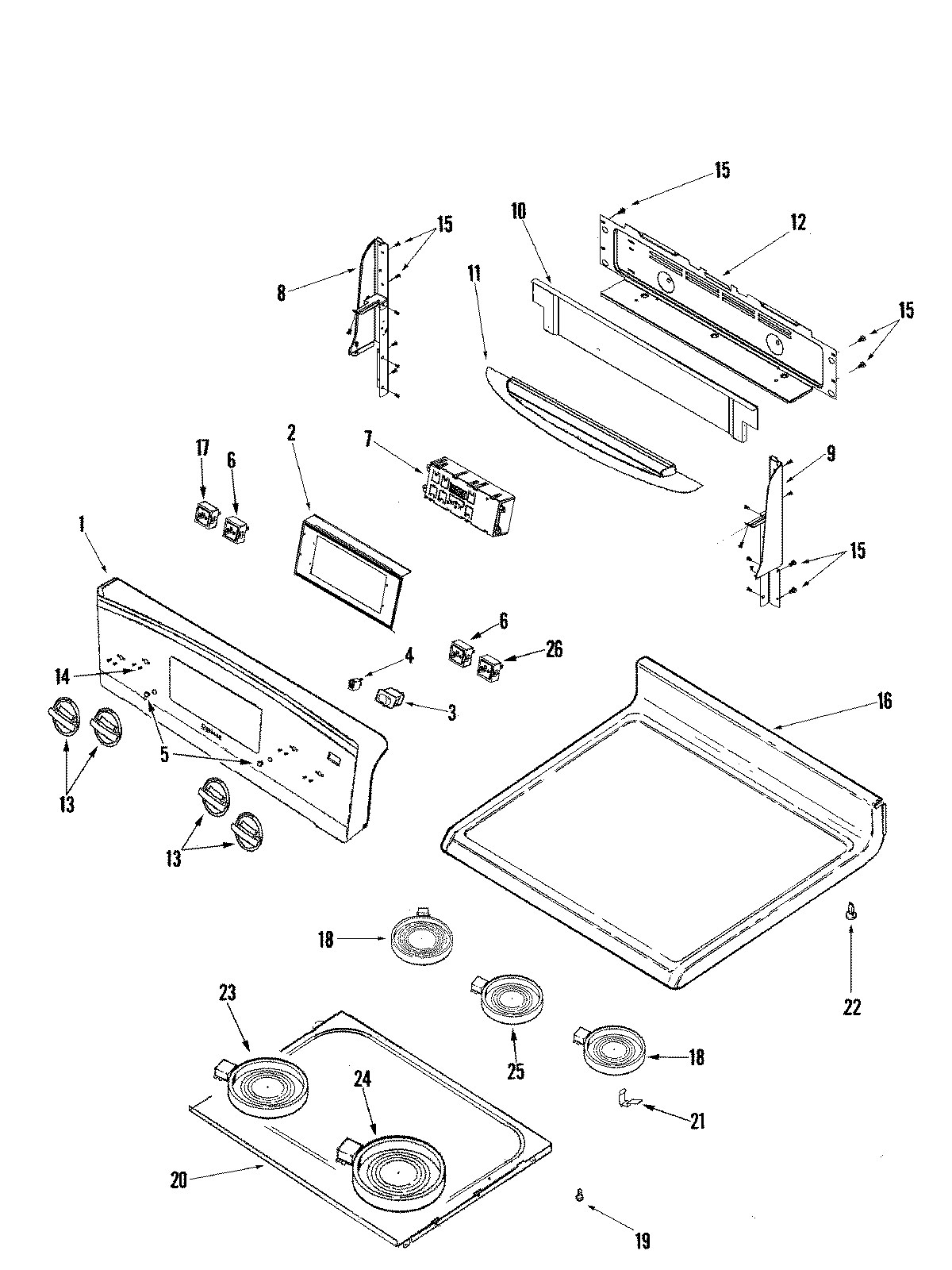

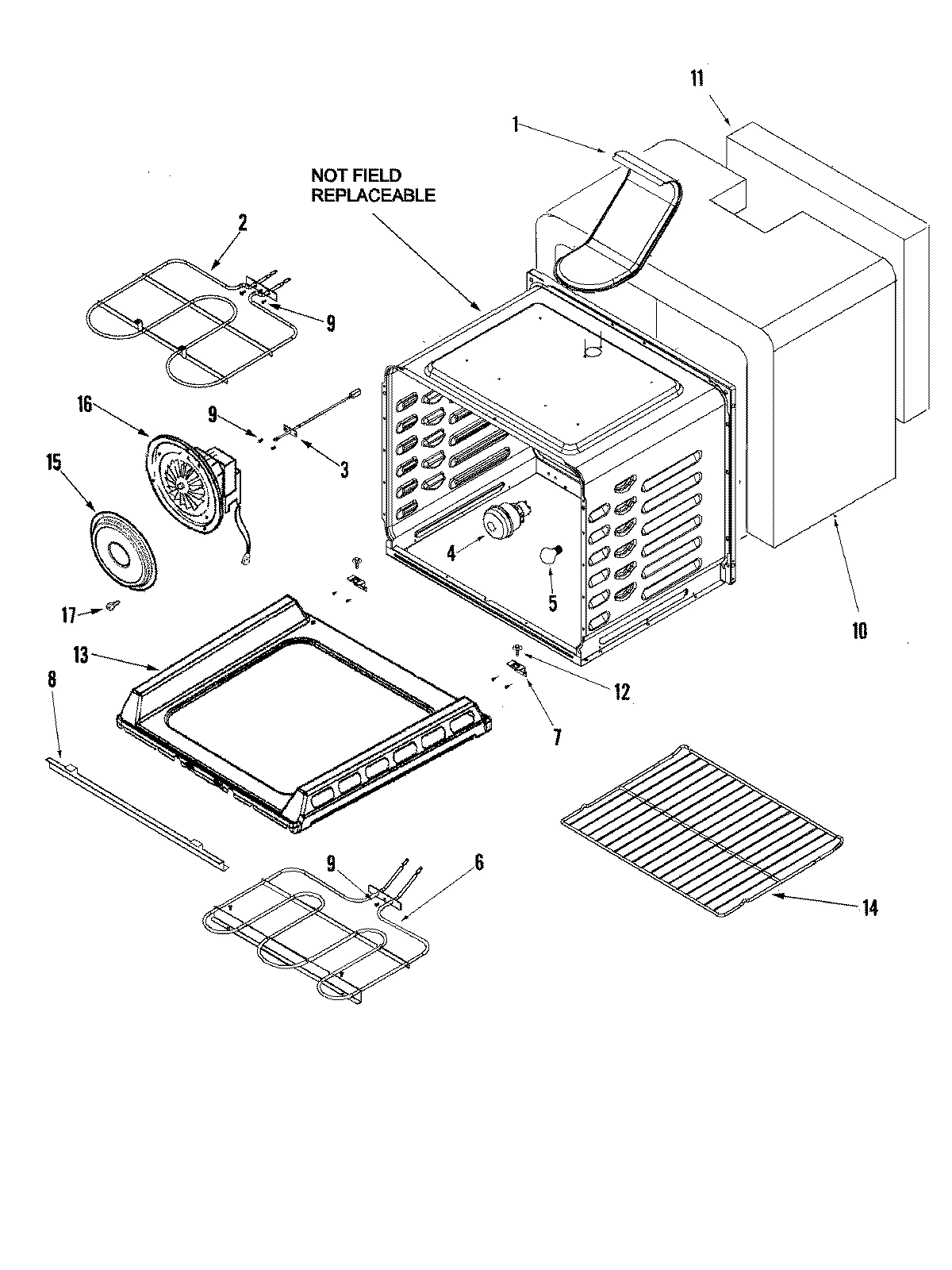

Model Whirlpool JER8885RAF ELECTRIC RANGE – Common Parts & Diagrams

1
COVER, MAIN WIRE (ELE)
COVER, MAIN WIRE (ELE) WPL 74009651 Contact Us For Availability
View on Model
1
BKGD PANEL/SWITCH ASY (WHT)
BKGD PANEL/SWITCH ASY (WHT) WPL 74011975 Contact Us For Availability
View on Model
1
VENT, OVEN
VENT, OVEN WPL 74008691 Contact Us For Availability
View on Model
2
COVER, WIRE (LWR)
COVER, WIRE (LWR) WPL 74008760 Contact Us For Availability
View on Model
2
BRACKET, CONTROL
BRACKET, CONTROL WPL 74011982 Contact Us For Availability
View on Model
3
PLATE, CONDUIT REINFORCEMENT
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
View on Model
4
PANEL, ACCESS
PANEL, ACCESS WPL 74008340 Contact Us For Availability
View on Model
4
LIGHT, INDICATOR
LIGHT, INDICATOR WPL 7407P10060 Contact Us For Availability
View on Model
4
LENS, LIGHT BULB
LENS, LIGHT BULB WPL 74011299 Contact Us For Availability
View on Model
5
SCREW
SCREW WPL 7101P35260 Contact Us For Availability
View on Model
5
LENS, INDICATOR LIGHT
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
View on Model
5
BULB-OVEN
BULB-OVEN WPL 7407P10360 Contact Us For Availability
View on Model
6
SHIELD, WARMING DRAWER (UPR)
SHIELD, WARMING DRAWER (UPR) WPL 74009595 Contact Us For Availability
View on Model
6
SWITCH, INFINITE (SML ELEMENT)
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
View on Model
7
CONTROL, BURNER (CUSTOM)
CONTROL, BURNER (CUSTOM) WPL W10185287 Contact Us For Availability
View on Model
7
TRIM, SIDE (WHT)
TRIM, SIDE (WHT) WPL 74010561 Contact Us For Availability
View on Model
7
CONTROL
CONTROL WPL 74011983 Contact Us For Availability
View on Model
7
SUPPORT, OVEN BOTTOM (REAR)
SUPPORT, OVEN BOTTOM (REAR) WPL 74008694 Contact Us For Availability
View on Model
8
TAPE, DBL SIDED (WHT)
TAPE, DBL SIDED (WHT) WPL 74009014 Contact Us For Availability
View on Model
8
END CAP (RT-WHT)
END CAP (RT-WHT) WPL 74009077 Contact Us For Availability
View on Model
8
SUPPORT, OVEN BOTTOM (FRONT)
SUPPORT, OVEN BOTTOM (FRONT) WPL 74008695 Contact Us For Availability
View on Model
9
GLASS, DOOR (WHT)
GLASS, DOOR (WHT) WPL 74008684 Contact Us For Availability
View on Model
9
END CAP (LT-WHT)
END CAP (LT-WHT) WPL 74009079 Contact Us For Availability
View on Model
10
HANDLE, DOOR
HANDLE, DOOR WPL 74008920 Contact Us For Availability
View on Model
10
SCREW
SCREW WPL 7101P11260 Contact Us For Availability
View on Model
10
SHIELD, VENT
SHIELD, VENT WPL 74009444 Contact Us For Availability
View on Model
10
INSULATION, WRAPPER
INSULATION, WRAPPER WPL 74008700 Contact Us For Availability
View on Model
11
SCREW (1/2``-WHT)
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
View on Model
11
TRIM, TOP (WHT)
TRIM, TOP (WHT) WPL 74008747 Contact Us For Availability
View on Model
11
RETAINER, SIDE
RETAINER, SIDE WPL 3804F31651 Contact Us For Availability
View on Model
11
INSULATION, SIDE PANEL
INSULATION, SIDE PANEL WPL 7002P49460 Contact Us For Availability
View on Model
11
RETAINER, SIDE
RETAINER, SIDE WPL 74008701 Contact Us For Availability
View on Model
11
SHIELD, HEAT VISOR (WHT)
SHIELD, HEAT VISOR (WHT) WPL 74009203 Contact Us For Availability
View on Model
11
INSULATION, BACK
INSULATION, BACK WPL 74008698 Contact Us For Availability
View on Model
12
LATCH, DOOR LOCK
LATCH, DOOR LOCK WPL 74011896 Contact Us For Availability
View on Model
12
Latch, Door Lock
Latch, Door Lock WPL 8002P10460 Contact Us For Availability
View on Model
12
COVER, REAR WIRE
COVER, REAR WIRE WPL 74010983 Contact Us For Availability
View on Model
13
BRACKET, DOOR HANDLE (LT)
BRACKET, DOOR HANDLE (LT) WPL 74009412 Contact Us For Availability
View on Model
13
BRACKET, DOOR HANDLE (RT)
BRACKET, DOOR HANDLE (RT) WPL 74009413 Contact Us For Availability
View on Model
13
BLOCK, TERMINAL
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
View on Model
14
TAPE, SINGLE SIDED (WHT)
TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability
View on Model
14
SCREW
SCREW WPL 7101P30960 Contact Us For Availability
View on Model
15
BOTTOM, WIRE COVER
BOTTOM, WIRE COVER WPL 74008762 Contact Us For Availability
View on Model
15
COVER, CONVECT
COVER, CONVECT WPL 74005783 Contact Us For Availability
View on Model
16
SCREW (10-24X5/16-NI)
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
View on Model
16
BACK, MAIN
BACK, MAIN WPL 74011911 Contact Us For Availability
View on Model
16
TOP ASSEMBLY (FR WHT)
TOP ASSEMBLY (FR WHT) WPL 74011972 Contact Us For Availability
View on Model
16
FAN, CONVECTION ASY.
FAN, CONVECTION ASY. WPL 74009165 Contact Us For Availability
View on Model
17
SCREW
SCREW WPL 74004208 Contact Us For Availability
View on Model
17
PANEL, SIDE (WHT)
PANEL, SIDE (WHT) WPL 74008709 Contact Us For Availability
View on Model
17
SCREW
SCREW WPL 74005401 Contact Us For Availability
View on Model
18
SCREW
SCREW WPL 7101P07260 Contact Us For Availability
View on Model
19
NUT, LOCK
NUT, LOCK WPL 7103P13960 Contact Us For Availability
View on Model
19
NUT, TERMINAL BLOCK
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
View on Model
19
SCREW (ZINC)
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
View on Model
20
SCREW W/SHOULDER (No.8)
SCREW W/SHOULDER (No.8) WPL 74008798 Contact Us For Availability
View on Model
20
DRAWER, WARMING ASSY.
DRAWER, WARMING ASSY. WPL 74008339 Contact Us For Availability
View on Model
20
BOTTOM, BURNER BOX
BOTTOM, BURNER BOX WPL 74008900 Contact Us For Availability
View on Model
21
PANEL, DRAWER (WHT)
PANEL, DRAWER (WHT) WPL W10163040 Contact Us For Availability
View on Model
21
PANEL, DRAWER (WHT)
PANEL, DRAWER (WHT) WPL 74008755 Contact Us For Availability
View on Model
21
GLIDE, DRAWER (WARMING DRAWER)
GLIDE, DRAWER (WARMING DRAWER) WPL 74008881 Contact Us For Availability
View on Model
22
ELEMENT, WARMING DRAWER
ELEMENT, WARMING DRAWER WPL 74008883 Contact Us For Availability
View on Model
23
SCREW
SCREW WPL 7101P14760 Contact Us For Availability
View on Model
24
CLIP, WARMING ELEMENT
CLIP, WARMING ELEMENT WPL 74006592 Contact Us For Availability
View on Model
25
SHEILD, WARMING DRAWER (LWR)
SHEILD, WARMING DRAWER (LWR) WPL 74011024 Contact Us For Availability
View on Model
25
ELEMENT, WARMING
ELEMENT, WARMING WPL 74008898 Contact Us For Availability
View on Model
26
CONTROL, BURNER (CUSTOM)
CONTROL, BURNER (CUSTOM) WPL 74011595 Contact Us For Availability
View on Model
