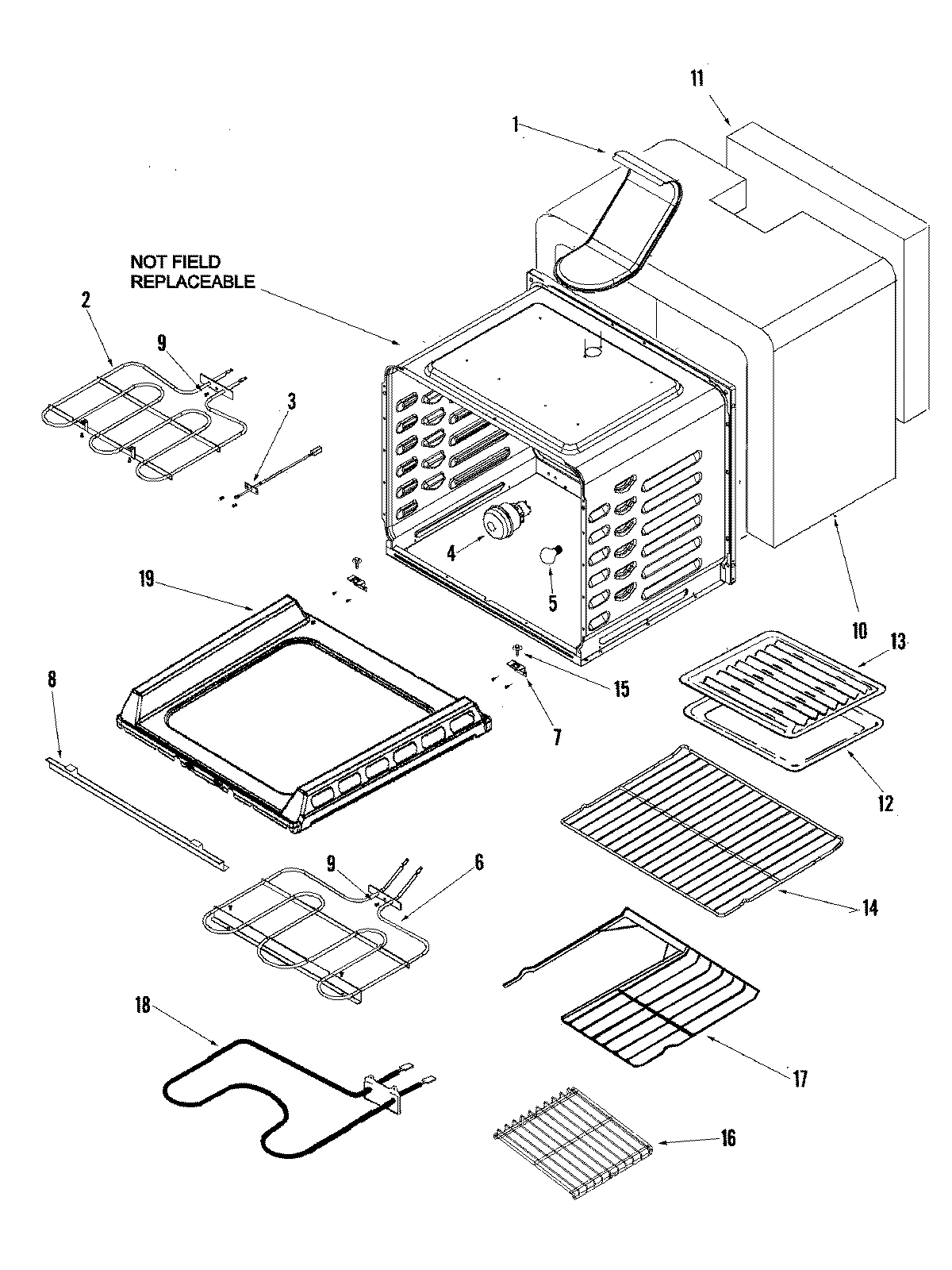

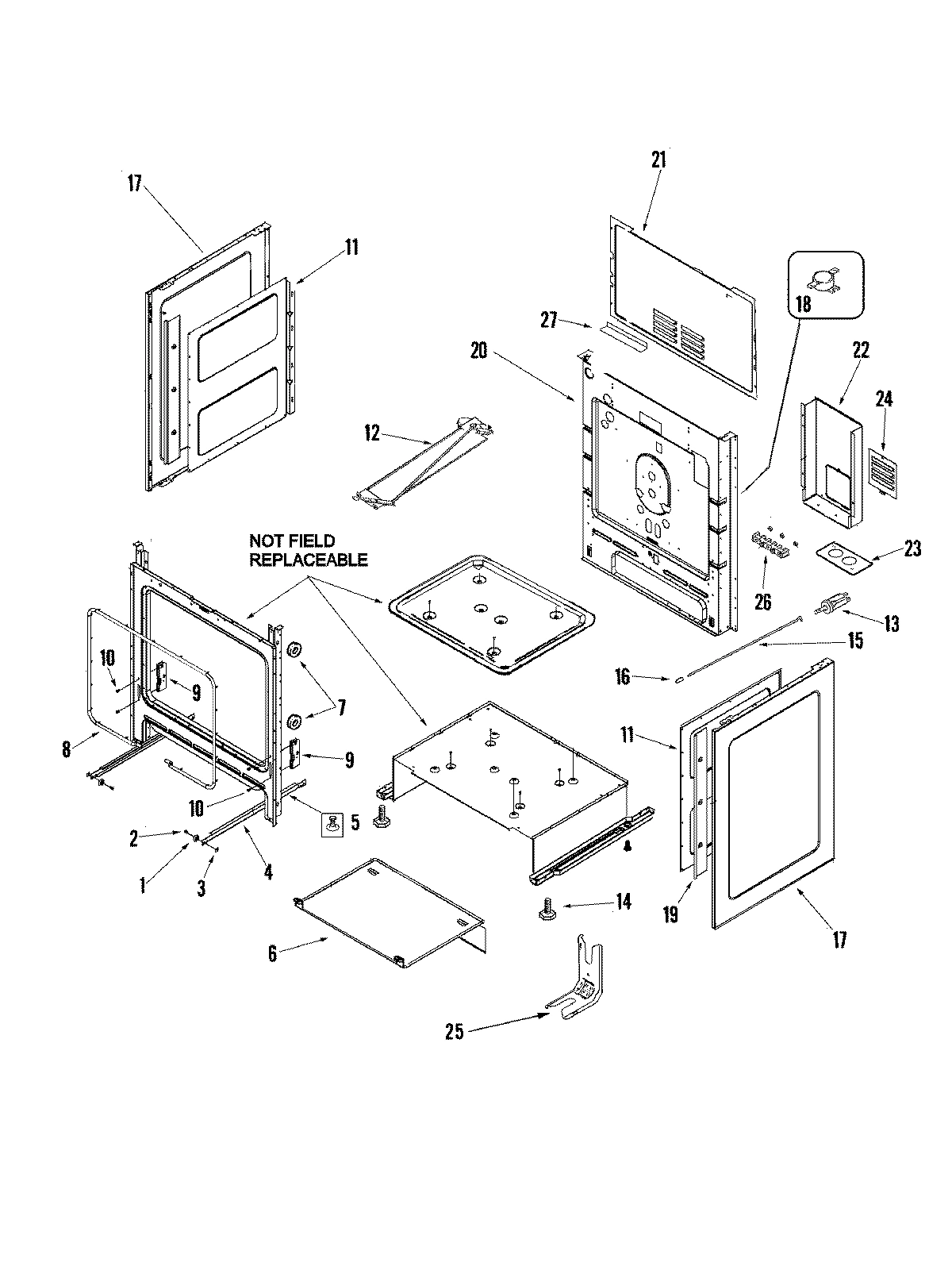

Model Maytag JER8785QAS ELECTRIC RANGE – Common Parts &amp; Diagrams

1

MAY 74008691 MAY 74008691 Contact Us For Availability

1

MAY 74008675 MAY 74008675 Contact Us For Availability

1

MAY 74008926 MAY 74008926 Contact Us For Availability

1

MAY 8113P399-60 MAY 8113P399-60 Contact Us For Availability

2

74010546 Whirlpool Range Oven Door Hinge In Stock WPL 74010546 $46.72

2

WP74008692 Whirlpool Bake Element Backorder WPL WP74008692 $69.00

2

SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability

2

MAY 74008716 MAY 74008716 Contact Us For Availability

2

MAY 74008893 MAY 74008893 Contact Us For Availability

3

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.43

3

74005230 Whirlpool Oven Lock Nut (8-32) Backorder WPL 74005230 $9.59

3

SWITCH, ROCKER (BLK) MAY 74008718 Contact Us For Availability

3

FRAME, GLASS MAY 74003644 Contact Us For Availability

3

MAY 74008894 MAY 74008894 Contact Us For Availability

4

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $86.34

4

WP74004153 Whirlpool Indicator Light In Stock WPL WP74004153 $3.70

4

WP74011278 Whirlpool Light Backorder WPL WP74011278 $62.45

4

WP903115 Whirlpool Dishwasher Indicator Light Backorder WPL WP903115 $3.70

4

MAY 71001867 MAY 71001867 Contact Us For Availability

4

MAY 74008899 MAY 74008899 Contact Us For Availability

5

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

5

WP7730P011-60 Whirlpool Indicator Lens Backorder WPL WP7730P011-60 $2.85

5

INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability

5

MAY 74008915 MAY 74008915 Contact Us For Availability

6

WP74003122 Whirlpool Infinite Switch Assembly In Stock WPL WP74003122 $45.24

6

WP7403P238-60 Whirlpool Infinite Switch Small In Stock WPL WP7403P238-60 $24.38

6

WPW10276482 Whirlpool Bake Element In Stock WPL WPW10276482 $101.81

6

MAY 74008744 MAY 74008744 Contact Us For Availability

7

SUPPORT, OVEN BOTTOM (REAR) MAY 74008694 Contact Us For Availability

7

MAY 74009163 MAY 74009163 Contact Us For Availability

7

RETAINER, DOOR GLASS (LWR) MAY 74008745 Contact Us For Availability

8

SUPPORT, OVEN BOTTOM (FRONT) MAY 74008695 Contact Us For Availability

8

END CAP (RT-BLK) MAY 74009022 Contact Us For Availability

8

GLASS, DOOR MAY 74003649 Contact Us For Availability

9

END CAP (LT-BLK) MAY 74009023 Contact Us For Availability

9

MAY 74008746 MAY 74008746 Contact Us For Availability

INSULATION, WRAPPER MAY 74008700 Contact Us For Availability

MAY 74008725 MAY 74008725 Contact Us For Availability

MAY 74009205 MAY 74009205 Contact Us For Availability

MAY 74008920 MAY 74008920 Contact Us For Availability

MAY 74008698 MAY 74008698 Contact Us For Availability

MAY 74008891 MAY 74008891 Contact Us For Availability

SHIELD, HEAT VISOR (BLK) MAY 74009202 Contact Us For Availability

MAY 74008923 MAY 74008923 Contact Us For Availability

MAY 74008702 MAY 74008702 Contact Us For Availability

MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability

MAY 74008730 MAY 74008730 Contact Us For Availability

MAY 74008836 MAY 74008836 Contact Us For Availability

MAY 74008917 MAY 74008917 Contact Us For Availability

74008703 Whirlpool Door Switch Backorder WPL 74008703 $51.75

WP74008921 Whirlpool Knob In Stock WPL WP74008921 $10.25

MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability

MAY 715634 MAY 715634 Contact Us For Availability

74008835 Whirlpool Clip Retainer Backorder WPL 74008835 $4.85

WP7101P309-60 Whirlpool Screw In Stock WPL WP7101P309-60 $2.51

WP74008763 Whirlpool Oven Rack Backorder WPL WP74008763 $100.58

MAY 74009027 MAY 74009027 Contact Us For Availability

15

74008916 Whirlpool Window Gasket Backorder WPL 74008916 $52.25

15

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.51

16

INSERT, HALF RACK 30`` MAY 74008473 Contact Us For Availability

16

MAY 74008553 MAY 74008553 Contact Us For Availability

16

SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability

17

MAY 74008924 MAY 74008924 Contact Us For Availability

17

MAY 74006589 MAY 74006589 Contact Us For Availability

17

MAY 74009028 MAY 74009028 Contact Us For Availability

74008715 Whirlpool Thermal Limiter Switch Backorder WPL 74008715 $73.36

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $100.91

SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability

MAY 74006592 MAY 74006592 Contact Us For Availability

MAY 74008883 MAY 74008883 Contact Us For Availability

MAY 74008925 MAY 74008925 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP7103P027-60 Whirlpool Nut In Stock WPL WP7103P027-60 $2.51

WPW10211368 Whirlpool Oven Bottom Backorder WPL WPW10211368 $169.56

MAY 71001394 MAY 71001394 Contact Us For Availability

MAY 74008339 MAY 74008339 Contact Us For Availability

20

MAY 74008900 MAY 74008900 Contact Us For Availability

20

MAY 74008909 MAY 74008909 Contact Us For Availability

21

12002306 Whirlpool Air Conditioner Drawer Pan Backorder WPL 12002306 $127.75

21

SPRING, ELEMENT SUPPORT MAY Y04100418 Contact Us For Availability

21

MAY 74008912 MAY 74008912 Contact Us For Availability

22

74008761 Whirlpool Spacer Snap-In Backorder WPL 74008761 $5.71

23

W10823692 Whirlpool Dual Radiant Element In Stock WPL W10823692 $117.46

24

W10823713 Whirlpool Surface Element In Stock WPL W10823713 $110.40

25

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.02

25

WP7101P485-60 Whirlpool Anchor Tip Backorder WPL WP7101P485-60 $13.62

25

MAY 74008898 MAY 74008898 Contact Us For Availability

26

WPW10245259 Whirlpool Terminal Block In Stock WPL WPW10245259 $13.45

27

BOTTOM, WIRE COVER MAY 74008762 Contact Us For Availability

NI

MAY 15003697 MAY 15003697 Contact Us For Availability
