Model Whirlpool JED4430KS01 COOKTOP, RADIANT, DOWNDRAFT, 30 INCH – Common Parts & Diagrams

Common parts from model Whirlpool JED4430KS01 COOKTOP, RADIANT, DOWNDRAFT, 30 INCH

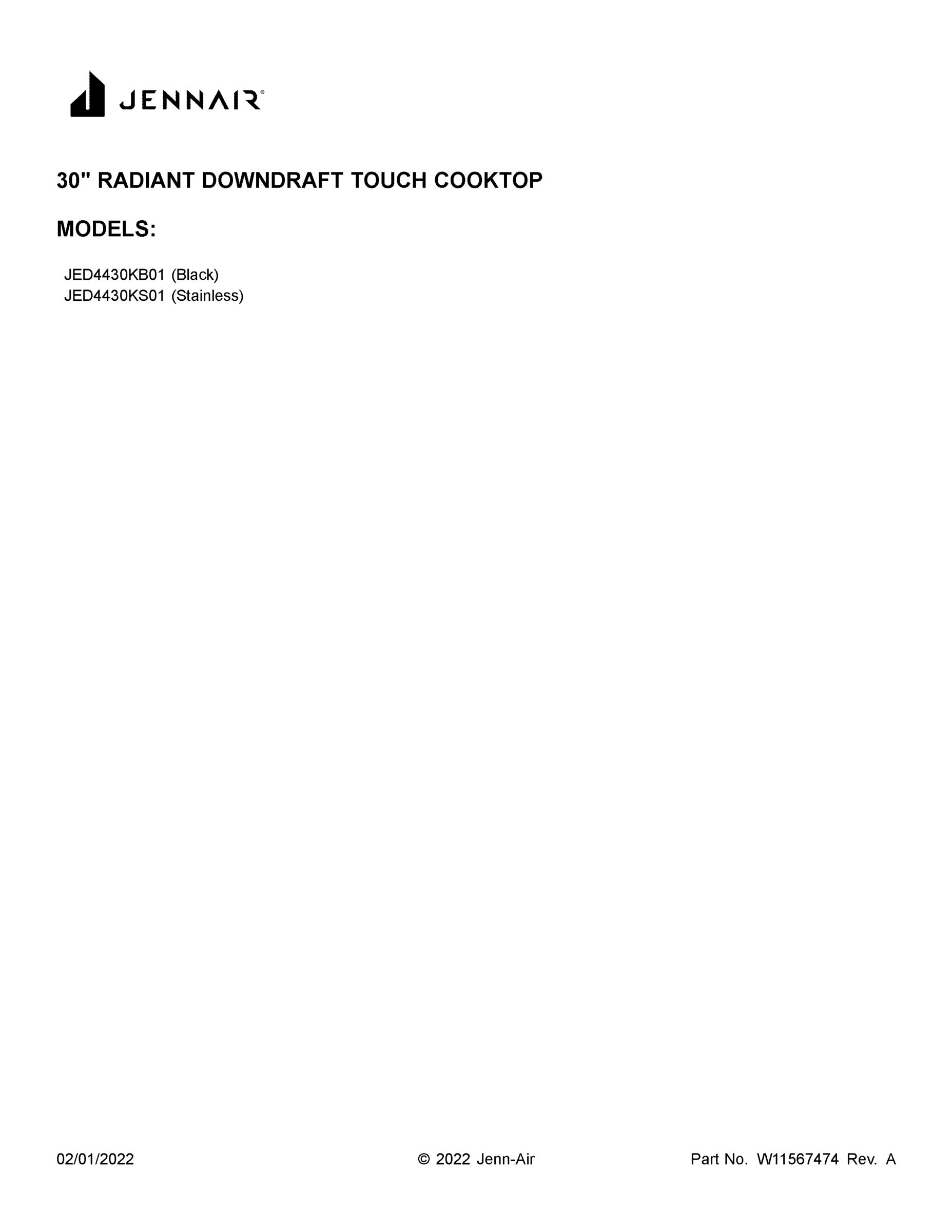

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

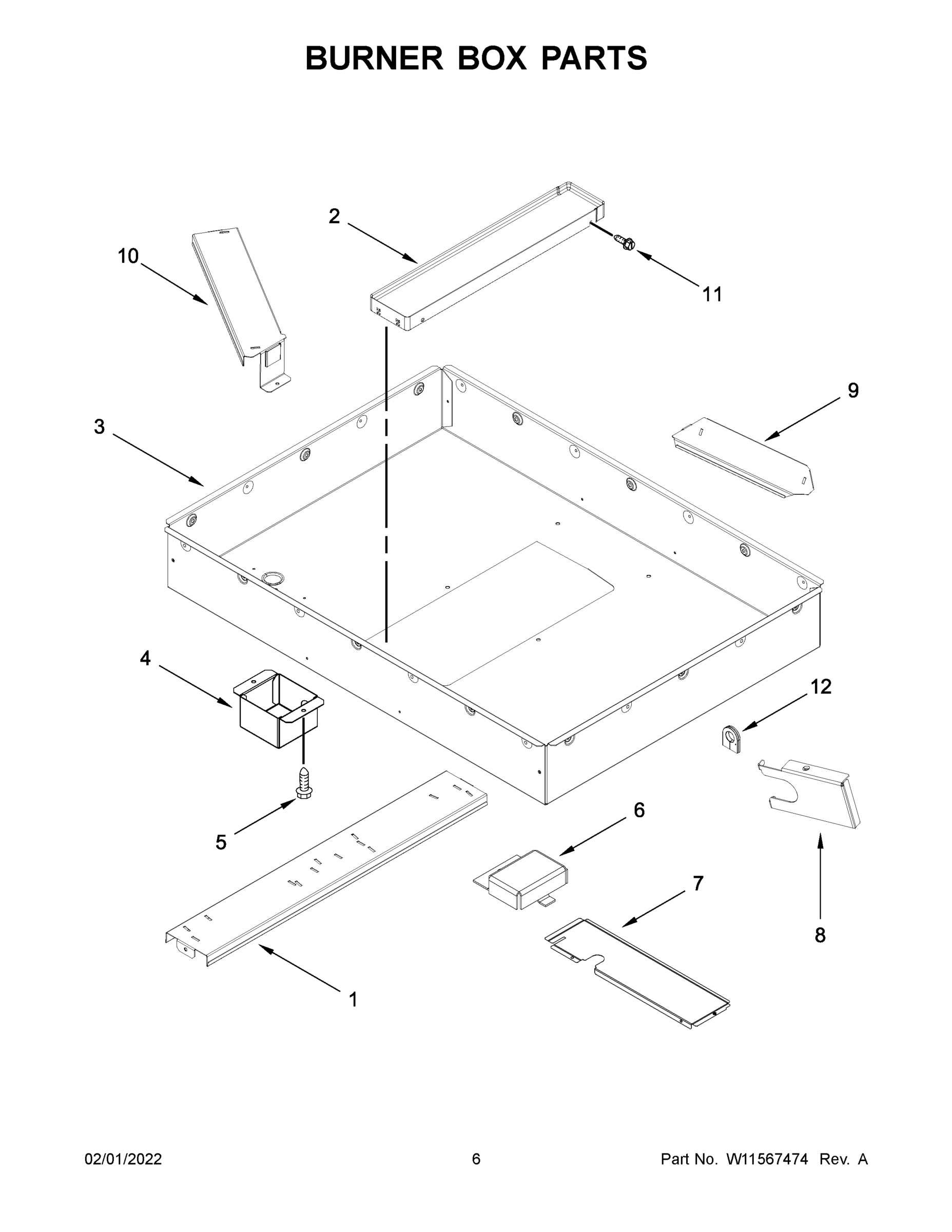

1

RAIL-MTG Backorder WPL W10815392 View Details $28.26

View on Model

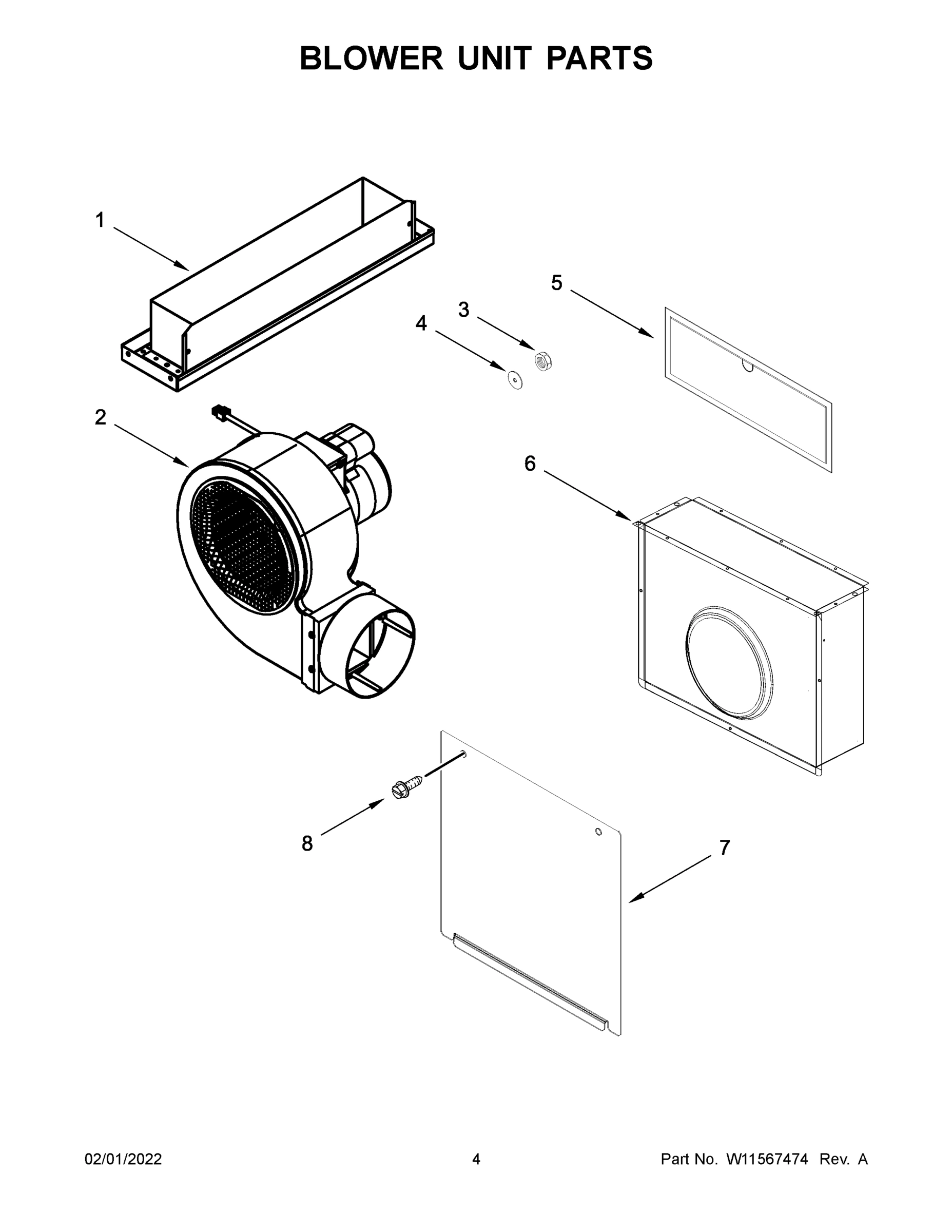

1

W10872755 Whirlpool Air Plenum Backorder WPL W10872755 View Details $89.07

View on Model

2

W10235990 Whirlpool Drip Tray Backorder WPL W10235990 View Details $41.83

View on Model

2

W11083804 Whirlpool Blower Motor Backorder WPL W11083804 View Details $266.11

View on Model

3

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

View on Model

3

NUT, LOCK WPL 7103P16260 Contact Us For Availability

View on Model

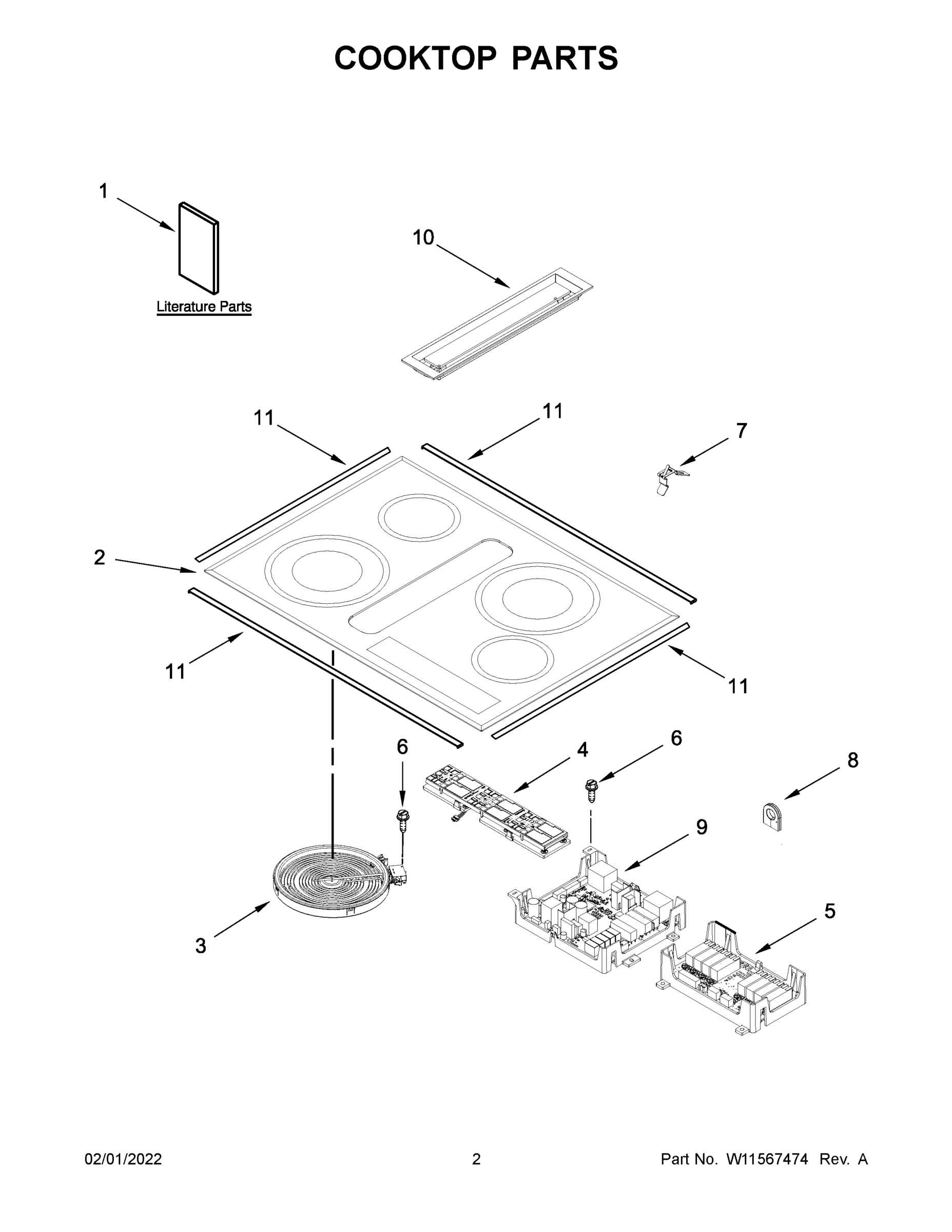

3A

WPW10342780 Whirlpool Surface Element In Stock WPL WPW10342780 View Details $97.83

View on Model

3B

W11171119 Whirlpool Radiant Surface Element In Stock WPL W11171119 View Details $89.69

View on Model

4

W10258697 Whirlpool Wire Cover Backorder WPL W10258697 View Details $33.54

View on Model

4

WASHER WPL 7109P08660 Contact Us For Availability

View on Model

5

W10905834 Whirlpool Cooktop Downdraft Vent Gr In Stock WPL W10905834 View Details $15.10

View on Model

5

SCREW WPL 7101P42660 Contact Us For Availability

View on Model

6

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 View Details $33.75

View on Model

6

W10837738 Whirlpool Air Plenum Assembly Backorder WPL W10837738 View Details $102.50

View on Model

7

W10837737 Whirlpool Access Cover Backorder WPL W10837737 View Details $30.49

View on Model

7

WPW10225448 Whirlpool Spring Assembly In Stock WPL WPW10225448 View Details $5.20

View on Model

7

SHIELD, HEAT WPL W10842296 Contact Us For Availability

View on Model

8

SHIELD, SIDE HEAT WPL W10874833 Contact Us For Availability

View on Model

9

RAIL-MTG Backorder WPL W10858345 View Details $28.26

View on Model

9

W11556188-includeCORE Whirlpool W11556188 Ref Backorder WPL W11556188-includeCORE View Details $190.26

View on Model

10

RAIL-MTG Backorder WPL W10858346 View Details $34.48

View on Model

10

W11476087 Whirlpool Grille Backorder WPL W11476087 View Details $191.49

View on Model

11

W11091955 Whirlpool Cooktop Trim Assembly Backorder WPL W11091955 View Details $172.70

View on Model

11

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 View Details $2.51

View on Model

12

GROMMET Backorder WPL W10324729 View Details $5.71

View on Model

NI

W10491984 Whirlpool Switch Seal Backorder WPL W10491984 View Details $5.00

View on Model

NI

W10909126 Whirlpool Screw Backorder WPL W10909126 View Details $14.27

View on Model

NI

WP8286642 Whirlpool Tape Backorder WPL WP8286642 View Details $57.05

View on Model

NI

ACCESSORY PARTS, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability

View on Model

NI

SCREW, GROUNDING WPL 7101P46060 Contact Us For Availability

View on Model

NI

HARNESS, COOKTOP ELEMENT WPL W11190486 Contact Us For Availability

View on Model

NI

HARNESS, MAIN WPL W11190487 Contact Us For Availability
