Model Maytag JED3536GS00 COOKTOP, ELECTRIC, DOWNDRAFT – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

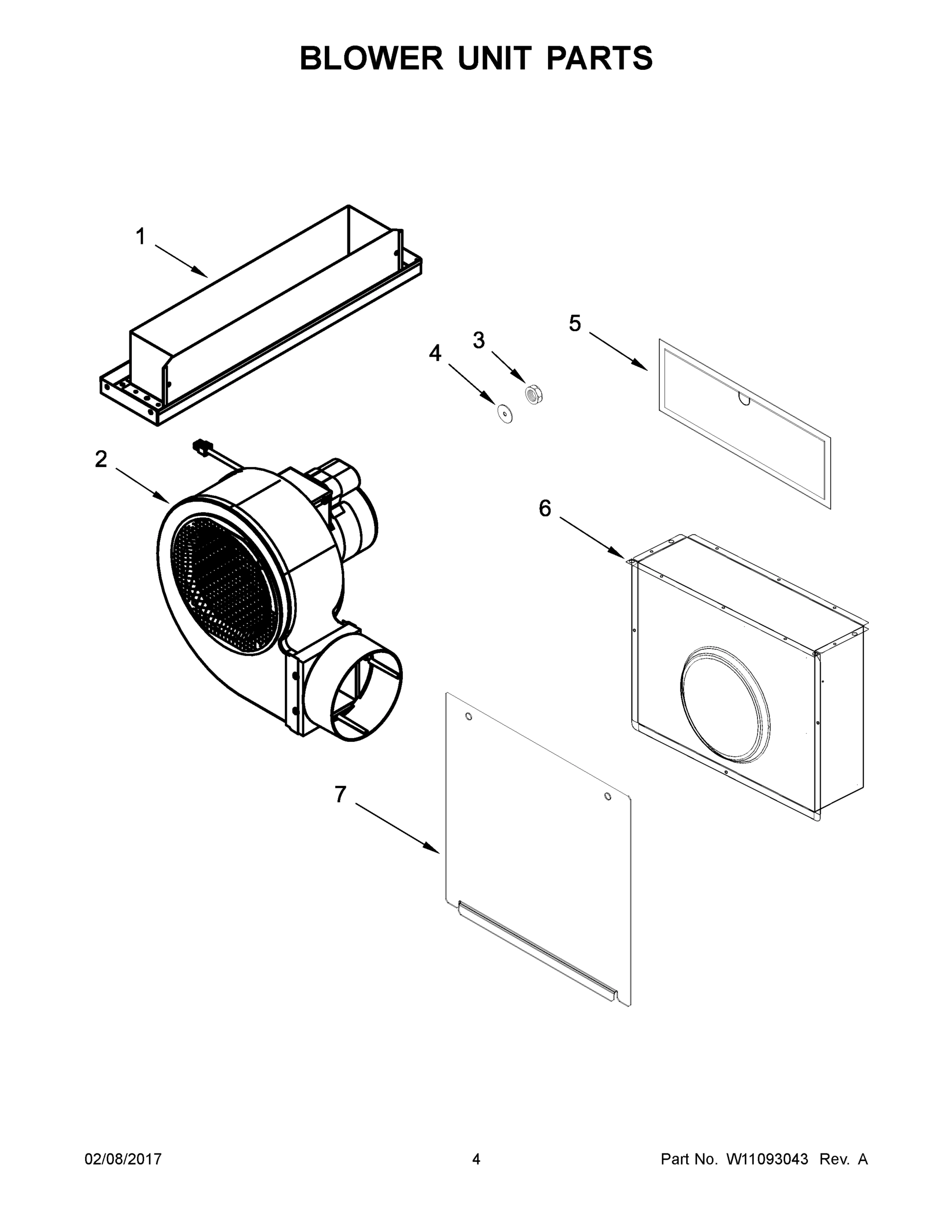

03 - BLOWER UNIT PARTS

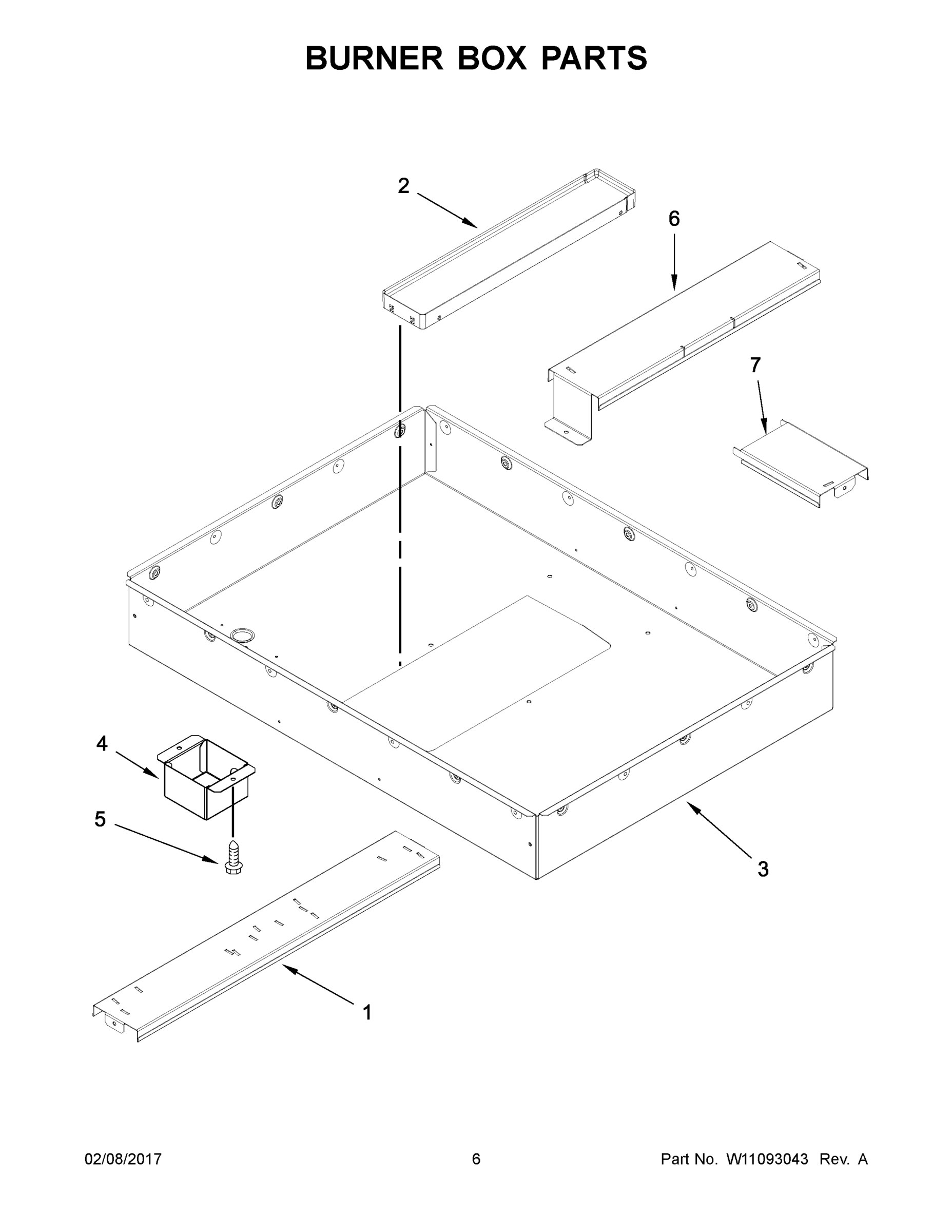

04 - BURNER BOX PARTS
05 - OPTIONAL PARTS
Common parts from model Maytag JED3536GS00 COOKTOP, ELECTRIC, DOWNDRAFT
1
INSTRUCTIONS, INSTALLATION MAY W10848428 Contact Us For Availability
1
ASSEMBLY, TOP PLENUM MAY W10872755 Contact Us For Availability
1
RAIL, STRAIGHT MAY W10815392 Contact Us For Availability
1A
INSTRUCTIONS, USER MAY W10848426 Contact Us For Availability
1B
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1C
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1D
MAY W10917816 MAY W10917816 Contact Us For Availability
1E
MAY W11026767 MAY W11026767 Contact Us For Availability
2
MAY W10795400 MAY W10795400 Contact Us For Availability
2
ASSEMBLY, BLOWER MAY W10877782 Contact Us For Availability
2
TRAY, SPILL MAY W10235990 Contact Us For Availability
2A
MAY W10908405 MAY W10908405 Contact Us For Availability
3
BOX, BURNER (NOT SERVICED) MAY N/P Contact Us For Availability
3
NUT, LOCK MAY 7103P162-60 Contact Us For Availability
4
ELEMENT (1300W) (LEFT FRONT) MAY W10342780 Contact Us For Availability
4
WASHER MAY 7109P086-60 Contact Us For Availability
4
COVER, BLOWER MOTOR HARNESS MAY W10258697 Contact Us For Availability
4A
ELEMENT (1800W) (LEFT REAR) MAY 8273993 Contact Us For Availability
4B
ELEMENT (3200W) (CENTER FRONT) MAY W10251108 Contact Us For Availability
4C
ELEMENT (1200W) (CENTER REAR) MAY 8273994 Contact Us For Availability
4D
ELEMENT (3000W) (RIGHT REAR) MAY W10187839 Contact Us For Availability
5
MAY W10836025 MAY W10836025 Contact Us For Availability
5
SCREW MAY 7101P426-60 Contact Us For Availability
5
FILTER, GREASE MAY W10815866 Contact Us For Availability
6
ASSEMBLY, LOWER PLENUM MAY W10837738 Contact Us For Availability
6
MAY W10815650 MAY W10815650 Contact Us For Availability
7
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
7
PANEL, LOWER PLENUM ACCESS MAY W10837737 Contact Us For Availability
7
MAY W10872311 MAY W10872311 Contact Us For Availability
8
GROMMET, WIRE (LARGE HOLE) MAY W10324729 Contact Us For Availability
9
KNOB, CONTROL (BLACK) MAY W10559480 Contact Us For Availability
9A
KNOB, CONTROL (STAINLESS) MAY W10559479 Contact Us For Availability
10
MAY W10834481 MAY W10834481 Contact Us For Availability
11
SWITCH, INFINITE (LEFT FRONT & CENTER FRONT) MAY W10437094 Contact Us For Availability
11A
SWITCH, INFINITE (LEFT REAR) MAY W10843843 Contact Us For Availability
11B
SWITCH, INFINITE (CENTER REAR) MAY W10578768 Contact Us For Availability
11C
SWITCH, INFINITE (RIGHT REAR) MAY W10437097 Contact Us For Availability
12
SWITCH, BLOWER MAY W10866567 Contact Us For Availability
13
GRILLE, AIR (BLACK) MAY W10844354 Contact Us For Availability
14
SCREW MAY 7101P427-60 Contact Us For Availability
15
GROMMET, WIRE (SMALL HOLE) MAY 8008P068-60 Contact Us For Availability
16
SEAL, SWITCH COVER MAY 3183956 Contact Us For Availability
17
GROMMET, KNOB (BLACK) MAY W10559484 Contact Us For Availability
17A
GROMMET, KNOB (STAINLESS) MAY W10559483 Contact Us For Availability
NI
SEAL, LIMITER MAY 3192439 Contact Us For Availability
NI
MAY W10563221 MAY W10563221 Contact Us For Availability
NI
HARNESS, BLOWER MAY W10835283 Contact Us For Availability
NI
HARNESS, JUMPER MAY W10858227 Contact Us For Availability
NI
MAY W10880354 MAY W10880354 Contact Us For Availability
NI
KIT, PLENUM SCREW MAY W10909126 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
× ![]()
