Model GE JDS26BW1WH Electric Range – Common Parts & Diagrams
BODY PARTS
CONTROL PANEL

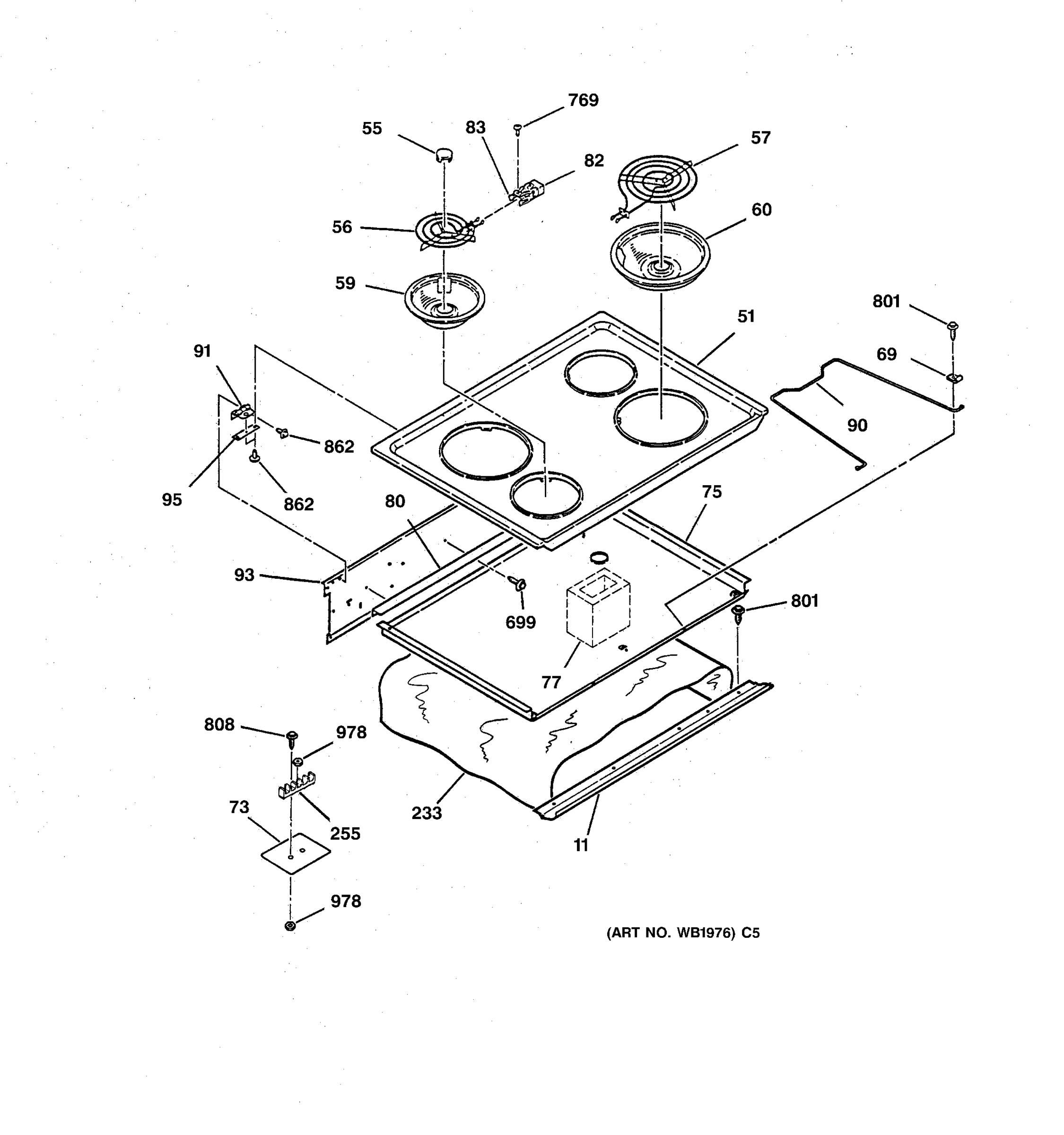

COOKTOP

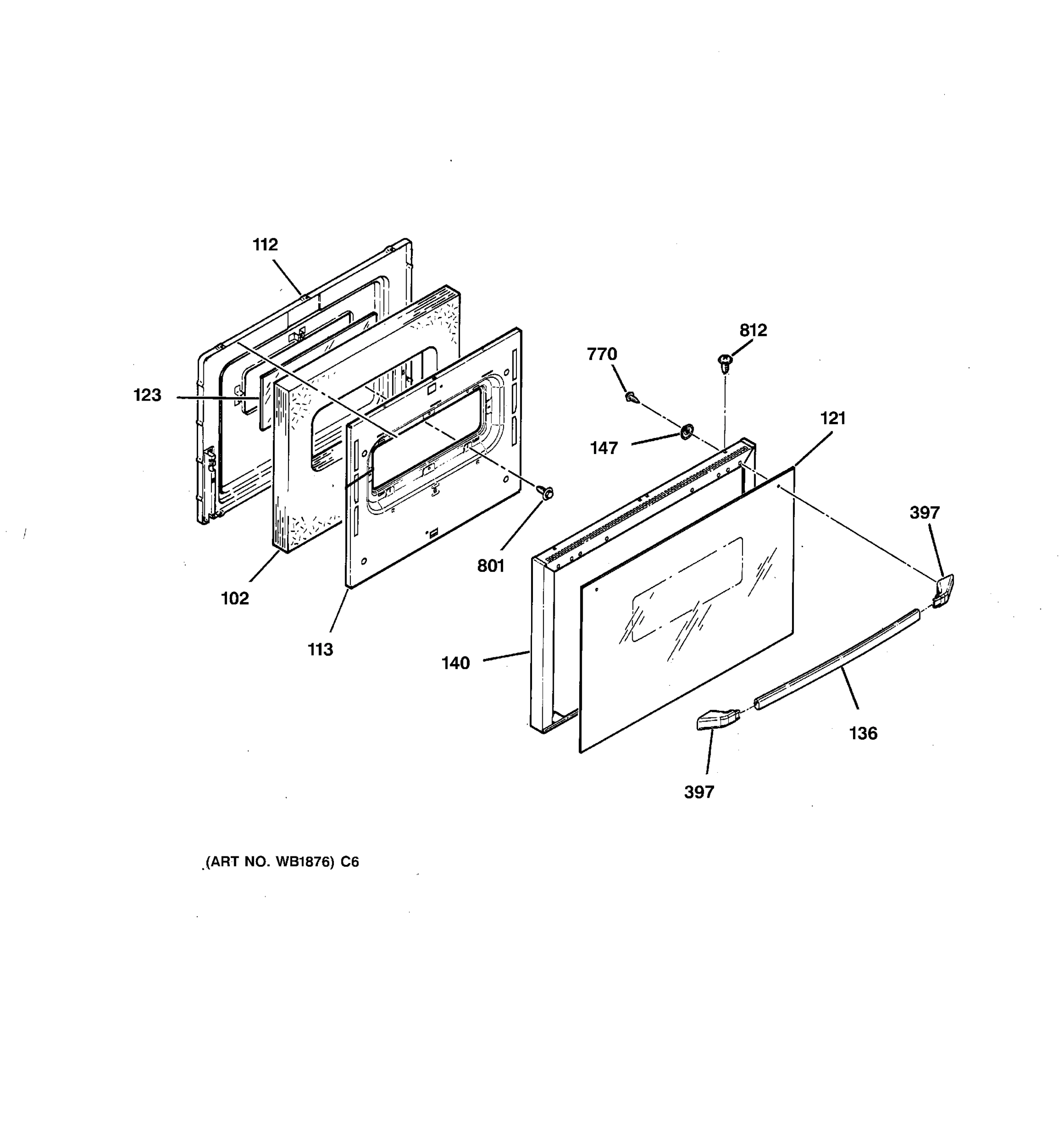

DOOR
Common parts from model GE JDS26BW1WH Electric Range
1
GEN WB36K5671 GEN WB36K5671 Contact Us For Availability
2
GEN WB36K5420 GEN WB36K5420 Contact Us For Availability
2
GEN WB36K5421 GEN WB36K5421 Contact Us For Availability
6
COVER CONTROL FILLER LT GEN WB34K5152 Contact Us For Availability
11
EXTENSION BURN BOX BTTM GEN WB07K5181 Contact Us For Availability
16
CLOCK/OVEN CONTROL GEN WB27K5313 Contact Us For Availability
18
GEN WB27K5340 GEN WB27K5340 Contact Us For Availability
20
GEN WB37K5018 GEN WB37K5018 Contact Us For Availability
20
GEN WB37K5019 GEN WB37K5019 Contact Us For Availability
21
GEN WB24X0415 GEN WB24X0415 Contact Us For Availability
51
GEN WB62K5051 GEN WB62K5051 Contact Us For Availability
55
GEN WB32K5049 GEN WB32K5049 Contact Us For Availability
56
GEN WB30K5034 GEN WB30K5034 Contact Us For Availability
71
BURN BOX EXT INSULATION GEN WB02X9888 Contact Us For Availability
71
GEN WB35K5079 GEN WB35K5079 Contact Us For Availability
75
TOP BURN BOX 335 GEN WB63X0421 Contact Us For Availability
77
GEN WB02X9895 GEN WB02X9895 Contact Us For Availability
80
SHIELD REAR GEN WB02X9570 Contact Us For Availability
83
GEN WB01K5128 GEN WB01K5128 Contact Us For Availability
90
GEN WB02M0084 GEN WB02M0084 Contact Us For Availability
91
HINGE MAINTOP GEN WB14X0136 Contact Us For Availability
93
WIRE COVER UPPER GEN WB02X9569 Contact Us For Availability
95
BRACKET HGE MTG GEN WB02X9568 Contact Us For Availability
102
INSULATION OV DR GEN WB02X9123 Contact Us For Availability
112
GEN WB55M0008 GEN WB55M0008 Contact Us For Availability
113
INSULATION RETAINER GEN WB56X1910 Contact Us For Availability
121
GEN WB57K5235 GEN WB57K5235 Contact Us For Availability
123
GEN WB57K5038 GEN WB57K5038 Contact Us For Availability
126
PLUG BUTTON GEN WB02X1125 Contact Us For Availability
140
GEN WB56K5144 GEN WB56K5144 Contact Us For Availability
147
SPACER DR HDL (BLK) GEN WB02K5312 Contact Us For Availability
219
GEN WB34K5134 GEN WB34K5134 Contact Us For Availability
221
GEN WB02X9574 GEN WB02X9574 Contact Us For Availability
231
INSULATION TOP &SIDES GEN WB35M0022 Contact Us For Availability
232
GEN WB35K5113 GEN WB35K5113 Contact Us For Availability
233
GEN WB34K5168 GEN WB34K5168 Contact Us For Availability
241
RACK OVN GEN WB48X0208 Contact Us For Availability
255
GEN WB17X0215 GEN WB17X0215 Contact Us For Availability
256
GEN WB08K5042 GEN WB08K5042 Contact Us For Availability
257
LAMP OVEN GEN BUY LOCAL Contact Us For Availability
262
GEN WB07K5291 GEN WB07K5291 Contact Us For Availability
262
GEN WB07K5292 GEN WB07K5292 Contact Us For Availability
268
GEN WB07K5293 GEN WB07K5293 Contact Us For Availability
277
GEN WB32K5051 GEN WB32K5051 Contact Us For Availability
281
GEN WB10K5017 GEN WB10K5017 Contact Us For Availability
281
GEN WB10K5018 GEN WB10K5018 Contact Us For Availability
282
TUBE VENT ASM GEN WB38M0006 Contact Us For Availability
286
OV DOOR SPRING GEN WB09X0277 Contact Us For Availability
300
GEN WB02M0086 GEN WB02M0086 Contact Us For Availability
600
GEN WB18K5368 GEN WB18K5368 Contact Us For Availability
802
GEN WB01K5123 GEN WB01K5123 Contact Us For Availability
812
SCREW TC 10-32X.625(BLK) GEN WB01K5160 Contact Us For Availability
855
GEN WB01X1295 GEN WB01X1295 Contact Us For Availability
862
GEN WB01X1178 GEN WB01X1178 Contact Us For Availability
915
RIVET GEN WB01M0024 Contact Us For Availability
926
WASHER GROUND GEN WB01X1260 Contact Us For Availability
934
GEN WB01K5054 GEN WB01K5054 Contact Us For Availability
987
GEN WB01X1311 GEN WB01X1311 Contact Us For Availability
993
GEN WB02X9575 GEN WB02X9575 Contact Us For Availability
999
GEN 31-13299 GEN 31-13299 Contact Us For Availability
999
USE & CARE MANUAL GEN 49-8748 Contact Us For Availability
999
GEN SR10183 GEN SR10183 Contact Us For Availability
999
GEN WB18K5378 GEN WB18K5378 Contact Us For Availability
999
MAIN WIRE HARNESS GEN WB18K5631 Contact Us For Availability
× ![]()
