Model Maytag JDR8895BAB13 30`` FREE STANDING DUEL FUEL CONVECTION – Common Parts & Diagrams

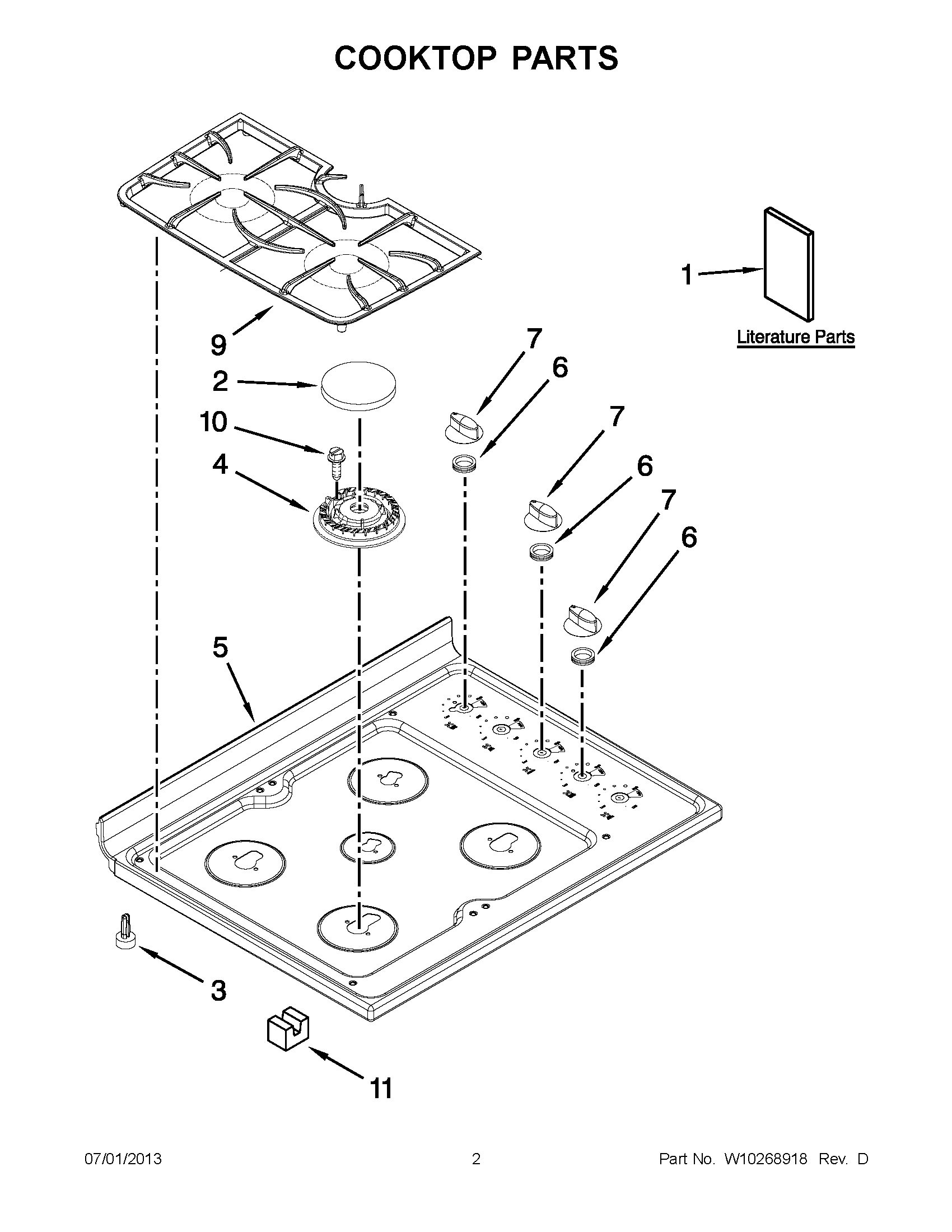

01 - COOKTOP PARTS

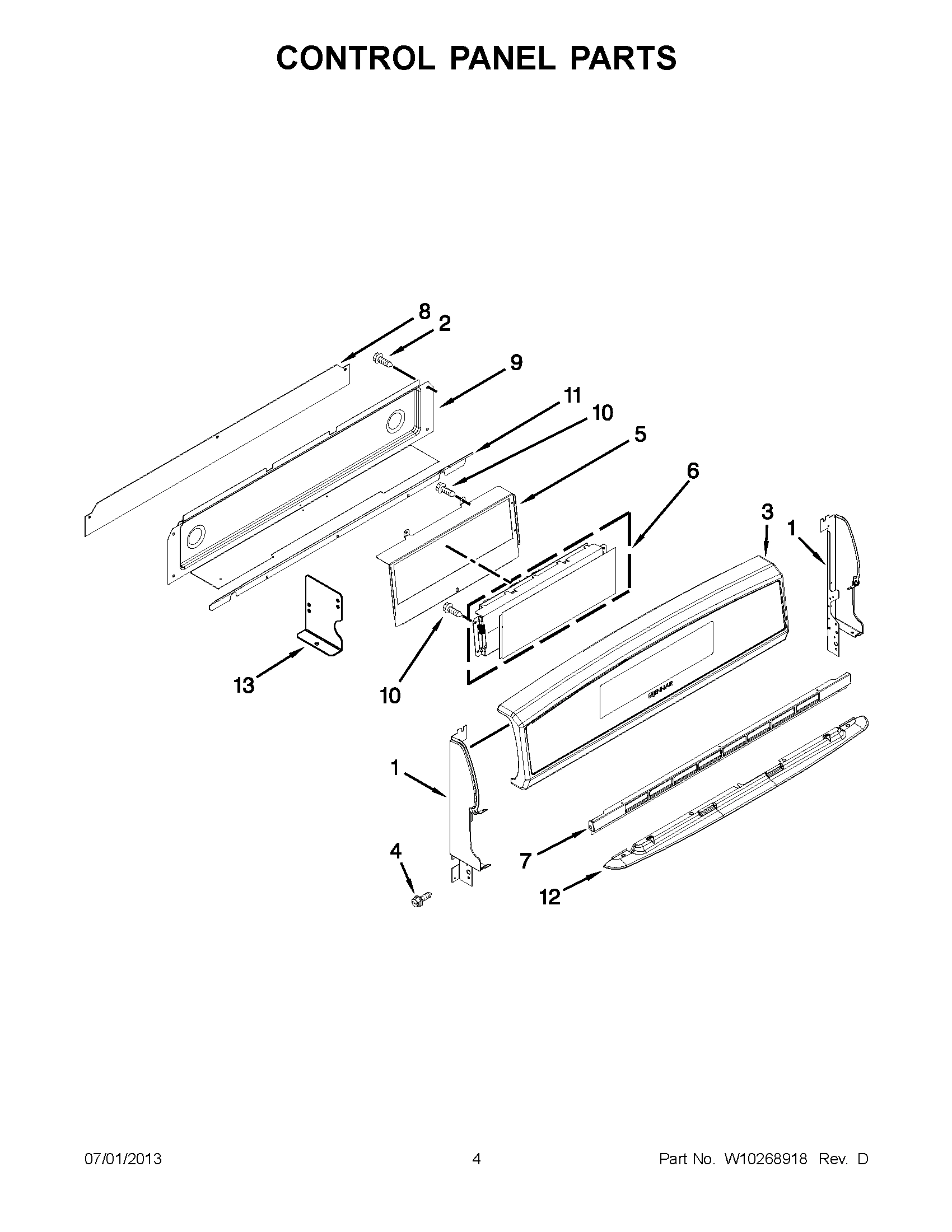

02 - CONTROL PANEL PARTS

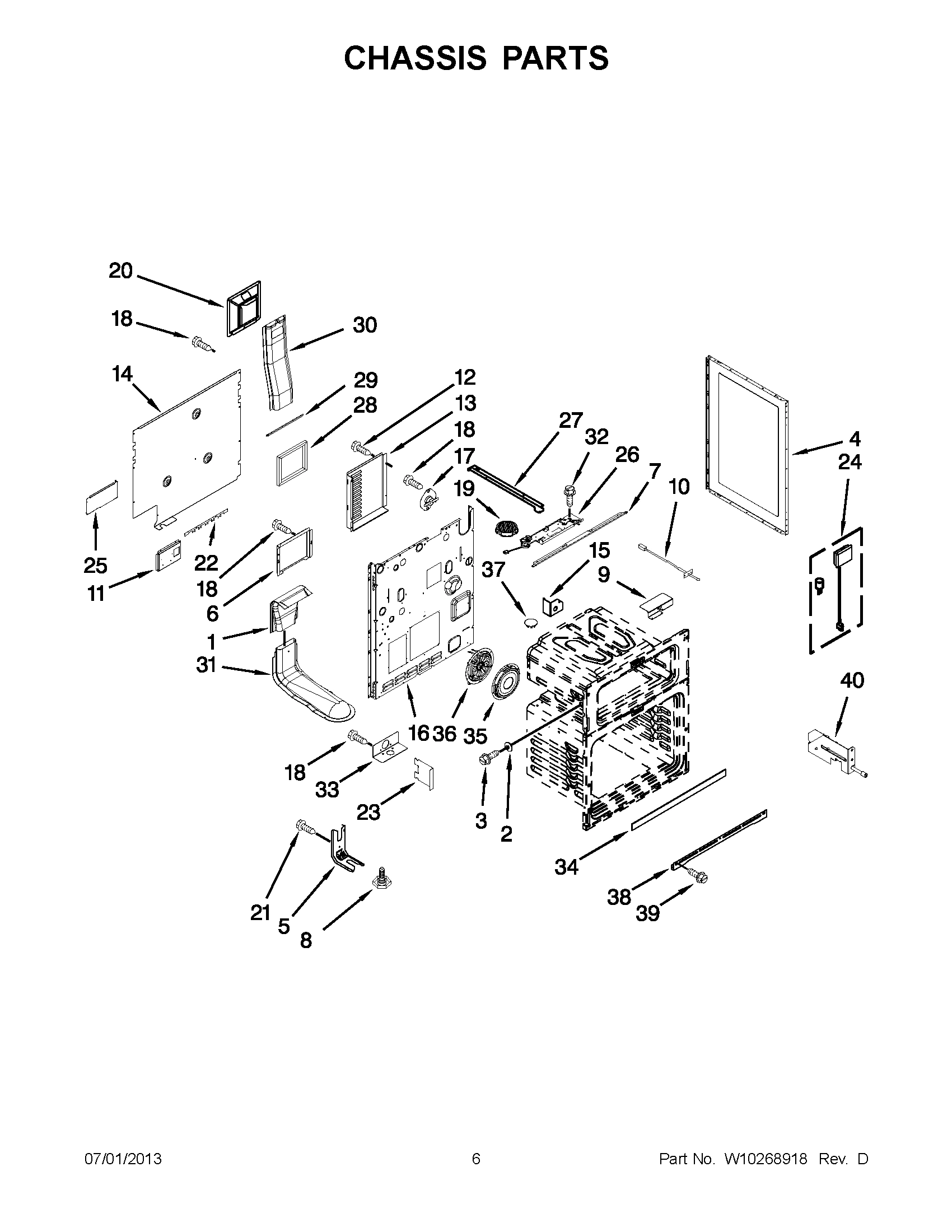

03 - CHASSIS PARTS

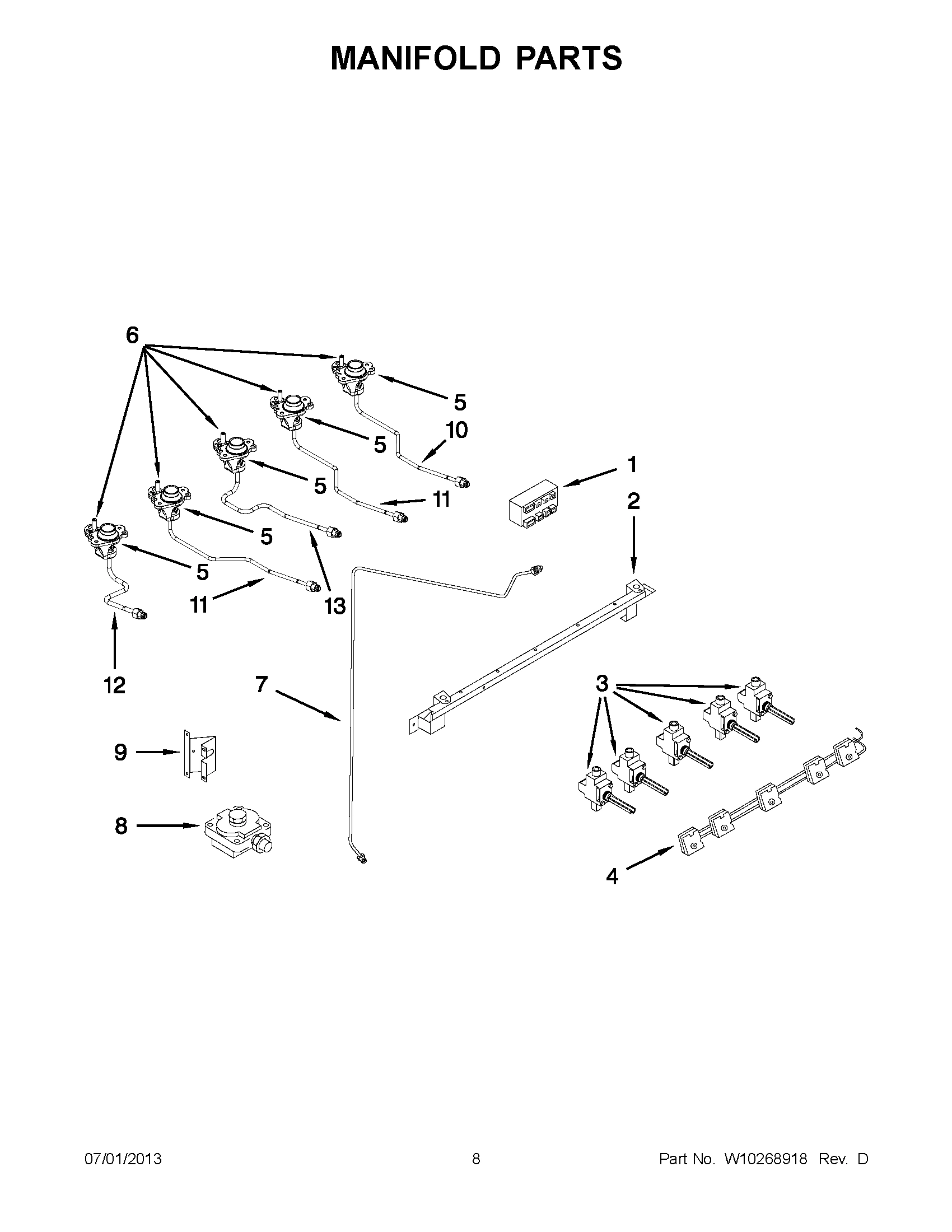

04 - MANIFOLD PARTS

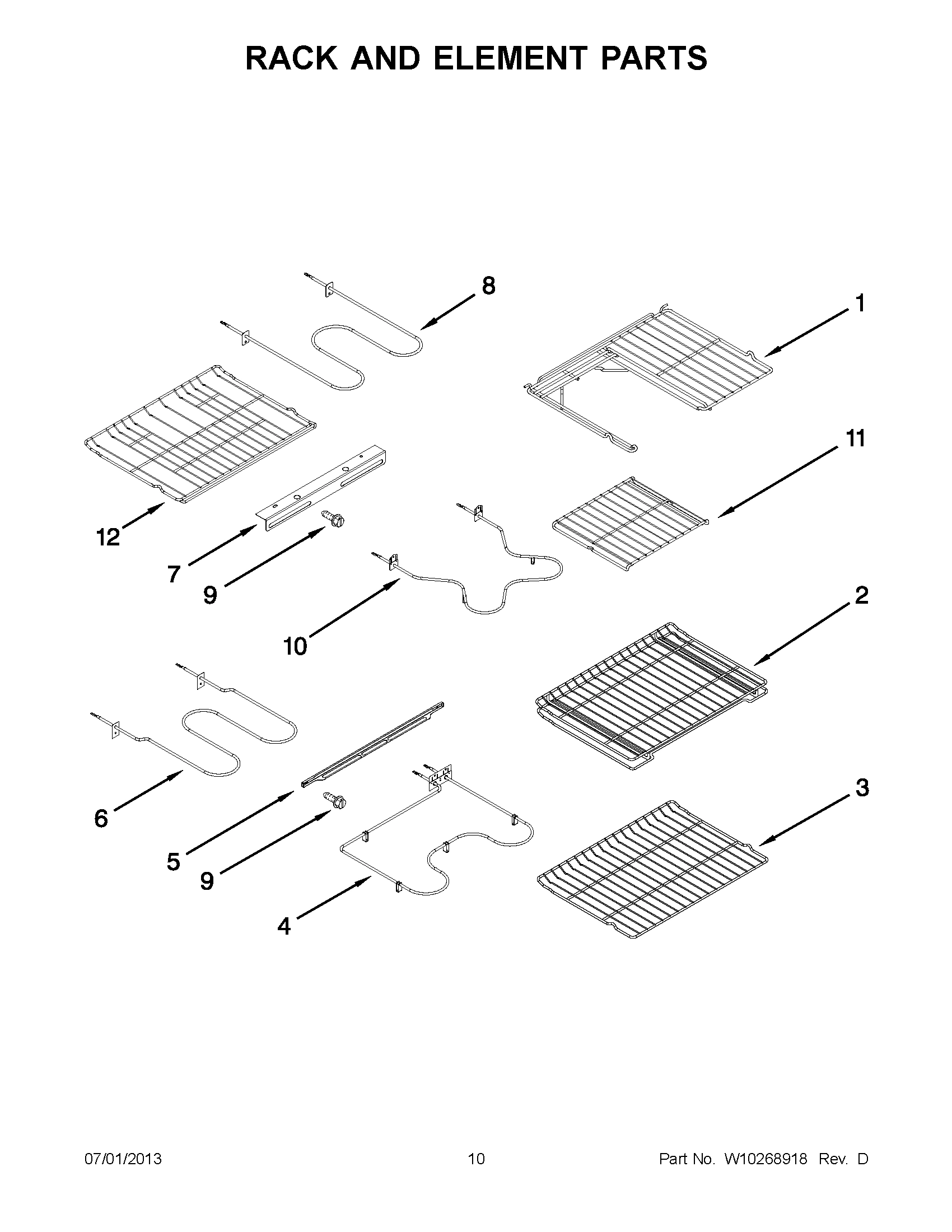

05 - RACK AND ELEMENT PARTS

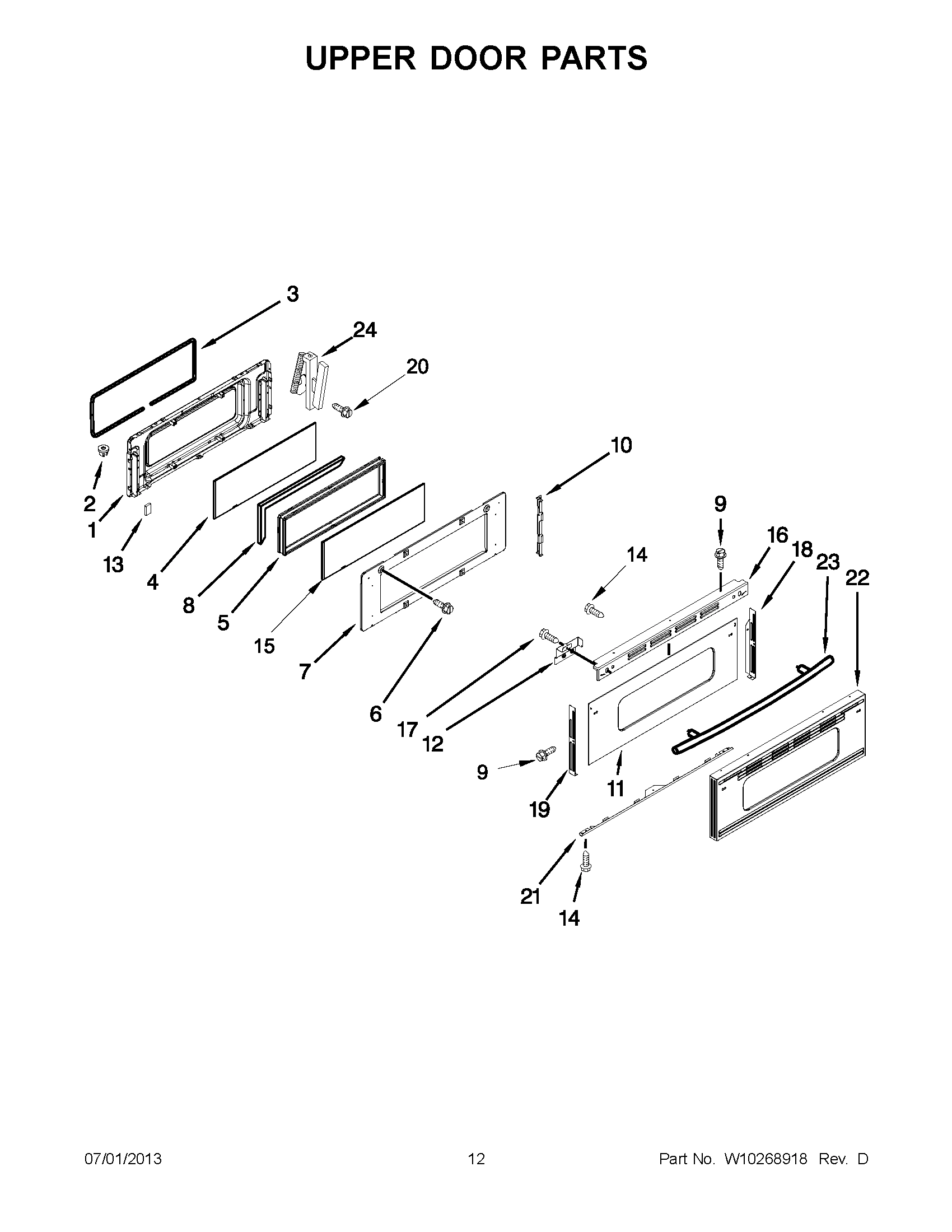

06 - UPPER DOOR PARTS

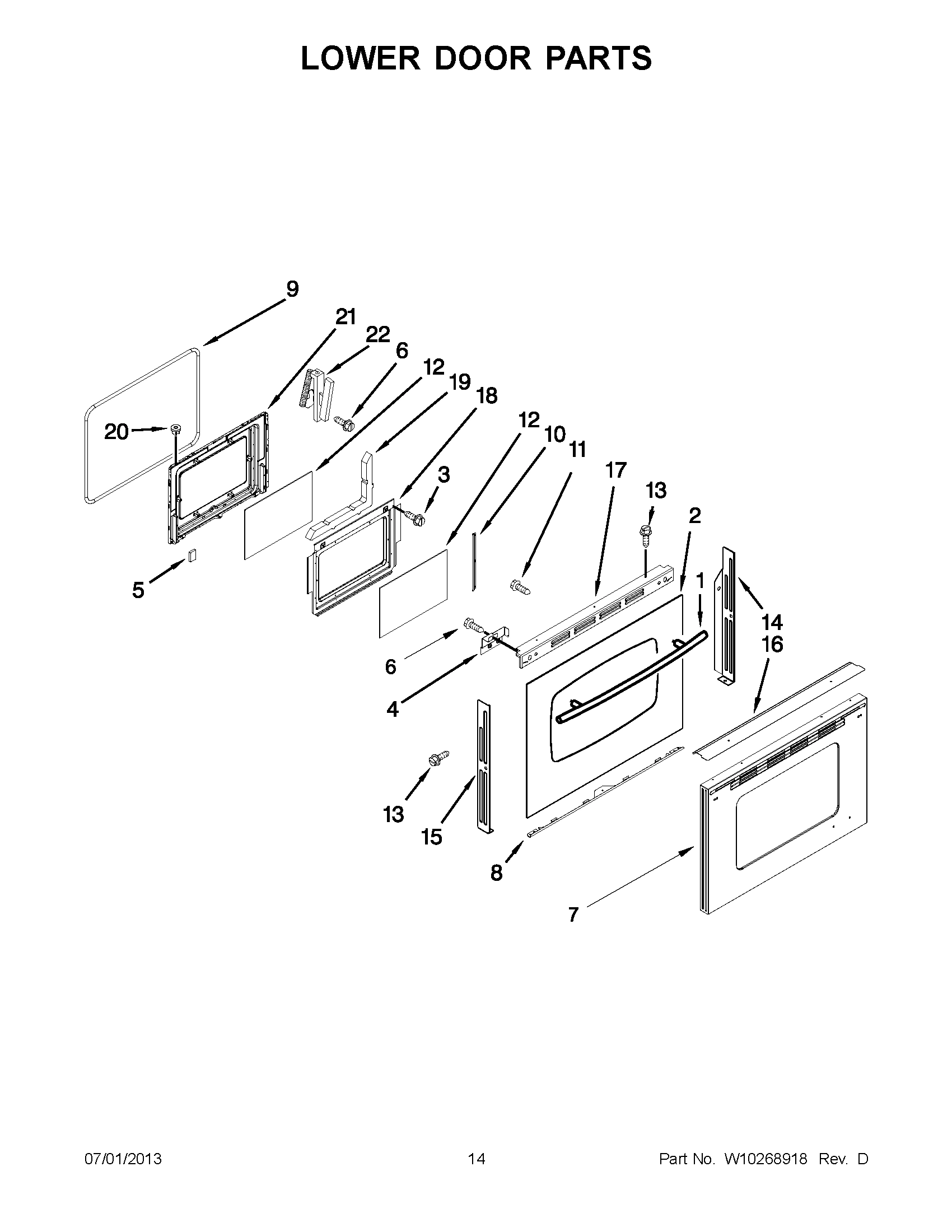

07 - LOWER DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDR8895BAB13 30`` FREE STANDING DUEL FUEL CONVECTION
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
MAY W10162493 MAY W10162493 Contact Us For Availability
1
MAY W10162495 MAY W10162495 Contact Us For Availability
1
MAY 3807F733-70 MAY 3807F733-70 Contact Us For Availability
1
MAY 3807F734-70 MAY 3807F734-70 Contact Us For Availability
1
MAY 8026P082-60 MAY 8026P082-60 Contact Us For Availability
1
MAY 7431P053-60 MAY 7431P053-60 Contact Us For Availability
1
MAY W10273862 MAY W10273862 Contact Us For Availability
1
MAY 2402W248-19 MAY 2402W248-19 Contact Us For Availability
1
MAY 7701P467-60 MAY 7701P467-60 Contact Us For Availability
2
CAP, BURNER (BLACK (LEFT FRONT)) MAY W10183368 Contact Us For Availability
2
CAP, BURNER (BLACK (LEFT REAR)) MAY W10183369 Contact Us For Availability
2
CAP, BURNER (BLACK (RIGHT REAR & CENTER)) MAY W10183370 Contact Us For Availability
2
CAP, BURNER (BLACK (RIGHT FRONT)) MAY W10183371 Contact Us For Availability
2
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
2
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
2
MAY 7513P531-60 MAY 7513P531-60 Contact Us For Availability
2
MAY W10251904 MAY W10251904 Contact Us For Availability
2
MAY 7902P742-60 MAY 7902P742-60 Contact Us For Availability
2
MAY 7902P802-60 MAY 7902P802-60 Contact Us For Availability
3
MAY 8016P022-60 MAY 8016P022-60 Contact Us For Availability
3
MAY 2602M182-09 MAY 2602M182-09 Contact Us For Availability
3
MAY 2602N183-09 MAY 2602N183-09 Contact Us For Availability
3
MAY 2602N183-81 MAY 2602N183-81 Contact Us For Availability
3
Screw MAY 7101P618-60 Contact Us For Availability
3
MAY 7101P388-60 MAY 7101P388-60 Contact Us For Availability
3
MAY 7502P561-60 MAY 7502P561-60 Contact Us For Availability
3
MAY 7502P562-60 MAY 7502P562-60 Contact Us For Availability
3
MAY 7502P564-60 MAY 7502P564-60 Contact Us For Availability
3
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
3
MAY 7201P091-60 MAY 7201P091-60 Contact Us For Availability
4
BURNER HEAD, AUXILIARY (6K) (RIGHT REAR & CEN MAY 8286181 Contact Us For Availability
4
BURNER HEAD, RAPID (12K) (RIGHT FRONT) MAY 8286182 Contact Us For Availability
4
BURNER HEAD, ULTRA RAPID (17K) (LEFT FRONT) MAY 8286183 Contact Us For Availability
4
BURNER HEAD, SEMI 9.5K (LEFT REAR) MAY W10194076 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY 2618F194-70 Contact Us For Availability
4
PANEL, SIDE (WHITE) MAY 2618F194-71 Contact Us For Availability
4
MAY 7450P105-60 MAY 7450P105-60 Contact Us For Availability
4
MAY W10310271 MAY W10310271 Contact Us For Availability
4
GLASS, INNER MAY 7902P521-60 Contact Us For Availability
4
MAY 3801F831-45 MAY 3801F831-45 Contact Us For Availability
4
MAY 3801F832-45 MAY 3801F832-45 Contact Us For Availability
5
MAY W10174900 MAY W10174900 Contact Us For Availability
5
MAY W10174901 MAY W10174901 Contact Us For Availability
5
MAY 3801F926-51 MAY 3801F926-51 Contact Us For Availability
5
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
5
MAY 7527P021-60 MAY 7527P021-60 Contact Us For Availability
5
MAY 7527P022-60 MAY 7527P022-60 Contact Us For Availability
5
MAY 7527P023-60 MAY 7527P023-60 Contact Us For Availability
5
HOLDER. ORIFICE (RIGHT FRONT) MAY 7527P028-60 Contact Us For Availability
5
SUPPORT, BROIL ELEMENT (LOWER) MAY 3807F494-45 Contact Us For Availability
5
MAY 7907P034-60 MAY 7907P034-60 Contact Us For Availability
5
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
6
KNOB, GROMMET MAY 8285469 Contact Us For Availability
6
MAY 5701M796-60 MAY 5701M796-60 Contact Us For Availability
6
COVER, TERMINAL BLOCK MAY 4005F747-51 Contact Us For Availability
6
MAY 7432M126-60 MAY 7432M126-60 Contact Us For Availability
6
ELEMENT, BROIL (LOWER) MAY W10310249 Contact Us For Availability
6
Screw MAY 7101P208-60 Contact Us For Availability
7
MAY W10183665 MAY W10183665 Contact Us For Availability
7
MAY 3608F124-09 MAY 3608F124-09 Contact Us For Availability
7
MAY 3801F924-80 MAY 3801F924-80 Contact Us For Availability
7
MAY 7506P424-60 MAY 7506P424-60 Contact Us For Availability
7
MAY 3807F749-45 MAY 3807F749-45 Contact Us For Availability
7
Baffle, Door MAY 3601F354-45 Contact Us For Availability
7
PANEL, OUTER DOOR (STAINLESS) MAY 7760P148-60 Contact Us For Availability
8
MAY 3604F387-51 MAY 3604F387-51 Contact Us For Availability
8
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
8
MAY 7510P089-60 MAY 7510P089-60 Contact Us For Availability
8
MAY 7406P474-60 MAY 7406P474-60 Contact Us For Availability
8
MAY 7002P488-60 MAY 7002P488-60 Contact Us For Availability
8
MAY 3807F708-70 MAY 3807F708-70 Contact Us For Availability
8
MAY 3807F708-71 MAY 3807F708-71 Contact Us For Availability
9
MAY 7518P455-60 MAY 7518P455-60 Contact Us For Availability
9
COVER, UPPER MAY 4005F804-51 Contact Us For Availability
9
MAY 3604F440-51 MAY 3604F440-51 Contact Us For Availability
9
MAY 3801F691-51 MAY 3801F691-51 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
10
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
10
SENSOR, OVEN (LOWER) MAY 7430P042-60 Contact Us For Availability
10
SENSOR, OVEN (UPPER) MAY 7430P044-60 Contact Us For Availability
10
MAY 7506P378-60 MAY 7506P378-60 Contact Us For Availability
10
MAY W10314702 MAY W10314702 Contact Us For Availability
10
MAY 3804F179-45 MAY 3804F179-45 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
11
MAY 8255P412-60 MAY 8255P412-60 Contact Us For Availability
11
MAY 3604F438-51 MAY 3604F438-51 Contact Us For Availability
11
MAY 4002F349-51 MAY 4002F349-51 Contact Us For Availability
11
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
11
MAY 7506P379-60 MAY 7506P379-60 Contact Us For Availability
11
MAY W10275560 MAY W10275560 Contact Us For Availability
11
MAY 7902P739-60 MAY 7902P739-60 Contact Us For Availability
11
MAY 7902P801-60 MAY 7902P801-60 Contact Us For Availability
12
MAY 3604F393-09 MAY 3604F393-09 Contact Us For Availability
12
MAY 7506P418-60 MAY 7506P418-60 Contact Us For Availability
12
Rack, Oven (Upper) MAY W10273816 Contact Us For Availability
12
Glass, Inner MAY 7902P436-60 Contact Us For Availability
13
Screw (Black) MAY 7101P633-60 Contact Us For Availability
13
MAY 3801F930-51 MAY 3801F930-51 Contact Us For Availability
13
MAY 4005F592-51 MAY 4005F592-51 Contact Us For Availability
13
MAY 7506P417-60 MAY 7506P417-60 Contact Us For Availability
14
MAY W10210726 MAY W10210726 Contact Us For Availability
14
TRIM, DOOR (BLACK (RIGHT HAND)) MAY 3608F116-70 Contact Us For Availability
14
TRIM, DOOR (WHITE (RIGHT HAND)) MAY 3608F116-71 Contact Us For Availability
15
MAY 3801F705-51 MAY 3801F705-51 Contact Us For Availability
15
MAY 3801F706-51 MAY 3801F706-51 Contact Us For Availability
15
MAY 7902P520-60 MAY 7902P520-60 Contact Us For Availability
15
TRIM, DOOR (BLACK (LEFT HAND)) MAY 3608F117-70 Contact Us For Availability
15
TRIM, DOOR (WHITE (LEFT HAND)) MAY 3608F117-71 Contact Us For Availability
16
MAY 4002F332-51 MAY 4002F332-51 Contact Us For Availability
16
MAY 3604F441-51 MAY 3604F441-51 Contact Us For Availability
17
SWITCH, HIGH LIMIT MAY 7403P993-60 Contact Us For Availability
17
MAY 3608F142-70 MAY 3608F142-70 Contact Us For Availability
17
MAY 3608F142-71 MAY 3608F142-71 Contact Us For Availability
18
TRIM, DOOR (RIGHT) (BLACK) MAY 3608F118-70 Contact Us For Availability
18
TRIM, DOOR (RIGHT) (WHITE) MAY 3608F118-71 Contact Us For Availability
18
BAFFLE, OVEN DOOR WINDOW MAY 3601F373-51 Contact Us For Availability
19
SCREEN, SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
19
TRIM, DOOR (LEFT) (BLACK) MAY 3608F119-70 Contact Us For Availability
19
TRIM, DOOR (LEFT) (WHITE) MAY 3608F119-71 Contact Us For Availability
19
INSULATION, OVEN DOOR MAY 7002P246-60 Contact Us For Availability
20
MAY 3804F270-45 MAY 3804F270-45 Contact Us For Availability
20
WHITE MAY 7103P039-60 Contact Us For Availability
20
BLACK MAY 7103P141-60 Contact Us For Availability
20
Screw MAY 7101P282-60 Contact Us For Availability
21
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
21
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
22
SHIELD, POWER CORD MAY 8036P012-60 Contact Us For Availability
22
PANEL, OUTER DOOR (STAINLESS) MAY 7760P149-60 Contact Us For Availability
22
HINGE, DOOR MAY 7106P141-60 Contact Us For Availability
23
MAY 3807F587-51 MAY 3807F587-51 Contact Us For Availability
24
ASSEMBLY, OVEN LIGHT (UPPER) MAY 7407P179-60 Contact Us For Availability
24
ASSEMBLY, OVEN LIGHT (LOWER) MAY 7407P181-60 Contact Us For Availability
24
HINGE, DOOR MAY 7106P148-60 Contact Us For Availability
25
MAY 4005F809-51 MAY 4005F809-51 Contact Us For Availability
26
MAY 8002P077-60 MAY 8002P077-60 Contact Us For Availability
27
MAY W10283688 MAY W10283688 Contact Us For Availability
27
MAY W10283722 MAY W10283722 Contact Us For Availability
28
MAY 7201P089-60 MAY 7201P089-60 Contact Us For Availability
29
Shield, Door Lock MAY 3604F335-51 Contact Us For Availability
30
MAY 4022W017-45 MAY 4022W017-45 Contact Us For Availability
31
MAY 4006W129-45 MAY 4006W129-45 Contact Us For Availability
31
MAY 4006W139-45 MAY 4006W139-45 Contact Us For Availability
32
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
33
BRACKET, POWER SUPPLY MAY W10190166 Contact Us For Availability
34
MAY 7212P066-60 MAY 7212P066-60 Contact Us For Availability
35
COVER, FAN MAY 3605F305-19 Contact Us For Availability
36
MAY W10206586 MAY W10206586 Contact Us For Availability
37
MAY 7718P030-60 MAY 7718P030-60 Contact Us For Availability
38
MAY 3608F091-70 MAY 3608F091-70 Contact Us For Availability
40
ASSEMBLY, SWITCH MAY 7450P108-60 Contact Us For Availability
NI
INSULATION, WRAP LOWER MAY 7002P233-60 Contact Us For Availability
NI
MAY 7002P276-60 MAY 7002P276-60 Contact Us For Availability
NI
INSULATION, BACK UPPER MAY 7002P434-60 Contact Us For Availability
NI
INSULATION, WRAP UPPER MAY 7002P490-60 Contact Us For Availability
NI
MAY 7003P148-60 MAY 7003P148-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
MAY W10196413 MAY W10196413 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY 5171P360-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SIDE MOUNT LOC MAY 5171P467-60 Contact Us For Availability
NI
MAY 5171P598-60 MAY 5171P598-60 Contact Us For Availability
NI
MAY 5171P715-60 MAY 5171P715-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, DOOR POSITION MAY 5175P365-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY W10173435 MAY W10173435 Contact Us For Availability
× ![]()
