Model Maytag JDR8880RDB1 DUAL FUEL RANGE – Common Parts & Diagrams

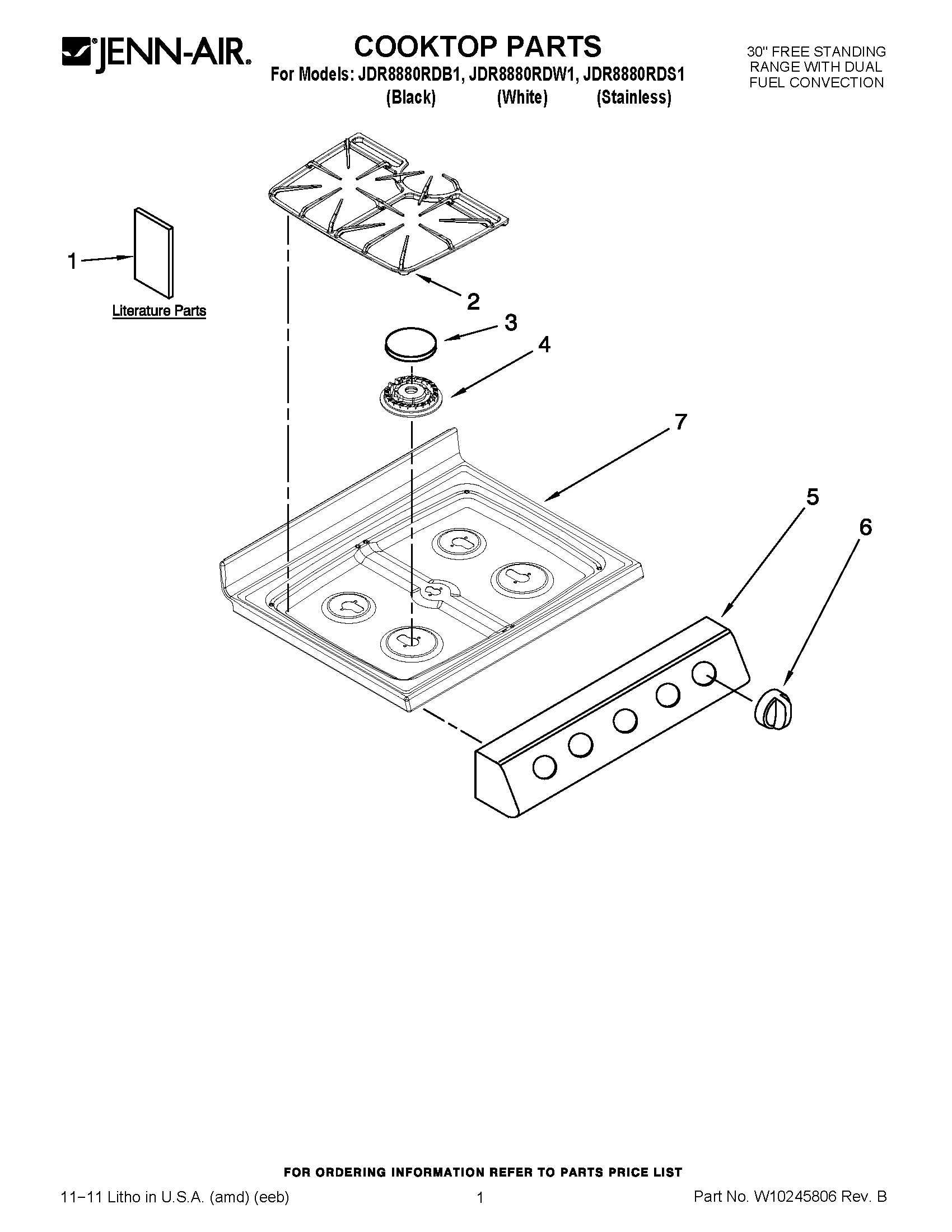

01 - COOKTOP PARTS

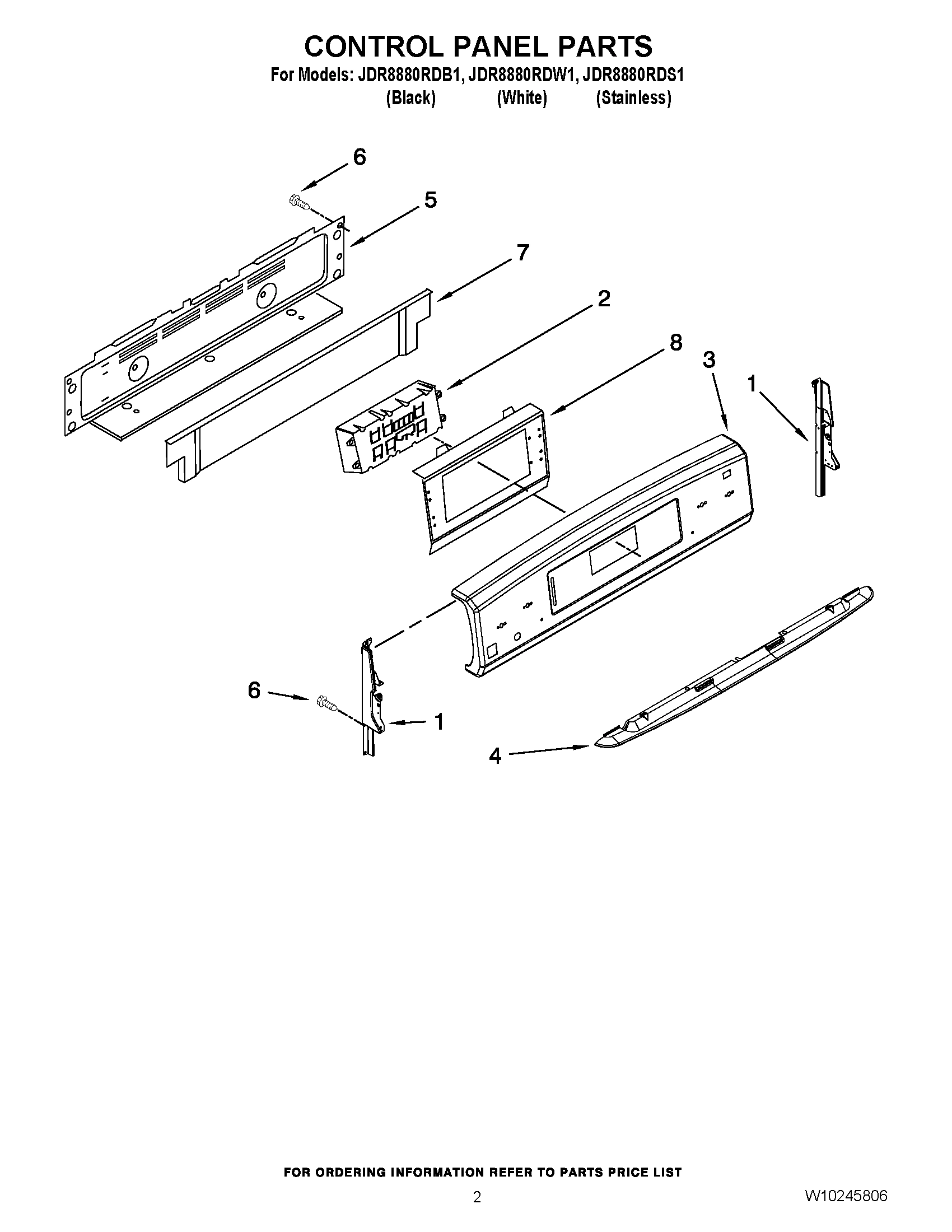

02 - CONTROL PANEL PARTS

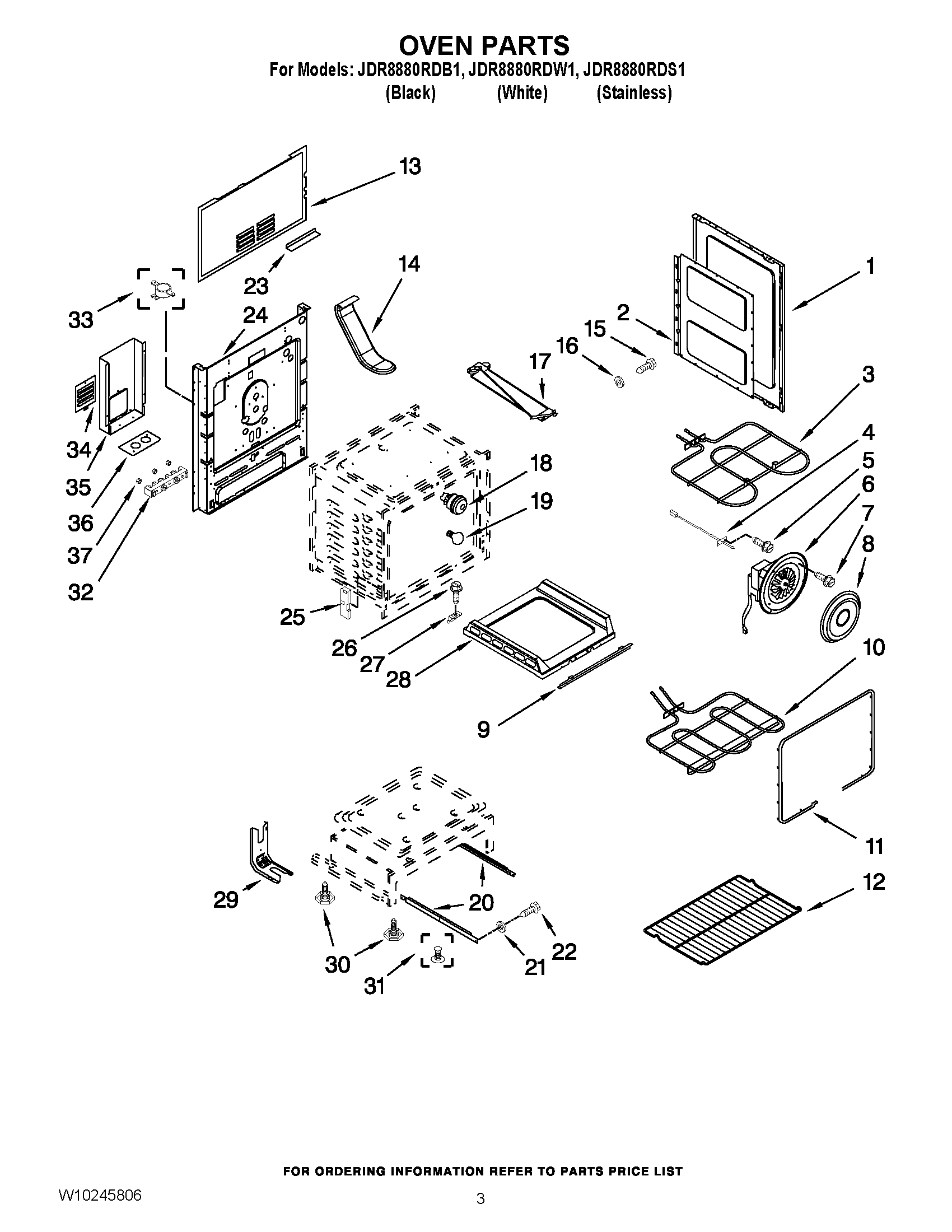

03 - OVEN PARTS

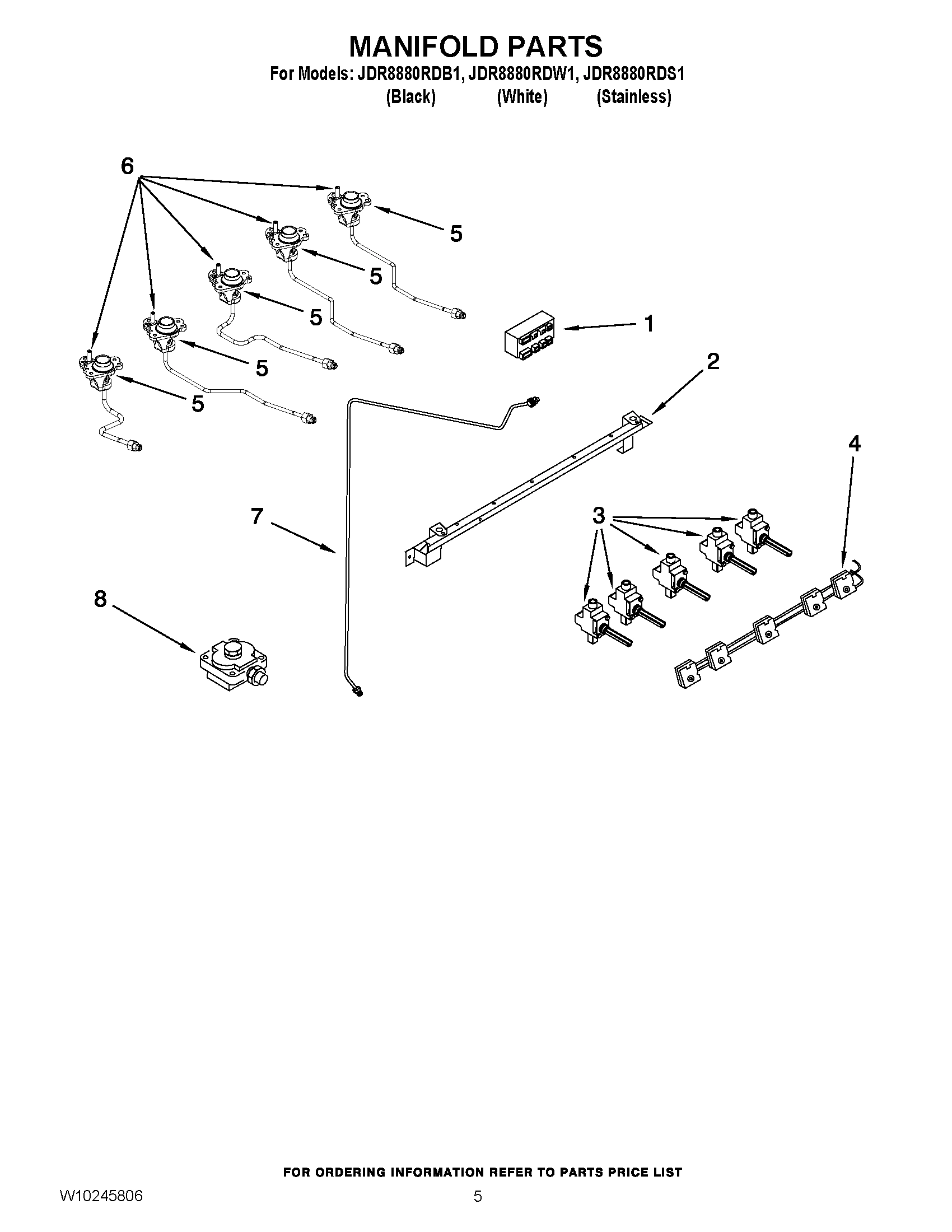

04 - MANIFOLD PARTS

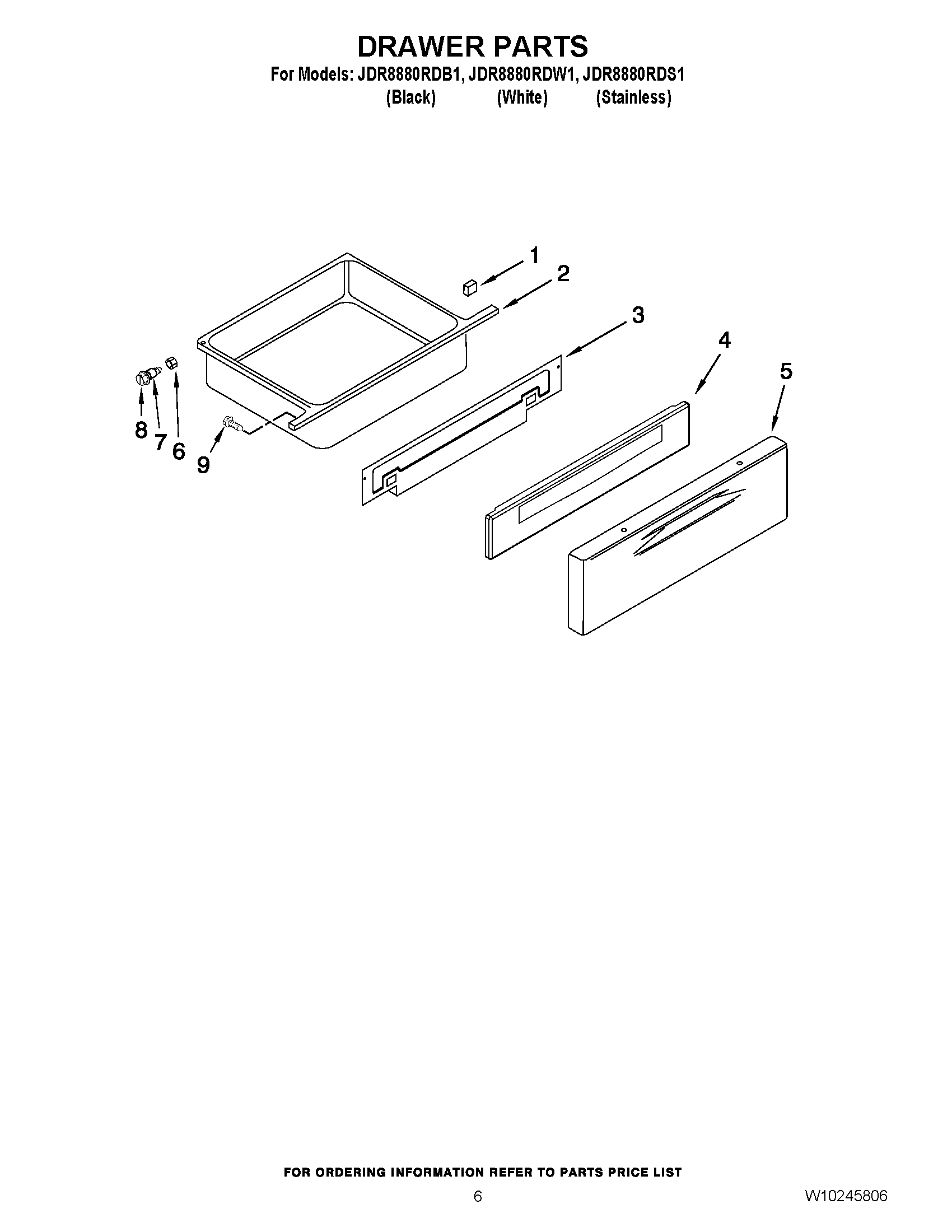

05 - DRAWER PARTS

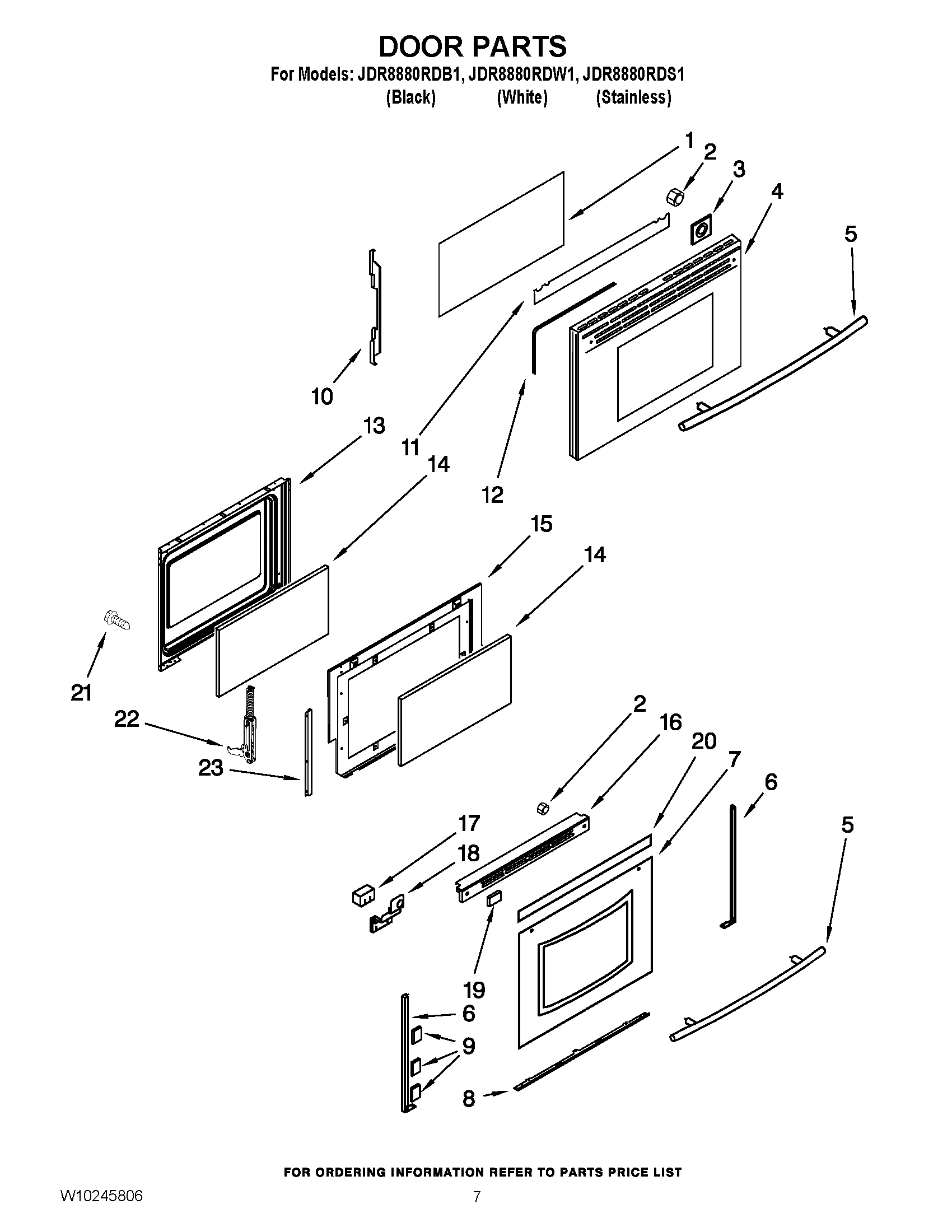

06 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDR8880RDB1 DUAL FUEL RANGE
1
End Cap (Black (Right)) MAY 3807F702-70 Contact Us For Availability
1
End Cap (White (Right)) MAY 3807F702-71 Contact Us For Availability
1
End Cap (Black (Left)) MAY 3807F703-70 Contact Us For Availability
1
End Cap (White (Left)) MAY 3807F703-71 Contact Us For Availability
1
MAY 2618F172-58 MAY 2618F172-58 Contact Us For Availability
1
MAY 2618F172-69 MAY 2618F172-69 Contact Us For Availability
1
MAY 7431P053-60 MAY 7431P053-60 Contact Us For Availability
1
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
1
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
2
MAY 7518P190-60 MAY 7518P190-60 Contact Us For Availability
2
MAY 7518P192-60 MAY 7518P192-60 Contact Us For Availability
2
MAY 8507P333-60 MAY 8507P333-60 Contact Us For Availability
2
MAY 3804F311-51 MAY 3804F311-51 Contact Us For Availability
2
MAY 7513P499-60 MAY 7513P499-60 Contact Us For Availability
2
DRAWER, SERVICE MAY 3405F037-80 Contact Us For Availability
2
MAY 7103P176-60 MAY 7103P176-60 Contact Us For Availability
3
MAY 7504P137-60 MAY 7504P137-60 Contact Us For Availability
3
MAY 7504P139-60 MAY 7504P139-60 Contact Us For Availability
3
MAY 7504P140-60 MAY 7504P140-60 Contact Us For Availability
3
MAY 7504P141-60 MAY 7504P141-60 Contact Us For Availability
3
MAY 7504P202-60 MAY 7504P202-60 Contact Us For Availability
3
CAP, BURNER (BLACK,LARGE) MAY 7504P204-60 Contact Us For Availability
3
MAY 7504P205-60 MAY 7504P205-60 Contact Us For Availability
3
CAP, BURNER (BLACK,MEDIUM) MAY 7504P219-60 Contact Us For Availability
3
MAY 5751M717-60 MAY 5751M717-60 Contact Us For Availability
3
MAY 5751M718-60 MAY 5751M718-60 Contact Us For Availability
3
MAY 5751M719-60 MAY 5751M719-60 Contact Us For Availability
3
MAY 7406P493-60 MAY 7406P493-60 Contact Us For Availability
3
Valve, Burner (5K Copreci (1)) MAY 7502P499-60 Contact Us For Availability
3
Valve, Burner (12K Copreci (3)) MAY 7502P500-60 Contact Us For Availability
3
Valve, Burner (16K Copreci (1)) MAY 7502P501-60 Contact Us For Availability
3
Sheild, Heat MAY 3604P409-51 Contact Us For Availability
3
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
4
BASE, BURNER (9.2K, LR,RR) MAY 7540P043-60 Contact Us For Availability
4
Base, Burner (6K, Center) MAY 8286181 Contact Us For Availability
4
Base, Burner (17K, RF) MAY 8286182 Contact Us For Availability
4
Base, Burner (12K, LF) MAY 8286183 Contact Us For Availability
4
Sheild, Heat Visor (Black) MAY 3604F382-09 Contact Us For Availability
4
Sheild, Heat Visor (White) MAY 3604F382-81 Contact Us For Availability
4
Harness, Switch MAY 7403P983-60 Contact Us For Availability
4
Panel, Drawer (Black) MAY 2416F104-70 Contact Us For Availability
4
Panel, Drawer (White) MAY 2416F104-71 Contact Us For Availability
4
Panel (Stainless) MAY 7760P218-60 Contact Us For Availability
5
MAY 2616F328-09 MAY 2616F328-09 Contact Us For Availability
5
MAY 2616F328-81 MAY 2616F328-81 Contact Us For Availability
5
MAY 2616N343-50 MAY 2616N343-50 Contact Us For Availability
5
MAY 4005P711-51 MAY 4005P711-51 Contact Us For Availability
5
MAY 3196154 MAY 3196154 Contact Us For Availability
5
Orifice Holder (Right Front) MAY 7527P095-60 Contact Us For Availability
5
Orifice Holder (Center) MAY 7527P097-60 Contact Us For Availability
5
Orifice Holder (Left Front) MAY 7527P101-60 Contact Us For Availability
5
Orifice Holder (Right Rear) MAY 7527P124-60 Contact Us For Availability
5
Orifice Holder (Left Rear) MAY 7527P125-60 Contact Us For Availability
5
Panel, Drawer (Stainless Models) MAY 7760P228-60 Contact Us For Availability
5
MAY 7701P467-60 MAY 7701P467-60 Contact Us For Availability
6
MAY 7733P389-60 MAY 7733P389-60 Contact Us For Availability
6
Screw (8AB 1/2-NI) MAY 7101P388-60 Contact Us For Availability
6
Fan Assy. Convect MAY 7427P109-60 Contact Us For Availability
6
Trim, Side (Black) MAY 3608F126-70 Contact Us For Availability
6
Trim, Side (White) MAY 3608F126-71 Contact Us For Availability
7
MAY 2001F287-09 MAY 2001F287-09 Contact Us For Availability
7
MAY 2001F287-81 MAY 2001F287-81 Contact Us For Availability
7
MAY 3604F381-19 MAY 3604F381-19 Contact Us For Availability
7
MAY 7101P385-60 MAY 7101P385-60 Contact Us For Availability
7
MAY 7118P032-60 MAY 7118P032-60 Contact Us For Availability
7
MAY 7506P519-60 MAY 7506P519-60 Contact Us For Availability
7
MAY 7902P784-60 MAY 7902P784-60 Contact Us For Availability
7
MAY 7902P792-60 MAY 7902P792-60 Contact Us For Availability
8
MAY 3801F945-51 MAY 3801F945-51 Contact Us For Availability
8
Cover, Convect Pl MAY 4005P704-51 Contact Us For Availability
8
MAY 8014P022-60 MAY 8014P022-60 Contact Us For Availability
8
MAY 7510P081-60 MAY 7510P081-60 Contact Us For Availability
8
Trim, Bottom (Black) MAY 3608F092-70 Contact Us For Availability
8
Trim, Bottom (White) MAY 3608F092-71 Contact Us For Availability
9
MAY 3807P680-45 MAY 3807P680-45 Contact Us For Availability
9
MAY W10208307 MAY W10208307 Contact Us For Availability
9
Tape, Double Sided (White) MAY W10208308 Contact Us For Availability
10
MAY 7406P456-60 MAY 7406P456-60 Contact Us For Availability
10
MAY 3801F918-51 MAY 3801F918-51 Contact Us For Availability
11
Gasket MAY W10162385 Contact Us For Availability
11
INSULATION, FOIL MAY 4820F015-59 Contact Us For Availability
12
Rack, Oven MAY W10179196 Contact Us For Availability
12
MAY 7201P140-60 MAY 7201P140-60 Contact Us For Availability
13
MAY 4005F754-51 MAY 4005F754-51 Contact Us For Availability
13
Liner, Door MAY 2402W297-19 Contact Us For Availability
14
Smoke Eliminator MAY 8026P090-60 Contact Us For Availability
14
MAY 7902P463-60 MAY 7902P463-60 Contact Us For Availability
15
SCREW, SHOULDER No.8 MAY 7101P618-60 Contact Us For Availability
15
Baffle, Door (Stainless Models) MAY 3601F380-51 Contact Us For Availability
16
Spacer, Side Panel MAY 8010P148-60 Contact Us For Availability
16
Trim, Top (Black) MAY 3608F139-70 Contact Us For Availability
16
Trim, Top (White) MAY 3608F139-71 Contact Us For Availability
17
Latch, Door Lock MAY 8002P104-60 Contact Us For Availability
17
Insulation, Door MAY 7002P484-60 Contact Us For Availability
18
Light, Oven MAY 7407P181-60 Contact Us For Availability
18
MAY 3801P857-45 MAY 3801P857-45 Contact Us For Availability
18
MAY 3801P858-45 MAY 3801P858-45 Contact Us For Availability
19
MAY W10208318 MAY W10208318 Contact Us For Availability
20
MAY 3406F034-51 MAY 3406F034-51 Contact Us For Availability
20
TAPE, FOIL 3`` MAY W10208311 Contact Us For Availability
21
SCREW,(10-24X5/16) MAY 7101P282-60 Contact Us For Availability
22
Hinge, Door MAY 7106P124-60 Contact Us For Availability
23
Bottom, Wire Cover MAY 4005F804-51 Contact Us For Availability
23
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
24
Back, Main MAY 4002F347-51 Contact Us For Availability
25
MAY 7106P125-60 MAY 7106P125-60 Contact Us For Availability
26
Screw, Shoulder MAY 7101P500-60 Contact Us For Availability
27
SUPPORT, OVEN MAY 3801P822-45 Contact Us For Availability
28
MAY 2205F053-19 MAY 2205F053-19 Contact Us For Availability
29
Anti-Tip Bracket MAY 3801F656-51 Contact Us For Availability
30
Leg, Leveling MAY 7101P507-60 Contact Us For Availability
31
MAY 8038P037-60 MAY 8038P037-60 Contact Us For Availability
33
Switch, Limit MAY 7403P857-60 Contact Us For Availability
34
MAY 4005F704-51 MAY 4005F704-51 Contact Us For Availability
35
Cover, Wire Lower MAY 4005F703-51 Contact Us For Availability
36
MAY 3605F146-51 MAY 3605F146-51 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 359039 MAY 359039 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P889-60 MAY 5171P889-60 Contact Us For Availability
NI
MAY 7002P492-60 MAY 7002P492-60 Contact Us For Availability
NI
INSULATION, SIDE PANEL MAY 7002P494-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
Cord, Power MAY 74008759 Contact Us For Availability
NI
MAY 7509P115-60 MAY 7509P115-60 Contact Us For Availability
NI
MAY 7702P362-60 MAY 7702P362-60 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( MAY 799832 Contact Us For Availability
NI
Harness, Spark MAY W10173438 Contact Us For Availability
× ![]()
