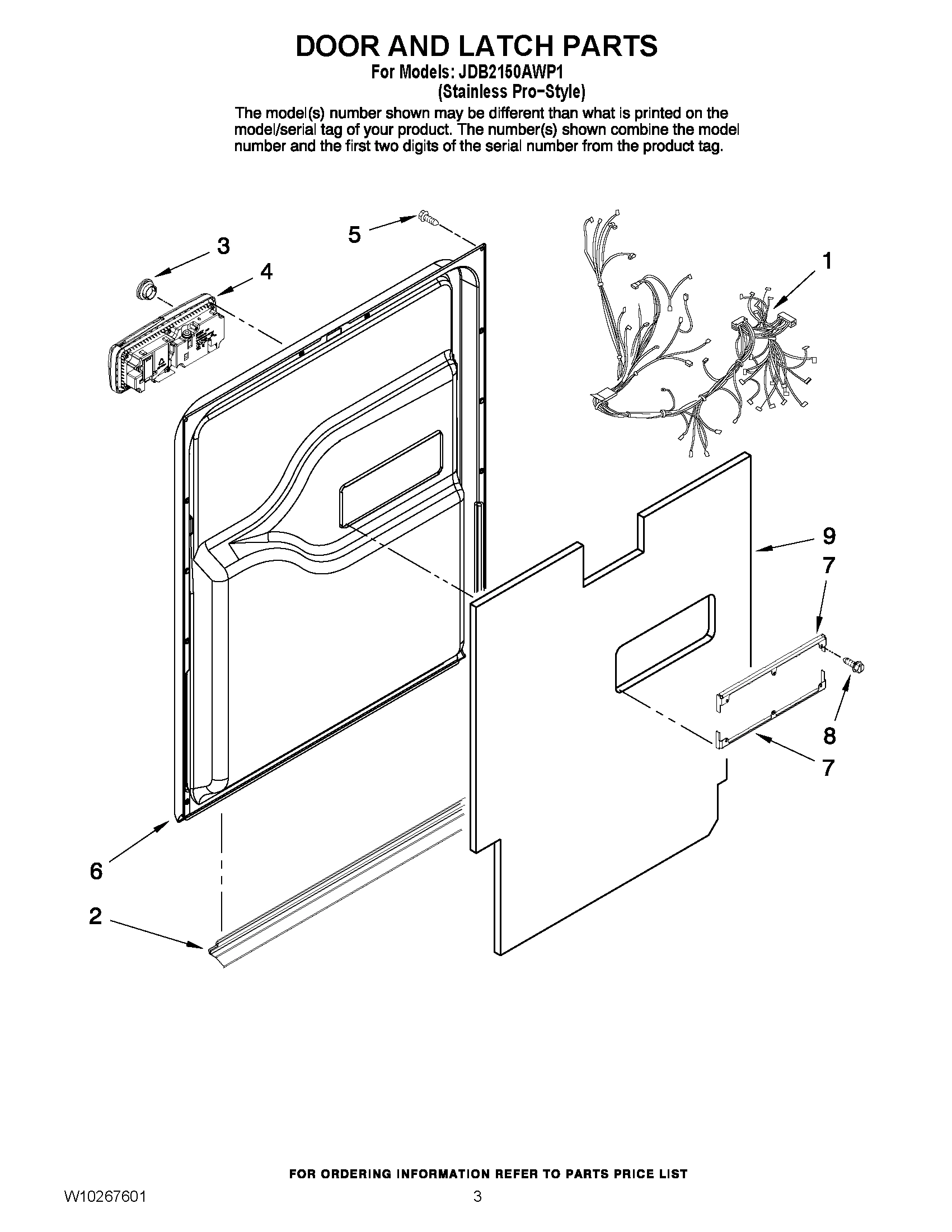

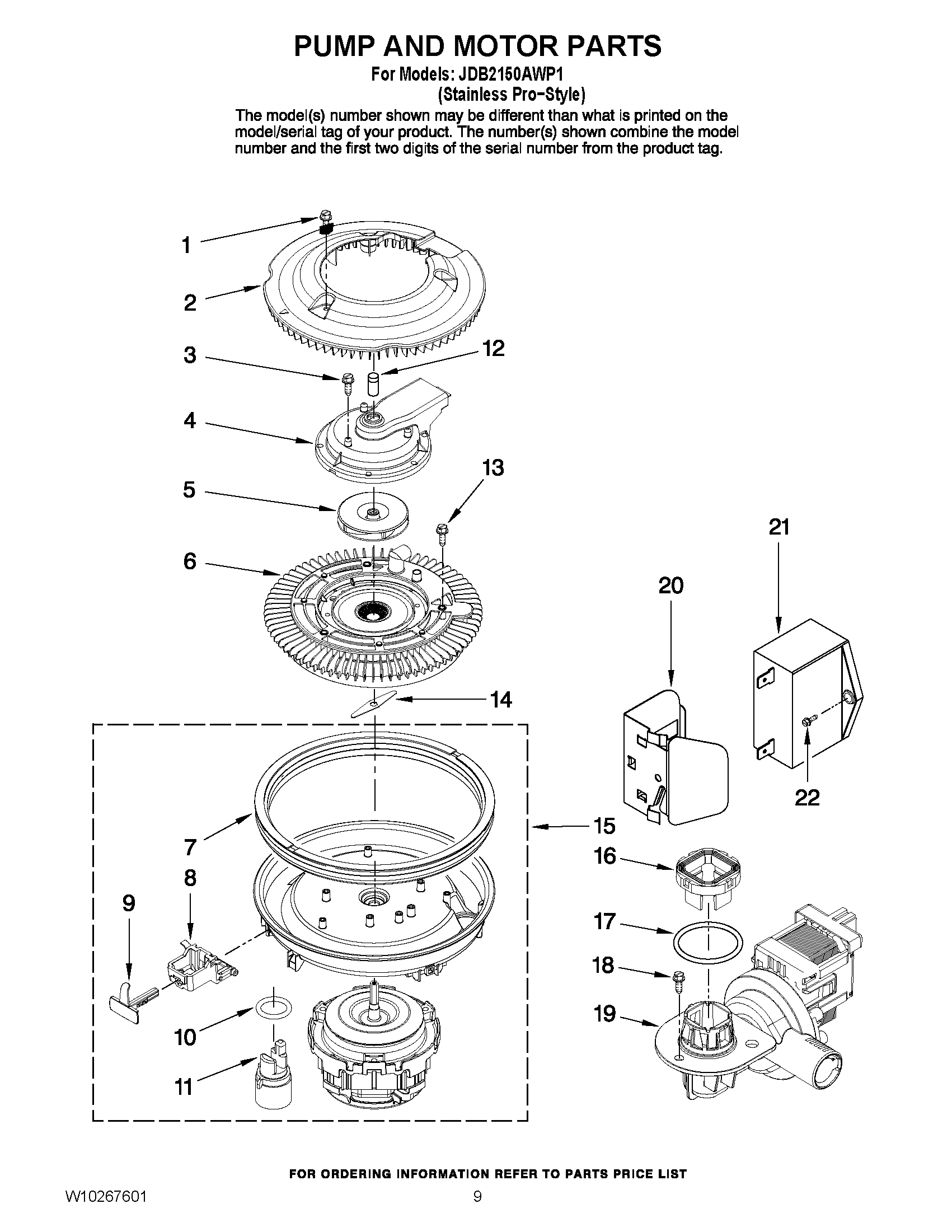

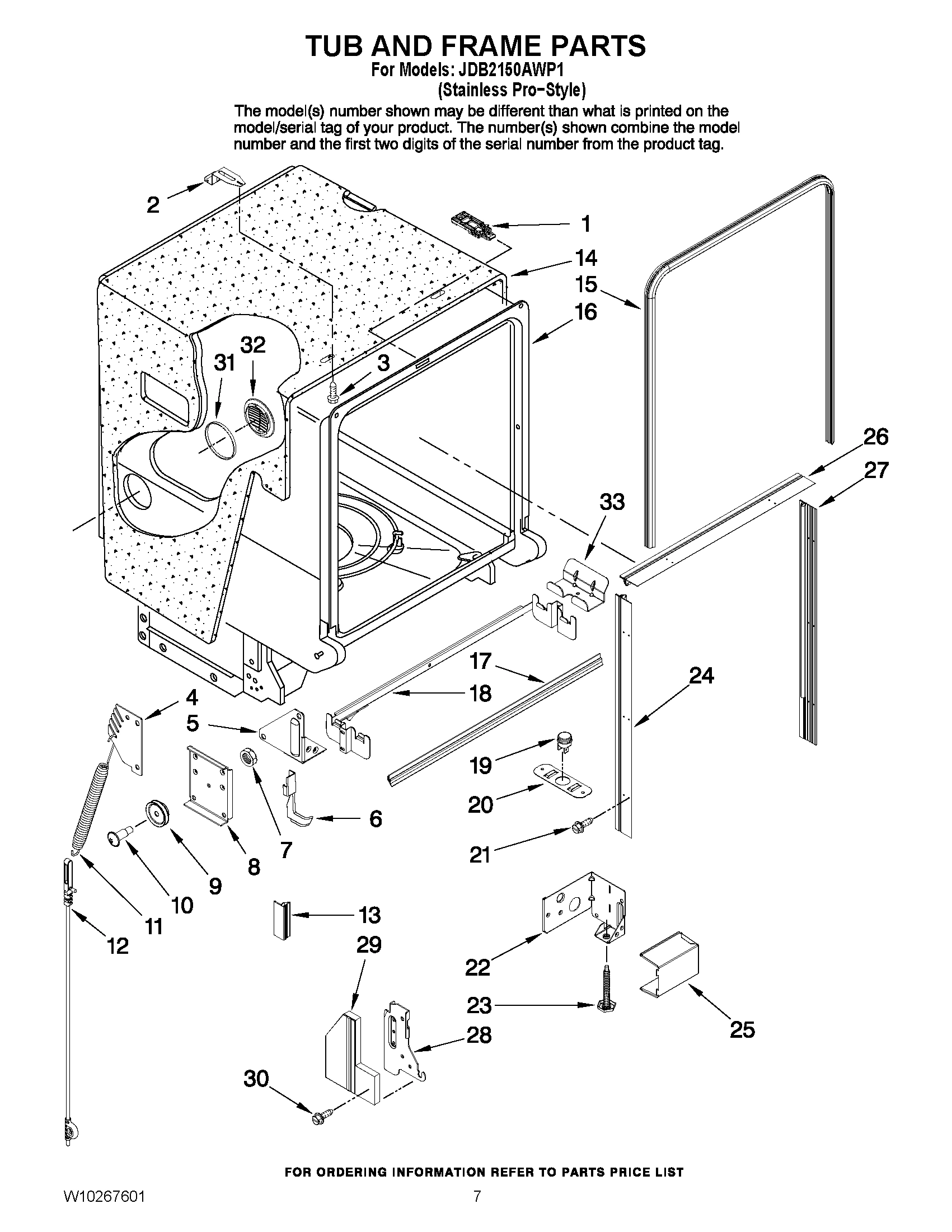

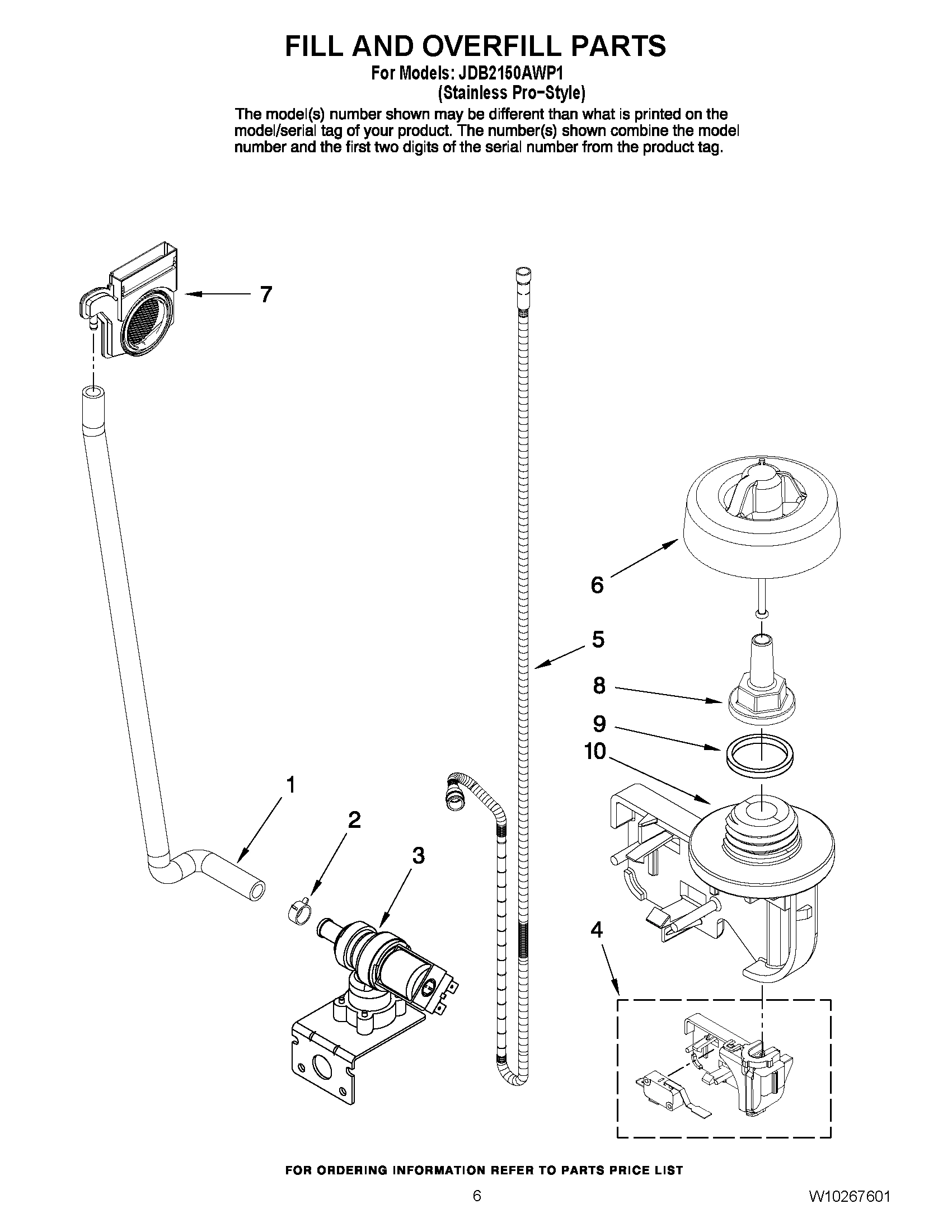

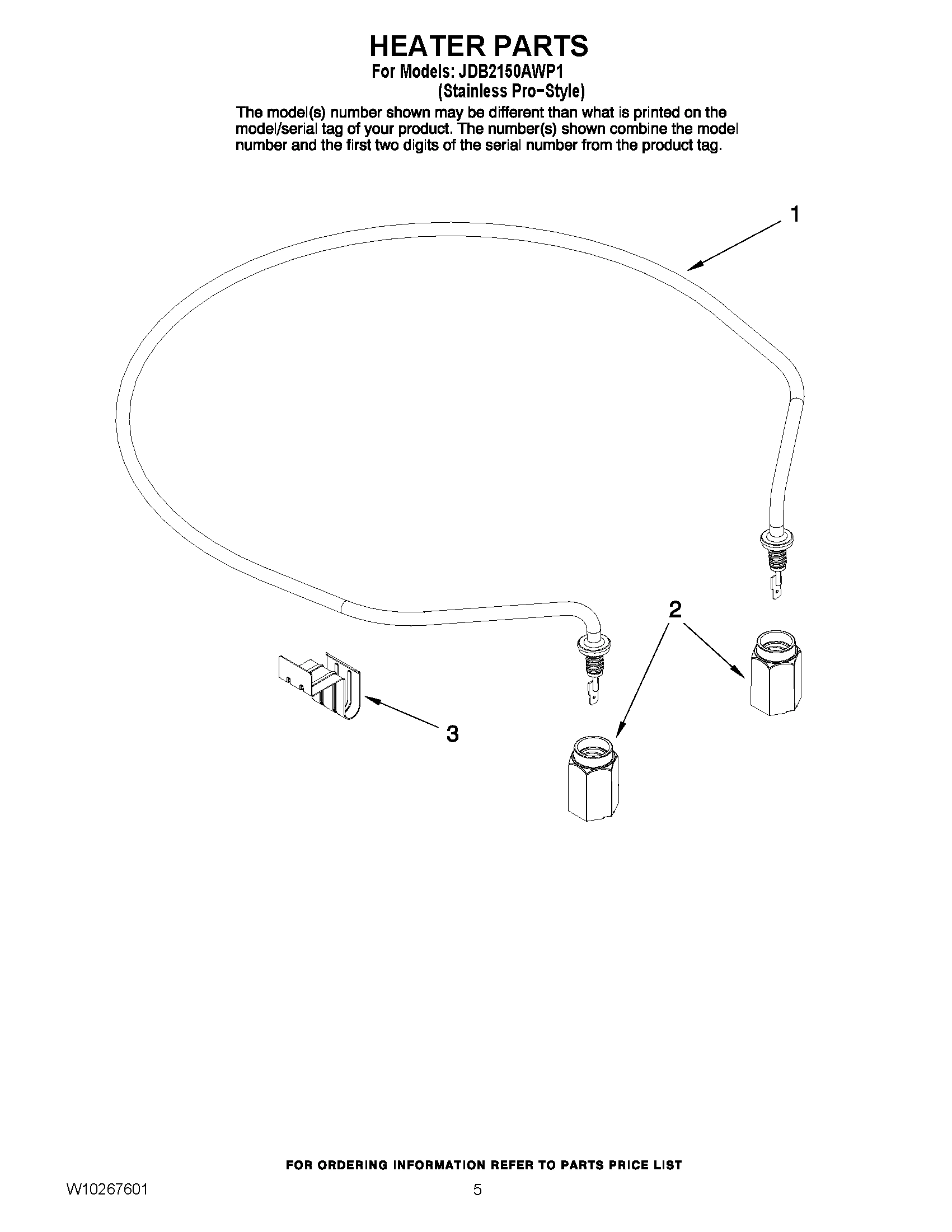

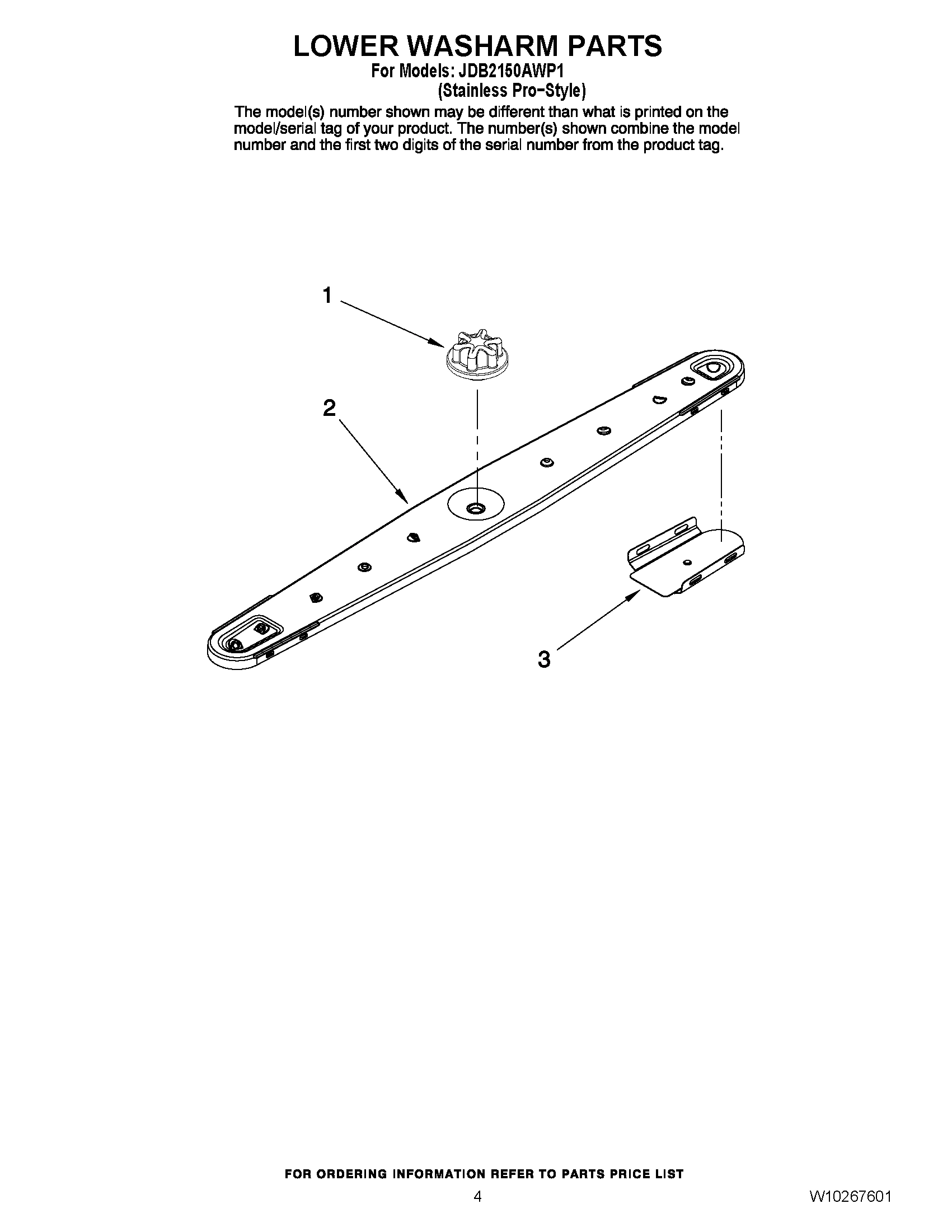

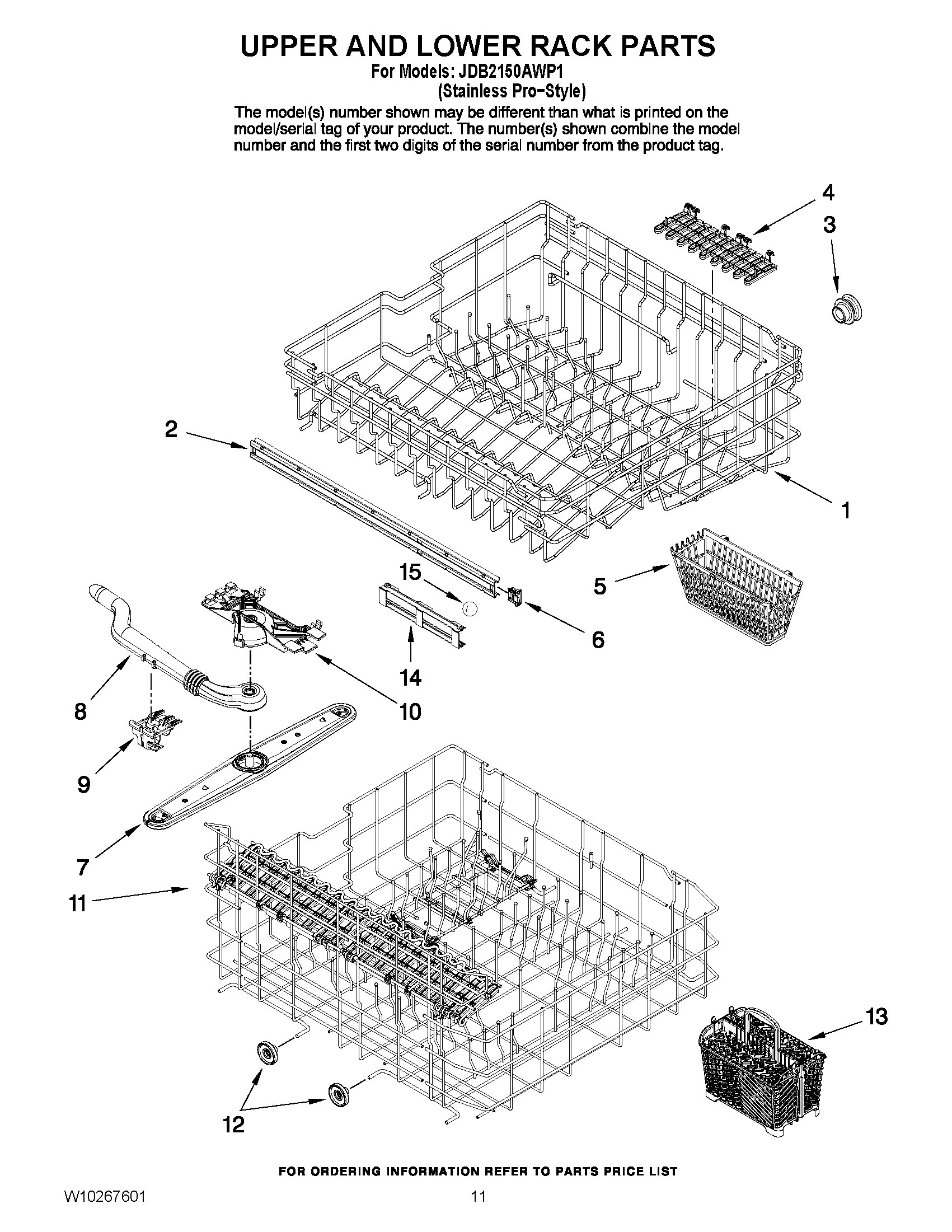

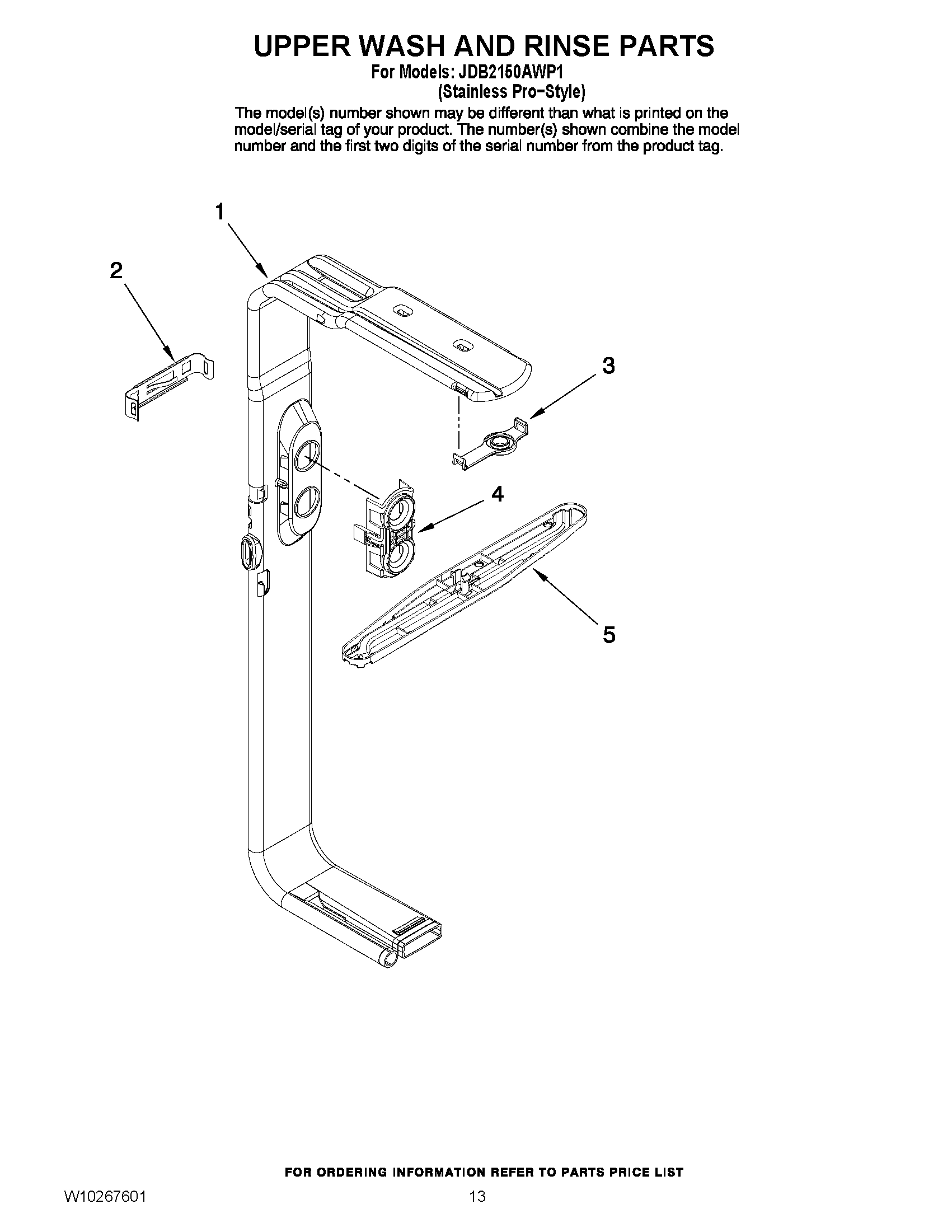

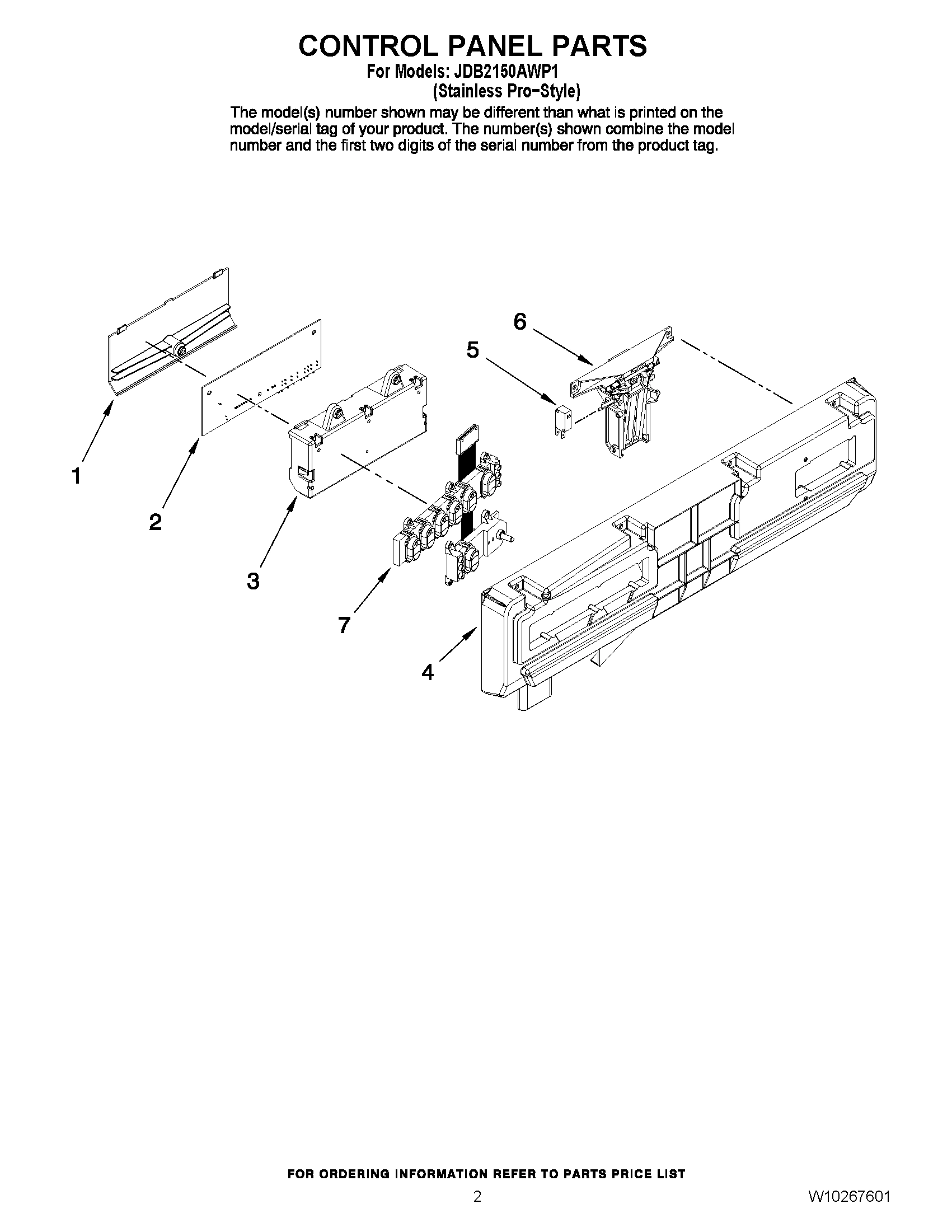

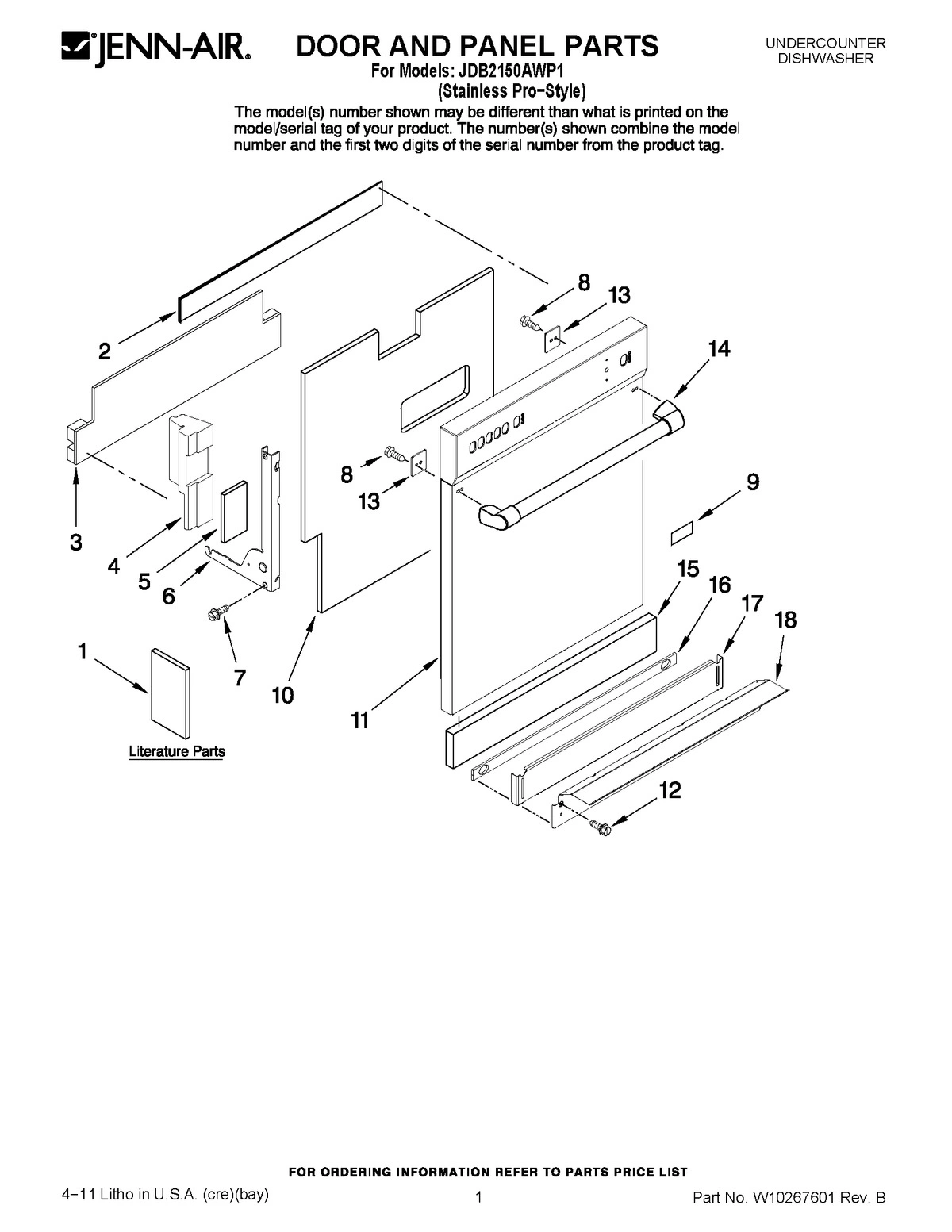

Model Whirlpool JDB2150AWP1 DISHWASHER – Common Parts &amp; Diagrams

1

Strike, Door WPL W10119337 Contact Us For Availability

1

Feed Tube Assembly WPL 99003081 Contact Us For Availability

1

Dishrack, Upper WPL W10214025 Contact Us For Availability

1

Guide, Use & Care WPL W10157785 Contact Us For Availability

1

Instructions, Installation WPL W10212195 Contact Us For Availability

1

Energy Guide WPL W10260096 Contact Us For Availability

1

HOUSING, BOARD (TOP) WPL 99002575 Contact Us For Availability

2

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

2

Rail, Inner Slide WPL W10144736 Contact Us For Availability

2

Insulation, Door WPL 99002693 Contact Us For Availability

2

Board, Control WPL W10218827 Contact Us For Availability

2

BRACKET, CABINET MOUNTING WPL 99002648 Contact Us For Availability

3

W11082871 Whirlpool Dishwasher Inlet Valve In Stock WPL W11082871 $74.54

3

WP99003148 Whirlpool Dishwasher Wheel In Stock WPL WP99003148 $5.09

3

Cap, Rinse Aid WPL 99003060 Contact Us For Availability

3

Shield, Radiant WPL W10218606 Contact Us For Availability

3

BARRIER, FOAM WPL 99003048 Contact Us For Availability

3

SCREWR WPL 6912799 Contact Us For Availability

4

Switch, Float WPL W10205539 Contact Us For Availability

4

Station, Docking (with Flapper) WPL 99003143 Contact Us For Availability

4

Shelf, Cup WPL 99003252 Contact Us For Availability

4

Block, Foam (Left) WPL 99003046 Contact Us For Availability

4

Block, Foam (Right) WPL 99003047 Contact Us For Availability

4

Panel, Inner Control WPL 99003121 Contact Us For Availability

5

WP99002652 Whirlpool Drain Hose In Stock WPL WP99002652 $72.65

5

Wash Arm, Top (with Retainer) WPL 99002911 Contact Us For Availability

5

Basket, Auxiliary WPL W10201707 Contact Us For Availability

5

WRAP, FOAM WPL 99003049 Contact Us For Availability

5

SWITCH, DOOR WPL 99002751 Contact Us For Availability

5

Bracket, Support WPL 99002636 Contact Us For Availability

6

WP99003282 Whirlpool Dishwasher Rail Stop Backorder WPL WP99003282 $3.76

6

WPW10118637 Whirlpool Dishwasher Bracket Backorder WPL WPW10118637 $101.02

6

WPW10275768 Whirlpool Door Latch In Stock WPL WPW10275768 $34.89

6

Inner Door W/ Damper WPL W10203664 Contact Us For Availability

6

Bracket, Hinge (Left) WPL W10118638 Contact Us For Availability

6

FLOAT WPL W10130099 Contact Us For Availability

6

Trim, Corner Edge (Left) WPL 99003038 Contact Us For Availability

7

INLET, AIR/WATER WPL 99003028 Contact Us For Availability

7

SCREW WPL 99001075 Contact Us For Availability

7

Nut WPL 99003688 Contact Us For Availability

8

LEVER, MOTOR MOUNT WPL 99003056 Contact Us For Availability

8

Wash Manifold Assembly WPL 99003142 Contact Us For Availability

8

Screw WPL 99003154 Contact Us For Availability

8

Bracket, Cable WPL W10173920 Contact Us For Availability

9

W11636815 Whirlpool Nameplate Backorder WPL W11636815 $27.68

9

Clip, Upper Wash Manifold (Back) WPL 99003071 Contact Us For Availability

99002651 Whirlpool Dishwasher Turbidity Senso Backorder WPL 99002651 $10.94

Holder, Float Switch WPL W10130109 Contact Us For Availability

Clip, Upper Wash Manifold (Front) WPL 99003072 Contact Us For Availability

INSULATION, DOOR WPL 99003044 Contact Us For Availability

Bolt, Shoulder WPL 99003687 Contact Us For Availability

WP99003118 Whirlpool Door Spring Backorder WPL WP99003118 $12.33

WPW10120019 Whirlpool Dishwasher Sensor Backorder WPL WPW10120019 $145.78

Dishrack, Lower WPL W10203866 Contact Us For Availability

Panel, Front WPL 99003126 Contact Us For Availability

WP6-912366 Whirlpool Dishwasher Screw Backorder WPL WP6-912366 $2.55

WP99003446 Whirlpool Door Cable In Stock WPL WP99003446 $3.88

Wheel Assembly (Lower) WPL 6918869 Contact Us For Availability

Screw (White) WPL 99001194 Contact Us For Availability

W10167659 Whirlpool Dishwasher Plate Backorder WPL W10167659 $10.42

WP6-918873 Whirlpool Silverware Basket In Stock WPL WP6-918873 $26.54

Screw WPL 99002664 Contact Us For Availability

Gap Seal, Toe Kick (Black) WPL 99002701 Contact Us For Availability

Gap Seal, Toe Kick (White) WPL 99002703 Contact Us For Availability

14

WPW10223013 Whirlpool Dishwasher Insulation P Backorder WPL WPW10223013 $45.42

14

CAGE, BALL BEARING WPL 99003069 Contact Us For Availability

14

Handle, Door WPL 99003125 Contact Us For Availability

15

WP6-920587 Whirlpool Dishwasher Shield Backorder WPL WP6-920587 $2.42

15

WP99003337 Whirlpool Door Seal Backorder WPL WP99003337 $106.28

16

Damper, Toe Panel (Black) WPL 99002694 Contact Us For Availability

16

Damper, Toe Panel (White) WPL 99002698 Contact Us For Availability

16

TUB ASSEMBLY (NOT SERVICED) WPL NP Contact Us For Availability

17

WP99003041 Whirlpool Dishwasher Trim Backorder WPL WP99003041 $51.50

17

Panel, Toe (Includes Item 16) (Black) WPL 99002765 Contact Us For Availability

17

Panel, Toe (Includes Item 16) (White) WPL 99002766 Contact Us For Availability

18

Bracket, Support (Rear) WPL W10167660 Contact Us For Availability

18

Support, Front WPL 99002859 Contact Us For Availability

19

THERMOSTAT, LIMITING WPL 99002633 Contact Us For Availability

20

SHEILD, CAPACITOR WPL W10167912 Contact Us For Availability

20

Clip, Thermostat WPL W10167658 Contact Us For Availability

21

Capacitor WPL 99002665 Contact Us For Availability

21

SCREW, TRIM MOUNTING WPL 99002692 Contact Us For Availability

22

Screw WPL 99002601 Contact Us For Availability

22

Bracket, Junction Box WPL 99002637 Contact Us For Availability

23

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $5.45

24

STRIP, TRIM LEFT WPL W10164700 Contact Us For Availability

25

COVER, JUNCTION BOX WPL 99002638 Contact Us For Availability

26

STRIP, TRIM TOP WPL W10164702 Contact Us For Availability

27

STRIP, TRIM RIGHT WPL W10164701 Contact Us For Availability

28

Support, Hinge (Right) WPL W10117484 Contact Us For Availability

28

Support, Hinge (Left) WPL W10117485 Contact Us For Availability

29

Backer, Hinge (Left) WPL W10174569 Contact Us For Availability

29

Backer, Hinge (Right) WPL W10174581 Contact Us For Availability

30

Screw WPL 99003155 Contact Us For Availability

32

Grill, Air/Water Inlet WPL 6918397 Contact Us For Availability

33

Clamp, Rear Support WPL W10167916 Contact Us For Availability

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $10.52

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $13.95

4396897RW Whirlpool Dishwasher Fill Hose In Stock WPL 4396897RW $22.42

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.52

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.52

8212486 Whirlpool Hose Assembly In Stock WPL 8212486 $38.43

8212488RC Whirlpool Dishwasher Installation K Backorder WPL 8212488RC $42.48

W10278635RP Whirlpool Dishwasher Fill Hose In Stock WPL W10278635RP $25.11
