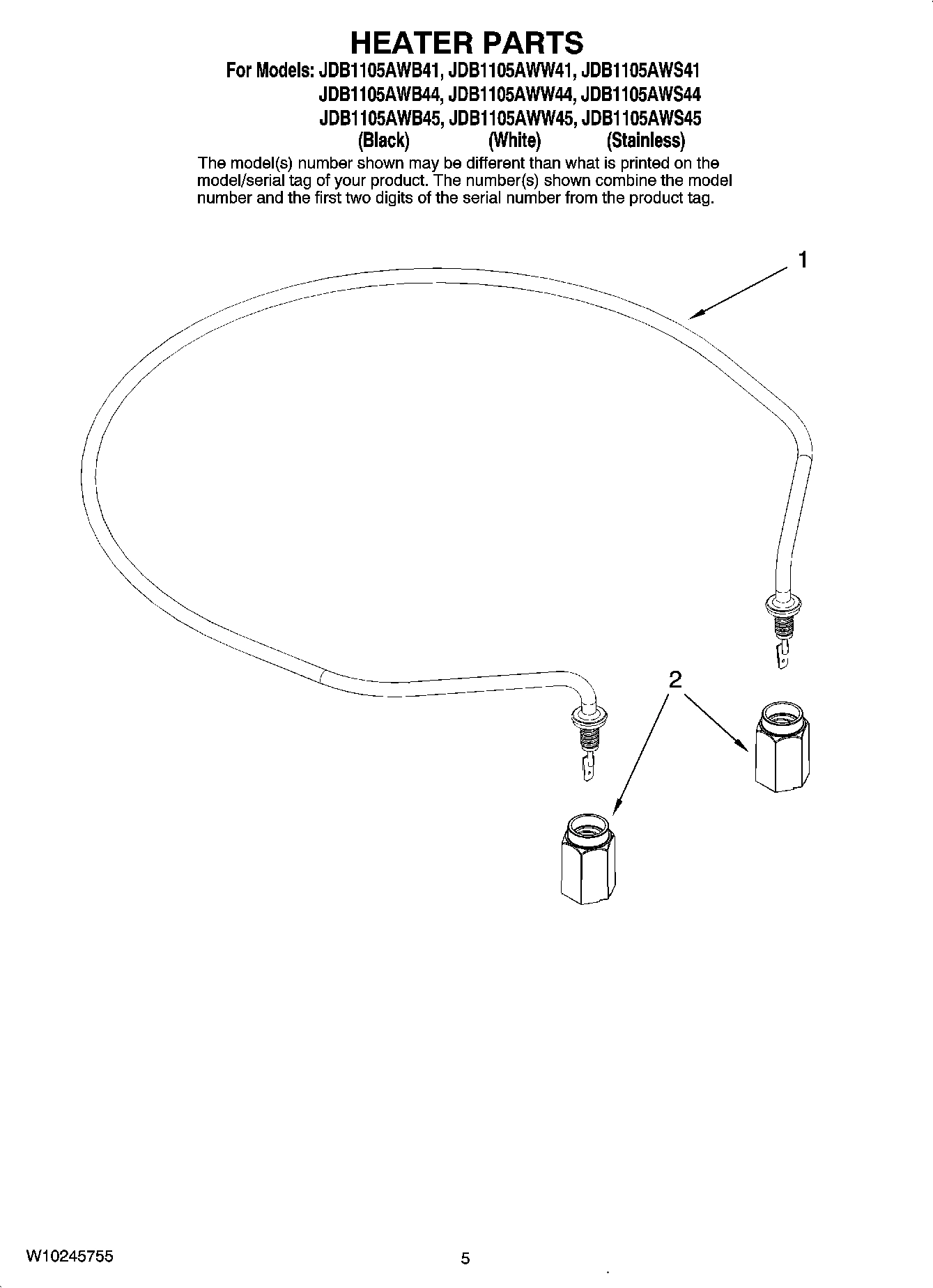

Model Maytag JDB1105AWB41 DISHWASHER – Common Parts &amp; Diagrams

1

WP99002852 Whirlpool Dishwasher Injector Hose Backorder WPL WP99002852 $52.70

1

MAY W10119337 MAY W10119337 Contact Us For Availability

1

MAY 99002666 MAY 99002666 Contact Us For Availability

1

MAY W10137104 MAY W10137104 Contact Us For Availability

1

Feed Tube Assembly MAY 99003081 Contact Us For Availability

2

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

2

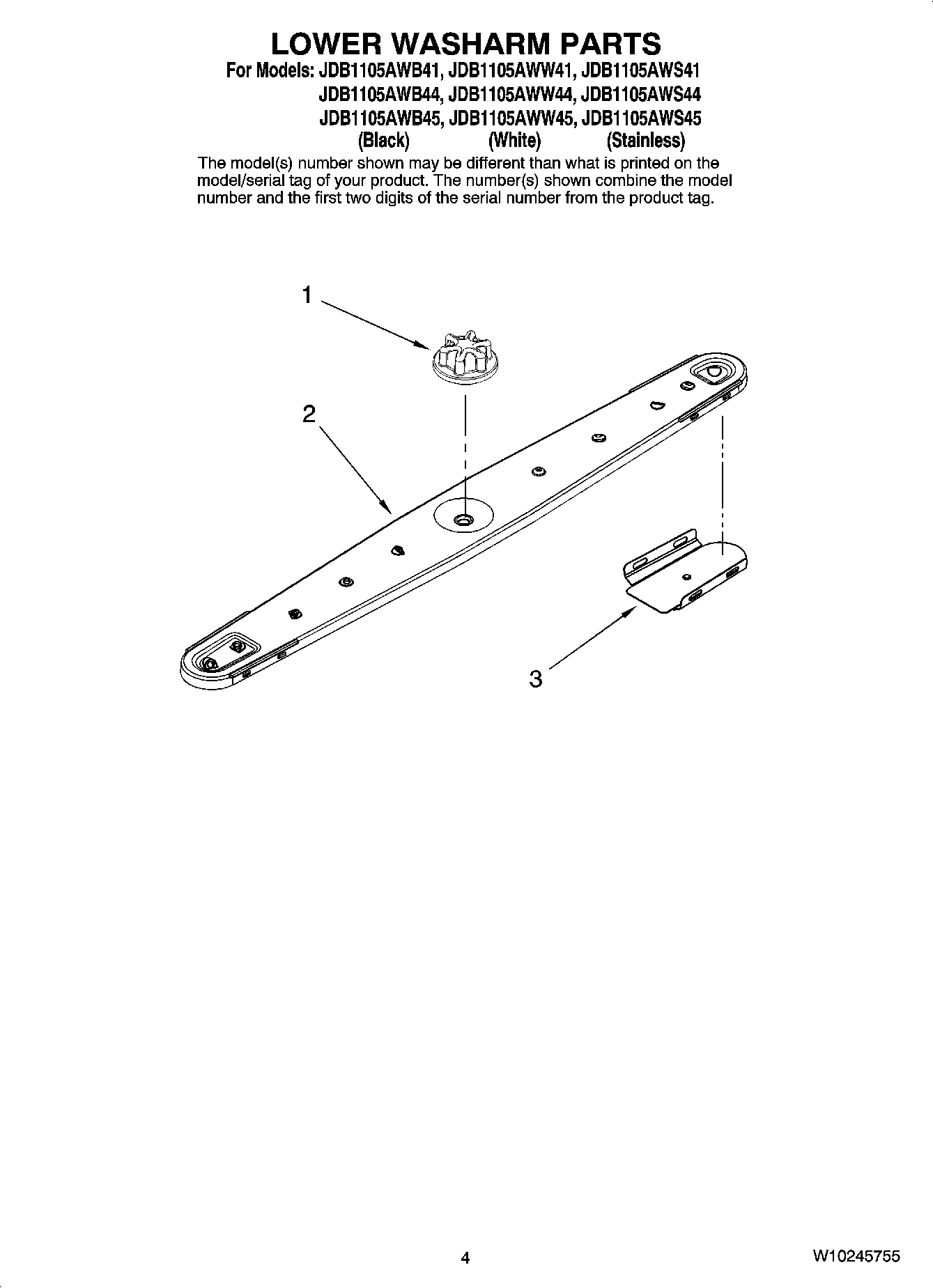

WP6-918806 Whirlpool Dishwasher Lower Spray A Backorder WPL WP6-918806 $66.07

2

WP99002643 Whirlpool Dishwasher Bracket Backorder WPL WP99002643 $3.70

2

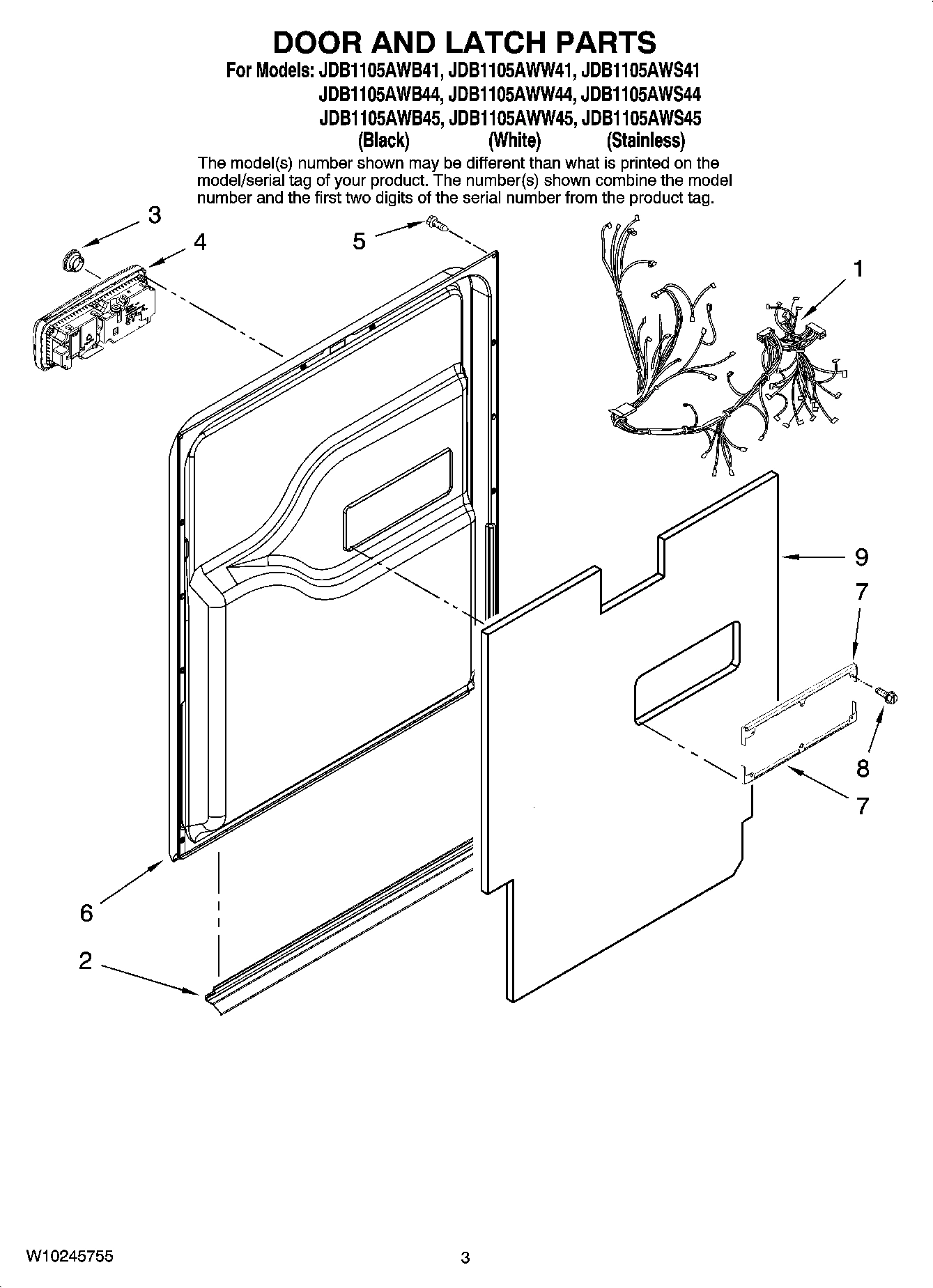

Seal, Door (Bottom) MAY 99003045 Contact Us For Availability

2

MAY 99003033 MAY 99003033 Contact Us For Availability

2

MAY 99002648 MAY 99002648 Contact Us For Availability

2

MAY 99003468 MAY 99003468 Contact Us For Availability

2

MAY 99003244 MAY 99003244 Contact Us For Availability

3

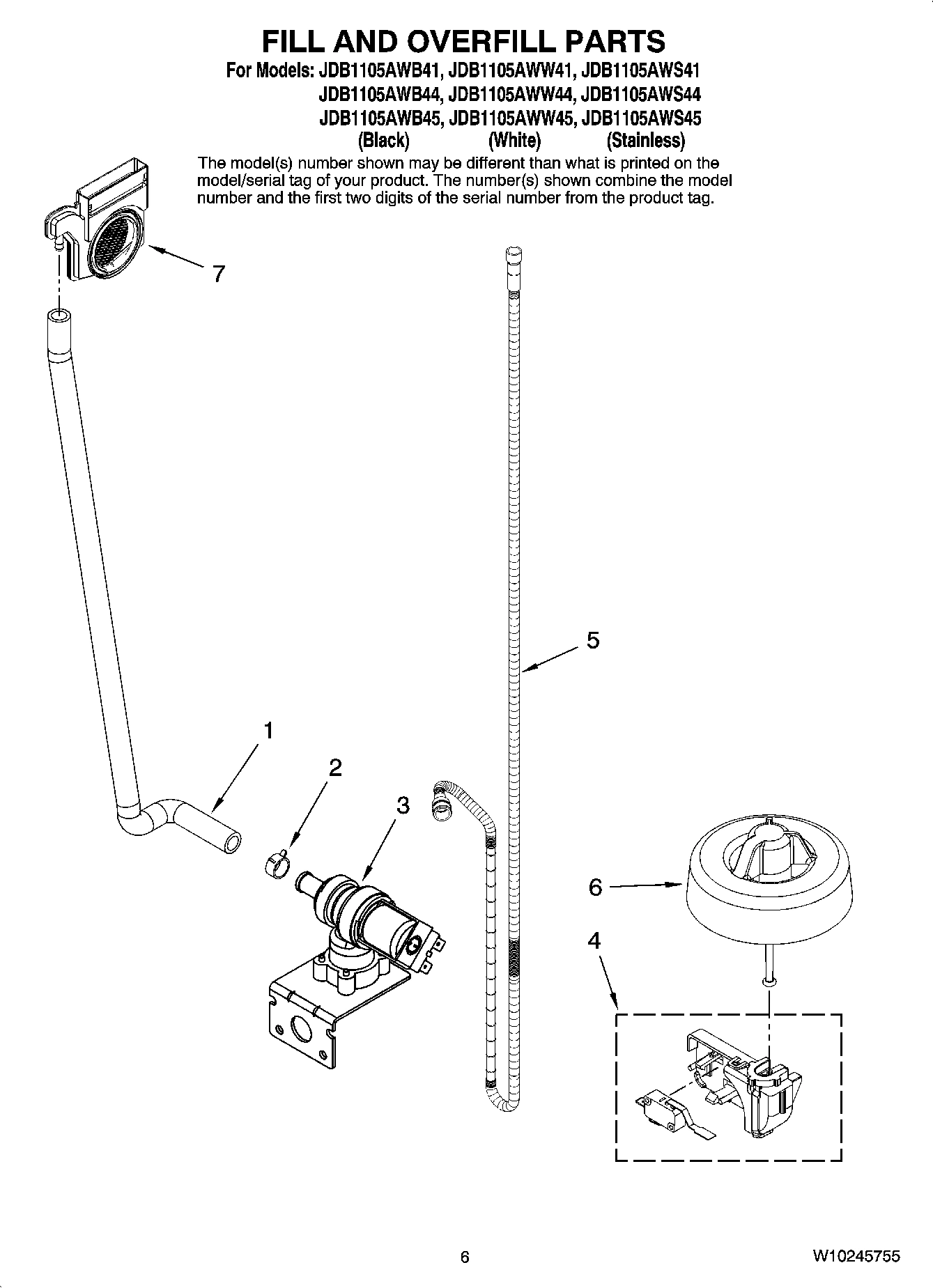

W11082871 Whirlpool Dishwasher Inlet Valve In Stock WPL W11082871 $50.62

3

WP99002576 Whirlpool Dishwasher Cover Backorder WPL WP99002576 $27.72

3

WP99002753 Whirlpool Dishwasher Retainer Backorder WPL WP99002753 $3.70

3

MAY 99002653 MAY 99002653 Contact Us For Availability

3

MAY 99002640 MAY 99002640 Contact Us For Availability

3

MAY 99002668 MAY 99002668 Contact Us For Availability

3

MAY 99003245 MAY 99003245 Contact Us For Availability

4

6-918346 Whirlpool Dishwasher Bracket Backorder WPL 6-918346 $10.76

4

Switch, Float MAY W10130103 Contact Us For Availability

4

Discharge, Housing Assembly MAY 99003145 Contact Us For Availability

4

MAY 99002715 MAY 99002715 Contact Us For Availability

4

Station, Docking (with Flapper) MAY 99003143 Contact Us For Availability

5

WP99002652 Whirlpool Drain Hose In Stock WPL WP99002652 $65.29

5

WP99002659 Whirlpool Impeller In Stock WPL WP99002659 $29.06

5

WPY912620 Whirlpool Dishwasher Screw Backorder WPL WPY912620 $2.51

5

MAY 99002751 MAY 99002751 Contact Us For Availability

5

MAY 99002636 MAY 99002636 Contact Us For Availability

5

MAY 99003246 MAY 99003246 Contact Us For Availability

5

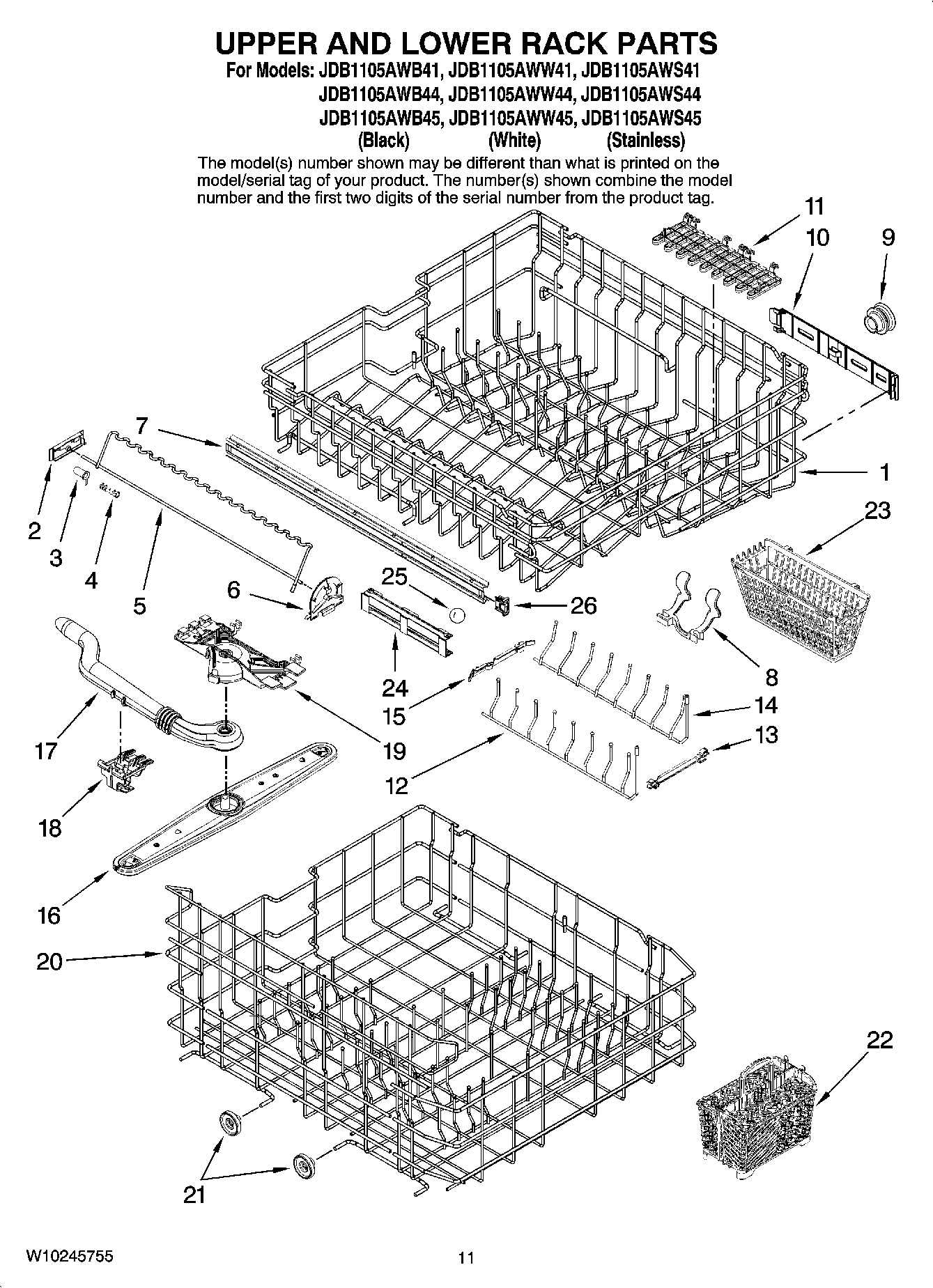

Wash Arm, Top (with Retainer) MAY 99002911 Contact Us For Availability

6

WP99003039 Whirlpool Dishwasher Trim Backorder WPL WP99003039 $3.70

6

WPW10192799 Whirlpool Dishwasher Accumulator In Stock WPL WPW10192799 $117.20

6

Trim, Corner Edge (Left) MAY 99003038 Contact Us For Availability

6

MAY W10130095 MAY W10130095 Contact Us For Availability

6

MAY 99003247 MAY 99003247 Contact Us For Availability

7

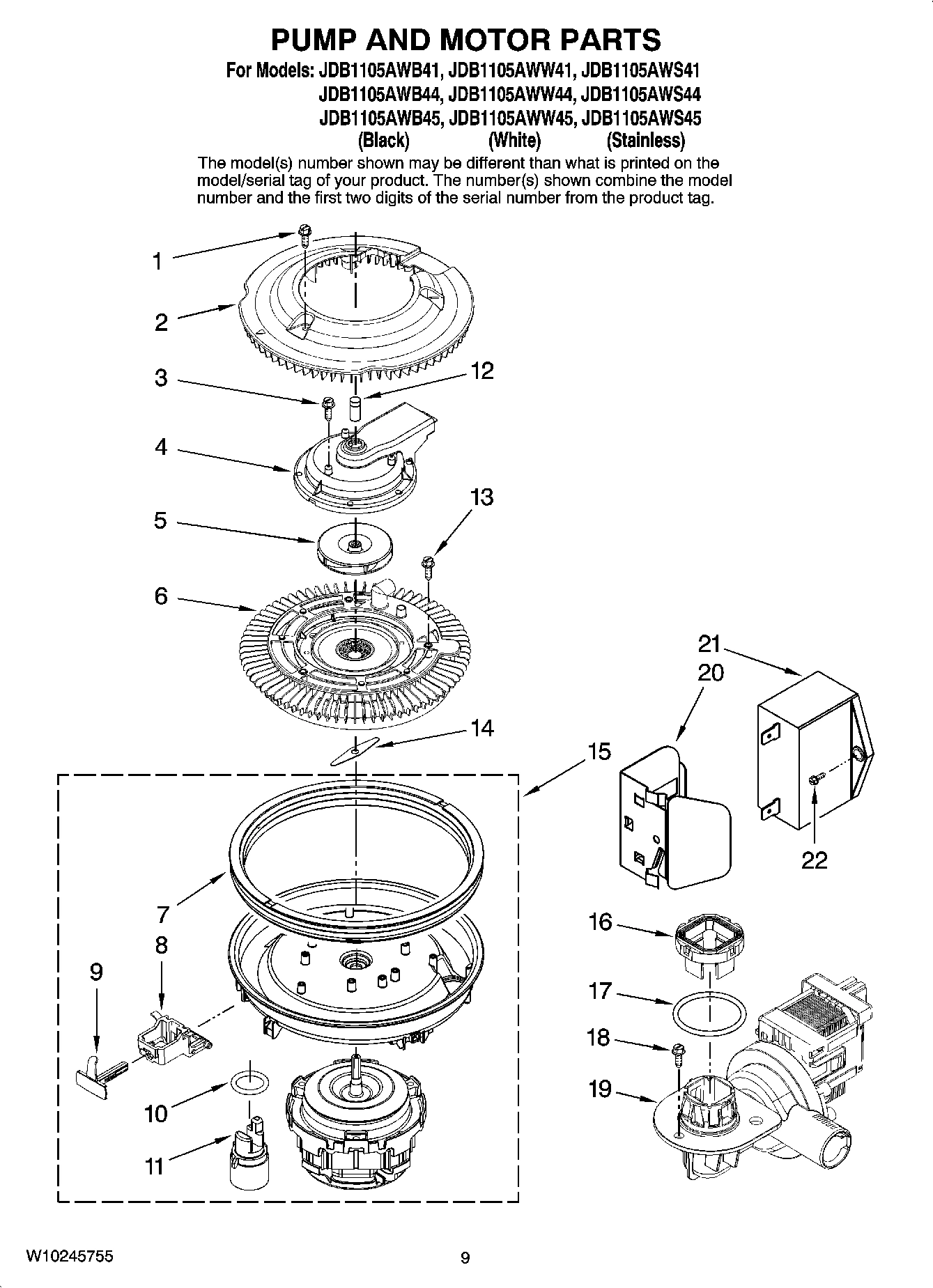

12002361 Whirlpool Dishwasher Pump Gasket (wi Backorder WPL 12002361 $44.38

7

99003096 Whirlpool Dishwasher Panel Fastener Backorder WPL 99003096 $10.76

7

MAY 99003028 MAY 99003028 Contact Us For Availability

7

MAY 99003688 MAY 99003688 Contact Us For Availability

7

MAY 99003066 MAY 99003066 Contact Us For Availability

8

MAY 99003686 MAY 99003686 Contact Us For Availability

8

MAY 99003056 MAY 99003056 Contact Us For Availability

8

MAY 99003249 MAY 99003249 Contact Us For Availability

9

WP99002608 Whirlpool Dishwasher Cable Roller Backorder WPL WP99002608 $5.01

9

WP99003148 Whirlpool Dishwasher Wheel In Stock WPL WP99003148 $4.85

9

MAY 99003044 MAY 99003044 Contact Us For Availability

9

MAY 99003057 MAY 99003057 Contact Us For Availability

10

99002651 Whirlpool Dishwasher Turbidity Senso Backorder WPL 99002651 $10.76

10

MAY 99003687 MAY 99003687 Contact Us For Availability

10

MAY 99003063 MAY 99003063 Contact Us For Availability

11

WP99003118 Whirlpool Door Spring Backorder WPL WP99003118 $12.13

11

MAY W10120019 MAY W10120019 Contact Us For Availability

11

MAY 99003252 MAY 99003252 Contact Us For Availability

WP99003446 Whirlpool Door Cable In Stock WPL WP99003446 $3.70

MAY 99001194 MAY 99001194 Contact Us For Availability

MAY 99003697 MAY 99003697 Contact Us For Availability

MAY 99003253 MAY 99003253 Contact Us For Availability

Gap Seal, Toe Kick (Black) MAY 99002701 Contact Us For Availability

Gap Seal, Toe Kick (White) MAY 99002703 Contact Us For Availability

MAY 99002664 MAY 99002664 Contact Us For Availability

MAY 99003254 MAY 99003254 Contact Us For Availability

14

WPW10223013 Whirlpool Dishwasher Insulation P Backorder WPL WPW10223013 $40.15

14

MAY 99003427 MAY 99003427 Contact Us For Availability

14

MAY 99003255 MAY 99003255 Contact Us For Availability

15

WP99003337 Whirlpool Door Seal In Stock WPL WP99003337 $95.50

15

Wash Motor Assy. MAY 99003436 Contact Us For Availability

15

MAY 99003256 MAY 99003256 Contact Us For Availability

WP99003070 Whirlpool Dishwasher Wash Arm Backorder WPL WP99003070 $32.35

Damper, Toe Panel (Black) MAY 99002694 Contact Us For Availability

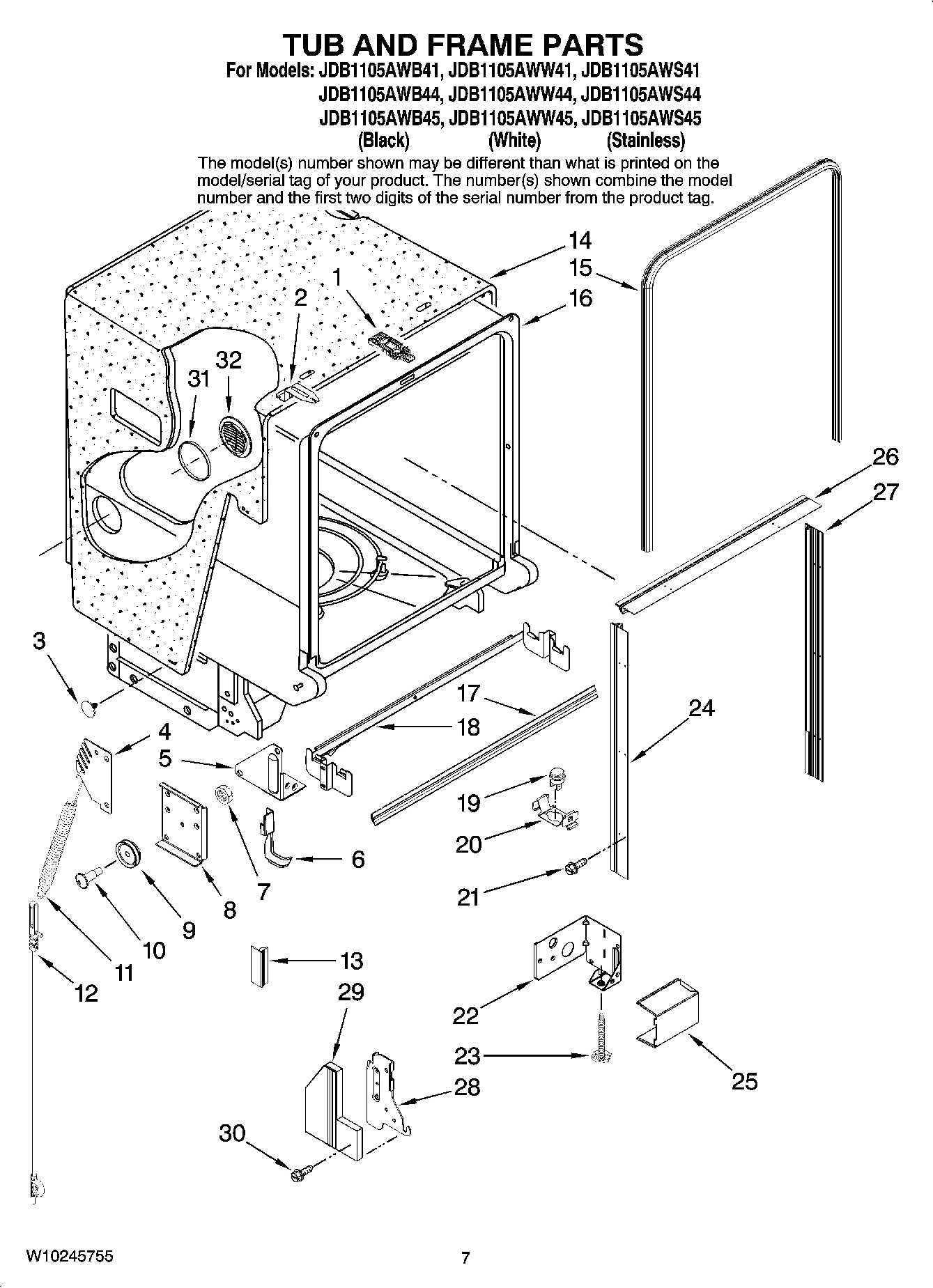

Tub Assembly MAY W10142298 Contact Us For Availability

MAY 99003309 MAY 99003309 Contact Us For Availability

17

WP99003041 Whirlpool Dishwasher Trim Backorder WPL WP99003041 $45.53

17

MAY 99002857 MAY 99002857 Contact Us For Availability

17

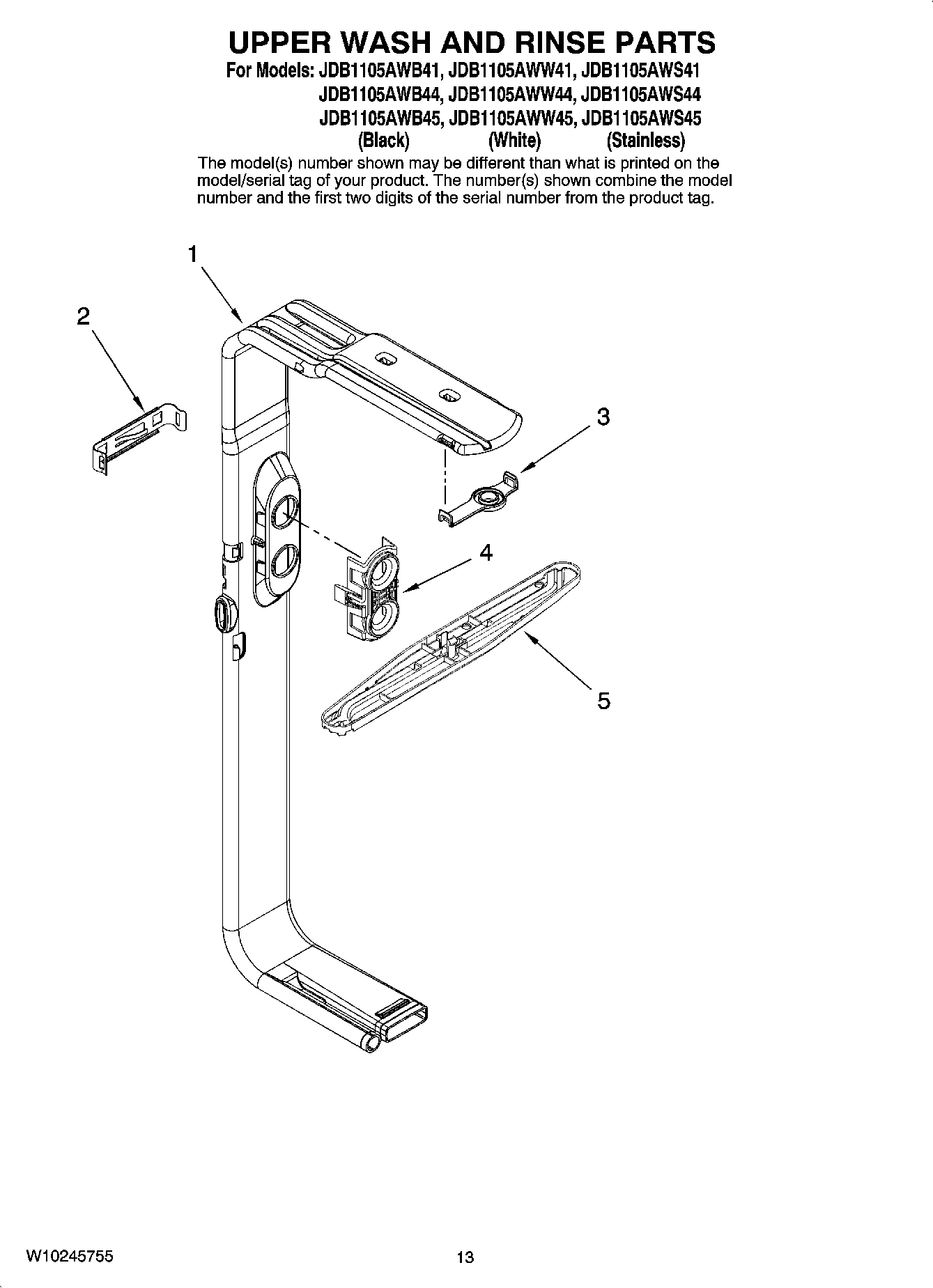

Wash Manifold Assembly MAY 99003142 Contact Us For Availability

18

99003071 Whirlpool Dishwasher Upper Wash Mani Backorder WPL 99003071 $10.25

18

MAY 99002740 MAY 99002740 Contact Us For Availability

18

Bracket, Support (Rear) MAY 99003087 Contact Us For Availability

19

MAY 99002633 MAY 99002633 Contact Us For Availability

19

MAY W10200518 MAY W10200518 Contact Us For Availability

19

Clip, Upper Wash Manifold (Front) MAY 99003072 Contact Us For Availability

20

MAY 99001008 MAY 99001008 Contact Us For Availability

20

Sheild, Capacitor MAY 99003440 Contact Us For Availability

20

MAY W10137099 MAY W10137099 Contact Us For Availability

21

WP99003149 Whirlpool Rack Wheel In Stock WPL WP99003149 $5.64

21

MAY 99002665 MAY 99002665 Contact Us For Availability

21

MAY 99002692 MAY 99002692 Contact Us For Availability

22

MAY 99002637 MAY 99002637 Contact Us For Availability

22

MAY 99002601 MAY 99002601 Contact Us For Availability

22

MAY 99003268 MAY 99003268 Contact Us For Availability

23

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $5.36

23

MAY 99003248 MAY 99003248 Contact Us For Availability

24

MAY 99003069 MAY 99003069 Contact Us For Availability

24

Strip, Trim MAY 99003035 Contact Us For Availability

25

WP99003068 Whirlpool Dishwasher Bearing In Stock WPL WP99003068 $2.51

25

MAY 99002638 MAY 99002638 Contact Us For Availability

26

WP99003282 Whirlpool Dishwasher Rail Stop Backorder WPL WP99003282 $3.70

26

Strip, Trim MAY 99003036 Contact Us For Availability

27

Strip, Trim MAY 99003034 Contact Us For Availability

28

MAY W10117484 MAY W10117484 Contact Us For Availability

28

MAY W10117485 MAY W10117485 Contact Us For Availability

29

MAY 99003150 MAY 99003150 Contact Us For Availability

29

MAY 99003451 MAY 99003451 Contact Us For Availability

30

MAY 99003155 MAY 99003155 Contact Us For Availability

31

WP99002150 Whirlpool Dishwasher Air Seal Backorder WPL WP99002150 $4.94

32

W10259618 Whirlpool Dishwasher Deflector Backorder WPL W10259618 $30.98

MAY 4392899 MAY 4392899 Contact Us For Availability

MAY 4396277 MAY 4396277 Contact Us For Availability

MAY 4396897RP MAY 4396897RP Contact Us For Availability

MAY 4396897RW MAY 4396897RW Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability

PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability

MAY 8212486 MAY 8212486 Contact Us For Availability

MAY 8212488RC MAY 8212488RC Contact Us For Availability
