Model GE JCKP15BD1BB Electric Range – Common Parts & Diagrams

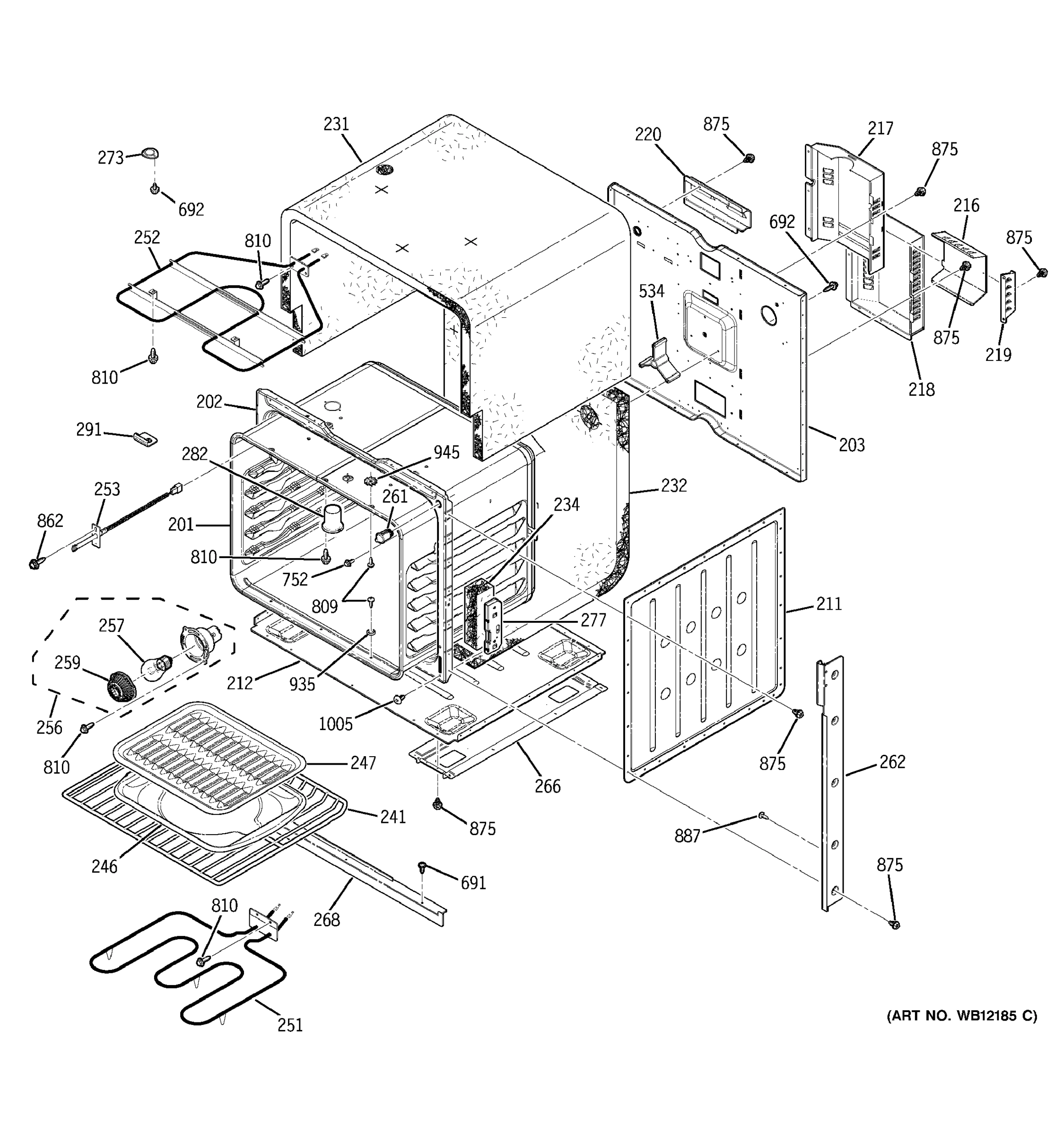

BODY PARTS

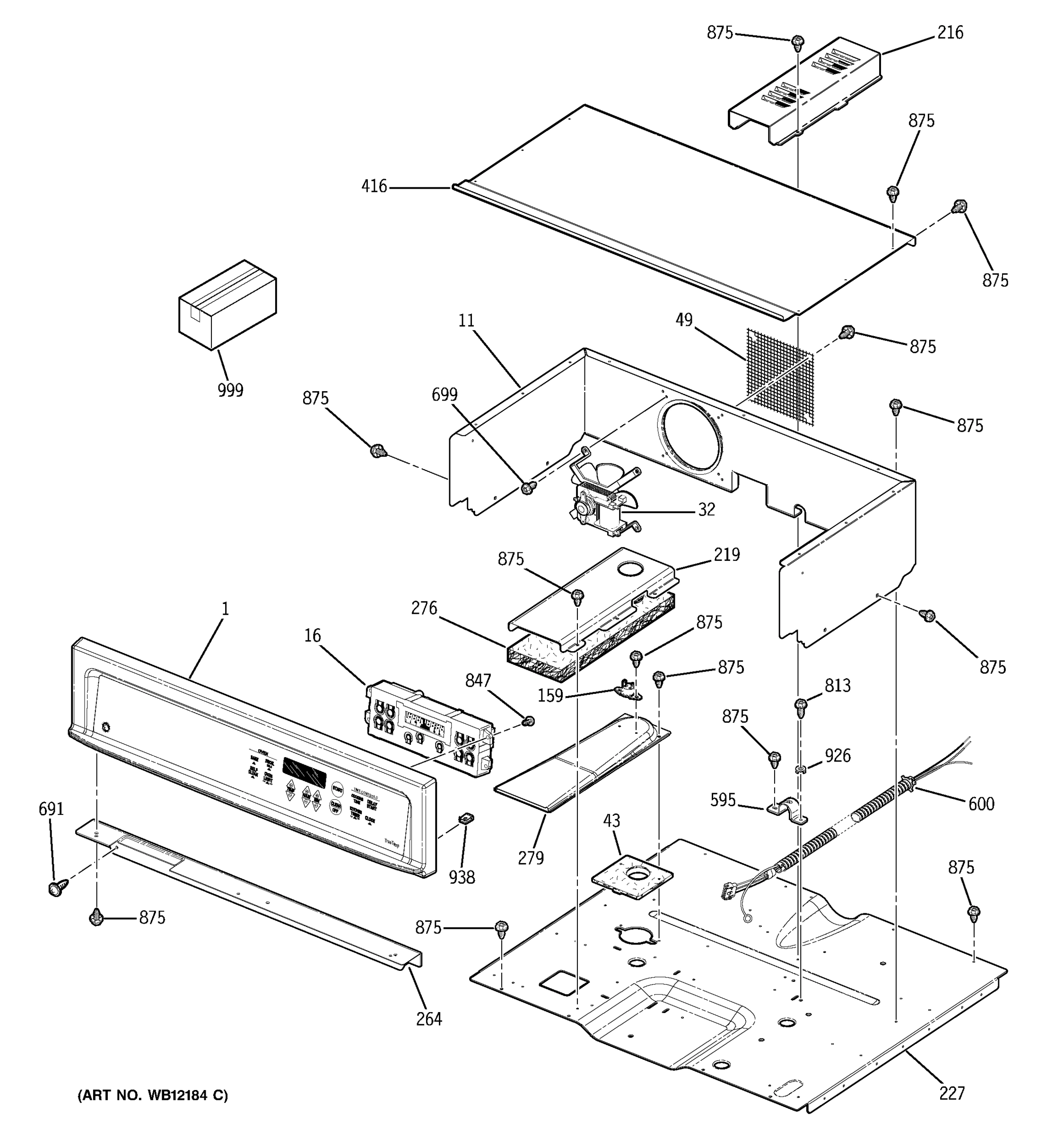

CONTROL PANEL

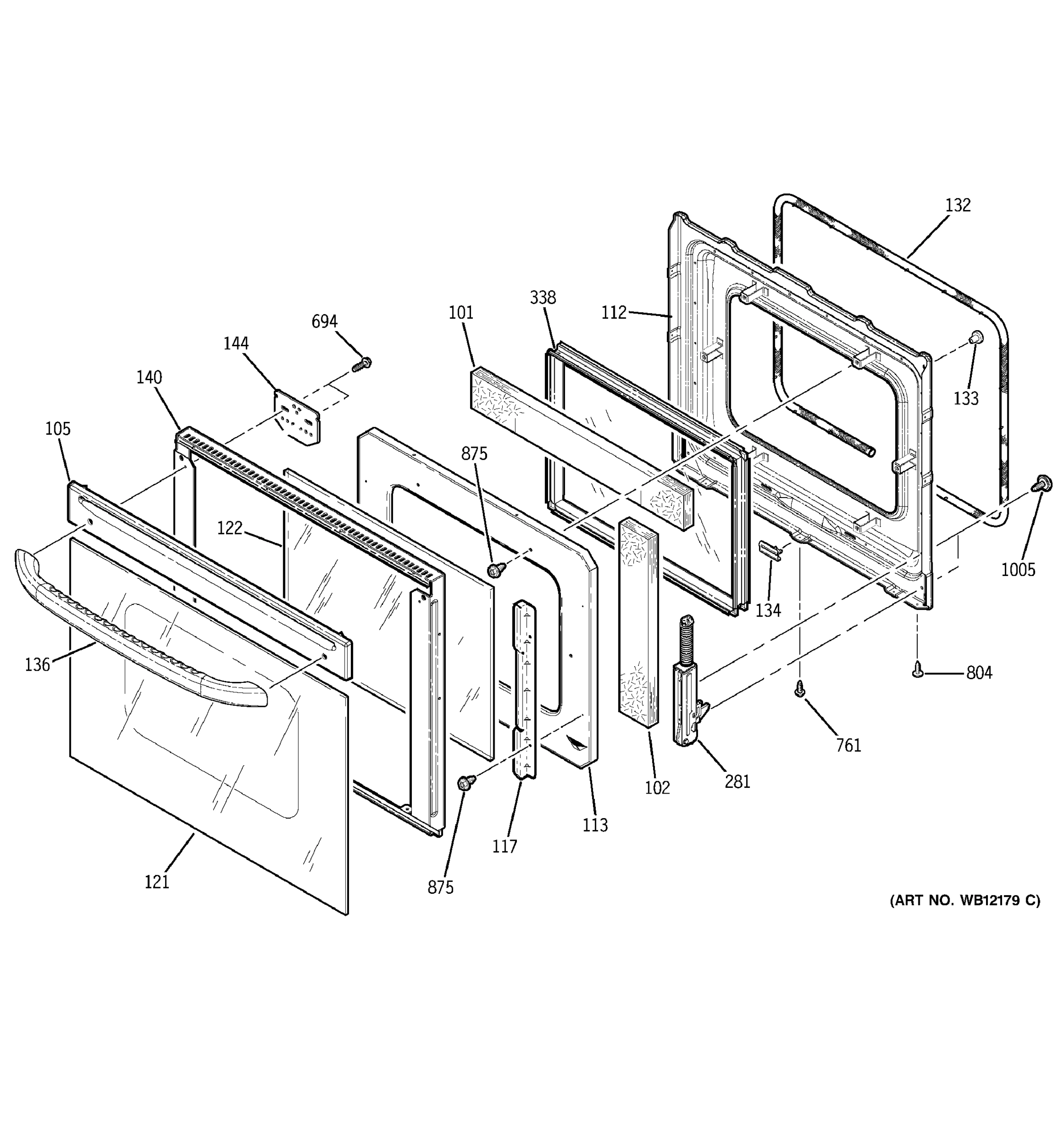

DOOR

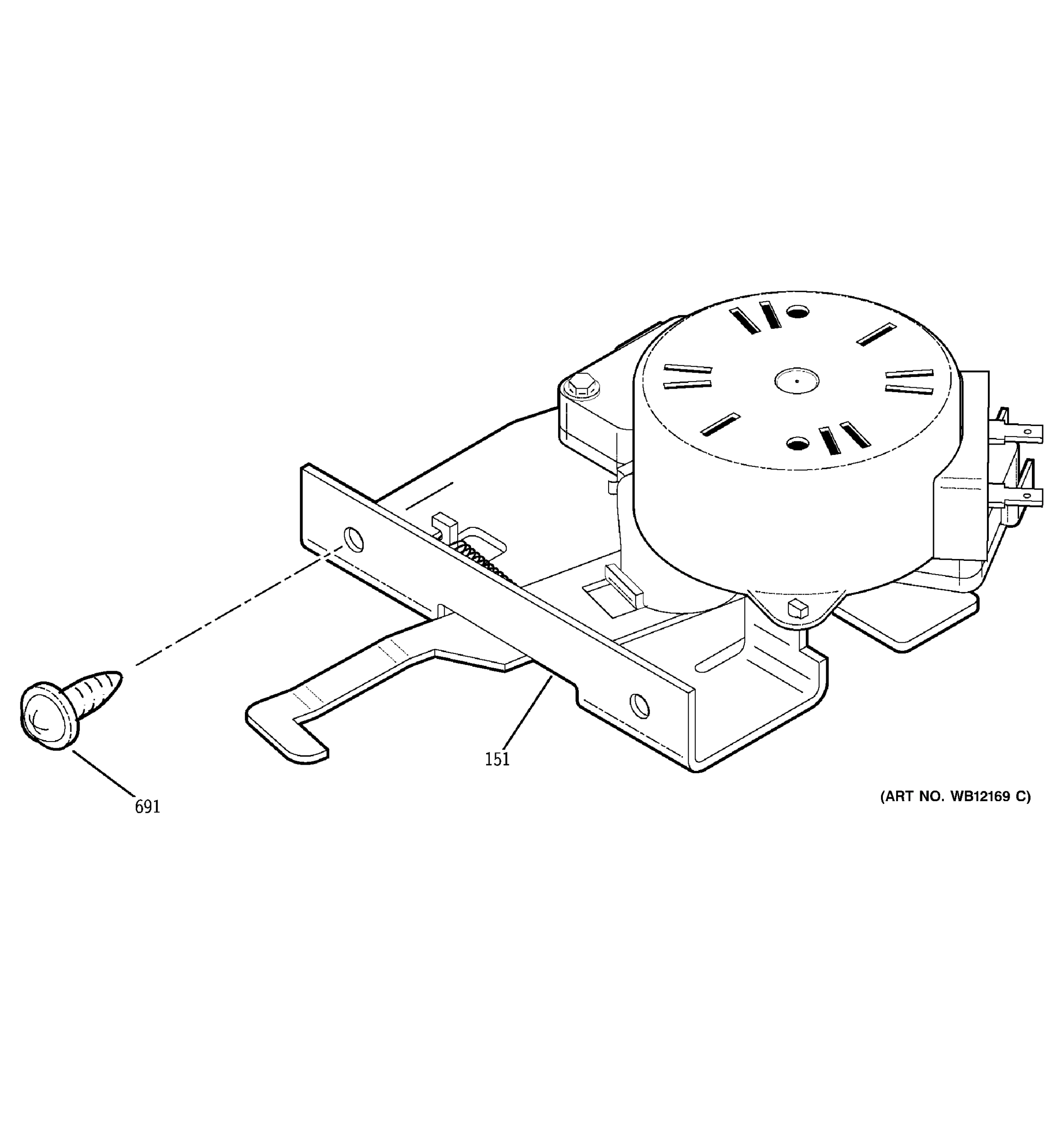

DOOR LOCK
Common parts from model GE JCKP15BD1BB Electric Range
1
CONTROL PANEL ASM-BLK GEN WB36T10223 Contact Us For Availability
11
GEN WB02T10112 GEN WB02T10112 Contact Us For Availability
16
GEN WB27T10336 GEN WB27T10336 Contact Us For Availability
43
GEN WB38T10017 GEN WB38T10017 Contact Us For Availability
49
GEN WB34T10043 GEN WB34T10043 Contact Us For Availability
101
GEN WB35T10062 GEN WB35T10062 Contact Us For Availability
105
DR VENT TRIM-BLK GEN WB07T10082 Contact Us For Availability
112
GEN WB55T10088 GEN WB55T10088 Contact Us For Availability
121
GEN WB55T10091 GEN WB55T10091 Contact Us For Availability
122
GEN WB57T10185 GEN WB57T10185 Contact Us For Availability
136
OV DR HANDLE GEN WB15T10045 Contact Us For Availability
140
GEN WB55T10084 GEN WB55T10084 Contact Us For Availability
151
GEN WB30T10069 GEN WB30T10069 Contact Us For Availability
159
GEN WB24T10059 GEN WB24T10059 Contact Us For Availability
216
GEN WB34K5216 GEN WB34K5216 Contact Us For Availability
216
GEN WB34T10044 GEN WB34T10044 Contact Us For Availability
219
GEN WB34T10041 GEN WB34T10041 Contact Us For Availability
219
GEN WB34T10042 GEN WB34T10042 Contact Us For Availability
227
GEN WB02T10114 GEN WB02T10114 Contact Us For Availability
253
GEN WB21T10005 GEN WB21T10005 Contact Us For Availability
257
OVEN LIGHT GEN BUY LOCAL Contact Us For Availability
261
GEN WB24T10065 GEN WB24T10065 Contact Us For Availability
262
GEN WB07T10187 GEN WB07T10187 Contact Us For Availability
262
GEN WB07T10189 GEN WB07T10189 Contact Us For Availability
264
GEN WB07T10186 GEN WB07T10186 Contact Us For Availability
268
GEN WB07T10188 GEN WB07T10188 Contact Us For Availability
273
GEN WB02K5365 GEN WB02K5365 Contact Us For Availability
276
GEN WB35T10066 GEN WB35T10066 Contact Us For Availability
277
GEN WB10T10015 GEN WB10T10015 Contact Us For Availability
279
GEN WB28T10055 GEN WB28T10055 Contact Us For Availability
281
GEN WB10T10018 GEN WB10T10018 Contact Us For Availability
281
GEN WB10T10017 GEN WB10T10017 Contact Us For Availability
282
GEN WB28T10056 GEN WB28T10056 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
416
GEN WB35T10060 GEN WB35T10060 Contact Us For Availability
534
GEN WB26K5050 GEN WB26K5050 Contact Us For Availability
600
GEN WB18T10221 GEN WB18T10221 Contact Us For Availability
692
SCREW 8-18 AB HXW 3/4 GEN WZ04X0416 Contact Us For Availability
761
GEN WB01K5211 GEN WB01K5211 Contact Us For Availability
862
GEN WB01X1178 GEN WB01X1178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
999
GEN 29-5022 GEN 29-5022 Contact Us For Availability
999
GEN 31-10479 GEN 31-10479 Contact Us For Availability
999
GEN 31-10483 GEN 31-10483 Contact Us For Availability
999
GEN 31-13886 GEN 31-13886 Contact Us For Availability
× ![]()
