Model GE JCK5000SF5SS Electric Range – Common Parts & Diagrams

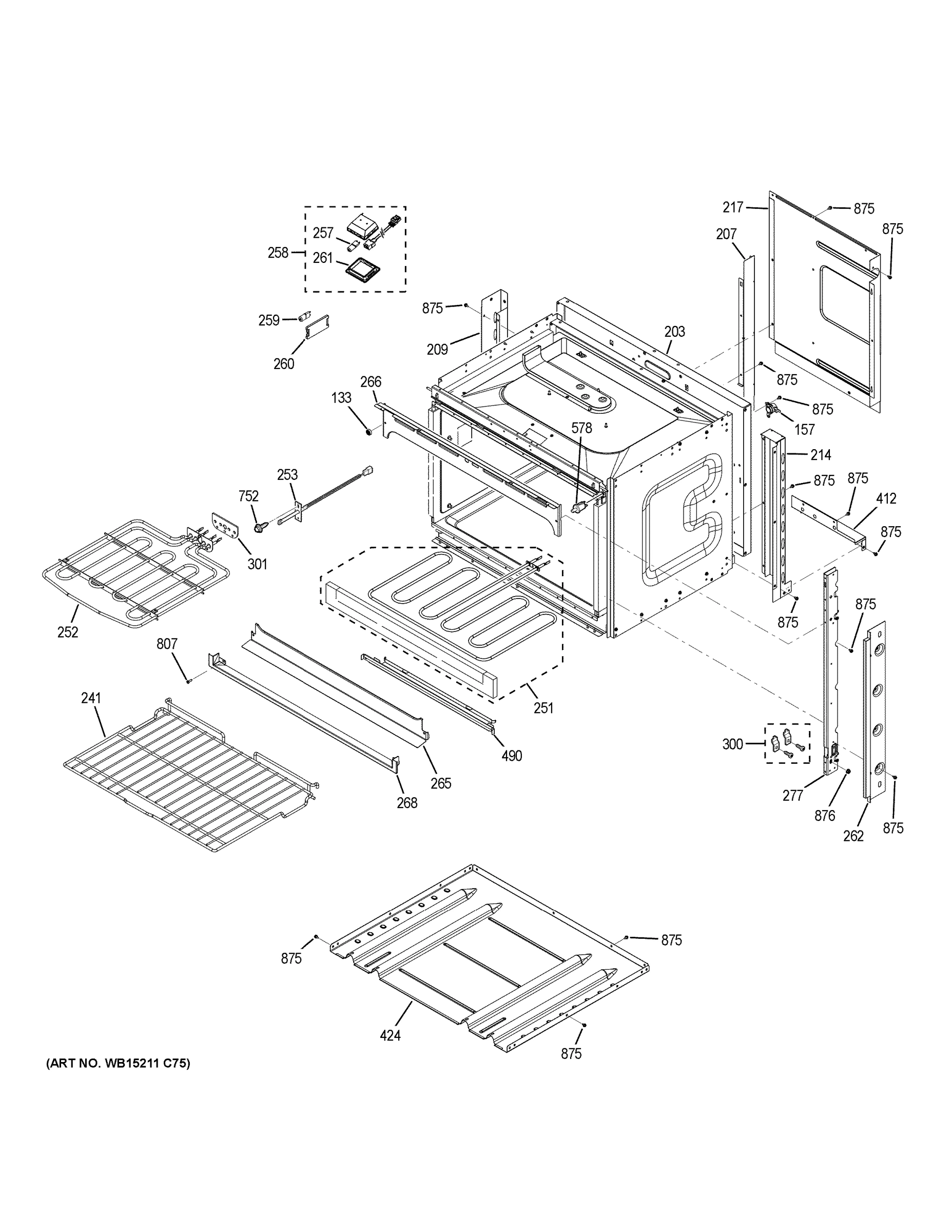

CONTROL PANEL
BODY PARTS
DOOR
DOOR LOCK
CONVECTION FAN
Common parts from model GE JCK5000SF5SS Electric Range
1
CONTROL PANEL SS GEN WB07T10731 Contact Us For Availability
7
MOUNTING PANEL--CONTROL GEN WB07T10729 Contact Us For Availability
21
FILTER CLOCK DISPLAY GEN WB27T11116 Contact Us For Availability
43
BLADE FAN CONVECTION GEN WB02T10598 Contact Us For Availability
55
BADGE ASM GEN WB02X29479 Contact Us For Availability
102
INSULATION DR SIDE GEN WB35X21672 Contact Us For Availability
113
RETAINER INSLN OVEN DOOR GEN WB34T10152 Contact Us For Availability
133
BUMPER DOOR GEN WB03T10341 Contact Us For Availability
136
HANDLE AND END CAP ASM GEN WB15X27174 Contact Us For Availability
144
SUPPORT HANDLE GEN WB02T10603 Contact Us For Availability
145
DEFLECTOR OVEN DOOR 27 GEN WB34T10143 Contact Us For Availability
150
LATCH ASM GEN WB10X23814 Contact Us For Availability
209
CHANNEL REAR LT GEN WB34X21910 Contact Us For Availability
251
HIDDEN BAKE ELEMENT KIT GEN WB44X21668 Contact Us For Availability
253
SENSOR ASM GEN WB21X10165 Contact Us For Availability
257
LAMP HALOGEN BULB G9 GEN WB25T10102 Contact Us For Availability
259
LAMP HALOGEN BULB G9 GEN WB25T10101 Contact Us For Availability
261
LENS OVEN LIGHT GEN WB34T10145 Contact Us For Availability
262
TRIM VERT SIDE (BK) GEN WB07T10732 Contact Us For Availability
265
TRIM VENT LOWER BLACK GEN WB07T10807 Contact Us For Availability
268
TRIM BOTTOM CABINET GEN WB07T10778 Contact Us For Availability
277
BRACE VERTICAL RIGHT BLK GEN WB07T10750 Contact Us For Availability
277
BRACE VERTICAL LEFT BLK GEN WB07T10751 Contact Us For Availability
300
HINGE BRACKET ASM KIT GEN WB49X21652 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X27502 Contact Us For Availability
402
COVER TOP LEFT EDGE GEN WB44T10126 Contact Us For Availability
424
COVER BOTTOM AIR DUCT GEN WB34T10155 Contact Us For Availability
490
COVER HIDDEN BAKE GEN WB55T10195 Contact Us For Availability
511
MOTOR CONVX GEN WB26X23813 Contact Us For Availability
578
SWITCH SPDT HIGH AMP GEN WB24T10147 Contact Us For Availability
599
BOARD FAN SENSOR GEN WB27T11463 Contact Us For Availability
605
HARNESS WIRE MAIN GEN WB18X24030 Contact Us For Availability
801
6-19 X 1/4 TORX PAN HEAD GEN WD02X10129 Contact Us For Availability
936
SCREW 10-32 T20 2 1/2 IN GEN WB01T10131 Contact Us For Availability
937
SCREW 10-32 HEX 1 3/4 IN GEN WB01T10132 Contact Us For Availability
962
STANDOFF PCB GEN WB02T10093 Contact Us For Availability
977
NUT HEX GEN WB02T10608 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
