Model GE JCK5000DF3WW Electric Range – Common Parts & Diagrams

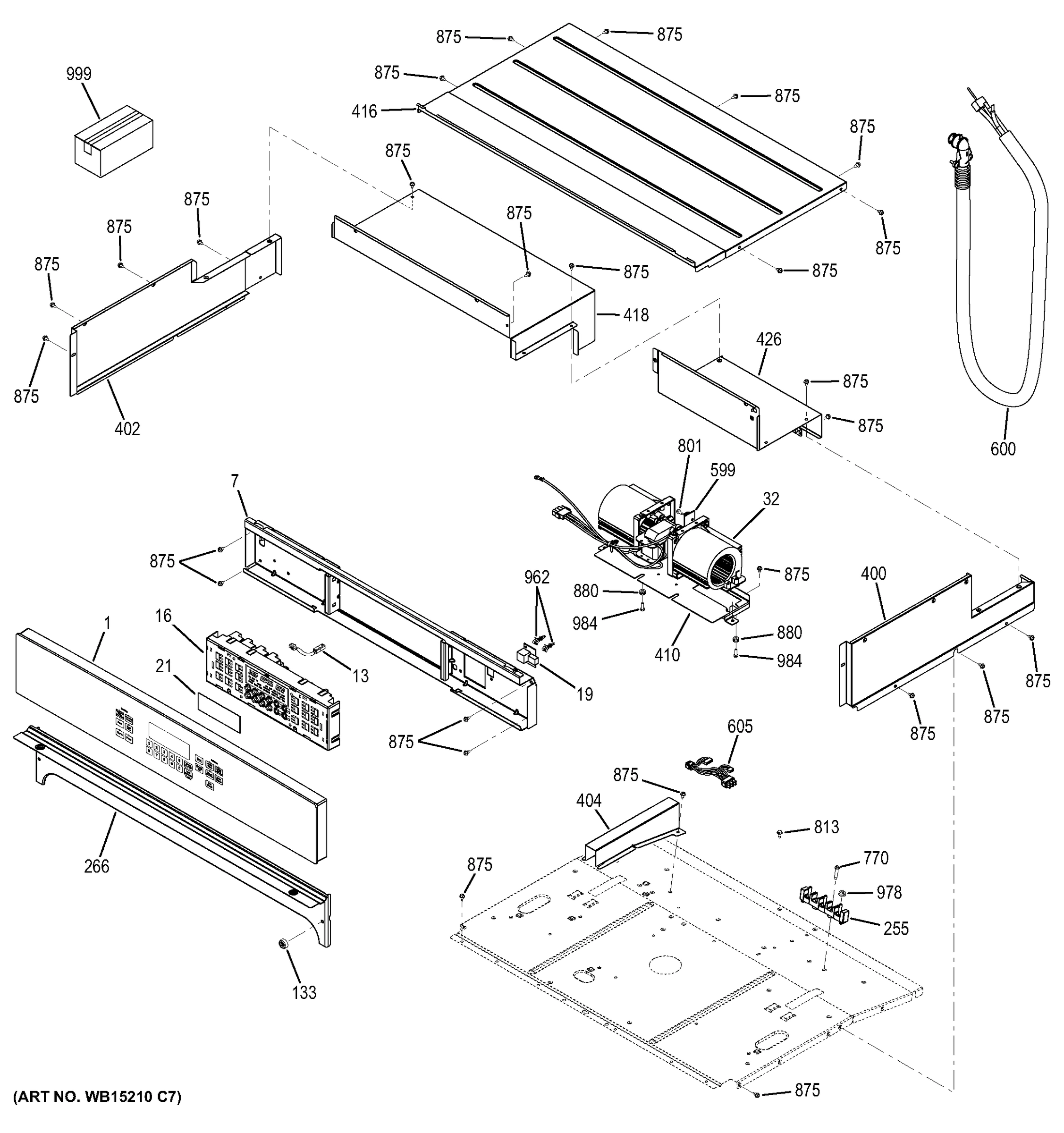

CONTROL PANEL

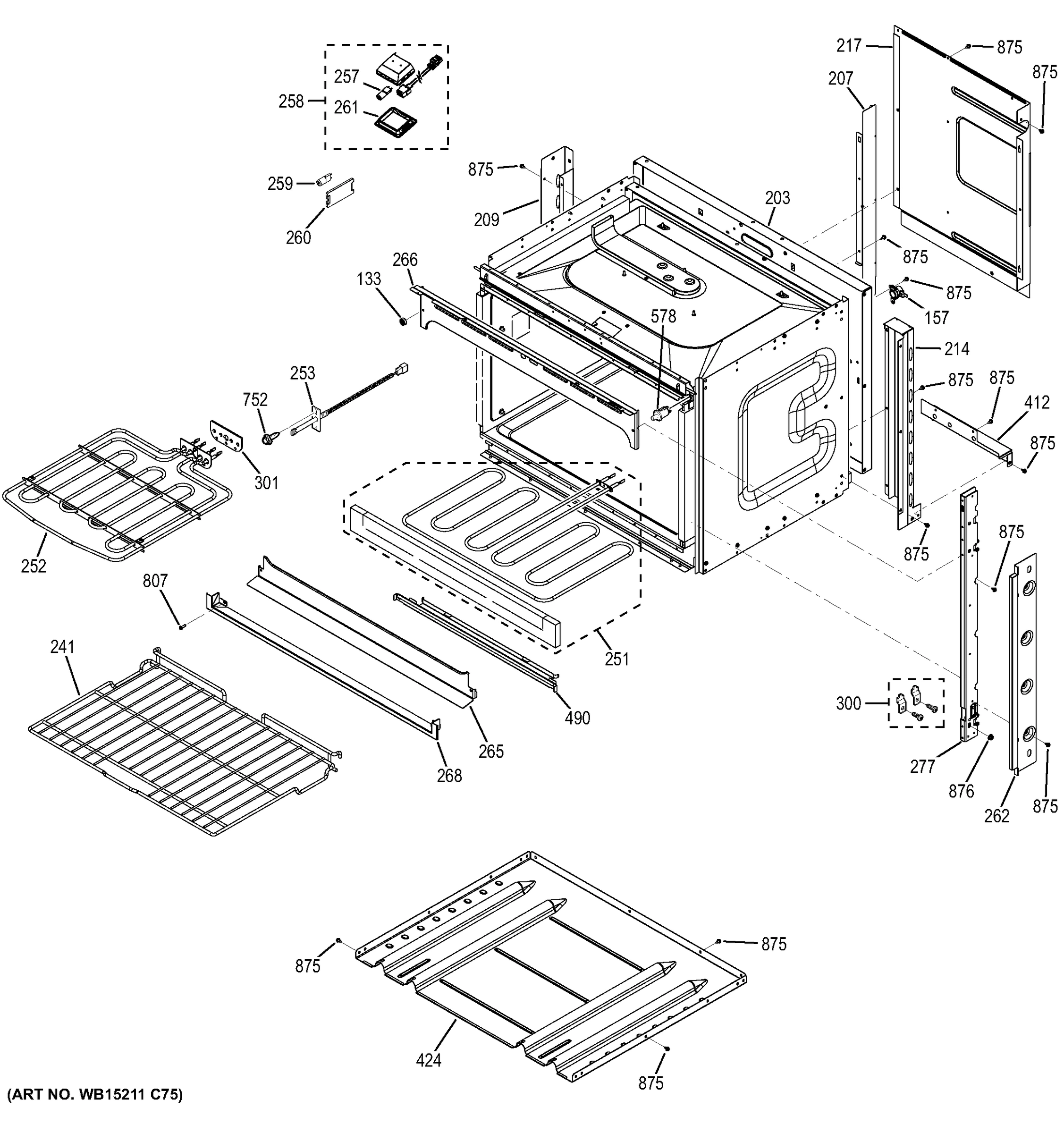

BODY PARTS
DOOR
DOOR LOCK
CONVECTION FAN
Common parts from model GE JCK5000DF3WW Electric Range
7
MOUNTING PANEL--CONTROL GEN WB07T10729 Contact Us For Availability
102
INSULATION DR SIDE GEN WB35X21672 Contact Us For Availability
113
RETAINER INSLN OVEN DOOR GEN WB34T10152 Contact Us For Availability
133
BUMPER DOOR GEN WB03T10341 Contact Us For Availability
136
HANDLE WHITE GEN WB15T10211 Contact Us For Availability
144
SUPPORT HANDLE GEN WB02T10603 Contact Us For Availability
145
DEFLECTOR OVEN DOOR 27 GEN WB34T10143 Contact Us For Availability
209
CHANNEL REAR LT GEN WB34X21910 Contact Us For Availability
259
LAMP HALOGEN BULB G9 GEN WB25T10101 Contact Us For Availability
261
LENS OVEN LIGHT GEN WB34T10145 Contact Us For Availability
265
TRIM VENT LOWER BLACK GEN WB07T10807 Contact Us For Availability
277
BRACE VERTICAL RIGHT BLK GEN WB07T10750 Contact Us For Availability
277
BRACE VERTICAL LEFT BLK GEN WB07T10751 Contact Us For Availability
281
HINGE DOOR LT GEN WB10X21677 Contact Us For Availability
281
HINGE DOOR RT GEN WB10X21678 Contact Us For Availability
402
COVER TOP LEFT EDGE GEN WB44T10126 Contact Us For Availability
514
COVER CONVECTION FAN GEN WB37T10019 Contact Us For Availability
516
DUCT CONVECTION OVEN GEN WB37T10020 Contact Us For Availability
605
HARNESS WIRE MAIN GEN WB18X24030 Contact Us For Availability
936
SCREW 10-16 2 1/2 IN T20 GEN WB01T10129 Contact Us For Availability
937
SCREW HANDLE SUPPORT GEN WB01T10135 Contact Us For Availability
951
SCREW 8-18 T20 3/8 IN GEN WB01T10134 Contact Us For Availability
962
STANDOFF PCB GEN WB02T10093 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
