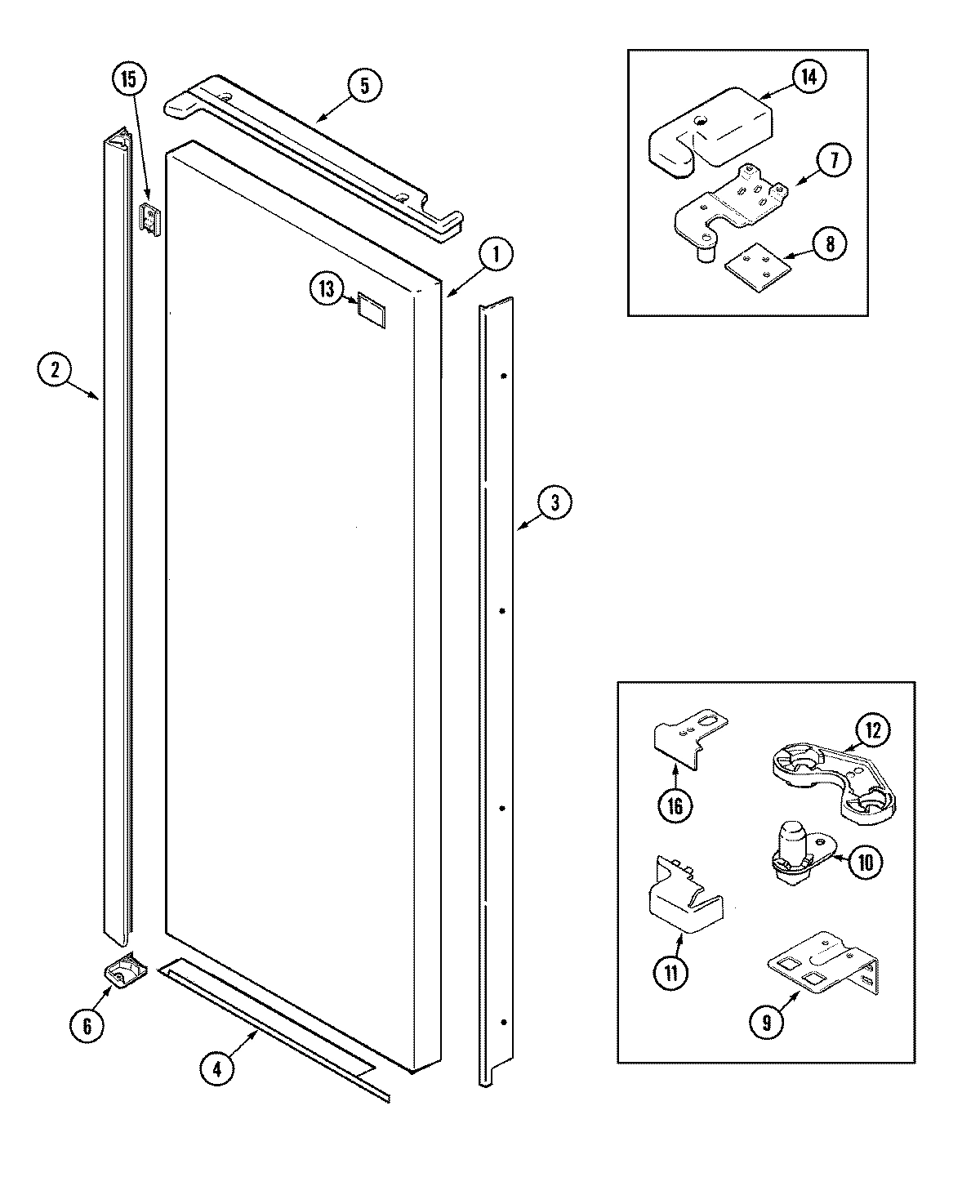

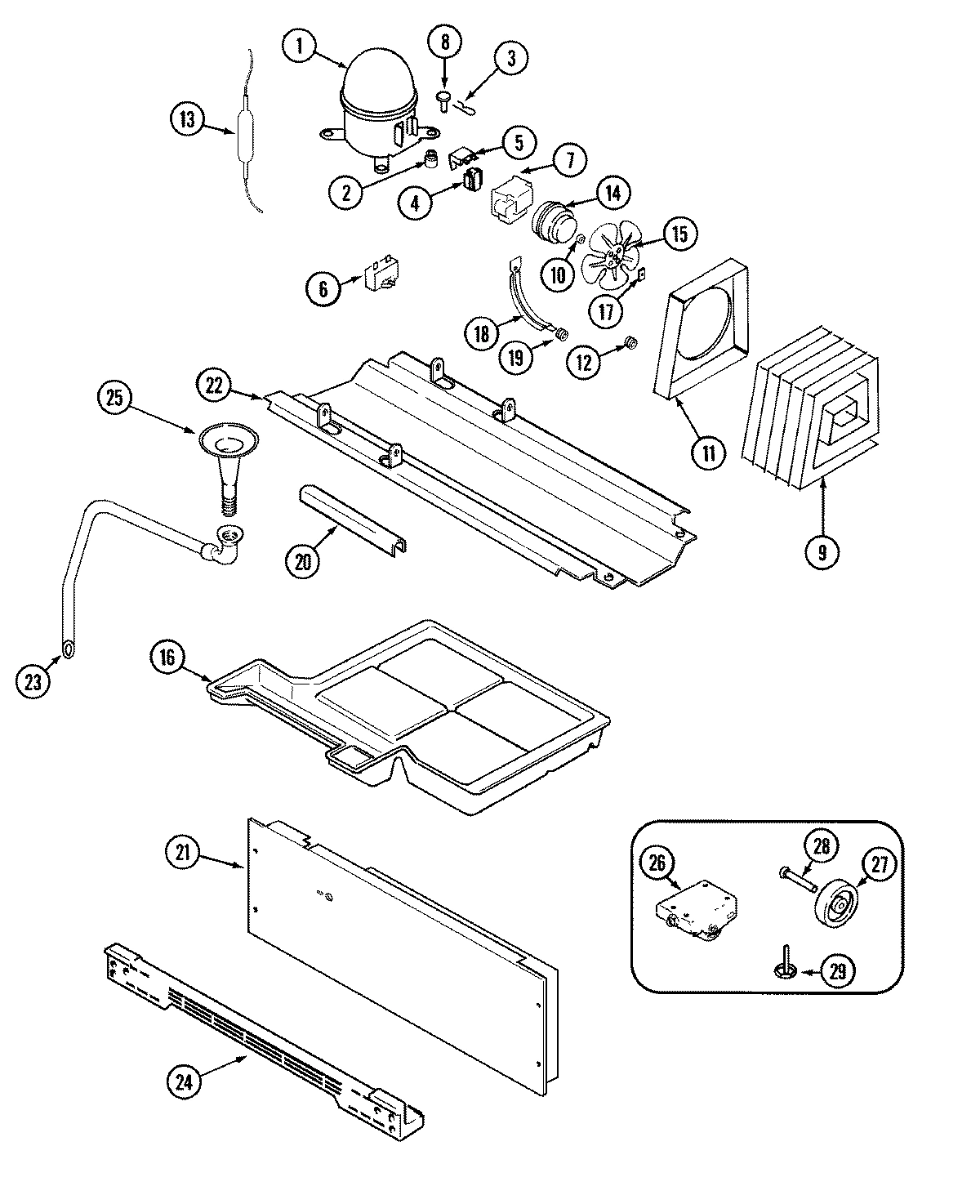

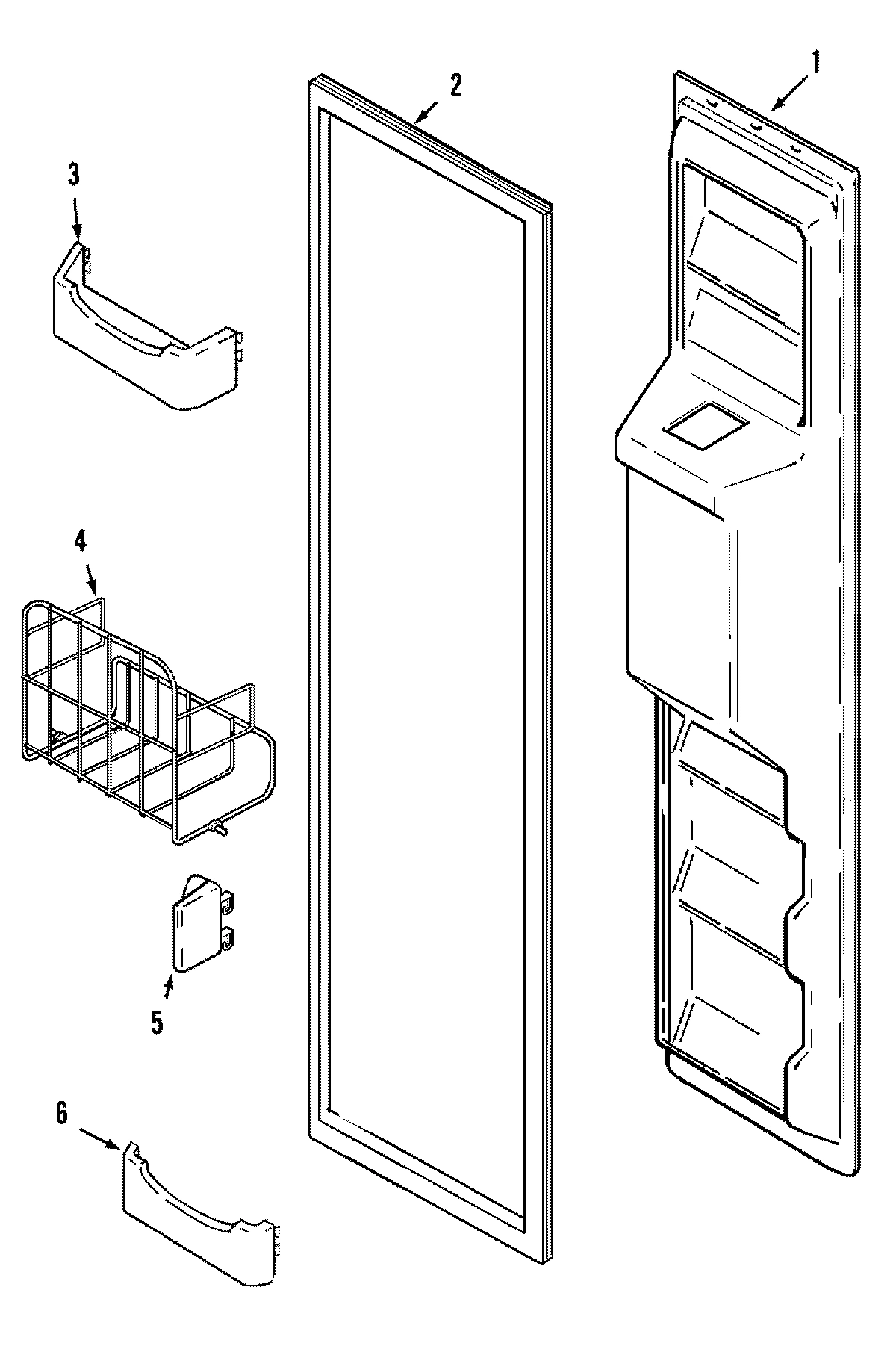

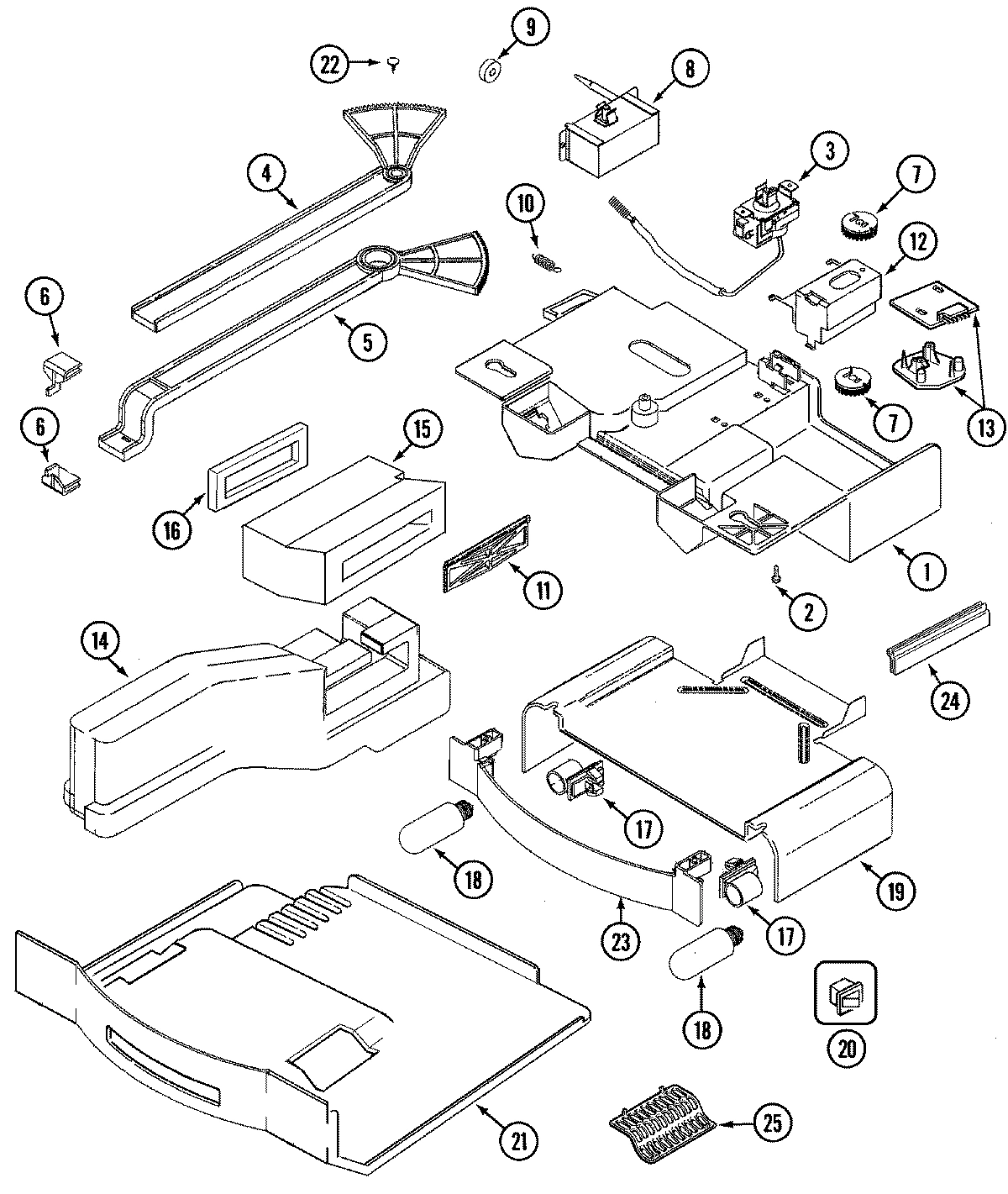

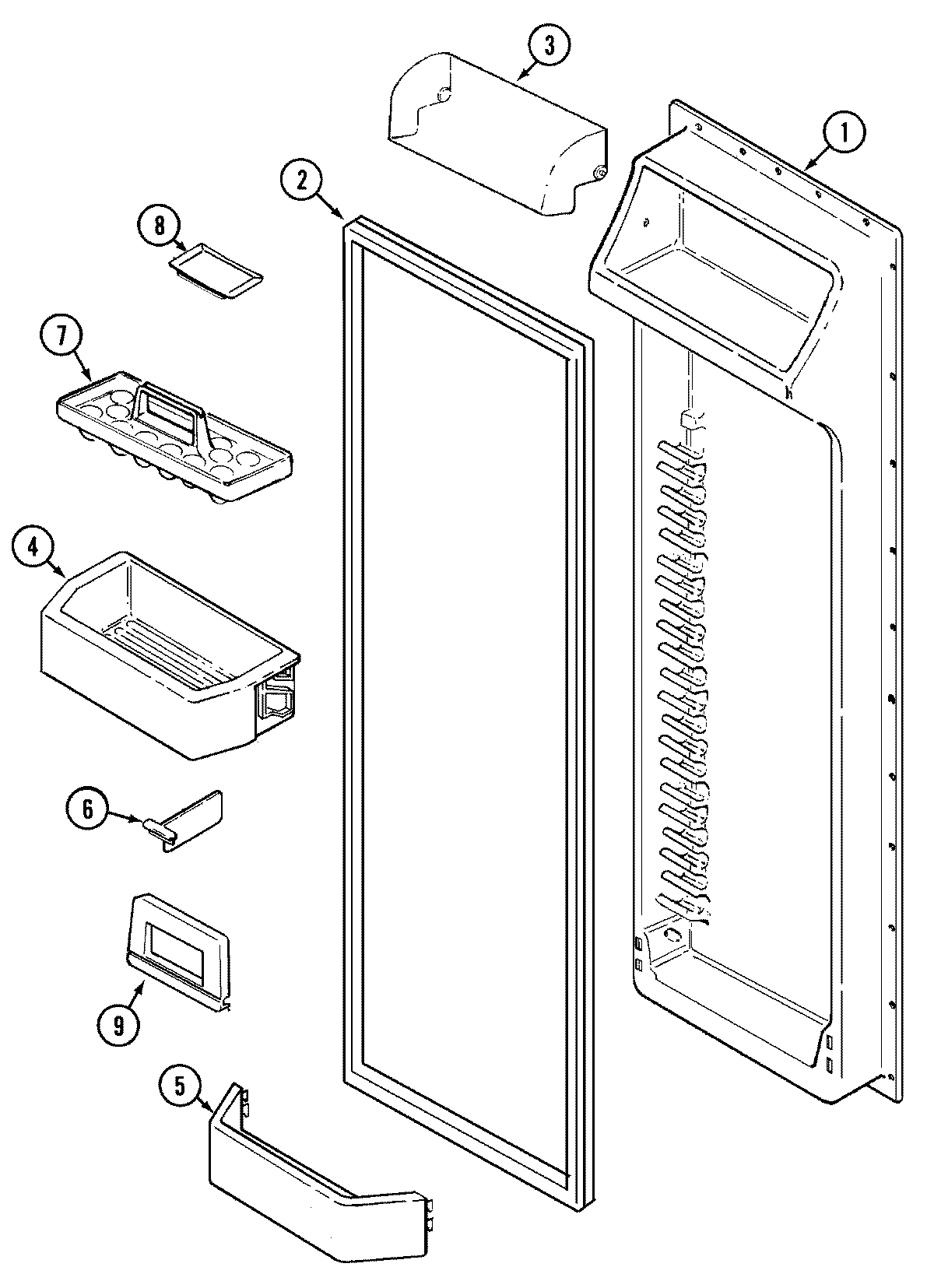

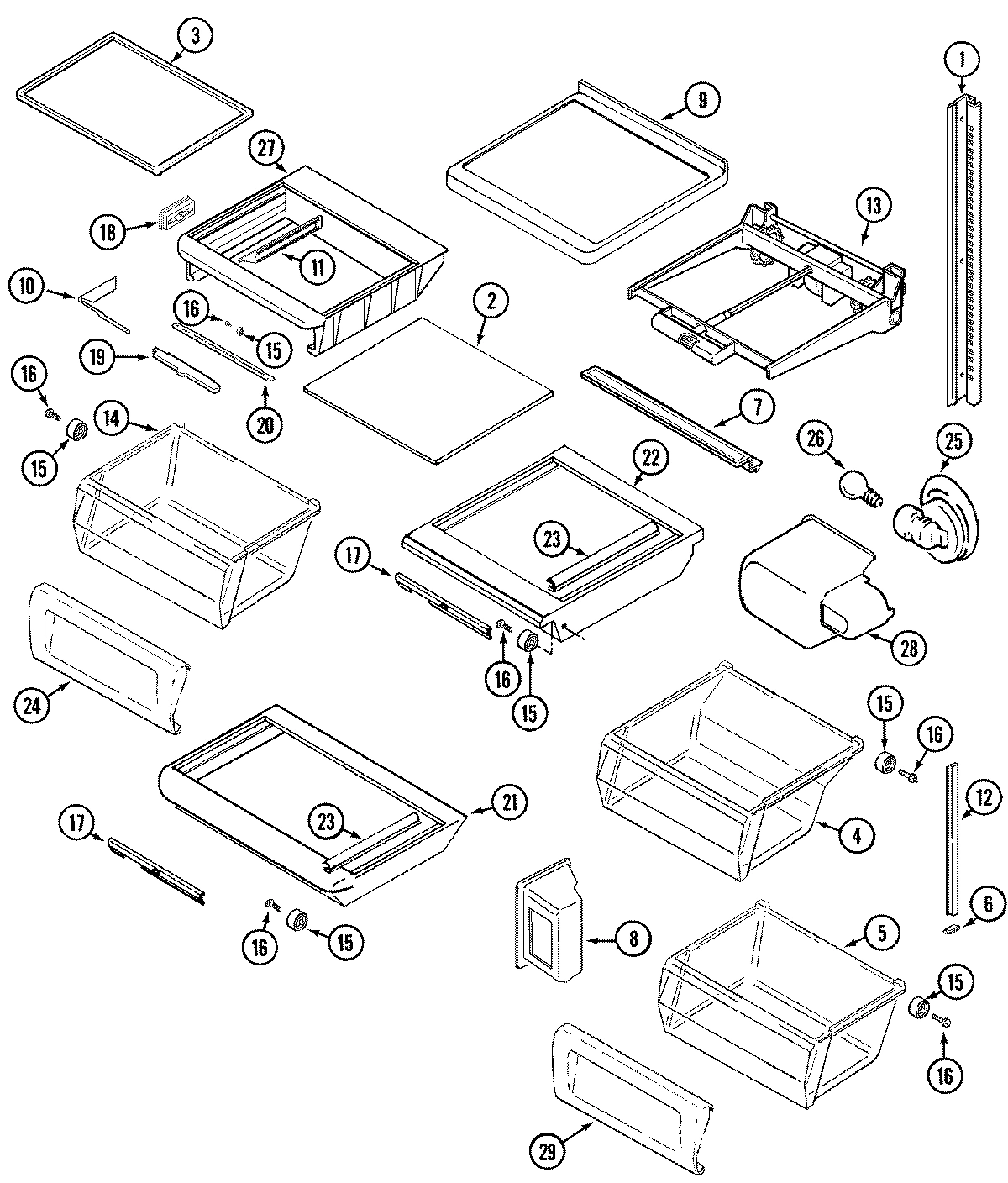

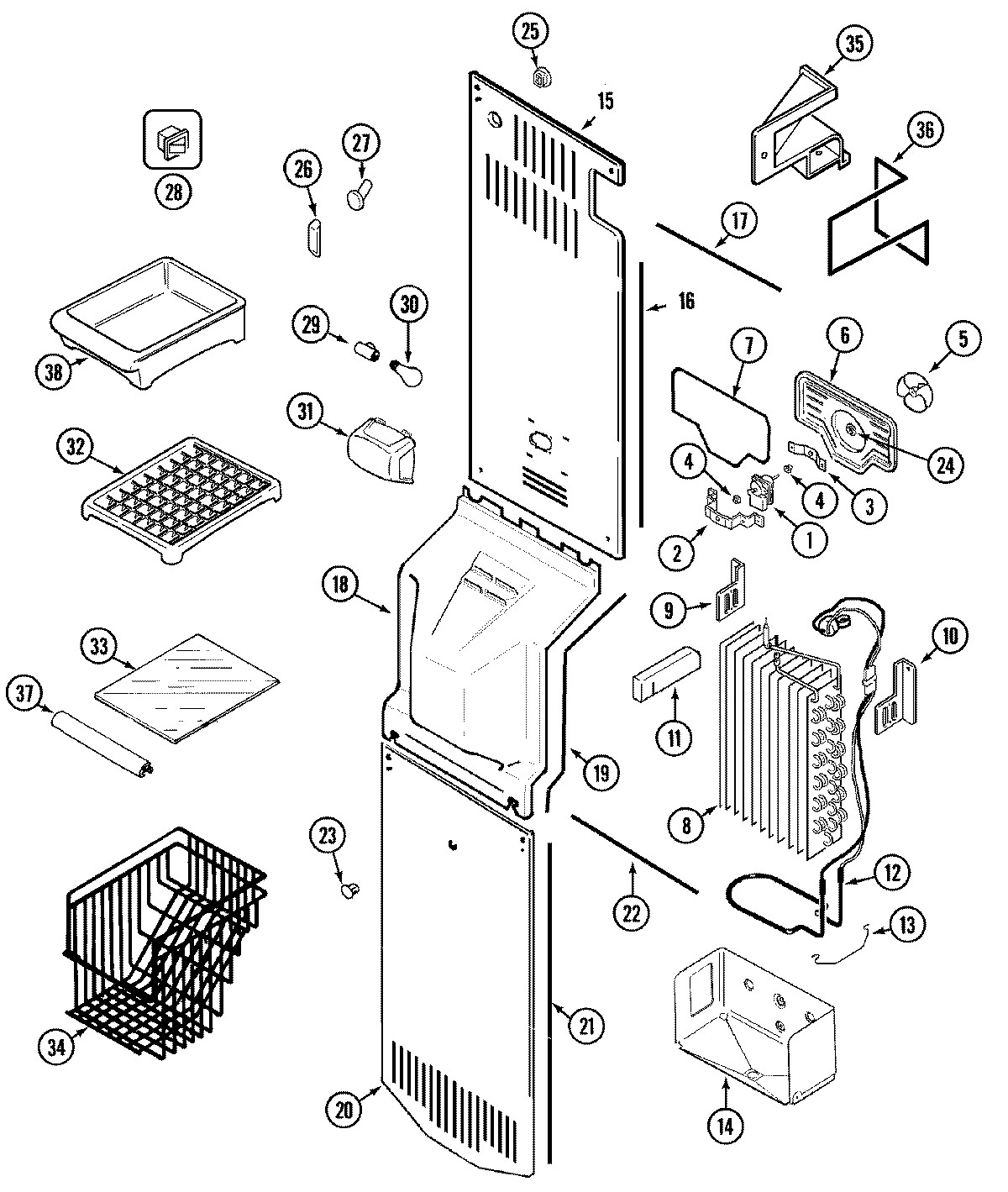

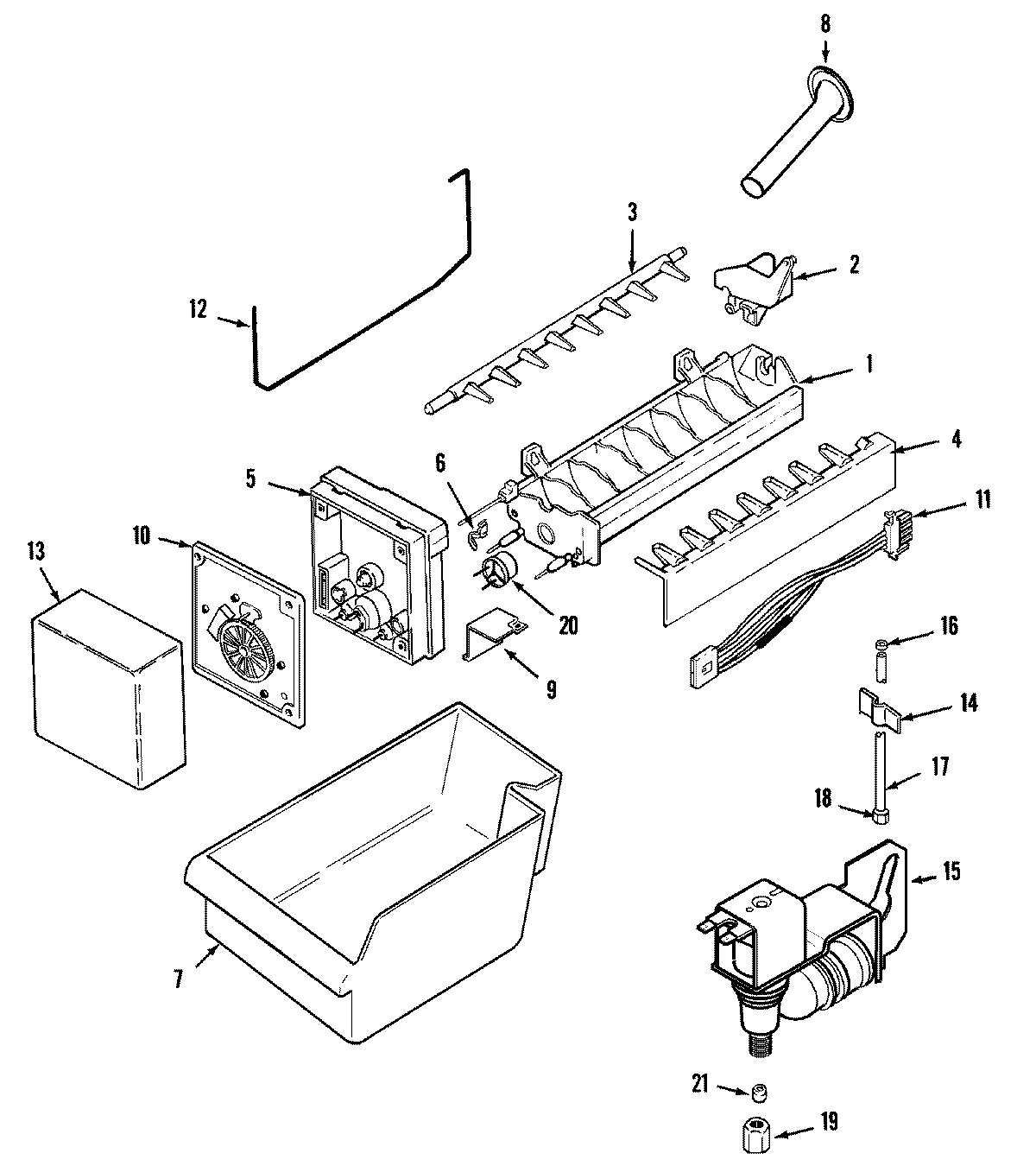

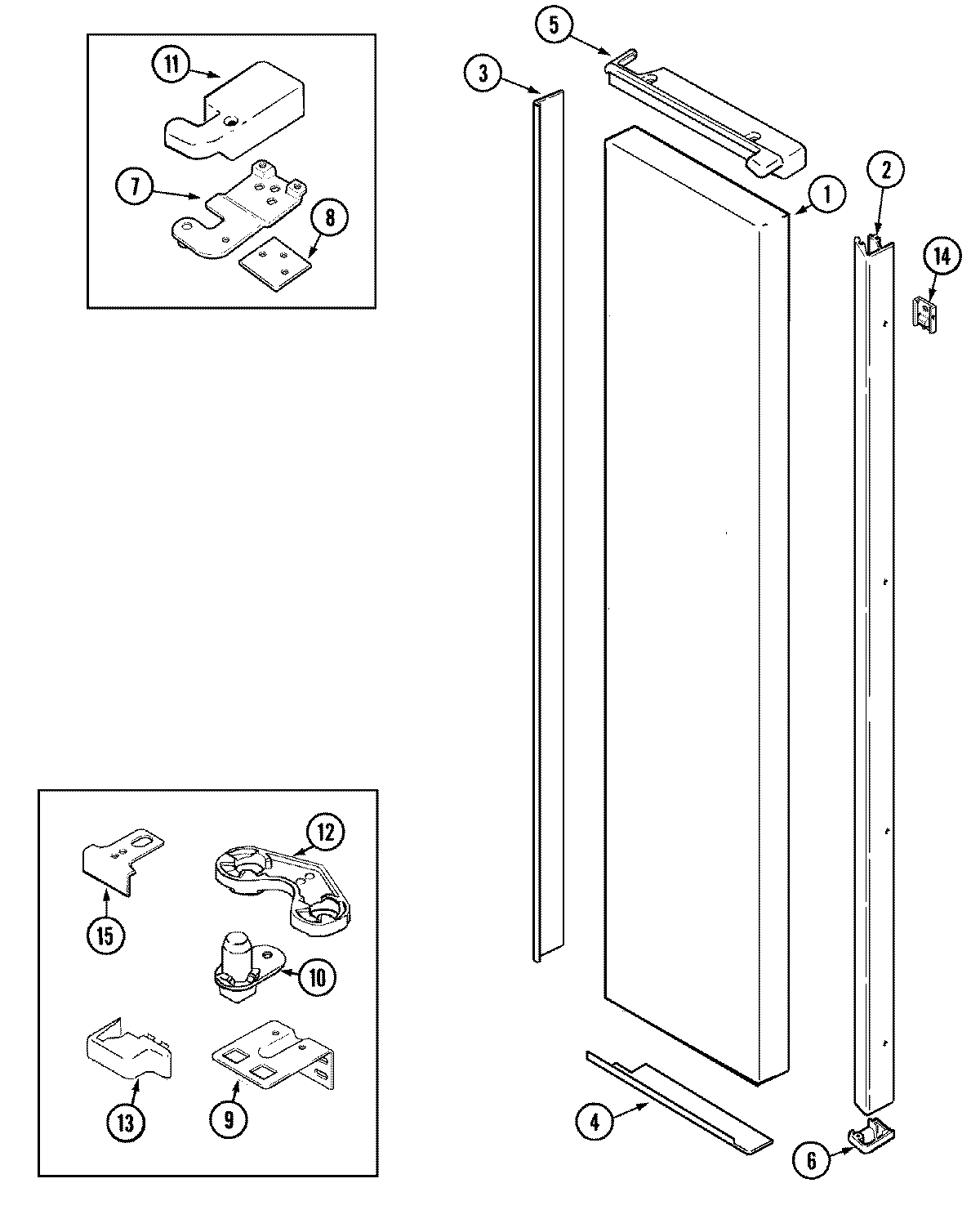

Model Whirlpool JCB2388ATB REFRIGERATOR – Common Parts &amp; Diagrams

1

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $67.02

1

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61002223 Contact Us For Availability

1

SCREW WPL 652755 Contact Us For Availability

1

FOIL, HEAT SHIELD WPL 61003228 Contact Us For Availability

1

HOUSING ASSY., AUTO DAMPER WPL 61004376 Contact Us For Availability

1

LABEL, DUAL ENERGY GUIDE WPL 61003514 Contact Us For Availability

1

PANEL, F.F. DOOR (BLK) WPL 61004160 Contact Us For Availability

1

RAIL, SHELF SUPPORT WPL 61003708 Contact Us For Availability

1

INSERT, LINER SUPPORT(TOP/BTM) WPL 61004133 Contact Us For Availability

1

LINER, FRZ. DOOR WPL 61004225 Contact Us For Availability

1

INSERT, LINER SUPPORT (SIDES) WPL 61004226 Contact Us For Availability

1

INSERT, LINER SUPPORT(TOP/BTM) WPL 61004123 Contact Us For Availability

1

LINER, F.F. DOOR WPL 61004213 Contact Us For Availability

1

INSERT, LINER SUPPORT (SIDES) WPL 61004214 Contact Us For Availability

2

WP61002623 Whirlpool Crisper Glass Shelf Backorder WPL WP61002623 $118.84

2

WP61005944 Whirlpool Refrigerator Seal - Free Backorder WPL WP61005944 $161.73

2

INLET, WATER WPL 951001 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

SUPPORT, DIVIDER WPL 671491 Contact Us For Availability

2

SCREW WPL 61004185 Contact Us For Availability

2

HANDLE, F.F. DOOR (SLV) WPL 61004208 Contact Us For Availability

2

GLASS, CRISPER SHELF WPL 61003927 Contact Us For Availability

2

SEAL, FRZ. DOOR (BLK) WPL 61003911 Contact Us For Availability

2

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

3

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $2.60

3

WP61005651 Whirlpool Refrigerator Temperature In Stock WPL WP61005651 $121.88

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

SCREW WPL 4000161 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

TRIM, PERIMETER (SIDE-SLV) WPL 61004209 Contact Us For Availability

3

GLASS, MEAT SHELF WPL 61004098 Contact Us For Availability

3

FRONT, PICK-OFF WPL 61004077 Contact Us For Availability

3

DOOR, DAIRY WPL 61004215 Contact Us For Availability

3

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

4

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $2.74

4

TRIM, PERIMETER (BTM-SLV) WPL 61004222 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

ROD, DAMPER CONTROL WPL 61003287 Contact Us For Availability

4

TRIM, PERIMETER (BTM-SLV) WPL 61004210 Contact Us For Availability

4

PAN, CRISPER (UPR) WPL 61004099 Contact Us For Availability

4

BASKET, TILTDOWN WPL 61003988 Contact Us For Availability

4

SHELF, PICK-OFF WPL 61004076 Contact Us For Availability

4

SHELF, PICK-OFF WPL 61004127 Contact Us For Availability

4

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

5

WP61006295 Whirlpool Refrigerator Overload Backorder WPL WP61006295 $59.77

5

SCREW WPL 61004173 Contact Us For Availability

5

CAP, TOP (SLV) WPL 61004223 Contact Us For Availability

5

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

5

SCREW WPL 951061 Contact Us For Availability

5

ROD, TEMP. CONTROL WPL 61003293 Contact Us For Availability

5

CAP, TOP (SLV) WPL 61004211 Contact Us For Availability

5

PAN, CRISPER WPL 61003930 Contact Us For Availability

5

STOP, BASKET (LT) WPL 61003753 Contact Us For Availability

5

STOP, BASKET (RT) WPL 61003754 Contact Us For Availability

5

FRONT, PICK-OFF WPL 61004128 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61003948 Contact Us For Availability

6

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $2.60

6

END CAP, HANDLE (SLV) WPL 61004224 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

CAPACITOR, RUN WPL 61002137 Contact Us For Availability

6

SCREW WPL 4000191 Contact Us For Availability

6

END CAP, CONTROL ROD WPL 61003283 Contact Us For Availability

6

END CAP, HANDLE (SLV) WPL 61004212 Contact Us For Availability

6

BASE, FILLER STRIP (RT) WPL 61004109 Contact Us For Availability

6

BASE, FILLER STRIP (LT) WPL 61004110 Contact Us For Availability

6

FRONT, PICK-OFF WPL 61004135 Contact Us For Availability

6

ORGANIZER, SHELF WPL 61002274 Contact Us For Availability

6

SHROUD, FAN WPL 61003898 Contact Us For Availability

7

WP61002138 Whirlpool Refrigerator Terminal Co Backorder WPL WP61002138 $4.66

7

HINGE, UPPER WPL 61004194 Contact Us For Availability

7

SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability

7

PAN, ICE WPL 61001886 Contact Us For Availability

7

GEAR, CONTROL SLIDE WPL 61003305 Contact Us For Availability

7

HINGE, UPPER WPL 61004174 Contact Us For Availability

7

SEAL, CRISPER SHELF WPL 61003931 Contact Us For Availability

7

SEAL WPL 61003932 Contact Us For Availability

7

TRAY, EGG WPL 600661 Contact Us For Availability

8

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

8

GROMMET, WATER ENTRY WPL 61003571 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

SCREW WPL 61003359 Contact Us For Availability

8

DAMPER, AUTO WPL 61003600 Contact Us For Availability

8

TRAY, BUTTER WPL 299362 Contact Us For Availability

8

EVAP/HEAT EXCH,ASSY27,29,CDSXS WPL 12001641 Contact Us For Availability

9

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $33.29

9

HINGE, LOWER (BLK) WPL 61004176 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

CONDENSER WPL 61003814 Contact Us For Availability

9

WASHER, DAMPER ROD WPL 61003358 Contact Us For Availability

9

SHELF, ELEVATOR WPL 61004106 Contact Us For Availability

9

RETAINER, BOTTLE WPL 61002273 Contact Us For Availability

9

BRACKET, EVAPORATOR (LT) WPL 61003215 Contact Us For Availability

PIN, LOWER HINGE WPL 61003174 Contact Us For Availability

SCREW WPL 4000211 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

SPRING, DAMPER DOOR WPL 61003141 Contact Us For Availability

TAPE, MEAT CONTROL WPL 61003943 Contact Us For Availability

BRACKET, EVAPORATOR (RT) WPL 61003216 Contact Us For Availability

12001982 Whirlpool Refrigerator Upper Hinge C Backorder WPL 12001982 $30.91

WIRE HARNESS, ICE MAKER WPL 61003572 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 61003575 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

DOOR, DAMPER WPL 61003235 Contact Us For Availability

COVER, LOWER HINGE (BLK) WPL 61004196 Contact Us For Availability

COVER, MEAT CONTROL TAPE WPL 61003723 Contact Us For Availability

BLOCK, AIR WPL 61003213 Contact Us For Availability

61003647 Whirlpool Refrigerator Freezer Door In Stock WPL 61003647 $6.61

WP61006199 Whirlpool Refrigerator Heater In Stock WPL WP61006199 $49.63

ARM, SENSOR WPL 681121 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

SUPPORT, TEMP. CONTROL WPL 61003315 Contact Us For Availability

STRIP, FILLER (SIDES) WPL 61004107 Contact Us For Availability

STRIP, FILLER (SIDES) WPL 61004108 Contact Us For Availability

WP67005457 Whirlpool Refrigerator Clip Backorder WPL WP67005457 $4.77

COVER, LOWER HINGE (BLK) WPL 61004178 Contact Us For Availability

COVER, ICE MAKER WPL 61001239 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

DEFROST ASSY., ADAPTIVE WPL 61003990 Contact Us For Availability

NAMEPLATE (BLK) WPL 61002370 Contact Us For Availability

FRAME ASSY., ELEVATOR SHELF WPL 61004100 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

CLAMP, TUBING WPL 535168 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

INSULATION, DISCHARGE (LT) WPL 61003229 Contact Us For Availability

INSULATION, DISCHARGE (RT) WPL 61003230 Contact Us For Availability

COVER, UPPER HINGE (BLK) WPL 61004181 Contact Us For Availability

PAN, MEAT WPL 61004101 Contact Us For Availability

HOUSING, EVAPORATOR WPL 61003830 Contact Us For Availability

WP61005273 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005273 $36.49

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.75

BASE, HANDLE WPL 61004179 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

SEAL, TUNNEL TO HOUSING WPL 61003147 Contact Us For Availability

TUNNEL, CONTROL HOUSING WPL 61003818 Contact Us For Availability

ROLLER WPL 674232 Contact Us For Availability

COVER, COIL (UPPER) WPL 61004205 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.60

PAN, DRAIN WPL 61004095 Contact Us For Availability

STOP, DOOR WPL 61004120 Contact Us For Availability

CLAMP, SPRING WPL 603334 Contact Us For Availability

SEAL, TUNNEL WPL 61003819 Contact Us For Availability

SCREW WPL 652756 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.84

TUBING WPL 6757926 Contact Us For Availability

RECEPTACLE, BULB WPL 61003237 Contact Us For Availability

SLIDE, CONTROL (CRISPER) WPL 61003710 Contact Us For Availability

SEAL, UPPER COVER (TOP) WPL 61003834 Contact Us For Availability

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $6.50

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

BARRIER, FOIL (LT) WPL 61003354 Contact Us For Availability

BARRIER, FOIL (RT) WPL 61003355 Contact Us For Availability

RETAINER, DUCT WPL 61003725 Contact Us For Availability

DUCT, AIR (MEAT) WPL 61003785 Contact Us For Availability

COVER, EVAPORATOR FAN WPL 61003835 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $13.05

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.93

GROMMET, BRACKET WPL 569331 Contact Us For Availability

SHIELD, HEAT WPL 61003238 Contact Us For Availability

SLIDE, CONTROL (MEAT) WPL 61003674 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

ISOLATOR, CONDENSER WPL 61001974 Contact Us For Availability

SCREW WPL 41501335 Contact Us For Availability

COVER, MEAT PAN SLIDE WPL 61003784 Contact Us For Availability

SCREW WPL 40002728 Contact Us For Availability

COVER, COIL (LWR) WPL 61003836 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61004019 Contact Us For Availability

SHIELD, LIGHT WPL 61004202 Contact Us For Availability

FRAME, CRISPER SHELF (LWR) WPL 61004102 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.84

PAN, COMPRESSOR MTG. WPL 61003816 Contact Us For Availability

RETAINER, CONTROL ROD WPL 61003316 Contact Us For Availability

FRAME, CRISPER SHELF (UPR) WPL 61004103 Contact Us For Availability

SEAL, LOWER COVER WPL 61003837 Contact Us For Availability

CLAMP WPL 535169 Contact Us For Availability

HOSE, DRAIN WPL 61003133 Contact Us For Availability

SCREW WPL 4000311 Contact Us For Availability

PANEL, CONTROL WPL 61003872 Contact Us For Availability

SEAL, CRISPER SIDE WPL 61003938 Contact Us For Availability

SEAL, CRISPER SIDE (UPR) WPL 61004104 Contact Us For Availability

PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability

KICKPLATE (BLK) WPL 61004055 Contact Us For Availability

TRIM, CONTROL HSG. WPL 61003919 Contact Us For Availability

FRONT ASSY., MEAT PAN WPL 61004086 Contact Us For Availability

SLINGER, DISC WPL 61003198 Contact Us For Availability

TUBE, DRAIN WPL 61004751 Contact Us For Availability

GRILL, LIGHT WPL 61004590 Contact Us For Availability

SCREW WPL 40001735 Contact Us For Availability

RECEPTACLE, BULB WPL 61003379 Contact Us For Availability

CAP, WATER ENTRY WPL 61002028 Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.33

WHEEL ASSY. (FRT) WPL 61002066 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61004203 Contact Us For Availability

WIRE HARNESS, FRZ./F.F. WPL 61004204 Contact Us For Availability

CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability

27

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $3.84

27

FRAME, MEAT SHELF WPL 61004105 Contact Us For Availability

27

CAP, FILL TUBE WPL 61002026 Contact Us For Availability

28

SWITCH, LIGHT WPL 669871 Contact Us For Availability

28

SHIELD, LIGHT WPL 61003439 Contact Us For Availability

29

LEG, LEVELING WPL 61002014 Contact Us For Availability

29

FRONT ASSY., CRISPER PAN WPL 61004085 Contact Us For Availability

29

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

30

MANUAL, USE & CARE WPL 61003694 Contact Us For Availability

30

BULB, LIGHT WPL 319561 Contact Us For Availability

31

MANUAL, SERVICE SXS APD WPL 16009103 Contact Us For Availability

31

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

32

WP61002140 Whirlpool Ice Cube Tray Backorder WPL WP61002140 $12.48

33

SHELF, FRZ. (UPR) WPL 61004112 Contact Us For Availability

33

SHELF, FRZ. (MIDDLE) WPL 61004113 Contact Us For Availability

33

SHELF, FRZ. (LWR) WPL 61004227 Contact Us For Availability

34

BASKET, FRZ. WPL 61004114 Contact Us For Availability

35

DIVERTER, AIR WPL 61003205 Contact Us For Availability

36

SEAL, AIR DIVERTER WPL 61003206 Contact Us For Availability

37

TRIM, SHELF (FRT) WPL 61003838 Contact Us For Availability

38

PAN, ICE WPL 61002177 Contact Us For Availability

39

UPPER FREEZER WIRE HARNESS REP WPL 12001553 Contact Us For Availability

39

WIRE HARNESS, FRZ. WPL 61003197 Contact Us For Availability

39

WIRE HARNESS, FAN & HEATER WPL 61003955 Contact Us For Availability

NI

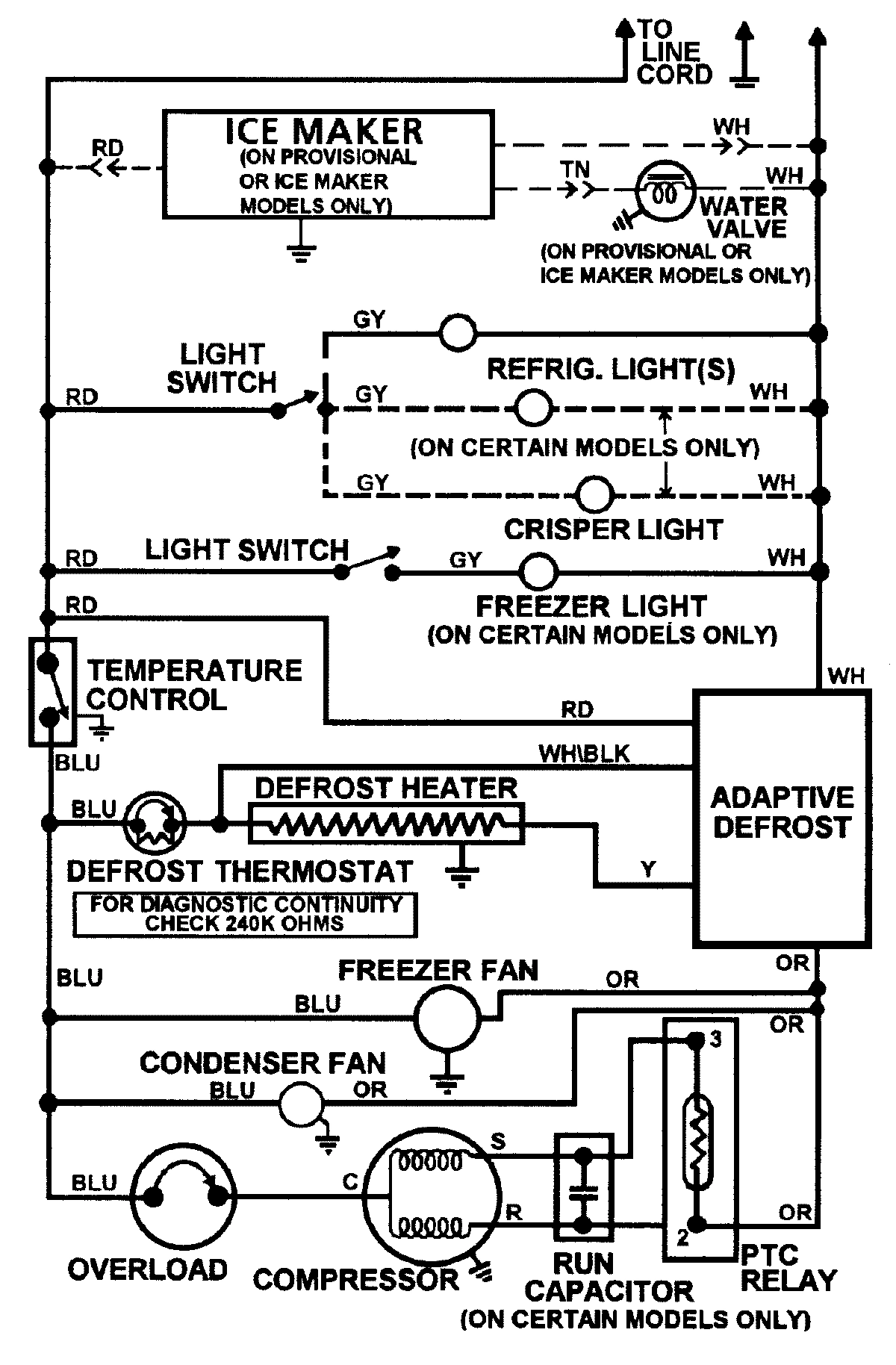

WIRING INFORMATION WPL 15002666 Contact Us For Availability
