Model GE JBS29GM4WH Electric Range – Common Parts & Diagrams

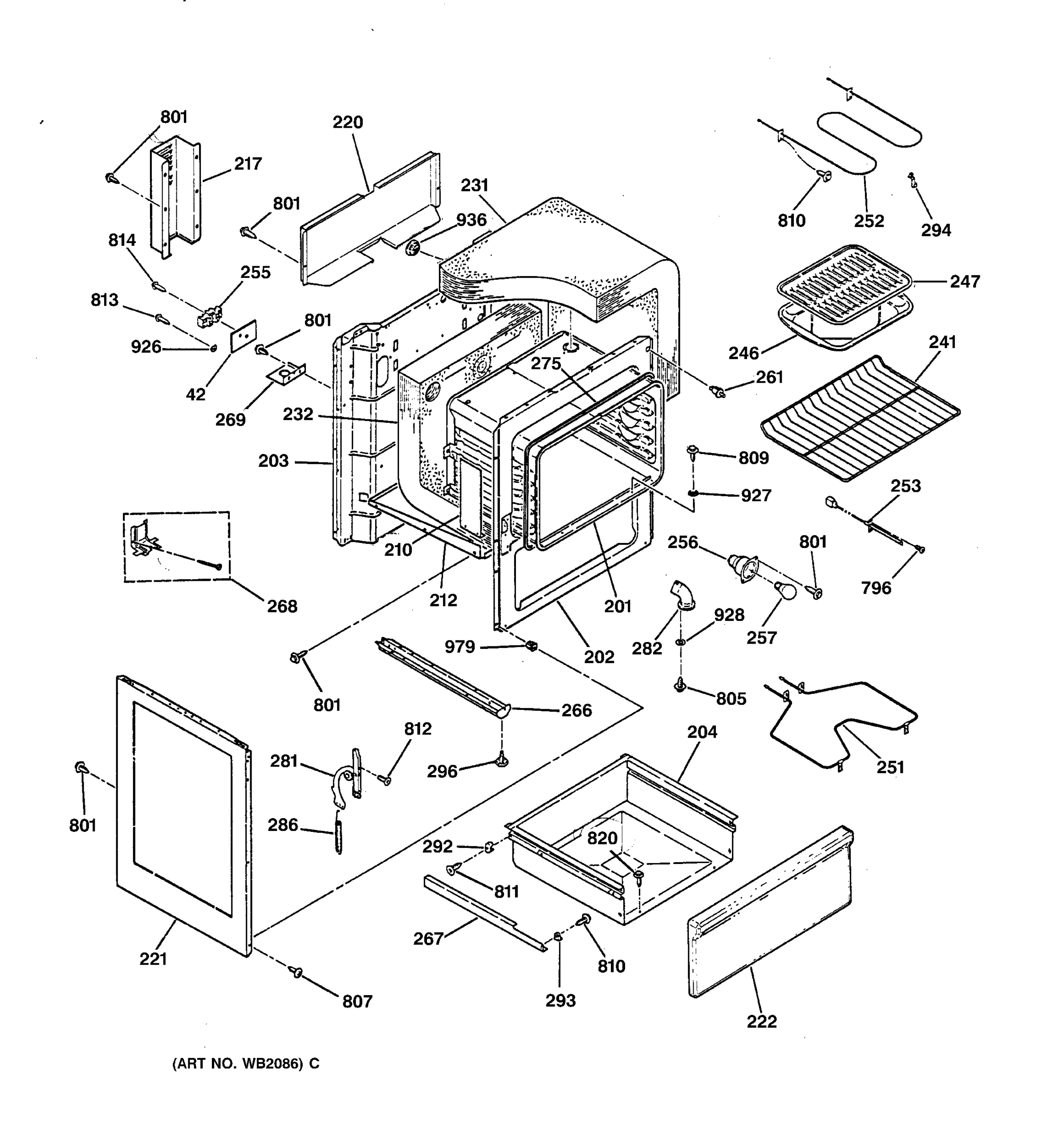

BODY PARTS

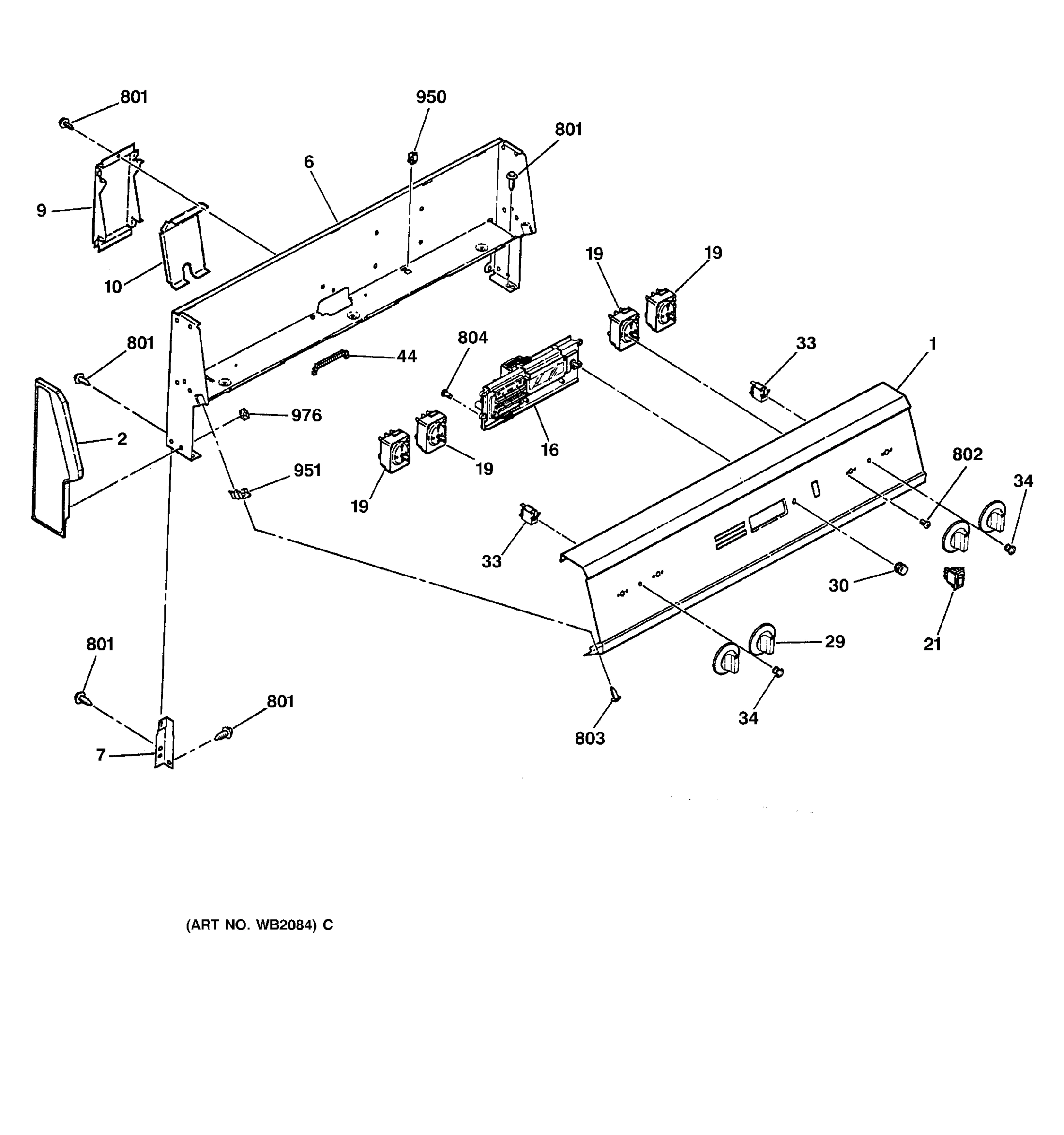

CONTROL PANEL

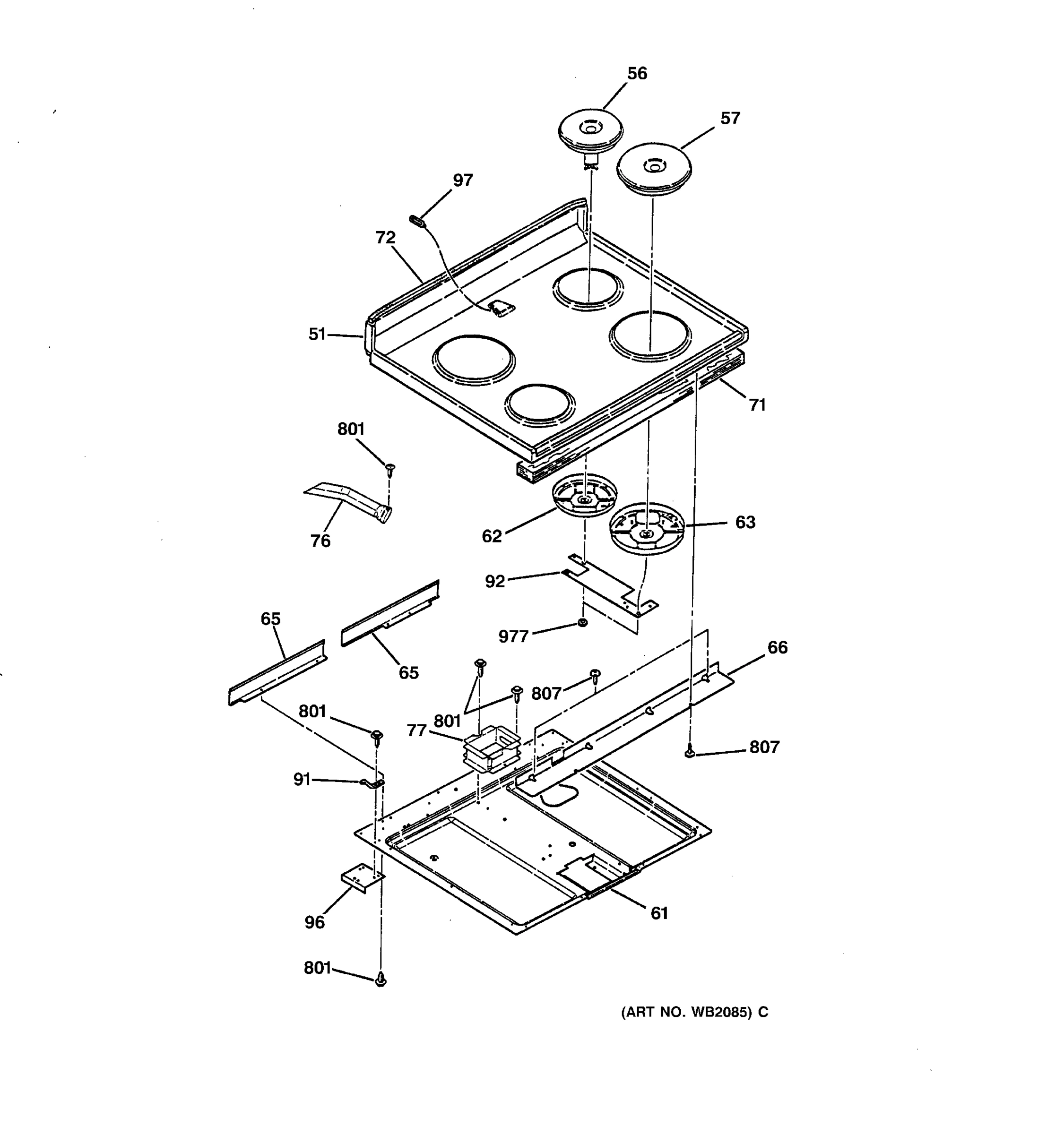

COOKTOP

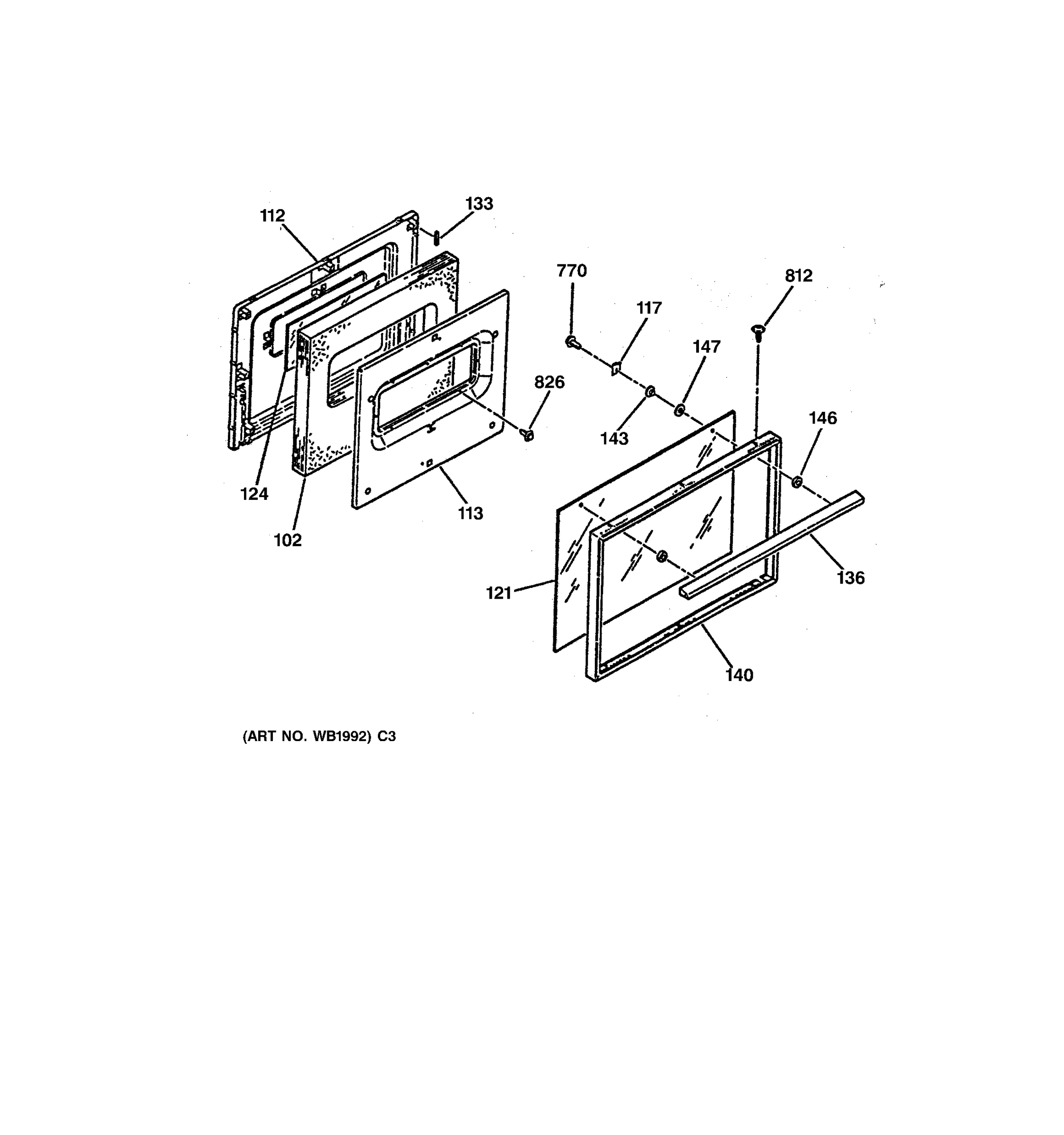

DOOR
Common parts from model GE JBS29GM4WH Electric Range
1
GEN WB36M0020 GEN WB36M0020 Contact Us For Availability
2
GEN WB07X1843 GEN WB07X1843 Contact Us For Availability
2
GEN WB07X1844 GEN WB07X1844 Contact Us For Availability
6
GEN WB37M0001 GEN WB37M0001 Contact Us For Availability
7
BKGD SUPPORT-RT GEN WB06X0127 Contact Us For Availability
7
BACKGUARD SUPPORT LT GEN WB06X0128 Contact Us For Availability
9
GEN WB02X9415 GEN WB02X9415 Contact Us For Availability
10
COVER RACEWAY GEN WB06X0134 Contact Us For Availability
16
CLOCK/OVEN CONTROL&LENS GEN WB19X0262 Contact Us For Availability
19
GEN WB23M0023 GEN WB23M0023 Contact Us For Availability
21
GEN WB24X0479 GEN WB24X0479 Contact Us For Availability
29
GEN WB03M0026 GEN WB03M0026 Contact Us For Availability
30
GEN WB03X0780 GEN WB03X0780 Contact Us For Availability
44
GEN WB06X0125 GEN WB06X0125 Contact Us For Availability
51
GEN WB62M0008 GEN WB62M0008 Contact Us For Availability
51
GEN WB62M0009 GEN WB62M0009 Contact Us For Availability
56
GEN WB30X0261 GEN WB30X0261 Contact Us For Availability
57
GEN WB30X0260 GEN WB30X0260 Contact Us For Availability
61
WIRE COVER GEN WB34M0019 Contact Us For Availability
62
HOB ELEMENT CLAMP-SMALL GEN WB02X9520 Contact Us For Availability
63
HOB ELEMENT CLAMP-LARGE GEN WB02X9519 Contact Us For Availability
65
BBB BAFFLE-LEFT GEN WB34M0045 Contact Us For Availability
65
BURN BOX BTM BAFFLE-RT GEN WB34M0046 Contact Us For Availability
66
GEN WB02X9523 GEN WB02X9523 Contact Us For Availability
71
GEN WB02X9525 GEN WB02X9525 Contact Us For Availability
72
GEN WB06X0129 GEN WB06X0129 Contact Us For Availability
76
GEN WB02X9526 GEN WB02X9526 Contact Us For Availability
77
GEN WB06X0130 GEN WB06X0130 Contact Us For Availability
91
MT HINGE-LT GEN WB14X0126 Contact Us For Availability
91
GEN WB14X0127 GEN WB14X0127 Contact Us For Availability
92
GEN WB02X9521 GEN WB02X9521 Contact Us For Availability
96
REINFORCEMENT PLATE GEN WB02X9418 Contact Us For Availability
97
GEN WB06K5023 GEN WB06K5023 Contact Us For Availability
102
OV DR INSULATION GEN WB02X9123 Contact Us For Availability
112
OV DR LINING GEN WB56M0002 Contact Us For Availability
113
GEN WB02X9191 GEN WB02X9191 Contact Us For Availability
117
OV DR GLASS RETAINER GEN WB02X9384 Contact Us For Availability
124
OVEN DOOR GLASS-LOWER GEN WB56X1901 Contact Us For Availability
133
FELT PAD GEN WB01K5115 Contact Us For Availability
136
GEN WB57K5025 GEN WB57K5025 Contact Us For Availability
140
GEN WB56K5061 GEN WB56K5061 Contact Us For Availability
143
DOOR HANDLE SPACER GEN WB02X9039 Contact Us For Availability
146
DOOR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
147
FIBER WASHER GEN WB01X1138 Contact Us For Availability
204
GEN WB58X0065 GEN WB58X0065 Contact Us For Availability
210
INSULATION RETAINER GEN WB02X9030 Contact Us For Availability
212
INS RETAINER-LO GEN WB02K5093 Contact Us For Availability
217
UPPER WIRE COVER GEN WB34K5093 Contact Us For Availability
220
WIRE COVER-REAR-UPP GEN WB34M0020 Contact Us For Availability
221
BODY SIDE-WHITE GEN WB63X0351 Contact Us For Availability
221
BODY SIDE-ALMOND GEN WB63X0352 Contact Us For Availability
222
LOWER FRONT PANEL-WHITE GEN WB56K5059 Contact Us For Availability
222
GEN WB56K5063 GEN WB56K5063 Contact Us For Availability
231
OV BODY INSULATION GEN WB02X9031 Contact Us For Availability
232
GEN WB02X9021 GEN WB02X9021 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
256
GEN WB08M0003 GEN WB08M0003 Contact Us For Availability
257
LAMP OVEN GEN BUY LOCAL Contact Us For Availability
261
SWITCH GEN WB24K5030 Contact Us For Availability
266
BASE W/LEVELERS GEN WB02X9187 Contact Us For Availability
267
GEN WB56M0003 GEN WB56M0003 Contact Us For Availability
269
SERVICE RANGE MTG PLATE GEN WB02X9427 Contact Us For Availability
275
OV DR SEAL GEN WB02X9437 Contact Us For Availability
282
GEN WB38X0113 GEN WB38X0113 Contact Us For Availability
286
GEN WB09K5020 GEN WB09K5020 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
GEN WB02X9188 GEN WB02X9188 Contact Us For Availability
802
GEN WB01K5123 GEN WB01K5123 Contact Us For Availability
804
GEN 120855 GEN 120855 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
820
GEN WB01X1152 GEN WB01X1152 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
928
GEN WB01X1310 GEN WB01X1310 Contact Us For Availability
936
BUSHING GEN WB02X9447 Contact Us For Availability
950
GEN WB01M0003 GEN WB01M0003 Contact Us For Availability
951
GEN WB02X9443 GEN WB02X9443 Contact Us For Availability
976
GEN WB01X1251 GEN WB01X1251 Contact Us For Availability
977
NUT GEN WB01X1305 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
979
GEN WB01M0022 GEN WB01M0022 Contact Us For Availability
999
GEN 31-0925 GEN 31-0925 Contact Us For Availability
999
GEN 31-13024 GEN 31-13024 Contact Us For Availability
999
GEN 49-8308 GEN 49-8308 Contact Us For Availability
999
GEN WB06M0001 GEN WB06M0001 Contact Us For Availability
999
LIGHT SWITCH W HARNESS GEN WB18K5232 Contact Us For Availability
999
GEN WB18K5304 GEN WB18K5304 Contact Us For Availability
999
GEN WB18K5381 GEN WB18K5381 Contact Us For Availability
999
SENSOR WIRE HARNESS GEN WB18X0414 Contact Us For Availability
999
BACKGUARD WIRE HARNESS GEN WB18X0415 Contact Us For Availability
× ![]()
