Model GE JBS07V1 Electric Range – Common Parts & Diagrams
BODY PARTS
COOKTOP

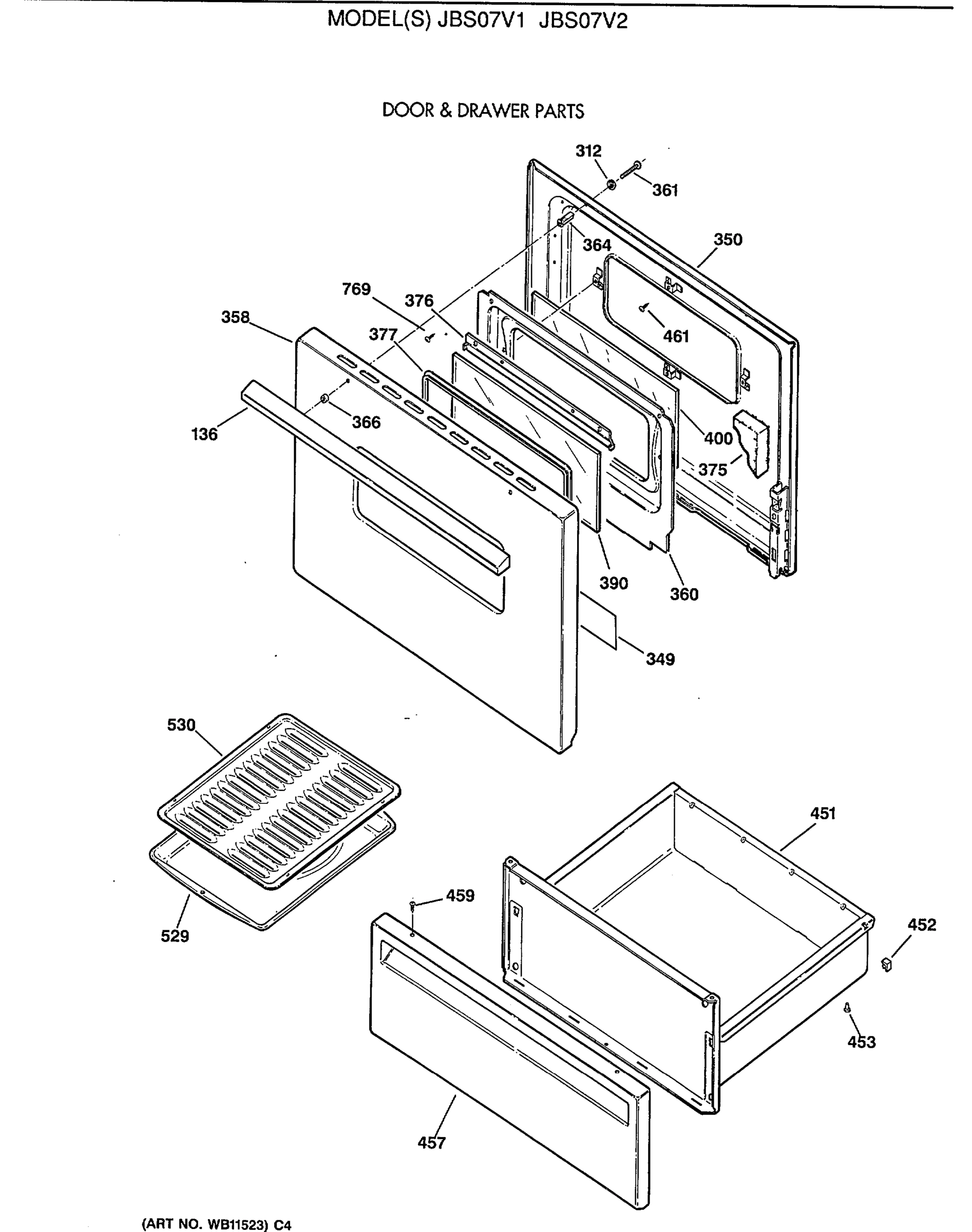

DOOR & DRAWER PARTS
Common parts from model GE JBS07V1 Electric Range
1
WELD ASM RANGETOP WHITE GEN WB62X5408 Contact Us For Availability
2
GEN WB36X5768 GEN WB36X5768 Contact Us For Availability
4
KNOB (WHITE/RED STRIPE) GEN WB03X5830 Contact Us For Availability
5
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
6
CLIP LAMP GEN WB02X1185 Contact Us For Availability
9
CAP END LEFT WHITE GEN WB07X7145 Contact Us For Availability
9
CAP END RIGHT WHITE GEN WB07X7146 Contact Us For Availability
12
GEN WB03X5840 GEN WB03X5840 Contact Us For Availability
19
PLATE END WH RH GEN WB07X7268 Contact Us For Availability
19
PLATE END WH LH GEN WB07X7269 Contact Us For Availability
41
GEN WB24X5323 GEN WB24X5323 Contact Us For Availability
143
SCREW END CAP WHITE GEN WB01X5874 Contact Us For Availability
146
GEN WB01X5832 GEN WB01X5832 Contact Us For Availability
151
GEN WB31X5021 GEN WB31X5021 Contact Us For Availability
253
GEN WB49X5566 GEN WB49X5566 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
265
GEN WB02X6342 GEN WB02X6342 Contact Us For Availability
266
HOOK DOOR SPRING GEN WB02X2506 Contact Us For Availability
267
GEN WB09X0146 GEN WB09X0146 Contact Us For Availability
271
BAFFLE GEN WB02X1626 Contact Us For Availability
274
GEN WB02X8247 GEN WB02X8247 Contact Us For Availability
275
GEN WB02X8249 GEN WB02X8249 Contact Us For Availability
277
SWITCH, OVEN LIGHT GEN WB24X0105 Contact Us For Availability
285
GEN WB02X8106 GEN WB02X8106 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
302
GEN WB02X7694 GEN WB02X7694 Contact Us For Availability
342
GEN WB02X8241 GEN WB02X8241 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
349
GEN WB49X5533 GEN WB49X5533 Contact Us For Availability
350
GEN WB55X5373 GEN WB55X5373 Contact Us For Availability
358
PANEL DOOR ASM GEN WB56X7068 Contact Us For Availability
360
GEN WB49X5522 GEN WB49X5522 Contact Us For Availability
361
GEN WB01X5873 GEN WB01X5873 Contact Us For Availability
364
GEN WB02X8443 GEN WB02X8443 Contact Us For Availability
366
GEN WB02X3241 GEN WB02X3241 Contact Us For Availability
375
GEN WB02X8411 GEN WB02X8411 Contact Us For Availability
376
GEN WB02X2978 GEN WB02X2978 Contact Us For Availability
377
GEN WB07X7069 GEN WB07X7069 Contact Us For Availability
390
GEN WB36X5679 GEN WB36X5679 Contact Us For Availability
400
GEN WB36X0526 GEN WB36X0526 Contact Us For Availability
451
GEN WB58X5015 GEN WB58X5015 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
GEN WB02X3394 GEN WB02X3394 Contact Us For Availability
457
GEN WB56X7069 GEN WB56X7069 Contact Us For Availability
518
GEN WB02X8120 GEN WB02X8120 Contact Us For Availability
519
GEN WB02X8121 GEN WB02X8121 Contact Us For Availability
520
CLIP THERMOMSTAT GEN WB02X8441 Contact Us For Availability
520
GEN WB53X5149 GEN WB53X5149 Contact Us For Availability
521
LOCKWASHER GEN WB09X0088 Contact Us For Availability
521
GEN WB09X5122 GEN WB09X5122 Contact Us For Availability
523
GEN WB02X7693 GEN WB02X7693 Contact Us For Availability
532
GEN WB38X5063 GEN WB38X5063 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
904
GEN WB01X5550 GEN WB01X5550 Contact Us For Availability
32767
GEN 31-0824 GEN 31-0824 Contact Us For Availability
32767
GEN 31-20094 GEN 31-20094 Contact Us For Availability
32767
GEN 340732 GEN 340732 Contact Us For Availability
32767
GEN 49-8586 GEN 49-8586 Contact Us For Availability
× ![]()
