Model GE JBS03V2 Electric Range – Common Parts & Diagrams

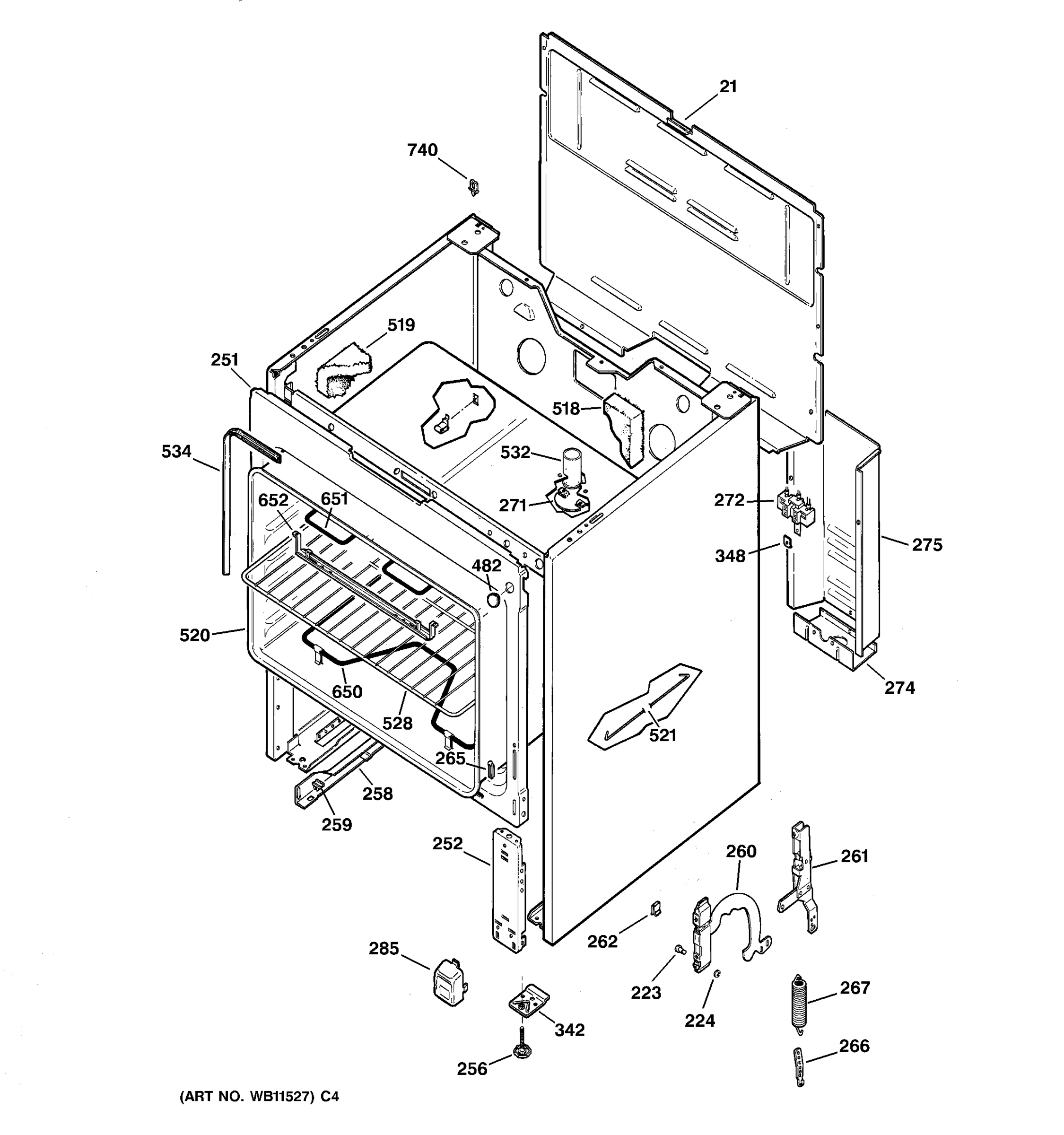

BODY PARTS

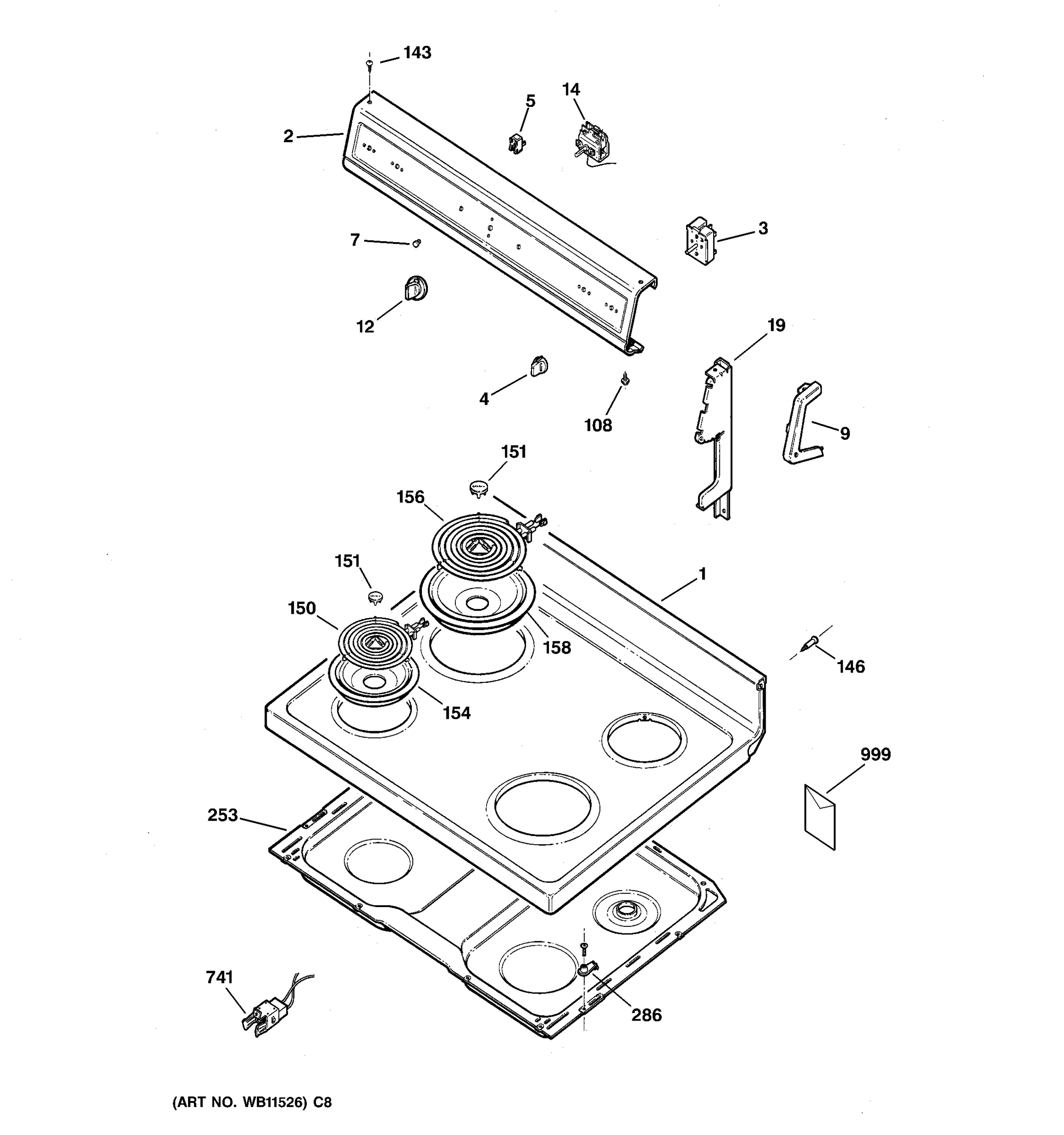

CONTROL PANEL & COOKTOP

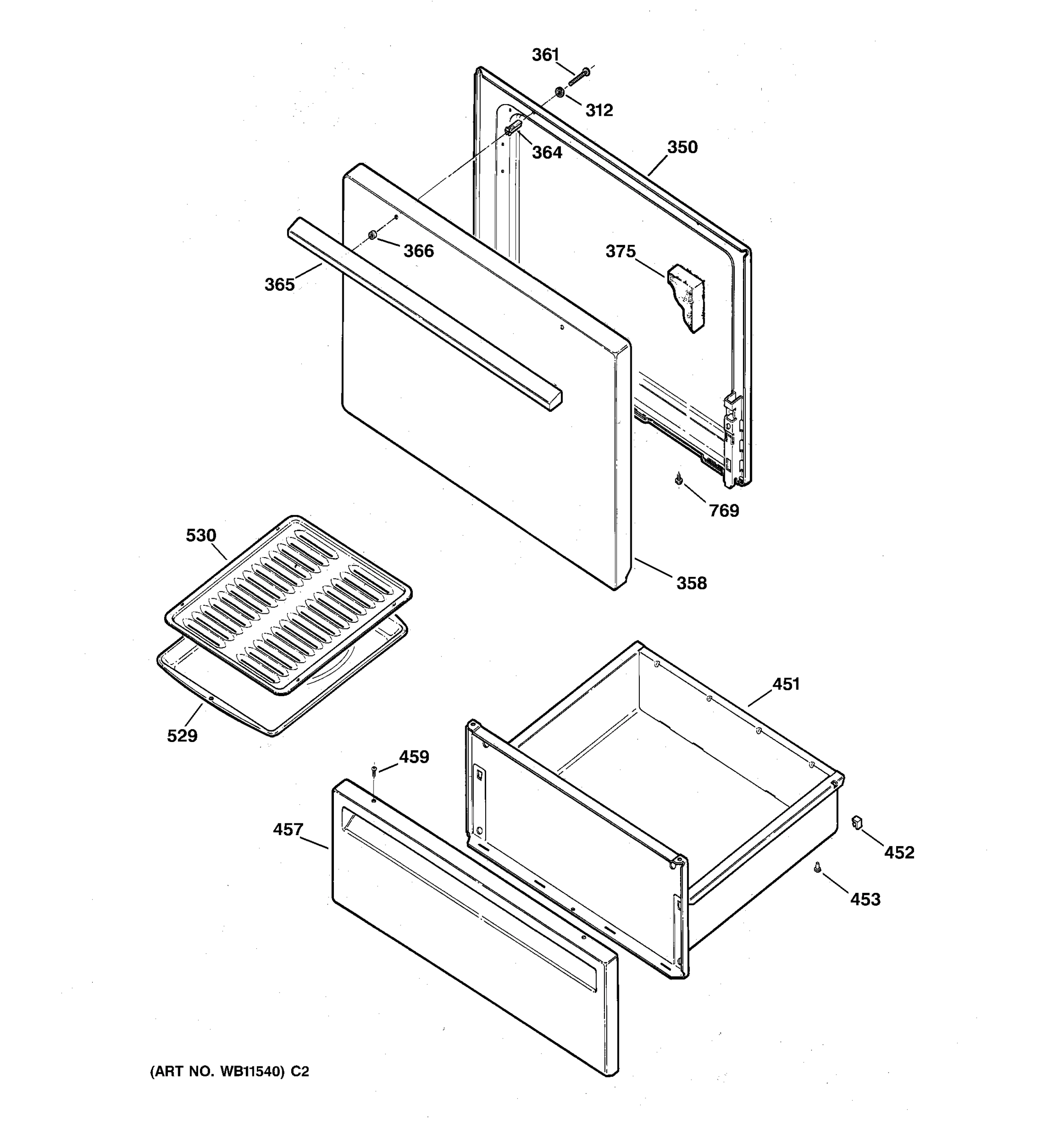

DOOR & DRAWER PARTS
Common parts from model GE JBS03V2 Electric Range
1
RANGE TOP ASM - AD GEN WB62X5403 Contact Us For Availability
1
GEN WB62X5407 GEN WB62X5407 Contact Us For Availability
2
GEN WB36X5769 GEN WB36X5769 Contact Us For Availability
4
GEN WB03X5834 GEN WB03X5834 Contact Us For Availability
5
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
9
GEN WB07X7136 GEN WB07X7136 Contact Us For Availability
9
GEN WB07X7137 GEN WB07X7137 Contact Us For Availability
12
GEN WB03X5839 GEN WB03X5839 Contact Us For Availability
19
PLATE END WH RH GEN WB07X7268 Contact Us For Availability
19
PLATE END WH LH GEN WB07X7269 Contact Us For Availability
19
END PLATE AD RH GEN WB07X7270 Contact Us For Availability
19
END PLATE AD LH GEN WB07X7271 Contact Us For Availability
143
GEN WB01X5860 GEN WB01X5860 Contact Us For Availability
146
GEN WB01X5832 GEN WB01X5832 Contact Us For Availability
151
GEN WB31X5021 GEN WB31X5021 Contact Us For Availability
253
GEN WB49X5566 GEN WB49X5566 Contact Us For Availability
256
GLIDER ADJ GEN WB02X8248 Contact Us For Availability
258
DRAWER GUIDE RH LH GEN WB39X0051 Contact Us For Availability
259
SLIDE GUIDE GEN WB02X0831 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
261
HINGE SPT RH GEN WB10X0148 Contact Us For Availability
261
HINGE SPT LH GEN WB10X0149 Contact Us For Availability
262
GEN WB02X3193 GEN WB02X3193 Contact Us For Availability
265
GEN WB02X6342 GEN WB02X6342 Contact Us For Availability
266
HOOK DOOR SPRING GEN WB02X2506 Contact Us For Availability
267
GEN WB09X0146 GEN WB09X0146 Contact Us For Availability
271
BAFFLE GEN WB02X1626 Contact Us For Availability
274
GEN WB02X8247 GEN WB02X8247 Contact Us For Availability
275
GEN WB02X8249 GEN WB02X8249 Contact Us For Availability
285
GEN WB02X8106 GEN WB02X8106 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
342
GEN WB02X8241 GEN WB02X8241 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
350
GEN WB55X5372 GEN WB55X5372 Contact Us For Availability
358
PANEL DOOR AD GEN WB56X7052 Contact Us For Availability
358
PANEL DOOR WH GEN WB56X7053 Contact Us For Availability
361
GEN WB01X5873 GEN WB01X5873 Contact Us For Availability
364
GEN WB02X8443 GEN WB02X8443 Contact Us For Availability
366
GEN WB02X3241 GEN WB02X3241 Contact Us For Availability
375
GEN WB02X8125 GEN WB02X8125 Contact Us For Availability
451
GEN WB58X5015 GEN WB58X5015 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
GEN WB02X3394 GEN WB02X3394 Contact Us For Availability
457
GEN WB56X7032 GEN WB56X7032 Contact Us For Availability
457
GEN WB56X7069 GEN WB56X7069 Contact Us For Availability
482
GEN WB02X1126 GEN WB02X1126 Contact Us For Availability
518
GEN WB02X8120 GEN WB02X8120 Contact Us For Availability
519
GEN WB02X8121 GEN WB02X8121 Contact Us For Availability
520
CLIP THERMOMSTAT GEN WB02X8441 Contact Us For Availability
520
OVEN LINER GEN WB53X5150 Contact Us For Availability
521
LOCKWASHER GEN WB09X0088 Contact Us For Availability
521
GEN WB09X5118 GEN WB09X5118 Contact Us For Availability
532
GEN WB38X5063 GEN WB38X5063 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
999
GEN 31-0824 GEN 31-0824 Contact Us For Availability
999
GEN 31-20431 GEN 31-20431 Contact Us For Availability
999
GEN 49-8782 GEN 49-8782 Contact Us For Availability
× ![]()
