Model GE JBP77GV2 Electric Range – Common Parts & Diagrams

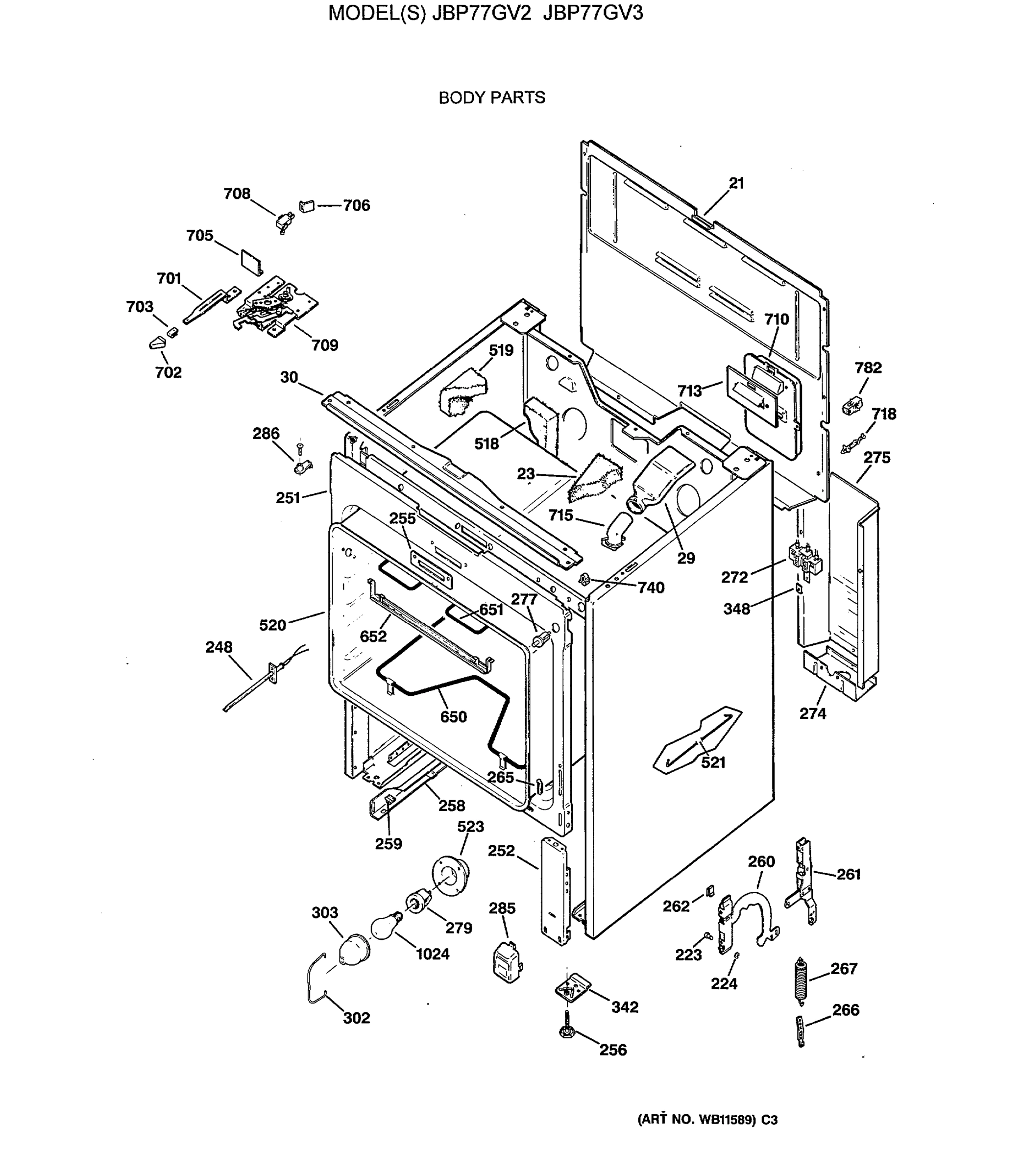

BODY PARTS

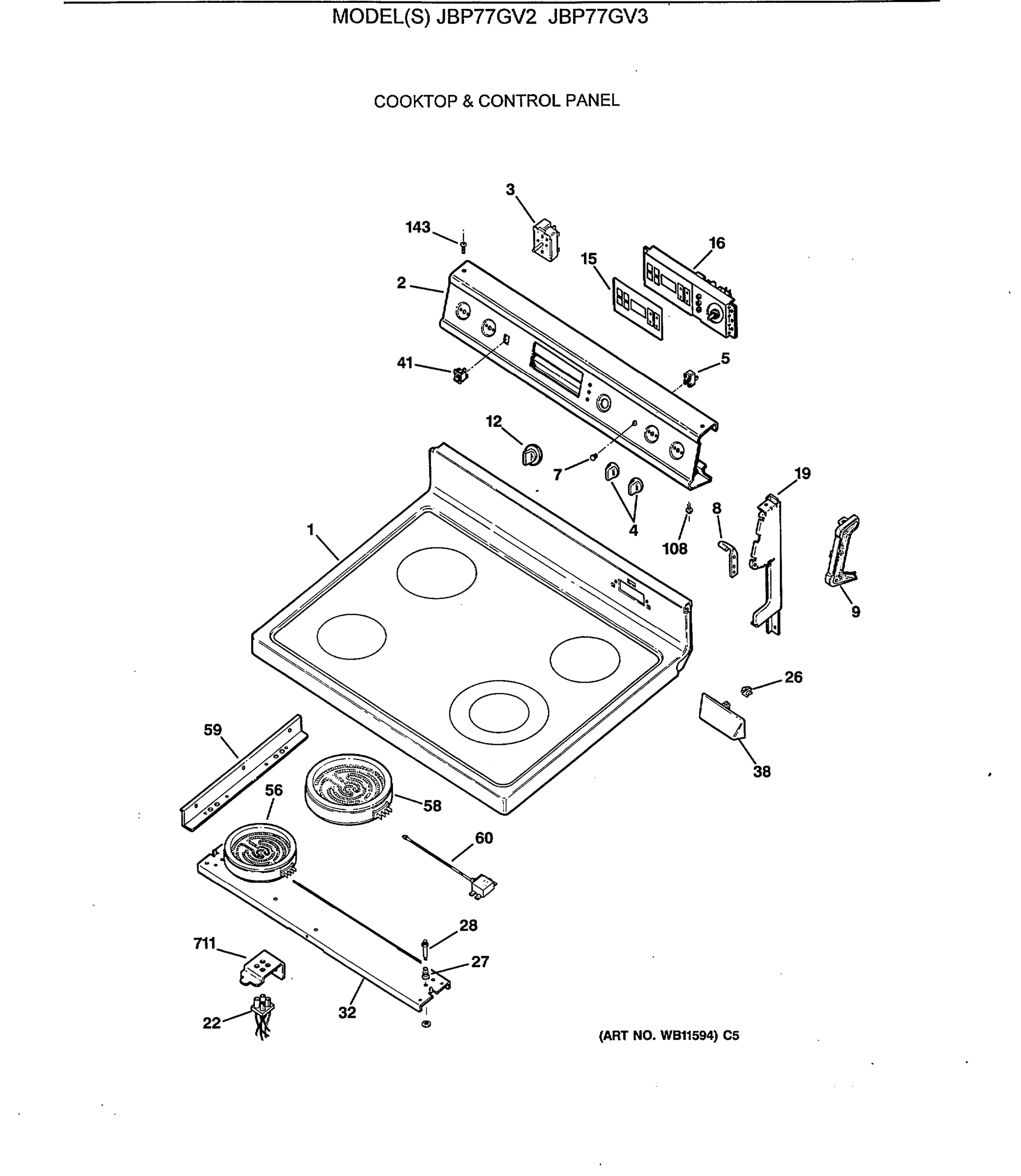

COOKTOP & CONTROL PANEL
DOOR & DRAWER PARTS
Common parts from model GE JBP77GV2 Electric Range
1
GEN WB62X5470 GEN WB62X5470 Contact Us For Availability
2
TRIM & BRACKET ASM GEN WB36X5752 Contact Us For Availability
4
KNOB - ALMOND GEN WB03X5816 Contact Us For Availability
5
GEN WB02X7697 GEN WB02X7697 Contact Us For Availability
7
JEWEL GEN WB25X5054 Contact Us For Availability
8
GEN WB02X8126 GEN WB02X8126 Contact Us For Availability
8
GEN WB02X8127 GEN WB02X8127 Contact Us For Availability
9
CAP END AD GEN WB07X7227 Contact Us For Availability
9
CAP END AD GEN WB07X7228 Contact Us For Availability
12
KNOB GEN WB03X5817 Contact Us For Availability
15
GEN WB27X5566 GEN WB27X5566 Contact Us For Availability
16
GEN WB02X8268 GEN WB02X8268 Contact Us For Availability
16
GEN WB02X8350 GEN WB02X8350 Contact Us For Availability
16
GEN WB09X5121 GEN WB09X5121 Contact Us For Availability
16
GEN WB27X5579 GEN WB27X5579 Contact Us For Availability
18
GEN WB01X5899 GEN WB01X5899 Contact Us For Availability
19
END PLATE AD RH GEN WB07X7270 Contact Us For Availability
19
END PLATE AD LH GEN WB07X7271 Contact Us For Availability
22
INDICATOR HOT SURFACE GEN WB08X5118 Contact Us For Availability
26
GEN WB02X8312 GEN WB02X8312 Contact Us For Availability
27
GEN WB09X5119 GEN WB09X5119 Contact Us For Availability
28
GEN WB02X8377 GEN WB02X8377 Contact Us For Availability
32
GEN WB02X8556 GEN WB02X8556 Contact Us For Availability
38
VENT TRIM & CLIP ASM AD GEN WB07X7218 Contact Us For Availability
41
GEN WB24X5318 GEN WB24X5318 Contact Us For Availability
56
GEN WB30X5141 GEN WB30X5141 Contact Us For Availability
58
GEN WB30X5145 GEN WB30X5145 Contact Us For Availability
59
GEN WB02X8321 GEN WB02X8321 Contact Us For Availability
60
GEN WB23X5093 GEN WB23X5093 Contact Us For Availability
60
GEN WB24X5335 GEN WB24X5335 Contact Us For Availability
136
OVEN DOOR HANDLE AD GEN WB15K5097 Contact Us For Availability
143
SCR 8-18 AB OVT 1/2 S AD GEN WB01X5902 Contact Us For Availability
221
GEN WB07X7339 GEN WB07X7339 Contact Us For Availability
248
GEN WB21X5310 GEN WB21X5310 Contact Us For Availability
251
GEN WB56X7049 GEN WB56X7049 Contact Us For Availability
252
GEN WB49X5564 GEN WB49X5564 Contact Us For Availability
256
GLIDER ADJ GEN WB02X8248 Contact Us For Availability
258
GEN WB39X0051 GEN WB39X0051 Contact Us For Availability
259
SLIDE GUIDE GEN WB02X0831 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
261
HINGE SPT RH GEN WB10X0148 Contact Us For Availability
261
HINGE SPT LH GEN WB10X0149 Contact Us For Availability
262
GEN WB02X3193 GEN WB02X3193 Contact Us For Availability
265
GEN WB02X6342 GEN WB02X6342 Contact Us For Availability
266
HOOK DOOR SPRING GEN WB02X2506 Contact Us For Availability
267
GEN WB09X5117 GEN WB09X5117 Contact Us For Availability
274
GEN WB02X8247 GEN WB02X8247 Contact Us For Availability
275
GEN WB02X8249 GEN WB02X8249 Contact Us For Availability
277
SWITCH, OVEN LIGHT GEN WB24X0105 Contact Us For Availability
285
GEN WB02X8106 GEN WB02X8106 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
302
GEN WB02X7694 GEN WB02X7694 Contact Us For Availability
332
GEN WB02X8557 GEN WB02X8557 Contact Us For Availability
342
GEN WB02X8241 GEN WB02X8241 Contact Us For Availability
347
GEN WB49X5527 GEN WB49X5527 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
349
GEN WB49X5562 GEN WB49X5562 Contact Us For Availability
350
INNER PANEL GEN WB55X5382 Contact Us For Availability
355
GEN WB55X5381 GEN WB55X5381 Contact Us For Availability
358
GEN WB36X5791 GEN WB36X5791 Contact Us For Availability
359
TRIM BOTTOM AD GEN WB07X7196 Contact Us For Availability
360
GEN WB55X5403 GEN WB55X5403 Contact Us For Availability
364
GEN WB02X8558 GEN WB02X8558 Contact Us For Availability
366
GEN WB02X8559 GEN WB02X8559 Contact Us For Availability
394
GEN WB07X7337 GEN WB07X7337 Contact Us For Availability
394
GEN WB07X7338 GEN WB07X7338 Contact Us For Availability
396
GEN WB01X5872 GEN WB01X5872 Contact Us For Availability
397
END CAP HANDLE (AD) GEN WB07X7231 Contact Us For Availability
398
SCR SHOULDER GEN WB01X0600 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
400
GEN WB36X5712 GEN WB36X5712 Contact Us For Availability
441
GEN WB07X7335 GEN WB07X7335 Contact Us For Availability
441
END CAP DOOR LF AD GEN WB07X7336 Contact Us For Availability
451
GEN WB58X5015 GEN WB58X5015 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
GEN WB02X3394 GEN WB02X3394 Contact Us For Availability
457
GEN WB56X7032 GEN WB56X7032 Contact Us For Availability
518
GEN WB02X8412 GEN WB02X8412 Contact Us For Availability
519
GEN WB02X8219 GEN WB02X8219 Contact Us For Availability
520
GEN WB53X5157 GEN WB53X5157 Contact Us For Availability
521
LOCKWASHER GEN WB09X0088 Contact Us For Availability
521
GEN WB09X5118 GEN WB09X5118 Contact Us For Availability
523
GEN WB02X7693 GEN WB02X7693 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
684
SCREW GEN WZ04X0417 Contact Us For Availability
701
GEN WB15X5219 GEN WB15X5219 Contact Us For Availability
702
GEN WB03X5815 GEN WB03X5815 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
705
GEN WB02X8485 GEN WB02X8485 Contact Us For Availability
706
GEN WB02X8222 GEN WB02X8222 Contact Us For Availability
708
GEN WB24X5326 GEN WB24X5326 Contact Us For Availability
709
GEN WB14X5043 GEN WB14X5043 Contact Us For Availability
710
GEN WB38X5064 GEN WB38X5064 Contact Us For Availability
710
GEN WB38X5065 GEN WB38X5065 Contact Us For Availability
711
GEN WB02X8555 GEN WB02X8555 Contact Us For Availability
713
GEN WB02X8311 GEN WB02X8311 Contact Us For Availability
715
GEN WB38X5067 GEN WB38X5067 Contact Us For Availability
718
GEN WB02X8323 GEN WB02X8323 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
752
GEN WB00X6542 GEN WB00X6542 Contact Us For Availability
758
GEN WB01K5050 GEN WB01K5050 Contact Us For Availability
1458
TERM BLK ASM-1 PIN(1458) GEN WB17X5073 Contact Us For Availability
32767
GEN 31-0824 GEN 31-0824 Contact Us For Availability
32767
GEN 31-20218 GEN 31-20218 Contact Us For Availability
32767
GEN 49-8685 GEN 49-8685 Contact Us For Availability
32767
GEN WB18X5136 GEN WB18X5136 Contact Us For Availability
× ![]()
