Model GE JBP63SV3AD Electric Range – Common Parts & Diagrams

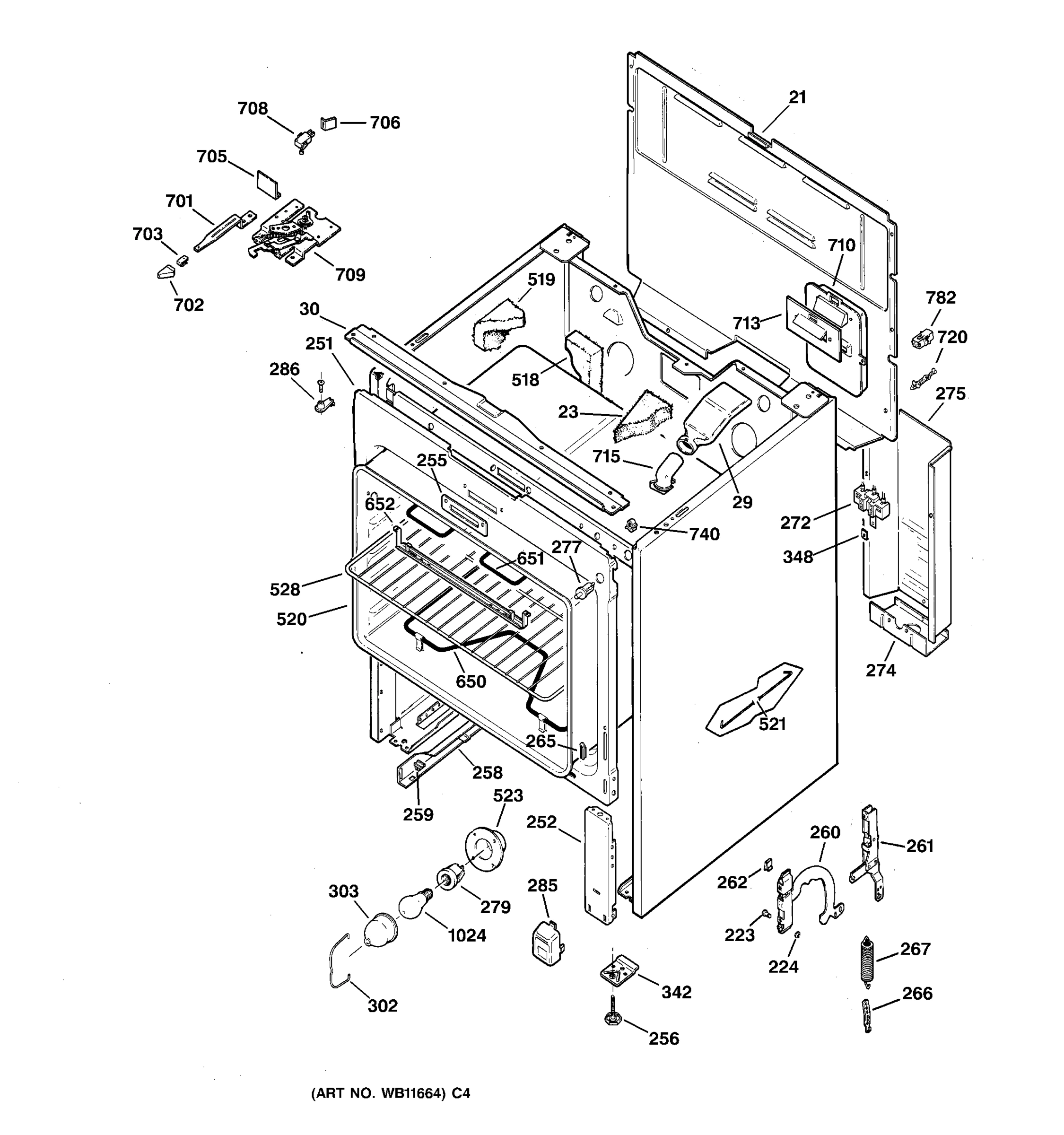

BODY PARTS

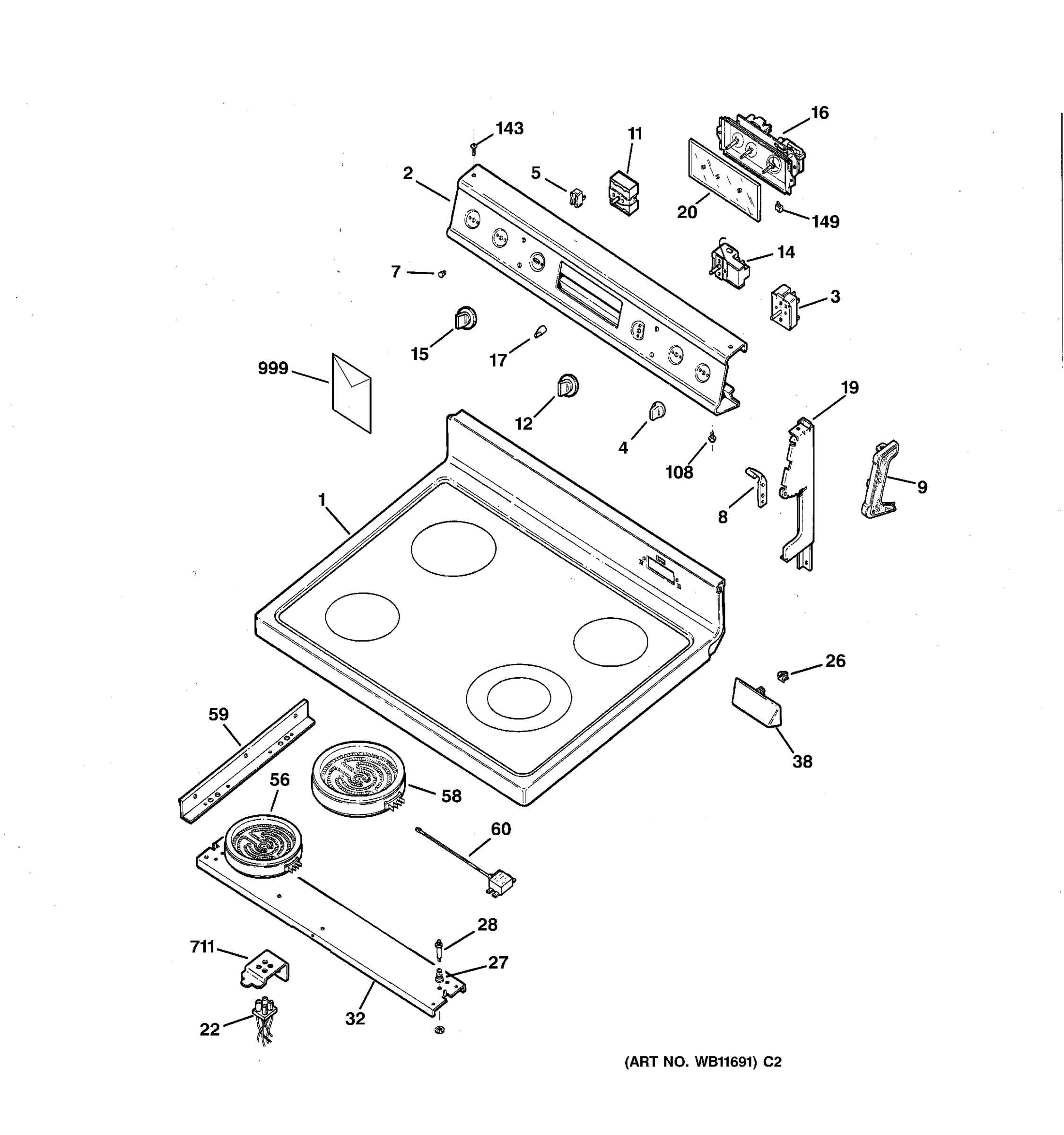

COOKTOP & CONTROL PANEL

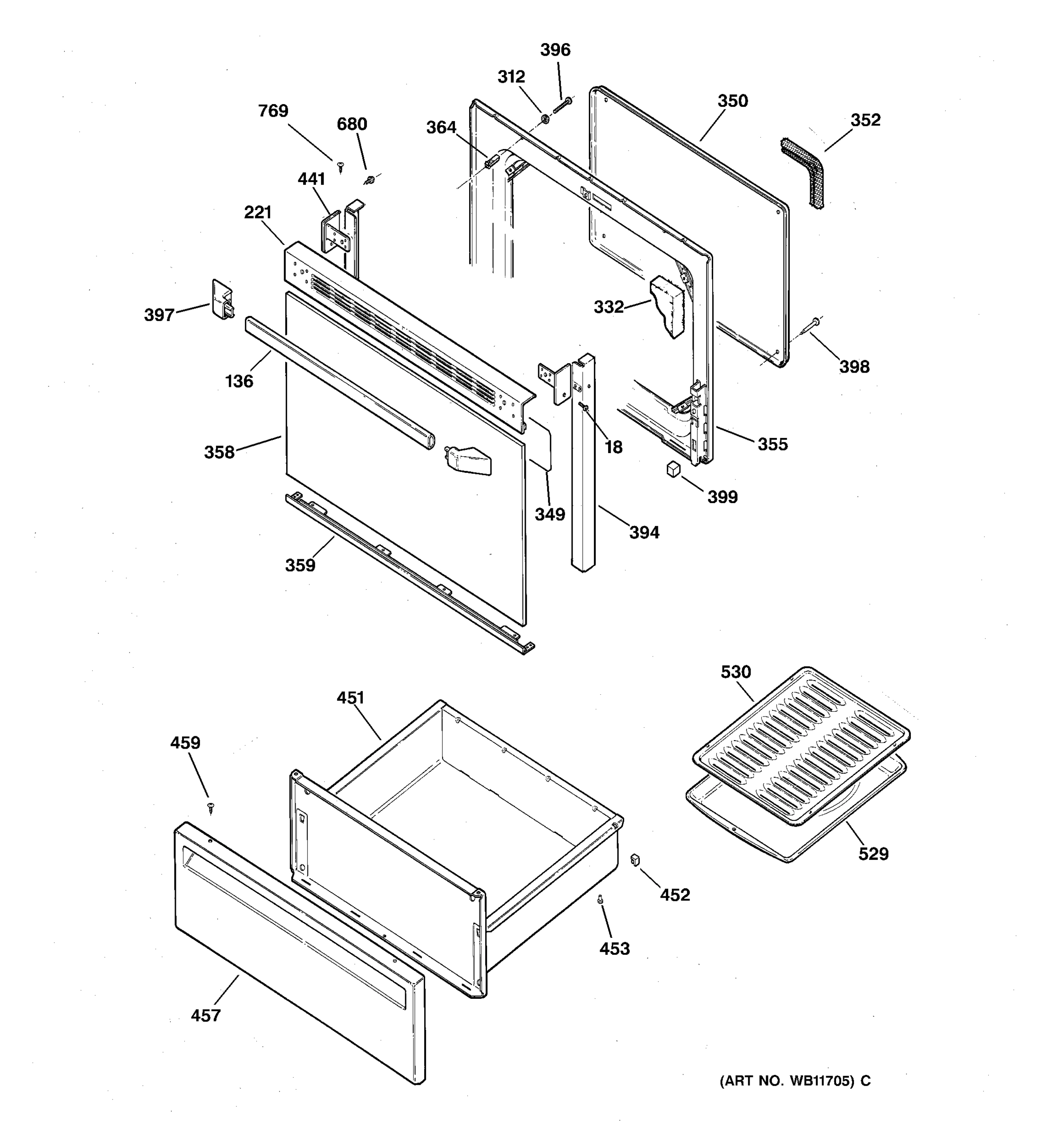

DOOR & DRAWER PARTS
Common parts from model GE JBP63SV3AD Electric Range
1
GEN WB62X5472 GEN WB62X5472 Contact Us For Availability
2
GEN WB36X5757 GEN WB36X5757 Contact Us For Availability
4
GEN WB03X5834 GEN WB03X5834 Contact Us For Availability
5
GEN WB02X7697 GEN WB02X7697 Contact Us For Availability
5
GEN WB02X7698 GEN WB02X7698 Contact Us For Availability
7
JEWEL GEN WB25X5054 Contact Us For Availability
8
GEN WB02X8126 GEN WB02X8126 Contact Us For Availability
8
GEN WB02X8127 GEN WB02X8127 Contact Us For Availability
9
GEN WB07X7130 GEN WB07X7130 Contact Us For Availability
9
GEN WB07X7131 GEN WB07X7131 Contact Us For Availability
11
OVEN SWITCH GEN WB22X5122 Contact Us For Availability
12
GEN WB03X5833 GEN WB03X5833 Contact Us For Availability
14
GEN WB02X6274 GEN WB02X6274 Contact Us For Availability
14
GEN WB24X0176 GEN WB24X0176 Contact Us For Availability
15
KNOB OVEN GEN WB03X5832 Contact Us For Availability
16
GEN WB27X5555 GEN WB27X5555 Contact Us For Availability
18
GEN WR01X1768 GEN WR01X1768 Contact Us For Availability
19
END PLATE AD RH GEN WB07X7270 Contact Us For Availability
19
END PLATE AD LH GEN WB07X7271 Contact Us For Availability
20
GEN WB36X5574 GEN WB36X5574 Contact Us For Availability
22
INDICATOR HOT SURFACE GEN WB08X5118 Contact Us For Availability
26
GEN WB02X8312 GEN WB02X8312 Contact Us For Availability
27
GEN WB09X5119 GEN WB09X5119 Contact Us For Availability
28
GEN WB02X8377 GEN WB02X8377 Contact Us For Availability
32
GEN WB02X8556 GEN WB02X8556 Contact Us For Availability
38
VENT TRIM & CLIP ASM AD GEN WB07X7218 Contact Us For Availability
59
GEN WB02X8321 GEN WB02X8321 Contact Us For Availability
143
GEN WB01X5860 GEN WB01X5860 Contact Us For Availability
149
GEN WB02X7702 GEN WB02X7702 Contact Us For Availability
221
GEN WB07X7342 GEN WB07X7342 Contact Us For Availability
256
GLIDER ADJ GEN WB02X8248 Contact Us For Availability
258
GEN WB39X0051 GEN WB39X0051 Contact Us For Availability
259
SLIDE GUIDE GEN WB02X0831 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
261
HINGE SPT RH GEN WB10X0148 Contact Us For Availability
261
HINGE SPT LH GEN WB10X0149 Contact Us For Availability
262
GEN WB02X3193 GEN WB02X3193 Contact Us For Availability
265
GEN WB02X6342 GEN WB02X6342 Contact Us For Availability
266
HOOK DOOR SPRING GEN WB02X2506 Contact Us For Availability
267
GEN WB09X5117 GEN WB09X5117 Contact Us For Availability
274
GEN WB02X8247 GEN WB02X8247 Contact Us For Availability
275
GEN WB02X8249 GEN WB02X8249 Contact Us For Availability
277
SWITCH, OVEN LIGHT GEN WB24X0105 Contact Us For Availability
285
GEN WB02X8106 GEN WB02X8106 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
302
GEN WB02X7694 GEN WB02X7694 Contact Us For Availability
332
GEN WB02X8445 GEN WB02X8445 Contact Us For Availability
342
GEN WB02X8241 GEN WB02X8241 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
349
GEN WB49X5562 GEN WB49X5562 Contact Us For Availability
350
GEN WB55X5361 GEN WB55X5361 Contact Us For Availability
355
GEN WB55X5392 GEN WB55X5392 Contact Us For Availability
358
GEN WB36X5684 GEN WB36X5684 Contact Us For Availability
364
GEN WB02X8558 GEN WB02X8558 Contact Us For Availability
394
GEN WB07X7340 GEN WB07X7340 Contact Us For Availability
394
GEN WB07X7341 GEN WB07X7341 Contact Us For Availability
396
GEN WB01X5872 GEN WB01X5872 Contact Us For Availability
398
SCR SHOULDER GEN WB01X0600 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
441
GEN WB07X7289 GEN WB07X7289 Contact Us For Availability
441
GEN WB07X7290 GEN WB07X7290 Contact Us For Availability
451
GEN WB58X5015 GEN WB58X5015 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
GEN WB02X3394 GEN WB02X3394 Contact Us For Availability
457
GEN WB56X7032 GEN WB56X7032 Contact Us For Availability
518
GEN WB02X8412 GEN WB02X8412 Contact Us For Availability
519
GEN WB02X8219 GEN WB02X8219 Contact Us For Availability
520
CLIP CAPILLARY TUBE OVEN GEN WB02X3471 Contact Us For Availability
520
GEN WB53X5152 GEN WB53X5152 Contact Us For Availability
521
LOCKWASHER GEN WB09X0088 Contact Us For Availability
521
GEN WB09X5118 GEN WB09X5118 Contact Us For Availability
523
GEN WB02X7693 GEN WB02X7693 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
701
GEN WB15X5219 GEN WB15X5219 Contact Us For Availability
702
GEN WB03X5774 GEN WB03X5774 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
705
GEN WB02X8485 GEN WB02X8485 Contact Us For Availability
706
GEN WB02X8222 GEN WB02X8222 Contact Us For Availability
708
GEN WB24X5291 GEN WB24X5291 Contact Us For Availability
709
GEN WB14X5044 GEN WB14X5044 Contact Us For Availability
710
GEN WB38X5064 GEN WB38X5064 Contact Us For Availability
710
GEN WB38X5065 GEN WB38X5065 Contact Us For Availability
711
GEN WB02X8555 GEN WB02X8555 Contact Us For Availability
713
GEN WB02X8311 GEN WB02X8311 Contact Us For Availability
715
GEN WB38X5067 GEN WB38X5067 Contact Us For Availability
720
GEN WB02X8323 GEN WB02X8323 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
999
GEN 31-0824 GEN 31-0824 Contact Us For Availability
999
GEN 31-20243 GEN 31-20243 Contact Us For Availability
999
GEN 49-8726 GEN 49-8726 Contact Us For Availability
× ![]()
