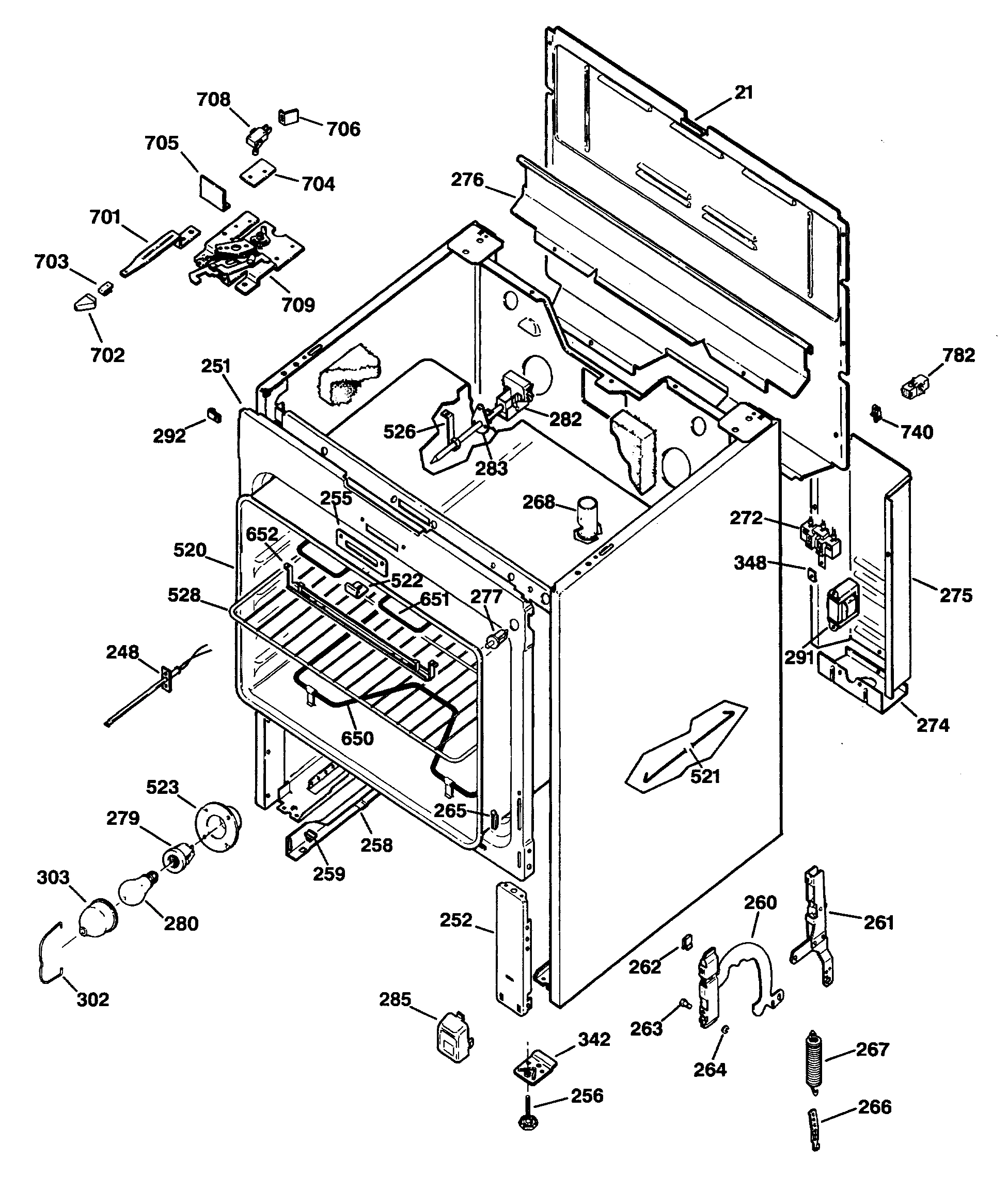

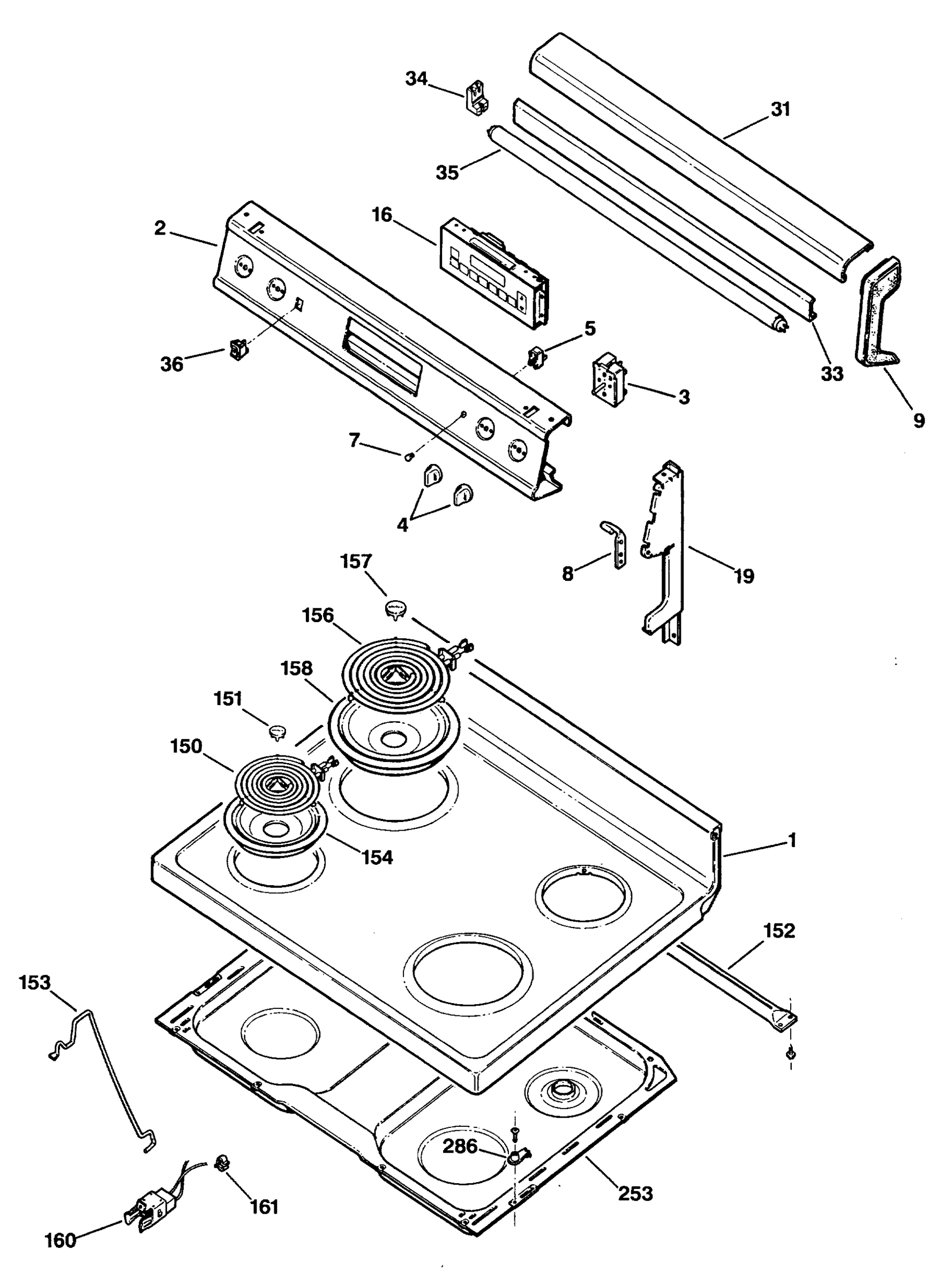

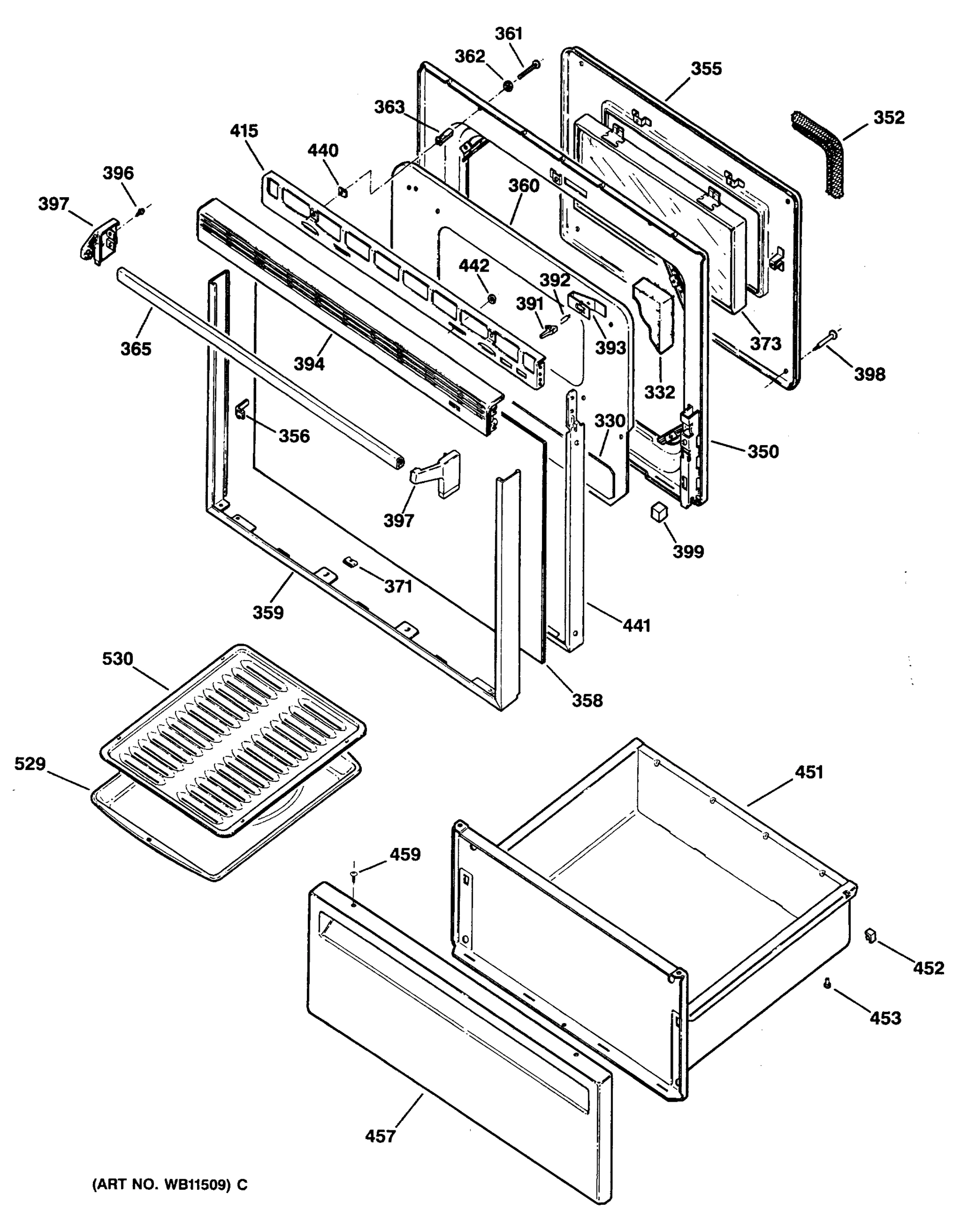

Model GE JBP56G*R3 Electric Range – Common Parts & Diagrams
Common parts from model GE JBP56G*R3 Electric Range
5
GEN WB02X7697 GEN WB02X7697 Contact Us For Availability
7
JEWEL GEN WB25X5054 Contact Us For Availability
21
GEN WB49X5521 GEN WB49X5521 Contact Us For Availability
31
GEN WB07X7134 GEN WB07X7134 Contact Us For Availability
33
GEN WB07K0040 GEN WB07K0040 Contact Us For Availability
34
GEN WB08X5098 GEN WB08X5098 Contact Us For Availability
36
GEN WB24X5263 GEN WB24X5263 Contact Us For Availability
151
GEN WB32X0052 GEN WB32X0052 Contact Us For Availability
152
GEN WB02X8128 GEN WB02X8128 Contact Us For Availability
153
GEN WB02X8114 GEN WB02X8114 Contact Us For Availability
157
GEN WB32X0051 GEN WB32X0051 Contact Us For Availability
161
GEN WB02X8115 GEN WB02X8115 Contact Us For Availability
251
GEN WB56X7049 GEN WB56X7049 Contact Us For Availability
252
GEN WB49X5498 GEN WB49X5498 Contact Us For Availability
253
GEN WB49X5499 GEN WB49X5499 Contact Us For Availability
254
SCREW (HEX) GEN WB01X0549 Contact Us For Availability
256
GEN WB02X8116 GEN WB02X8116 Contact Us For Availability
258
GEN WB39X0051 GEN WB39X0051 Contact Us For Availability
259
SLIDE GUIDE GEN WB02X0831 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
261
HINGE SPT RH GEN WB10X0148 Contact Us For Availability
261
HINGE SPT LH GEN WB10X0149 Contact Us For Availability
262
GEN WB02X3193 GEN WB02X3193 Contact Us For Availability
263
GEN WB02X6195 GEN WB02X6195 Contact Us For Availability
264
RING RETAINING GEN WB02X1082 Contact Us For Availability
265
GEN WB02X6342 GEN WB02X6342 Contact Us For Availability
266
HOOK DOOR SPRING GEN WB02X2506 Contact Us For Availability
267
GEN WB09X5117 GEN WB09X5117 Contact Us For Availability
274
KNOCKOUT PLATE GEN WB02X1908 Contact Us For Availability
275
GEN WB02X8104 GEN WB02X8104 Contact Us For Availability
276
GEN WB2X8105 GEN WB2X8105 Contact Us For Availability
277
SWITCH, OVEN LIGHT GEN WB24X0105 Contact Us For Availability
285
GEN WB02X8106 GEN WB02X8106 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
291
GEN WB08K0003 GEN WB08K0003 Contact Us For Availability
292
GEN WB01X0386 GEN WB01X0386 Contact Us For Availability
302
GEN WB02X7694 GEN WB02X7694 Contact Us For Availability
314
PAD GLASS GEN WB02X1222 Contact Us For Availability
328
GEN WB01K0015 GEN WB01K0015 Contact Us For Availability
342
GEN WB02X8241 GEN WB02X8241 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
350
GEN WB55X5368 GEN WB55X5368 Contact Us For Availability
355
GEN WB55X5359 GEN WB55X5359 Contact Us For Availability
356
CLIP TRIM GEN WB02X6574 Contact Us For Availability
358
GEN WB36X5687 GEN WB36X5687 Contact Us For Availability
359
GEN WB07X7129 GEN WB07X7129 Contact Us For Availability
360
GEN WB55X0378 GEN WB55X0378 Contact Us For Availability
363
GEN WB02X3030 GEN WB02X3030 Contact Us For Availability
365
GEN WB15X5177 GEN WB15X5177 Contact Us For Availability
373
WINDOW PACK KIT SM GEN WB56K0019 Contact Us For Availability
375
GEN WB36X5679 GEN WB36X5679 Contact Us For Availability
391
GEN WB02X7881 GEN WB02X7881 Contact Us For Availability
392
CAM LINK GEN WB02X5217 Contact Us For Availability
393
GEN WB09X5083 GEN WB09X5083 Contact Us For Availability
394
GEN WB07X7135 GEN WB07X7135 Contact Us For Availability
396
GEN WZ04X0384 GEN WZ04X0384 Contact Us For Availability
398
SCR SHOULDER GEN WB01X0600 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
415
GEN WB02X7608 GEN WB02X7608 Contact Us For Availability
441
GEN WB02X8110 GEN WB02X8110 Contact Us For Availability
441
GEN WB02X8111 GEN WB02X8111 Contact Us For Availability
451
GEN WB58X5015 GEN WB58X5015 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
GEN WB02X3394 GEN WB02X3394 Contact Us For Availability
457
GEN WB56X7032 GEN WB56X7032 Contact Us For Availability
457
GEN WB56X7033 GEN WB56X7033 Contact Us For Availability
518
GEN WB02X8100 GEN WB02X8100 Contact Us For Availability
520
GEN WB53X5148 GEN WB53X5148 Contact Us For Availability
521
GEN WB09X5118 GEN WB09X5118 Contact Us For Availability
523
GEN WB02X7693 GEN WB02X7693 Contact Us For Availability
530
BROILER PAN RACK GEN WB49X5093 Contact Us For Availability
532
GEN WB38X5063 GEN WB38X5063 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
701
GEN WB15X5198 GEN WB15X5198 Contact Us For Availability
702
GEN WB03X5805 GEN WB03X5805 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
704
GEN WB02X8220 GEN WB02X8220 Contact Us For Availability
705
GEN WB02X8221 GEN WB02X8221 Contact Us For Availability
706
GEN WB24X5292 GEN WB24X5292 Contact Us For Availability
706
GEN WB02X8222 GEN WB02X8222 Contact Us For Availability
709
GEN WB14X5040 GEN WB14X5040 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
741
FUSTAT 15AMP TYPE S GEN OBT LOCAL Contact Us For Availability
741
GEN WZ04X0218 GEN WZ04X0218 Contact Us For Availability
782
GEN WB17X5060 GEN WB17X5060 Contact Us For Availability
32767
GEN 31-0824 GEN 31-0824 Contact Us For Availability
32767
GEN 31-1411 GEN 31-1411 Contact Us For Availability
32767
GEN 49-8383 GEN 49-8383 Contact Us For Availability
32767
GEN WB18X5126 GEN WB18X5126 Contact Us For Availability
× ![]()
