Model GE JBP23BY1AD Electric Range – Common Parts & Diagrams

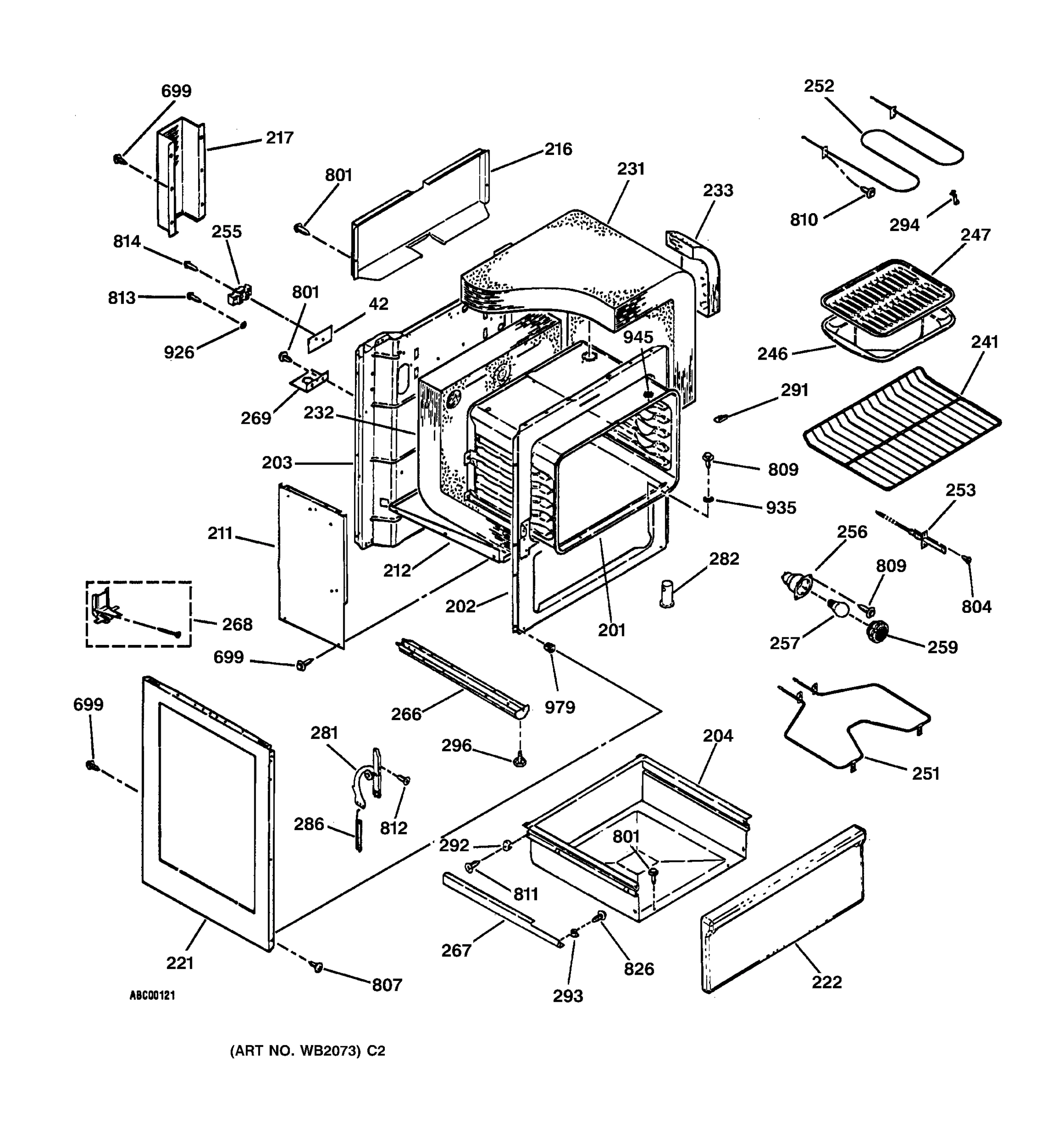

BODY PARTS

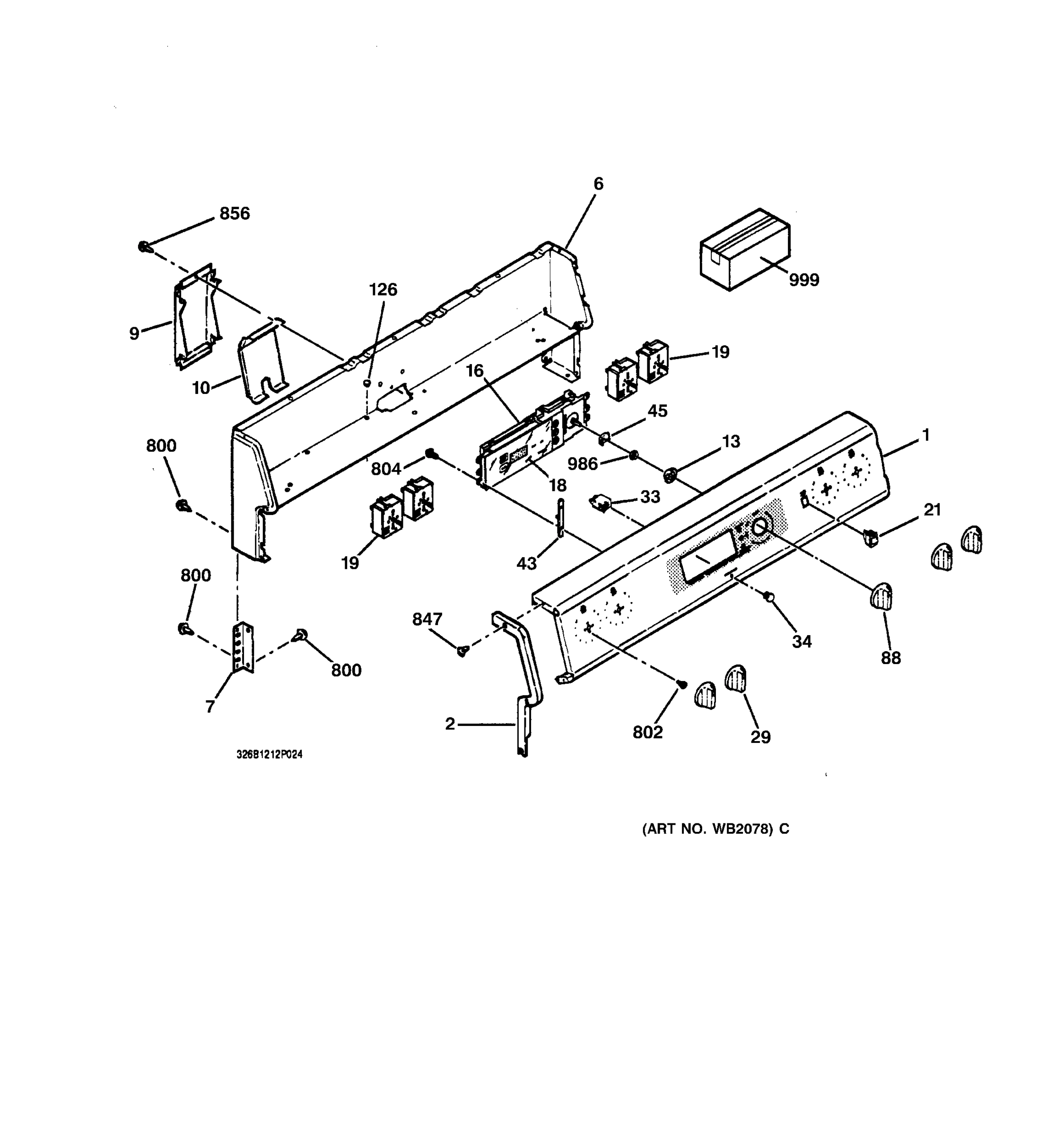

CONTROL PANEL

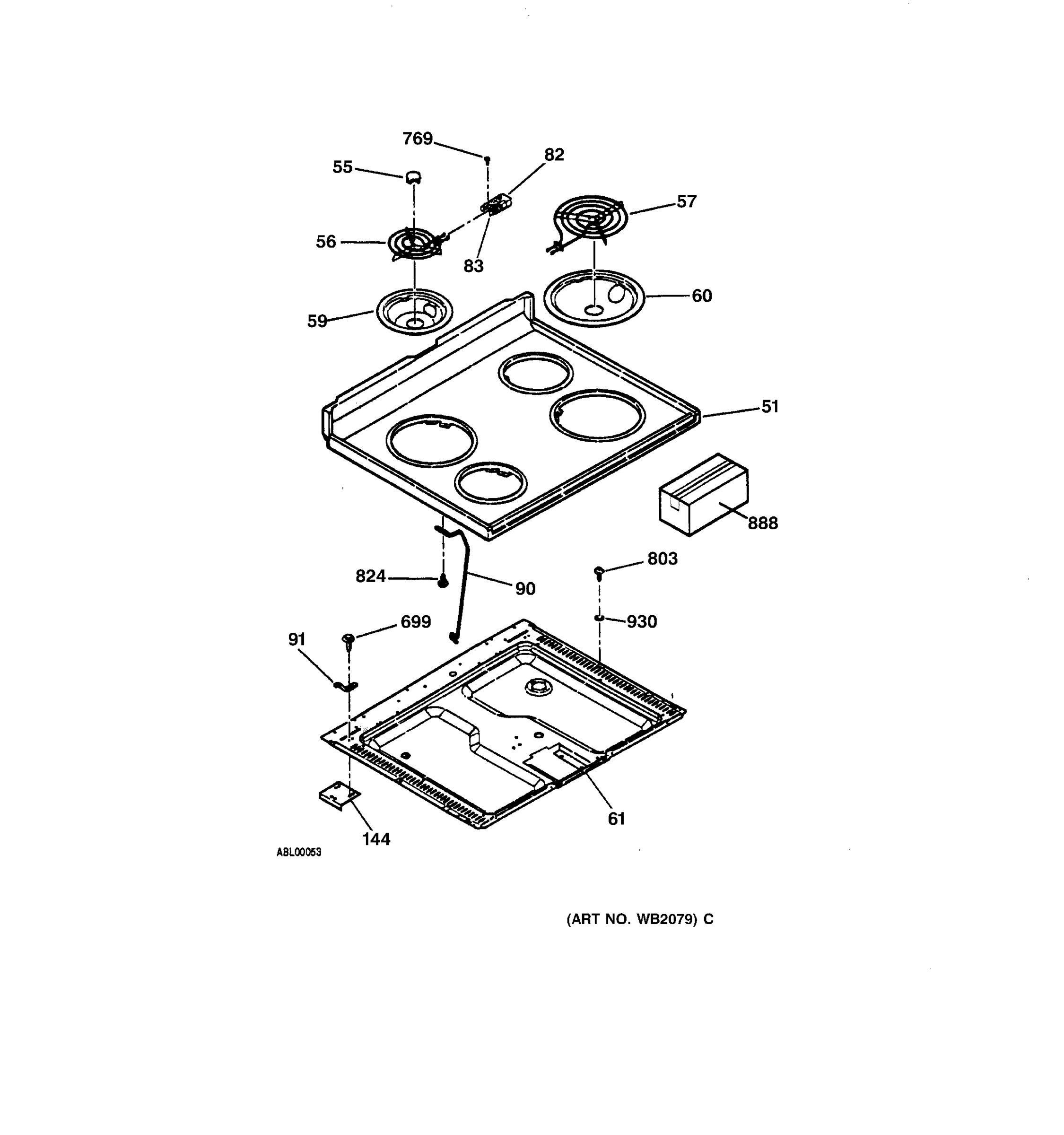

COOKTOP

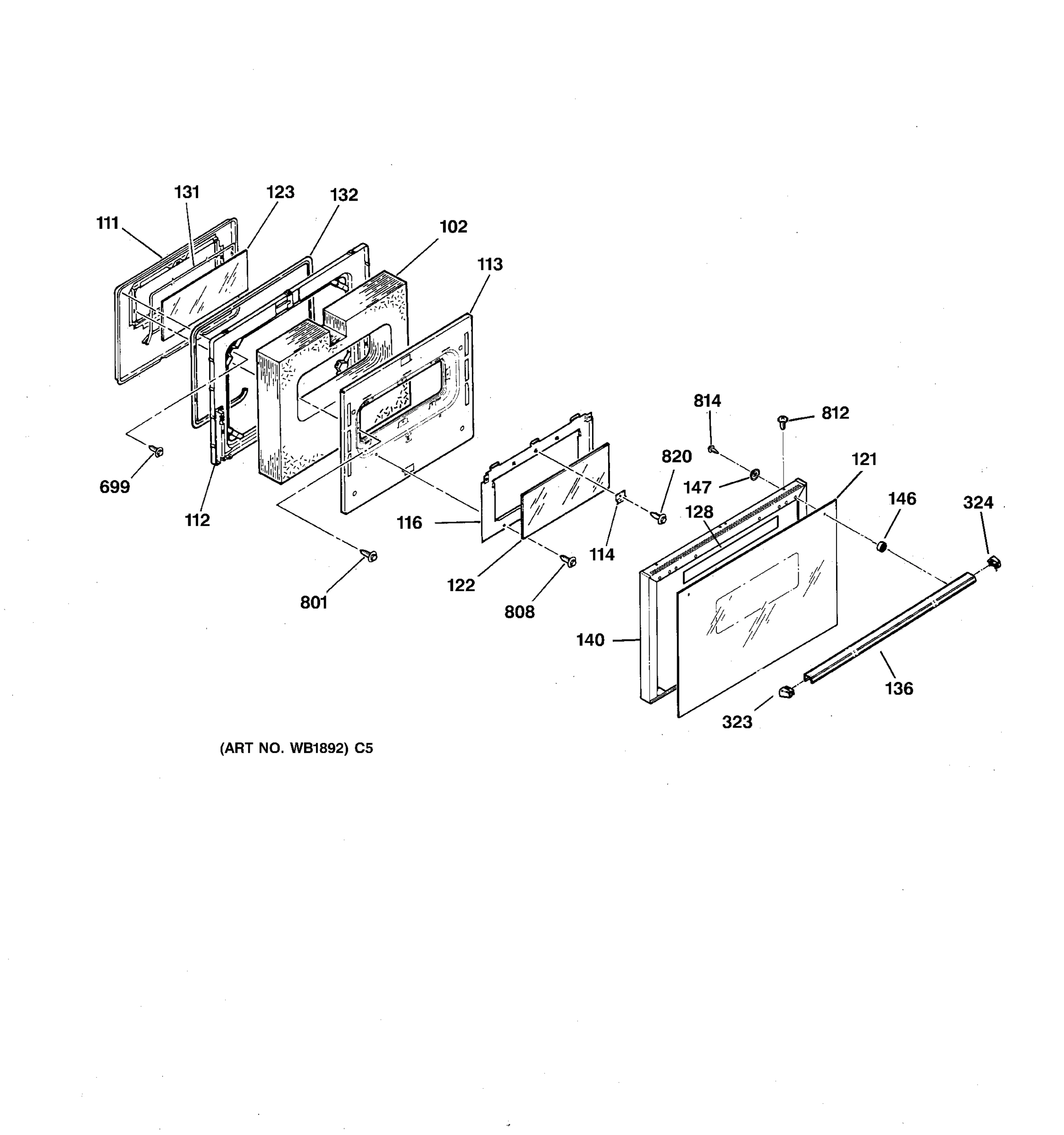

DOOR

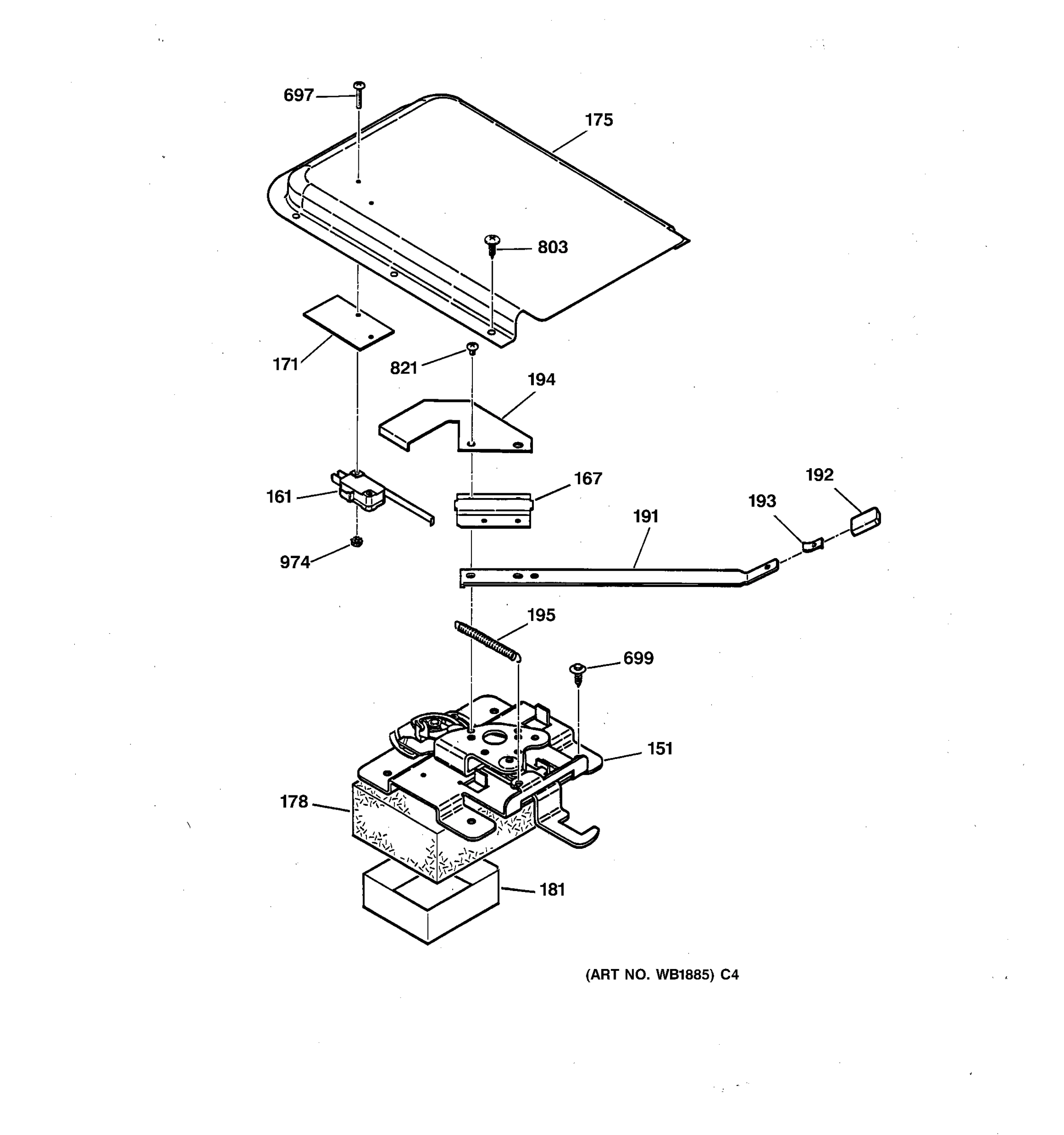

LOCK
Common parts from model GE JBP23BY1AD Electric Range
1
GEN WB36T10083 GEN WB36T10083 Contact Us For Availability
2
GEN WB36K5356 GEN WB36K5356 Contact Us For Availability
2
GEN WB36K5357 GEN WB36K5357 Contact Us For Availability
6
GEN WB37K5035 GEN WB37K5035 Contact Us For Availability
7
BACKGUARD SUPPORT-RT GEN WB06X0127 Contact Us For Availability
7
BACKGUARD SUPPORT LT GEN WB06X0128 Contact Us For Availability
9
GEN WB02X9415 GEN WB02X9415 Contact Us For Availability
10
COVER RACEWAY GEN WB06X0134 Contact Us For Availability
13
GEN WB02X8313 GEN WB02X8313 Contact Us For Availability
16
GEN WB27T10027 GEN WB27T10027 Contact Us For Availability
18
GEN WB27X5563 GEN WB27X5563 Contact Us For Availability
29
GEN WB03T10008 GEN WB03T10008 Contact Us For Availability
43
GEN WB02K5325 GEN WB02K5325 Contact Us For Availability
45
GEN WB09X5121 GEN WB09X5121 Contact Us For Availability
51
GEN WB62M0018 GEN WB62M0018 Contact Us For Availability
55
GEN WB32X0105 GEN WB32X0105 Contact Us For Availability
61
GEN WB64T10003 GEN WB64T10003 Contact Us For Availability
83
GEN WB01K5128 GEN WB01K5128 Contact Us For Availability
88
GEN WB03T10009 GEN WB03T10009 Contact Us For Availability
90
SUPPORT ROD GEN WB02X9084 Contact Us For Availability
91
GEN WB14X0126 GEN WB14X0126 Contact Us For Availability
91
GEN WB14X0127 GEN WB14X0127 Contact Us For Availability
102
OVEN DOOR INSULATION GEN WB35K5026 Contact Us For Availability
111
GEN WB55T10005 GEN WB55T10005 Contact Us For Availability
112
GEN WB55T10003 GEN WB55T10003 Contact Us For Availability
113
INSULATION RETAINER GEN WB56X1910 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
GEN WB02X9178 GEN WB02X9178 Contact Us For Availability
121
GEN WB57T10006 GEN WB57T10006 Contact Us For Availability
122
GEN WB57K5141 GEN WB57K5141 Contact Us For Availability
123
CENTER GLASS GEN WB56X1907 Contact Us For Availability
126
GEN WB03K5189 GEN WB03K5189 Contact Us For Availability
128
GEN WB34T10002 GEN WB34T10002 Contact Us For Availability
140
GEN WB56K5144 GEN WB56K5144 Contact Us For Availability
144
GEN WB02K5316 GEN WB02K5316 Contact Us For Availability
146
DOOR HANDLE SPACER-BLACK GEN WB02X9037 Contact Us For Availability
147
GEN WB02K5312 GEN WB02K5312 Contact Us For Availability
151
GEN WB14K5011 GEN WB14K5011 Contact Us For Availability
161
GEN WB24K5092 GEN WB24K5092 Contact Us For Availability
167
LATCH HANDLE RETAINER GEN WB02X9433 Contact Us For Availability
171
GEN WB35K5101 GEN WB35K5101 Contact Us For Availability
175
LOCK COVER ASM GEN WB02X9431 Contact Us For Availability
178
LOCK BOX INSULATION GEN WB35K5027 Contact Us For Availability
181
GEN WB02K5097 GEN WB02K5097 Contact Us For Availability
191
LATCH HANDLE GEN WB02X9434 Contact Us For Availability
192
GEN WB03K5154 GEN WB03K5154 Contact Us For Availability
193
KNOB CLIP GEN WB02X9404 Contact Us For Availability
194
LEVER SWITCH GEN WB02X9432 Contact Us For Availability
195
LOCK SPRING GEN WB09X0251 Contact Us For Availability
217
UPPER WIRE COVER GEN WB34K5093 Contact Us For Availability
233
INSULATION TOP SIDES GEN WB02X9718 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
256
GEN WB08K5042 GEN WB08K5042 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
259
OVEN LAMP LENS GEN WB25M0010 Contact Us For Availability
266
GEN WB02K5271 GEN WB02K5271 Contact Us For Availability
267
GEN WB56M0003 GEN WB56M0003 Contact Us For Availability
269
SERVICE CORD MTG PLATE GEN WB02X9427 Contact Us For Availability
282
GEN WB38K5018 GEN WB38K5018 Contact Us For Availability
286
OV DR SPRING GEN WB09X0273 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
LEG LEVELER GEN WB02X9025 Contact Us For Availability
323
GEN WB07K0087 GEN WB07K0087 Contact Us For Availability
324
GEN WB07K0088 GEN WB07K0088 Contact Us For Availability
697
GEN WB01X1170 GEN WB01X1170 Contact Us For Availability
802
GEN WB01K5123 GEN WB01K5123 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
812
GEN WB01K5160 GEN WB01K5160 Contact Us For Availability
821
GEN WB01X1265 GEN WB01X1265 Contact Us For Availability
824
GEN WB01X1291 GEN WB01X1291 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
930
GEN WB01M0022 GEN WB01M0022 Contact Us For Availability
974
GEN WB01X1264 GEN WB01X1264 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
986
GEN WB02X8268 GEN WB02X8268 Contact Us For Availability
999
GEN 31-10059 GEN 31-10059 Contact Us For Availability
999
GEN 31-13493 GEN 31-13493 Contact Us For Availability
999
GEN SR10378 GEN SR10378 Contact Us For Availability
× ![]()
