Model GE JBP19GS2 Electric Range – Common Parts & Diagrams

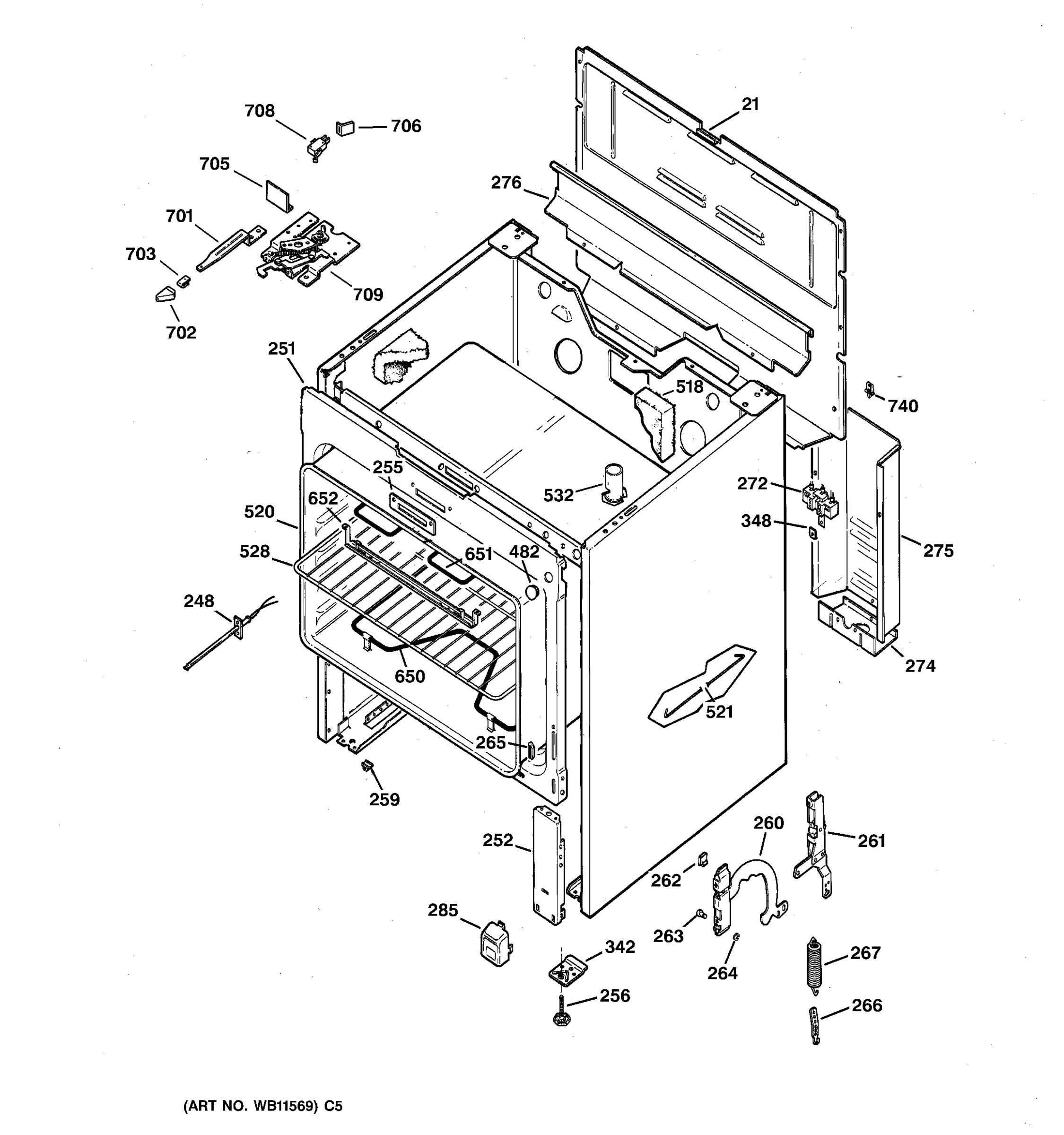

BODY PARTS

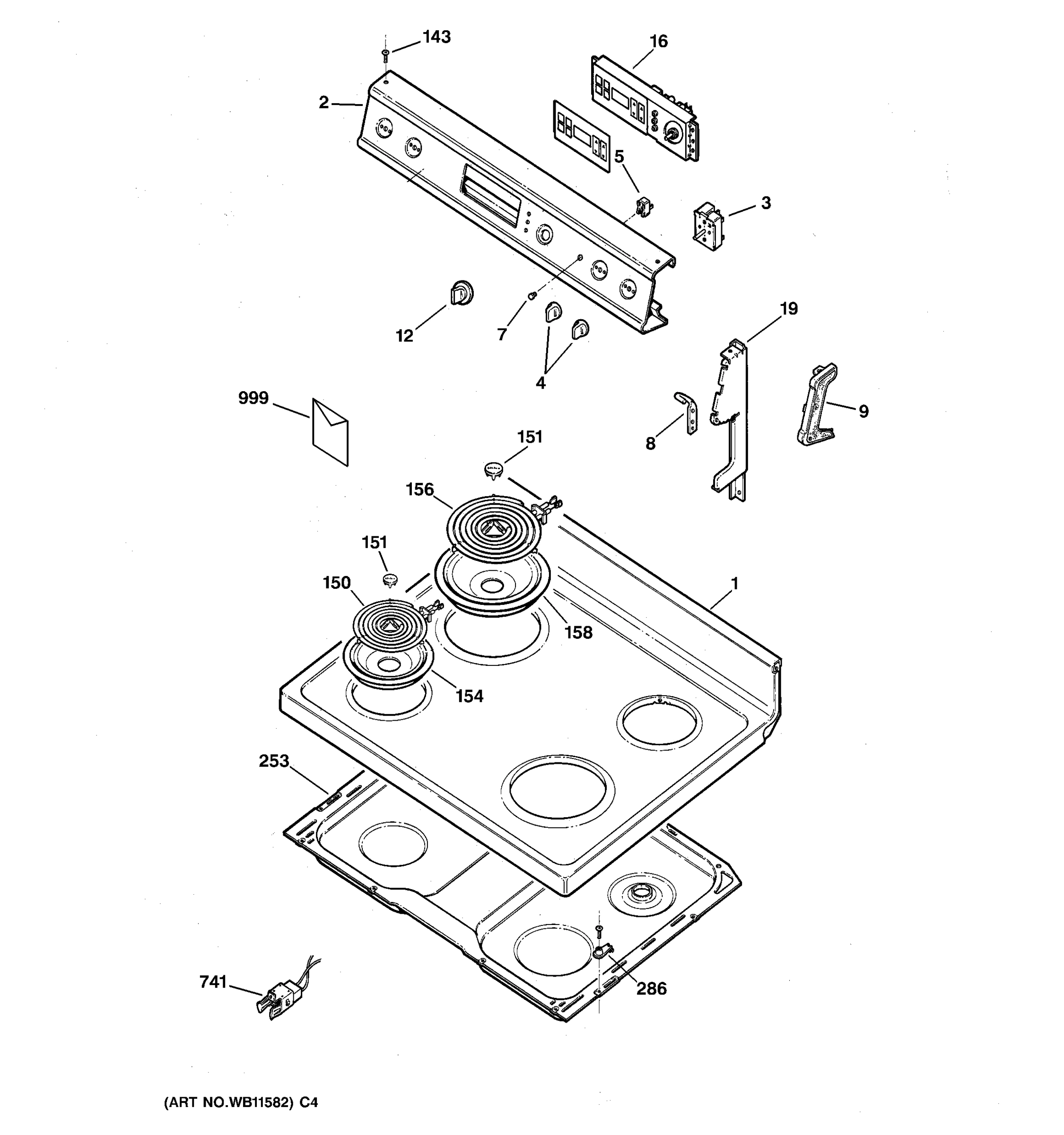

CONTROL PANEL & COOKTOP

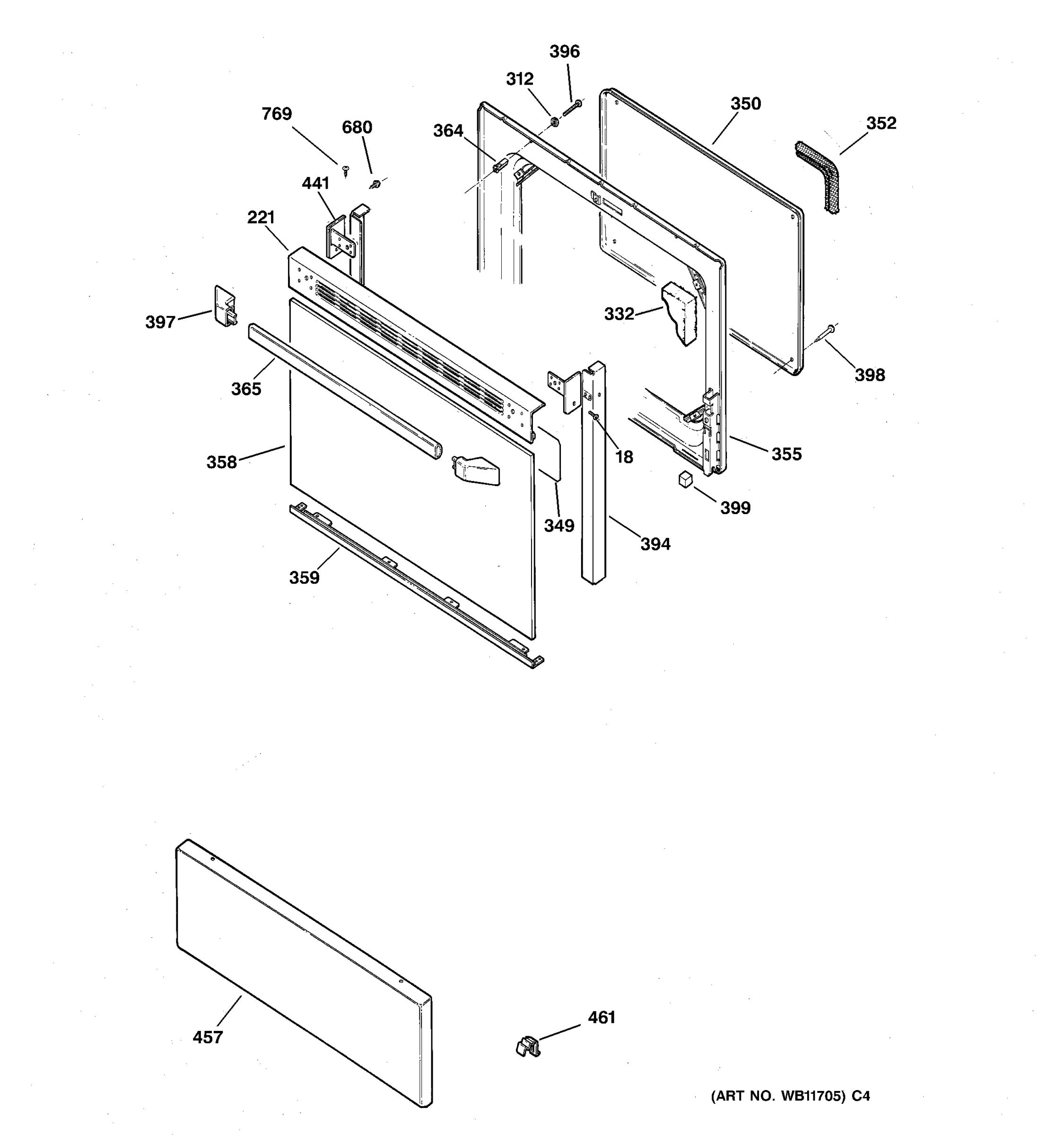

DOOR
Common parts from model GE JBP19GS2 Electric Range
1
GEN WB62X5408 GEN WB62X5408 Contact Us For Availability
1
GEN WB62X5409 GEN WB62X5409 Contact Us For Availability
2
GEN WB36X5696 GEN WB36X5696 Contact Us For Availability
4
GEN WB03X5775 GEN WB03X5775 Contact Us For Availability
5
GEN WB02X7697 GEN WB02X7697 Contact Us For Availability
7
JEWEL GEN WB25X5054 Contact Us For Availability
8
GEN WB02X8126 GEN WB02X8126 Contact Us For Availability
8
GEN WB02X8127 GEN WB02X8127 Contact Us For Availability
9
GEN WB07X7130 GEN WB07X7130 Contact Us For Availability
9
GEN WB07X7131 GEN WB07X7131 Contact Us For Availability
12
GEN WB03X5804 GEN WB03X5804 Contact Us For Availability
16
GEN WB02X8268 GEN WB02X8268 Contact Us For Availability
16
GEN WB02X8298 GEN WB02X8298 Contact Us For Availability
16
GEN WB02X8313 GEN WB02X8313 Contact Us For Availability
16
GEN WB27X5527 GEN WB27X5527 Contact Us For Availability
18
GEN WR01X1768 GEN WR01X1768 Contact Us For Availability
19
PLATE END LH - WHITE GEN WB07X7161 Contact Us For Availability
19
PLATE END RH - ALMOND GEN WB07X7162 Contact Us For Availability
19
PLATE END RH - WHITE GEN WB07X7163 Contact Us For Availability
19
PLATE END LH - ALMOND GEN WB07X7164 Contact Us For Availability
143
GEN WB01X5860 GEN WB01X5860 Contact Us For Availability
151
GEN WB32X5089 GEN WB32X5089 Contact Us For Availability
221
GEN WB07X7186 GEN WB07X7186 Contact Us For Availability
253
GEN WB49X5499 GEN WB49X5499 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
261
HINGE SPT RH GEN WB10X0148 Contact Us For Availability
261
HINGE SPT LH GEN WB10X0149 Contact Us For Availability
262
GEN WB02X3193 GEN WB02X3193 Contact Us For Availability
263
GEN WB02X6195 GEN WB02X6195 Contact Us For Availability
264
RING RETAINING GEN WB02X1082 Contact Us For Availability
265
GEN WB02X6342 GEN WB02X6342 Contact Us For Availability
266
HOOK DOOR SPRING GEN WB02X2506 Contact Us For Availability
267
GEN WB09X5117 GEN WB09X5117 Contact Us For Availability
274
GEN WB02X8247 GEN WB02X8247 Contact Us For Availability
275
GEN WB02X8249 GEN WB02X8249 Contact Us For Availability
276
GEN WB2X8105 GEN WB2X8105 Contact Us For Availability
285
GEN WB02X8106 GEN WB02X8106 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
332
GEN WB02X8445 GEN WB02X8445 Contact Us For Availability
342
GEN WB02X8241 GEN WB02X8241 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
349
GEN WB49X5534 GEN WB49X5534 Contact Us For Availability
350
LINER DOOR GEN WB55X5377 Contact Us For Availability
355
GEN WB55X5361 GEN WB55X5361 Contact Us For Availability
358
GEN WB36X5684 GEN WB36X5684 Contact Us For Availability
364
GEN WB02X8443 GEN WB02X8443 Contact Us For Availability
394
GEN WB07X7185 GEN WB07X7185 Contact Us For Availability
396
GEN WB01X5872 GEN WB01X5872 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
441
END CAP DOOR GEN WB07X7181 Contact Us For Availability
441
END CAP DOOR GEN WB07X7182 Contact Us For Availability
457
GEN WB56X7039 GEN WB56X7039 Contact Us For Availability
457
GEN WB56X7060 GEN WB56X7060 Contact Us For Availability
461
GEN WB02X8124 GEN WB02X8124 Contact Us For Availability
482
GEN WB02X1126 GEN WB02X1126 Contact Us For Availability
518
GEN WB02X8412 GEN WB02X8412 Contact Us For Availability
520
GEN WB53X5159 GEN WB53X5159 Contact Us For Availability
521
GEN WB09X5118 GEN WB09X5118 Contact Us For Availability
532
SMOKE ELM & TUBE ASM GEN WB38X5063 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
701
GEN WB15X5198 GEN WB15X5198 Contact Us For Availability
702
GEN WB03X5774 GEN WB03X5774 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
705
GEN WB02X8221 GEN WB02X8221 Contact Us For Availability
706
GEN WB02X8222 GEN WB02X8222 Contact Us For Availability
708
GEN WB24X5326 GEN WB24X5326 Contact Us For Availability
709
GEN WB14X5043 GEN WB14X5043 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
999
GEN 31-0824 GEN 31-0824 Contact Us For Availability
999
GEN 31-1428 GEN 31-1428 Contact Us For Availability
999
GEN 49-8451 GEN 49-8451 Contact Us For Availability
999
GEN WB18X5136 GEN WB18X5136 Contact Us For Availability
× ![]()
