Model Maytag JBL2088HES5 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

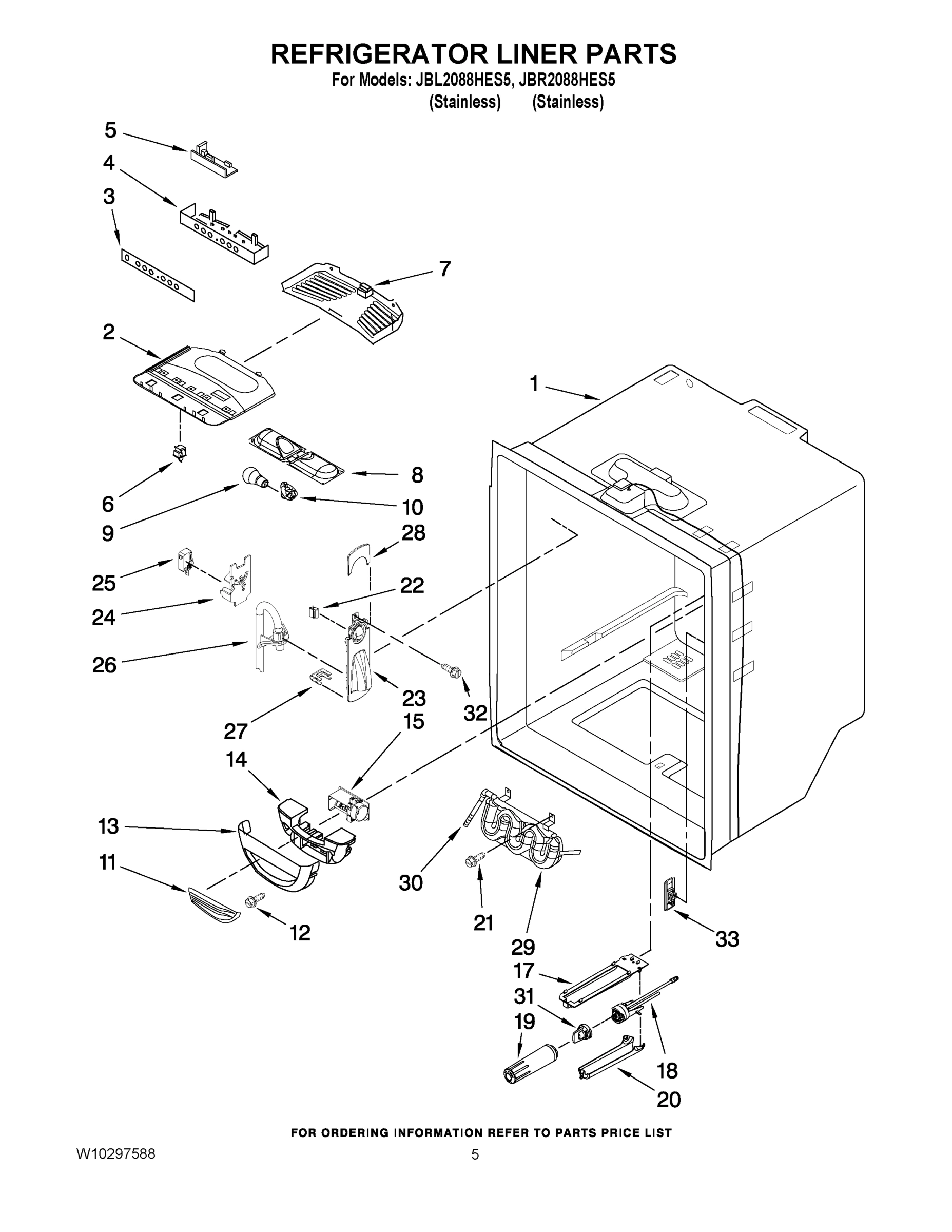

03 - REFRIGERATOR LINER PARTS

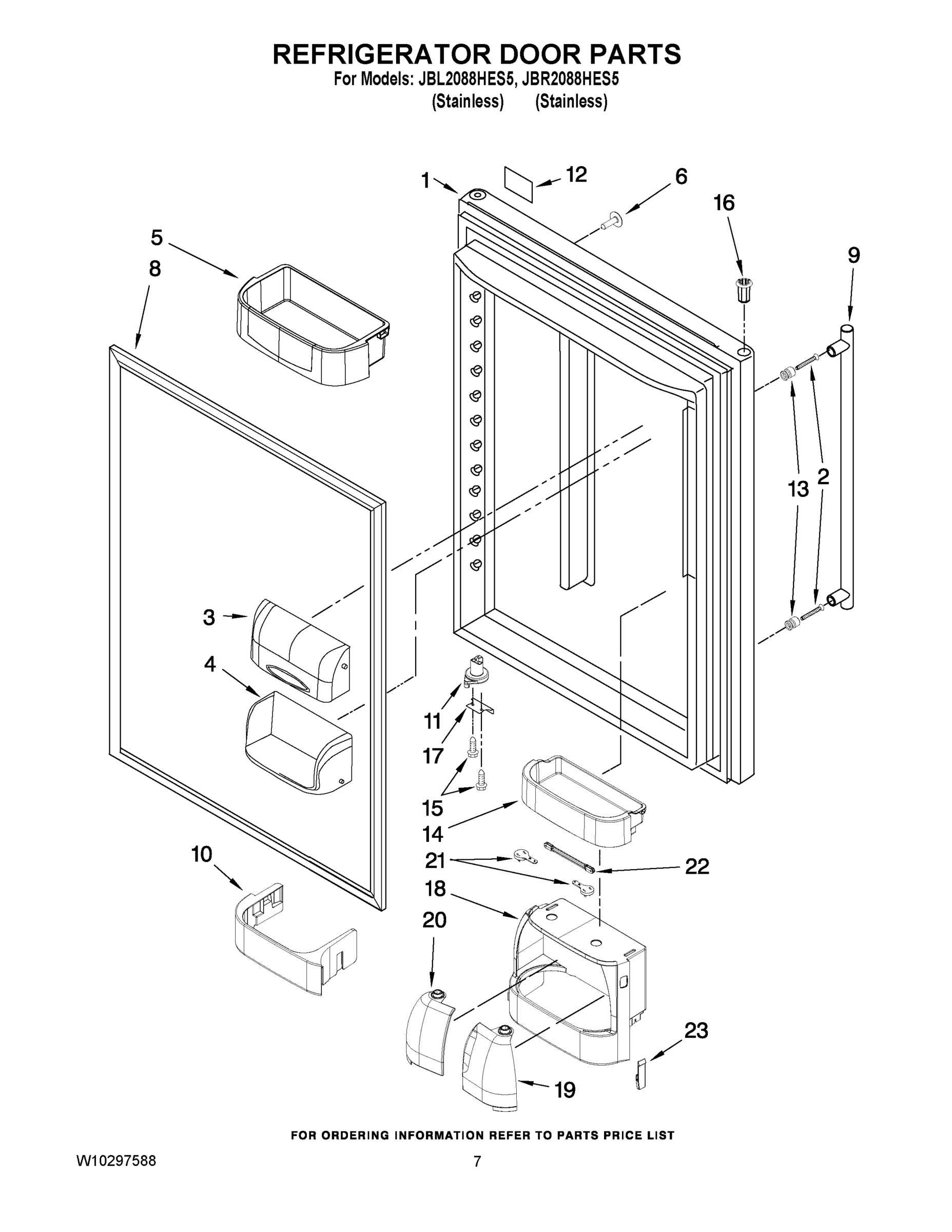

04 - REFRIGERATOR DOOR PARTS

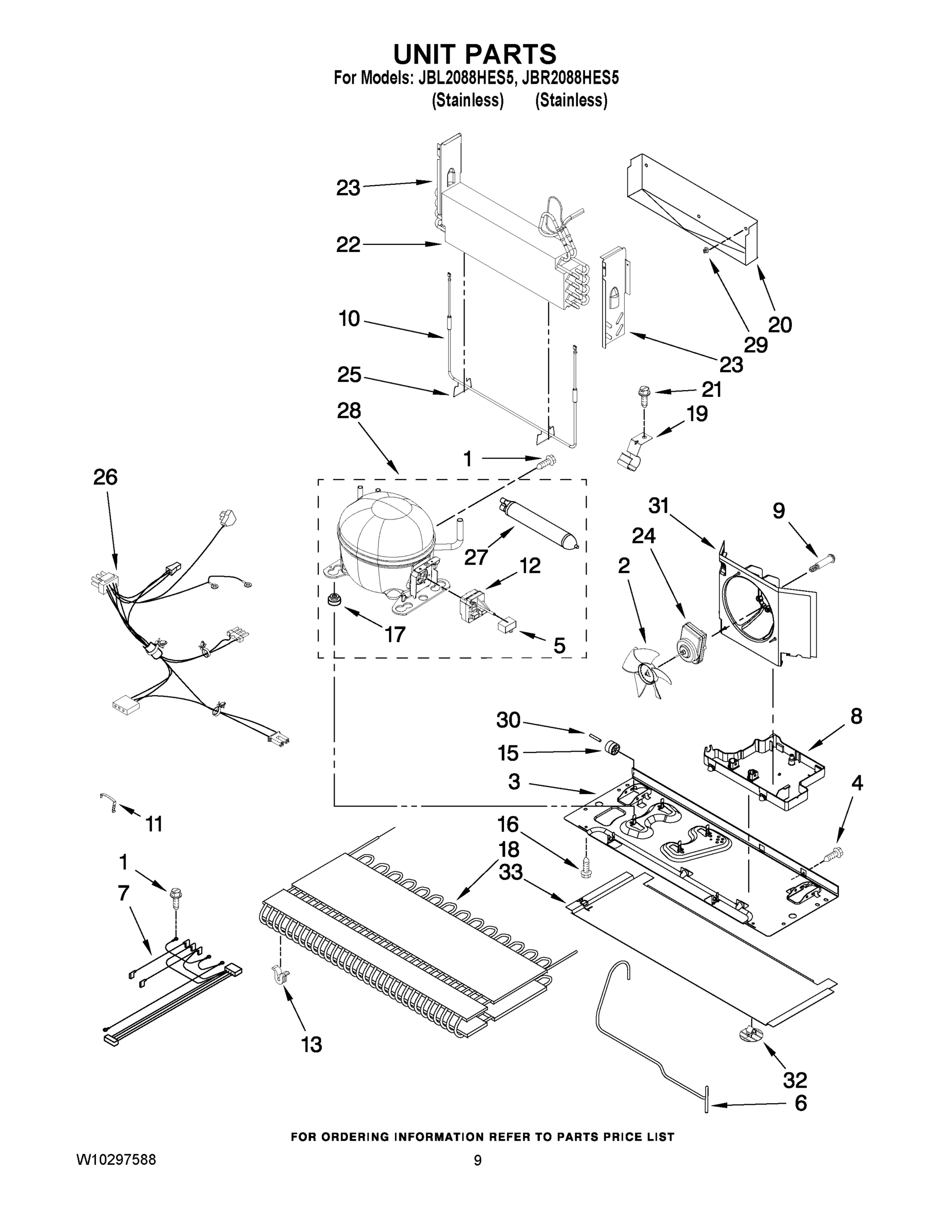

05 - UNIT PARTS

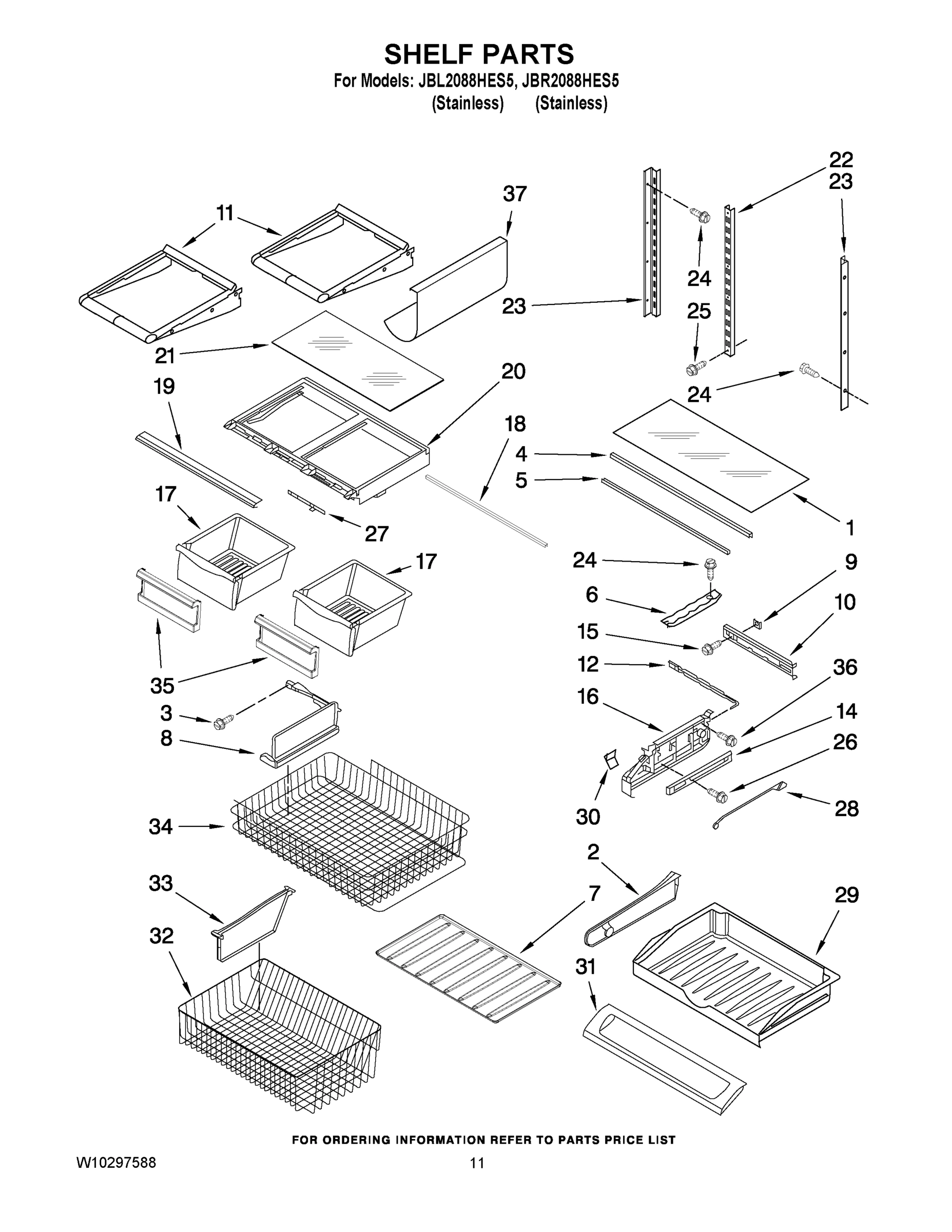

06 - SHELF PARTS

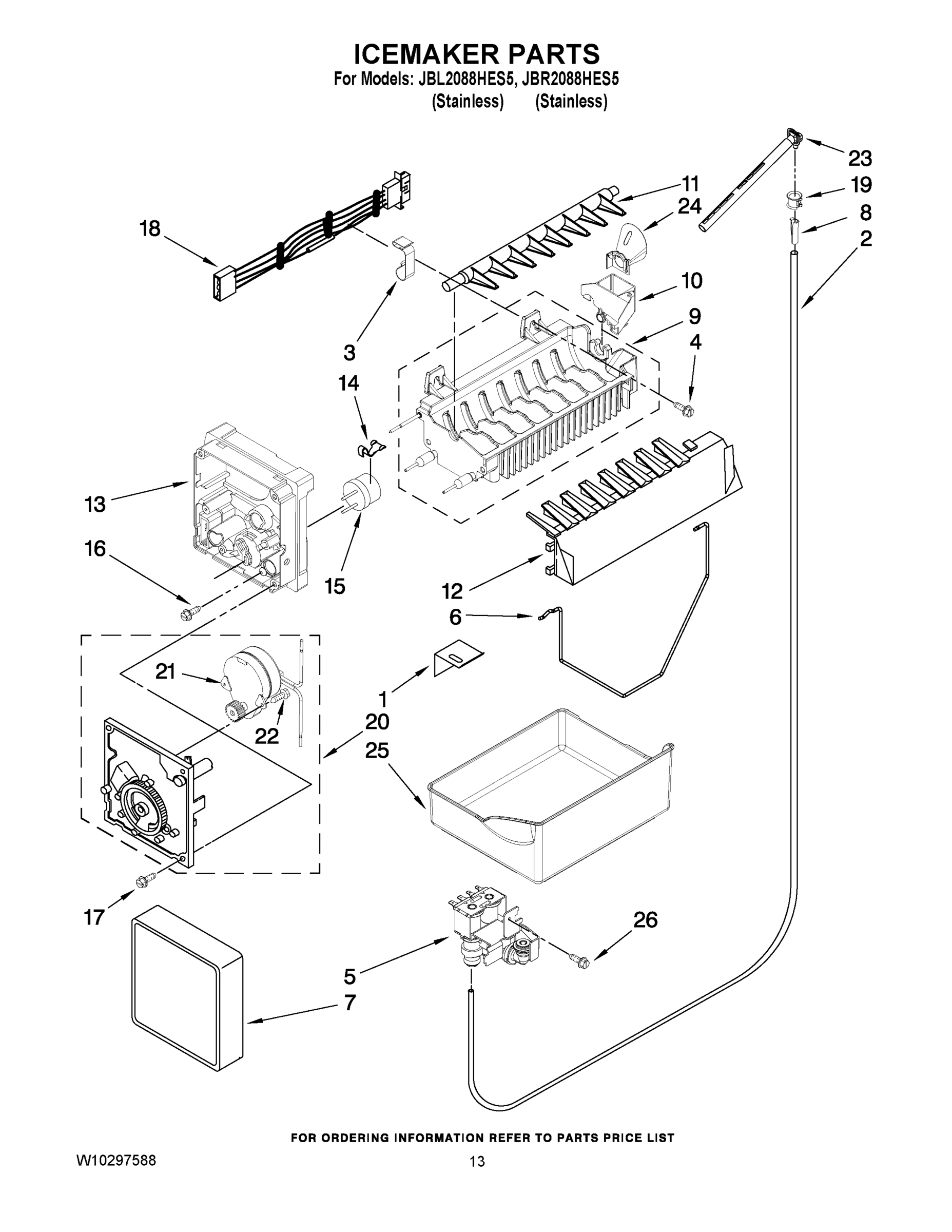

07 - ICEMAKER PARTS

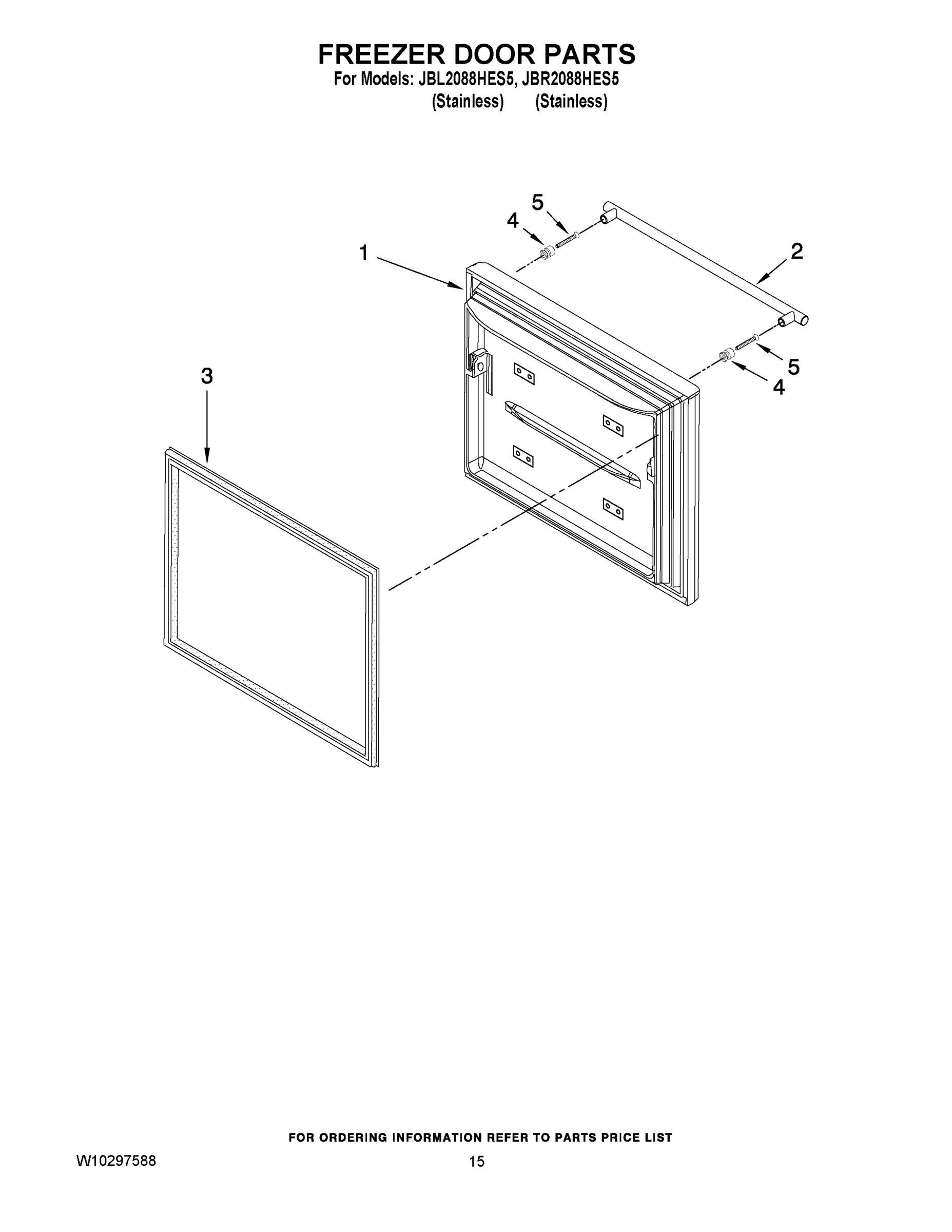

08 - FREEZER DOOR PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag JBL2088HES5 REFRIGERATOR
1
DOOR, REFRIGERATOR (STAINLESS (FOR JBL2088HES MAY 13023894SQ Contact Us For Availability
1
DOOR, REFRIGERATOR (STAINLESS (FOR JBR2088HES MAY 13023896SQ Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12204829 MAY 12204829 Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
1
DOOR, FREEZER (STAINLESS) MAY 13092257SQ Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MODULE, LIGHT MAY 12806301 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY 12709301 MAY 12709301 Contact Us For Availability
2
MAY B5705333SP MAY B5705333SP Contact Us For Availability
2
HANDLE, DOOR (STAINLESS) MAY 12850918 Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
KEYBOARD MAY W10269084 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
3
MAY 12990601 MAY 12990601 Contact Us For Availability
3
MAY 10526702 MAY 10526702 Contact Us For Availability
3
MAY W10164041 MAY W10164041 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12804901 MAY 12804901 Contact Us For Availability
4
MODULE, CONTROL MAY 12806405 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY 12945201 MAY 12945201 Contact Us For Availability
4
EXTRUSION, GLASS SUPPORT (2) MAY 12655902SP Contact Us For Availability
4
MAY 489276 MAY 489276 Contact Us For Availability
5
MAY W10128551 MAY W10128551 Contact Us For Availability
5
MAY W10217475 MAY W10217475 Contact Us For Availability
5
MAY 12991202 MAY 12991202 Contact Us For Availability
5
MAY 12801905 MAY 12801905 Contact Us For Availability
5
CAPACITOR MAY 2255130 Contact Us For Availability
5
MAY 12227305WD MAY 12227305WD Contact Us For Availability
5
MAY 12544124 MAY 12544124 Contact Us For Availability
6
FOOT, BRAKE MAY W10141622 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
PLUG, HANDLE HOLE (BLACK) MAY 12246607 Contact Us For Availability
6
MAY W10217746 MAY W10217746 Contact Us For Availability
6
TRACK, PANTRY MAY 12531901 Contact Us For Availability
6
ARM, SHUTOFF MAY 12868001 Contact Us For Availability
7
MAY 10351006 MAY 10351006 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY W10280418 MAY W10280418 Contact Us For Availability
7
MAY 12727303 MAY 12727303 Contact Us For Availability
7
MAY 12582501 MAY 12582501 Contact Us For Availability
8
MAY 12815301 MAY 12815301 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
MAY W10164039 MAY W10164039 Contact Us For Availability
8
MAY W10215085 MAY W10215085 Contact Us For Availability
8
Divider, Upper Basket MAY 12693802 Contact Us For Availability
8
MAY A3223101SP MAY A3223101SP Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
Bulb, Light (2) MAY W10194422V Contact Us For Availability
9
HANDLE, DOOR (STAINLESS) MAY 12850919 Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
MAY 12656901 MAY 12656901 Contact Us For Availability
9
Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability
10
COVER, HINGE(BLACK) MAY 12477601B Contact Us For Availability
10
MAY 12570701V MAY 12570701V Contact Us For Availability
10
RETAINER, CHILLER MAY 12819901 Contact Us For Availability
10
MAY 12729129 MAY 12729129 Contact Us For Availability
10
MAY 12656202 MAY 12656202 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
MAY 12992201 MAY 12992201 Contact Us For Availability
11
MAY 12226112 MAY 12226112 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 12028505B MAY 12028505B Contact Us For Availability
11
MAY 12745704 MAY 12745704 Contact Us For Availability
11
SHELF, GLIDE (4) MAY 12463911 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
Screw (2) MAY 12990604 Contact Us For Availability
12
MAY W10244032 MAY W10244032 Contact Us For Availability
12
SLIDE, TEMPERATURE MAY 12655402 Contact Us For Availability
12
MAY 2182124 MAY 2182124 Contact Us For Availability
13
MAY 12726003 MAY 12726003 Contact Us For Availability
13
MAY W10121318 MAY W10121318 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
13
Housing, Support MAY 2194712 Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
MAY 12805001 MAY 12805001 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY 12830301SP MAY 12830301SP Contact Us For Availability
14
MAY 13058101V MAY 13058101V Contact Us For Availability
14
Retainer MAY 2315522 Contact Us For Availability
15
MAY 12607104ED MAY 12607104ED Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
CONTROL, DAMPER (INCLUDES HARNESS) MAY W10207517 Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
15
THERMOSTAT ORDER 542369 CEMENT ALUMILASTIC MAY 628397 Contact Us For Availability
16
Hinge, Top MAY 12566604ED Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 10961006B MAY 10961006B Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
MAY 12656020 MAY 12656020 Contact Us For Availability
16
TRACK, PANTRY (LEFT) MAY 12656105 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
MAY 12991603V MAY 12991603V Contact Us For Availability
17
PLATE MAY 12704801 Contact Us For Availability
17
Stop, Door (Black) MAY 10447112 Contact Us For Availability
17
MAY W10169124 MAY W10169124 Contact Us For Availability
17
Pan, Crisper (2) MAY 12531105SP Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY D7753903 MAY D7753903 Contact Us For Availability
18
HEAD, FILTER MAY 12590620 Contact Us For Availability
18
MAY 12805901SP MAY 12805901SP Contact Us For Availability
18
MAY W10135026 MAY W10135026 Contact Us For Availability
18
Brace, Crisper MAY 12227304WD Contact Us For Availability
18
MAY D7813011 MAY D7813011 Contact Us For Availability
19
ROLLER ASSEMBLY (FRONT) (RIGHT) MAY W10275849 Contact Us For Availability
19
ROLLER ASSEMBLY (FRONT) (LEFT) MAY W10275850 Contact Us For Availability
19
MAY M0114003SP MAY M0114003SP Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
MAY UKF8001 MAY UKF8001 Contact Us For Availability
19
DOOR, RH CHILLER MAY 12805301SP Contact Us For Availability
19
MAY 10547003 MAY 10547003 Contact Us For Availability
19
MAY W10231478 MAY W10231478 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
GASKET, BOTTOM MAY A3189396 Contact Us For Availability
20
MAY 12805403SP MAY 12805403SP Contact Us For Availability
20
MAY 12225403WD MAY 12225403WD Contact Us For Availability
20
MAY 12531202SP MAY 12531202SP Contact Us For Availability
21
MAY W10211855 MAY W10211855 Contact Us For Availability
21
Gasket MAY B8381501 Contact Us For Availability
21
LINKAGE, CHILLER MAY 12568401SP Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY 12204821 MAY 12204821 Contact Us For Availability
21
MOTOR MAY W10223929 Contact Us For Availability
22
MAY W10244561 MAY W10244561 Contact Us For Availability
22
Grille, Fz Air MAY 13024803 Contact Us For Availability
22
MAY B8390302SP MAY B8390302SP Contact Us For Availability
22
LINKAGE, CHILLER CENTER MAY 12568502SP Contact Us For Availability
22
MAY 12726403 MAY 12726403 Contact Us For Availability
22
MAY W10273463 MAY W10273463 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
MAY 10463203SP MAY 10463203SP Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
MAY 12706909SP MAY 12706909SP Contact Us For Availability
23
HOOK, CHILLER FRAME MAY 12827501SP Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
MAY W10251971 MAY W10251971 Contact Us For Availability
24
Screw (6) MAY 12990513 Contact Us For Availability
24
MAY W10210988 MAY W10210988 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY 12707303SP MAY 12707303SP Contact Us For Availability
24
MAY 12825101 MAY 12825101 Contact Us For Availability
24
MAY 12918001 MAY 12918001 Contact Us For Availability
25
MAY W10119064 MAY W10119064 Contact Us For Availability
25
MAY W10119295 MAY W10119295 Contact Us For Availability
25
MAY 12990515 MAY 12990515 Contact Us For Availability
25
MAY 12695001 MAY 12695001 Contact Us For Availability
26
Fiber, Acoustic MAY 12820505 Contact Us For Availability
26
Screw (4) MAY 12990504 Contact Us For Availability
26
Screw (8) MAY 12990521 Contact Us For Availability
26
MAY 12707206SP MAY 12707206SP Contact Us For Availability
26
MAY W10222811 MAY W10222811 Contact Us For Availability
26
MAY 12991604 MAY 12991604 Contact Us For Availability
27
CRADLE, BASKET (LEFT) MAY W10281115 Contact Us For Availability
27
CRADLE, BASKET (RIGHT) MAY W10281116 Contact Us For Availability
27
MAY 12251001SP MAY 12251001SP Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
Slide, Humidity MAY 12530805SP Contact Us For Availability
28
Slide, Drawer (2) MAY 13055901 Contact Us For Availability
28
FACADE (TOP) MAY 12707005 Contact Us For Availability
28
MAY 12049769 MAY 12049769 Contact Us For Availability
28
ROD, TEMPERATURE MAY 12655303 Contact Us For Availability
29
MAY W10261189 MAY W10261189 Contact Us For Availability
29
MAY W10261190 MAY W10261190 Contact Us For Availability
29
MAY 12706112 MAY 12706112 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 12655702 MAY 12655702 Contact Us For Availability
30
Screw (6) MAY 12990501 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
30
KNOB, TEMPERATURE MAY 12655204V Contact Us For Availability
31
BLOCK, FILTER (2) MAY 12777701 Contact Us For Availability
31
SHAFT MAY 12812903WD Contact Us For Availability
31
PLUG, BYPASS MAY 12664501SP Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
DOOR, PANTRY MAY 12656813 Contact Us For Availability
32
MAY 12831101 MAY 12831101 Contact Us For Availability
32
MAY W10206339 MAY W10206339 Contact Us For Availability
32
MAY W10143564 MAY W10143564 Contact Us For Availability
33
MAY 12816204 MAY 12816204 Contact Us For Availability
33
EXTENSION, BASEPAN MAY W10206338 Contact Us For Availability
33
MAY 12727202 MAY 12727202 Contact Us For Availability
34
MAY W10143526 MAY W10143526 Contact Us For Availability
35
FRONT, CRISPER PAN MAY 12727402SP Contact Us For Availability
36
Screw (4) MAY 12990512 Contact Us For Availability
37
MAY 10448905 MAY 10448905 Contact Us For Availability
38
MAY 12961602 MAY 12961602 Contact Us For Availability
39
LID-CONTROL BOX MAY 12957702 Contact Us For Availability
40
BOARD, HV CONTROL MAY W10205552 Contact Us For Availability
41
MAY W10257665 MAY W10257665 Contact Us For Availability
42
Gasket, HV Control MAY 12957801 Contact Us For Availability
43
GUARD-WATER VALVE MAY W10208593 Contact Us For Availability
100
MAY W10190978 MAY W10190978 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
HARNESS, LIGHTS (FREEZER) MAY W10235312 Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) (INCLUDES TH MAY W10224290 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CLEANER, 10 OZ. STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Biscuit) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
