Model Whirlpool JBBFL30NMX00 REFRIGERATOR, ALL – Common Parts & Diagrams
01 - COVER SHEET

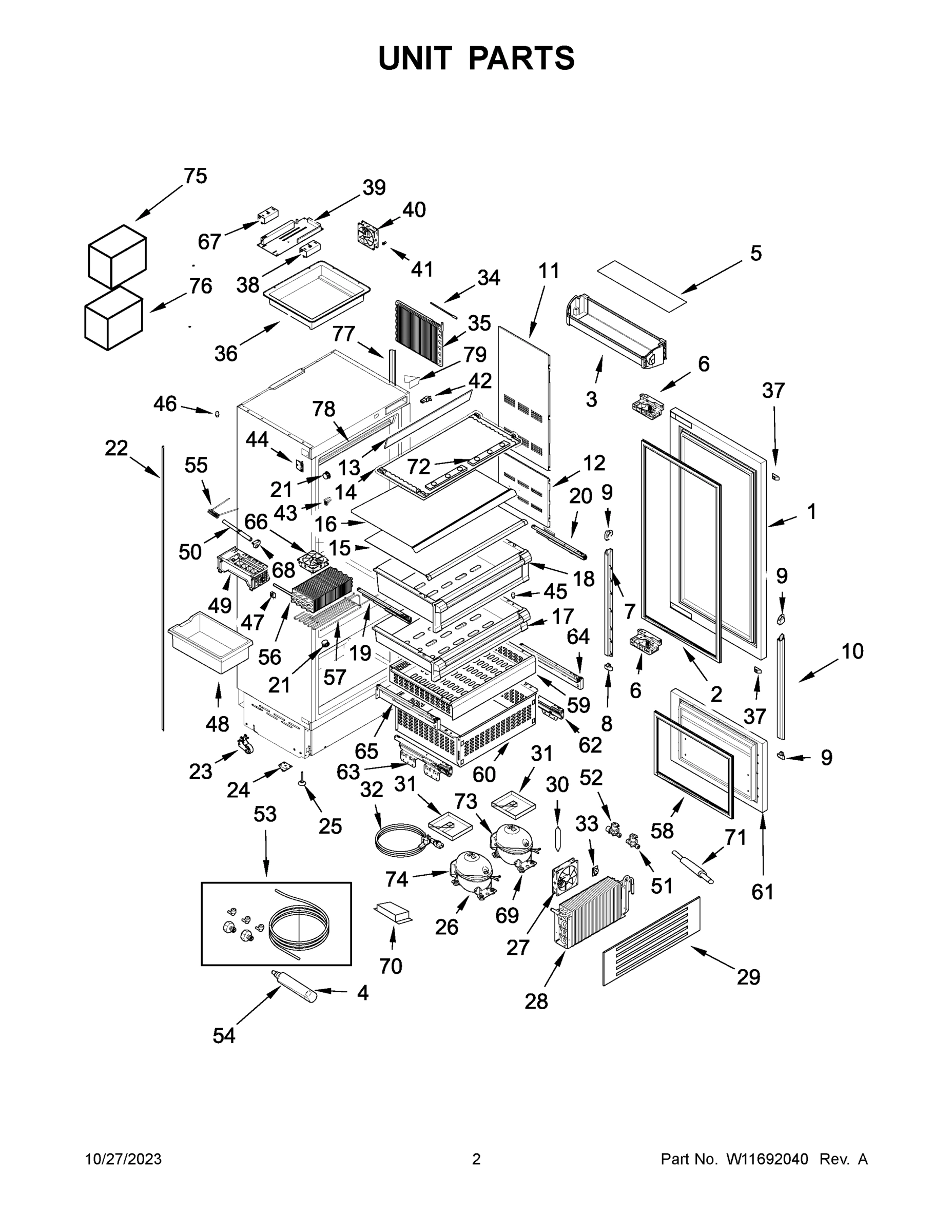

02 - UNIT PARTS
03 - OPTIONAL PARTS
Common parts from model Whirlpool JBBFL30NMX00 REFRIGERATOR, ALL
2
GASKET, REFRIGERATOR DOOR WPL W11633290 Contact Us For Availability
4
HOUSING, WATER FILTER WPL W11125031 Contact Us For Availability
5
LINER, DOOR BIN WPL W11633296 Contact Us For Availability
6
HINGE, DOOR (RH MODEL) WPL W11633301 Contact Us For Availability
6A
HINGE, DOOR (LH MODEL) WPL W11633300 Contact Us For Availability
7
SUPPORT, DOOR BIN (LEFT) WPL W11633303 Contact Us For Availability
7A
SUPPORT, SHELF WPL W11685015 Contact Us For Availability
8
CAP, DOOR BIN SUPPORT (TOP RIGHT/BOTTOM LEFT) WPL W11633306 Contact Us For Availability
9
CAP, DOOR BIN SUPPORT (TOP LEFT/BOTTOM RIGHT) WPL W11633305 Contact Us For Availability
10
SUPPORT, DOOR BIN (RIGHT) WPL W11633304 Contact Us For Availability
12
AIR DUCT, MIDDLE WPL W11633309 Contact Us For Availability
12A
AIR DUCT, LOWER WPL W11633567 Contact Us For Availability
14
PANEL, CEILING WPL W11633311 Contact Us For Availability
15
COVER, CRISPER WPL W11633315 Contact Us For Availability
16
SHELF, GLASS WPL W11633316 Contact Us For Availability
17
DRAWER, SMALL CRISPER WPL W11633317 Contact Us For Availability
19
SLIDE, CRISPER DRAWER (LEFT) WPL W11633319 Contact Us For Availability
20
SLIDE, CRISPER DRAWER (RIGHT) WPL W11633320 Contact Us For Availability
23
ROLLER, REAR WPL W11633323 Contact Us For Availability
24
ROLLER, FRONT WPL W11633324 Contact Us For Availability
25
LEG, LEVELLING WPL W11633325 Contact Us For Availability
26
COMPRESSOR, FREEZER COMPARTMENT (INCLUDES INV WPL W11633326 Contact Us For Availability
27
FAN, CONDENSER WPL W11633327 Contact Us For Availability
28
CONDENSER WPL W11633328 Contact Us For Availability
29
GRILLE, LOWER WPL W11633329 Contact Us For Availability
31
TRAY, DEFROST DRAIN WPL W11633331 Contact Us For Availability
32
CORD, POWER WPL W11633333 Contact Us For Availability
32A
HARNESS, COMPRESSOR TO EMC FILTER WPL W11633570 Contact Us For Availability
33
BUZZER WPL W11633334 Contact Us For Availability
34
THERMISTOR WPL W11633336 Contact Us For Availability
35
EVAPORATOR, REFRIGERATOR COMPARTMENT WPL W11633337 Contact Us For Availability
38
POWER SUPPLY, LED (16W) WPL W11633500 Contact Us For Availability
39
CONTROL, ELECTRONIC WPL W11633501 Contact Us For Availability
40
FAN, RC EVAPORATOR WPL W11633502 Contact Us For Availability
41
GROMMET, FAN WPL W11633504 Contact Us For Availability
42
REED SWITCH, DOOR WPL W11633505 Contact Us For Availability
43
SUPPORT, CRISPER COVER WPL W11633506 Contact Us For Availability
45
WPL W11633508 WPL W11633508 Contact Us For Availability
46
WPL W11685016 WPL W11685016 Contact Us For Availability
47
WPL W11633509 WPL W11633509 Contact Us For Availability
48
WPL W11633511 WPL W11633511 Contact Us For Availability
49
WPL W11633513 WPL W11633513 Contact Us For Availability
50
WPL W11633514 WPL W11633514 Contact Us For Availability
51
WPL W11633515 WPL W11633515 Contact Us For Availability
52
WPL W11633516 WPL W11633516 Contact Us For Availability
53
WPL W11633583 WPL W11633583 Contact Us For Availability
55
WPL W11633535 WPL W11633535 Contact Us For Availability
56
WPL W11633536 WPL W11633536 Contact Us For Availability
57
WPL W11633537 WPL W11633537 Contact Us For Availability
58
WPL W11633538 WPL W11633538 Contact Us For Availability
59
WPL W11633540 WPL W11633540 Contact Us For Availability
60
WPL W11633541 WPL W11633541 Contact Us For Availability
61
WPL W11633545 WPL W11633545 Contact Us For Availability
61A
WPL W11633544 WPL W11633544 Contact Us For Availability
62
WPL W11633546 WPL W11633546 Contact Us For Availability
63
WPL W11633547 WPL W11633547 Contact Us For Availability
64
WPL W11633548 WPL W11633548 Contact Us For Availability
65
WPL W11633550 WPL W11633550 Contact Us For Availability
66
WPL W11633551 WPL W11633551 Contact Us For Availability
68
WPL W11633557 WPL W11633557 Contact Us For Availability
69
WPL W11633561 WPL W11633561 Contact Us For Availability
70
WPL W11633563 WPL W11633563 Contact Us For Availability
71
WPL W11633564 WPL W11633564 Contact Us For Availability
73
WPL W11633574 WPL W11633574 Contact Us For Availability
75
WPL W11633581 WPL W11633581 Contact Us For Availability
76
WPL W11633582 WPL W11633582 Contact Us For Availability
77
WPL W11685017 WPL W11685017 Contact Us For Availability
78
WPL W11685018 WPL W11685018 Contact Us For Availability
79
WPL W11685019 WPL W11685019 Contact Us For Availability
79A
WPL W11685020 WPL W11685020 Contact Us For Availability
NI
WPL ARIC2C0A5FCA0D789048A3502ED1190B058 WPL ARIC2C0A5FCA0D789048A3502ED1190B058 Contact Us For Availability
NI
ACCESSORY PARTS TOUCH-UP PAINT, HANDLE KIT, C WPL W11644970 Contact Us For Availability
NI
ACCESSORY PARTS TOUCH-UP PAINT, HANDLE KIT, C WPL W11644971 Contact Us For Availability
× ![]()
