Model Whirlpool ISG650VS12 30`` SLIDE-IN GAS RANGE – Common Parts & Diagrams
02 - CHASSIS PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
01 - COOKTOP PARTS

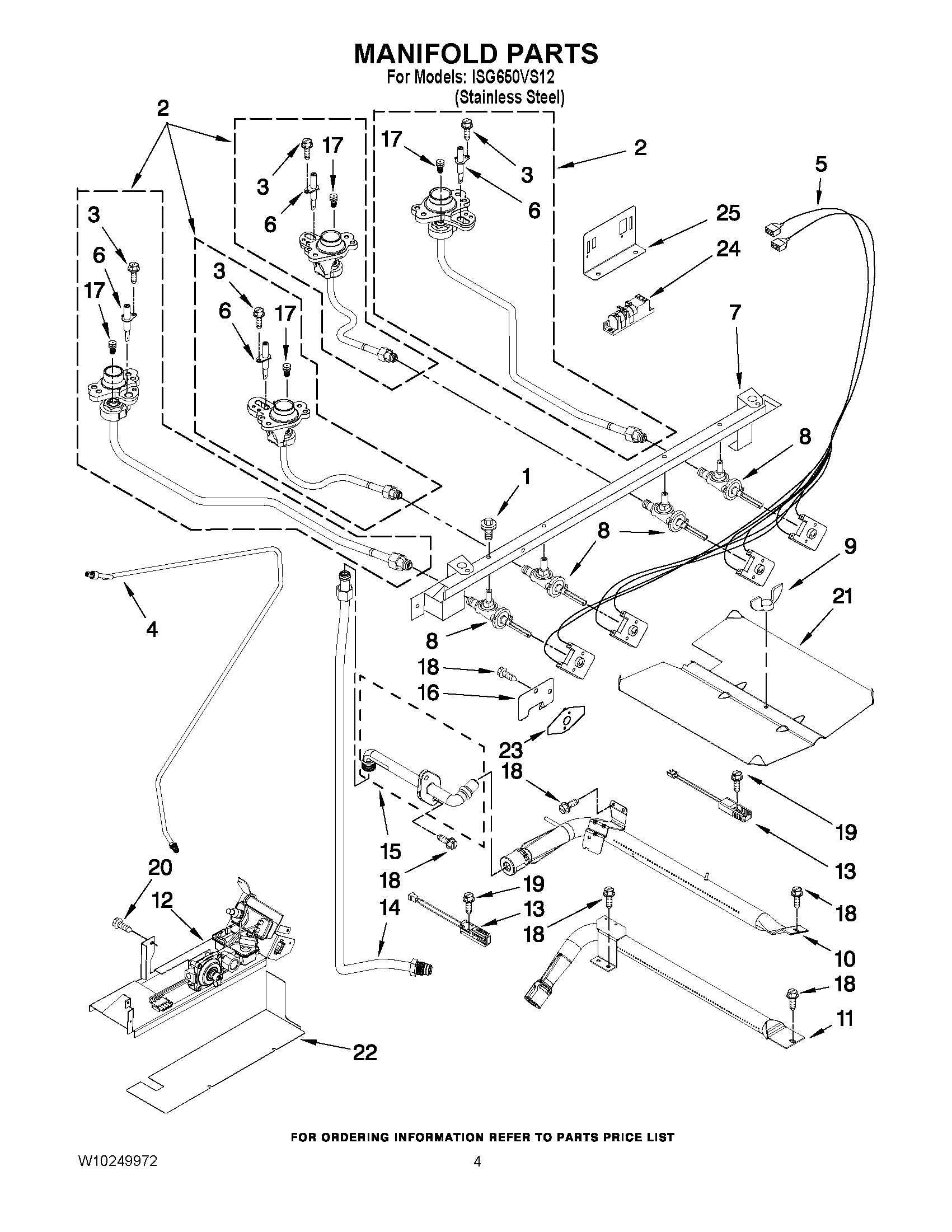

03 - MANIFOLD PARTS

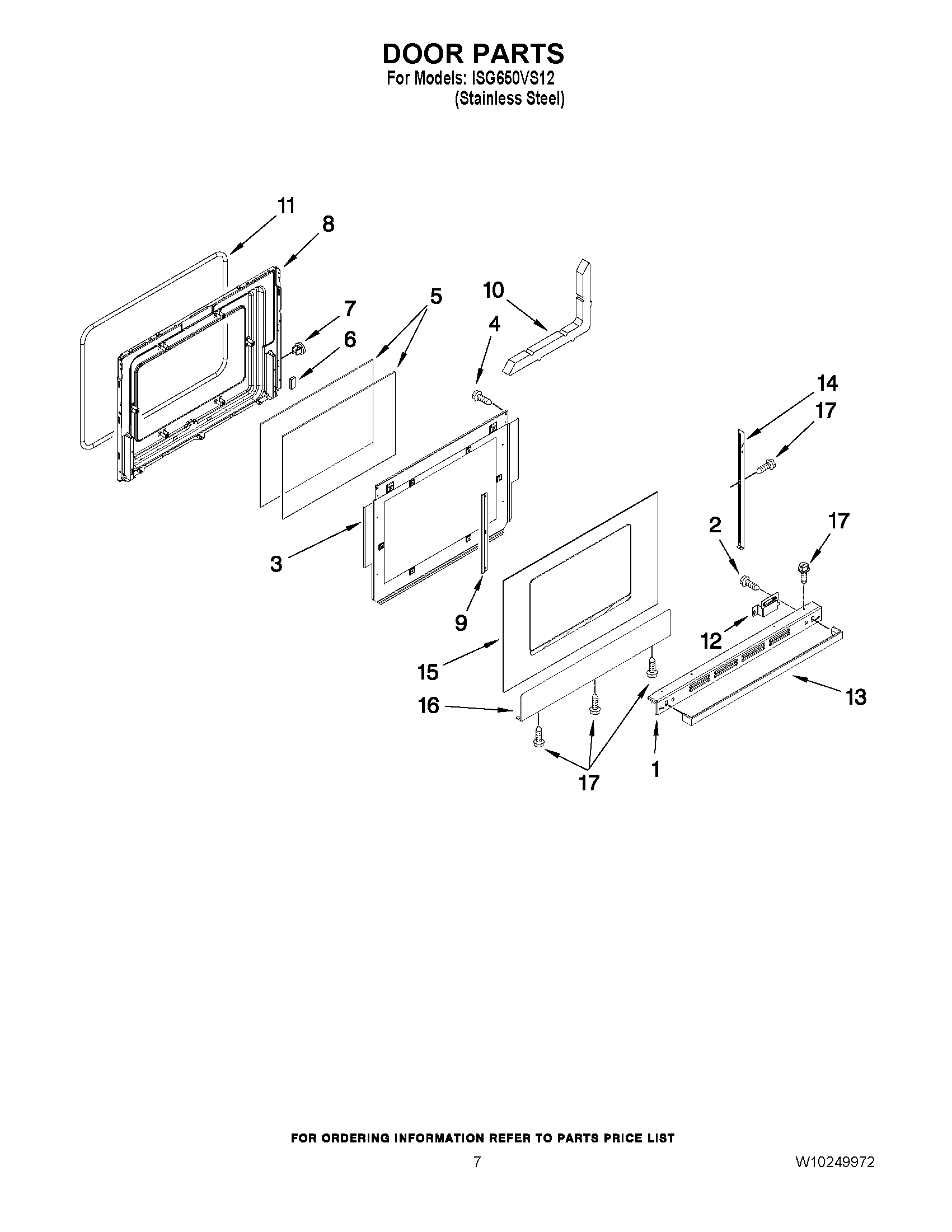

05 - DOOR PARTS

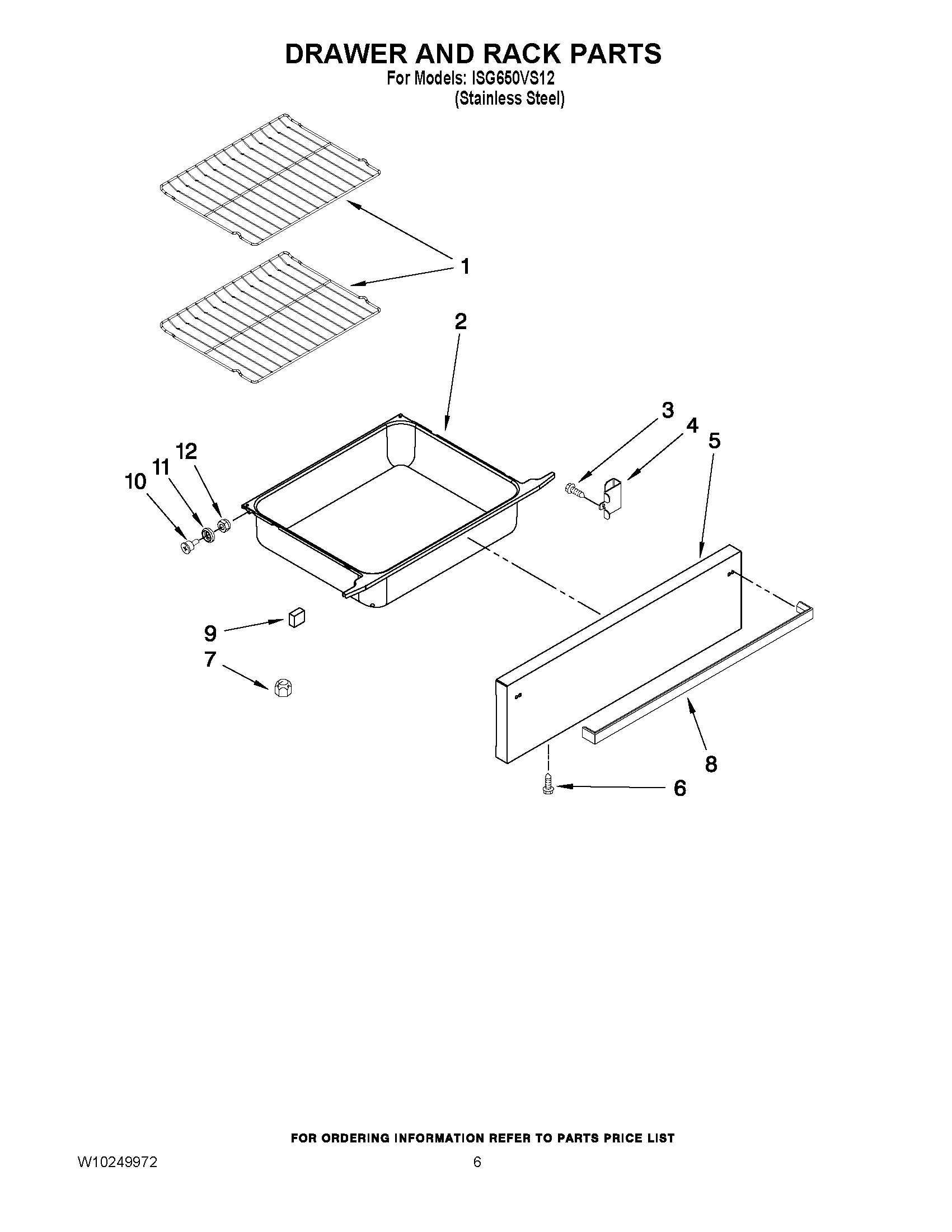

04 - DRAWER AND RACK PARTS
Common parts from model Whirlpool ISG650VS12 30`` SLIDE-IN GAS RANGE
1
Brochure, Tips Safe Cooking (English) WPL 9762761 Contact Us For Availability
1
Brochure, Tips Safe Cooking (French) WPL W10065852 Contact Us For Availability
1
Use & Care Guide WPL W10184781 Contact Us For Availability
1
Installation Instructions WPL W10184784 Contact Us For Availability
1
Wiring Diagram (English) WPL W10190680 Contact Us For Availability
1
Wiring Diagram (French) WPL W10190683 Contact Us For Availability
1
SCREW, VALVE WPL 7101P63960 Contact Us For Availability
1
Trim, Door Top WPL W10165419 Contact Us For Availability
1
Rack, Oven (2) WPL 7801P05460 Contact Us For Availability
2
COOKTOP WPL W10202566 Contact Us For Availability
2
HOLDER, ORIFICE (RF, 12K) WPL 7527P08260 Contact Us For Availability
2
HOLDER, ORIFICE (LF/RR, 9.2K (2)) WPL 7527P08360 Contact Us For Availability
2
HOLDER, ORIFICE (LR, 5K) WPL 7527P08460 Contact Us For Availability
2
Drawer, Storage WPL 3405F03380 Contact Us For Availability
3
CAP, BURNER (SMALL (1)) WPL 7504P13660 Contact Us For Availability
3
CAP, BURNER (LARGE (3)) WPL 7504P21960 Contact Us For Availability
3
BAFFLE, RETAINER WPL 3601F35345 Contact Us For Availability
3
Screw, Panel WPL 7101P07260 Contact Us For Availability
4
TUBING, MAIN SUPPLY WPL 7506P44360 Contact Us For Availability
4
SCREW WPL 7101P42660 Contact Us For Availability
4
Bracket, Drawer WPL 3801F88751 Contact Us For Availability
5
Panel, Control WPL W10159623 Contact Us For Availability
5
HARNESS, IGNITER INCLUDES SWITCHES WPL 7450P00660 Contact Us For Availability
5
GLASS, INNER (2) WPL 7902P47260 Contact Us For Availability
5
PANEL, DRAWER WPL W10253208 Contact Us For Availability
6
END CAP (RIGHT) WPL 7726P40060 Contact Us For Availability
6
END CAP (LEFT) WPL 7726P40160 Contact Us For Availability
6
SCREW, PANEL WPL 7101P54460 Contact Us For Availability
7
GRATE, BURNER (4) WPL 7518P24860 Contact Us For Availability
7
PIPE, MANIFOLD WPL 7513P47260 Contact Us For Availability
7
Nut, Snap (4) WPL 7103P14160 Contact Us For Availability
7
Nut, Lock WPL 7103P13960 Contact Us For Availability
8
SCREW WPL 7101P68560 Contact Us For Availability
8
VALVE (RR) WPL 7502P47060 Contact Us For Availability
8
VALVE (LF, LR, RF) WPL 7502P47160 Contact Us For Availability
8
LINING, DOOR WPL 2402W27119 Contact Us For Availability
8
Handle,Storage Dwr WPL W10184494 Contact Us For Availability
9
PANEL, SHEILD (LEFT) WPL 2618F20151 Contact Us For Availability
9
PANEL, SHEILD (RIGHT) WPL 2618F20651 Contact Us For Availability
9
Nut WPL 7103P03060 Contact Us For Availability
9
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
9
BRACKET, GLASS (2) WPL 3804F21945 Contact Us For Availability
10
ROLLER, DRAWER (2) WPL W10272883 Contact Us For Availability
10
Switch, Rocker WPL 7403P79860 Contact Us For Availability
10
BURNER, BROILER WPL 7505P29360 Contact Us For Availability
10
INSULATION, DOOR WPL 7002P22160 Contact Us For Availability
11
Control W/Overlay WPL W10197042 Contact Us For Availability
11
Burner, Bake WPL 7505P25460 Contact Us For Availability
11
Shaft, Roller (2) WPL 7118P03260 Contact Us For Availability
12
Screw, Control WPL 7101P07760 Contact Us For Availability
12
VALVE/REGULATOR WPL 7501P23160 Contact Us For Availability
12
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
12
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
12
Nut WPL 7103P08260 Contact Us For Availability
13
COVER, VENT WPL 7724P19760 Contact Us For Availability
13
Ignitor (Bake/Broil) WPL 7432P10660 Contact Us For Availability
13
HANDLE, DOOR WPL 7701P55660 Contact Us For Availability
14
GASKET WPL 7201P14360 Contact Us For Availability
14
TUBING (BROILER FITTING TO VALVE) WPL 7506P30160 Contact Us For Availability
14
TRIM, DOOR SIDE (LRIGHT) WPL 3608F11670 Contact Us For Availability
14
Trim, Door Side (Left) WPL 3608F11770 Contact Us For Availability
15
SHIELD, CONTROL WPL 3604F42151 Contact Us For Availability
15
FITTING, BROILER WPL 7507P40760 Contact Us For Availability
15
GLASS, DOOR WPL 7902P83160 Contact Us For Availability
16
Panel, Oven Door (Bottom) WPL W10190750 Contact Us For Availability
16
Baffle, Vent Cover WPL 3601F22145 Contact Us For Availability
16
Cover, Igniter WPL 4005F42145 Contact Us For Availability
17
TRIM, END CAP (RIGHT) WPL 7726P39660 Contact Us For Availability
17
TRIM, END CAP (LEFT) WPL 7726P39760 Contact Us For Availability
17
ORIFICE, BURNER (LR) WPL 7509P08160 Contact Us For Availability
17
ORIFICE, BURNER (RF) WPL 7509P08360 Contact Us For Availability
17
ORIFICE, BURNER (LF) WPL 7509P08560 Contact Us For Availability
17
ORIFICE, BURNER (RR) WPL 7509P10060 Contact Us For Availability
17
SCREW, TRIM WPL 7101P63360 Contact Us For Availability
18
SUPPORT, CONTROL PANEL WPL 3807F72951 Contact Us For Availability
18
SCREW WPL 7101P36060 Contact Us For Availability
19
Screw WPL 7101P28260 Contact Us For Availability
20
Screw WPL 7101P02760 Contact Us For Availability
20
BRACKET, CONTROL MOUNTING WPL 3801F89551 Contact Us For Availability
21
BAFFLE, BROIL BURNER WPL 3601F30745 Contact Us For Availability
22
COVER, BURNER VALVE WPL W10271712 Contact Us For Availability
23
SWITCH, HI-LIMIT WPL 7450P03060 Contact Us For Availability
23
PLATE, BROIL FITTING WPL 3605F26945 Contact Us For Availability
24
SCREW, LEVER (2) WPL 7101P23060 Contact Us For Availability
24
MODULE, SPARK WPL 7431P06460 Contact Us For Availability
25
RETAINER, INSUL (BOTTOM) WPL 3804F24551 Contact Us For Availability
25
SUPPORT, SPARK MODULE WPL 3807F75245 Contact Us For Availability
26
Leg, Leveling WPL 7101P66060 Contact Us For Availability
27
Pedestal, Bottom WPL 4020W03580 Contact Us For Availability
29
SUPPORT, VALVE/REG WPL 3807F64051 Contact Us For Availability
30
BAFFLE, OVEN WPL 3601F25145 Contact Us For Availability
31
BOTTOM, BURNER BOX WPL 4011F49151 Contact Us For Availability
32
SHIELD, LWR SIDE WPL 3604F41651 Contact Us For Availability
NI
Spuds, LP Gas (Kit of 4) WPL W10168551 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
Insulation, Back WPL 7002P44560 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM WPL 7002P47160 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability
NI
HARNESS, DR LOCK WPL 5171P52660 Contact Us For Availability
NI
Harness, Sensor WPL 5171P54060 Contact Us For Availability
NI
HARNESS, MAIN WPL 5171P71960 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
× ![]()
