Model Whirlpool IR8GSMXRS00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Parts Not Illustrated and Optional Parts (Not WPL ARI76958A5 Contact Us For Availability

Customer Touch-Up Material WPL ARI76959A2 Contact Us For Availability

REFINISHING MATERIAL WPL ARI76960A8 Contact Us For Availability

TORX SCREW WRENCH WPL ARI76961A5 Contact Us For Availability

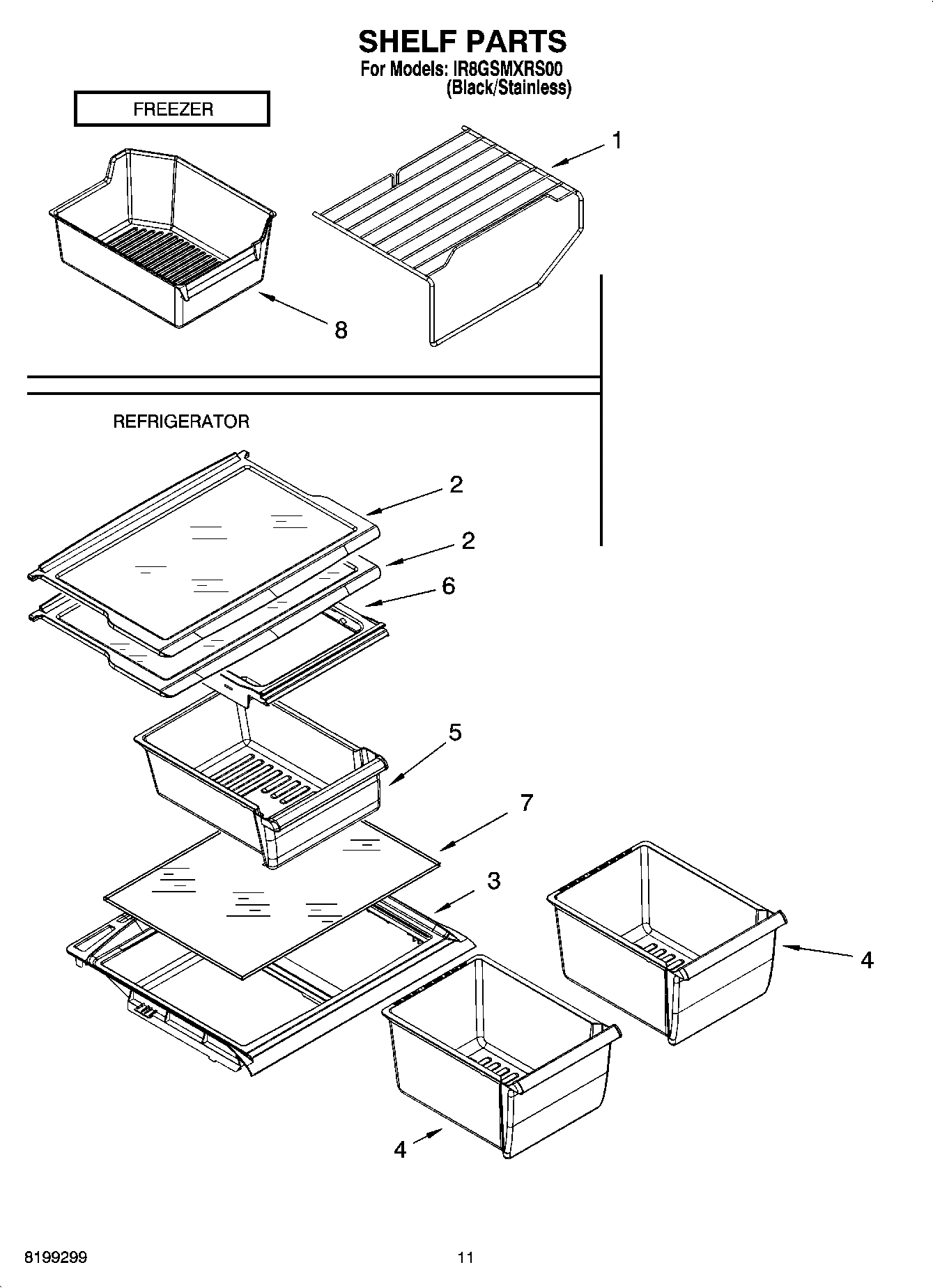

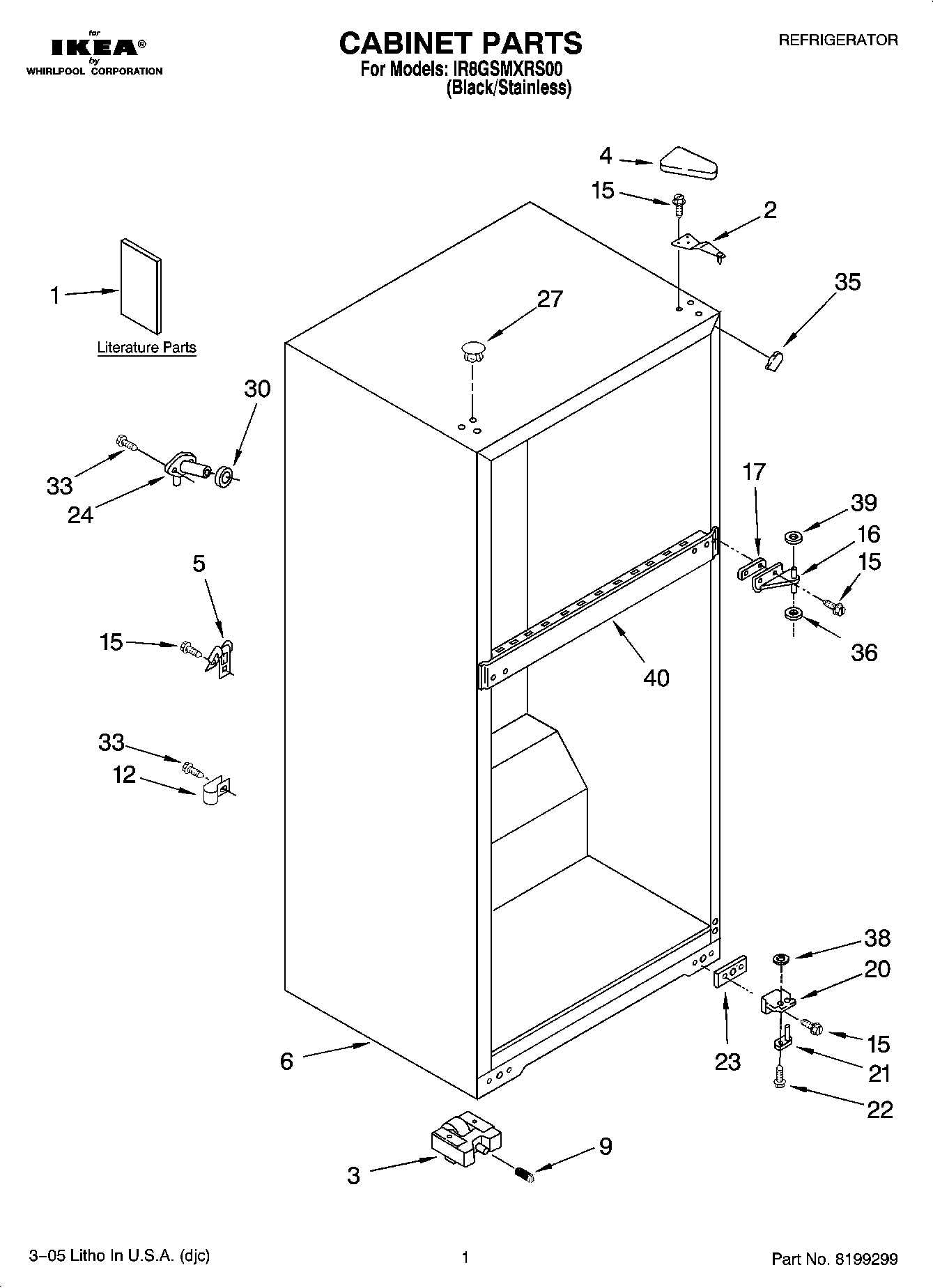

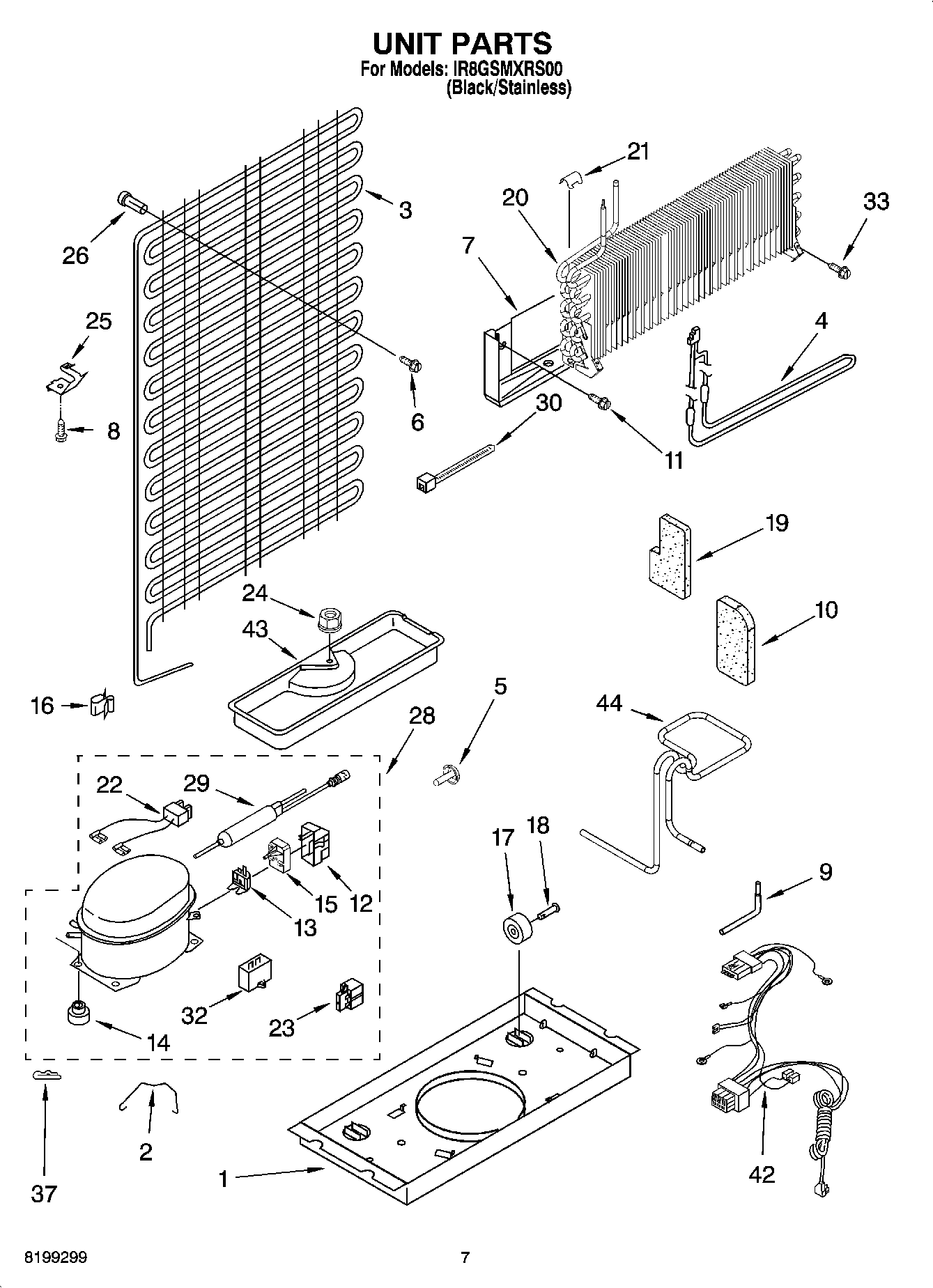

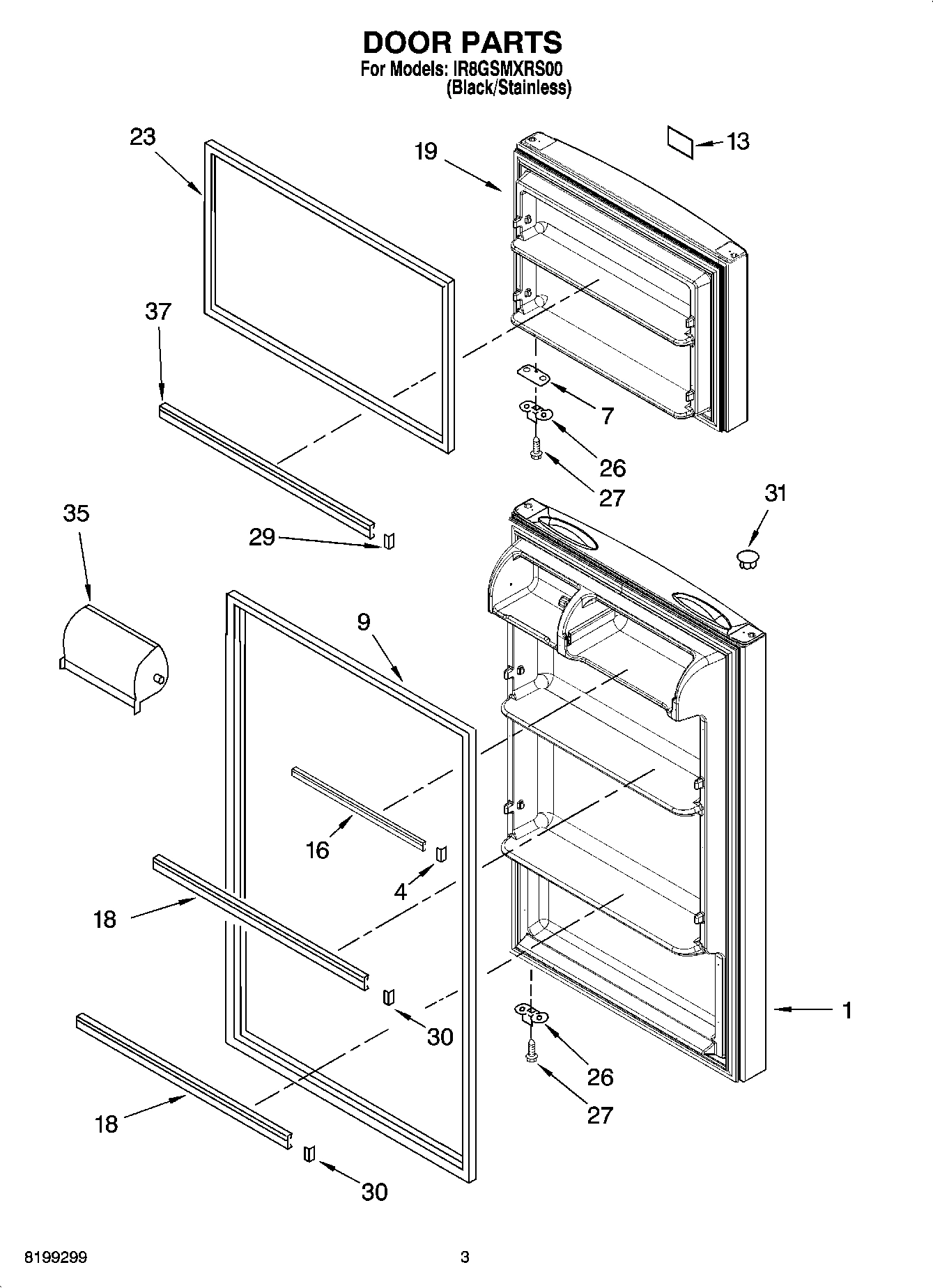

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

WPW10401596 Whirlpool Freezer Wire Shelf Backorder WPL WPW10401596 $39.02

2

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

2

W10837901 Whirlpool Refrigerator Glass Shelf Backorder WPL W10837901 $100.31

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

3

W11595196 Whirlpool Cover In Stock WPL W11595196 $34.24

3

Cover, Air Diffuser WPL 2183061 Contact Us For Availability

4

W10872066 Whirlpool Refrigerator Crisper Draw In Stock WPL W10872066 $75.01

4

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Pan, Meat WPL 2207936 Contact Us For Availability

6

Holder, Meat Pan WPL 2262686 Contact Us For Availability

7

2258681B Whirlpool Refrigerator Shim Backorder WPL 2258681B $26.43

7

WP2210047 Whirlpool Glass Shelf In Stock WPL WP2210047 $107.80

8

2256637 Whirlpool Refrigerator Screw Backorder WPL 2256637 $9.13

8

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $24.25

10

Fan Mounting Bracket WPL 2197405 Contact Us For Availability

11

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

11

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

12

2215210 Whirlpool Refrigerator Control Box Backorder WPL 2215210 $45.59

12

Tube, Water Inlet WPL 2174755 Contact Us For Availability

14

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

15

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

17

2215385 Whirlpool Refrigerator Shim Backorder WPL 2215385 $28.80

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

19

8201619 Whirlpool Refrigerator Support Assemb Backorder WPL 8201619 $57.45

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

20

WP2263920 Whirlpool Refrigerator Evaporator Backorder WPL WP2263920 $138.89

21

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $4.37

21

Hinge-Pin, Bottom WPL 9791682 Contact Us For Availability

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $8.88

WP3428970 Whirlpool Refrigerator Screw Backorder WPL WP3428970 $4.56

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

23

Air Tower WPL 9790408 No Longer Available

23

W10920279 Whirlpool Refrigerator Start Relay In Stock WPL W10920279 $40.48

23

WP2201567 Whirlpool Hinge Shim In Stock WPL WP2201567 $3.70

24

285002 Whirlpool Nut Backorder WPL 285002 $7.58

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

25

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

25

Cover, Air Return WPL 2261978 Contact Us For Availability

26

2258452 Whirlpool Refrigerator Spacer Backorder WPL 2258452 $7.85

26

Air Diffuser WPL 2221992 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $16.25

28

Compressor (Includes Illus. 12,13,14 22,23,29 WPL 2217634 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

WP2156003 Whirlpool Refrigerator Door Shelf E In Stock WPL WP2156003 $4.50

30

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

Screw WPL 8533919 Contact Us For Availability

35

W11500943 Whirlpool Refrigerator Filler Backorder WPL W11500943 $2.40

35

WP2207942 Whirlpool Dairy Door In Stock WPL WP2207942 $39.35

36

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

37

Clip, Compressor WPL 24364001 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

39

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

41

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

42

2258529 Whirlpool Refrigerator Wire Harness Backorder WPL 2258529 $128.82

43

Tray, Evaporator WPL 2201801 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Tube, Discharge WPL 2264515 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI76956A9 Contact Us For Availability

REFRIGERANT CHARGE 3.75 Ozs. (R134A) WPL ARI76957A9 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
