Model Whirlpool IJP85801 30`` ELECTRIC RANGE CERAN COOKTOP – Common Parts & Diagrams

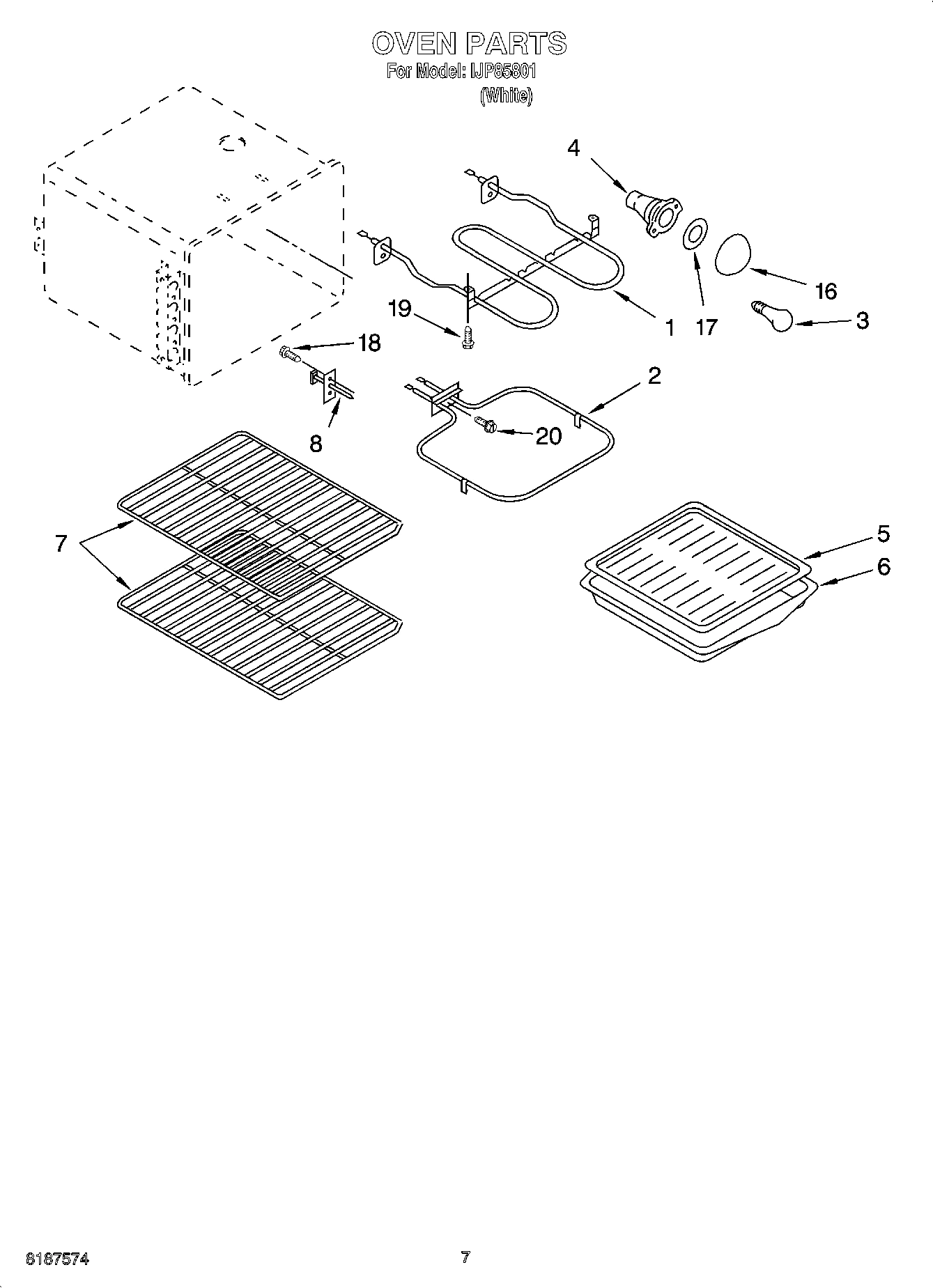

05 - OVEN PARTS, MISCELLANEOUS PARTS

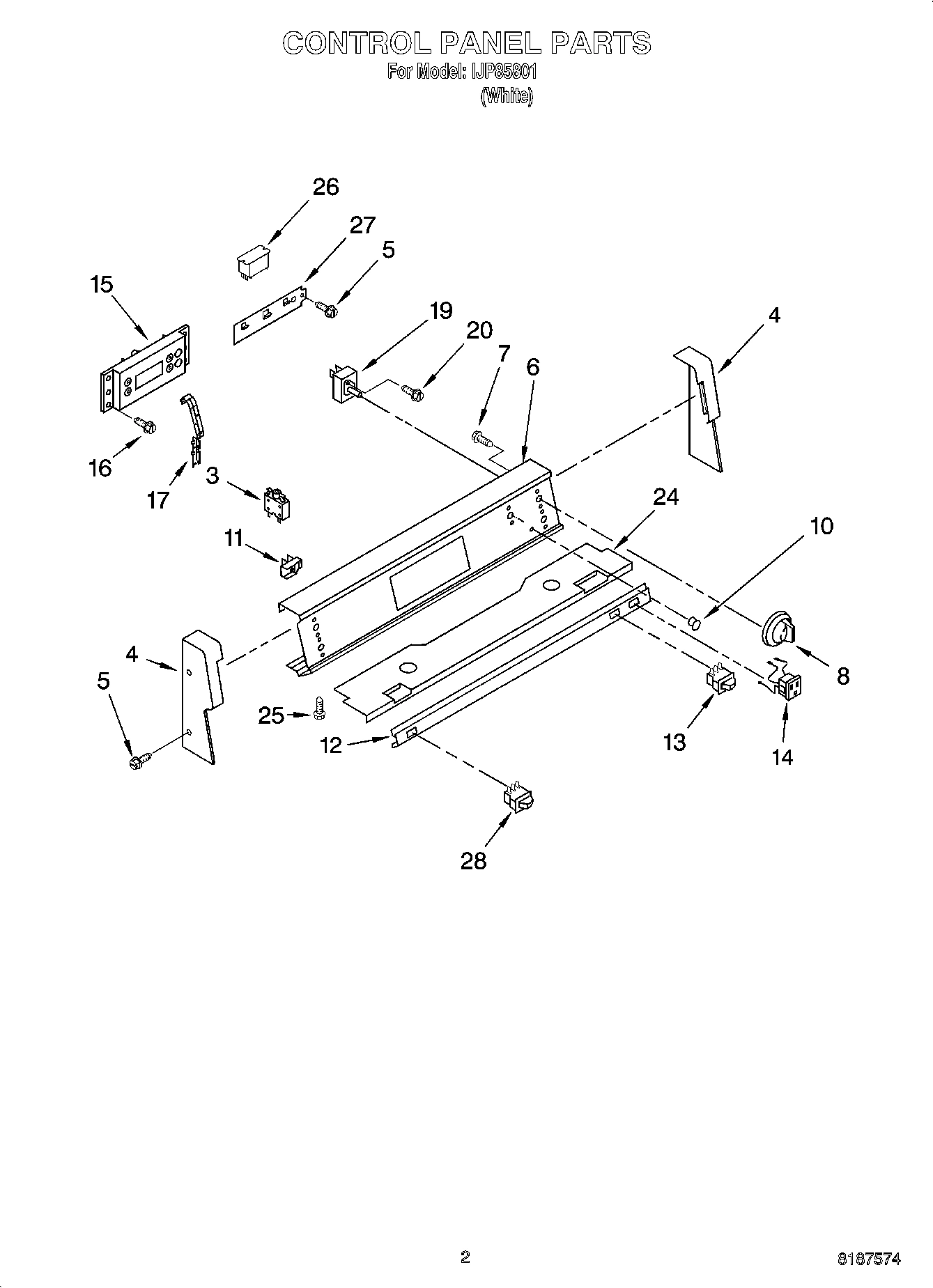

02 - CONTROL PANEL PARTS
04 - OVEN CHASSIS PARTS
01 - COOKTOP PARTS
03 - DOOR AND DRAWER PARTS
Common parts from model Whirlpool IJP85801 30`` ELECTRIC RANGE CERAN COOKTOP
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
PAINT, BULK (1 QT.) (W WPL 799344 Contact Us For Availability
WPL ARI75963A5 WPL ARI75963A5 Contact Us For Availability
WPL ARI75964A9 WPL ARI75964A9 Contact Us For Availability
WPL ARI75965A1 WPL ARI75965A1 Contact Us For Availability
1
Element, Broil WPL 9750211 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752776 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9752777 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9754170 Contact Us For Availability
1
Literature Parts (Service Instructions) WPL LIT9781875 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9782237 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Cooktop, Ceran WPL 9754255CW Contact Us For Availability
2
Trim, Door-Left WPL 9782003PW Contact Us For Availability
3
Breaker, 15 Amp WPL 3191073 Contact Us For Availability
3
Insulation, Wrap WPL 9754000 Contact Us For Availability
3
Trim, Door-Right WPL 9782004PW Contact Us For Availability
4
End Cap (Left) WPL 9752422FW Contact Us For Availability
4
End Cap (Right) WPL 9752423FW Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
Gasket, Rear WPL 9781614 Contact Us For Availability
4
Trim, Door Bottom WPL 9781209PW Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
5
Frame, Cooktop WPL 9750456PW Contact Us For Availability
5
Glass, Door WPL 9781781PW Contact Us For Availability
6
Panel, Control WPL 9754234 Contact Us For Availability
6
Gasket, Oven WPL 9755179 Contact Us For Availability
6
Support, Element WPL 9753941 Contact Us For Availability
6
Vent, Door WPL 9753498GW Contact Us For Availability
6
Gasket WPL 9781659 Contact Us For Availability
7
Rack, Standard (2) WPL 9750498 Contact Us For Availability
7
Screw, 8-18 x 3/8 WPL 9780852 Contact Us For Availability
7
Oven, Side Panel WPL 9781907PW Contact Us For Availability
7
Back Splash WPL 9752337GW Contact Us For Availability
7
Endcap, Handle (2) WPL 9781575 Contact Us For Availability
8
Sensor WPL 9782081 Contact Us For Availability
8
Knob, Control WPL 9750272FW Contact Us For Availability
8
Brace, Support WPL 9753675 Contact Us For Availability
8
Handle, Door-White WPL 9751690PW Contact Us For Availability
9
Shield, Insulation WPL 9780664 Contact Us For Availability
9
Clip, Support (4) WPL 9753691 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Door Switch (oven Light) WPL 9752798 Contact Us For Availability
11
Light Indicator WPL 313102 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
11
Hot Light WPL 9781935 Contact Us For Availability
12
Trim Strip WPL 9752442PW Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Element, Surface (Bridge Element) WPL 9753999 Contact Us For Availability
12
Frame, Glass WPL 9781601 Contact Us For Availability
13
Switch, Oven Light WPL 3191100FW Contact Us For Availability
13
Rod, Lock WPL 9750523 Contact Us For Availability
13
Shield Door WPL 9781588 Contact Us For Availability
14
Outlet, Untimed WPL 9751480FW Contact Us For Availability
14
Panel, Rear WPL 9750150 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Timer WPL 9753438 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Rod, Small (2) Ceran Element WPL 9781460 Contact Us For Availability
16
Seal, Window WPL 9755178 Contact Us For Availability
17
Bracket, Timer WPL 9781754 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Rod, Large (2) Ceran Element WPL 9781459 Contact Us For Availability
18
Insulation WPL 9754007 Contact Us For Availability
19
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
19
Receiver, Hinge (R or L) WPL 9782005 Contact Us For Availability
19
Liner, Door WPL 9781599GM Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Single Position Device (Not Serviced) WPL 9752462 Contact Us For Availability
21
Cover Vent WPL 9753040CW Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Clip, Mounting WPL 3149190 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
22
Spring, Warm Zone WPL 9753677 Contact Us For Availability
22
Retainer, Door (2) WPL 9750676 Contact Us For Availability
23
Oven Lock Assembly WPL 9752404 Contact Us For Availability
24
Base, Console WPL 9752439 Contact Us For Availability
24
Bracket, Lock WPL 9750526 Contact Us For Availability
24
Front, Drawer WPL 9782108PW Contact Us For Availability
25
Screw, 10-16 x 1/2 WPL 3149333 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
26
Solenoid WPL 9752409 Contact Us For Availability
27
Support. Relay WPL 3191039 Contact Us For Availability
27
Switch, Interlock WPL 9750965 Contact Us For Availability
27
Screw, 10-16 X 3/4 WPL 423248 Contact Us For Availability
28
Switch, Rocker (Illuminated) WPL 9753692FW Contact Us For Availability
28
Back, Vent WPL 9750394 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
29
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
29
Cover, Vent WPL 9750393 Contact Us For Availability
30
Gasket, Vent WPL 9750767 Contact Us For Availability
30
Screw,10-24 x 1.25 WPL 9781196 Contact Us For Availability
31
Wire Guard WPL 9780585 Contact Us For Availability
31
Screw, 10-24 x 5/8 WPL 9780266 Contact Us For Availability
32
Plug, Button WPL 9780578 Contact Us For Availability
34
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
36
Screw,10-32 x 5/16 WPL 422222 Contact Us For Availability
37
Washer, 10-32 WPL 424238 Contact Us For Availability
38
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
39
Nut WPL 9750888 Contact Us For Availability
40
Support Rail WPL 9781904 Contact Us For Availability
× ![]()
