Model IPSO IHF304ANH Washer – Common Parts & Diagrams

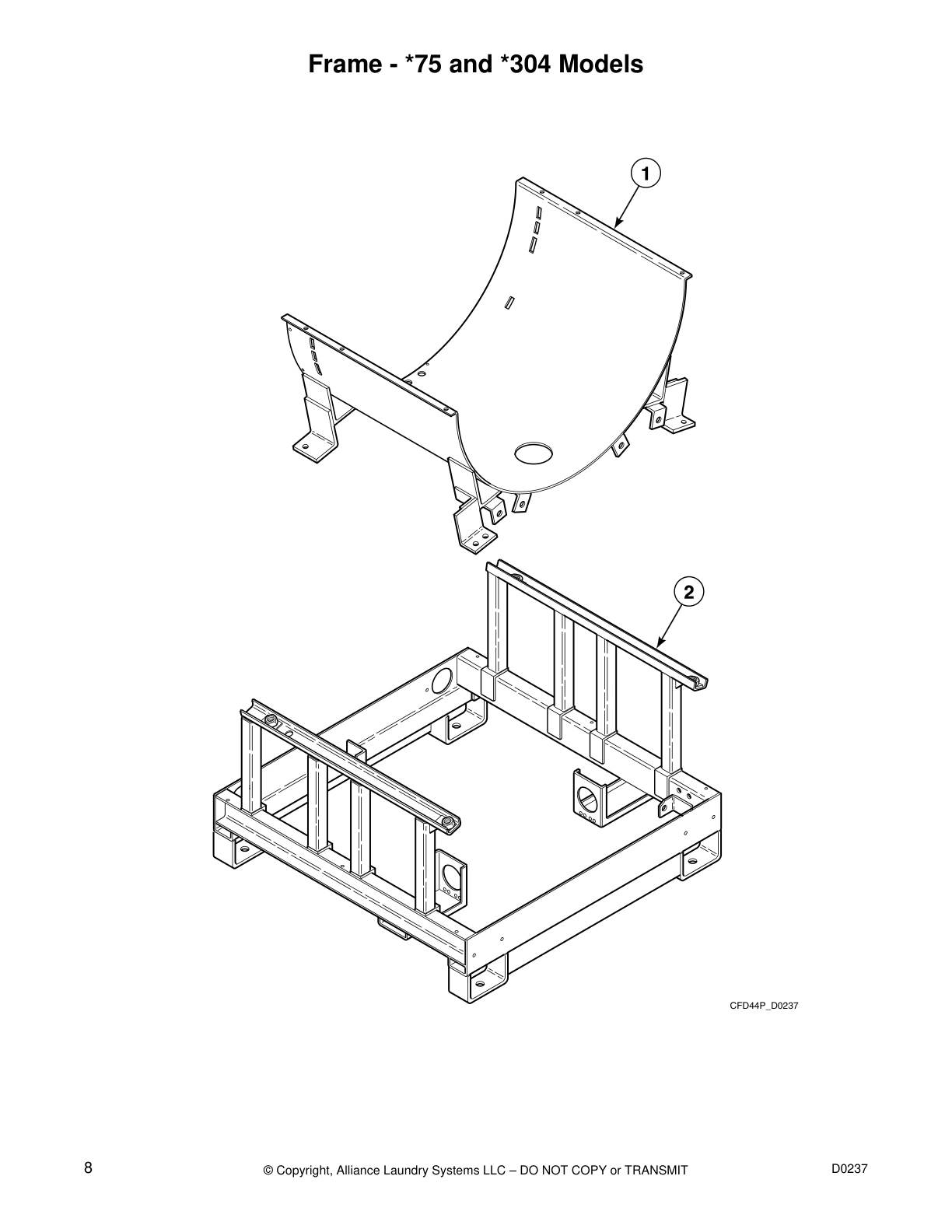

Frame - *75 and *304 Models

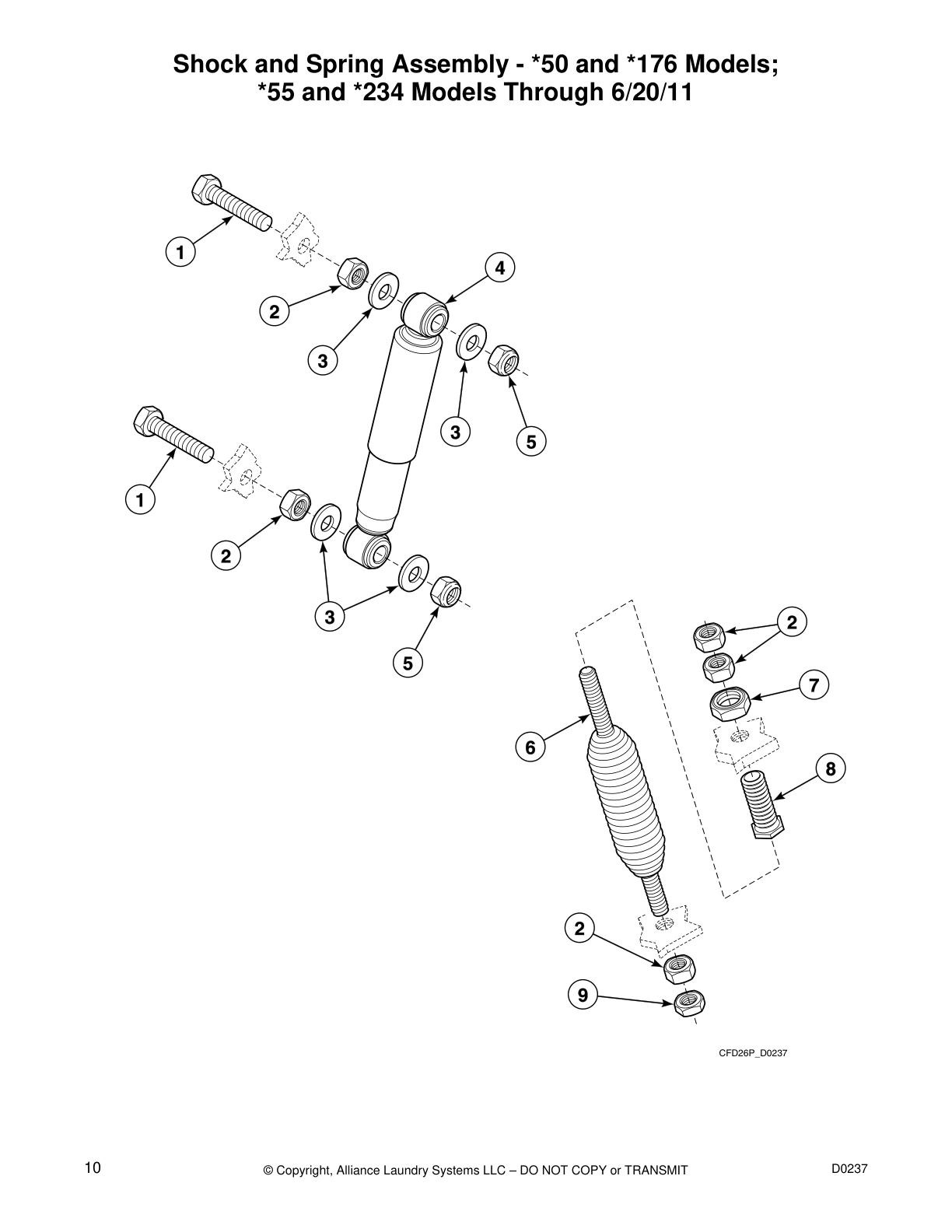

Shock and Spring Assembly - *50 and *176 Models;
*55 and *234 Models Through 6/20/11

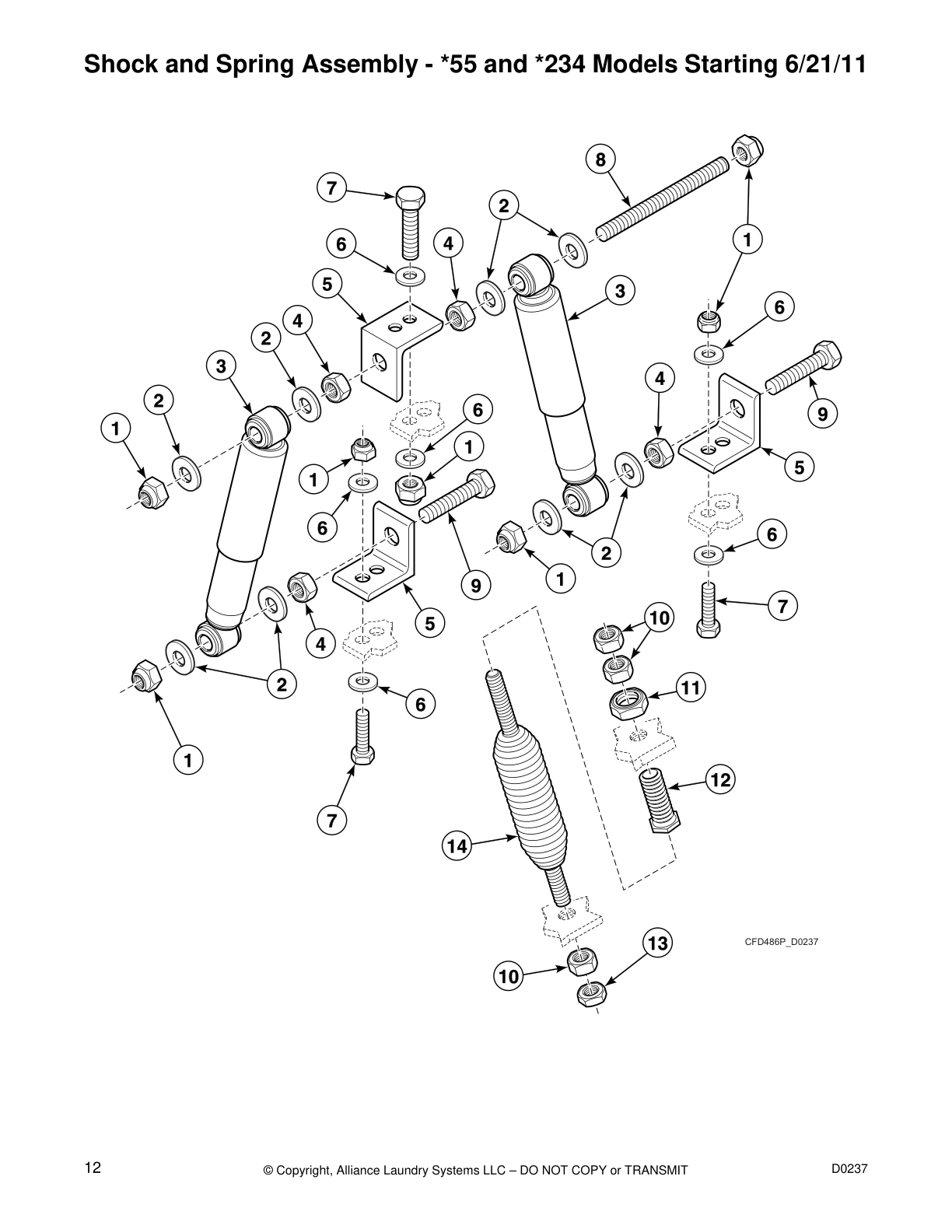

Shock and Spring Assembly - *55 and *234 Models Starting 6/21/11

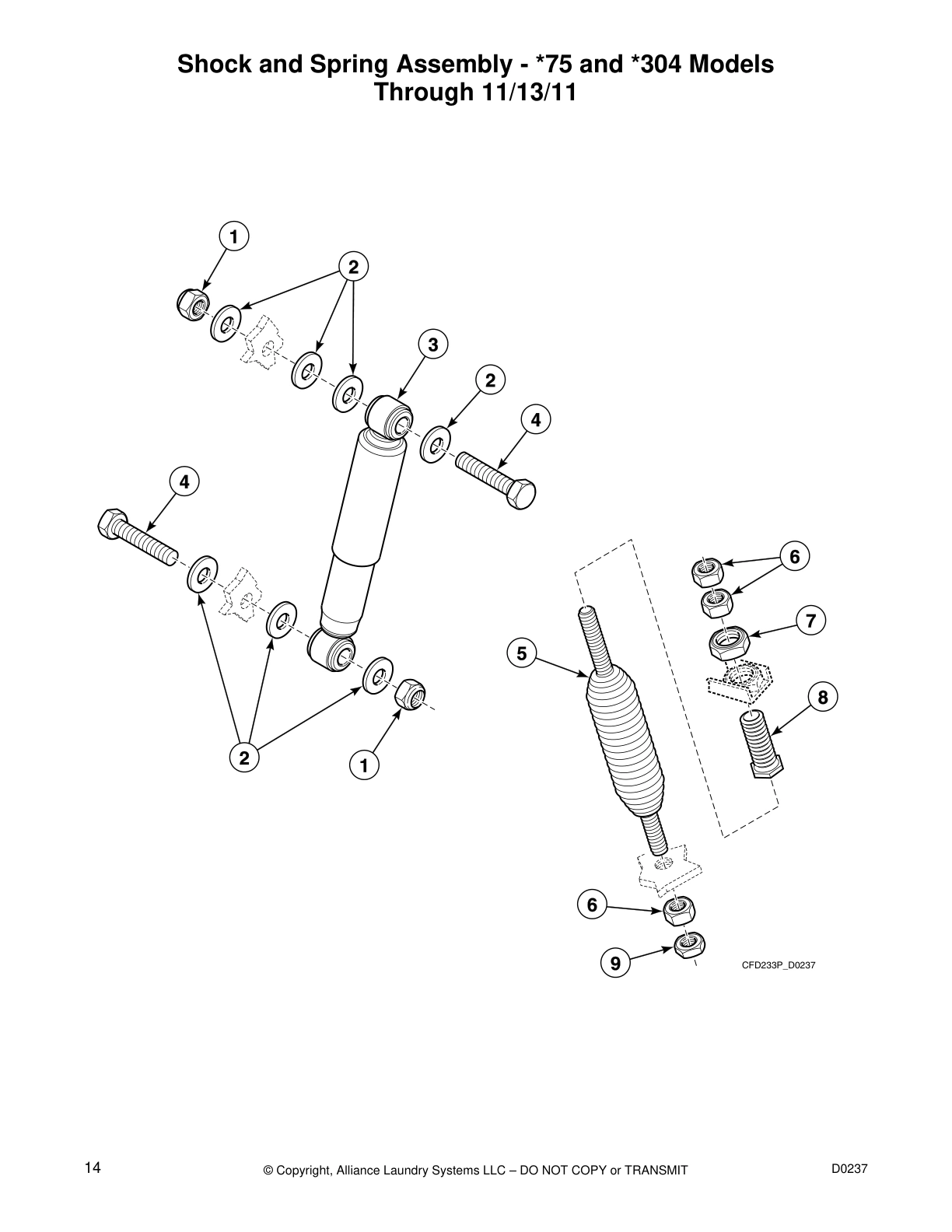

Shock and Spring Assembly - *75 and *304 Models
Through 11/13/11

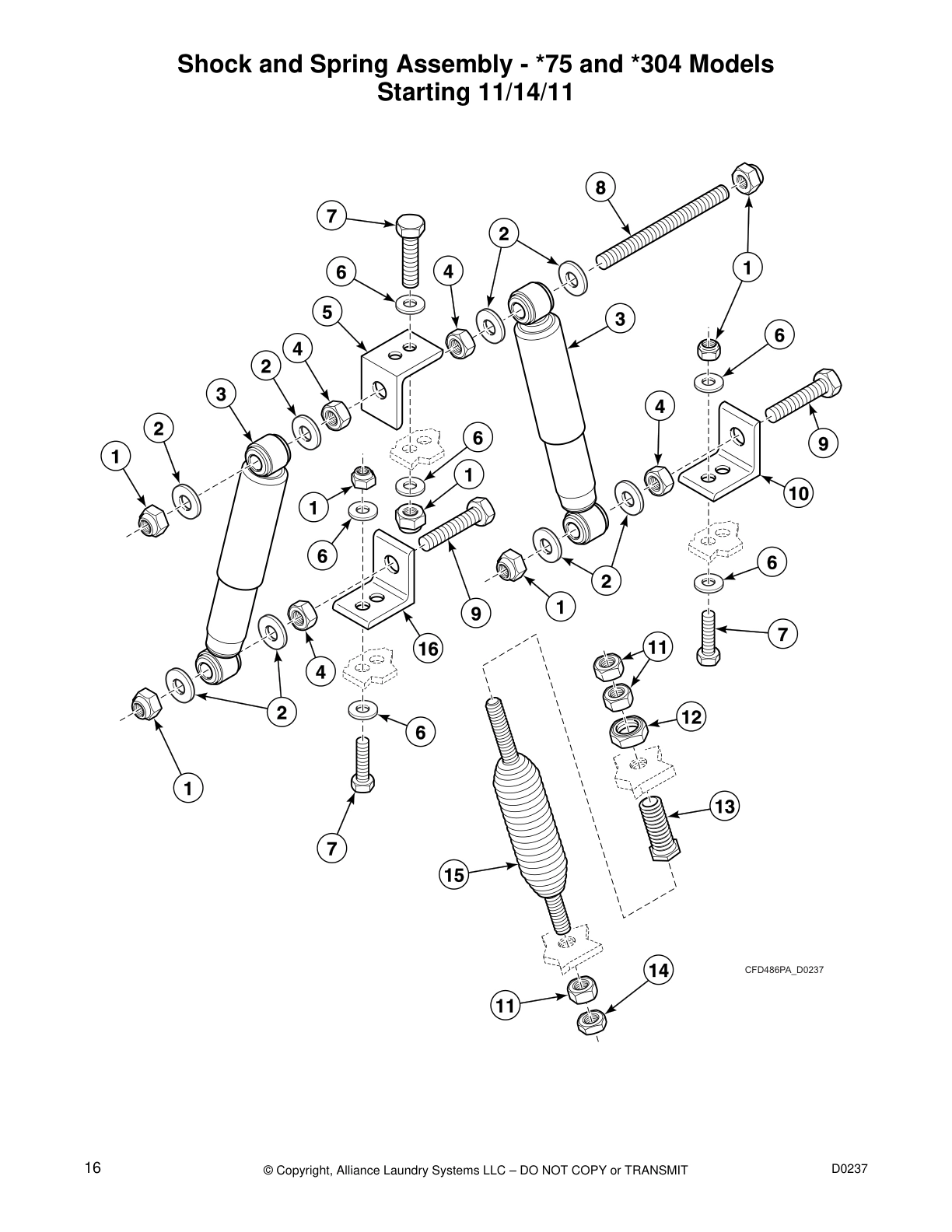

Shock and Spring Assembly - *75 and *304 Models
Starting 11/14/11

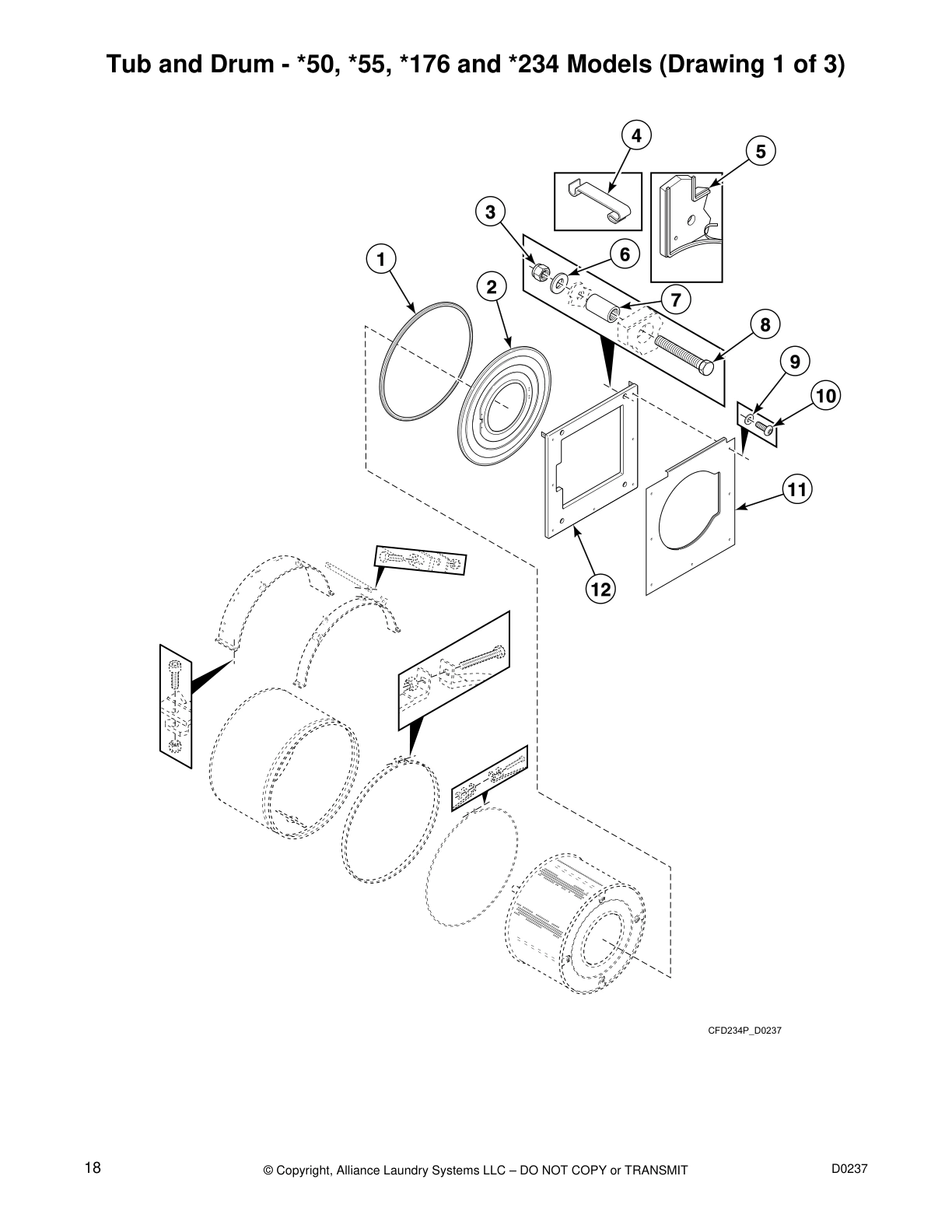

Tub and Drum - *50, *55, *176 and *234 Models (Drawing 1 of 3)

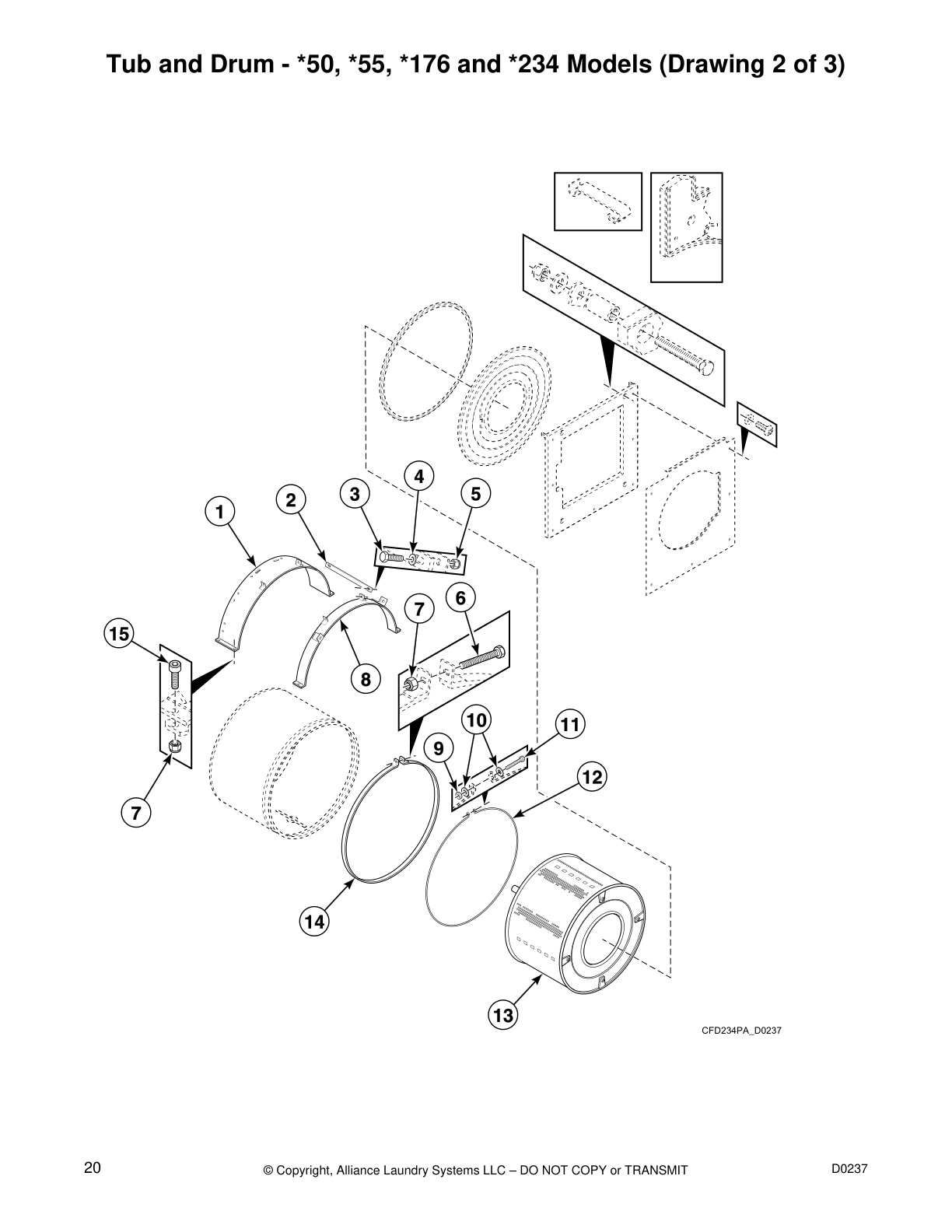

Tub and Drum - *50, *55, *176 and *234 Models (Drawing 2 of 3)

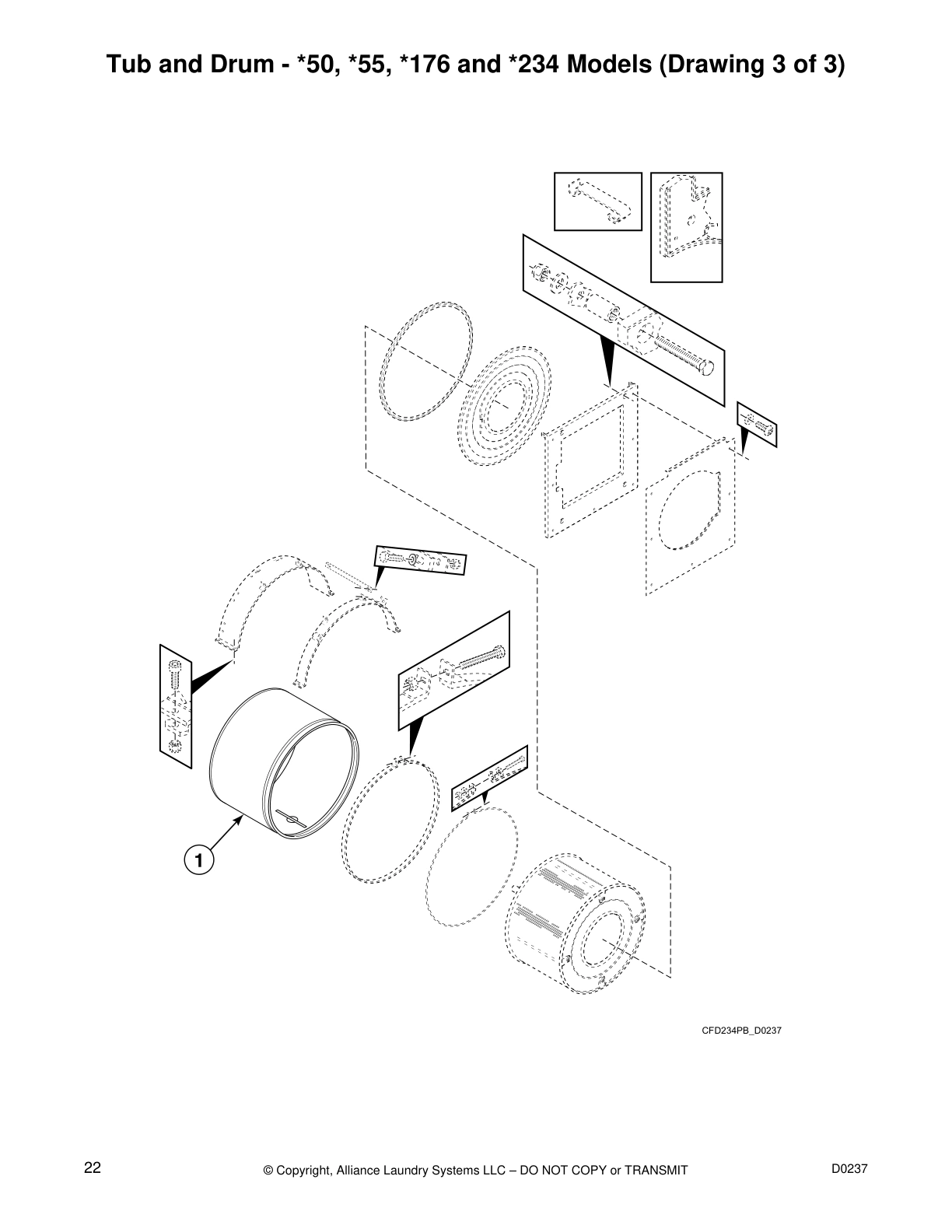

Tub and Drum - *50, *55, *176 and *234 Models (Drawing 3 of 3)

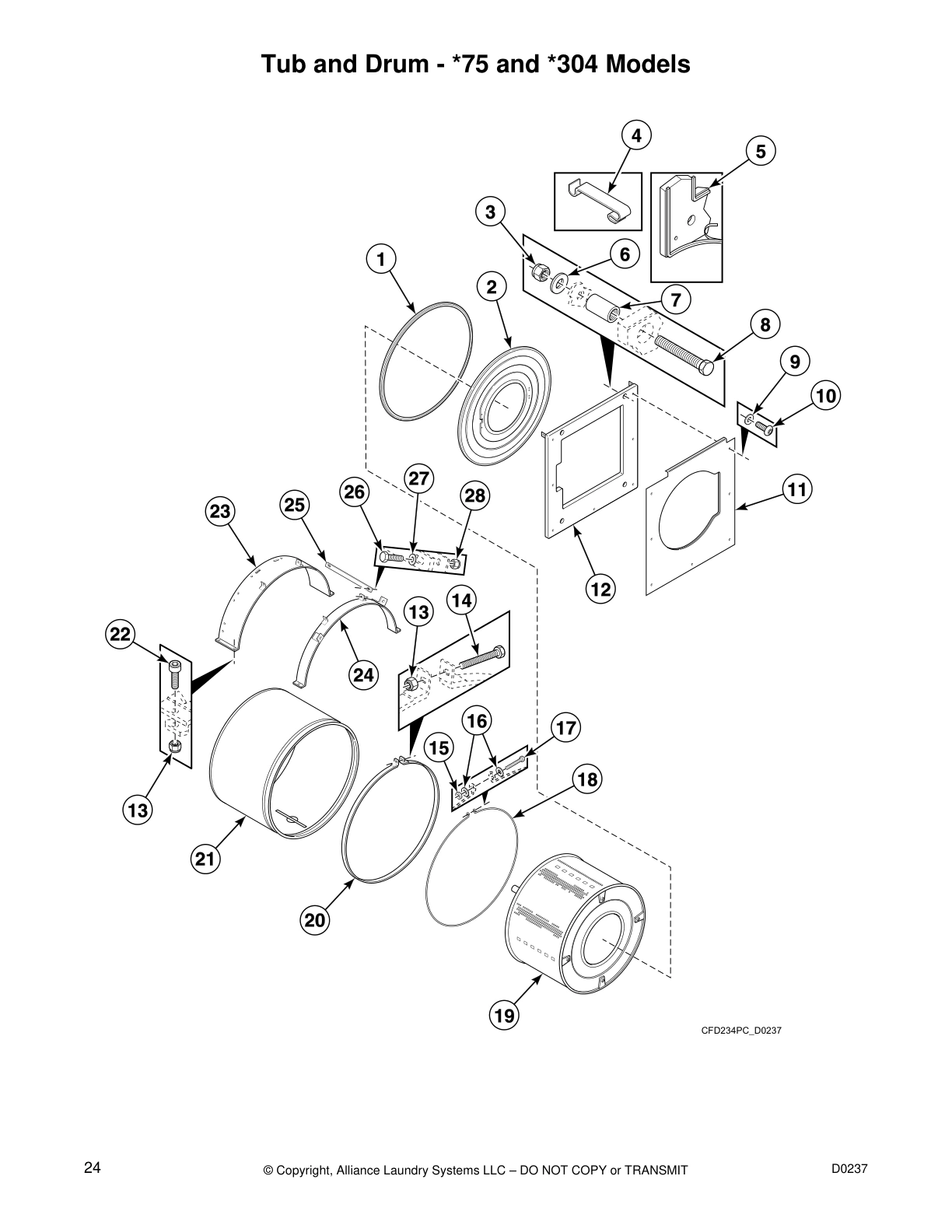

Tub and Drum - *75 and *304 Models

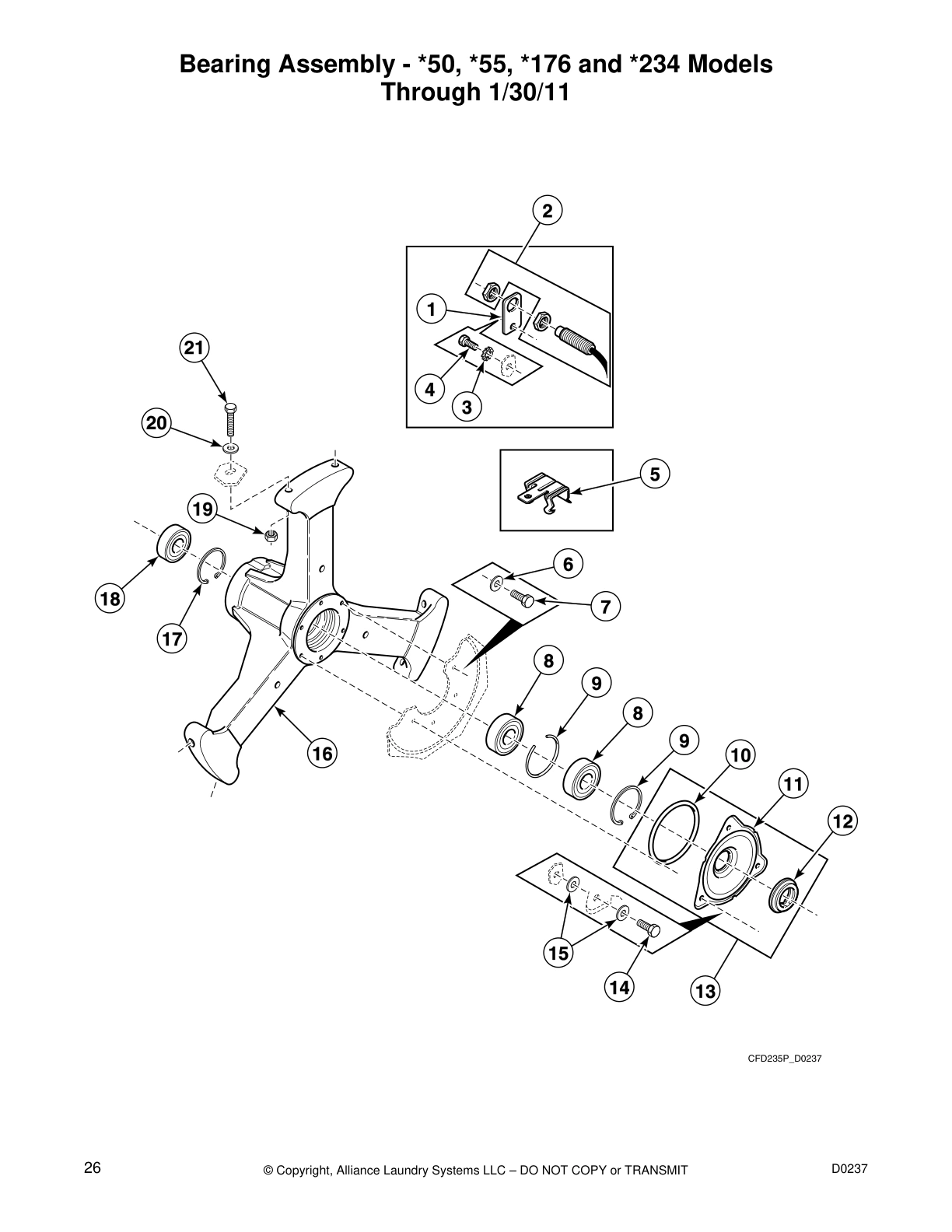

Bearing Assembly - *50, *55, *176 and *234 Models
Through 1/30/11

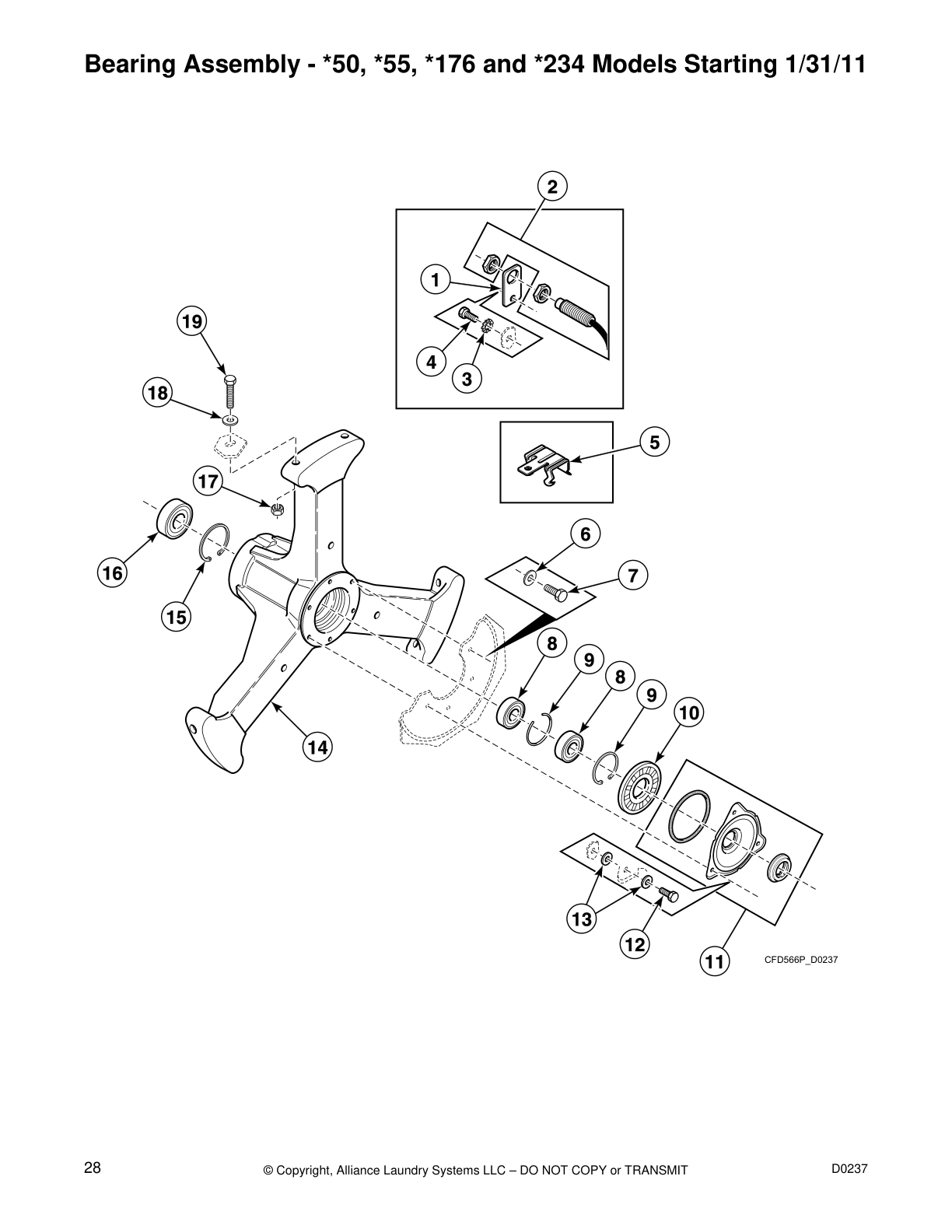

Bearing Assembly - *50, *55, *176 and *234 Models Starting 1/31/11

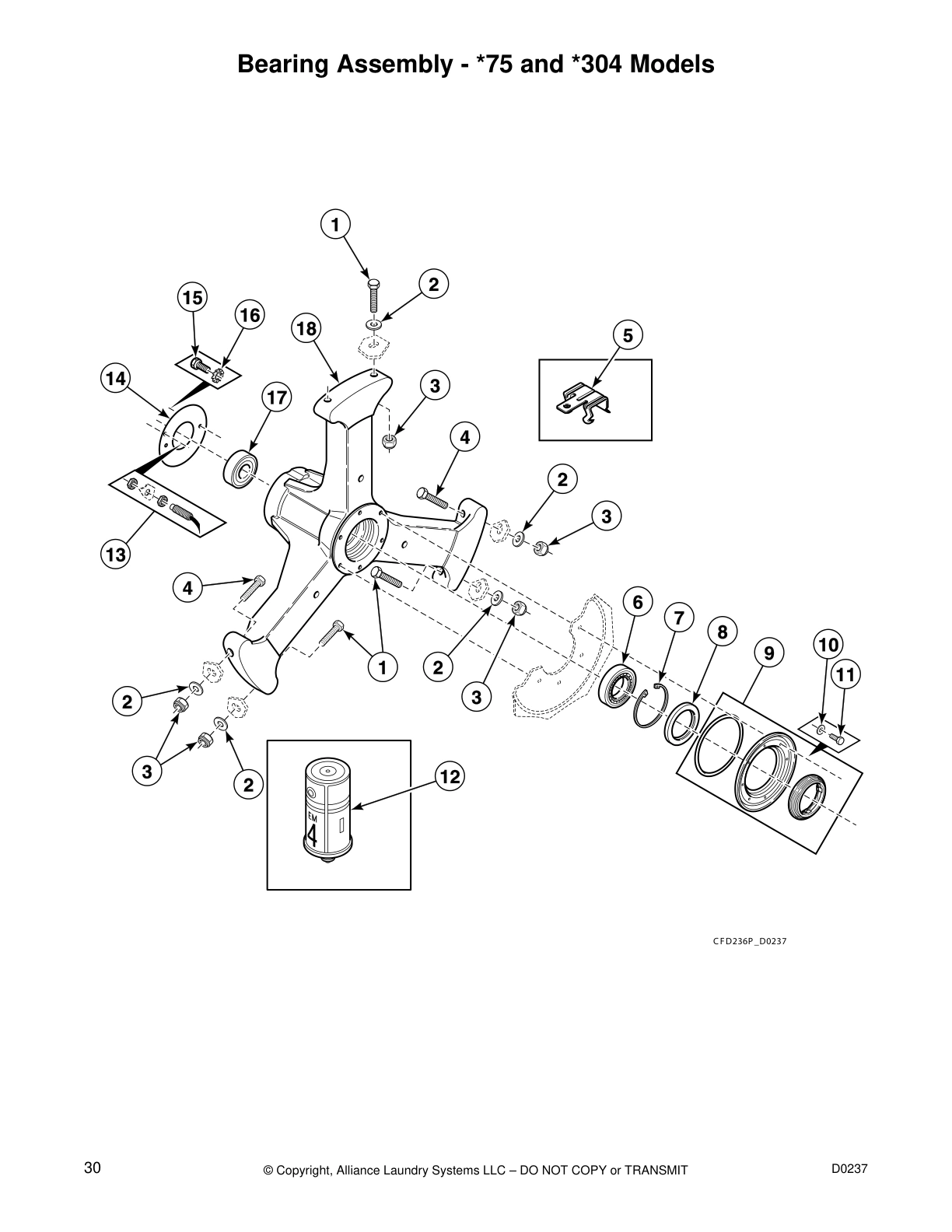

Bearing Assembly - *75 and *304 Models

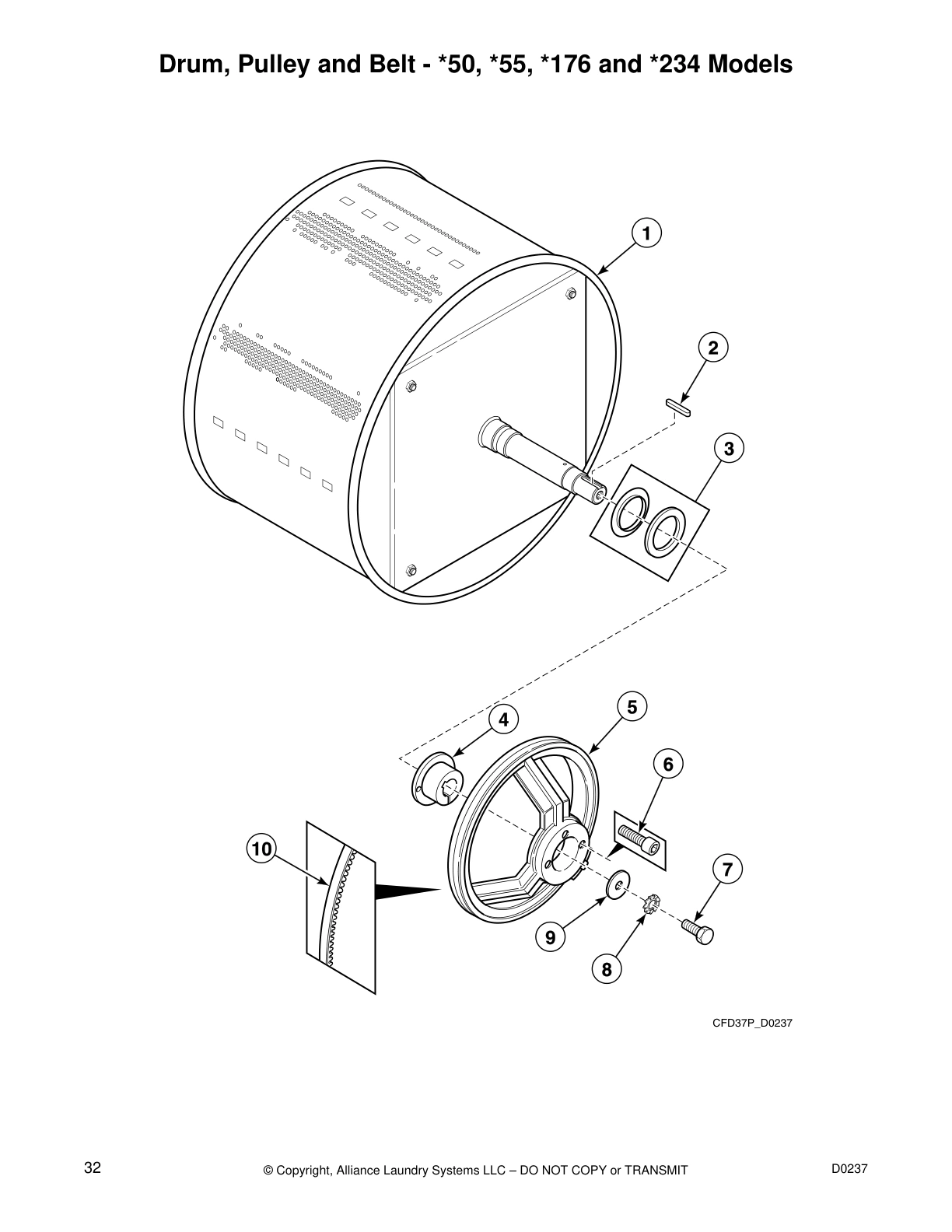

Drum, Pulley and Belt - *50, *55, *176 and *234 Models

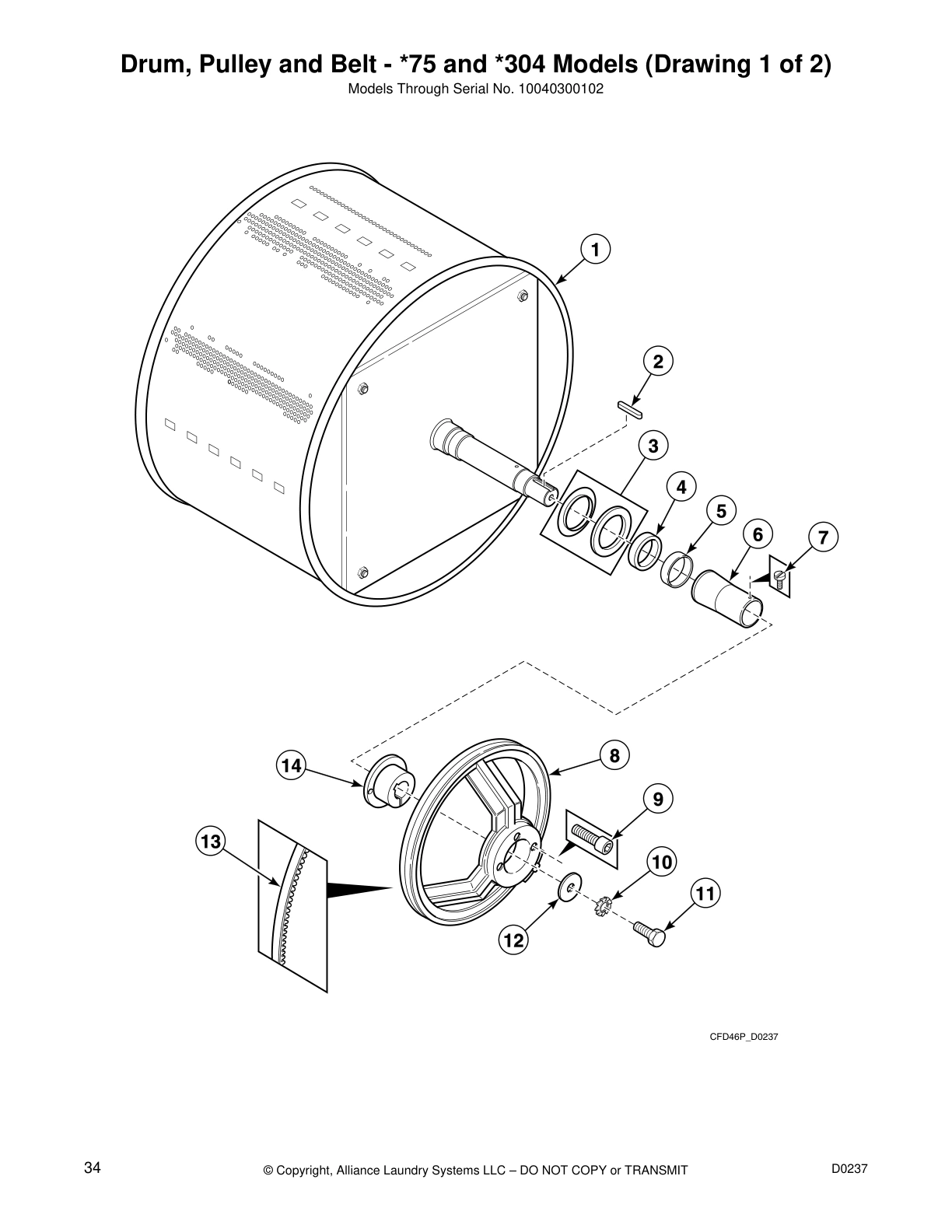

Drum, Pulley and Belt - *75 and *304 Models (Drawing 1 of 2)

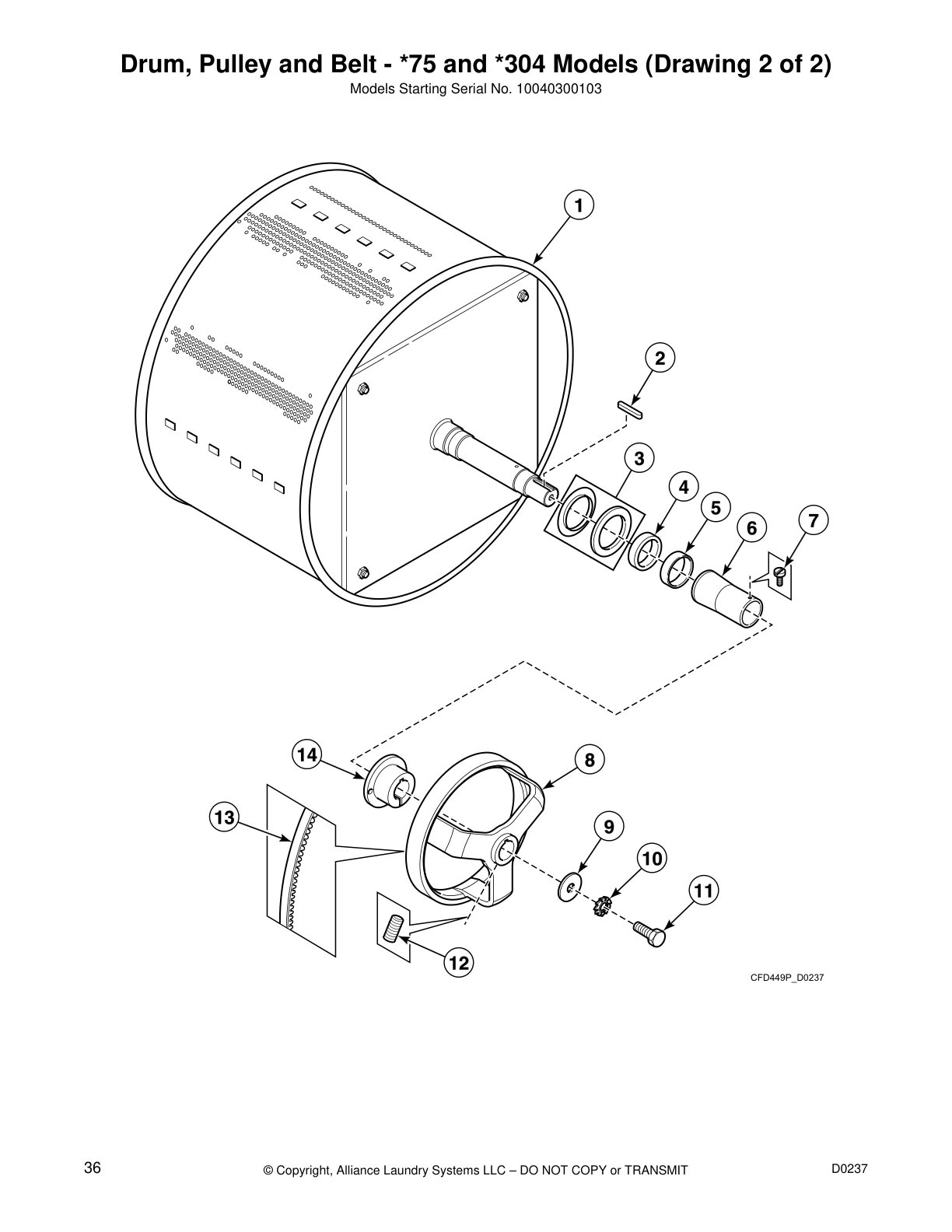

Drum, Pulley and Belt - *75 and *304 Models (Drawing 2 of 2)

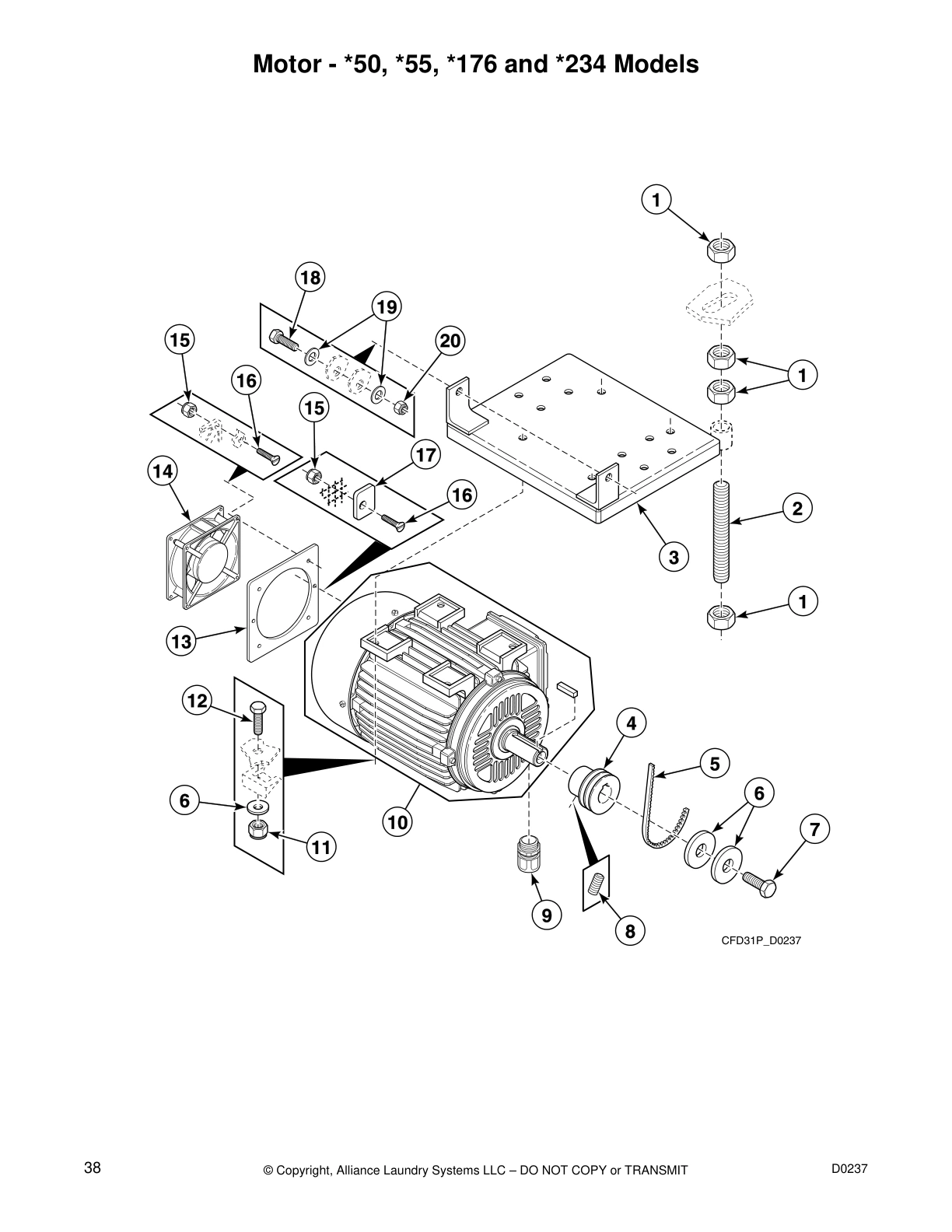

Motor - *50, *55, *176 and *234 Models

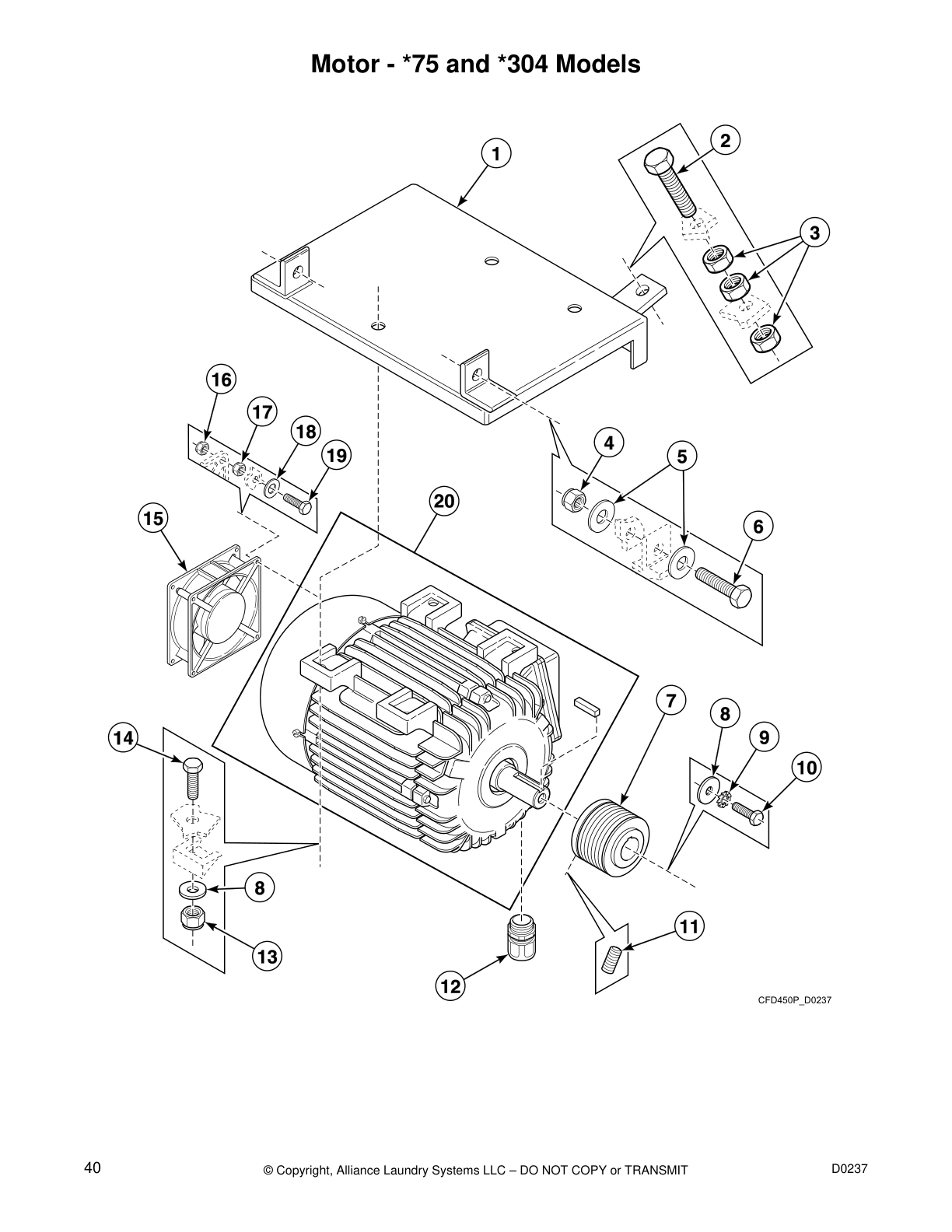

Motor - *75 and *304 Models

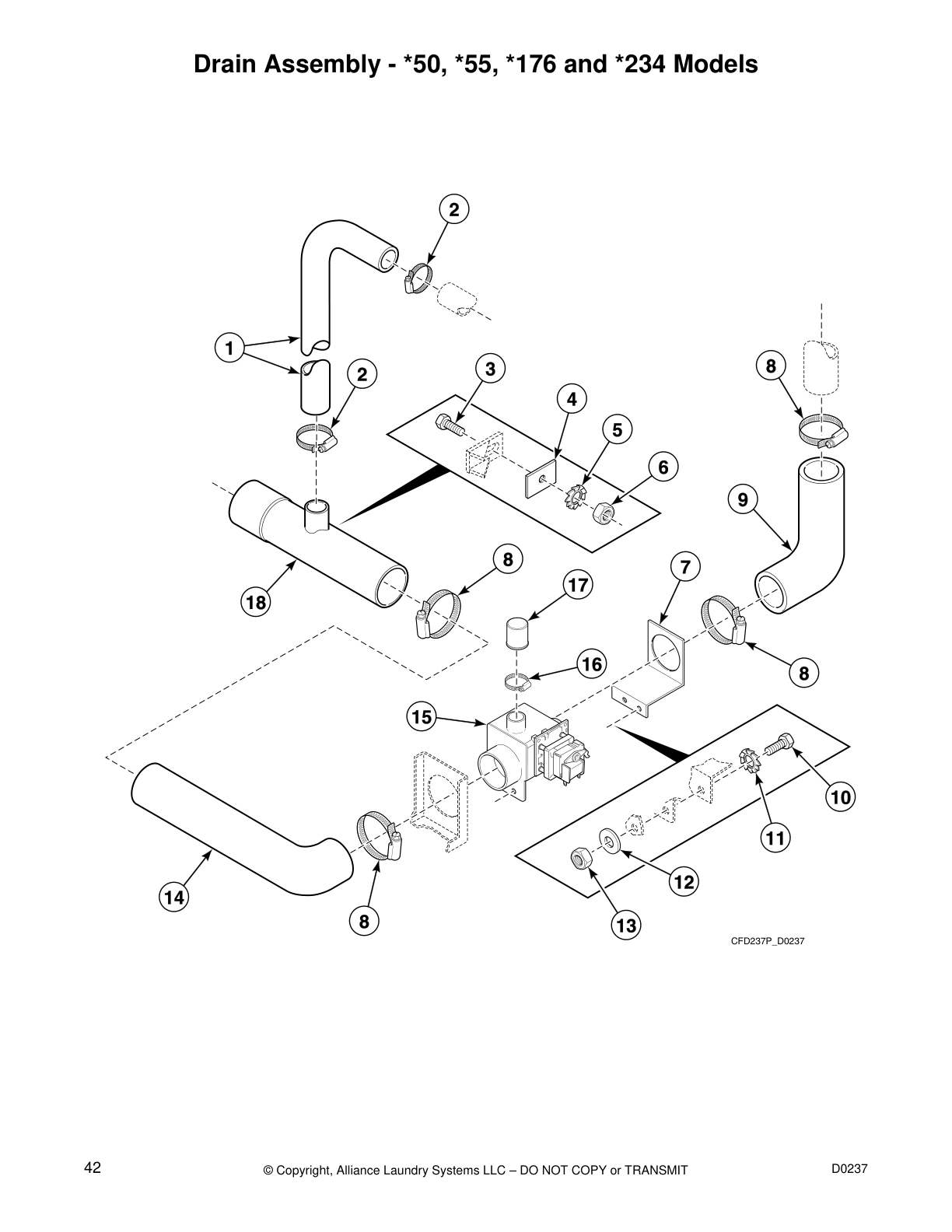

Drain Assembly - *50, *55, *176 and *234 Models

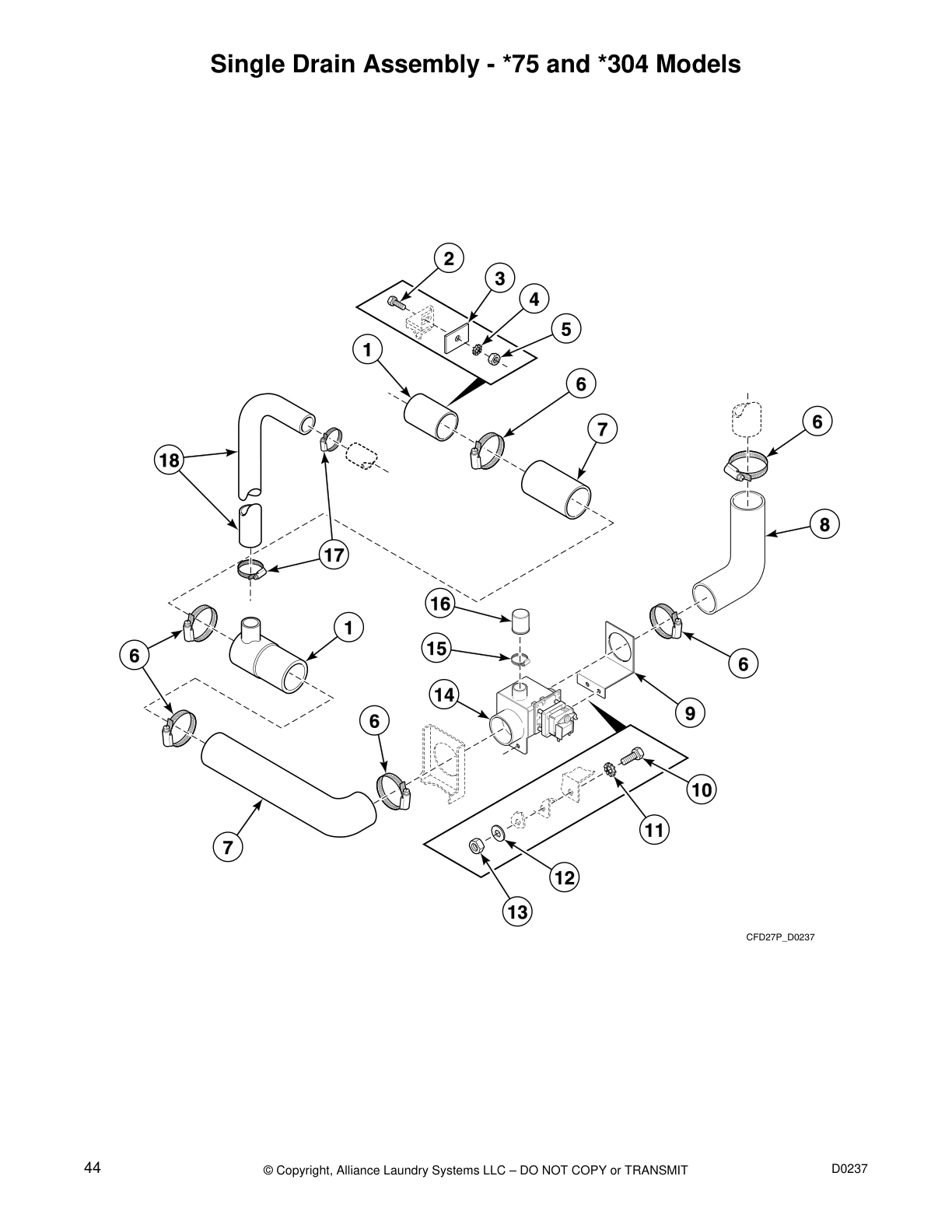

Single Drain Assembly - *75 and *304 Models

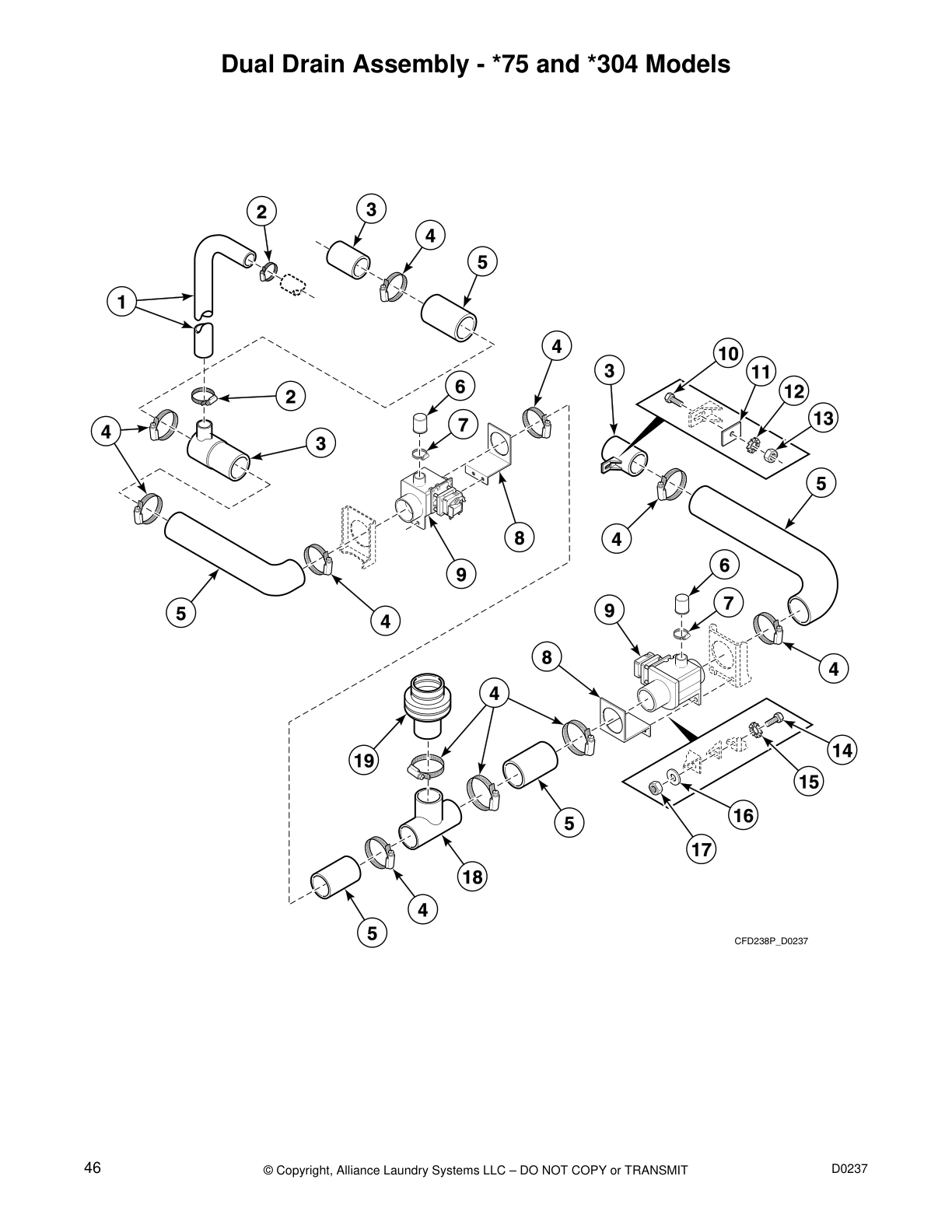

Dual Drain Assembly - *75 and *304 Models

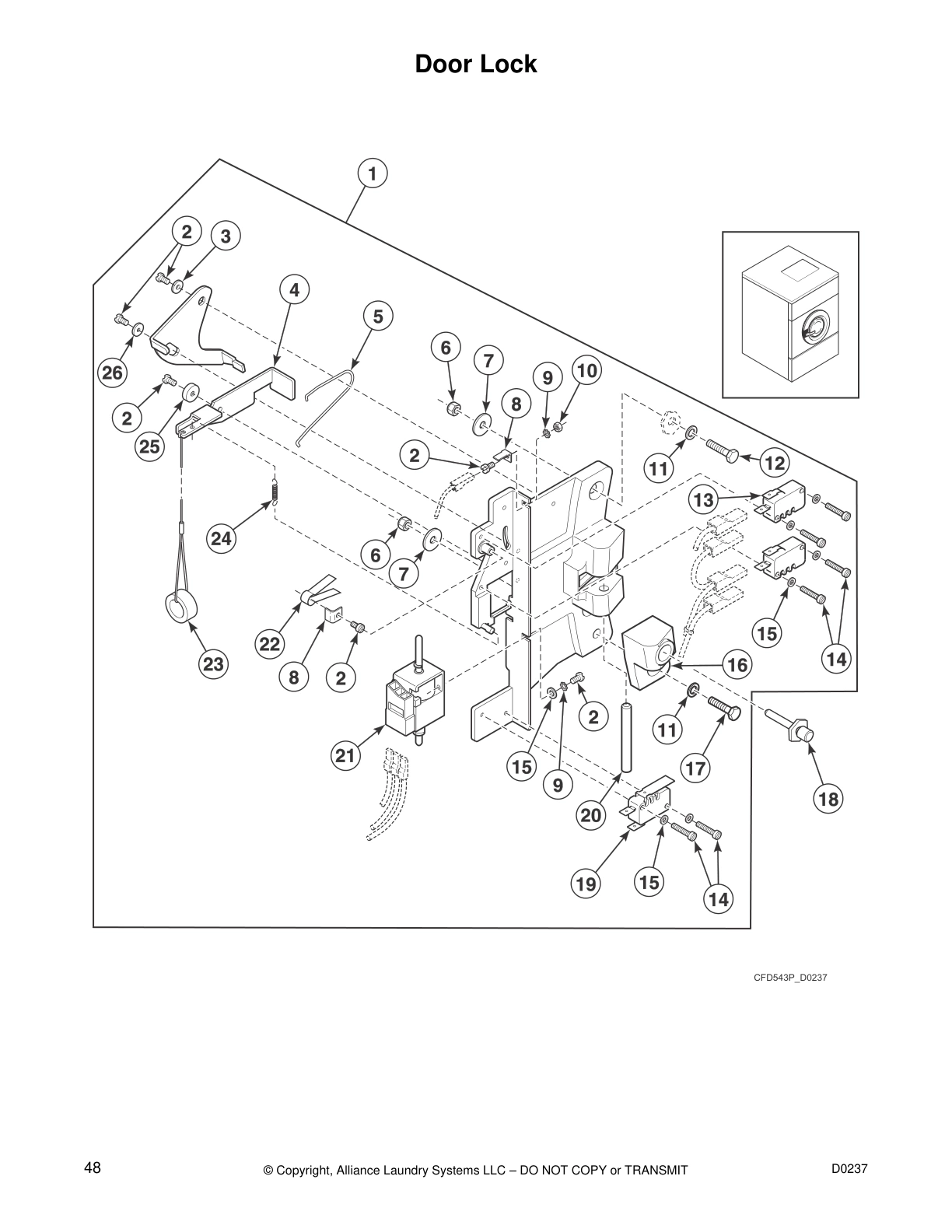

Door Lock

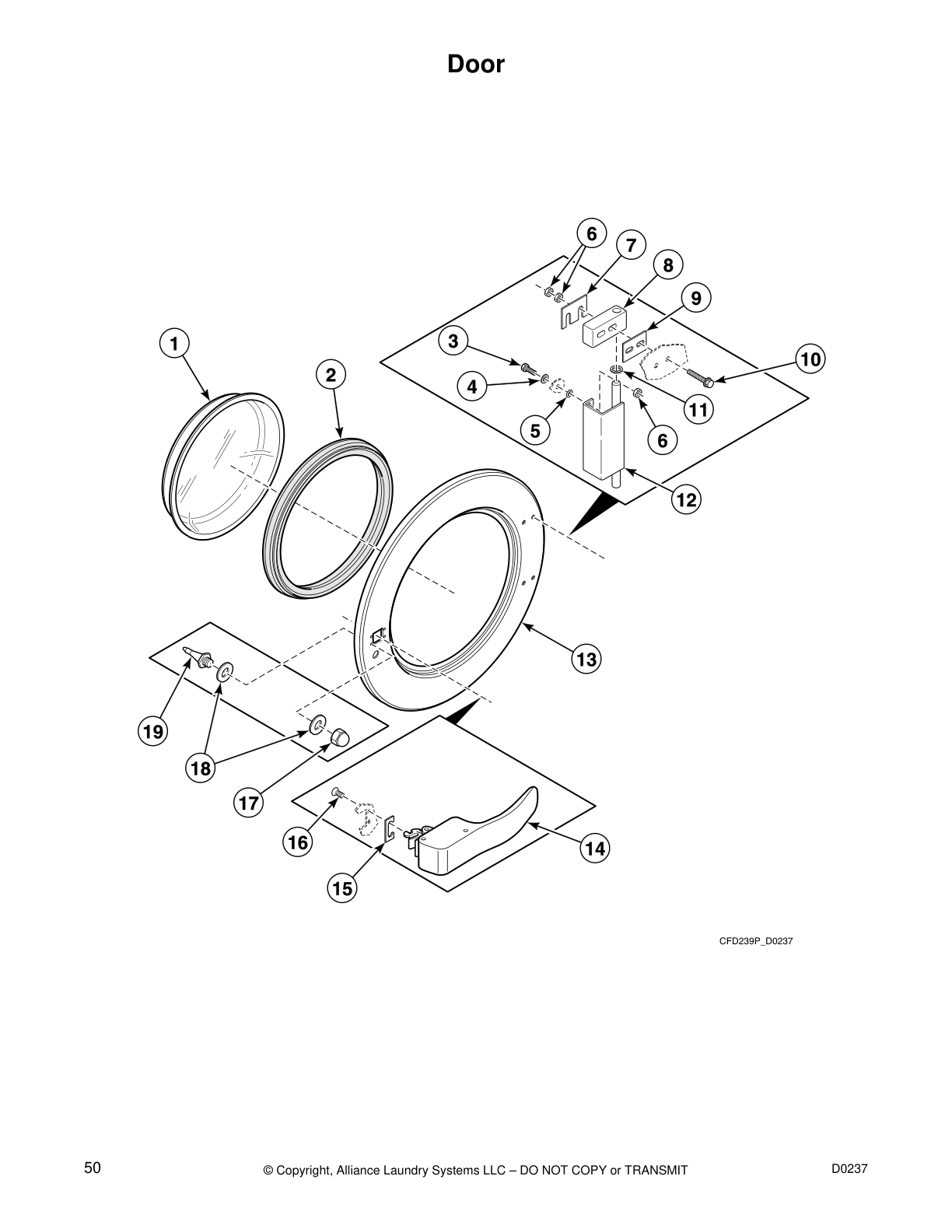

Door

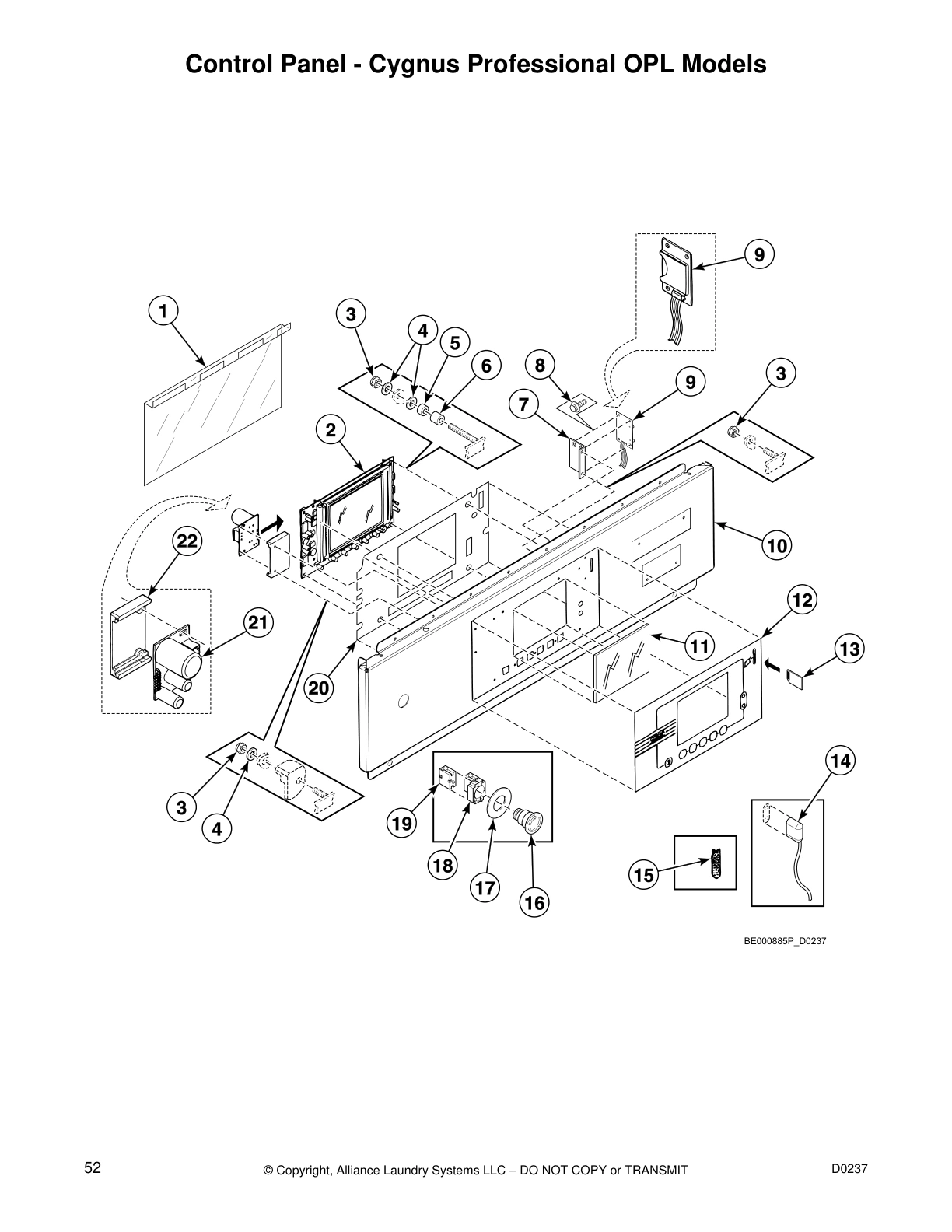

Control Panel - Cygnus Professional OPL Models

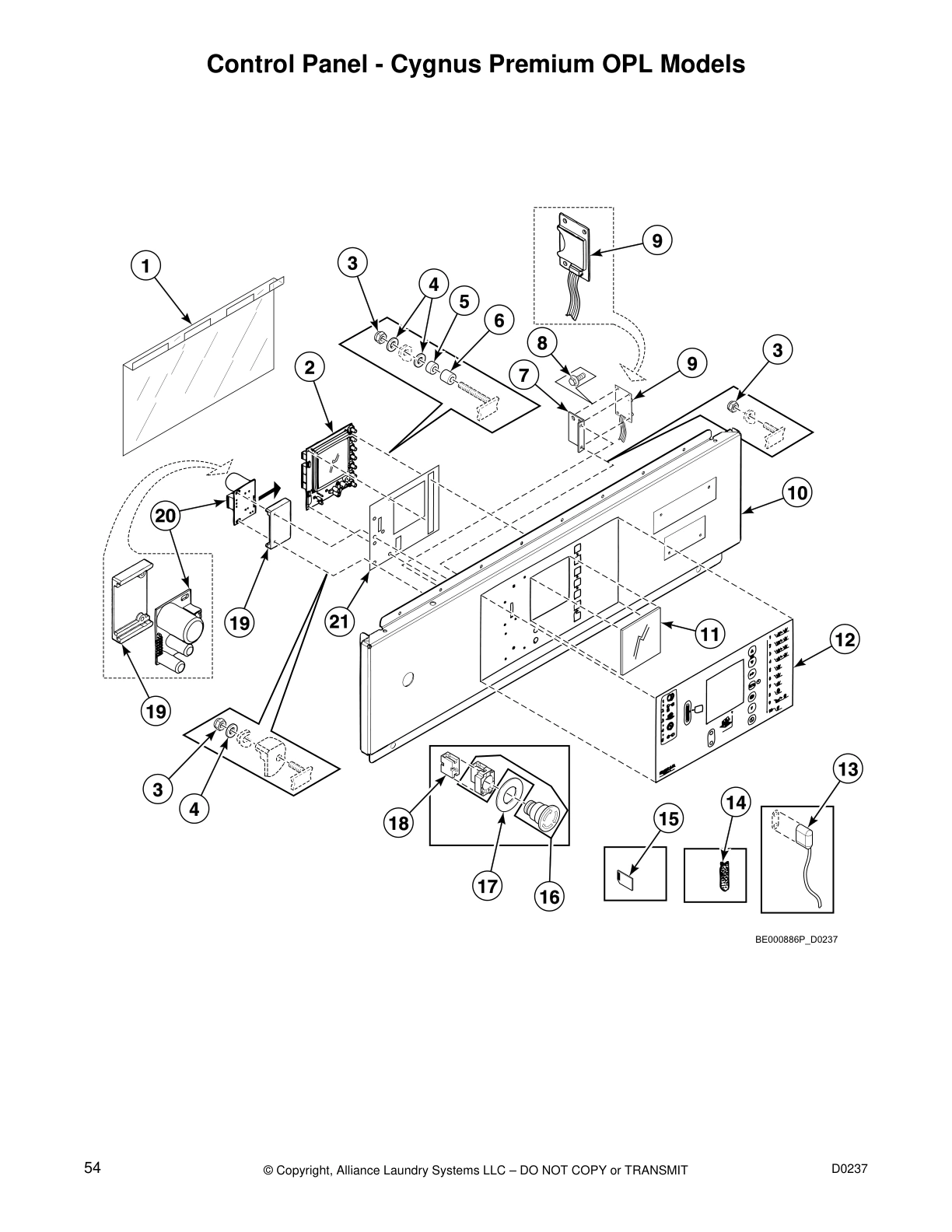

Control Panel - Cygnus Premium OPL Models

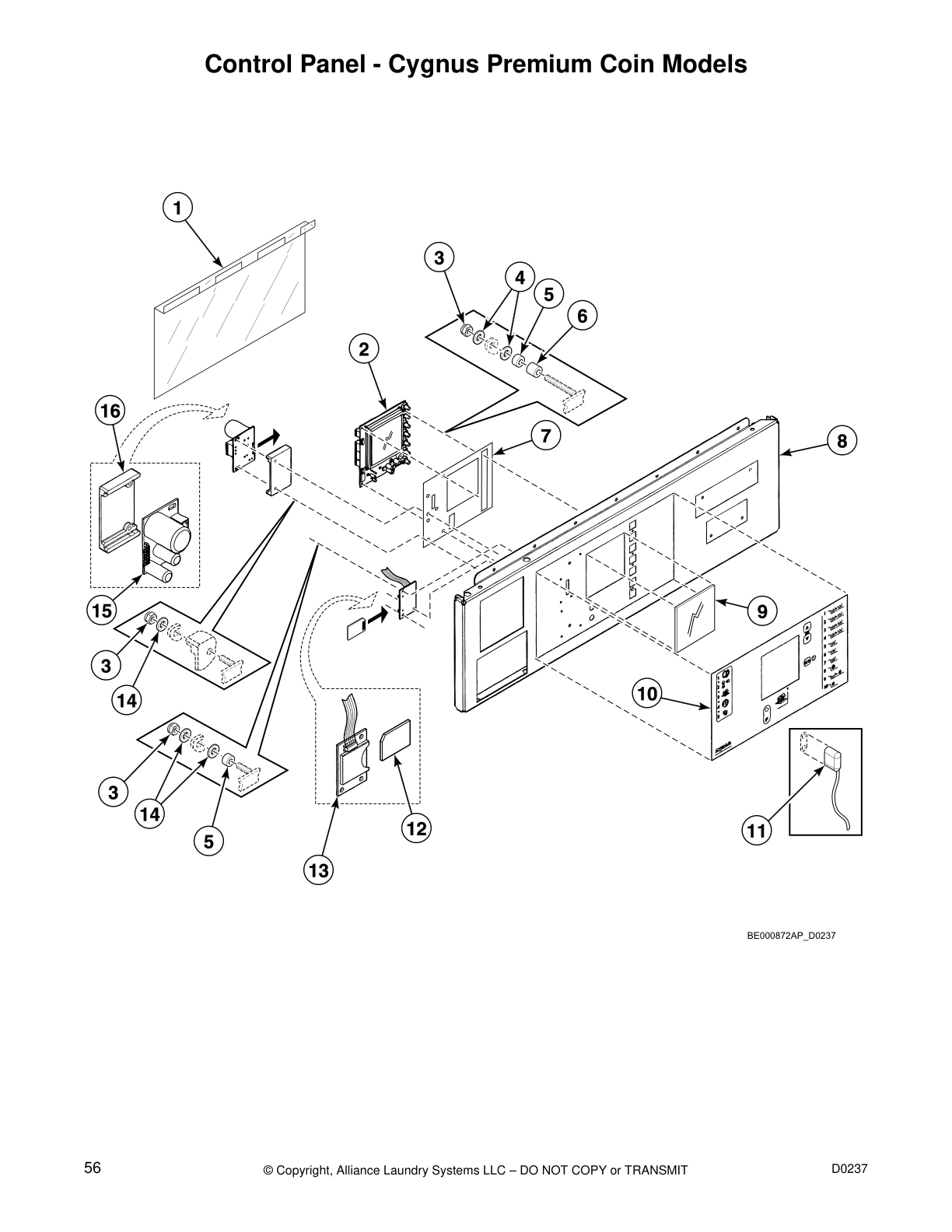

Control Panel - Cygnus Premium Coin Models

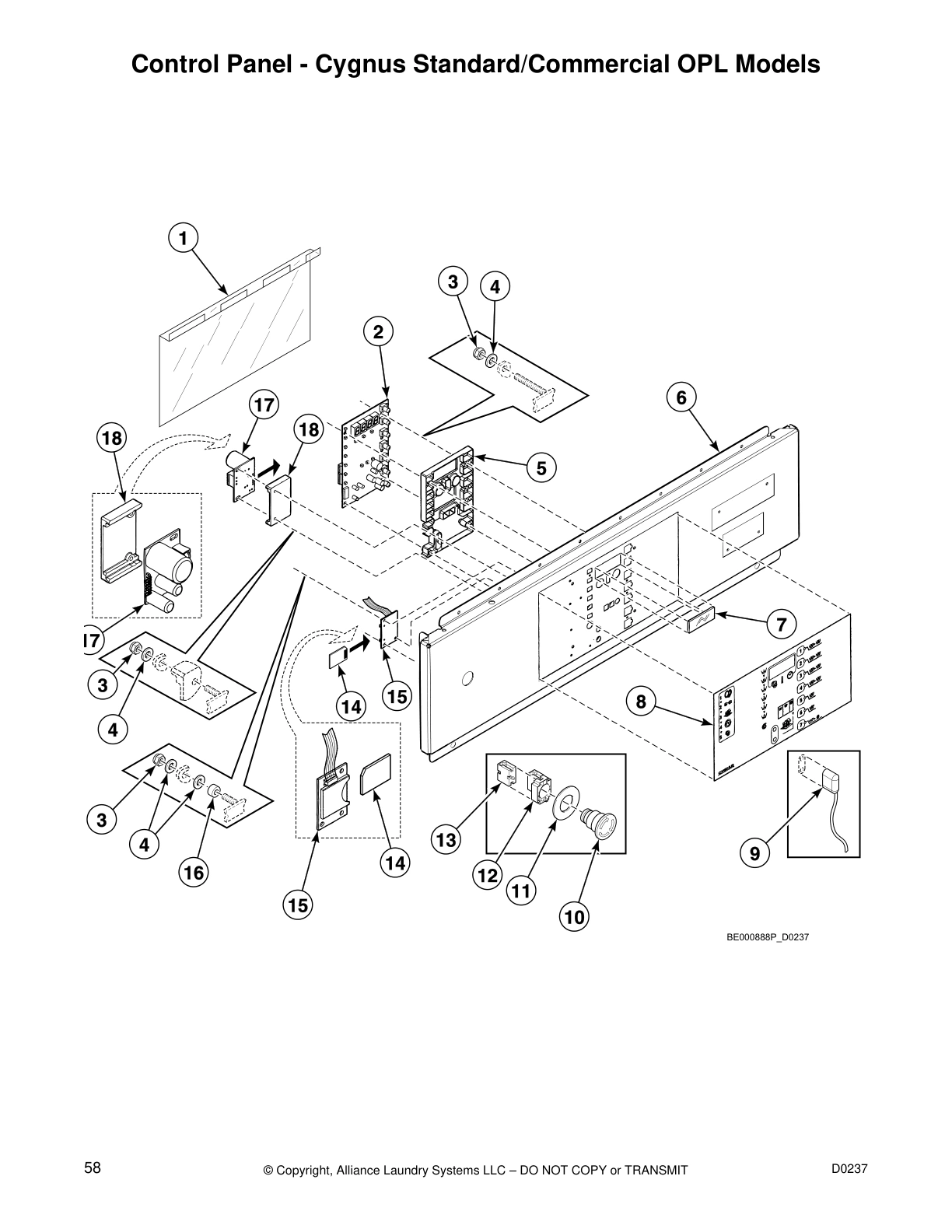

Control Panel - Cygnus Standard/Commercial OPL Models

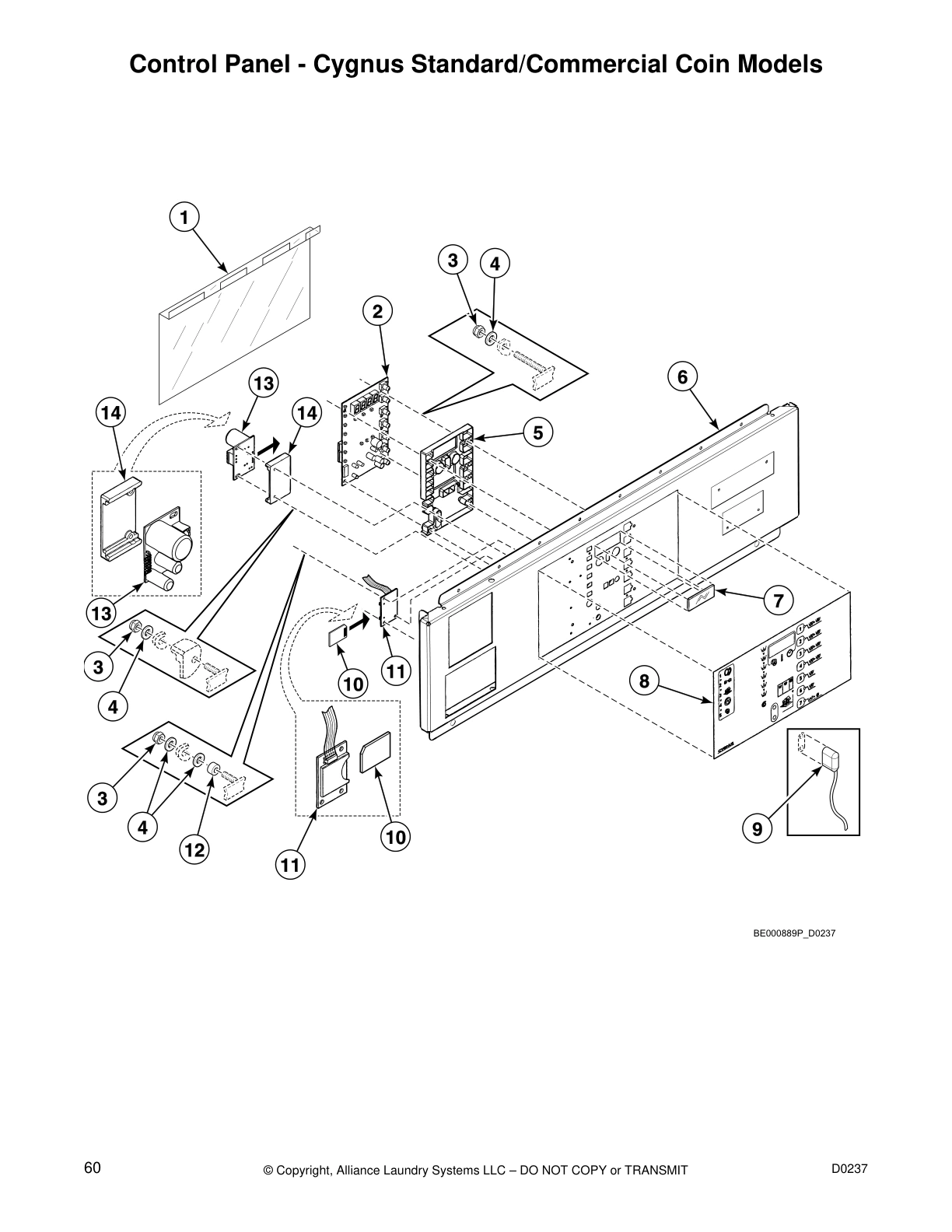

Control Panel - Cygnus Standard/Commercial Coin Models

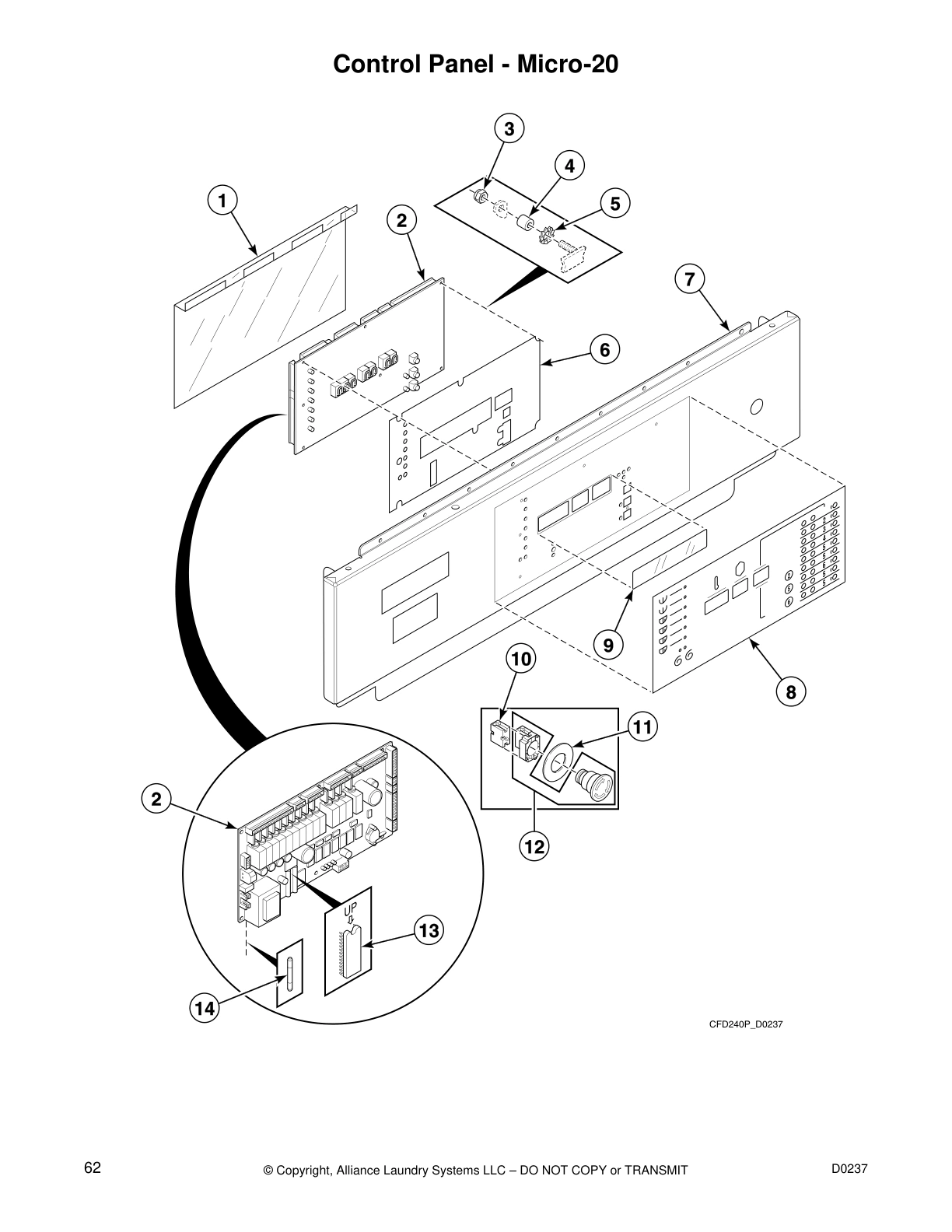

Control Panel - Micro-20

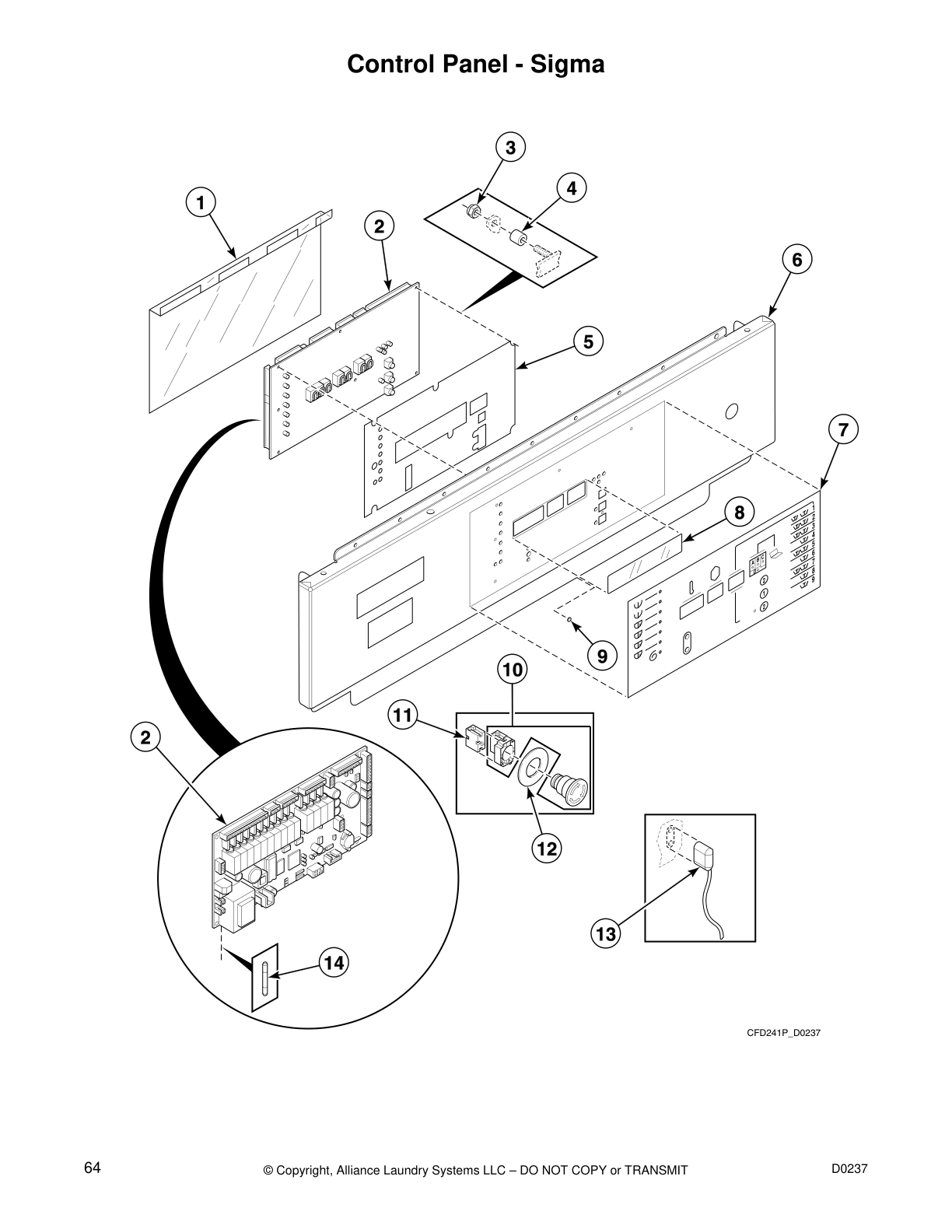

Control Panel - Sigma

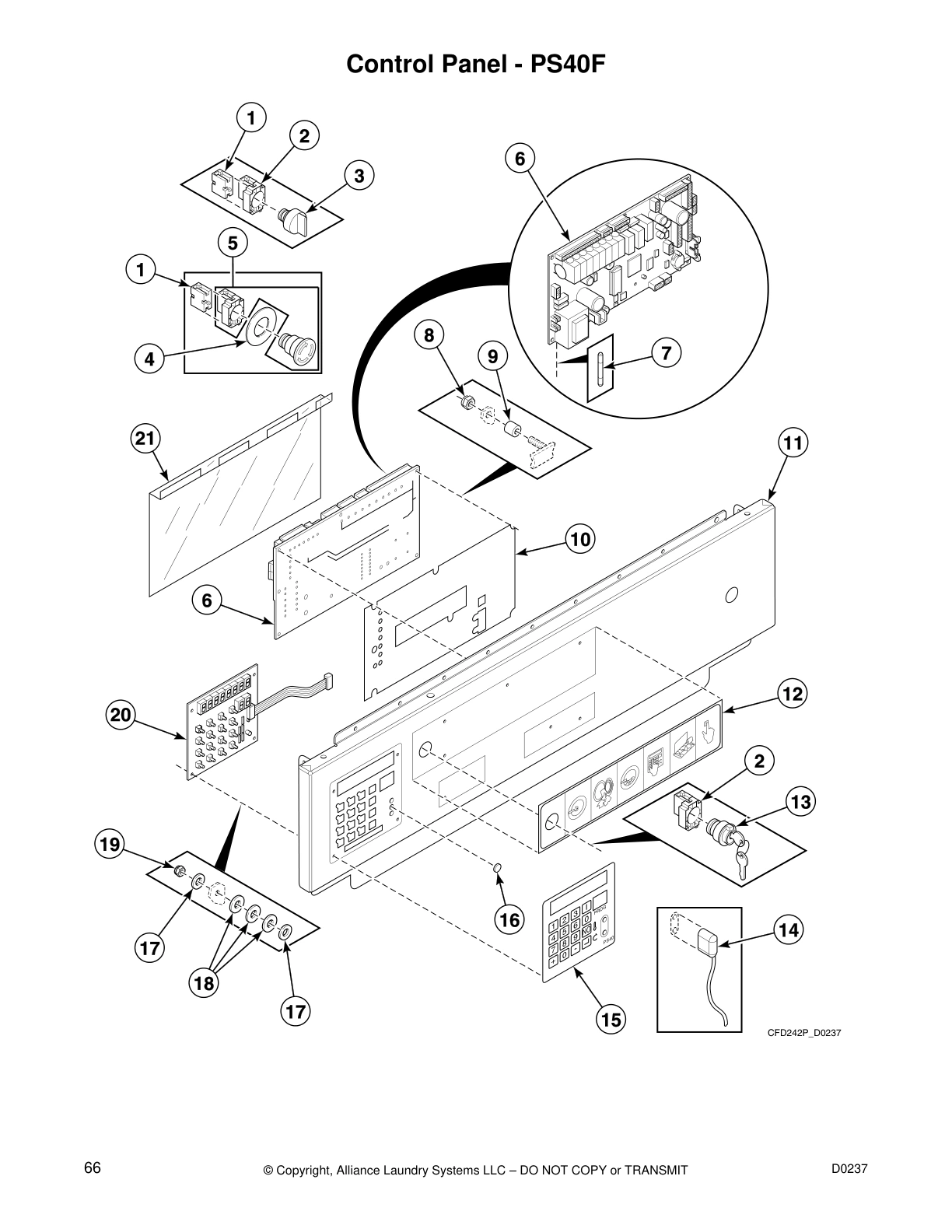

Control Panel - PS40F

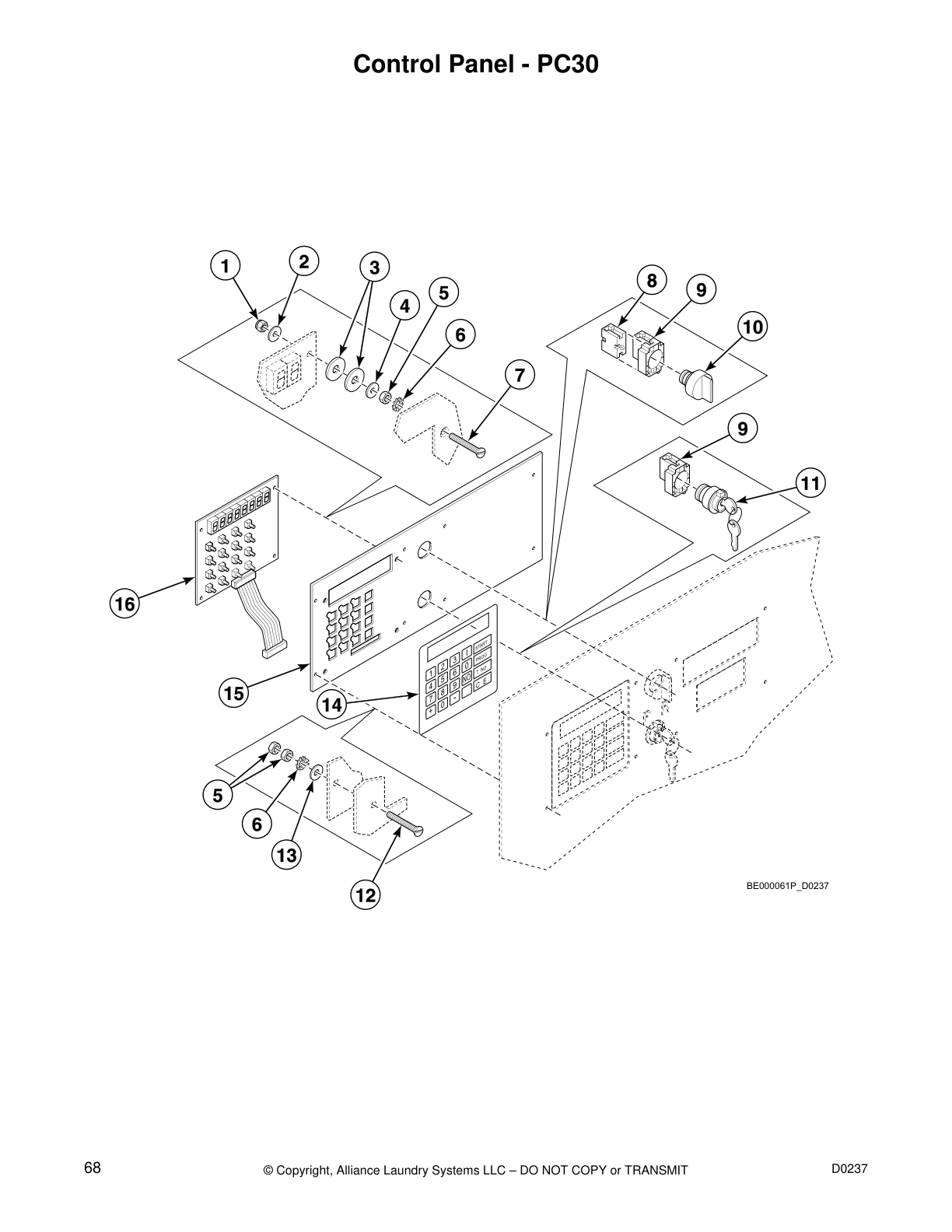

Control Panel - PC30

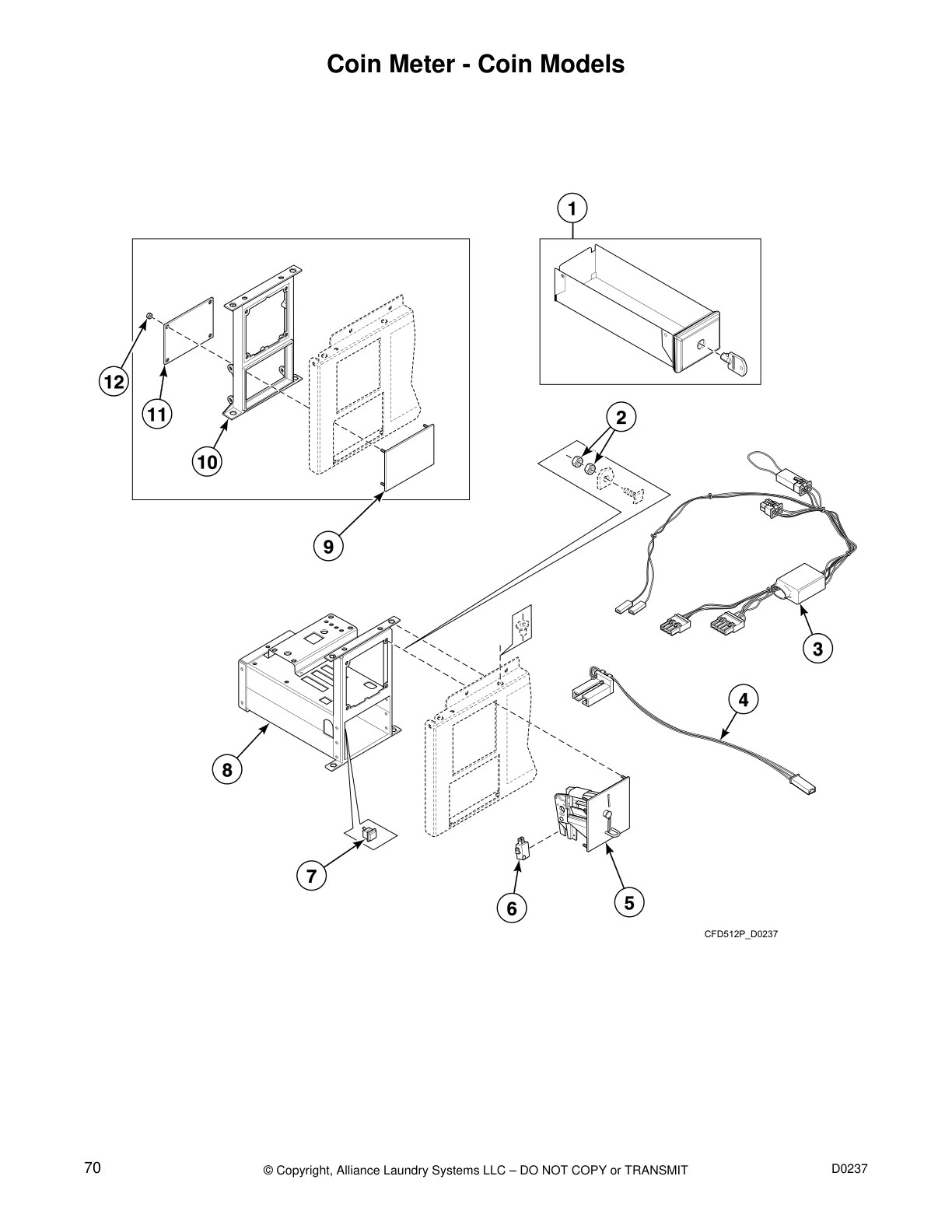

Coin Meter - Coin Models
Coin Drop - Electronic Coin Meter

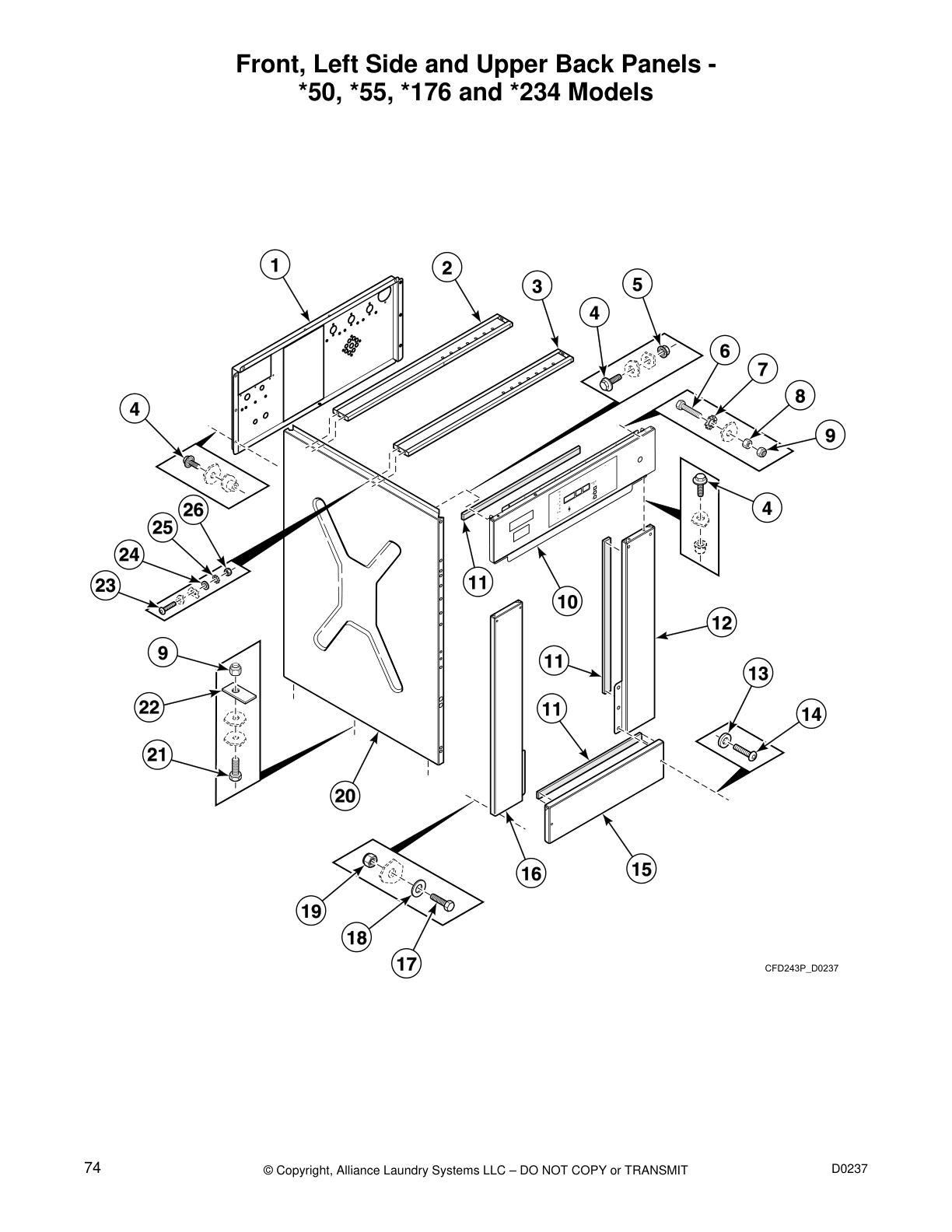

Front, Left Side and Upper Back Panels -
*50, *55, *176 and *234 Models

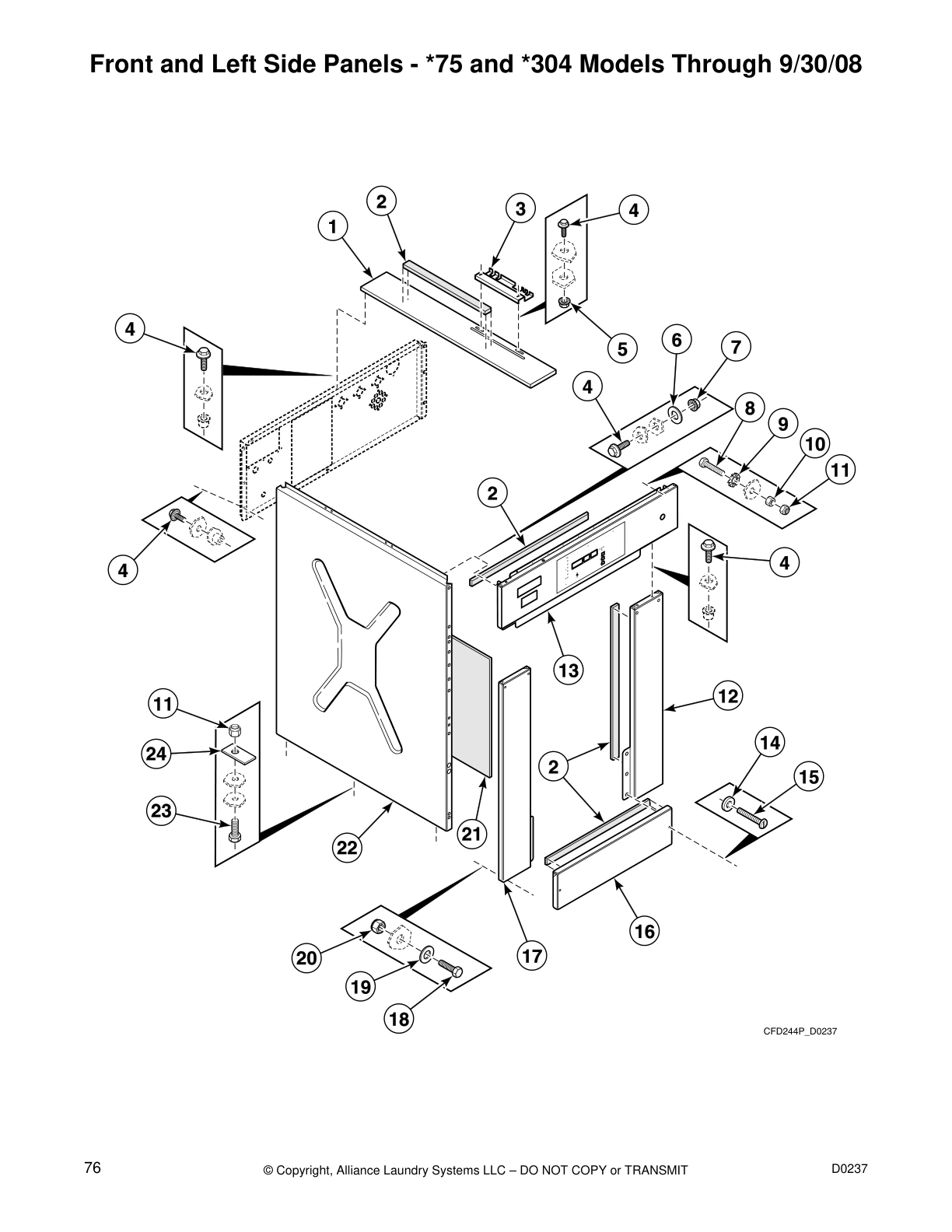

Front and Left Side Panels - *75 and *304 Models Through 9/30/08

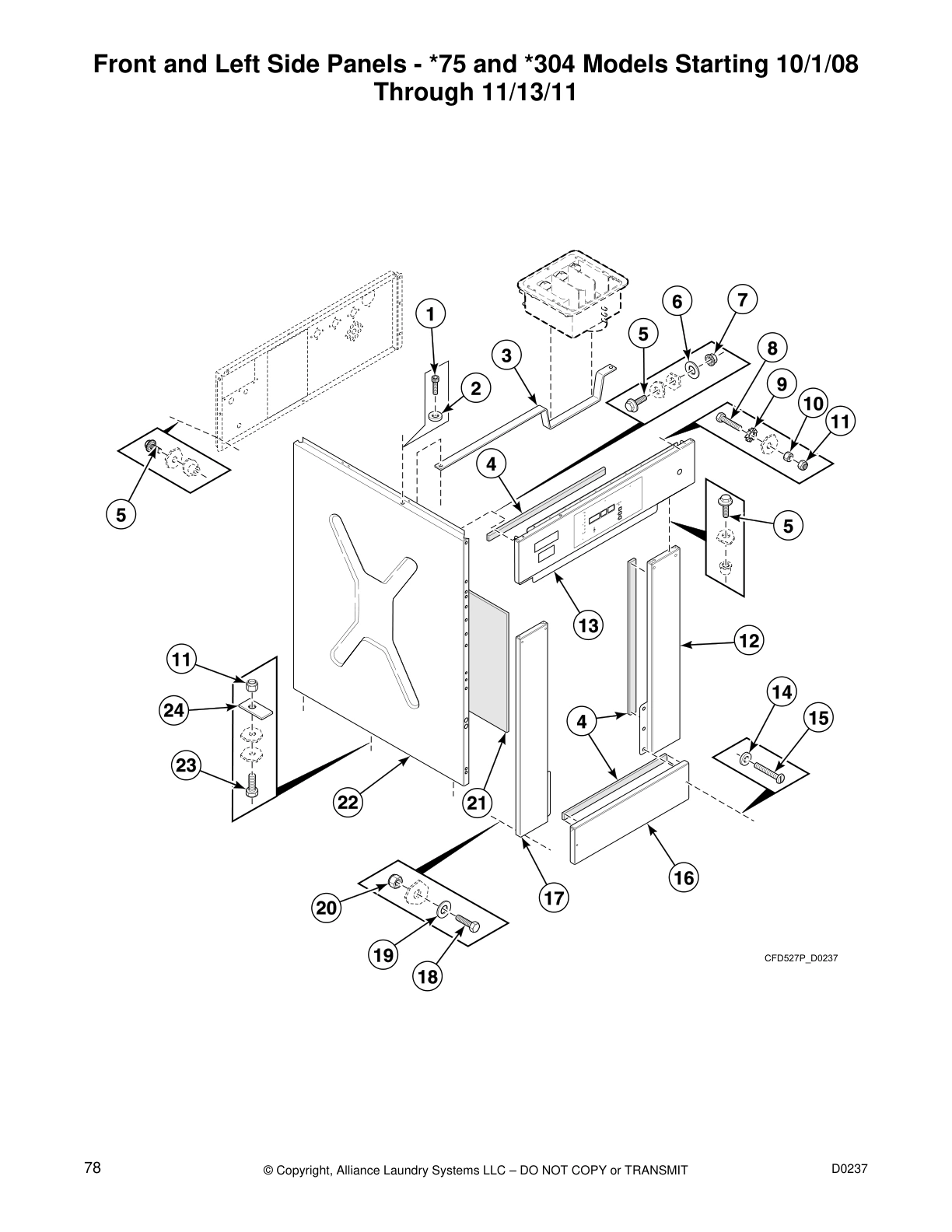

Front and Left Side Panels - *75 and *304 Models Starting 10/1/08
Through 11/13/11

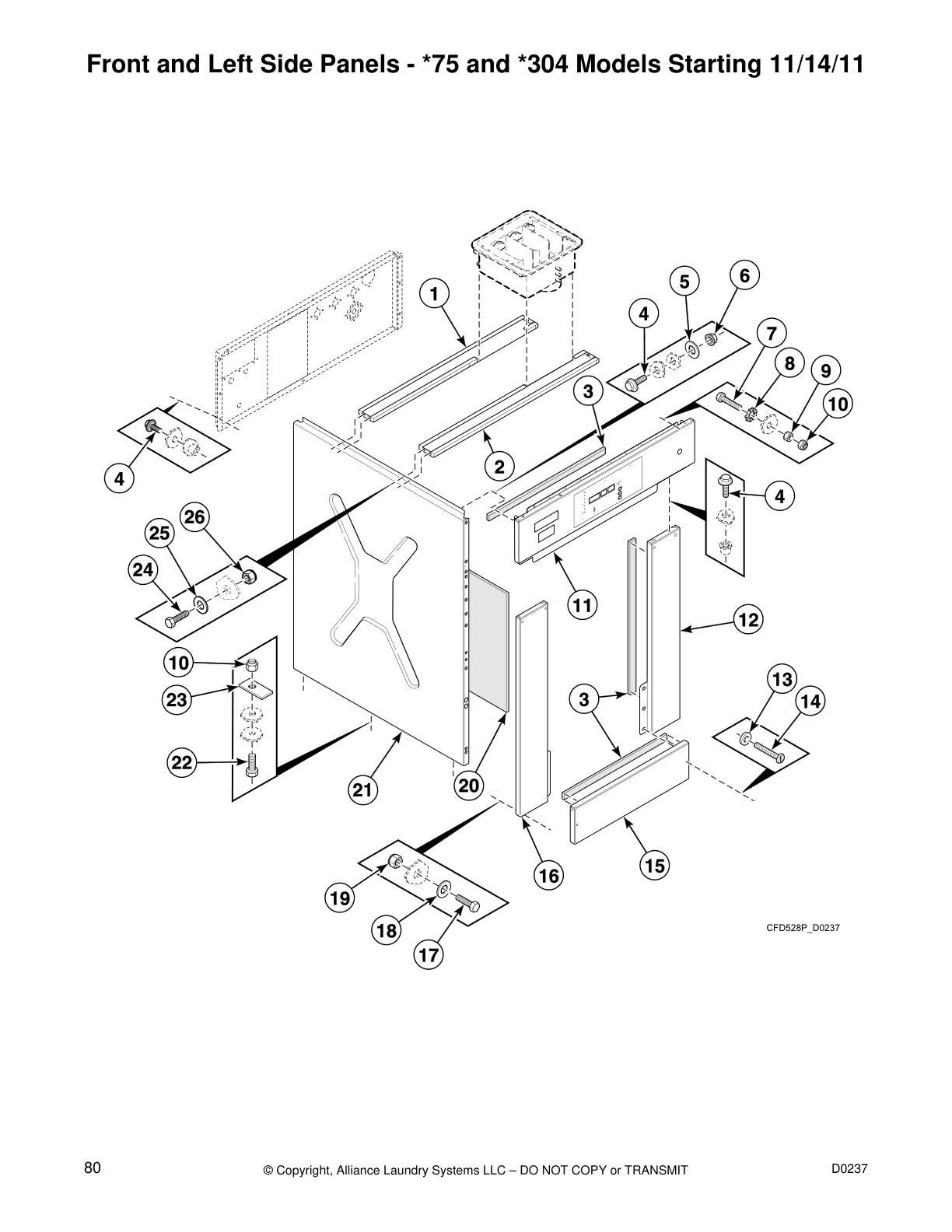

Front and Left Side Panels - *75 and *304 Models Starting 11/14/11

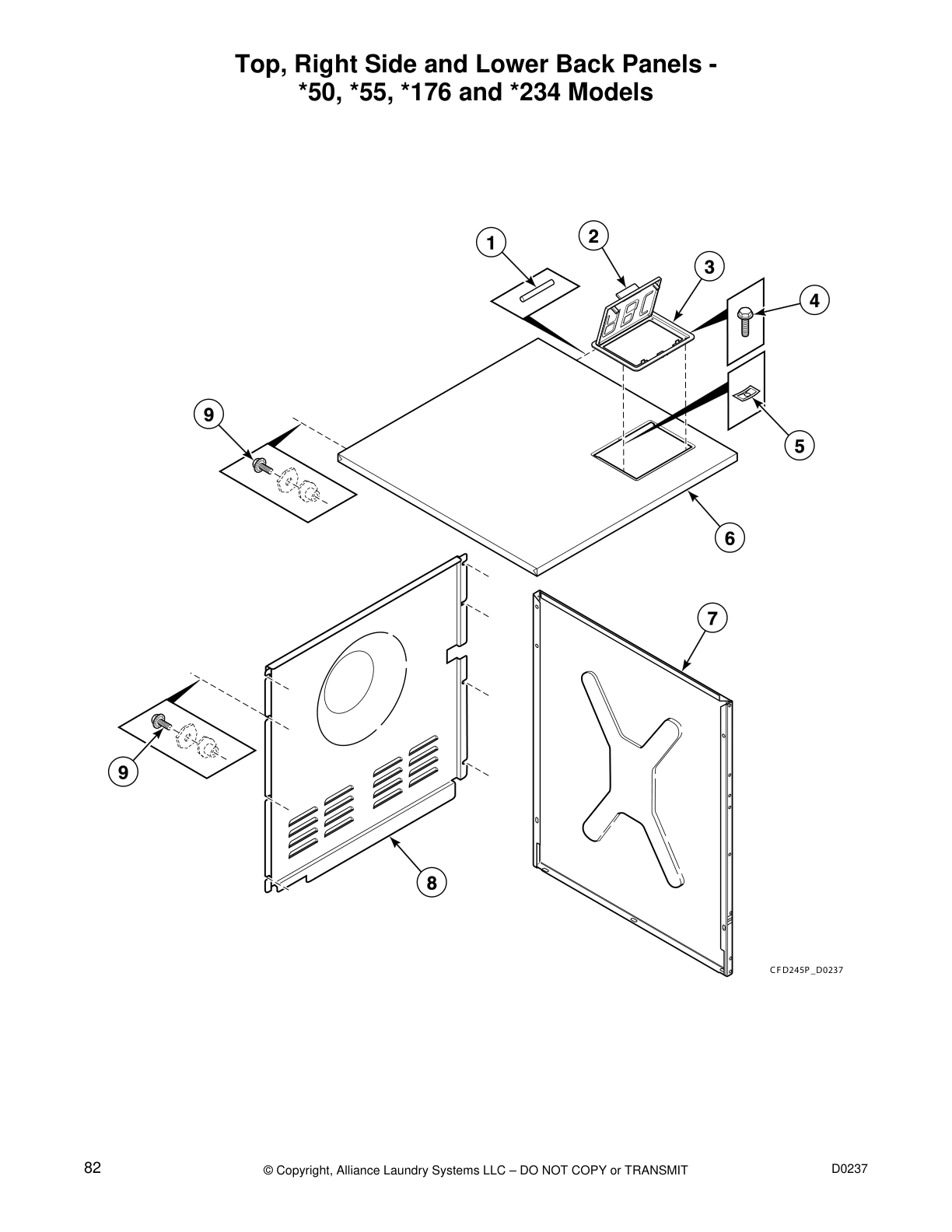

Top, Right Side and Lower Back Panels -
*50, *55, *176 and *234 Models

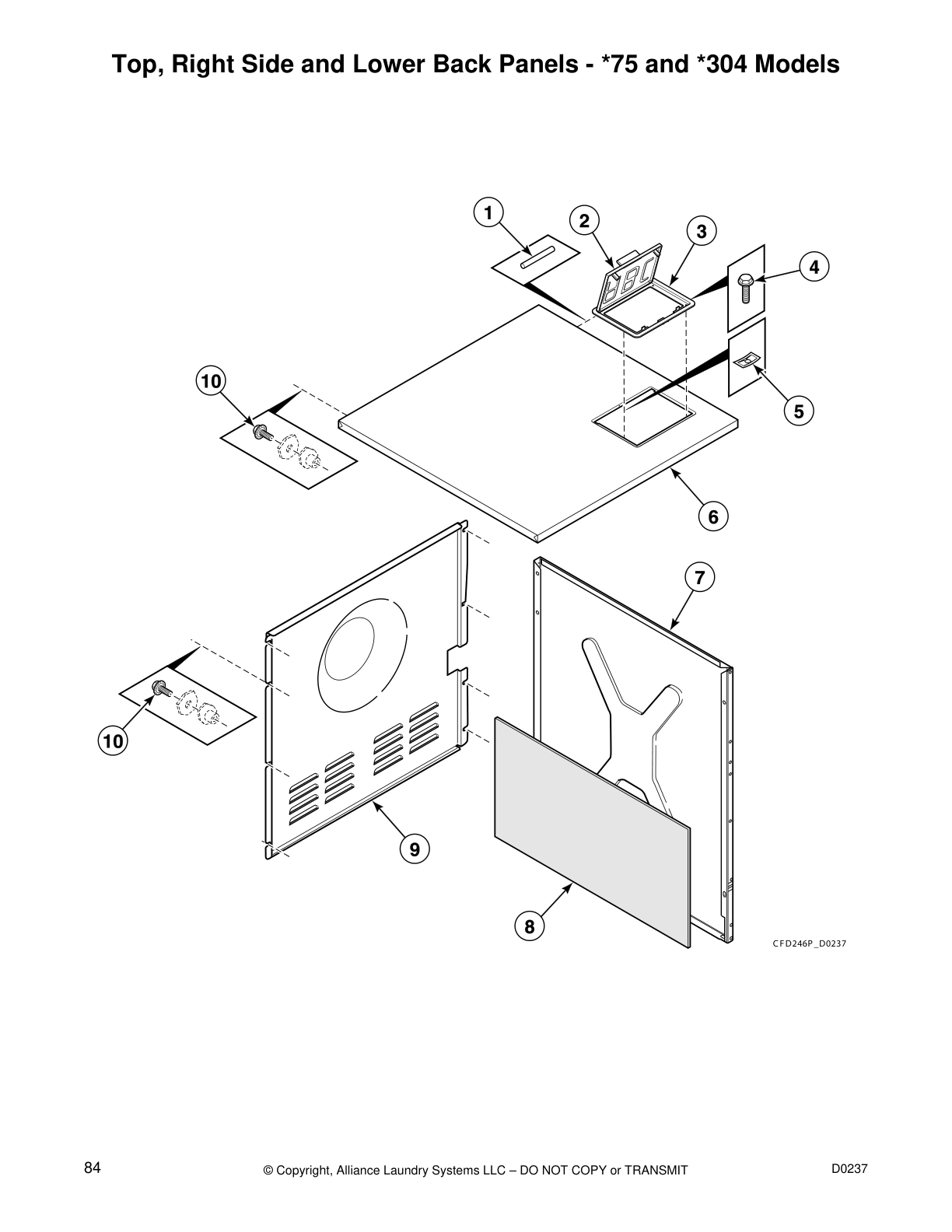

Top, Right Side and Lower Back Panels - *75 and *304 Models
Upper Back Panel - *50, *55, *176 and *234 Models (Drawing 1 of 3)
Upper Back Panel - *50, *55, *176 and *234 Models (Drawing 2 of 3)

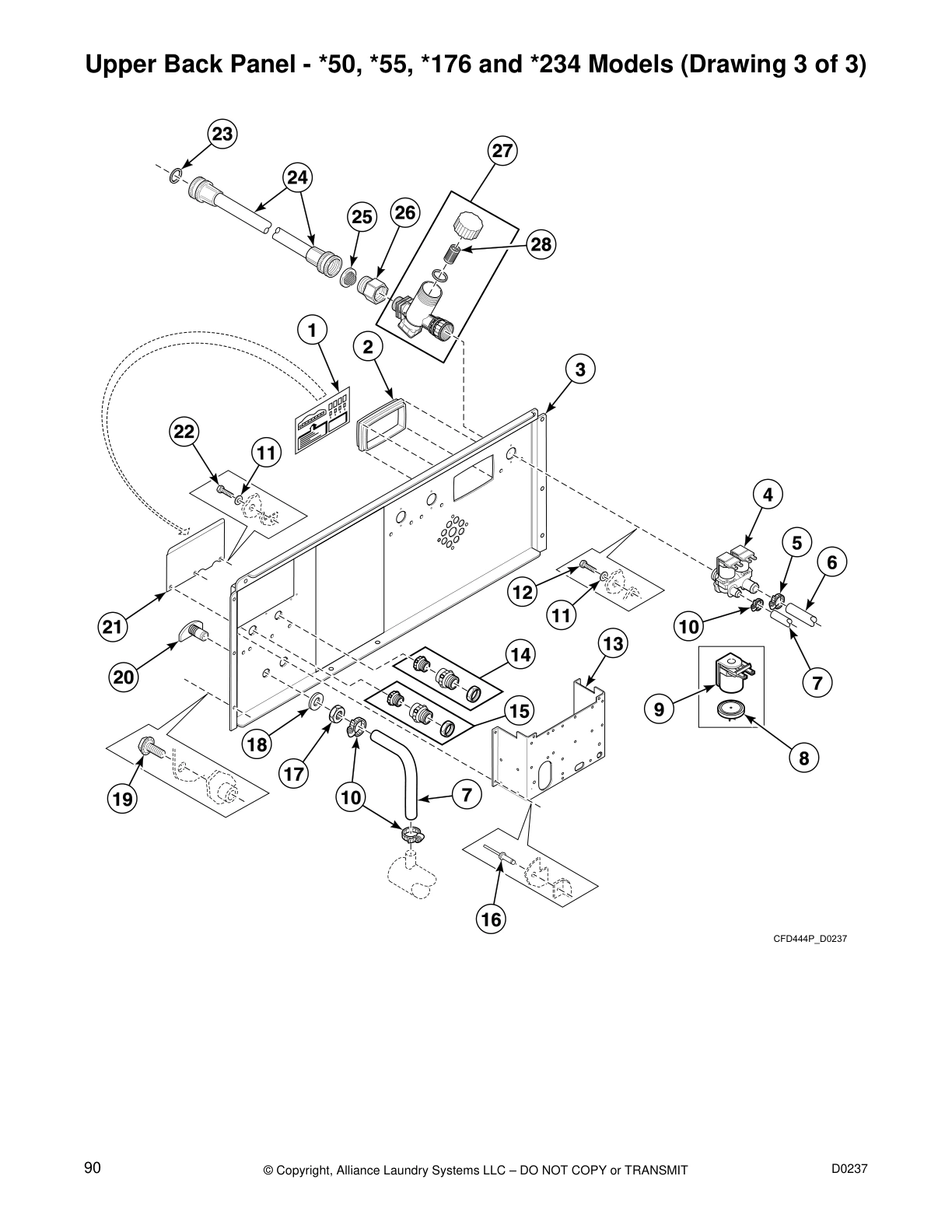

Upper Back Panel - *50, *55, *176 and *234 Models (Drawing 3 of 3)

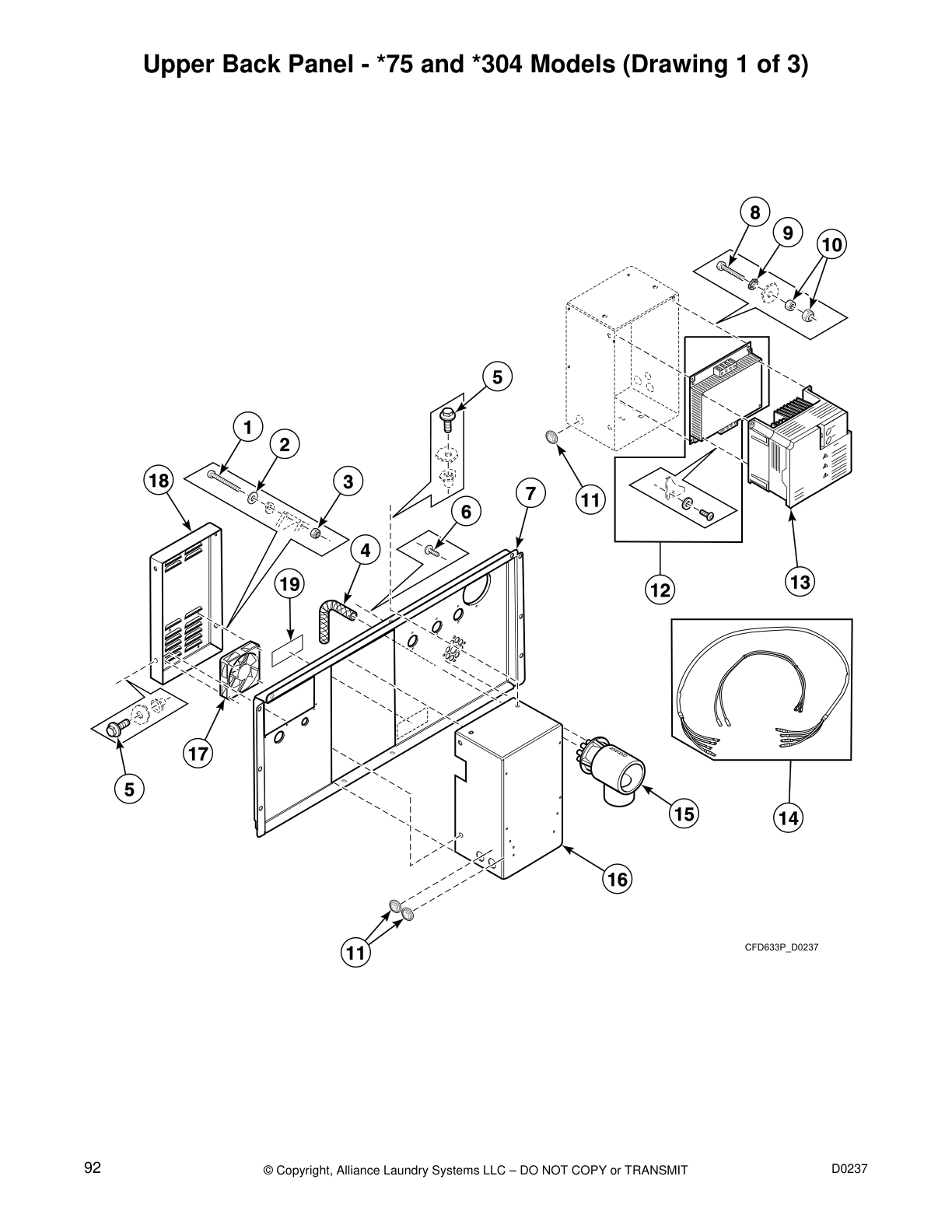

Upper Back Panel - *75 and *304 Models (Drawing 1 of 3)

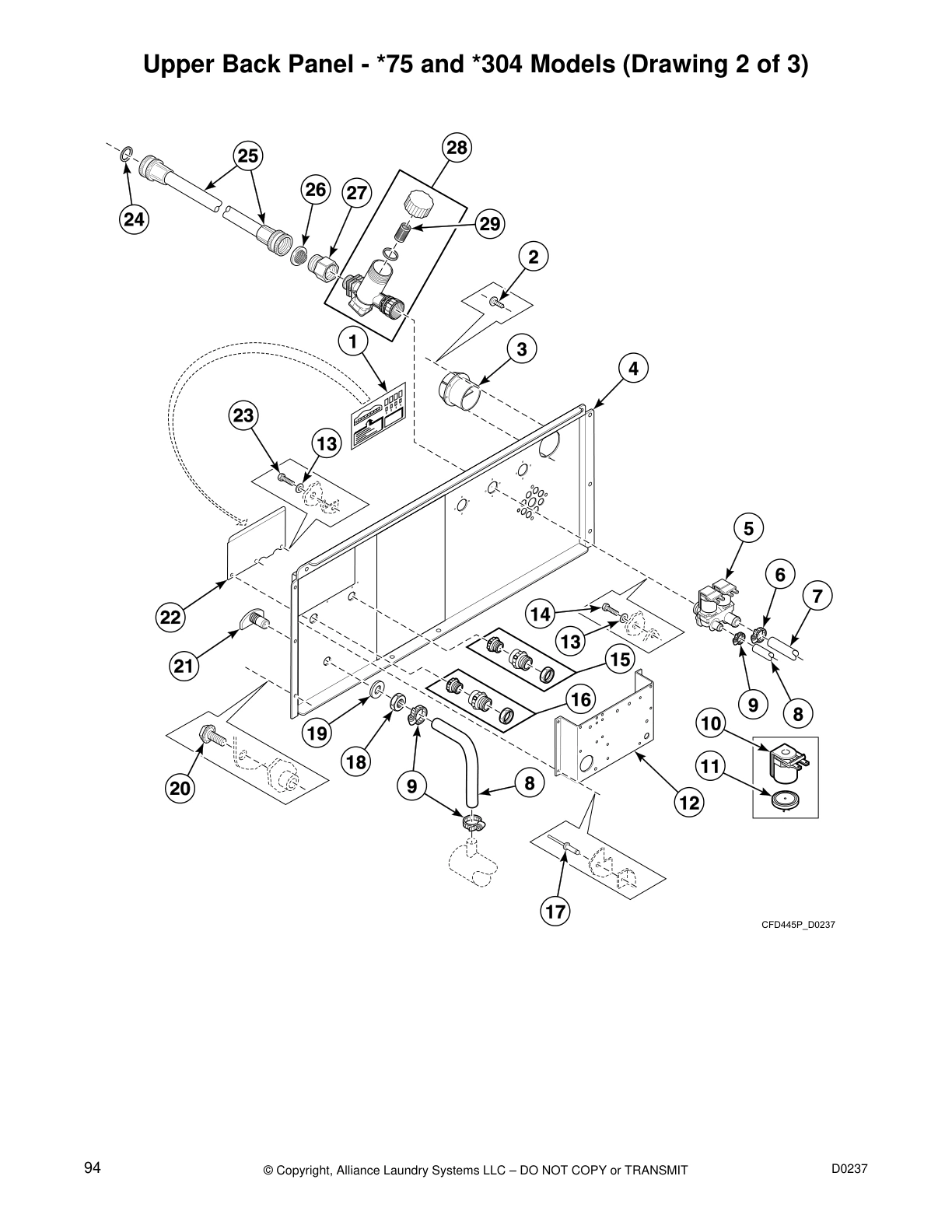

Upper Back Panel - *75 and *304 Models (Drawing 2 of 3)

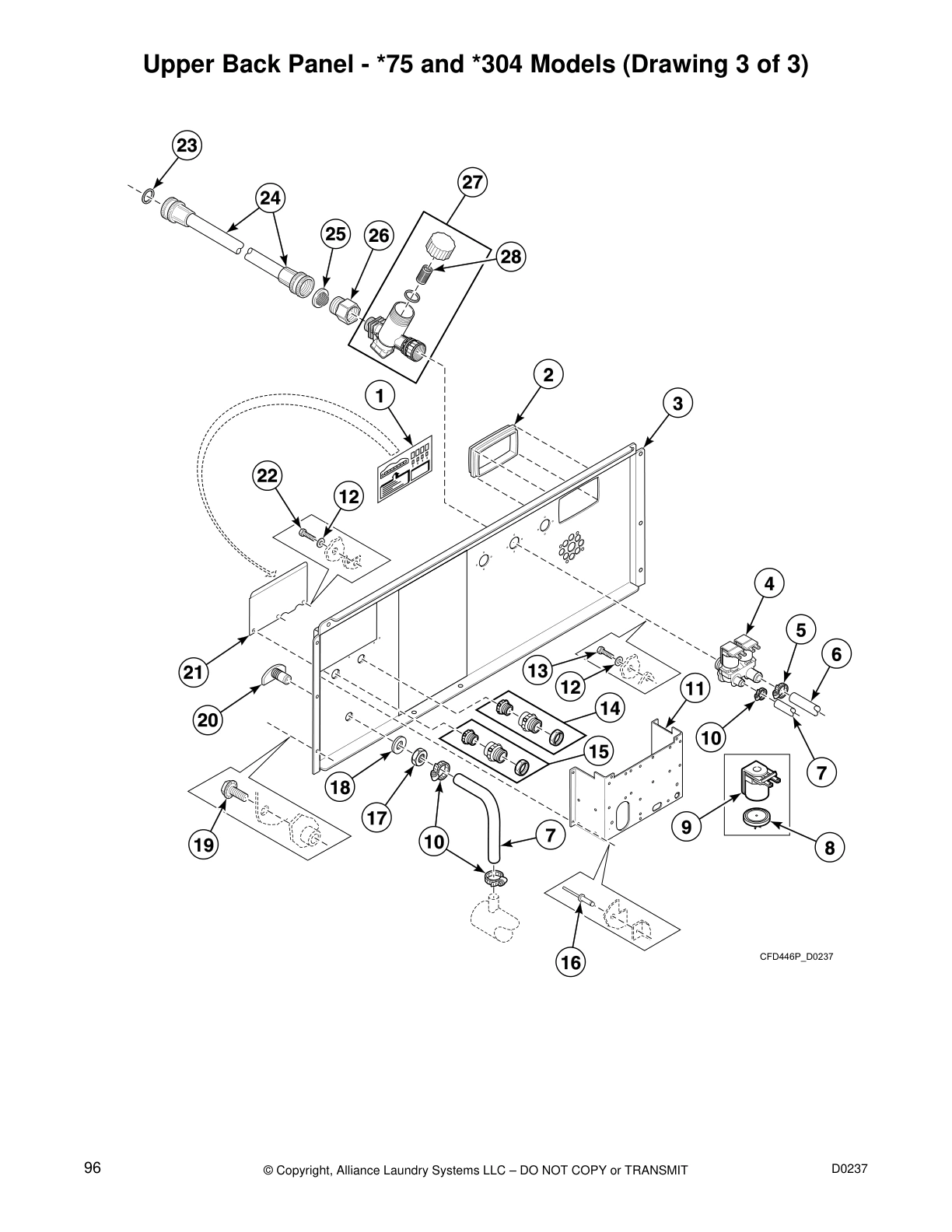

Upper Back Panel - *75 and *304 Models (Drawing 3 of 3)

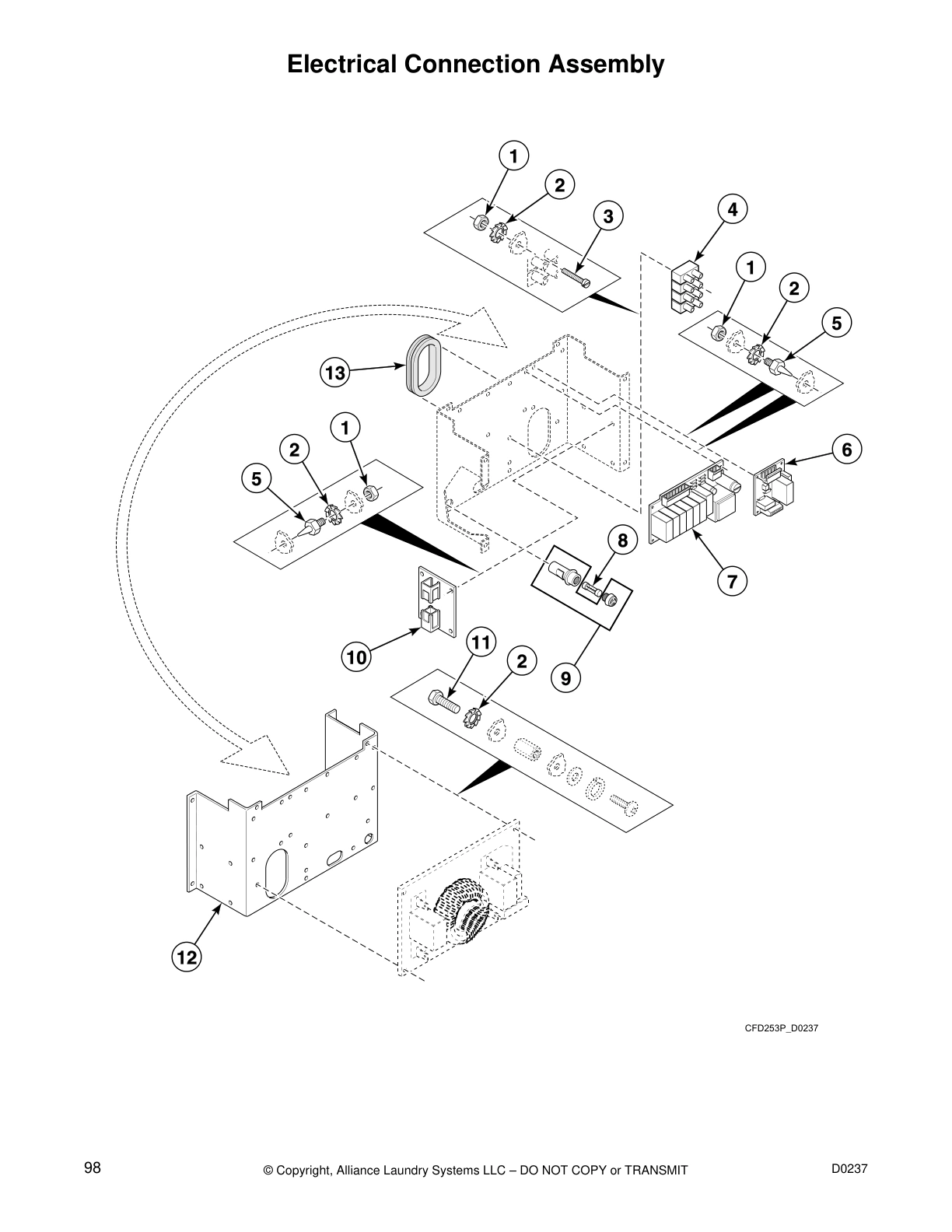

Electrical Connection Assembly

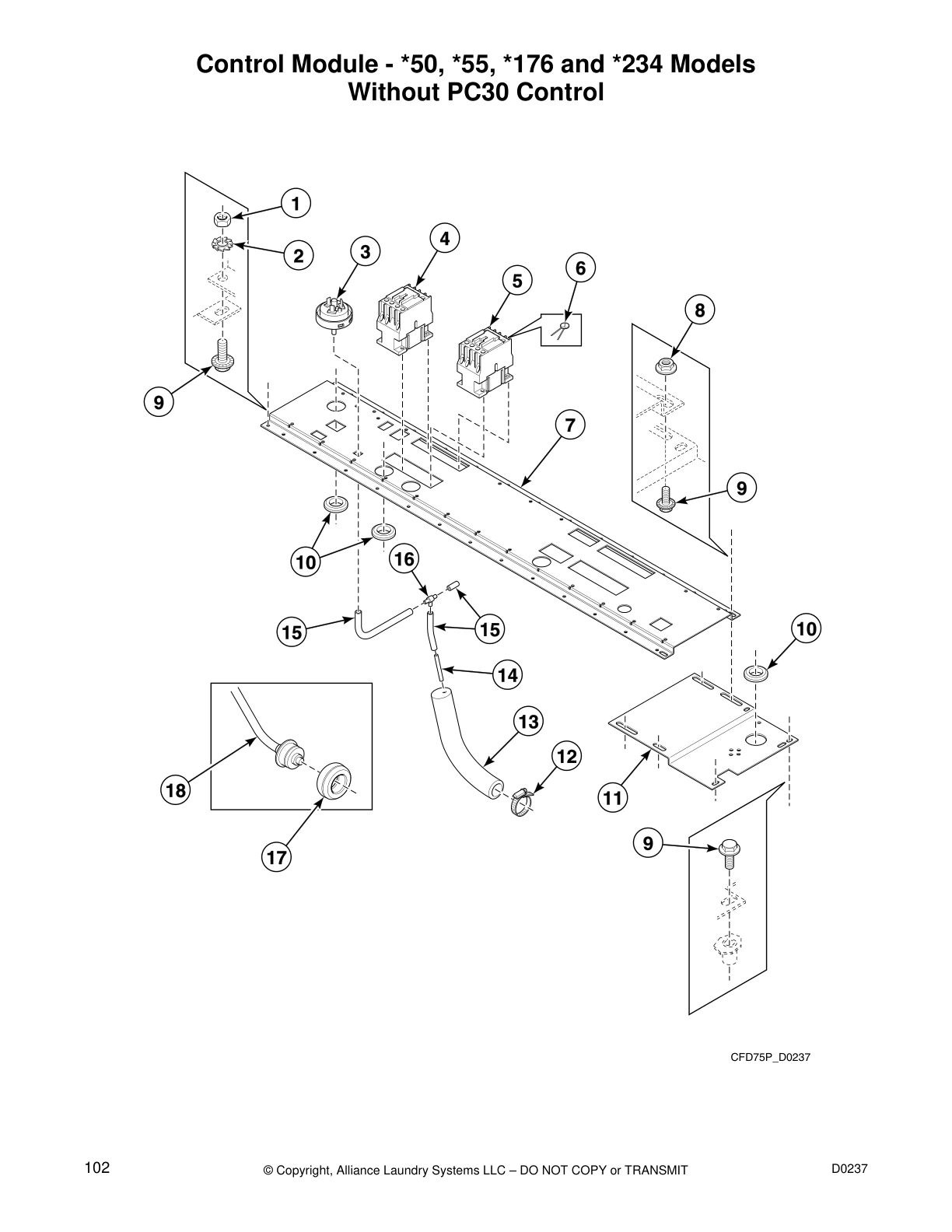

Control Module - *50, *55, *176 and *234 Models
Without PC30 Control

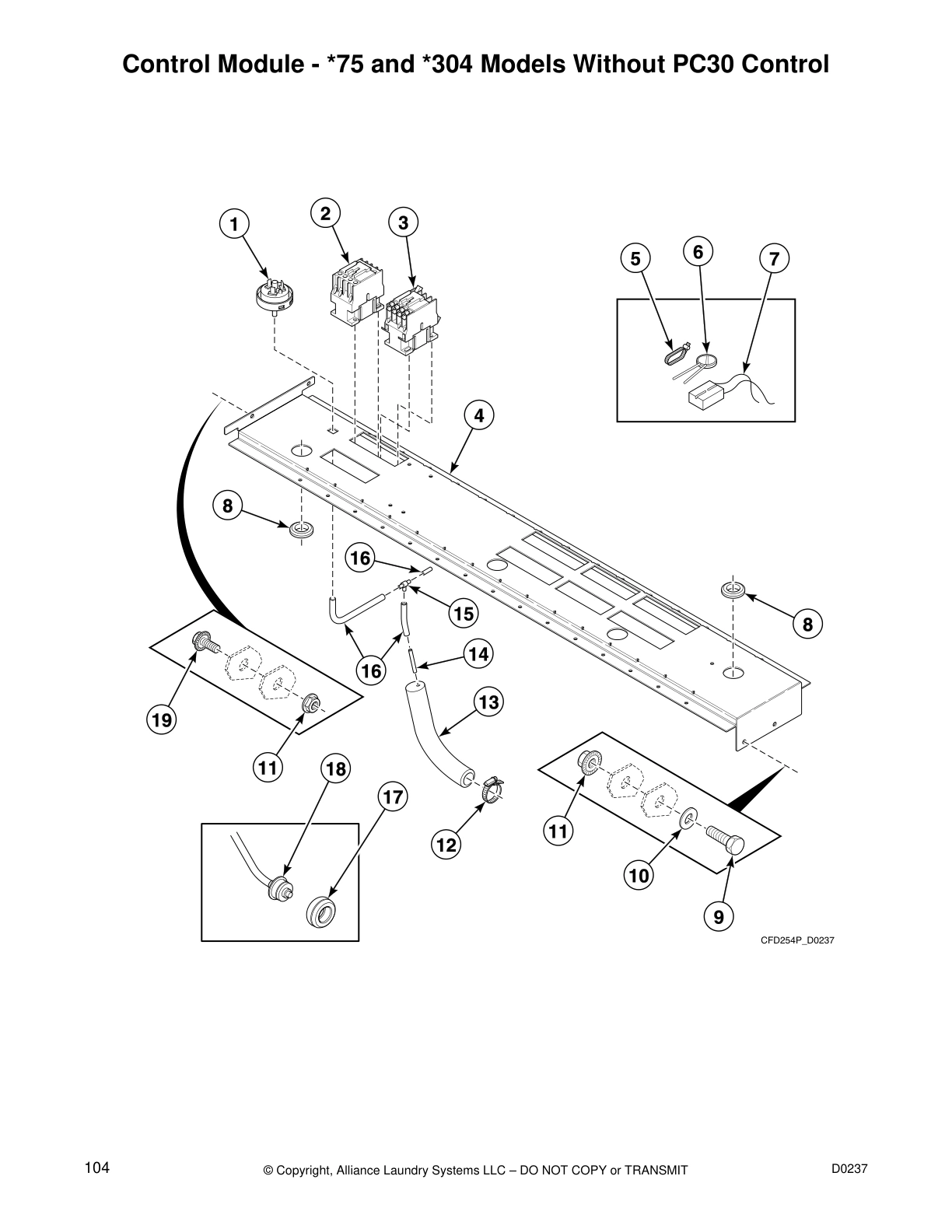

Control Module - *75 and *304 Models Without PC30 Control

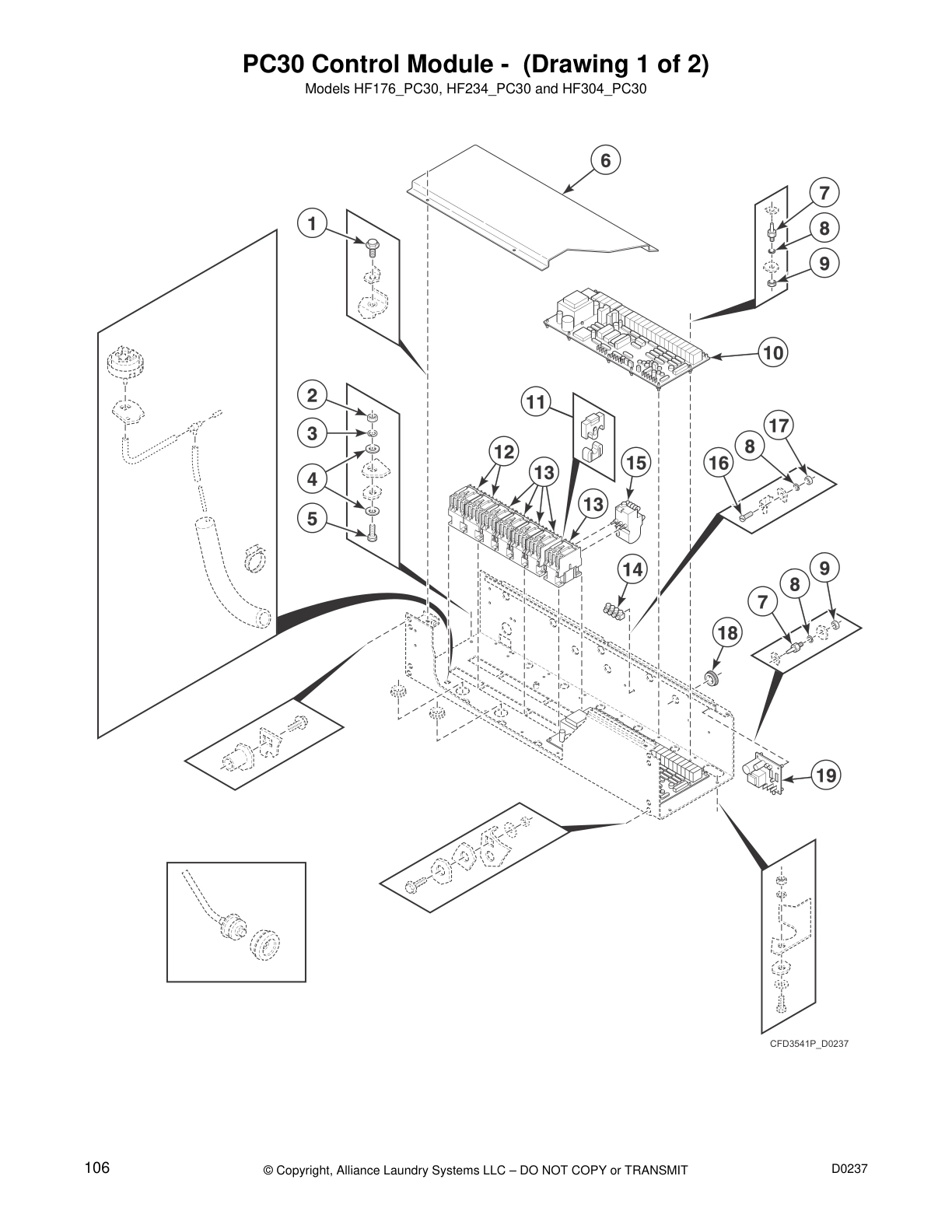

PC30 Control Module - (Drawing 1 of 2)

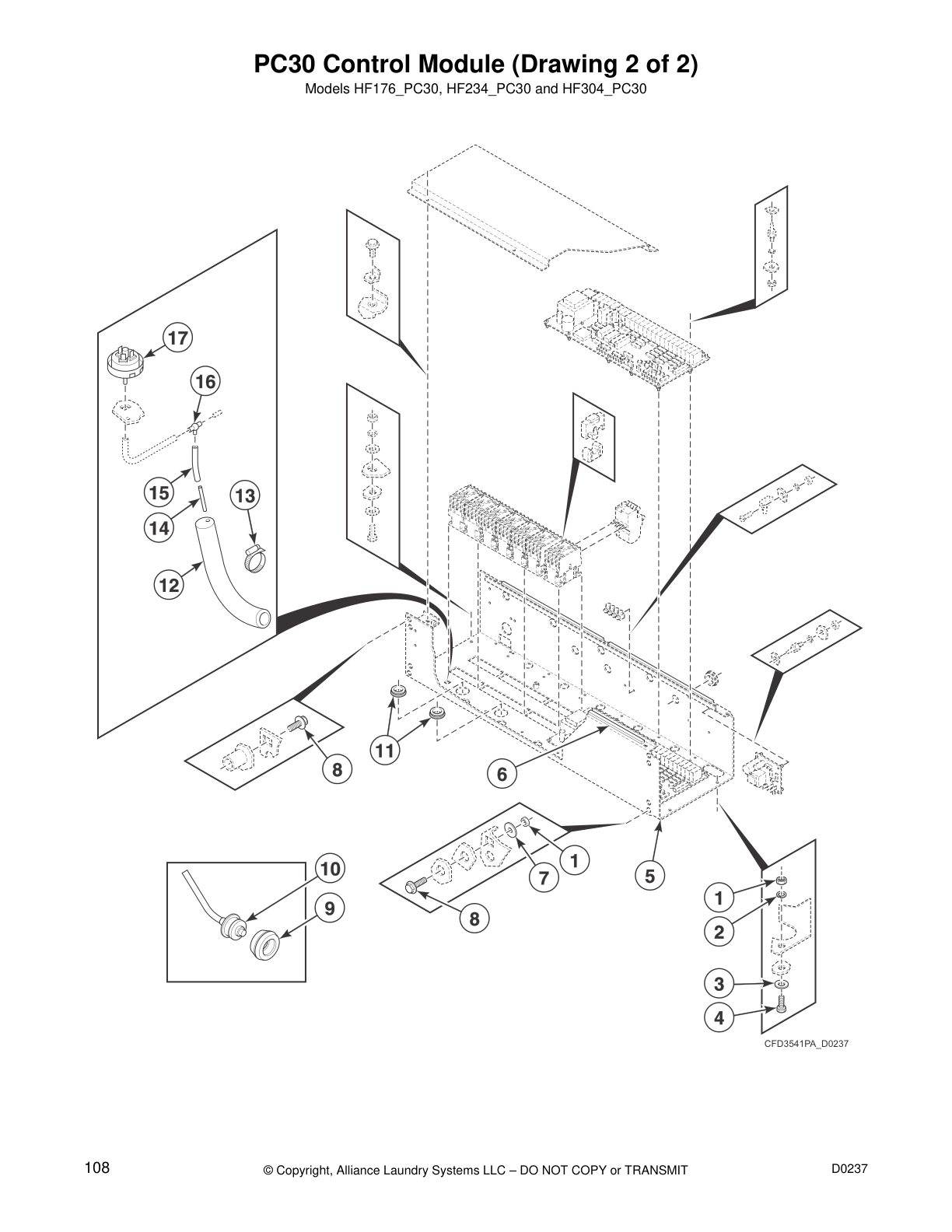

PC30 Control Module (Drawing 2 of 2)

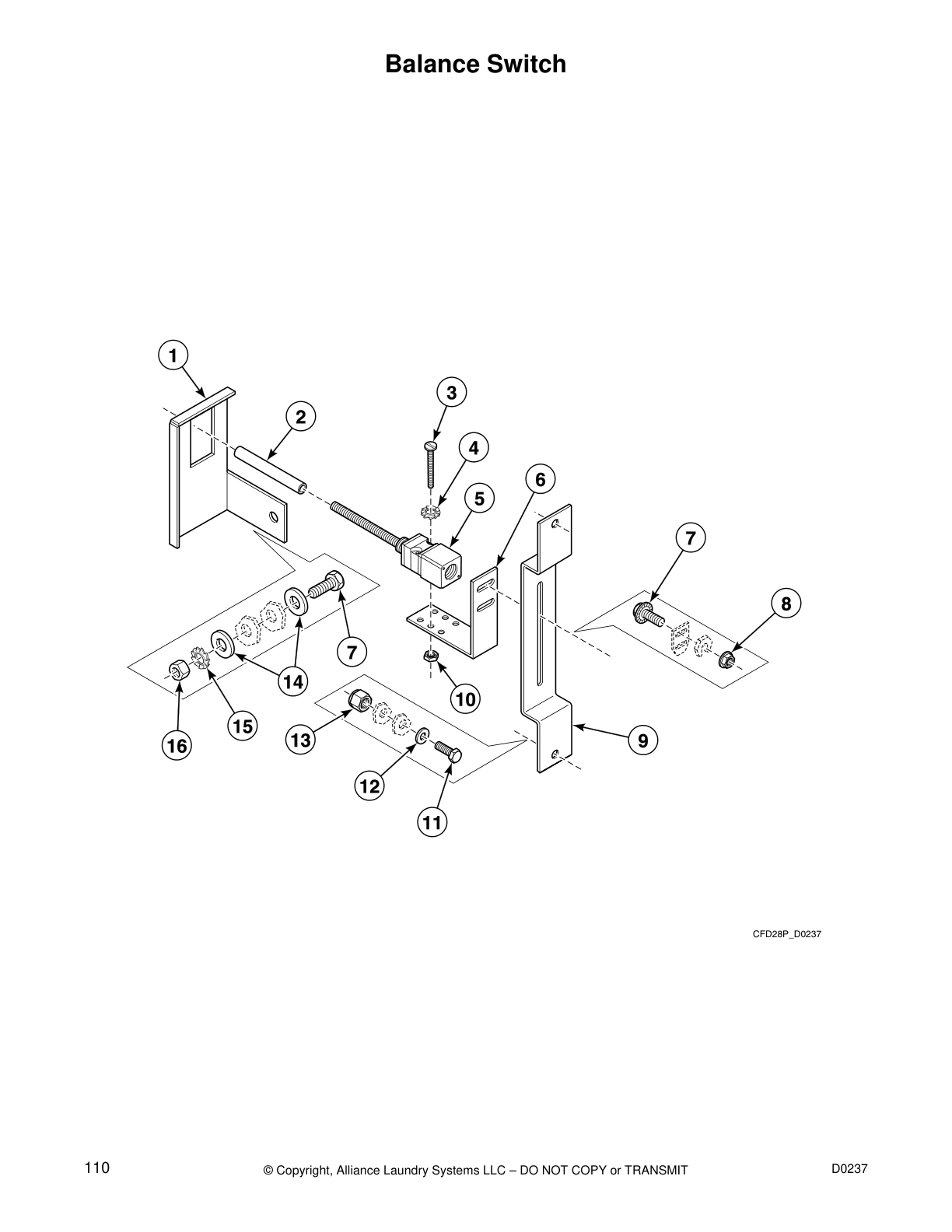

Balance Switch

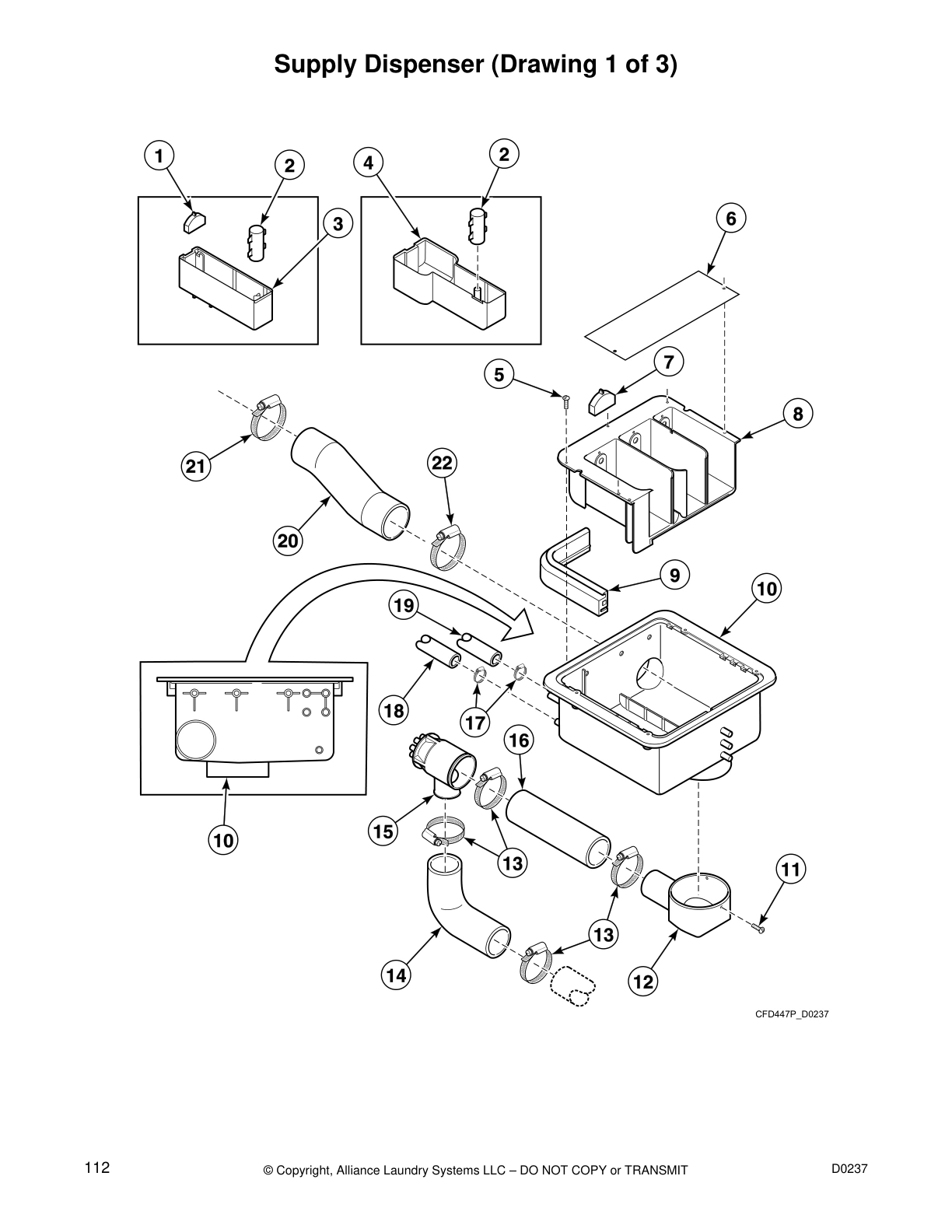

Supply Dispenser (Drawing 1 of 3)

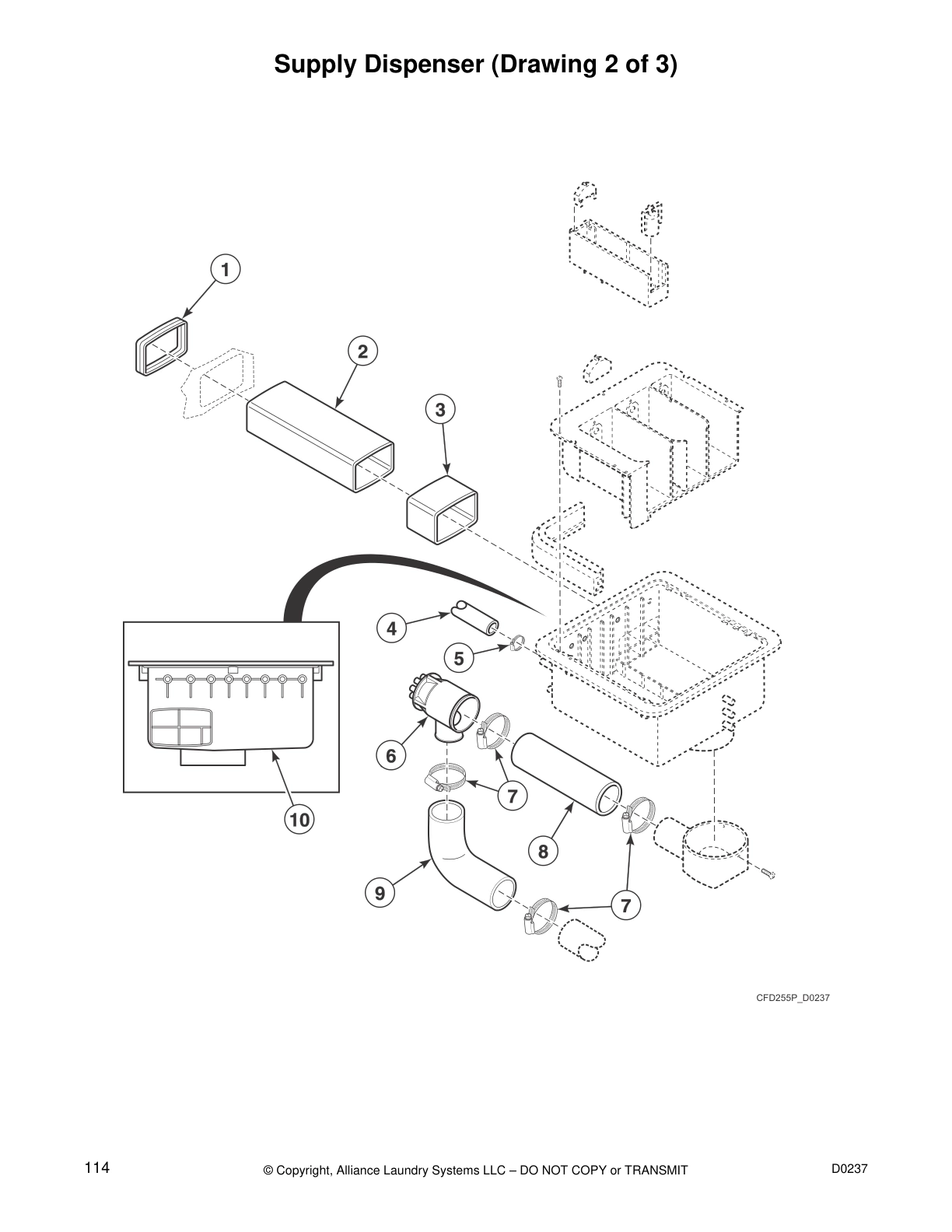

Supply Dispenser (Drawing 2 of 3)

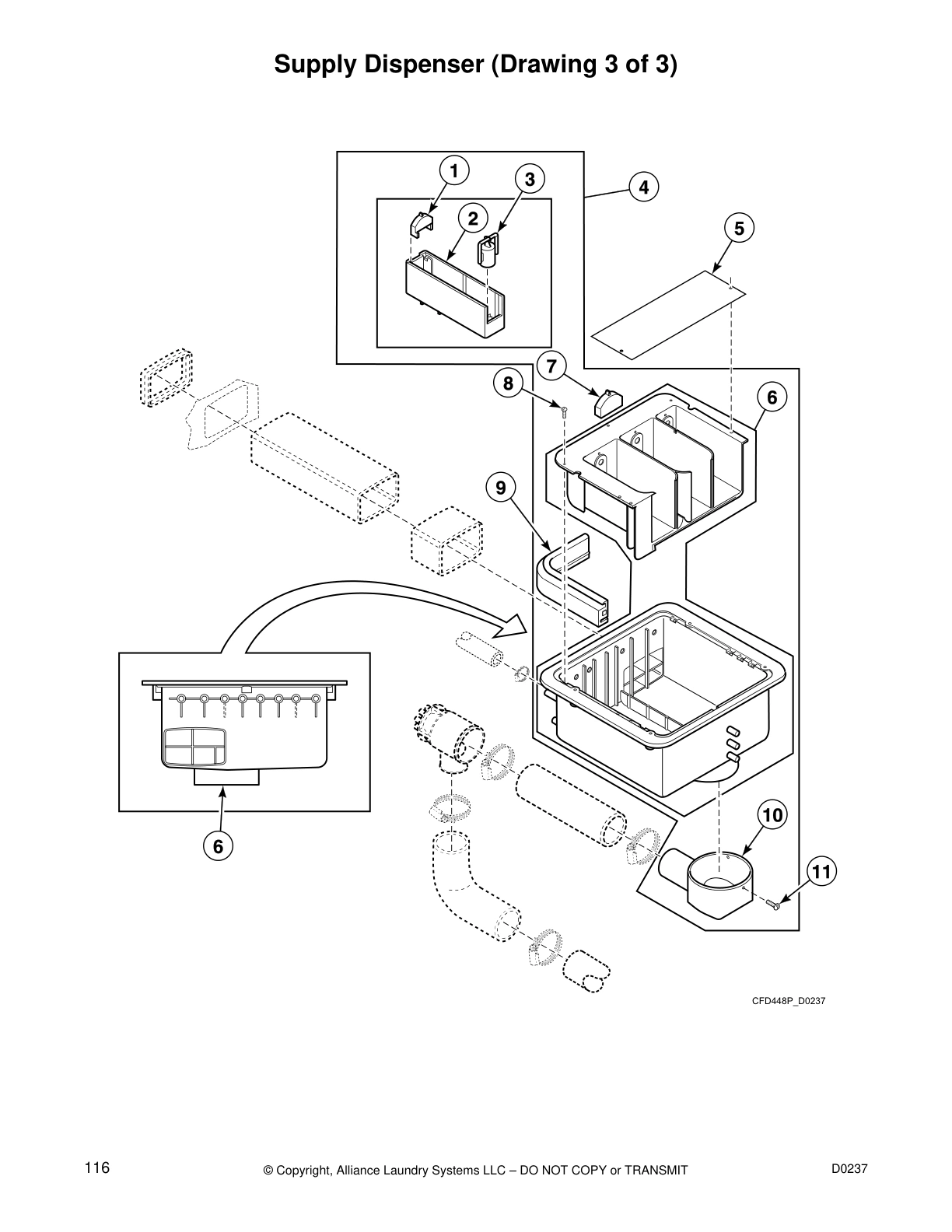

Supply Dispenser (Drawing 3 of 3)

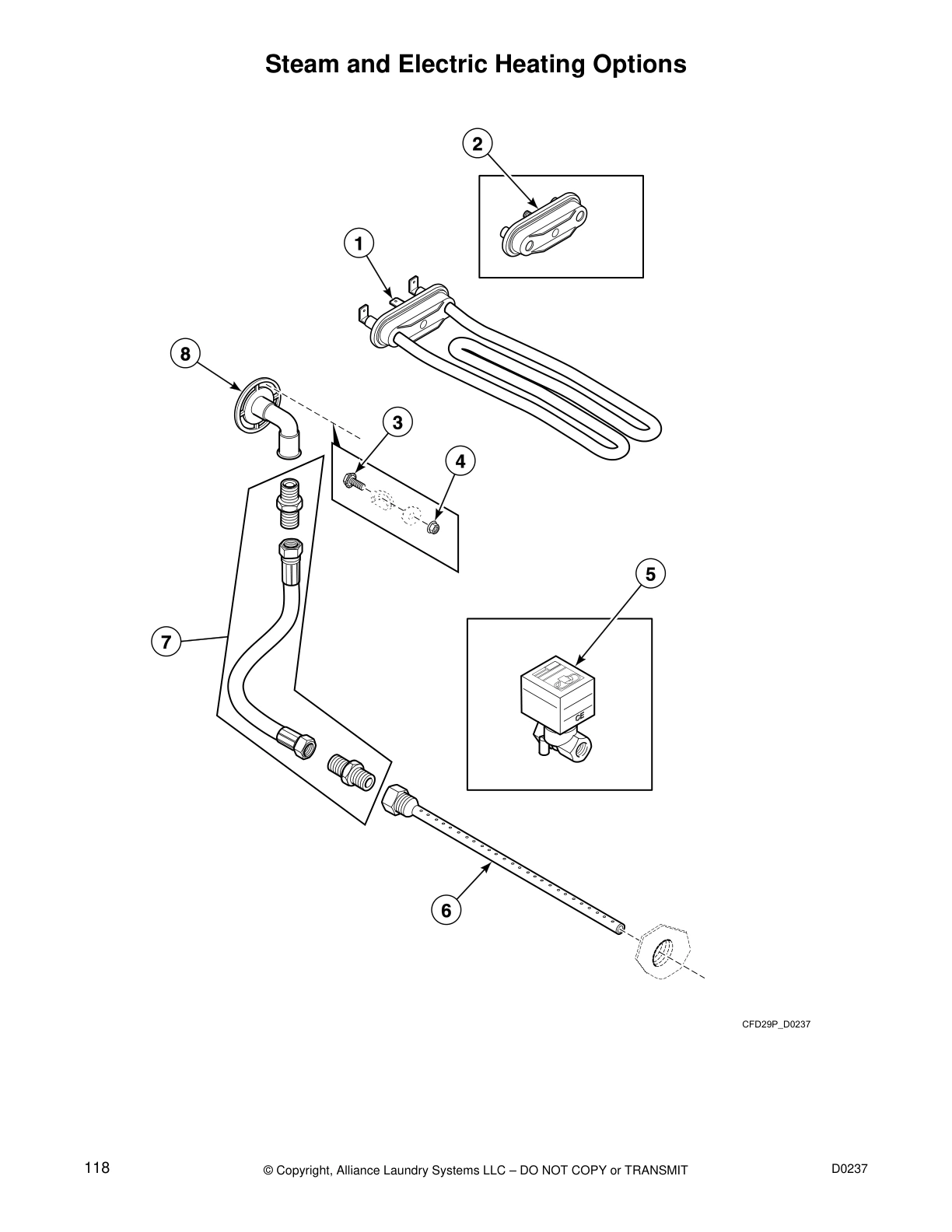

Steam and Electric Heating Options

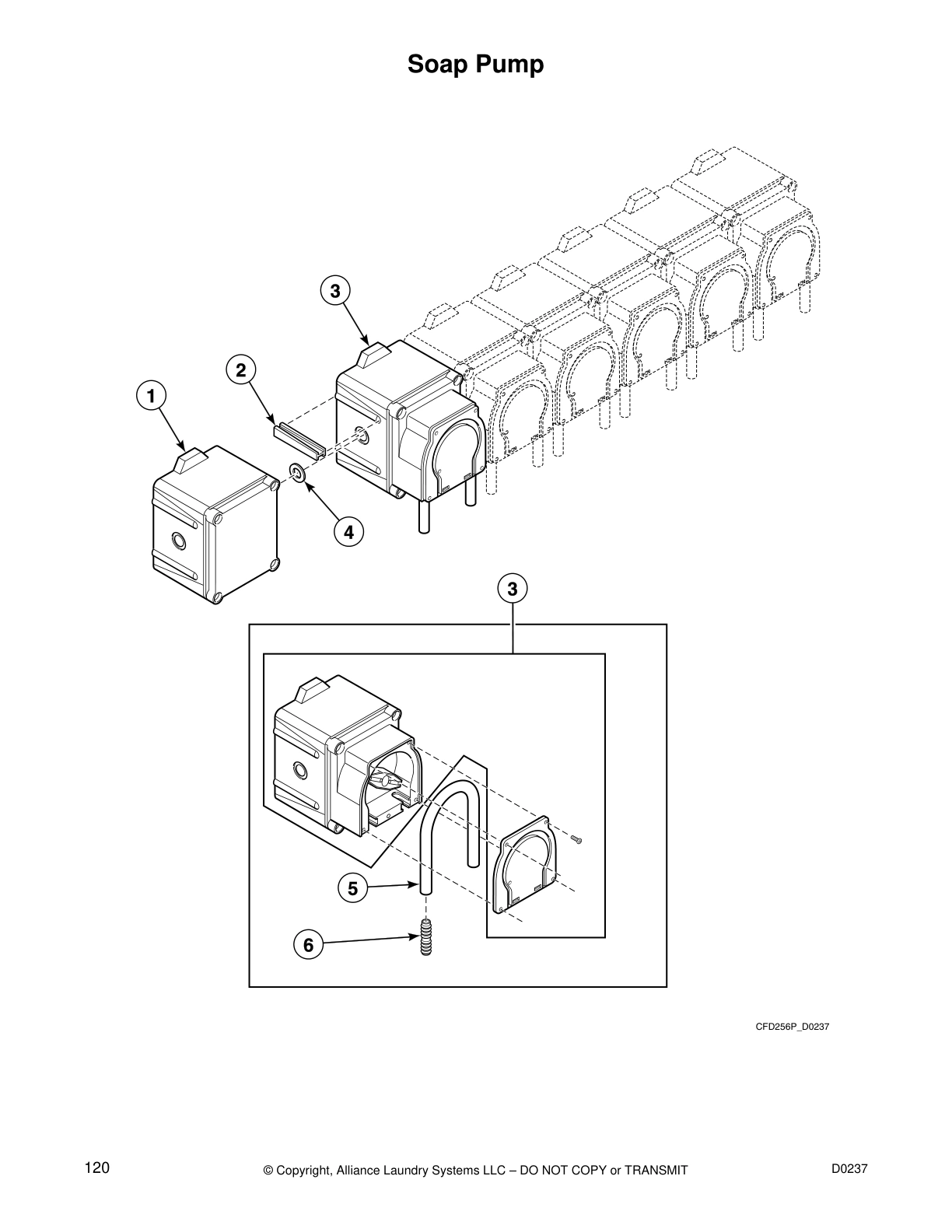

Soap Pump

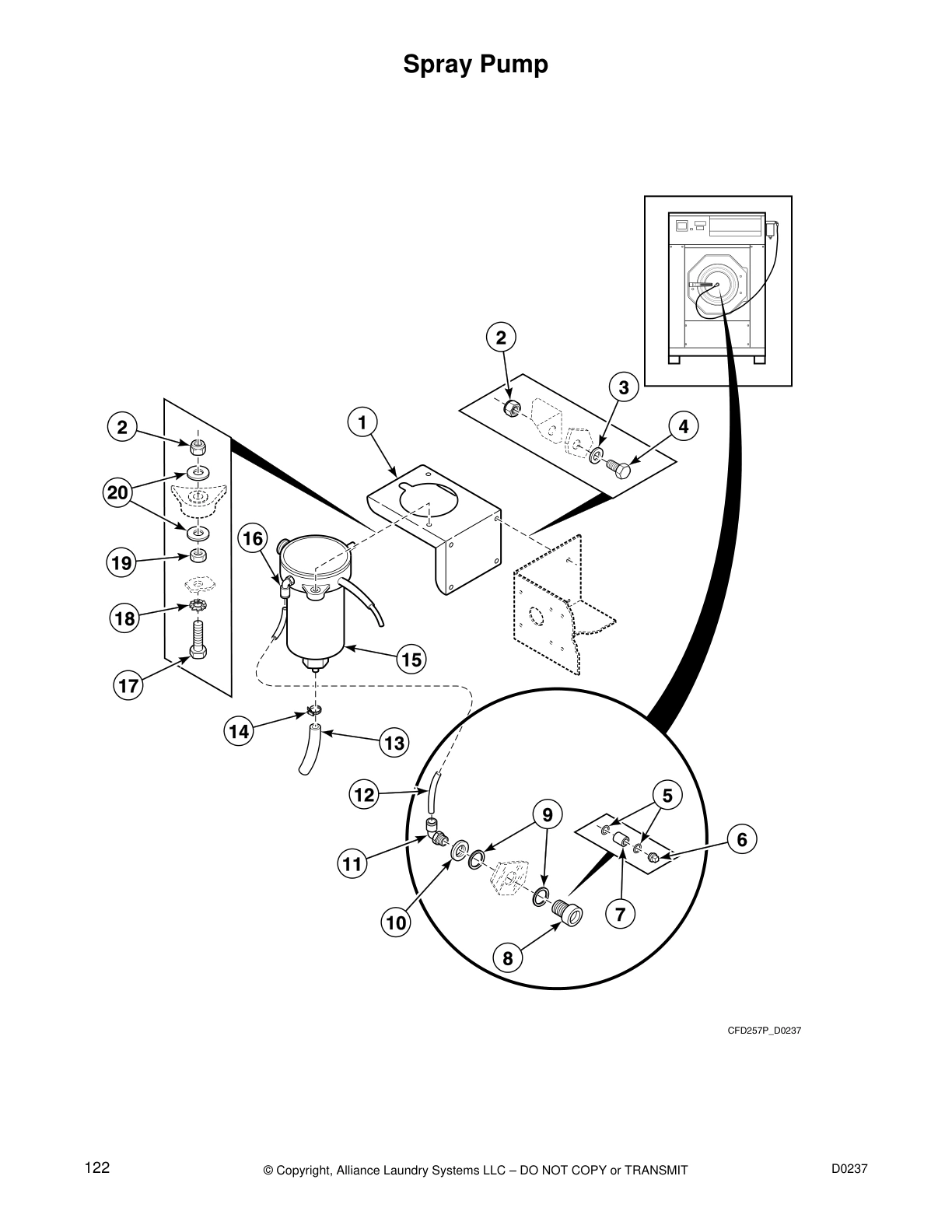

Spray Pump

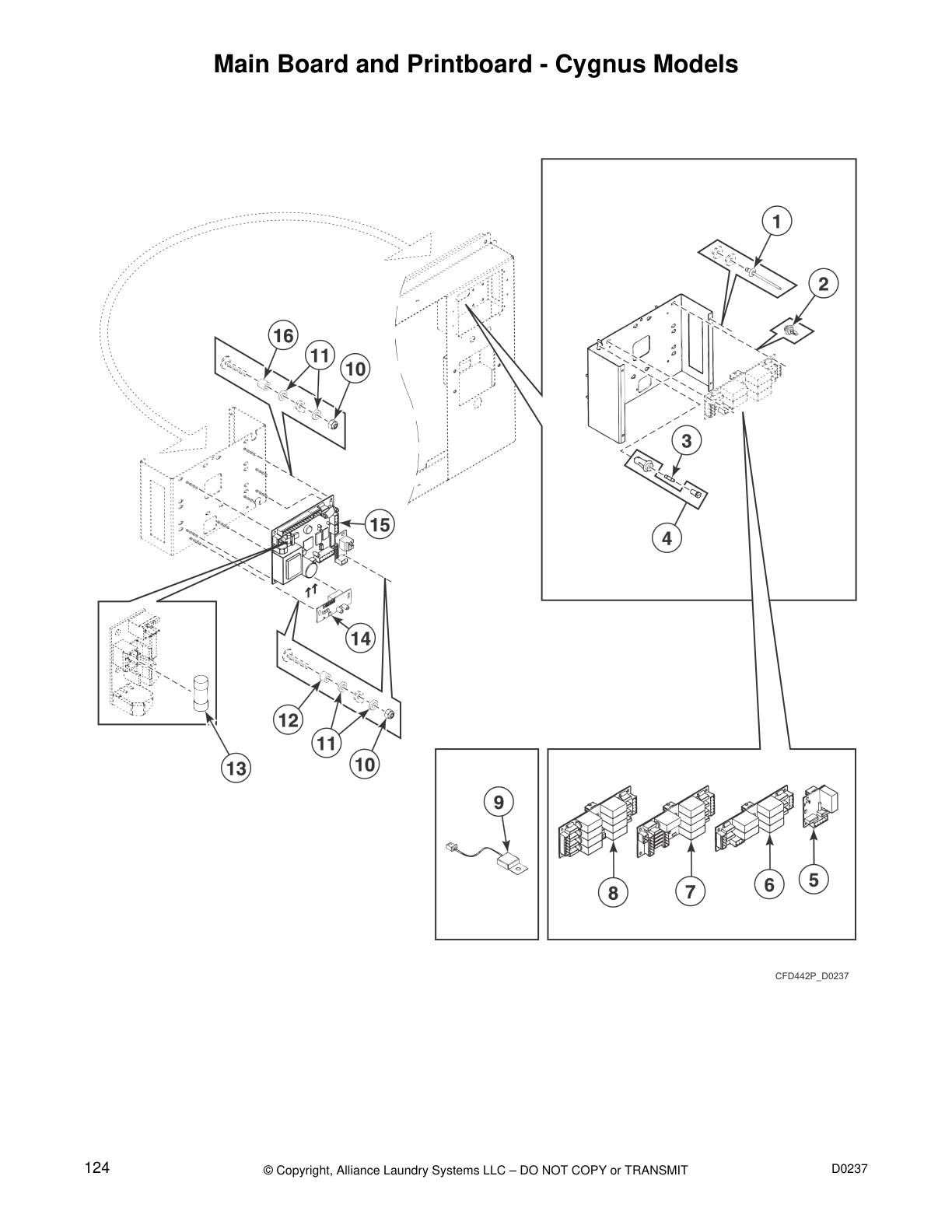

Main Board and Printboard - Cygnus Models
Common parts from model IPSO IHF304ANH Washer
SPQ 203/00005/00 SPQ 203/00005/00 Contact Us For Availability
SPQ 223/00261/00 SPQ 223/00261/00 Contact Us For Availability
SPQ 223/00262/00 SPQ 223/00262/00 Contact Us For Availability
SPQ 119/00082/00 SPQ 119/00082/00 Contact Us For Availability
SPQ 217/00026/00 SPQ 217/00026/00 Contact Us For Availability
1
Nut SPQ 204/00019/00 Contact Us For Availability
1
Tub Front Gasket SPQ 223/00242/00 Contact Us For Availability
1
Tub SPQ B12330701 Contact Us For Availability
1
Drum SPQ B12327301 Contact Us For Availability
1
Bolt SPQ 206/00122/00 Contact Us For Availability
1
Motor Plate SPQ 115/10117/00 Contact Us For Availability
1
Overflow Hose SPQ 223/00131/00 Contact Us For Availability
1
Door Glass SPQ B12449801 Contact Us For Availability
1
Contact Block SPQ 44018901 Contact Us For Availability
1
Dispenser Mounting Plate SPQ 111/00207/00 Contact Us For Availability
1
Nut SPQ 204/00005/00 Contact Us For Availability
1
Screw SPQ 206/00166/00 Contact Us For Availability
1
Bolt SPQ 206/00136/00 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Tilt Detector Plate SPQ B12485001 Contact Us For Availability
1
Softener Spray Nozzle SPQ 223/00102/05 Contact Us For Availability
1
Softener Spray Nozzle SPQ 223/00222/03 Contact Us For Availability
1
Heating Element SPQ 209/00563/20 Contact Us For Availability
1
Feeding Liquid Soap Dosing Pump SPQ 209/00554/51 Contact Us For Availability
2
O-Ring SPQ 204/00009/00 Contact Us For Availability
2
Screw SPQ 131/00010/00 Contact Us For Availability
2
SPQ 206/00047/00 SPQ 206/00047/00 Contact Us For Availability
2
Key SPQ 212/00026/00 Contact Us For Availability
2
Switch Base SPQ 209/00099/25 Contact Us For Availability
2
Voltage Discharge Decal SPQ F8421010 Contact Us For Availability
2
Out-of-Balance Switch Bracket SPQ 223/00246/00 Contact Us For Availability
2
Vent Hose SPQ 223/00102/04 Contact Us For Availability
2
Rinsing Box SPQ B12350903 Contact Us For Availability
2
Shrink Fit SPQ 223/00229/00 Contact Us For Availability
3
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
3
Door Hinge Plate Assembly SPQ 205/00104/00 Contact Us For Availability
3
Drain Valve Kit SPQ 223/00106/00 Contact Us For Availability
3
Switch Knob SPQ 209/00099/29 Contact Us For Availability
3
SPQ 111/00117/00 SPQ 111/00117/00 Contact Us For Availability
3
SPQ 209/00385/01 SPQ 209/00385/01 Contact Us For Availability
3
Washer SPQ F8421009 Contact Us For Availability
3
Fuse SPQ 209/00468/00 Contact Us For Availability
3
SPQ 207/00018/00 SPQ 207/00018/00 Contact Us For Availability
3
Soap Box Assembly Plate SPQ 223/00014/00 Contact Us For Availability
3
Water Hose SPQ 223/00245/00 Contact Us For Availability
3
Siphon Break SPQ 223/00222/05 Contact Us For Availability
3
Bolt SPQ 209/00562/20 Contact Us For Availability
4
SPQ 204/00113/00 SPQ 204/00113/00 Contact Us For Availability
4
SPQ 217/00008/00 SPQ 217/00008/00 Contact Us For Availability
4
Shaft Seal SPQ 132/00009/00 Contact Us For Availability
4
SPQ 203/00006/00 SPQ 203/00006/00 Contact Us For Availability
4
SPQ 217/00052/04 SPQ 217/00052/04 Contact Us For Availability
4
SPQ 204/00008/00 SPQ 204/00008/00 Contact Us For Availability
4
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
4
Nut SPQ 207/00131/00 Contact Us For Availability
4
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
4
Hose Clamp SPQ 223/00059/00 Contact Us For Availability
4
Pressure Hose SPQ F8421011 Contact Us For Availability
4
Gasket SPQ 206/00014/00 Contact Us For Availability
4
Terminal Block SPQ 209/00058/00 Contact Us For Availability
4
Electrical Components Plate SPQ 111/01028/00 Contact Us For Availability
4
SPQ 205/00107/00 SPQ 205/00107/00 Contact Us For Availability
4
Soap Spray Nozzle SPQ 223/00102/03 Contact Us For Availability
4
Soap Dispenser SPQ 223/00222/04 Contact Us For Availability
4
Nut SPQ 209/00581/10 Contact Us For Availability
4
Soap Pump Assembly SPQ 209/00555/02 Contact Us For Availability
5
SPQ 201/00001/00 SPQ 201/00001/00 Contact Us For Availability
5
Suspension Spring SPQ B12440101 Contact Us For Availability
5
Bearing Replacement Kit SPQ 224/00052/00 Contact Us For Availability
5
Roller Bearing SPQ 212/00005/00 Contact Us For Availability
5
SPQ 223/00141/00 SPQ 223/00141/00 Contact Us For Availability
5
SPQ 224/00040/00 SPQ 224/00040/00 Contact Us For Availability
5
Door Hinge Spacer SPQ 217/00021/00 Contact Us For Availability
5
Pushbutton SPQ 44018801 Contact Us For Availability
5
Top Panel SPQ 208/00104/00 Contact Us For Availability
5
Liquid Soap Manifold SPQ 223/00044/00 Contact Us For Availability
5
SPQ 111/01166/70 SPQ 111/01166/70 Contact Us For Availability
5
Fastener SPQ 211/00108/00 Contact Us For Availability
5
Soap Dispenser Gasket SPQ 223/00102/08 Contact Us For Availability
5
Soap Box Assembly Plate SPQ 223/00222/00 Contact Us For Availability
5
Steam Valve SPQ 209/00564/20 Contact Us For Availability
5
Liquid Soap Dosing Pump O-Ring SPQ 209/00554/52 Contact Us For Availability
5
SPQ 223/00177/00 SPQ 223/00177/00 Contact Us For Availability
6
SPQ 206/00087/00 SPQ 206/00087/00 Contact Us For Availability
6
Thermostat Grommet SPQ 246/00092/00 Contact Us For Availability
6
SPQ 224/00051/00 SPQ 224/00051/00 Contact Us For Availability
6
SPQ 206/00072/00 SPQ 206/00072/00 Contact Us For Availability
6
SPQ 223/00086/00 SPQ 223/00086/00 Contact Us For Availability
6
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
6
Steam Injector SPQ 206/00099/00 Contact Us For Availability
6
Side Panel SPQ 111/05013/00 Contact Us For Availability
6
SPQ 111/01166/90 SPQ 111/01166/90 Contact Us For Availability
6
Backbridge SPQ 111/01149/00 Contact Us For Availability
6
Central Control Board SPQ 209/00438/50 Contact Us For Availability
6
Noise Suppressor SPQ 209/00356/00 Contact Us For Availability
6
SPQ 111/00107/00 SPQ 111/00107/00 Contact Us For Availability
6
Outer and Inner Box Kit SPQ 123/00103/06 Contact Us For Availability
6
Soap Dispenser Hose SPQ 223/00010/00 Contact Us For Availability
6
Dosing Pump Hose SPQ 209/00555/98 Contact Us For Availability
7
SPQ B12511601 SPQ B12511601 Contact Us For Availability
7
SPQ 115/00151/00 SPQ 115/00151/00 Contact Us For Availability
7
SPQ 207/00110/00 SPQ 207/00110/00 Contact Us For Availability
7
SPQ 226/00117/00 SPQ 226/00117/00 Contact Us For Availability
7
SPQ 223/00012/00 SPQ 223/00012/00 Contact Us For Availability
7
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
7
SPQ 118/00121/00 SPQ 118/00121/00 Contact Us For Availability
7
Fuse SPQ 209/00372/01 Contact Us For Availability
7
Steam Hose SPQ 206/00101/00 Contact Us For Availability
7
Side Panel Gasket SPQ 133/00126/00 Contact Us For Availability
7
Parameter Unit Assembly SPQ 111/01158/11 Contact Us For Availability
7
SPQ 211/00120/00 SPQ 211/00120/00 Contact Us For Availability
7
Varistor SPQ 209/00320/01 Contact Us For Availability
7
Soap Spray Nozzle SPQ 223/00222/60 Contact Us For Availability
7
SPQ 211/00126/00 SPQ 211/00126/00 Contact Us For Availability
8
SPQ 206/00071/00 SPQ 206/00071/00 Contact Us For Availability
8
SPQ 212/00006/00 SPQ 212/00006/00 Contact Us For Availability
8
SPQ 226/00150/00 SPQ 226/00150/00 Contact Us For Availability
8
SPQ 201/00004/00 SPQ 201/00004/00 Contact Us For Availability
8
SPQ 114/00010/00 SPQ 114/00010/00 Contact Us For Availability
8
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
8
SPQ 253/00022/00 SPQ 253/00022/00 Contact Us For Availability
8
Rear Panel SPQ 246/00079/00 Contact Us For Availability
8
SPQ B12355001 SPQ B12355001 Contact Us For Availability
8
Soap Dispenser Gasket SPQ 223/00102/06 Contact Us For Availability
8
Siphon Break Hose SPQ 223/00250/00 Contact Us For Availability
8
Steam Inlet SPQ 209/00476/00 Contact Us For Availability
9
SPQ B12460901 SPQ B12460901 Contact Us For Availability
9
SPQ 201/00011/00 SPQ 201/00011/00 Contact Us For Availability
9
SPQ 203/00002/00 SPQ 203/00002/00 Contact Us For Availability
9
SPQ 223/00071/00 SPQ 223/00071/00 Contact Us For Availability
9
SPQ 223/00133/00 SPQ 223/00133/00 Contact Us For Availability
9
SPQ 118/00124/00 SPQ 118/00124/00 Contact Us For Availability
9
SPQ 111/00126/10 SPQ 111/00126/10 Contact Us For Availability
9
SPQ 225/10004/00 SPQ 225/10004/00 Contact Us For Availability
9
SPQ B12347501 SPQ B12347501 Contact Us For Availability
9
SPQ 223/00176/00 SPQ 223/00176/00 Contact Us For Availability
10
Washer SPQ 201/00202/00 Contact Us For Availability
10
Washer SPQ 203/00001/00 Contact Us For Availability
10
Bolt SPQ 206/00006/00 Contact Us For Availability
10
Nut SPQ 204/00007/00 Contact Us For Availability
10
Screw SPQ 207/00126/00 Contact Us For Availability
10
Nut SPQ 204/00116/00 Contact Us For Availability
10
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
10
Hose Clamp SPQ F200205 Contact Us For Availability
10
Nut SPQ 204/00107/00 Contact Us For Availability
10
Network Connection Printboard SPQ 209/00540/00 Contact Us For Availability
10
Dispenser Assembly SPQ 223/00102/60 Contact Us For Availability
10
Dispenser Drain Funnel SPQ 223/00196/00 Contact Us For Availability
11
Door Front Panel SPQ 111/32945/00 Contact Us For Availability
11
Screw SPQ 206/00056/00 Contact Us For Availability
11
Washer SPQ 202/00104/00 Contact Us For Availability
11
Washer SPQ 223/00123/00 Contact Us For Availability
11
Upper Front Panel SPQ 111/01712/00 Contact Us For Availability
11
Upper Front Panel SPQ 111/01714/00 Contact Us For Availability
11
Bolt SPQ 206/00027/00 Contact Us For Availability
11
Grommet SPQ 223/00174/00 Contact Us For Availability
11
Grommet SPQ 223/00198/00 Contact Us For Availability
11
Screw SPQ 223/00195/00 Contact Us For Availability
11
Soap Injector Coupling SPQ 223/00182/00 Contact Us For Availability
12
Suspension Spring SPQ 204/00016/00 Contact Us For Availability
12
Counterweight SPQ 115/00136/00 Contact Us For Availability
12
Bearing Housing Cover SPQ 212/00002/00 Contact Us For Availability
12
Operating Sticker SPQ 225/00400/00 Contact Us For Availability
12
Washer SPQ 202/00004/00 Contact Us For Availability
12
Noise Filter SPQ 227/00163/00 Contact Us For Availability
12
Soap Injector Hose SPQ 223/00180/00 Contact Us For Availability
13
Support SPQ 224/00046/00 Contact Us For Availability
13
Nut SPQ 204/00111/00 Contact Us For Availability
13
Door SPQ 118/00125/00 Contact Us For Availability
13
Programming Key Contact Swit SPQ 209/00326/20 Contact Us For Availability
13
Washer SPQ 208/00009/00 Contact Us For Availability
13
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
13
Hose Clamp SPQ 223/00011/00 Contact Us For Availability
13
Drive SPQ F8421112 Contact Us For Availability
13
Elbow SPQ 223/00210/00 Contact Us For Availability
14
Screw SPQ 201/00010/00 Contact Us For Availability
14
T-Piece SPQ 206/00009/00 Contact Us For Availability
14
Washer SPQ 206/00066/00 Contact Us For Availability
14
Ball Bearing SPQ 112/00004/00 Contact Us For Availability
14
Pulley SPQ 239/00013/00 Contact Us For Availability
14
Washer SPQ 206/00003/00 Contact Us For Availability
14
Screw SPQ 207/00009/00 Contact Us For Availability
14
Screw SPQ 207/00101/00 Contact Us For Availability
14
Cordlock SPQ 211/00123/00 Contact Us For Availability
14
Hose Barb SPQ 223/00016/00 Contact Us For Availability
14
Cable Tie SPQ F140605 Contact Us For Availability
15
Threaded Rod SPQ B12456301 Contact Us For Availability
15
Bearing Housing Assembly SPQ 206/00010/00 Contact Us For Availability
15
Out-of-Balance Switch SPQ 203/00003/00 Contact Us For Availability
15
Rivet SPQ 211/00138/00 Contact Us For Availability
15
Door Lock Bracket SPQ 201/00018/00 Contact Us For Availability
15
Label SPQ 225/00397/00 Contact Us For Availability
15
Kickplate SPQ 111/32943/00 Contact Us For Availability
15
Inverter Kit SPQ F8421111 Contact Us For Availability
16
Shock Absorber Se SPQ B12418401 Contact Us For Availability
16
Drum SPQ 206/00032/00 Contact Us For Availability
16
Tilt Switch Bracket SPQ 204/00004/00 Contact Us For Availability
16
Hose Clamp SPQ 202/00002/00 Contact Us For Availability
16
Microswitch SPQ 217/00052/11 Contact Us For Availability
16
Standoff SPQ 211/00122/00 Contact Us For Availability
16
Metal Disc SPQ 202/00120/00 Contact Us For Availability
16
Nut SPQ 208/00017/00 Contact Us For Availability
16
Liquid Soap Manifold SPQ F8421110 Contact Us For Availability
16
Soap Injector Elbow Coupling SPQ 223/00181/00 Contact Us For Availability
17
Bolt SPQ 205/00103/00 Contact Us For Availability
17
Front Panel SPQ 231/00010/00 Contact Us For Availability
17
Lock Shaft SPQ 205/00115/00 Contact Us For Availability
17
Bolt SPQ 206/00042/00 Contact Us For Availability
17
Vent Tube SPQ 204/00201/00 Contact Us For Availability
18
Washer SPQ 203/00004/00 Contact Us For Availability
18
Roller Bearing SPQ B12610001 Contact Us For Availability
18
Prewash and Mainwash Nozzle SPQ 201/00002/00 Contact Us For Availability
18
Drain Valve to Drain Pipe Hose SPQ 253/00006/00 Contact Us For Availability
18
Inverter Drive Box SPQ F8421109 Contact Us For Availability
19
Side Panel SPQ 204/00109/00 Contact Us For Availability
19
Tub SPQ 131/00002/00 Contact Us For Availability
19
Nut SPQ 204/00106/00 Contact Us For Availability
19
Drain Valve Overflow Plug SPQ 223/00170/00 Contact Us For Availability
19
Inverter Box Cover SPQ F8421012 Contact Us For Availability
20
Soap Injector Orifice Nipple SPQ 202/00101/00 Contact Us For Availability
20
Tub Tightening Ring SPQ B12330601 Contact Us For Availability
20
Interlock Lever SPQ 217/00017/03 Contact Us For Availability
20
Water Valve Adapter SPQ 223/00001/04 Contact Us For Availability
20
Rinse Insert SPQ 223/00107/01 Contact Us For Availability
21
Tub Front Panel Clip SPQ B12330501 Contact Us For Availability
21
Circuit Board Cover SPQ 229/00262/00 Contact Us For Availability
21
Filter SPQ 111/00094/10 Contact Us For Availability
21
Liquid Soap Dispenser Insert SPQ 223/00107/06 Contact Us For Availability
22
Gasket SPQ 206/00111/00 Contact Us For Availability
22
Lever Spring SPQ 224/00049/00 Contact Us For Availability
22
SPQ 205/00105/00 SPQ 205/00105/00 Contact Us For Availability
23
SPQ 101/00007/00 SPQ 101/00007/00 Contact Us For Availability
24
Spacer SPQ 115/00163/00 Contact Us For Availability
24
Ground Terminal SPQ 224/00043/00 Contact Us For Availability
24
SPQ F200166 SPQ F200166 Contact Us For Availability
25
SPQ F200164 SPQ F200164 Contact Us For Availability
26
SPQ 202/00124/00 SPQ 202/00124/00 Contact Us For Availability
27
SPQ 223/00050/01 SPQ 223/00050/01 Contact Us For Availability
28
SPQ 209/00385/00 SPQ 209/00385/00 Contact Us For Availability
NI
SPQ 385P4P SPQ 385P4P Contact Us For Availability
NI
SPQ 212/00007/00 SPQ 212/00007/00 Contact Us For Availability
NI
SPQ 892P3 SPQ 892P3 Contact Us For Availability
NI
SPQ 204/00114/00 SPQ 204/00114/00 Contact Us For Availability
NI
SPQ 223/00013/00 SPQ 223/00013/00 Contact Us For Availability
NI
SPQ 208/00130/00 SPQ 208/00130/00 Contact Us For Availability
NI
SPQ 205/00108/00 SPQ 205/00108/00 Contact Us For Availability
NI
SPQ F8410901 SPQ F8410901 Contact Us For Availability
NI
SPQ 211/00093/00 SPQ 211/00093/00 Contact Us For Availability
NI
SPQ B12322402 SPQ B12322402 Contact Us For Availability
NI
SPQ 223/00264/00 SPQ 223/00264/00 Contact Us For Availability
NI
SPQ 223/00109/00 SPQ 223/00109/00 Contact Us For Availability
NI
SPQ 223/00260/00 SPQ 223/00260/00 Contact Us For Availability
NI
SPQ 117/00039/00 SPQ 117/00039/00 Contact Us For Availability
NI
SPQ 153/00048/00 SPQ 153/00048/00 Contact Us For Availability
NI
SPQ 153/01047/00 SPQ 153/01047/00 Contact Us For Availability
NI
SPQ 118/01063/00 SPQ 118/01063/00 Contact Us For Availability
NI
Dosing Pump Hose Connector SPQ 209/00555/99 Contact Us For Availability
× ![]()
