Model Ipso ICN080KDF Washer – Common Parts & Diagrams
Decals
Control Module - Design 1 Models
Control Module - Design 2 Models (Drawing 1 of 2)
Control Module - Design 2 Models (Drawing 2 of 2)

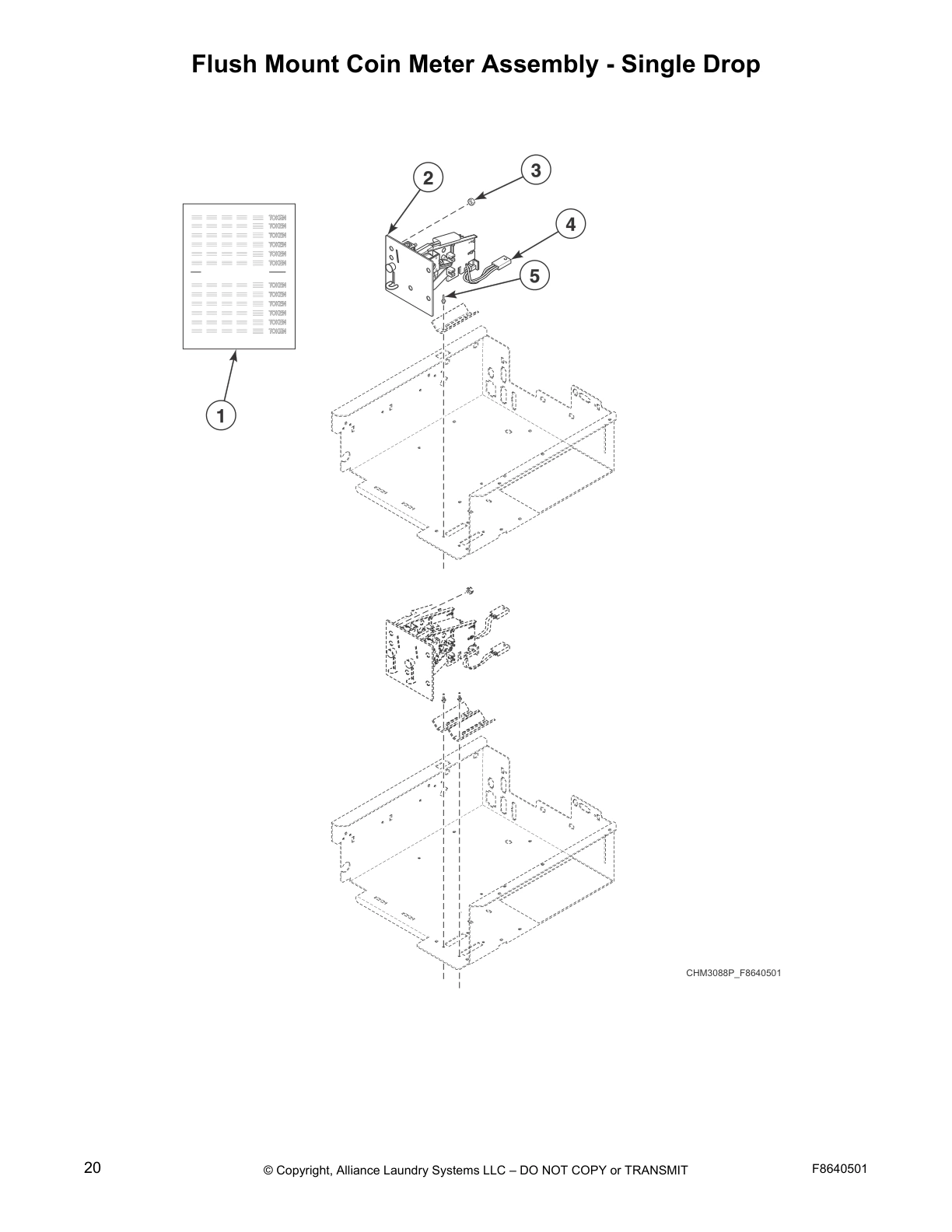

Flush Mount Coin Meter Assembly - Single Drop
Flush Mount Coin Meter Assembly - Dual Drop
Electronic Coin Meter Assembly (Drawing 1 of 2)
Electronic Coin Meter Assembly (Drawing 2 of 2)
Optional Coin Box

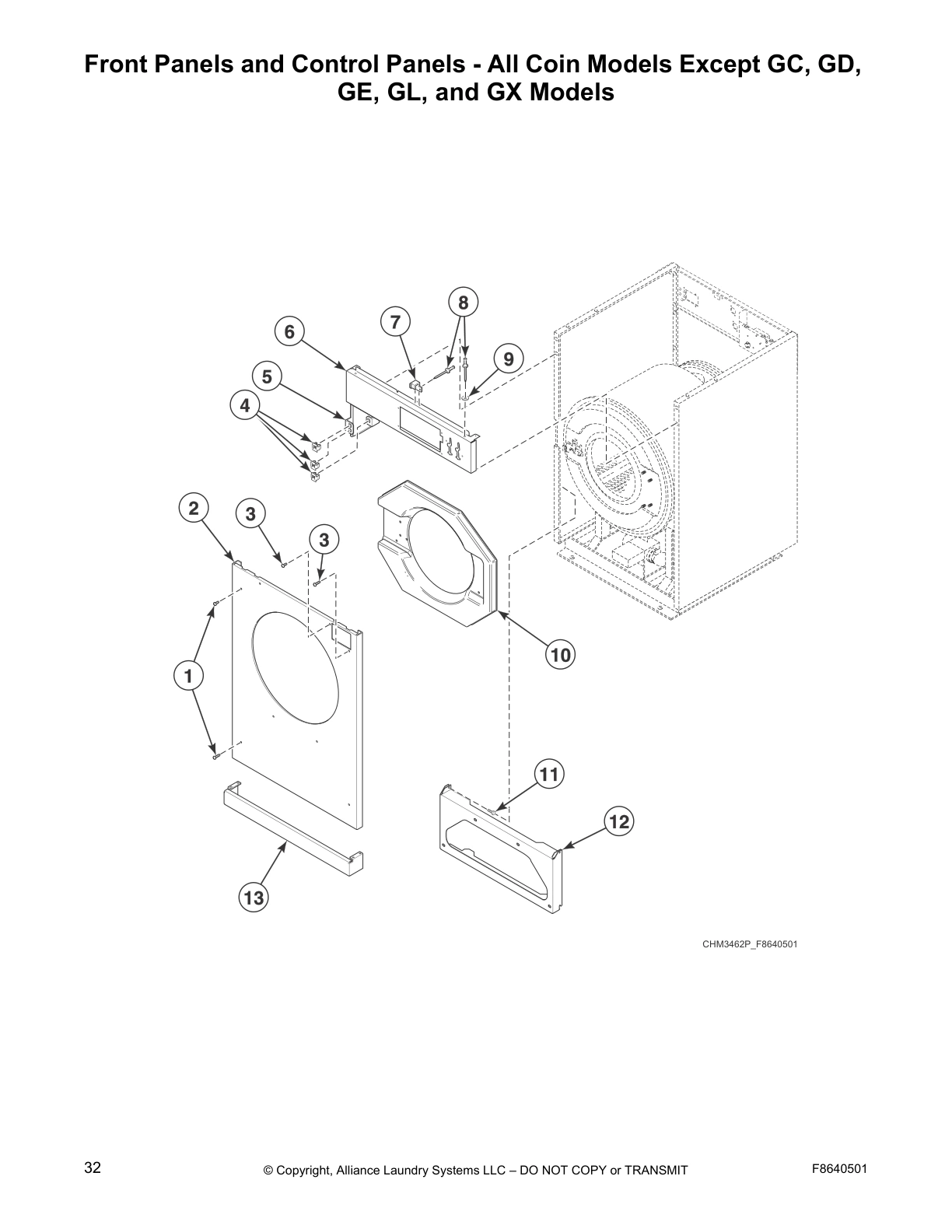

Front Panels and Control Panels - All Coin Models Except GC, GD,
GE, GL, and GX Models
Front Panels and Control Panels - All Prep for Card Reader Models
Except GY Models
Front Panels and Control Panels - GC, GD, GE, GL and GX Models

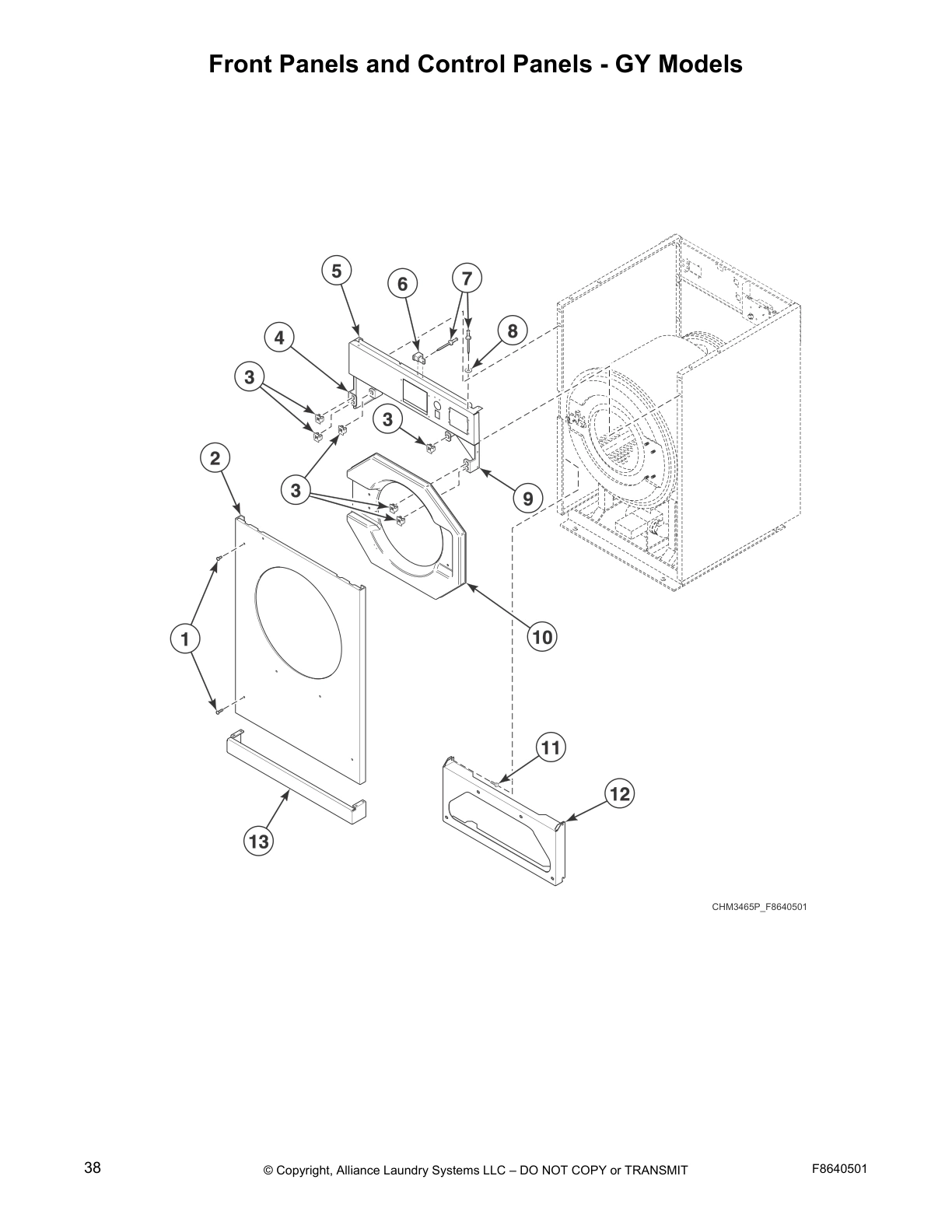

Front Panels and Control Panels - GY Models
Control Panel Overlays - Single Drop Coin Models
Control Panel Overlays - Dual Drop Coin Models

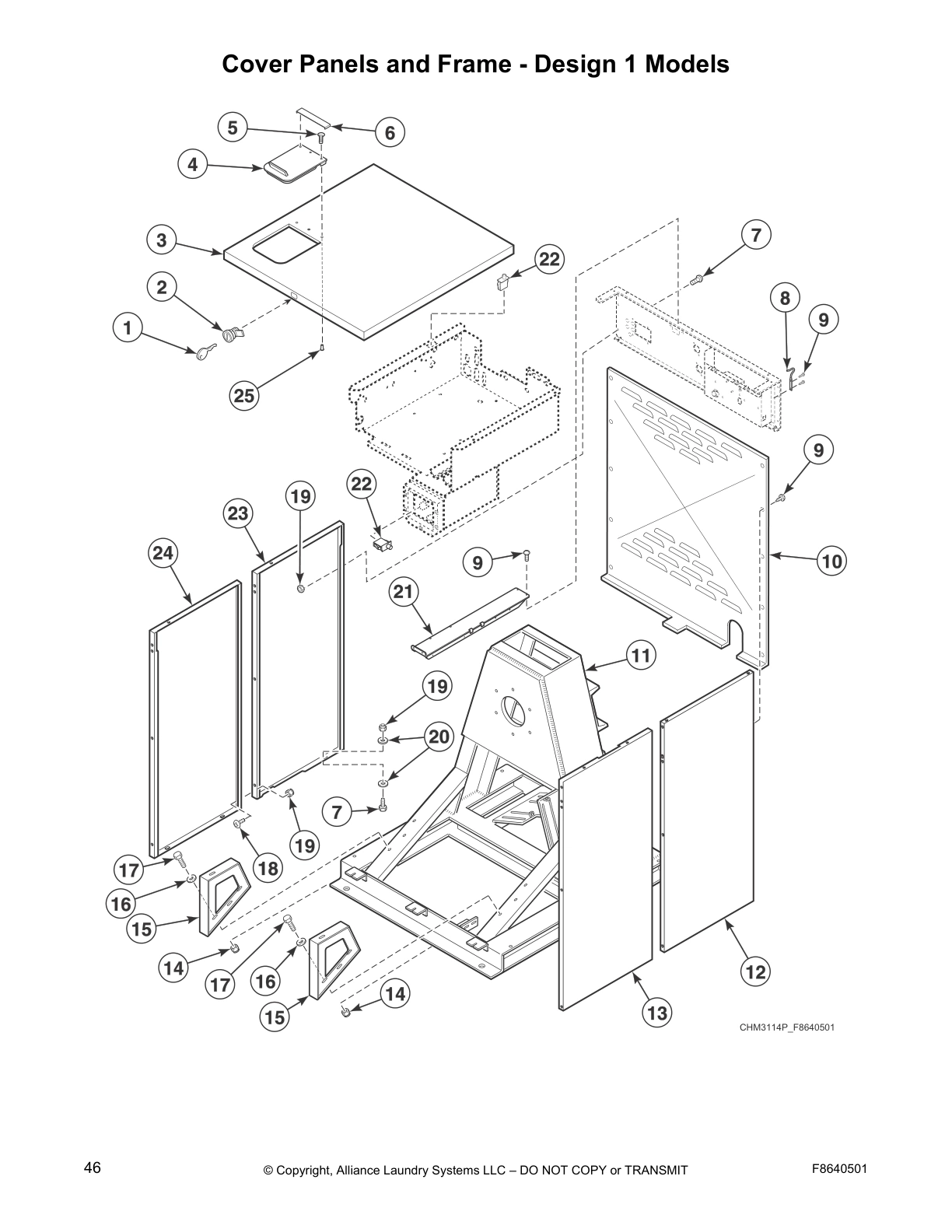

Cover Panels and Frame - Design 1 Models

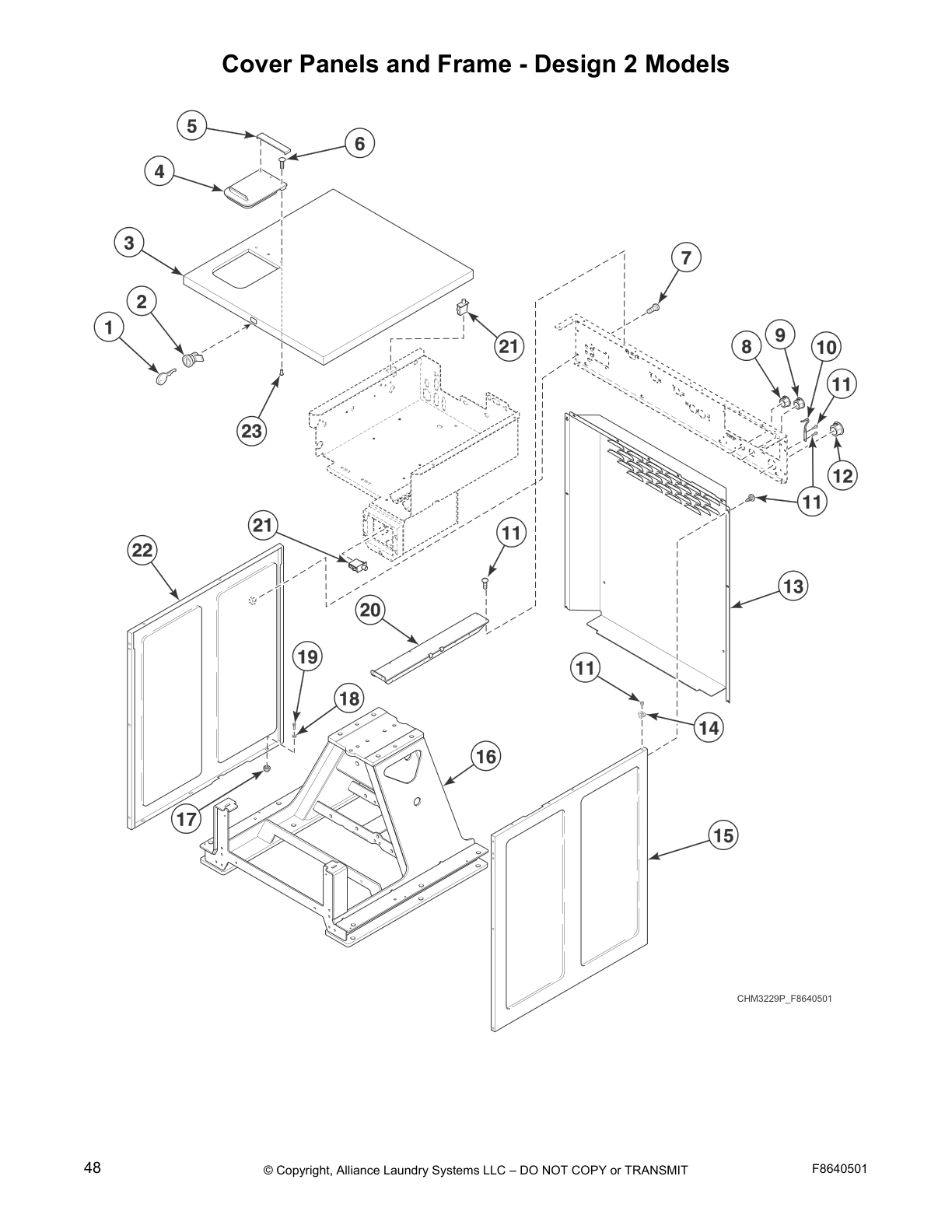

Cover Panels and Frame - Design 2 Models
Door
Door Lock

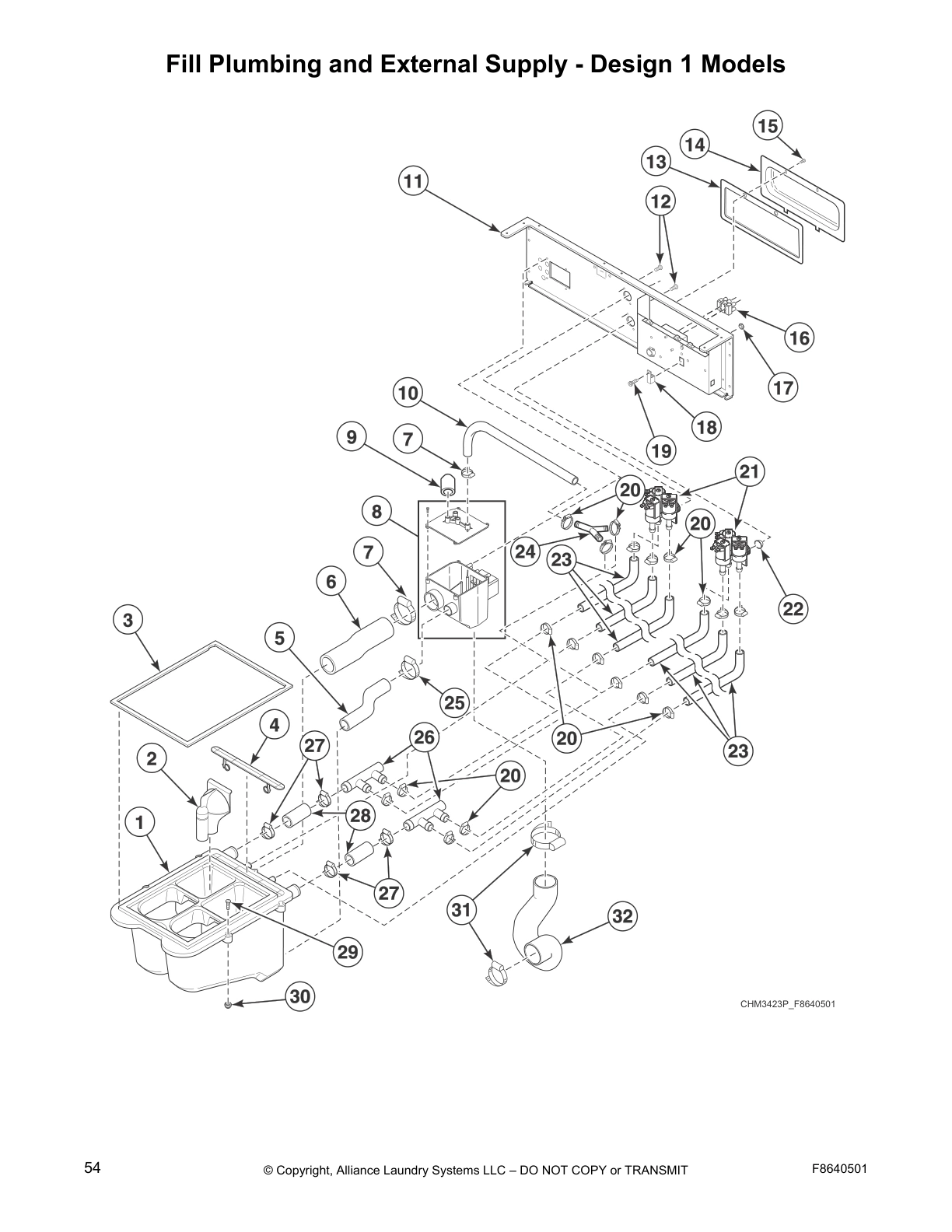

Fill Plumbing and External Supply - Design 1 Models
Fill Plumbing, Mixing Valve and External Supply - Design 2

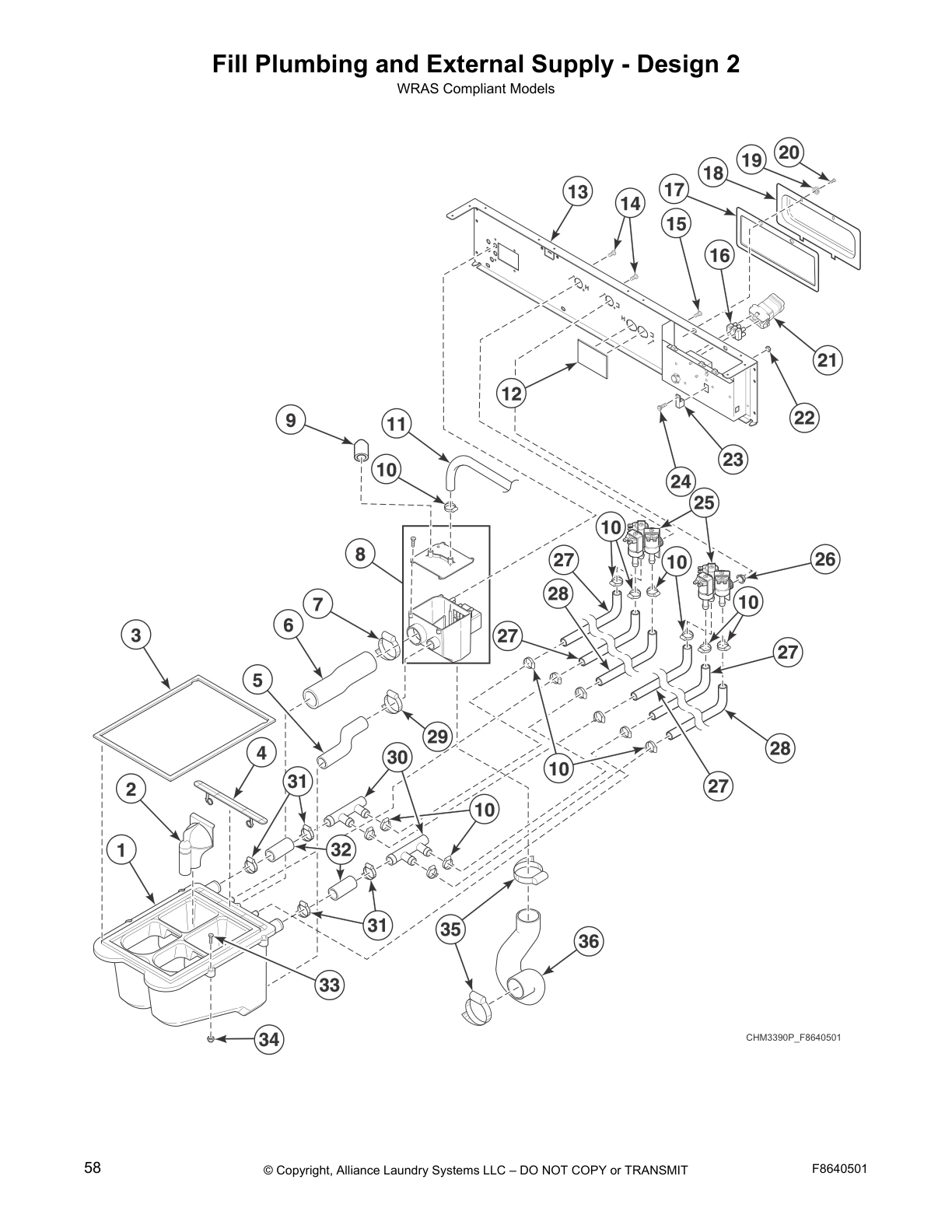

Fill Plumbing and External Supply - Design 2

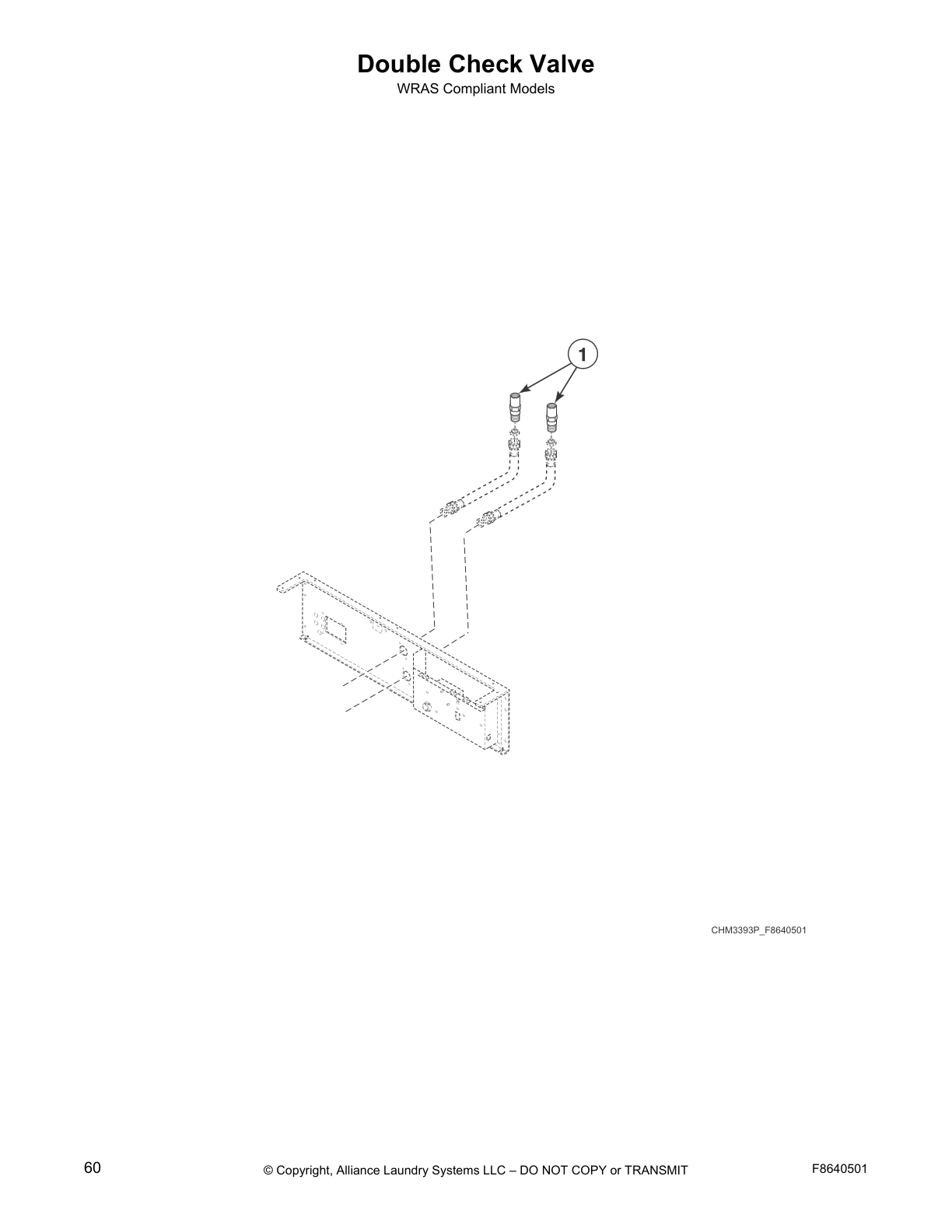

Double Check Valve

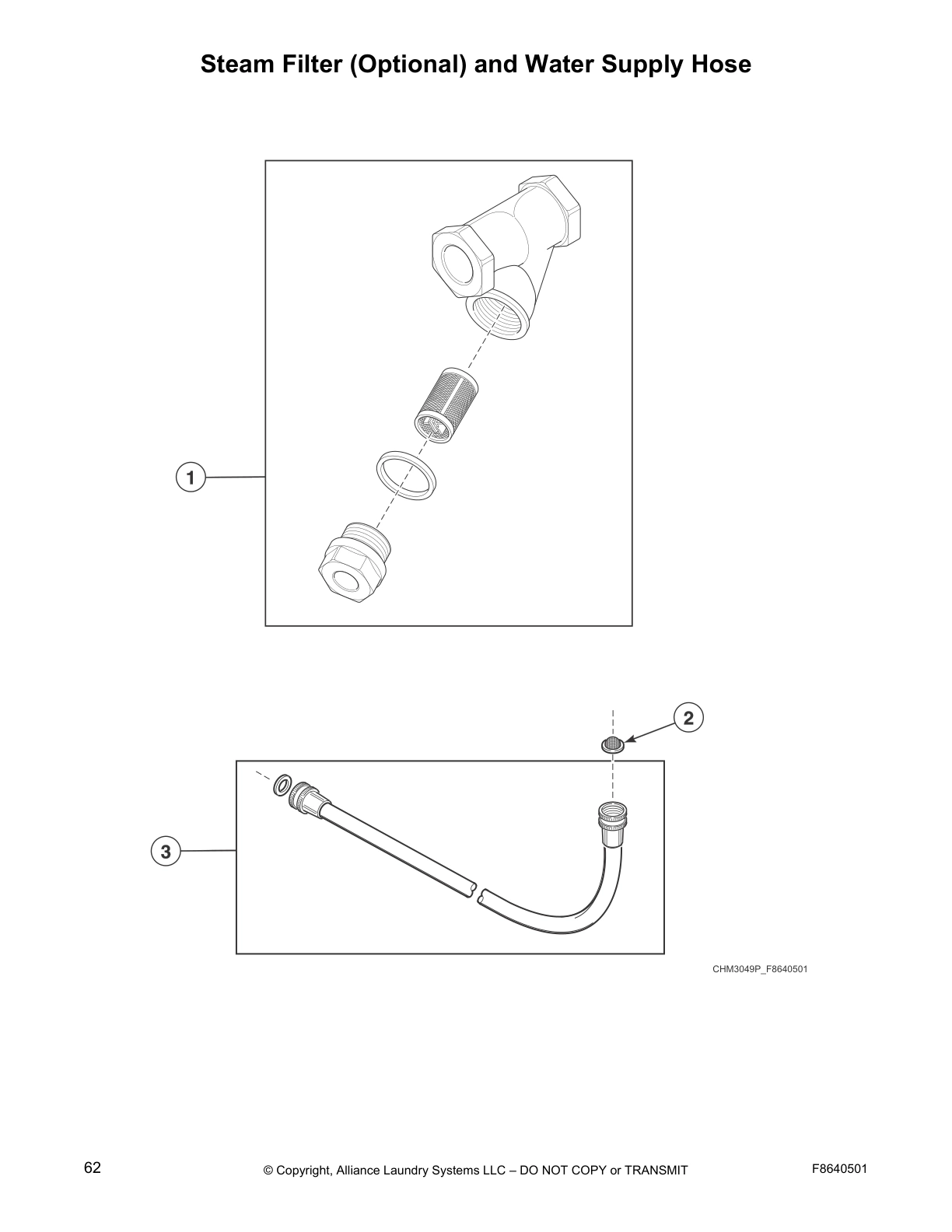

Steam Filter (Optional) and Water Supply Hose

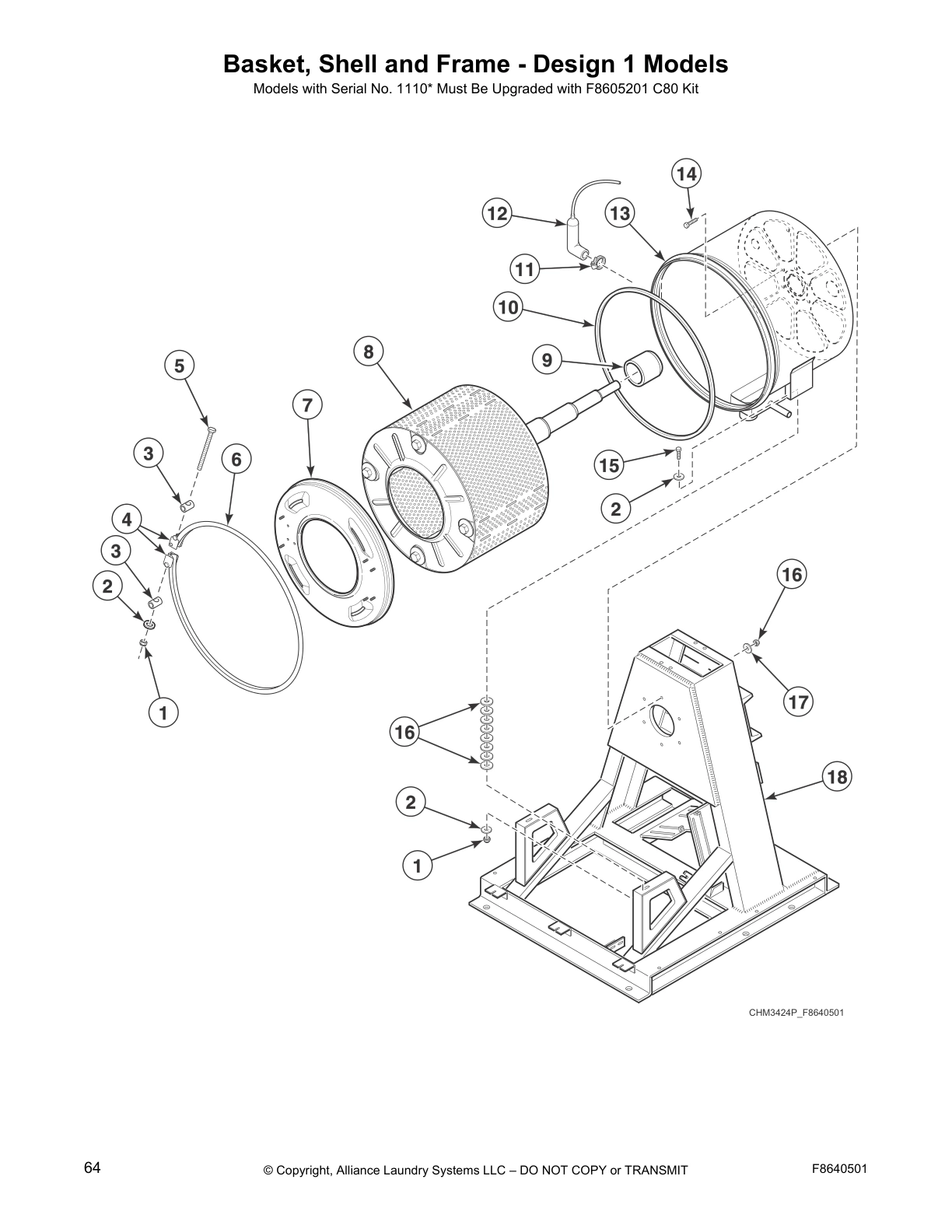

Basket, Shell and Frame - Design 1 Models
Basket - Design 2 Models

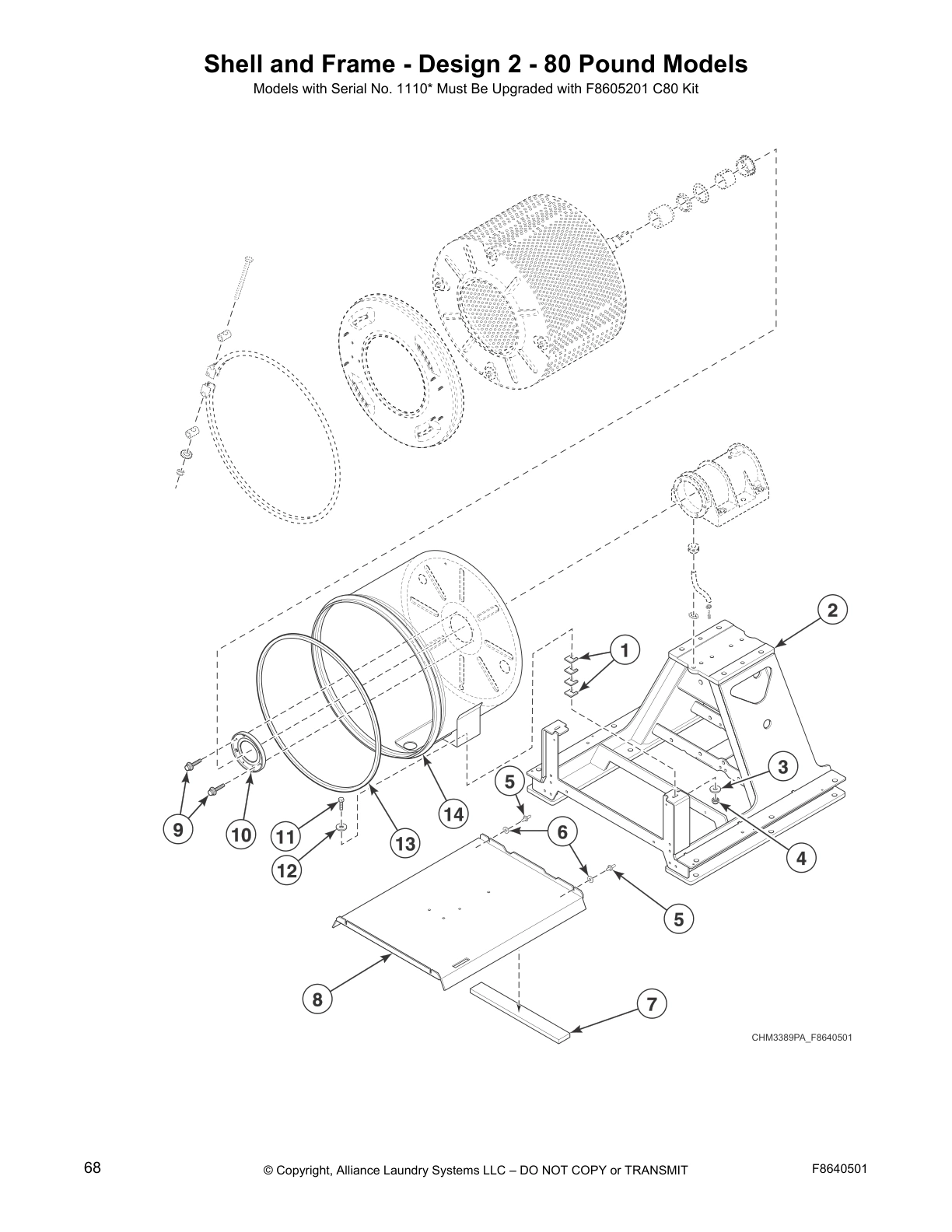

Shell and Frame - Design 2 - 80 Pound Models
Shell and Frame - Design 2 - 100 Pound Models

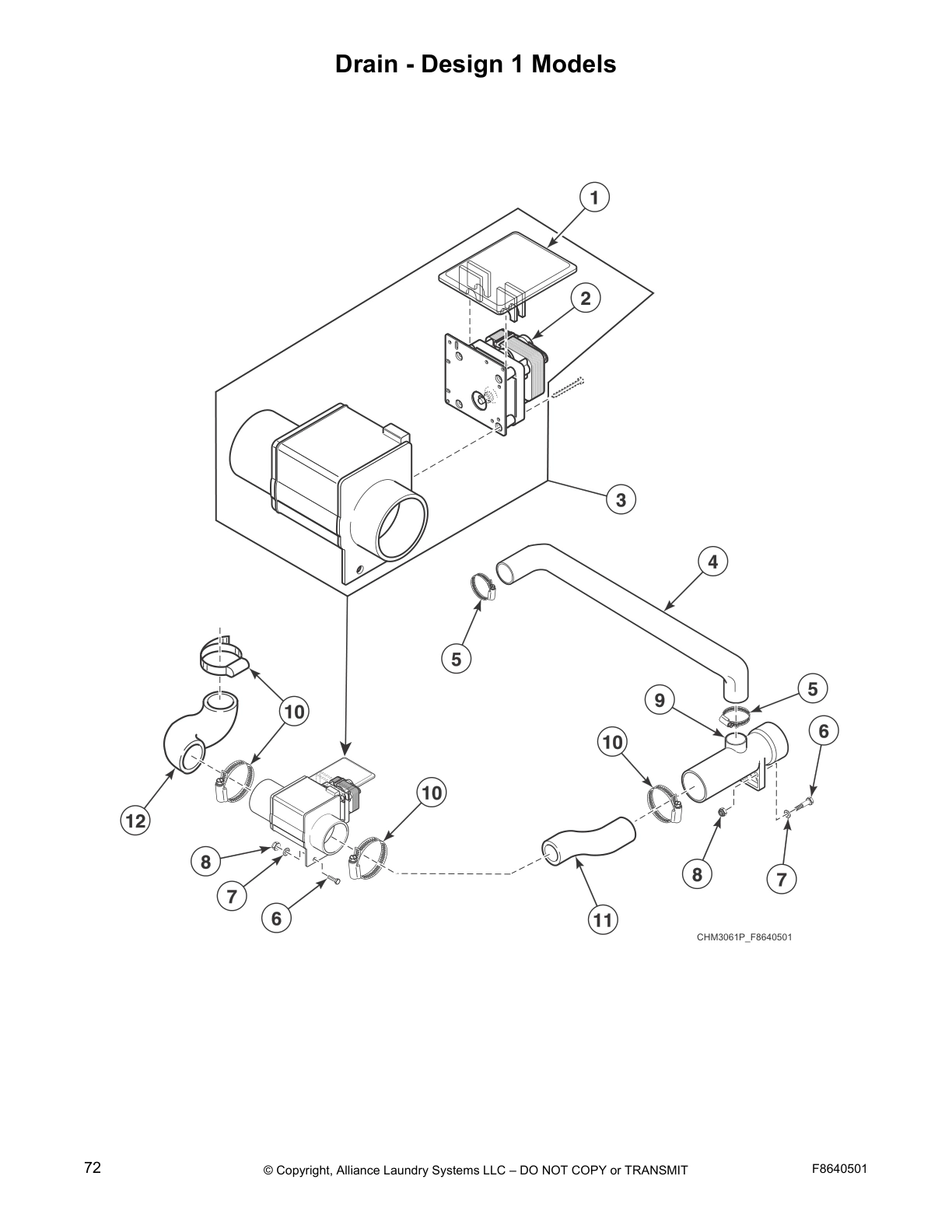

Drain - Design 1 Models
Drain - Design 2 Models

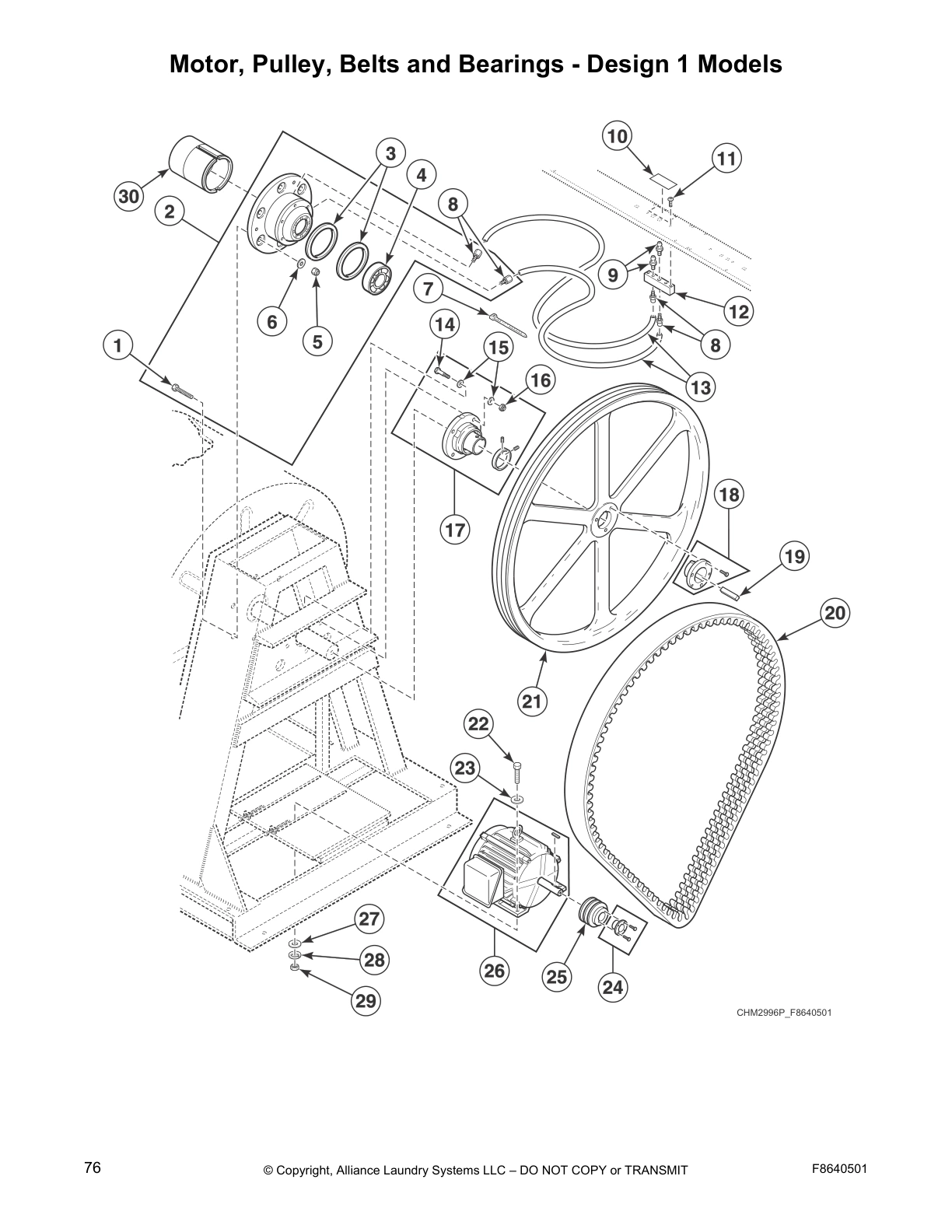

Motor, Pulley, Belts and Bearings - Design 1 Models
Bearing Housing - Design 2 Models

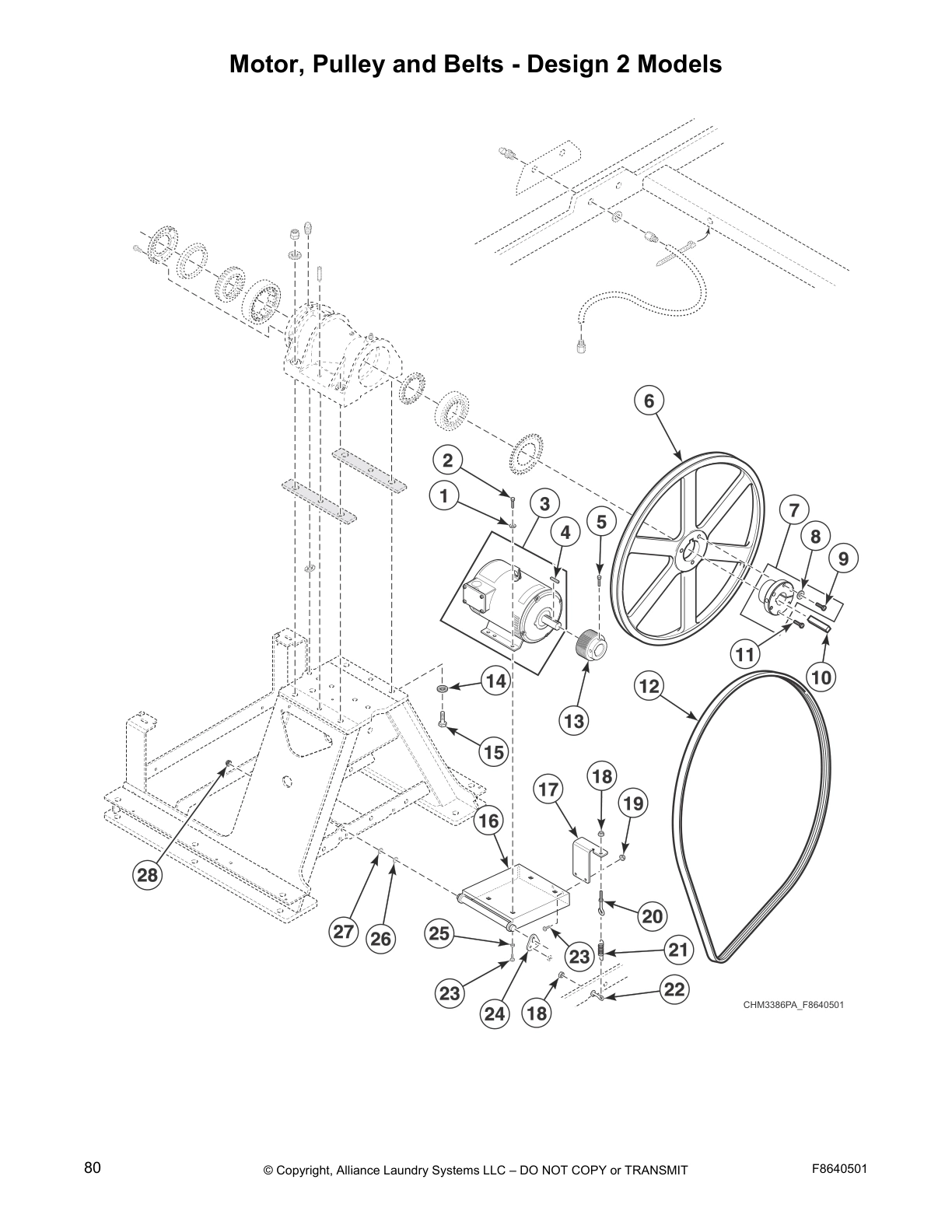

Motor, Pulley and Belts - Design 2 Models

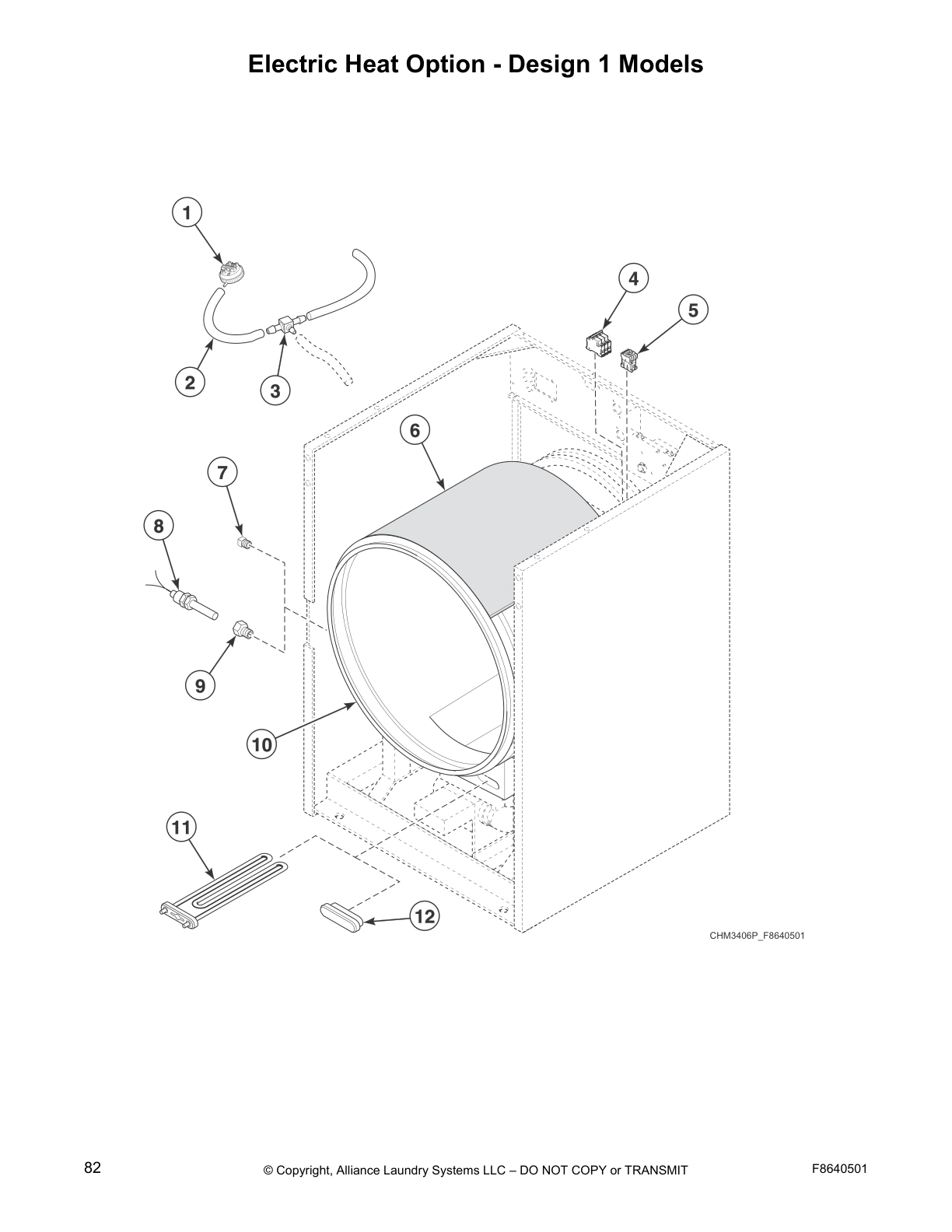

Electric Heat Option - Design 1 Models
Electric Heat Option - Design 2 Models

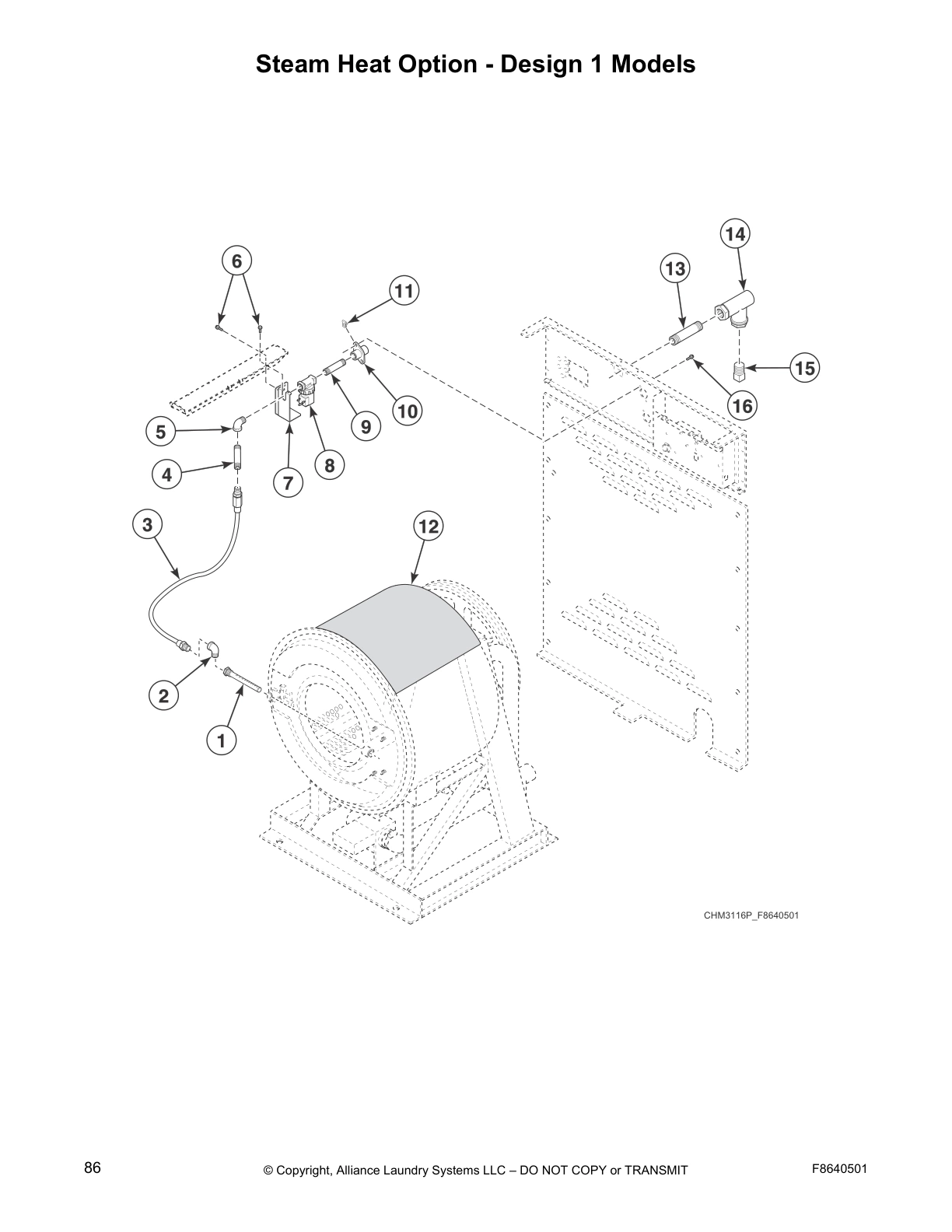

Steam Heat Option - Design 1 Models
Steam Heat Option - Design 2 Models

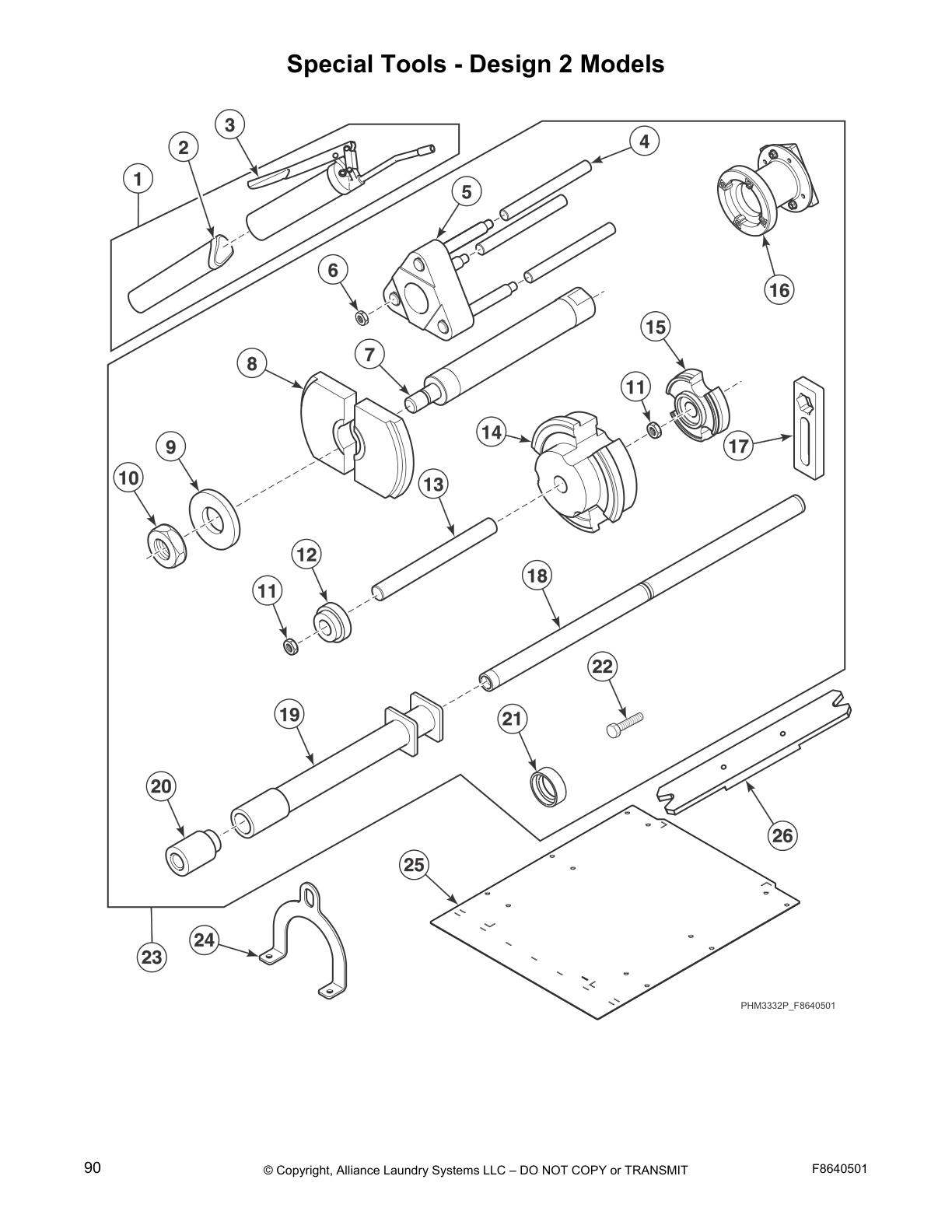

Special Tools - Design 2 Models
Common parts from model Ipso ICN080KDF Washer
Output/Logic Harness SPQ F937P3 Contact Us For Availability
USB IR Interface Kit SPQ F8182403 Contact Us For Availability
SPQ F8028106P SPQ F8028106P Contact Us For Availability
Electronic Coin Drop Assembly SPQ CK101 Contact Us For Availability
Coin Drop Assembly SPQ CK099 Contact Us For Availability
SPQ CK122 SPQ CK122 Contact Us For Availability
SPQ CK120 SPQ CK120 Contact Us For Availability
SPQ CK119 SPQ CK119 Contact Us For Availability
SPQ F8505001 SPQ F8505001 Contact Us For Availability
SPQ F8245101 SPQ F8245101 Contact Us For Availability
SPQ F8626501 SPQ F8626501 Contact Us For Availability
SPQ F8544601 SPQ F8544601 Contact Us For Availability
Concrete Hardware Kit SPQ F8493401 Contact Us For Availability
Excluder Seal
Standard SPQ F8503801 Contact Us For Availability
Seal Wear Plate SPQ F8474602 Contact Us For Availability
1
Drive Assembly SPQ F8303601P Contact Us For Availability
1
Coin Drawer Assembly SPQ F8182001 Contact Us For Availability
1
Screw SPQ F8117601 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Door Lock Solenoid Replacement Kit SPQ F977P3 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Double Check Valve SPQ F8301201 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Washer SPQ F8402701 Contact Us For Availability
1
Drain Valve Cover SPQ F200133600 Contact Us For Availability
1
Bearing
Front SPQ F8280504 Contact Us For Availability
1
Washer SPQ F8366601 Contact Us For Availability
1
Water Pressure Switch SPQ F8404401 Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Cabinet Top Brace SPQ 44089303P Contact Us For Availability
2
Hose SPQ F8433001 Contact Us For Availability
2
Drive Mounting Bracket SPQ F8549012 Contact Us For Availability
2
Coin Drop Assembly SPQ 38464P Contact Us For Availability
2
Coin Drop Assembly SPQ 70281102 Contact Us For Availability
2
Control Panel Overlay SPQ F8560102 Contact Us For Availability
2
Control Panel Overlay SPQ F8560101 Contact Us For Availability
2
Expansion Clip SPQ F8388409 Contact Us For Availability
2
Pop Rivet SPQ F431133 Contact Us For Availability
2
Door Lock Microswitch SPQ F431902 Contact Us For Availability
2
Siphon Cover SPQ F8047901 Contact Us For Availability
2
Washer SPQ J1408004 Contact Us For Availability
2
Screw SPQ 28448 Contact Us For Availability
2
Plug SPQ F420409 Contact Us For Availability
3
Screw SPQ F8322401 Contact Us For Availability
3
Coin Drop SPQ 70256402P Contact Us For Availability
3
Gusset Plate SPQ F8388403 Contact Us For Availability
3
Lid Clamp SPQ F8383401P Contact Us For Availability
3
Door Assembly SPQ F290210P Contact Us For Availability
3
Spacer SPQ F430225 Contact Us For Availability
3
P-Trap Hose SPQ F602586-36 Contact Us For Availability
3
Grommet SPQ F8410501 Contact Us For Availability
3
Radial Seal
Viton SPQ F8313701 Contact Us For Availability
3
Motor Rod Plate SPQ F8333302 Contact Us For Availability
3
Tubing SPQ F8153901 Contact Us For Availability
3
Street Elbow SPQ F421703 Contact Us For Availability
4
Door Lock Splash Shield SPQ F200203200 Contact Us For Availability
4
Tee SPQ F8246601 Contact Us For Availability
4
Circuit Breaker SPQ 70256901P Contact Us For Availability
4
Nut SPQ 39157 Contact Us For Availability
4
Top Cover Latch SPQ F8186702 Contact Us For Availability
4
SPQ F8221701 SPQ F8221701 Contact Us For Availability
4
SPQ F8405001 SPQ F8405001 Contact Us For Availability
4
Clamp Ring Bracket SPQ F8302701 Contact Us For Availability
4
Drain Valve Kit SPQ F8577201 Contact Us For Availability
4
Triple Lip SPQ F8452701 Contact Us For Availability
4
O-Ring SPQ F8333301 Contact Us For Availability
4
Steam Hose SPQ F200197 Contact Us For Availability
5
SPQ F431222 SPQ F431222 Contact Us For Availability
5
Opto Coupler SPQ 210196 Contact Us For Availability
5
Plug SPQ F8091701 Contact Us For Availability
5
Door Lock Plate Assembly SPQ F431901 Contact Us For Availability
5
Nut SPQ F200213 Contact Us For Availability
5
Screw SPQ F8302401 Contact Us For Availability
5
Radial Seal
Standard SPQ F8527701 Contact Us For Availability
5
Plug SPQ F0150502-00 Contact Us For Availability
5
Spacer SPQ F8335201P Contact Us For Availability
5
Shell Insulation SPQ F8209105 Contact Us For Availability
5
Pipe Insulation SPQ F8233708 Contact Us For Availability
6
SPQ F8567501 SPQ F8567501 Contact Us For Availability
6
Contactor SPQ F330188P Contact Us For Availability
6
Pop Rivet SPQ F8201001 Contact Us For Availability
6
SPQ F8230601 SPQ F8230601 Contact Us For Availability
6
Screw SPQ F320200 Contact Us For Availability
6
SPQ F8047801 SPQ F8047801 Contact Us For Availability
6
Triple Lip SPQ F8337101 Contact Us For Availability
6
Concrete Hardware Kit SPQ 70414101 Contact Us For Availability
6
Cable Tie SPQ F200165100 Contact Us For Availability
6
Flanged Bushing
Models starting 4/1/2015 SPQ F8487102 Contact Us For Availability
7
Control Tray Assembly SPQ F8053902 Contact Us For Availability
7
Washer SPQ F8041802 Contact Us For Availability
7
Washer SPQ 70412601 Contact Us For Availability
7
SPQ F430108 SPQ F430108 Contact Us For Availability
7
SPQ F8199502 SPQ F8199502 Contact Us For Availability
7
Door Lock Plate Shim SPQ F8223202 Contact Us For Availability
7
SPQ F8043406 SPQ F8043406 Contact Us For Availability
7
Shell Front Assembly SPQ F8537808 Contact Us For Availability
7
SPQ F8509501 SPQ F8509501 Contact Us For Availability
7
Seal SPQ F8550101 Contact Us For Availability
7
Shell Weldment SPQ F8361002 Contact Us For Availability
7
Molded Drain SPQ F200201 Contact Us For Availability
7
Cable Tie SPQ F140606 Contact Us For Availability
7
Steam Bracket SPQ F8116301 Contact Us For Availability
8
Coin Vault Assembly SPQ F8053901P Contact Us For Availability
8
SPQ F8201101 SPQ F8201101 Contact Us For Availability
8
SPQ F430215 SPQ F430215 Contact Us For Availability
8
SPQ M400985 SPQ M400985 Contact Us For Availability
8
SPQ F430532 SPQ F430532 Contact Us For Availability
8
Door Lock Assembly Kit SPQ F430977 Contact Us For Availability
8
SPQ F8042806 SPQ F8042806 Contact Us For Availability
8
Basket Assembly SPQ F8229801 Contact Us For Availability
8
SPQ F8442702 SPQ F8442702 Contact Us For Availability
8
Gasket SPQ F8442802 Contact Us For Availability
8
Flanged Bushing
Includes screws SPQ M400077 Contact Us For Availability
8
Plug SPQ F200202600 Contact Us For Availability
8
SPQ H86070034 SPQ H86070034 Contact Us For Availability
9
Jumper Configuration Assembly SPQ F8375201 Contact Us For Availability
9
SPQ F8223901 SPQ F8223901 Contact Us For Availability
9
External Door Lock Harness SPQ F8344401 Contact Us For Availability
9
SPQ F8048601 SPQ F8048601 Contact Us For Availability
9
SPQ 1112P SPQ 1112P Contact Us For Availability
9
Seal Sleeve SPQ F8516903 Contact Us For Availability
9
Screw SPQ F8171201 Contact Us For Availability
9
Models through 3/31/20 SPQ F8381801 Contact Us For Availability
9
Thermistor Sensor SPQ F370609 Contact Us For Availability
9
Basket Puller Tool SPQ F8456101 Contact Us For Availability
10
Front End Control SPQ F8204801P Contact Us For Availability
10
Top Cover Hinge SPQ F8258601 Contact Us For Availability
10
Door Lock Cover SPQ F8245001 Contact Us For Availability
10
Insertion Sleeve SPQ F8464901 Contact Us For Availability
10
Cylindrical SPQ F8465001 Contact Us For Availability
10
Electric Heat Harness SPQ F8056701 Contact Us For Availability
10
DIN Valve Adapter Kit SPQ F8382301 Contact Us For Availability
10
Nut SPQ F8455801 Contact Us For Availability
11
Control Assembly Kit SPQ F980P3 Contact Us For Availability
11
Lower Cabinet Brace SPQ F430174 Contact Us For Availability
11
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
11
Shim SPQ F8484401 Contact Us For Availability
11
Vacuum Breaker Hose SPQ F0200244-00 Contact Us For Availability
11
Hose Clamp SPQ F200222 Contact Us For Availability
11
Hose Barb Connector SPQ F8429401 Contact Us For Availability
11
Sleeve Adapter SPQ F8382501 Contact Us For Availability
11
Stud SPQ 70334702 Contact Us For Availability
11
Screw SPQ H88213996 Contact Us For Availability
11
Includes basket sleeve an SPQ F8528501 Contact Us For Availability
11
Screw SPQ 44048902 Contact Us For Availability
11
Heating Element SPQ F360203P Contact Us For Availability
11
Bearing Sleeve Assembly SPQ F8457701 Contact Us For Availability
12
Bottom False Panel SPQ F8442301 Contact Us For Availability
12
Hole Plug SPQ F8223801 Contact Us For Availability
12
Screw SPQ F430536 Contact Us For Availability
12
Door Lock Catch SPQ F8344501 Contact Us For Availability
12
Mixing Valve SPQ F8440401 Contact Us For Availability
12
Fill Cover SPQ F8586301 Contact Us For Availability
12
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
12
Bracket SPQ F8387401 Contact Us For Availability
12
Bearing Housing SPQ F8440001 Contact Us For Availability
12
Belt
80 pound models SPQ F8382815 Contact Us For Availability
12
Valve SPQ F8322801P Contact Us For Availability
13
Expansion Clip SPQ F8486903 Contact Us For Availability
13
Rear Panel SPQ F8455001 Contact Us For Availability
13
Washer SPQ M405535 Contact Us For Availability
13
Door Hinge SPQ F190216P Contact Us For Availability
13
Bolt SPQ F8223601 Contact Us For Availability
13
Valve Panel SPQ F8434002 Contact Us For Availability
13
Valve Panel SPQ F8399101 Contact Us For Availability
13
Radial Lip Seal
Models starting 8/21/2014 SPQ F8375401 Contact Us For Availability
13
100 pound models star 11/14/2013 SPQ F8382807 Contact Us For Availability
13
Lower Cabinet Brace SPQ F8404601 Contact Us For Availability
13
Coupling SPQ F8362701 Contact Us For Availability
14
Expansion Clip SPQ F8270701 Contact Us For Availability
14
Screw SPQ F8230301 Contact Us For Availability
14
Screw SPQ F8434001 Contact Us For Availability
14
Nut SPQ F8361001 Contact Us For Availability
14
Water Reuse Hose SPQ C000412 Contact Us For Availability
14
Radial Lip Seal
Double Lip SPQ F190701 Contact Us For Availability
14
Nut SPQ 70030401 Contact Us For Availability
15
Right Side Panel SPQ F8383203 Contact Us For Availability
15
Rod SPQ F602813-3 Contact Us For Availability
15
Drain Hose SPQ F8395801 Contact Us For Availability
15
Models through 8/20/2014 SPQ F8229901 Contact Us For Availability
15
Screw SPQ 20253 Contact Us For Availability
16
Washer SPQ F431929 Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8223401 Contact Us For Availability
16
Hose Barb SPQ F8402301 Contact Us For Availability
16
Bearing
Rear SPQ 70292801 Contact Us For Availability
16
100 pound models through 1 have been convert SPQ F8362601 Contact Us For Availability
16
Screw SPQ F8530201 Contact Us For Availability
17
Terminal Tray Cover SPQ 430642 Contact Us For Availability
17
Door Mount SPQ F150271 Contact Us For Availability
17
Nut SPQ F8070301 Contact Us For Availability
17
Terminal Tray Cover Gasket SPQ F8230001 Contact Us For Availability
17
Spherical SPQ F422114 Contact Us For Availability
17
Models starting 4/1/2015 SPQ F8562503 Contact Us For Availability
18
Bolt SPQ F8508101 Contact Us For Availability
18
Terminal Tray Cover SPQ F8177001 Contact Us For Availability
18
Tubing SPQ F8578002 Contact Us For Availability
18
Grease Fitting SPQ F140605 Contact Us For Availability
18
Belt
80 pound models through 3/31/2015 SPQ F8342201 Contact Us For Availability
19
Panel Lock SPQ 202175 Contact Us For Availability
19
Magnet SPQ F430974 Contact Us For Availability
19
Grease Instruction Label SPQ C000628P Contact Us For Availability
20
Expansion Clip SPQ F8405301 Contact Us For Availability
20
Harness SPQ F8206901 Contact Us For Availability
20
Pushbutton Switch SPQ F8383301 Contact Us For Availability
20
Door Glass Retainer SPQ F431916 Contact Us For Availability
20
Air Coupling SPQ F8203808 Contact Us For Availability
21
Door Glass Gasket SPQ F8390801 Contact Us For Availability
21
Left Side Panel SPQ 70413301 Contact Us For Availability
21
Filter SPQ F8454601 Contact Us For Availability
21
Cable Tie SPQ F8203807 Contact Us For Availability
21
HC an pound models through 11/13/2013 SPQ F8319503 Contact Us For Availability
22
Bolt SPQ F8383204 Contact Us For Availability
22
Glass SPQ F431223 Contact Us For Availability
22
Nut SPQ F8454401 Contact Us For Availability
22
Tubing SPQ F8379301 Contact Us For Availability
22
Bearing Seal Insertion and Removal Kit SPQ M400063 Contact Us For Availability
23
Ground Lug Connector SPQ F430232 Contact Us For Availability
23
Top Cover SPQ F8230501 Contact Us For Availability
23
Bearing Sleeve SPQ F431100 Contact Us For Availability
23
Connector SPQ F8207001 Contact Us For Availability
23
Motor Isolation Kit
Includes F8535103 Motor P SPQ F8440701 Contact Us For Availability
23
Frame Template SPQ F8599401 Contact Us For Availability
24
Spring Pin SPQ F8508001 Contact Us For Availability
24
3-Way Valve SPQ M411283 Contact Us For Availability
24
Motor Spring Bracket SPQ F8402801 Contact Us For Availability
25
Door Handle Spacer Kit SPQ F8549401 Contact Us For Availability
25
Diaphragm and Guide Kit SPQ F430909 Contact Us For Availability
25
Washer SPQ F8413101 Contact Us For Availability
25
Nut SPQ F8441101 Contact Us For Availability
26
Door Handle SPQ F8504903 Contact Us For Availability
26
Washer SPQ F8286402P Contact Us For Availability
26
Eye Bolt SPQ F8387601 Contact Us For Availability
27
Door SPQ F8504902 Contact Us For Availability
27
Hose SPQ G582P3 Contact Us For Availability
27
Extension Spring SPQ F8441901 Contact Us For Availability
28
Door Gasket SPQ F8504901 Contact Us For Availability
28
Dispenser Gasket SPQ F8286401P Contact Us For Availability
28
Bolt SPQ F8451601 Contact Us For Availability
29
Blind Rivet SPQ F8499904 Contact Us For Availability
29
Manifold SPQ F8459401 Contact Us For Availability
30
SPQ F8535501 SPQ F8535501 Contact Us For Availability
31
Dispenser Overflow Hose SPQ F8308301 Contact Us For Availability
32
Vacuum Supply Hose SPQ F8333201 Contact Us For Availability
34
Cap SPQ F8137504 Contact Us For Availability
35
SPQ F8535601 SPQ F8535601 Contact Us For Availability
36
SPQ F0431807-00 SPQ F0431807-00 Contact Us For Availability
NI
Fill Harness SPQ M413506 Contact Us For Availability
NI
Machine Size Configuration Harness SPQ F8191201P Contact Us For Availability
NI
SPQ F8028701 SPQ F8028701 Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
NI
Jumper Harness Assembly SPQ F8359704 Contact Us For Availability
NI
External Supply Kit SPQ F8182601 Contact Us For Availability
NI
SPQ F200010000P SPQ F200010000P Contact Us For Availability
NI
Pop Rivet SPQ 210195 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK109 Contact Us For Availability
NI
Coin Drop Kit SPQ CK100 Contact Us For Availability
NI
SPQ 70294107 SPQ 70294107 Contact Us For Availability
NI
SPQ 70294104 SPQ 70294104 Contact Us For Availability
NI
SPQ CK121 SPQ CK121 Contact Us For Availability
NI
SPQ 70482401 SPQ 70482401 Contact Us For Availability
NI
SPQ F431041 SPQ F431041 Contact Us For Availability
NI
SPQ F8505002 SPQ F8505002 Contact Us For Availability
NI
SPQ F8440801P SPQ F8440801P Contact Us For Availability
NI
SPQ F8505110 SPQ F8505110 Contact Us For Availability
NI
SPQ F8505109 SPQ F8505109 Contact Us For Availability
NI
SPQ F8059701 SPQ F8059701 Contact Us For Availability
NI
SPQ F8340001 SPQ F8340001 Contact Us For Availability
NI
SPQ F8197701 SPQ F8197701 Contact Us For Availability
NI
Fill Hose Kit SPQ F200165 Contact Us For Availability
NI
Hose Fitting SPQ F200164 Contact Us For Availability
NI
SPQ 44069101 SPQ 44069101 Contact Us For Availability
NI
Basket Assembly Kit SPQ F8516901 Contact Us For Availability
NI
Clamp Ring Assembly SPQ F8343911 Contact Us For Availability
NI
SPQ F8397301 SPQ F8397301 Contact Us For Availability
NI
SPQ F8500101 SPQ F8500101 Contact Us For Availability
NI
SPQ F8500001 SPQ F8500001 Contact Us For Availability
NI
SPQ F8386807 SPQ F8386807 Contact Us For Availability
NI
SPQ F8562001 SPQ F8562001 Contact Us For Availability
NI
Seal Scupper Pad SPQ F430248 Contact Us For Availability
NI
Excluder Seal
Viton SPQ F8406502 Contact Us For Availability
NI
Models through 8/20/2014 SPQ F8503701 Contact Us For Availability
NI
Nut SPQ F8474601 Contact Us For Availability
NI
Dowel Pin SPQ F822P3 Contact Us For Availability
NI
Motor
Includes item 8 SPQ M400013 Contact Us For Availability
NI
Key SPQ 44079203 Contact Us For Availability
NI
Heating Element Plug SPQ F360202 Contact Us For Availability
NI
SPQ F8490301 SPQ F8490301 Contact Us For Availability
NI
USB IR Interface Kit SPQ F460129P Contact Us For Availability
× ![]()
