Model Whirlpool IBS300DS03 RANGE/OVEN, ELECTRIC, BUILT-IN, SINGLE, 30 INCH – Common Parts & Diagrams

Common parts from model Whirlpool IBS300DS03 RANGE/OVEN, ELECTRIC, BUILT-IN, SINGLE, 30 INCH

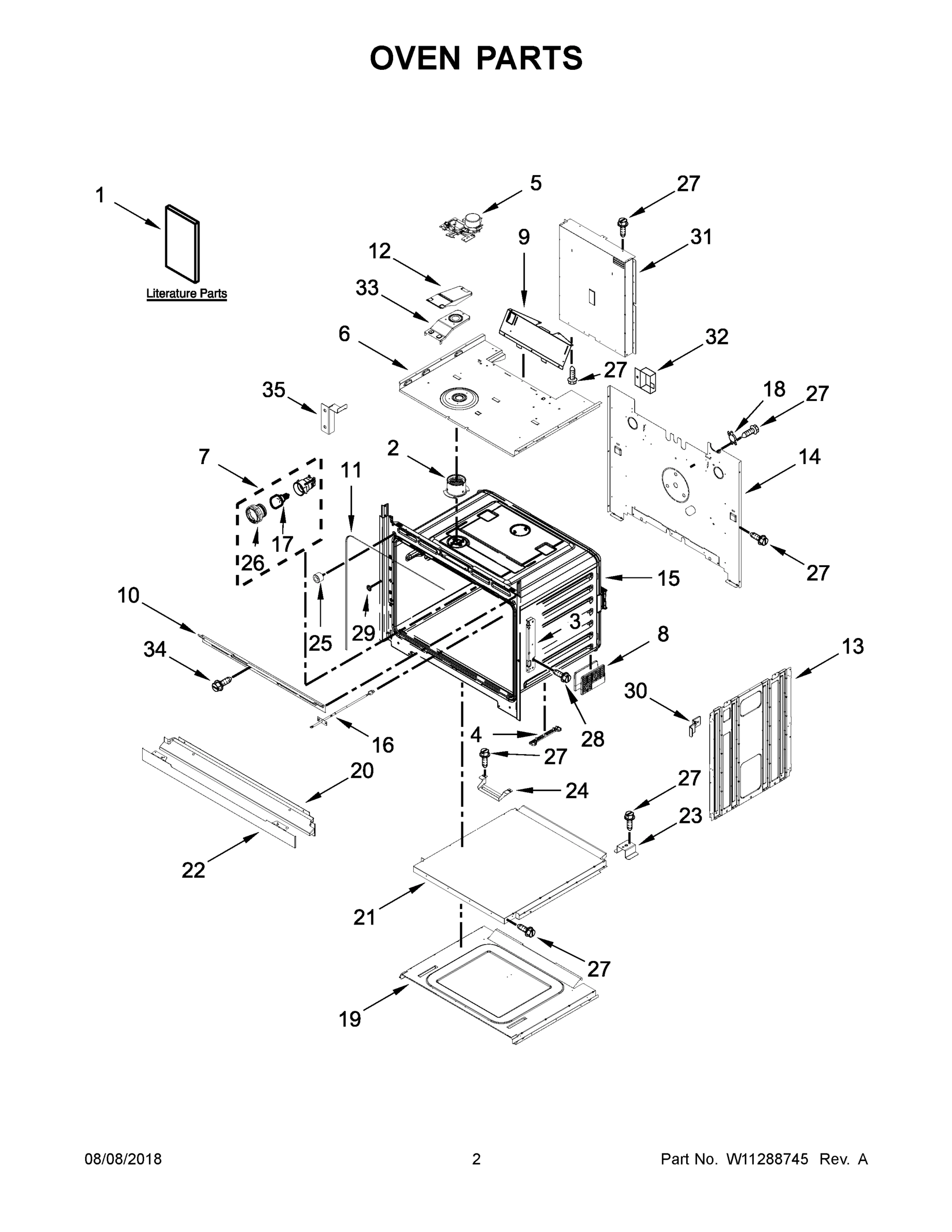

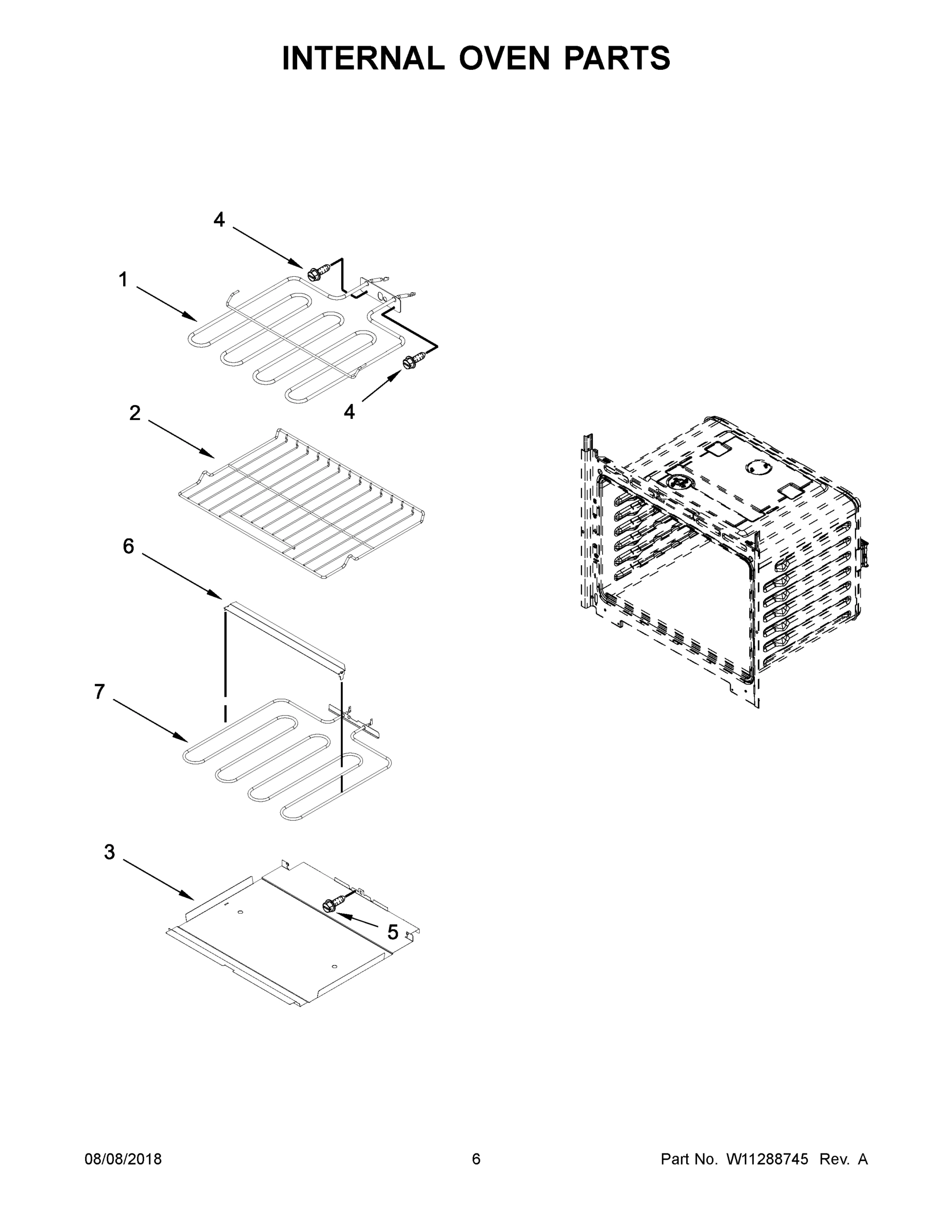

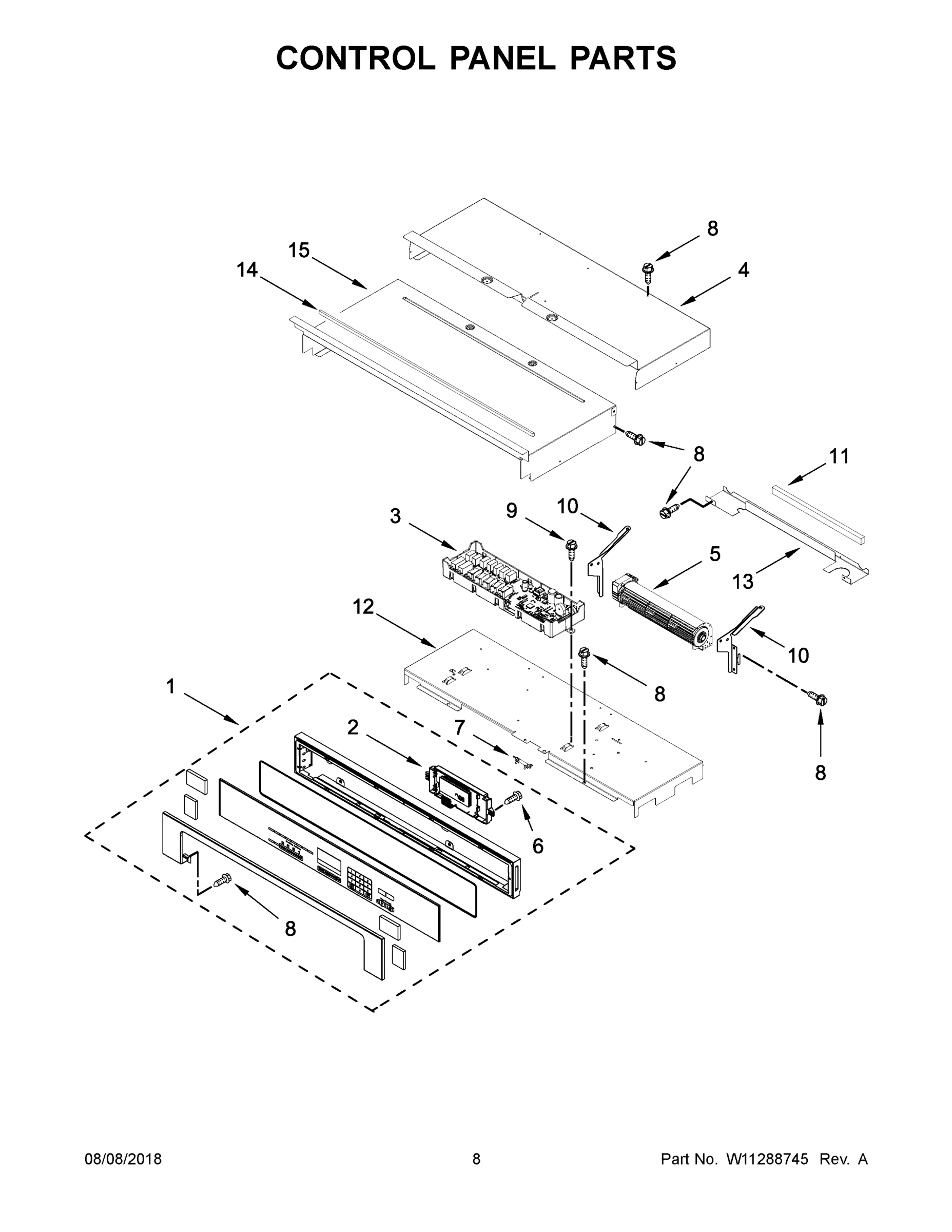

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

1

WPW10260252 Whirlpool Broil Element In Stock WPL WPW10260252 View Details $70.54

View on Model

1

WPW10347596 Whirlpool Stove Middle Door Glass In Stock WPL WPW10347596 View Details $146.08

View on Model

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 View Details $66.19

View on Model

3

W11613828 Whirlpool Hinge Receptacle Backorder WPL W11613828 View Details $24.58

View on Model

3

WP3196183 Whirlpool Screw In Stock WPL WP3196183 View Details $2.51

View on Model

4

W10904156 Whirlpool Cabinet Top Backorder WPL W10904156 View Details $62.92

View on Model

4

W11025615 Whirlpool Glass Bracket Backorder WPL W11025615 View Details $62.17

View on Model

4

W11240831 Whirlpool Spacer Backorder WPL W11240831 View Details $6.42

View on Model

5

WPW10709147 Whirlpool Glass Frame In Stock WPL WPW10709147 View Details $173.19

View on Model

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 View Details $16.20

View on Model

6

W10825778 Whirlpool Door Hinge In Stock WPL W10825778 View Details $38.45

View on Model

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 View Details $48.90

View on Model

7

WPW10545255 Whirlpool Thermal Fuse In Stock WPL WPW10545255 View Details $12.02

View on Model

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 View Details $61.11

View on Model

10

VENT, TOP 30" WPL W10283036 Contact Us For Availability

View on Model

11

W11623080 Whirlpool Gasket In Stock WPL W11623080 View Details $37.39

View on Model

12

W10347650 Whirlpool Mounting Bracket Backorder WPL W10347650 View Details $40.92

View on Model

12

W10616810 Whirlpool Exhaust Cover Backorder WPL W10616810 View Details $29.04

View on Model

13

W10655465 Whirlpool Mounting Bracket Backorder WPL W10655465 View Details $26.10

View on Model

13

SIDE, CHASSIS WPL W10318190 Contact Us For Availability

View on Model

14

GASKET, RUBBER WPL W11162063 Contact Us For Availability

View on Model

15

W10318192 Whirlpool Cabinet Top Backorder WPL W10318192 View Details $51.99

View on Model

16

W10859573 Whirlpool Range Oven Temperature Se In Stock WPL W10859573 View Details $68.99

View on Model

17

WPW10412711 Whirlpool Light Bulb In Stock WPL WPW10412711 View Details $13.60

View on Model

18

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 View Details $75.89

View on Model

20

WPW10351279 Whirlpool Oven Vent In Stock WPL WPW10351279 View Details $183.20

View on Model

22

WPW10327377 Whirlpool Trim Kit Backorder WPL WPW10327377 View Details $72.35

View on Model

26

WPW10412722 Whirlpool Light Lens In Stock WPL WPW10412722 View Details $8.38

View on Model

28

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 View Details $2.51

View on Model

30

W10347649 Whirlpool Spacer Backorder WPL W10347649 View Details $5.78

View on Model

31

W10318196 Whirlpool BA Chassis Backorder WPL W10318196 View Details $81.72

View on Model

33

W10616809 Whirlpool Vent Tube Backorder WPL W10616809 View Details $11.47

View on Model

35

W10863234 Whirlpool Bracket Backorder WPL W10863234 View Details $28.90

View on Model

35A

W10863233 Whirlpool Bracket Backorder WPL W10863233 View Details $28.90

View on Model

NI

285006 Whirlpool Spray In Stock WPL 285006 View Details $27.45

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 View Details $12.50

View on Model

NI

350938 Whirlpool Spray Gun In Stock WPL 350938 View Details $32.57

View on Model

NI

350942 Whirlpool Spray Paint Backorder WPL 350942 View Details $32.57

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 View Details $19.22

View on Model

NI

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 View Details $6.86

View on Model

NI

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 View Details $26.26

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 View Details $3.35

View on Model

NI

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 View Details $5.60

View on Model

NI

W10655464 Whirlpool Bracket Backorder WPL W10655464 View Details $14.22

View on Model

NI

W11132989 Whirlpool Wire Harness In Stock WPL W11132989 View Details $78.81

View on Model

NI

W11136114 Whirlpool Wire Harness Backorder WPL W11136114 View Details $139.36

View on Model

NI

W11157775 Whirlpool Wire Harness Backorder WPL W11157775 View Details $112.26

View on Model

NI

W11688731 Whirlpool Insulation Backorder WPL W11688731 View Details $45.31

View on Model

NI

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 View Details $24.89

View on Model

×
