Model Whirlpool IBMS1455VS0 BUILT-IN MICROWAVE – Common Parts & Diagrams

Miscellaneous
Miscellaneous WPL ARI75180A2 Contact Us For Availability
View on Model
1

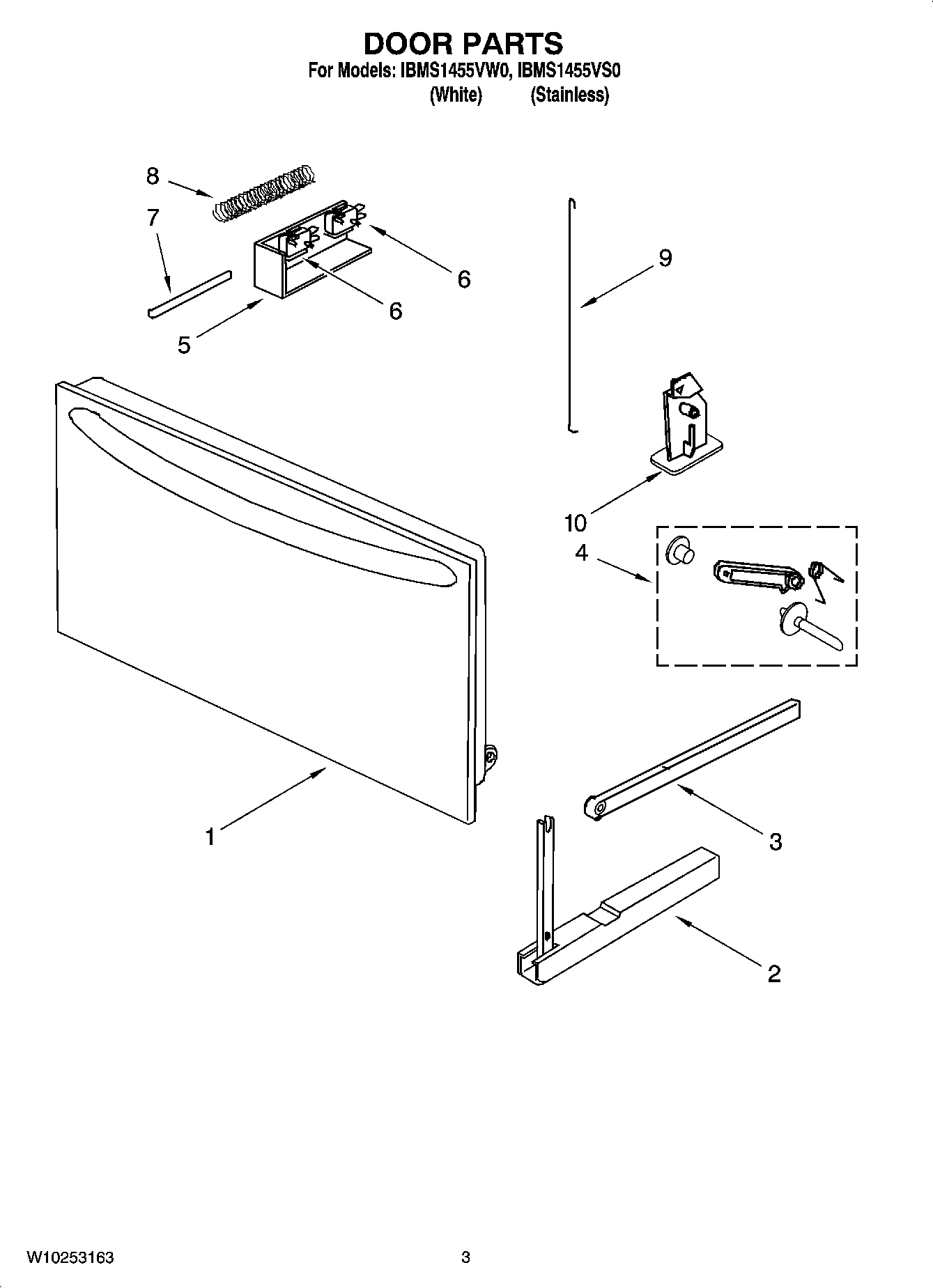

Door Assembly (White)
Door Assembly (White) WPL W10251253 Contact Us For Availability
View on Model
1
Air Duct
Air Duct WPL W10141633 Contact Us For Availability
View on Model
1
Bracket, Mounting
Bracket, Mounting WPL W10170866 Contact Us For Availability
View on Model
2
Panel, Control (Stainless)
Panel, Control (Stainless) WPL W10251248 Contact Us For Availability
View on Model
2
Panel, Control (White)
Panel, Control (White) WPL W10251247 Contact Us For Availability
View on Model
2
Air Guide
Air Guide WPL 8205740 Contact Us For Availability
View on Model
3
Support, Bottom
Support, Bottom WPL 8205707 Contact Us For Availability
View on Model
4
Motor, Fan Assy
Motor, Fan Assy WPL W10120517 Contact Us For Availability
View on Model
4
Narrow Trim (27`` Stainless)
Narrow Trim (27`` Stainless) WPL W10170873 Contact Us For Availability
View on Model
5
KNOB
KNOB WPL W10251251 Contact Us For Availability
View on Model
5
Chassis, Side (Left)
Chassis, Side (Left) WPL 8205674 Contact Us For Availability
View on Model
5
Thermostat
Thermostat WPL 8205652 Contact Us For Availability
View on Model
5
Chassis, Side (Right)
Chassis, Side (Right) WPL 8205680 Contact Us For Availability
View on Model
6
Thermostat
Thermostat WPL W10141630 Contact Us For Availability
View on Model
6
Holder, Control
Holder, Control WPL W10130897 Contact Us For Availability
View on Model
6
Wide Trim (30`` Stainless)
Wide Trim (30`` Stainless) WPL W10170874 Contact Us For Availability
View on Model
7
Back, Cover
Back, Cover WPL 8205710 Contact Us For Availability
View on Model
7
Top Chassis
Top Chassis WPL W10130895 Contact Us For Availability
View on Model
7
4 pk. screws (Stainless)
4 pk. screws (Stainless) WPL 8205771 Contact Us For Availability
View on Model
10
Cover-Plate
Cover-Plate WPL W10141634 Contact Us For Availability
View on Model
11
Ring, Clamp
Ring, Clamp WPL 8186858 Contact Us For Availability
View on Model
11
Plate, Air
Plate, Air WPL W10130892 Contact Us For Availability
View on Model
12
Disc, Function
Disc, Function WPL W10251401 Contact Us For Availability
View on Model
26
Cover, Motor
Cover, Motor WPL W10120234 Contact Us For Availability
View on Model
27
Gasket, Shaft
Gasket, Shaft WPL 4375252 Contact Us For Availability
View on Model
