Model Whirlpool HYE3658AZW ELECTRIC DRYER – Common Parts & Diagrams

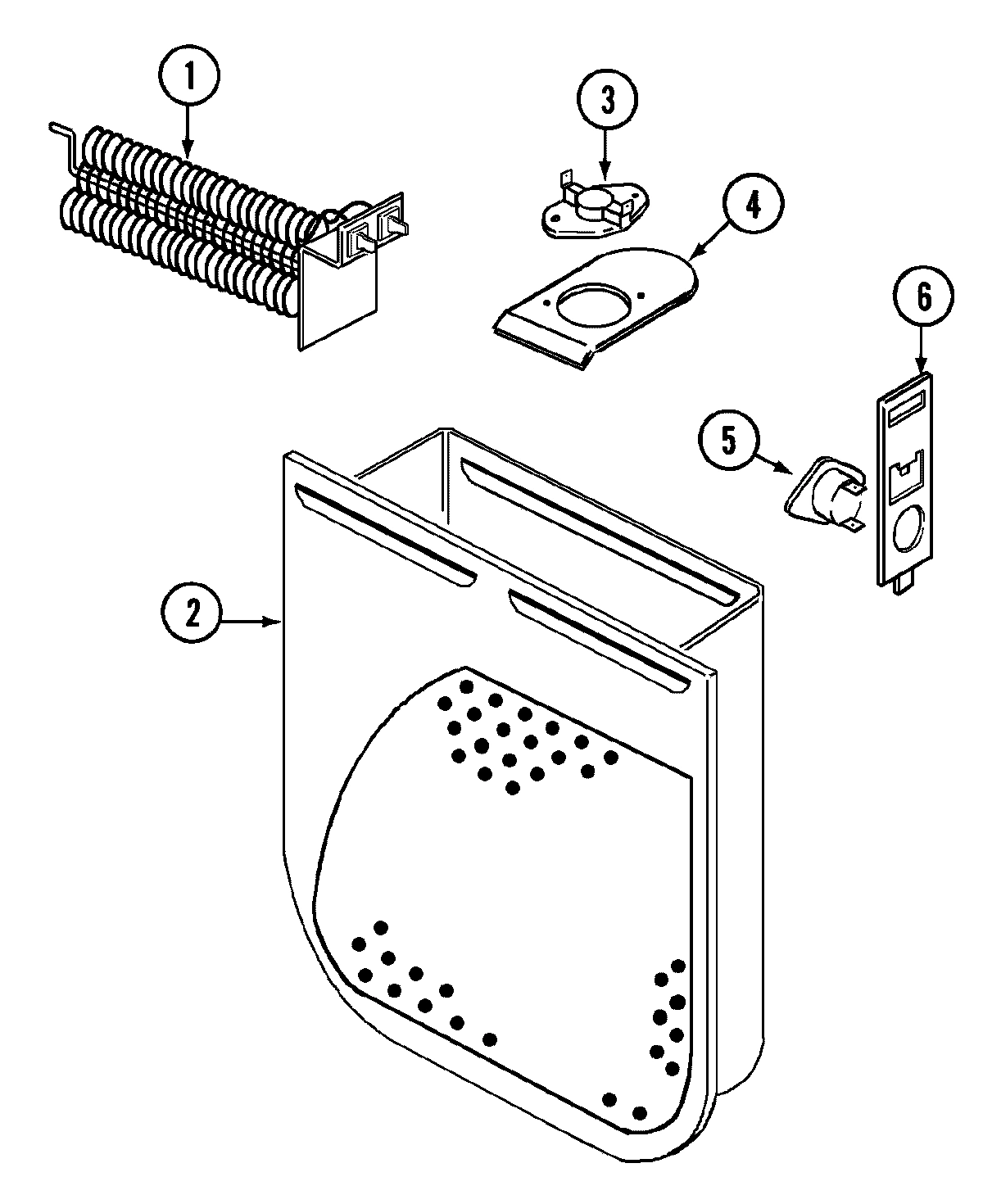

04 - HEATER

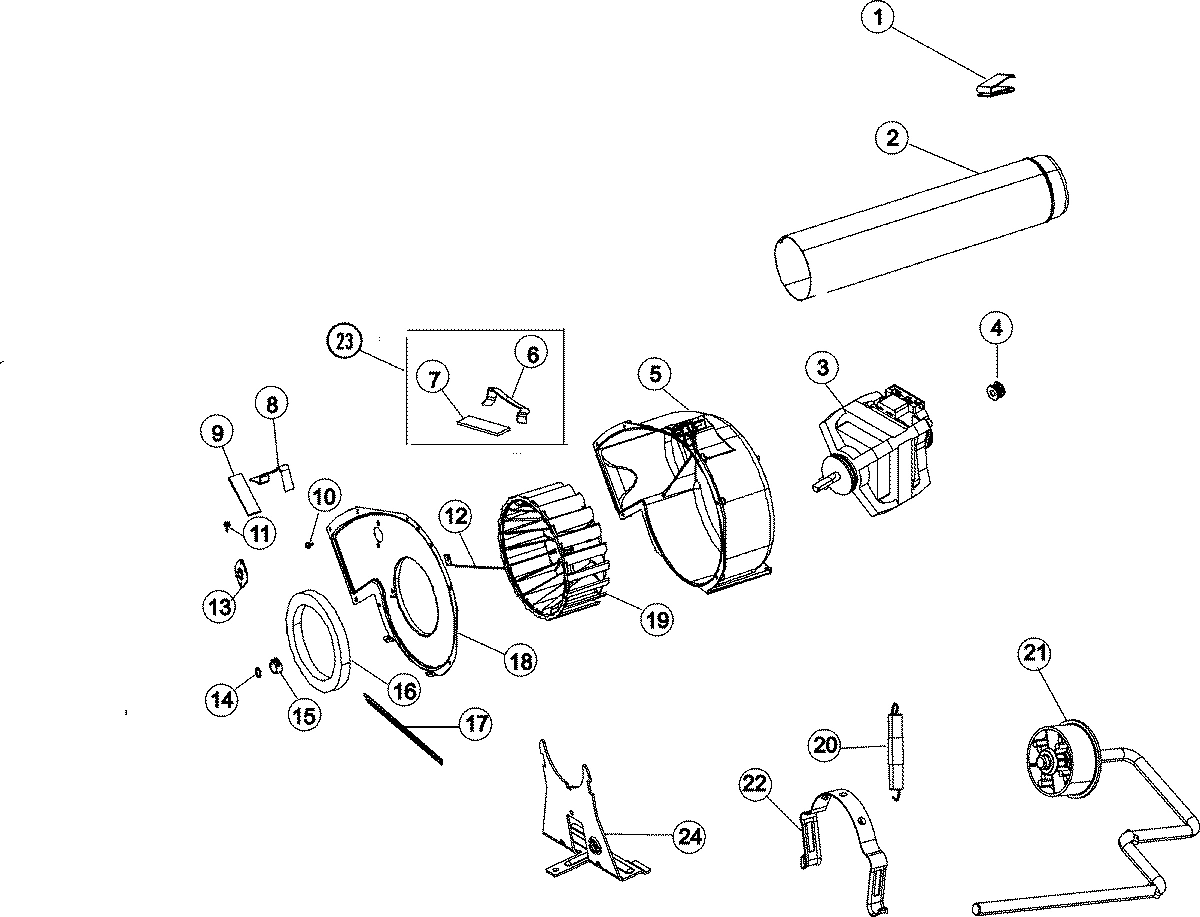

05 - MOTOR & DRIVE
06 - SUPPLEMENTAL INFORMATION

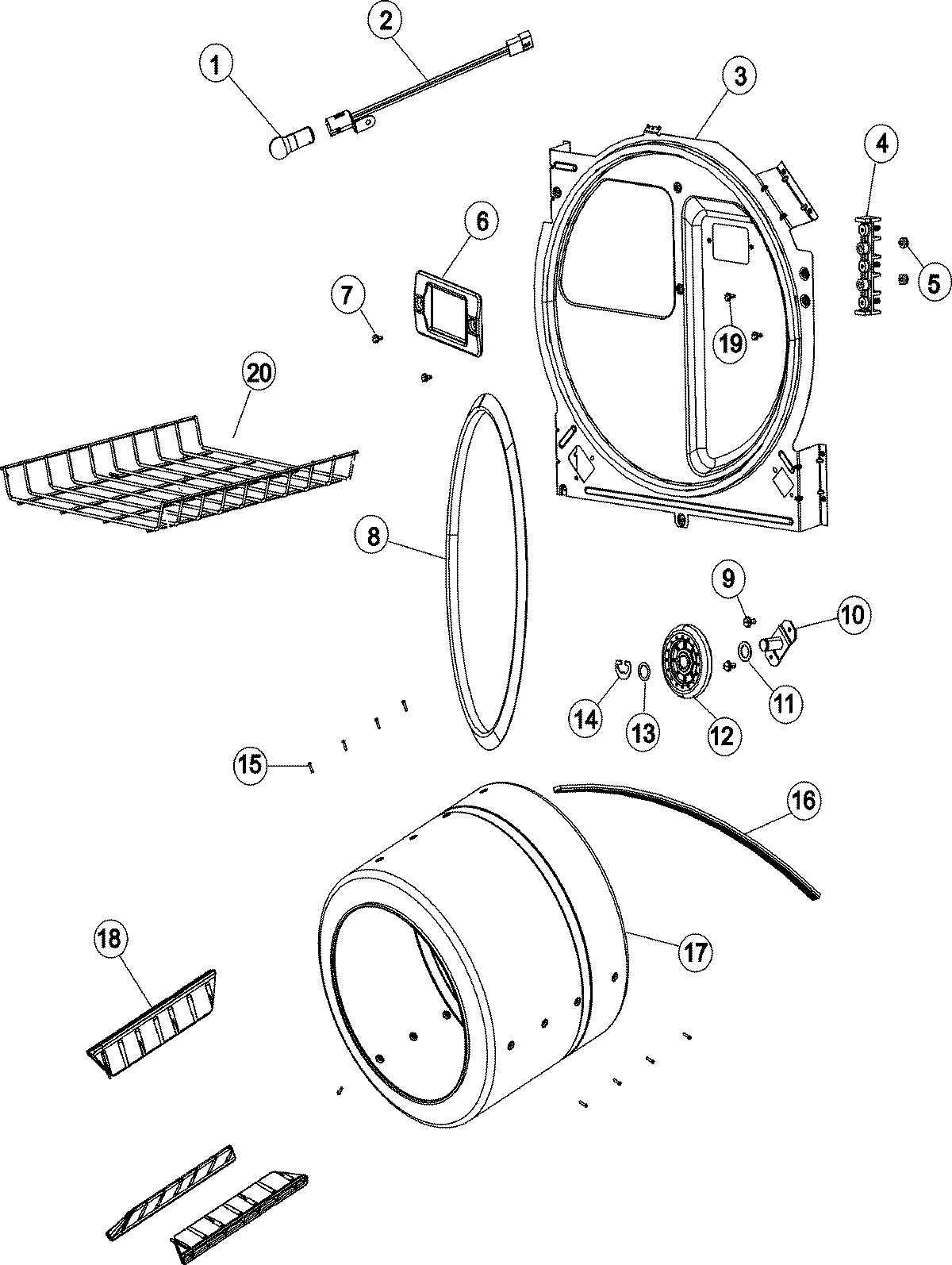

07 - TUMBLER (HYE3658AZW)

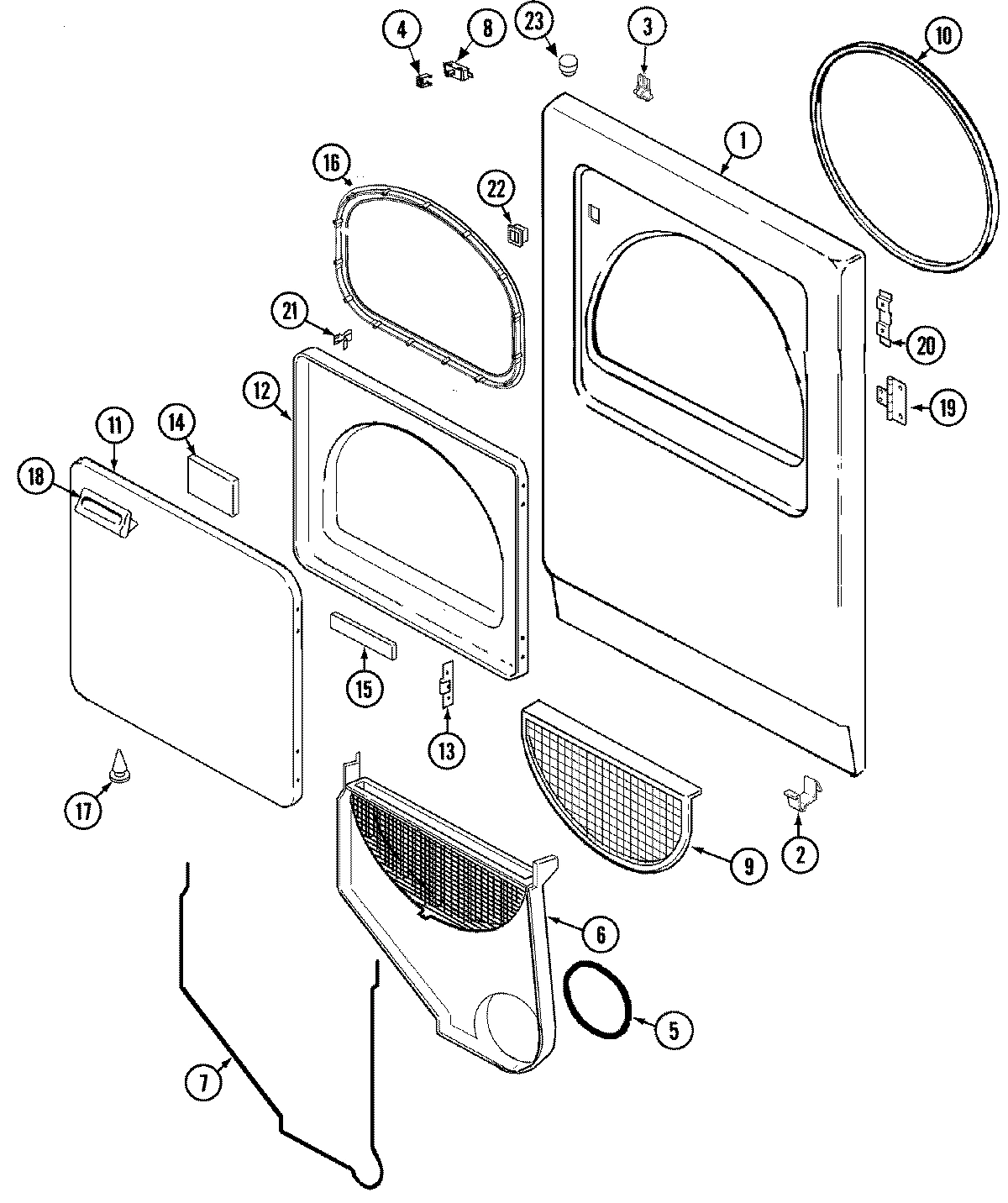

03 - DOOR (HYE3658AZW)

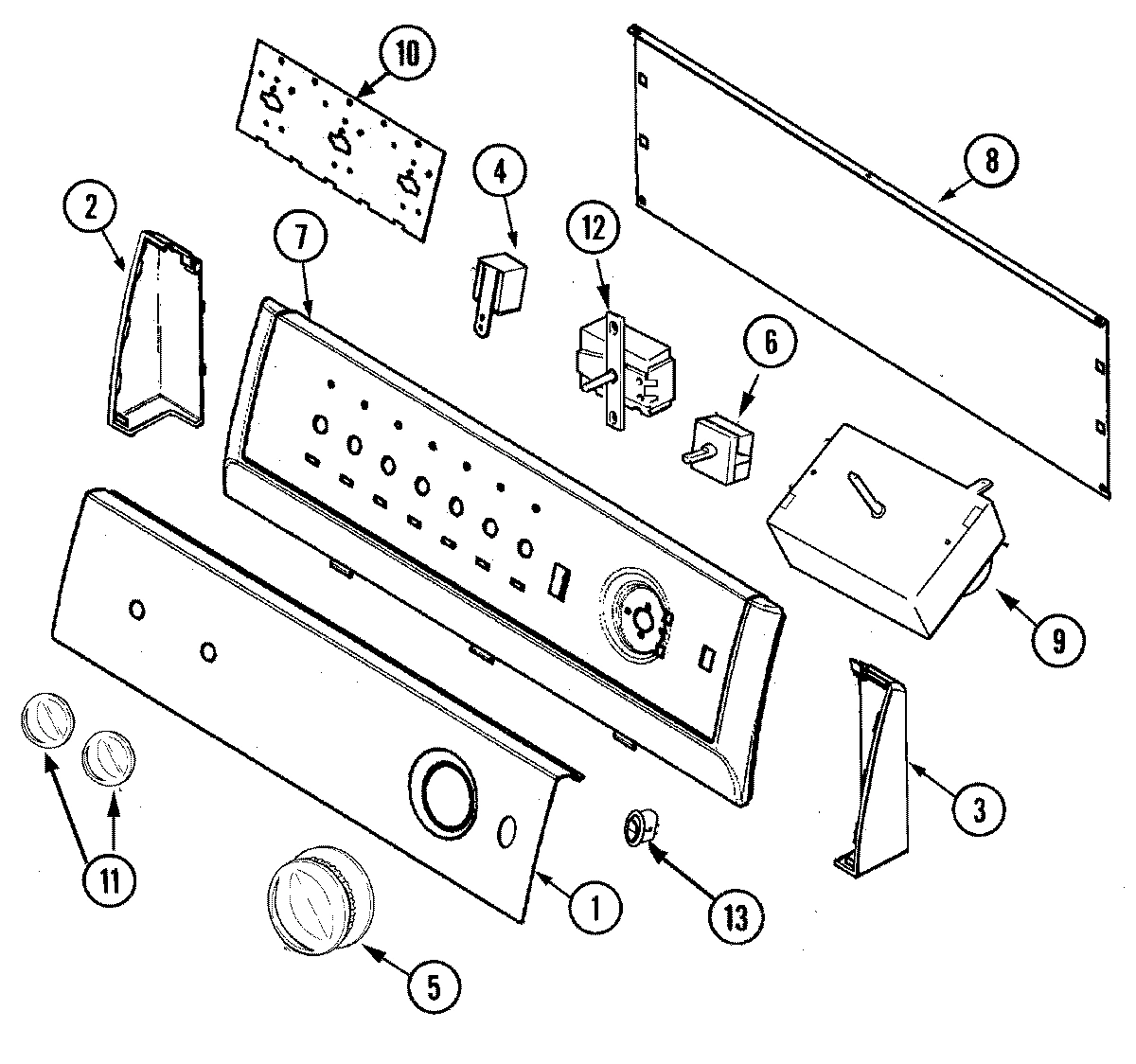

02 - CONTROL PANEL

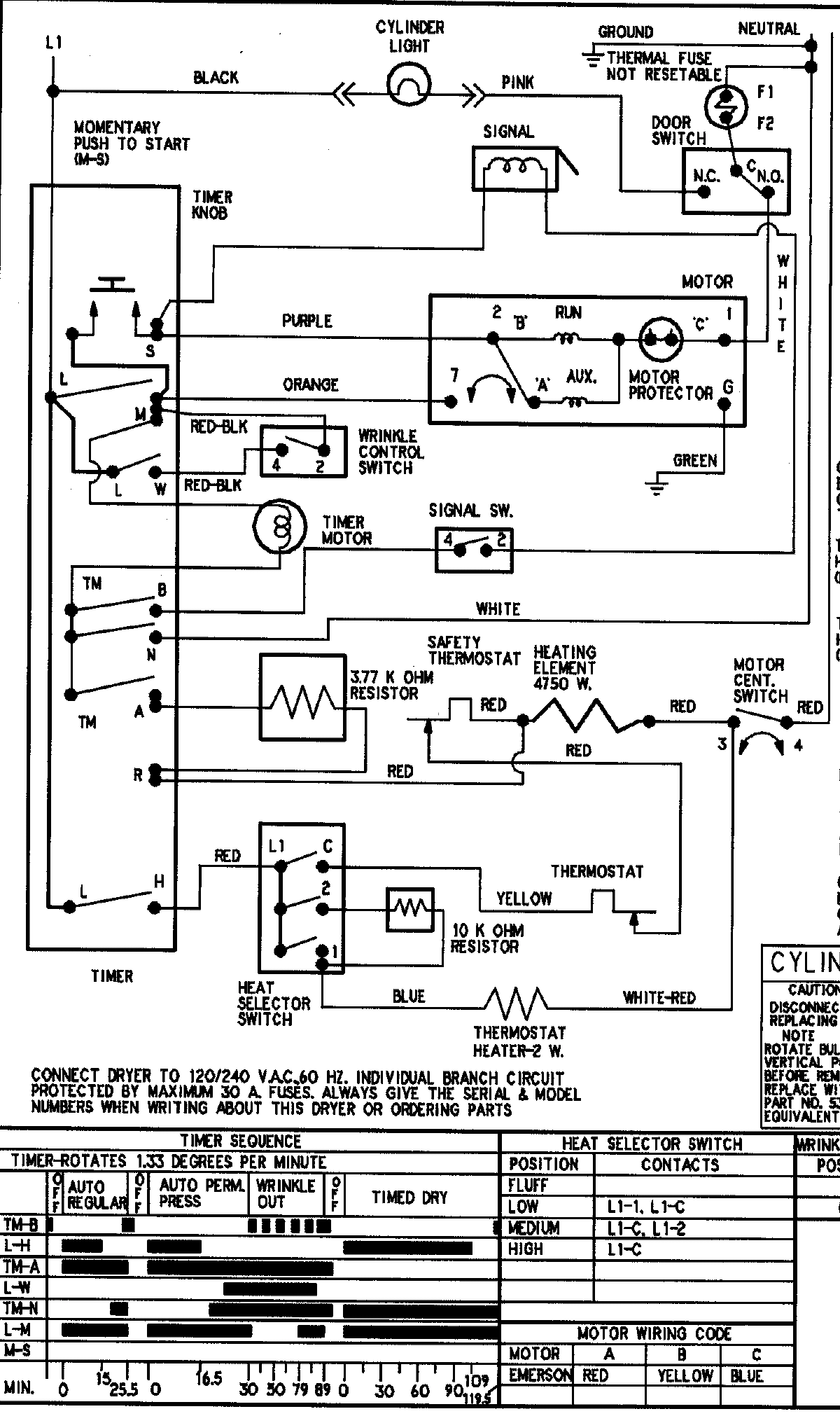

09 - WIRING INFORMATION (HYE3658AZW)

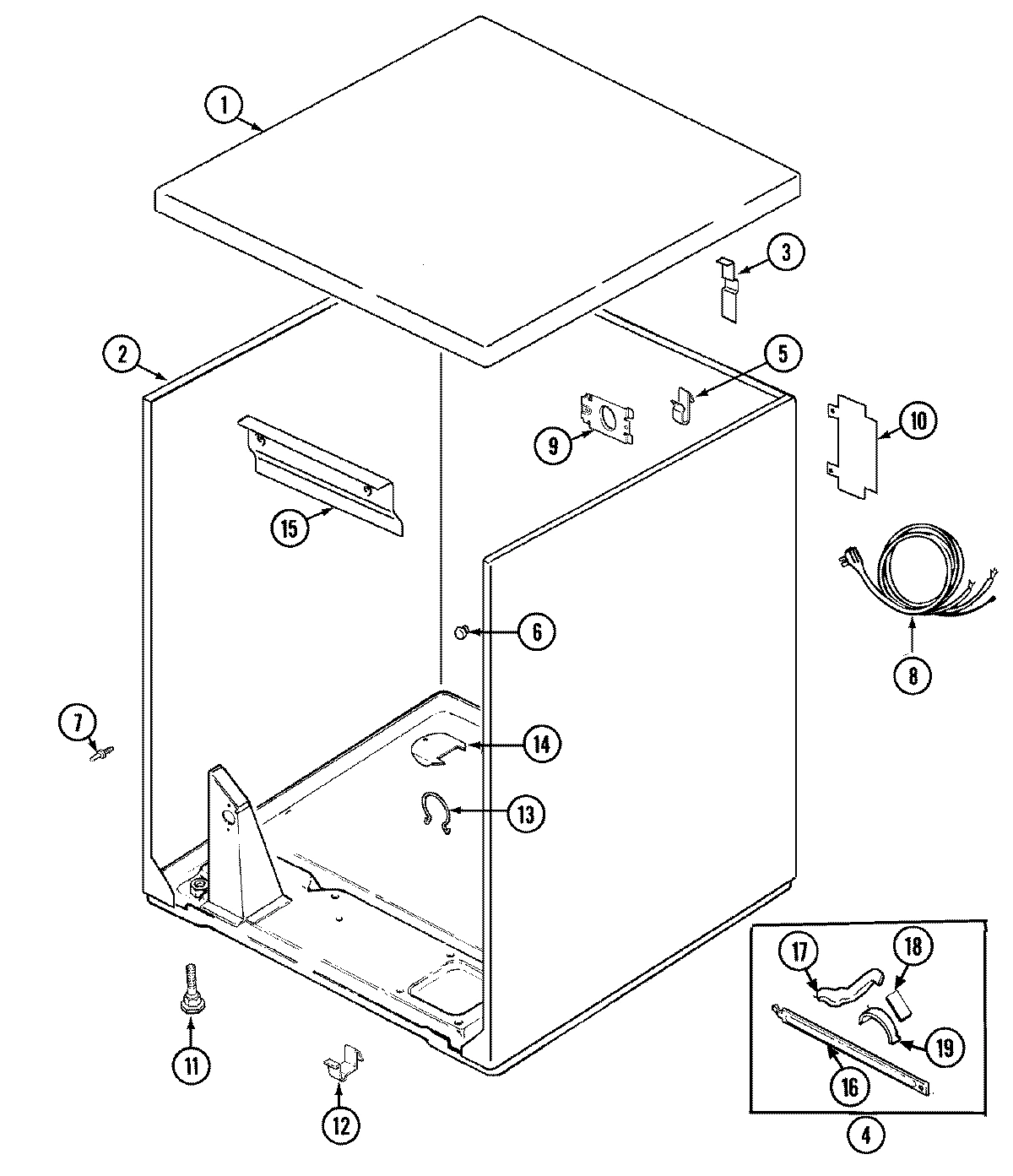

01 - CABINET

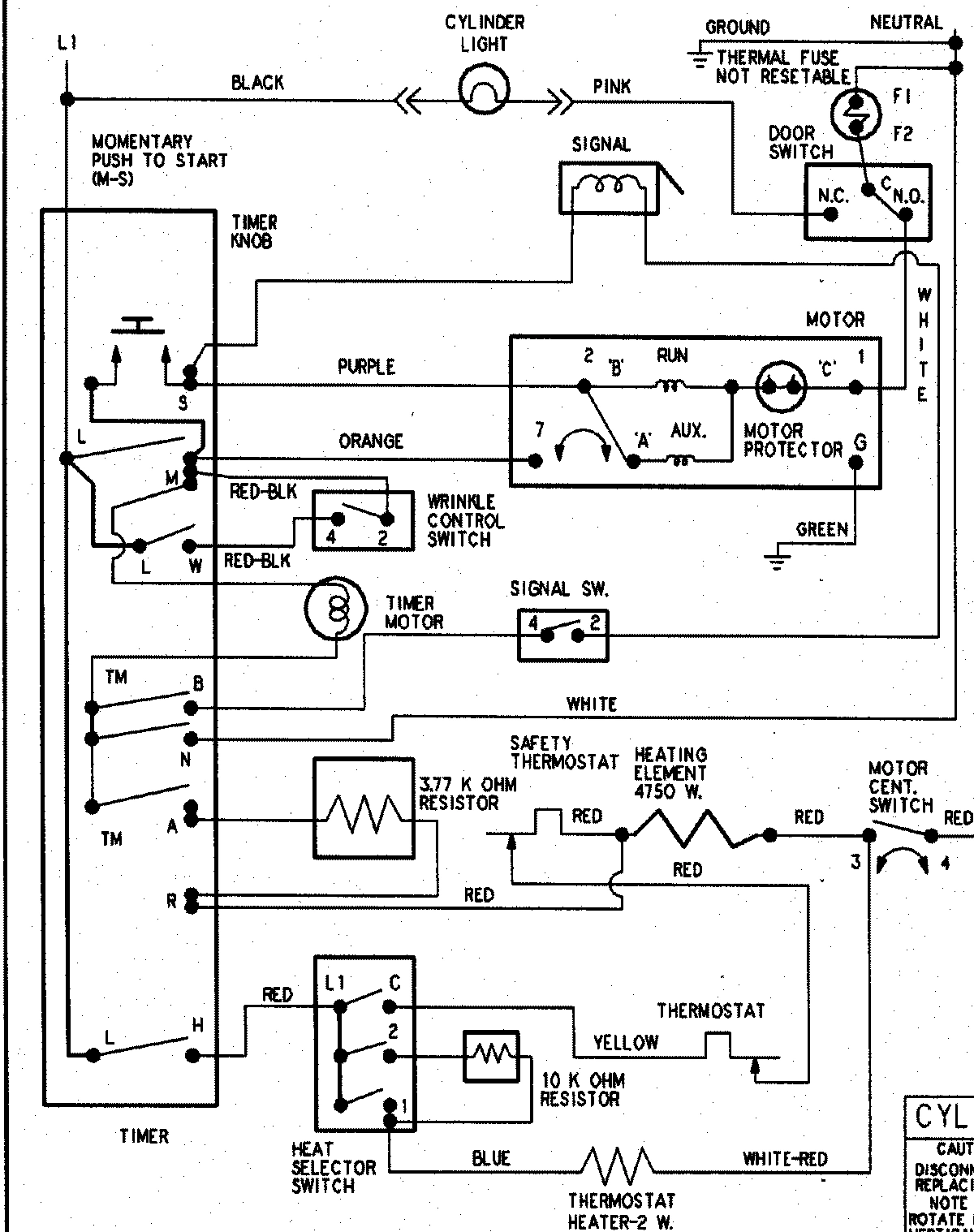

08 - WIRING INFORMATION
Common parts from model Whirlpool HYE3658AZW ELECTRIC DRYER
1
CLIP, VENT PIPE GROUND WPL 31001572 Contact Us For Availability
1
MANUAL, SRVC DRYER-NO REFUND WPL 16008334 Contact Us For Availability
1
MANUAL, USE & CARE WPL 534350 Contact Us For Availability
1
BULB, CYLINDER LIGHT WPL 31001575 Contact Us For Availability
1
PANEL, FRONT (WHT) WPL 31001771 Contact Us For Availability
1
PANEL, CONTROL WPL 31001553 Contact Us For Availability
1
DAMPER, CABINET WPL 31001220 Contact Us For Availability
1
TOP, CABINET (WHT) WPL 31001423 Contact Us For Availability
1
REINFORMENT, TOP WPL 31001527 Contact Us For Availability
2
DUCT, EXHAUST WPL 530134 Contact Us For Availability
2
RECEPTACLE ASM, CLYINDER LIGHT WPL 31001579 Contact Us For Availability
2
ENDCAP (WHT-LT) WPL 21001519 Contact Us For Availability
2
CABINET & BASE ASM (WHT) WPL 31001714 Contact Us For Availability
2
CABINET & BASE ASM (WHT) WPL 532559 Contact Us For Availability
3
LOCK, TOP WPL 31001526 Contact Us For Availability
3
BULKHEAD WITH SEAL WPL 31001581 Contact Us For Availability
3
ENDCAP (WHT-RT) WPL 21001523 Contact Us For Availability
3
SCREW WPL 253092 Contact Us For Availability
3
PAD, HINGE WPL 354128 Contact Us For Availability
3
HINGE, CABINET TOP WPL 635712 Contact Us For Availability
4
SCREW WPL 256121 Contact Us For Availability
4
BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability
4
KIT, SIDE VENT WPL 12001928 Contact Us For Availability
4
BLOCK, TERMINAL WPL 531518 Contact Us For Availability
4
CLIP, SWITCH WPL 31001733 Contact Us For Availability
4
SIGNAL, END OF CYCLE (CHIME) WPL 33001848 Contact Us For Availability
5
FUSE, THERMAL WPL 531182 Contact Us For Availability
5
HOUSING, BLOWER WPL 531801 Contact Us For Availability
5
SEAL, BLOWER/COLLECTOR DUCT WPL 31001541 Contact Us For Availability
5
WIRE KIT (HERRIN LAUNDRY) WPL 12002417 Contact Us For Availability
5
NUT (No.10-32) WPL 250027 Contact Us For Availability
5
WASHER, FLAT WPL 253122 Contact Us For Availability
5
CLIP, WIRING WPL 253034 Contact Us For Availability
6
BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability
6
LENS, CYLINDER LIGHT WPL 31001585 Contact Us For Availability
6
BUMPER, CABINET WPL 332653 Contact Us For Availability
6
SWITCH, TWO POSITION ROTARY WPL 31001190 Contact Us For Availability
7
SCREW, 6-32 HEX WASHER HEAD WPL 31001580 Contact Us For Availability
7
SEAL WPL 530204 Contact Us For Availability
7
FRAME, CONTROL PANEL (WHT) WPL 21002005 Contact Us For Availability
7
POST, LOCATING WPL 21001829 Contact Us For Availability
8
SWITCH, DOOR WPL 31001732 Contact Us For Availability
8
SHIELD, REAR (BACK PANEL) WPL 21001527 Contact Us For Availability
8
CORD, POWER WPL 31001019 Contact Us For Availability
9
SCREW WPL 257101 Contact Us For Availability
9
FILTER, LINT WPL 530918 Contact Us For Availability
9
RESISTOR ASM (DOMESTIC/TIMER) WPL 31001484 Contact Us For Availability
9
TIMER WPL 31001731 Contact Us For Availability
10
SCREW WPL 257807 Contact Us For Availability
10
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
10
SHIELD, CONTROL (3 POS.) WPL 21001603 Contact Us For Availability
10
SCREW WPL 257857 Contact Us For Availability
10
COVER, TERMINAL WPL 530284 Contact Us For Availability
11
SCREW WPL 257890 Contact Us For Availability
11
SPACER, ROLLER WPL 31001583 Contact Us For Availability
11
SCREW, 8-18X3/8 TYAB BUT WPL 257752 Contact Us For Availability
11
PANEL, OUTER DOOR (WHT) WPL 530154 Contact Us For Availability
11
KNOB, SELECTOR WPL 21001974 Contact Us For Availability
11
LEG, LEVELING WPL 635519 Contact Us For Availability
12
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
12
ROLLER (REAR) WPL 31001096 Contact Us For Availability
12
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
12
PANEL, INNER DOOR (WHT) WPL 530912 Contact Us For Availability
12
SWITCH, TEMPERATURE WPL 31001447 Contact Us For Availability
12
RESISTOR ASM TEMPERATURE WPL 31001483 Contact Us For Availability
13
SCREW WPL 252134 Contact Us For Availability
13
WASHER WPL 257814 Contact Us For Availability
13
CLIP, HINGE WPL 530119 Contact Us For Availability
14
SCREW WPL 257733 Contact Us For Availability
14
RING, RETAINING WPL 257855 Contact Us For Availability
14
HARNESS, WIRE WPL 31001496 Contact Us For Availability
14
RING, RETAINING WPL 257854 Contact Us For Availability
14
DOOR PAD WPL 531490 Contact Us For Availability
14
SHIELD, WIRING WPL 531921 Contact Us For Availability
15
CLAMP WPL 257823 Contact Us For Availability
15
SCREW WPL 257759 Contact Us For Availability
15
DOOR PAD WPL 531491 Contact Us For Availability
15
SCREW, SEMS WPL 253457 Contact Us For Availability
15
SHIELD, HEAT WPL 530133 Contact Us For Availability
16
BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability
17
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
17
PLUG BUTTON WPL 257889 Contact Us For Availability
18
COVER, BLOWER HOUSING WPL 531934 Contact Us For Availability
18
BAFFLE, WHITE WPL 531249 Contact Us For Availability
18
SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability
18
HANDLE, DOOR (WHT) WPL 530927 Contact Us For Availability
19
SCREW WPL 257952 Contact Us For Availability
19
SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability
19
HINGE, DRYER DOOR WPL 531492 Contact Us For Availability
20
SPRING, IDLER WPL 31001465 Contact Us For Availability
20
RACK, DRYING WPL 21001495 Contact Us For Availability
20
TWIN NUT WPL 530121 Contact Us For Availability
21
IDLER ARM ASSEMBLY WPL 31001710 Contact Us For Availability
21
STRIKE, DOOR WPL 532364 Contact Us For Availability
22
CLAMP, MOTOR WPL 530214 Contact Us For Availability
22
CATCH, DOOR WPL 530187 Contact Us For Availability
24
BRACKET, MOTOR WPL 31001570 Contact Us For Availability
24
SCREW, 10-24X0700 HXWSHRHD TY WPL 31001571 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003455 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003266 Contact Us For Availability
× ![]()
