Model Huebsch HSK050N Stacked Washer and Dryer – Common Parts & Diagrams

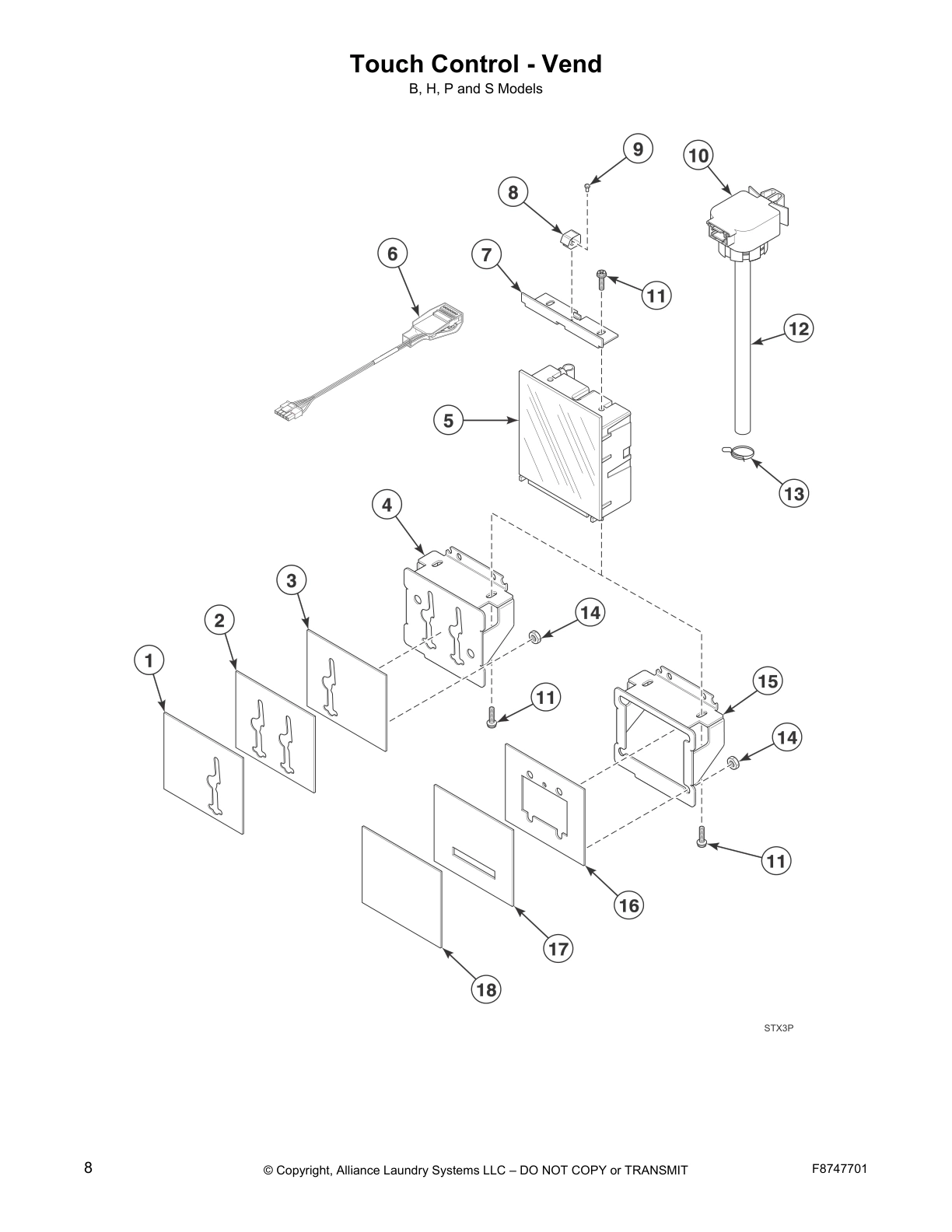

Touch Control - Vend

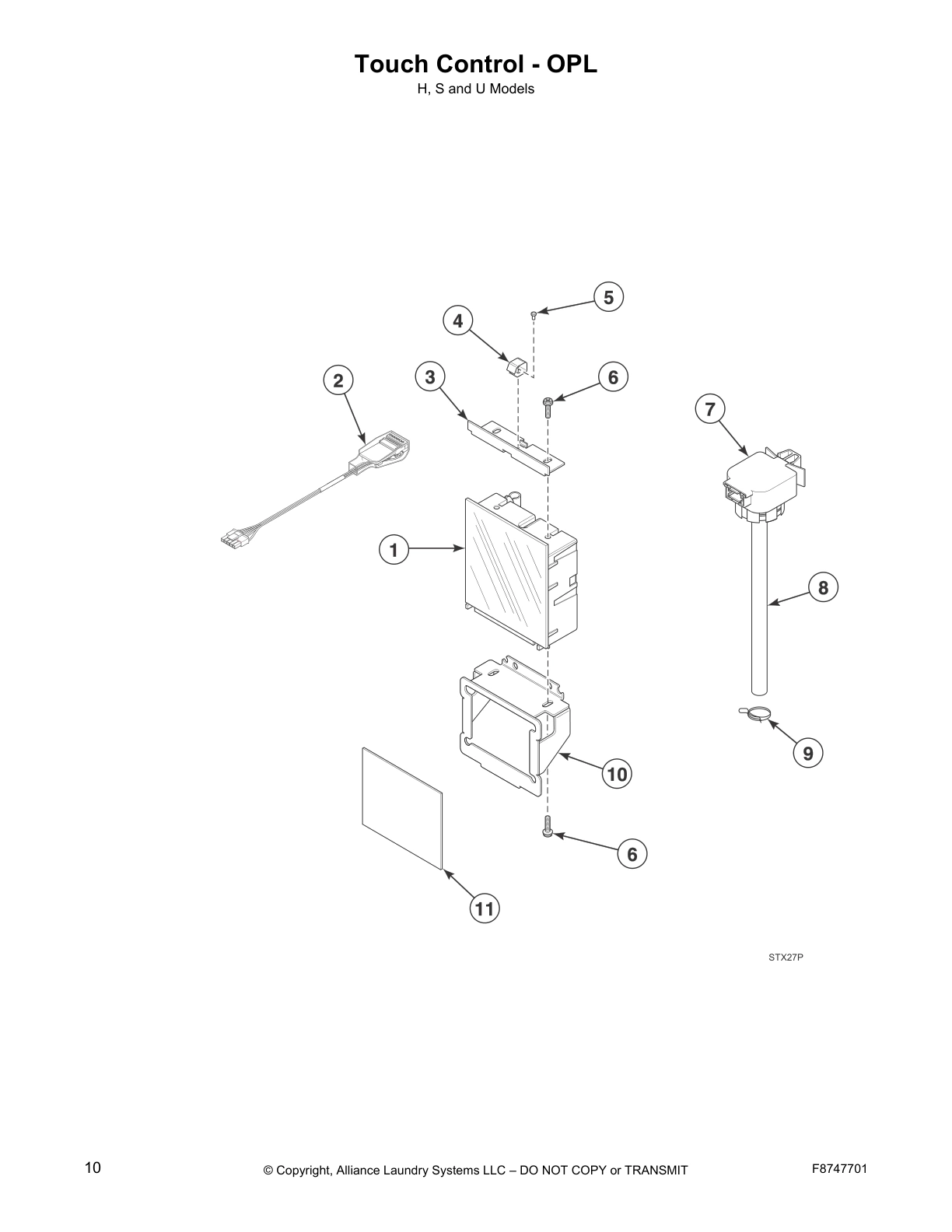

Touch Control - OPL

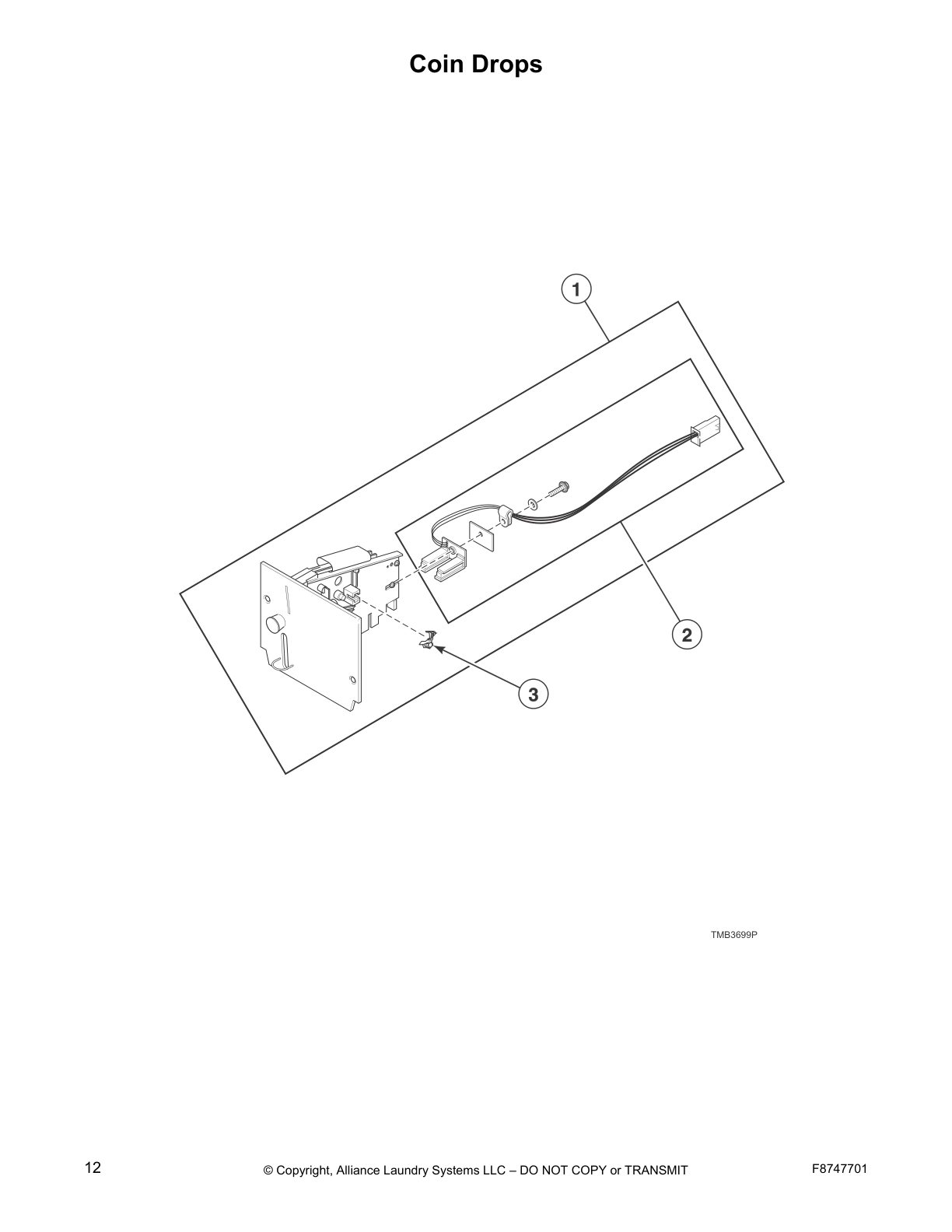

Coin Drops
Optional Coin Box

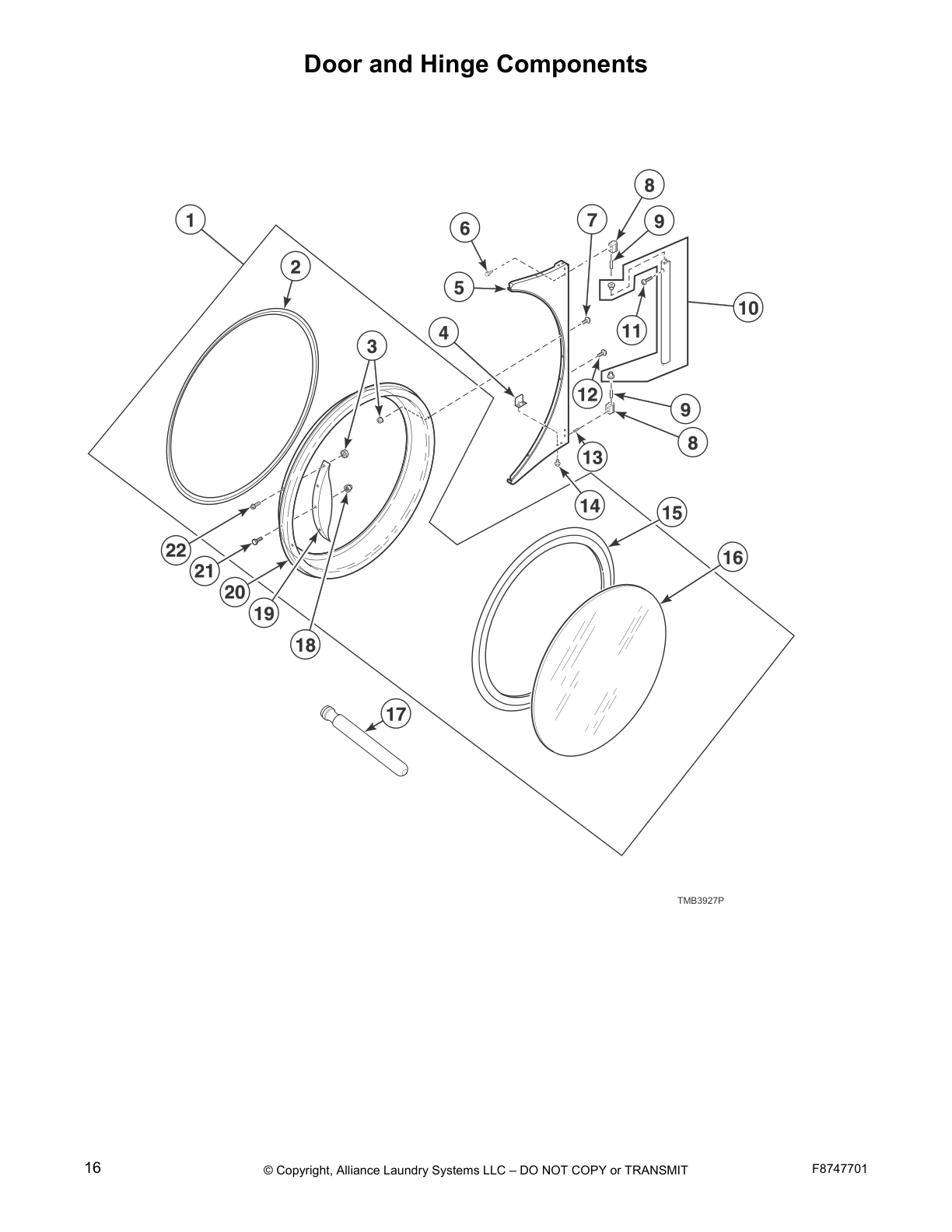

Door and Hinge Components

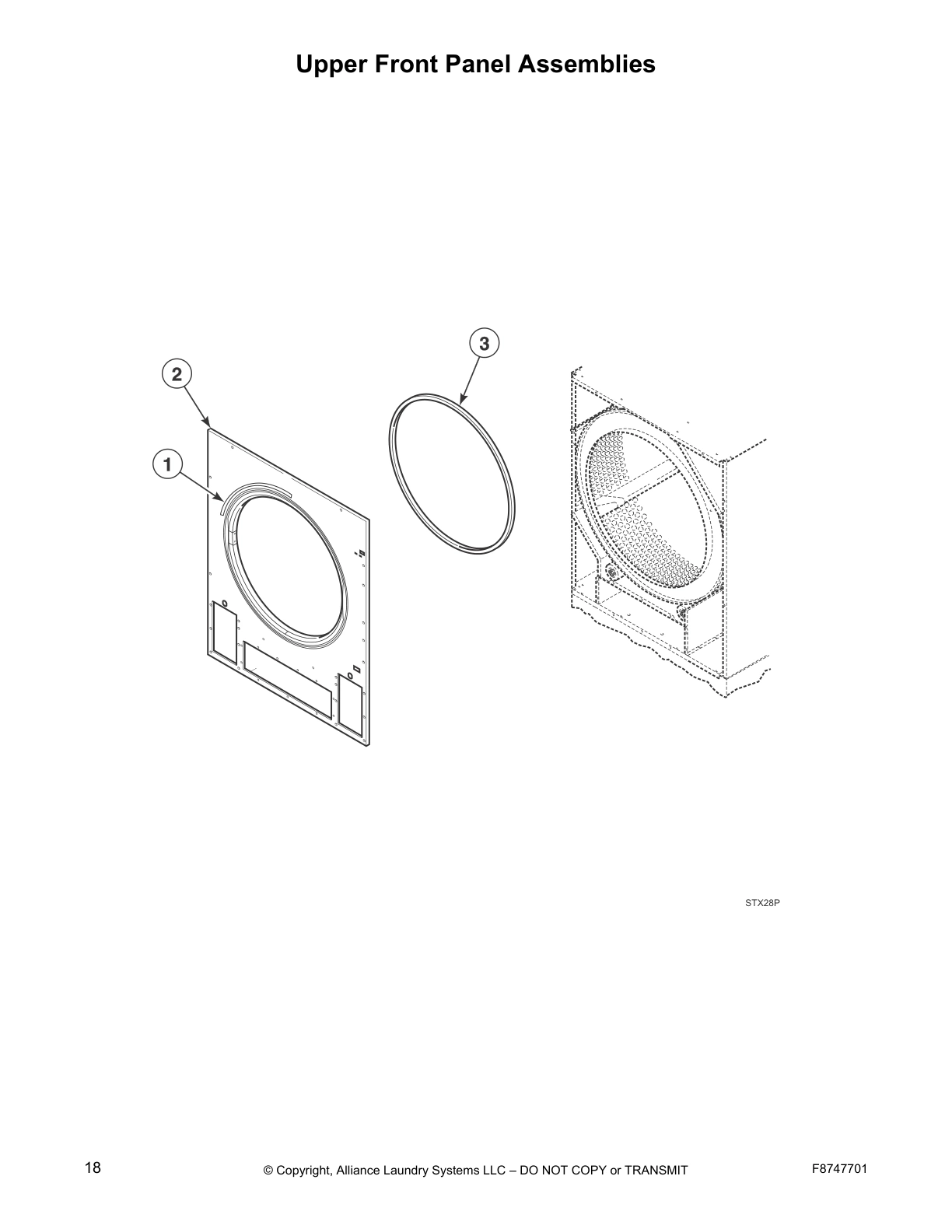

Upper Front Panel Assemblies

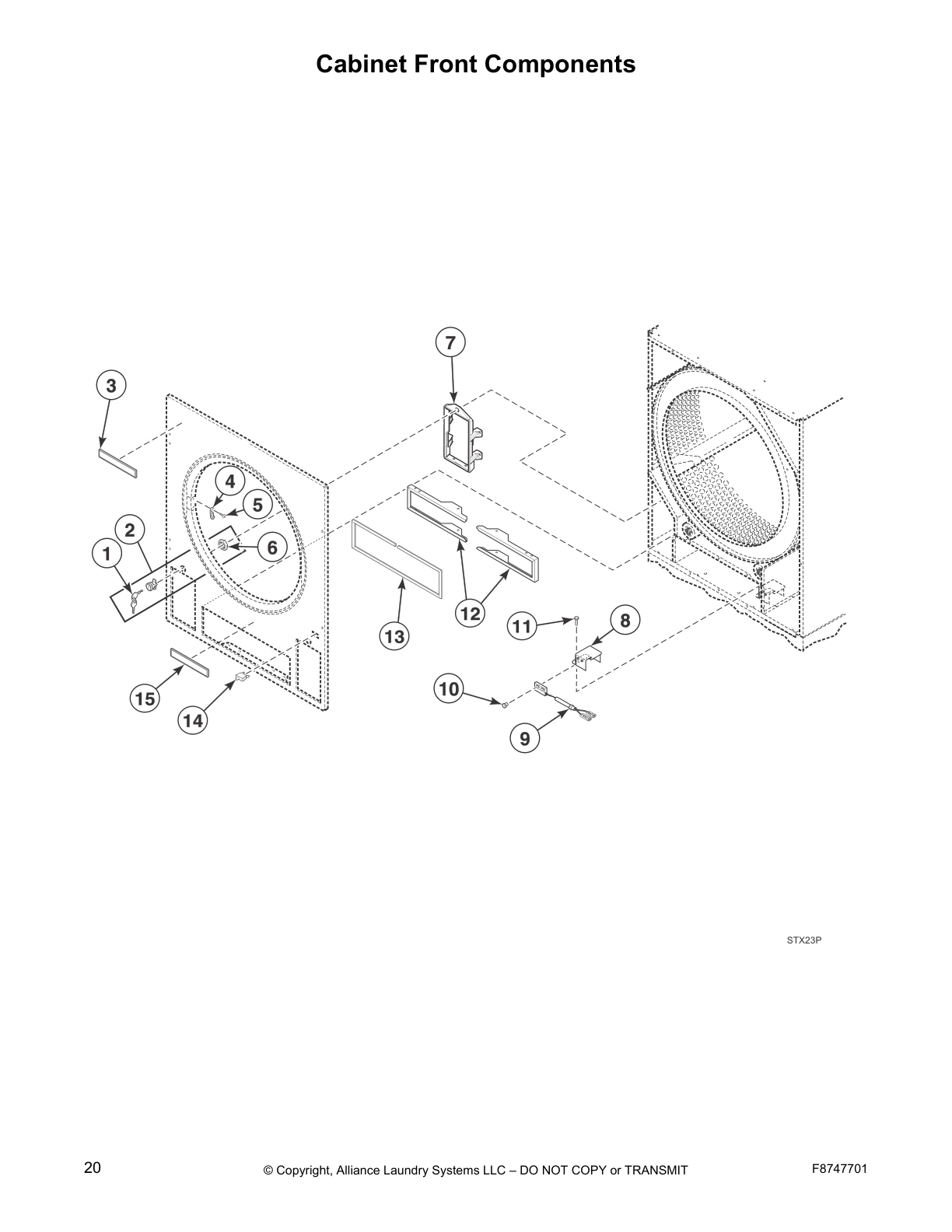

Cabinet Front Components

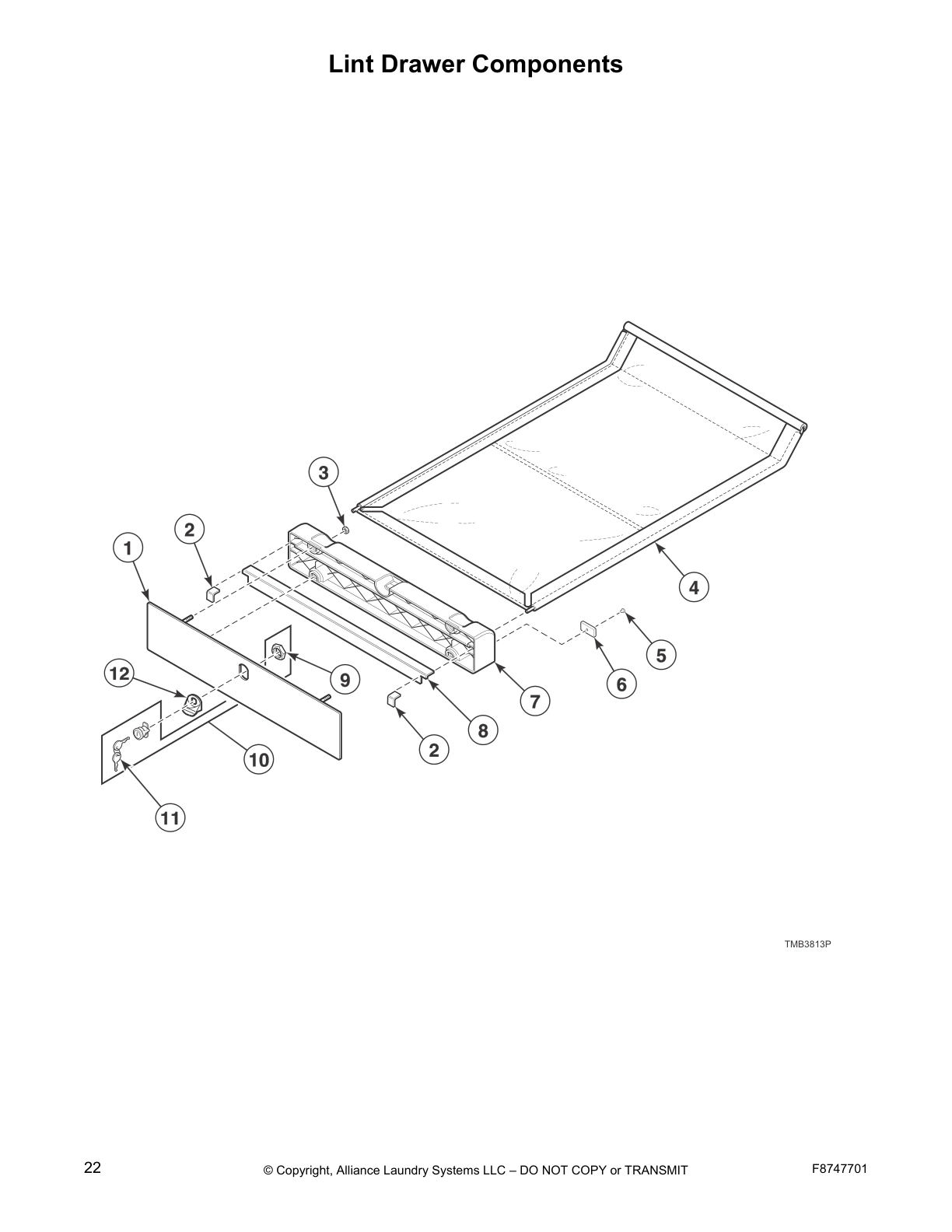

Lint Drawer Components

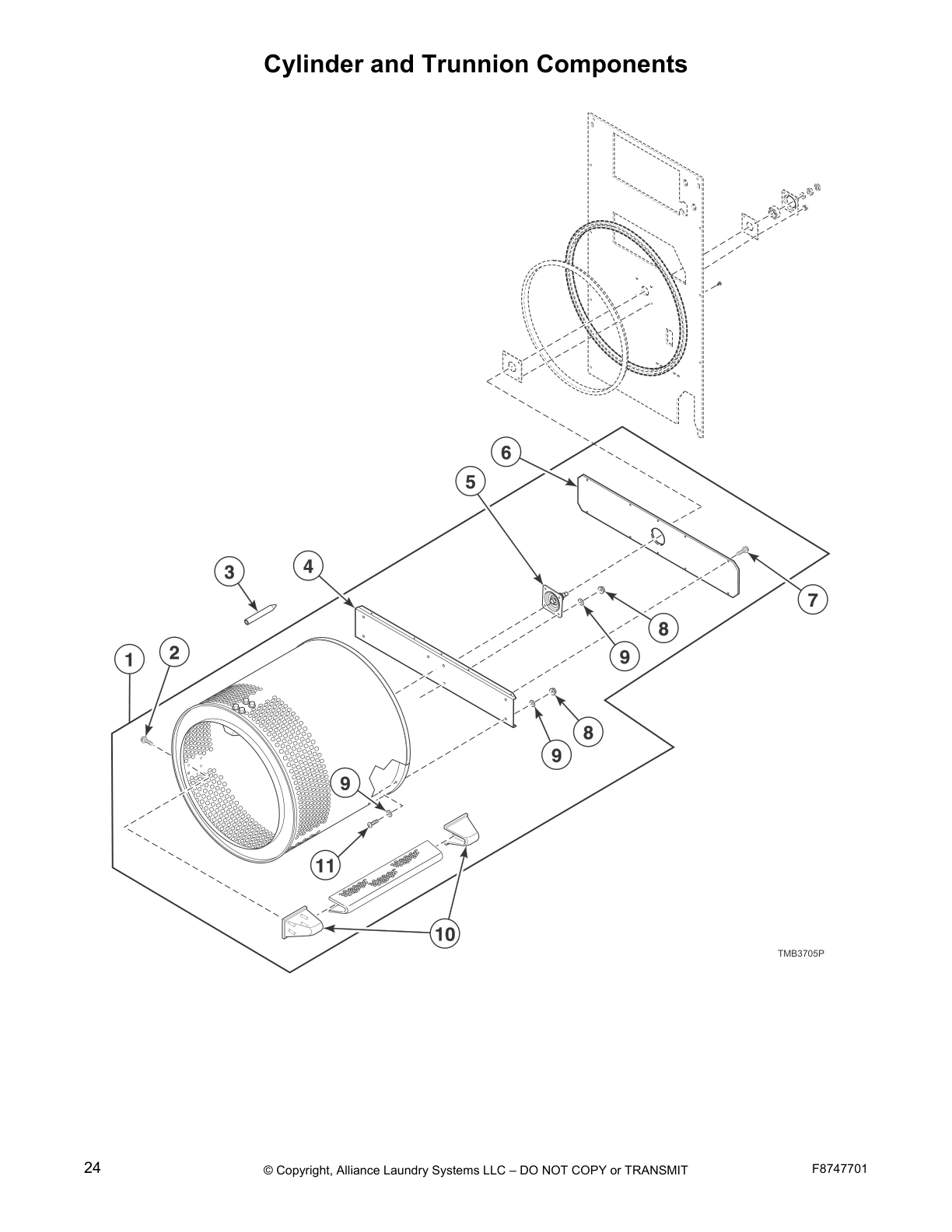

Cylinder and Trunnion Components

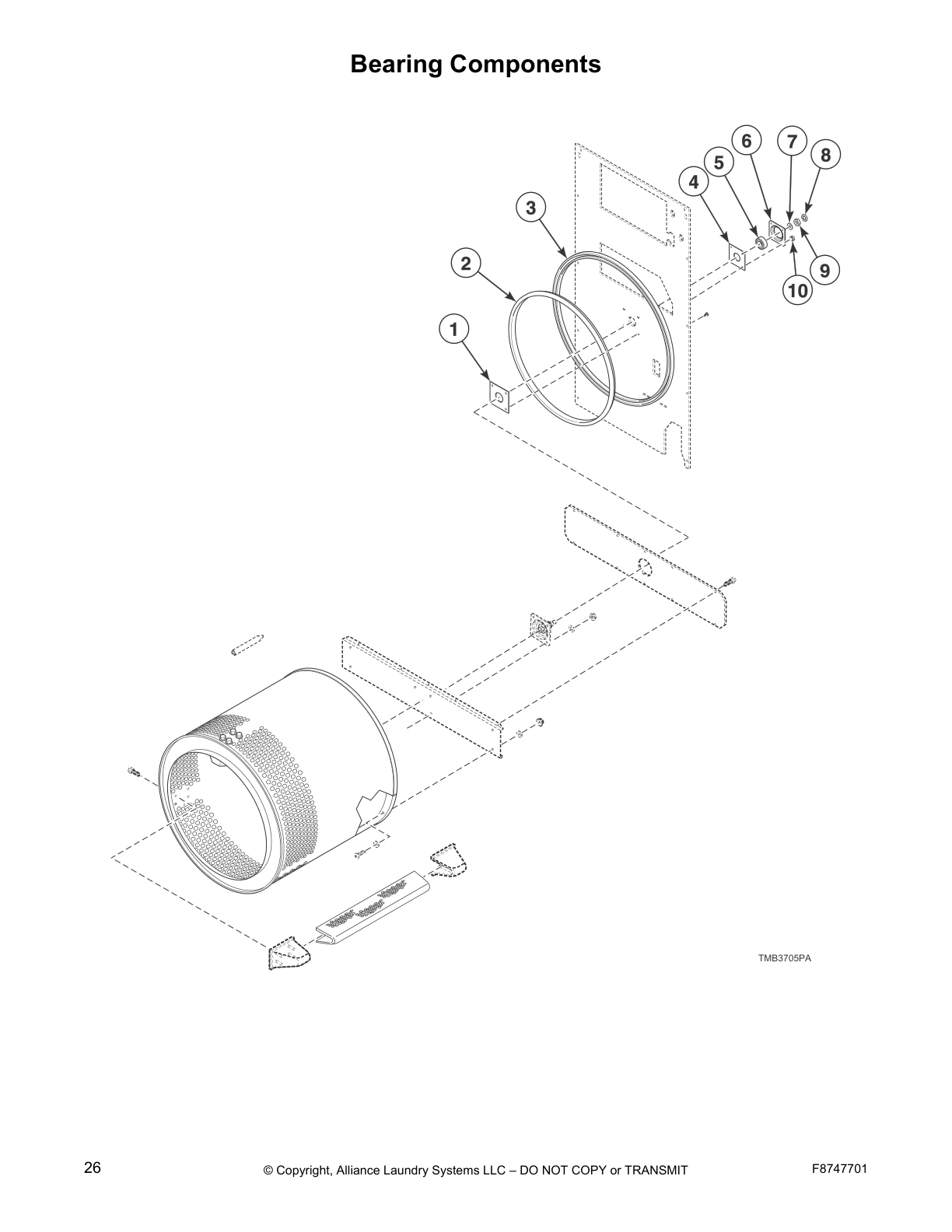

Bearing Components
Cabinet Components - 30 Pound Models

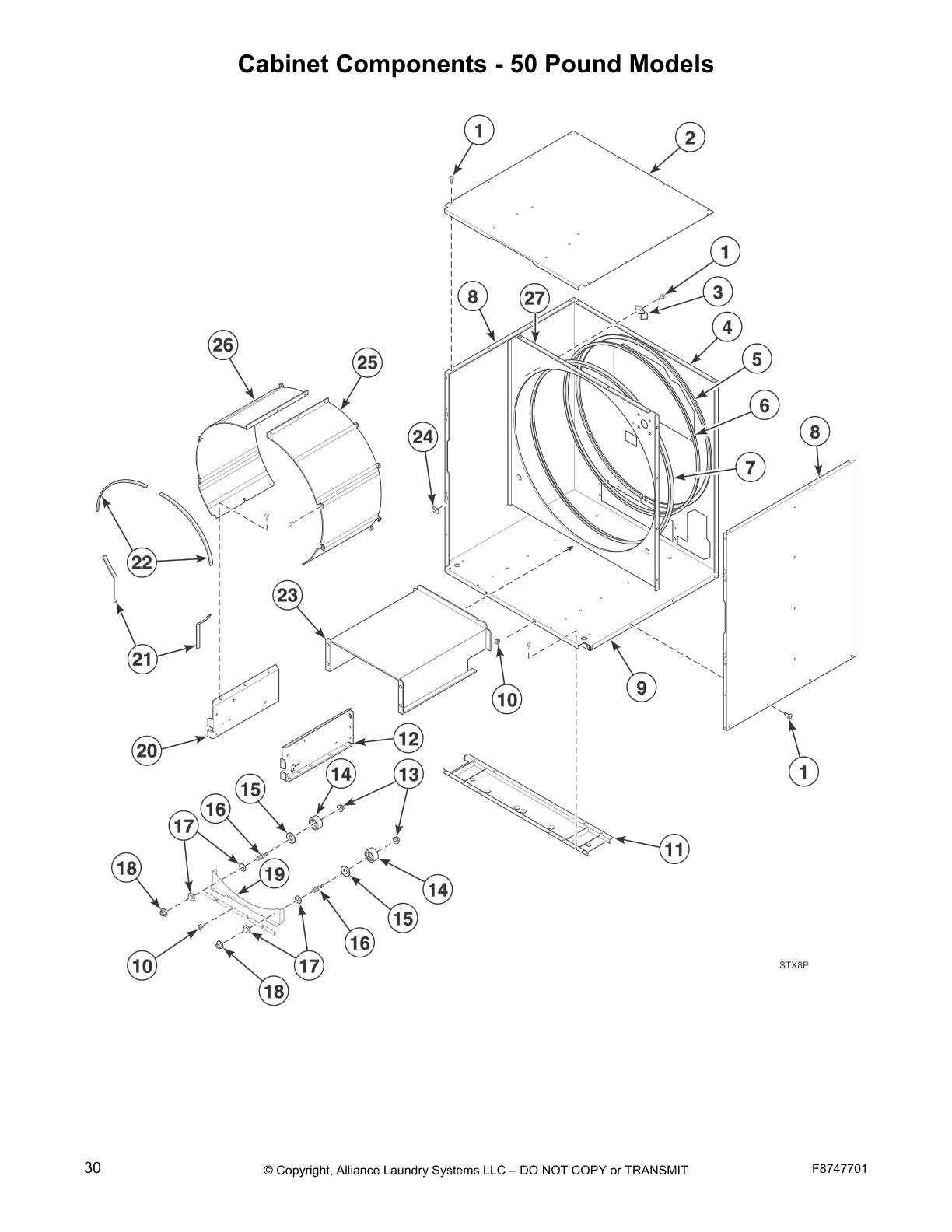

Cabinet Components - 50 Pound Models

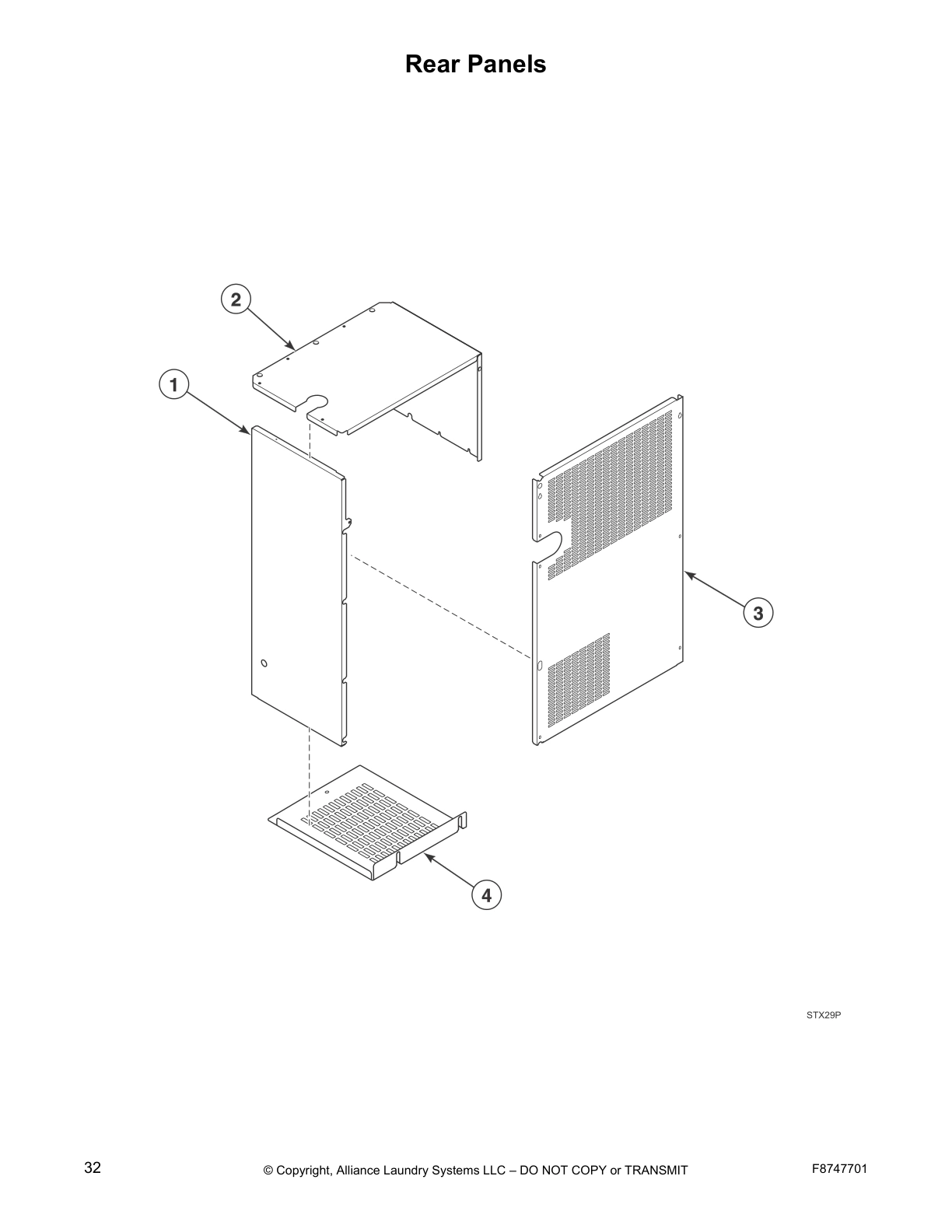

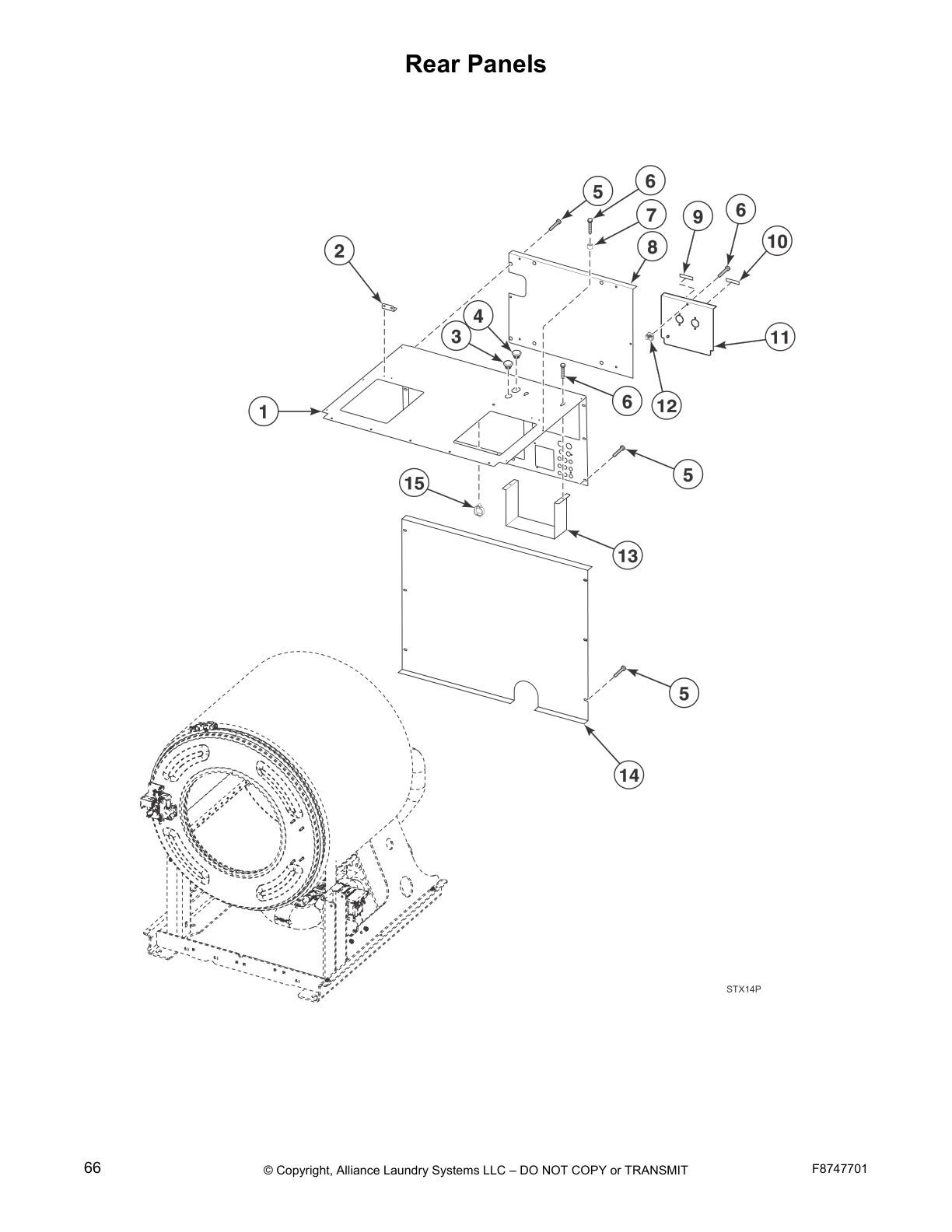

Rear Panels

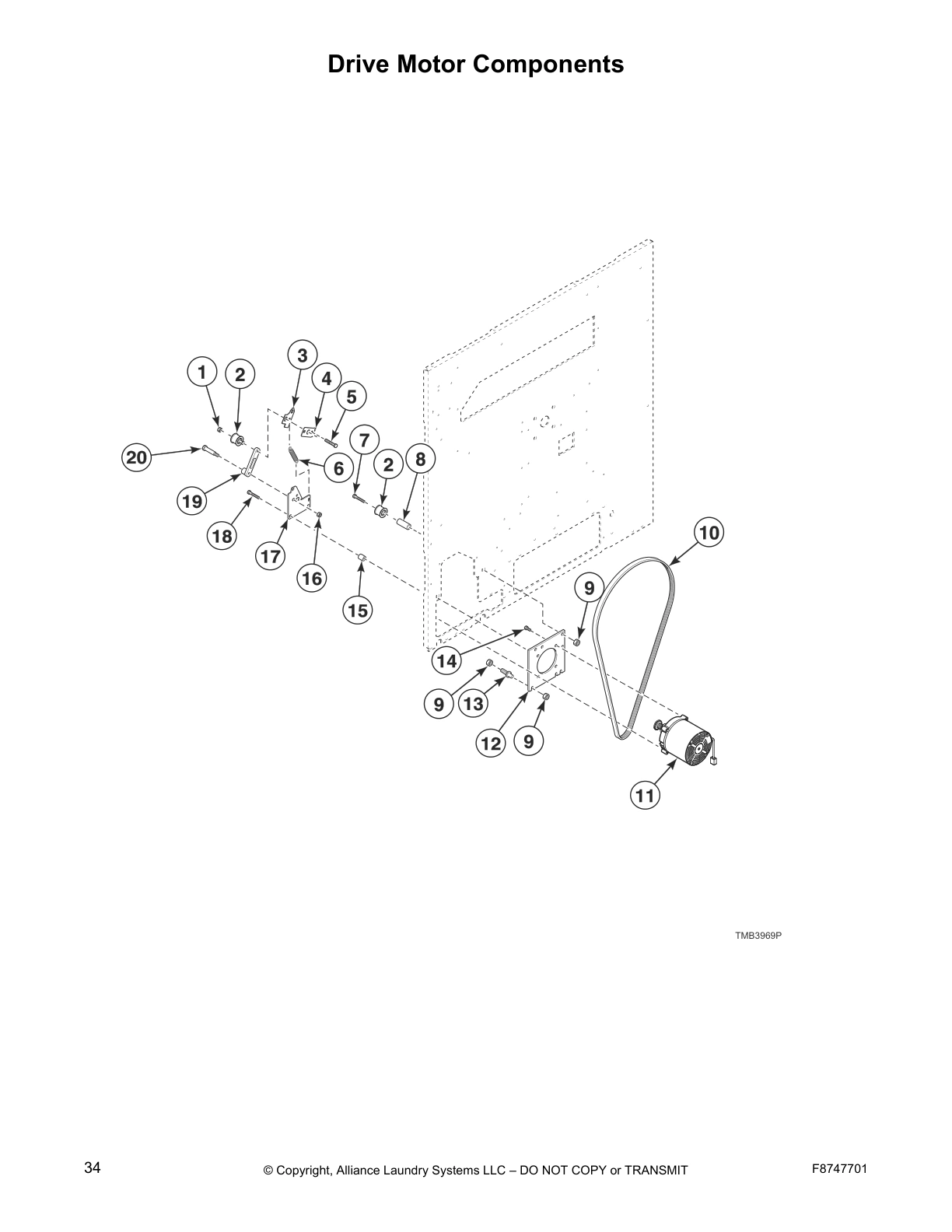

Drive Motor Components

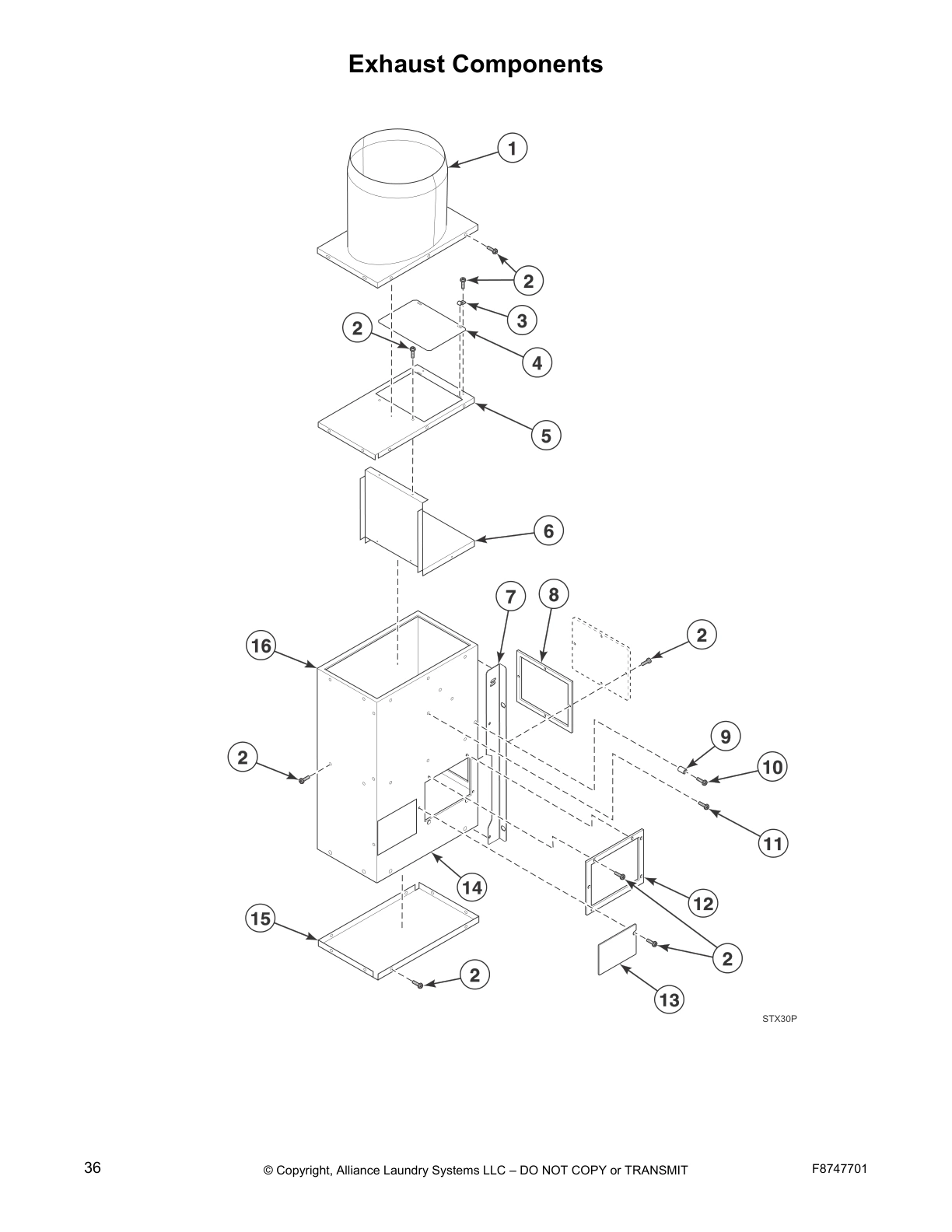

Exhaust Components

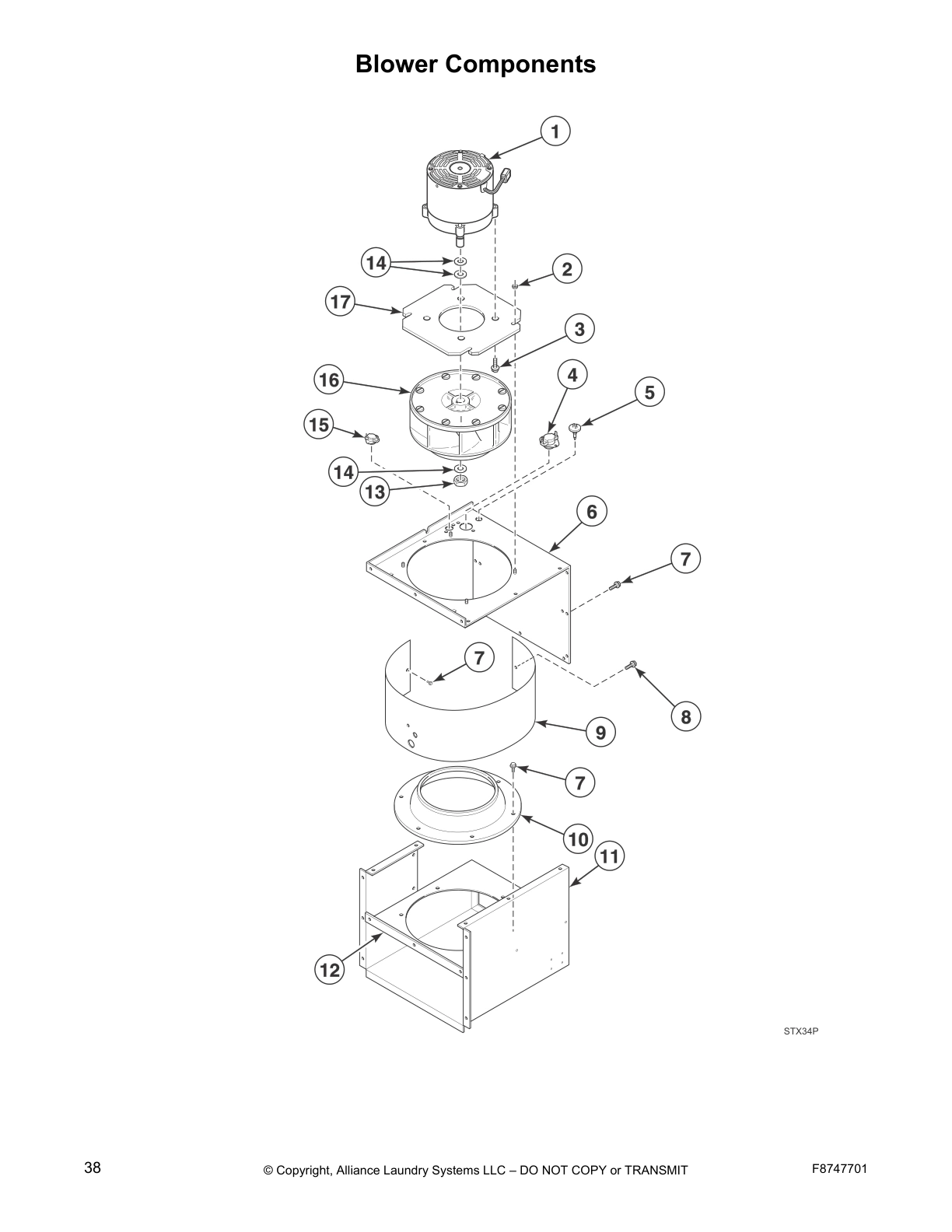

Blower Components

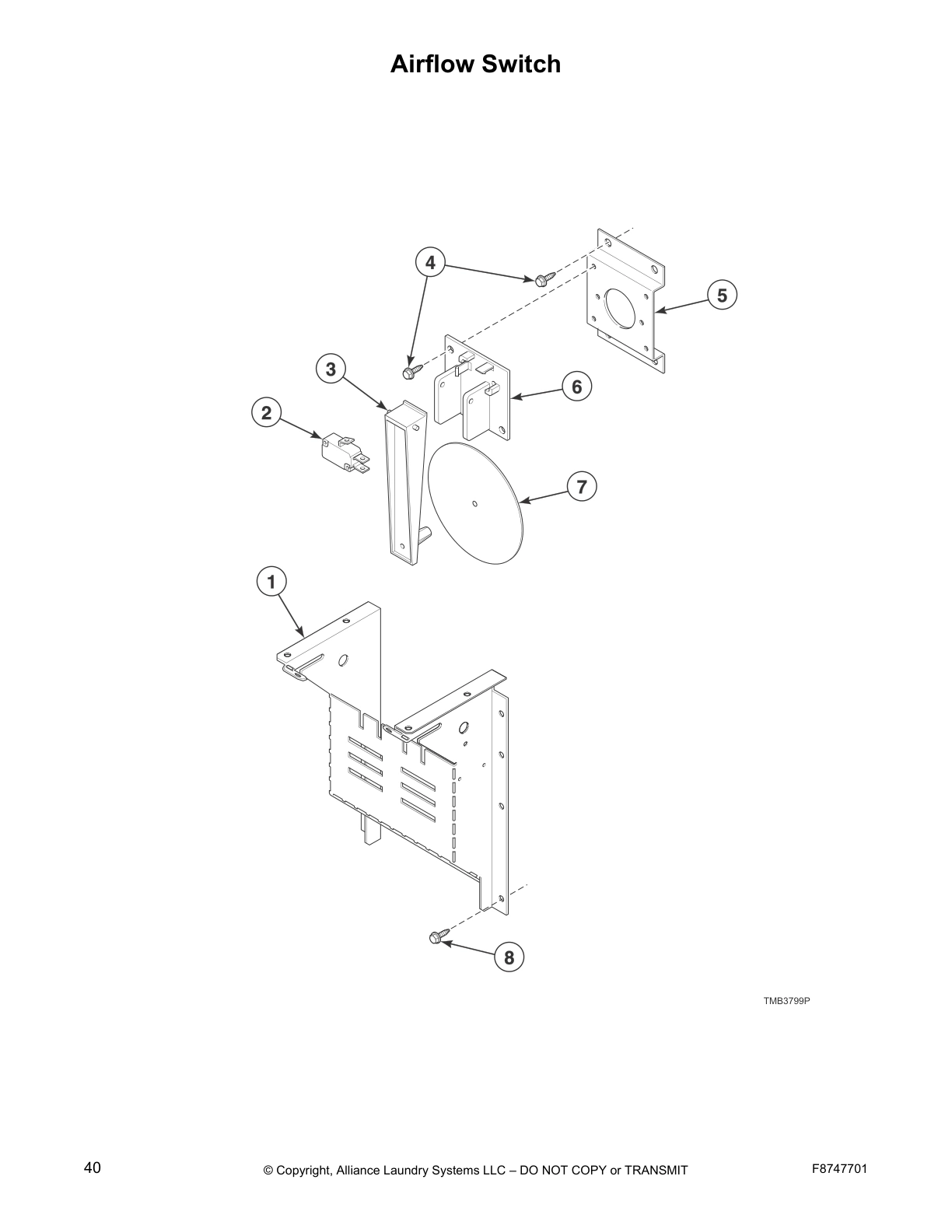

Airflow Switch

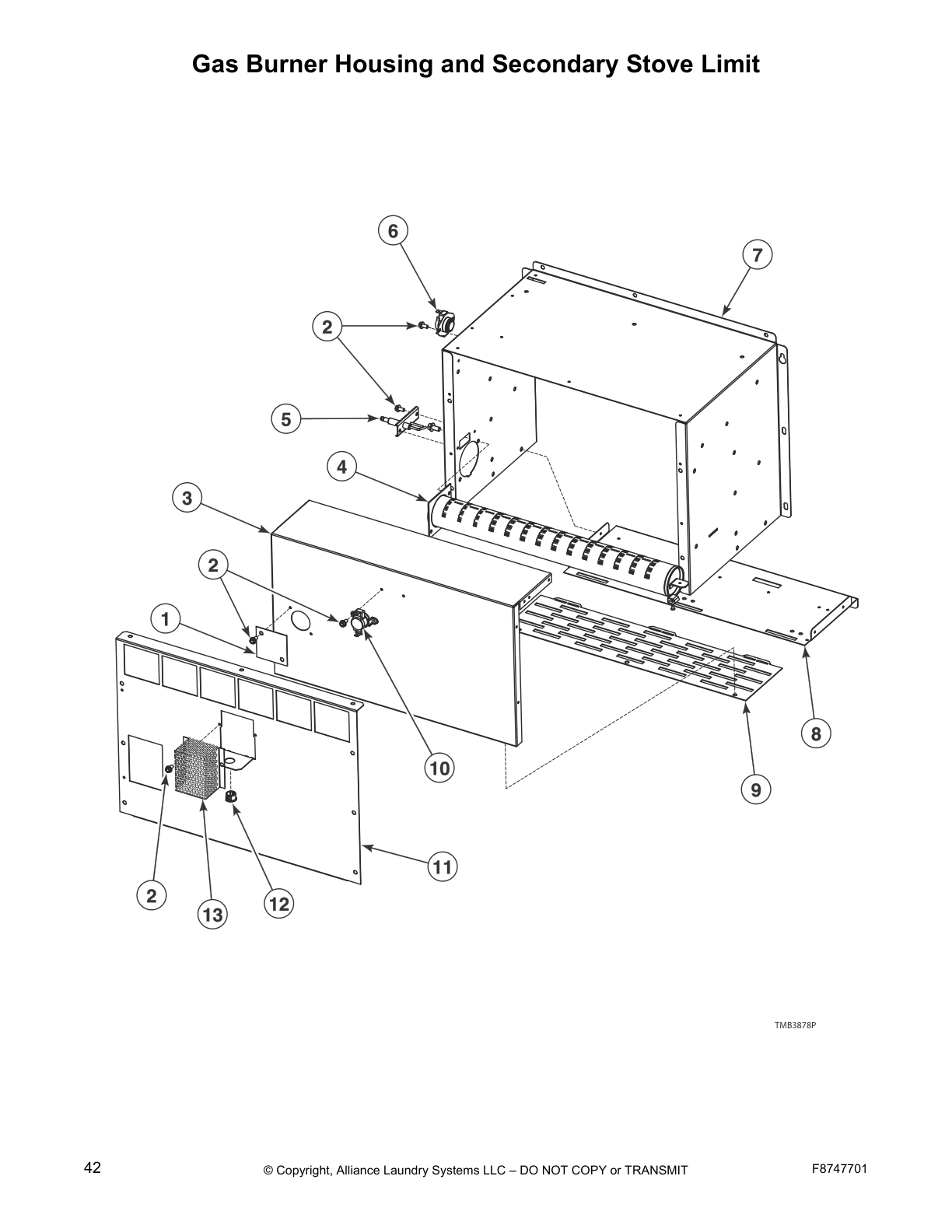

Gas Burner Housing and Secondary Stove Limit

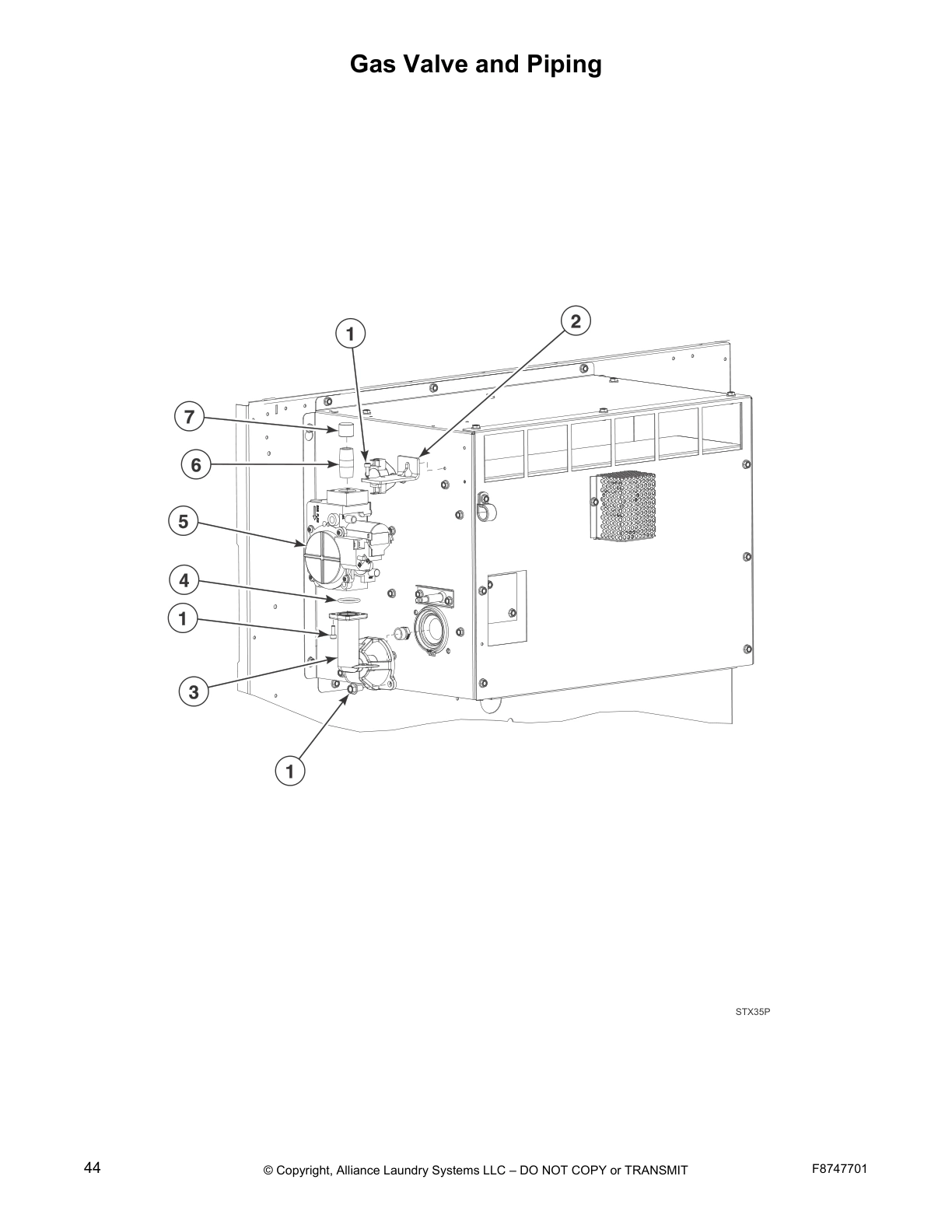

Gas Valve and Piping

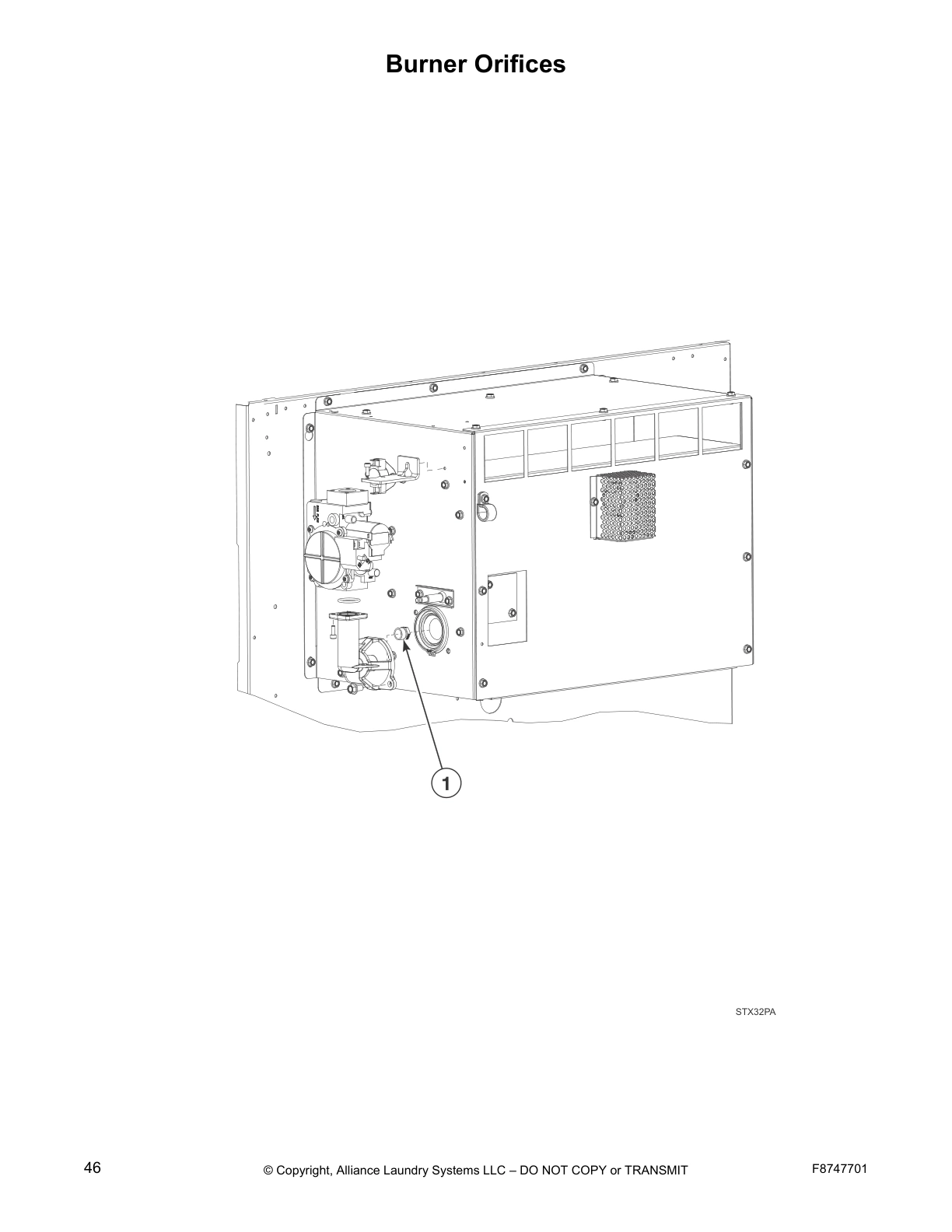

Burner Orifices

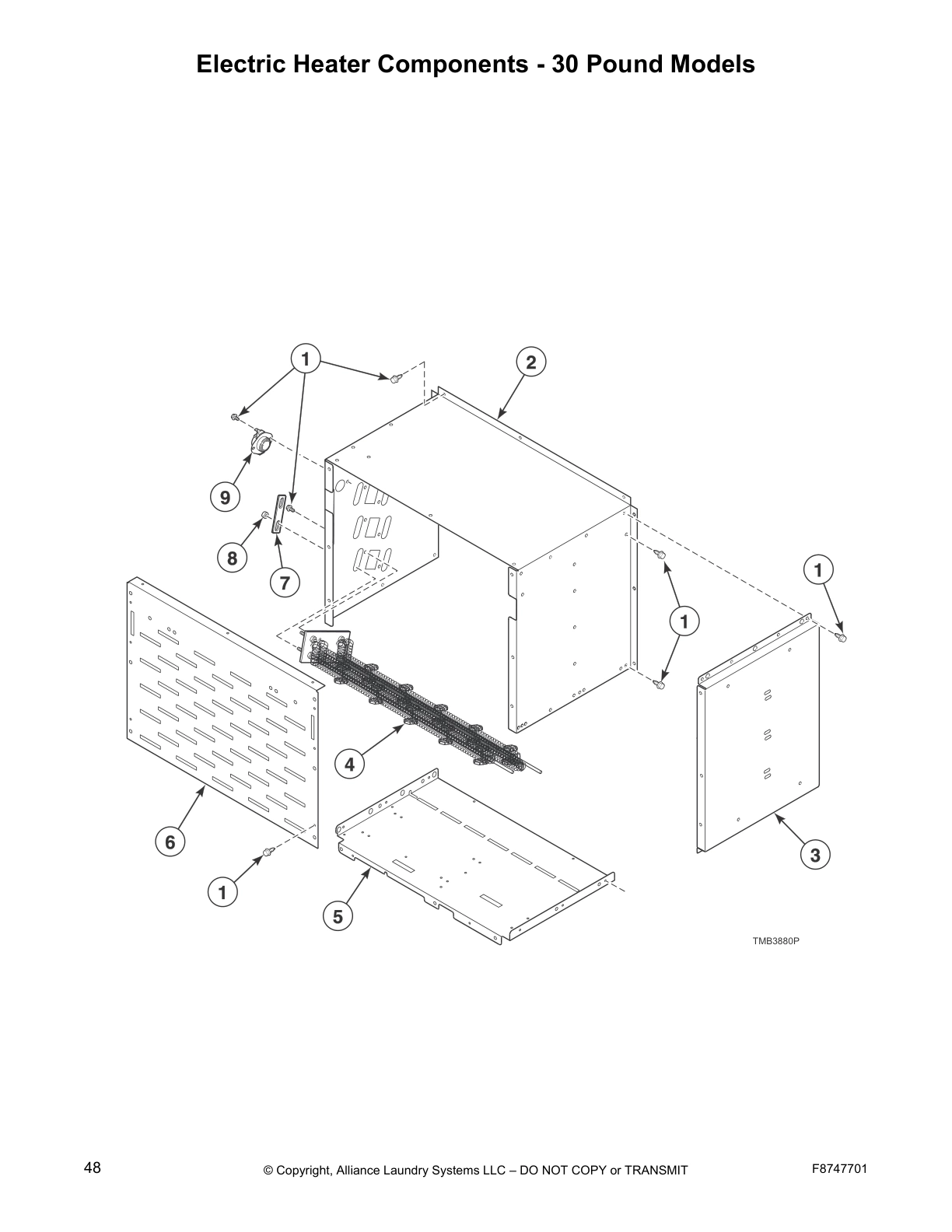

Electric Heater Components - 30 Pound Models

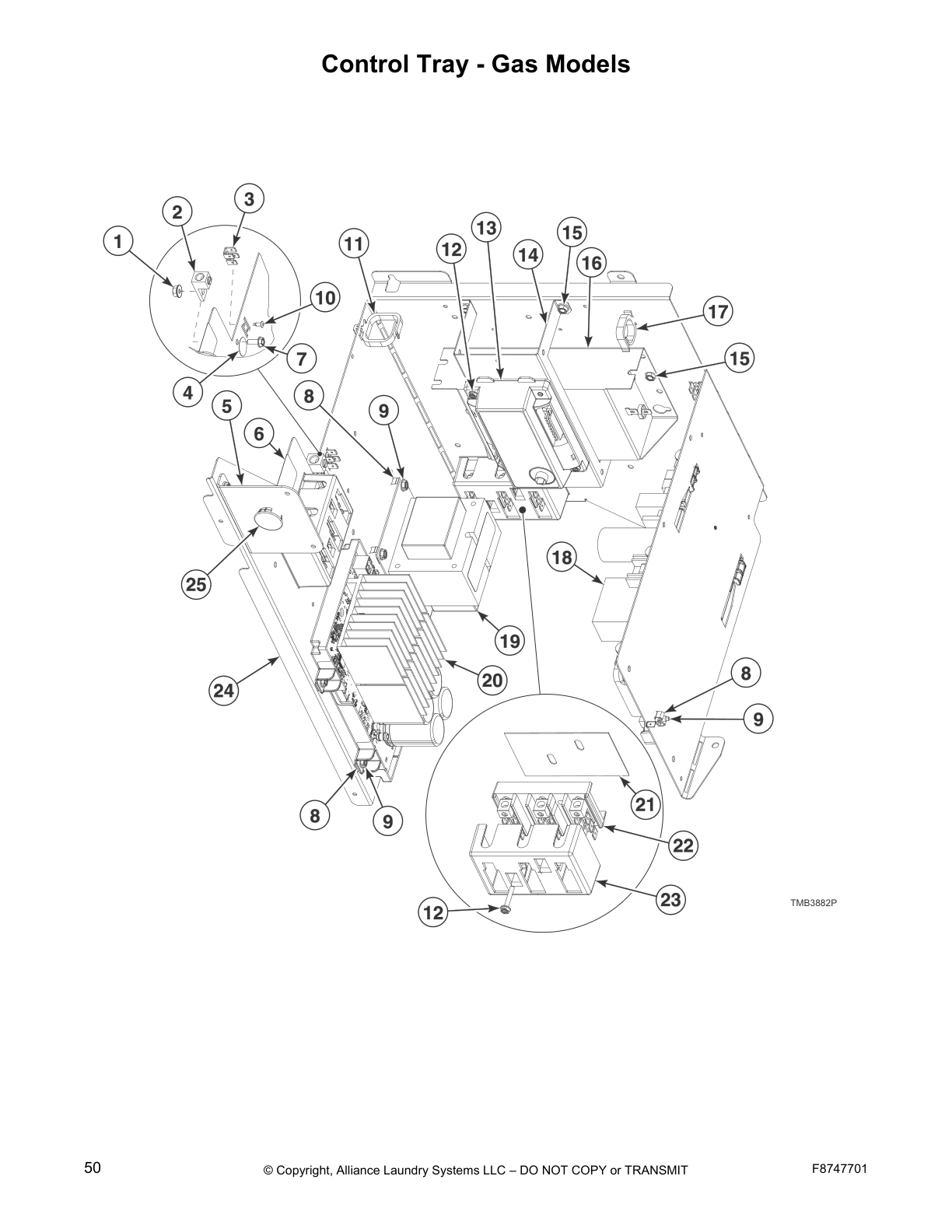

Control Tray - Gas Models

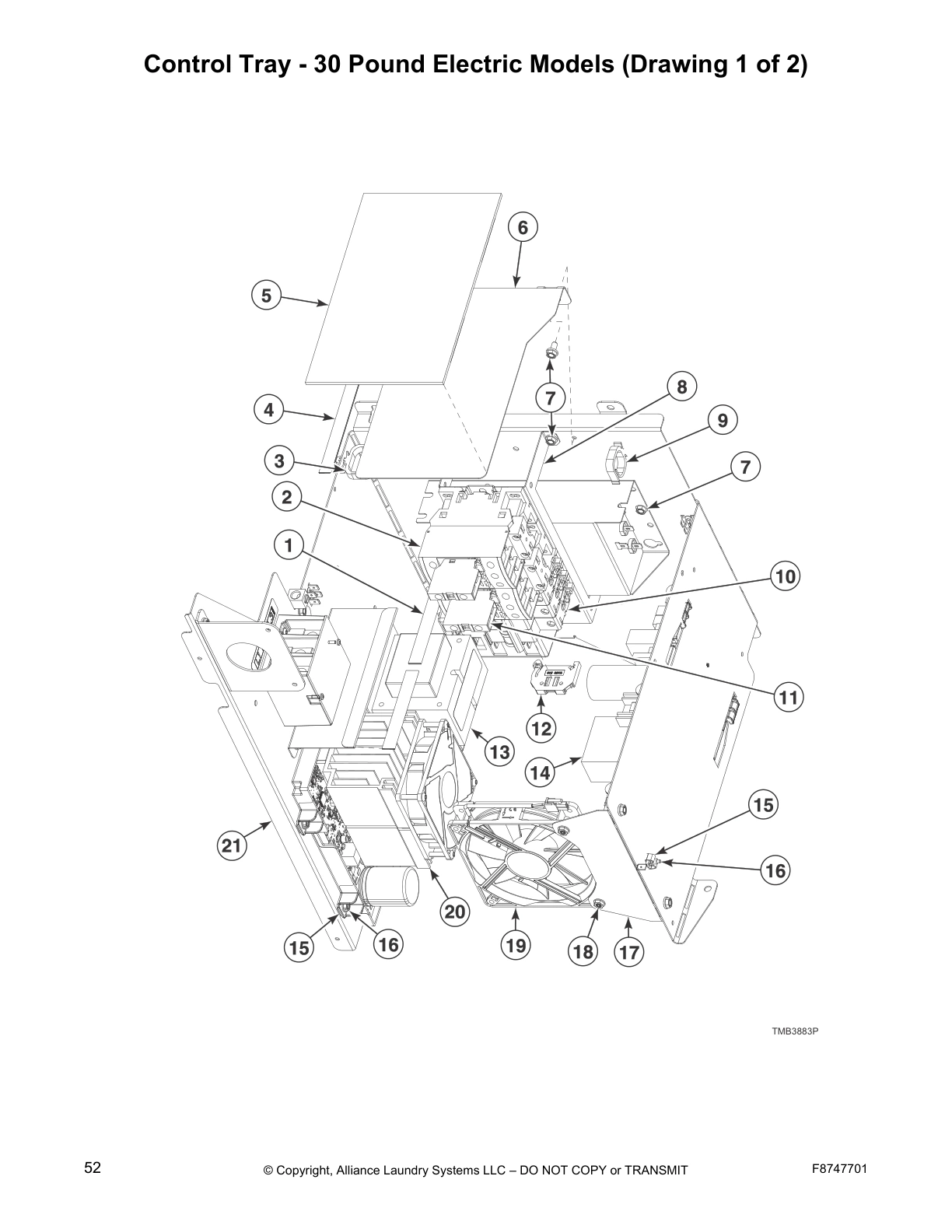

Control Tray - 30 Pound Electric Models (Drawing 1 of 2)

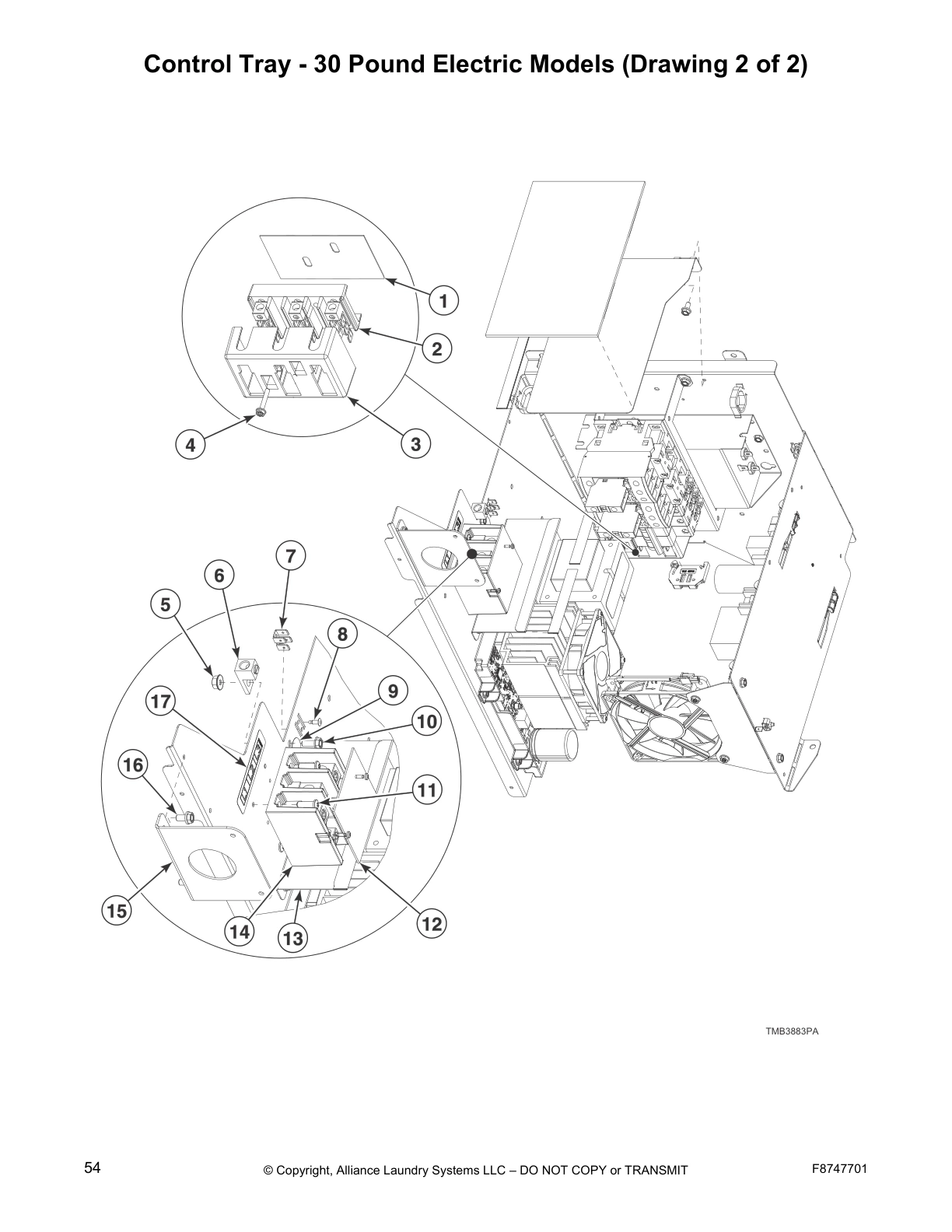

Control Tray - 30 Pound Electric Models (Drawing 2 of 2)

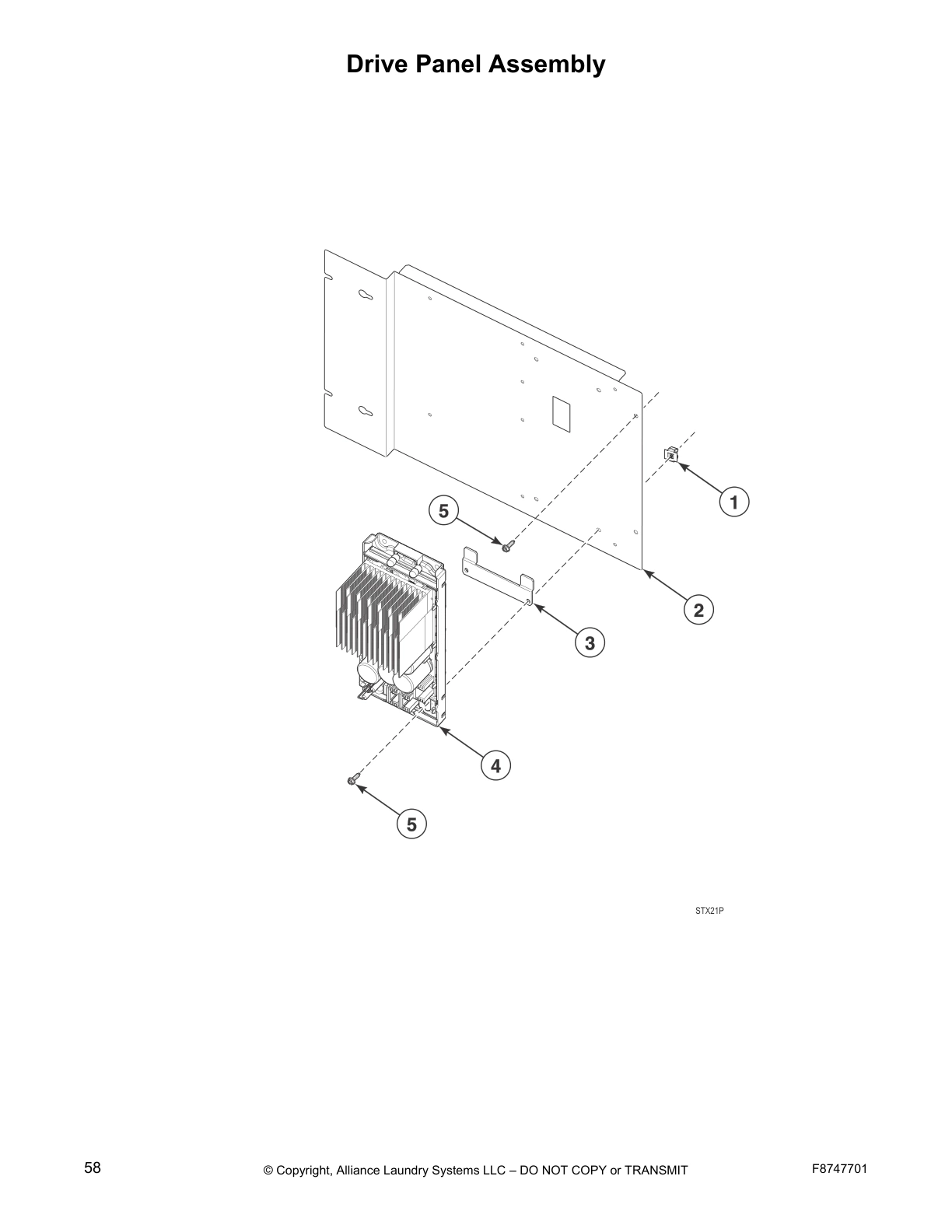

Drive Panel Assembly

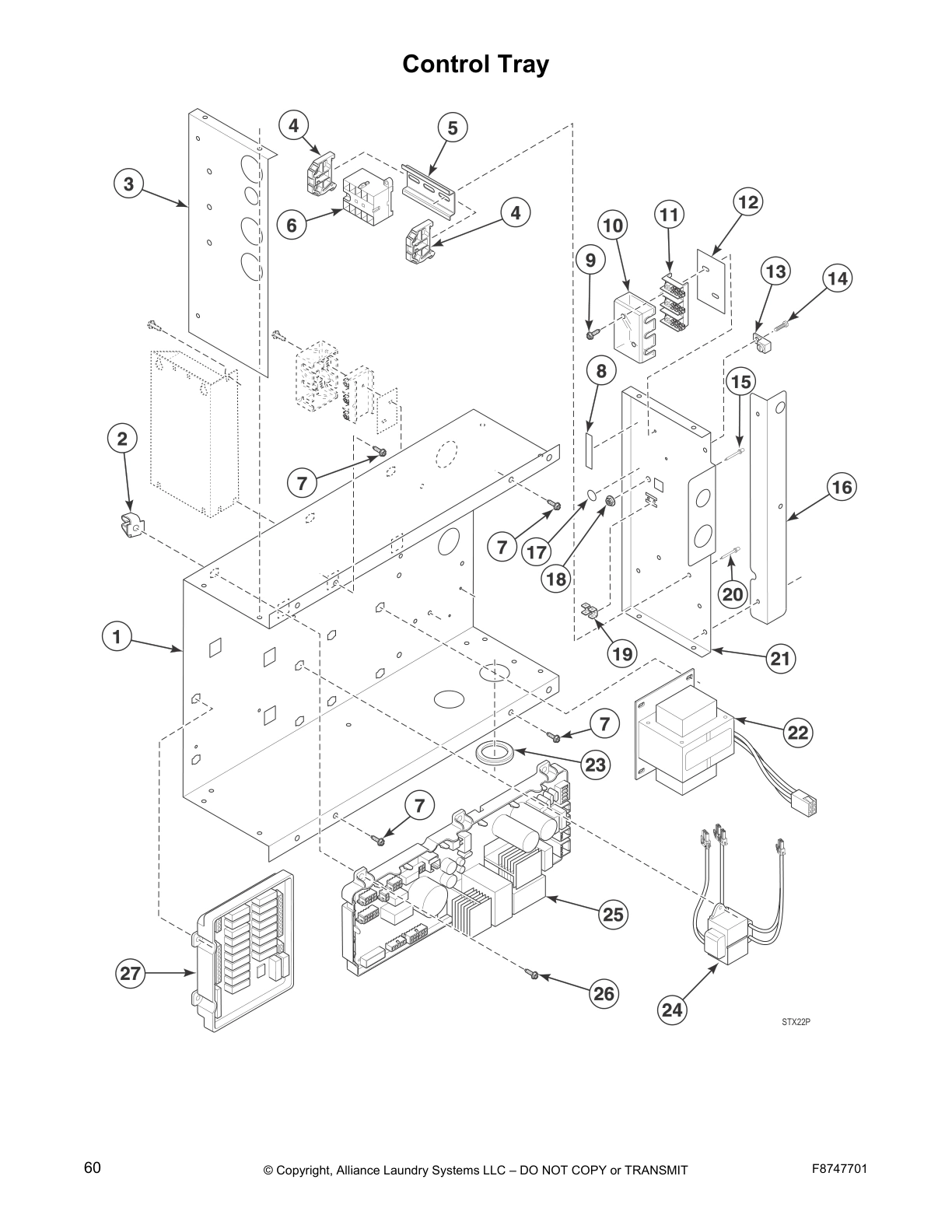

Control Tray

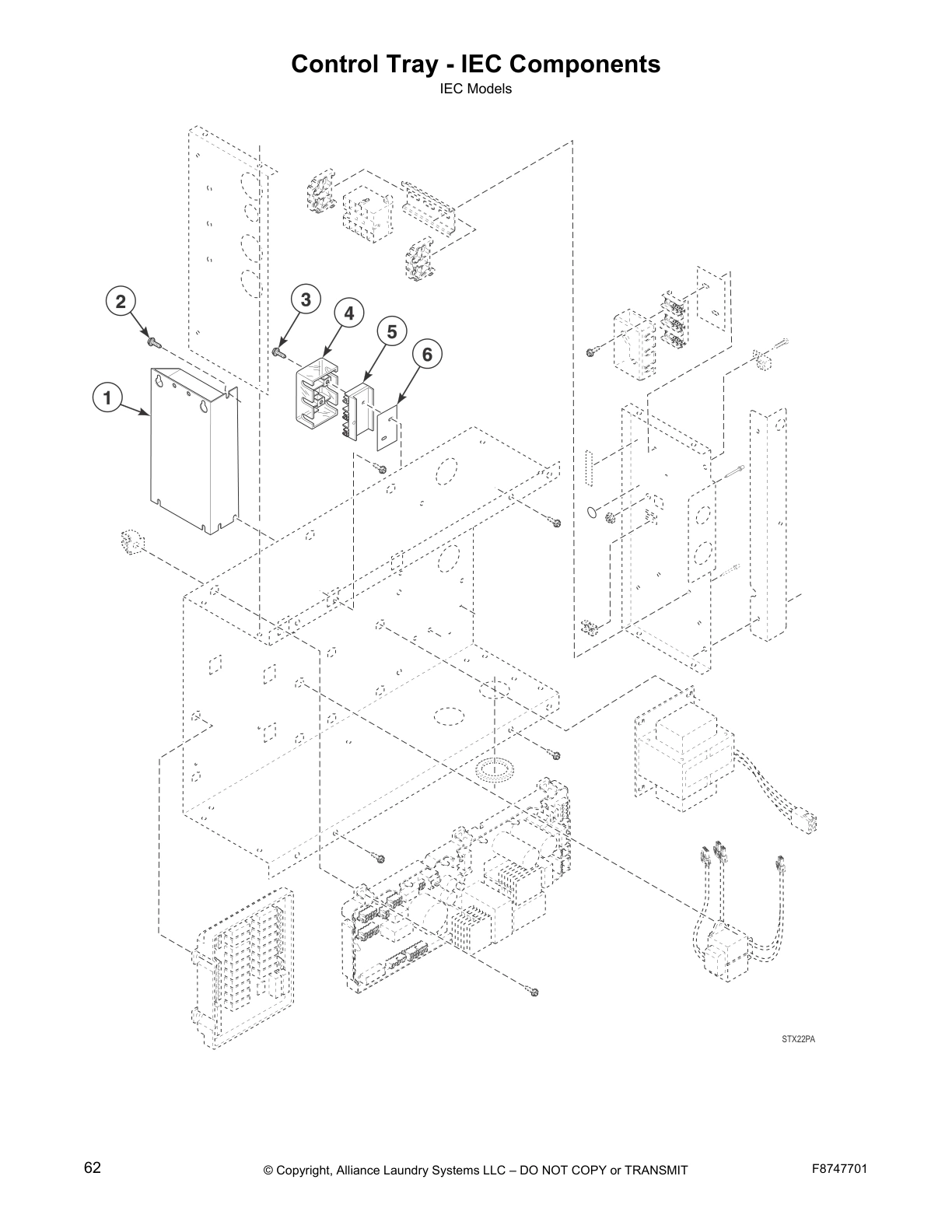

Control Tray - IEC Components

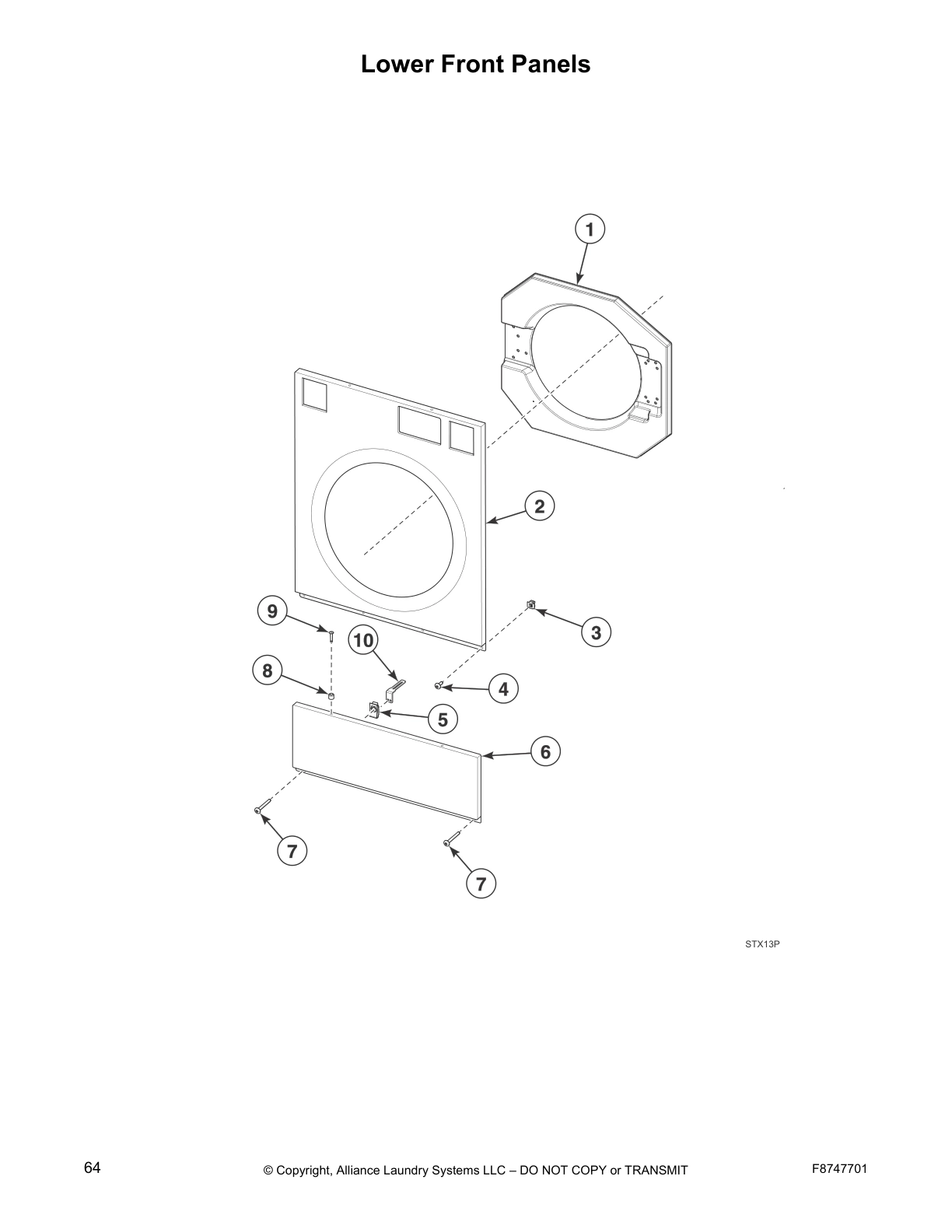

Lower Front Panels
Rear Panels

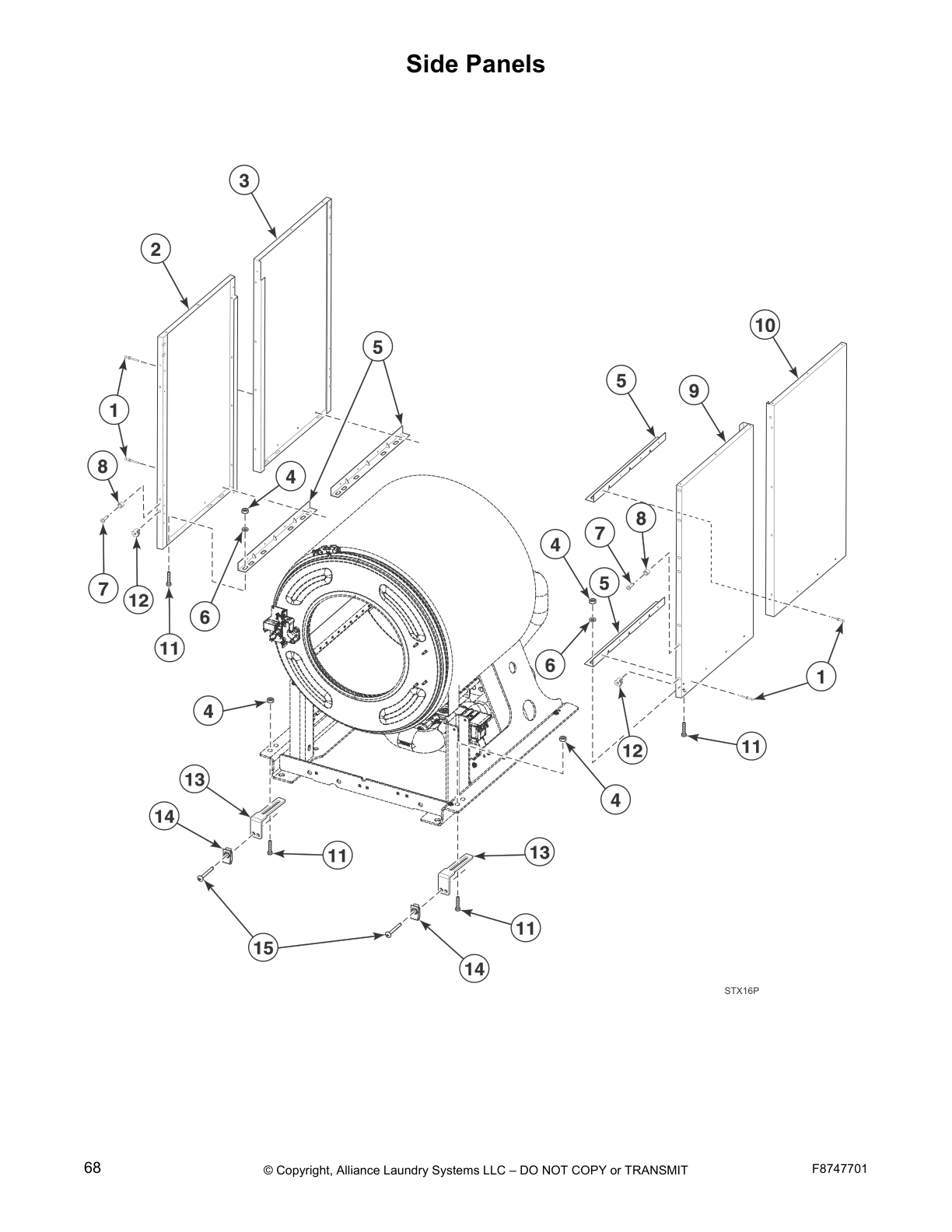

Side Panels

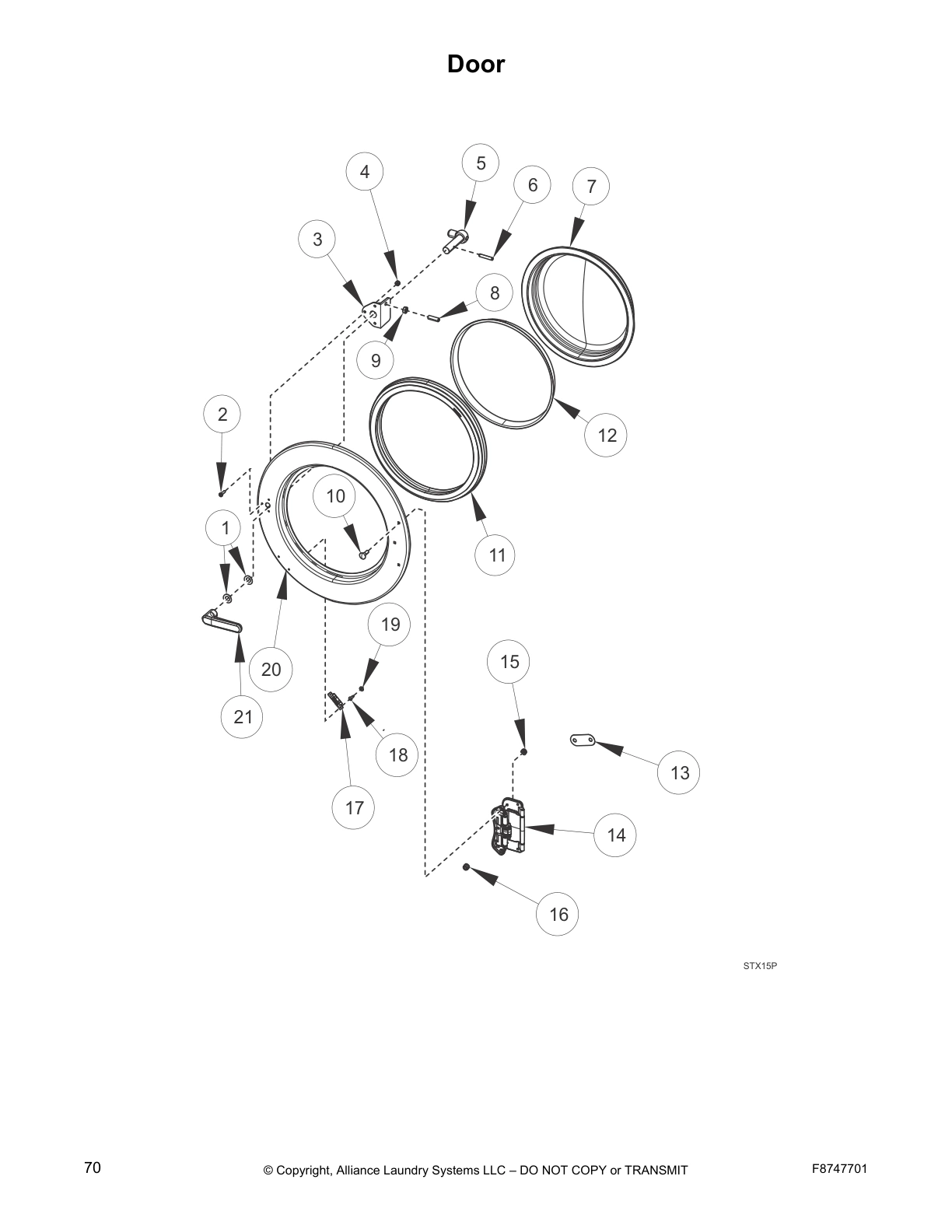

Door
Door Lock

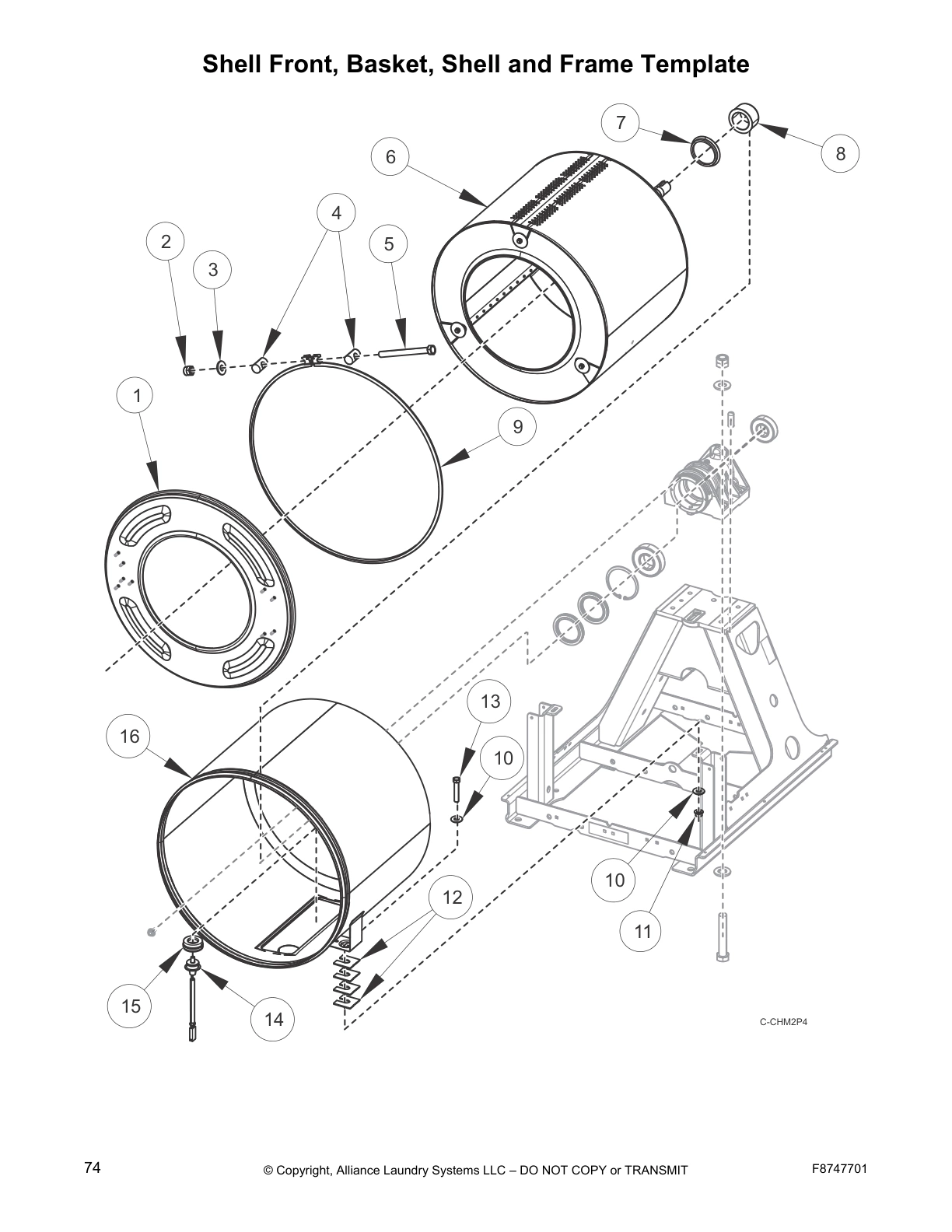

Shell Front, Basket, Shell and Frame Template

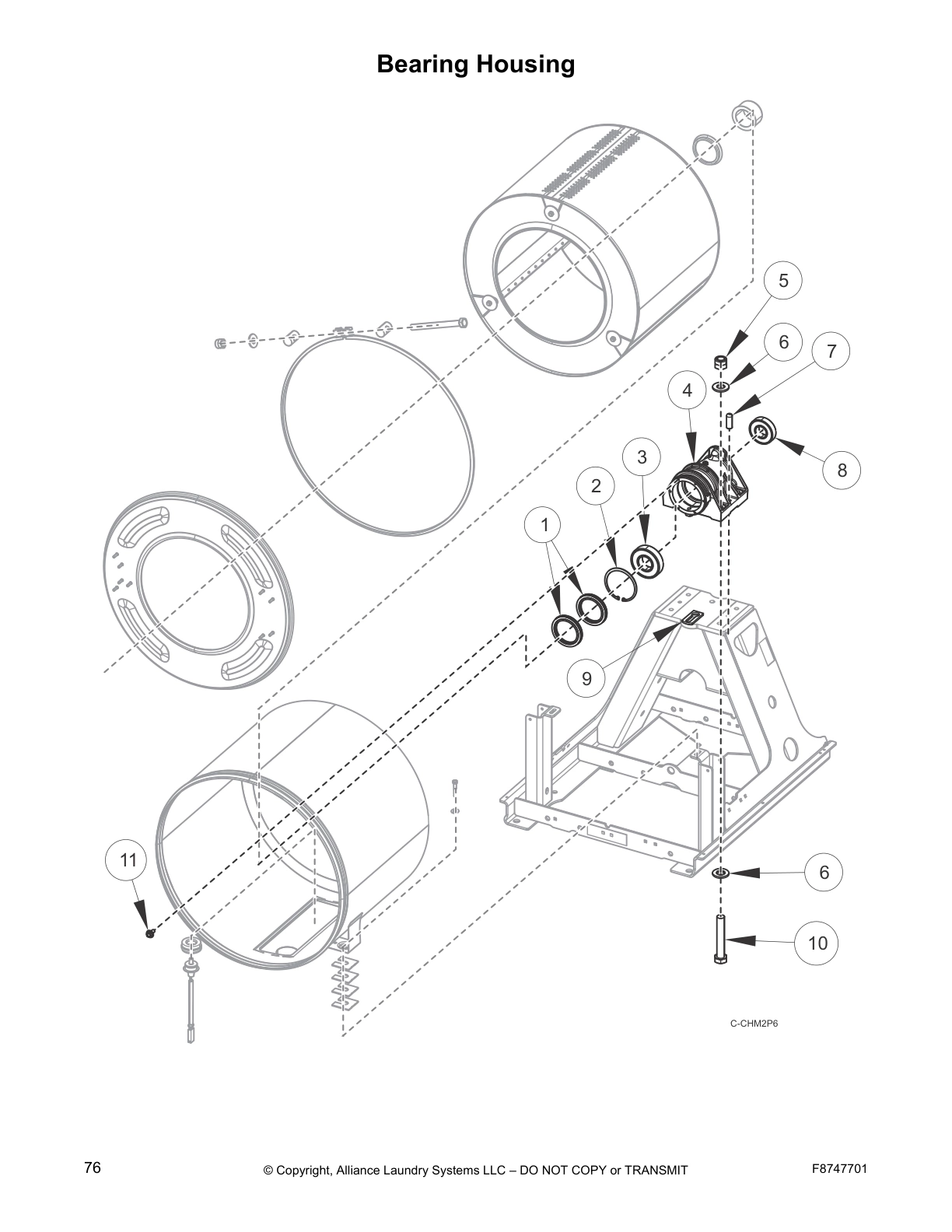

Bearing Housing

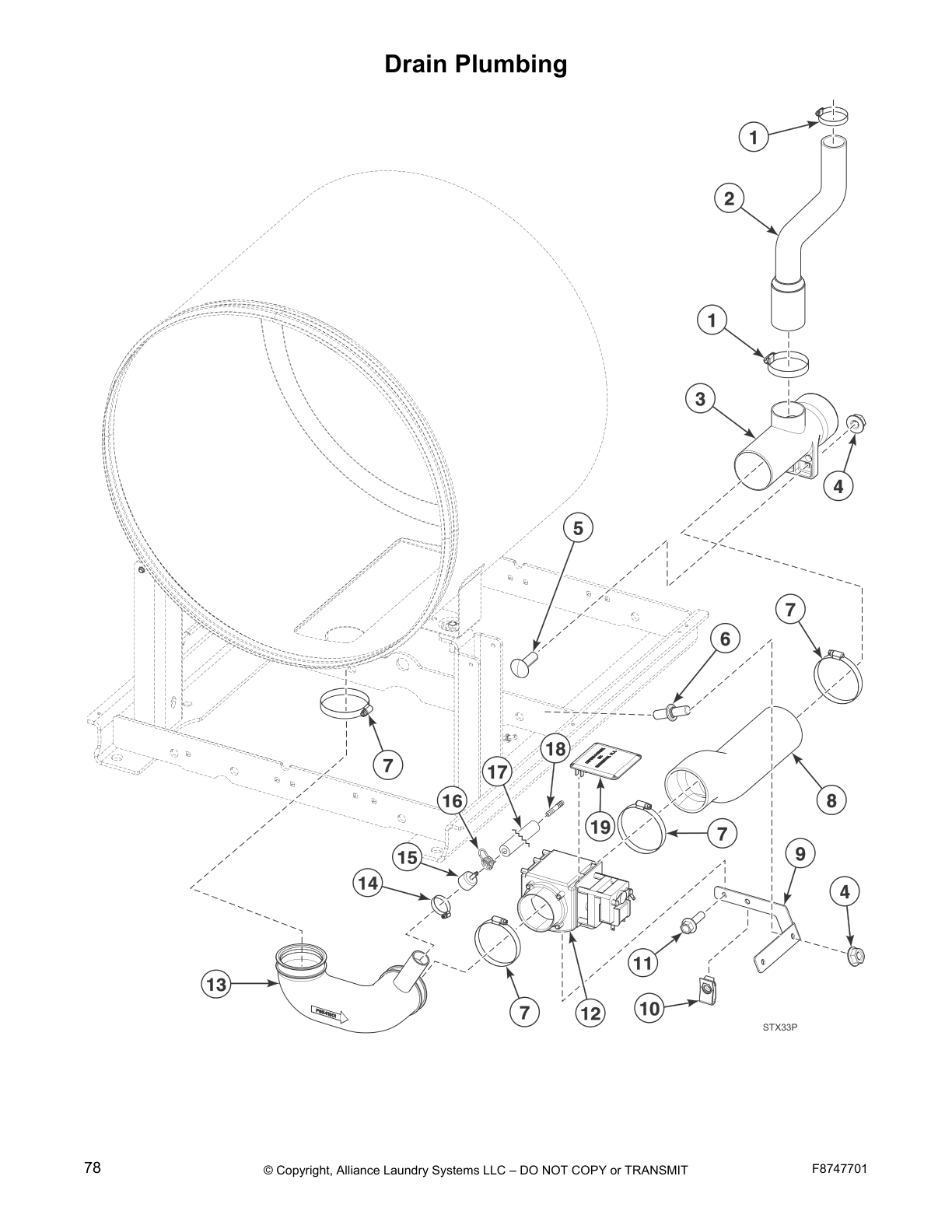

Drain Plumbing

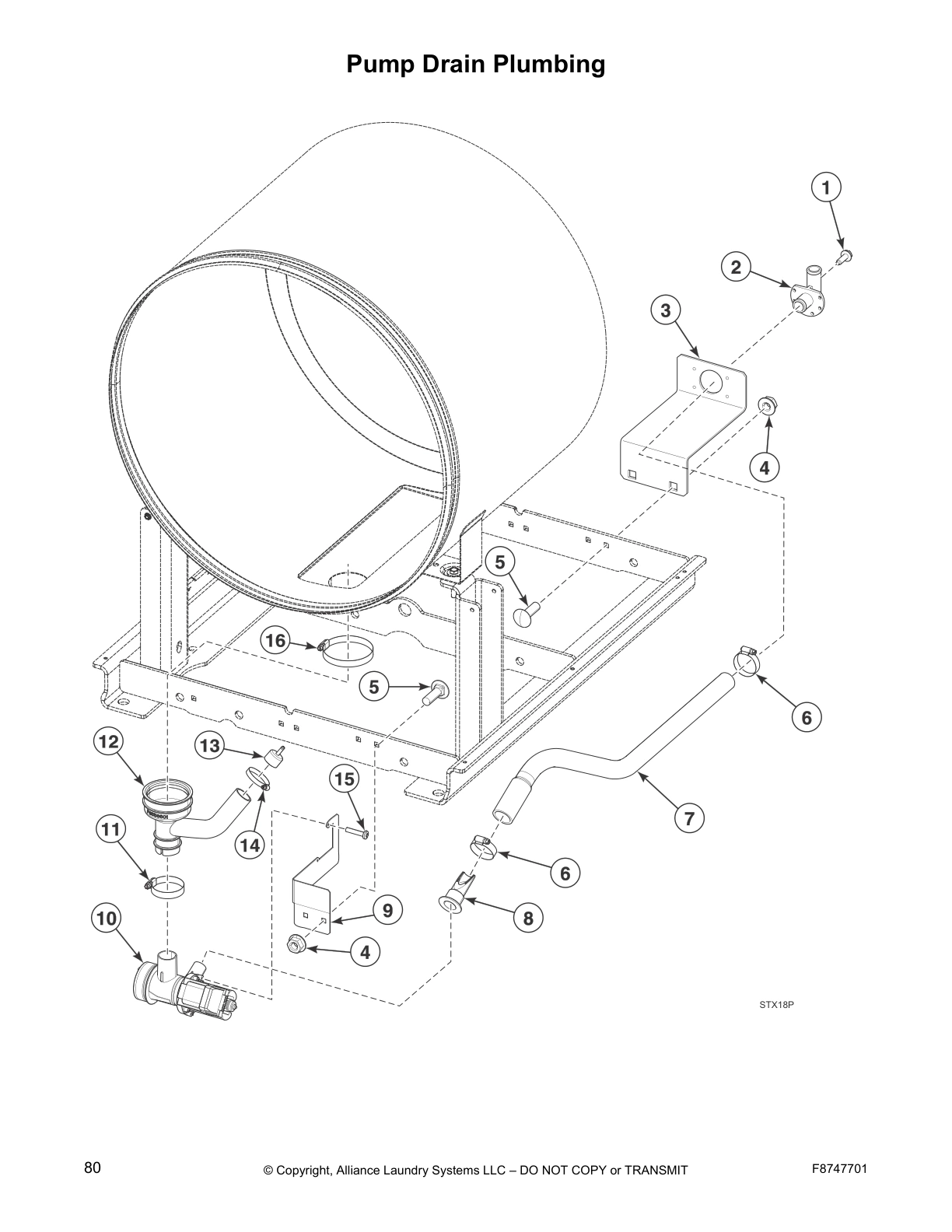

Pump Drain Plumbing

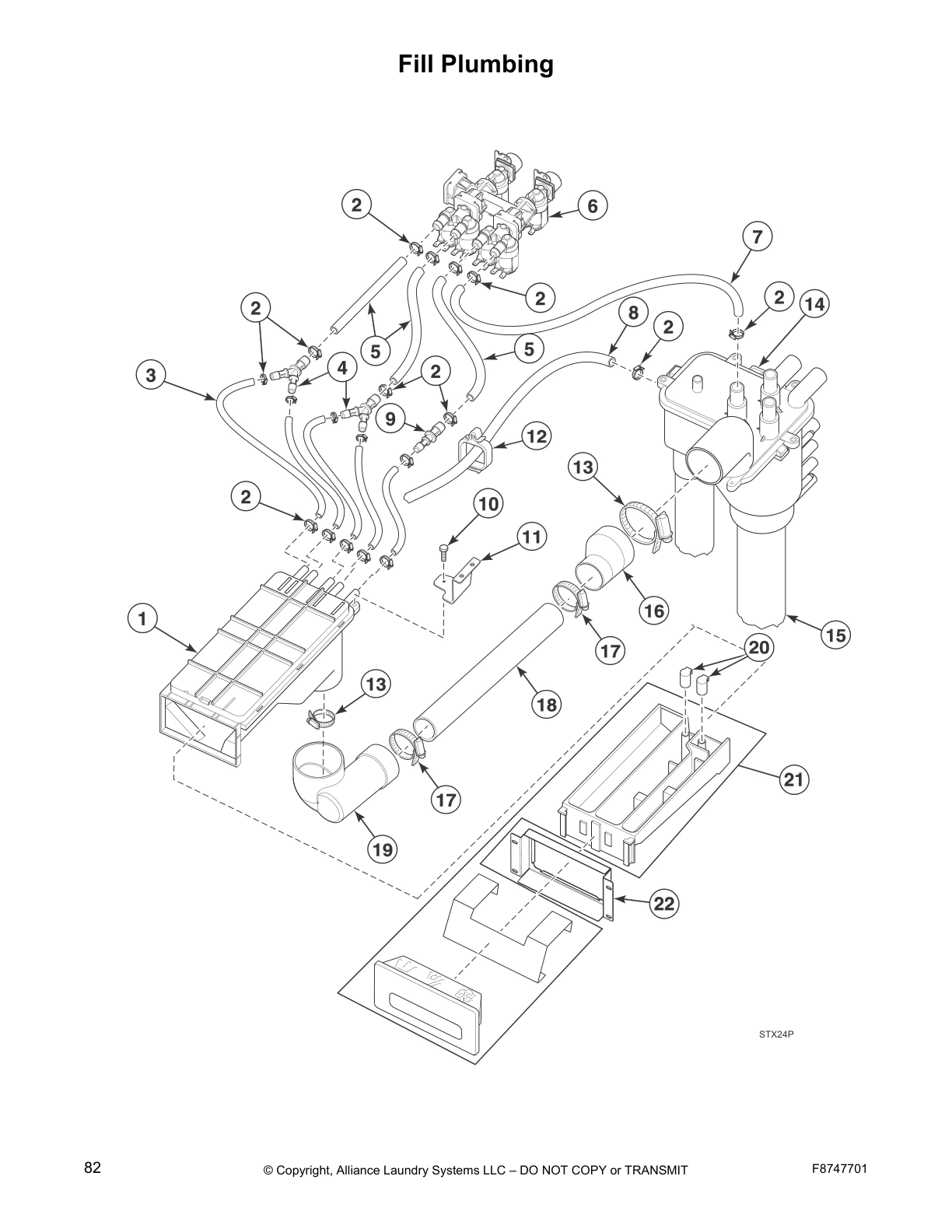

Fill Plumbing
Motor, Pulley and Belt - 30 Pound Models

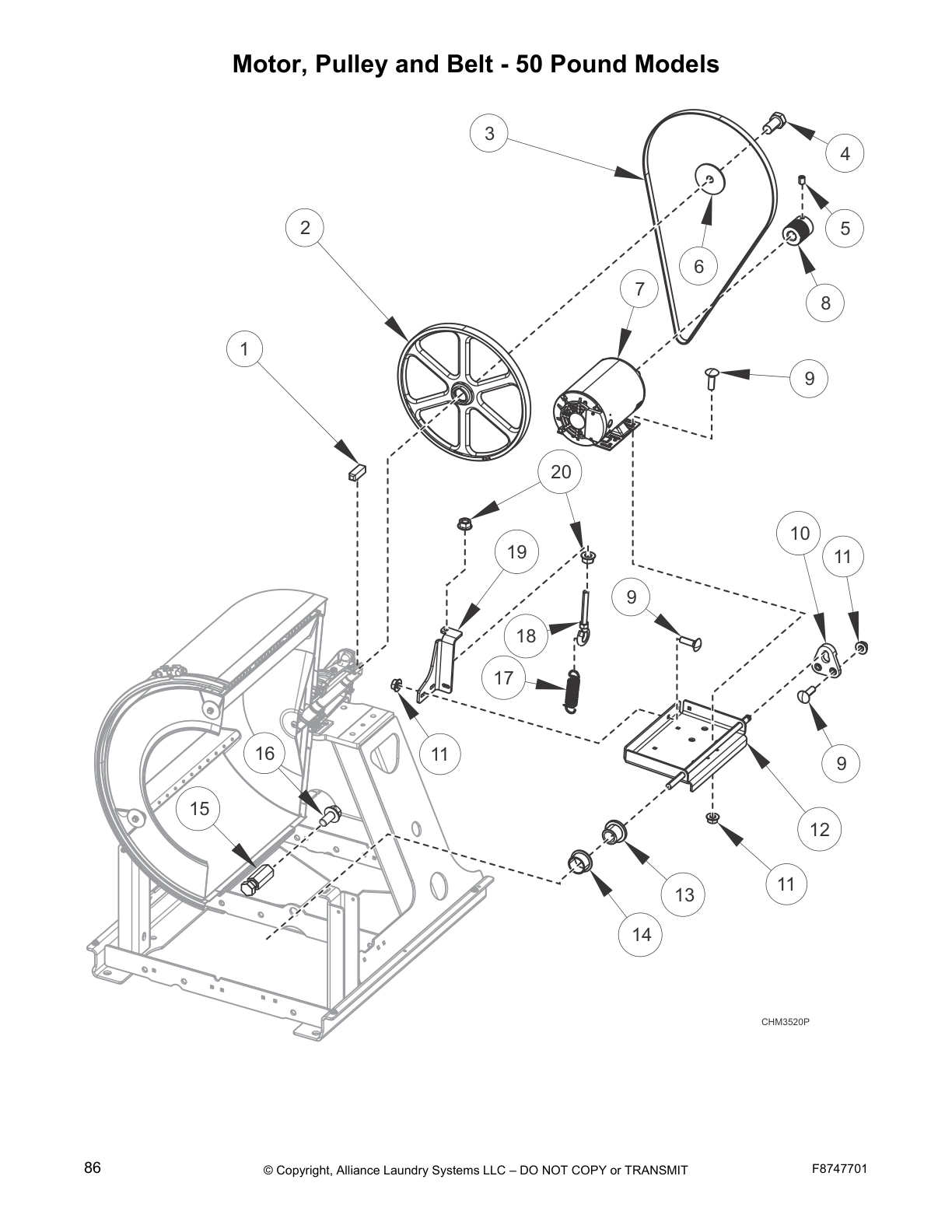

Motor, Pulley and Belt - 50 Pound Models
Special Tools and Kits
Common parts from model Huebsch HSK050N Stacked Washer and Dryer
SPQ 70684139 SPQ 70684139 Contact Us For Availability
Cap SPQ F140605 Contact Us For Availability
SPQ F8665603 SPQ F8665603 Contact Us For Availability
SPQ F8665601 SPQ F8665601 Contact Us For Availability
1
Key SPQ 70155601 Contact Us For Availability
1
Side Guard SPQ 70667301 Contact Us For Availability
1
Screw SPQ F8206901 Contact Us For Availability
1
Exhaust Pipe Assembly SPQ 70425801 Contact Us For Availability
1
Fan Motor SPQ 44354903 Contact Us For Availability
1
Airflow Switch Wrapper SPQ 70356101 Contact Us For Availability
1
Igniter Cover SPQ 70159601 Contact Us For Availability
1
Burner Orifice SPQ 70684149 Contact Us For Availability
1
Washer SPQ F431916 Contact Us For Availability
1
Nut SPQ F431024 Contact Us For Availability
1
Triple Lip Seal SPQ F8203803 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Basket Puller Tool SPQ F460129P Contact Us For Availability
2
Nut SPQ 44008201P Contact Us For Availability
2
Sheet Metal Edge Gasket SPQ 70302101 Contact Us For Availability
2
Rear Guard SPQ 70616001 Contact Us For Availability
2
Screw SPQ 70653801 Contact Us For Availability
2
Nut SPQ 70341001 Contact Us For Availability
2
Switch SPQ 70411901 Contact Us For Availability
2
Door Handle Spacer Kit SPQ F8535501 Contact Us For Availability
2
Door Lock Plate Assembly SPQ F8344401 Contact Us For Availability
2
Basket SPQ F8512201 Contact Us For Availability
2
Bearing SPQ F8337801 Contact Us For Availability
2
Basket Pulley SPQ F8511701 Contact Us For Availability
2
Basket Pulley Puller Tool SPQ F8608502P Contact Us For Availability
3
Spring Pin SPQ F8567501 Contact Us For Availability
3
Panel Locator SPQ 70226701 Contact Us For Availability
3
Bottom Guard SPQ 70633601 Contact Us For Availability
3
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
3
Gas Valve Manifold SPQ 70659201 Contact Us For Availability
3
Plug SPQ M400985 Contact Us For Availability
3
Terminal Block Shield SPQ 51783 Contact Us For Availability
3
SPQ 70603001 SPQ 70603001 Contact Us For Availability
3
Drive Mounting Bracket SPQ F8322401 Contact Us For Availability
3
Bearing Housing SPQ F100137P Contact Us For Availability
3
Stud SPQ F422500 Contact Us For Availability
3
Washer SPQ F8382813 Contact Us For Availability
3
Frame Template SPQ F8433501 Contact Us For Availability
4
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
4
Trunnion and Seal Kit SPQ 70305201 Contact Us For Availability
4
Screw SPQ 70667101 Contact Us For Availability
4
Anti-Rattle Burner Assembly SPQ 70546701 Contact Us For Availability
4
O-Ring SPQ 431482 Contact Us For Availability
4
Terminal Block SPQ 70333001 Contact Us For Availability
4
Drive Assembly SPQ F8496001 Contact Us For Availability
4
Plug SPQ F8497401 Contact Us For Availability
4
Screw SPQ F8223901 Contact Us For Availability
4
Door Lock Cover SPQ F8223202 Contact Us For Availability
4
Nut SPQ F8249902 Contact Us For Availability
4
Rear Drain Hose SPQ F200133600 Contact Us For Availability
5
Support Bearing SPQ 70448701 Contact Us For Availability
5
Pop Rivet SPQ 70506403 Contact Us For Availability
5
SPQ 70501301 SPQ 70501301 Contact Us For Availability
5
Switch Bracket SPQ 70356301 Contact Us For Availability
5
Gas Burner SPQ 70229801P Contact Us For Availability
5
Gas Valve SPQ 44154507 Contact Us For Availability
5
Screw SPQ F8495401P Contact Us For Availability
5
SPQ F8221403 SPQ F8221403 Contact Us For Availability
5
Washer SPQ F8387701 Contact Us For Availability
5
Drain Valve Bracket SPQ F8752101 Contact Us For Availability
5
Motor SPQ M400077 Contact Us For Availability
6
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
6
SPQ F431222 SPQ F431222 Contact Us For Availability
6
Nut SPQ 70305301 Contact Us For Availability
6
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
6
Harness SPQ M413862 Contact Us For Availability
6
SPQ 804528 SPQ 804528 Contact Us For Availability
6
Washer SPQ F8245001 Contact Us For Availability
6
Shell Band Kit SPQ F8302701 Contact Us For Availability
6
Dowel Pin SPQ F430339 Contact Us For Availability
6
Motor Pulley SPQ F431115 Contact Us For Availability
7
Cylinder Bearing Stud Plate Assembly SPQ 70066005 Contact Us For Availability
7
SPQ 70508301 SPQ 70508301 Contact Us For Availability
7
Gasket SPQ 70669401 Contact Us For Availability
7
Airflow Switch Vane SPQ 70319201 Contact Us For Availability
7
Plug SPQ 70167601 Contact Us For Availability
7
SPQ F8449801 SPQ F8449801 Contact Us For Availability
7
SPQ F8485401P SPQ F8485401P Contact Us For Availability
7
Bolt SPQ F8344501 Contact Us For Availability
7
SPQ F8391702 SPQ F8391702 Contact Us For Availability
7
Seal Scupper Pad SPQ F8388201 Contact Us For Availability
7
SPQ 23222 SPQ 23222 Contact Us For Availability
7
Bolt SPQ F8564101P Contact Us For Availability
8
Porcelain Touch-Up Paint SPQ 70663401W Contact Us For Availability
8
SPQ 70275801 SPQ 70275801 Contact Us For Availability
8
SPQ F430533 SPQ F430533 Contact Us For Availability
8
Door Lock Harness SPQ F8193101 Contact Us For Availability
8
SPQ F8337001 SPQ F8337001 Contact Us For Availability
8
Bearing Housing Assembly SPQ F100134 Contact Us For Availability
8
SPQ 70334702 SPQ 70334702 Contact Us For Availability
8
Spring Stud Kit SPQ F8525301 Contact Us For Availability
9
SPQ 70411301 SPQ 70411301 Contact Us For Availability
9
SPQ M400022 SPQ M400022 Contact Us For Availability
9
SPQ F430144 SPQ F430144 Contact Us For Availability
9
Spark Electrode SPQ 70654201 Contact Us For Availability
9
SPQ 70482601 SPQ 70482601 Contact Us For Availability
9
SPQ M412763 SPQ M412763 Contact Us For Availability
9
SPQ F8611301 SPQ F8611301 Contact Us For Availability
9
SPQ F8402801 SPQ F8402801 Contact Us For Availability
9
SPQ F431041 SPQ F431041 Contact Us For Availability
9
Reed Switch Assembly SPQ F8270701 Contact Us For Availability
9
SPQ F8343906P SPQ F8343906P Contact Us For Availability
9
SPQ F8350302 SPQ F8350302 Contact Us For Availability
9
SPQ F200201 SPQ F200201 Contact Us For Availability
9
SPQ F8557301 SPQ F8557301 Contact Us For Availability
10
End Cap SPQ 70070101 Contact Us For Availability
10
Nut SPQ 70030401 Contact Us For Availability
10
Lever Arm and Belt Kit SPQ 70655103 Contact Us For Availability
10
Blower Inlet Cone SPQ 44354901 Contact Us For Availability
10
Label SPQ F8611401 Contact Us For Availability
10
Torsion/Door Lock Spring SPQ F430232 Contact Us For Availability
10
Screw SPQ F8368801 Contact Us For Availability
10
Motor Rod Plate SPQ F8441101 Contact Us For Availability
11
Terminal Block SPQ 430642 Contact Us For Availability
11
Key SPQ 70155602 Contact Us For Availability
11
Screw SPQ 70391101 Contact Us For Availability
11
Drive Motor SPQ 44355002 Contact Us For Availability
11
Clip SPQ 70069901 Contact Us For Availability
11
Stove Back SPQ 70375201 Contact Us For Availability
11
Screw SPQ 202175 Contact Us For Availability
11
Door Gasket SPQ F8111502 Contact Us For Availability
11
Door Lock Microswitch SPQ F430225 Contact Us For Availability
11
Retaining Ring SPQ F8442702 Contact Us For Availability
12
Snap Bushing SPQ M411826 Contact Us For Availability
12
Wire Clip SPQ F8449501 Contact Us For Availability
12
Door Lock Switch Lever SPQ F8070301 Contact Us For Availability
12
Screw SPQ F8402701 Contact Us For Availability
12
Drain Valve Kit SPQ F200166402 Contact Us For Availability
12
Pump Drain Hose SPQ F8556601 Contact Us For Availability
13
Spacer SPQ F200203200 Contact Us For Availability
13
Drain Hose SPQ F200166302 Contact Us For Availability
13
Thermostat Cover SPQ M414477 Contact Us For Availability
13
Ground Lug Connector SPQ M411283 Contact Us For Availability
13
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
13
Thermistor SPQ F8621601 Contact Us For Availability
13
Hose Clamp SPQ F200215 Contact Us For Availability
13
Flanged Isolator SPQ F8535202 Contact Us For Availability
14
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
14
Washer SPQ 70303101 Contact Us For Availability
14
Screw SPQ 685837 Contact Us For Availability
14
I/O Control Assembly SPQ 70671701 Contact Us For Availability
14
Door Lock Solenoid Replacement Kit SPQ F8223401 Contact Us For Availability
14
Shell SPQ F8538801 Contact Us For Availability
14
Hose SPQ F8577201 Contact Us For Availability
14
Flanged Bushing SPQ F8333302 Contact Us For Availability
15
Door Glass SPQ 70211902P Contact Us For Availability
15
Roller Seal SPQ 70443601 Contact Us For Availability
15
Pop Rivet SPQ M400003 Contact Us For Availability
15
Nut SPQ F430215 Contact Us For Availability
15
Door Lock Plate Shim SPQ F431901 Contact Us For Availability
15
Nut SPQ F8658501 Contact Us For Availability
15
Stud SPQ F8634701 Contact Us For Availability
16
Blower Assembly SPQ M400991 Contact Us For Availability
16
Roller Shaft SPQ 70249501 Contact Us For Availability
16
Lever Arm and Bushing Assembly SPQ 44355001 Contact Us For Availability
16
Magnet SPQ C001236 Contact Us For Availability
16
Expansion Clip SPQ F977P3 Contact Us For Availability
16
Pin SPQ F8512203 Contact Us For Availability
16
Connector SPQ F8541901 Contact Us For Availability
16
Bolt SPQ F200219 Contact Us For Availability
16
Screw SPQ 70126104 Contact Us For Availability
17
Pop Rivet SPQ F8390801 Contact Us For Availability
17
Washer SPQ 70261401 Contact Us For Availability
17
Blower Motor Mounting Plate SPQ 70302201P Contact Us For Availability
17
Plug SPQ F200213 Contact Us For Availability
17
Extension Spring SPQ F310124 Contact Us For Availability
18
Top Panel SPQ 70288801 Contact Us For Availability
18
Nut SPQ 44088001 Contact Us For Availability
18
Screw SPQ F431223 Contact Us For Availability
18
Eye Bolt SPQ F8319503 Contact Us For Availability
19
Door Handle SPQ F431133 Contact Us For Availability
19
Bolt SPQ F8405301 Contact Us For Availability
20
SPQ 70050401P SPQ 70050401P Contact Us For Availability
20
Wire Clip SPQ 70603201 Contact Us For Availability
21
Cylinder Shroud SPQ 70015707 Contact Us For Availability
21
Door Latch Arm Assembly SPQ F8624603 Contact Us For Availability
22
Clip SPQ 70015708 Contact Us For Availability
23
Transformer SPQ 70346501 Contact Us For Availability
25
Center Cylinder Seal SPQ 70301901 Contact Us For Availability
26
Side Panel SPQ 70301902 Contact Us For Availability
26
End Stop SPQ F8494101P Contact Us For Availability
NI
Front Panel Seal SPQ 70173401P Contact Us For Availability
NI
High Voltage Suppression Cable SPQ 44239701 Contact Us For Availability
NI
Burner Grill SPQ 70306501 Contact Us For Availability
NI
Door Catch Kit SPQ 70482901 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ 70626201 SPQ 70626201 Contact Us For Availability
NI
SPQ 70289101P SPQ 70289101P Contact Us For Availability
NI
SPQ 70340801 SPQ 70340801 Contact Us For Availability
NI
SPQ 70392701P SPQ 70392701P Contact Us For Availability
NI
SPQ 70429601P SPQ 70429601P Contact Us For Availability
NI
L.P. Conversion Kit SPQ 70551908 Contact Us For Availability
NI
SPQ 70684144 SPQ 70684144 Contact Us For Availability
NI
SPQ 70684142 SPQ 70684142 Contact Us For Availability
NI
SPQ 70609911 SPQ 70609911 Contact Us For Availability
NI
SPQ F8449502 SPQ F8449502 Contact Us For Availability
NI
SPQ F8518601 SPQ F8518601 Contact Us For Availability
NI
Emergency Stop Bypass Harne SPQ F8528006 Contact Us For Availability
NI
SPQ F8519403 SPQ F8519403 Contact Us For Availability
NI
SPQ F8117601 SPQ F8117601 Contact Us For Availability
NI
SPQ 05161 SPQ 05161 Contact Us For Availability
NI
SPQ F8231001 SPQ F8231001 Contact Us For Availability
NI
Door Lock Assembly SPQ F8520202 Contact Us For Availability
NI
SPQ F8632401 SPQ F8632401 Contact Us For Availability
NI
SPQ F8537803 SPQ F8537803 Contact Us For Availability
NI
SPQ F8271801P SPQ F8271801P Contact Us For Availability
NI
SPQ F8543201 SPQ F8543201 Contact Us For Availability
NI
SPQ F8543301 SPQ F8543301 Contact Us For Availability
NI
SPQ F8520002 SPQ F8520002 Contact Us For Availability
NI
Water Hose Kit SPQ F8230301 Contact Us For Availability
NI
Check Valve Kit SPQ F150443 Contact Us For Availability
NI
SPQ F8665604 SPQ F8665604 Contact Us For Availability
NI
SPQ F8665602 SPQ F8665602 Contact Us For Availability
NI
SPQ 203386 SPQ 203386 Contact Us For Availability
NI
SPQ F8197701 SPQ F8197701 Contact Us For Availability
NI
SPQ F8748601 SPQ F8748601 Contact Us For Availability
NI
Basket Rental Tool Kit SPQ 390P4-1 Contact Us For Availability
NI
Concrete Kit SPQ 1111P Contact Us For Availability
NI
Basket Tool Kit SPQ 389P4 Contact Us For Availability
× ![]()
