Model GE HRT18RCPB0 – Common Parts & Diagrams

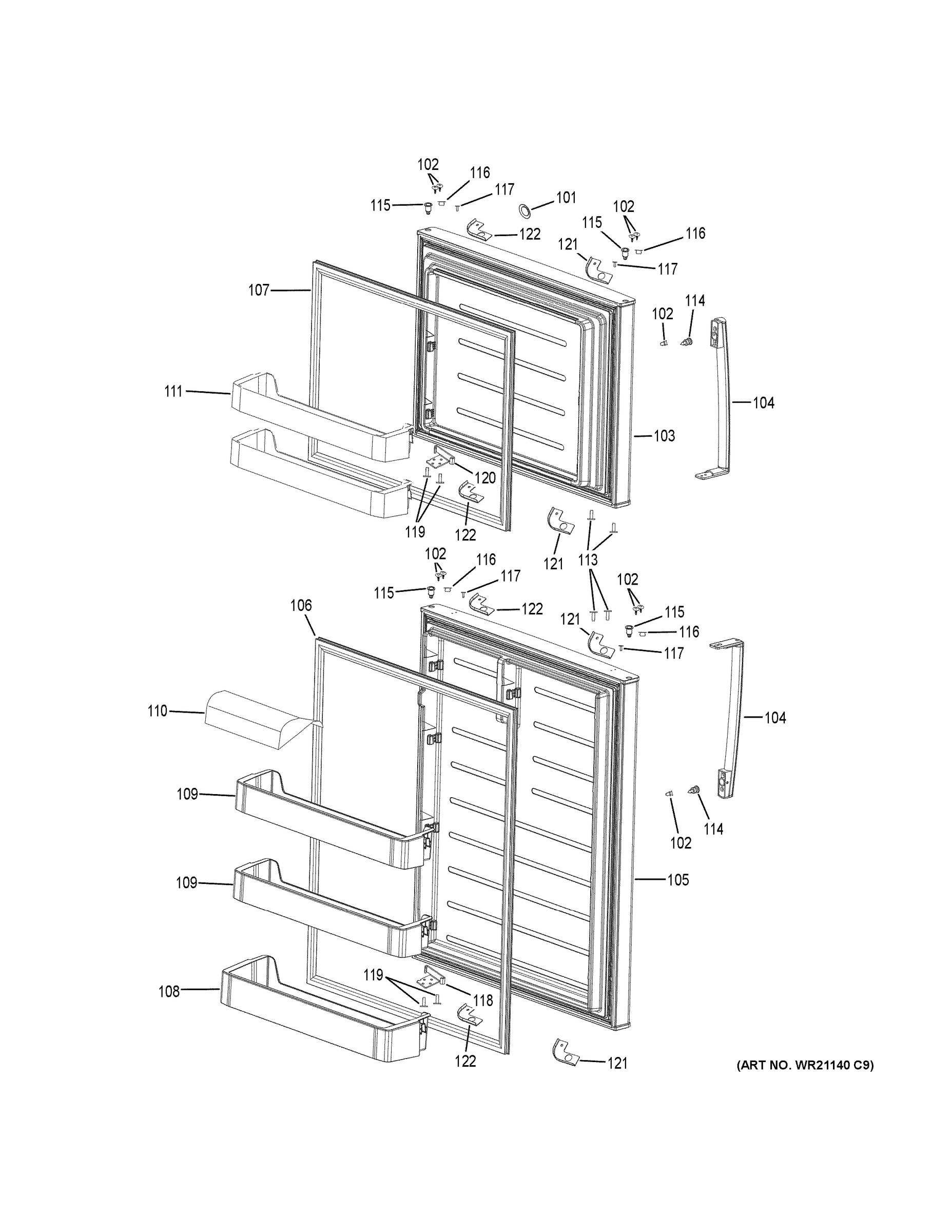

DOORS

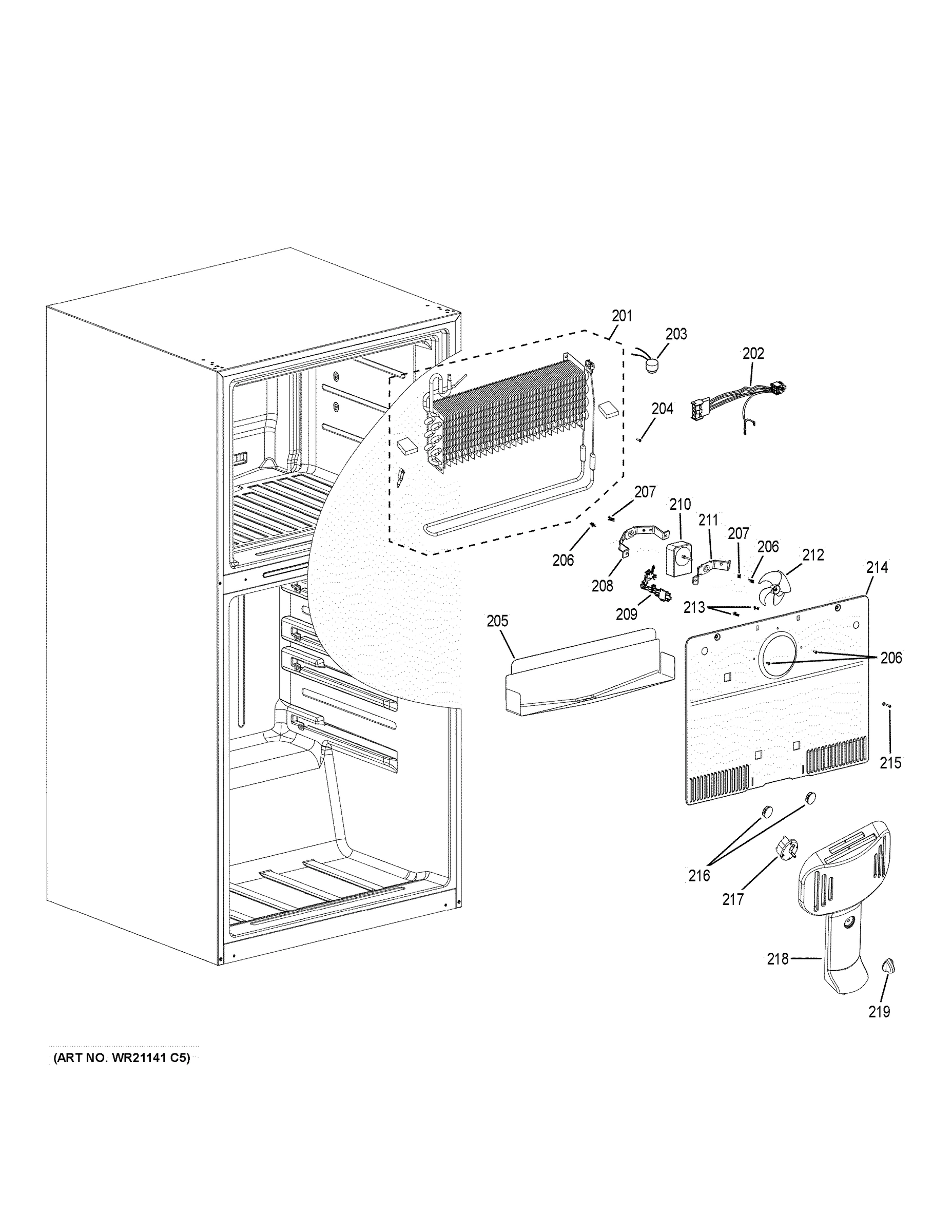

FREEZER SECTION

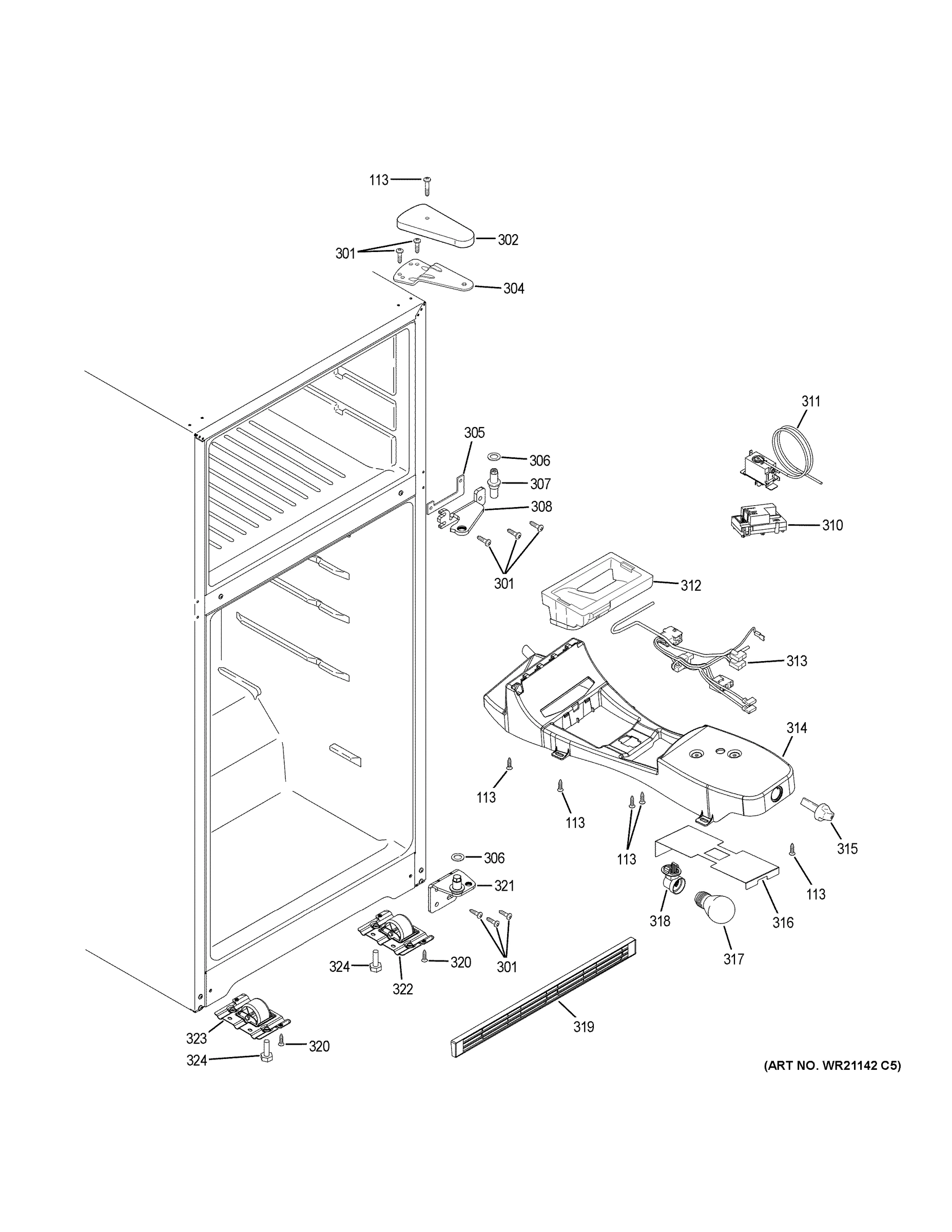

FRESH FOOD SECTION

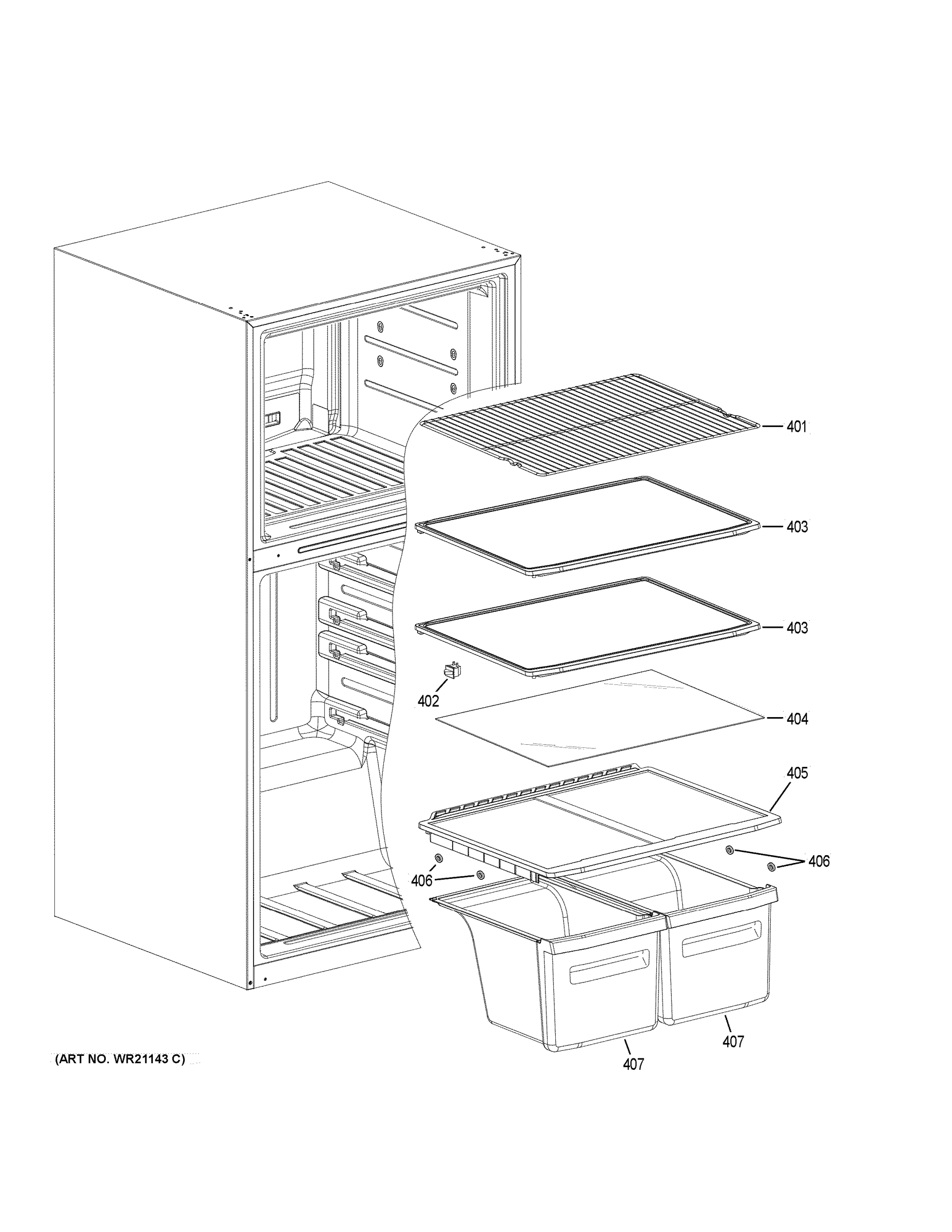

SHELVES & DRAWERS

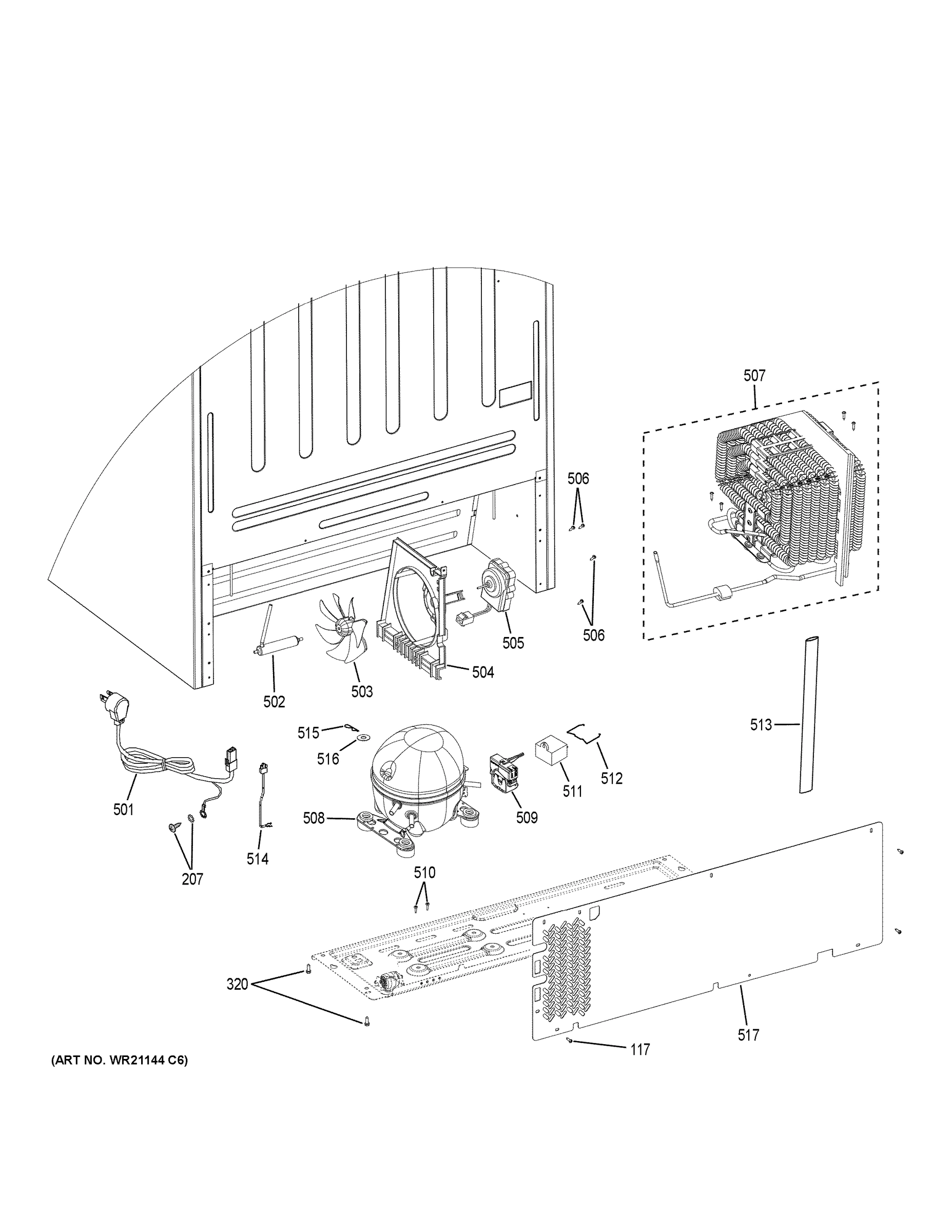

MACHINE COMPARTMENT
Common parts from model GE HRT18RCPB0
104
HANDLE DOOR BB GEN WR12X27379 Contact Us For Availability
109
FREEZER DOOR - RAIL BIN WHITE GEN WR71X27450 Contact Us For Availability
113
SCREW 3.9MM X 16MM GEN WR01X27333 Contact Us For Availability
114
SCREW DOVE TAIL GEN WR01X27334 Contact Us For Availability
115
DOOR THIMBLE BLACK GEN WR02X27453 Contact Us For Availability
117
SCREW #8 X 9/16" GEN WR01X27330 Contact Us For Availability
120
DOOR STOP FREEZER GEN WR01X27350 Contact Us For Availability
202
IM DEFROST CABLE GEN WR55X27420 Contact Us For Availability
207
GROUND SCREW STAR WASHER GEN WR01X27302 Contact Us For Availability
208
EVAPORATOR FAN REAR BRACKET GEN WR02X27278 Contact Us For Availability
210
MOTOR AC EVAP FAN GEN WR60X27314 Contact Us For Availability
212
BLADE EVAP FAN ASM GEN WR60X27275 Contact Us For Availability
216
PLUG BUTTON WW GEN WR01X27320 Contact Us For Availability
217
IM RECEPTACLE COVER GEN WR02X27610 Contact Us For Availability
218
AIR TOWER ASM GEN WR14X27272 Contact Us For Availability
219
KNOB AIR TOWER GEN WR02X27311 Contact Us For Availability
301
SCREW M6 X 16MM GEN WR01X27335 Contact Us For Availability
304
TOP HINGE GEN WR13X27462 Contact Us For Availability
306
WASHER HINGE PIN GEN WR01X27360 Contact Us For Availability
307
CENTER HINGE PIN GEN WR13X27432 Contact Us For Availability
308
CENTER HINGE UNPAINTED GEN WR13X27463 Contact Us For Availability
310
ADAPTIVE DEFROST CONTROL GEN WR09X28646 Contact Us For Availability
313
HARNESS COLD CONTROL GEN WR55X27421 Contact Us For Availability
315
KNOB CONTROL GEN WR02X27312 Contact Us For Availability
320
SCREW 1/4" X 3/4" GEN WR01X27331 Contact Us For Availability
321
HINGE BOTTOM GEN WR13X27306 Contact Us For Availability
323
WHEEL MOBILITY ASM LH GEN WR02X27362 Contact Us For Availability
324
LEVELING LEG GEN WR01X27313 Contact Us For Availability
501
POWER CORD ASM GEN WR55X27408 Contact Us For Availability
503
BLADE COND FAN ASM GEN WR60X27274 Contact Us For Availability
504
BRACKET COND FAN GEN WR02X27276 Contact Us For Availability
505
MOTOR COND FAN GEN WR60X27315 Contact Us For Availability
506
SCREW 3.9MM X 11MM GEN WR01X27332 Contact Us For Availability
507
CONDENSER FORMED ASM GEN WR87X27284 Contact Us For Availability
509
TSD COMBO GEN WR09X27357 Contact Us For Availability
510
GROUND SCREW #8-32 X 3/8" GEN WR01X27301 Contact Us For Availability
512
CLIP RETAINER GEN WR01X27282 Contact Us For Availability
513
EXTENSION DRAIN TUBE GEN WR02X27297 Contact Us For Availability
515
PIN COMPRESSOR GEN WR01X27318 Contact Us For Availability
516
COMPRESSOR WASHER GEN WR02X27433 Contact Us For Availability
517
COVER REAR ACCESS GEN WR13X27286 Contact Us For Availability
× ![]()
