Model Hotpoint HPS16BTNCLWW Refrigerator – Common Parts & Diagrams

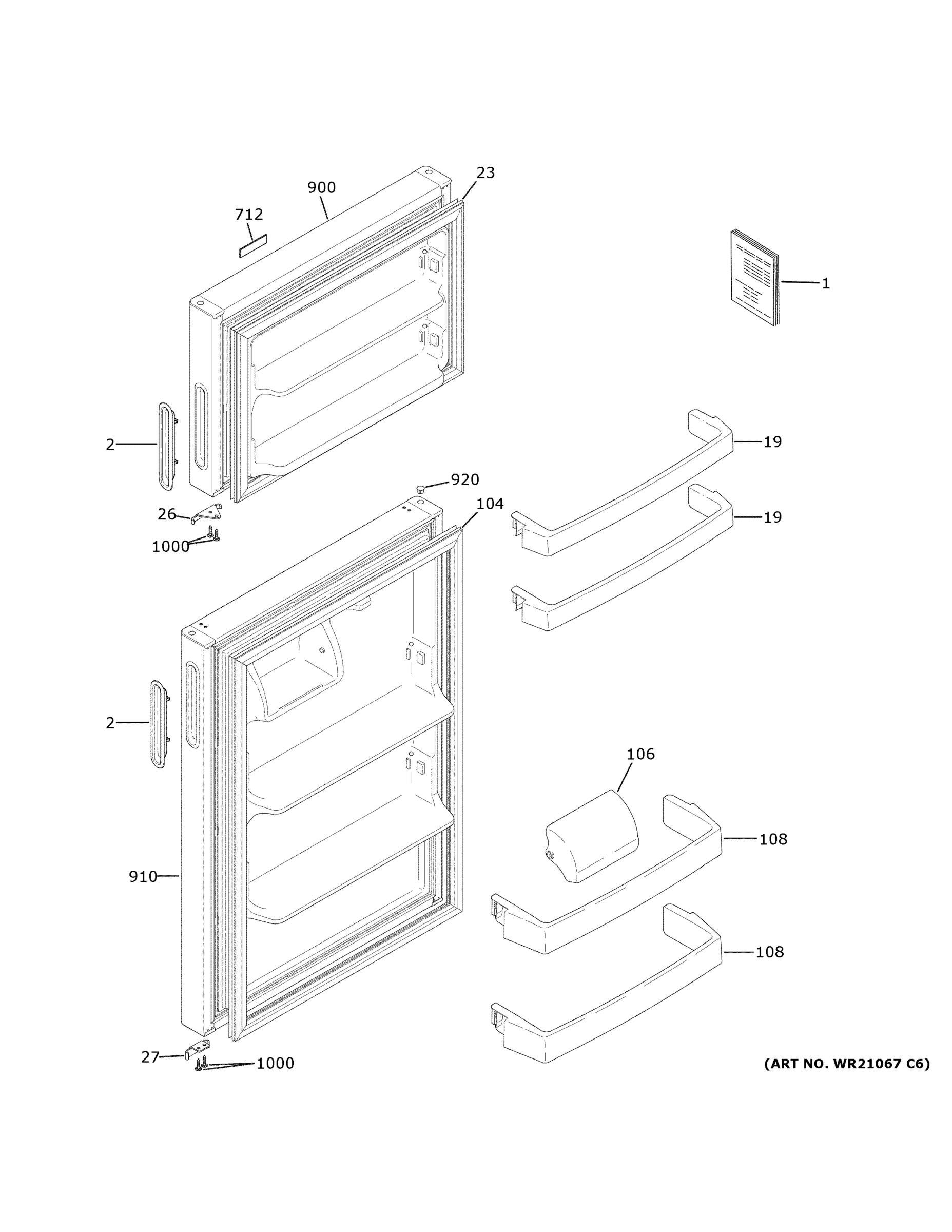

DOORS

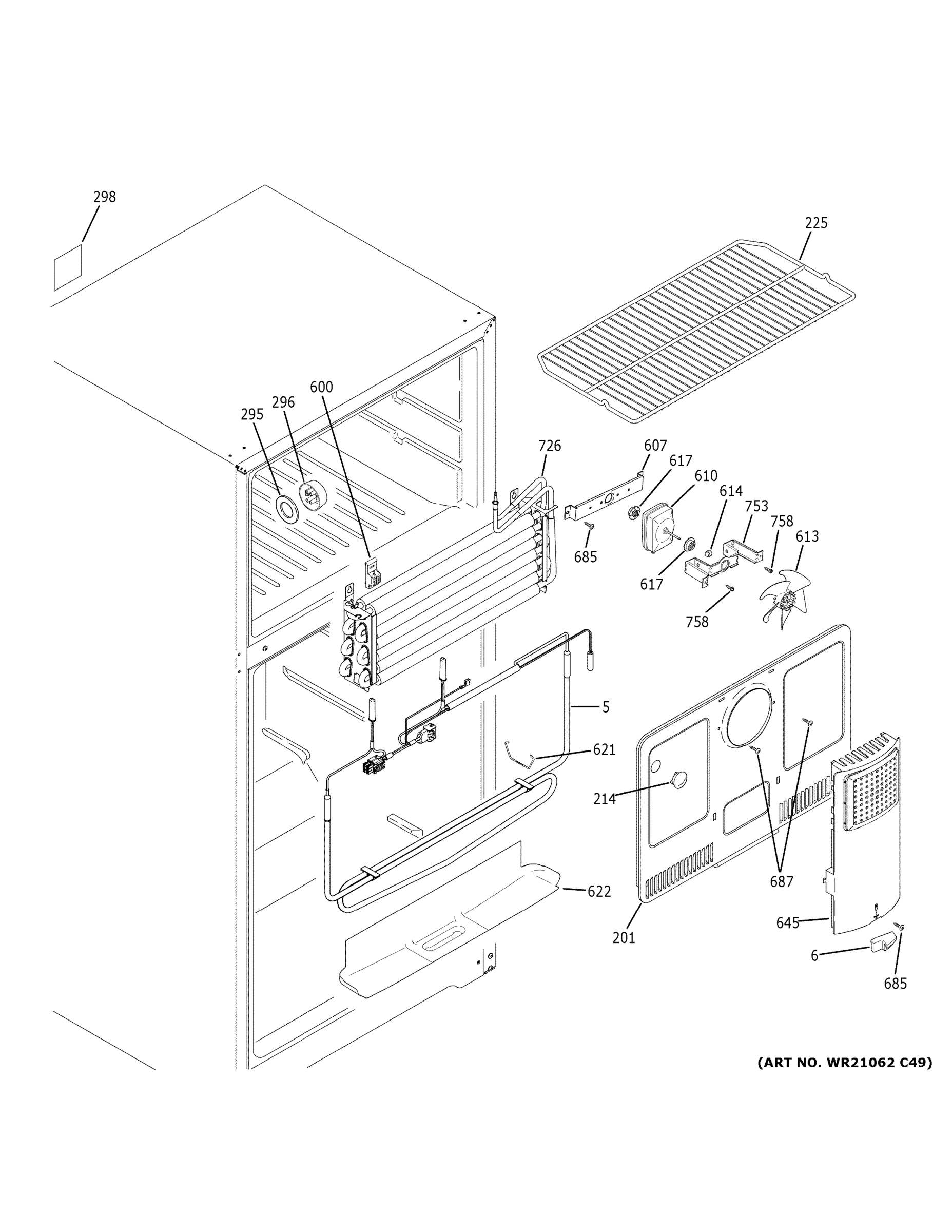

FREEZER SECTION
FRESH FOOD SECTION
FRESH FOOD SHELVES
MACHINE COMPARTMENT
LOKRING CONNECTORS
ICE MAKER
Common parts from model Hotpoint HPS16BTNCLWW Refrigerator
2
WHITE POCKET HANDLE GEN WR12X34565 Contact Us For Availability
5
DEFROST HEATER AND HARNESS GEN WR55X31113 Contact Us For Availability
8
SCR 8-32 CA HXW 1/2 GEN WR01X10317 Contact Us For Availability
23
GASKET DOOR FZ WW GEN WR14X27230 Contact Us For Availability
26
FREEZER DOOR STOP WHITE GEN WR02X28287 Contact Us For Availability
27
REFRIGERATOR DOOR STOP WHITE GEN WR02X28283 Contact Us For Availability
104
GASKET DOOR FF WW GEN WR14X27233 Contact Us For Availability
151
SCR 10-16 AB 43WHEX 5/8 GEN WD02X10151 Contact Us For Availability
214
PLUG BUTTON GEN WR02X11760 Contact Us For Availability
225
SHELF WIRE FZ GEN WR71X21169 Contact Us For Availability
228
FRESH FOOD WIRE SHELF 28 GEN WR71X31099 Contact Us For Availability
244
SHELF GLASS GEN WR32X21260 Contact Us For Availability
251
GASKET SUPPLY FOAM GEN WR02X30845 Contact Us For Availability
260
GROMMET WATER FILL ASM GEN WR02X25516 Contact Us For Availability
263
SLIDER ADJ GEN WR2X7877 Contact Us For Availability
275
HINGE TOP AND PIN ASM GEN WR13X27091 Contact Us For Availability
276
HINGE CENTER GEN WR13X21174 Contact Us For Availability
279
PIN HINGE CTR GEN WR02X21173 Contact Us For Availability
280
CAP CORNER OC WHITE GEN WR02X10703 Contact Us For Availability
281
WASHER HINGE GEN WR01X27364 Contact Us For Availability
282
HINGE BOTTOM GEN WR13X21175 Contact Us For Availability
285
PIN HINGE BOTTOM GEN WR02X27092 Contact Us For Availability
432
FRONT CONTROL HOUSING GEN WR02X31088 Contact Us For Availability
609
REFRIGERATOR DOOR LIGHT SWITCH GEN WR23X31507 Contact Us For Availability
614
BUMPER GEN WR02X10540 Contact Us For Availability
626
MACHINE COMPARTMENT HARNESS AND POWER CO GEN WR55X31301 Contact Us For Availability
645
AIR TOWER GEN WR17X29345 Contact Us For Availability
651
BLADE COND FAN ASM GEN WR60X10207 Contact Us For Availability
685
SCREW 8-18 AB HXW 1/2 S GEN WR02X29370 Contact Us For Availability
687
SCR 8-15 AB IHXW 1/2 S GEN WR01X10589 Contact Us For Availability
692
SCR 8-32 CA HXW 1/2 NS GEN WR01X23006 Contact Us For Availability
696
SCR 12-24 TT PNPSD .785 GEN WR01X26527 Contact Us For Availability
737
GROMMET GEN WR02X22869 Contact Us For Availability
740
R600 DRIER W/ RED CAP GEN WR87X30875 Contact Us For Availability
747
STUD MTGCOMP GEN WR1X1779 Contact Us For Availability
758
SCR 8-32 TT HXW 3/8 S GEN WR01X10860 Contact Us For Availability
800
WATER VALVE GEN WR57X32213 Contact Us For Availability
806
WATER TUBE GEN WR17X32212 Contact Us For Availability
807
CLAMP GEN WR02X11437 Contact Us For Availability
920
PLUG BTN WHT GEN WR2X8233 Contact Us For Availability
1000
SCR 10-16 AB TRP 3/4 NBS GEN WR01X21151 Contact Us For Availability
7003
7MM X 5MM LOKRING GEN WR97X25268 Contact Us For Availability
7004
6MM X 2MM LOKRING GEN WR97X10032 Contact Us For Availability
7005
6MM X 6MM LOKRING GEN WR97X10031 Contact Us For Availability
7006
6MM X 4MM LOKRING GEN WR97X10033 Contact Us For Availability
7007
8MM X 6MM LOKRING GEN WR97X10036 Contact Us For Availability
7008
6MM X 5MM LOKRING GEN WR97X10034 Contact Us For Availability
7009
8MM X 8MM LOKRING GEN WR97X10021 Contact Us For Availability
× ![]()
