Model Huebsch HL9151 Washer – Common Parts & Diagrams
Digital Coin Drop
Accumulator Coin Drop

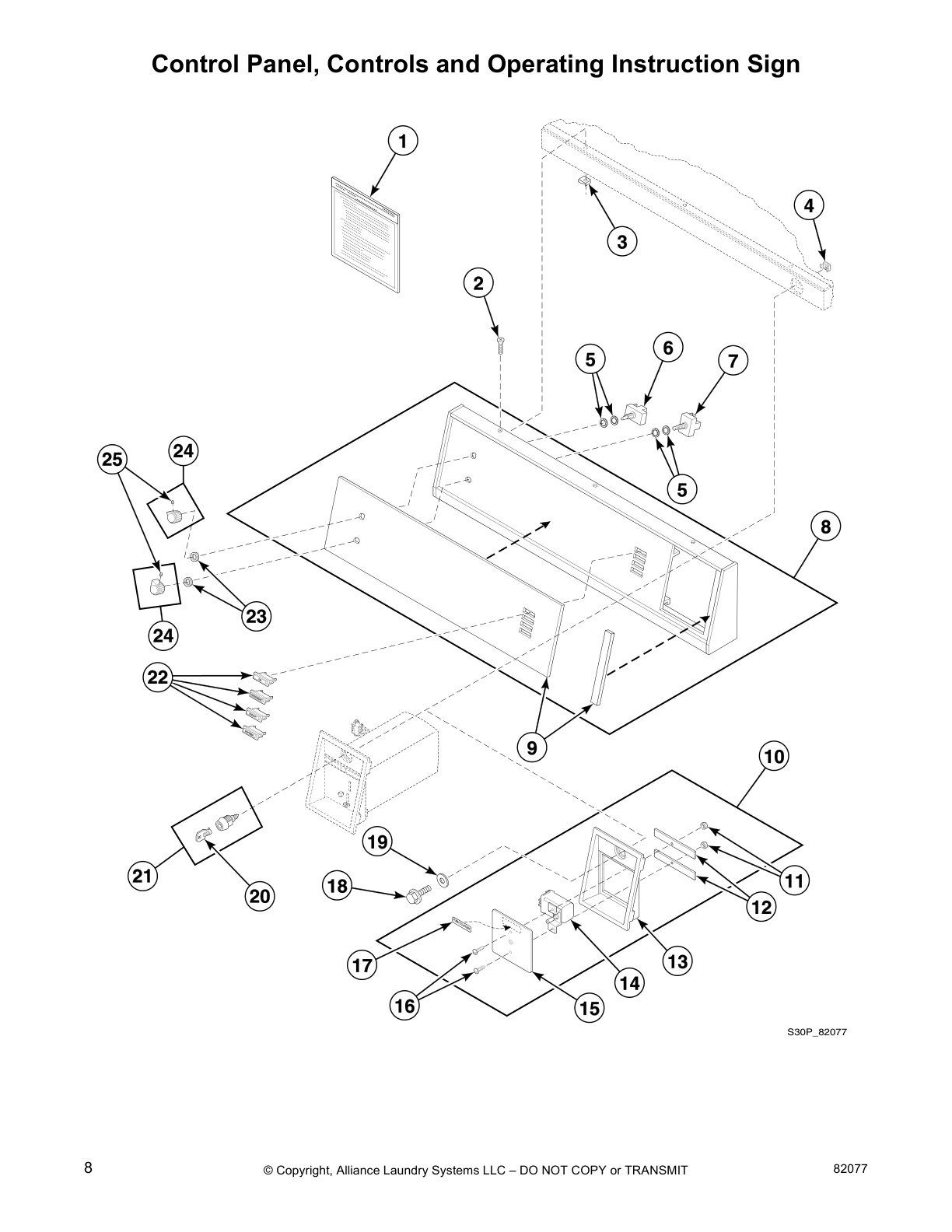

Control Panel, Controls and Operating Instruction Sign

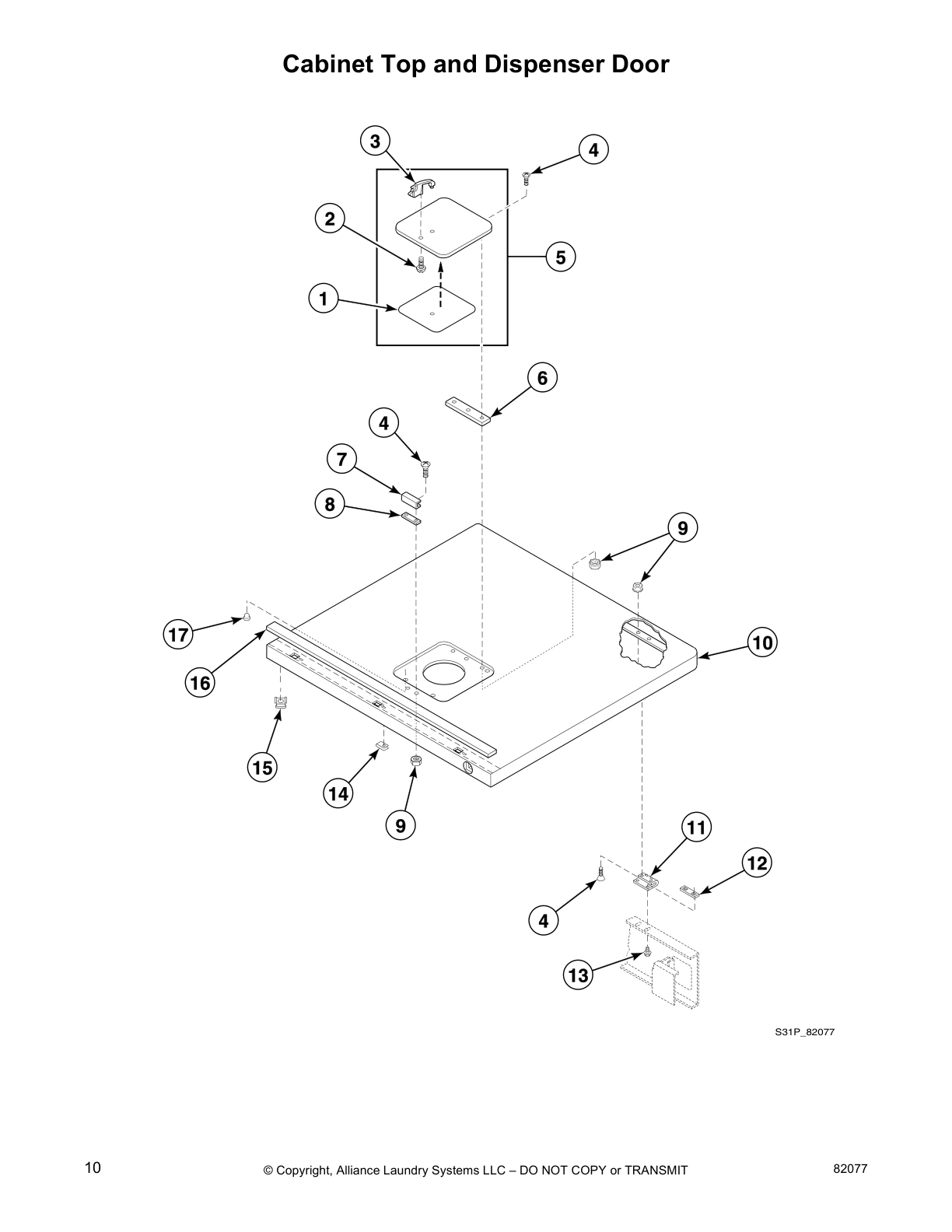

Cabinet Top and Dispenser Door

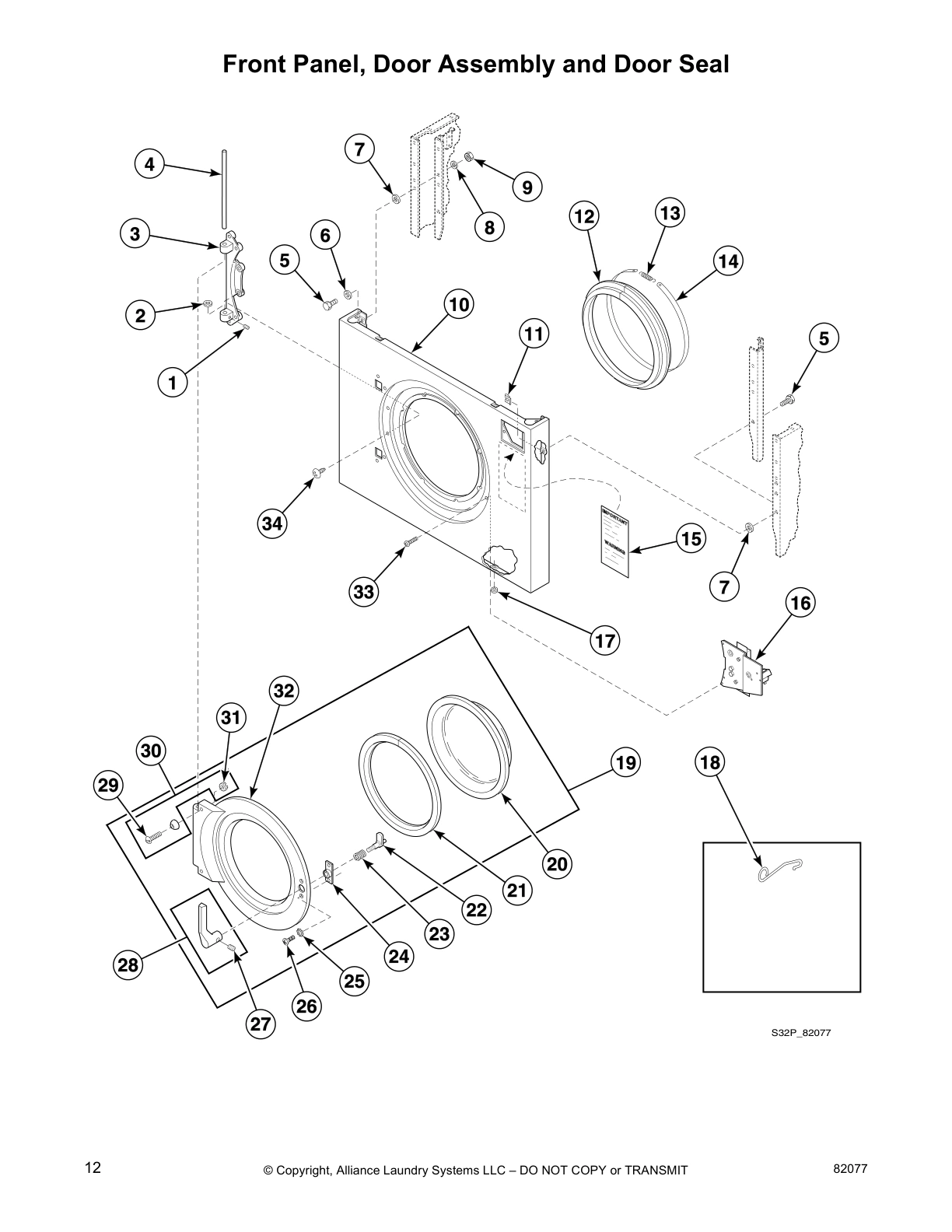

Front Panel, Door Assembly and Door Seal

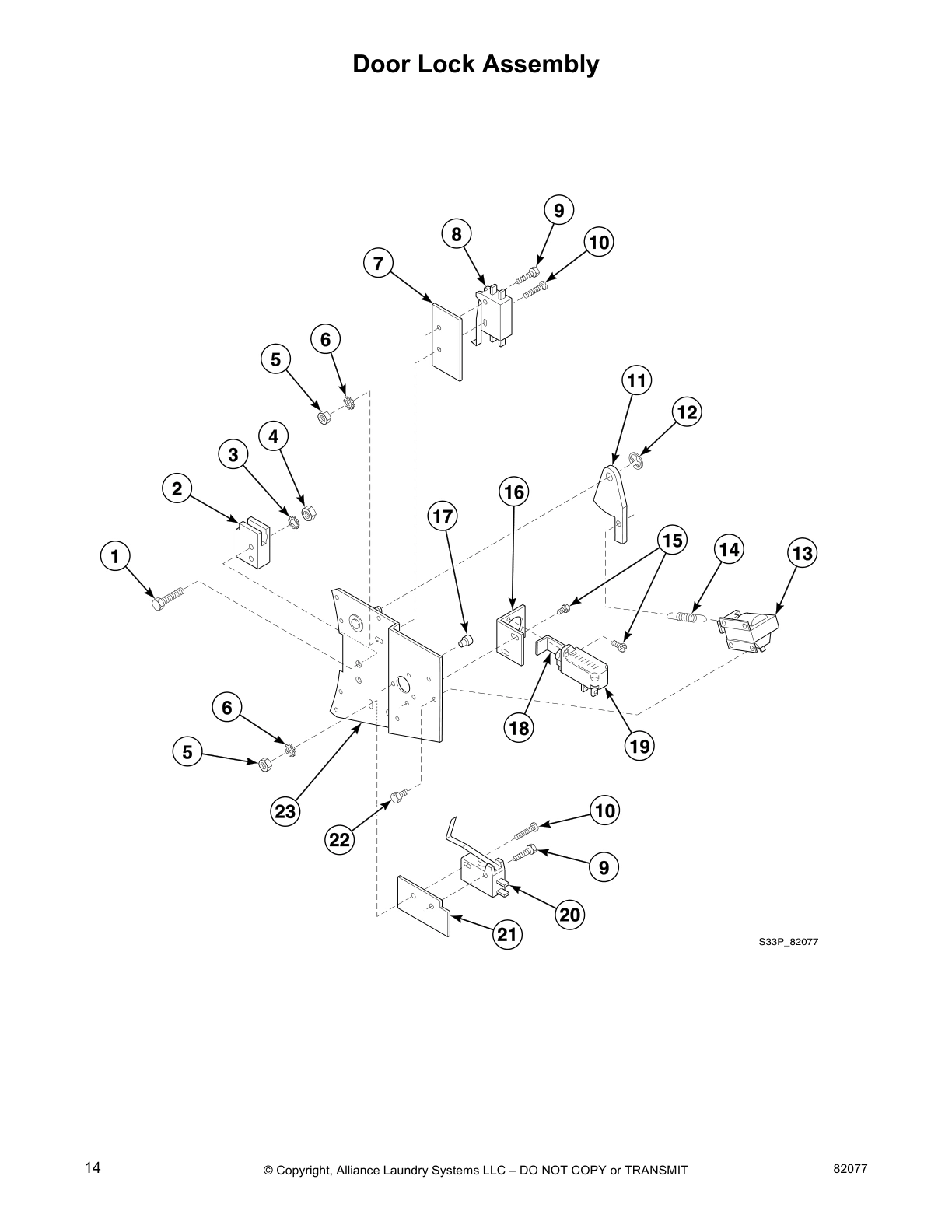

Door Lock Assembly

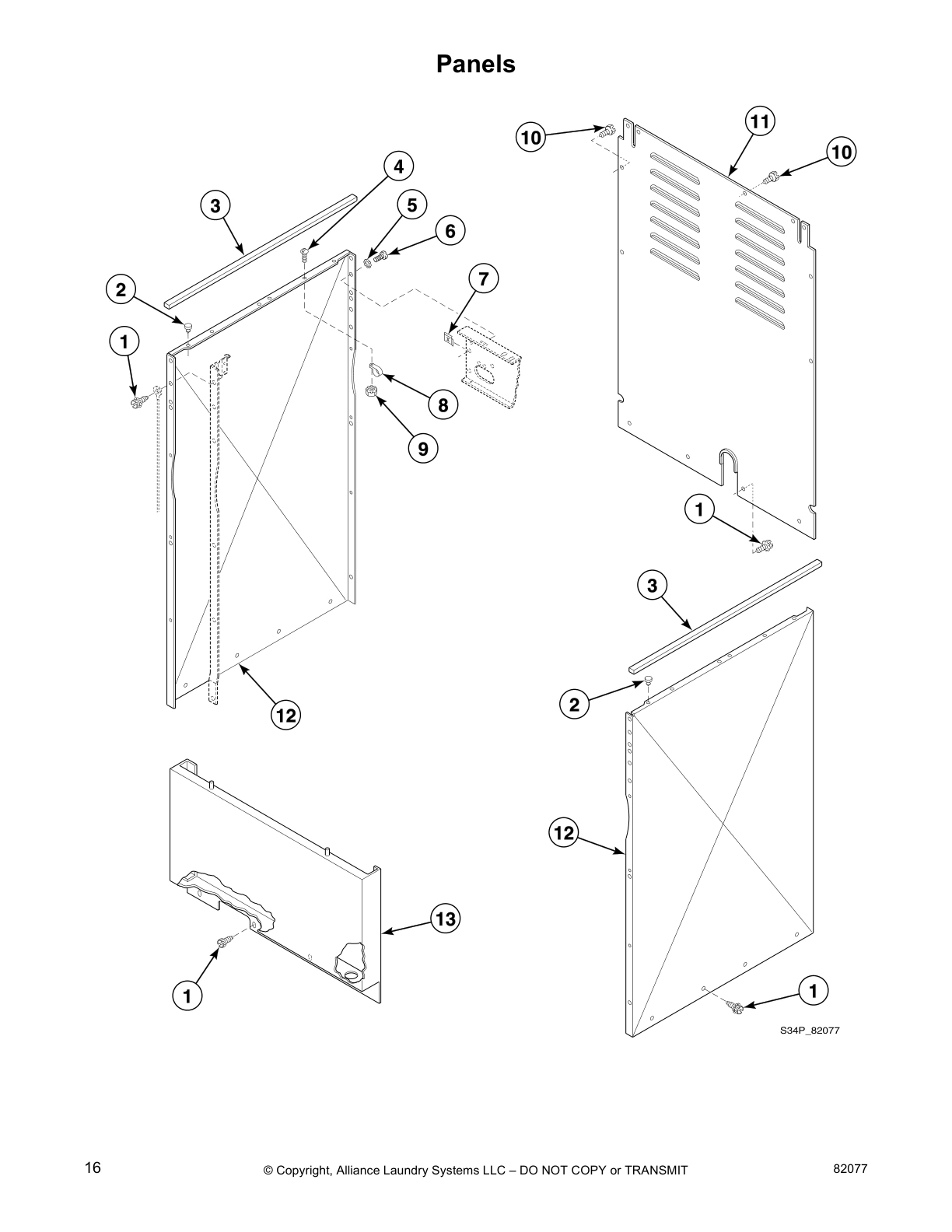

Panels

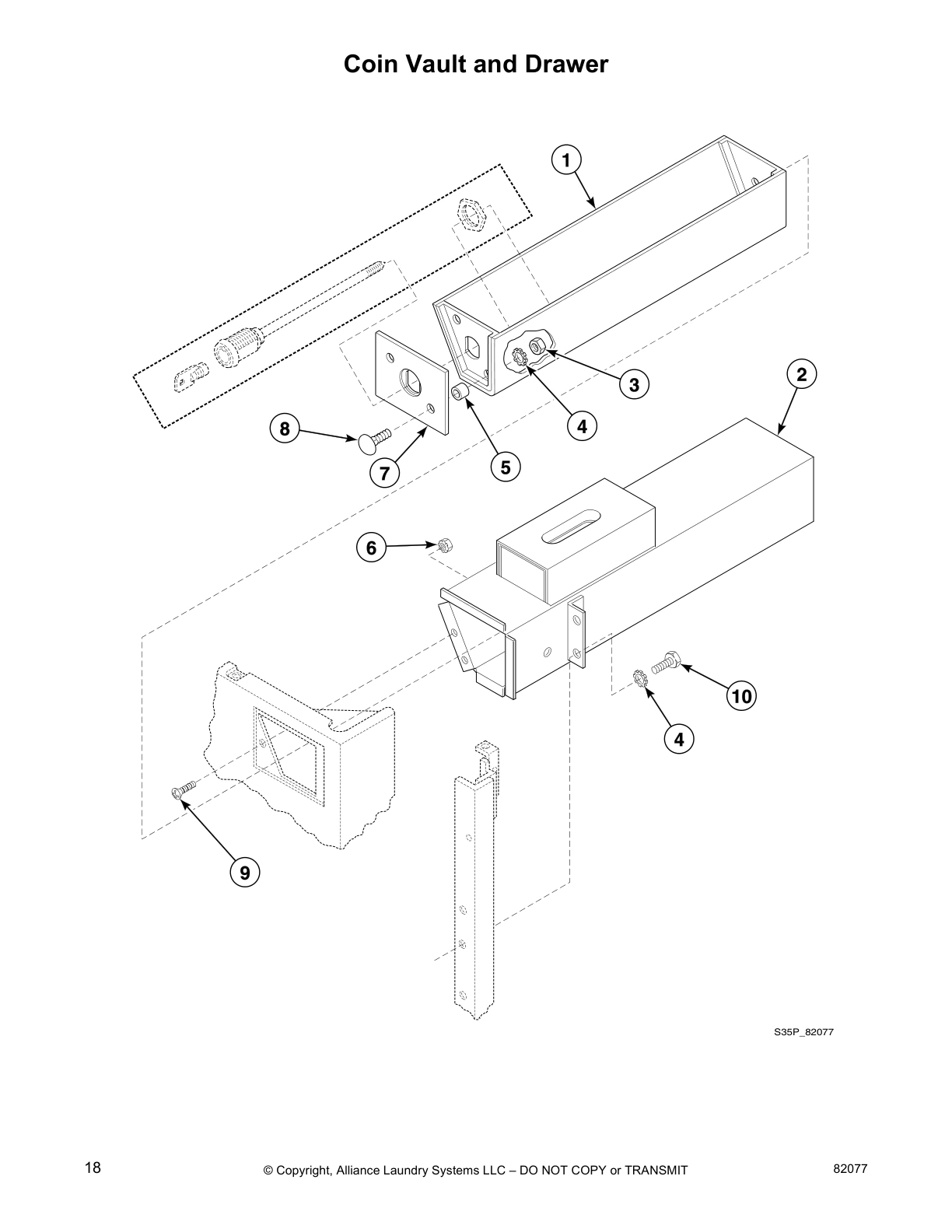

Coin Vault and Drawer

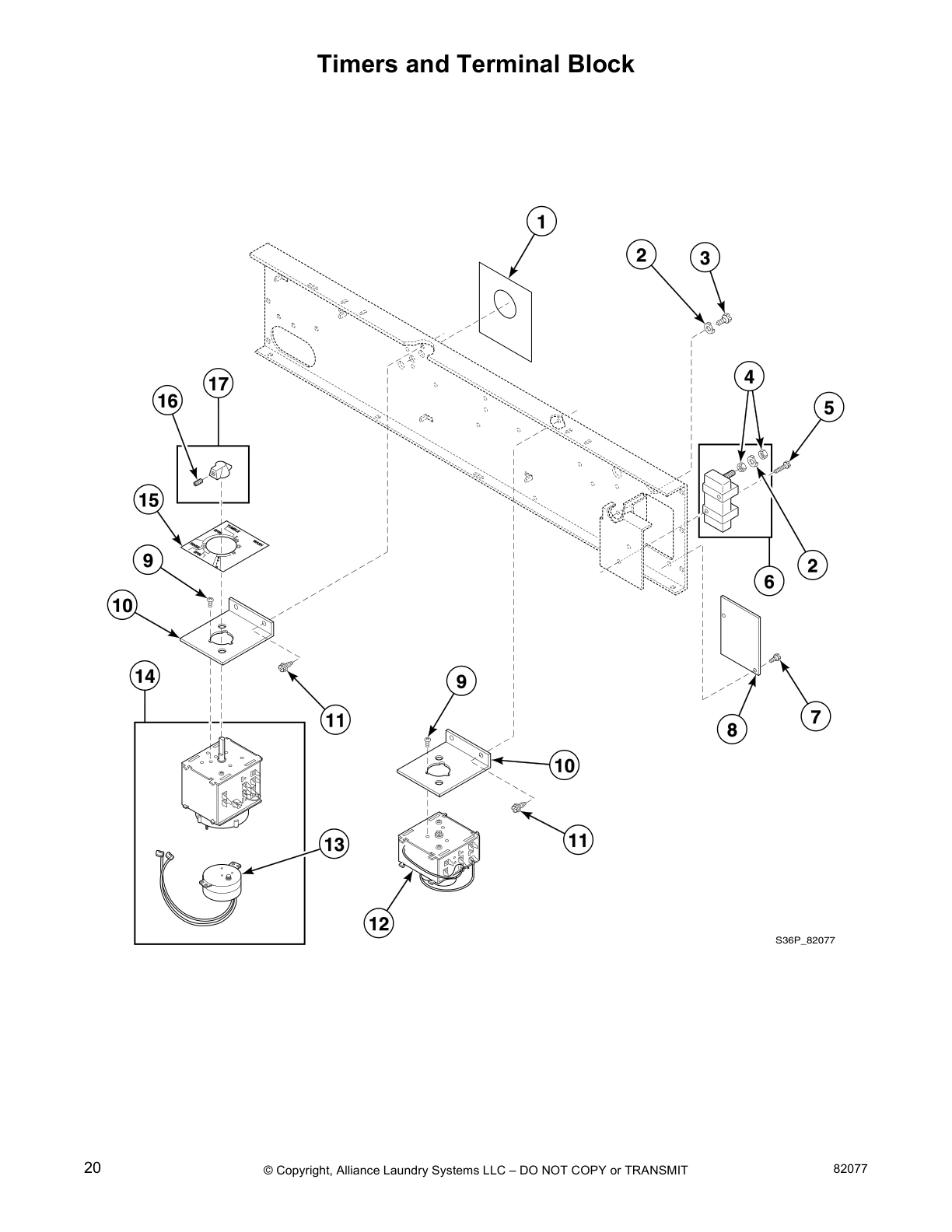

Timers and Terminal Block

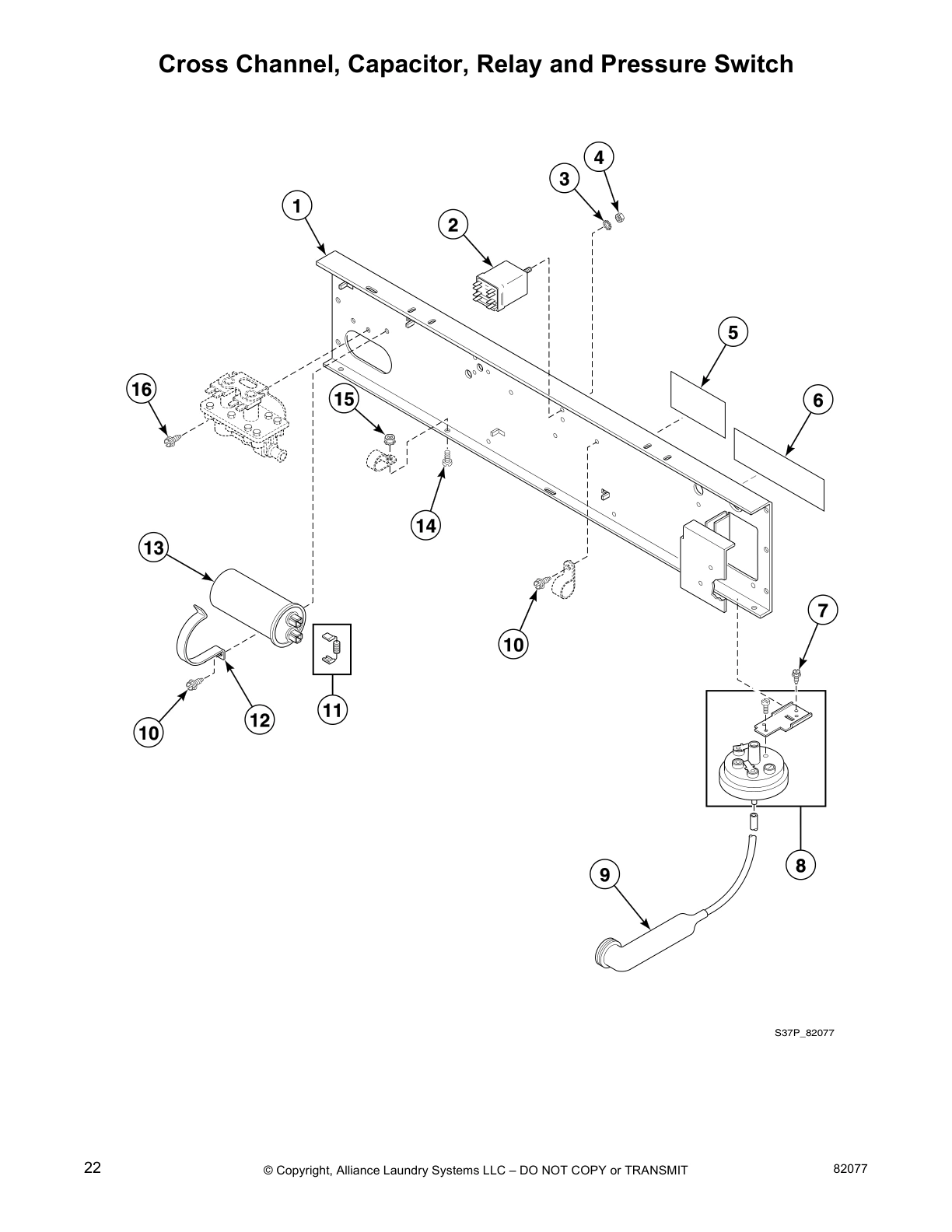

Cross Channel, Capacitor, Relay and Pressure Switch

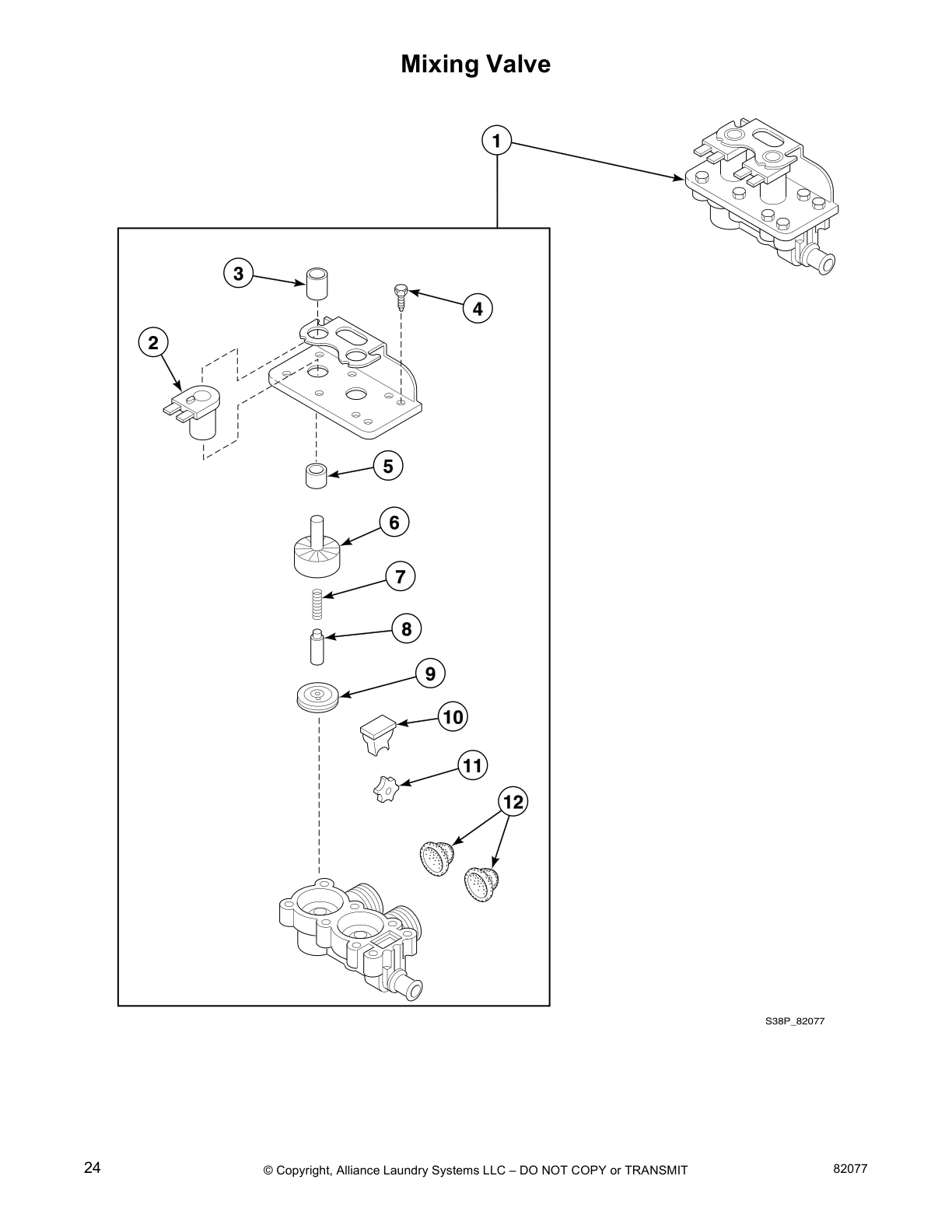

Mixing Valve

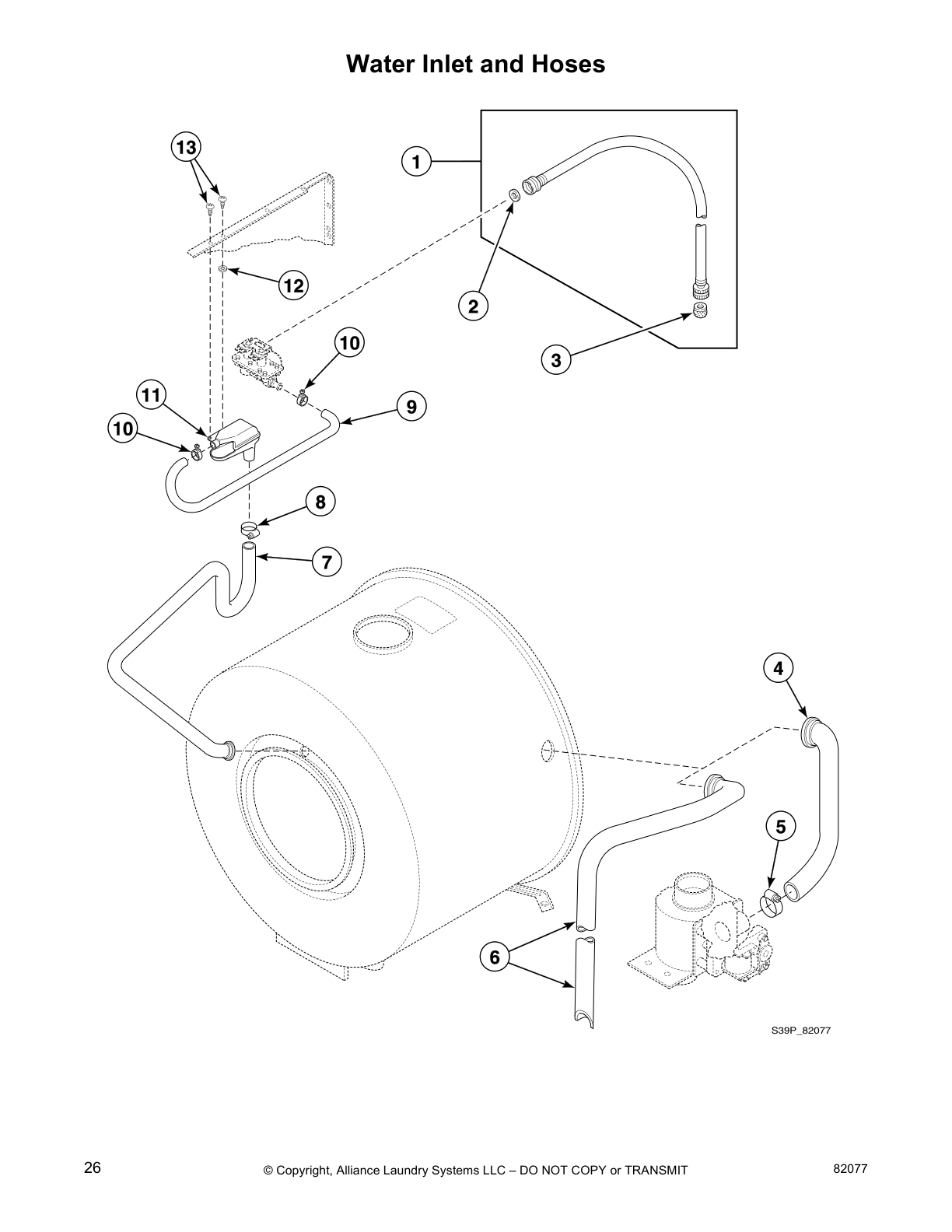

Water Inlet and Hoses

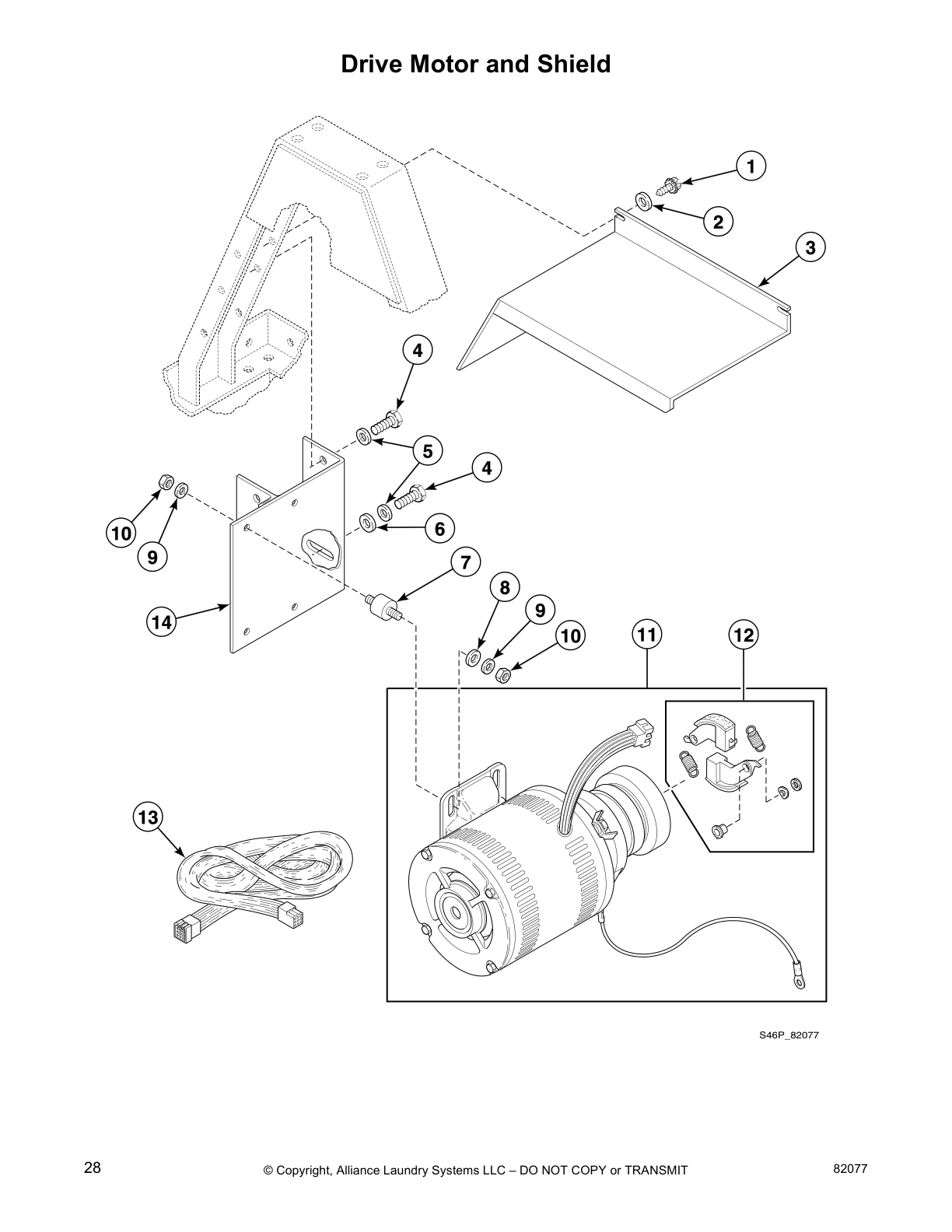

Drive Motor and Shield

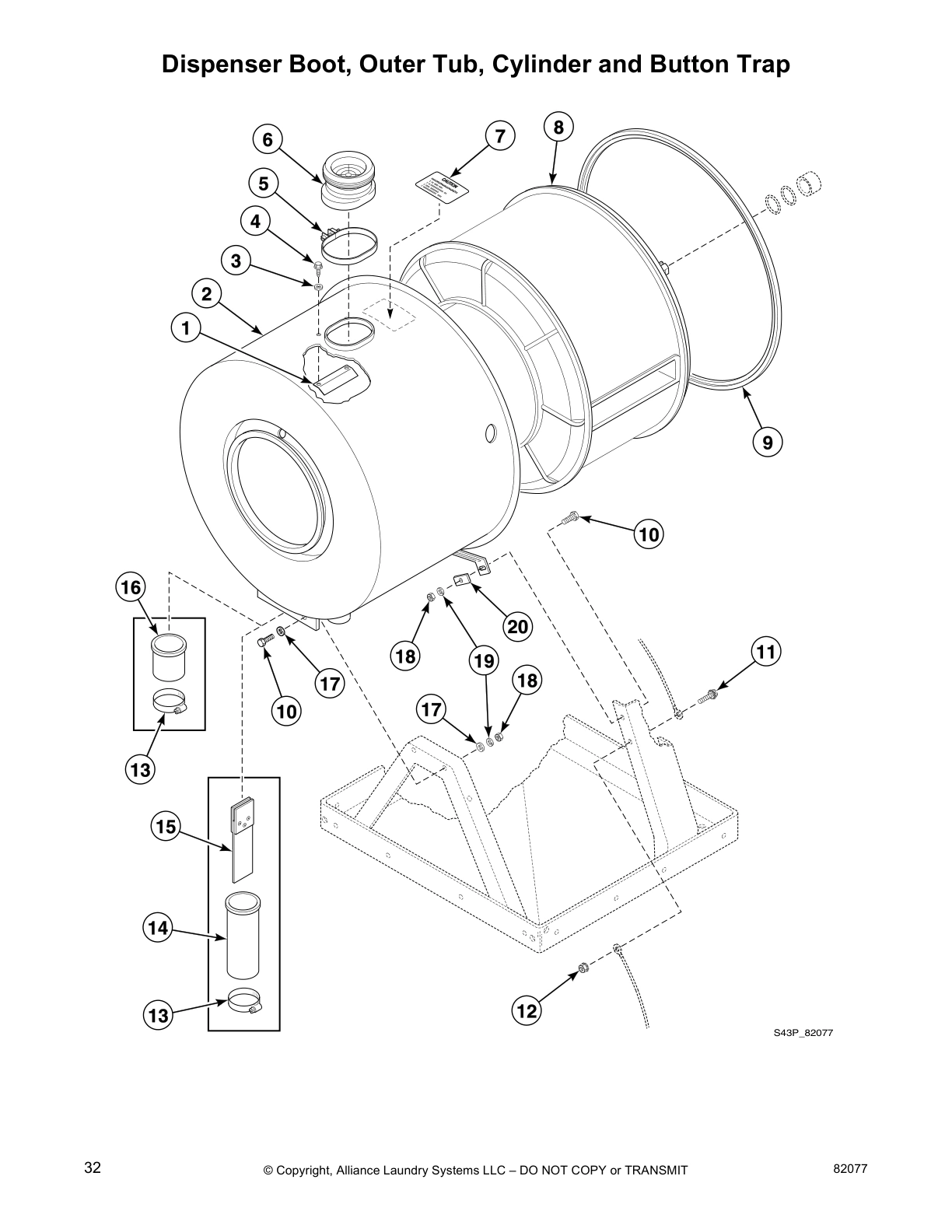

Dispenser Boot, Outer Tub, Cylinder and Button Trap

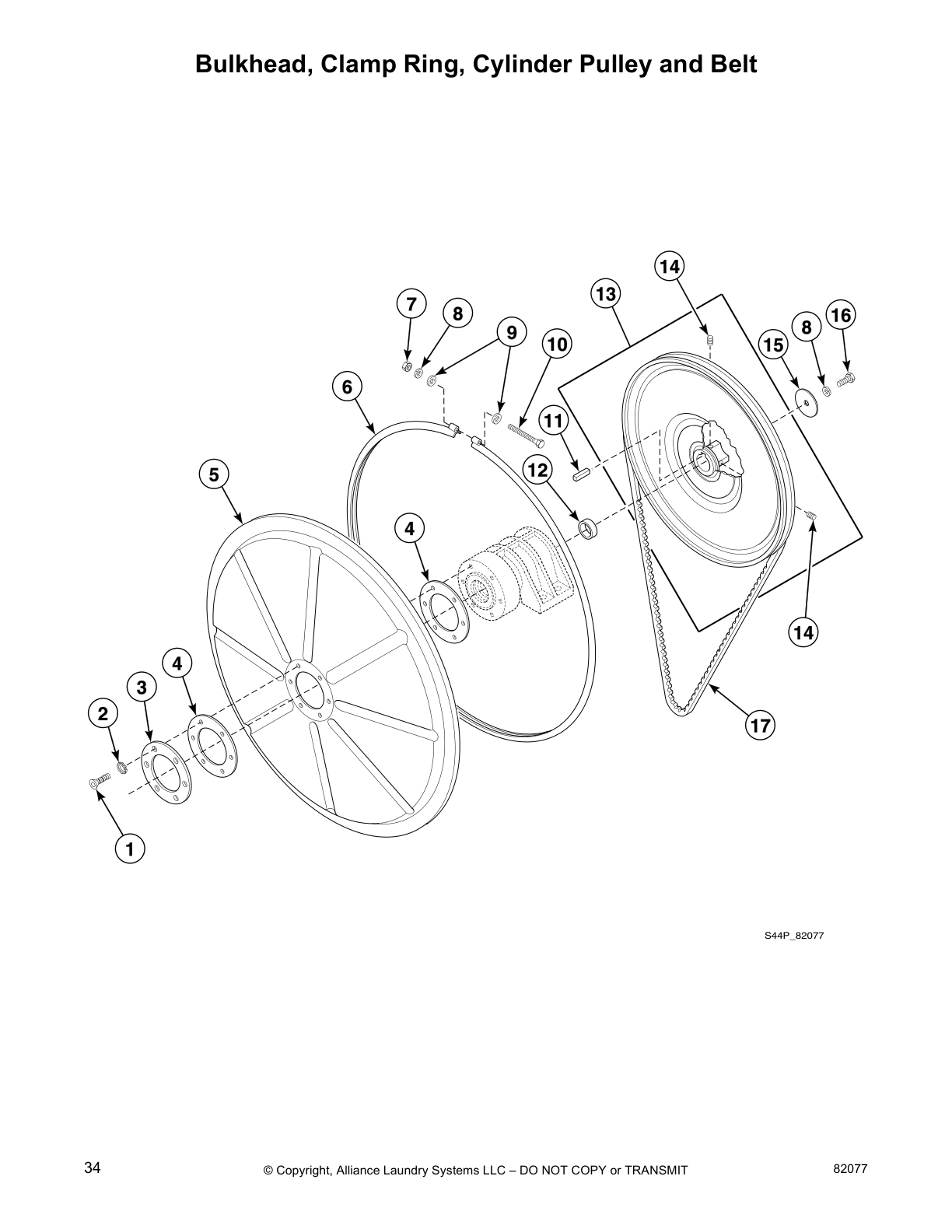

Bulkhead, Clamp Ring, Cylinder Pulley and Belt

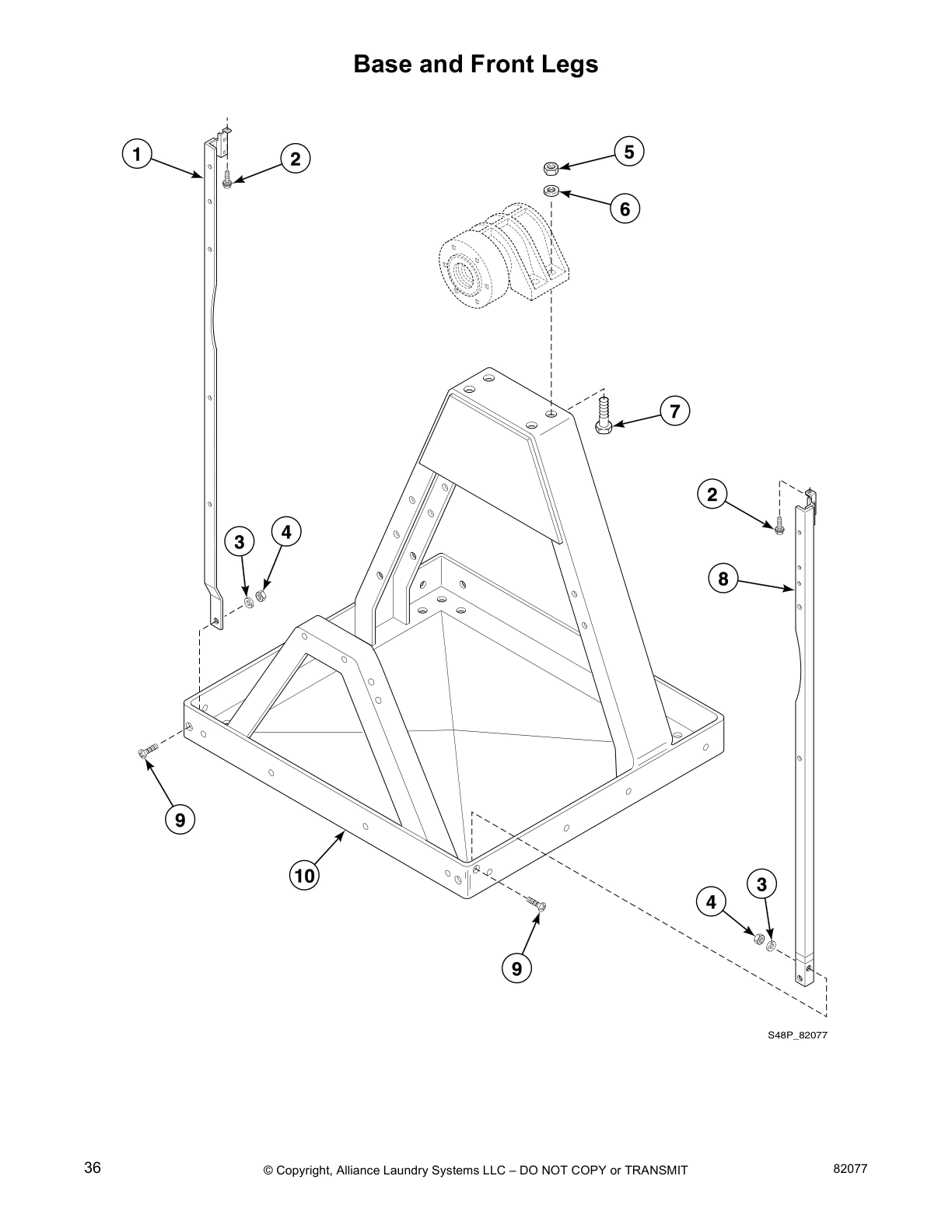

Base and Front Legs

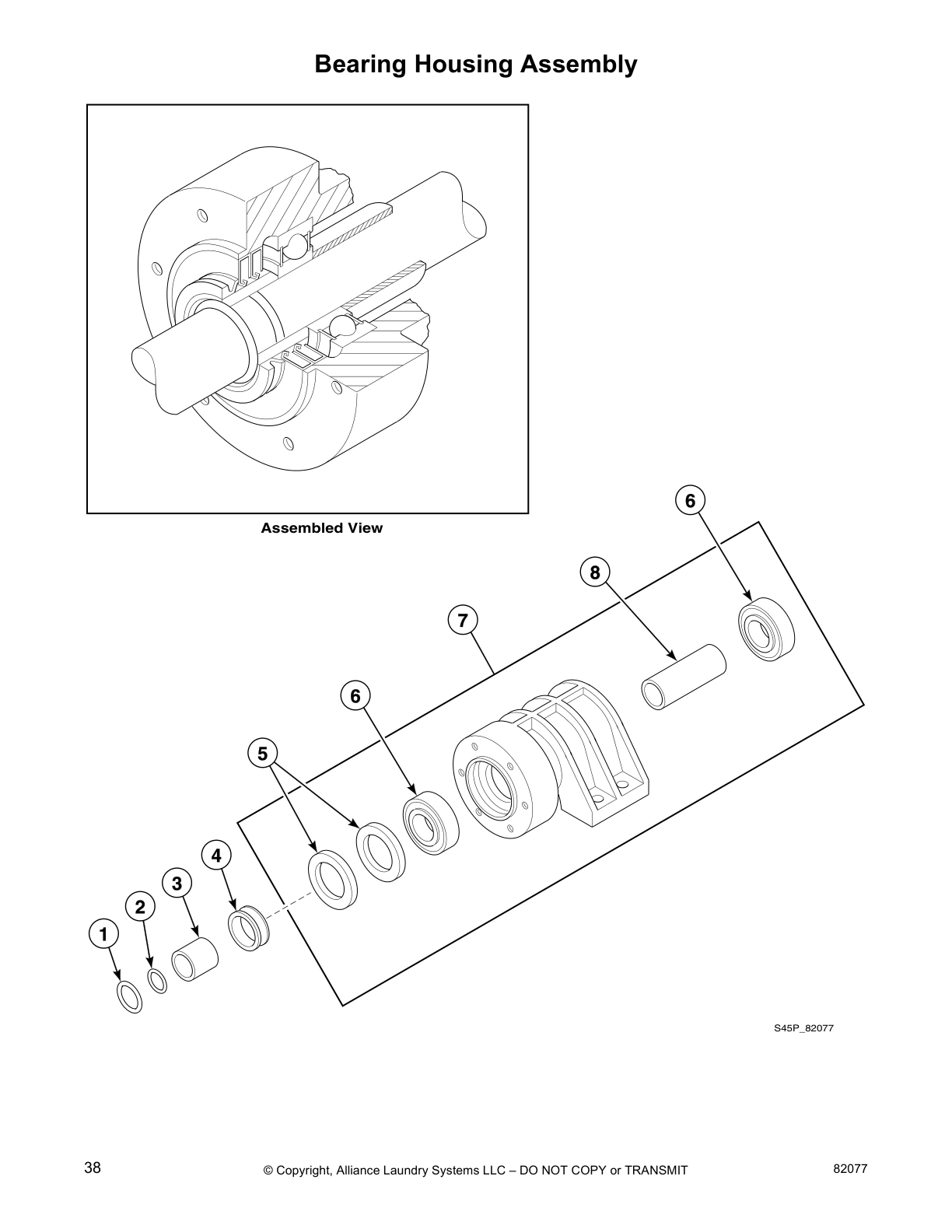

Bearing Housing Assembly

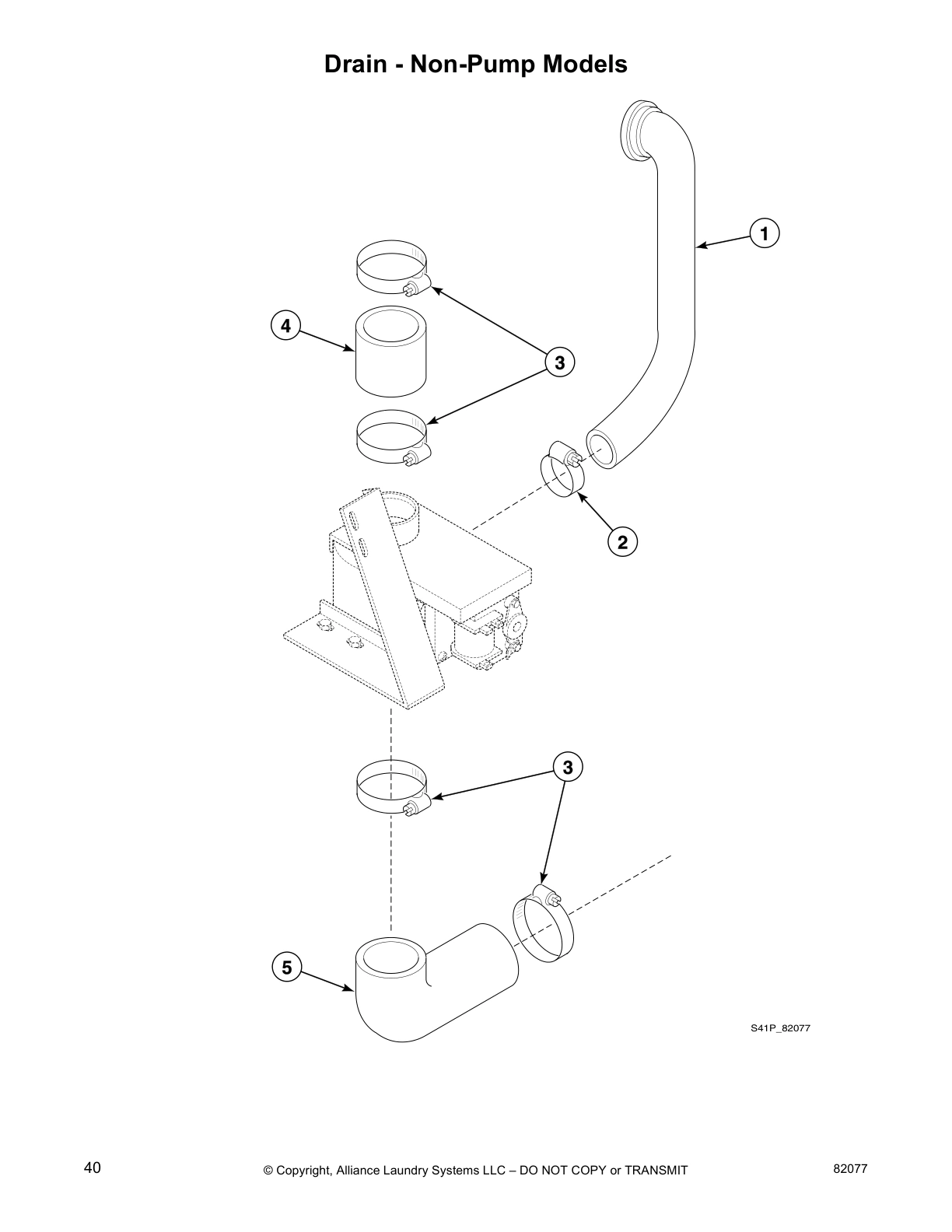

Drain - Non-Pump Models

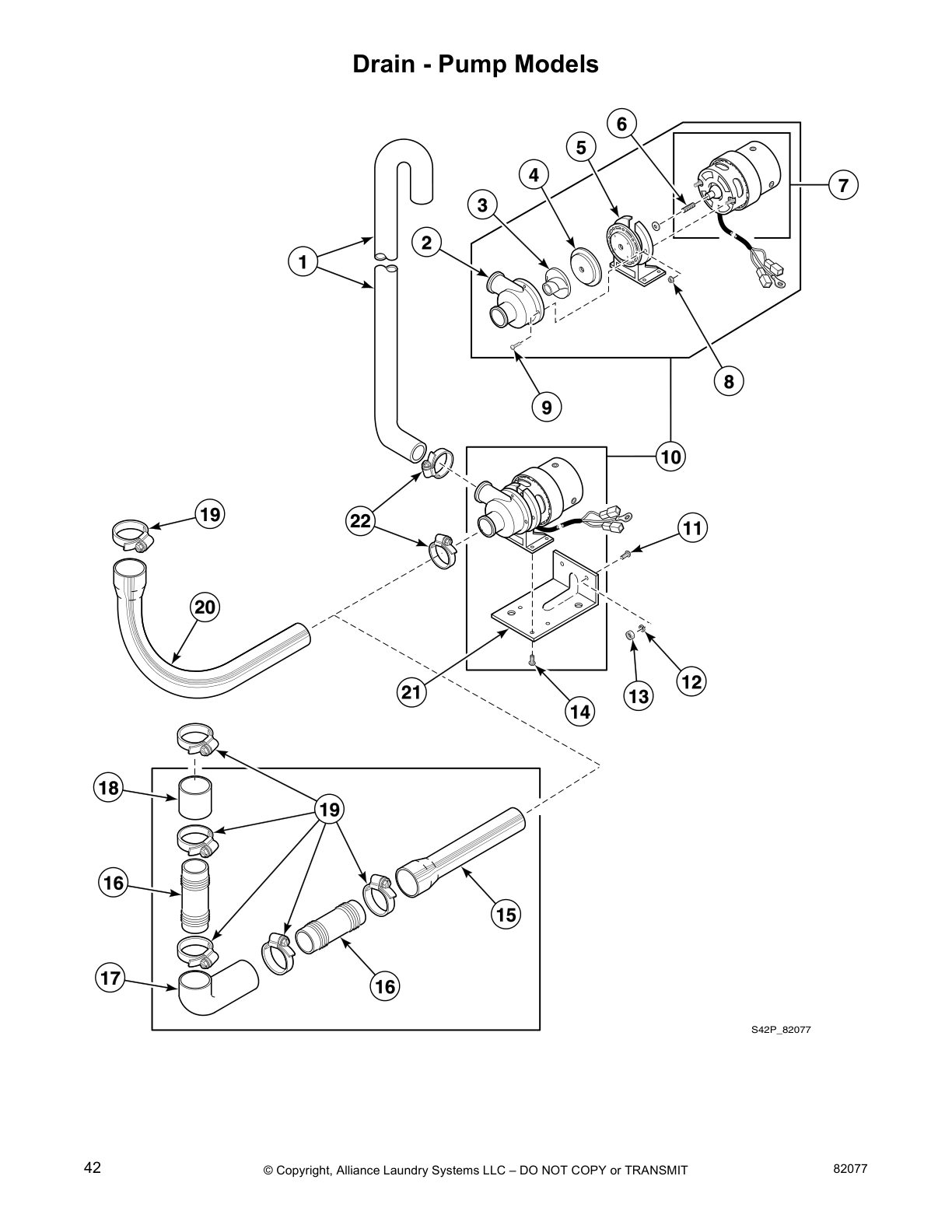

Drain - Pump Models

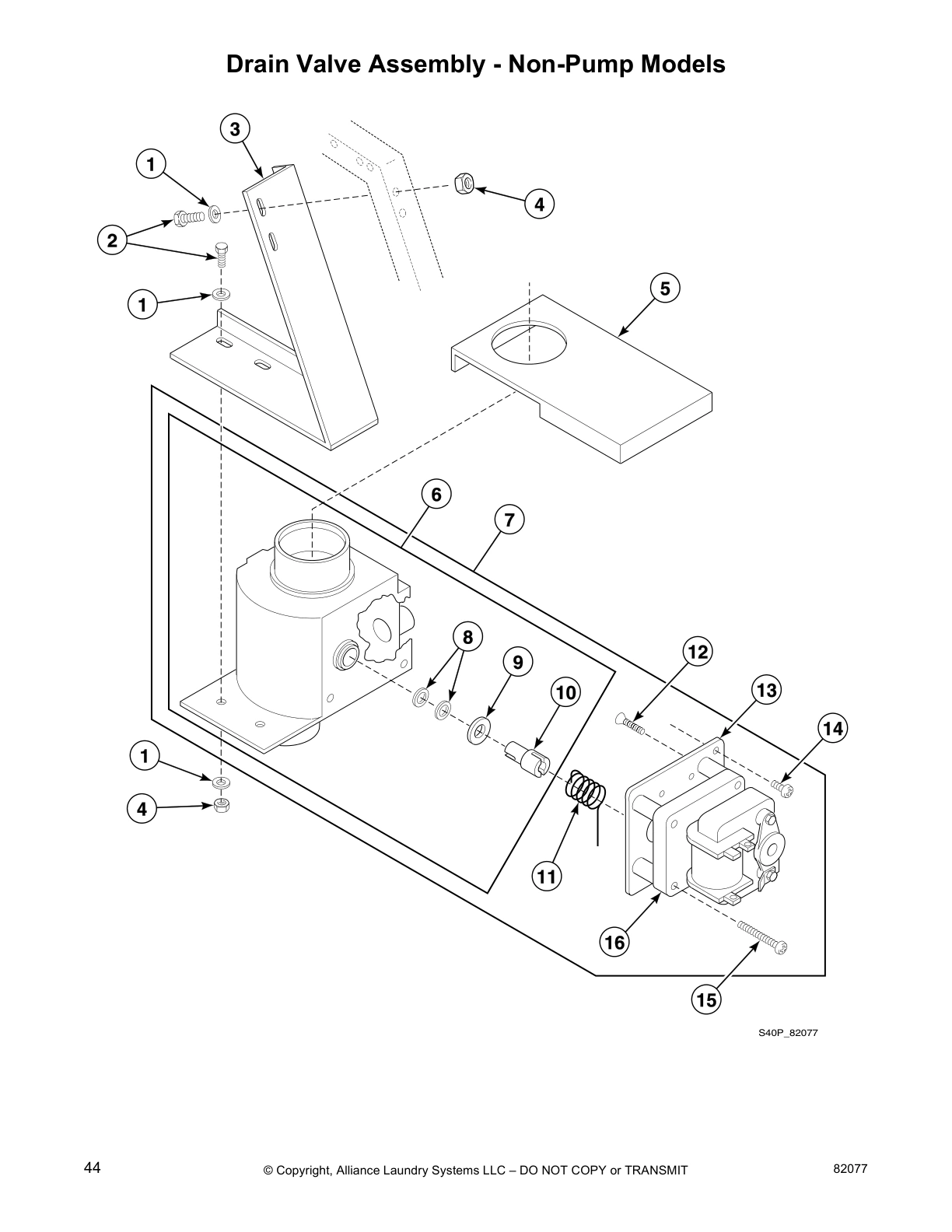

Drain Valve Assembly - Non-Pump Models

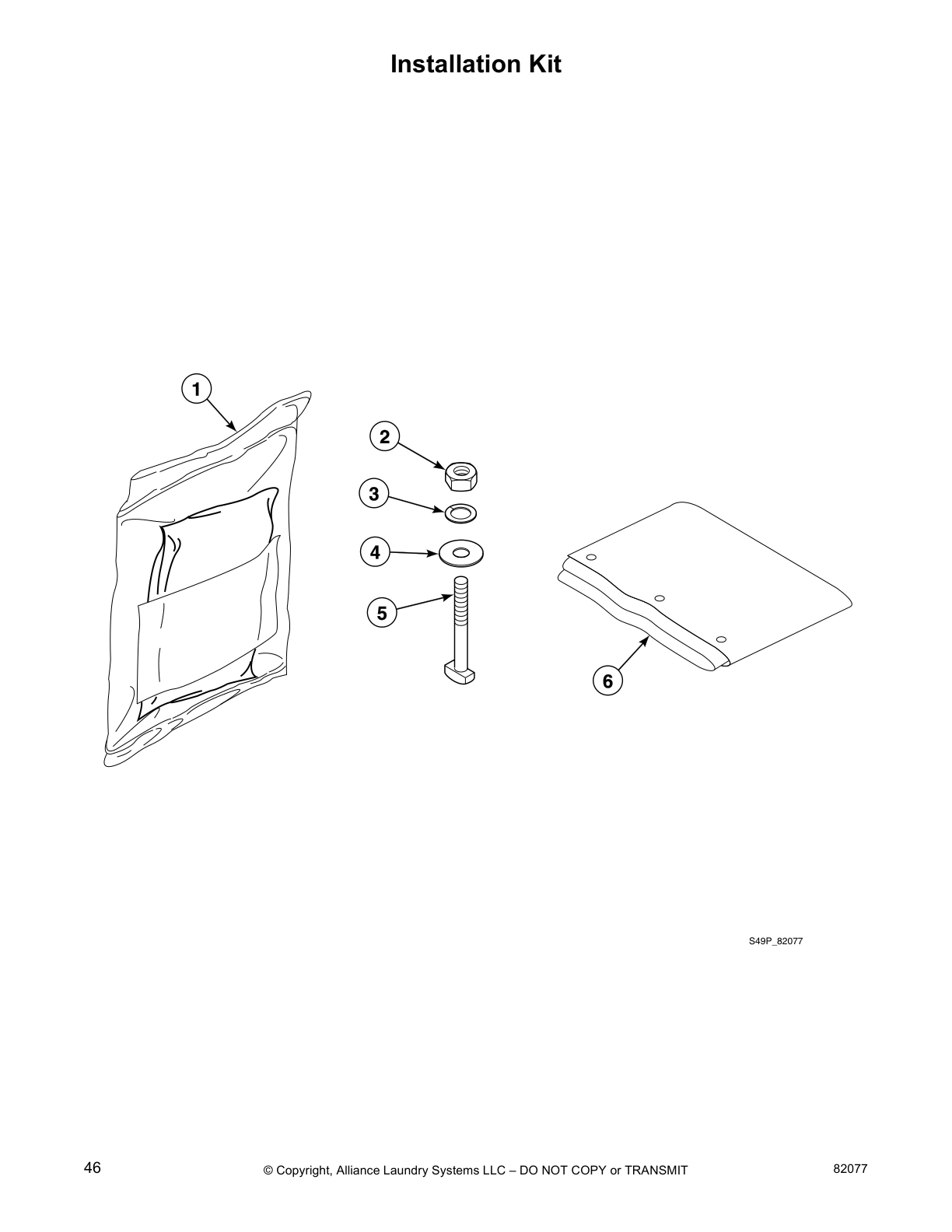

Installation Kit

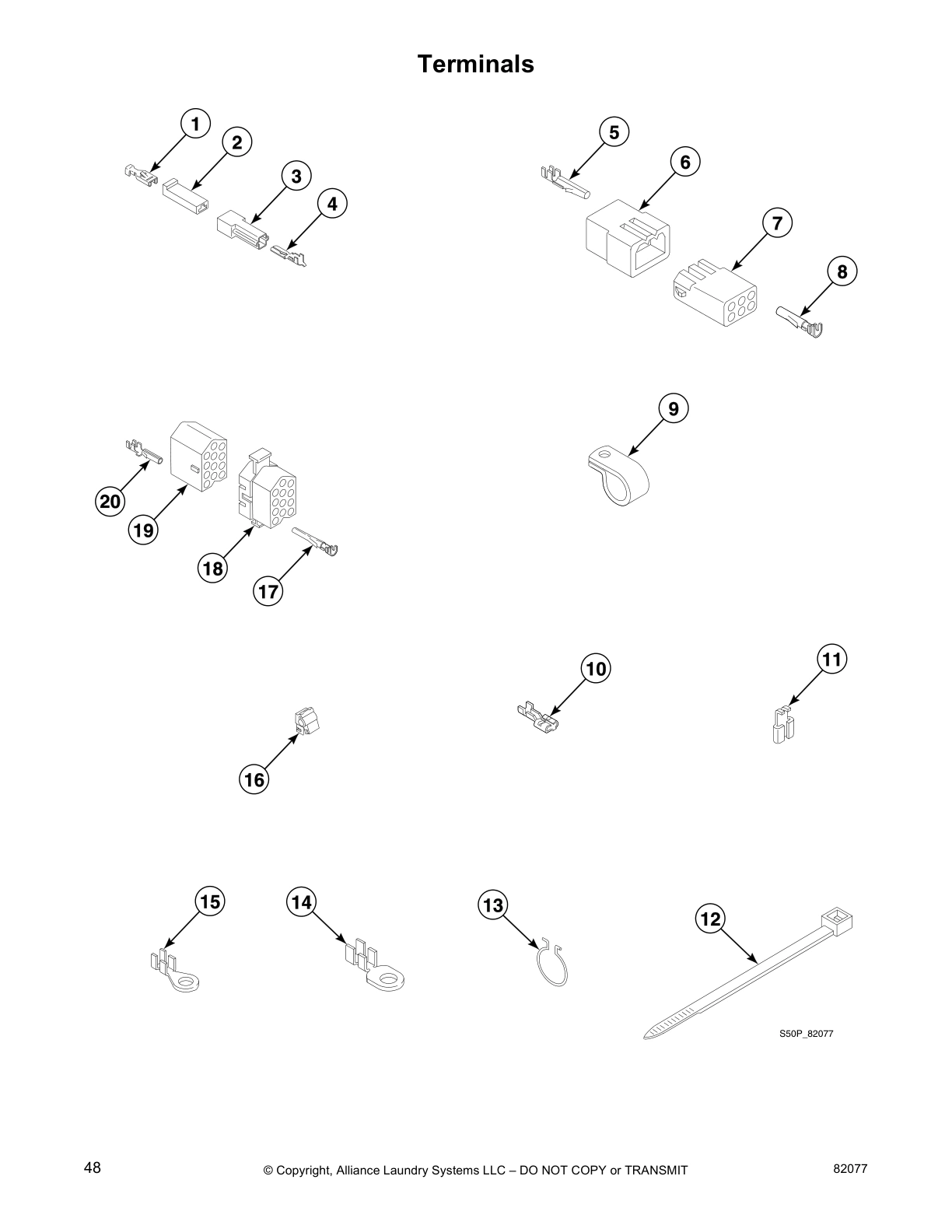

Terminals
Common parts from model Huebsch HL9151 Washer
1
Screw SPQ 23960 Contact Us For Availability
1
Screw SPQ 20253 Contact Us For Availability
1
Manual Control Timer Sticker SPQ 81618 Contact Us For Availability
1
Deflector SPQ 81376 Contact Us For Availability
1
Left Leg Assembly SPQ 81042 Contact Us For Availability
2
Washer SPQ 81487 Contact Us For Availability
2
Drain Valve Shield SPQ 24233 Contact Us For Availability
2
Washer SPQ 51474 Contact Us For Availability
2
O-Ring SPQ 81191 Contact Us For Availability
2
Tab Housing SPQ 90789 Contact Us For Availability
3
Washer SPQ 81924 Contact Us For Availability
3
SPQ 81959 SPQ 81959 Contact Us For Availability
3
Washer SPQ 03189 Contact Us For Availability
3
Pressure Switch SPQ 02788 Contact Us For Availability
3
Motor Shield Assembly SPQ 81802 Contact Us For Availability
3
SPQ 81380 SPQ 81380 Contact Us For Availability
3
SPQ 81050 SPQ 81050 Contact Us For Availability
3
Washer SPQ 91200 Contact Us For Availability
3
O-Ring Gland SPQ 81471 Contact Us For Availability
3
Shaft Seal and Liner Assembly SPQ 81115E Contact Us For Availability
3
Drain Valve Body SPQ 81940 Contact Us For Availability
3
6 Circuit Plug SPQ 90788 Contact Us For Availability
4
SPQ 81391 SPQ 81391 Contact Us For Availability
4
Nut SPQ 20275 Contact Us For Availability
4
Washer SPQ 02431 Contact Us For Availability
4
Nut SPQ 21355 Contact Us For Availability
4
Pressure Hose SPQ 82087 Contact Us For Availability
4
SPQ M405936 SPQ M405936 Contact Us For Availability
4
SPQ 81049 SPQ 81049 Contact Us For Availability
4
V-Ring Seal SPQ 81470 Contact Us For Availability
4
Pump Motor Assembly SPQ 81115C Contact Us For Availability
4
15 Circuit Plug SPQ 00133 Contact Us For Availability
5
Bushing SPQ JA-15762 Contact Us For Availability
5
SPQ Q6535 SPQ Q6535 Contact Us For Availability
5
SPQ 81294 SPQ 81294 Contact Us For Availability
5
SPQ 81015P SPQ 81015P Contact Us For Availability
5
Seal SPQ 81482 Contact Us For Availability
5
Drain Valve V-Seal SPQ 81941 Contact Us For Availability
6
SPQ 80090 SPQ 80090 Contact Us For Availability
6
SPQ 50854A SPQ 50854A Contact Us For Availability
6
Water Inlet Hose SPQ 81082 Contact Us For Availability
6
SPQ 20279 SPQ 20279 Contact Us For Availability
6
SPQ 81194 SPQ 81194 Contact Us For Availability
6
Bearing SPQ 80430P Contact Us For Availability
6
SPQ 81115G SPQ 81115G Contact Us For Availability
6
Wire Harness Assembly SPQ G132530 Contact Us For Availability
7
SPQ 23225 SPQ 23225 Contact Us For Availability
7
SPQ 81751 SPQ 81751 Contact Us For Availability
7
Bolt SPQ 400P3 Contact Us For Availability
7
SPQ 23222 SPQ 23222 Contact Us For Availability
7
SPQ 81068P SPQ 81068P Contact Us For Availability
7
SPQ 81080 SPQ 81080 Contact Us For Availability
7
SPQ 81055 SPQ 81055 Contact Us For Availability
7
SPQ 81086 SPQ 81086 Contact Us For Availability
7
Bearing Housing Assembly SPQ 81476P Contact Us For Availability
7
SPQ 81115AP SPQ 81115AP Contact Us For Availability
7
SPQ 81937 SPQ 81937 Contact Us For Availability
7
9 Circuit Receptacle SPQ 23037 Contact Us For Availability
8
SPQ 81492 SPQ 81492 Contact Us For Availability
8
SPQ 22822 SPQ 22822 Contact Us For Availability
8
SPQ 20391 SPQ 20391 Contact Us For Availability
8
SPQ 81170P SPQ 81170P Contact Us For Availability
8
Bearing Housing Spacer SPQ 81472 Contact Us For Availability
8
SPQ 81938 SPQ 81938 Contact Us For Availability
9
SPQ 51783 SPQ 51783 Contact Us For Availability
9
SPQ Q6066 SPQ Q6066 Contact Us For Availability
9
SPQ 81052 SPQ 81052 Contact Us For Availability
9
SPQ 81057 SPQ 81057 Contact Us For Availability
9
SPQ G163394 SPQ G163394 Contact Us For Availability
10
Top and Carton Assembly SPQ 81511LP Contact Us For Availability
10
Front Panel Assembly SPQ 81404 Contact Us For Availability
10
Timer Bracket SPQ 81097 Contact Us For Availability
10
Key SPQ M413565 Contact Us For Availability
10
Drive Pin and Spring Assembly SPQ 81937BP Contact Us For Availability
11
Top Hinge SPQ 81058 Contact Us For Availability
11
Nut SPQ 81061 Contact Us For Availability
11
Solenoid SPQ 81488 Contact Us For Availability
11
Side Panel SPQ 81016 Contact Us For Availability
11
Resistor Assembly SPQ 81642 Contact Us For Availability
11
Water Inlet SPQ 80600 Contact Us For Availability
11
Spacer SPQ 81085 Contact Us For Availability
11
Drive Spring SPQ G159731 Contact Us For Availability
11
Harness Strap SPQ 00120 Contact Us For Availability
12
Seal SPQ 81512LP Contact Us For Availability
12
Capacitor Bracket SPQ 81644 Contact Us For Availability
12
Washer SPQ M400013 Contact Us For Availability
12
Clutch Repair Kit SPQ 355P3 Contact Us For Availability
12
Washer SPQ 81461 Contact Us For Availability
12
Screw SPQ G166611 Contact Us For Availability
13
Thermoactuator Bracket SPQ 81493P Contact Us For Availability
13
Timer Motor SPQ 26290 Contact Us For Availability
13
Screw SPQ 51778 Contact Us For Availability
13
Nut SPQ 70142 Contact Us For Availability
13
Test Harness Assembly SPQ 81691P Contact Us For Availability
13
Washer SPQ F200201 Contact Us For Availability
13
Drain Valve Motor Plate SPQ G166553 Contact Us For Availability
13
Ring Terminal SPQ 51291 Contact Us For Availability
14
Nut SPQ 81207 Contact Us For Availability
14
Seal Strap SPQ 81298P Contact Us For Availability
14
Nut SPQ 03814 Contact Us For Availability
14
Mounting Bracket Kit SPQ 81654P Contact Us For Availability
14
Belt SPQ 81087 Contact Us For Availability
14
Drain Valve Motor SPQ G166595 Contact Us For Availability
14
Terminal Insulator SPQ 00111 Contact Us For Availability
15
Timer Sticker SPQ 81619 Contact Us For Availability
15
Reinforcing Ring SPQ 81352 Contact Us For Availability
15
Drain Valve Bracket SPQ G166603 Contact Us For Availability
15
Male Pin Terminal SPQ 00110 Contact Us For Availability
16
Thermoactuator SPQ 81967 Contact Us For Availability
16
Washer SPQ 81624P Contact Us For Availability
16
Gasket SPQ 91202 Contact Us For Availability
16
Hose Coupling SPQ 81210 Contact Us For Availability
16
Nut SPQ 81937CP Contact Us For Availability
16
12 Circuit Receptacle SPQ 81469 Contact Us For Availability
17
Bumper SPQ 80498 Contact Us For Availability
17
Grommet SPQ 20430 Contact Us For Availability
17
Door Latch Block SPQ 52552 Contact Us For Availability
17
Bulkhead SPQ 81459 Contact Us For Availability
18
Door Release Wire SPQ 81498 Contact Us For Availability
18
Drain Hose SPQ 81056 Contact Us For Availability
19
Door Kit SPQ 518P3 Contact Us For Availability
19
Door Switch SPQ 81963 Contact Us For Availability
19
Clamp SPQ 80707 Contact Us For Availability
19
Female Pin Terminal SPQ 56855 Contact Us For Availability
20
Door Glass Kit SPQ F290205P Contact Us For Availability
20
Nut SPQ 81359 Contact Us For Availability
20
Tub Head Gasket SPQ 81345 Contact Us For Availability
20
Pump Mount Bracket SPQ 82082 Contact Us For Availability
21
Door Glass Gasket SPQ 81957 Contact Us For Availability
21
Hose Clamp SPQ 81181 Contact Us For Availability
22
Softener Indicator Light SPQ 81263B Contact Us For Availability
22
Pivot Arm SPQ 81985 Contact Us For Availability
23
Pivot Arm Spring SPQ 81119 Contact Us For Availability
24
Bushing and Pivot Kit SPQ 532P3 Contact Us For Availability
25
Handle SPQ 81408 Contact Us For Availability
26
Hinge SPQ 81398 Contact Us For Availability
27
Door SPQ 81310 Contact Us For Availability
28
Hinge Pin SPQ 81035P Contact Us For Availability
32
SPQ 81956 SPQ 81956 Contact Us For Availability
33
SPQ 21081 SPQ 21081 Contact Us For Availability
34
SPQ 81399 SPQ 81399 Contact Us For Availability
NI
SPQ 91176 SPQ 91176 Contact Us For Availability
NI
SPQ 81971P SPQ 81971P Contact Us For Availability
NI
SPQ G166629 SPQ G166629 Contact Us For Availability
NI
SPQ 81945 SPQ 81945 Contact Us For Availability
NI
SPQ 431396 SPQ 431396 Contact Us For Availability
× ![]()
