Model Huebsch HHT30E Dryer – Common Parts & Diagrams
Single Drop Control Components
Dual Digital Timer Components

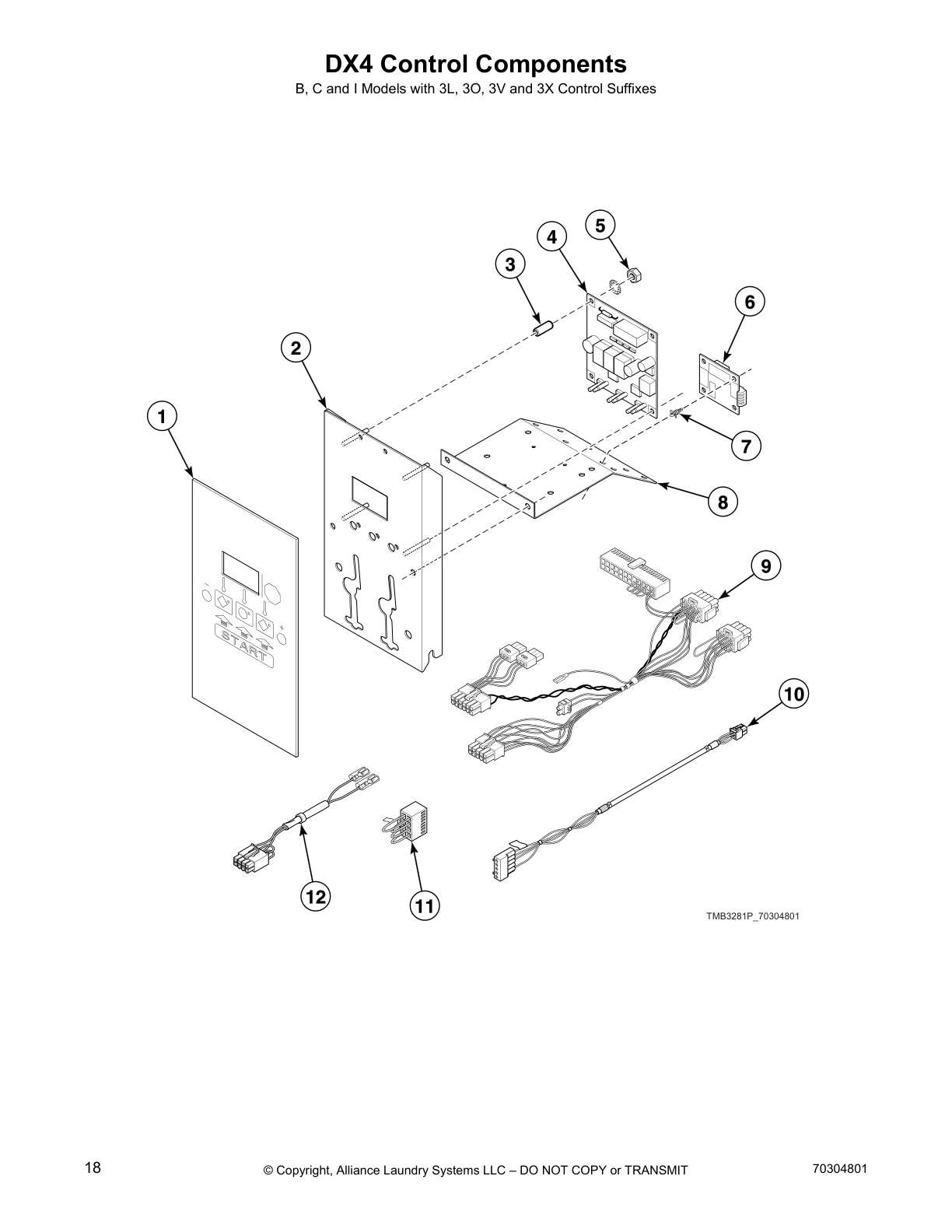

DX4 Control Components

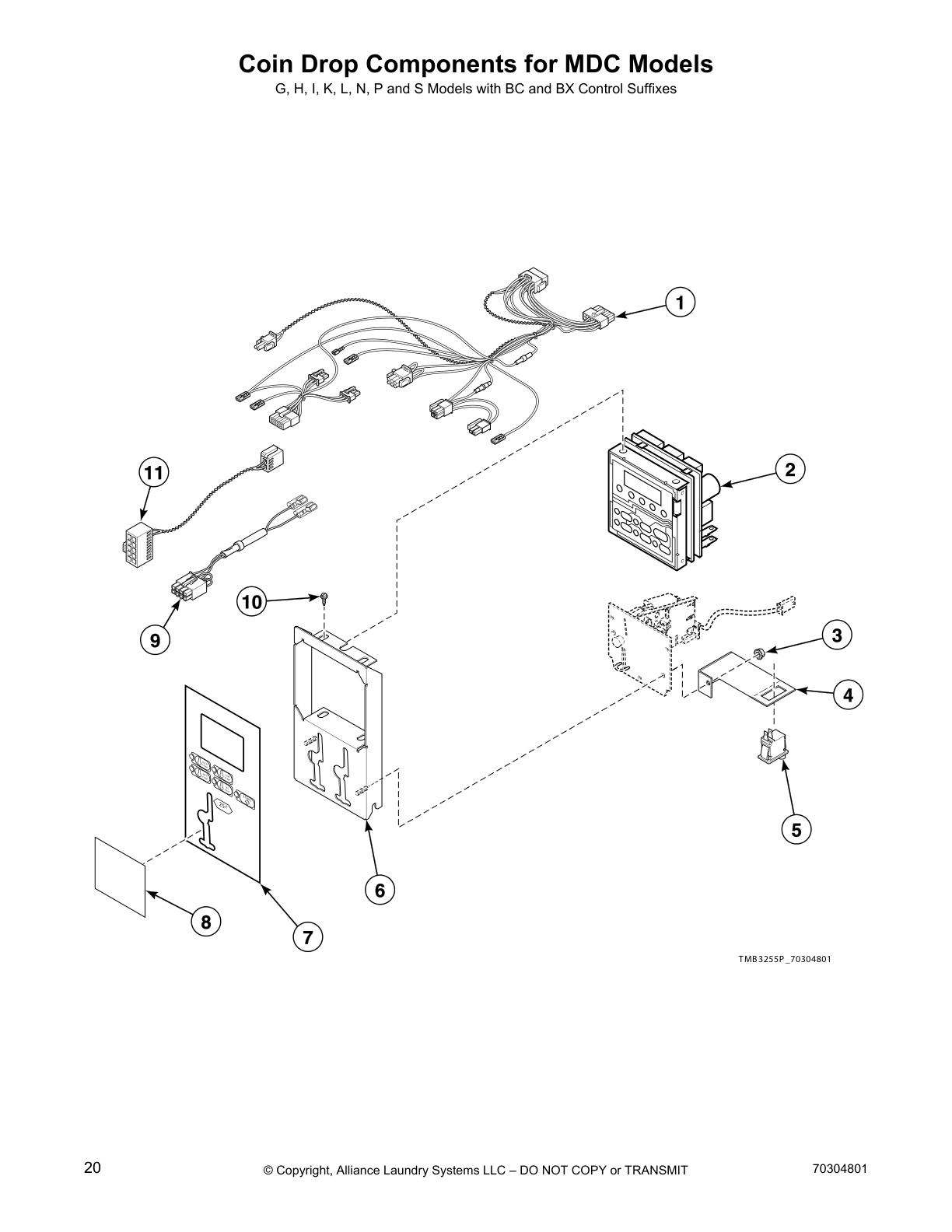

Coin Drop Components for MDC Models

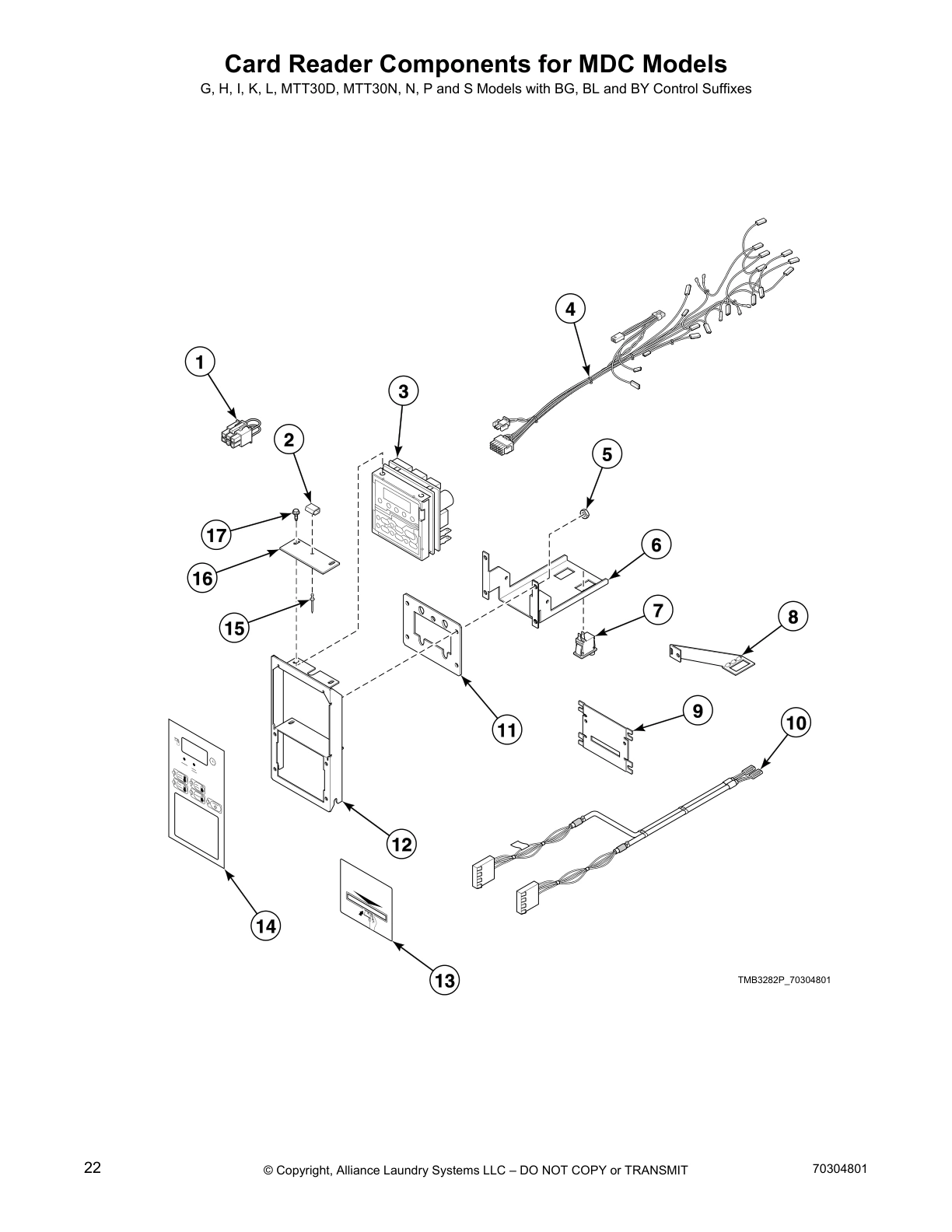

Card Reader Components for MDC Models

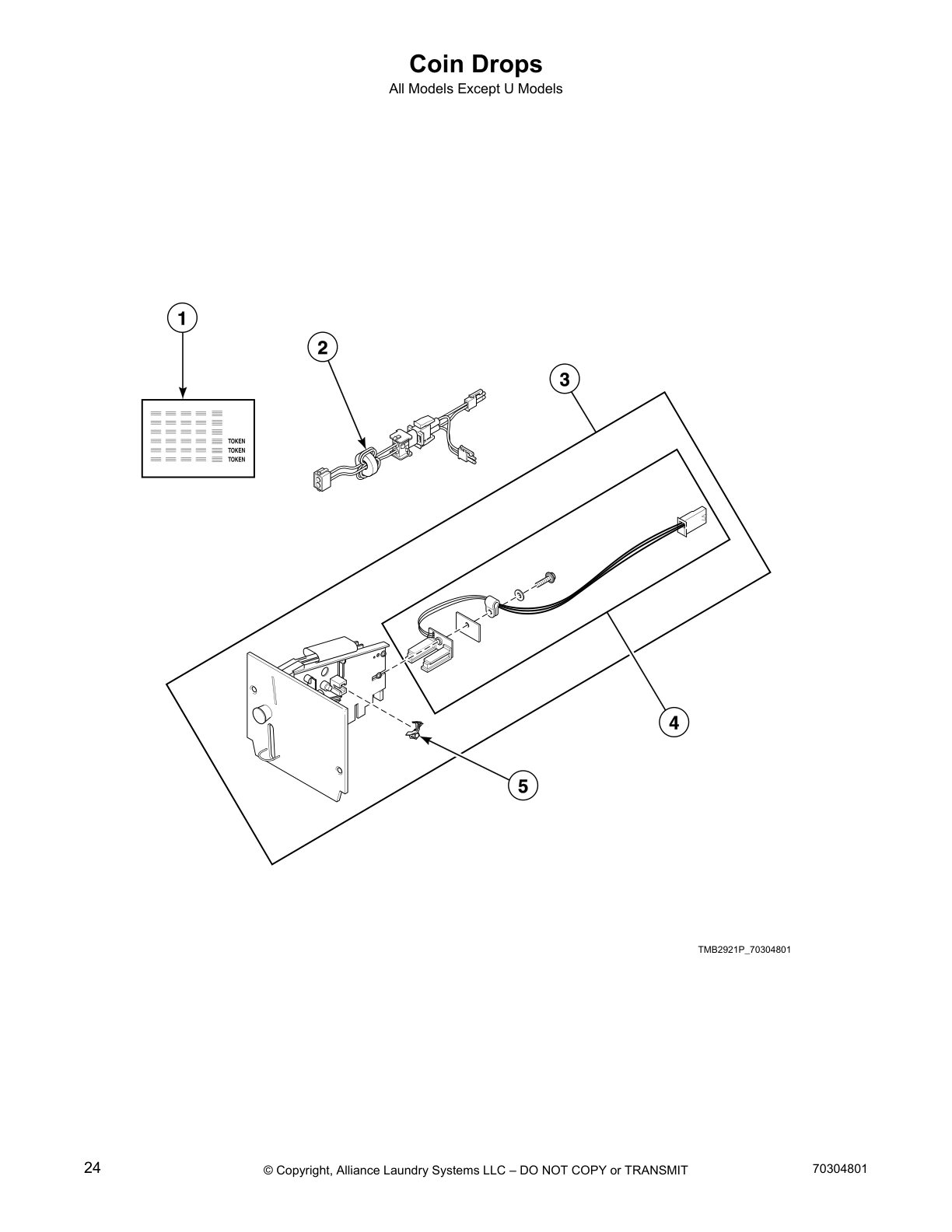

Coin Drops

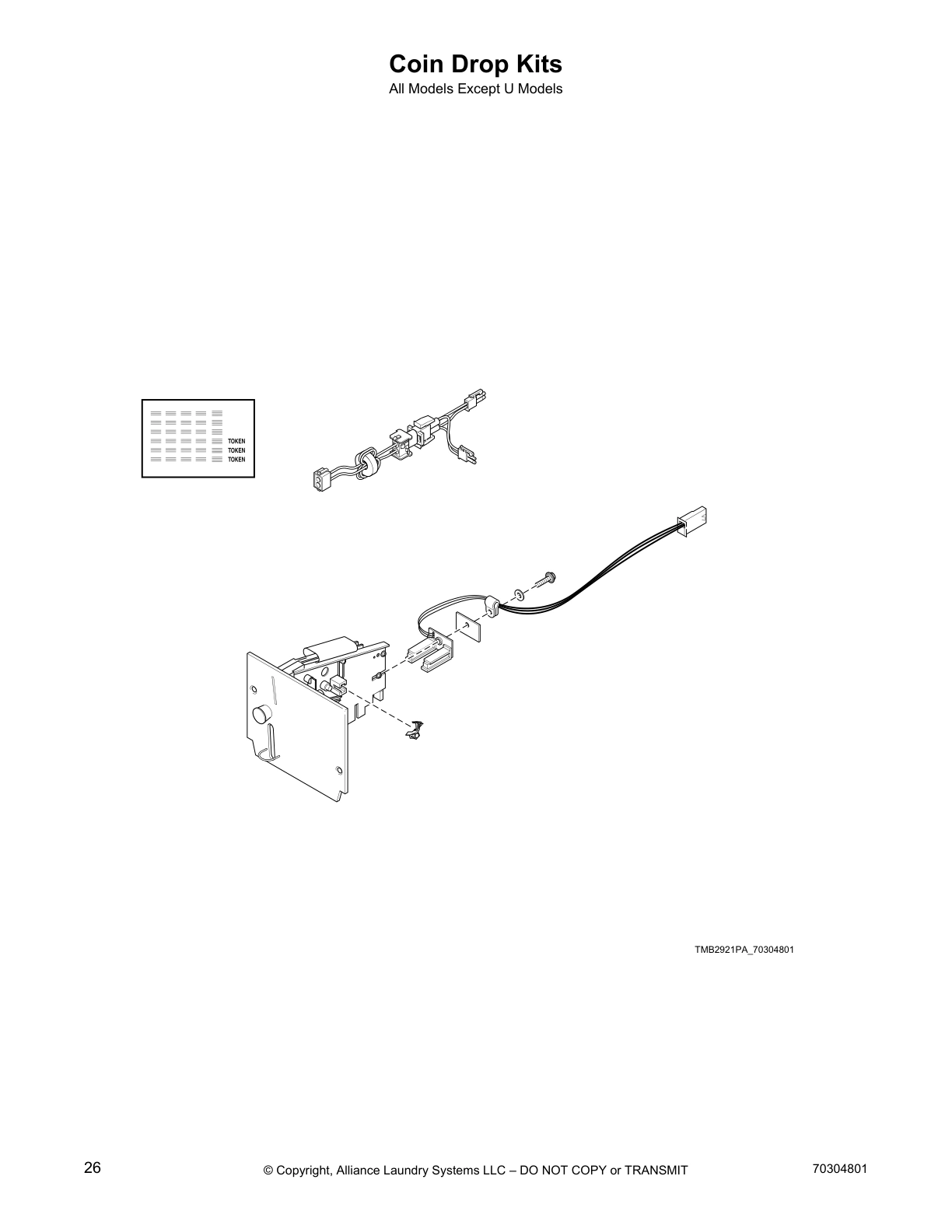

Coin Drop Kits

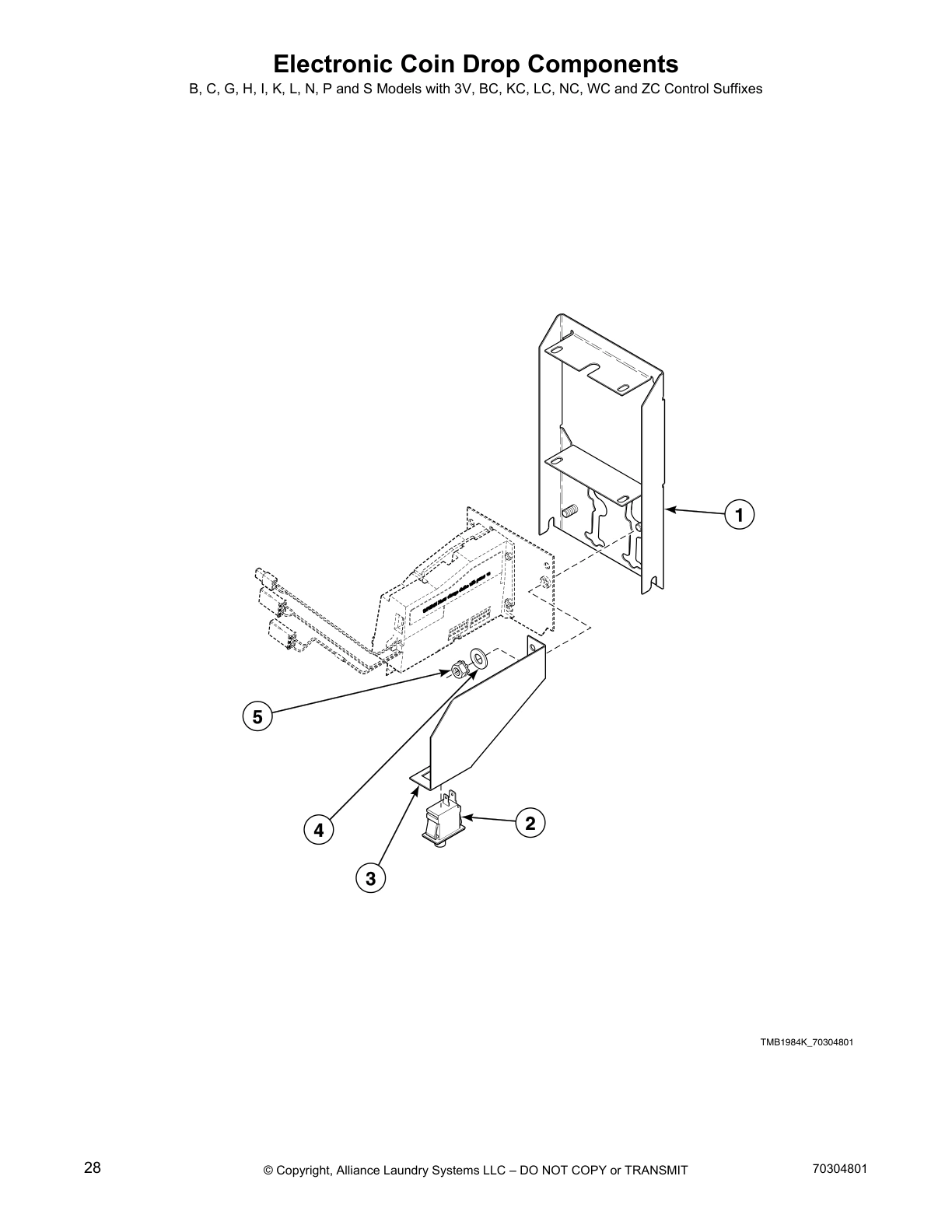

Electronic Coin Drop Components

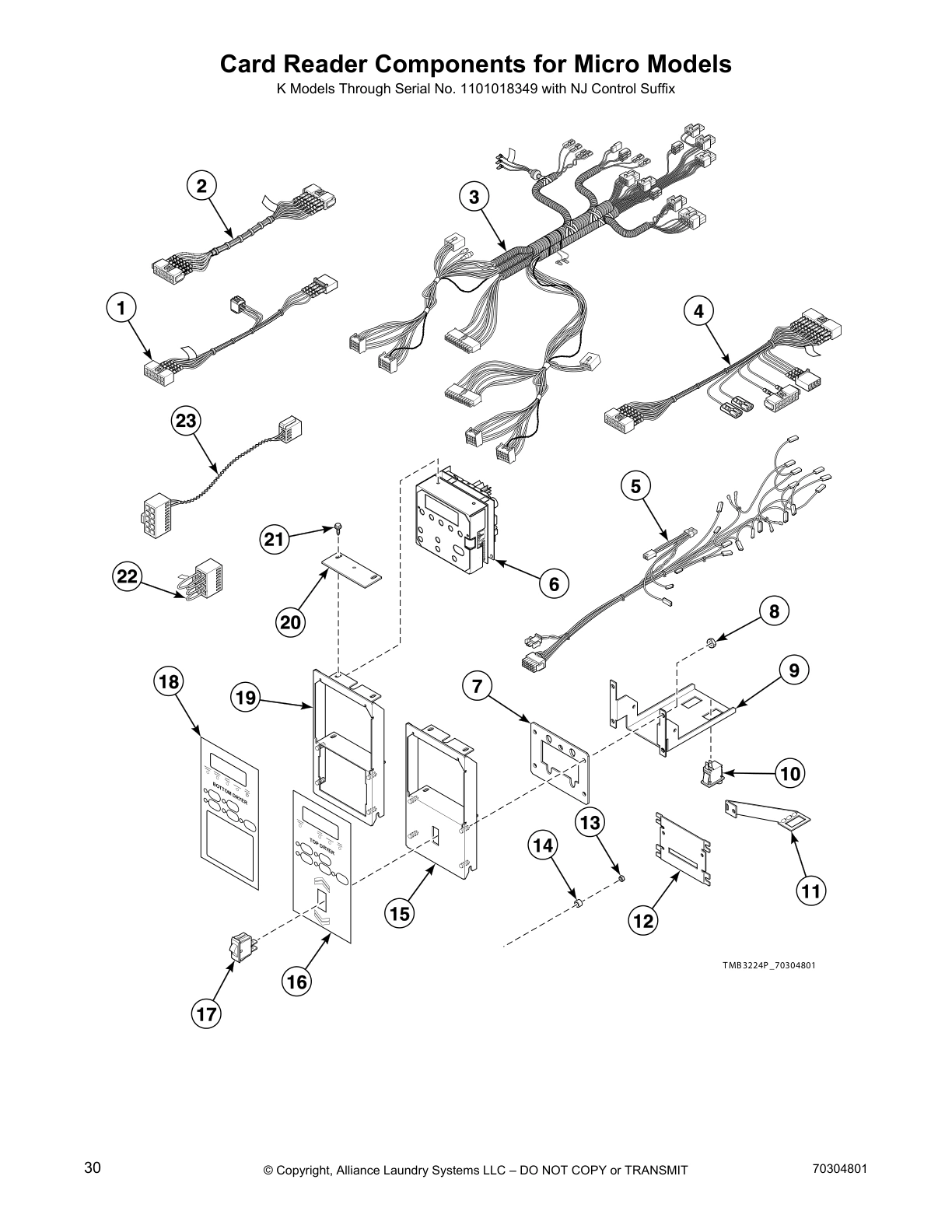

Card Reader Components for Micro Models

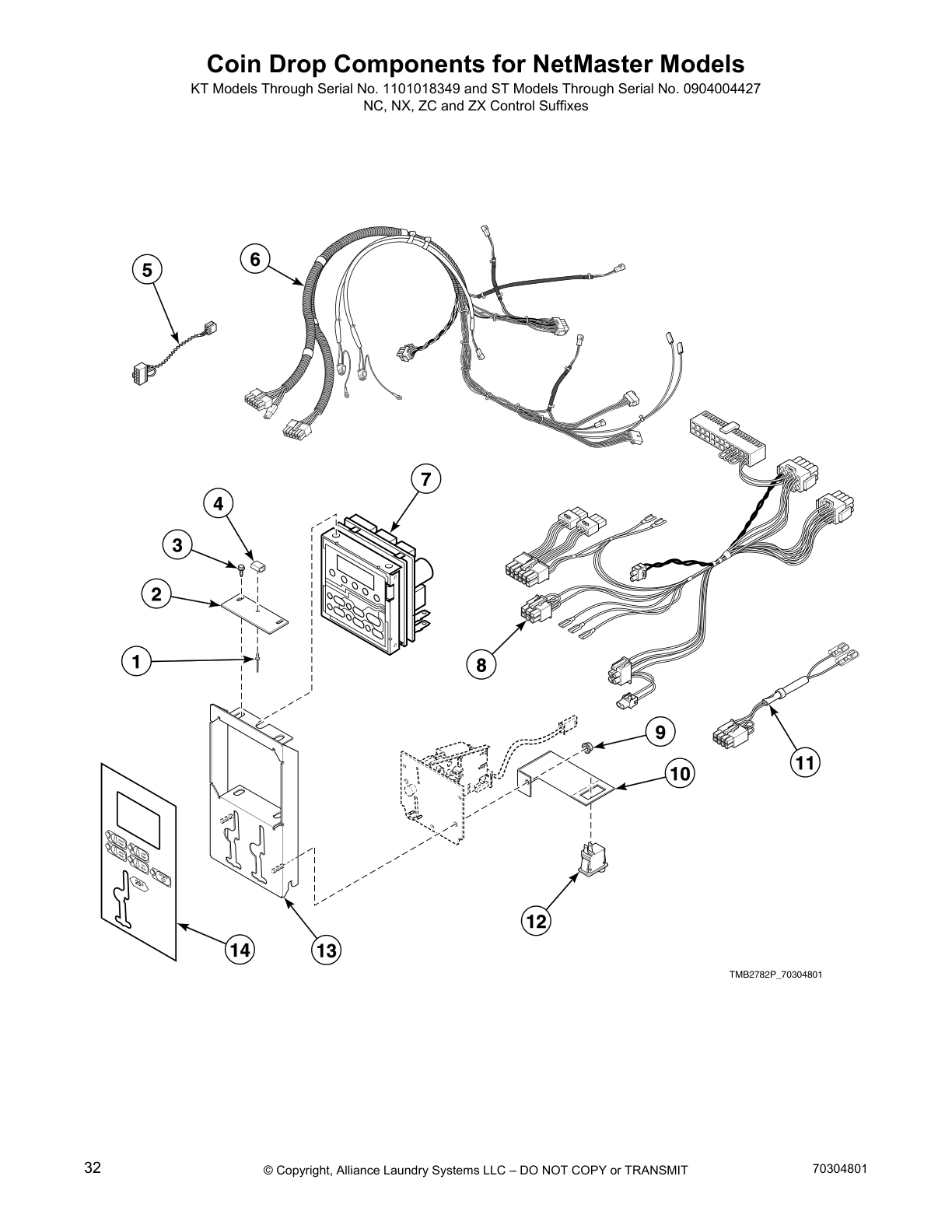

Coin Drop Components for NetMaster Models

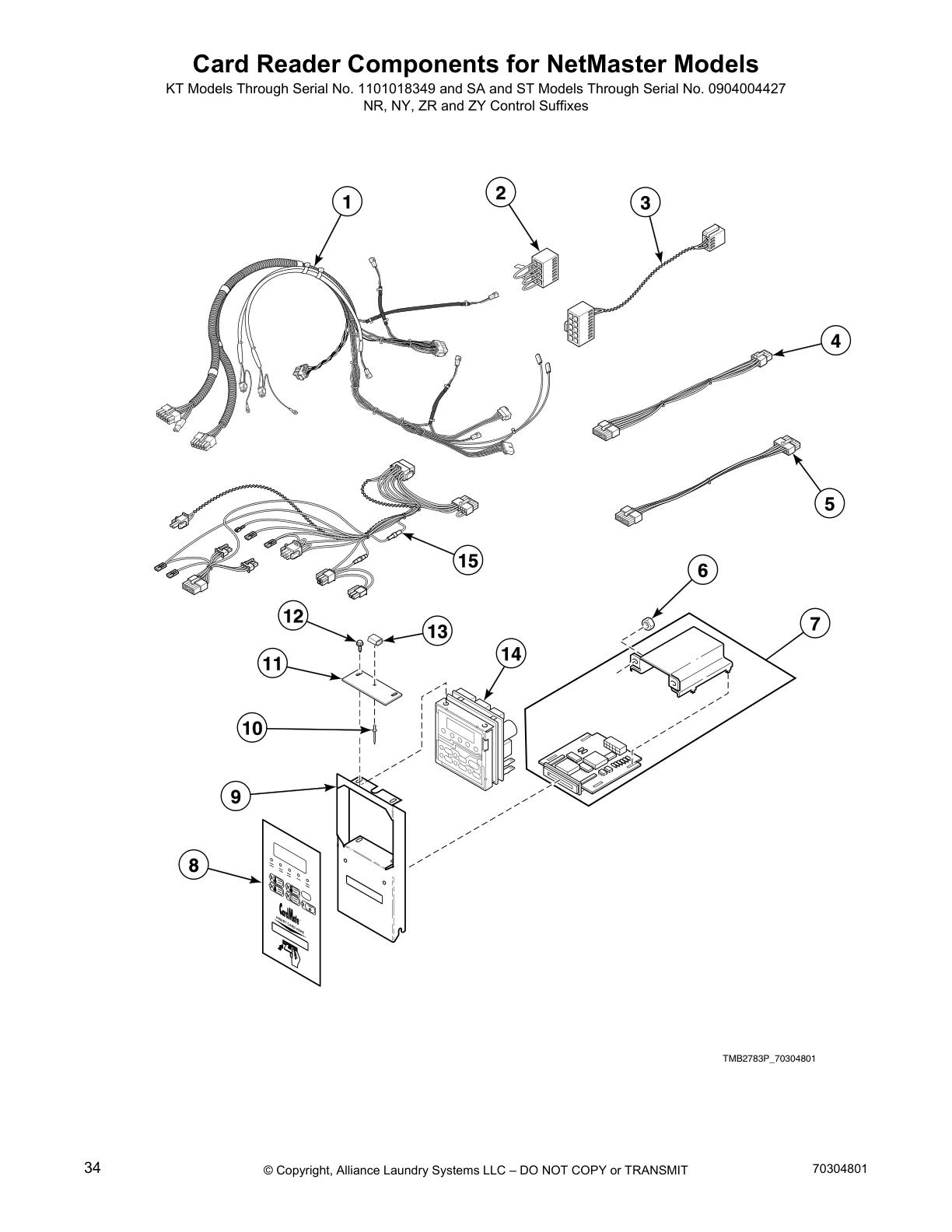

Card Reader Components for NetMaster Models

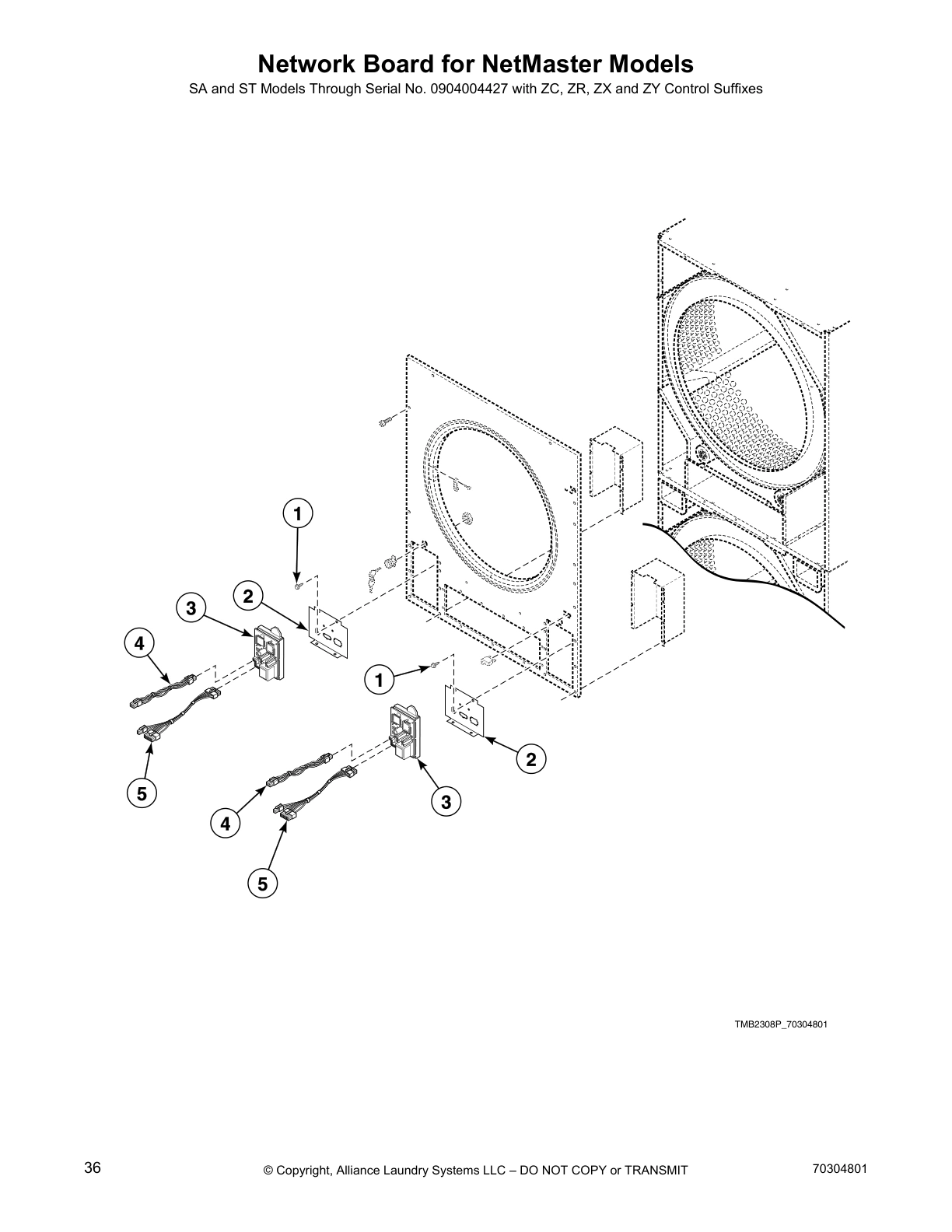

Network Board for NetMaster Models

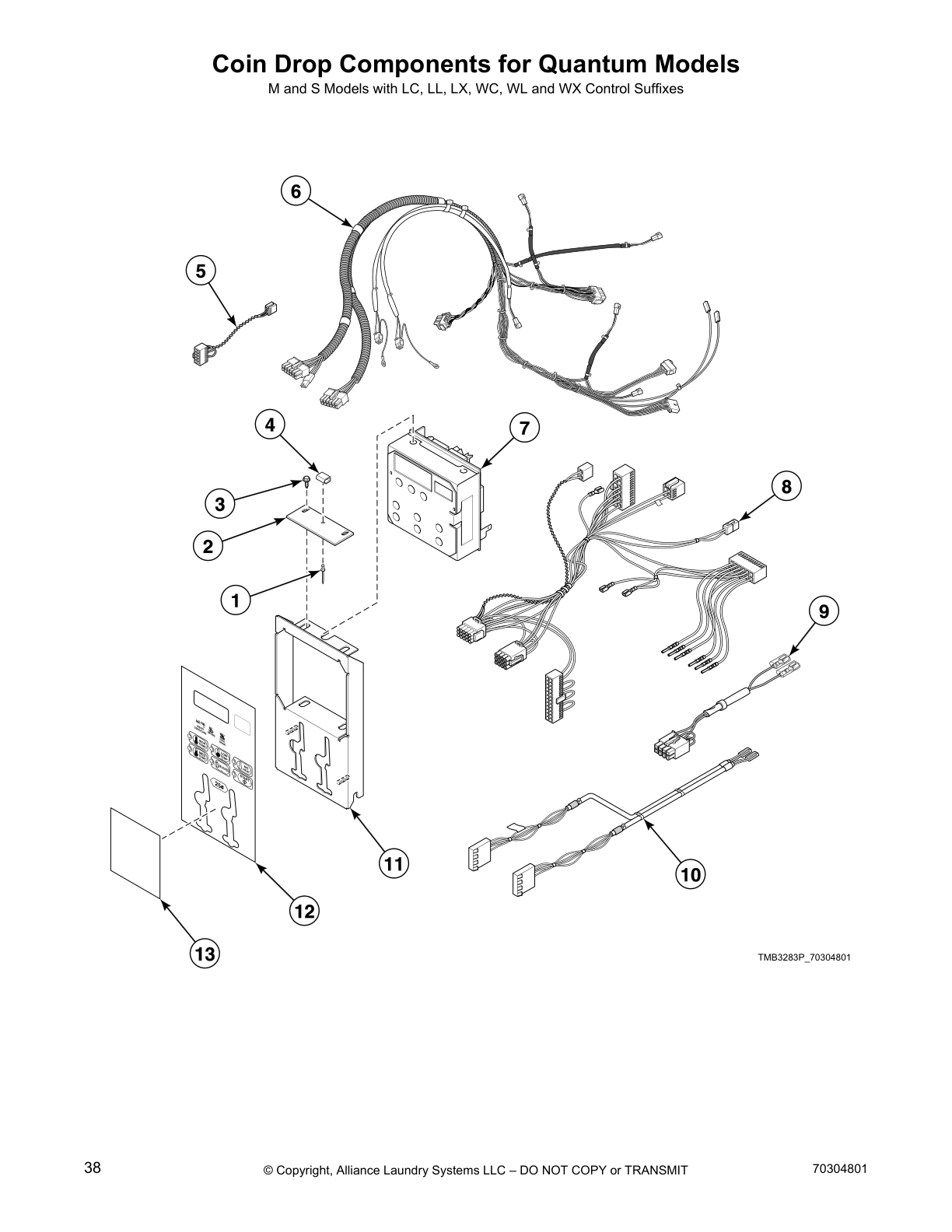

Coin Drop Components for Quantum Models

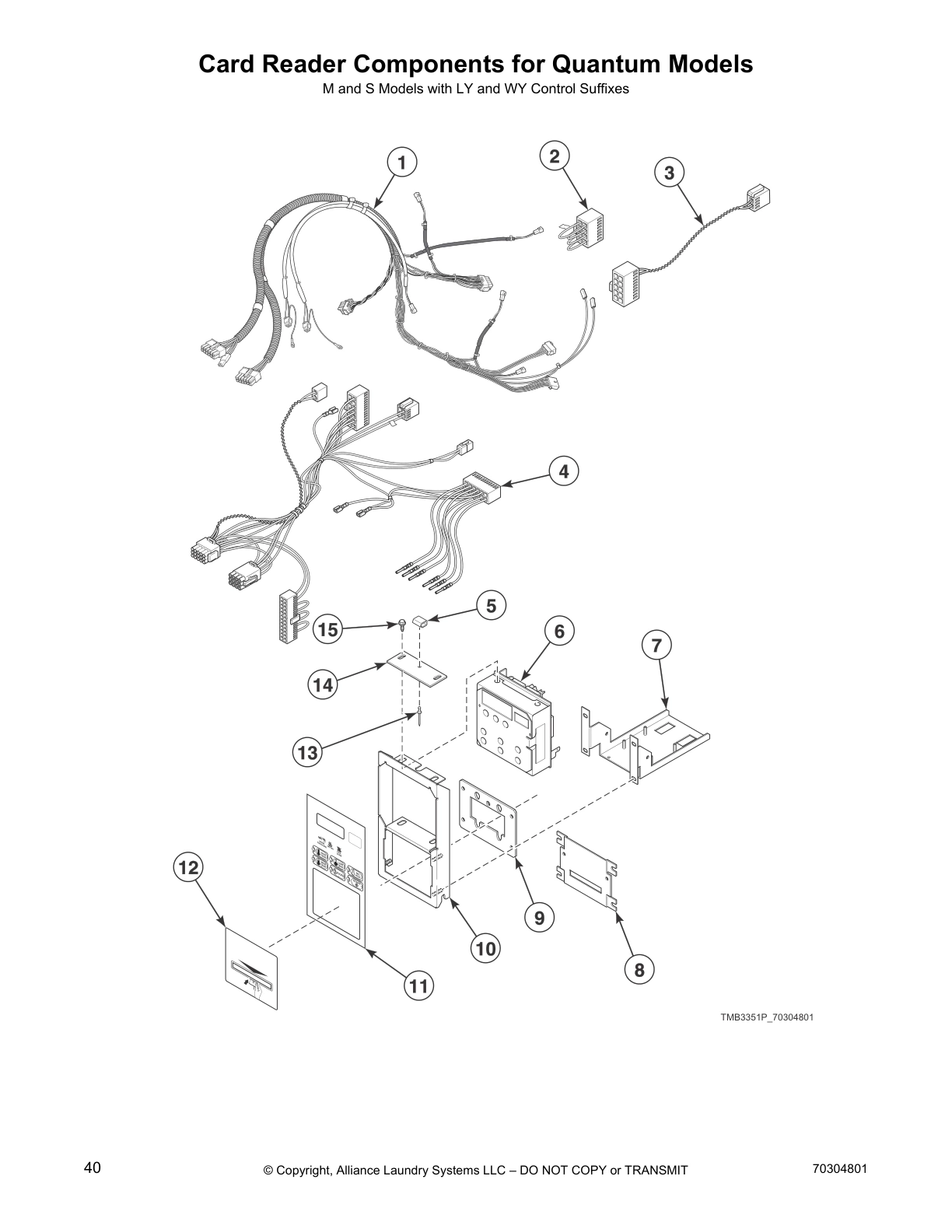

Card Reader Components for Quantum Models

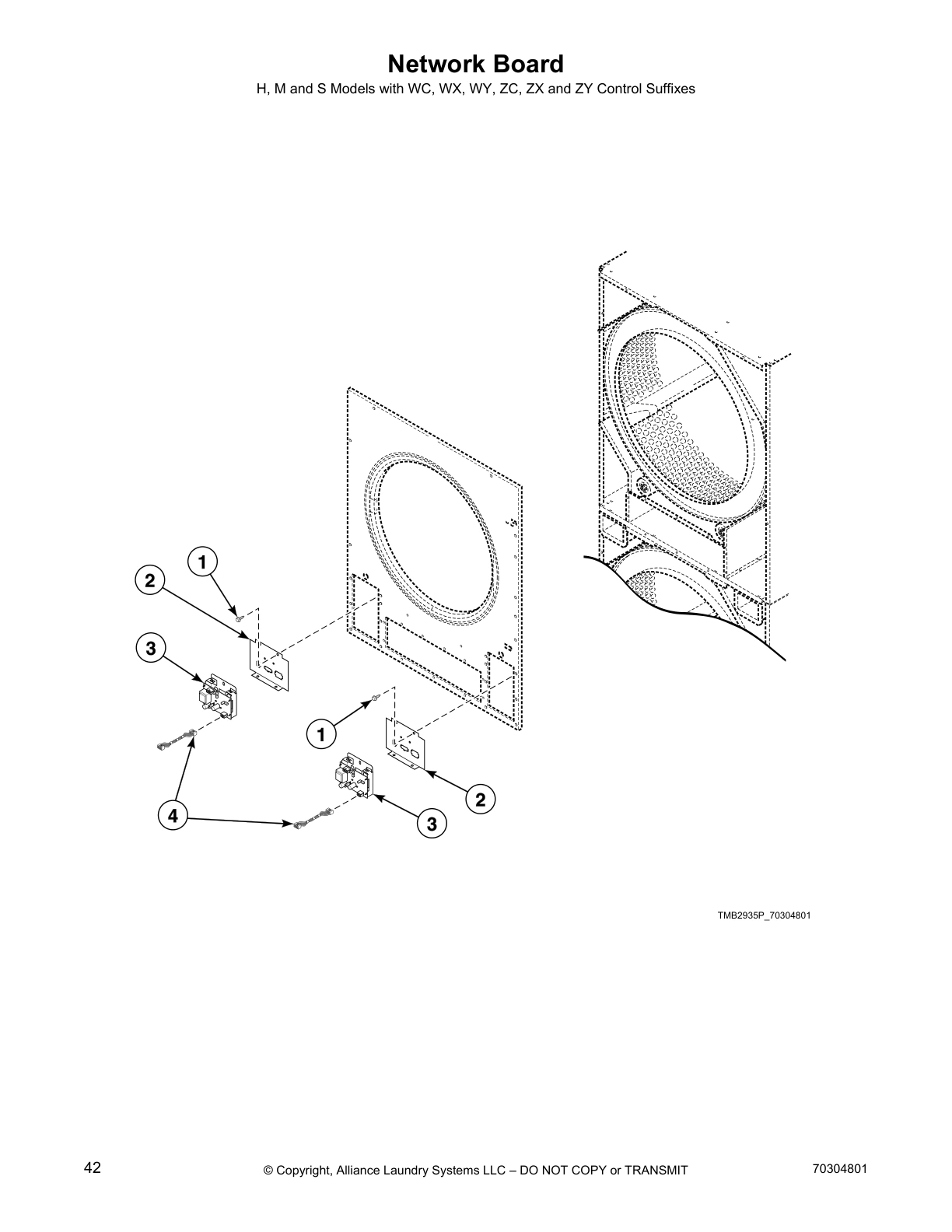

Network Board

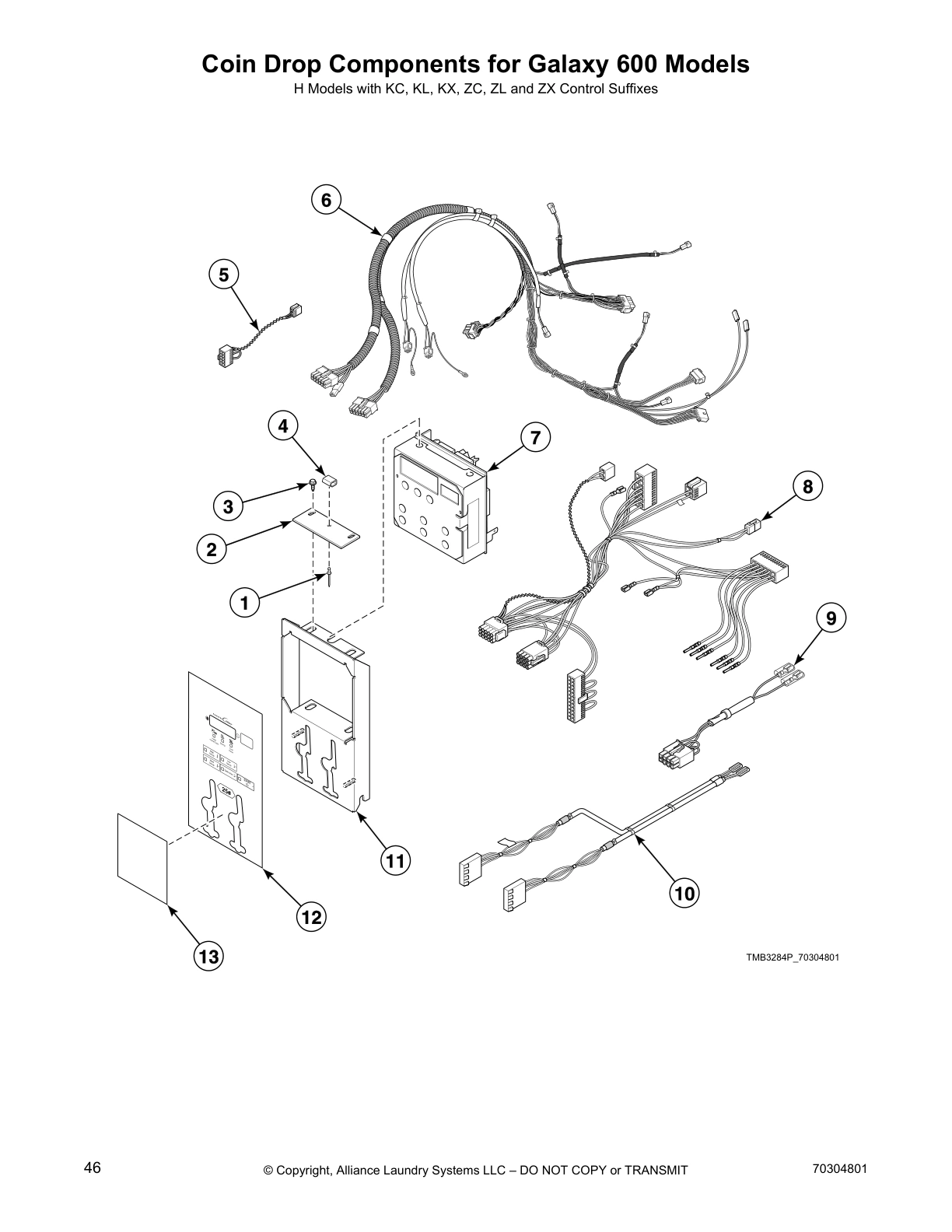

Coin Drop Components for Galaxy 600 Models

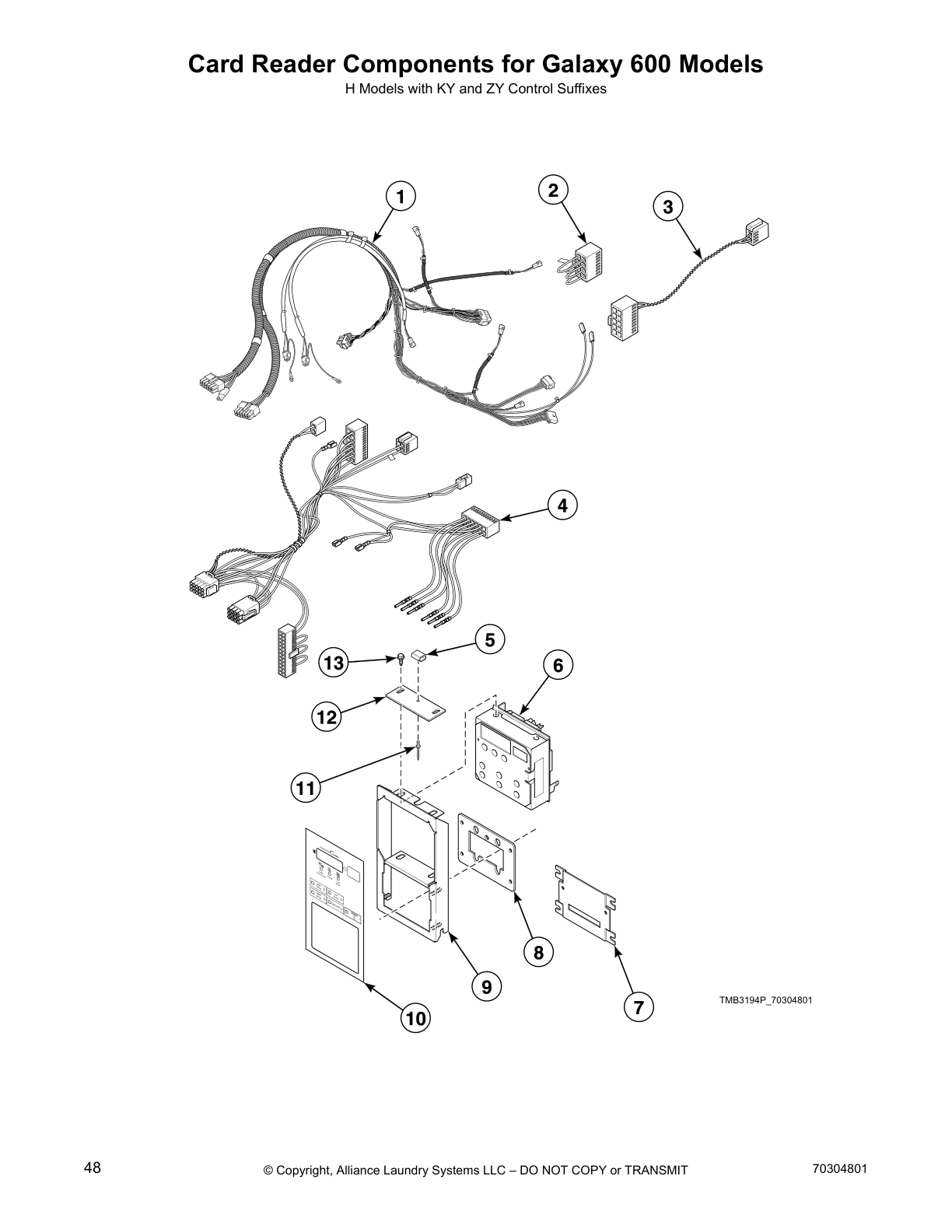

Card Reader Components for Galaxy 600 Models

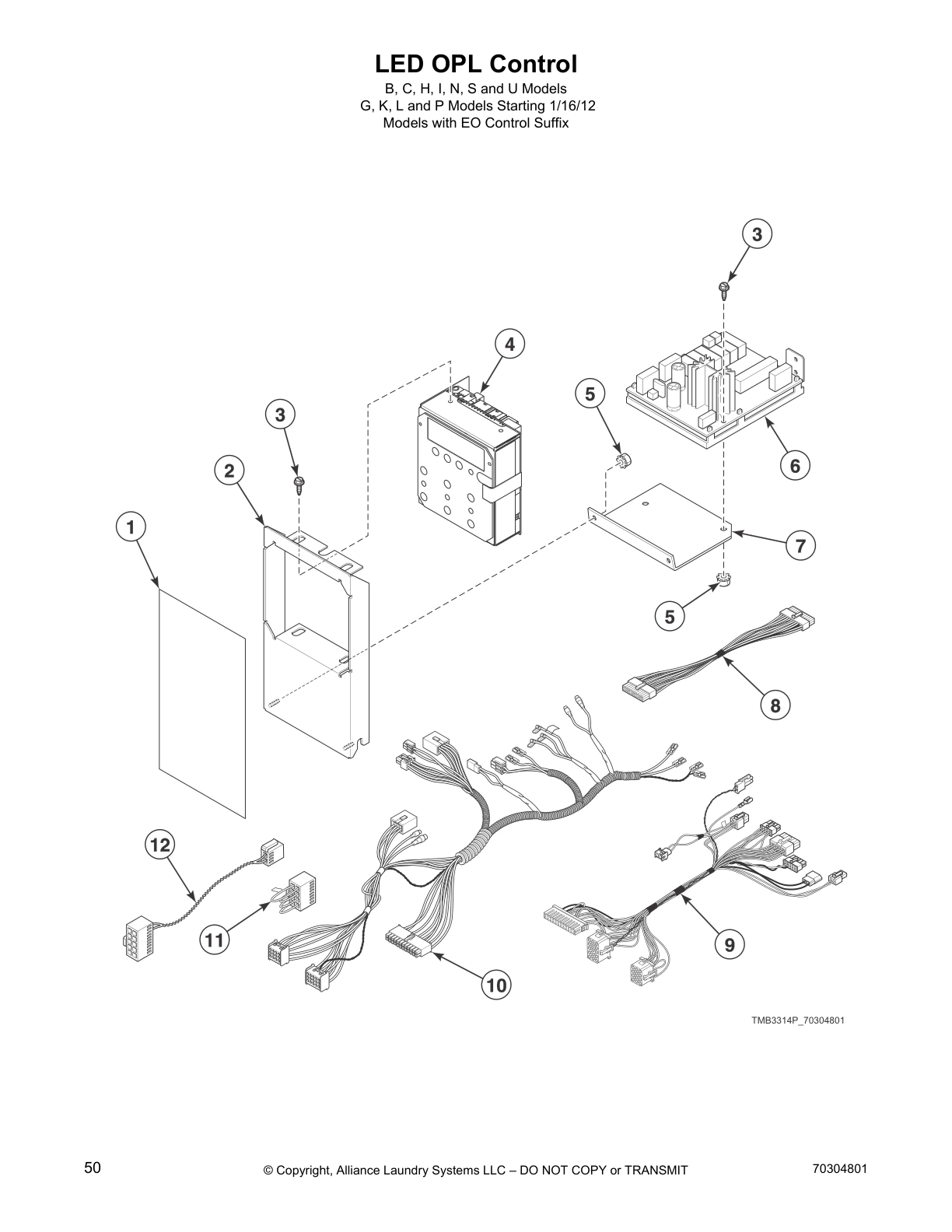

LED OPL Control

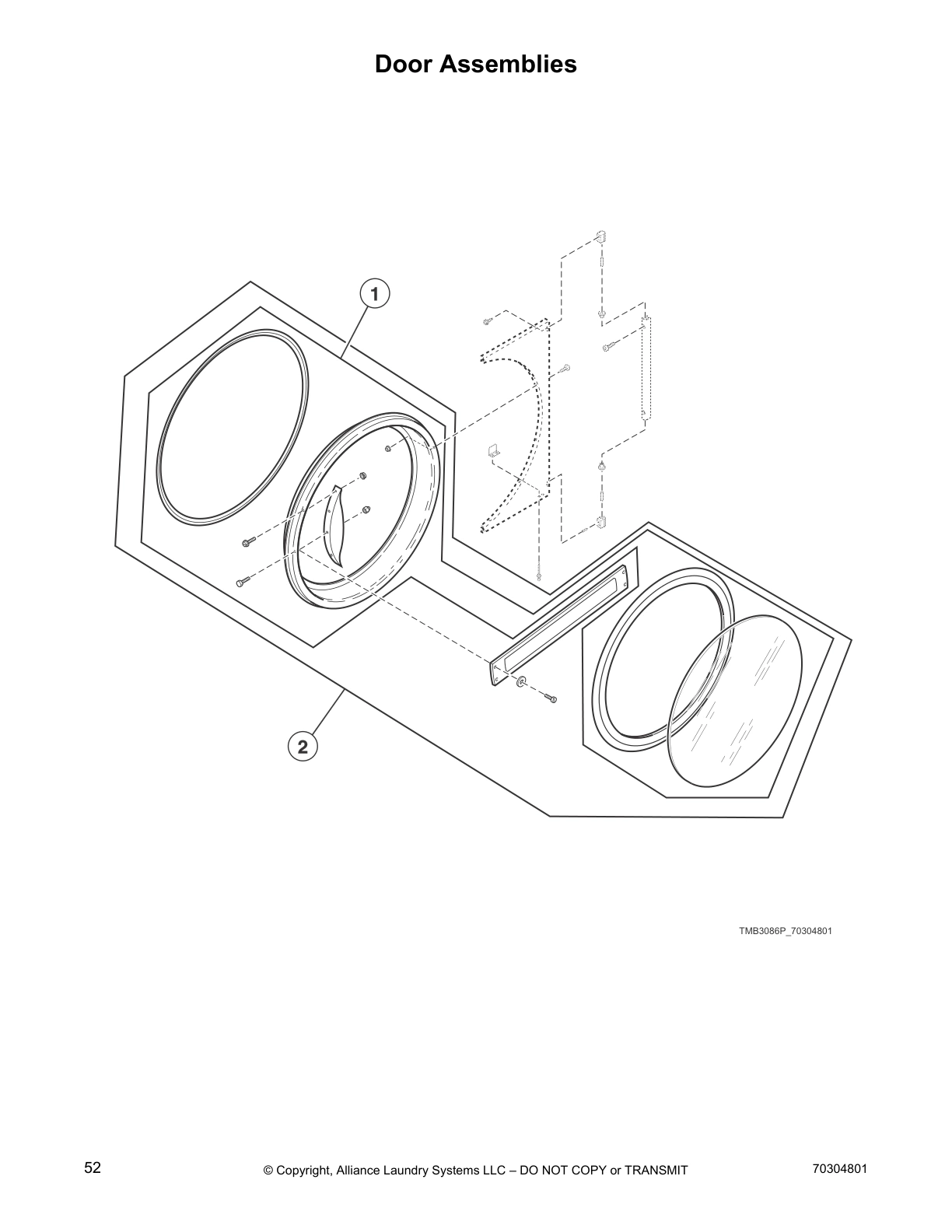

Door Assemblies

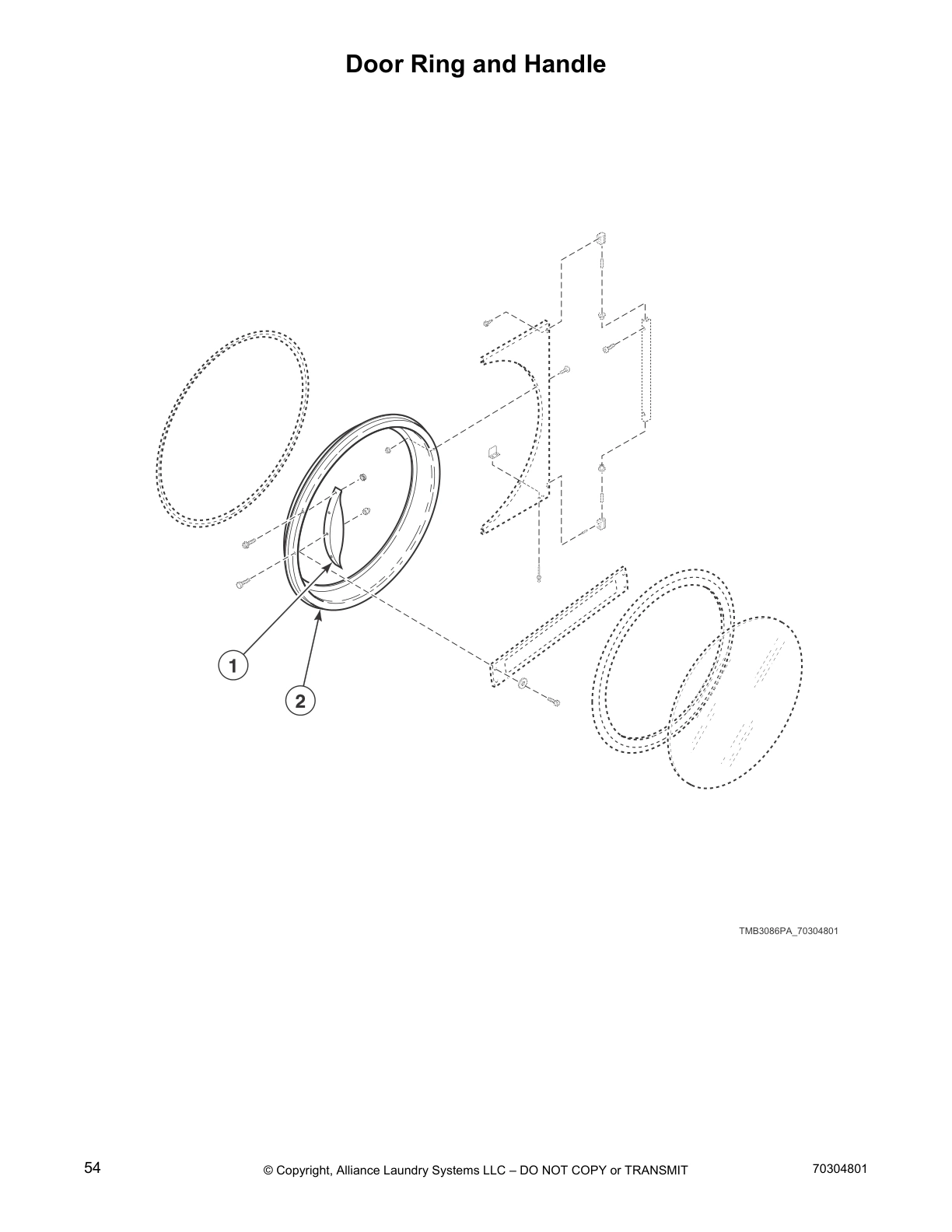

Door Ring and Handle

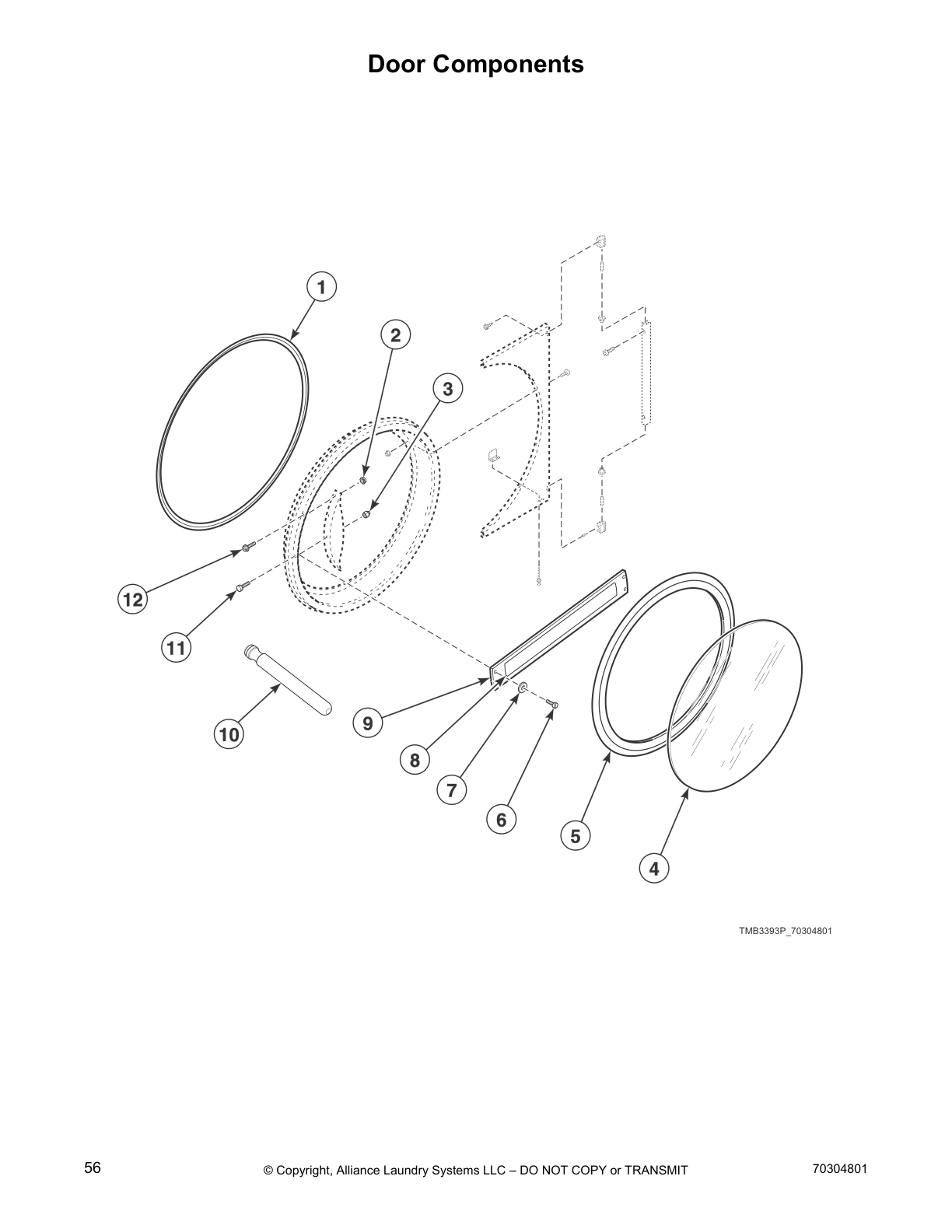

Door Components

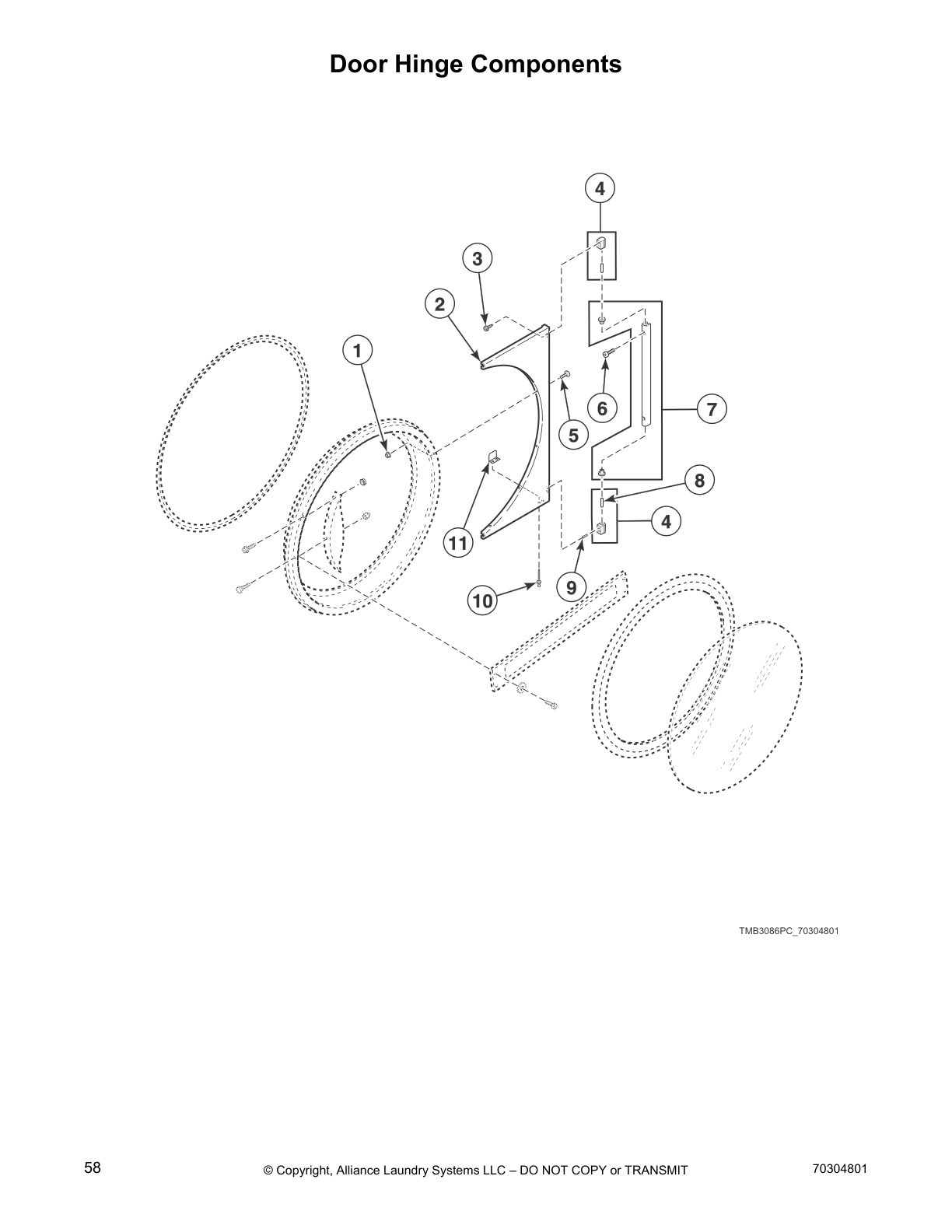

Door Hinge Components

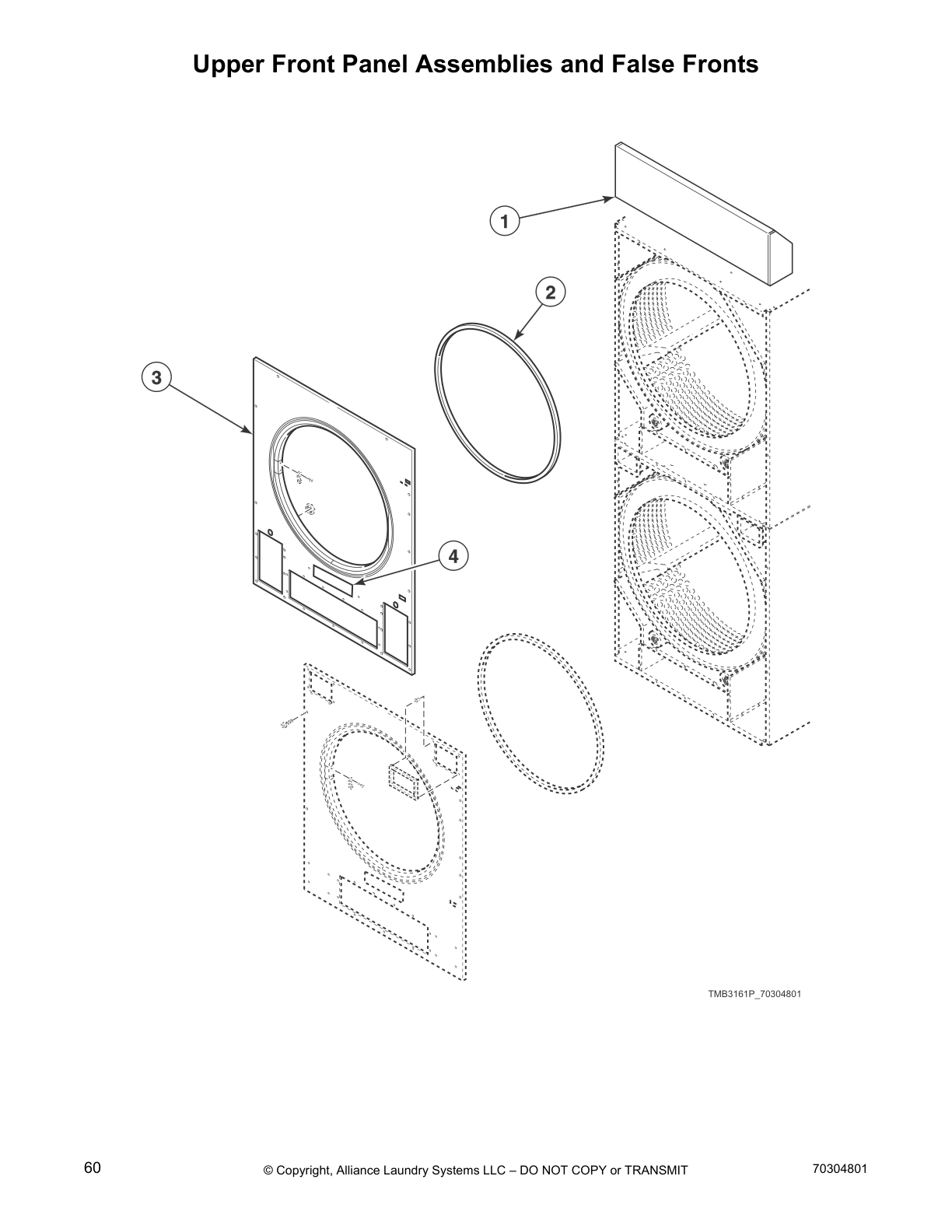

Upper Front Panel Assemblies and False Fronts

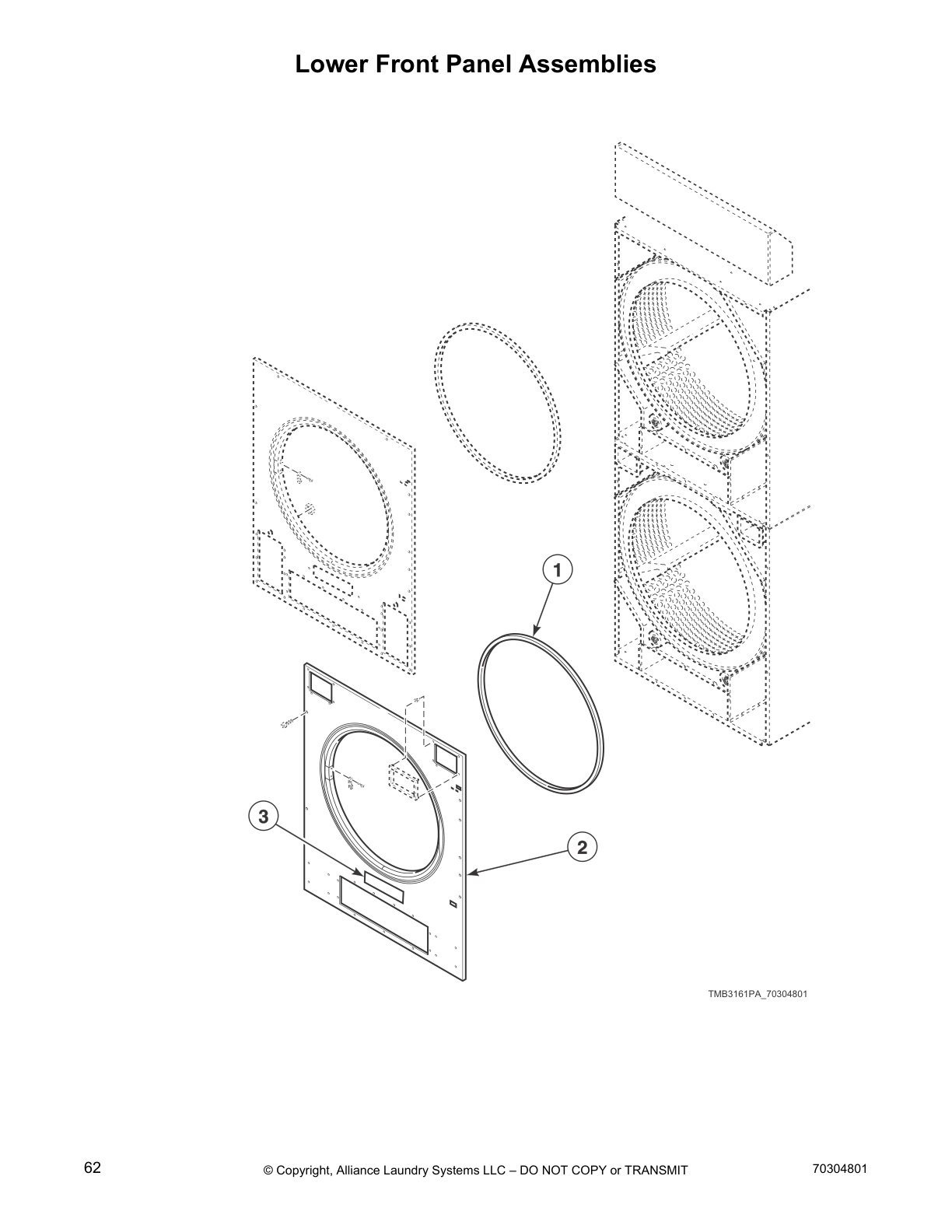

Lower Front Panel Assemblies

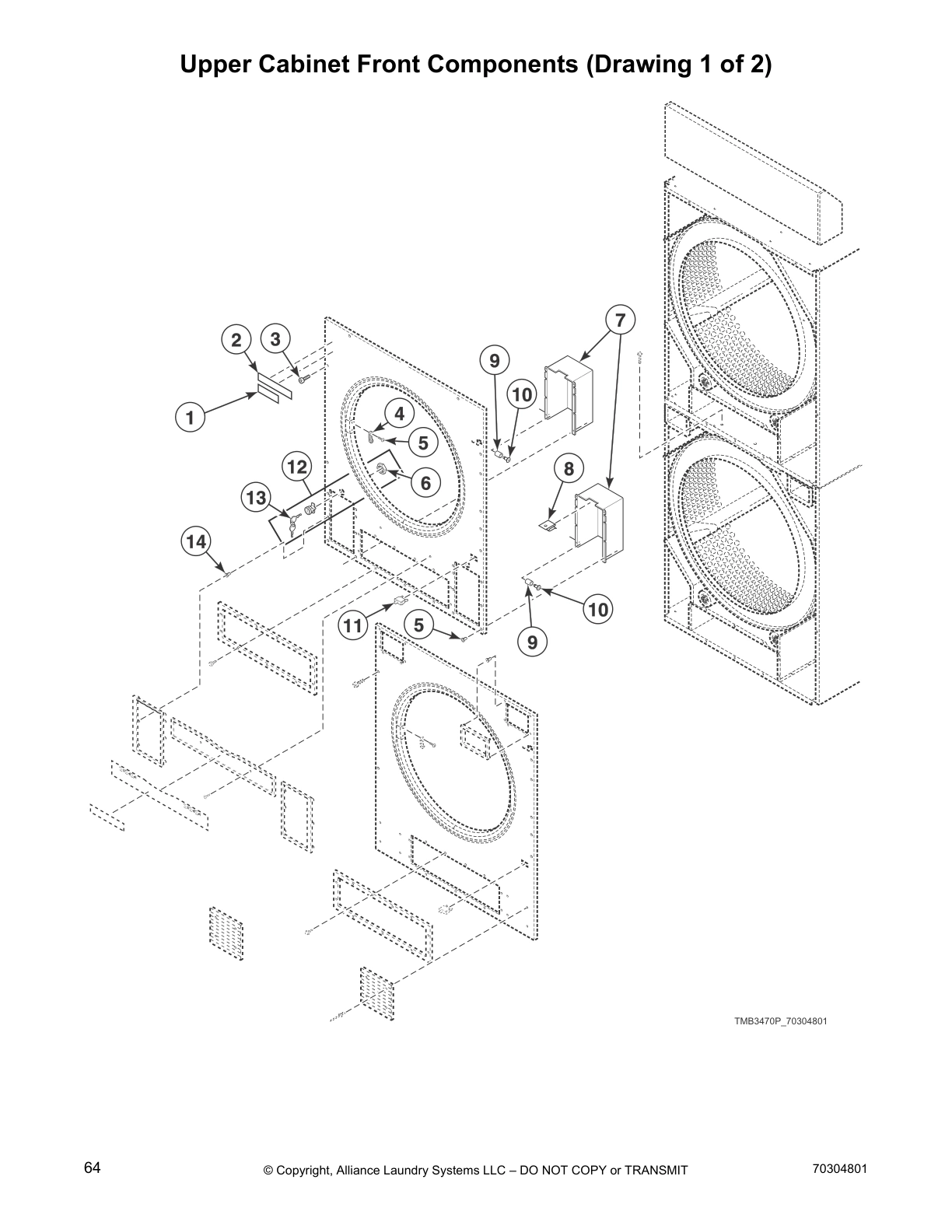

Upper Cabinet Front Components (Drawing 1 of 2)

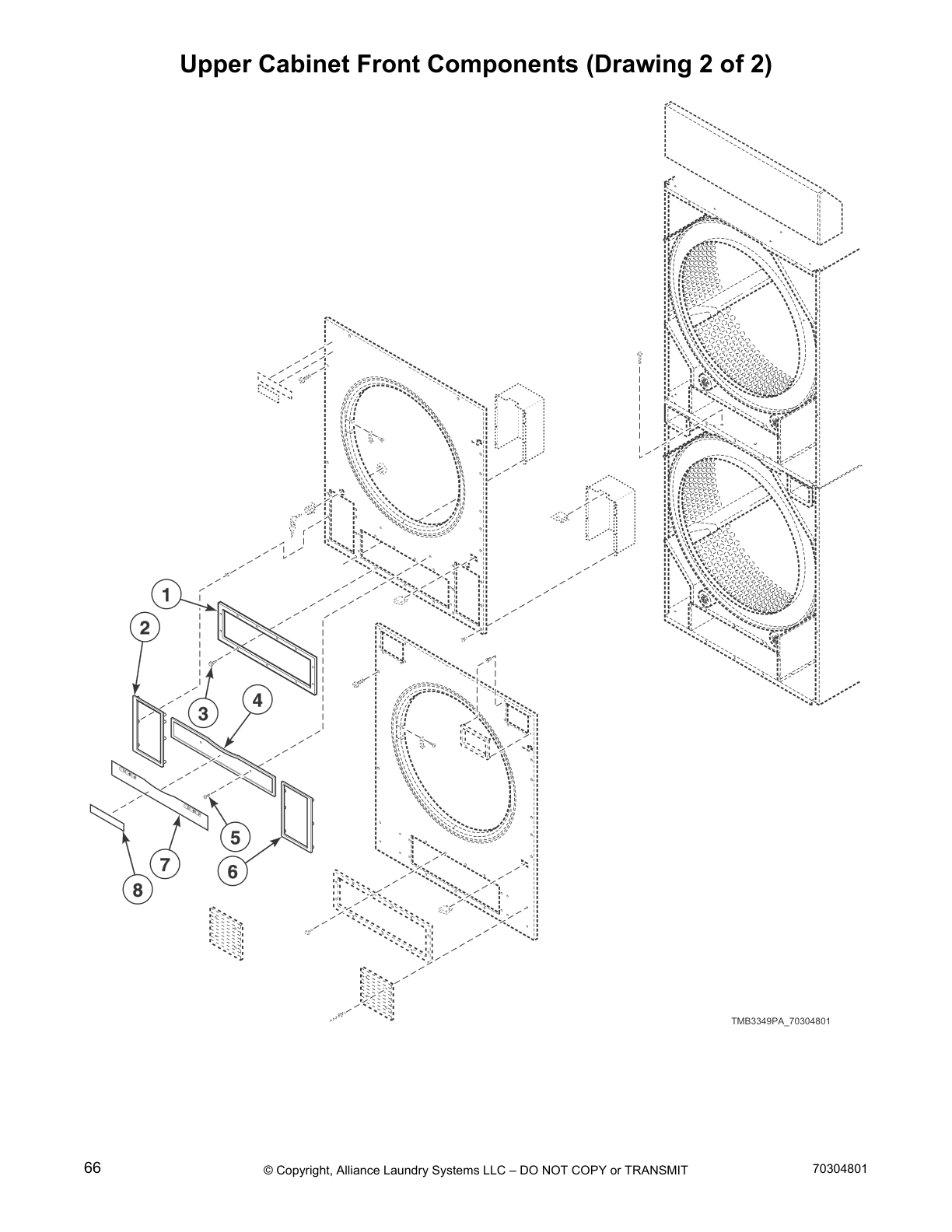

Upper Cabinet Front Components (Drawing 2 of 2)

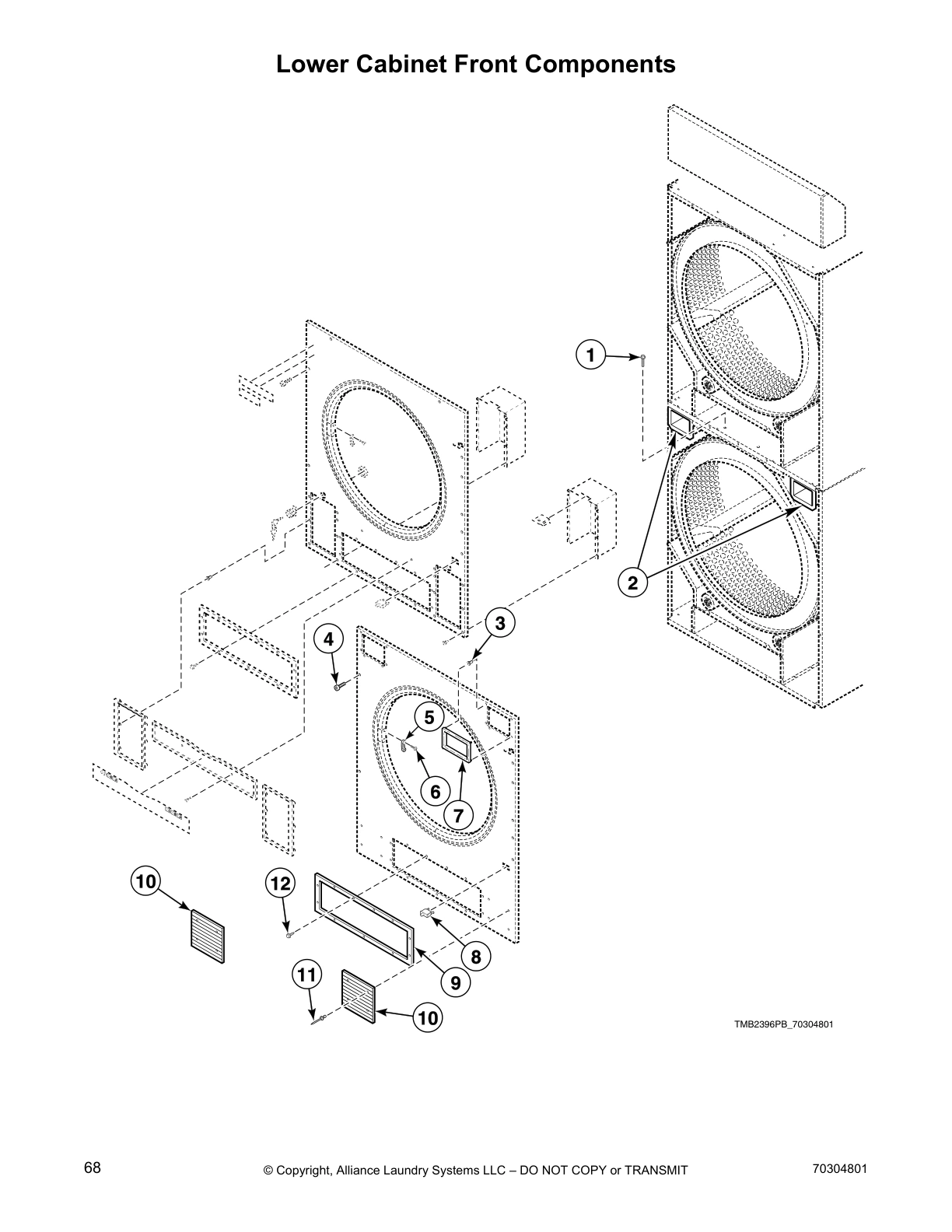

Lower Cabinet Front Components

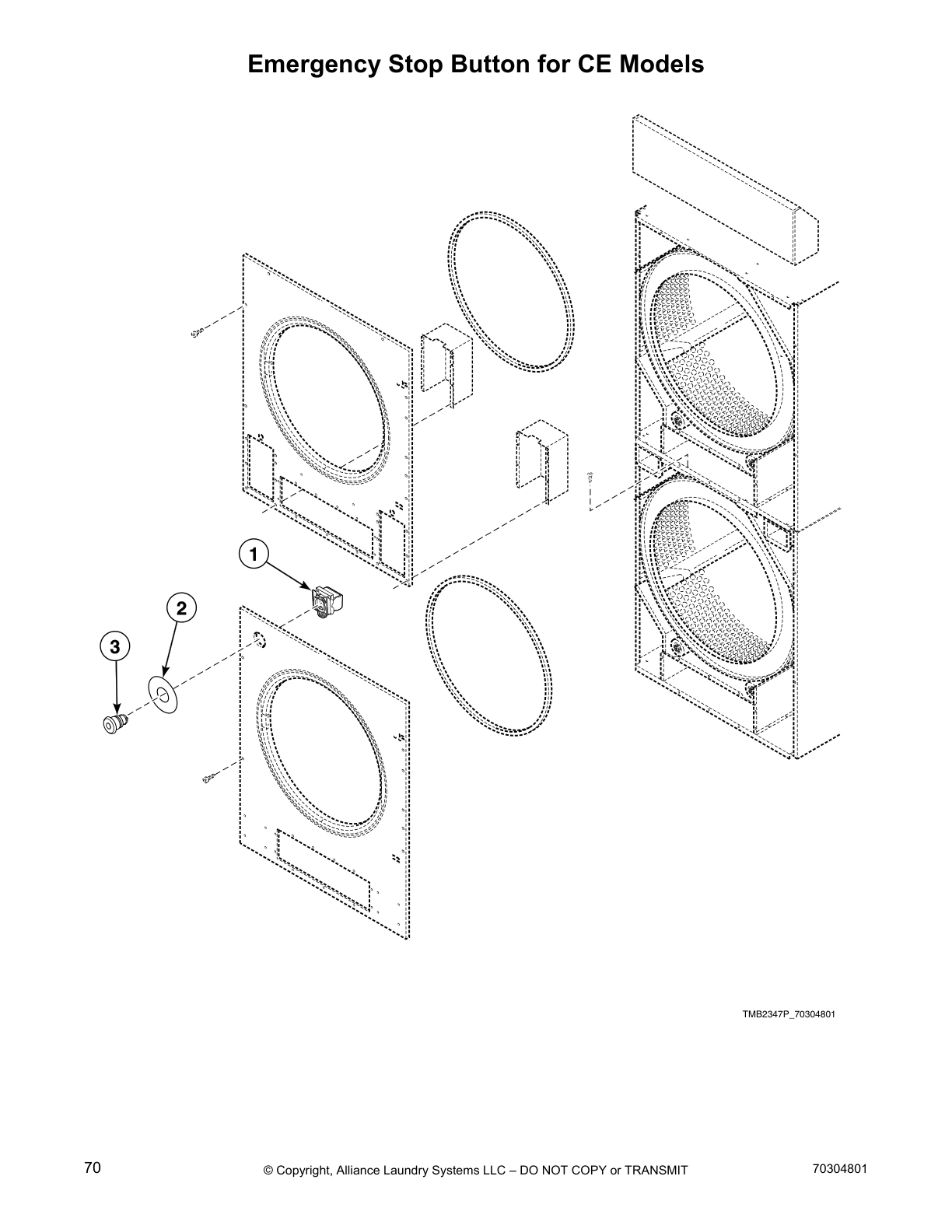

Emergency Stop Button for CE Models

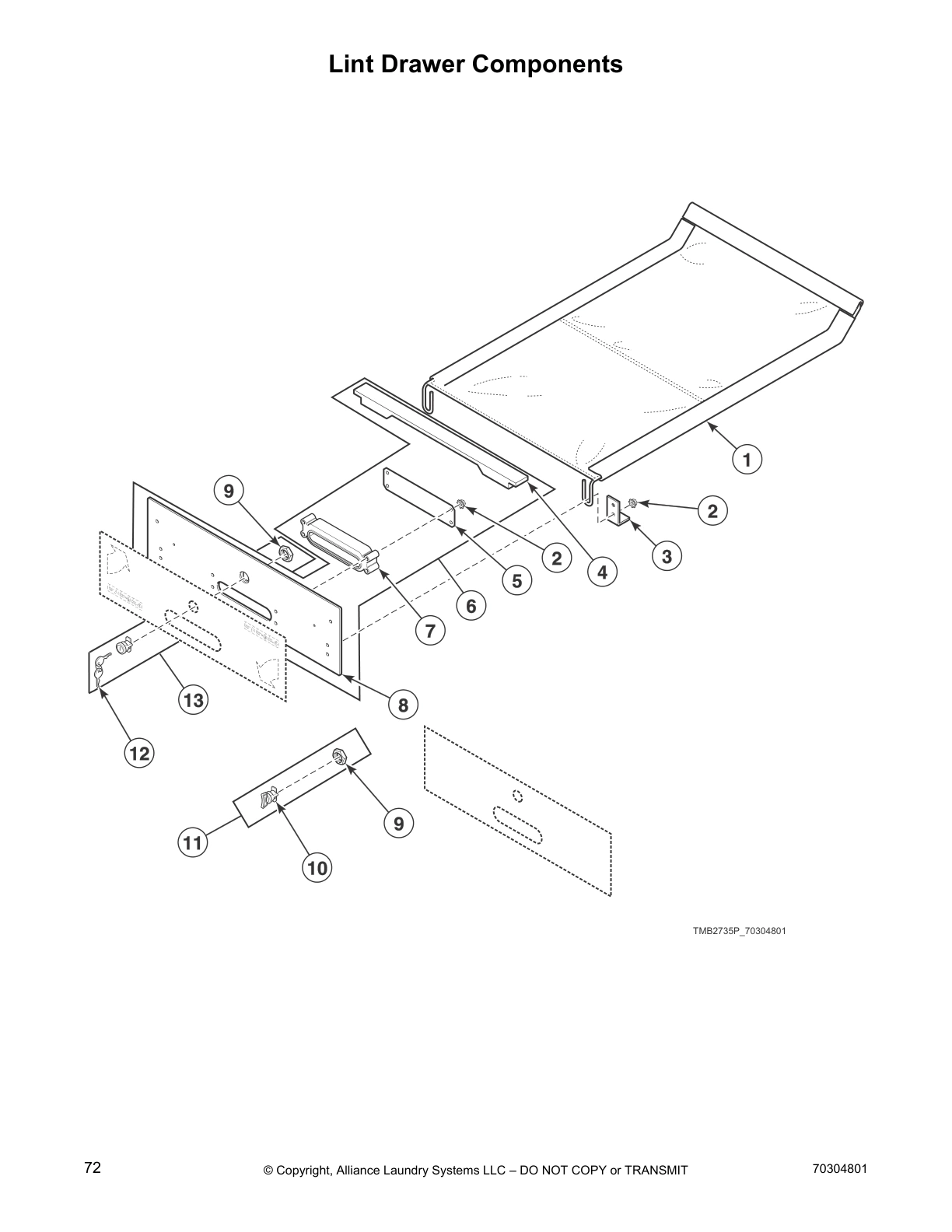

Lint Drawer Components

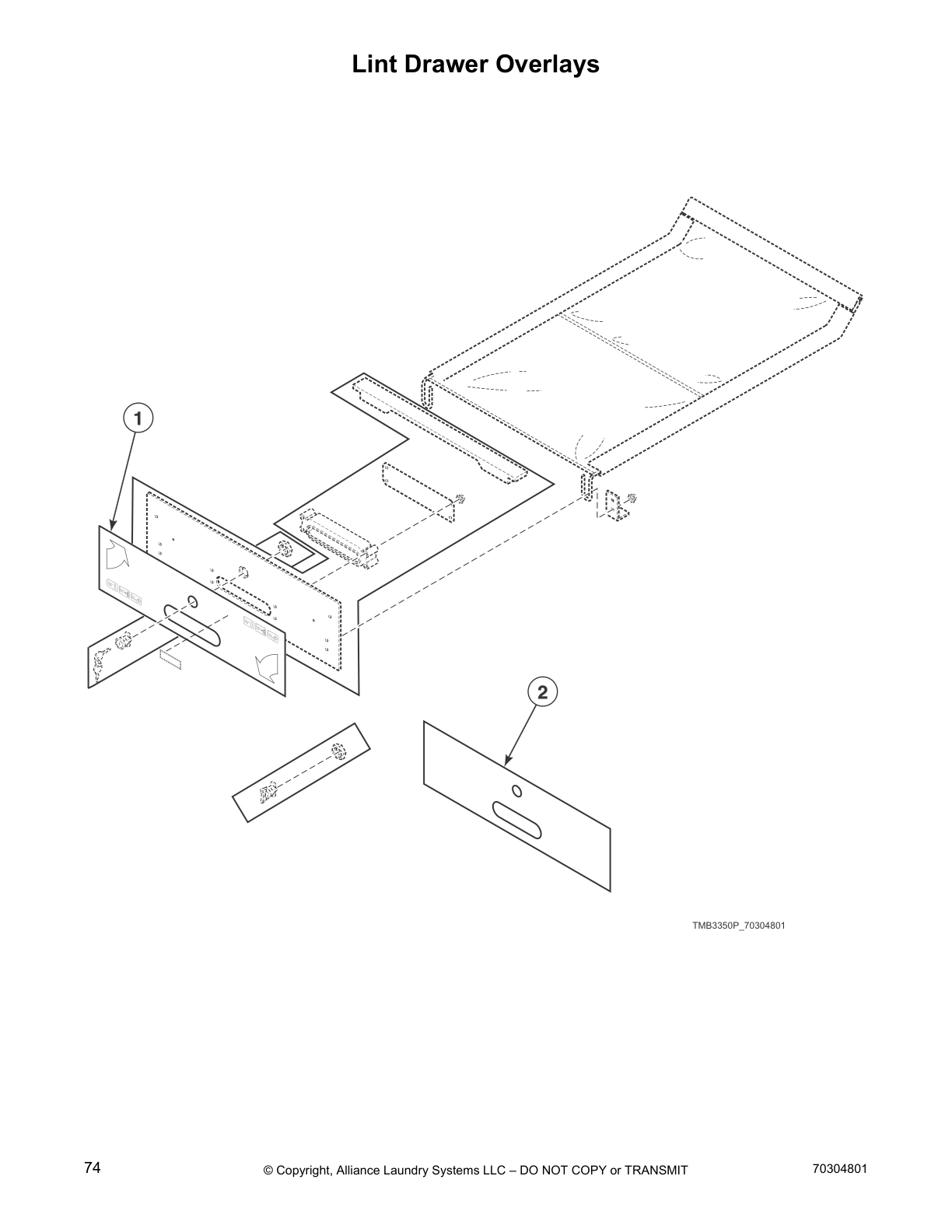

Lint Drawer Overlays
Cylinder and Trunnion Components

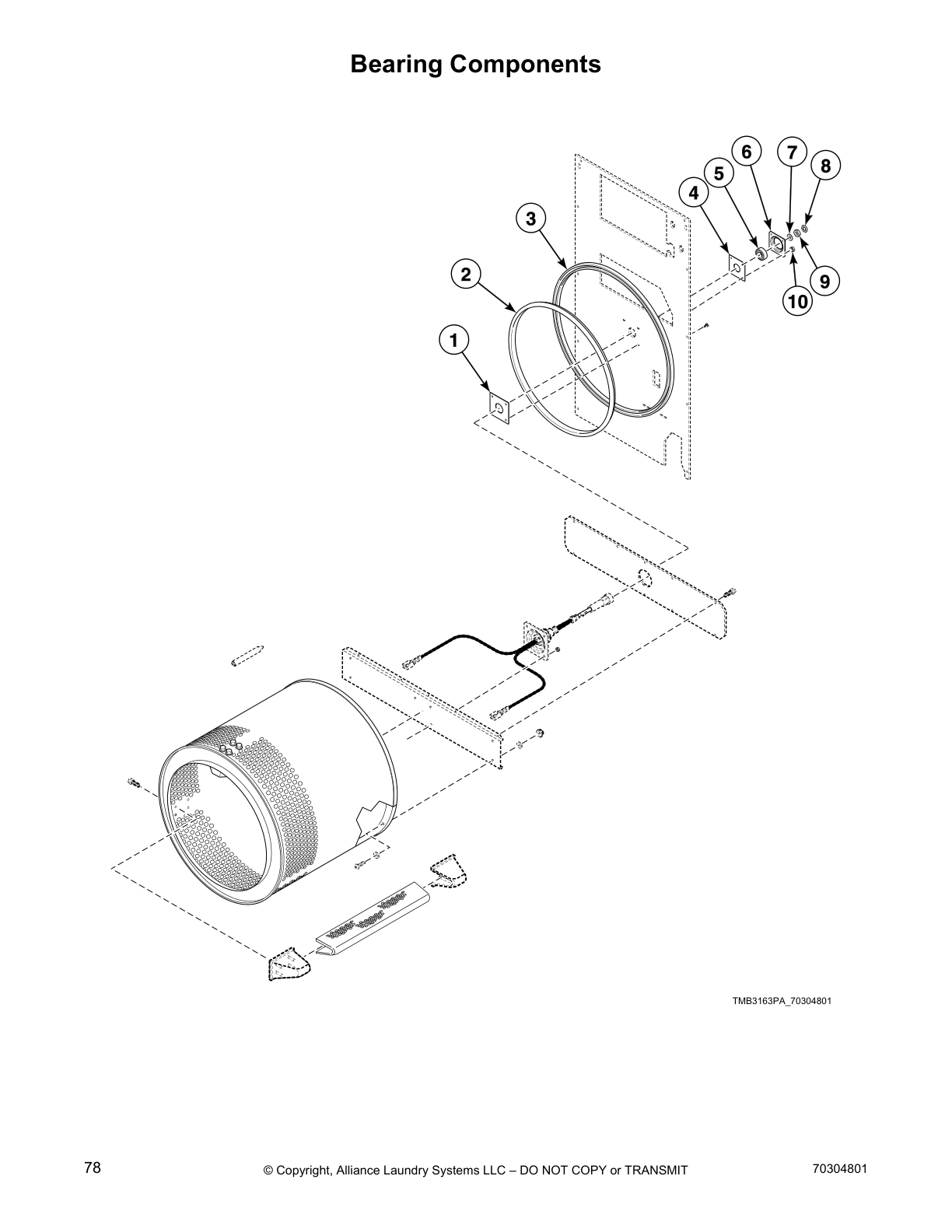

Bearing Components

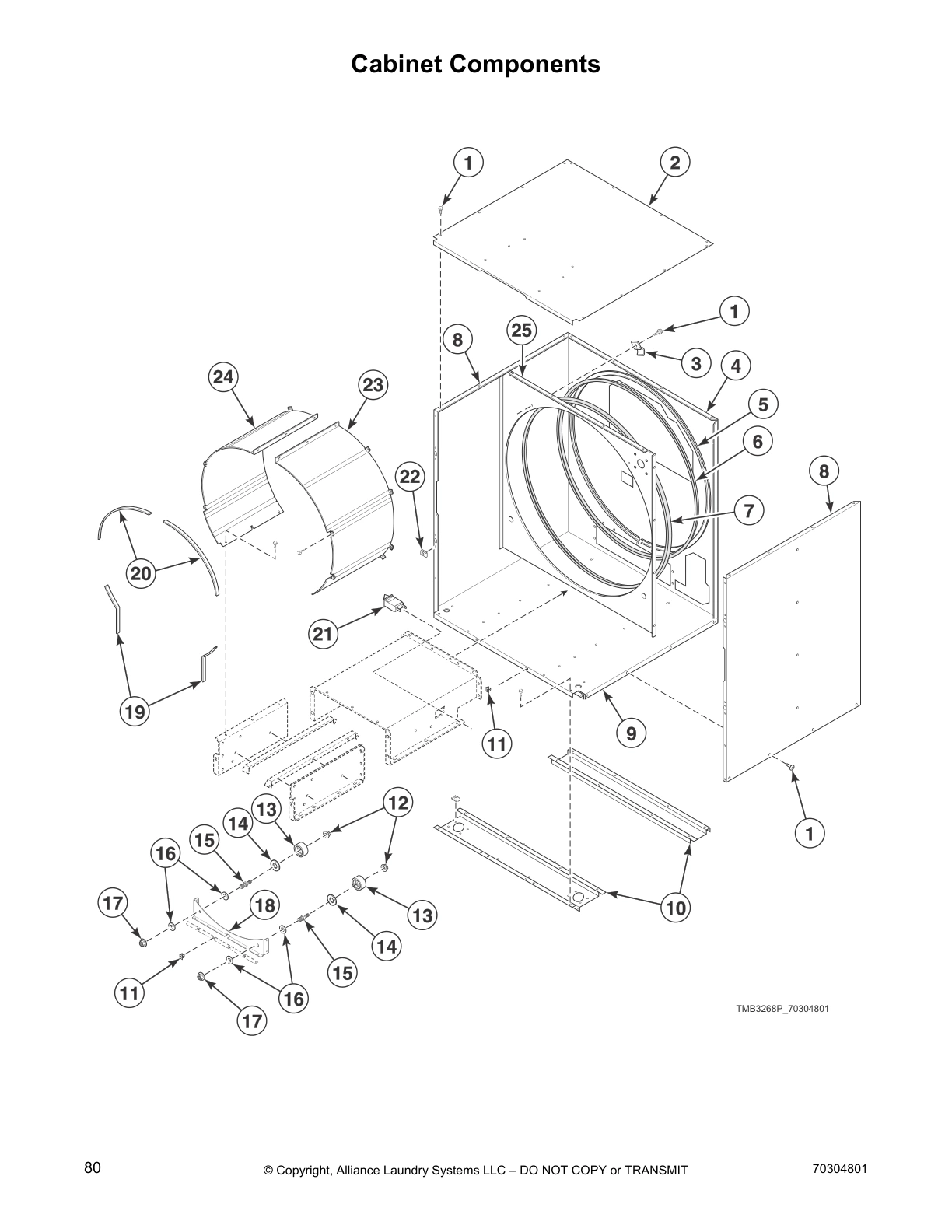

Cabinet Components

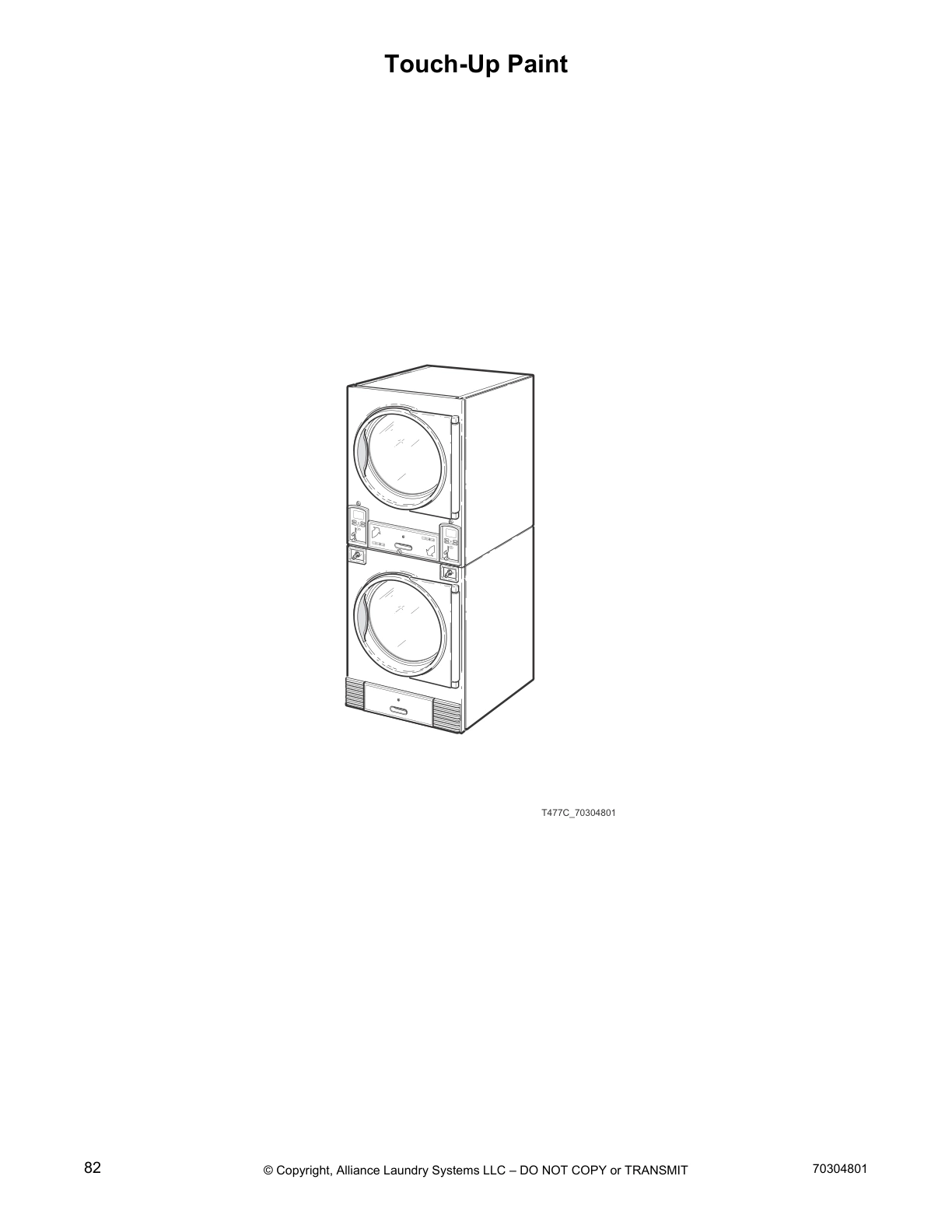

Touch-Up Paint

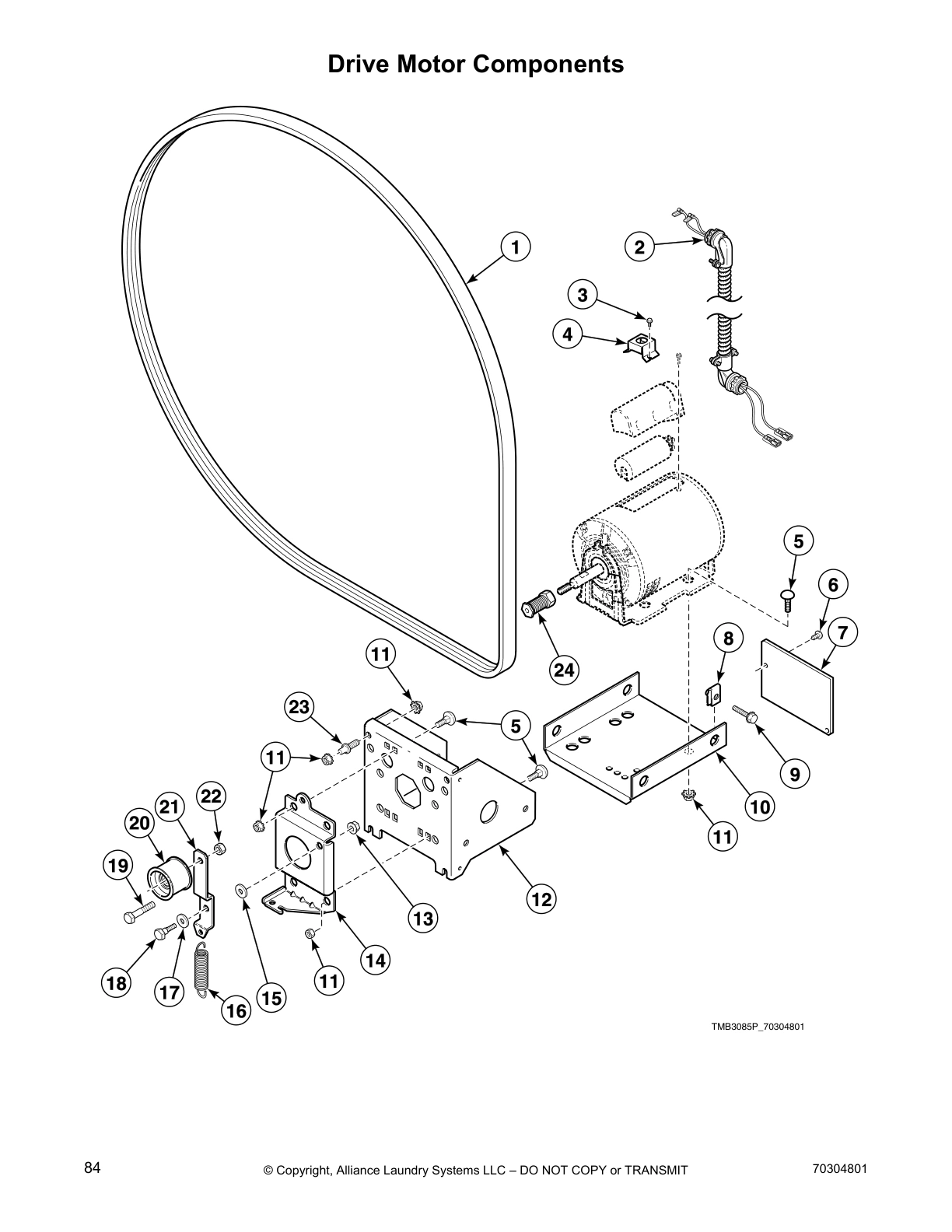

Drive Motor Components

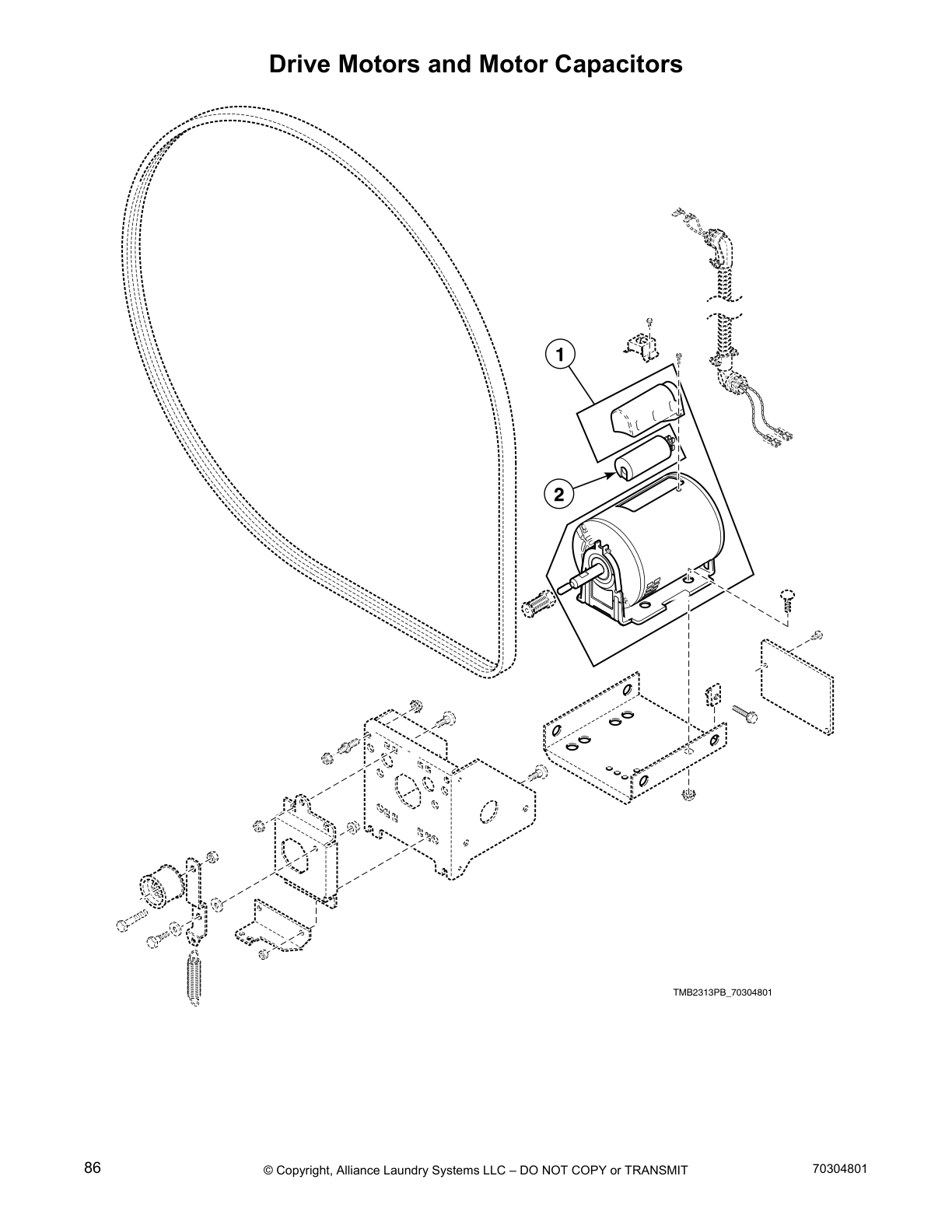

Drive Motors and Motor Capacitors

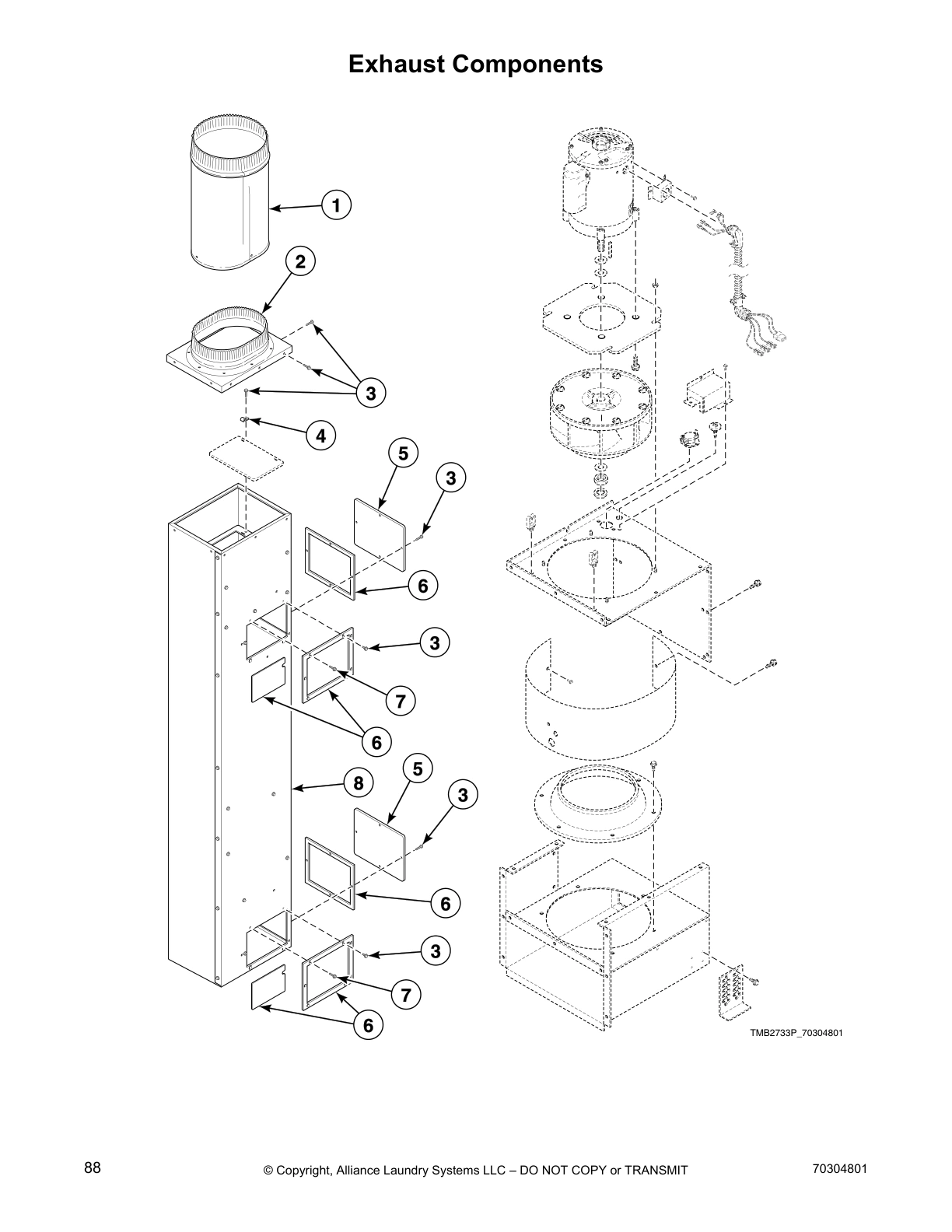

Exhaust Components

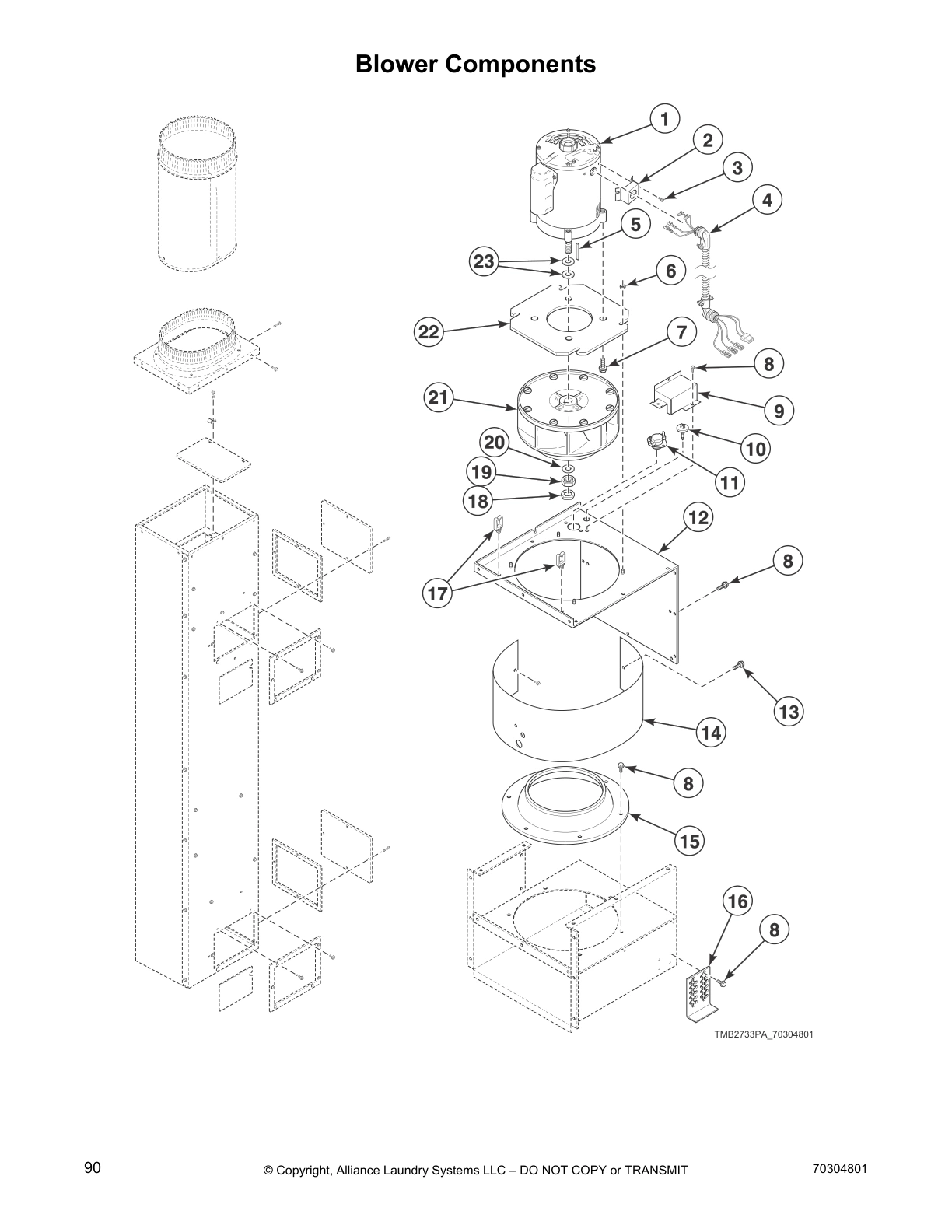

Blower Components

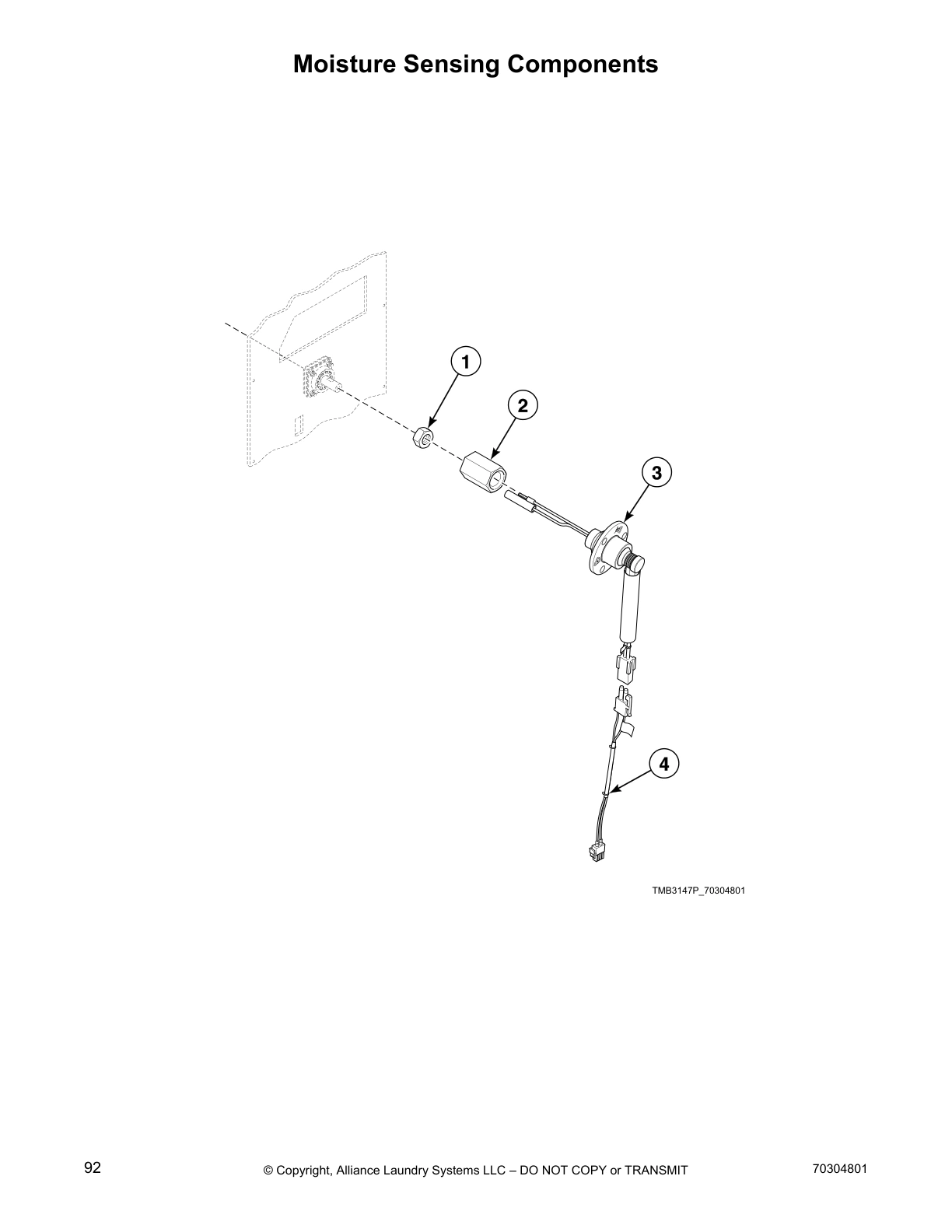

Moisture Sensing Components

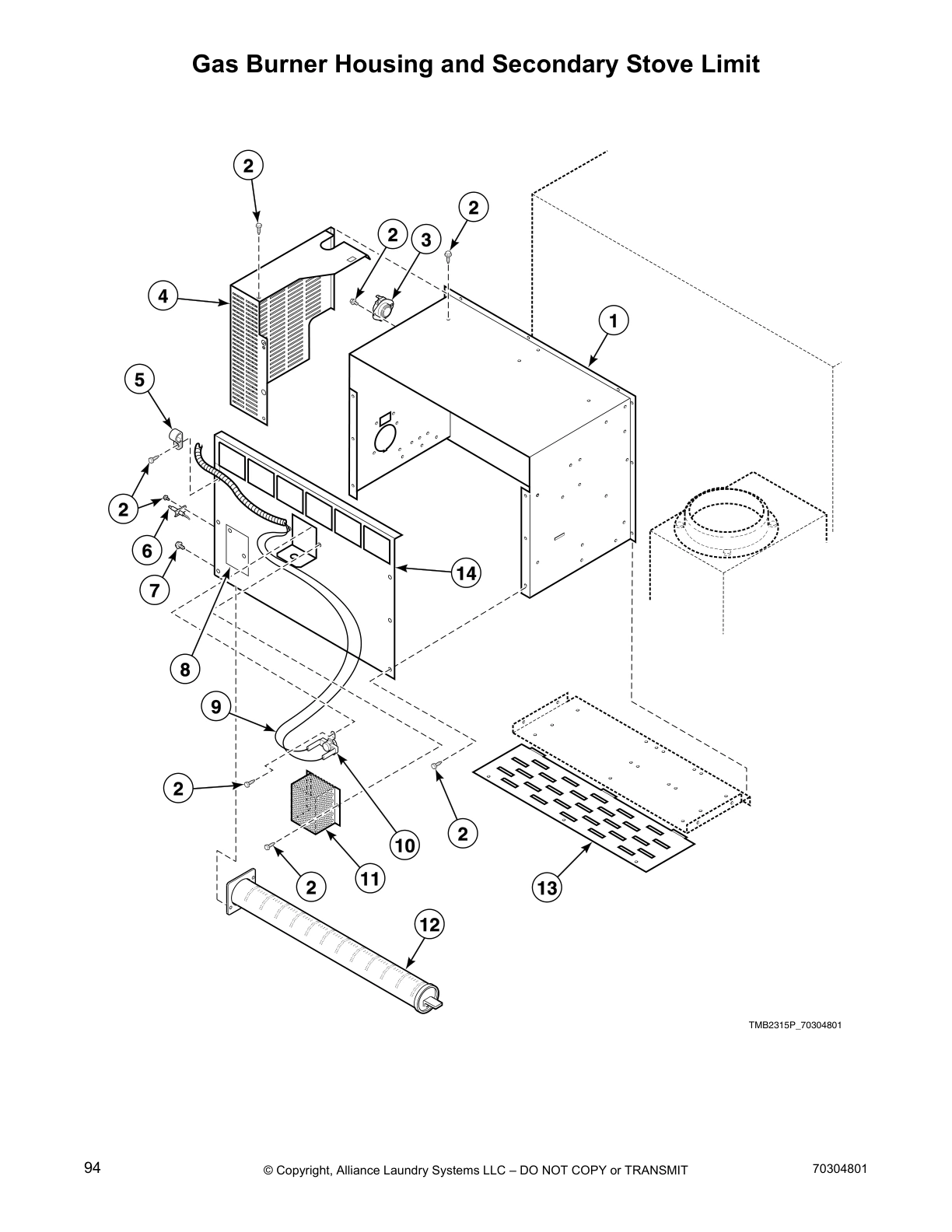

Gas Burner Housing and Secondary Stove Limit

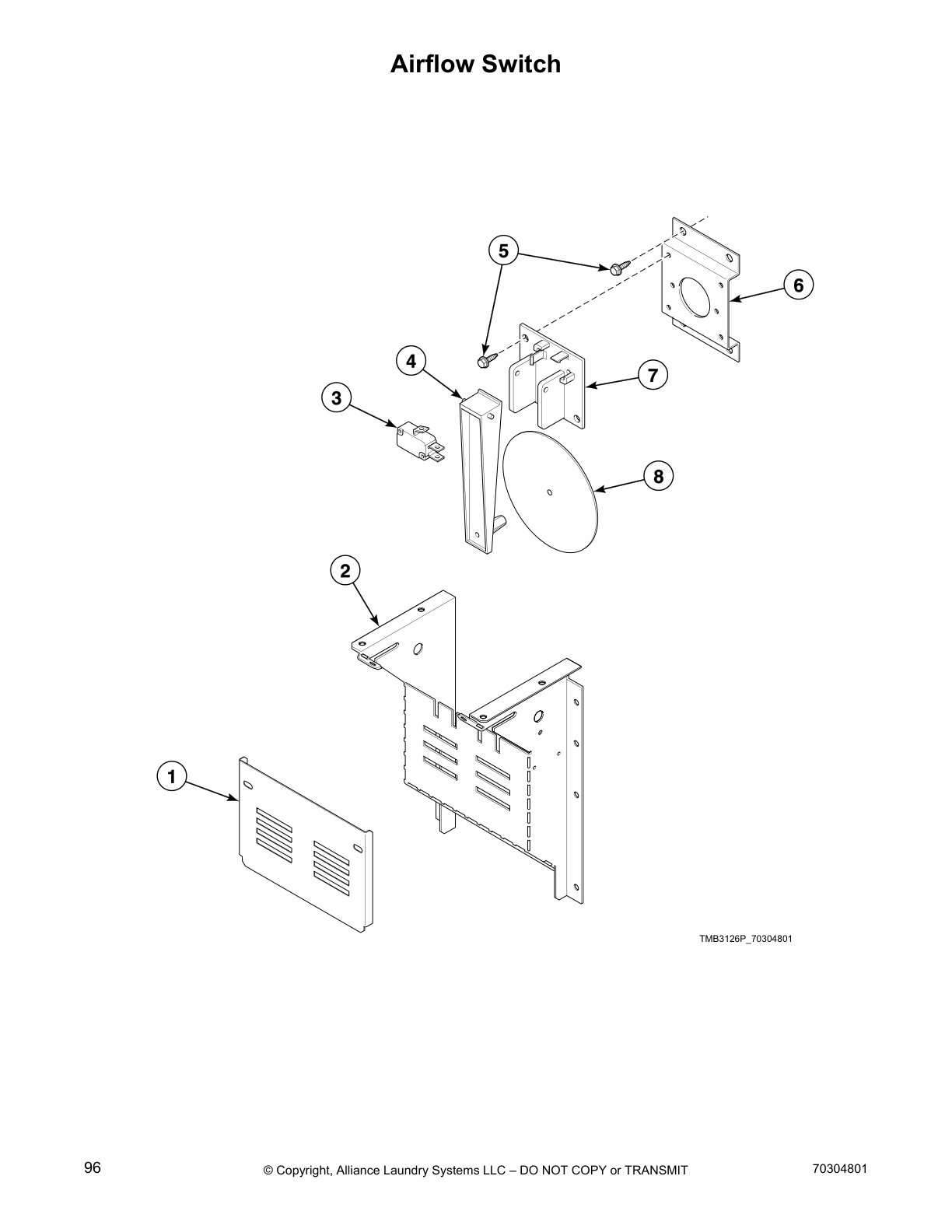

Airflow Switch

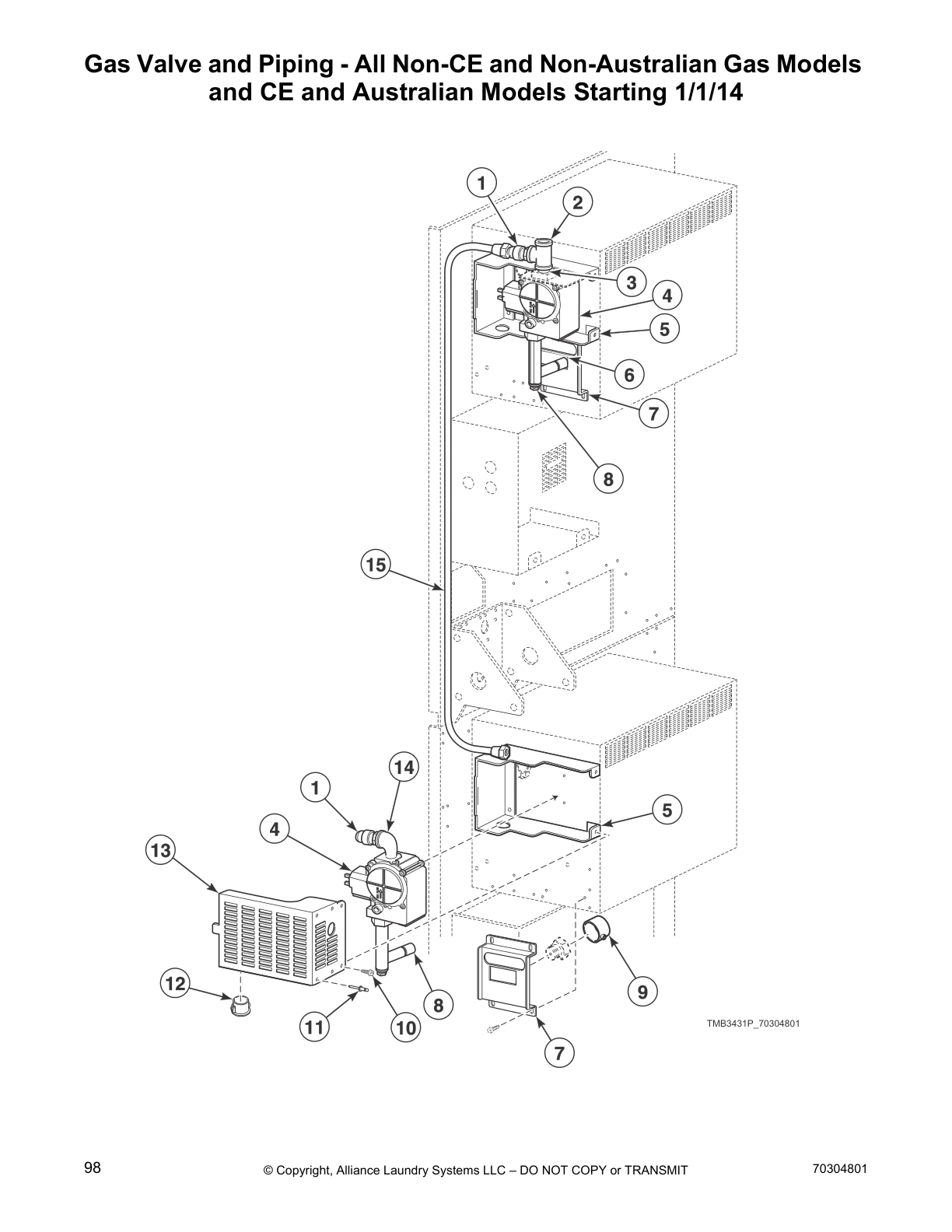

Gas Valve and Piping - All Non-CE and Non-Australian Gas Models
and CE and Australian Models Starting 1/1/14

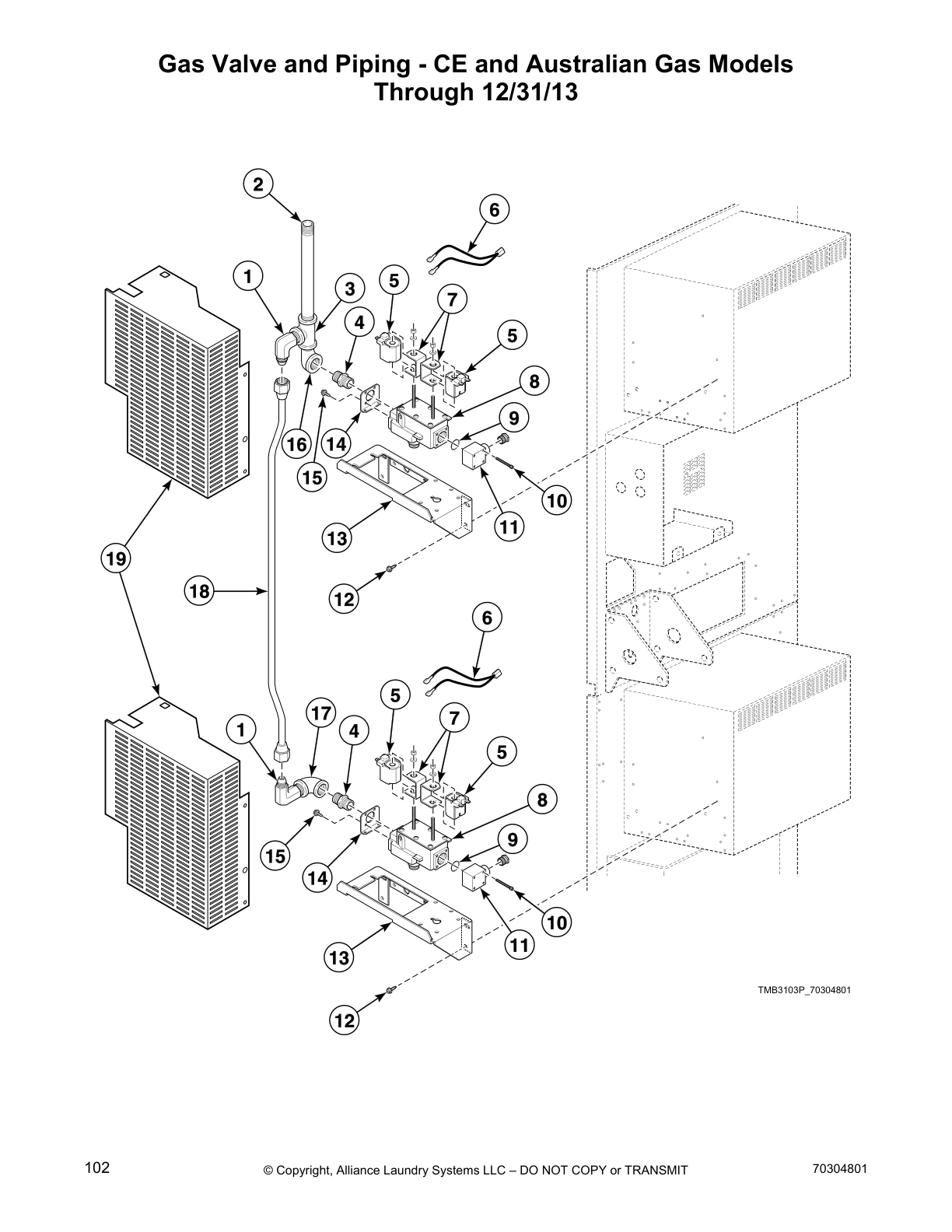

Gas Valve and Piping - CE and Australian Gas Models
Through 12/31/13

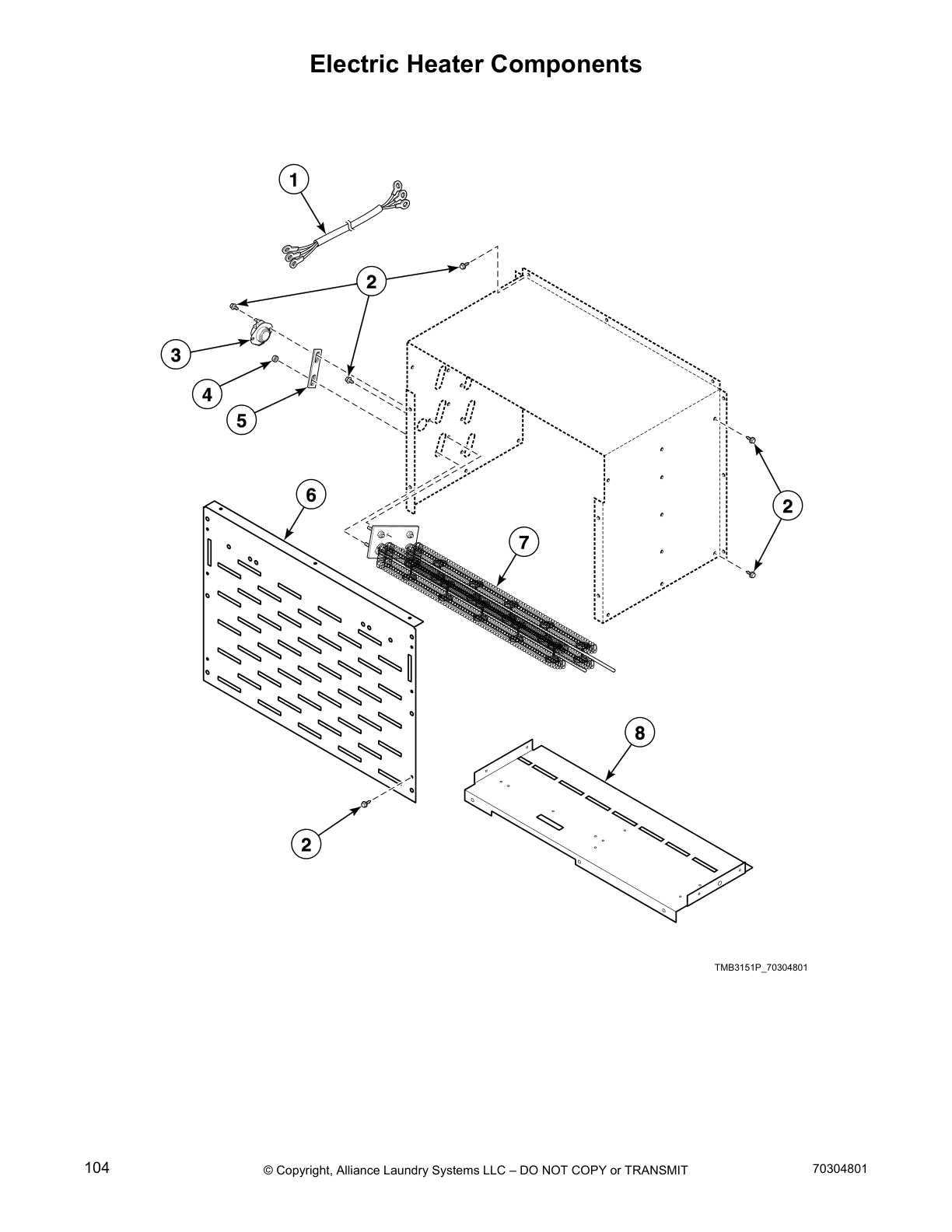

Electric Heater Components

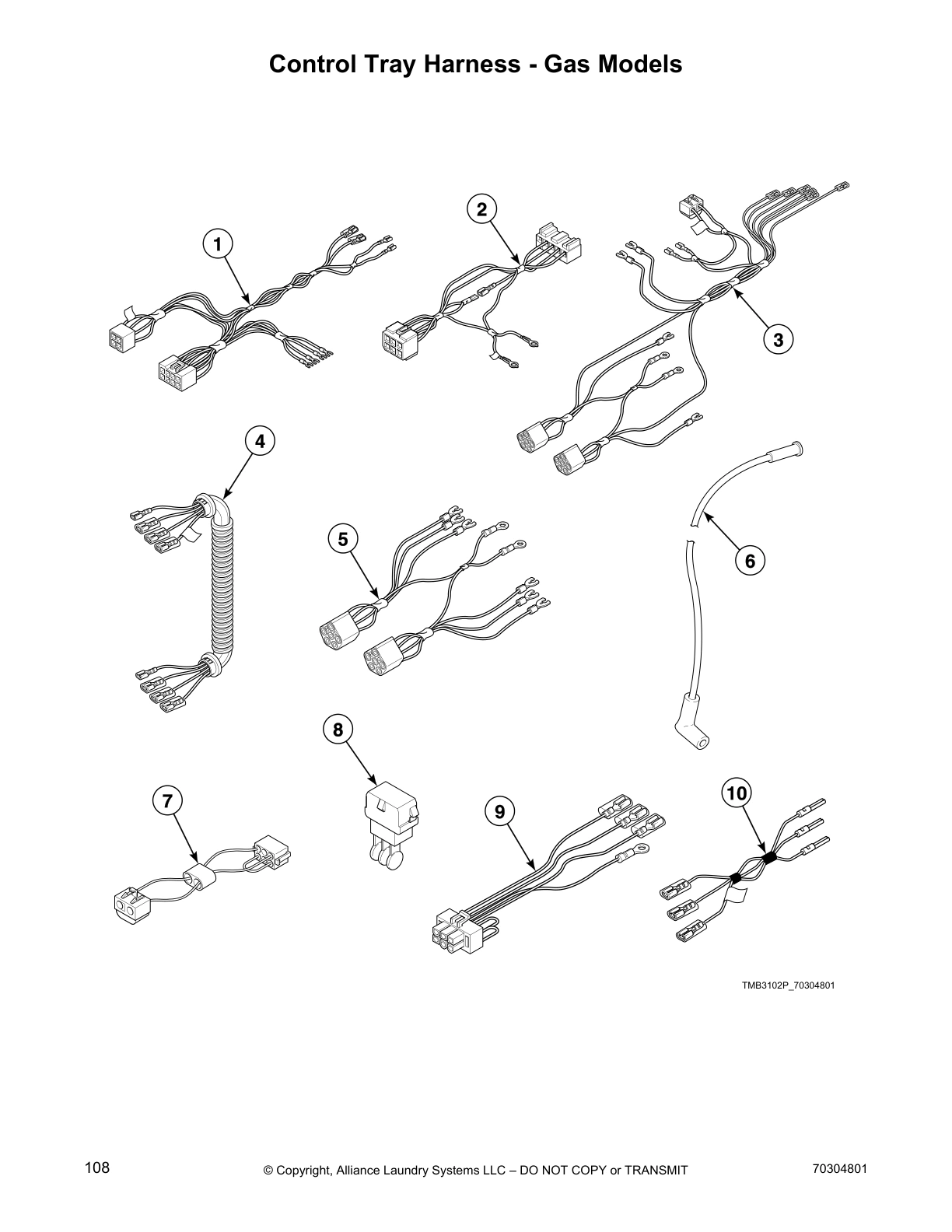

Control Tray Harness - Gas Models

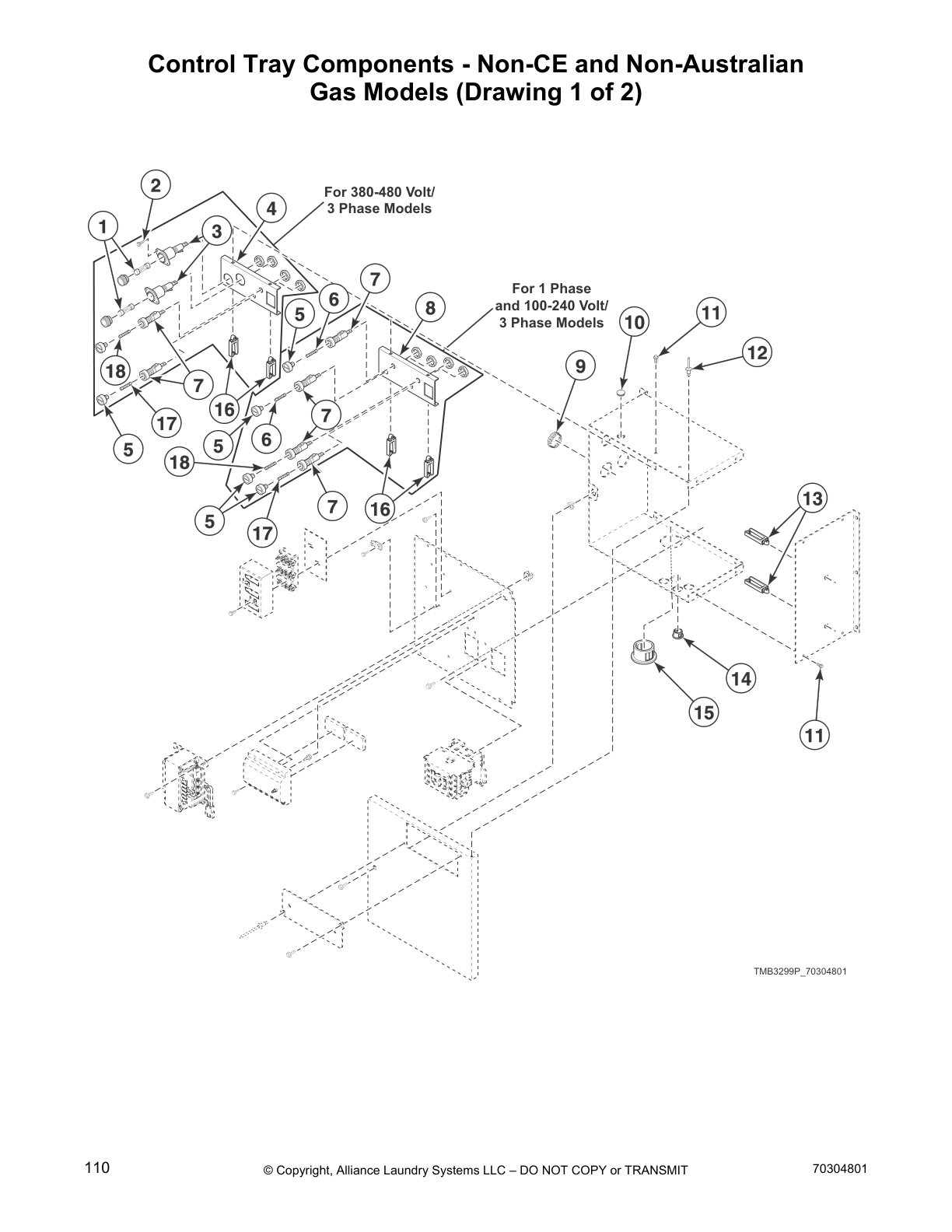

Control Tray Components - Non-CE and Non-Australian
Gas Models (Drawing 1 of 2)

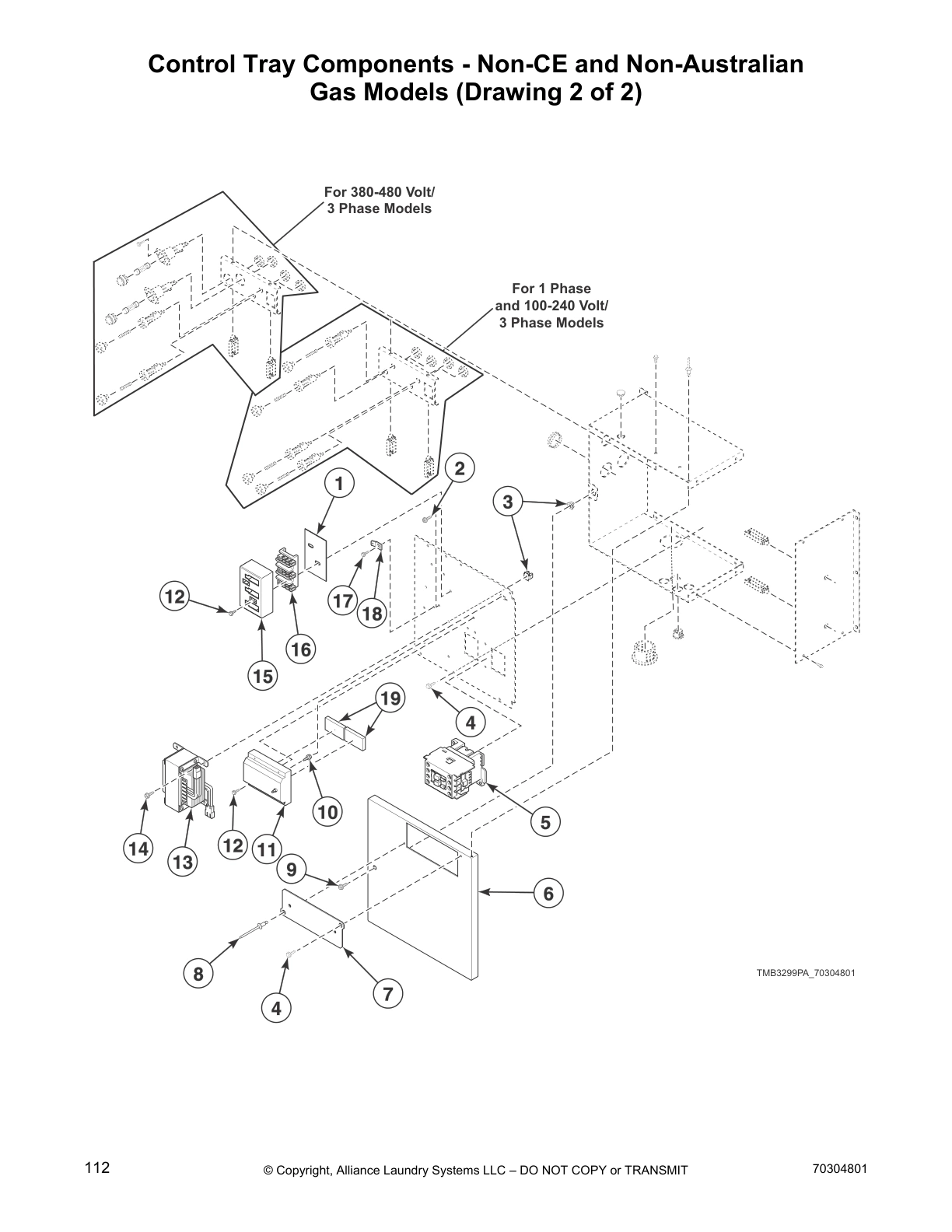

Control Tray Components - Non-CE and Non-Australian
Gas Models (Drawing 2 of 2)

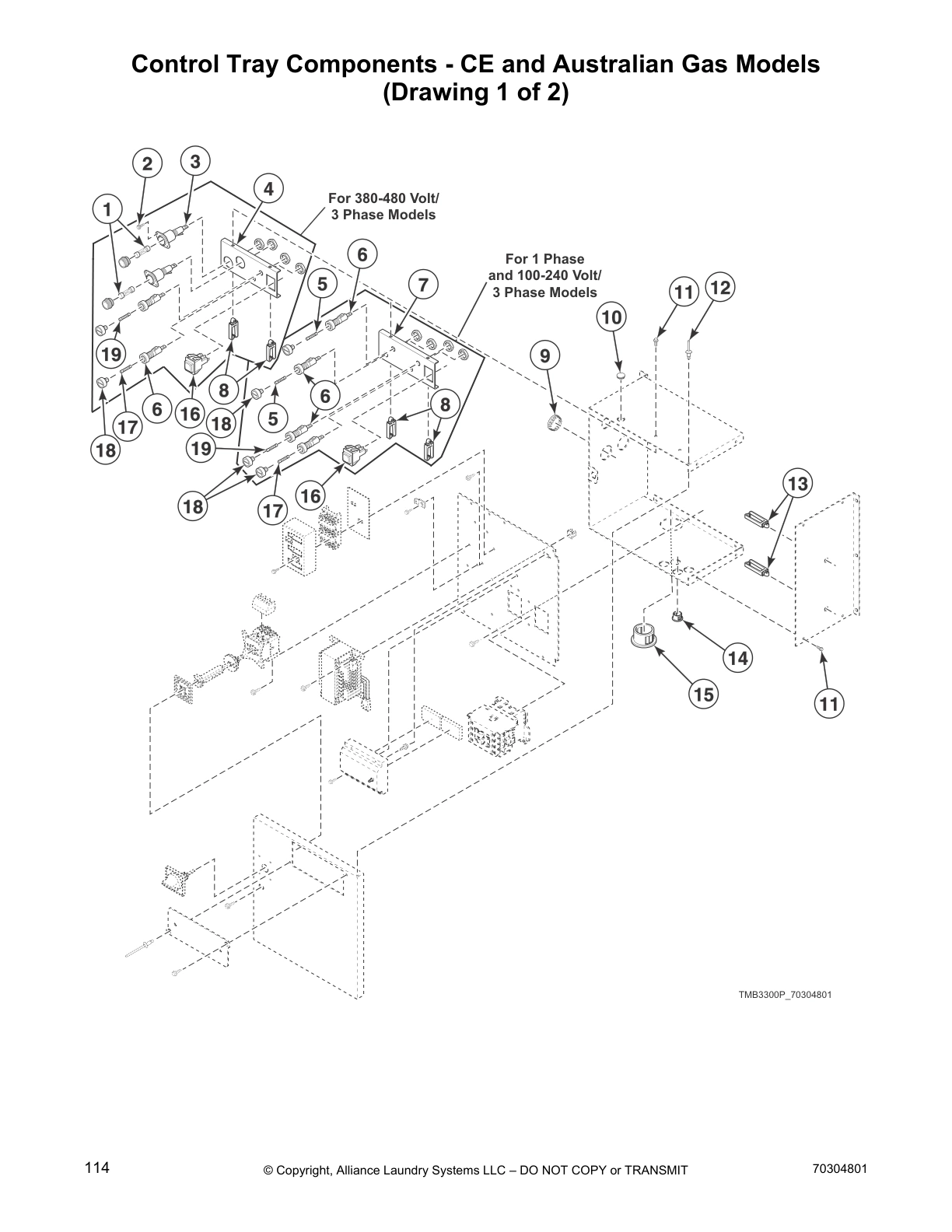

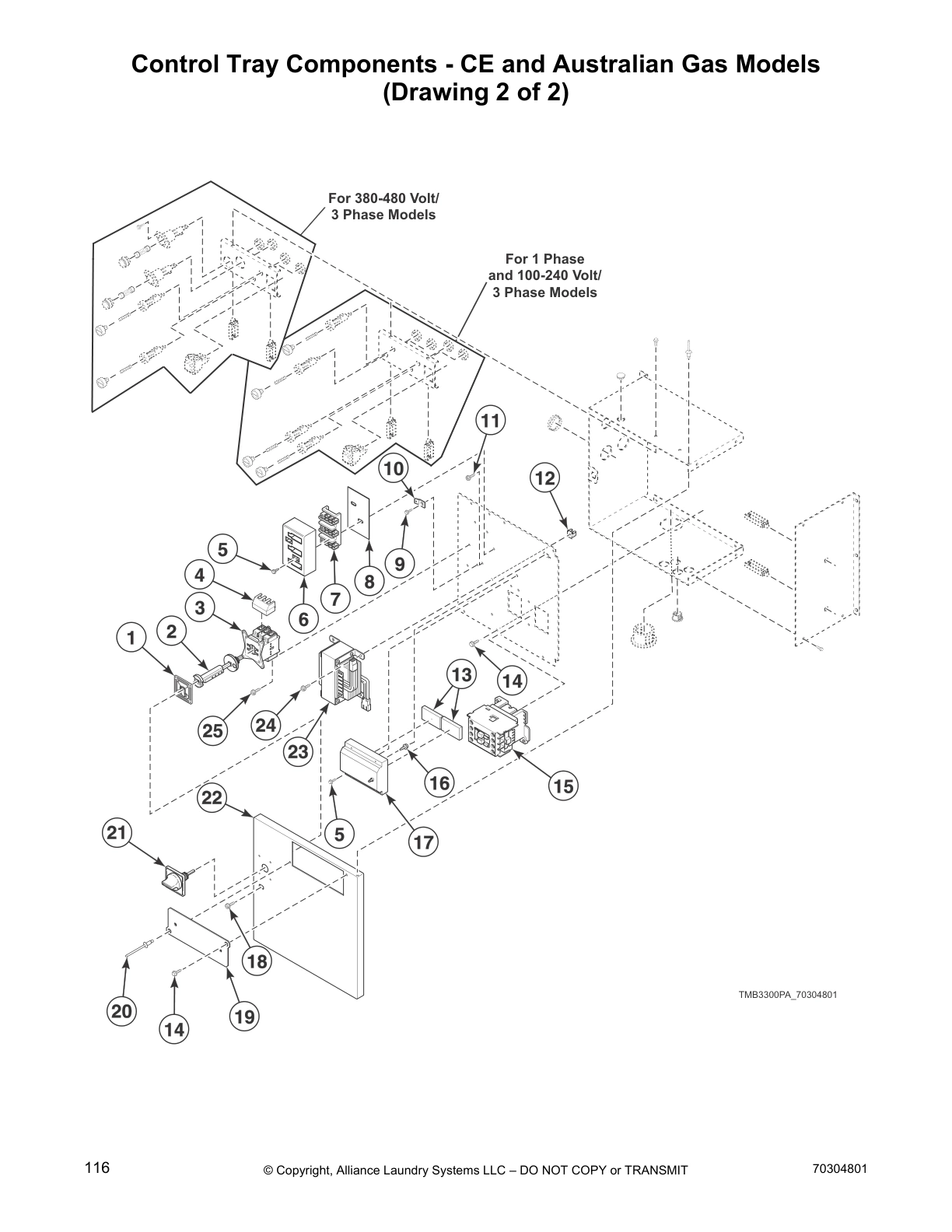

Control Tray Components - CE and Australian Gas Models
(Drawing 1 of 2)
Control Tray Components - CE and Australian Gas Models
(Drawing 2 of 2)

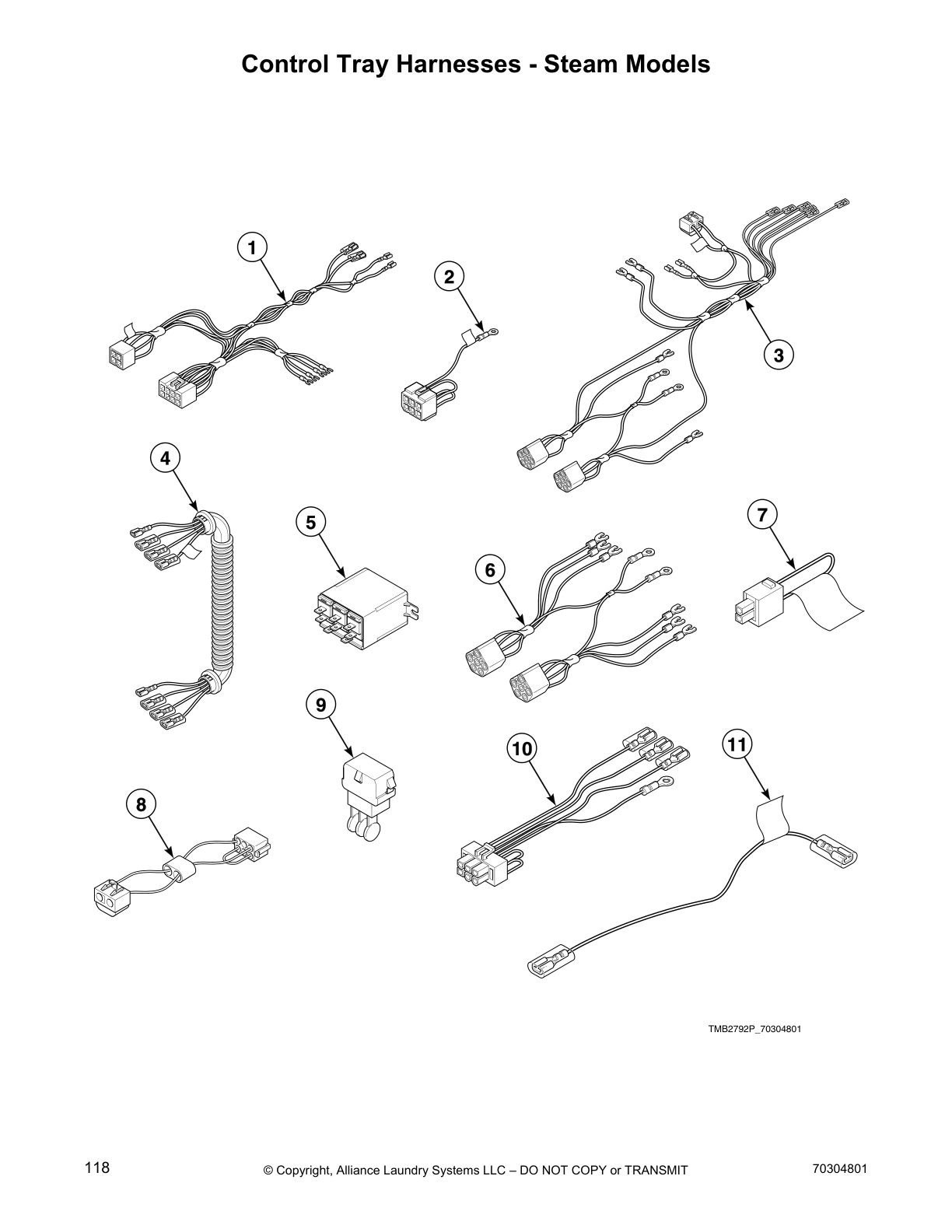

Control Tray Harnesses - Steam Models

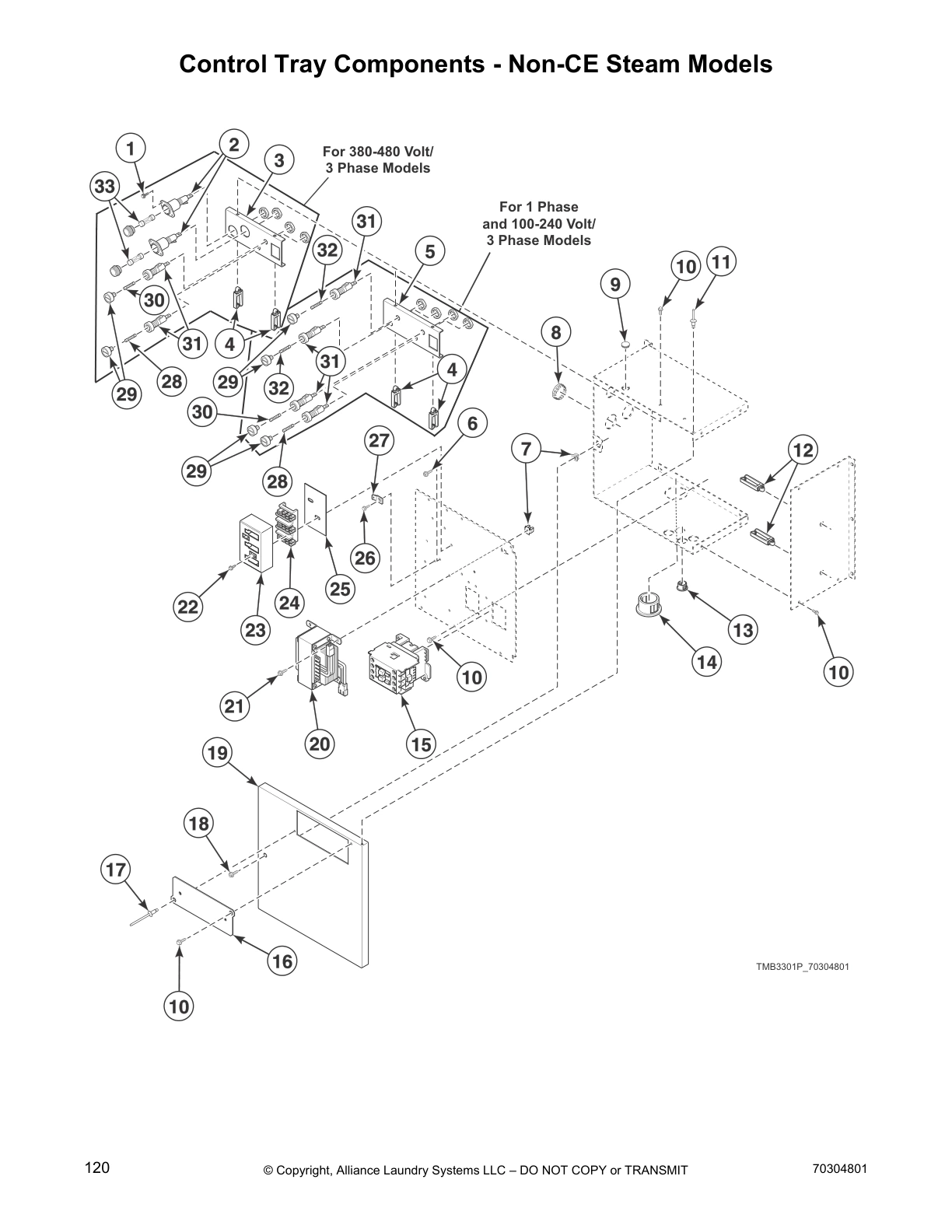

Control Tray Components - Non-CE Steam Models

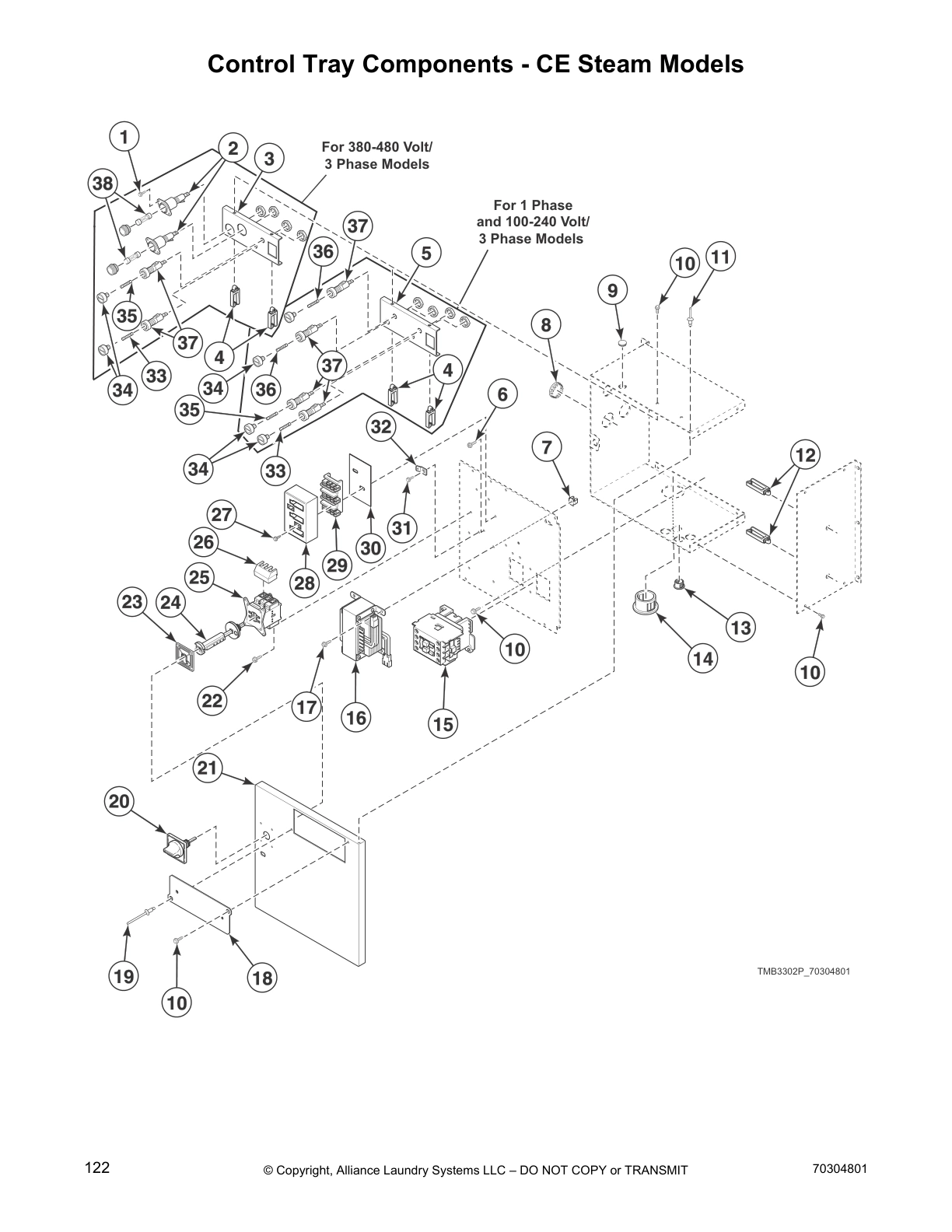

Control Tray Components - CE Steam Models
Accessory Box Harnesses - Electric Models

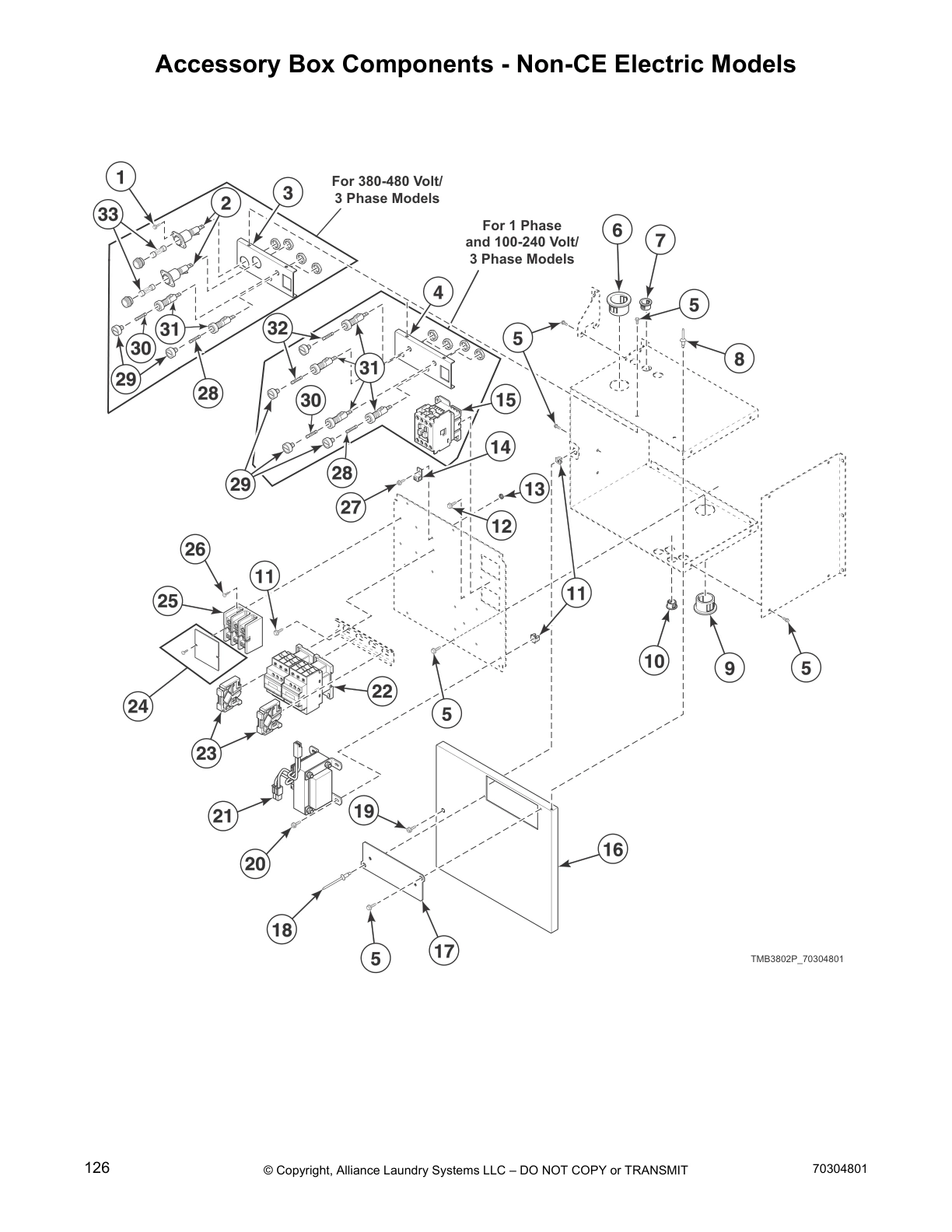

Accessory Box Components - Non-CE Electric Models

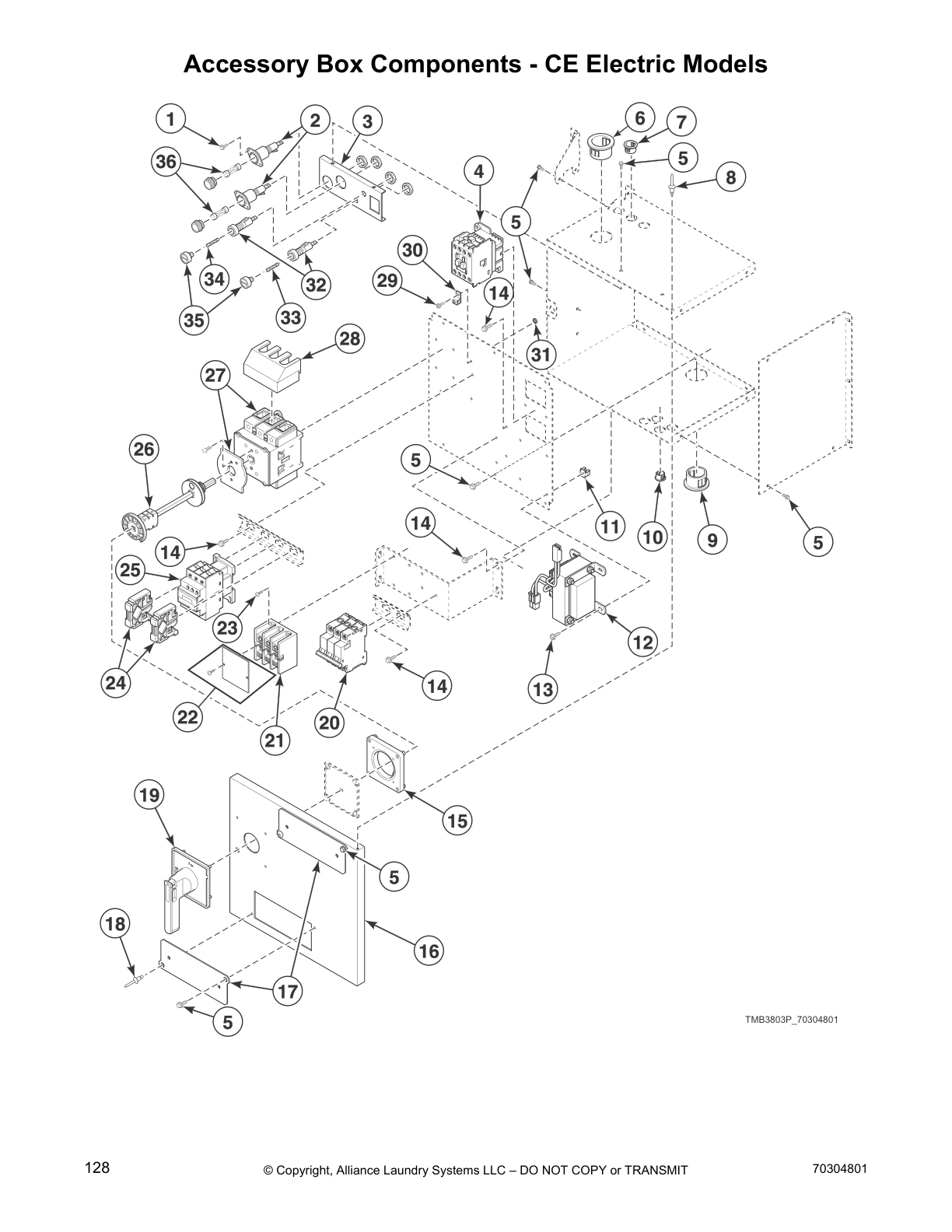

Accessory Box Components - CE Electric Models
Common parts from model Huebsch HHT30E Dryer
Motor Capacitor SPQ 70211502 Contact Us For Availability
SPQ 70017301 SPQ 70017301 Contact Us For Availability
SPQ 70342402 SPQ 70342402 Contact Us For Availability
SPQ 70506101 SPQ 70506101 Contact Us For Availability
SPQ 70136601 SPQ 70136601 Contact Us For Availability
SPQ 215P4P SPQ 215P4P Contact Us For Availability
SPQ 70566401 SPQ 70566401 Contact Us For Availability
SPQ 70346301 SPQ 70346301 Contact Us For Availability
SPQ 70034401P SPQ 70034401P Contact Us For Availability
SPQ M413505 SPQ M413505 Contact Us For Availability
SPQ 70058502 SPQ 70058502 Contact Us For Availability
Jumper Harness Assembly SPQ 70316601 Contact Us For Availability
SPQ M413509 SPQ M413509 Contact Us For Availability
1
Lint Drawer Gasket SPQ 70117901P Contact Us For Availability
1
Door Ring Gasket SPQ 70296801 Contact Us For Availability
1
Main Harness SPQ 70346001P Contact Us For Availability
1
Overlay SPQ 70445102 Contact Us For Availability
1
Door Assembly SPQ 44058001P Contact Us For Availability
1
Door Handle SPQ 44057701 Contact Us For Availability
1
Screw SPQ 70069901 Contact Us For Availability
1
Contact Switch SPQ F8069501 Contact Us For Availability
1
Overlay SPQ 70395901 Contact Us For Availability
1
Cylinder Assembly SPQ 70372502P Contact Us For Availability
1
Drive Motor SPQ 70338101P Contact Us For Availability
1
Exhaust Pipe SPQ 44154301 Contact Us For Availability
1
Blower Motor SPQ 70342601P Contact Us For Availability
1
Nut SPQ M400035 Contact Us For Availability
1
Airflow Switch Cover SPQ 70356601 Contact Us For Availability
1
Junction Box Harness SPQ 70315801 Contact Us For Availability
2
Front Panel Seal SPQ 70173401P Contact Us For Availability
2
Bypass Harness SPQ 70315501P Contact Us For Availability
2
Control Housing Cover SPQ 70307002 Contact Us For Availability
2
Latch Mounting Bracket SPQ 70246301 Contact Us For Availability
2
Control Door and Studs Assembly SPQ 70441101 Contact Us For Availability
2
Door Hinge SPQ 70115902 Contact Us For Availability
2
Lower Front Panel Assembly SPQ 70391204 Contact Us For Availability
2
Shadow Box Clip SPQ 70180101 Contact Us For Availability
2
Contact Base SPQ F8538101 Contact Us For Availability
2
Nut SPQ 44087101 Contact Us For Availability
2
SPQ 70375301 SPQ 70375301 Contact Us For Availability
2
Screw SPQ 70070102 Contact Us For Availability
2
Washer SPQ 70411301 Contact Us For Availability
2
Switch SPQ 70357701 Contact Us For Availability
2
Cylinder Idler Arm SPQ 70440301 Contact Us For Availability
2
Drive Motor Kit SPQ 70338001P Contact Us For Availability
2
Duct Cover SPQ 70207501 Contact Us For Availability
2
Slip Ring Holder SPQ 70455401 Contact Us For Availability
2
Airflow Switch Wrapper SPQ 70465701 Contact Us For Availability
2
Jumper Cable Assembly SPQ 70355801P Contact Us For Availability
3
Fuse SPQ 70343301P Contact Us For Availability
3
Screw SPQ D501524 Contact Us For Availability
3
Wireless Transceiver Assembly SPQ 202335 Contact Us For Availability
3
Door Glass Seal Kit SPQ M414215 Contact Us For Availability
3
Door Hinge SPQ 70115904 Contact Us For Availability
3
Upper Front Panel Assembly SPQ 70391302P Contact Us For Availability
3
Lower Front Panel Assembly Kit SPQ 70391202P Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Lint Screen Bracket SPQ 70026901 Contact Us For Availability
3
Cylinder Guide Tool SPQ 70433002 Contact Us For Availability
3
Belt Tension Tool Kit SPQ 70334701 Contact Us For Availability
3
Moisture Sensing Harness Kit SPQ 44344703 Contact Us For Availability
3
Switch SPQ 70356101 Contact Us For Availability
3
Fuse Holder Cap SPQ 51783 Contact Us For Availability
3
Power Harness SPQ 70371401P Contact Us For Availability
4
Washer SPQ 70292801 Contact Us For Availability
4
Control Panel Harness SPQ 70410401P Contact Us For Availability
4
Network Wire Harness Assembly SPQ 44088501P Contact Us For Availability
4
SPQ 70133601P SPQ 70133601P Contact Us For Availability
4
Screw SPQ 70442101 Contact Us For Availability
4
Upper Front Panel Assembly Kit SPQ 70485401 Contact Us For Availability
4
Pop Rivet SPQ 70182601 Contact Us For Availability
4
Lint Frame Gasket SPQ 70333101 Contact Us For Availability
4
Rear Cylinder Channel SPQ 70391101 Contact Us For Availability
4
Clip SPQ 70226701 Contact Us For Availability
4
Top Panel SPQ 70339402 Contact Us For Availability
4
SPQ 70284203 SPQ 70284203 Contact Us For Availability
4
Blower Motor Mounting Plate SPQ 70341001 Contact Us For Availability
4
Moisture Sensor Harness Assembly SPQ 70448902 Contact Us For Availability
4
Airflow Switch Arm SPQ 70411901 Contact Us For Availability
4
Nut SPQ M409433 Contact Us For Availability
4
SPQ 70406501 SPQ 70406501 Contact Us For Availability
4
Electric Configuration Harness SPQ 70371301P Contact Us For Availability
5
Hinge Cam Kit SPQ M4772P3 Contact Us For Availability
5
Pop Rivet SPQ 70506402 Contact Us For Availability
5
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
5
SPQ M400784P SPQ M400784P Contact Us For Availability
5
Control Door Latch SPQ 431318 Contact Us For Availability
5
Coin Vault Trim SPQ 70033502 Contact Us For Availability
5
Lint Drawer Handle Plate SPQ 70323201 Contact Us For Availability
5
SPQ 70284201 SPQ 70284201 Contact Us For Availability
5
Duct Access Cover SPQ 70340301 Contact Us For Availability
5
Screw SPQ 70319401 Contact Us For Availability
5
SPQ 70329501 SPQ 70329501 Contact Us For Availability
5
Relay SPQ M413933 Contact Us For Availability
6
Support Bearing SPQ 70448701 Contact Us For Availability
6
Cylinder Bearing Stud Plate Asse SPQ 70013701P Contact Us For Availability
6
Control Housing SPQ M400003 Contact Us For Availability
6
Door Hinge Lug Assembly SPQ 44349101 Contact Us For Availability
6
Coin Vault Trim SPQ M401223 Contact Us For Availability
6
Lint Drawer Front Kit SPQ 70322901P Contact Us For Availability
6
Exhaust Duct Gaskets Assembly SPQ 70340401 Contact Us For Availability
6
Key SPQ 70440401 Contact Us For Availability
6
Stove Grill SPQ M400869 Contact Us For Availability
6
Motor Contactor Harness SPQ 70439401 Contact Us For Availability
7
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
7
Slot Card Plate Assembly SPQ 44089501 Contact Us For Availability
7
Output Harness SPQ 44223101 Contact Us For Availability
7
Pushbutton Switch SPQ 44166601 Contact Us For Availability
7
Lint Drawer Handle SPQ 70322902P Contact Us For Availability
7
Rear Cylinder Channel Plate SPQ 70257101 Contact Us For Availability
7
Lower Pan SPQ 70066003 Contact Us For Availability
7
Thermistor Cover SPQ 70440001P Contact Us For Availability
7
Airflow Switch and Arm Bracket SPQ 70356301 Contact Us For Availability
7
Heater Element SPQ 70214901 Contact Us For Availability
7
Stove Limit Bypass Harness SPQ 70439301 Contact Us For Availability
8
SPQ D512218P SPQ D512218P Contact Us For Availability
8
SPQ 44035001 SPQ 44035001 Contact Us For Availability
8
Gasket SPQ 70144101 Contact Us For Availability
8
Mounting Plate SPQ 70208801 Contact Us For Availability
8
Control Panel Harness SPQ 44186101 Contact Us For Availability
8
Spacer SPQ 70119901 Contact Us For Availability
8
Lint Drawer Gasket SPQ 70117502 Contact Us For Availability
8
Lint Panel and Studs Assembly SPQ 70320802 Contact Us For Availability
8
Nut SPQ 70257102 Contact Us For Availability
8
SPQ 70062401 SPQ 70062401 Contact Us For Availability
8
Airflow Switch Vane SPQ 70319602 Contact Us For Availability
8
Heater Element SPQ 70034403P Contact Us For Availability
8
Jumper Configuration Assembly SPQ 70357601P Contact Us For Availability
9
Jumper Harness Assembly SPQ 70210901P Contact Us For Availability
9
SPQ M400991 SPQ M400991 Contact Us For Availability
9
Control Door and Studs Assembly SPQ 70498401 Contact Us For Availability
9
SPQ 44240301 SPQ 44240301 Contact Us For Availability
9
SPQ 70071401 SPQ 70071401 Contact Us For Availability
9
Lock Shim SPQ 70320801 Contact Us For Availability
9
Drywall Screw Magnet Kit SPQ 70564804 Contact Us For Availability
9
SPQ 70339501 SPQ 70339501 Contact Us For Availability
9
SPQ 70306901 SPQ 70306901 Contact Us For Availability
10
Audit Switch Bracket SPQ 70292601 Contact Us For Availability
10
Main Harness SPQ 70441401 Contact Us For Availability
10
Central Pay Harness SPQ 70484501 Contact Us For Availability
10
Control Overlay SPQ 70472901 Contact Us For Availability
10
Door Glass Installation Tool SPQ M4221P4 Contact Us For Availability
10
Pop Rivet SPQ 44251101 Contact Us For Availability
10
Kickplate SPQ 70117606 Contact Us For Availability
10
Panel Latch SPQ 70399201 Contact Us For Availability
10
Cylinder and Trunnion Assembly SPQ 70443901P Contact Us For Availability
10
Channel Base Assembly SPQ 70288201 Contact Us For Availability
10
Motor Mount Bracket SPQ 70127301 Contact Us For Availability
10
Blower Motor Kit SPQ 70337701P Contact Us For Availability
10
Snap Bushing SPQ 70178701 Contact Us For Availability
10
Network Capacitor Harness Assembly SPQ 70286501 Contact Us For Availability
11
Temperature Knob SPQ 44104601 Contact Us For Availability
11
Audit Switch Bracket SPQ 70183901 Contact Us For Availability
11
Bypass Harness SPQ 70364103 Contact Us For Availability
11
Screw SPQ M400661 Contact Us For Availability
11
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
11
Pop Rivet SPQ 70126401 Contact Us For Availability
11
Panel Latch Kit SPQ 70399201P Contact Us For Availability
11
Washer SPQ 70443902 Contact Us For Availability
11
Temperature Sensor Assembly SPQ B12308601 Contact Us For Availability
11
Heater Cable Set Assembly SPQ 44152001 Contact Us For Availability
12
Key SPQ 70155602 Contact Us For Availability
12
Latch Mounting Bracket SPQ 70184501 Contact Us For Availability
12
Jumper Calibration Wire SPQ 70324603 Contact Us For Availability
12
Snap Bushing SPQ 70366201 Contact Us For Availability
12
Control Overlay SPQ 70472102 Contact Us For Availability
12
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
12
Coin Vault Assembly SPQ 70275801 Contact Us For Availability
12
Motor Channel SPQ 70261701 Contact Us For Availability
12
Jumper Assembly SPQ 70168001 Contact Us For Availability
12
Transformer SPQ M414229P Contact Us For Availability
13
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
13
Key SPQ 70155601 Contact Us For Availability
13
Coin Cover Overlay SPQ 70472101 Contact Us For Availability
13
Cylinder Rib Assembly SPQ 70070101 Contact Us For Availability
13
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
13
Limit Thermostat SPQ M411307 Contact Us For Availability
13
Electric Contactor Jumper Set Harness SPQ 70167901 Contact Us For Availability
13
Fuse Cover SPQ 44074401 Contact Us For Availability
14
Roller Seal SPQ 70443601 Contact Us For Availability
14
Washer SPQ 70443301 Contact Us For Availability
14
Pop Rivet SPQ M411072 Contact Us For Availability
14
Blower Housing Cover Assembly SPQ 70341401 Contact Us For Availability
14
Cable Set Heater Assembly SPQ 70139001 Contact Us For Availability
15
Control Panel Harness SPQ 70368001P Contact Us For Availability
15
Roller Shaft SPQ 70249501 Contact Us For Availability
15
SPQ 23222 SPQ 23222 Contact Us For Availability
15
Drum Idler Spring SPQ 70270301 Contact Us For Availability
16
Washer SPQ 70261401 Contact Us For Availability
16
Screw SPQ 70045301 Contact Us For Availability
16
Blower Housing Scroll SPQ 70340801 Contact Us For Availability
16
Fuse Cover SPQ 70348201 Contact Us For Availability
17
Roller Support Bracket SPQ 70288801 Contact Us For Availability
17
Cylinder Motor Harness SPQ 70265901 Contact Us For Availability
17
Blower Inlet Cone SPQ 70014101 Contact Us For Availability
18
Sheet Metal Edge Gasket SPQ 70339001 Contact Us For Availability
18
Power Distribution Block SPQ 70313301 Contact Us For Availability
19
Top Panel Assembly SPQ 70015711 Contact Us For Availability
19
Idler Wheel Assembly SPQ 430648 Contact Us For Availability
19
Rear Stabilizer Bracket SPQ 70200301 Contact Us For Availability
20
Nut SPQ M400022 Contact Us For Availability
20
Cylinder Shroud SPQ 70015712 Contact Us For Availability
20
Double Ended Stud SPQ 70439901 Contact Us For Availability
21
Motor Conduit Mounting Bracket SPQ 70321701 Contact Us For Availability
21
Motor Pulley SPQ 70316701P Contact Us For Availability
21
End Stop SPQ M413544P Contact Us For Availability
22
Rear Panel SPQ 70030401 Contact Us For Availability
22
Motor Conduit Mounting Bracket SPQ 70050401P Contact Us For Availability
22
Washer SPQ F431131 Contact Us For Availability
22
Contactor SPQ 44155601P Contact Us For Availability
23
Fuse Bracket SPQ M413865 Contact Us For Availability
23
Rear Cylinder Seal Support SPQ 70339301 Contact Us For Availability
23
Bolt SPQ 70259901 Contact Us For Availability
23
Fuse Holder Cap SPQ M414228P Contact Us For Availability
24
Rear Cylinder Seal SPQ 70339302 Contact Us For Availability
24
Ground Lug Connector SPQ 44014901P Contact Us For Availability
27
Expansion Clip SPQ 430642 Contact Us For Availability
29
Fuse Holder Body SPQ 70121001 Contact Us For Availability
30
SPQ 70406601 SPQ 70406601 Contact Us For Availability
30
Fuse Holder Body SPQ 70333001 Contact Us For Availability
30
Fuse Holder Cap SPQ 685837 Contact Us For Availability
31
SPQ 70313602 SPQ 70313602 Contact Us For Availability
32
SPQ 70313601 SPQ 70313601 Contact Us For Availability
33
SPQ M411283 SPQ M411283 Contact Us For Availability
34
SPQ 44088001 SPQ 44088001 Contact Us For Availability
34
SPQ M413862 SPQ M413862 Contact Us For Availability
35
SPQ 70329401P SPQ 70329401P Contact Us For Availability
36
SPQ 00177 SPQ 00177 Contact Us For Availability
NI
SPQ 70406701 SPQ 70406701 Contact Us For Availability
NI
SPQ 70564803 SPQ 70564803 Contact Us For Availability
NI
SPQ 70211401 SPQ 70211401 Contact Us For Availability
NI
SPQ CK100 SPQ CK100 Contact Us For Availability
NI
SPQ CK122 SPQ CK122 Contact Us For Availability
NI
SPQ CK120 SPQ CK120 Contact Us For Availability
NI
SPQ CK117 SPQ CK117 Contact Us For Availability
NI
Base Harness SPQ 70413301 Contact Us For Availability
NI
SPQ 70119001 SPQ 70119001 Contact Us For Availability
NI
Control Door Latch Kit SPQ 70364104P Contact Us For Availability
NI
SPQ 70559502 SPQ 70559502 Contact Us For Availability
NI
SPQ 44058004P SPQ 44058004P Contact Us For Availability
NI
Door Handle SPQ 44007902P Contact Us For Availability
NI
SPQ 70211901P SPQ 70211901P Contact Us For Availability
NI
SPQ 70418101 SPQ 70418101 Contact Us For Availability
NI
Instruction Label SPQ 70485402 Contact Us For Availability
NI
SPQ 44088801 SPQ 44088801 Contact Us For Availability
NI
SPQ 431264 SPQ 431264 Contact Us For Availability
NI
SPQ 70449001 SPQ 70449001 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
NI
SPQ 70322906 SPQ 70322906 Contact Us For Availability
NI
SPQ 70342401 SPQ 70342401 Contact Us For Availability
NI
SPQ 70136501 SPQ 70136501 Contact Us For Availability
NI
SPQ 70506001 SPQ 70506001 Contact Us For Availability
NI
SPQ 70115201 SPQ 70115201 Contact Us For Availability
NI
SPQ 70257201 SPQ 70257201 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 70247701 SPQ 70247701 Contact Us For Availability
NI
SPQ 70560401 SPQ 70560401 Contact Us For Availability
NI
Spray Paint SPQ 298P4P Contact Us For Availability
NI
Porcelain Touch-Up Paint SPQ 297P4 Contact Us For Availability
NI
SPQ 381P4 SPQ 381P4 Contact Us For Availability
NI
SPQ 70202501 SPQ 70202501 Contact Us For Availability
NI
SPQ M4853P3 SPQ M4853P3 Contact Us For Availability
NI
Motor Capacitor SPQ M410296 Contact Us For Availability
NI
SPQ 70289101P SPQ 70289101P Contact Us For Availability
NI
SPQ 70126101 SPQ 70126101 Contact Us For Availability
NI
SPQ 70392701P SPQ 70392701P Contact Us For Availability
NI
Moisture Sensor Test Wires SPQ 70468901 Contact Us For Availability
NI
SPQ 70319201 SPQ 70319201 Contact Us For Availability
NI
SPQ M400770 SPQ M400770 Contact Us For Availability
NI
Lower Stove Cover SPQ 70034402P Contact Us For Availability
NI
SPQ 70333501 SPQ 70333501 Contact Us For Availability
NI
SPQ M413506 SPQ M413506 Contact Us For Availability
NI
Jumper Configuration Assembly SPQ 70320201 Contact Us For Availability
NI
Network Capacitor Assembly SPQ M413510 Contact Us For Availability
NI
SPQ M413508 SPQ M413508 Contact Us For Availability
NI
SPQ M413863 SPQ M413863 Contact Us For Availability
NI
SPQ 70346501 SPQ 70346501 Contact Us For Availability
× ![]()
