Model Huebsch HG075D Dryer – Common Parts & Diagrams

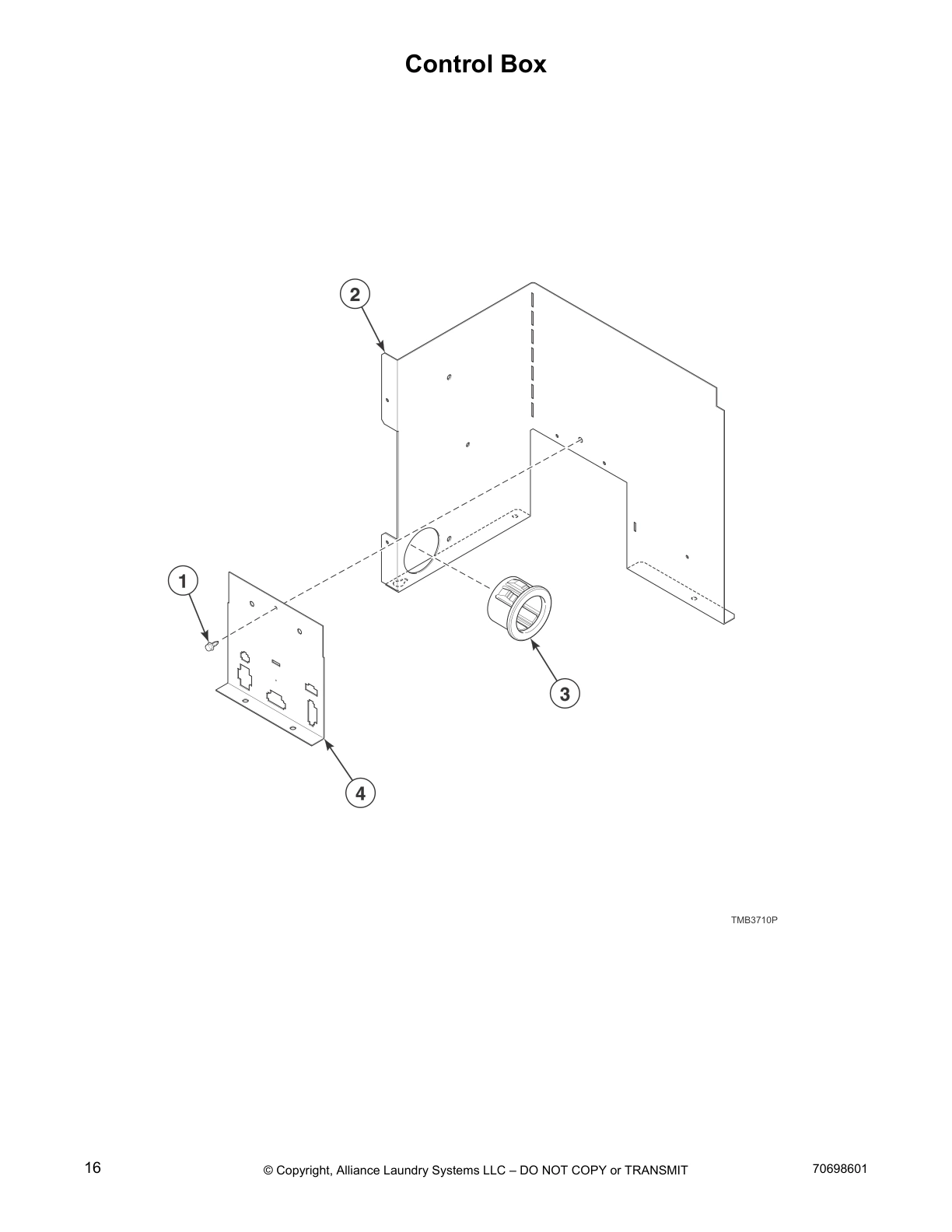

Control Box

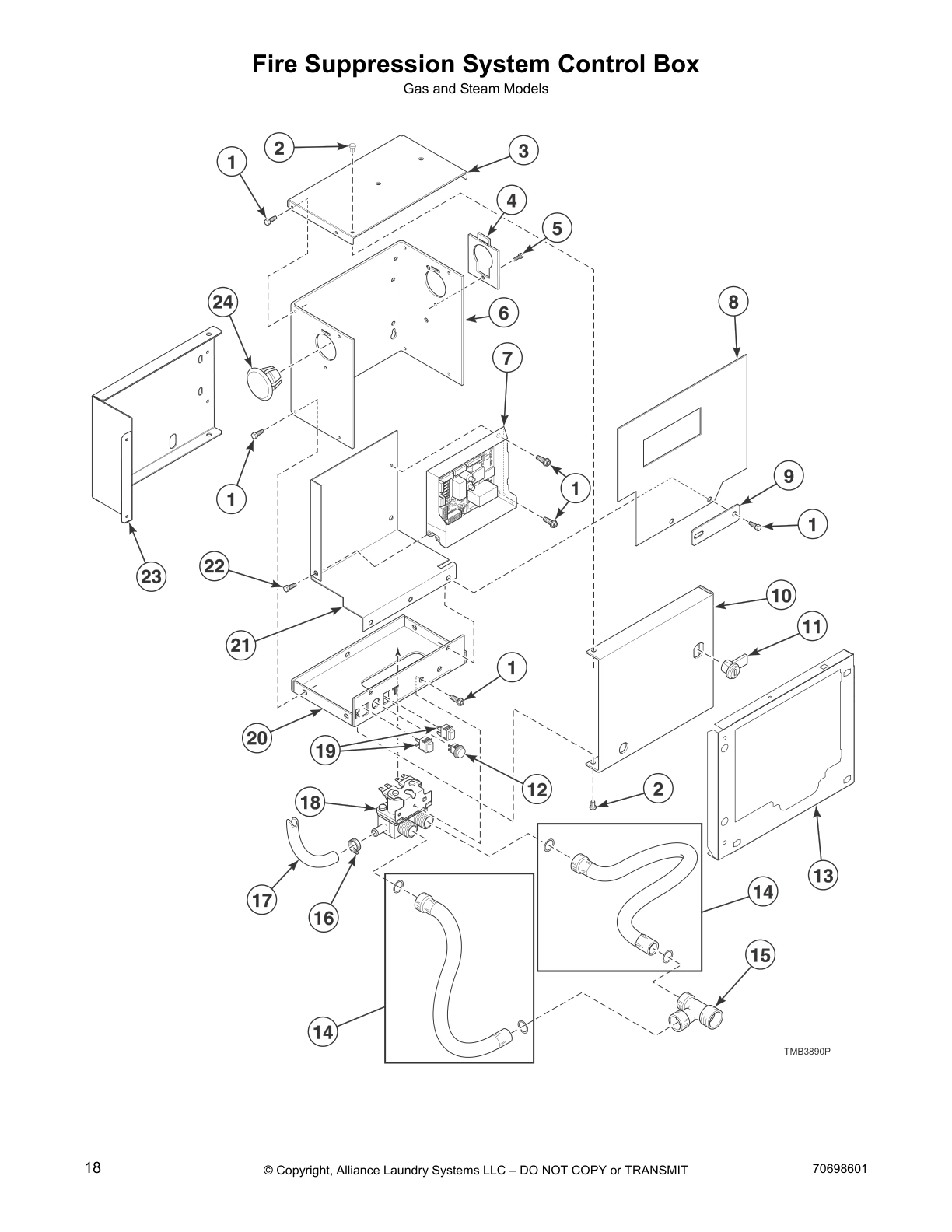

Fire Suppression System Control Box

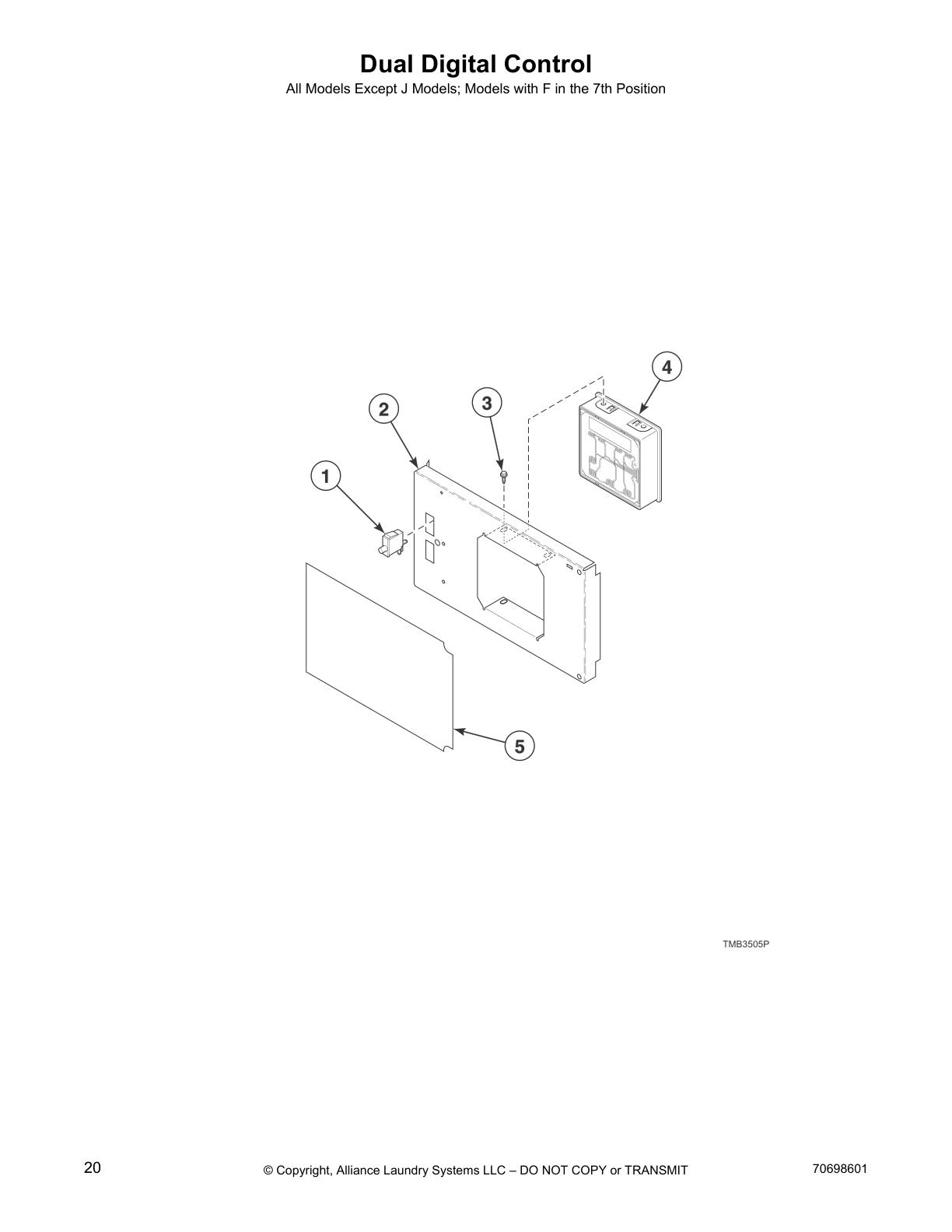

Dual Digital Control

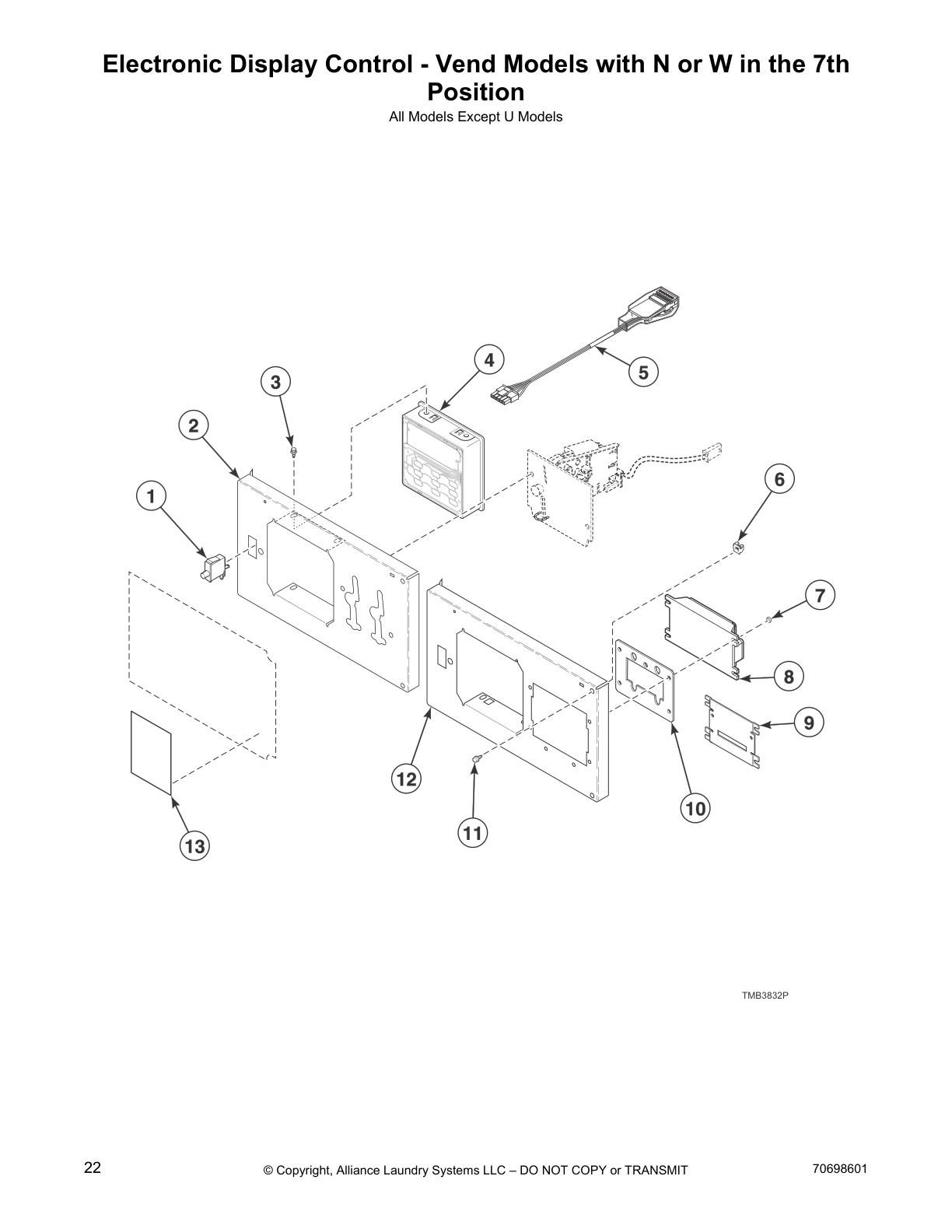

Electronic Display Control - Vend Models with N or W in the 7th
Position

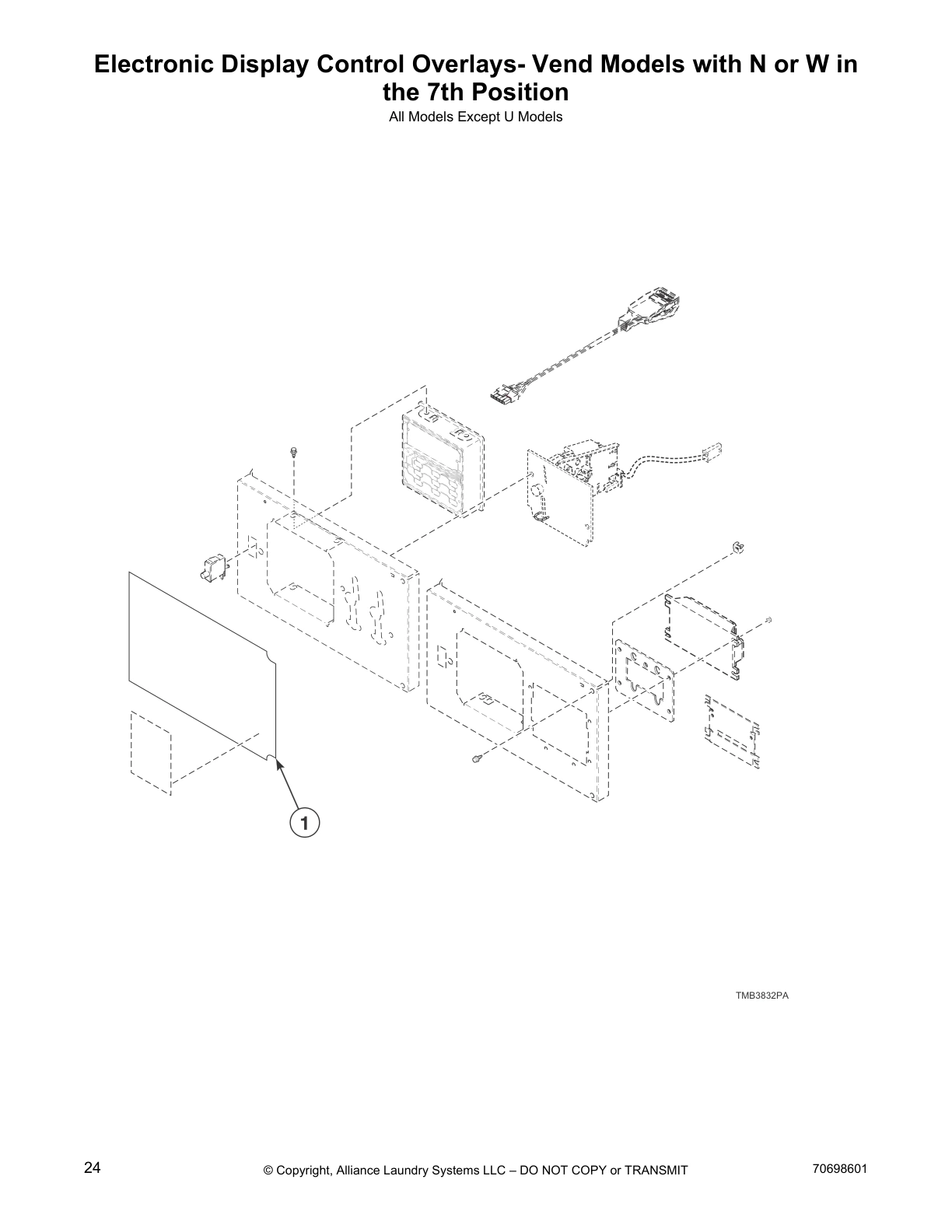

Electronic Display Control Overlays- Vend Models with N or W in
the 7th Position

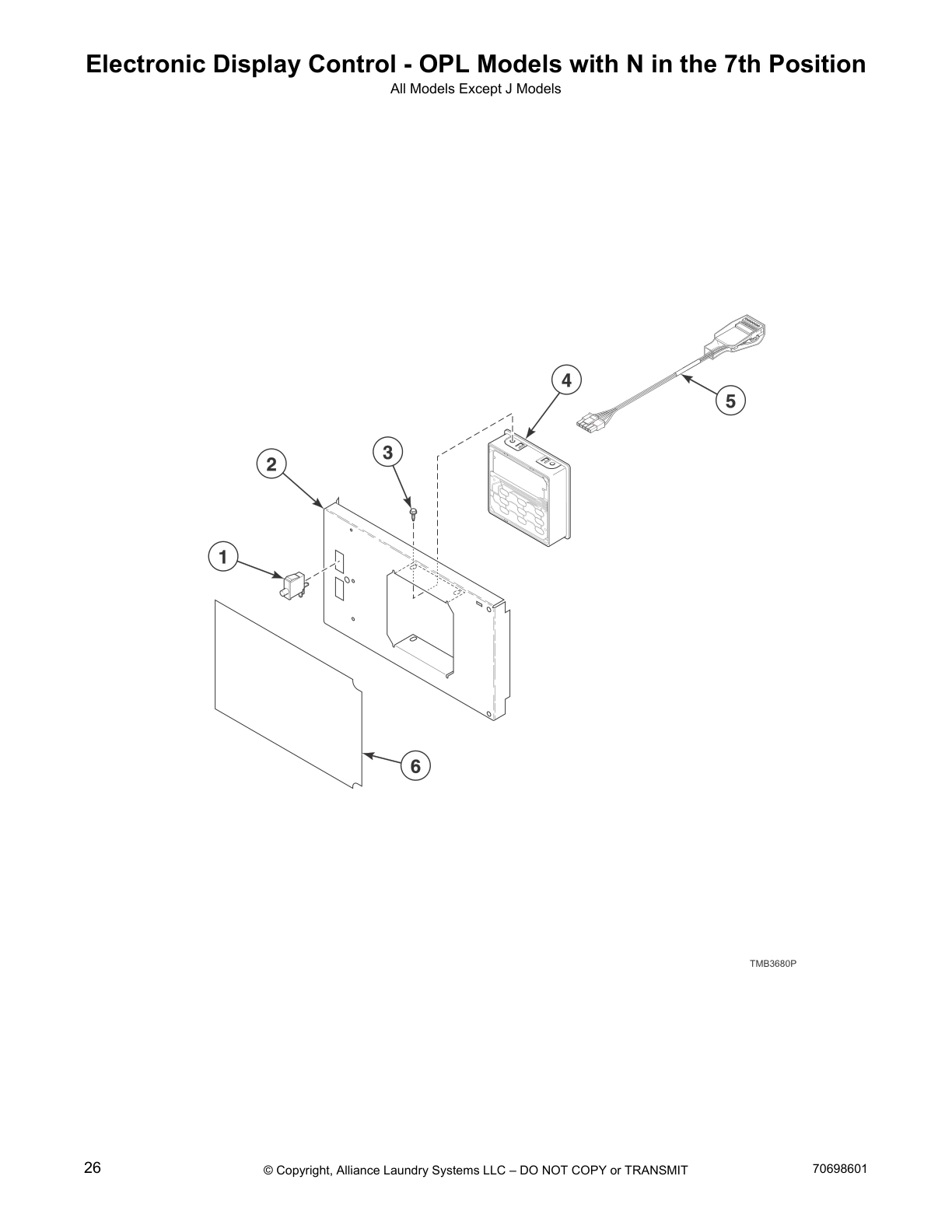

Electronic Display Control - OPL Models with N in the 7th Position

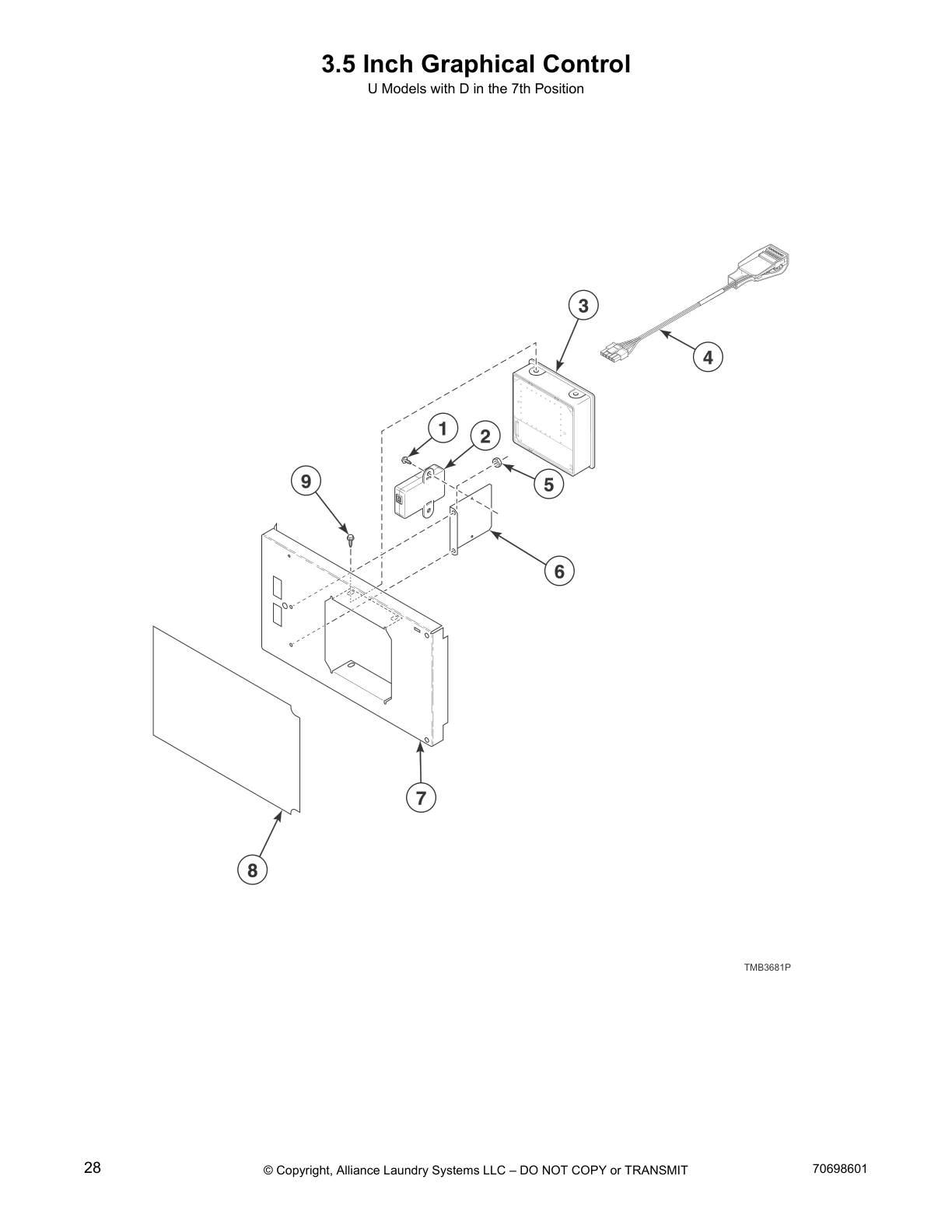

3.5 Inch Graphical Control

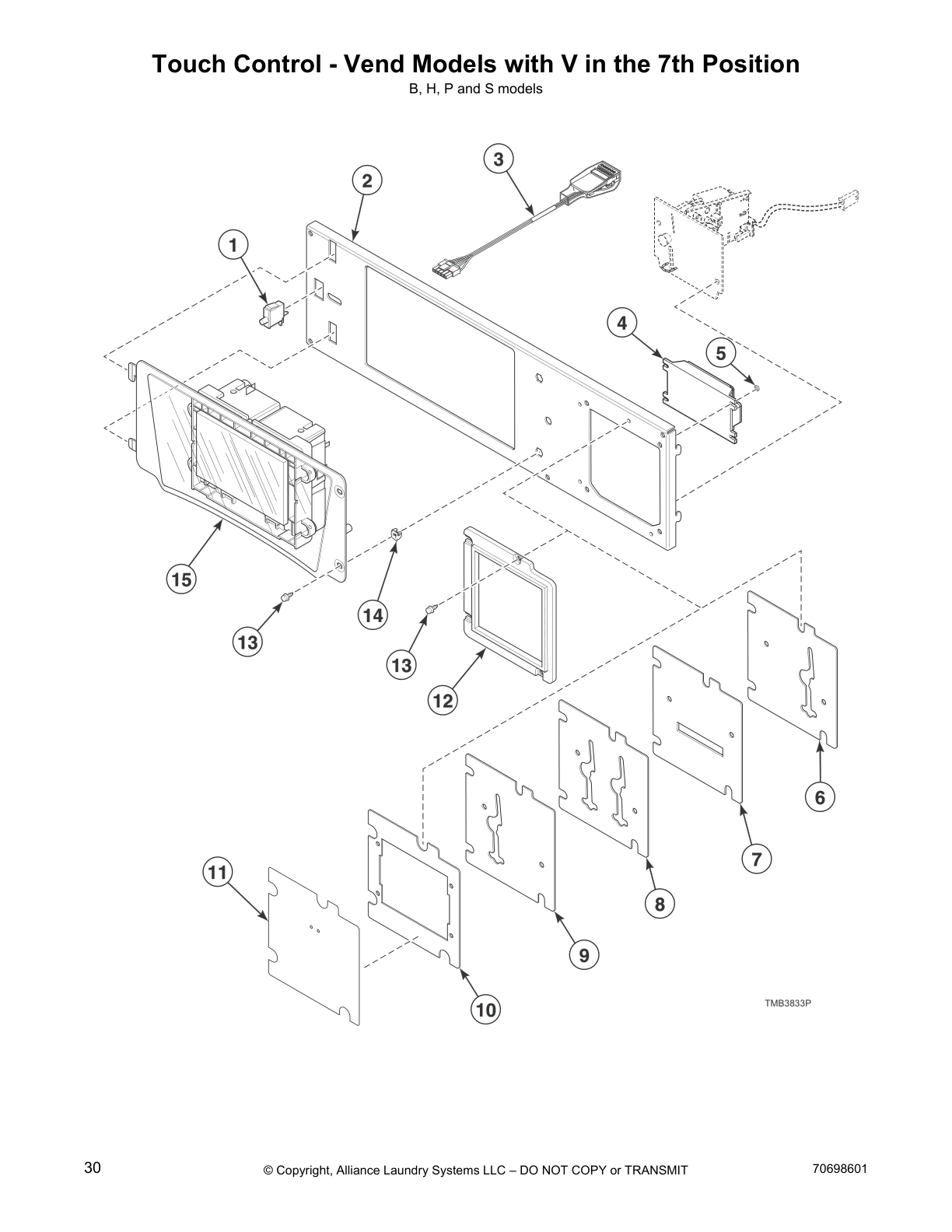

Touch Control - Vend Models with V in the 7th Position

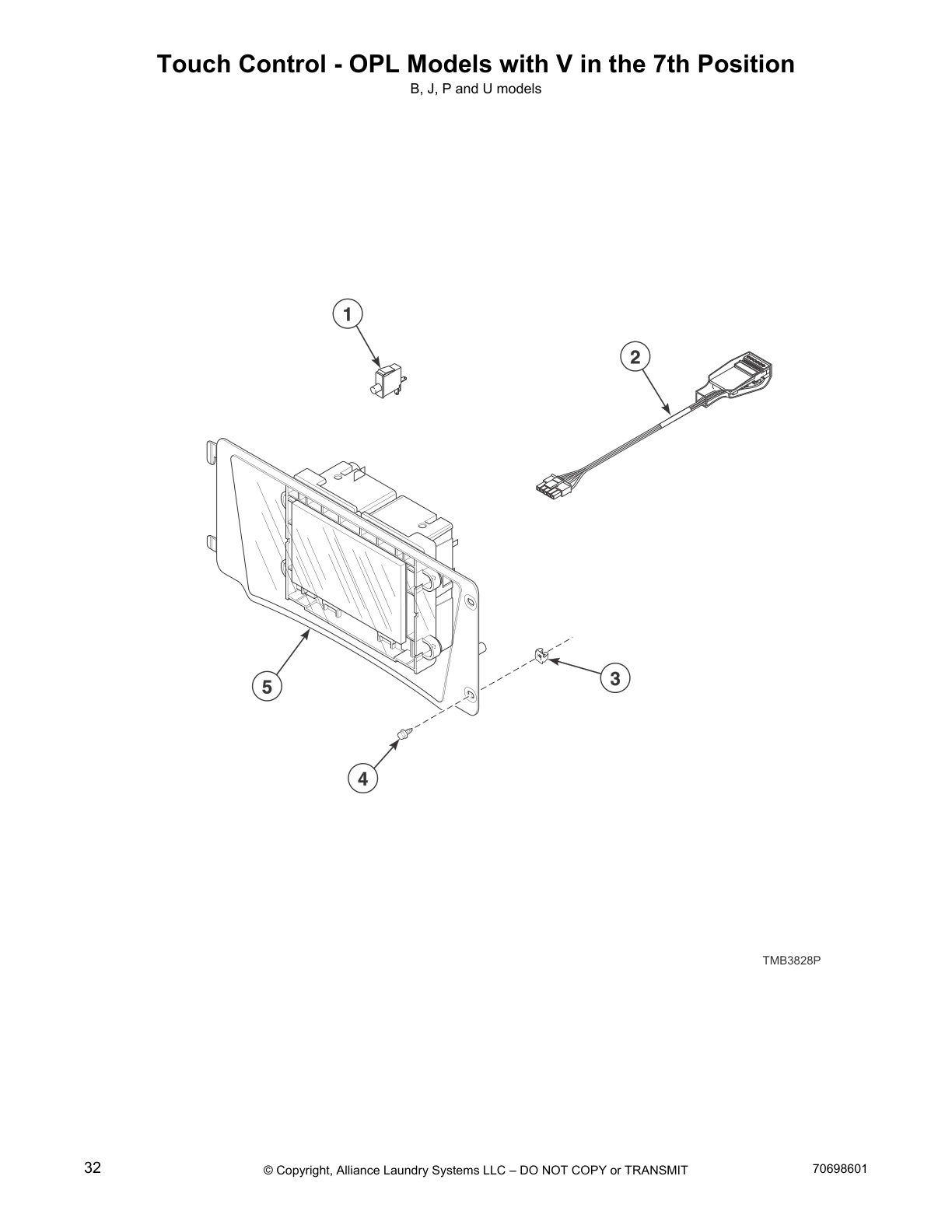

Touch Control - OPL Models with V in the 7th Position

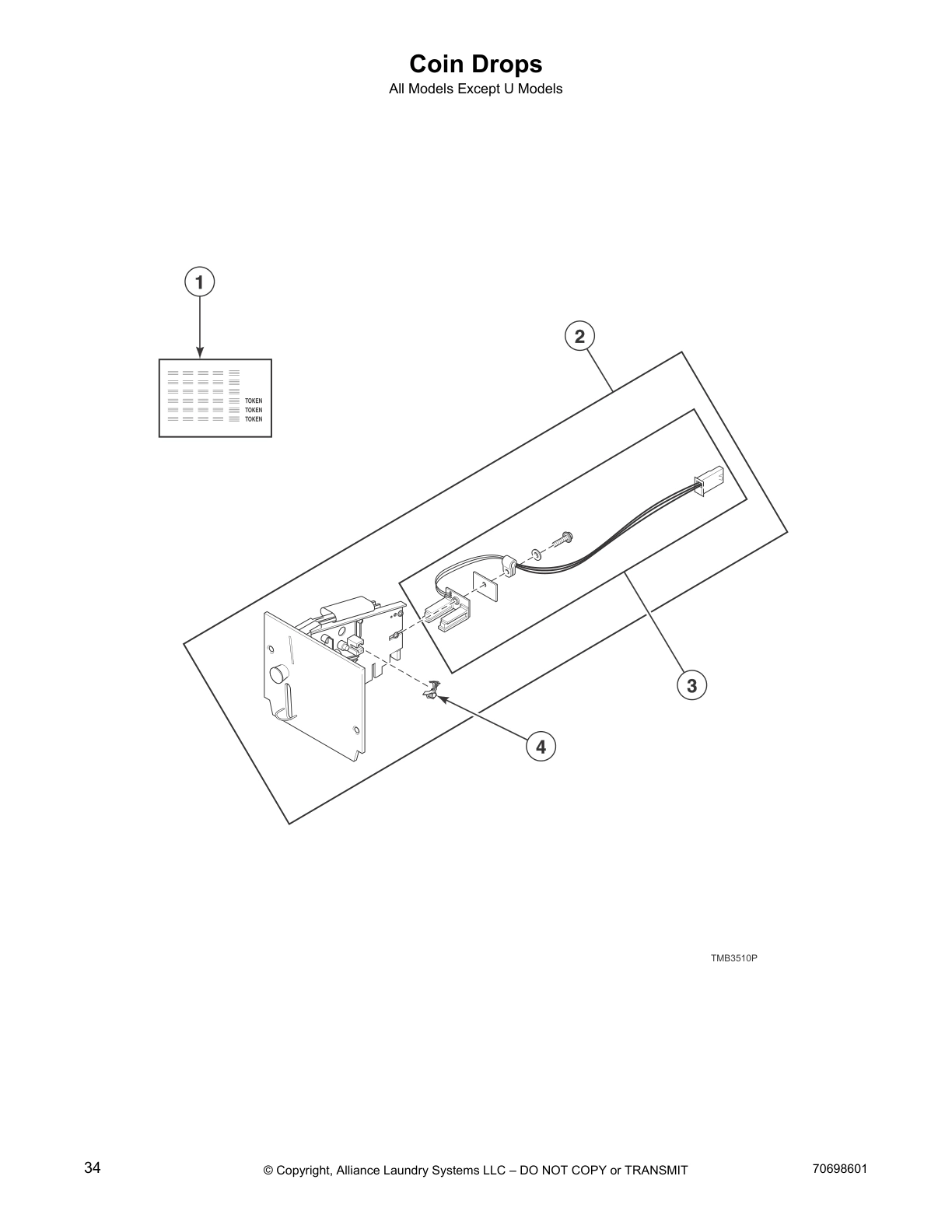

Coin Drops

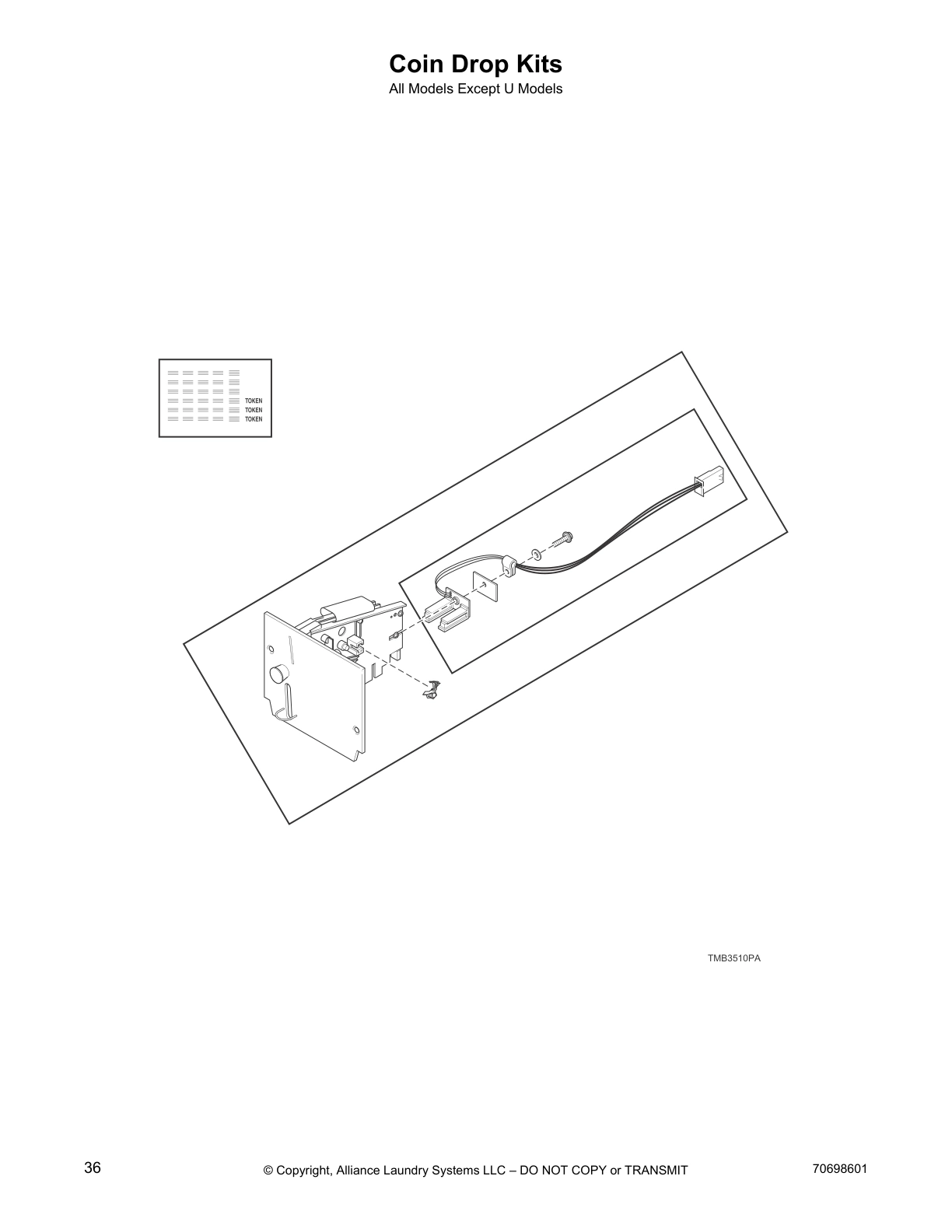

Coin Drop Kits

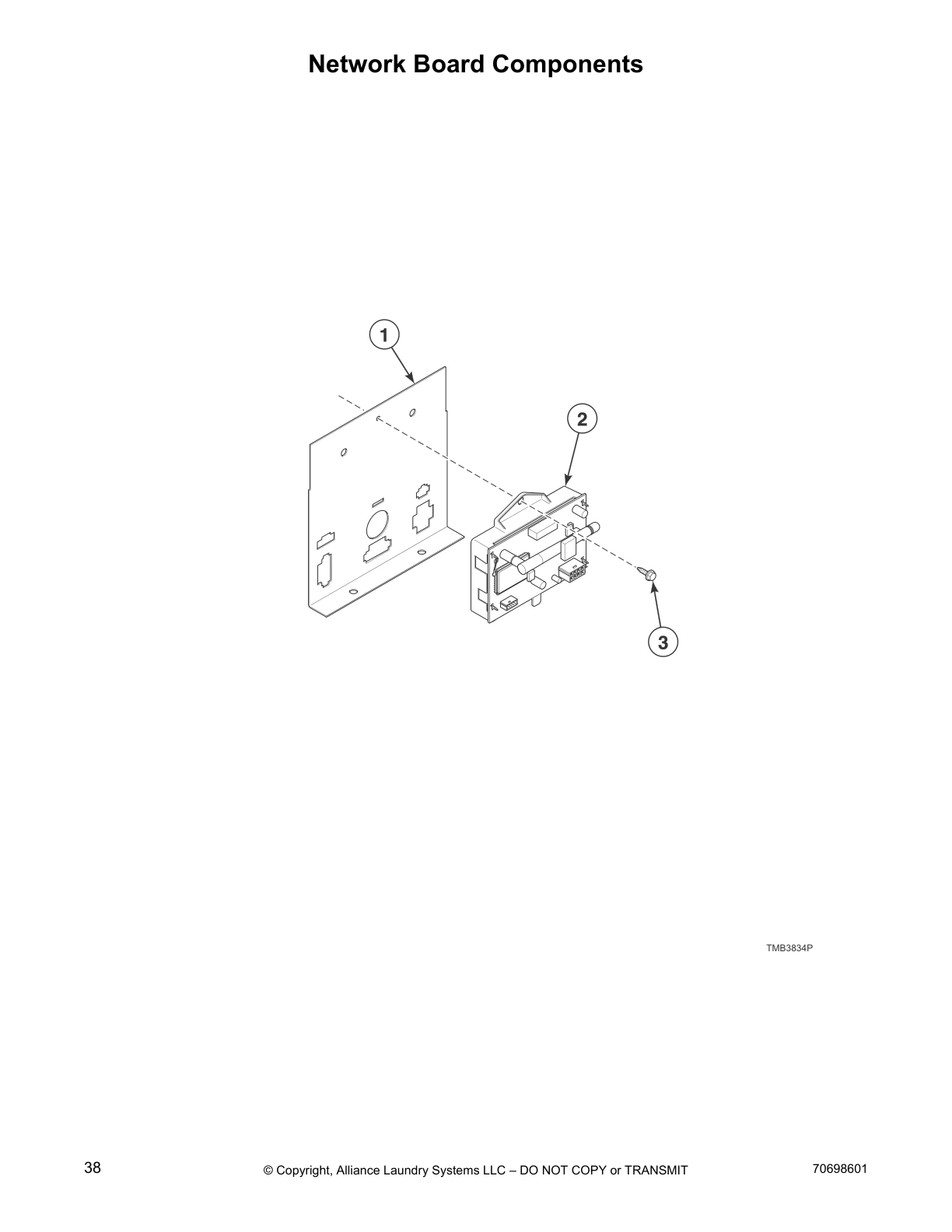

Network Board Components

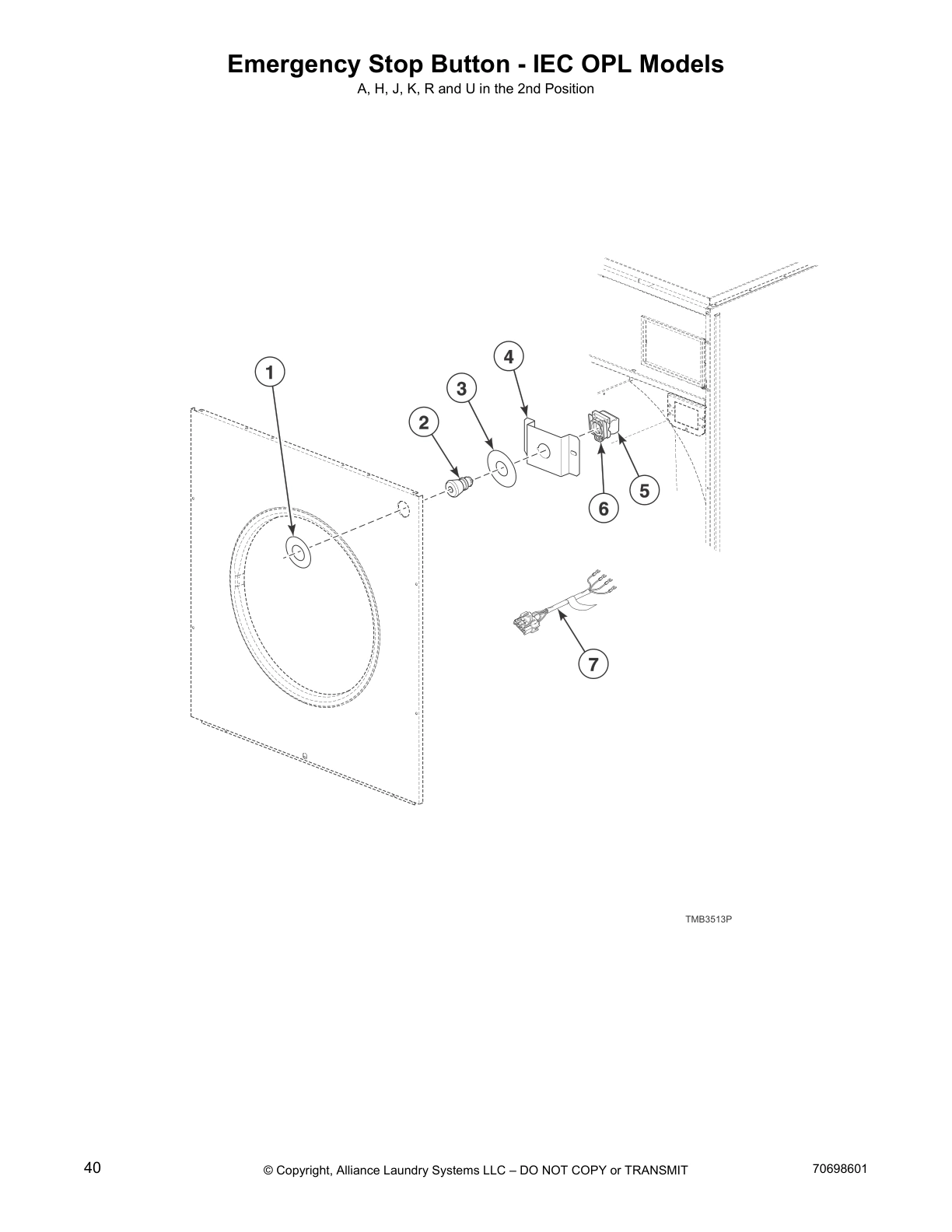

Emergency Stop Button - IEC OPL Models

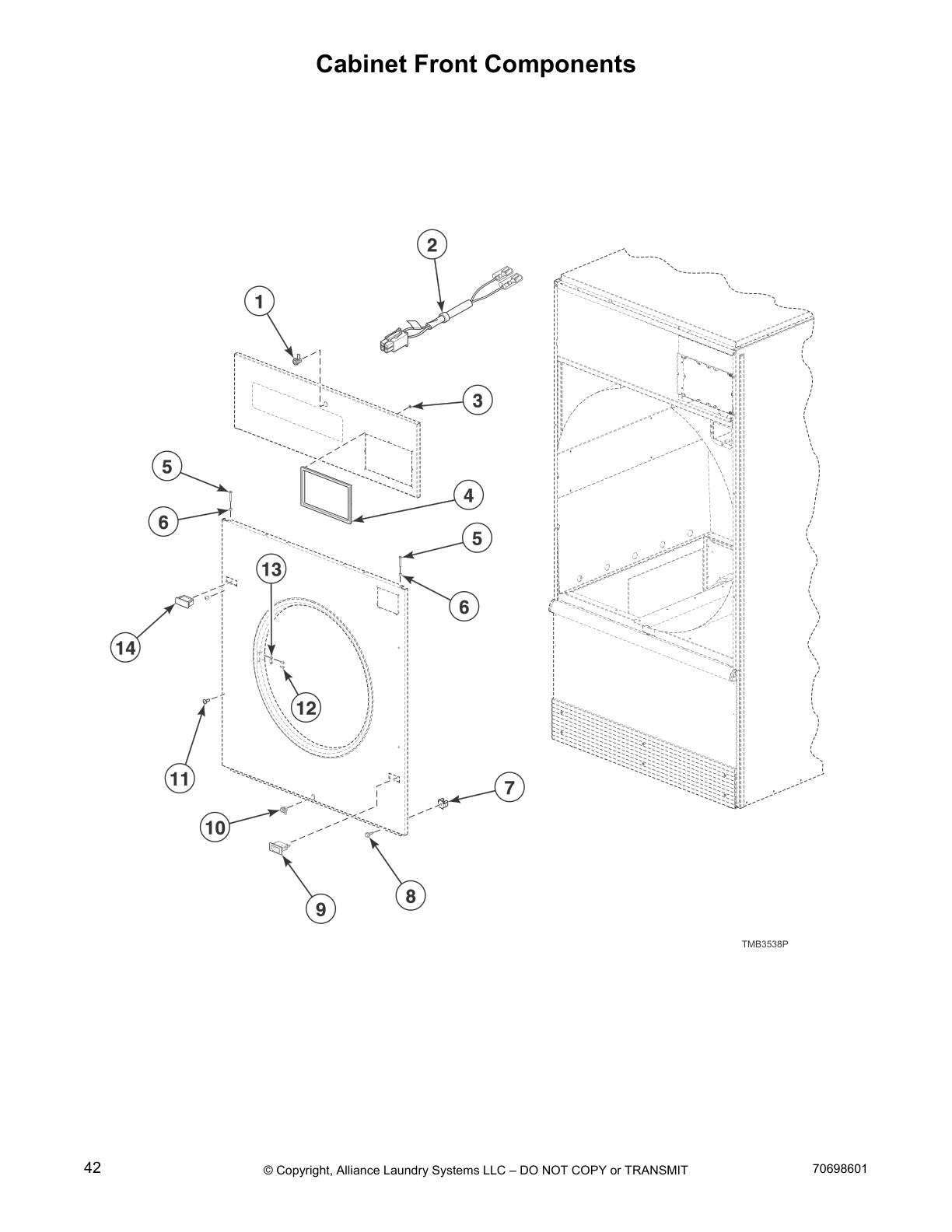

Cabinet Front Components

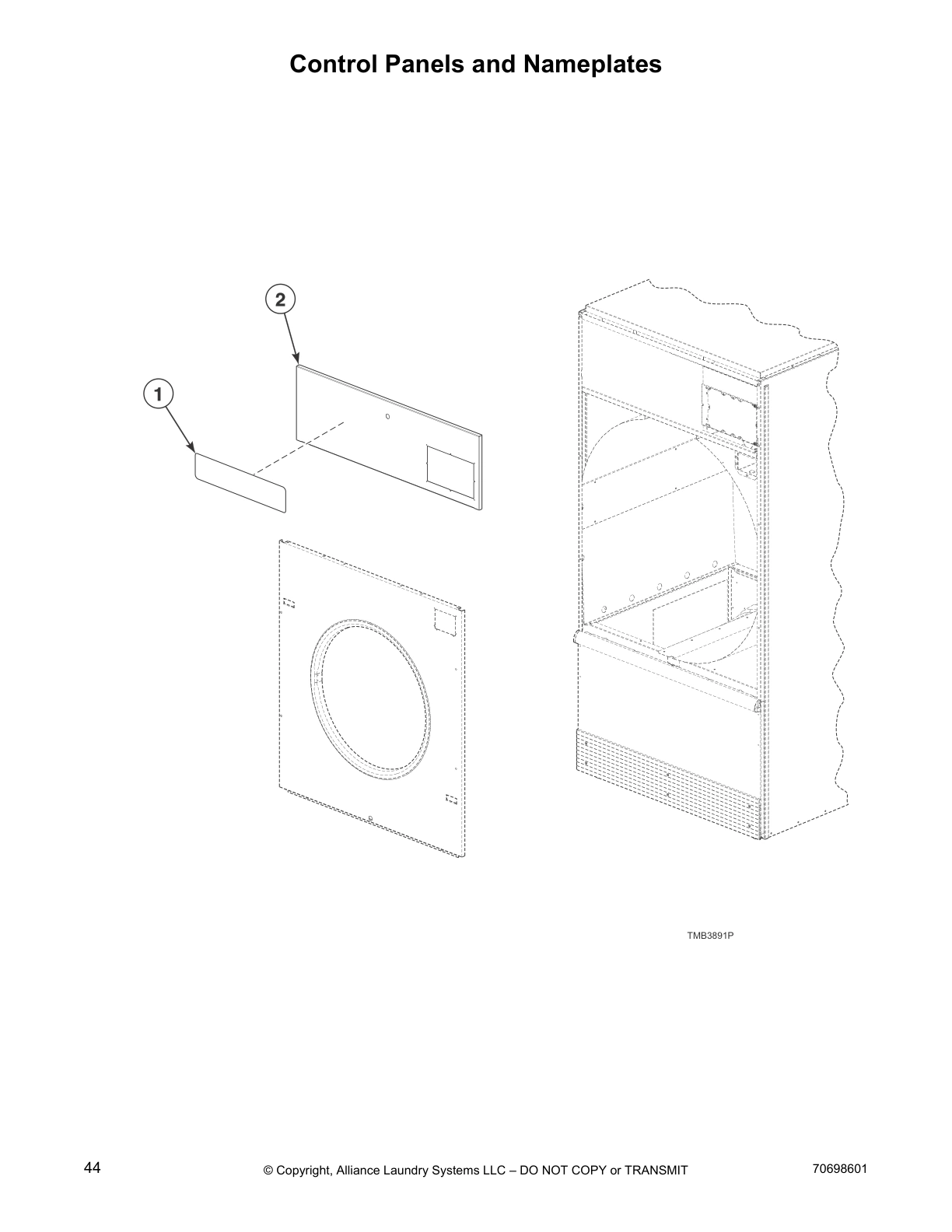

Control Panels and Nameplates

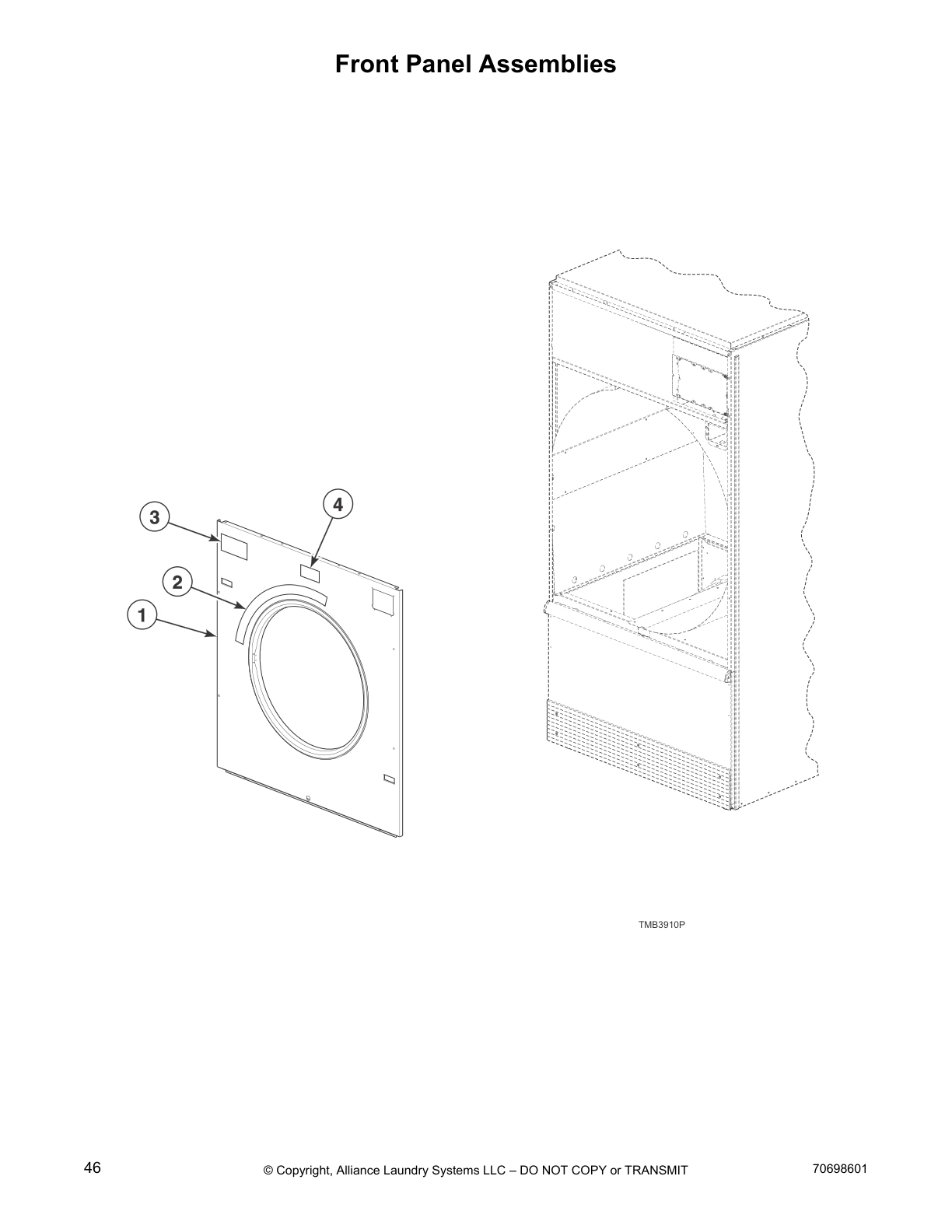

Front Panel Assemblies

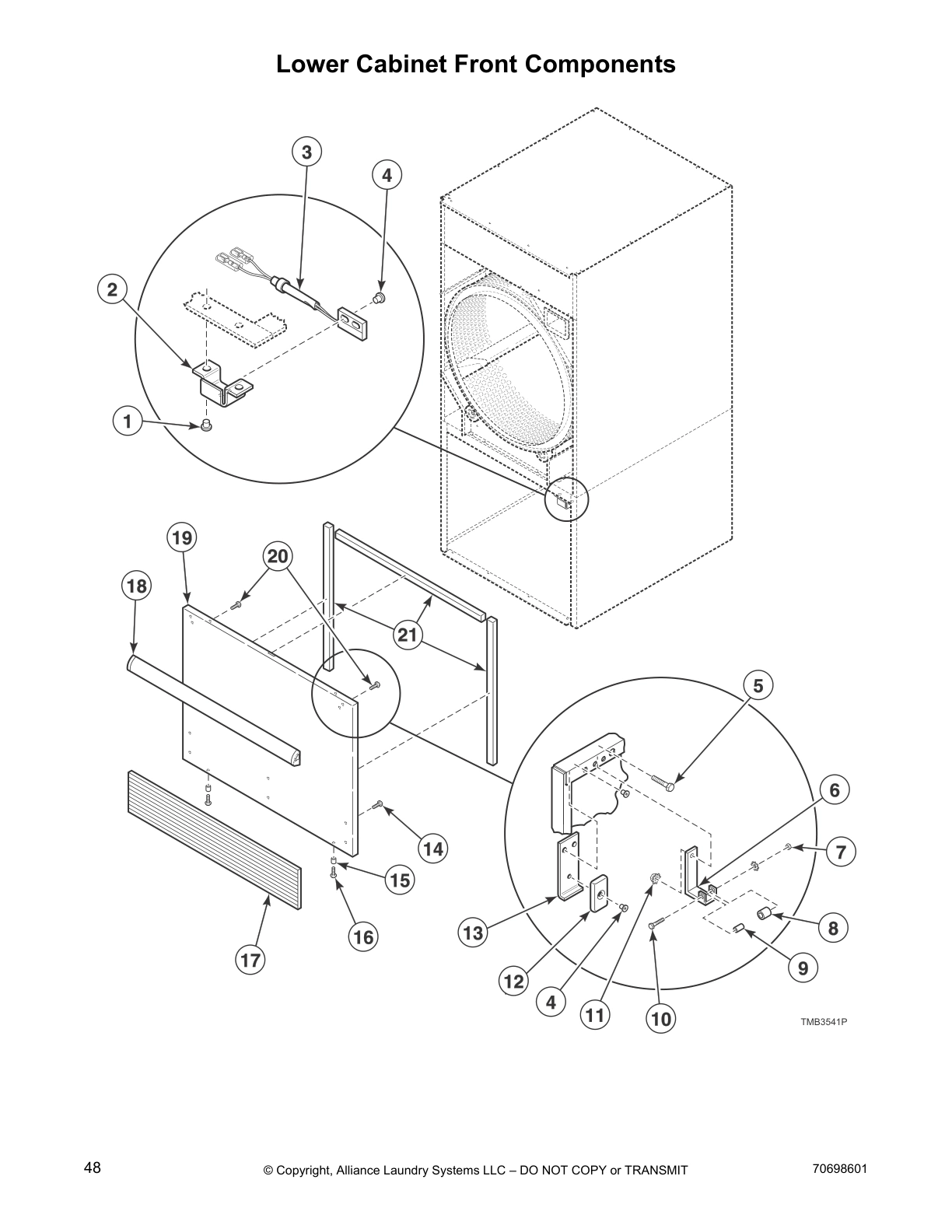

Lower Cabinet Front Components

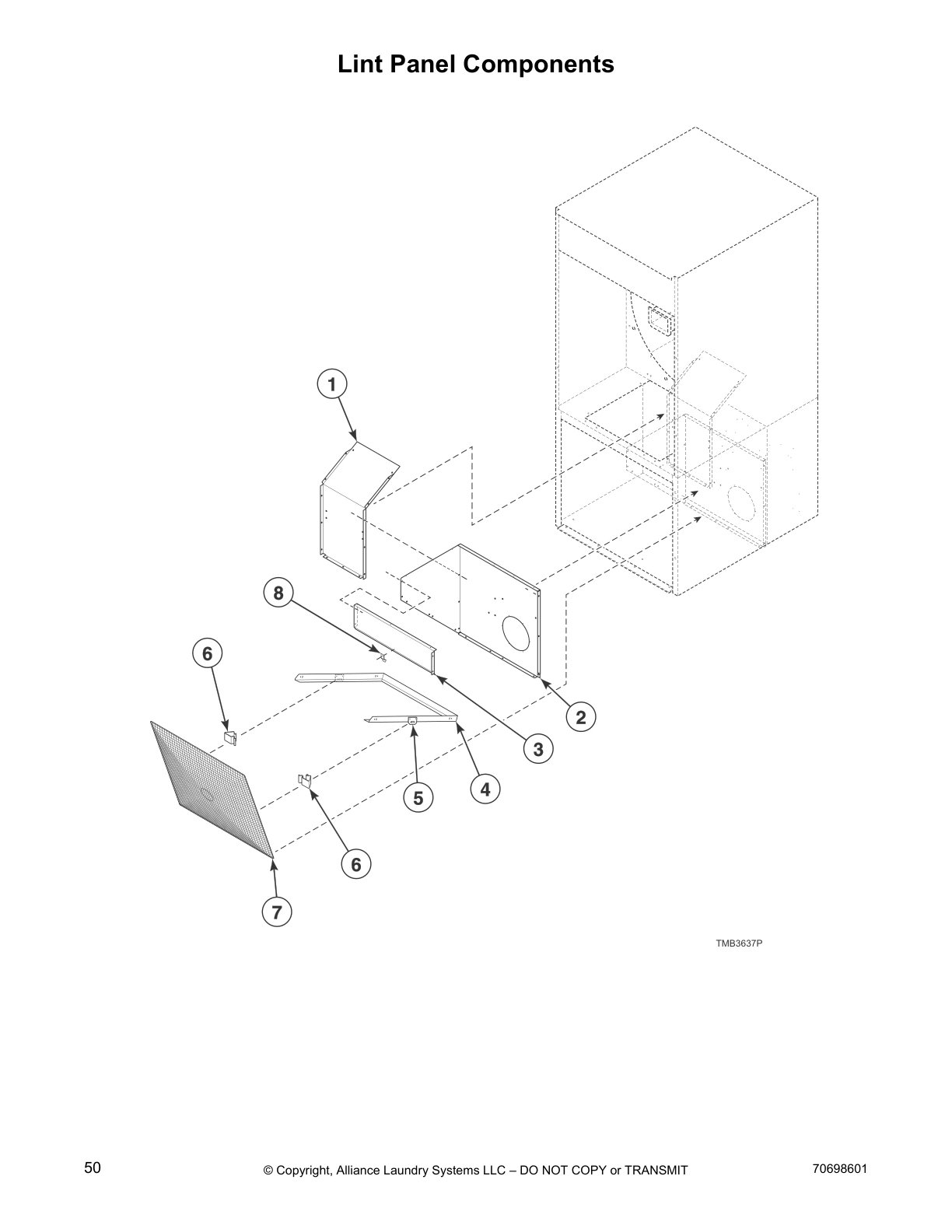

Lint Panel Components

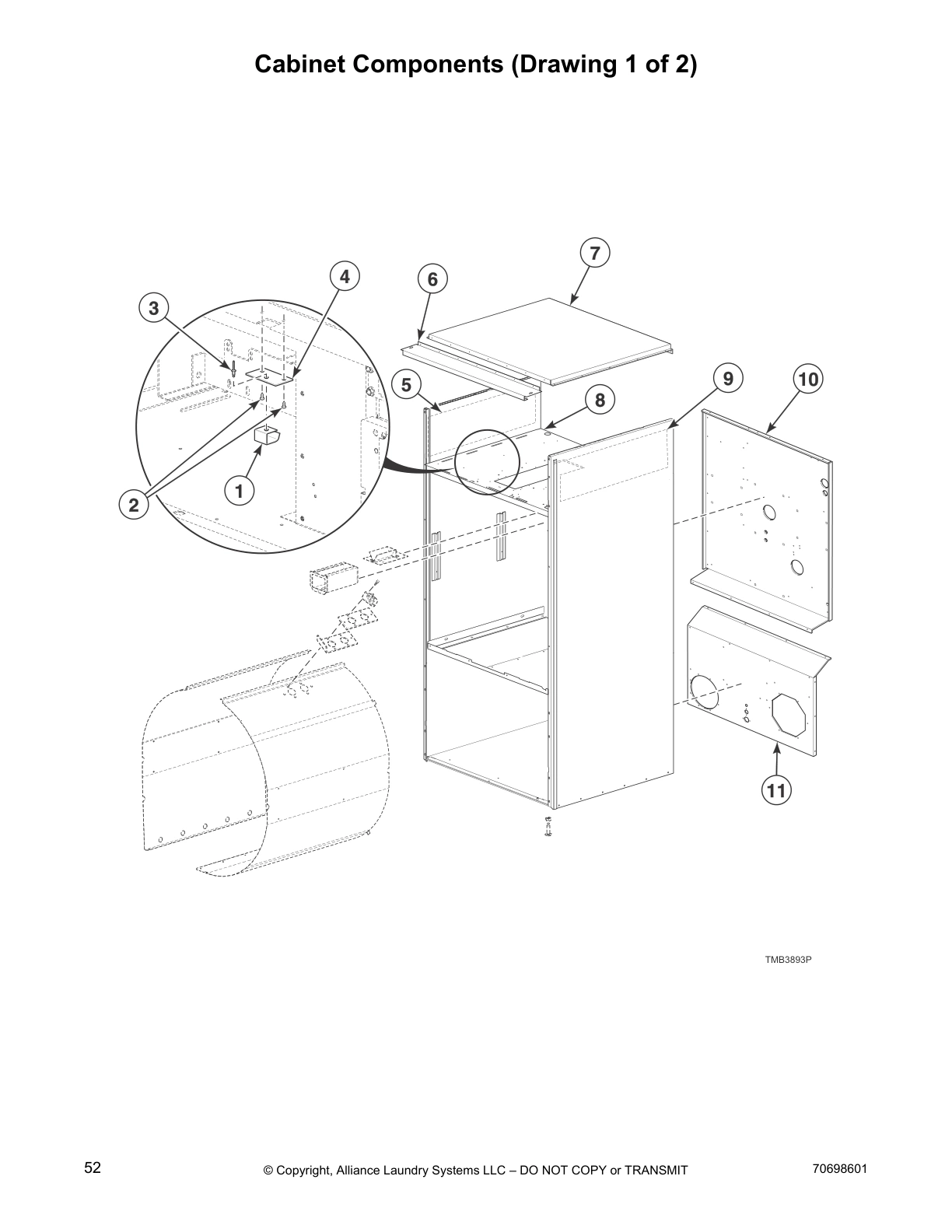

Cabinet Components (Drawing 1 of 2)

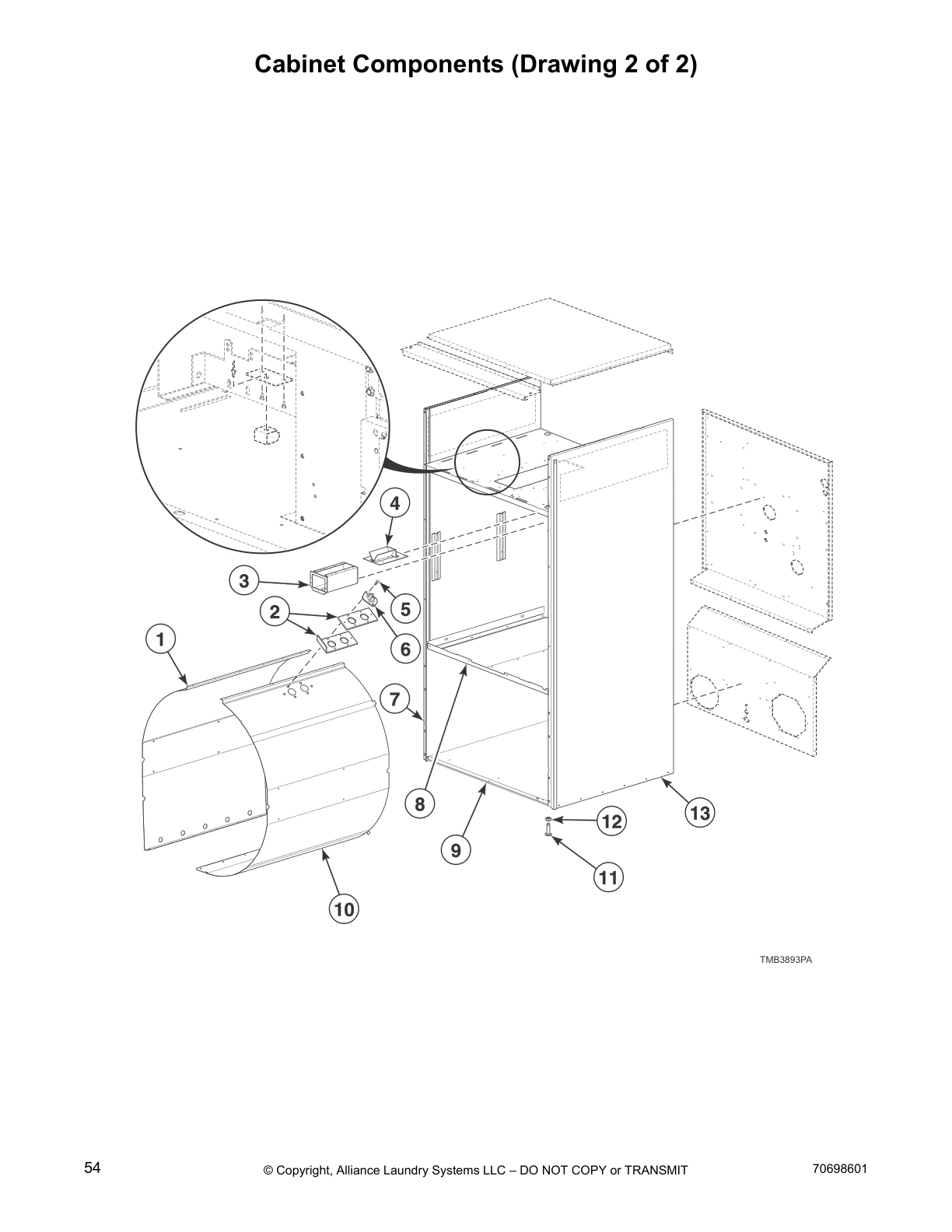

Cabinet Components (Drawing 2 of 2)

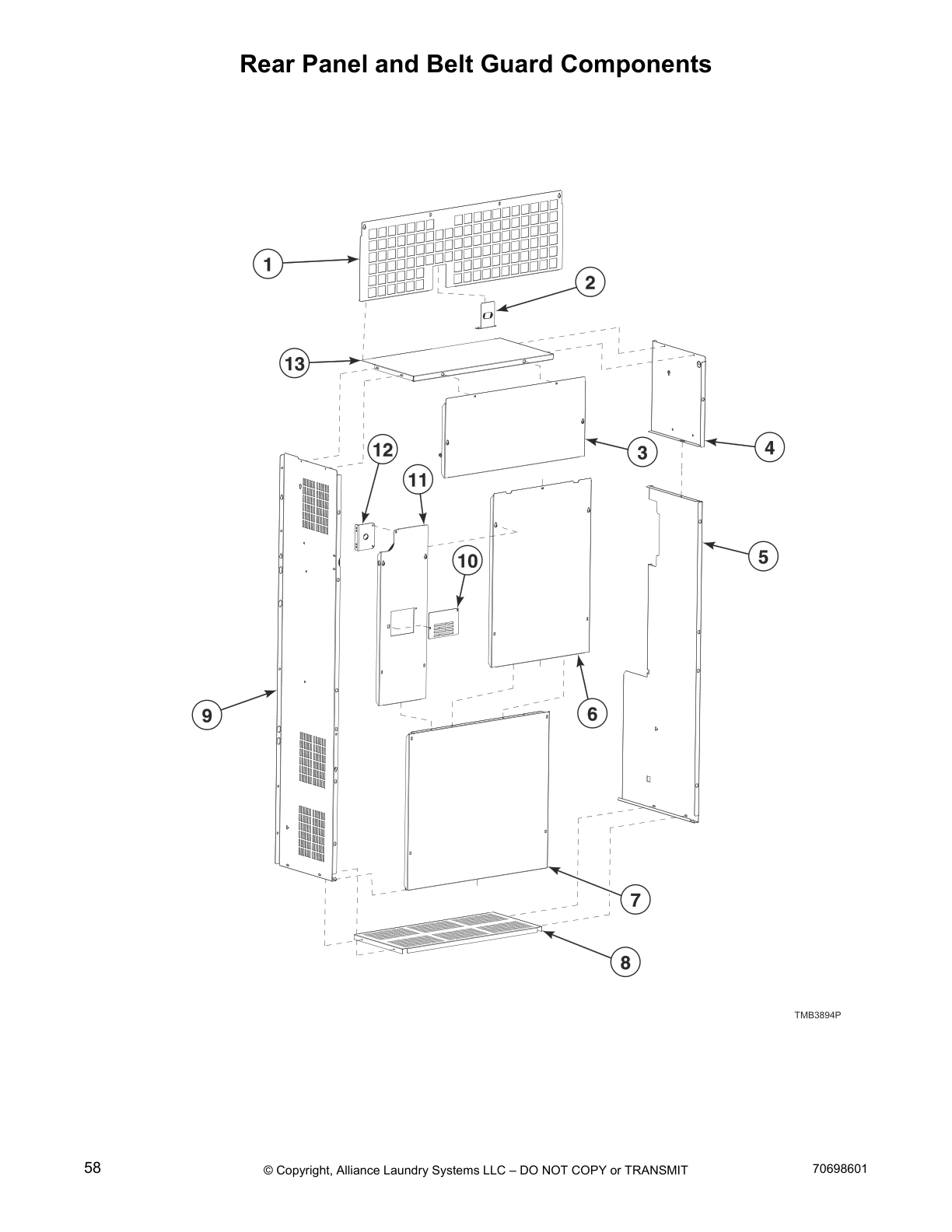

Rear Panel and Belt Guard Components

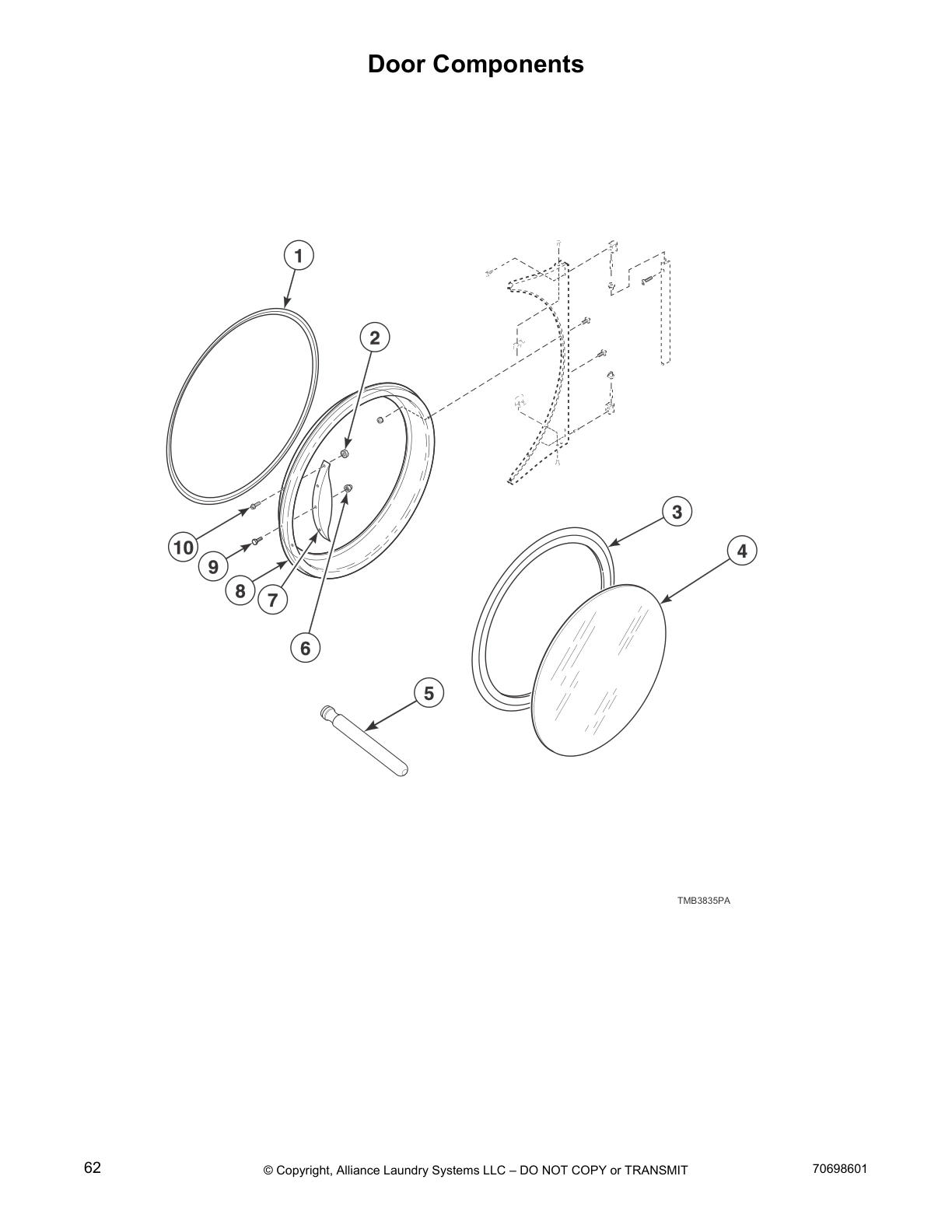

Door Components

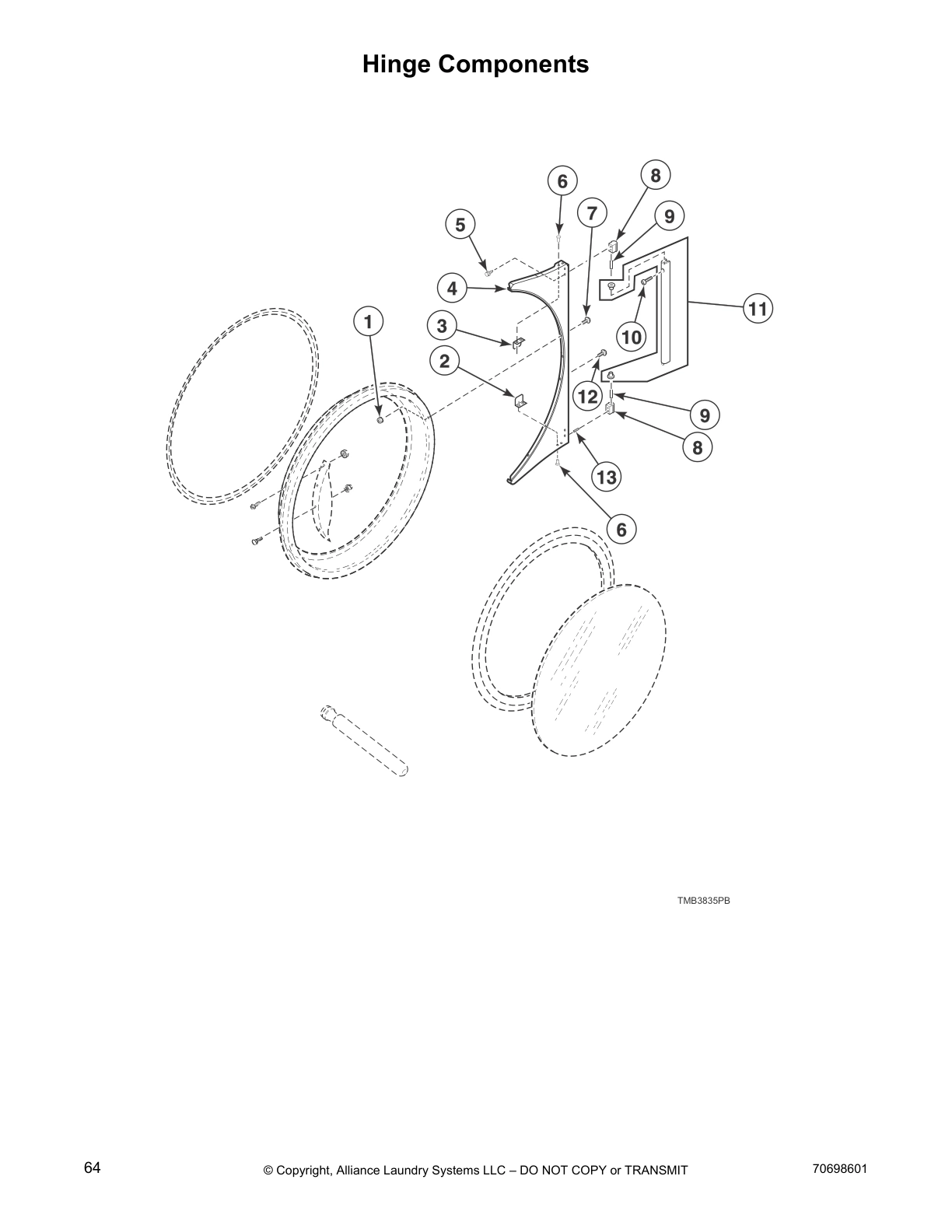

Hinge Components

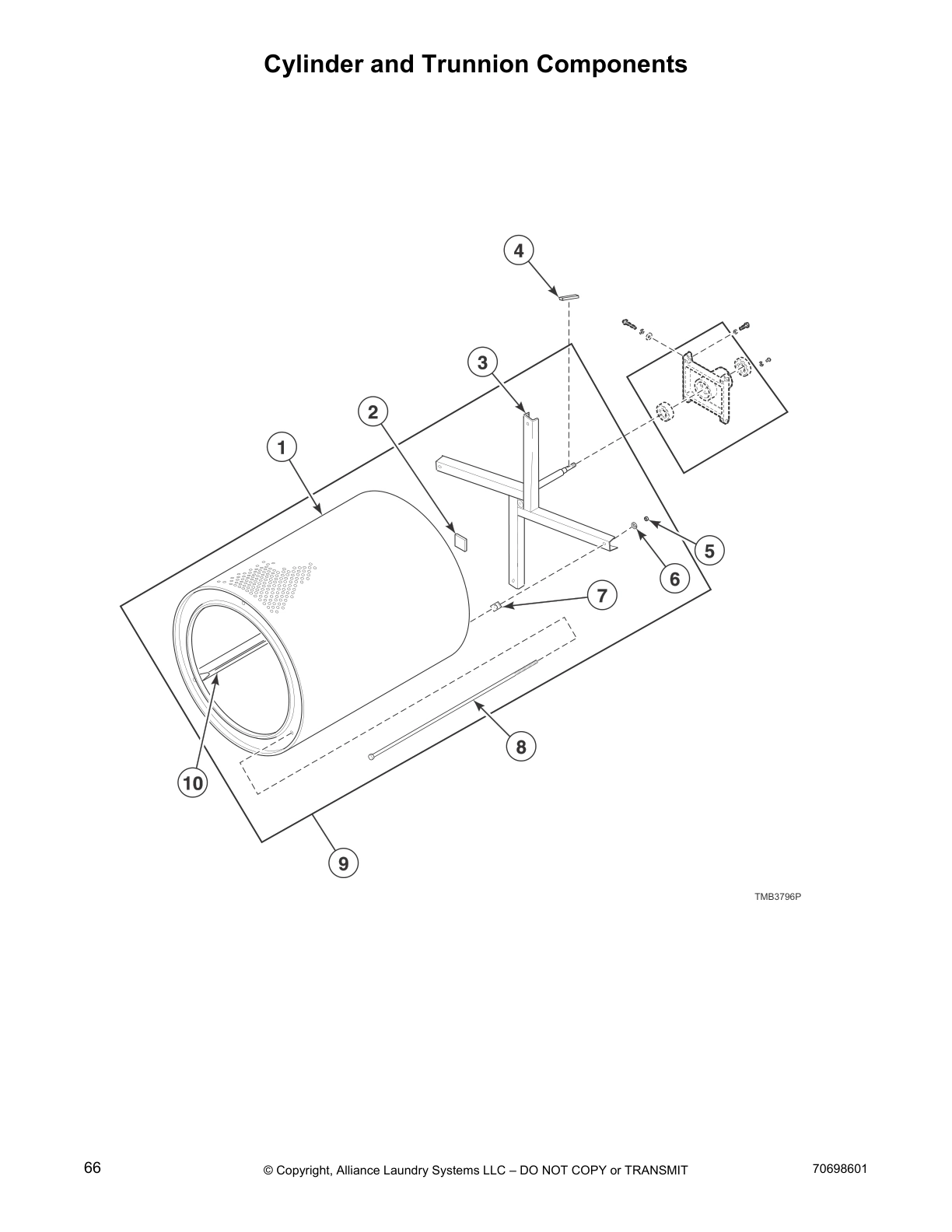

Cylinder and Trunnion Components

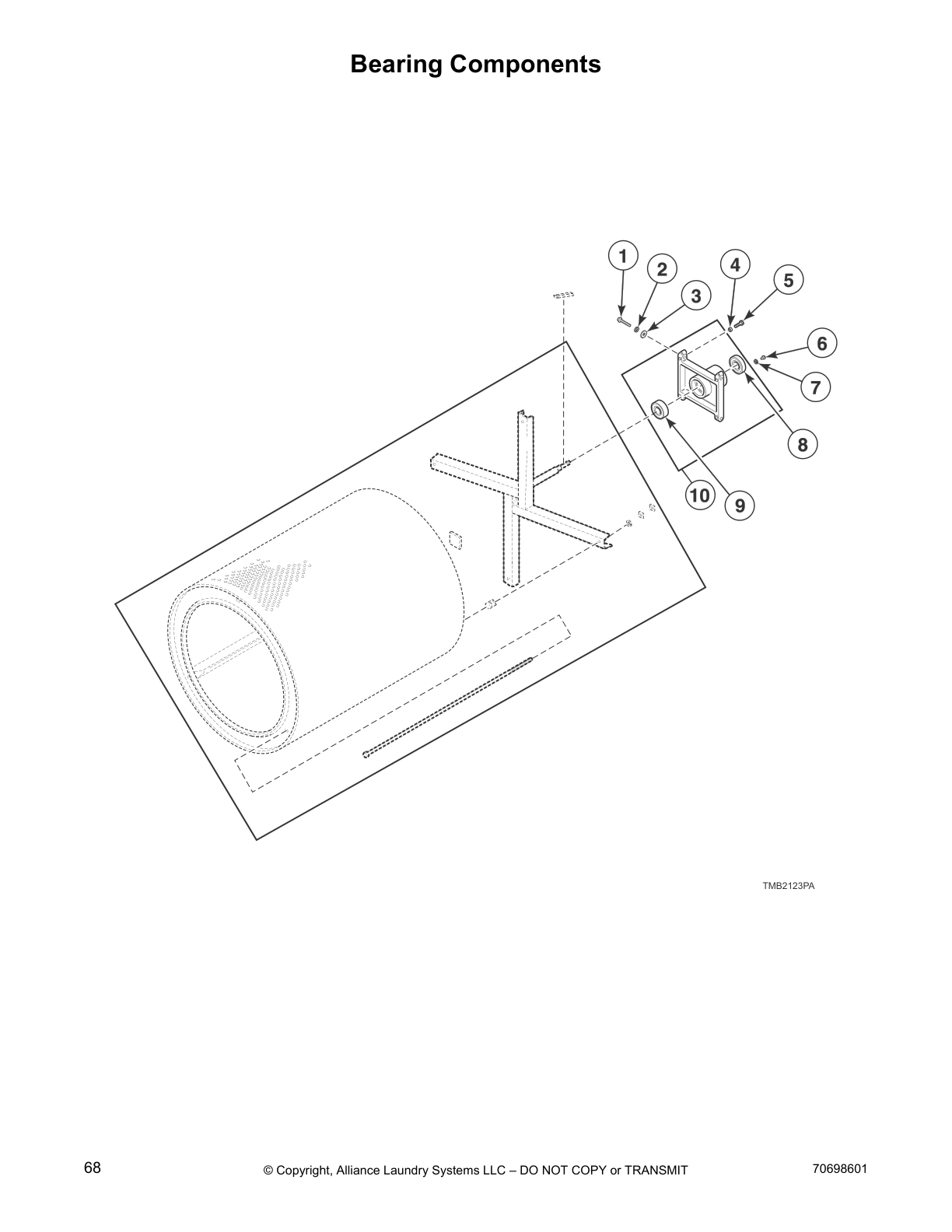

Bearing Components

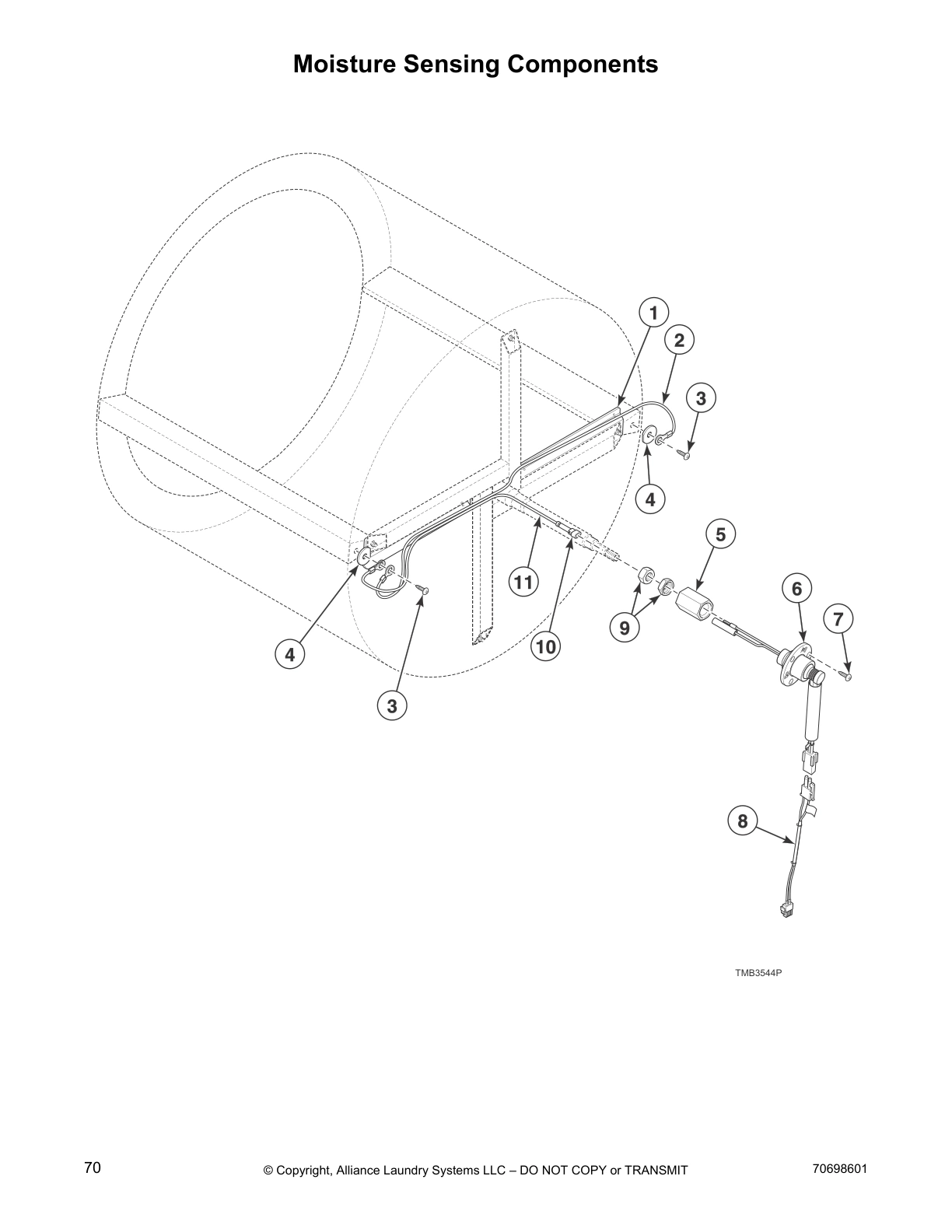

Moisture Sensing Components

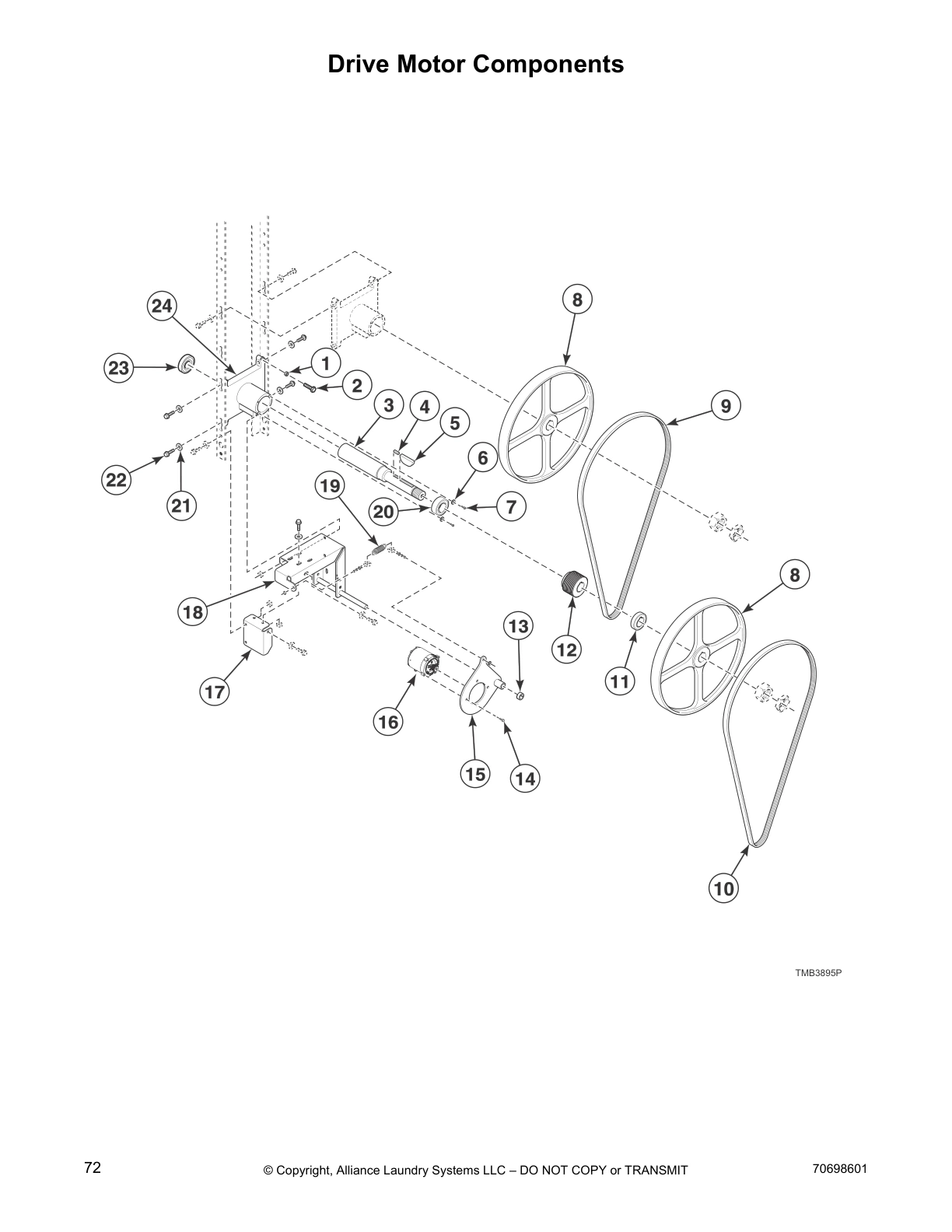

Drive Motor Components

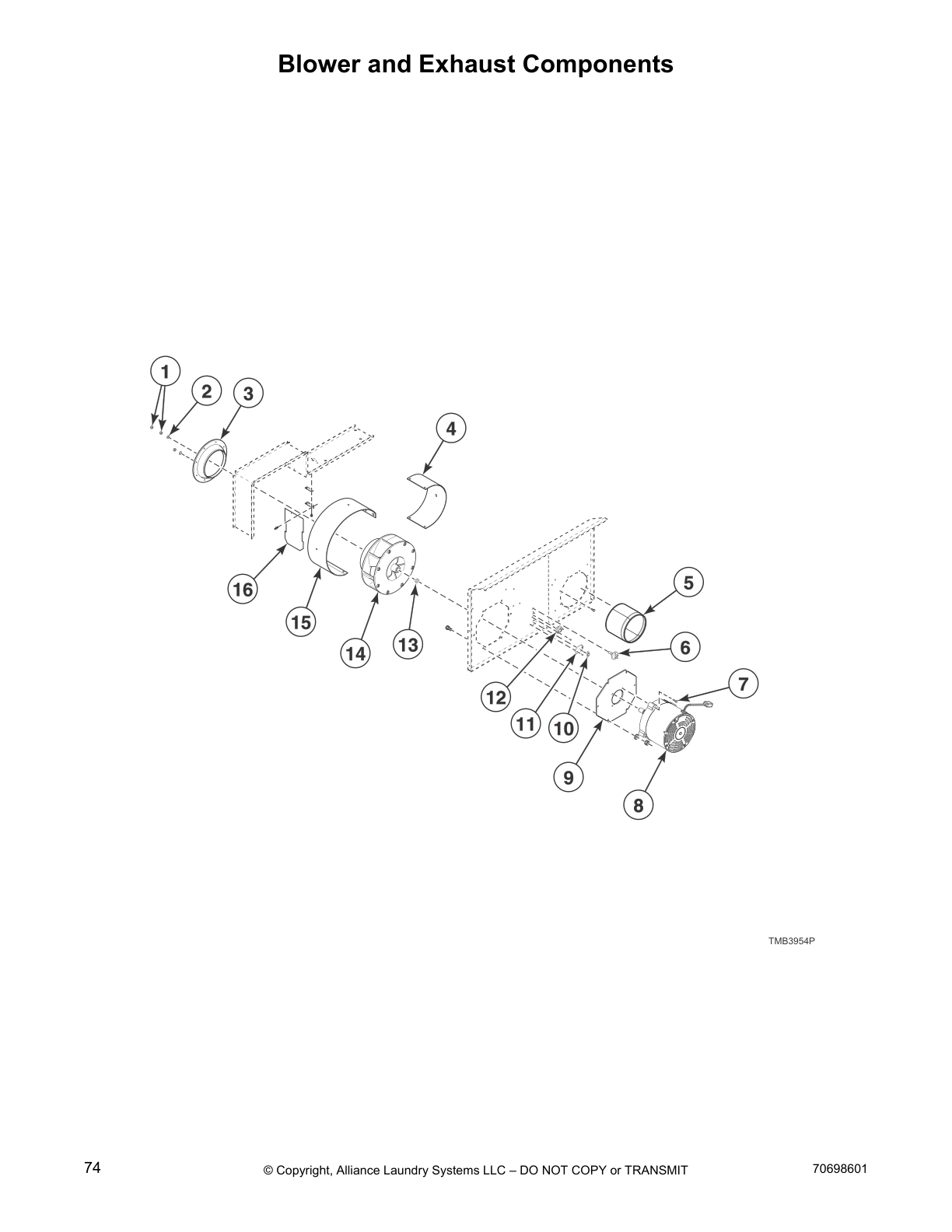

Blower and Exhaust Components

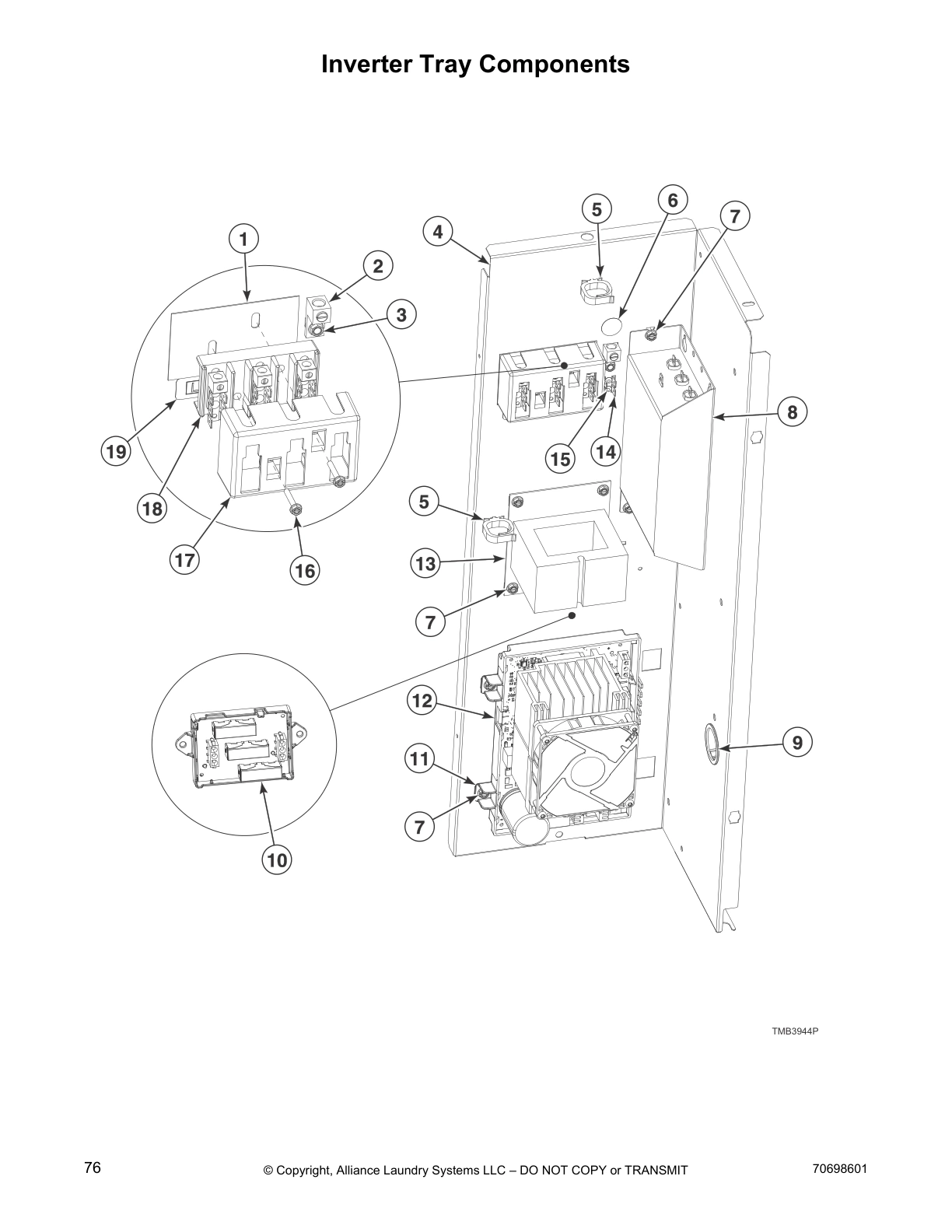

Inverter Tray Components

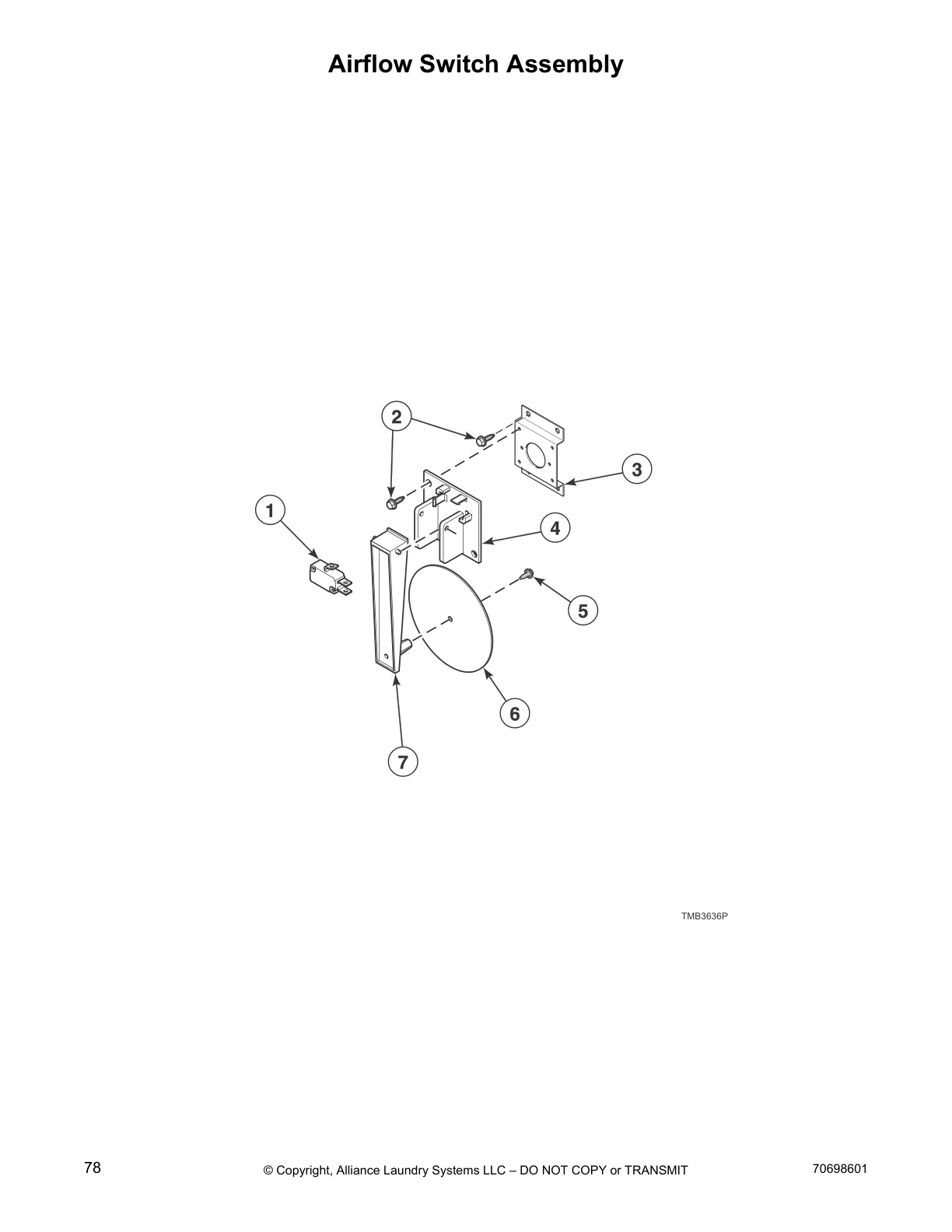

Airflow Switch Assembly

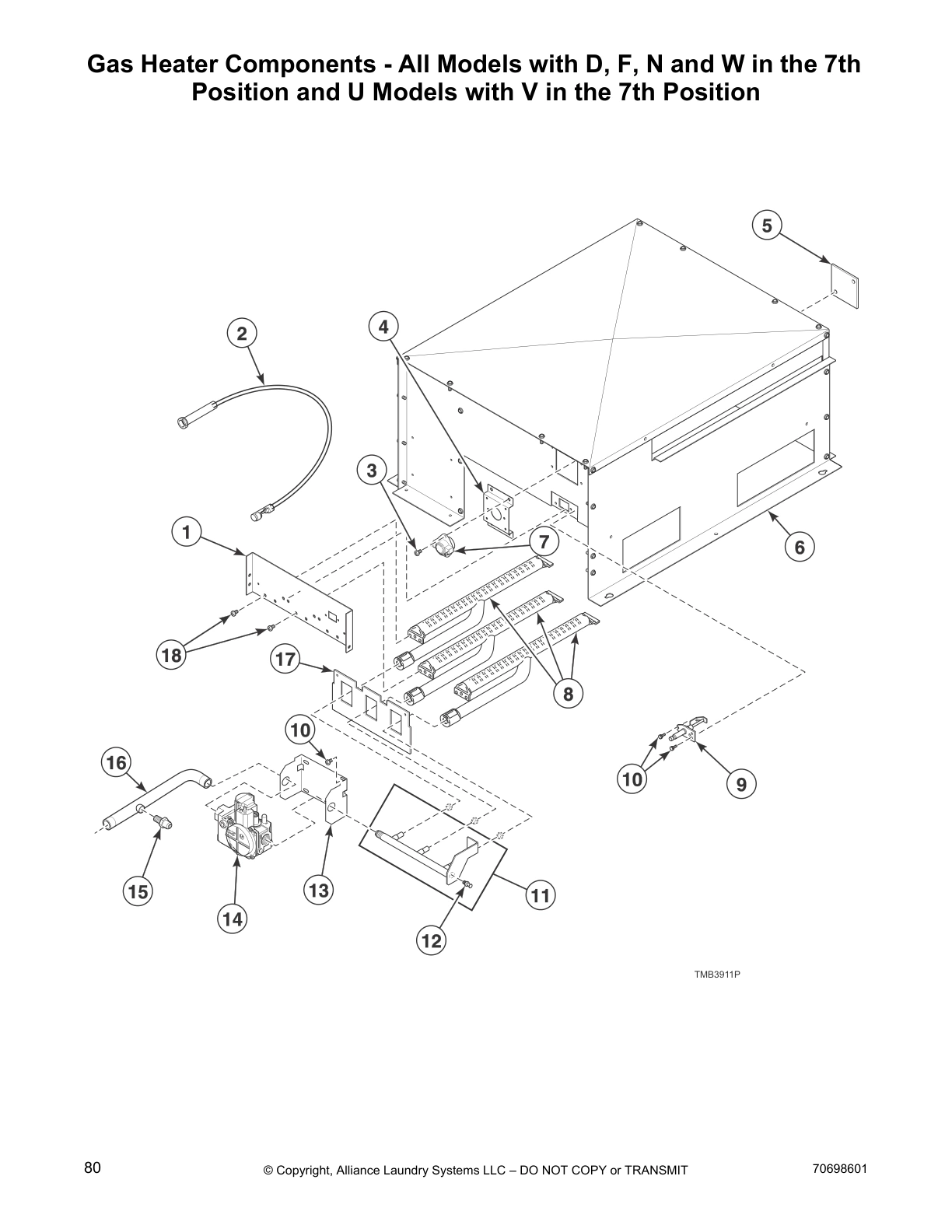

Gas Heater Components - All Models with D, F, N and W in the 7th
Position and U Models with V in the 7th Position

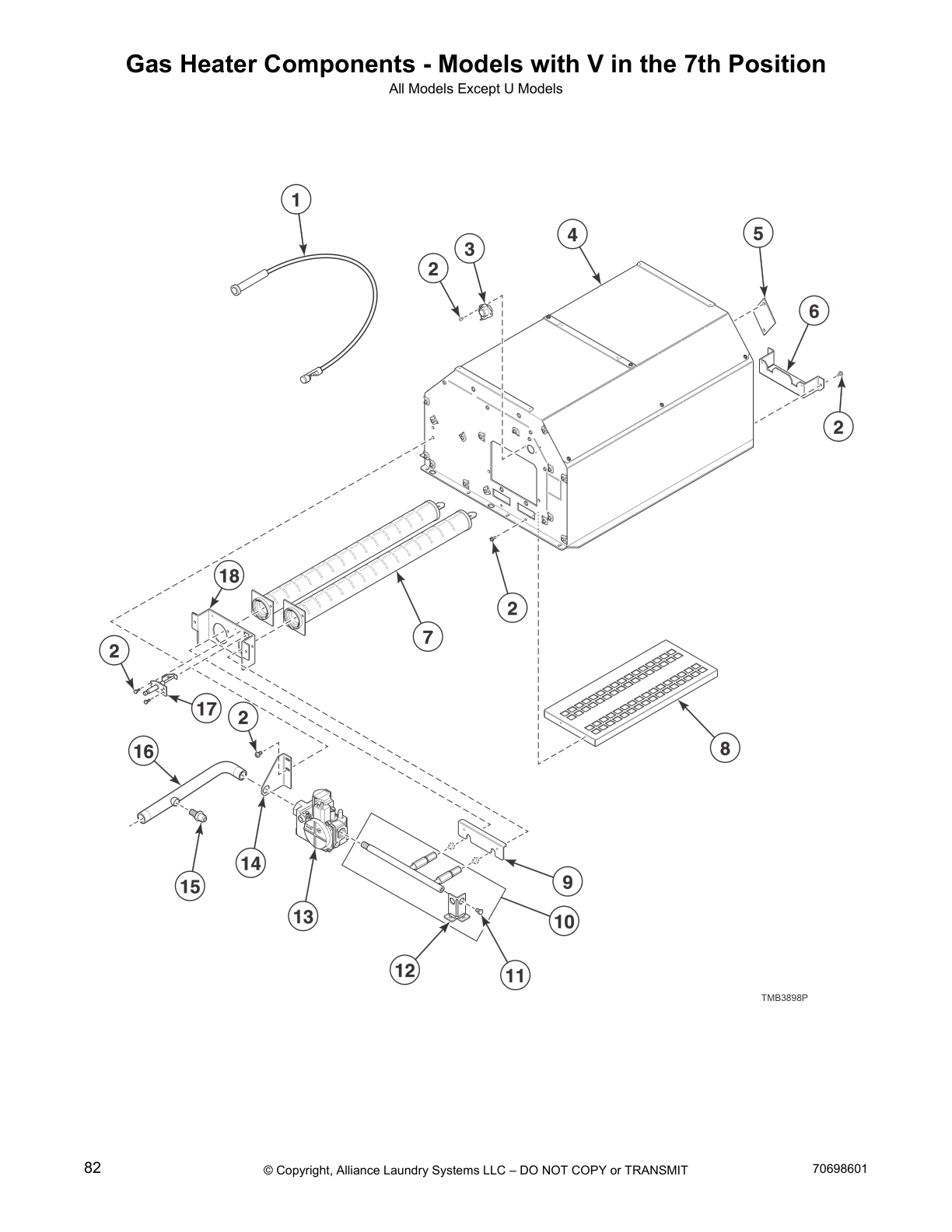

Gas Heater Components - Models with V in the 7th Position

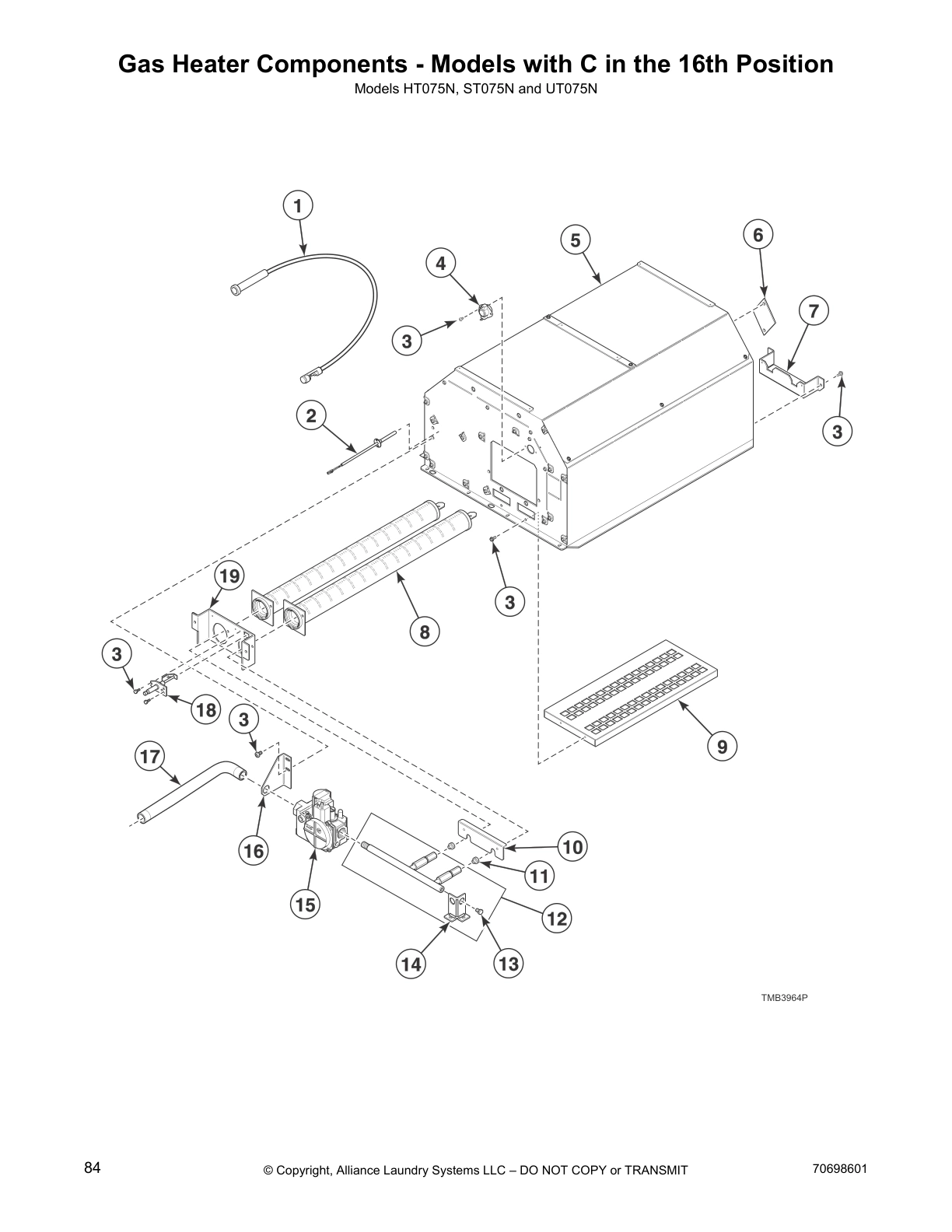

Gas Heater Components - Models with C in the 16th Position

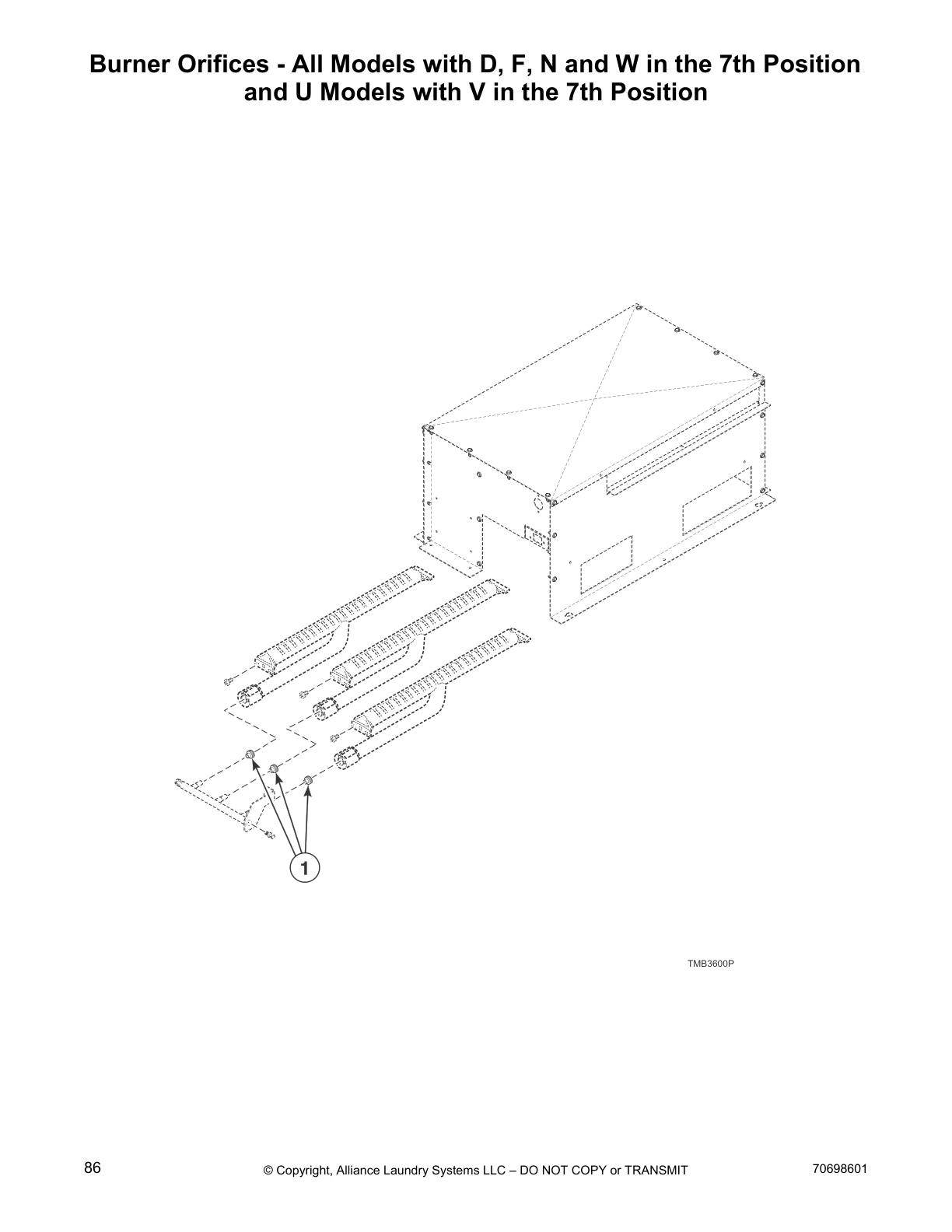

Burner Orifices - All Models with D, F, N and W in the 7th Position
and U Models with V in the 7th Position

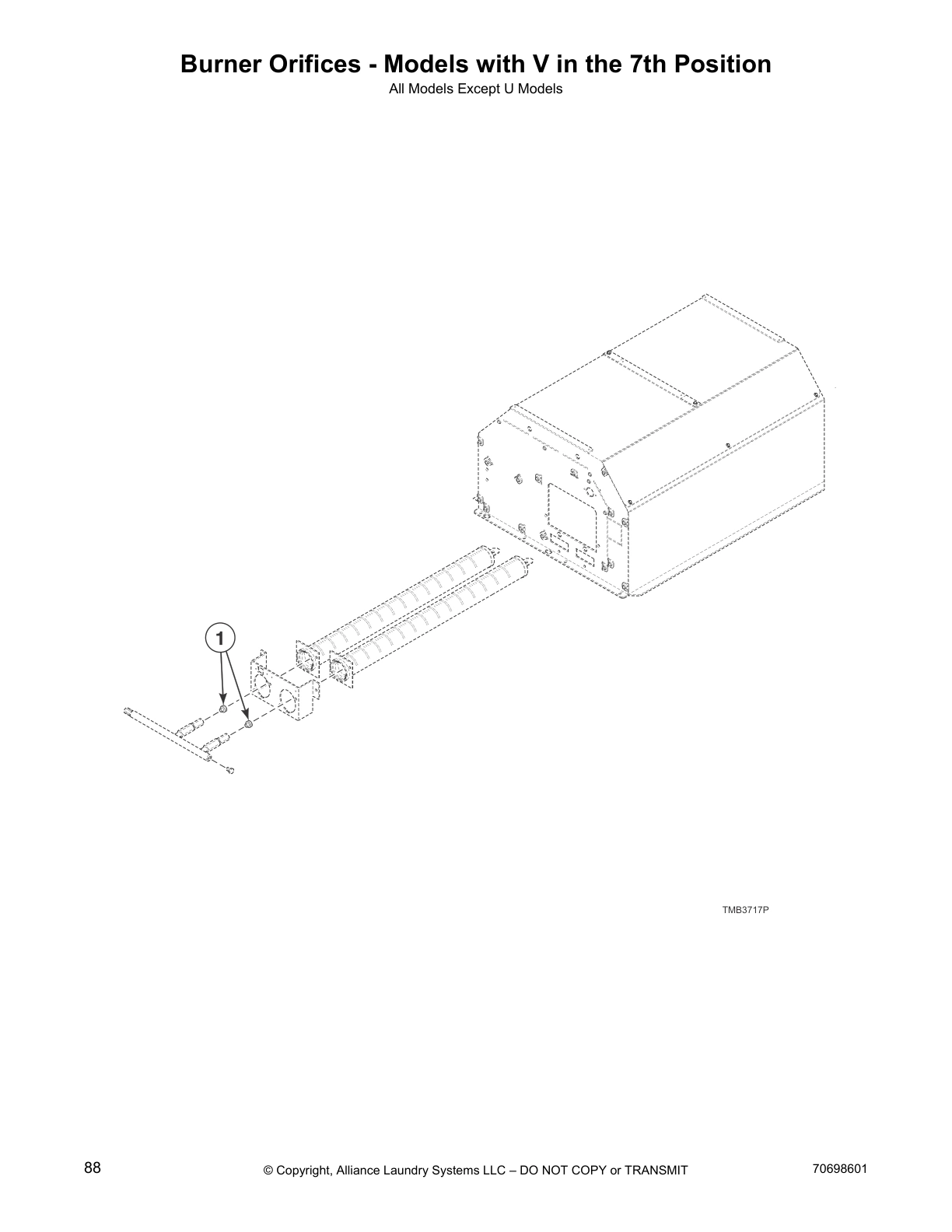

Burner Orifices - Models with V in the 7th Position

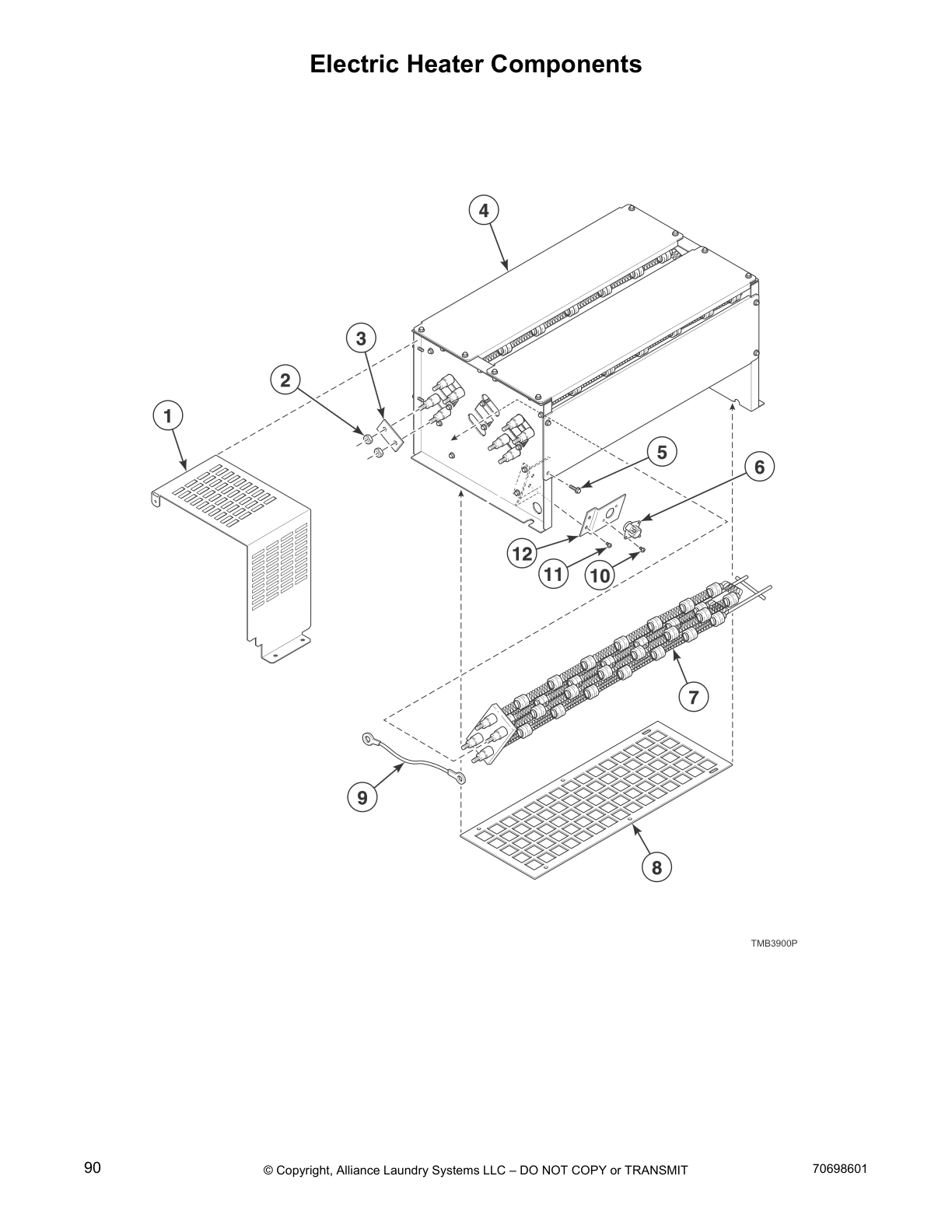

Electric Heater Components

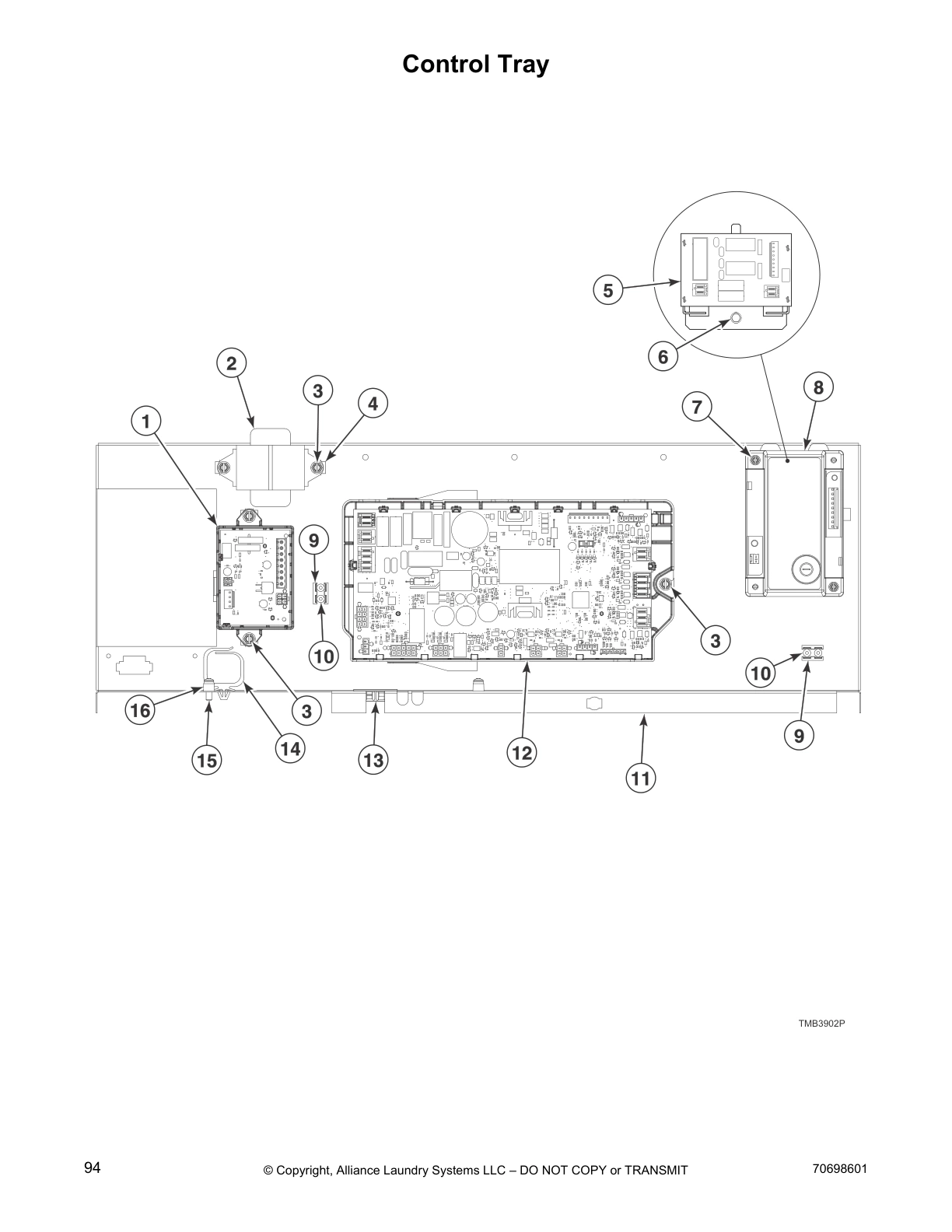

Control Tray

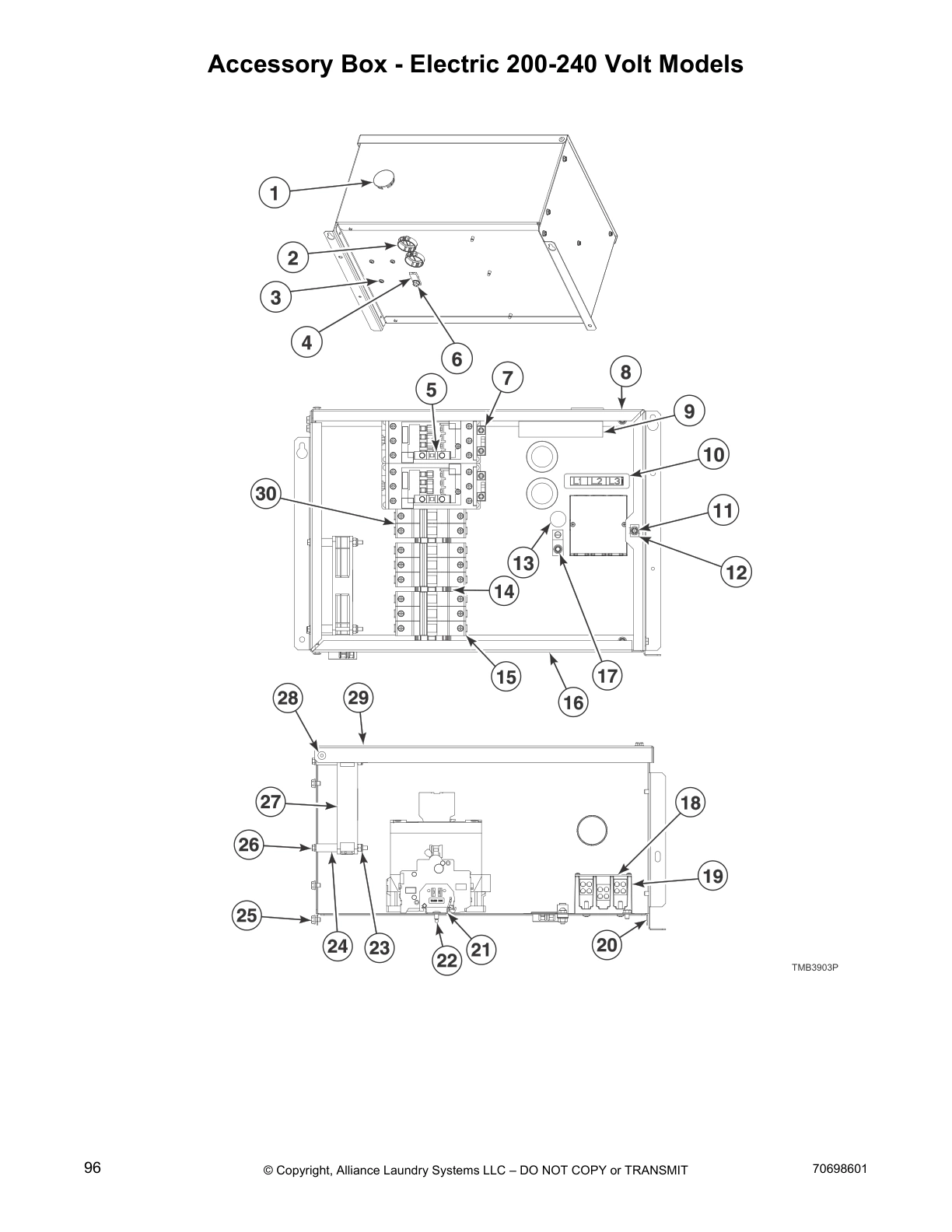

Accessory Box - Electric 200-240 Volt Models

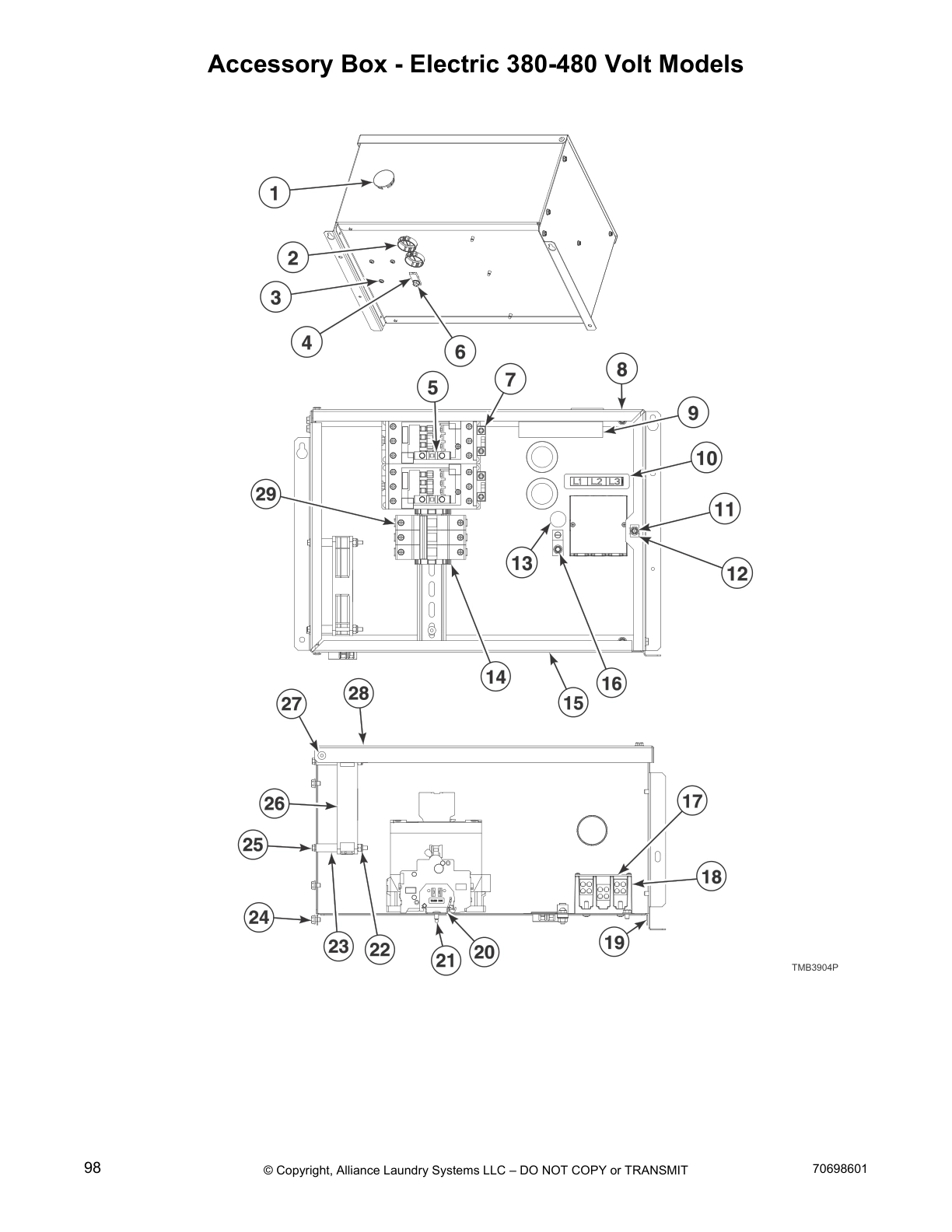

Accessory Box - Electric 380-480 Volt Models
Common parts from model Huebsch HG075D Dryer
Emergency Stop Bypass Harness SPQ F8719302 Contact Us For Availability
Wireless Control Label SPQ F8519403 Contact Us For Availability
SPQ 70413301 SPQ 70413301 Contact Us For Availability
Wireless Control Label SPQ 44374701 Contact Us For Availability
Electronic Coin Drop Assembly SPQ 70283102 Contact Us For Availability
Wire Guard SPQ 39748 Contact Us For Availability
SPQ 38519 SPQ 38519 Contact Us For Availability
SPQ 38467 SPQ 38467 Contact Us For Availability
SPQ 210196 SPQ 210196 Contact Us For Availability
SPQ 201141 SPQ 201141 Contact Us For Availability
SPQ 70513315 SPQ 70513315 Contact Us For Availability
SPQ 70513313 SPQ 70513313 Contact Us For Availability
SPQ 70513310 SPQ 70513310 Contact Us For Availability
SPQ 70513308 SPQ 70513308 Contact Us For Availability
SPQ 70513304 SPQ 70513304 Contact Us For Availability
SPQ 70513302 SPQ 70513302 Contact Us For Availability
SPQ 70471601 SPQ 70471601 Contact Us For Availability
Coin Drop Kit SPQ CK108 Contact Us For Availability
SPQ CK100 SPQ CK100 Contact Us For Availability
SPQ CK122 SPQ CK122 Contact Us For Availability
SPQ CK120 SPQ CK120 Contact Us For Availability
SPQ CK117 SPQ CK117 Contact Us For Availability
SPQ 44366201 SPQ 44366201 Contact Us For Availability
SPQ 44346306 SPQ 44346306 Contact Us For Availability
SPQ 44052542W SPQ 44052542W Contact Us For Availability
SPQ 44052539W SPQ 44052539W Contact Us For Availability
SPQ 44052535 SPQ 44052535 Contact Us For Availability
SPQ 70030201 SPQ 70030201 Contact Us For Availability
SPQ M401402 SPQ M401402 Contact Us For Availability
SPQ 44195702P SPQ 44195702P Contact Us For Availability
SPQ 44336302 SPQ 44336302 Contact Us For Availability
SPQ 70684107 SPQ 70684107 Contact Us For Availability
SPQ 70684105 SPQ 70684105 Contact Us For Availability
SPQ 70684110 SPQ 70684110 Contact Us For Availability
SPQ 70684111 SPQ 70684111 Contact Us For Availability
1
Door Ring Gasket SPQ 44008201P Contact Us For Availability
1
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
1
Nameplate SPQ F8688001 Contact Us For Availability
1
Front Panel SPQ 44346308 Contact Us For Availability
1
Control Door Latch SPQ 431318 Contact Us For Availability
1
Cylinder Kit SPQ 44057301P Contact Us For Availability
1
Screw SPQ M400063 Contact Us For Availability
1
Nut SPQ M400026 Contact Us For Availability
1
Wireway Channel SPQ 44239101 Contact Us For Availability
1
Insulator SPQ M413862 Contact Us For Availability
1
Switch SPQ 70411901 Contact Us For Availability
1
Burner Support SPQ 44110301 Contact Us For Availability
1
High Voltage Suppression Cable SPQ 44239704 Contact Us For Availability
1
Burner Orifice SPQ 70684114 Contact Us For Availability
1
Central Pay Control Assembly SPQ 204779 Contact Us For Availability
1
Plug SPQ 70180001 Contact Us For Availability
2
Ground Lug Connector SPQ 430642 Contact Us For Availability
2
Coin Drop Kit SPQ CK077 Contact Us For Availability
2
Wireless Network Control Assembly SPQ 807211 Contact Us For Availability
2
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
2
Control Panel SPQ 44000130W Contact Us For Availability
2
Thermistor Plate SPQ 44068102 Contact Us For Availability
2
Pipe Bracket SPQ 44327601 Contact Us For Availability
2
Cylinder Rib Assembly SPQ 44198301P Contact Us For Availability
2
Washer SPQ M400015 Contact Us For Availability
2
Rib Wire SPQ 44208601 Contact Us For Availability
2
Bolt SPQ F8440701 Contact Us For Availability
2
Washer SPQ F431131 Contact Us For Availability
3
Nut SPQ 70261401 Contact Us For Availability
3
Machine ID Control Assembly SPQ 70597801P Contact Us For Availability
3
Coin Drop Assembly SPQ 70447301 Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Nut SPQ 44166601 Contact Us For Availability
3
Roller Catch Arm SPQ 44293604W Contact Us For Availability
3
Coin Box SPQ 44068101 Contact Us For Availability
3
Control Tray Guard SPQ 44363801 Contact Us For Availability
3
Felt Pad SPQ 44198302 Contact Us For Availability
3
Screw SPQ 44338901 Contact Us For Availability
4
Door Glass SPQ 70211902P Contact Us For Availability
4
Control Trim SPQ M401223 Contact Us For Availability
4
Roller Catch Wheel SPQ 44293603W Contact Us For Availability
4
Lint Bracket SPQ 44325301 Contact Us For Availability
4
Latch Mounting Bracket SPQ 44003201 Contact Us For Availability
4
Coin Chute Assembly SPQ F160673P Contact Us For Availability
4
Upper Guard SPQ 44374301 Contact Us For Availability
4
Pop Rivet SPQ 70596614W Contact Us For Availability
4
Trunnion Assembly SPQ 44191202 Contact Us For Availability
4
Washer SPQ 44238902 Contact Us For Availability
4
Blower Inlet Cone SPQ 70303101 Contact Us For Availability
4
SPQ M411283 SPQ M411283 Contact Us For Availability
4
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
4
Gas Stove Assembly SPQ M402797 Contact Us For Availability
5
Nut SPQ 205135 Contact Us For Availability
5
Contact Switch SPQ F8069501 Contact Us For Availability
5
Screw SPQ 44057801W Contact Us For Availability
5
Roller Catch Spacer SPQ 44293602 Contact Us For Availability
5
Lint Clip Bracket SPQ 44140202 Contact Us For Availability
5
Insulation SPQ 44150102 Contact Us For Availability
5
Thermistor SPQ 70296401 Contact Us For Availability
5
Lower Guard SPQ 44363501 Contact Us For Availability
5
Door Glass Installation Tool SPQ 44008401P Contact Us For Availability
5
Hinge Cam Kit SPQ 70576101 Contact Us For Availability
5
Key SPQ M402144 Contact Us For Availability
5
Slip Ring Holder SPQ 44224401 Contact Us For Availability
5
Key SPQ M413826 Contact Us For Availability
5
Exhaust Pipe Assembly SPQ 44327901 Contact Us For Availability
5
Burner Assembly SPQ 70356301 Contact Us For Availability
6
Contact Base SPQ F8538101 Contact Us For Availability
6
Panel Locator SPQ 44057801B Contact Us For Availability
6
Top Panel Bracket SPQ 44368201 Contact Us For Availability
6
Guard SPQ 44373501 Contact Us For Availability
6
SPQ 44088001 SPQ 44088001 Contact Us For Availability
6
Nut SPQ M4221P4 Contact Us For Availability
6
Nut SPQ 44208001 Contact Us For Availability
6
Trunnion Housing Assembly SPQ M400008 Contact Us For Availability
6
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
6
Airflow Switch Arm SPQ 70319202 Contact Us For Availability
6
Igniter Cover SPQ 70159601 Contact Us For Availability
7
Emergency Stop Harness SPQ 44272401 Contact Us For Availability
7
Expansion Clip SPQ 44057801LG Contact Us For Availability
7
SPQ 70289101P SPQ 70289101P Contact Us For Availability
7
Top Cover Pan SPQ 44129301P Contact Us For Availability
7
SPQ 44363902 SPQ 44363902 Contact Us For Availability
7
Nut SPQ 70442101 Contact Us For Availability
7
Door Handle SPQ M414215 Contact Us For Availability
7
SPQ 44349101 SPQ 44349101 Contact Us For Availability
7
Washer SPQ 44207901 Contact Us For Availability
7
Inverter Power Conversion Harness SPQ F8449502 Contact Us For Availability
7
SPQ 70319401 SPQ 70319401 Contact Us For Availability
8
Pushbutton Switch SPQ M400977 Contact Us For Availability
8
Lint Screen Clip SPQ H96418413 Contact Us For Availability
8
SPQ 44363901 SPQ 44363901 Contact Us For Availability
8
SPQ 70622401 SPQ 70622401 Contact Us For Availability
8
Fan Motor SPQ 44354903 Contact Us For Availability
8
L.P. Conversion Kit SPQ 44135605 Contact Us For Availability
8
Gas Burner SPQ 70396201P Contact Us For Availability
9
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
9
SPQ M410541P SPQ M410541P Contact Us For Availability
9
SPQ 44041901P SPQ 44041901P Contact Us For Availability
9
Jumper Harness SPQ 70529401 Contact Us For Availability
9
SPQ F8245101 SPQ F8245101 Contact Us For Availability
9
Spray Paint SPQ 44150105 Contact Us For Availability
9
SPQ 44377301 SPQ 44377301 Contact Us For Availability
9
Door Glass Label SPQ 44007901 Contact Us For Availability
9
Harness Strap SPQ M400035 Contact Us For Availability
10
Key SPQ 70155601 Contact Us For Availability
10
Accessory Plate Assembly SPQ F8734601 Contact Us For Availability
10
Screw SPQ 70033502 Contact Us For Availability
10
Screw SPQ 70072801 Contact Us For Availability
10
Pop Rivet SPQ M400003 Contact Us For Availability
10
Drive Access Cover SPQ 70202501 Contact Us For Availability
10
Screw SPQ 70296802 Contact Us For Availability
10
Cylinder Assembly SPQ 44057201P Contact Us For Availability
10
1 Circuit Plug Housing SPQ 44370401 Contact Us For Availability
10
V-Belt SPQ 44309402 Contact Us For Availability
11
Screw SPQ 44089302P Contact Us For Availability
11
Overlay SPQ F8736601 Contact Us For Availability
11
Screw SPQ F8206901 Contact Us For Availability
11
Screw SPQ 70247701 Contact Us For Availability
11
Rear Guard SPQ 44373401 Contact Us For Availability
11
Shaft Wire SPQ 44208702 Contact Us For Availability
12
Pop Rivet SPQ 70155602 Contact Us For Availability
12
Magnet SPQ 70343101 Contact Us For Availability
12
Micro V Pulley SPQ 44374001 Contact Us For Availability
12
Inverter Control Assembly SPQ 70603201 Contact Us For Availability
12
I/O Control Assembly SPQ 70671701 Contact Us For Availability
13
Screw SPQ F8734301 Contact Us For Availability
13
Door Latch SPQ 70182601 Contact Us For Availability
13
Side Panel SPQ 44367802W Contact Us For Availability
13
Top Guard SPQ 44364001 Contact Us For Availability
13
Door Hinge Assembly SPQ 70436301 Contact Us For Availability
13
Shaft Collar SPQ 70467001 Contact Us For Availability
13
Bushing SPQ 70346501 Contact Us For Availability
13
Plug SPQ 70167601 Contact Us For Availability
13
Gas Valve SPQ 44154506 Contact Us For Availability
14
Panel Locator SPQ 70126401 Contact Us For Availability
14
Blower Assembly SPQ 70302201P Contact Us For Availability
14
Wire Clip SPQ F8449501 Contact Us For Availability
14
End Stop SPQ F8449801 Contact Us For Availability
15
Kickplate SPQ 70126301 Contact Us For Availability
15
Pop Rivet SPQ 70603001 Contact Us For Availability
16
Drive Motor SPQ 44355006 Contact Us For Availability
16
Damper Assembly SPQ 44280301 Contact Us For Availability
16
Pop Rivet SPQ 685837 Contact Us For Availability
17
Spark Electrode SPQ 44154505 Contact Us For Availability
18
Lint Panel SPQ 70117619 Contact Us For Availability
18
Terminal Block SPQ 70333001 Contact Us For Availability
18
Switch Bracket SPQ 44135201 Contact Us For Availability
18
Spark Electrode SPQ 70548701P Contact Us For Availability
19
Gasket SPQ 70154415 Contact Us For Availability
19
Extension Spring SPQ 44355005 Contact Us For Availability
20
Reed Switch Assembly SPQ 70154405P Contact Us For Availability
20
Bearing SPQ M400650 Contact Us For Availability
21
Blind Rivet SPQ 44293605 Contact Us For Availability
21
Washer SPQ M413923P Contact Us For Availability
23
Ball Bearing SPQ 805213 Contact Us For Availability
NI
SPQ 70482901 SPQ 70482901 Contact Us For Availability
NI
Vend Activation Harness SPQ 44334004 Contact Us For Availability
NI
App Pay Overlay Kit SPQ 44087101 Contact Us For Availability
NI
App Pay Overlay Kit SPQ F8713906 Contact Us For Availability
NI
Wireless Control Label SPQ 204692 Contact Us For Availability
NI
Coin Drop SPQ 70294107 Contact Us For Availability
NI
Opto Coupler SPQ 70281102 Contact Us For Availability
NI
SPQ 38475 SPQ 38475 Contact Us For Availability
NI
SPQ 38464P SPQ 38464P Contact Us For Availability
NI
SPQ 210195 SPQ 210195 Contact Us For Availability
NI
SPQ 70513316 SPQ 70513316 Contact Us For Availability
NI
SPQ 70513314 SPQ 70513314 Contact Us For Availability
NI
SPQ 70513312 SPQ 70513312 Contact Us For Availability
NI
SPQ 70513309 SPQ 70513309 Contact Us For Availability
NI
SPQ 70513306 SPQ 70513306 Contact Us For Availability
NI
SPQ 70513303 SPQ 70513303 Contact Us For Availability
NI
SPQ 70482401 SPQ 70482401 Contact Us For Availability
NI
SPQ 70513311 SPQ 70513311 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK109 Contact Us For Availability
NI
SPQ CK101 SPQ CK101 Contact Us For Availability
NI
SPQ CK099 SPQ CK099 Contact Us For Availability
NI
SPQ CK121 SPQ CK121 Contact Us For Availability
NI
SPQ CK119 SPQ CK119 Contact Us For Availability
NI
SPQ CK116 SPQ CK116 Contact Us For Availability
NI
Wireless Network Harness SPQ F8674006 Contact Us For Availability
NI
Wireless Network Kit SPQ 70609701 Contact Us For Availability
NI
Door Switch Harness SPQ 70275801 Contact Us For Availability
NI
SPQ M411072 SPQ M411072 Contact Us For Availability
NI
SPQ D511476 SPQ D511476 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
Front Panel SPQ 44346307 Contact Us For Availability
NI
SPQ 44346305 SPQ 44346305 Contact Us For Availability
NI
SPQ 44052541 SPQ 44052541 Contact Us For Availability
NI
SPQ 44052538 SPQ 44052538 Contact Us For Availability
NI
SPQ 44052532 SPQ 44052532 Contact Us For Availability
NI
SPQ 70132301 SPQ 70132301 Contact Us For Availability
NI
SPQ 70030301 SPQ 70030301 Contact Us For Availability
NI
SPQ 70297601 SPQ 70297601 Contact Us For Availability
NI
SPQ 70404001 SPQ 70404001 Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
Porcelain Touch-Up Paint SPQ 44367702W Contact Us For Availability
NI
SPQ 44363601 SPQ 44363601 Contact Us For Availability
NI
SPQ M400661 SPQ M400661 Contact Us For Availability
NI
SPQ 70650401 SPQ 70650401 Contact Us For Availability
NI
SPQ 70071401 SPQ 70071401 Contact Us For Availability
NI
SPQ M404992 SPQ M404992 Contact Us For Availability
NI
SPQ 44195705P SPQ 44195705P Contact Us For Availability
NI
SPQ 44195706 SPQ 44195706 Contact Us For Availability
NI
SPQ M4644P3 SPQ M4644P3 Contact Us For Availability
NI
SPQ M4640P3 SPQ M4640P3 Contact Us For Availability
NI
SPQ 44336301 SPQ 44336301 Contact Us For Availability
NI
SPQ 44344702 SPQ 44344702 Contact Us For Availability
NI
SPQ 44333202 SPQ 44333202 Contact Us For Availability
NI
SPQ 44354901 SPQ 44354901 Contact Us For Availability
NI
SPQ 51783 SPQ 51783 Contact Us For Availability
NI
SPQ 70671001 SPQ 70671001 Contact Us For Availability
NI
SPQ 44375701 SPQ 44375701 Contact Us For Availability
NI
SPQ 44328802 SPQ 44328802 Contact Us For Availability
NI
SPQ 44355202 SPQ 44355202 Contact Us For Availability
NI
SPQ 70684112 SPQ 70684112 Contact Us For Availability
NI
SPQ 70684109 SPQ 70684109 Contact Us For Availability
NI
SPQ 44357504 SPQ 44357504 Contact Us For Availability
NI
High Altitude Orifice Kit SPQ 70684113 Contact Us For Availability
NI
SPQ 70684116 SPQ 70684116 Contact Us For Availability
NI
SPQ 70696807 SPQ 70696807 Contact Us For Availability
NI
SPQ 70696803 SPQ 70696803 Contact Us For Availability
× ![]()
